Getting Started
Set up the system access point (MXCWAPT)
PoE
Power over Ethernet (PoE)
Insert battery
Wi-Fi scan Channel selected
ConnectedSearching...
Speak Listen Ready to go!
Visit shure.com/mxcw for
more information
SBC930 MXCW640
MXCWAPT
Test the audio
Access point setup
Microphone unit setup
default
1. Connect the access point to Power over Ethernet (PoE) source to turn on the device.
2. Wait for the access point to scan the area.
3. The best Wi-Fi channel is automatically selected
Set up the microphone units (MXCW640)
PoE
Connect to power over ethernet
Insert battery
Wi-Fi scan Channel selected
ConnectedSearching...
Speak Listen Ready to go!
Visit shure.com/mxcw for
more information
SBC930 MXCW640
MXCWAPT
Test the audio
Access point setup
Microphone unit setup
default
1. Insert batteries to turn on the devices.
2. Wait for the microphone units to search for the default access point network (= default).
3. The units are ready when the LEDs stop flashing and the touchscreen displays the home-screen.
1/2©2017 Shure Incorporated
MXCW Getting Started
Check the audio
PoE
Connect to power over ethernet
Insert battery
Wi-Fi scan Channel selected
ConnectedSearching...
Speak Listen Ready to go!
Visit shure.com/mxcw for
more information
SBC930 MXCW640
MXCWAPT
Test the audio
Access point setup
Microphone unit setup
default

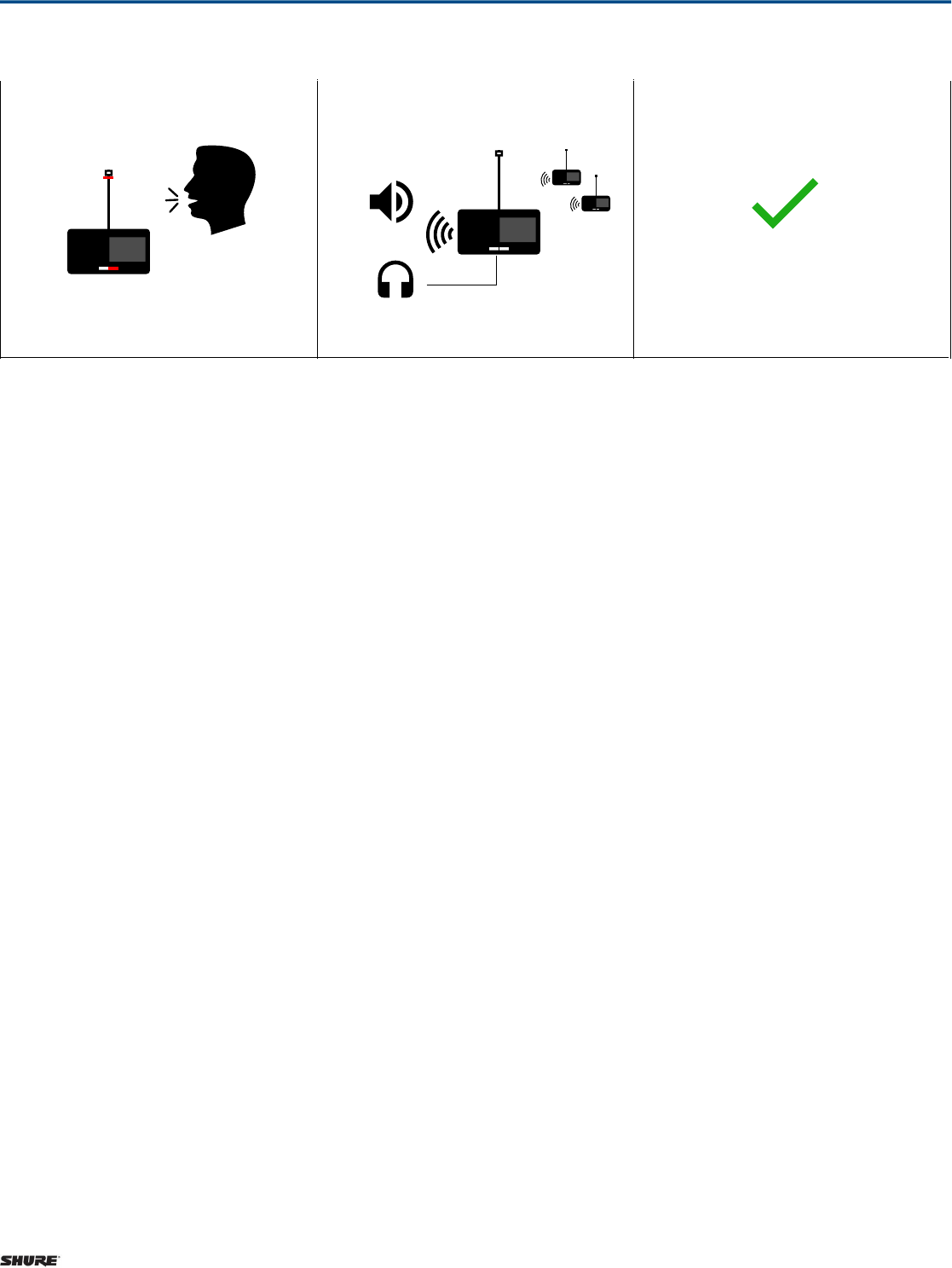

1. Turn on a microphone from one of the units.
2. Listen to the sound check on the other units' loudspeakers or headphone jacks.
Default system settings:
Maximum System Size
125 microphone devices
Wireless Encryption
Enabled
Wireless Network Name
default
Default meeting settings:
Meeting Mode
• Automatic (push to speak)
• No queue when the list is full
Maximum Total Speakers
8
Maximum Delegates
8
Shure IncorporatedMXCW Getting Started
2/2
