General Description
Features
Digital Audio
Receiver-controlled gain
Frequency Band Selection
More bands
Transmitter Presets
Send presets to the transmitter over a sync
Rechargeability
Shure’s lithium ion batteries offer unparalleled reliability and longevity in rechargeable technology. Transmitters offer accurate and instantaneous monitoring of bat-
tery life.
Networking

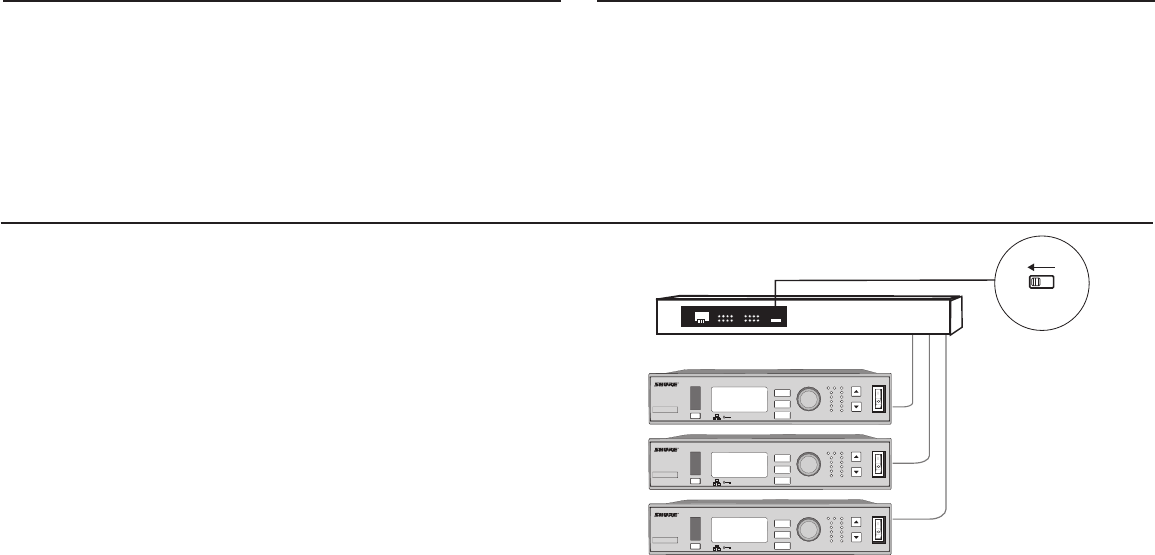

Each receiver has an RJ-45 port on the back for connecting to other receivers over an Ethernet network. Networking receivers allows you to automatically set
channels for all the receivers with a single group scan command. You can also control and monitor all networked receivers through the Shure Wireless Workbench
PC software.
PLACEHOLDER - COMING FROM MIKE J

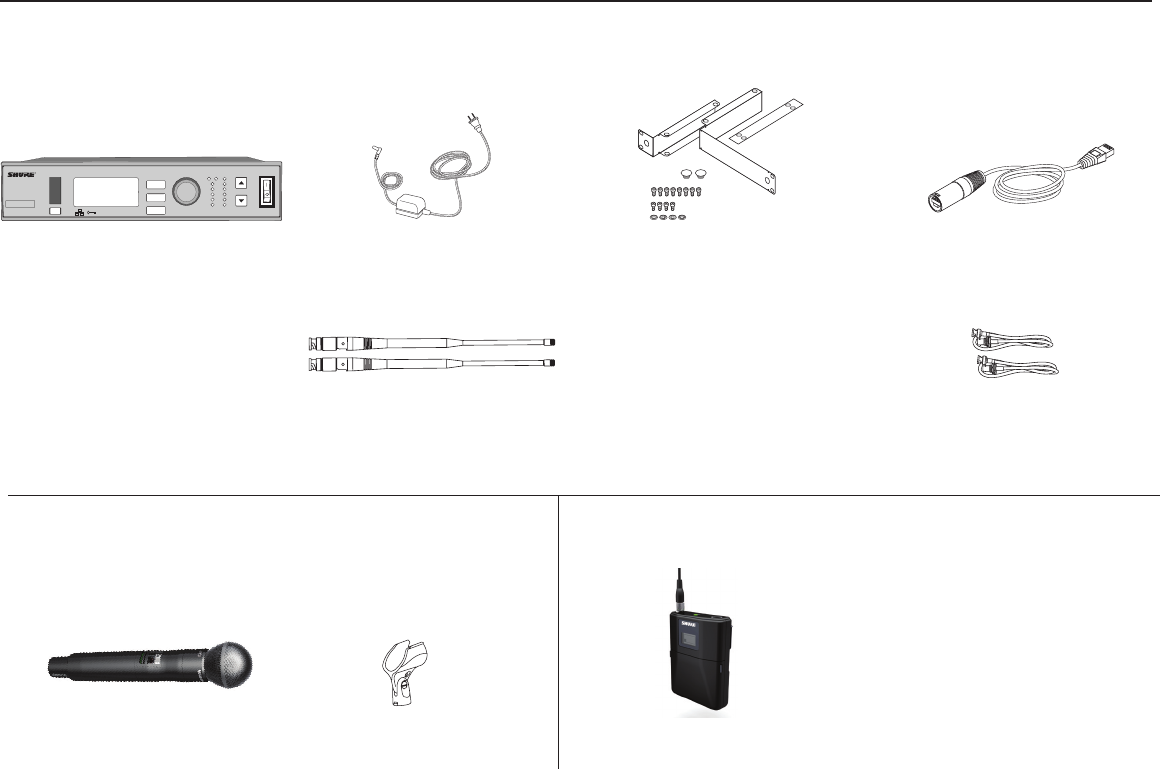

Furnished Accessories
Handheld Systems Bodypack System
ULXD4
Digital Wireless Receiver
sync push
control
ENTER
EXIT
SCAN
RF
A B
OL
OL
gain poweraudio
All Systems
ULXD4S Receiver PS41 Power Supply
1/2 Wave Antenna (2) 2’ BNC Cable (2)BNC Bulkead Adapters (2)
Rackmount Kit (1) 5’ Ethernet
Cable (1)
AA Alkaline
batteries (2)
ULXD2 Handheld
Transmitter
Microphone
Cartridge
Microphone Clip ULXD1 Bodypack Transmitter
• One of the following:WA302
instrument cable
• Beta 98H/C instrument
microphone
• Lavalier microphone (MX150,
MX153, WL183, WL184, WL185)
• WH30 headworn microphone
Draft 9/14/11
6
ULXD4
Digital Wireless Receiver
sync push
control
ENTER
EXIT
SCAN
RF
A B
OL
OL
gain poweraudio
12V OUT
150 mA
12V OUT
150 mA
ULXD2ULXD2
mic / linemic / linepowerpowerantenna . Bantenna . B antenna . Aantenna . A
15V 0.6A
inst / auxinst / aux
line
mic
www.shure.com
25
L5 644-800 MHz
2
3
3
4
4
5
5
1
11
8
8
910 11
6
6
7
7

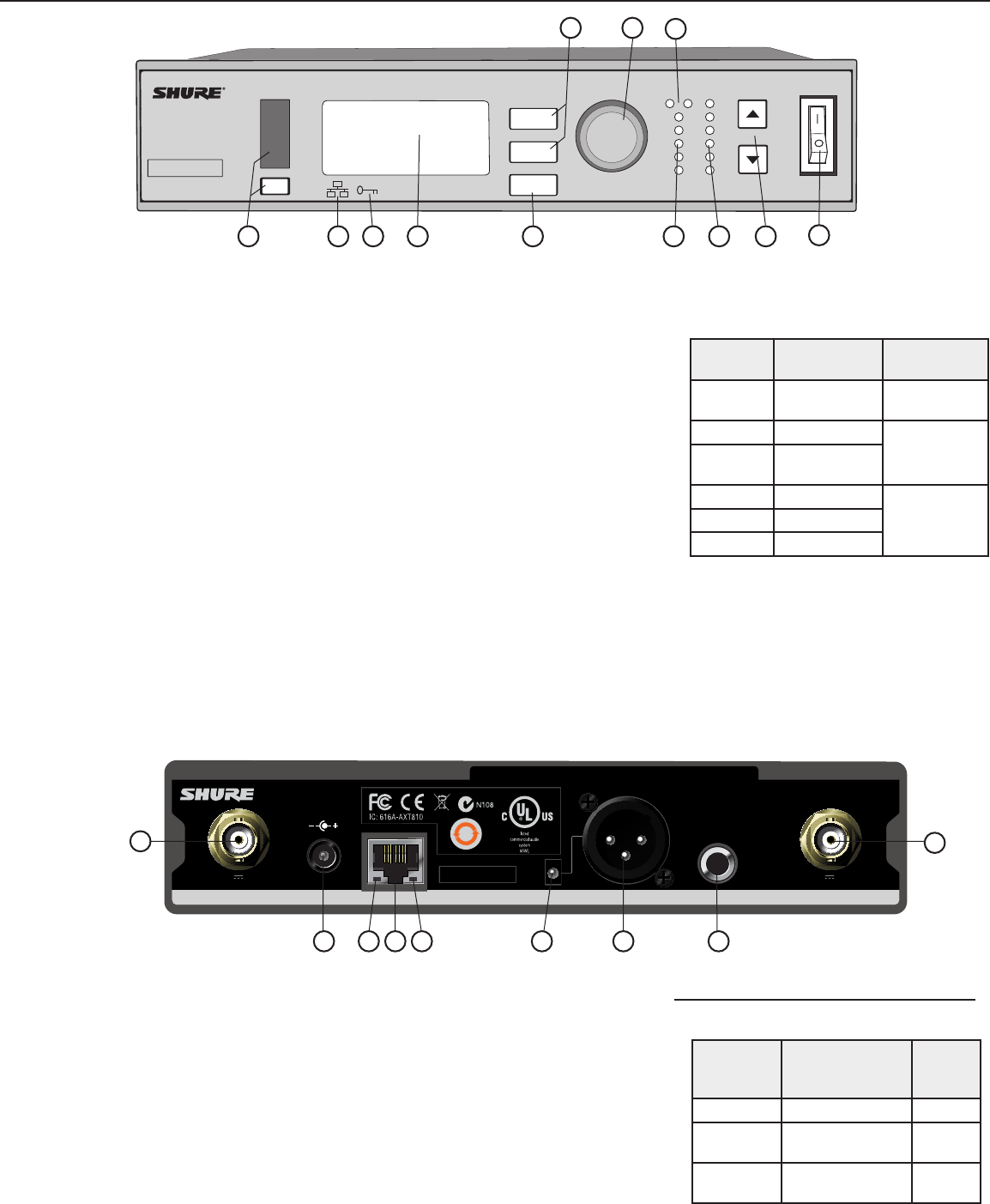

Front Panel
① Sync Button
Press the sync button while the receiver and
transmitter IR windows are aligned to transfer
settings from the receiver to the transmitter
② Infrared (IR) Sync Window
Sends IR signal to the transmitter for sync
③ Network Icon
Illuminates when the receiver is connected with
other Shure devices on the network. IP Address
must be valid to enable networked control
④ Encryption Icon
Illuminates when AES-256 encryption is
activated: Utilities > Encryption
⑤ LCD Display
Displays settings and parameters
⑥ Scan Button
Press to find the best channel or group
⑦ Menu Navigation Buttons
Use to select and navigate through parameter
menus
Back Panel
① RF Antenna Diversity Input Jack (2)
For antenna A and antenna B.
② Power Supply Jack
Connect the supplied 15 V DC external power
supply
③ Network Speed LED (Amber)
•Off = 10 Mbps
•On = 100 Mbps
④ Ethernet Port
Connect to an Ethernet network to enable
remote control and monitoring
⑤ Network Status LED (Green)
•Off = no network link
•On = network link active
•Flashing = network link active, flash rate
corresponds to traffic volume
⑥ Mic/Line Switch
Applies a 30 dB pad in mic position (XLR output
only)
⑦ Balanced XLR Audio Output
Connect to a mic or line level input
⑨ Balanced 1/4” (6.35 mm) TRS Audio Output
Connect to a mic or line level input
Receiver
12
⑧ Control Wheel
Push to select menu items for editing, turn to
edit a parameter value
⑨ RF Diversity LEDs
Indicate antenna status:
•Blue = normal RF signal between the receiver
and transmitter
•Red = interference detected
•Off = No RF connection between the receiver
and transmitter
Note: the receiver will not output audio unless
one blue LED is illuminated
⑩ RF Signal Strength LEDs
Indicate the RF signal strength from the
transmitter:
•Amber = Normal (-90 to -70 dBm)
•Red = Overload (greater than -25 dBm, see
Troubleshooting)
⑪ Audio LEDs
Indicate average and peak audio levels:
LED Audio Signal
Level Description
Red (6) -0.1 dBFS Overload/
limiter
Yellow (5) -6 dBFS
Normal peaks
Yellow/
Green (4) -12 dBFS
Green (3) -20 dBFS
Signal PresentGreen (2) -30 dBFS
Green (1) -40 dBFS

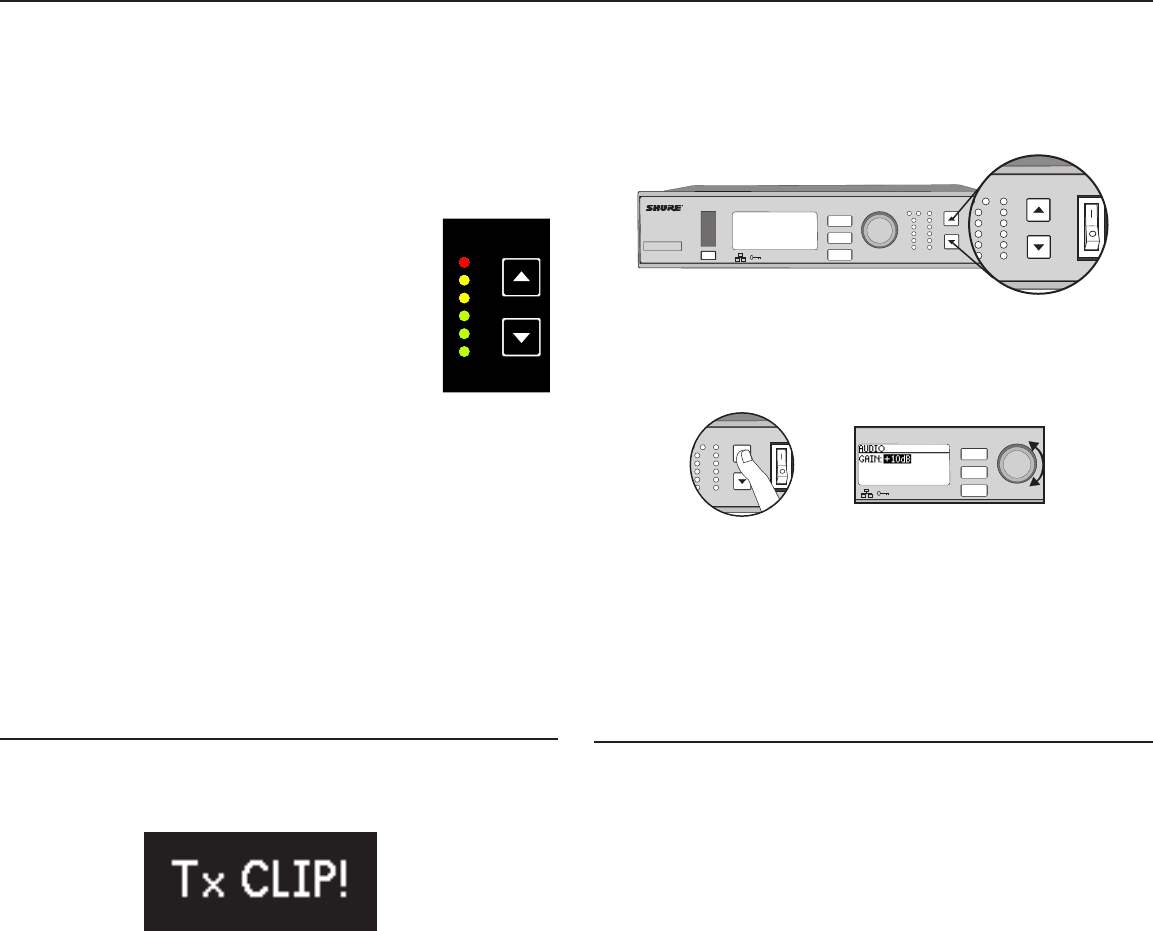

⑫ Gain Buttons
Adjust channel gain
⑬ Power Switch
Powers the unit on or off
Receiver Output Gain
Output
Jack
Output Level
(system gain = 0)
Full
Scale
Output
1/4” TRS 0 dB (unity) +12 dBV
XLR (line
setting) +6 dB +18 dBV
XLR (mic
setting) -24 dB -12 dBV
2
Draft 9/14/11
7
3 4
5
16

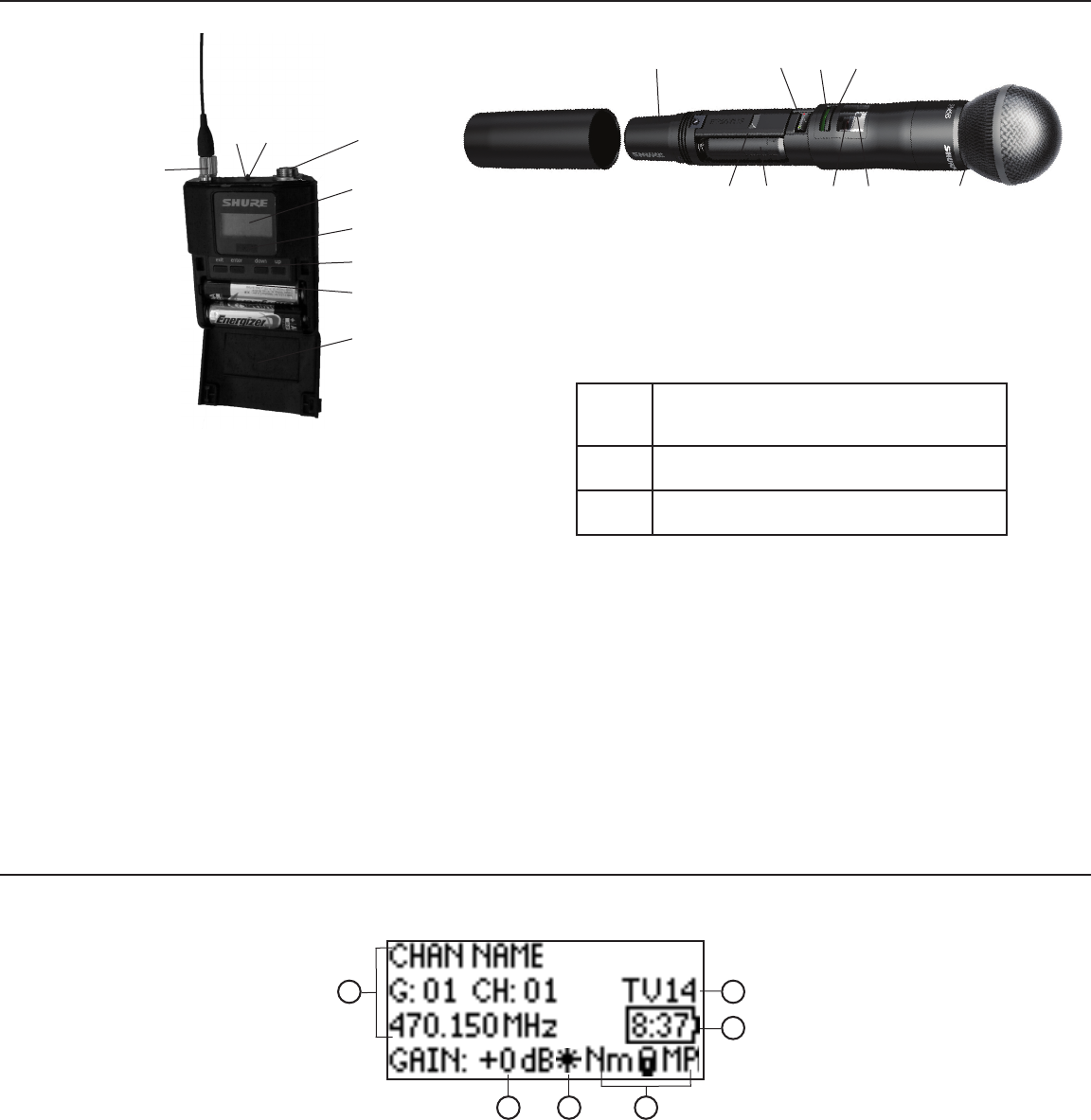

Transmitters
① Power LED
•Green = unit is powered on
•Red = low battery or battery error (see Troubleshooting)
•Amber = power switch is disabled
② On/Off Switch
Powers the unit on or off
③ TA4M Input Jack
Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable
④ LCD Display:
View menu screens and settings. Press any control button to activate the
backlight
⑤ Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated transmitter
programming
⑥ Menu Navigation Buttons
Use to navigate through parameter menus and change values.
exit
Acts as a ‘back’ button to return to previous
menus or parameters without confirming a value
change
enter Enters menu screens and confirms parameter
changes
▼▲ Use to scroll through menu screens and to change
parameter values
⑦ Battery Compartment
Requires Shure SB900 rechargeable battery or 2 AA batteries.
⑧ AA Battery Adapter
Handheld: rotate and store in the battery compartment to use a Shure re-
chargeable battery pack
Bodypack: remove to accommodate a Shure rechargeable battery pack
⑨ Detachable Bodypack Antenna
For RF signal transmission
⑩ Integrated Antenna
For RF signal transmission
⑪ Microphone Cartridge
See Optional Accessories for a list of compatible cartridges
①
②
②
③
④④
⑤⑤
⑥
⑥
⑦
⑦
⑧
⑧
⑨⑪
①
⑩

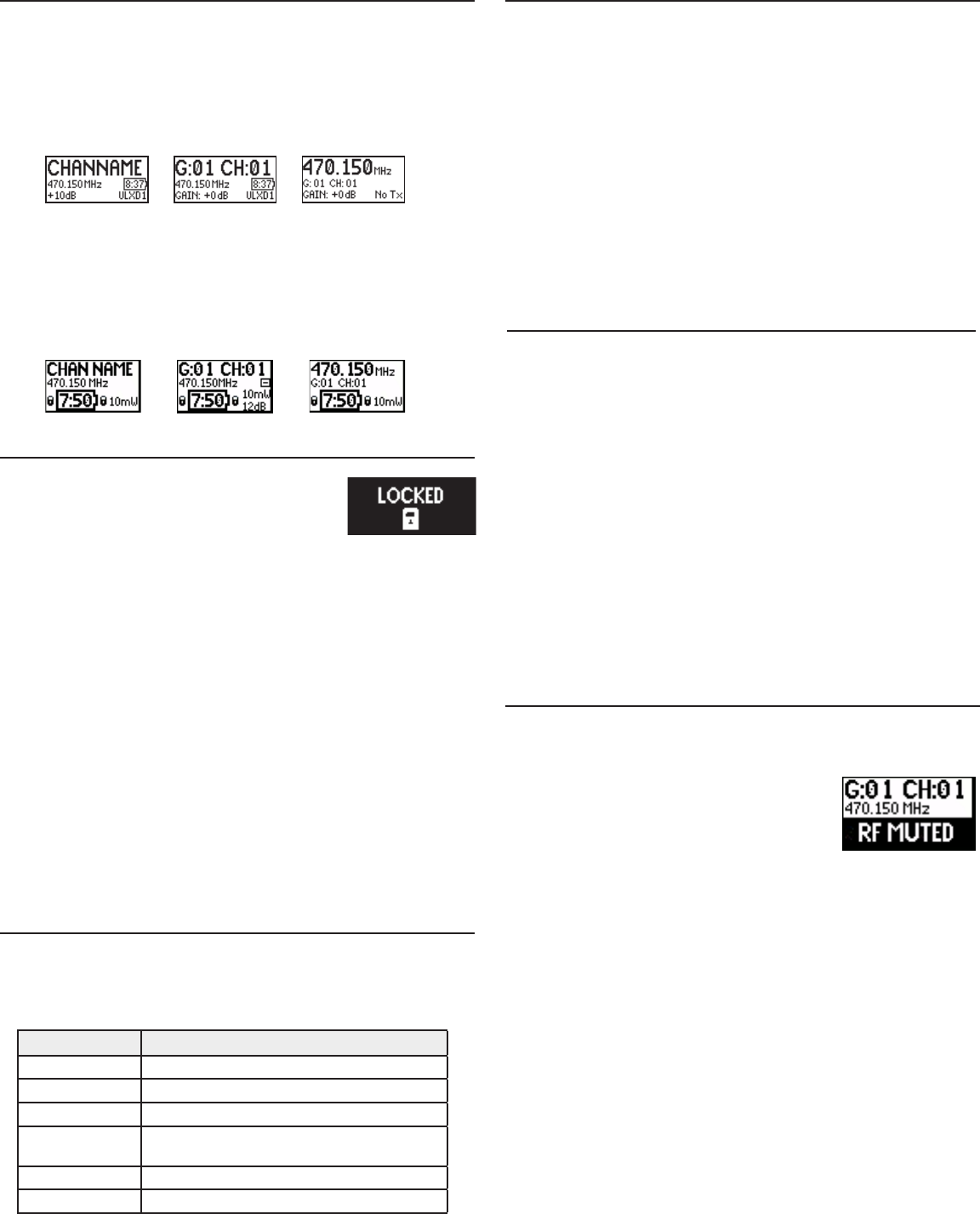

Home Screen
④ Transmitter Settings
The following information cycles when a
transmitter is tuned to the receiver’s frequency:
•Transmitter Type (ULXD1=Bodypack;
ULXD2=Handheld)
•Input Pad (Bodypack only)
•RF Power Level (Lo=1 mW; Nm=10 mW; Hi=20
mW)
•Transmitter Lock Status (M=Menu; P=Power)
Note: -No TX- is displayed when there is no RF
connection between a receiver and transmitter
⑤ Battery Runtime Indicator
Shure SB900 battery: runtime is displayed in
minutes remaining
AA Batteries: runtime is displayed with a 5-bar
indicator
⑥ TV Channel
Displays the TV channel that contains the tuned
frequency
Receiver
① Receiver Information
Use UTILITIES > HOME INFO to rearrange the
following information:
•Channel name
•Group
•Channel
•Frequency
② Gain Setting
0 to +60 dB, or Mute
③ Mic. Offset Indicator
Indicates the transmitter is set to a gain offset
value
2
ULXD2 4-Way Menu Navigation Button
Draft 9/14/11
8

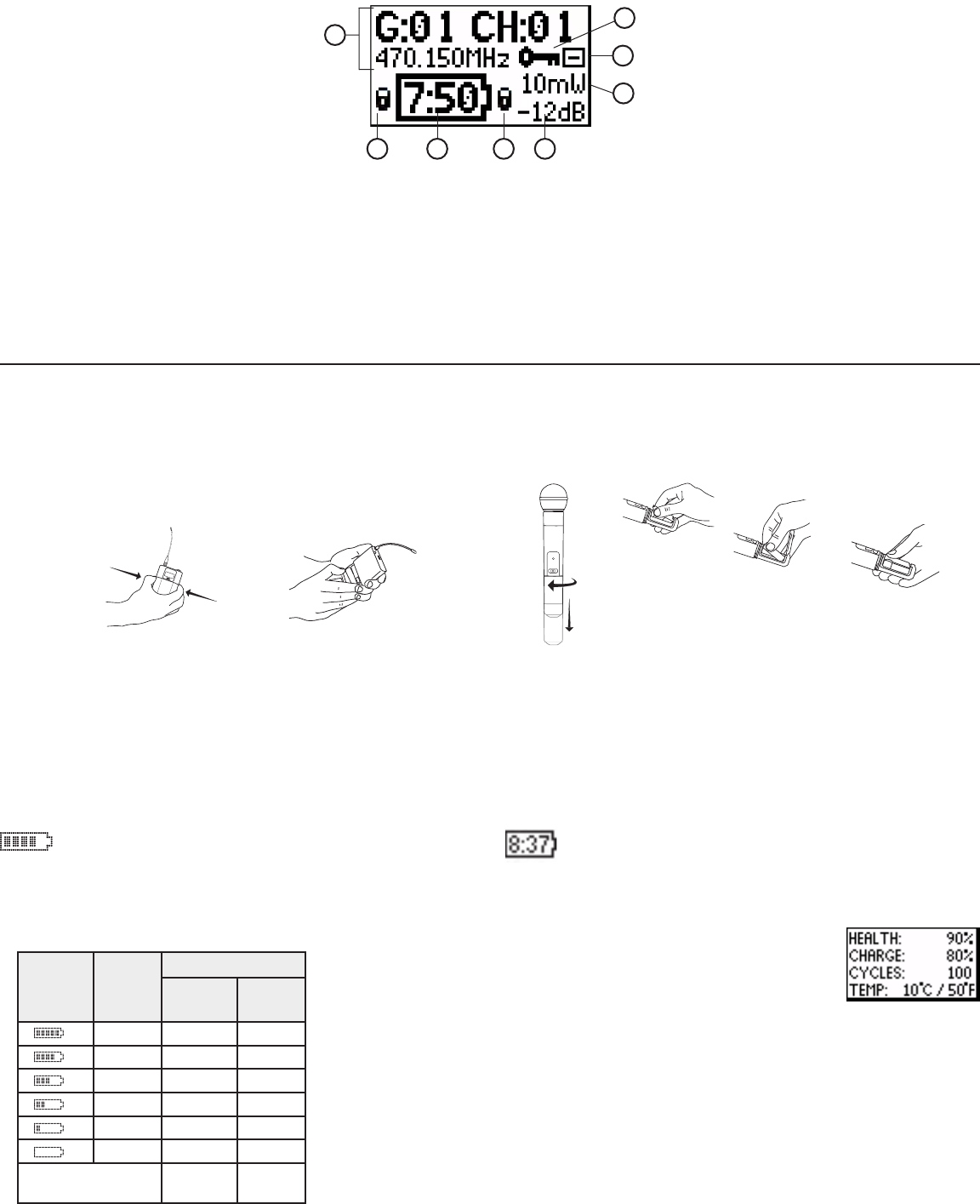

Batteries
The transmitter runs on two AA batteries or the Shure SB900 rechargeable battery.
PGXD
AA Batteries
A 5-segment icon on the receiver and transmitter menu screens indi-
cates battery charge.
For accurate battery runtime monitoring, set the transmitter to the appropriate
battery type: UTILITY > BATTERY > SET TYPE.
Shure SB900 Rechargeable Battery
When using an SB900 rechargeable battery, the receiver and
transmitter home screens display the number of hours and minutes
remaining.
Detailed information for the SB900 is displayed in the receiver BATTERY INFO
menu and the transmitter menu: UTILITY > BATTERY > BATT. STATS
HEALTH: Overall battery health
CHARGE: Percentage of a full charge
CYCLES: Number of times the battery has been charged
TEMP: Battery temperature in Celsius and Fahrenheit
Note: Reference the SB900 Battery and SBC800 Charger user guides for
additional rechargeable battery information.
AA Battery Runtime Chart
Battery
Indicator
LED
Color
RF Power Setting
1/10 mW 20 mW
Green
Green
Green
Green
Red
Red
Total Battery
Runtime ## ##
Drawings Needed:
1. Polarity
2. AA Clip storage
Transmitter
⑥ RF Power
Displays RF power setting
⑦ Bodypack Input Pad
The input signal is attenuated 12 dB
⑧ Encryption Icon
Indicates encryption is enabled on the receiver
and has been transferred to the transmitter from
a sync
① Transmitter Information
Scroll▲▼atthehomescreentorearrangethe
following information:
•Channel name
•Group
•Channel
•Frequency
② Power Lock Indicator
Indicates power switch is disabled
③ Battery Runtime
See Batteries for more details
④ Menu Lock Indicator
Indicates menu navigation buttons are disabled
⑤ Mic. Offset
Displays microphone offset gain value
3 4
1
25
6
7
8
Draft 9/14/11
9
sync
ENTER
EXITEXIT
SCANSCAN
powercontrol
push
RF
A B
audio gain
OL
OL
ULXD4
123456789
Setting Gain
Adjust gain at the receiver so that the average signal levels are solid green
and yellow with peaks that flicker the red overload LED. Attenuate the gain if
the signal overloads repeatedly.
Set the XLR output to line-level when possible to optimize noise performance.
Receiver Gain Controls
The receiver adjusts the system audio gain from 0 to +60 dB. No transmitter
gain is necessary to optimize the gain structure. This allows you to make ad-
justments during a live performance.
ULXD4
Digital Wireless Receiver
sync push
control
ENTER
EXIT
SCAN
RF
A B
OL
OL
gain poweraudio
RF
AB
L
OL
gain poweraudio
RF
A B
OL
OL
gain poweraudio
ULXD4
Digital Wireless Receiver
sync
push
control
ENTER
EXIT
SCAN
OL
Adjust Gain at the Receiver
Pressthe▲▼gain buttons on the front of
the receiver to adjust in 1 dB increments.
Large Gain Adjustments
Press and hold a
gain button
or
Use the control wheel in
the AUDIO menu
Reading the Audio Meter
Audio peaks illuminate the LEDs for 2 seconds while RMS
signal is displayed in realtime.
OL (Overload) LED: Illuminates red when the internal limiter
is engaged, preventing digital clipping.
Transmitter Input Clip
The following warning displays on the receiver LCD panel when the transmitter
input is clipped:
To correct, attenuate the signal source. If the source cannot be attenuated
while using a bodypack transmitter, select INPUT PAD from the main menu to
attenuate the input signal 12 dB.
Mic. Offset
Use this to compensate for signal level differences between transmitters that
share the same receiver.
Set the offset gain on a low signal level transmitter to match a louder transmit-
ter: Utility > Mic.Offset
Note: For normal gain adjustments, use the receiver gain buttons.
Mute
To mute the audio, use Wireless Workbench or a third-party control device.
Draft 9/14/11
10
Non-networked Receivers
1. Turn on all receivers.
2. Conduct a group scan on the first receiver to find the best group of frequen-
cies in your RF environment: SCAN > GROUP SCAN
3. Select a group that contains enough open frequencies to accommodate the
entire setup.
4. Turn on the transmitter and sync to the first receiver.
Repeat the following steps for each additional system:
5. Go to SCAN > CHANNEL SCAN on the receiver to select the group assigned
in step 2
6. Press the SCAN button to find the next best open frequency.
7. Press ENTER to assign the channel to the receiver.
8. Sync the transmitter to the receiver.
Multiple System Setup
A setup using networked receivers is the fastest and easiest way to distribute
the best open channel to each system. See Networking Receivers for network-
ing details.
Networked Receivers
1. Turn on all receivers.
2. Conduct a group scan on the first receiver to find the best group of frequen-
cies in your RF environment: SCAN > GROUP SCAN.
3. Press ENTER to accept the group number and automatically assign the next
best channel to each receiver on the network.
4. Turn on a transmitter and sync to the receiver. Repeat this step for each
additional system.
Use this procedure to tune a receiver and transmitter to the best open channel.
Important! Before you begin:
Scan and Sync
Turn off all transmitters for the systems you are setting up. (This prevents
them from interfering with the frequency scan.)
Turn on potential sources of interference such as other wireless systems or
devices, computers, CD players, large LED panels, effects processors, and
digital rack equipment so they are operating as they would be during the pre-
sentation or performance (so the scan will detect and avoid any interference
they generate).
1. Perform a channel scan on the receiver: SCAN > CHANNEL SCAN.
2. Select a group and press the SCAN button. SCANNING displays on the LCD
while it searches for an open frequency.
3. After the scan completes, the receiver displays the group, channel and
frequency of the best available channel. Press the flashing ENTER button to
save the value to the receiver.
4. Power on the ULXD transmitter.
5. Press the sync button on the receiver.
6. Align the IR windows until the receiver IR port illuminates red.
7. When complete, SYNC SUCCESS! appears. The transmitter and receiver are
now tuned to the same frequency.
2
3 4
5
1
6
RF Power
Reference the following table for setting RF Power:
RF Power
Setting Range Application
1 mW ≤100ft. For increased channel reuse at close
distances
10 mW ≤300ft. Typical setups
20 mW ≤420ft. For hostile RF environments or long-
distance applications
Note: Using the 20 mW setting decreases the transmitter battery runtime
and reduces the number of compatible systems. See the specifications
section for details.
Interference Detection
Interference Detection analyzes the quality of the RF signal and detects
interference conditions that have caused an audio signal dropout. When in-
terference is identified, the RF LEDS illuminate red and the following warning
displays on the receiver LCD panel.
Perform a Scan and Sync during a performance break if the warning display
persists or the audio drops out repeatedly.
RF
Draft 9/14/11
11
Manual Frequency Selection
To manually adjust group, channel or frequency, use the RADIO > SET FREQ
menu.
The receiver uses an Ethernet connection to network with other components.
For automatic network configuration, use a DHCP enabled Ethernet switch
such as the Shure AXT620. Use multiple Ethernet switches to extend the net-
work for larger installations.
Note: Note use only one DHCP server per network.
Automatic IP Addressing
1. If using a Shure AXT620 Ethernet switch, set the DHCP switch to ON.
2. Set the IP Mode to Automatic for all receivers: UTILITIES > NETWORKING >
CTRL NETWORK
ON OFF
DHCP
ULXD4
Digital Wireless Receiver
sync push
control
ENTER
EXIT
SCAN
RF
A B
OL
OL
gain poweraudio
ULXD4
Digital Wireless Receiver
sync push
control
ENTER
EXIT
SCAN
RF
A B
OL
OL
gain poweraudio
ULXD4
Digital Wireless Receiver
sync push
control
ENTER
EXIT
SCAN
RF
A B
OL
OL
gain poweraudio
Device ID
Name the receiver’s Device ID to easily identify it through the network or in
Wireless Workbench: UTILITIES > NETWORKING > Dev. ID
Networking Receivers
Automatic IP
Addressing with Shure
AXT620
Manual IP Addressing
1. Connect the receivers to an Ethernet switch.
2. Set the IP Mode to Manual for all devices (UTILITIES > NETWORKING >
MODE)
3. Set compatible IP addresses for all devices.
4. Set the subnet mask to the same value for all devices.
Troubleshooting
• Use only one DHCP server per network
• All devices must share the same subnet mask
• All receivers must have the same level of firmware revision installed
• Look for the illuminated network icon on the front panel of each device:
If the icon is not illuminated, check the cable connection and the LEDs on
the network jack.
If the LEDs are not on and the cable is plugged in, replace the cable and
recheck the LEDs and network icon.
To check connectivity of WWB6 to the network:
1. Start WWB6 software and use Inventory view to see devices connected to
the network.
2. If not, find the IP address from one of the devices on the network (such as
an ULXD receiver) and see if you can ping it from the computer running
WWB6.
3. From a WINDOWS/MAC command prompt, type ‘ping IPADDRESS’ of the
device (e.g. “ping 192.168.1.100”).
4. If the ping returns success (no packet loss), then the computer can see the
device on the network. If the ping returns failure (100% packet loss), then
check the IP address of the computer to ensure it’s on the same subnet as
the Axient device.
5. If the pings are successful and the devices still do not show up in the WWB6
inventory, check to ensure all firewalls are either disabled or allow the WWB
network traffic to pass to the application. Check that firewall settings are not
blocking network access.
Draft 9/14/11
12
Home Screen Display Options
Receiver
Edit the following parameters in the UTILITIES menu:
EDIT NAME: Edits the receiver’s channel name (transfers to the transmitter
during a sync).
HOME INFO: Changes the information displayed on the LCD home screen:
DISPLAY: Use BRIGHTNESS parameter to adjust the brightness of the LCD
panel, meter LEDs and front panel icons and CONTRAST parameter to adjust
the contrast of the LCD panel.
Transmitter
Home Screen: Pressthe▲▼arrowsatthehomemenutodisplayoneofthe
following screens:
Encryption
ULXD features Advanced Encryption Standard (AES-256) encryption, con-
forming to the US Government National Institute of Standards and Technology
(NIST) publication FIPS-197.
1. Enable encryption on the receiver: UTILITIES > ENCRYPTION. The encryption
symbol illuminates green and the LCD displays SYNC NOW FOR ENCYPTION.
2. Sync the transmitter to the receiver. The encryption symbol displays on the
transmitter.
Note: Any change to the encryption status on the receiver requires an
sync to transfer the setting to the transmitter. The Encryption Mismatch
warning will display on the receiver LCD panel if they are not on the same
setting.
Advanced RF
RF Mute
Use this to turn on a transmitter without interfering
with the RF spectrum.
Press and hold the exit button during power-on un-
til RF MUTED is displayed. To un-mute, restart the
transmitter.
Custom Groups
Use this feature to create up to six groups of manually selected frequencies
that can be exported to networked receivers to simplify system setup.
To create a custom group: UTILITES > ADVANCED RF > CUSTOM GROUPS
Note: Use Wireless Workbench or Wireless Frequency Finder to select the
best compatible frequencies. See www.shure.com for more information.
To export a custom group:
1. Go to UTILITES > ADVANCED RF > CUSTOM GROUPS > EXPORT. The follow-
ing screen will display.
2. Press the flashing ENTER button to export all custom groups to all receivers
on the network.
Antenna Bias
To turn off: UTILITES > ADVANCED RF > ANTENNA BIAS.
Locking Controls and Settings
Use the LOCK feature to prevent accidental or unauthor-
ized changes to the hardware. Attempting to access a
locked feature will display the following message:
Transmitter Presets
Use the TX SYNC SETUP menu to store settings on the receiver to transfer to
the transmitter during a sync. Each parameter has the default value KEEP,
which leaves that setting unaffected by a sync.
Feature Setting
BP PAD 0 dB, -12 dB
LOCK All, Power, Menu, None
RF POWER High, Mid, Low
BP OFFSET,
HH OFFSET 0 dB to +21 dB (in 3 dB increments)
BATT NiMH, Lithium, Alkaline
Cust. Group On, Off
Note: When Cust. Groups is set to on, it may take up to 30 seconds to com-
plete an IR sync.
System Reset
Use this feature to overwrite current settings with saved or factory default
settings.
Save a System Preset
To save the current receiver setup as a new preset: UTILITES >
SYSTEM RESET > SAVE > CREATE NEW PRESET.
Restore Settings
To restore saved or factory default settings:
1. Go to UTILITES > SYSTEM RESET > RESTORE.
2. Scroll to the preset or default settings option and press ENTER. The follow-
ing warning will display:
3. Press the flashing ENTER button to overwrite the current settings.
Receiver
UTILITIES > LOCK
MENU: All menu paths are inaccessible. To unlock, press the EXIT button, turn
the control wheel to select UNLOCKED and press ENTER to save.
GAIN: Gain adjustment is locked
POWER: Power switch is disabled
SCN/SYC: Cannot perform a Scan and Sync
Transmitter
UTILITY > LOCK
MENU: All menu paths are inaccessible. To unlock, press the ENTER 4 times:
UTILITY > LOCK > UNLOCKED
POWER: Power switch is disabled
Quick-Lock Option: To turn on the transmitter with its power and menu navi-
gationbuttonslocked,pressandholdthe▼buttonduringpower-onuntilthe
locked message is displayed.
Tounlock,turnthepowerswitchtotheoffposition,thenpressandholdthe▼
button while turning the power switch to the on position.
Draft 9/14/11
13
Command Response Table
Action COMMAND RESPONSE
View Transmitter Name GET DEVICE_NAME REPORT DEVICE_NAME vvvvvvvv
Set Channel Name SET x CHAN NAME vvvvvvvv REPORT x CHAN_NAME vvvvvvvv
Get Channel Name GET x CHAN NAME REPORT CHAN_NAME vvvvvvvv
Set Audio Level SET x AUDIO_IN_LVL vvvv REPORT x AUDIO_IN_LVL vvvv
View Audio Level GET x AUDIO_IN_LVL REPORT x AUDIO_IN_LVL vvvv
Set Transmitter Group & Channel SET x GROUP_CHAN gg,cc REPORT x FREQUENCY vvvvvvvvvvv REPORT
x GROUP_CHAN gg,ccvvv
View Transmitter Group & Channel GET x GROUP_CHAN REPORT x GROUP_CHAN gg,cc
Set Transmitter Frequency SET x FREQUENCY vvvvvvvvvvv REPORT x FREQUENCY vvvvvvvvvvv
REPORT x GROUP_CHAN --,--vvv
View Transmitter Frequency GET x FREQUENCY REPORT x FREQUENCY vvvvvvvvvvv
Set RF Tx Level SET x RF_TX_LVL vvvvvv REPORT x RF_TX_LVL vvvvvv
View RF Tx Level GET x RF_TX_LVL REPORT x RF_TX_LVL vvvvvv
Set RF Mute SET x RF_MUTE vvvv
1 = mute, 0 = unmute
REPORT x RF_MUTE vvvv
1 = mute, 0 = unmute
View RF Mute GET x RF_MUTE
1 = mute, 0 = unmute
REPORT x RF_MUTE vvvv
1 = mute, 0 = unmute
Set Audio Tx Mode SET x AUDIO_TX_MODE vvvv
1 = mono, 2 = point to point, 3 = stereo
REPORT x AUDIO_TX_MODE vvvv
1 = mono, 2 = point to point, 3 = stereo
View Audio Tx Mode GET x AUDIO_TX_MODE REPORT x AUDIO_TX_MODE vvvv
1 = mono, 2 = point to point, 3 = stereo
Set Audio Input Line Level SET x AUDIO_IN_LINE_LVL vvvv
0 = off (Aux), 1 = on (Line)
REPORT x AUDIO_IN_LINE_LVL vvvv
0 = off (Aux), 1 = on (Line)
View Audio Input Line Level GET x AUDIO_IN_LINE_LVL REPORT x AUDIO_IN_LINE_LVL vvvv
0 = off (Aux), 1 = on (Line)
Set Metering Rate SET x METER_RATE vvvvvvvvvvv
0 = off, value in milliseconds
REPORT x METER_RATE vvvvvvvvvvv
0 = off, value in milliseconds
View Metering Rate GET x METER_RATE REPORT x METER_RATE vvvvvvvvvvv
0 = off, value in milliseconds
Audio Meter Level REPORT x AUDIO_IN_LVL_L vvvvvvvvvvv REPORT x AUDIO_IN_LVL_L vvvvvvvvvvv
REPORT x AUDIO_IN_LVL_R vvvvvvvvvvv
SET Sent from the control system to the Shure device to change the value of a parameter. Used to set the parameter to a specific value. Once a
SET command is sent, the Shure device sends back a REPORT string with the current resultant setting.
GET Gets the current value of a parameter. Once a GET command is sent, the Shure device will send back a REPORT string with the current setting.
REPORT Reports the current value for a parameter. The REPORT string is sent from the Shure device to the Control system in response to a SET or GET
command. The REPORT string is also sent when the value of the parameter is changed on the Shure device.
Connecting to an AMX or Crestron System
The following messages can be used to communicate with an AMX or Crestron unit across an Ethernet connection.
Message Types
The control system sends the following command messages:
Syntax
All messages sent and received are ASCII characters.
1. Each message begins with a "<" followed by a space.
2. Each message ends with a space followed by an ">"
3. Each message is terminated by a carriage return and line feed (CRLF).
The control system may need to enter the hex value, equivalent to 0x0D0A.
Please see the control system user guide for information on entering car-
riage returns.
4. If the message is a box parameter, there should be no channel number in
the string.
Example Messages for Channel Parameters
• <REPORT 1 FREQUENCY 578000 >/0d/0a
Example Messages for Box Parameters
• <SET DEVICE_NAME Shure >/0d/0a
• <REPORT DEVICE_NAME Shure >/0d/0a
<GET 1 FREQUENCY >/0d/0a
3
12
Example Messages
Draft 9/14/11
14
Firmware
Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are developed to incorporate additional
features and enhancements. To take advantage of design improvements, new versions of the firmware can be uploaded and installed using the Firmware Update
Manager tool available in Shure’s Wireless Workbench® (WWB) software. Software is available for download from http://www.shure.com/wwb.
Perform the following steps to update the firmware for the ULXD system:
1. Download the latest firmware to WWB software: Tools > Firmware Update Manager. Click Check Now to view and download the latest versions.
2. Connect the receiver and computer to the same network.
3. Download the latest firmware to the receiver.
4. To transfer firmware to the transmitter, go to UTILITIES > TX FW UPDATE on the receiver.
5. Align the transmitter and receiver IR ports.
6. Press ENTER on the receiver to begin the download to the transmitter. IR ports must be aligned for the entire download, which can take 50 seconds or longer.
Once the download is complete, the receiver automatically begins the firmware update, which overwrites the existing firmware.
CAUTION! Do not turn off the receiver until the update is complete.
Troubleshooting
Issue See Solution...
No Sound Power, Cables, or RF
Faint sound or distortion Gain
Lack of range, unwanted noise bursts, or dropouts RF
Cannot turn transmitter off or change frequency settings, or can’t program receiver Interface locks
Encryption error message Encryption Mismatch
Power
Make sure that the receiver and transmitter are receiving sufficient voltage.
Use the 15 V DC power supply furnished with the ULXD4 receiver. Check the
battery indicators and replace the transmitter batteries if necessary.
Gain
Adjust the system gain on the front of the receiver. Ensure the output level
(XLR output only) on the back of the receiver corresponds to the input of the
mixing console, amplifier, or DSP.
Cables
Check that all cables and connectors are working correctly.
Interface Locks
The transmitter and the receiver can be locked to prevent accidental or unau-
thorized changes. A locked feature or button will produce the Locked screen on
the LCD panel.
Encryption Mismatch
Re-sync the receiver and transmitter after enabling or disabling encryption.
Radio Frequency (RF)
RF LEDs
If neither blue RF Diversity LED is illuminated, then the receiver is not detect-
ing the presence of a transmitter.
The amber RF Signal Strength LEDs indicate the amount of signal being
received. This signal could be from the transmitter, or it could be from an
interfering source, such as a television broadcast. If more than one or two
of the amber RF LEDs are still illuminated while the transmitter is off, then that
channel has too much interference, and you should try a different channel.
The red RF LED indicates RF overload. This will usually not cause a problem
unless you are using more than one system at the same time, in which case, it
can cause interference in the other system.
Compatibility
• Perform a Scan and Sync to ensure the transmitter and receiver are set to
the same group and channel.
• Look at the label on the transmitter and receiver to make sure they are in
the same band (G50, J50, L50, etc...).
Reducing Interference
• Perform a group or channel scan to find the best open frequency. Perform a
sync to transfer the setting to the transmitter.
• For multiple systems, check that all systems are set to channels in the same
group (systems in different bands do not need to be set to the same group).
• Maintain a line of sight between transmitter and receiver antennas.
• Move receiver antennas away from metal objects or other sources of
RF interference (such as CD players, computers, digital effects, network
switches, network cables and Personal Stereo Monitor (PSM) wireless
systems).
• Eliminate RF overload (see below).
Increasing Range
If the transmitter is more than 6 to 60 m (20 to 200 ft) from the receiver an-
tenna, you may be able to increase range by doing one of the following:
• Reduce interference (see above).
• Increase transmitter RF power level.
• Use an active directional antenna, antenna distribution system, or other
antenna accessory to increase RF range.
Eliminating RF Overload
If you see the red RF LED on a receiver, try the following:
• Reduce the transmitter RF power level
• Move the transmitter further away from the receiver—at least 6 m (20 ft)
• If you are using active antennas, reduce antenna or amplifier gain.
• Use omnidirectional antennas
Draft 9/14/11
17

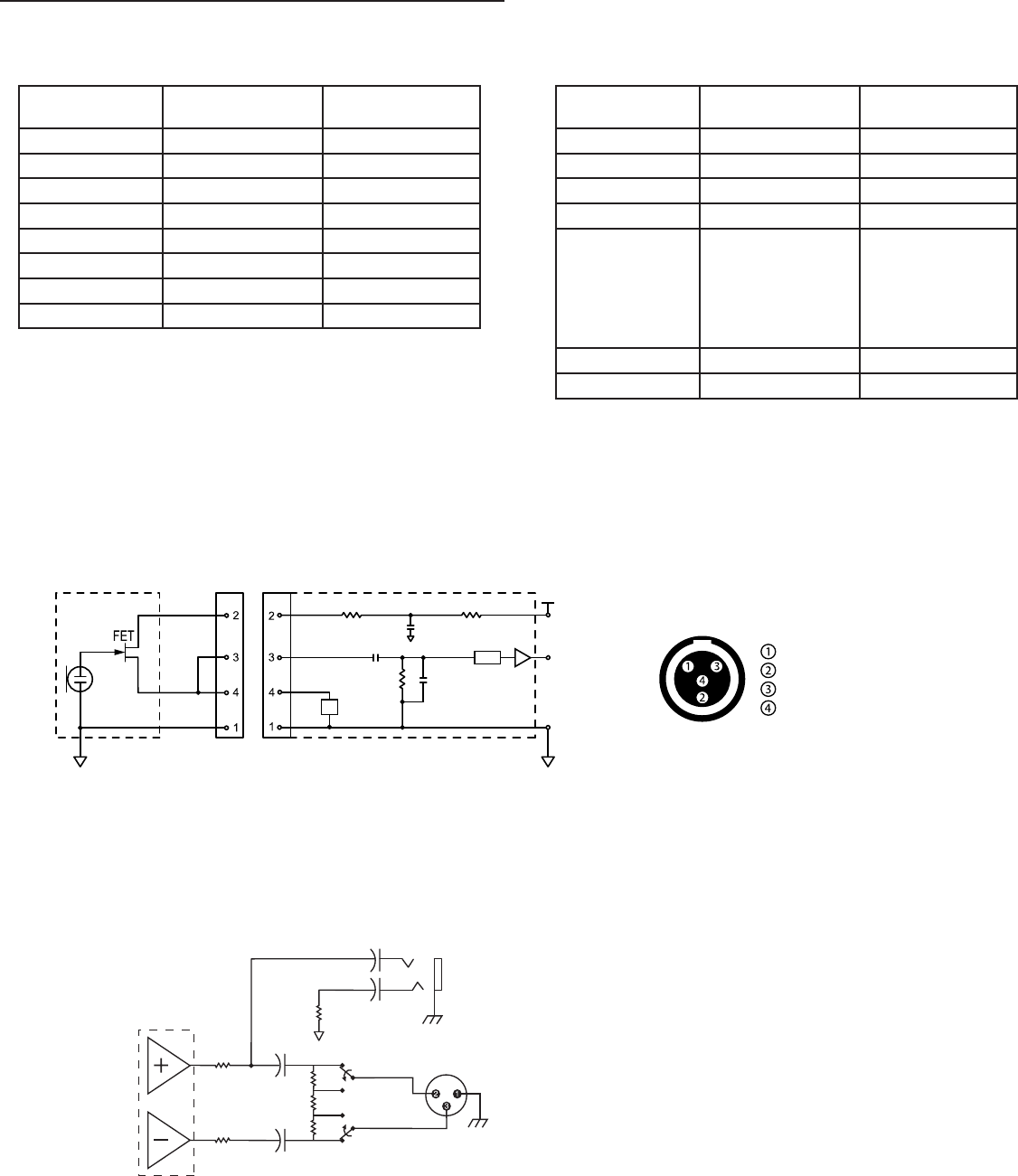

500 Ω 500 Ω
1M Ω
100 µF
470 pF
5 V DC
Active
Load
Ground
Bias Voltage
Audio Input
Active Load
Audio
Input
Ground
1µF
Pad
12dB
Z
50 Ω 22 µF
22 µF
22 µF
22 µF
50 Ω
-30 dB
50 Ω
mic/ line
instrument/ aux
ULXD1 TA4M Connector
ULXD4 Audio Outputs
Tables and Diagrams
8 V DC
Active Load
Audio Input
Frequency Range and Transmitter Output Power
Band Frequency Range
( MHz)
Power ( mW)
G50 470 to 534 1/10/20
G51 470 to 534 1/10/20
G52 479 to 534 1/10
H51 534 to 598 1/10/20
H52 534 to 565 1/10
J50 572 to 636 10/50
K51 606 to 670 1/10
L50 632 to 696 1/10/20
Band Frequency Range
( MHz)
Power ( mW)
L51 632 to 696 1/10/20
P51 710 to 782 1/10/20
R51 800 to 810 1/10/20
JB (Tx only) 806 to 810 1/10
AB (Rx and Tx) 770 to 810
“A” Freq (770.250-
805.750) : 20mW /
10mW / 1mW
“B” Freq: (806.125-
809.750) = 10mW /
1mW
Q51 794 to 806 10/50
X50 925 to 932 10
Draft 9/14/11
18
ULXD Single
Certifications
ULXD1, ULXD2, ULXD4
Meets essential requirements of the following European Directives:
• Low Voltage Directive 2006/95/EC
• R&TTE Directive 99/5/EC
• WEEE Directive 2002/96/EC, as amended by 2008/34/EC
• RoHS Directive 2002/95/EC, as amended by 2008/35/EC
Note: Please follow your regional recycling scheme for electronic waste
• Conforms to European Regulation (EC) No. 1275/2008, as amended.
Meets requirements of the following standards: EN 300 422 Parts 1 and 2, EN 301 489 Parts 1 and 9.
ULXD1, ULXD2
Certified under FCC Part 74.
Certified by IC in Canada under RSS-123 and RSS-102.
IC: 616A-ULXD1 G50, 616A-ULXD1 J50, 616A-ULXD1 L50; 16A-ULXD2 G50, 616A-ULXD2 J50, 616A-ULXD2 L50.
FCC: DD4ULXD1G50, DD4ULXD1J50, DD4ULXD1L50; 16A-ULXD2G50, DD4ULXD2J50, DD4ULXD2L50.
ULXD4
Approved under the Declaration of Conformity (DoC) provision of FCC Part 15.
Certified in Canada by IC to RSS-123.
IC: 616A-ULXD4 G50, 616A-ULXD4 J50, 616A-ULXD4 L50
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation of this device is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC
performance.
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.
shure.com
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: 49-7262-92 49 0
Fax: 49-7262-92 49 11 4
Email: info@shure.de
Information to the user
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or
modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equip-
ment is the user’s responsibility, and licensability depends on the user’s classification and application, and on the selected frequency. Shure strongly urges the
user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.
Draft 9/14/11
