English

! IMPORTANT SAFETY INSTRUCTIONS !

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance with the manu-

facturer's instructions.

8. DO NOT install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

9. DO NOT defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wider blade or the third

prong are provided for your safety. If the provided plug does not fit into your out-

let, consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. ONLY USE attachments/accessories specified by the manufacturer.

12.

13. UNPLUG this apparatus during lightning storms or when unused for long periods of

time.

14. REFER all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is dam-

aged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been

dropped.

15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled

with liquids, such as vases, on the apparatus.

USE only with a cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid

injury from tip-over.

This symbol indicates that dangerous voltage constituting a

risk of electric shock is present within this unit.

This symbol indicates that there are important operating and

maintenance instructions in the literature accompanying this unit.

WARNING:

Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. The

safety certifications do not apply when the operating voltage is changed from the factory setting.

English

Contents

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Feature Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Receiver Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Receiver LCD Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Receiver Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Automatic Frequency Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Networking Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Handheld and Bodypack Transmitter Controls and Connectors . . . . . . . . . . . . . . . . . .13

Transmitter LCD Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Transmitter Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Transmitter Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Setting Transmitter Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

RF Safety Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Automatic Transmitter Sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Replacement Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

UHF-R Wireless System Compatibility Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Shure UHF-R Wireless

Feature Overview

The UHF-R£ Wireless Microphone System uses the latest wireless technology, delivers outstanding audio clarity, and is rugged and

reliable. It is easy to set up and operate with advanced features for professional installations requiring multiple wireless microphone

systems.

Frequency Band Selection

Shure offers wireless systems in a selection of bands that conform to the different government regulations of specific nations or geo-

graphic regions. These regulations help limit radio frequency (RF) interference among different wireless devices and prevent interfer-

ence with local public communications channels, such as television and emergency broadcasts.

The system’s band and frequency range are identified on the face of the receiver and transmitter. For example, “H4 518–578 MHz.”

For information on bands available in your area, consult your local dealer or phone Shure. More information is also available at Shure’s

website (www.shure.com).

Groups and Channels

To transmit audio through a wireless system, the transmitter and receiver must be set to the same radio frequency, or channel. A wide

selection of channels allows more microphones to be used at the same time, since each microphone must operate on a different chan-

nel. It also provides a greater choice of open channels—those that are free from interference from television broadcasts, electronic

devices, or other wireless systems.

A group is a selection of compatible channels. Wireless microphones work better together when set to channels in the same group.

Automatic Frequency Selection

The following features scan the RF environment to find the best group and channel settings for a particular installation.

•

Group Scan

—finds the group with the most open channels, then sets all networked receivers to channels in that group.

•

Channel Scan

—finds the first open channel in the currently selected group and sets the receiver to that channel.

Follow the steps on page 11 for instructions on using these features.

Automatic Transmitter Sync

This feature automatically transfers the group and channel settings from a receiver to a transmitter. You can also program other trans-

mitter settings on a receiver and transfer those settings too. See page 15.

Interface Lock

This feature locks the receiver and transmitters so that users cannot change settings. The transmitter power switch can also be dis-

abled so that the transmitter remains on if the power switch is accidentally toggled during a performance.

Audio Gain Structure

The following settings allow you to adjust audio gain throughout the system:

•

Sensitivity

(bodypack only). A 25 dB range of gain adjustment at the bodypack transmitter input.

•

Transmitter Gain.

A 30dB range of audio gain adjustment within the transmitter (affects audio level at the receiver, as indicated by

the

Audio

LEDS.)

•

Output Level.

32 dB of attenuation at the receiver output, plus a mute setting.

•

Mic/Line switch.

–30 dB pad for matching audio levels at the receiver XLR output.

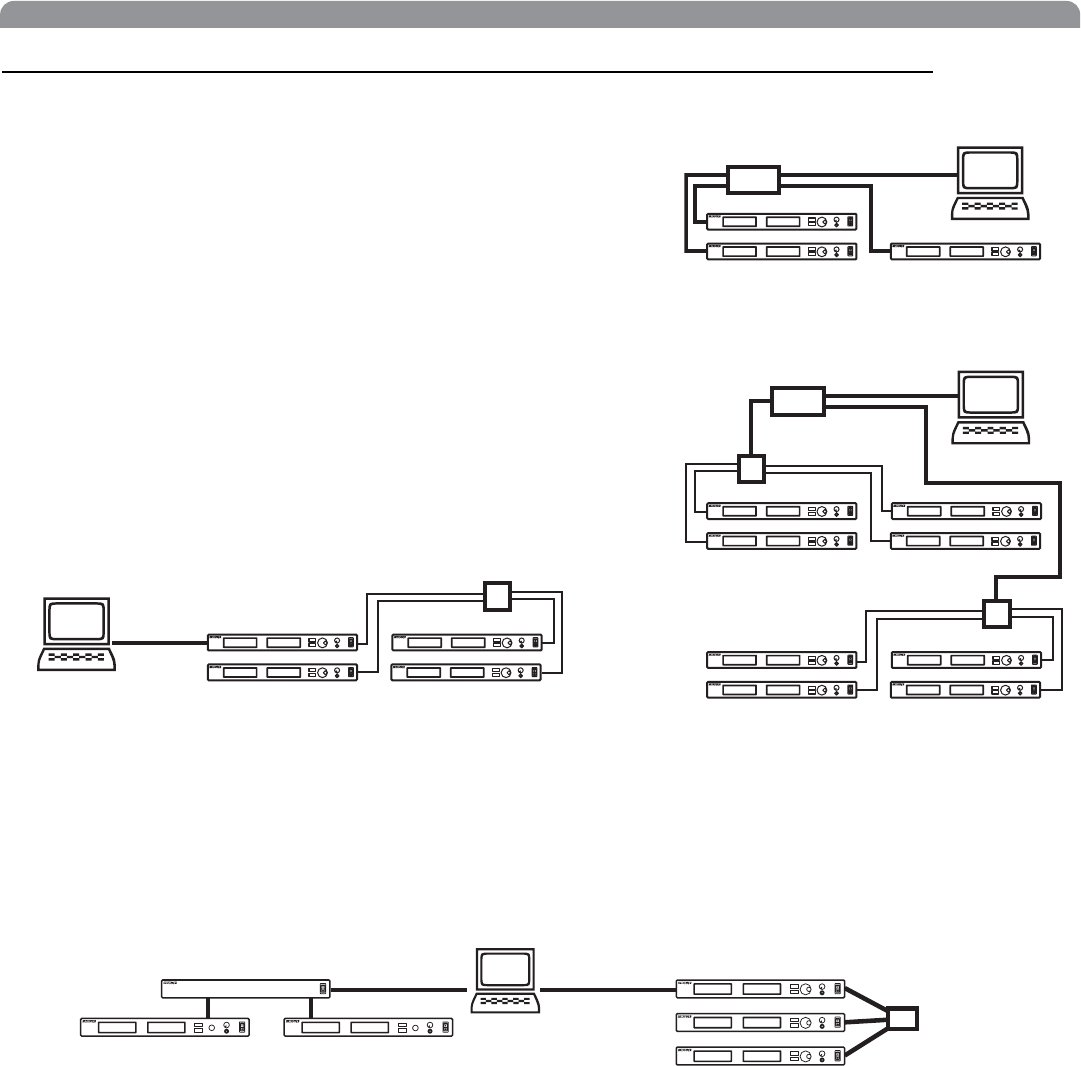

Networking

Each receiver has an RJ-45 port on the back for connecting to other receivers over an Ethernet network. Networking receivers allows

you to automatically set channels for all the receivers with a single group scan command. You can also control and monitor all net-

worked receivers through the Shure Wireless Workbench PC software.

Shure Wireless Workbench Software

The Shure Wireless Workbench software on the supplied CD includes a variety of useful tools for installing and managing multiple

wireless systems. Simply install the software on your computer and connect it to a network of receivers to monitor and control receivers

and transmitters throughout the network. (See page 12 for more information on networking.)

Instructions on using the Wireless Workbench software are available in the online help files after you install the software.

English

System Components

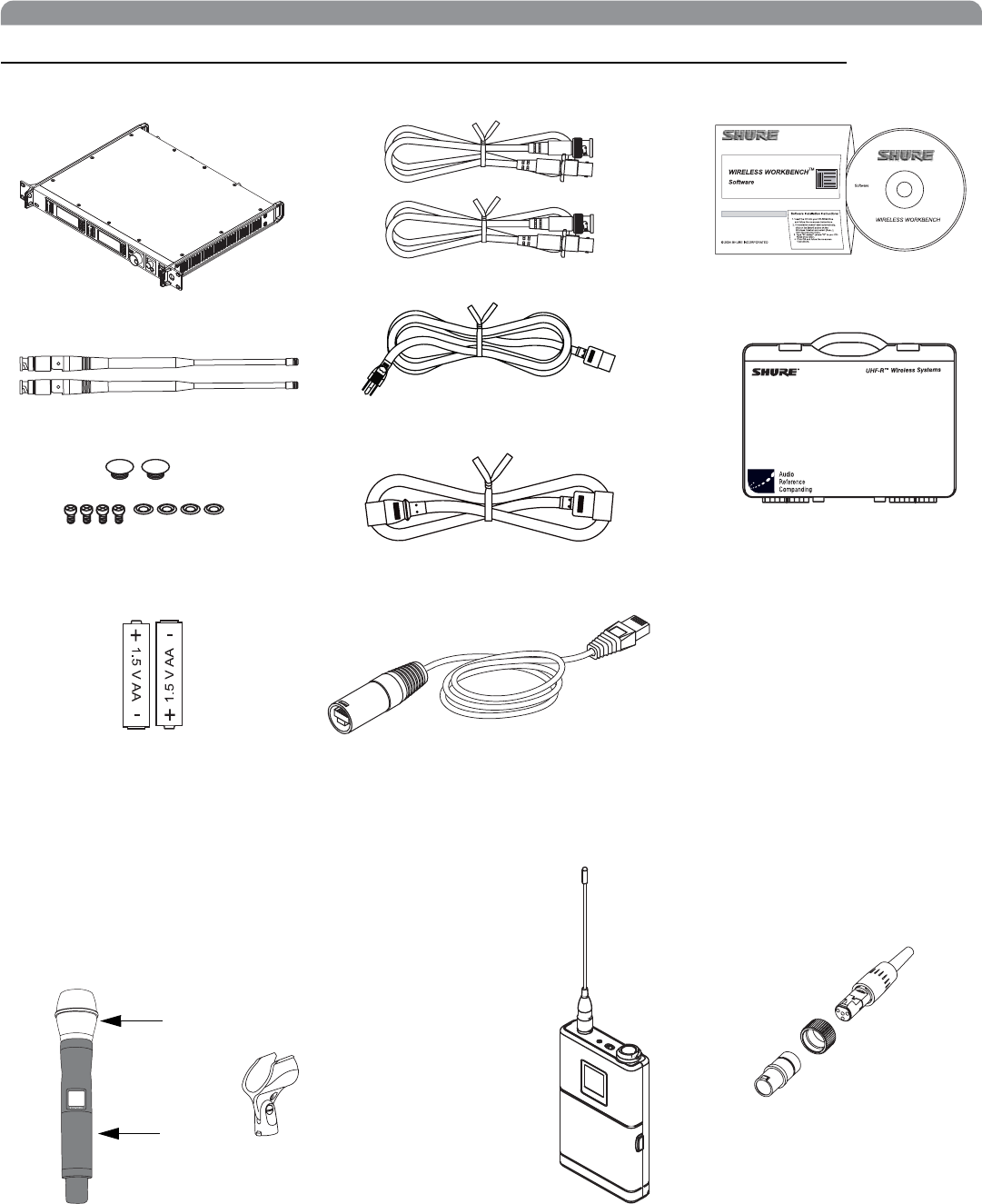

All systems include:

Handheld Systems Include:

쐃Microphone Head (choice of SM58®, SM86, Beta 58A®, Beta

87A™, Beta 87C™ or KSM9/BK, KSM9/SL)

쐇UR2 handheld transmitter

쐋Microphone clip

Bodypack Systems Include:

Shure’s Wireless Workbench Software

UR4S or UR4D Receiver

(UR4D pictured)

IEC Power Extension Cable

Transmitter Carrying Cas

Two Antenna Cables

2 Antenna hole plugs

4 Rack Mount Screws with Washers

Two 1/2 Wave Antennas

AA Batteries Ethernet Network Cable with “Ruggedized” plug

IEC Power Cable

쐃

쐇

쐋

UR1 Bodypack Transmitter

Threaded TA4F Adapter

Shure UHF-R Wireless

Receiver Controls and Connectors

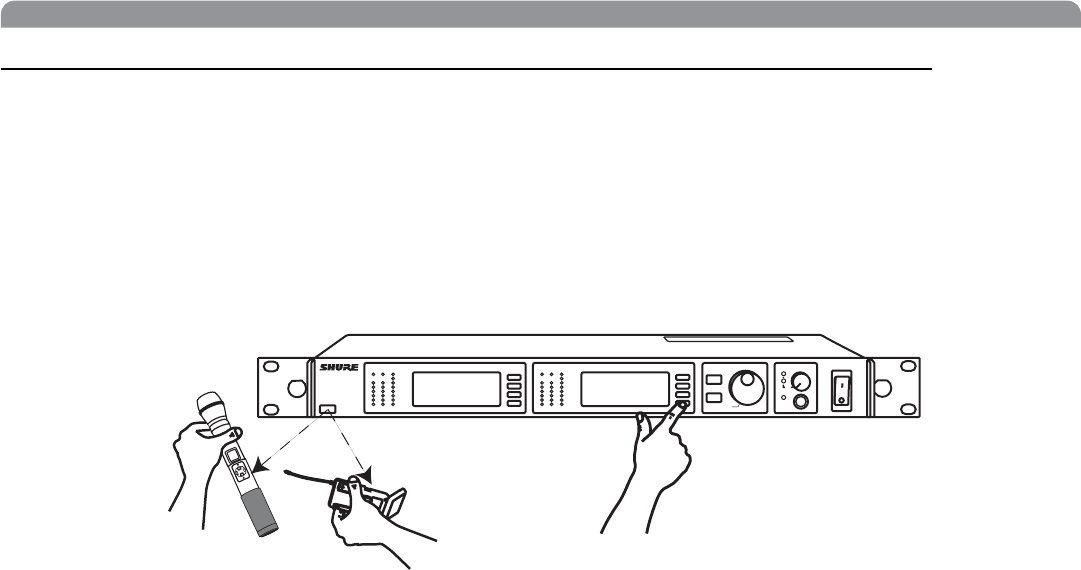

쐃SYNC Infrared (IR) port. Transmits group, channel, and other

settings to a transmitter. See page 15.

쐇Squelch LEDs.

• Blue (On) = Transmitter signal detected

• Off = no signal or signal squelched because of poor reception

or no tonekey

NOTE: The receiver will not output audio unless at least

one blue LED is illuminated.

쐋RF LEDs. Indicate RF signal strength from the transmitter at

each antenna and diversity condition.

•Amber=normal

• Red = overload (greater than –25 dBm)

쐏Audio LEDs. Indicate audio signal strength from transmitter.

• Green = signal present

• Yellow = normal peak

•Red=overload

To correct this level, adjust the transmitter gain.

쐄Indicates the name and range of receiver frequency band.

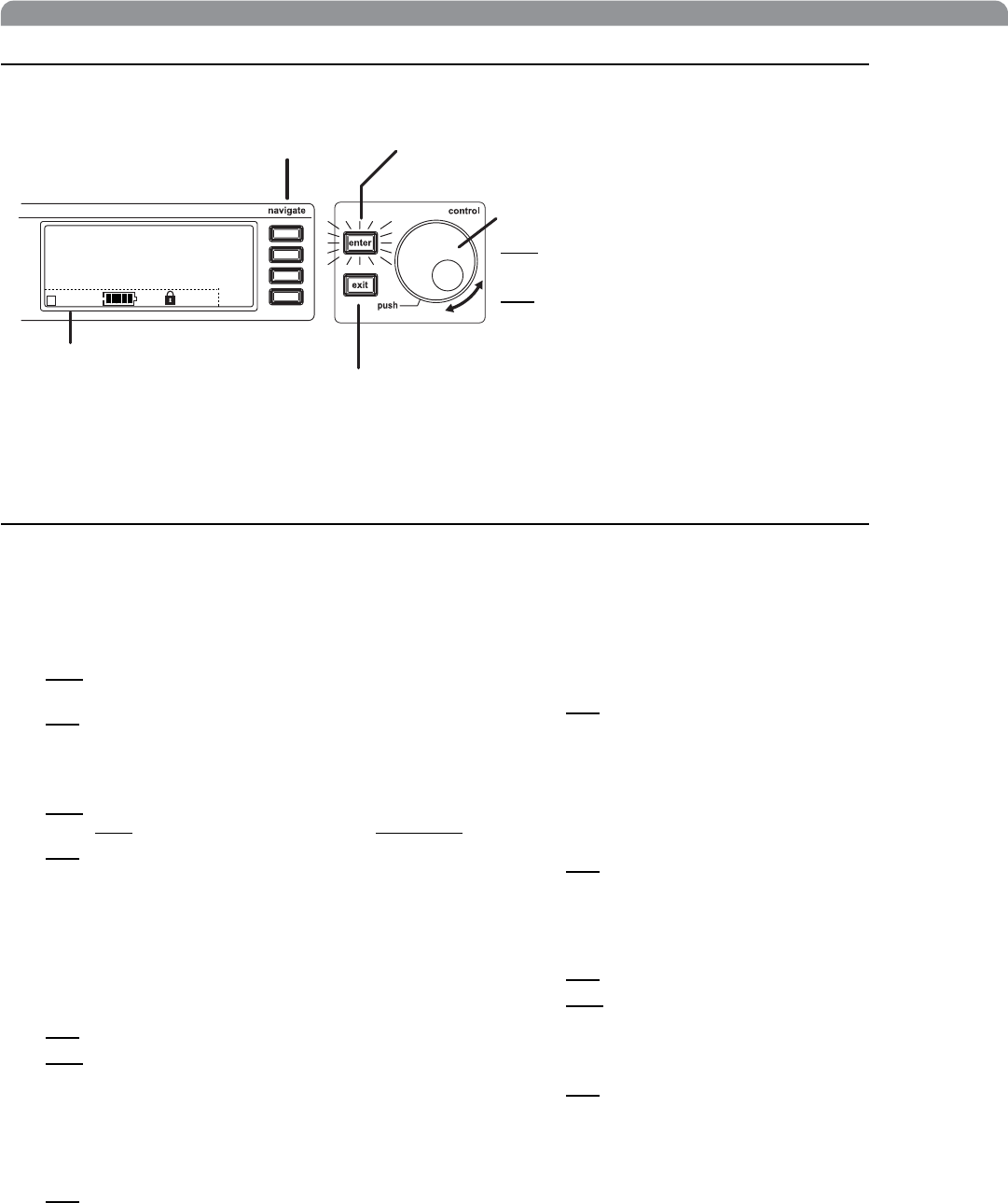

쐂LCD Interface. Provides a convenient way to program the

receiver from the front panel (see detail on next page).

쐆Monitor. 1/4” output jack and volume knob for headphones.

•

Monitor Clip

LED indicates headphone audio is clipping.

•

Dual models

: Push the knob to switch from receiver one to re-

ceiver two.

쐊Power switch. Powers the unit on and off.

쐎AC mains power input, IEC connector. 100–240 Vac.

쐅AC mains power passthrough (unswitched). Use with an IEC

extension cable to supply AC power to another device.

쐈Diversity antenna inputs A and B.

Note: Antenna inputs are DC biased. Use only antenna

combiners and accessories listed in page 19. Some

types of antenna splitters or other products may short

the DC power and damage the receiver.

쐉Mic/Line switch. Changes output level –30 dB (XLR output

only).

씈Electrically balanced XLR output jack

씉Lift/GND switch. Lifts ground from Pin 1 of the XLR connec-

tor (default = GND).

씊Impedance balanced 1/4” output jack (200:)

씋USB jack for computer interface.

씌RJ-45 jack for Ethernet network interface. Accepts both regu-

lar and “ruggedized” RJ-45 plugs.

씍Temperature-activated fan ensures top performance in high

temperature environments. Clean fan screen as needed to

remove dust.

antenna A in

12.7V out

150mA

receiver outputs

lift

GND

line

mic

sync

RF Audio

XX YYY-ZZZ MHz Navigate

ENTER

EXIT

OFF

push

Control POWER

Monitor

Monitor Clip

push

antenna B in

12.7V out

150mA

networking

ethernet

RJ-45

4 5

6 7 8

10 11 11

12 13 14 15 16 17

UR4S

Wireless Receiver

with Audio Reference Conpanding



200ȍ

balanced low Z

network

activity

English

Receiver LCD Interface

Receiver Parameters

Use the following instructions to set parameters through the LCD interface.

NOTE: After adjusting a parameter, you must press the flashing ENTER button to accept the change.

Group and Channel

Menu: Radio

•Push the

Control

wheel to move the cursor to the Group (

)

or Channel (

) parameter.

•Turn the

Control

wheel to change the parameter.

Frequency

Menu: Radio

•Push the

Control

wheel to move the cursor to the integer

value (

741.000 MHz

) or fractional value (

741.025

•Turn

the

Control

wheel to change the value.

Automatic Transmitter Sync

Menu: Sync

• See page 15.

Receiver Name

Menu: Util

•Turn the

Control

wheel to change the letter.

•Push

the

Control

wheel to move to the next letter.

Output Level

Menu: Audio

This setting adjusts the signal level at the XLR and 1/4” audio

output jacks.

•Turn the

Control

wheel to change the relative level in dB.

(0 dB to –32 dB).

• Turn the wheel all the way down to mute the outputs.

Squelch

Menu: Radio > Squelch

•Turn the

Control

wheel to change the parameter

Receiver Lock

When locked, the receiver settings cannot be changed from the

front panel. However, you can still navigate the LCD menu to

view the settings (and turn the lock off).

Menu: Util > Lock

•Turn the

Control

wheel to toggle the lock on or off (

OFF

LCD View

Menu: Util > Title

•Turn the

Control

wheel to mark an item for display.

•Push the

Control

wheel to move to the next item.

LCD Contrast

Menu: Util > Contrast

•Turn the

Control

wheel to increase or decrease contrast.

Tonekey

Menu: Radio > Squelch >Tonekey

Tonekey squelch mutes the outputs unless the receiver detects

a transmitter. Tonekey should be left on (On) except for certain

troubleshooting operations.

Radio

Audio

Util

SHURE

G: 3 Ch: 1 Out: -0dB

+12 dB

524-025 MHz TV: 32

Sync

F, P, FP

Accept Changes

After changing a parameter, the ENTER button flashes.

Press it to save the value.

Cursor Control

Push

the Control wheel to move the

cursor to the next item.

Turn

the Control wheel to change a

parameter value.

Exit/Cancel

Press the Exit button to cancel changes and

return to the previous menu.

Menu Access

Press the Navigate key next to the

menu item you want to select.

Transmitter Status Display

Everything under the dotted line reflects

the settings for the transmitter, if present.

(main title screen only).

Shure UHF-R Wireless

Network Parameters

NOTE:

• The receiver reboots after you press

ENTER

to accept net-

work parameter changes

• In dual models (UR4D), these settings affect

both

receivers

(the dual receiver is treated as a single network device).

Set the Receiver Network Mode

Menu: Util > Network

Push

the Control wheel to move the cursor to the Mode

parameter.

Turn

the Control wheel to set the receiver to one of the

following values:

•

DHCP

: use this setting when connecting the receiver to a

DHCP server.

•

Manual

: allows you to set the receiver to a specific IP ad-

dress or subnet.

IP Address and Subnet

Menu: Util > Network

NOTE: To change these settings, the network mode must be

set to Manual.

Push

the Control wheel to move the cursor to any of the

following parameters:

•

(IP address)

•

Sub

(Subnet mask)

Turn

the Control wheel to change the value.

Device ID

Assists in identifying receivers through the Wireless Work-

bench Software (has no effect on network identification).

Menu: Util > Network

Push

the Control wheel to move the cursor to the

DevID parameter.

Turn

the Control wheel to set the receiver to change the

value.

Custom Groups

This feature allows you to create your own groups of

frequencies.

Creating new groups...

Menu: Radio > Custom

Turn

the Control wheel to select a custom group number

(U1,U2,U3, etc.)

Push

the Control wheel to move to the

Channel parameter and

turn

it to select a

channel (01,02,03, etc.)

Push

the Control wheel to move to the Freq parameter

and select a frequency for that channel.

4. Push the NEXT menu key to select a frequency for the

next channel in that group.

English

Automatic Frequency Selection

Follow these steps to use the channel scan and group scan features.

Before you begin...

• Install the receivers in the location where they will be used and power them on.

• Mute all inputs on mixing devices connected to receivers.

• Turn off all bodypack or handheld transmitters for the systems you are setting up.

•Turn on potential sources of interference such as other wireless systems or devices, computers, CD players, effects processors, and

digital rack equipment so they are operating as they would be during the presentation or performance.

Single Receiver

1. Select Radio > Scan > Chan Scan using the Navigate keys on the receiver LCD interface.

Turn

the Control wheel to select a group.

3. Press Chan Scan. The display indicates that the receiver is searching. Once it has finished, it displays the selected channel.

4. Press the flashing ENTER button to accept the suggested channel.

5. Sync the transmitter (see page 15).

Networked or Dual Receivers

With networked or dual receivers, you can take advantage of the group scan feature to set group and channel settings for all the re-

ceivers at the same time. (See page 12 for instructions on networking.)

Perform a group scan from any receiver...

1. Select Radio > Scan > Group Scan using the Navigate keys on the receiver LCD interface. The display indicates that

the receiver is searching (Scan In Progress). Once it has finished, it displays the group with the most open channels.

2. If you wish, turn the Control wheel to change groups. The number of open channels for each group is displayed.

3. Press the flashing ENTER button to set all receivers to open channels in that group.

NOTE: The group scan feature only works for receivers in the same frequency band. For example, if you did a group scan on a

“H4” band receiver, all “H4” band receivers would be set up, but not “J5” band receivers.

Multiple Receivers—Not Networked

If your receivers are not networked (or in different bands), the group scan cannot automatically set their group and channel settings.

However, you can still take advantage of the group scan feature to find the group with the most open channels and the channel scan

feature to find open channels in that group.

Find the group with the most open channels...

Perform a group scan using the steps for a networked receiver (above). However, make a note of the selected group before pressing

the flashing ENTER button to accept it.

Set the receivers to open channels in that group...

Perform a channel scan on the remaining receivers using the steps for a single receiver (above). Make sure to select the same group

for each receiver before performing the channel scan.

IMPORTANT: After setting the channel for the first receiver,

immediately

sync the transmitter for that receiver and

leave it on

that the next receiver detects that channel during its channel scan. Otherwise, all the receivers will be set to the same open

channel.

NOTE: Receivers in different bands (H4, J5, L3, etc.) do not need to be set to the same group.

Shure UHF-R Wireless

Networking Receivers

Basic Network

Connect receivers to an Ethernet router with DHCP service. Use Ethernet switch-

es to extend the network for larger installations.

Use the receiver’s default network setting

(Util > Network > Mode = DHCP).

Accessing the Network with a Computer

If you want to use the Wireless Workbench software, connect your computer to

the network and install the software from the CD that came with the receiver.

Make sure your computer is configured for DHCP (from Control Panel, click Net-

work Connections. Double-click on Local Area Connection. Select Internet Pro-

tocol (TCP/IP) and click Properties. Select Obtain IP address automatically and

Obtain DNS server address automatically and click OK).

NOTE: Some security software or firewall settings on your computer can prevent

you from connecting to the receivers. If using firewall software, allow connections

on port 2201.

Using USB...

Connect the computer to the USB port on any of the receivers to access the

whole network.

Static IP Addressing

The receiver also supports static IP addressing. Assign your own IP addresses ( Util > Network > Mode = Manual). See

“Network Parameters” on page 10.

NOTE: Dual receivers use a single IP address, which may be set through either LCD interface.

Existing UHF Network Installations

Both Shure’s UHF-R receivers and legacy UHF receivers can be networked to the same PC and accessed using the latest Wireless

Workbench software.

Router with DHCP

Switch

Computer

(optional)

Computer

(optional)

USB

Ethernet

USBRS-232

U888

UHF

UHF-R

English

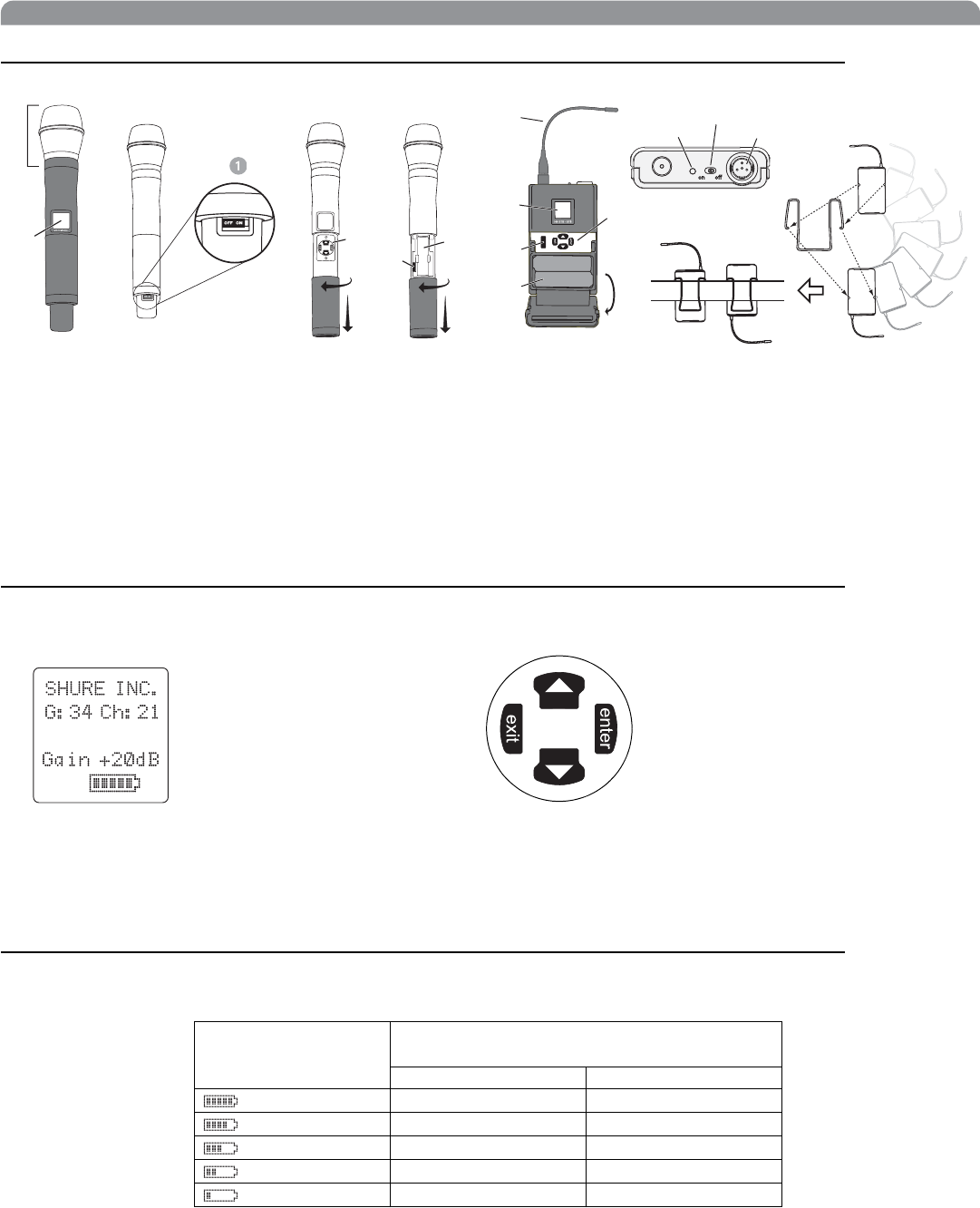

Handheld and Bodypack Transmitter Controls and Connectors

쐃Interchangeable microphone head (BETA 87A pictured).

쐇LCD Panel.

쐋Power Switch.

쐏Control buttons for LCD interface.

쐄Infrared (IR) port. See page 15.

쐂Battery compartment.

쐆Flexible Antenna.

쐊Power LED.

쐎4-Pin Microphone Input Jack.

쐅Reversible Belt Clip.

Transmitter LCD Interface

Transmitter Batteries

Transmitters operate on standard AA batteries. Turn off the transmitter before changing the batteries.

The battery fuel gauge displayed on the transmitter LCD gives an indication of remaining battery life, as shown below.

쐇

쐆

쐄

쐏

쐊쐋

쐂

쐎

쐅









Transmitter Display

Approximate Hours Remaining

(alkaline batteries)

Normal Power High Power*

7.5 to 9.5 5 to 6

5.75 to 7.5 4 to 5

4 to 5.75 3 to 4

2 to 4 1.5 to 3

15 minutes to 2 hours 10 minutes to 1.5

* High power setting not available with models sold in countries that prohibit its use.

779.475MHz exit Key. Move to the left, or exit

without saving changes.

Down Arrow Key. Scroll

down or decrease a value.

enter Key. Press to select parameters

and accept the selected value.

Up Arrow Key. Scroll up

or increase a value.

Main Menu

Shure UHF-R Wireless

Transmitter Parameters

Setting Transmitter Gain

Adjust the transmitter gain and input sensitivity so that the Audio LEDs on the receiver peak within the yellow range during use. On

the bodypack transmitter, you can change the sensitivity setting to compensate for different audio levels when connecting different

intruments or microphones to the input.

To adjust gain, turn on the transmitter and press the enter button. Scroll down to the Gain parameter or the Sens parameter

(bodypack only) and press enter again. Use the arrow keys to adjust the setting and press enter to save it (Exit cancels without

saving).

RF Safety Mode

This special feature temporarily mutes RF broadcast. This allows you to change frequency settings on a transmitter without accidentally

“cutting in” on a channel being used by another transmitter.

1. Turn the transmitter off.

2. Hold down exit key while turning on the transmitter power (for handheld microphones, you need to pull the battery cover off the

handle). The LCD flashes while the unit is in RF safety mode.

3. Change group and channel settings as you normally would—the transmitter will not broadcast.

4. Power the transmitter off and on to exit RF safety mode.

Group (

) and Channel (

). Must match the receiver’s settings.

Frequency (

MHz

). Manual frequency selection in 0.025 MHz increments.

Gain (

Gain

). Adjusts audio level from –10 dB to +20 dB.

Sensitivity (

Sens

) (bodypack only).

Sets audio input to +15 dB, 0 dB, or –10 dB.

Name Display. 12-digit ASCII.

SHURE INC.

G:34 Ch:21

779.475MHZ

Gain +20dB

Press ENTER from the main menu to access the following parameters:

taphold LCD Panel

Changes LCD Panel

Frequency Lock

Toggles setting. When enabled, frequency cannot be changed, and a

transmitter sync will not overwrite the frequency setting.

Power Lock

Toggles power lock. When locked, power switch does not turn off

transmitter.

RF power level setting*

Use the arrow keys to select normal (10 mW) or high power (50/100 mW**). Use the normal power setting

to conserve batteries or prevent RF overload at the receiver.

* High power setting not available with models sold in countries that prohibit its use.

** High power value varies with model.

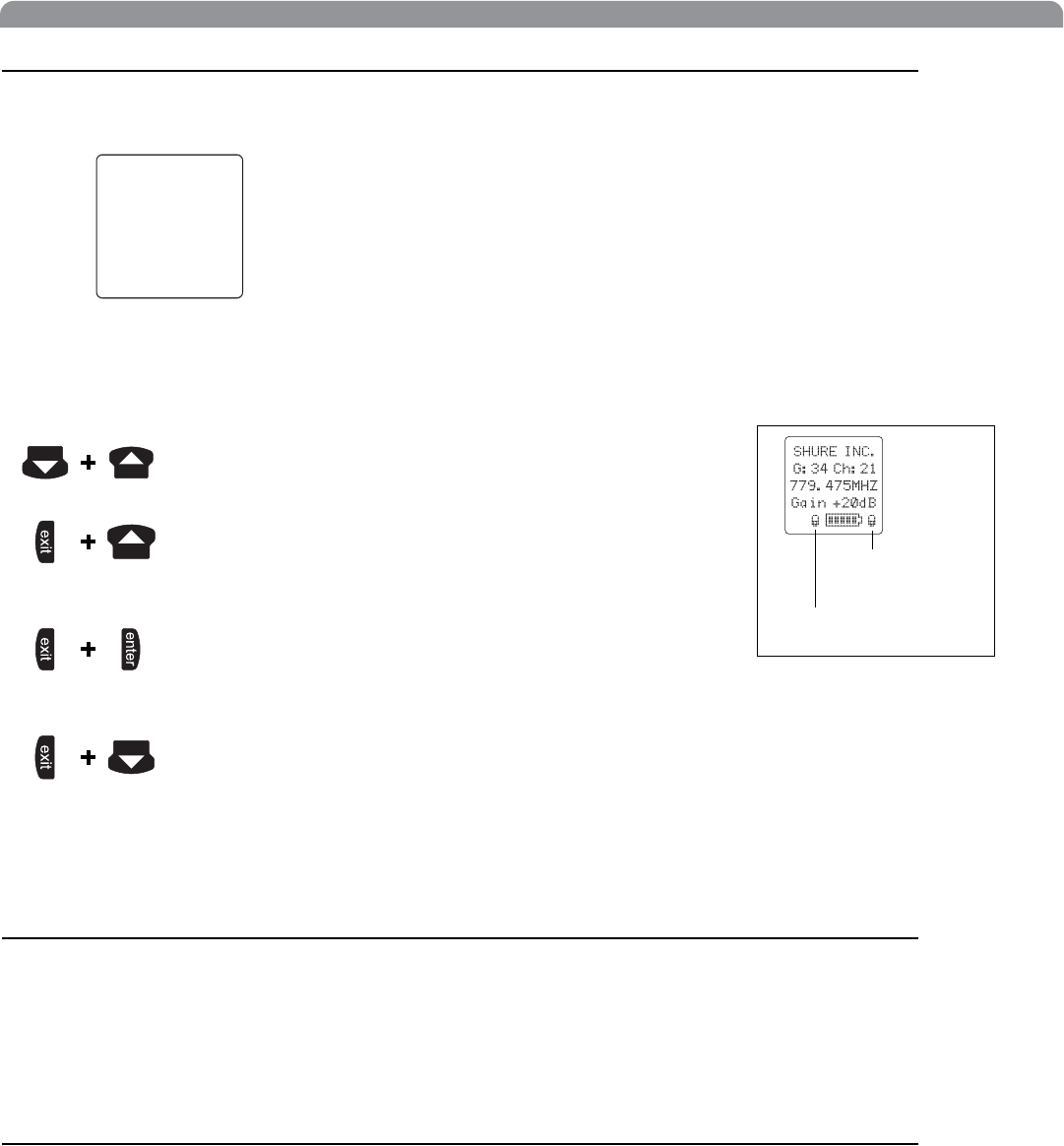

taphold

hold tap

Use the following key combinations to access additional features and parameters: Lock Indicators

Power Lock

Frequency Lock

English

Automatic Transmitter Sync

This feature automatically updates a bodypack or handheld transmitter’s group and channel settings to match those of a selected

receiver.

To perform a transmitter sync...

1. Open the transmitter battery cover to display the infrared (IR) port.

2. With the IR port exposed to the receiver, select

Sync

sync

from the receiver LCD interface.

The display on the receiver indicates whether the sync was successful. If the sync fails, try again, making sure that the IR port on the

transmitter is exposed and directly faces the IR port on the receiver.

NOTE: Close the battery door before performing a sync on other transmitters.

To transfer other transmitter settings...

Optionally, you can transfer other transmitter settings from a receiver when you perform a sync. Use the following steps:

1. Select

Sync

Setup

from the receiver LCD interface.

2. Turn the Control wheel to change parameter settings.

3. Push the Control wheel to move to the next parameter.

4. Push the flashing ENTER button to save the settings.

The transmitter settings you set on the receiver remain for future syncs.

NOTE: If you don’t want the sync to send a setting, set the parameter to No Change

Available Settings...

The following settings are available from the

Sync

Setup

menu:

• Sensitivity (

Sens

) bodypack only

• Gain (

Gain

)

•RF Power (

Pwr

)

• Power and Frequency Lock (

Lock

), which has the following values:

Power lock only: (Pwr Only)

Frequency lock only: (Freq only)

Both: (Freq and Pwr)

Neither: (Unlocked)

• Custom Groups (

CG):

On (ON): Send custom groups to transmitters during sync

Off (OFF): Do not send custom groups (reduces sync time)

Audio ABJ 779-810 MHz NavigateRF

OL OL

Audio ABJ 779-810 MHz NavigateRF

UR4D

Wireless Receiver

with Audio Reference

Companding

sync

Control Monitor Power

sync

Monitor Clip

ENTER

EXIT

push

Shure UHF-R Wireless

Troubleshooting

Power

Make sure that the transmitter and receiver are receiving

sufficient voltage. The receiver requires at least 90 Vac. Check

the battery indicator on the transmitter and replace battery if

necessary.

Gain

Adjust the transmitter gain and sensitivity settings

(see page 14) or the receiver output level (page 9), or toggle

the mic/line switch on the back of the receiver.

Cables

Check that all cables and connectors are in working order.

Ground Lift

Lifting the ground on pin 1 of the XLR output on the receiver

can sometimes remove hum or buzz in the audio signal. Set the

GND/LIFT switch on the receiver to LIFT if you are using the

XLR connector.

Interface Locks

Both the transmitter and receiver can be locked to prevent ac-

cidental changes. On transmitters, look for a lock symbol on the

LCD and use the key combinations illustrated on page 14 to

turn it off.

To turn off the receiver interface lock, see page 9.

Radio Frequency (RF)

Using the RF LEDs

If neither blue RF LED is illuminated, then the receiver is not de-

tecting the presence of a transmitter.

The amber RF LEDs indicate the amount of signal being re-

ceived. This signal could be from the transmitter,

or it could be

from an interfering source, such as a television broadcast.

Turn

the transmitter off. If more than one or two of the amber RF

LEDs are still illuminated, then that channel has too much inter-

ference, and you should try a different channel.

The red RF LED indicates RF overload. This will usually not

cause a problem unless you are using more than one system

at the same time, in which case, it can cause interference be-

tween systems.

Compatibility

• Perform a transmitter sync, or make sure the transmitter and

receiver are set to the same group and channel.

• Look at the label on the transmitter and receiver to make sure

they are in the same band (H4, J5, L3, etc...).

Reducing Interference

• Use a different channel or perform an automatic group or

channel scan (see page 11).

• For multiple systems, check that all systems are set to chan-

nels in the same group (systems in different bands do not

need to be set to the same group).

• Maintain a line of sight between transmitter and receiver an-

tennas

• Move receiver antennas away from metal objects or other

sources of RF interference (such as CD players, computers,

digital effects, network switches, network cables and Person-

al Stereo Monitor (PSM) wireless systems).

• Eliminate RF overload

(see below).

Increasing Range

If the transmitter is more than 6 to 60 m (20 to 200 ft) from the

receiver antenna, you may be able to increase range by doing

one of the following:

• Reduce interference (see above)

• Increase transmitter RF power level

(see page 14).

• Use an active directional antenna, antenna distribution sys-

tem, or other antenna accessory to increase RF range (see

page 19).

Eliminating RF Overload

If you see the red RF LED on a receiver, reduce the transmitter

RF power level (see page 14) or move the transmitter further

away from the receiver

—at least 6 m (20 ft)

. If you are using ac-

tive antennas, reduce antenna or amplifier gain.

Issue See Solution...

No sound Power, Cables, or RF

Faint Sound or Distortion Gain

Lack of range, unwanted noise bursts, or

drop outs

Cannot turn transmitter off or change frequency

settings, or can’t program receiver

Interface Locks

Excessive hum or buzzing Ground lift

English

Specifications

Frequency Range and Transmitter Output Power

RF Carrier Frequency Range

518-865 MHz, depending on region

Working Range

UR1, UR2: 150 m (500 ft.), under typical conditions

500 m (1600 ft) line-of-sight, outdoors

for a single system

NOTE: Actual working range depends on RF signal absorption, reflection and

interference

Audio Frequency Response

40 – 18,000 Hz, (+1 dB, –3 dB).

NOTE: Overall system frequency response depends on the microphone

element

Gain Adjustment Range

UR1: –20 to +35 dB

UR2: –10 to +20 dB

Modulation

FM (45 kHz max. deviation), compander system with pre- and

de-emphasis

RF Power Output

See table above.

Dynamic Range

>105 dB, A-weighted

Image Rejection

>110 dB typical

RF Sensitivity

Spurious Rejection

>90 dB typical

Ultimate Quieting (ref. 45 kHz deviation)

>100 dB, A-weighted

Signal Polarity

Positive pressure on microphone diaphragm (or positive voltage

applied to tip of WA302 phone plug) produces positive voltage

on XLR output pin 2 with respect to XLR pin 3 and on the tip of

the 1/4-inch output jack.

System Distortion (ref. ± 45 kHz deviation, 1 kHz modulation)

<0.3% Total Harmonic Distortion typical

Power Requirements

UR1, UR2: Two 1.5V AA batteries

UR4:100 to 240 Vac, 50/60 Hz

Current Drain

UR1, UR2: 180 mA max. (normal RF power setting)

240 mA max. (high RF power setting)

UR4D, UR4S: 0.8 Amps max.

Battery Life (Typical)

UR1, UR2: 9.5 hours (low power)

6 hours (high power)

Operating Temperature Range

–18° to +57° C (0° to +135qF)

NOTE: Battery characteristics may limit this range

NOTE: Electrical safety approval is based on a maximum

ambient temperature of 35°C (95°F).

Overall Dimensions

UR1: 98 mm L x 60 mm W x 17 mm D (3.84 x 2.38 x 0.66 in.)

UR2/SM58: 261 mm L x 51 mm Dia. (10.27 x 2 in.)

UR2/SM86: 261 mm L x 51 mm Dia. (10.27 x 2 in.)

UR2/SM87A: 254 mm x 51 mm Dia. (10 x 2 in.)

UR2/KSM9/BK, UR2/KSM9/SL: 250 mm x 49 mm Dia.

(9 7/8 x 1 15/16 in.)

UR2/BETA 58: 258 mm L x 51 mm Dia. (10.15 x 2 in.)

UR2/BETA 87A, UR2/BETA 87C: 254 mm x 51 mm

Dia. (10 x 2 in.)

UR4S/UR4D: 44 mm H x 483 mm W x 366 mm D

(1.72 x 19.00 x 14.39 in.)

Net Weight

UR1: 97 g (3.4 oz.) without battery

UR2/SM58: 356 g (12.6 oz.) without battery

UR2/BETA 58: 314 g (11.1oz.) without battery

UR2/SM86: 317 g (11.2 oz.) without battery

UR2/SM87A: 298 g (10.5 oz.) without battery

UR2/KSM9/BK, UR2/KSM9/SL: 410 g (14.5 oz.) without battery

UR2/BETA 87A, U2/BETA 87C: 325 g (11.5 oz) without battery

UR4S: 4.8 kg (10.6 lbs)

UR4D: 5.0 kg (11.0 lbs)

Housing:

UR1: Cast magnesium

UR2: Aluminum die-cast handle and aluminum machined

battery cup

UR4S, UR4D: Galvanized steel

Wiring

Band Range Transmitter power (mW)

Handheld Bodypack

H4E,

518-578 MHz 10 / 50

10 / 50 10 / 50

10 / 100

J5E,

578-638 MHz

(578-608, 614-638) 10 / 50

10 / 50 10 / 50

10 / 100

L3E,

638-698 MHz 10 / 50

10 / 50 10 / 50

10 / 100

Q5 740-814 MHz 10 / 50 10 / 50

R9 790-865 10 / 50 10 / 50

Q6 740-752 MHz 10 10

A24 779-788 / 797-806

MHz 10 10

JBX 806-810 MHz 10 10

Q10 740-798 MHz 10 / 50 10 / 50

NOTE

This Radio equipment is intended for use in musical professional

entertainment and similar applications.

This Radio apparatus may be capable of operating on some fre-

quencies not authorized in your region. Please contact your national

authority to obtain information on authorized frequencies and RF

power levels for wireless microphone products.

UR4S UR4D

–110 dBm Typical

12 dB SINAD –107 dBm Typical

12 dB SINAD

–105 dBm Typical

30 dB SINAD –102 dBm Typical

30 dB SINAD

MICROPHONE

ELEMENT TA4F

Connector TA4M

Connector

Audio

Ground

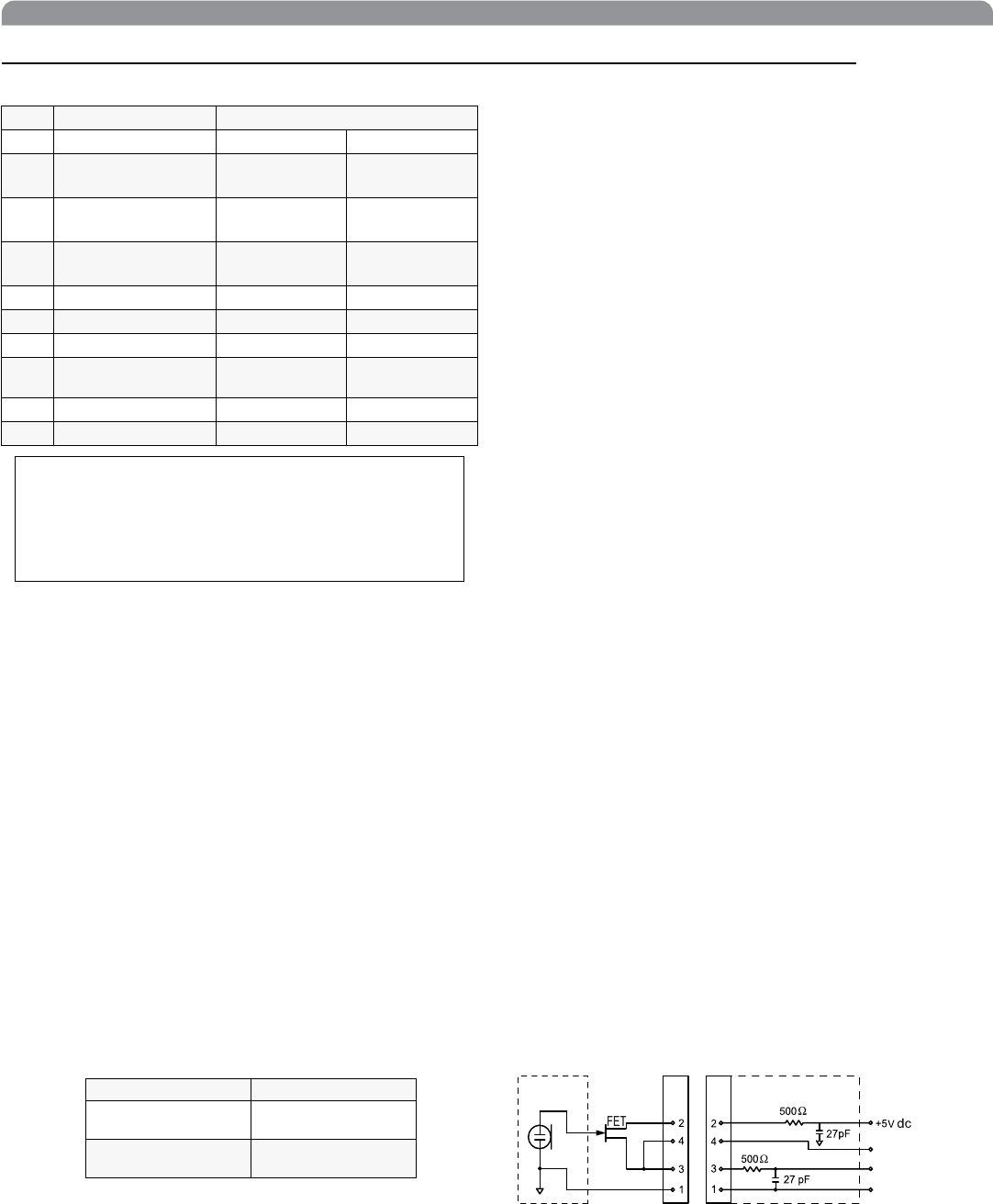

UR1 MIC JACK BOARD

NOTE: LAVALIER MIC TIES PINS 3 AND 4 TOGETHER—GUITAR CABLE DOES NOT.

Active Load

Shure UHF-R Wireless

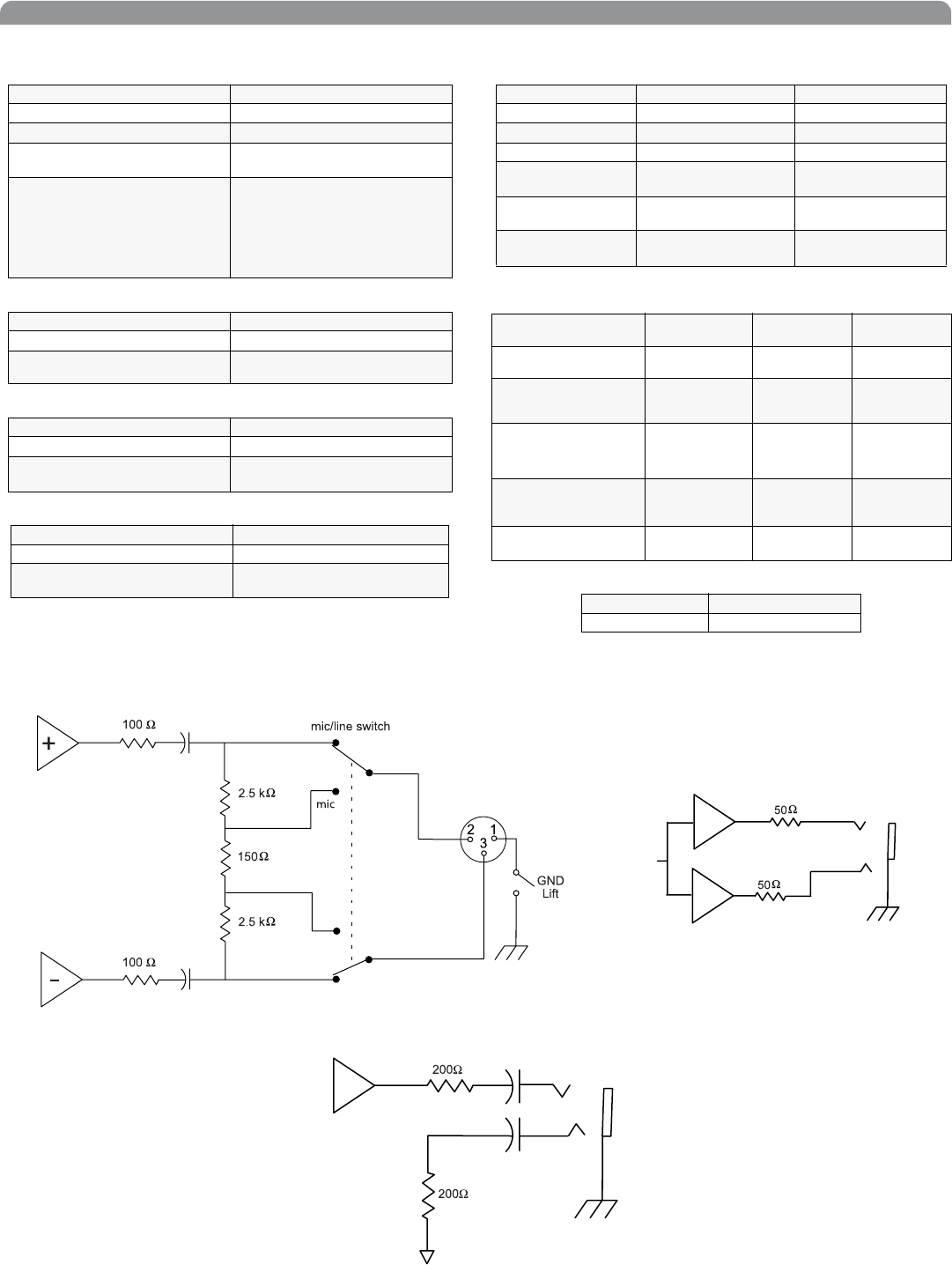

Inputs and Outputs

UR1 Transmitter Audio Input

UR1 Transmitter RF Output

UR2 Transmitter Audio Input

UR2 Transmitter RF Output

Receiver Input

* For remote antenna amplifiers

Receiver Audio Output

Computer/Network Interface

* USB-IF logo is a trademark of Universal Serial Bus Implementers Forum, Inc.

Connector: 4-Pin male mini connector (TA4M)

Input Configuration: Unbalanced, active

Actual Impedance: >1 M:

Maximum Input Level:

1 kHz, 1% THD

+10 dBu (sensitivity 0 dB)

+20 dBu (sensitivity –10 dB)

TA4M Connector

Pin Assignments:

Pin 1: Ground

Pin 2: +5 Vdc bias

Pin 3: Audio

Pin 4: Tied through active load (on main

board) to Ground.

(On instrument adapter cable, Pin 4

floats)

Connector: SMA

Actual Impedance: 50 :

Pin Assignments: Shell = Ground

Center = Signal

Input Configuration: Unbalanced, active

Actual Impedance: >1 M:

Maximum Input Level:

1 kHz, 1% THD

+4.8 dBu

Connector: SMA

Actual Impedance: 50 :

Pin Assignments: Shell = Ground

Center = Signal

Antenna Power

Connector Type: BNC IEC

Actual Impedance: 50 :-

Nominal Input Level: –95 to –30 dBm 100-240 VAC,50/60 Hz

Maximum Input

Level:

–20 dBm 240 VAC, + 10%, 50/60 Hz

Pin Assignments: Shell = Ground

Center = Signal IEC Standard

Bias Voltage* 12.2 Vdc @ 150 mA

maximum N/A

Monitor (1/4”

Headphone)

1/4” Phone XLR

Output Configuration: Unbalanced

mono, 1/4 inch Impedance

Balanced Electrically

Balanced

Actual Impedance: 50 :200 : 200 :(active

balanced)

(150 : mic)

Maximum Output Level 1 Watt @ 63 :+18 dBu +24 dBu

(–6 dBu mic)

with 100 Hz

modulating tone

Pin Assignments: Tip = Hot

Ring = Hot

Sleeve = Gnd

Tip = Hot

Ring = no signal

Sleeve = Gnd

1 = Ground

2 = Audio +

3 = Audio –

Phantom Power

Protection?

No Yes Yes

Ethernet USB*

RJ45 USB Series B Receptacle

XLR

1/4” Monitor/headphone

1/4” Phone

English

Replacement Parts and Accessories

Furnished Accessories

Optional Accessories

Antenna Combiners and Accessories

• Antennas and receivers must be from the same frequency

band.

• The supplied 1/2 wave antennas can be remotely mounted or

mounted directly to the UA845.

• Antennas and cables for use with the UA845 can also be

used with stand-alone UHF-R receivers.

Architects' and Engineers' Specifications

The wireless system shall operate in the UHF band between 518 MHz and 865 MHz, with the specific range being dependent on the

user's locale. The system shall include the option of changing the operating frequency in order to avoid RF interference, enabling up

to 108 systems to operate simultaneously in the same location. Preconfigured group, channel and frequency setups shall be available

to ensure that multiple systems in use do not interfere with one another.

All transmitters shall be powered by 2 AA batteries and shall have a power on/off switch. The bodypack will have an LED indicating

that power is on. Available transmitters shall include: a body pack for use with electric guitars, basses, and other electric instruments,

and a handheld microphone for vocals. The transmitters shall have a DC/DC converter to ensure consistent performance, even if bat-

tery voltages change.

The receiver shall have a user-programmable, menu-driven LCD showing group, channel, frequency, name, squelch level, and

locked/unlocked status. The system shall use technology such as MARCAD£ signal combining circuitry to improve reception, minimize

signal dropouts, and achieve the best possible signal-to-noise ratio. An equalizer, tone key squelch, and noise squelch circuitry shall

be built into the system to provide optimal sound quality and minimize unwanted noise. The receiver shall include dual RF meters (one

for each antenna), an audio level meter, and a Networking Interface connector for computer control and monitoring. The receiver shall

have a volume control and an adjustable noise squelch control.

The system shall be the Shure UHF-R Wireless.

Microphone Stand Adapter (UR2) WA371

Zipper Bag (UR1) 26A13

Zipper Bag (UR2) 26A14

Antenna Extension Cables (2) 95A9023

Hardware Kit, Locking Connector WA340

Antenna (UR1), 518-578 MHz UA710

Antenna (UR1), 578-698 MHz UA720

Antenna (UR1), 740-865 MHz UA730

Two Antennas (UR4), Band

Dependent (see table) UA820

Transmitter Carrying Case 95A9053

SM58 Head with Grille RPW112

SM86 Head with Grille RPW114

BETA 58 Head with Grille RPW118

BETA 87A Head with Grille RPW120

BETA 87C Head with Grille RPW122

SM87A Head with Grille RPW116

KSM9/SL Head with Grille RPW180

KSM9/BK Head with Grille RPW184

Matte Silver Grille (SM58) RK143G

Matte Silver Grille (SM86) RPM266

Matte Silver Grille (BETA 58) RK265G

Black Grille (SM87) RK214G

Matte Silver Grille (BETA 87A) RK312

Matte Silver Grille (BETA 87C) RK312

Black Grille (BETA 58) RK323G

Black Grille (BETA 87A/BETA 87C) RK324G

Popper Stopper Windscreen A85WS

Belt Clip 44A8031

Body-Pack Pouch (Black), UR1 WA580B

Body-Pack Pouch (White), UR1 WA580W

Passive Antenna/Splitter Combiner Kit

(recommended for 2 receivers) UA221

UHF Antenna Power Distribution Amplifier

(recommended for 3 or more receivers) UA845-

U.S.A. UA845US

Europe UA845E

UK UA845UK

1/2 Wave, Omnidirectional, Wideband

Antenna UA860WB

Active Directional Wideband Antenna UA870WB

Wideband In-Line RF Amplifier UA830WB

Passive Unidirectional Wideband Antenna PA805WB

1/2 wave antennas (2)

H4E, H4 Bands UA820H4

J5E, J5 Bands UA820J

L3E, L3 Bands UA820L3

Q5, Q6, Q10 Bands UA820Q

R9, ABJ Bands UA820A

25’ Antenna Cable (RG-8/X) UA825

50’ Antenna Cable (RG-8/X) UA850

100’ Antenna Cable UA8100

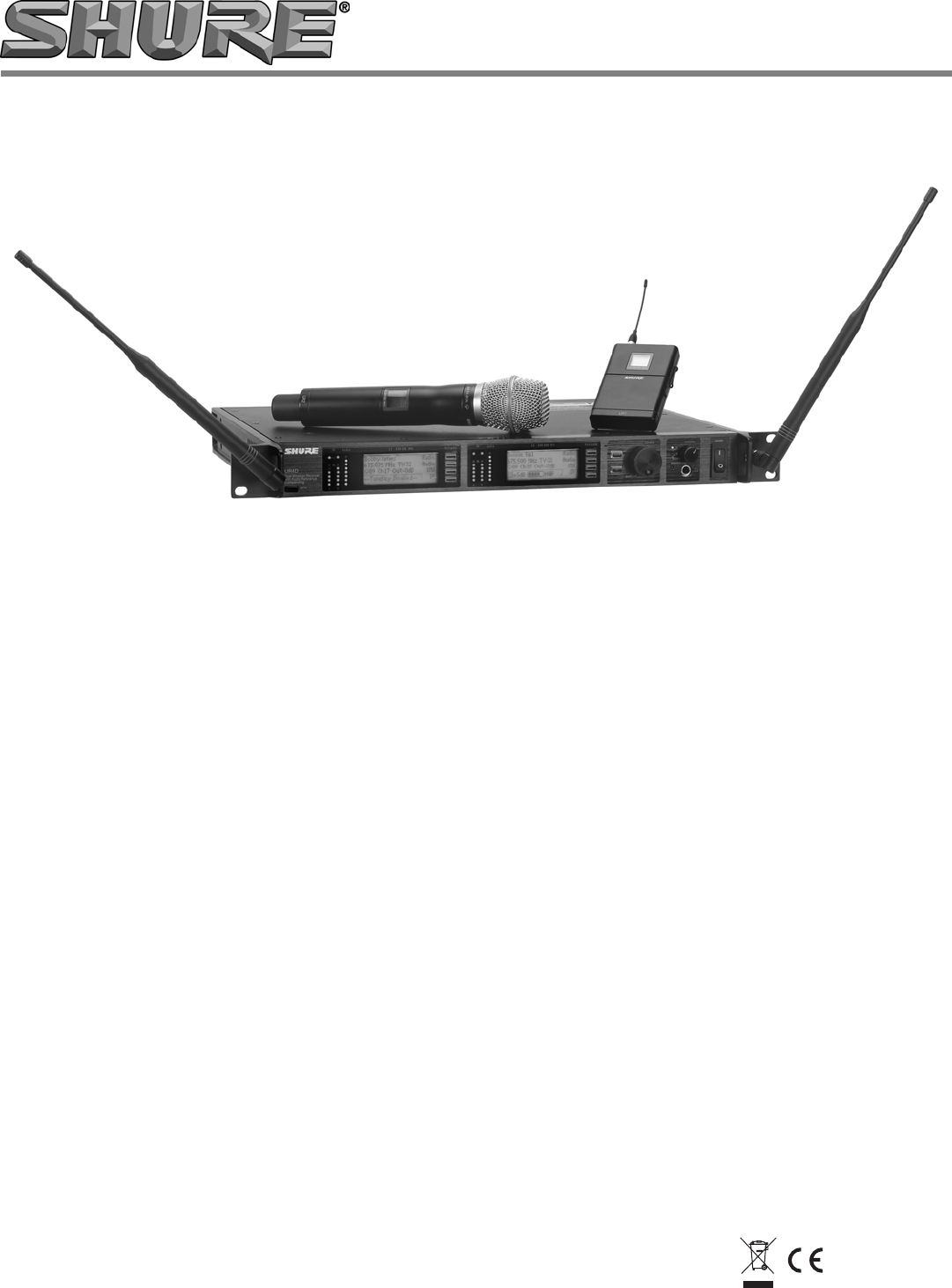

Shure UHF-R Wireless

Certification

UR1, UR2: Type Accepted under FCC Parts 74 (FCC ID: "DD4UR1" & "DD4UR2"). Certified by IC in Canada under RSS-123 and RSS-

102 ("IC: 616A-UR1" and "IC: 616A-UR2"). Meets the essential requirements of the European R&TTE Directive 99/5/EC (ETSI EN 300-

422 Parts 1 & 2, EN 301 489 Parts 1 & 9) and is eligible to carry the CE marking.

UR4S, UR4D: Authorized under the Declaration Of Conformity provision of FCC Part 15. Certified under Industry Canada to RSS-123

("IC: 616A-UR4"). Meets the essential requirements of the European R&TTE Directive 99/5/EC (EN 301 489 Parts 1 & 9, EN 300 422

Parts 1 and 2). Eligible to carry the CE marking.

Conforms to Australian EMC requirements and is eligible for C-Tick marking.

Have been granted the following Country Safety Approvals:

cULus Mark for US and Canada: Meets UL6500 and CSA/CAN E60065. UL GS-Certified to EN60065.

LICENSING INFORMATION:

Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible

requirements.

Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of

Shure wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application,

and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper

licensing, and before choosing and ordering frequencies.

Information to User

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gen-

erates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil num

rique de la classe B est conforme à la norme NMB-003 du Canada.

Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device.

Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may

degrade EMC performance

N108

SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BANDS H4, H4E, J5, J5E, L3, L3E, Q5, Q9, R9, A24, JBX, Q6 AND Q10

SYSTÈMES COMPATIBLES EN FRéQUENCE DANS LA BANDES H4, H4E, J5, J5E, L3, L3E, Q5, Q9. R9, A24, JBX, Q6 ET Q10

FREQUENZKOMPATIBLE SYSTEME IM FREQUENZBEREICH H4, H4E, J5, J5E, L3, L3E, Q5, Q9. R9, A24, JBX, Q6 UND Q10

SISTEMAS CON FRECUENCIAS COMPATIBLES EN LAS BANDAS H4, H4E, J5, J5E, L3, L3E, Q5, Q9, R9, A24, JBX, Q6 Y Q10

SISTEMI COMPATIBILI IN FREQUENZA NELLA BANDAS H4, H4E, J5, J5E, L3, L3E, Q5, Q9, R9, A24, JBX, Q6 E Q10

SISTEMAS COM FREQÜÊNCIAS COMPATÍVEIS DA NA FAIXA H4, H4E, J5, J5E, L3, L3E, Q5, Q9, R9, A24, JBX, Q6 E Q10

H4 FREQUENCY BAND (518.000 - 578.000 MHz)

22 & 27 TV

23 & 28 TV

24 & 29 TV

25 & 30 TV

26 & 31 All Bands All Bands Full

Spectrum Full

Spectrum

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1518.350 524.350 530.350 536.350 542.350 519.000 519.250 518.100 518.900 518.050

2518.850 524.850 530.850 536.850 542.850 519.425 521.625 518.825 519.625 518.550

3519.575 525.575 531.575 537.575 543.575 522.100 525.800 519.350 520.150 519.500

4520.500 526.500 532.500 538.500 544.500 524.525 526.375 520.375 521.175 519.900

5521.625 527.625 533.625 539.625 545.625 525.525 528.075 521.725 522.525 520.750

6522.450 528.450 534.450 540.450 546.450 526.075 533.950 522.350 523.150 523.750

7523.075 529.075 535.075 541.075 547.075 527.325 535.500 525.150 525.950 530.500

8523.475 529.475 535.475 541.475 547.475 528.100 538.350 530.250 531.050 532.600

9548.125 554.125 560.125 566.125 572.125 537.475 542.400 530.675 531.475 534.150

10 548.650 554.650 560.650 566.650 572.650 540.450 543.475 532.750 533.550 538.925

11 549.675 555.675 561.675 567.675 573.675 541.600 547.350 534.625 535.425 541.750

12 551.025 557.025 563.025 569.025 575.025 544.925 553.625 543.475 544.275 545.500

13 551.750 557.750 563.750 569.750 575.750 551.625 561.075 544.700 545.500 546.425

14 552.150 558.150 564.150 570.150 576.150 553.300 565.700 547.325 548.125 547.875

15 552.975 558.975 564.975 570.975 576.975 555.300 569.050 548.775 549.575 550.500

16 553.600 559.600 565.600 571.600 577.600 557.075 570.775 549.700 550.500 551.725

17 561.100 571.550 553.450 554.250 560.575

18 566.000 572.800 556.275 557.075 562.450

19 567.550 573.425 561.050 561.850 564.525

20 574.475 573.825 562.600 563.400 564.950

21 518.350 519.875 564.700 565.500 570.050

22 544.325 520.275 571.450 572.250 572.850

23 548.550 522.425 574.450 575.250 573.475

24 554.050 546.925 575.300 576.100 574.825

25 559.900 555.750 575.700 576.500 575.850

26 520.125 521.050 576.650 577.450 576.375

27 535.025 536.475 577.150 577.950 577.100

28 550.450 537.250 523.850 524.650 522.450

29 573.625 539.250 548.300 549.100 546.900

30 575.850 544.000 572.750 573.550 571.350

31 522.650 548.950 529.350 530.150 524.425

32 531.375 552.050 533.950 534.750 528.625

33 538.475 561.975 537.925 538.725 529.675

34 539.100 566.200 561.950 562.750 533.250

35 554.450 567.125 565.525 566.325 557.275

36 564.775 575.050 566.575 567.375 561.250

37 570.775 571.575 565.850

38 535.750 536.550 525.775

39 551.700 552.500 543.500

40 569.425 570.225 559.450

J5 FREQUENCY BAND (578.000 - 607.975 - 614.025 - 638.000 MHz)

32 & 37 TV

33 & 38 TV

34 & 39 TV

35 & 40 TV

36 & 41 All Bands All Bands Full

Spectrum Full

Spectrum

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1578.350 584.350 590.350 596.350 602.350 578.625 581.650 578.375 578.125 578.100

2578.850 584.850 590.850 596.850 602.850 579.125 586.625 579.400 578.550 579.125

3579.575 585.575 591.575 597.575 603.575 584.825 588.025 581.750 579.200 581.475

4580.500 586.500 592.500 598.500 604.500 586.475 592.275 582.625 580.600 582.350

5581.625 587.625 593.625 599.625 605.625 587.750 595.225 584.675 581.150 584.400

6582.450 588.450 594.450 600.450 606.450 588.500 597.675 587.350 584.500 587.075

7583.075 589.075 595.075 601.075 607.075 592.950 601.750 588.825 585.375 588.550

8583.475 589.475 595.475 601.475 607.475 598.975 602.175 589.225 588.950 588.950

9614.125 620.125 626.125 632.125 599.875 604.300 594.200 591.175 593.925

10 614.650 620.650 626.650 632.650 615.900 607.675 594.725 593.925 594.450

11 615.675 621.675 627.675 633.675 617.600 614.425 596.975 595.225 596.700

12 617.025 623.025 629.025 635.025 618.400 620.650 603.475 604.150 603.200

13 617.750 623.750 629.750 635.750 621.350 622.025 606.050 604.875 605.775

14 618.150 624.150 630.150 636.150 621.750 623.800 607.725 606.275 607.450

15 618.975 624.975 630.975 636.975 627.925 625.000 616.200 618.025 615.925

16 619.600 625.600 631.600 637.600 629.975 630.175 619.250 620.825 618.975

17 631.025 632.250 620.600 621.975 620.325

18 633.175 633.750 622.525 625.325 622.250

19 635.050 636.275 628.650 627.250 628.375

20 636.650 637.075 630.200 630.500 629.925

21 585.400 587.450 631.175 632.325 630.900

22 587.300 598.975 632.375 633.100 632.100

23 602.025 627.775 632.875 635.275 632.600

24 616.425 632.825 635.825 636.175 635.550

25 619.975 637.575 636.900 636.700 636.625

26 591.225 583.175 637.625 637.700 637.350

27 603.075 588.950 581.200 582.425 580.925

28 605.650 590.825 586.450 587.650 586.175

29 628.625 596.900 592.725 588.050 592.450

30 631.700 599.425 597.900 598.350 597.625

31 580.225 600.700 598.600 599.575 598.325

32 592.500 614.975 604.000 600.600 603.725

33 601.575 616.700 605.350 603.700 605.075

34 606.075 619.525 614.450 607.075 614.175

35 607.575 623.050 615.600 614.925 615.325

36 633.650 635.775 617.150 615.600 616.875

37 620.175 617.025 619.900

38 621.725 619.900 621.450

39 623.850 622.500 623.575

40 634.225 631.150 633.950

L3 FREQUENCY BAND (638.000 - 698.000 MHz)

42 & 47 TV

43 & 48 TV

44 & 49 TV

45 & 50 TV

46 & 51 All Bands All Bands Full

Spectrum Full

Spectrum

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1638.350 644.350 650.350 656.350 662.350 643.775 649.800 638.100 638.900 638.050

2638.850 644.850 650.850 656.850 662.850 644.375 650.800 638.825 639.625 638.550

3639.575 645.575 651.575 657.575 663.575 651.900 653.000 639.350 640.150 639.500

4640.500 646.500 652.500 658.500 664.500 654.150 659.550 640.375 641.175 639.900

5641.625 647.625 653.625 659.625 665.625 660.375 660.775 641.725 642.525 640.750

6642.450 648.450 654.450 660.450 666.450 661.125 661.350 642.350 643.150 643.750

7643.075 649.075 655.075 661.075 667.075 662.875 665.425 645.150 645.950 650.500

8643.475 649.475 655.475 661.475 667.475 664.300 668.050 650.250 651.050 652.600

9668.125 674.125 680.125 686.125 692.125 667.125 675.575 650.675 651.475 654.150

10 668.650 674.650 680.650 686.650 692.650 669.500 679.750 652.750 653.550 658.925

11 669.675 675.675 681.675 687.675 693.675 679.000 683.450 654.625 655.425 661.750

12 671.025 677.025 683.025 689.025 695.025 683.525 684.875 663.475 664.275 665.500

13 671.750 677.750 683.750 689.750 695.750 688.825 686.800 664.700 665.500 666.425

14 672.150 678.150 684.150 690.150 696.150 689.750 691.750 667.325 668.125 667.875

15 672.975 678.975 684.975 690.975 696.975 690.425 692.300 668.775 669.575 670.500

16 673.600 679.600 685.600 691.600 697.600 691.500 693.050 669.700 670.500 671.725

17 693.525 693.500 673.450 674.250 680.575

18 694.725 695.550 676.275 677.075 682.450

19 697.075 696.200 681.050 681.850 684.525

20 697.575 697.100 682.600 683.400 684.950

21 649.125 645.875 684.700 685.500 690.050

22 658.825 658.800 691.450 692.250 692.850

23 662.200 663.675 694.450 695.250 693.475

24 677.025 664.800 695.300 696.100 694.825

25 682.675 678.400 695.700 696.500 695.850

26 650.050 646.825 696.650 697.450 696.375

27 651.450 648.050 697.150 697.950 697.100

28 671.075 651.275 643.850 644.650 642.450

29 677.600 657.075 668.300 669.100 666.900

30 695.200 662.350 692.750 693.550 691.350

31 647.450 674.950 649.350 650.150 644.425

32 648.400 679.350 653.950 654.750 648.625

33 666.000 680.750 657.925 658.725 649.675

34 675.900 682.500 681.950 682.750 653.250

35 679.525 685.450 685.525 686.325 677.275

36 696.250 689.700 686.575 687.375 681.250

37 690.775 691.575 685.850

38 655.750 656.550 645.775

39 671.700 672.500 663.500

40 689.425 690.225 679.450

Q9 FREQUENCY BAND (740.000-805.975 MHz)

59 & 64 TV

60 & 65 TV

61 & 66 TV

62 & 67 TV

63 & 68 TV

59 & 62 & 69 TV

60 & 65 & 68 Full

Spectrum Full

Spectrum

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1 740.350 746.350 752.350 758.350 764.350 740.050 746.075 740.025 741.075 740.225

2 740.850 746.850 752.850 758.850 764.850 740.575 746.925 740.725 742.325 740.925

3 741.575 747.575 753.575 759.575 765.575 742.000 747.325 742.100 743.300 742.300

4 742.500 748.500 754.500 760.500 766.500 743.725 748.075 744.775 745.000 744.975

5 743.625 749.625 755.625 761.625 767.625 744.625 749.775 745.375 745.875 745.575

6 744.450 750.450 756.450 762.450 768.450 745.250 750.275 746.525 746.350 746.725

7 745.075 751.075 757.075 763.075 769.075 758.300 751.250 750.475 747.925 750.675

8 745.475 751.475 757.475 763.475 769.475 758.700 751.875 751.475 748.700 751.675

9 770.125 776.125 782.125 788.125 794.125 759.425 776.125 753.425 758.975 753.625

10 770.650 776.650 782.650 788.650 794.650 760.750 776.550 753.900 763.100 754.100

11 771.675 777.675 783.675 789.675 795.675 761.750 779.100 766.125 765.025 766.325

12 773.025 779.025 785.025 791.025 797.025 763.600 780.100 770.925 766.500 771.125

13 773.750 779.750 785.750 791.750 797.750 800.175 780.775 771.625 772.200 771.825

14 774.150 780.150 786.150 792.150 798.150 800.875 781.875 773.200 772.775 773.400

15 774.975 780.975 786.975 792.975 798.975 801.275 795.200 773.775 774.350 773.975

16 775.600 781.600 787.600 793.600 799.600 802.125 796.550 779.475 775.050 779.675

17 803.825 797.325 780.950 779.850 781.150

18 804.325 798.850 782.875 792.075 783.075

19 805.300 799.750 787.000 792.550 787.200

20 805.900 797.275 794.500 797.475

21 798.050 795.500 798.250

22 799.625 799.450 799.825

23 800.100 800.600 800.300

24 800.975 801.200 801.175

25 802.675 803.875 802.875

26 803.650 805.250 803.850

27 804.900 805.950 805.100

28 743.925 740.050 741.375

29 767.450 762.275 744.175

30 779.875 766.100 754.975

31 783.700 778.525 755.375

32 805.925 802.050 756.075

33 754.725 741.800 759.675

34 756.725 749.200 768.475

35 759.275 775.475 769.400

36 770.500 786.700 769.975

37 796.775 789.250 778.750

38 804.175 791.250 782.000

39 757.775 747.400 784.750

40 768.425 761.650 786.775

41 769.800 767.425 787.825

42 778.550 776.175 791.875

43 784.325 777.550 798.750

44 798.575 788.200 804.300

H4E FREQUENCY BAND (518.000 - 578.000 MHz)

Full Range

max. # of

comp. fre-

quencies

(option 1)

Full Range

max. # of

comp. fre-

quencies

(option 2)

France

preferred:

User Group

(option 1

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

All Bands All Bands

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1518.100 518.900 518.750 518.750 518.100 518.500 520.225 518.300 518.500 518.575

2518.825 519.625 519.500 519.500 521.500 520.025 522.025 519.000 522.250 520.300

3519.350 520.150 521.250 520.500 522.975 522.225 522.775 522.025 523.675 521.750

4520.375 521.175 523.250 521.750 525.700 522.975 525.900 524.000 524.500 522.300

5521.725 522.525 524.250 523.250 532.500 524.900 526.300 530.025 526.350 526.350

6522.350 523.150 527.500 526.750 532.900 530.225 533.500 532.700 528.000 527.525

7525.150 525.950 535.250 527.250 534.500 536.775 535.000 533.500 528.500 527.975

8530.250 531.050 536.500 531.500 538.975 540.900 536.225 533.900 531.900 531.800

9530.675 531.475 543.750 537.250 544.775 545.500 541.500 542.300 535.075 535.400

10 532.750 533.550 547.750 547.500 546.975 549.300 550.300 546.775 542.700 536.275

11 534.625 535.425 548.250 550.750 550.100 550.500 557.100 549.900 543.425 540.975

12 543.475 544.275 550.750 554.500 561.500 556.500 560.975 560.225 552.550 547.975

13 544.700 545.500 552.500 562.500 565.300 556.900 562.775 560.975 553.725 551.225

14 547.325 548.125 561.750 563.500 565.700 568.025 568.225 568.225 565.425 551.950

15 548.775 549.575 567.500 569.250 568.025 570.975 570.775 570.775 566.025 552.950

16 549.700 550.500 571.250 571.750 572.500 572.900 572.000 572.700 568.125 557.250

17 553.450 554.250 574.750 572.250 574.100 573.700 572.700 573.100 571.675 558.400

18 556.275 557.075 575.750 575.750 576.025 576.025 574.300 574.300 572.150 558.800

19 561.050 561.850 577.250 576.500 577.500 577.500 576.975 576.975 573.675 561.800

20 562.600 563.400 577.750 577.750 520.775 518.100 520.975 520.975 576.650 568.375

21 564.700 565.500 520.500 528.500 534.100 525.300 525.100 528.225 536.075 525.650

22 571.450 572.250 521.750 529.250 538.225 528.775 536.975 540.700 556.975 553.600

23 574.450 575.250 530.500 530.500 540.900 533.300 540.000 544.225 560.575 567.575

24 575.300 576.100 531.250 538.500 541.700 533.700 542.300 550.300 519.125 523.575

25 575.700 576.500 534.750 540.250 546.225 546.225 556.000 556.000 521.700 533.050

26 576.650 577.450 537.250 543.750 549.700 549.700 556.700 556.700 539.550 556.700

27 577.150 577.950 540.250 544.500 552.025 552.025 557.900 557.100 554.600 566.125

28 523.850 524.650 546.500 545.750 560.775 554.975 566.300 557.900 558.050 572.000

29 548.300 549.100 551.500 551.500 564.500 565.700 575.000 562.775 539.025 518.050

30 572.750 573.550 554.500 552.500 566.500 568.775 576.225 566.300 540.725 536.675

31 529.350 530.150 555.500 556.250 573.700 572.500 545.100 538.375

32 533.950 534.750 560.500 558.750 556.125 571.175

33 537.925 538.725 563.500 559.750 557.400 573.100

34 561.950 562.750 564.250 567.500 570.000 575.250

35 565.525 566.325 569.250 568.500

36 566.575 567.375 570.500 569.750

37 570.775 571.575

38 535.750 536.550

39 551.700 552.500

40 569.425 570.225

J5E FREQUENCY BAND (578.000 - 638.000 MHz)

Full Range

max. # of

comp. fre-

quencies

(option 1)

Full Range

max. # of

comp. fre-

quencies

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

All Bands All Bands

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1578.375 578.375 578.500 578.500 578.225 578.225 578.775 580.000 589.375 581.050

2579.400 579.100 579.250 579.250 578.975 578.975 580.000 580.700 590.525 582.400

3581.750 580.175 579.750 582.750 580.900 580.900 582.300 581.100 591.175 583.950

4582.625 583.125 583.250 583.250 582.500 581.300 583.000 581.900 595.300 584.950

5584.675 583.625 585.750 585.750 585.500 582.500 584.975 584.975 596.350 585.700

6587.350 584.825 587.500 591.750 593.500 586.975 589.100 591.000 600.375 589.250

7588.825 585.800 593.250 593.250 594.975 592.025 592.225 594.775 601.875 589.900

8589.225 587.350 595.500 595.500 597.300 598.500 597.100 597.500 602.825 591.125

9594.200 593.475 598.750 604.250 604.900 606.100 597.900 605.900 604.925 593.350

10 594.725 595.400 610.500 607.500 605.700 608.775 605.500 606.300 605.700 599.100

11 596.975 596.750 611.250 608.500 606.100 609.500 608.975 608.225 616.900 610.300

12 603.475 599.800 615.500 609.250 610.975 610.975 610.775 610.775 622.650 611.075

13 606.050 608.275 623.250 617.750 624.775 620.900 621.500 621.100 624.875 613.175

14 607.725 609.950 623.750 623.250 626.975 624.775 623.000 624.975 626.100 614.125

15 616.200 612.525 625.750 623.750 628.900 628.900 628.000 626.775 626.750 615.625

16 619.250 619.025 631.750 625.750 630.500 630.500 628.700 631.000 630.300 619.650

17 620.600 621.275 633.250 633.250 636.500 634.225 634.775 634.025 631.050 620.700

18 622.525 621.800 634.500 634.500 636.900 634.975 636.700 634.775 632.050 624.825

19 628.650 626.775 635.500 635.500 637.700 637.300 637.100 636.000 633.600 625.475

L3E FREQUENCY BAND (638.00 - 698.000 MHz)

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

20 630.200 627.175 636.250 636.250 580.500 637.700 637.900 637.500 634.950 626.625

21 631.175 628.650 583.750 580.250 584.775 586.225 578.025 584.225 594.000 586.250

22 632.375 631.325 585.250 587.750 596.900 588.500 594.025 596.000 620.625 595.375

23 632.875 633.375 599.500 590.750 598.100 589.300 594.775 598.300 629.750 622.000

24 635.825 634.250 600.500 594.500 598.500 600.025 596.700 605.100 579.850 593.850

25 636.900 636.600 601.750 599.750 600.775 604.500 606.300 608.975 580.950 607.800

26 637.625 637.625 602.500 601.750 610.225 605.700 610.025 620.700 586.800 629.200

27 581.200 581.775 603.750 602.500 616.775 614.100 621.900 621.900 608.200 635.050

28 586.450 592.150 606.750 603.500 621.700 621.700 626.775 622.300 622.150 636.150

29 592.725 594.275 608.500 611.250 626.225 626.225 630.300 624.225 598.250 581.900

30 597.900 595.825 609.250 615.500 630.100 626.975 631.000 630.300 606.250 598.100

31 598.600 598.850 612.250 619.250 634.225 630.100 611.900 603.050

32 604.000 600.400 619.500 620.250 634.975 636.500 612.950 604.100

33 605.350 601.550 620.250 625.250 617.900 609.750

34 614.450 610.650 625.250 626.500 634.100 617.750

35 615.600 612.000 626.500 631.500

36 617.150 617.400 633.750 632.500

37 620.175 618.100

38 621.725 623.275

39 623.850 629.550

40 634.225 634.800

Full Range

max. # of

comp. fre-

quencies

(option 1)

Full Range

max. # of

comp. fre-

quencies

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

All Bands All Bands

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1638.100 638.900 639.500 639.500 640.775 638.500 640.225 639.000 647.625 639.350

2638.825 639.625 640.500 640.500 642.225 640.775 640.975 640.225 654.200 642.325

3639.350 640.150 641.250 641.750 645.300 645.300 642.025 640.975 657.200 643.850

4640.375 641.175 641.750 643.250 646.100 650.225 644.700 642.025 657.600 644.325

5641.725 642.525 643.250 643.750 648.025 650.975 646.300 644.700 658.750 647.875

6642.350 643.150 646.750 647.250 650.975 652.900 653.100 652.700 663.050 649.975

7645.150 645.950 651.500 655.500 660.500 654.100 653.500 653.100 664.050 650.575

8650.250 651.050 655.500 657.250 660.900 654.500 656.975 660.000 664.775 662.275

9650.675 651.475 667.250 665.750 662.100 658.225 661.100 662.300 668.025 663.450

10 652.750 653.550 672.500 671.750 668.500 670.500 666.025 668.700 675.025 672.575

11 654.625 655.425 673.750 672.500 672.775 678.100 666.775 669.500 679.725 673.300

12 663.475 664.275 679.250 675.250 680.025 680.775 680.225 680.975 680.600 680.925

13 664.700 665.500 679.750 676.250 681.500 682.975 682.025 685.900 684.200 684.100

14 667.325 668.125 681.250 682.500 690.975 684.900 685.500 687.000 688.025 687.500

15 668.775 669.575 683.750 684.250 692.900 686.500 688.225 692.700 688.475 688.000

16 669.700 670.500 687.500 687.500 694.100 692.900 692.000 693.900 689.650 689.650

17 673.450 674.250 692.250 691.750 694.500 693.700 692.700 694.300 693.700 691.500

18 676.275 677.075 695.500 695.750 696.775 696.025 693.100 696.225 694.250 692.325

19 681.050 681.850 696.500 697.250 697.500 697.500 693.900 696.975 695.700 693.750

20 682.600 683.400 697.250 697.750 638.100 638.100 696.975 650.775 697.425 697.500

21 684.700 685.500 638.750 641.250 648.775 644.900 652.000 656.225 648.425 655.425

22 691.450 692.250 647.250 647.750 650.225 648.775 658.025 663.000 662.400 659.025

23 694.450 695.250 649.250 648.500 661.700 657.500 658.775 664.975 690.350 679.925

24 695.300 696.100 649.750 657.750 666.225 666.975 668.000 672.225 644.000 657.950

25 695.700 696.500 650.500 658.500 666.975 669.300 680.975 682.775 649.875 661.400

26 696.650 697.450 660.250 662.750 669.300 670.100 684.700 685.100 659.300 676.450

27 697.150 697.950 662.750 663.500 669.700 672.775 685.900 686.300 682.950 694.300

28 643.850 644.650 664.500 665.250 682.225 684.500 692.425 696.875

29 668.300 669.100 666.500 667.500 685.700 692.500 640.750 646.000

30 692.750 693.550 671.500 671.250 686.100 694.100 642.900 658.600

31 649.350 650.150 674.500 674.500 644.825 659.875

32 653.950 654.750 684.250 688.500 677.625 670.900

33 657.925 658.725 689.750 689.250 679.325 675.275

34 681.950 682.750 691.750 691.250 697.950 676.975

35 685.525 686.325 697.750 695.250

36 686.575 687.375

37 690.775 691.575

38 655.750 656.550

39 671.700 672.500

40 689.425 690.225

J5E FREQUENCY BAND (578.000 - 638.000 MHz) (Continued)

Q5 FREQUENCY BAND (740.000 - 814.000 MHz)

Full Range

max. # of

comp. fre-

quencies

(option 1)

Full Range

max. # of

comp. fre-

quencies

(option 2)

Full Range

max. # of

comp. fre-

quencies

(option 3)

Full Range

max. # of

comp. fre-

quencies

(option 4)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 3)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 3)

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1740.300 740.425 740.100 740.625 740.250 740.250 742.750 740.900 740.500 740.900

2740.825 740.850 740.625 741.050 742.750 743.250 743.500 741.300 740.900 741.300

3742.400 742.100 742.200 742.300 743.250 743.750 745.250 742.100 742.100 746.975

4742.800 742.650 742.600 742.850 744.500 745.250 746.500 744.025 744.025 748.900

5745.000 744.025 744.800 744.225 746.500 746.500 747.500 745.500 744.775 749.700

6745.975 744.675 745.775 744.875 747.250 753.750 751.750 749.300 746.225 752.025

7748.850 745.600 748.650 745.800 752.500 755.500 753.250 754.225 756.900 753.500

8749.950 750.050 749.750 750.250 759.750 763.500 753.750 760.025 761.500 764.500

9753.350 752.625 753.150 752.825 767.500 769.250 758.750 770.975 764.500 768.775

10 756.100 753.525 755.900 753.725 768.500 771.250 771.750 774.100 770.975 774.100

11 764.875 758.825 764.675 759.025 769.750 772.250 775.500 774.500 772.900 776.025

12 770.150 766.275 769.950 766.475 771.750 774.750 776.500 781.300 773.300 778.975

13 771.800 769.350 771.600 769.550 772.250 775.500 777.750 782.500 776.775 781.700

14 772.575 770.025 772.375 770.225 786.500 785.750 787.500 784.025 778.225 782.500

15 774.325 771.300 774.125 771.500 794.500 791.750 791.500 786.225 778.975 784.775

16 776.625 777.375 776.425 777.575 796.250 795.500 799.750 786.975 796.500 796.500

17 782.700 779.675 782.500 779.875 799.750 800.500 801.750 802.975 797.700 800.775

18 783.975 781.425 783.775 781.625 803.500 801.250 803.250 806.100 806.500 804.500

19 784.650 782.200 784.450 782.400 806.750 803.250 804.250 808.025 808.025 805.700

20 787.725 783.850 787.525 784.050 807.500 807.500 807.500 809.500 810.225 810.225

21 795.175 789.125 794.975 789.325 809.750 808.500 809.250 812.500 810.975 810.975

22 800.475 797.900 800.275 798.100 811.750 809.750 809.750 813.300 813.700 812.900

23 801.325 800.650 801.125 800.850 812.250 811.500 810.500 813.700 753.500 813.300

24 803.950 804.050 803.750 804.250 748.250 745.750 744.500 746.225 754.975 744.775

25 808.400 805.150 808.200 805.350 750.750 750.750 745.750 753.500 757.700 746.225

26 809.325 808.025 809.125 808.225 755.750 752.500 751.250 758.100 766.500 750.100

27 809.975 809.000 809.775 809.200 759.250 753.250 754.500 758.500 781.700 765.300

28 811.350 811.200 811.150 811.400 762.500 754.500 755.500 765.300 788.500 768.025

29 811.900 811.600 811.700 811.800 763.500 758.750 759.500 768.775 789.300 772.500

30 813.150 813.175 812.950 813.375 766.750 760.500 760.500 769.500 792.025 773.700

31 813.575 813.700 813.375 813.900 770.500 767.500 766.750 772.900 792.775 781.300

32 754.400 751.050 754.200 751.250 775.500 770.500 770.500 788.900 797.300 792.025

33 768.000 772.025 767.800 772.225 779.500 776.500 771.250 797.300 798.500 794.975

34 778.000 776.000 777.800 776.200 782.750 777.750 779.500 801.500 800.775 797.300

35 781.975 786.000 781.775 786.200 783.250 779.250 782.750

36 802.950 799.600 802.750 799.800 784.500 782.750 784.500

37 743.550 746.200 743.350 746.400 785.250 784.500 785.250

38 750.400 755.625 750.200 755.825 788.250 785.250 785.750

39 751.425 768.400 751.225 768.600 791.750 786.500 786.500

40 785.600 802.575 785.400 802.775 795.500 788.250 790.750

41 798.375 803.600 798.175 803.800 798.750 796.250 793.250

42 807.800 810.450 807.600 810.650 800.500 801.750 800.500

43 767.400 754.825 767.200 755.025 808.500 810.500 808.500

44 768.950 758.375 768.750 758.575 810.500 812.250 812.250

45 769.700 763.725 769.500 763.925

46 790.275 784.300 790.075 784.500

47 795.625 785.050 795.425 785.250

48 799.175 786.600 798.975 786.800

Q5 (Continued)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 3)

Germany

preferred:

User Group

1 790-814

MHz

Germany

preferred:

User Group

2 790-814

MHz

Germany

preferred:

User Group

3A 790-814

MHz

Germany

preferred:

User Group

3B 790-814

MHz

Germany

preferred:

User Group

3C 790-814

MHz

Germany

preferred:

User Group

3D 790-814

MHz

Germany

preferred:

User Group

4 790-814

MHz

Channel Group11 Group 12 Group 13 Group 14 Group 15 Group 16 Group 17 Group 18 Group 19 Group 20

1741.100 740.700 741.100 790.100 790.100 790.250 790.300 790.350 790.400 791.475

2741.900 741.100 741.500 791.050 791.575 792.325 791.250 791.300 790.800 792.525

3742.300 742.300 742.300 793.575 792.050 792.900 792.950 794.925 798.800 793.200

4743.000 743.000 744.975 794.675 794.425 793.725 794.875 795.450 803.500 795.625

5748.700 750.300 746.025 803.200 796.250 795.350 795.400 801.000 804.725 797.125

6751.000 752.975 748.000 804.425 797.500 799.900 796.150 803.450 805.700 802.525

7754.025 757.900 752.225 806.100 799.575 800.900 798.700 806.350 806.400 804.850

8765.500 759.000 757.500 806.500 806.600 807.200 801.775 806.750 808.475 805.250

9768.225 770.775 759.000 811.200 809.325 810.825 807.950 808.425 809.050 808.550

10 768.975 772.700 773.100 811.950 810.425 812.100 808.375 809.825 809.875 809.950

11 770.025 774.300 773.500 813.400 812.950 812.575 809.775 813.650 810.975 811.550

12 775.000 778.025 776.225 813.900 813.900 794.825 812.625 793.825 792.475 812.850

13 778.775 781.100 776.975 796.425 790.600 808.325 806.700 796.675 793.875 813.775

14 780.700 782.300 780.000 797.400 805.500 811.350 810.875 797.650 794.975 799.400

15 783.000 784.975 781.900 797.900 805.900 811.400 809.000 795.500 810.525

16 797.500 786.775 784.225 800.750 808.800 813.600 810.925 796.725

17 797.900 797.900 788.700

18 799.000 800.225 802.025

19 805.100 804.000 804.700

20 806.300 805.100 805.100

21 808.225 807.000 805.900

22 808.975 808.225 810.025

23 810.775 812.700 812.000

24 813.100 813.500 813.500

25 746.775 744.225 752.975

26 749.100 748.700 754.025

27 752.225 749.100 756.700

28 754.775 752.225 774.300

29 756.700 754.775 782.300

30 764.000 764.000 788.000

31 782.300 768.225 789.100

32 784.225 772.000 789.900

33 784.975 780.700 792.975

34 788.000 791.000 802.775

35 792.225 794.025 806.300

36 813.900 794.775 810.775

Q5 (Continued)

Germany

preferred:

User

Group 4

790-814

MHz

(option 2)

Germany

preferred:

Fixed In-

stallations

742-790

MHz

Optimized:

TV oh. 55

742-750

MHz

Optimized:

TV oh. 56

750-758

MHz

Optimized:

TV o h. 5 7

758-766

MHz

Optimized:

TV o h. 5 8

766-774

MHz

Optimized:

TV o h. 5 9

774-782

MHz

Broad-

casters

pre-

ferred:

TV oh. 60

782-790

MHz

Optimized:

TV oh. 61

790-798

MHz

Optimized:

TV oh. 62

798-806

MHz

Netherlands

p r e f e r r e d :

TV oh. 63

806-814

MHz

Combined

UHF-R Q5

and R9:

max. # of

compatible

Combined

UHF-R Q5

and R9:

max. # of

compatible

Channel Group 21 Group 22 Group 23 Group 24 Group 25 Group 26 Group 27 Group 28 Group 29 Group 30 Group 31 Group 32 Group 33

1790.925 742.750 742.100 750.100 758.100 766.100 774.100 782.225 790.100 798.100 806.100 742.000 740.175

2791.400 744.625 742.925 750.925 758.925 766.925 774.925 782.650 790.925 798.925 806.925 743.200 740.900

3792.625 745.100 743.525 751.525 759.525 767.525 775.525 783.900 791.525 799.525 807.525 743.850 742.300

4795.025 745.975 744.575 752.575 760.575 768.575 776.575 784.625 792.575 800.575 808.575 744.800 742.850

5795.650 747.650 745.900 753.900 761.900 769.900 777.900 785.775 793.900 801.900 809.900 748.175 743.975

6797.050 748.225 747.650 755.650 763.650 771.650 779.650 786.400 795.650 803.650 811.650 748.650 746.550

7802.000 753.225 748.050 756.050 764.050 772.050 780.050 787.325 796.050 804.050 812.050 749.500 747.550

8803.575 754.750 749.200 757.200 765.200 773.200 781.200 787.850 797.200 805.200 813.200 751.250 751.525

9805.750 755.950 749.900 757.900 765.900 773.900 781.900 788.675 797.900 805.900 813.900 752.750 751.925

10 810.300 759.350 746.600 754.600 762.600 770.600 778.600 794.600 802.600 810.600 758.025 765.325

11 811.050 762.275 760.925 766.550

12 812.850 770.100 770.900 767.425

13 813.775 774.375 774.450 773.025

14 799.400 775.775 776.400 773.525

15 808.550 777.500 777.475 776.625

16 779.750 778.875 777.950

17 782.550 783.075 781.950

18 784.475 796.800 783.775

19 785.975 797.975 798.600

20 787.050 804.325 804.250

21 788.350 806.225 808.800

22 788.875 741.200 748.175

23 743.500 773.450 752.600

24 772.075 775.700 770.875

25 755.450 810.100 778.900

26 756.750 745.475 783.375

27 770.825 754.900 766.125

28 772.725 762.625 771.775

29 776.450 768.825 786.450

30 789.875 783.575 802.075

31 760.000 797.575 812.900

32 783.925 755.525 745.950

33 756.650 749.375

34 758.975 763.475

35 781.700 788.125

36 807.675 800.900

Q5 (Continued)

R9 FREQUENCY BAND (790.000-865.000 MHz)

Full Range

max. # of

compatible

frequencies

(option 1)

Full Range

max. # of

compatible

frequencies

(option 2)

Full Range

max. # of

compatible

frequencies

(option 3)

Full Range

max. # of

compatible

frequencies

(option 4)

O p t i m i z e d :

TV oh. 61-63

& TV oh. 67-

69 & EU

harmonized:

790-814 &

838-862 MHz

& 863-865

MHz

O p t i m i z e d :

TV oh. 61-63

& TV oh. 69

& EU

harmonized:

790-814 &

854-862 MHz

& 863-865

MHz

Germany

preferred:

User Group

4 790-814

MHz &

838-865

MHz

(only

indoor)

Germany

preferred:

User Group

4 790-814

MHz &

854-865

MHz

(indoor and

outdoor)

Germany

preferred:

User Group

3A 790-814

MHz &

838-865

MHz

Germany

preferred:

User Group

3B 790-814

MHz &

838-865

MHz

Germany

preferred:

User Group

3C 790-814

MHz &

838-865

MHz

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10 Group 11

1790.650 791.300 790.725 790.525 790.175 790.525 792.550 792.625 790.250 791.950 790.350

2791.900 792.050 791.825 791.125 793.025 791.775 794.000 793.175 792.325 793.775 791.300

3794.200 793.225 792.500 791.925 793.425 792.400 794.525 794.025 792.900 794.875 794.925

4795.275 793.875 794.950 794.025 798.225 793.550 797.200 795.625 793.725 798.300 796.675

5795.975 795.375 795.375 795.850 799.100 796.150 799.400 797.750 794.825 800.950 800.425

6797.425 798.050 796.900 798.125 799.600 797.100 801.200 801.225 799.200 806.300 805.650

7797.975 798.475 801.725 801.725 800.675 803.025 802.175 805.100 799.900 806.700 806.350

8802.175 800.925 802.675 802.750 801.325 804.500 805.750 807.425 804.100 808.375 808.425

9803.725 805.425 803.975 803.225 805.975 805.000 809.125 810.100 810.825 811.400 809.000

10 804.650 806.700 804.750 809.975 809.900 807.225 811.575 810.525 812.100 812.150 809.825

11 808.600 809.050 809.275 816.025 810.875 810.525 812.825 811.600 812.575 813.600 811.450

12 814.550 812.050 817.225 818.000 813.450 812.100 813.250 813.300 839.200 838.300 839.300

13 817.550 823.825 820.550 818.575 838.175 813.450 840.625 854.950 839.900 840.375 840.425

14 823.625 825.000 823.175 819.375 838.975 854.325 841.425 856.625 840.325 840.950 841.825

15 828.275 826.550 827.825 821.500 840.125 854.975 843.725 857.475 842.825 841.775 843.450

16 829.100 829.700 829.375 822.400 841.875 855.900 845.100 857.950 844.100 843.400 849.000

17 830.625 831.500 829.875 828.575 843.225 857.700 845.800 859.050 846.250 846.700 852.675

18 831.625 832.550 830.625 829.250 847.975 858.850 848.525 859.725 847.200 847.950 853.650

19 833.275 842.775 834.825 830.275 850.975 860.750 849.125 861.175 856.900 855.950 858.925

20 833.875 844.100 842.650 835.075 851.475 863.175 853.800 861.750 857.725 856.950 859.450

21 841.575 846.575 844.050 843.050 853.125 864.000 855.400 791.450 860.100 860.150 860.675

22 846.050 851.125 845.900 851.975 855.625 864.475 857.950 801.950 795.350 860.625 793.825

23 851.950 853.475 853.025 852.800 857.475 792.825 859.650 805.775 807.200 791.250 801.000

24 855.900 857.750 855.000 855.125 861.475 795.750 861.150 863.525 807.900 795.400 806.750

25 856.825 858.525 855.600 856.475 863.775 805.750 795.700 864.200 811.350 797.600 813.650

26 858.425 858.950 856.725 856.975 864.175 806.300 800.625 856.325 808.950 854.350

27 859.050 860.725 859.050 858.025 864.825 807.875 810.100 859.350 854.700 857.825

28 860.550 863.350 859.450 861.575 790.800 810.975 810.550 860.575 859.400 861.650

29 863.400 863.900 863.625 863.625 794.350 811.700 839.475 863.100 863.125 863.250

30 863.825 864.875 864.350 864.325 794.775 857.225 849.925 863.675 863.750

31 864.625 794.775 801.000 792.450 804.225 861.300 854.950 864.475 864.825

32 799.275 799.800 822.000 827.450 805.400 857.200

33 822.150 825.575 827.200 845.000 806.800 863.200

34 830.225 827.075 860.975 845.600 808.600 863.675

35 847.400 845.700 864.875 794.775 811.475

36 807.375 855.450 791.425 795.175 840.800

37 810.825 811.600 803.425 806.125 843.850

38 815.825 813.825 808.825 809.225 844.275

39 816.300 819.850 834.400 811.875 849.325

40 820.250 841.075 840.050 813.275 860.725

41 821.050 845.100 851.950 830.700

42 839.850 847.800 861.800 831.725

43 842.400 813.400 807.475 834.425

44 843.925 816.725 822.425 843.750

45 845.150 818.975 835.800 847.250

46 846.625 840.675 840.500 848.375

47 853.775 856.100 843.525 849.900

R9 (Continued)

Germany

preferred:

User Group

3D 790-814

MHz &

838-865

MHz

Germany

preferred:

User Group

2 790-814

MHz &

838-862

MHz

Germany

preferred:

User Group

1 790-814

MHz &

838-862

MHz

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

France

preferred:

User Group

(option 1)

France

preferred:

User Group

(option 2)

O p t i m i z e d :

TV oh. 61

790-798

MHz

O p t i m i z e d :

TV oh. 62

798-806

MHz

Channel Group 12 Group 13 Group 14 Group 15 Group 16 Group 17 Group 18 Group 19 Group 20 Group 21 Group 22

1790.400 790.100 791.050 791.500 790.750 790.500 792.775 790.300 791.000 790.100 798.100

2791.350 793.325 792.175 792.500 791.750 792.025 794.225 791.000 794.775 790.925 798.925

3794.975 794.425 792.750 793.750 793.250 794.225 794.975 792.975 797.100 791.525 799.525

4796.725 796.950 795.200 795.250 793.750 794.975 796.900 797.100 797.500 792.575 800.575

5800.475 797.900 796.425 795.750 794.500 796.900 798.100 797.900 798.300 793.900 801.900

6805.700 800.050 799.750 800.500 799.500 797.300 798.500 800.975 802.775 795.650 803.650

7806.400 806.100 802.675 801.250 801.750 801.500 801.500 806.300 808.975 796.050 804.050

8808.475 807.575 805.400 807.750 808.500 809.500 806.500 813.500 813.100 797.200 805.200

9809.050 808.050 806.100 811.250 817.750 812.900 810.975 818.025 820.000 797.900 805.900

10 809.875 808.800 811.950 819.500 820.250 821.300 822.100 820.000 822.300 794.600 802.600

11 811.500 813.500 813.400 822.750 823.250 822.500 824.025 822.300 823.000

12 839.350 838.100 838.100 824.500 823.750 826.225 826.225 824.975 824.225

13 840.475 840.050 838.500 825.750 826.500 826.975 826.975 828.000 828.000

14 841.875 840.800 843.950 827.250 827.500 828.500 829.300 828.700 829.100

15 843.500 843.825 851.200 828.250 828.250 828.900 829.700 829.100 829.500

16 849.050 844.250 852.425 790.750 795.500 798.500 805.300 792.225 790.300

17 852.725 846.100 853.400 798.750 802.500 802.975 809.500 796.700 807.000

18 853.700 849.325 854.100 799.500 803.750 810.225 812.900 800.225 812.700

19 858.975 853.900 856.175 809.250 806.750 813.300 813.300 812.700 814.300

20 859.500 859.825 856.750 810.500 811.500 814.500 814.100 816.975 816.225

21 860.725 860.950 857.575 812.250 814.750 816.775 822.500 826.025 824.975

22 793.875 861.500 858.675 815.750 815.500 863.150 863.125 863.150 863.125

23 801.050 790.600 797.900 816.500 816.500 863.550 863.525 863.550 863.525

24 806.800 791.575 807.050 817.750 818.500 864.175 864.175 864.175 864.175

25 813.700 792.800 807.750 823.500 819.750 864.600 864.625 864.600 864.625

26 854.400 811.250 859.200 863.150 825.250

27 857.875 811.825 861.400 863.550 863.125

28 861.700 812.950 864.175 863.525

29 863.300 855.575 864.600 864.175

30 856.050 864.625

31 859.250

Netherlands

p r e f e r r e d :

TV Ch. 63

806-814 MHz

(option 1)

Netherlands

p r e f e r r e d :

TV Ch. 63

806-814 MHz

(option 2)

O p t i m i z e d :

TV Ch. 61-63

790-814 MHz

FIN

p r e f e r r e d :

7 9 0 - 8 2 2 M H z

(option 1)

FIN

p r e f e r r e d :

790-822 MHz

(option 2)

Sweden

p r e f e r r e d :

800-814 MHz

(option 1)

Sweden

p r e f e r r e d :

800-814 MHz

(option 2)

NOR / DEN

p r e f e r r e d :

800-820 MHz

Optimized

T V c h a n n e l s :

TV Ch. 67

838-846 MHz

Optimized

TV channels:

TV Ch. 68

846-854 MHz

Channel Group 23 Group 24 Group 25 Group 26 Group 27 Group 28 Group 29 Group 30 Group 31 Group 32

1806.100 806.100 790.150 790.775 790.675 800.300 800.125 800.325 838.100 846.100

2806.925 806.800 791.200 791.175 791.825 800.700 801.125 801.800 838.925 846.925

3807.525 807.950 794.200 792.125 792.575 801.975 803.125 802.200 839.525 847.525

4808.575 808.350 795.375 792.650 794.225 802.500 803.775 802.950 840.575 848.575

5809.900 810.100 796.875 794.325 794.875 804.075 805.675 805.825 841.900 849.900

6811.650 811.425 797.825 801.550 796.925 806.950 807.050 807.950 843.650 851.650

7812.050 812.475 801.650 802.400 800.325 808.325 809.925 810.475 844.050 852.050

8813.200 813.075 803.350 805.200 805.550 810.225 811.500 811.075 845.200 853.200

9813.900 813.900 806.125 806.450 806.800 810.875 812.025 812.450 845.900 853.900

10 810.600 809.400 808.675 811.675 809.600 812.875 813.300 814.825 842.600 850.600

11 809.425 815.075 810.450 813.875 813.700 817.800

12 811.550 817.125 817.675 803.450 804.925 818.300

13 812.950 817.775 819.350 809.075 810.550 819.575

14 813.350 819.425 819.875 800.850

15 790.775 820.175 820.825 804.600

16 794.900 821.325 821.225 813.250

17 805.275 794.800 795.325 816.675

18 806.750 799.400 797.425

19 807.600 799.900 801.750

20 810.375 804.200 802.775

21 807.375 804.625

22 809.225 807.800

23 810.250 812.100

24 814.575 812.600

25 816.675 817.200

R9 (Continued)

BEL / TUR /

p r e f e r r e d :

TV Ch. 69 &

harmonized

854-862 &

863-865

MHz

O p t i m i z e d :

TV Ch. 67-

69 & EU

harmonized

838-862 &

863-865

MHz

U.K.

preferred:

“Ch. 69 Co-

ordinate

frequencies

SET 1"

U.K.

preferred:

“Ch. 69 Co-

ordinate

frequencies

SET 2"

U.K.

preferred:

“Ch. 69 Co-

ordinated

frequencies

INDOORS"

U.K.

preferred:

"Ch. 69 Co-

ordinated

frequencies

OUTDOORS"

U.K.

preferred:

"Ch. 69

Shared

frequencies"

(option 1)

U.K.

preferred:

"Ch. 69

Shared

frequencies"

(option 2)

harmonized

band:

optimized

for

863 - 865

MHz

Combined

UHF-R Q5

and R9:

max. # of

compatible

(option 1)

Combined

UHF-R Q5

and R9:

max. # of

compatible

(option 2)

Channel Group 33 Group 34 Group 35 Group 36 Group 37 Group 38 Group 39 Group 40 Group 41 Group 42 Group 43

1854.225 838.650 855.675 856.500 854.500 854.375 854.900 855.275 863.125 791.925 796.050

2855.525 840.225 856.375 857.500 855.000 854.850 855.900 855.900 863.525 793.425 796.900

3855.925 841.325 856.800 858.250 855.900 855.725 856.575 857.950 864.175 796.250 798.025

4856.550 843.700 857.425 858.700 856.600 856.400 857.950 858.650 864.625 802.725 803.000

5857.950 845.000 860.600 859.525 857.100 856.850 858.650 860.400 808.450 806.700

6859.550 850.675 857.850 857.625 860.400 860.900 809.450 811.825

7860.725 852.675 858.900 858.625 861.200 861.750 811.450 812.250

8861.450 853.250 859.500 859.950 861.750 823.200 815.125

9864.050 855.150 860.475 860.650 824.350 828.625

10 864.550 856.050 860.925 861.075 826.800 829.500

11 854.750 859.225 861.700 861.900 828.075 836.825

12 860.625 830.800 838.400

13 863.600 837.000 840.425

14 864.400 839.275 846.975

15 864.800 840.850 847.525

16 838.250 850.675 848.725

17 839.625 851.175 851.800

18 843.275 852.850 853.925

19 847.500 854.250 857.425

20 854.475 857.125 861.125

21 857.325 864.475 863.475

22 831.375 803.525

23 852.175 825.125

24 858.975 830.800

25 863.300 853.250

26 805.700 863.900

27 834.350 823.975

28 835.175 831.900

29 835.575 839.300

30 848.800 860.075

31 861.825 864.550

32 791.075 791.525

33 794.225 817.550

34 823.925 825.775

35 848.300 832.425

36 861.025 855.125

A24 FREQUENCY BAND (779-778 / 797-806)

Channel L1 L2 L3 L4 L5 L6 L7 L8

A1 779.125 779.250 779.625 779.750 780.625 780.250 779.125 782.875

A2 779.375 779.500 779.875 780.500 781.125 779.375 783.000

A3 780.125 780.000 780.375 781.000 781.375 779.875 783.125

A4 780.750 780.875 781.250 782.125 781.750 780.500 783.250

A5 782.000 781.500 781.625 782.375 782.625 781.500 783.375

A6 782.500 781.875 782.250 782.750 782.375 783.500

A7 782.750

1797.125 797.250 797.625 797.750 798.625 798.250 797.125 800.875

2797.375 797.500 797.875 798.500 799.125 797.375 801.000

3798.125 798.000 798.375 799.000 799.375 797.875 801.125

4798.750 798.875 799.250 800.125 799.750 798.500 801.250

5800.000 799.500 799.625 800.375 800.625 799.500 801.375

6800.500 799.875 800.250 800.750 800.375 801.500

7800.750

Channel H1 H2 H3 H4 H5 H6 H7 H8

A1 783.625 783.750 784.125 784.250 785.125 784.750 783.625 787.375

A2 783.875 784.000 784.375 785.000 785.625 783.875 787.500

A3 784.625 784.500 784.875 785.500 785.875 784.375 787.625

A4 785.250 785.375 785.750 786.625 786.250 785.000 787.750

A5 786.500 786.000 786.125 786.875 787.125 786.000 787.875

A6 786.375 786.750 787.250 786.875

A7 787.250

1801.625 801.750 802.125 802.250 803.125 802.750 801.625 805.375

2801.875 802.000 802.375 803.000 803.625 801.8 75 805.500

3802.625 802.500 802.875 803.500 803.875 802.375 805.625

4803.250 803.375 803.750 804.625 804.250 803.000 805.750

5804.500 804.000 804.125 804.875 805.125 804.000 805.875

6805.000 804.375 804.750 805.250 804.875

7805.250

Channel C1 C2 C3 C4 C5 C6 C7 C8 C9

1779.125 779.500 779.250 779.500 779.125 779.250 779.250 779.250 779.500

2779.375 779.875 779.750 780.000 779.375 779.500 780.000 780.750 780.250

3780.875 782.375 780.500 780.750 780.125 780.000 780.500 781.625 780.750

4781.875 784.125 782.000 782.250 781.625 781.375 781.500 782.000 781.750

5783.750 786.500 782.625 784.000 783.625 782.500 781.875 783.625 782.125

6786.125 787.500 783.750 785.375 784.250 783.375 784.000 784.250 784.250

7787.250 787.750 785.750 786.000 785.375 784.875 785.625 785.375 785.875

8786.750 787.000 786.625 786.125 786.750 786.750 787.000

9787.000 786.500 787.375 787.250 787.625

10 787.500 787.125 787.625 787.500 787.875

Channel E1 E2 E3 E4 E5 E6 E7 E8 E9

1797.125 797.500 797.250 797.500 797.125 797.250 797.250 797.250 797.500

2797.375 797.875 797.750 798.000 797.375 797.500 798.000 798.750 798.250

3798.875 800.375 798.500 798.750 798.125 798.000 798.500 799.625 798.750

4799.875 802.125 800.000 800.250 799.625 799.375 799.500 800.000 799.750

5801.750 804.500 800.625 802.000 801.625 800.500 799.875 801.625 800.125

6804.125 805.500 801.750 803.375 802.250 801.375 802.000 802.250 802.250

7805.250 805.750 803.750 804.000 803.375 802.875 803.625 803.375 803.875

8804.750 805.000 804.625 804.125 804.750 804.750 805.000

9805.000 804.500 805.375 805.250 805.625

10 805.500 805.125 805.625 805.500 805.875

ChannelF1F2F3F4F5F6F7F8F9

1797.125 797.250 799.000 797.625 797.375 797.125 797.375 797.250 797.125

2797.875 797.500 800.125 798.000 797.750 797.375 797.625 797.500 797.500

3798.250 798.750 801.500 799.000 798.875 797.750 798.875 797.875 799.125

4799.750 799.500 803.500 800.250 801.625 798.750 799.250 799.625 800.125

5801.875 802.250 804.250 802.000 804.125 799.875 800.250 801.000 802.000

6802.875 802.750 805.875 803.500 801.375 801.000 802.250 804.250

7804.250 805.125 803.625 803.000 803.875 804.750

8804.375 805.250 805.000 805.500

9804.875 805.875

JBX FREQUENCY BAND (806-125, 809.750 MHz)

Q6 FREQUENCY BAND (740.125 - 751.875 MHz)

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7

1 806.125 806.250 806.625 806.750 807.625 807.250 806.125

2 806.375 806.500 806.875 807.500 808.125 806.375

3 807.125 807.000 807.375 808.000 808.375 806.875

4 807.750 807.875 808.250 809.125 808.750 807.500

5 809.000 808.500 808.625 809.375 809.625 808.500

6 809.500 808.875 809.250 809.750 809.375

7809.750

ChannelF1F2F3F4F5F6F7F8F9

6 806.125

7 806.375 807.000 806.375

8 806.250 807.625 808.125 807.250 807.125

9 806.750 808.750 809.000 807.750 807.750 806.125 808.000

10 809.500 809.375 809.375 808.875 809.000 806.750 808.500 806.875 808.625

11 809.750 809.750 809.625 809.750 809.500 808.750 809.125 808.375 809.500

12 809.625 809.625 809.125 809.750

Channel Group 1 Group 2 Group 3 Group 4 Group 5

1740.275 740.275 740.250 740.275 740.375

2741.000 740.825 740.900 740.800 741.275

3741.450 741.725 741.325 742.550 741.700

4742.425 742.250 742.075 743.350 743.450

5742.850 742.975 743.025 743.775 743.925

6743.600 743.450 743.475 745.525 744.775

7744.050 744.425 744.525 748.125 746.975

8745.050 746.825 745.375 748.925 748.700

9747.450 747.825 747.925 749.350 749.600

10 748.425 748.275 748.375 751.250 750.925

11 748.900 749.025 749.200 751.775 751.650

12 749.625 749.450 749.625

13 750.150 750.425 750.250

14 751.050 750.875 751.100

15 751.600 751.600 751.600

Q10 FREQUENCY BAND (740.000 - 797.900)

Works with

UA G1 Works with

UA G2 Works with

UA G3 Works with

UA G4 Works with

UA G5 Works with

UA G6 Works with

UA G7 Full

Spectrum Full

Spectrum

Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9 Group 10

1740.450 740.600 740.550 740.075 741.350 740.550 740.300 740.000 741.075 740.200

2741.425 742.500 740.975 740.500 742.150 744.350 741.400 740.625 743.000 740.825

3743.075 743.000 742.750 742.025 745.725 744.975 741.925 742.450 743.600 742.650

4745.350 744.050 747.875 747.550 747.000 745.800 742.825 742.975 745.225 743.175

5746.050 744.700 748.750 748.800 748.050 749.100 745.800 743.800 749.100 744.000

6747.350 746.700 753.225 749.650 749.525 755.175 747.950 746.625 756.175 746.825

7748.150 749.000 754.225 753.650 750.700 756.250 749.475 748.825 759.850 749.025

8751.875 752.125 755.550 756.800 753.550 756.725 752.575 749.225 761.000 749.425

9753.625 754.650 756.325 760.550 755.325 758.725 755.925 755.750 762.800 755.950

10 756.050 756.100 758.200 761.500 756.700 759.450 756.550 759.075 763.825 759.275

11 757.150 757.900 758.825 762.200 758.300 761.650 758.325 761.025 767.325 761.225

12 763.525 760.925 762.550 763.350 758.700 766.225 761.525 769.125 768.175 769.325

13 764.950 768.675 767.425 765.850 768.800 771.450 766.775 769.725 768.775 769.925

14 749.725 741.700 741.750 767.850 745.000 741.675 746.625 770.575 776.875 770.775

15 752.350 746.150 743.475 741.150 751.425 753.425 747.150 774.075 778.825 774.275

16 754.650 747.950 746.650 744.200 757.375 754.425 750.750 775.100 782.150 775.300

17 756.750 756.850 751.350 746.100 759.650 760.425 753.775 776.900 788.675 777.100

18 761.400 758.700 751.925 752.525 760.325 772.225 757.775 778.050 789.075 778.250

19 762.675 759.250 753.625 754.400 764.400 792.275 759.825 781.725 791.275 781.925

20 761.975 792.150 755.775 779.675 795.000 776.575 788.800 794.100 789.000

21 766.975 789.350 779.600 792.675 794.925 792.875

22 784.550 790.350 794.300 795.450 794.500

23 791.850 794.900 797.275 795.100

24 792.650 796.825 797.900 797.025

25 747.325 740.575 747.525

26 750.000 754.950 750.200

27 782.950 787.900 783.150

28 797.325 790.575 797.525

29 763.450 745.850 763.650

30 763.925 754.200 764.125

31 764.650 772.325 764.850

32 765.575 773.250 765.775

33 783.700 773.975 783.900

34 792.050 774.450 792.250

35 741.675 747.900 741.875

36 761.750 751.825 761.950

37 786.075 776.150 786.275

38 790.000 796.225 790.200

EU DECLARATION OF CONFORMITY

We, Shure Incorporated

of 5800 Touhy Avenue

Niles, Illinois, 60714-4608 U.S.A.

Phone: (847) 600-2000

Web: www.Shure.com

Declare under our sole responsibility that the following product

Model: UR1, UR2 Description: Body Pack and Handheld UHF Transmitters

Model: UR4S, UR4D Description: UHF Receivers

conforms to the essential requirements and other relevant previsions of the R&TTE Directive

(1999/5/EC).

The products comply with the following product family, harmonized or national standards:

EN 301 489-1 V1.4.1 (2002-08)

EN 301 489-9 V1.2.1 (2002-08)

EN 300 422-1 V1.2.2 (2000-08)

EN 300 422-2 V1.1.1 (2000-08)

In addition, the UR4S and UR4D products comply with the following product family,

harmonized or national standard;

EN60065

EN61000-3-2:2000 Amendment A1:1998; A2:1998; A14:2000

EN 61000-3-3 Amendment A1:2001

The technical documentation is kept at:

Shure Incorporated, Corporate Quality Engineering Division

SHURE Europe GmbH, EMEA Approval

Manufacturer: Shure Incorporated

Signed: __________________________________ Date: 6 January 2005

Name and Title: Craig Kozokar, EMC Project Engineer, Corporate Quality Engineering Division

European Representative: SHURE Europe GmbH

Signed: __________________________________ Date: 6 January 2005

Name and Title: Wolfgang Bilz, Dipl. Ing. (FH), EMEA Approval

SHURE Europe GmbH

Headquarters Europe, Middle East & Africa

Wannenäcker Str. 28

D-74078 Heilbronn, Germany

Phone: +49 - (0)7131 - 7214 - 0

Fax: +49 - (0)7131 - 7214 - 14

)&&'(&/$5$7,212)&21)250,7<

:H 6KXUH,QFRUSRUDWHG

RI :7RXK\$YHQXH

1LOHV,/86$

000

'HFODUHXQGHURXUVROHUHVSRQVLELOLW\WKDWWKHIROORZLQJSURGXFW

0RGHO 856DQG85' 'HVFULSWLRQ 8+)5HFHLYHUV

+DVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWVIRUDQXQLQWHQWLRQDOUDGLDWRUGHYLFHDQG

DSSURYHGXQGHUWKH'HFODUDWLRQRI&RQIRUPLW\SURYLVLRQRIWKH3DUWRIWKH)&&UXOHV

2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV

7KLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFH

7KLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJLQWHUIHUHQFHWKDWPD\

FDXVHXQGHVLUHGRSHUDWLRQ

6LJQHG 'DWH -DQXDU\

1DPH7LWOH &UDLJ.R]RNDU

(0&3URMHFW(QJLQHHU&RUSRUDWH4XDOLW\6KXUH,QFRUSRUDWHG

SHURE Incorporated http://www.shure.com

United States, Canada, Latin America, Caribbean:

5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.

Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446

Europe, Middle East, Africa:

Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414

Asia, Pacific:

Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055

Shure orporated UR1A Non-Broadcast Transmitter worn on body User Manual Shure UHF R Wireless User Guide English

Shure Incorporated Non-Broadcast Transmitter worn on body Shure UHF R Wireless User Guide English

Exhibit D Users Manual per 2 1033 c3

Navigation menu

Namespaces

Views

Navigation
