Shure Incorporated Wireless Microphone

user manual

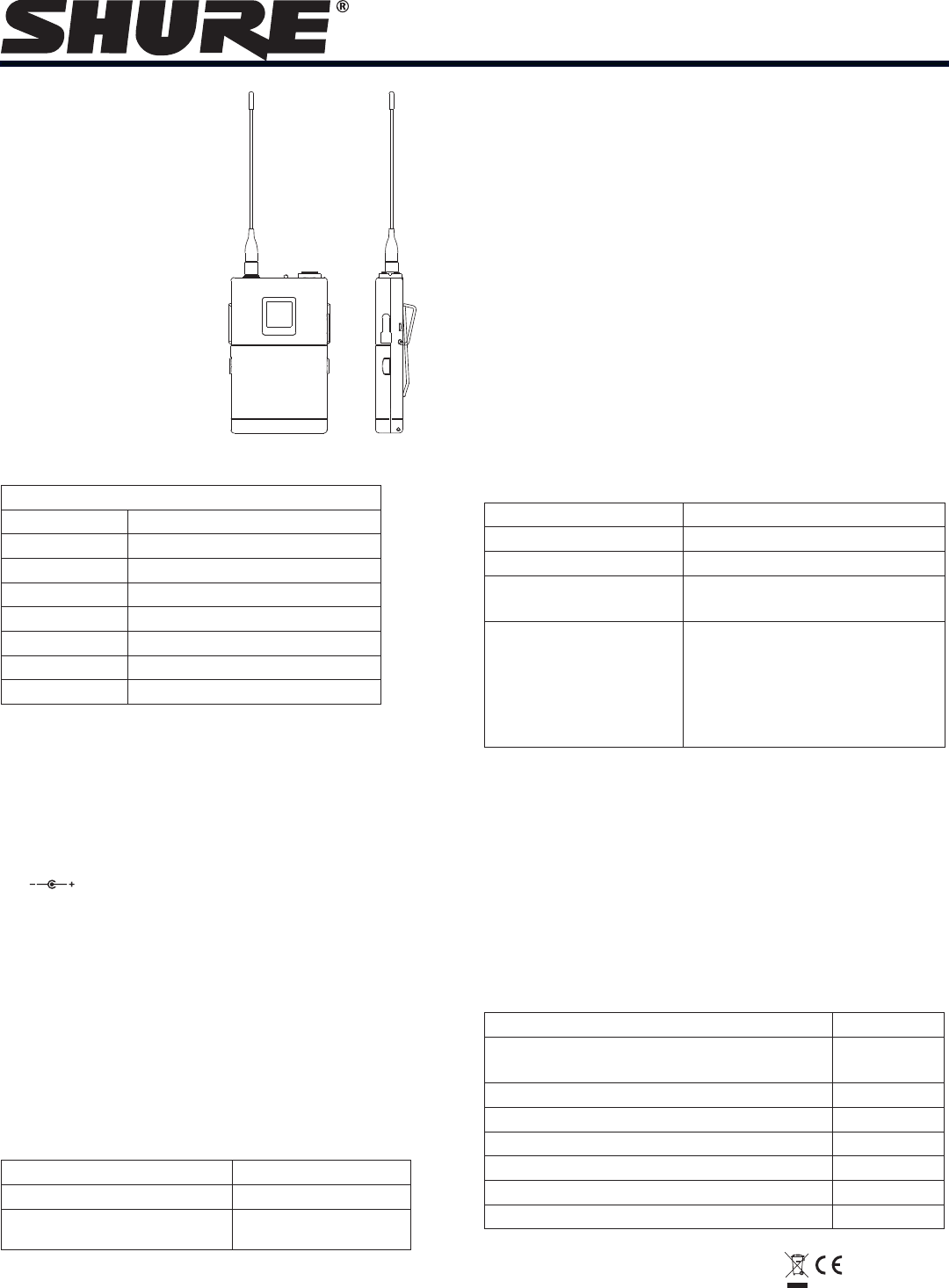

UR1H Bodypack Transmitter
Addendum
27A11915 (Rev. 2) Printed in U.S.A.
©2008 Shure Incorporated
Specications:
The following specications apply
to the UR1H bodypack only.
Features
High RF power (250 mW)•
Same audio performance as UR1•
Operates with alkaline or lithium batteries•
Rapid, two-way infrared (IR) data transmission•
External DC power connection•
Optional remote mount antenna•
Belt clip•
Warning: The UR1H belt clip must be installed as shown to ensure
compliance with FCC RF exposure guidelines for safe use.
Safety Information
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment is in direct contact with the
body of the user under normal operating conditions. This transmitter must
not be co-located or operating in conjunction with any other antenna or
transmitter.
For body-worn operation, the UR1H has been tested and meets the
guidelines for safe use when used properly with the belt clip supplied or
designated by Shure for use with this product. For safe use, do not remove
or alter the position at the belt clip other than as instructed.
Frequency Range
Band Range
H4, H4E 518-578 MHz
J5 578-608, 614-638 MHz
J5E 578-638 MHz
L3E, L3 638-698 MHz
Q5 740-814 MHz
R9 790-862 MHz
X1 944-952 MHz
RF Carrier Frequency Range
518-862 MHz, depending on region
RF Output Power
250 mW (24 dBm) across all tunable frequencies,
maximum variation of -1.5 dB
Power Requirements
Two 1.5V AA batteries or
9 - 20 VDC, Shure PS22 adaptor recommended
Plug size: 1.7 mm x 4.0 mm (.067 in. x .159 in)
NOTE: This equipment has been tested and found to comply
with the limits of a Class B digital device when used with PS22,
pursuant to Part 15 of the FCC Rules.
Current Drain: 350 mA maximum at the battery terminals with
3 VDC applied
Battery Life (Typical): 3 hours, with 1.5V AA alkaline batteries
7 to 9 hours, with AA lithium primary batteries
Overall Dimensions
UR1H: 98 mm L x 60 mm W x 17 mm D
(3.84 x 2.38 x 0.66 in.)
Net Weight
97 g (3.4 oz.) without batteries
UR1H Transmitter RF Output
Connector: SMA
Actual Impedance: 50 Ω
Pin Assignments: Shell = Ground
Center = Signal
UR1H Transmitter Audio Input
Connector: 4-Pin male mini connector (TA4M)
Input Conguration: Unbalanced, active
Actual Impedance: >1 MΩ
Maximum Input Level:
(1 kHz, 1% THD)
+10 dBu (sensitivity 0 dB) +20 dBu
(sensitivity –10 dB)
TA4M Connector
Pin Assignments:
Pin 1: Ground
Pin 2: +5 VDC bias
Pin 3: Audio
Pin 4: Tied through active load (on main
board) to Ground
(On instrument adapter cable, Pin 4
oats)
REPLACEMENT PARTS AND ACCESSORIES
Furnished Accessories
Antenna, 518-578 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UA710
Antenna, 578-698 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UA720
Antenna, 740-865 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UA730
Threaded Locking Adaptor TA4F ...................... WA340
Optional Accessories
Bodypack Pouch (Black) ............................ WA580B
Bodypack Pouch (White) ............................ WA580W
AC to DC Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . PS22
Antenna Accessories
Note: SMA to adaptor (UA910) is required to connect the following
antenna accessories:
Antenna, 944-952 MHz UA740
Passive Directional Wideband Antenna
(470-1100 MHz)
UA860SWB
2 ft. Coaxial Antenna Cable, BNC-BNC (RG58C/U) UA802
6 ft. Coaxial Antenna Cable, BNC-BNC (RG58C/U) UA806
25 ft. Coaxial Antenna Cable, BNC-BNC (RG8X/U) UA825
50 ft. Coaxial Antenna Cable, BNC-BNC (RG8X/U) UA850
100 ft. Coaxial Antenna Cable, BNC-BNC (RG213/U) UA8100
SMA to BNC Adaptor UA910
UR1H
Certication
UR1H meets the essential requirements of the European R&TTE Directive 99/5/EC (ETSI EN 300 422 Parts 1 & 2. Note: 250 mW RF output power,
EN 300 454 Parts 1 & 2, EN 301 489 Parts 1 & 9) and is eligible to carry the CE marking.
Certied under FCC Parts 74 (FCC ID: DD4UR1HA, DD4UR1HB, DD4UR1HC, DD4UR1HF). Certied by IC in Canada under RSS-123 and RSS-102
(IC: 616A-UR1HA, 616A-UR1HB, 616A-UR1HC).
The “EU Declaration of Conformity” can be obtained from Shure Inc. or any of its European representatives. For contact information please visit
www.shure.com
LICENSING INFORMATION:
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements.
Changes or modications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless
microphone equipment is the user’s responsibility, and licensability depends on the user’s classication and application, and on the selected frequency.
Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering
frequencies.
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•
Consult the dealer•
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC
performance
FCC and IC Radiation Exposure Statement for Mobile Devices (when used with the UA860SWB)
This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunc-
tion with any other antenna or transmitter.
