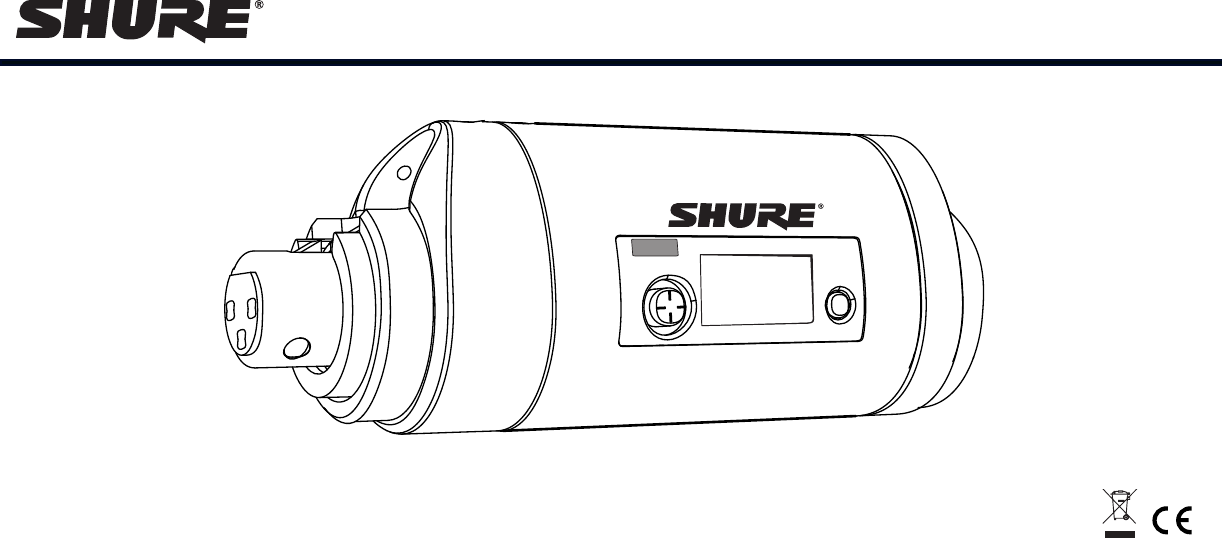

UR3 Plug-on Transmitter
3
General Description
The UR3 is compatible with any wired XLR microphone and is an essential
component for professional field and media production applications. It is
comfortable to hold, features a back-lit display, and the audio level and power
indicator LEDs are discreetly hidden.
UR3 Plug-on Transmitter

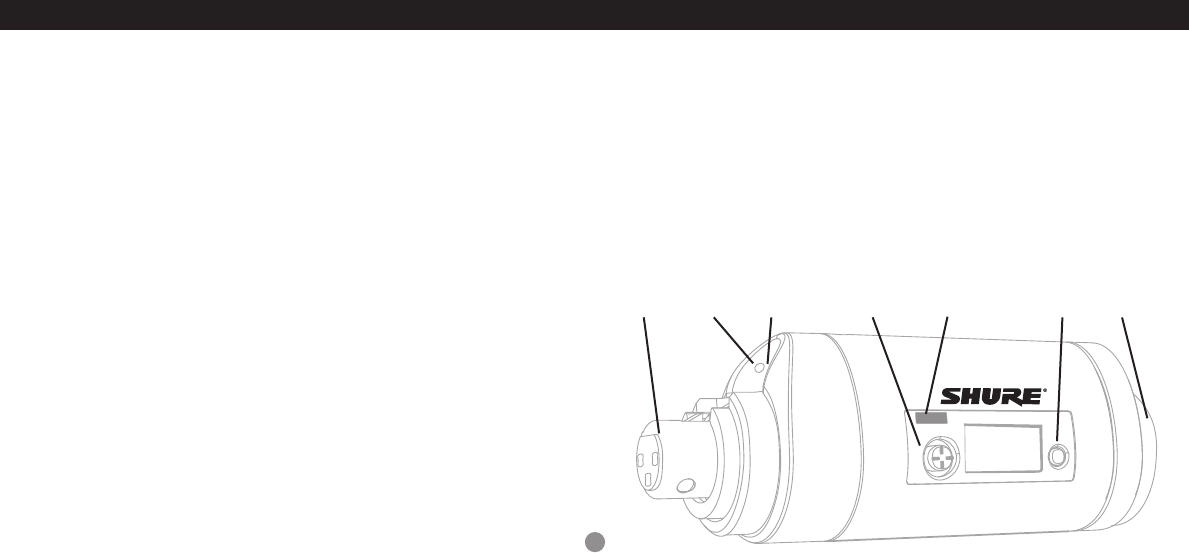

Features
① Joystick
Enter, exit and scroll using the
joystick
② XLRConnection
Connects to any XLR wired
microphone or device output
③ PowerLED
Tri-color LED, green, amber and
red
④ AudioLED
Tri-color LED for audio settings,
red is peak
⑤ IRWindow
For transmitting settings from
receiver to transmitter
⑥ BatteryCompartmentand
BatteryCapRetainer
Requires 2 AA batteries. Turn
cover counterclockwise to open
⑦ PowerSwitch
Press on, press and hold to
turn off
• UHF-R Audio Reference Companding
• Wide-band tuning (region specific)
• Smart, ergonomic industrial design
• Selectable +12V/+48V phantom power
• Sweepable high-pass filter
• Programmable preset list with copy/paste to other UR3s
• Selectable mic/line input
• 10/50 mW RF power
• Discreetly located audio and battery life indicators
• IR sync
②③④ ⑤ ⑥⑦
①
4

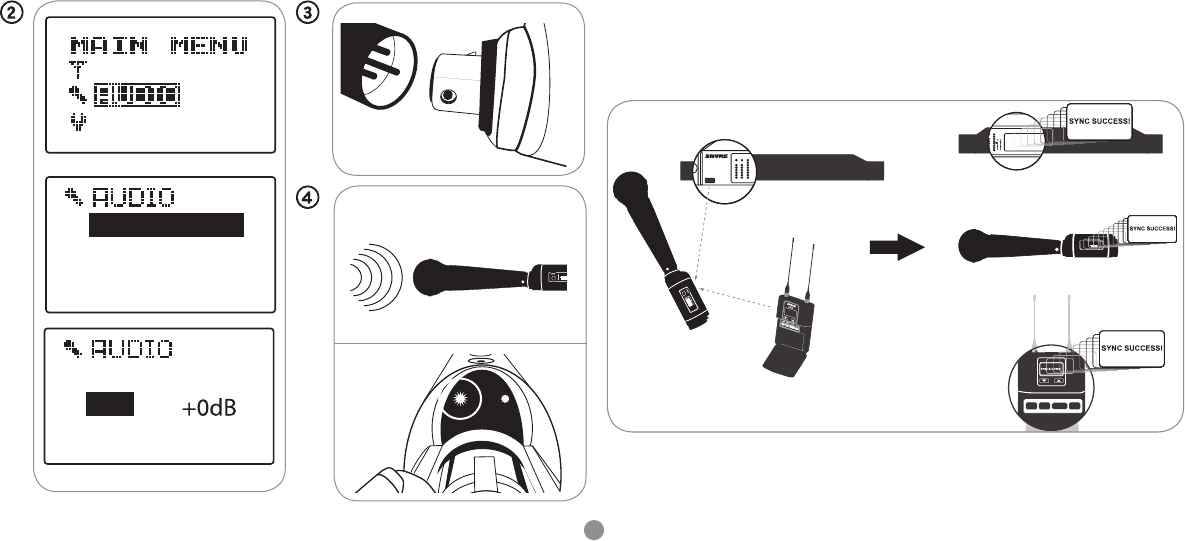

Setup
1. Install batteries and turn power on.
2. Select the appropriate level, mic or line, to match the audio signal source:
AUDIO > SENS/GAIN > SENS
3. Plug into an XLR microphone or the output of an audio device.
4. Perform a sound check: Adjust the gain until the audio LED peaks red and
flickers amber:
AUDIO > SENS/GAIN > GAIN

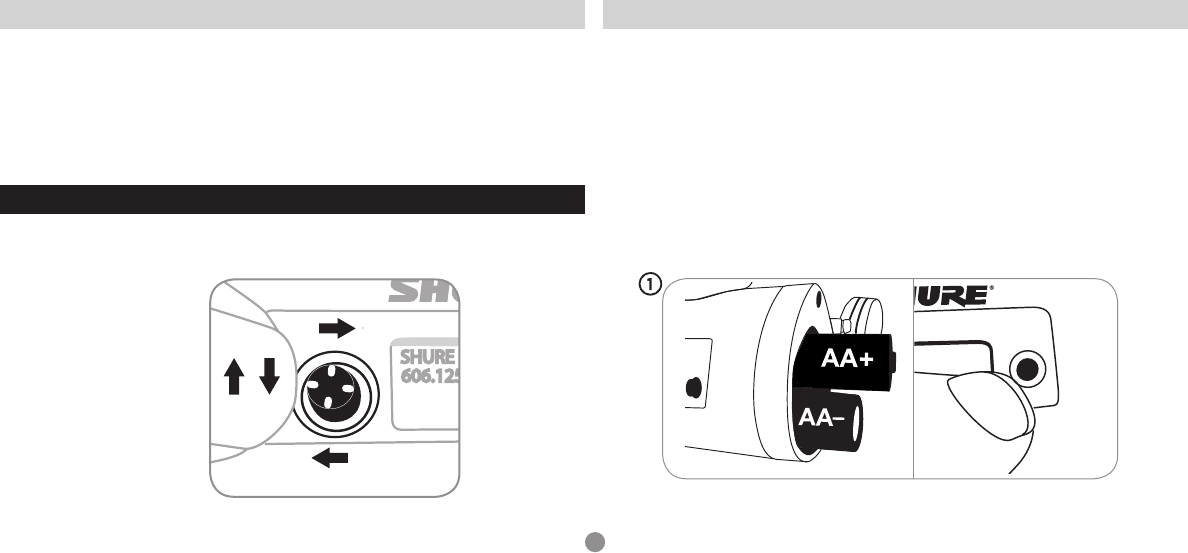

JoystickControls
Use the joystick for navigating and set-
ting values.
PushRight(Enter)
Access a menu or apply the selected
value
PushLeft(Exit)
Exit without saving changes
PushUp/Down(Scroll)
Scroll through menus or change a
value
Enter: Access a menu or
save the selected value
Scroll Up/Down:
Scroll through
menus or change
a value
SHURE
606.125MHz
MIC
Exit: Return to previous screen
Joystick
5

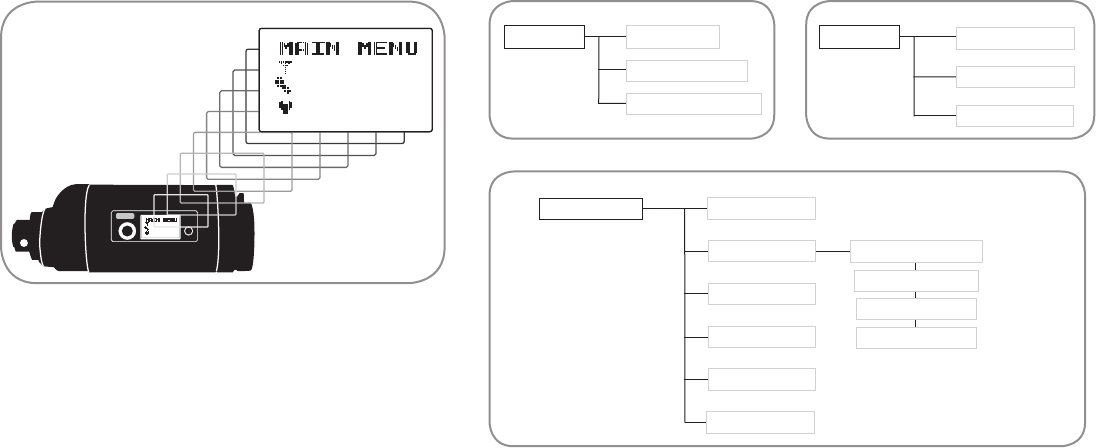

sens/gain
phantom
radio
utilities
HPF
sens/gain
mic
PRESET
SaVED
exit enter sync scan
exit enter sync scan
Audio ABJ 779-810 MHz NavigateRF
OL OL
Audio ABJ 779-810 MHz NavigateRF
®
UR4D+
Wireless Receiver
with Audio Reference
Compandingsync
Control Monitor Power
sync
Monitor Clip
ENTER
EXIT
push
1
2
Audio ABJRF
OL
®
Wireless Receiver
with Audio Reference
Companding sync
radio
audio
UTILITIES
radio
audio
UTILITIES
ABJ 779-810 MHz Navigate
OL
Audio ABJ 779-810 MHz NavigateRF
UR4D+
Wireless Receiver
with Audio Reference
Compandingsync
Control Monitor Power
sync
Monitor Clip
ENTER
EXIT
push
1
2
AudioRF
OL
SyncingwithaUHF-RReceiver
Align IR windows with a UHF-R receiver and press sync on the receiver. The
transmitter displays SYNC SUCCESS.
radio
audio
UTILITIES
radio
audio
UTILITIES
6
AudioSettings
AUDIOMenu
SENS/GAIN>SENS
Adjusts input level to match audio signal source. MIC: For microphones or mic-
level outputs
LINE: For line-level outputs.
SENS/GAIN>GAIN
Adjustsaudiooutputtothereceiverincrementallyfrom−10dbto+20db.
PHANTOM
Adds phantom power for condenser microphones. Select 12V or 48V as required
for the microphone.
HPF(ROLLOFF)
High-pass filter. Scroll up to turn on the filter and set the low-frequency rolloff in
Hz. (Scroll all the way down to turn off.)
RFSettings
Use the RADIO menu to adjust the following RF settings:
RADIOMenu
SETFREQ
Adjusts group, channel or frequency.
RFPWRLVL
Selects 10 mW or 50 mW power level
DISABLERF
Disables RF transmission. RF OFF appears on home screen.
ENABLERF(ifdisabled)
Enables RF transmission
7

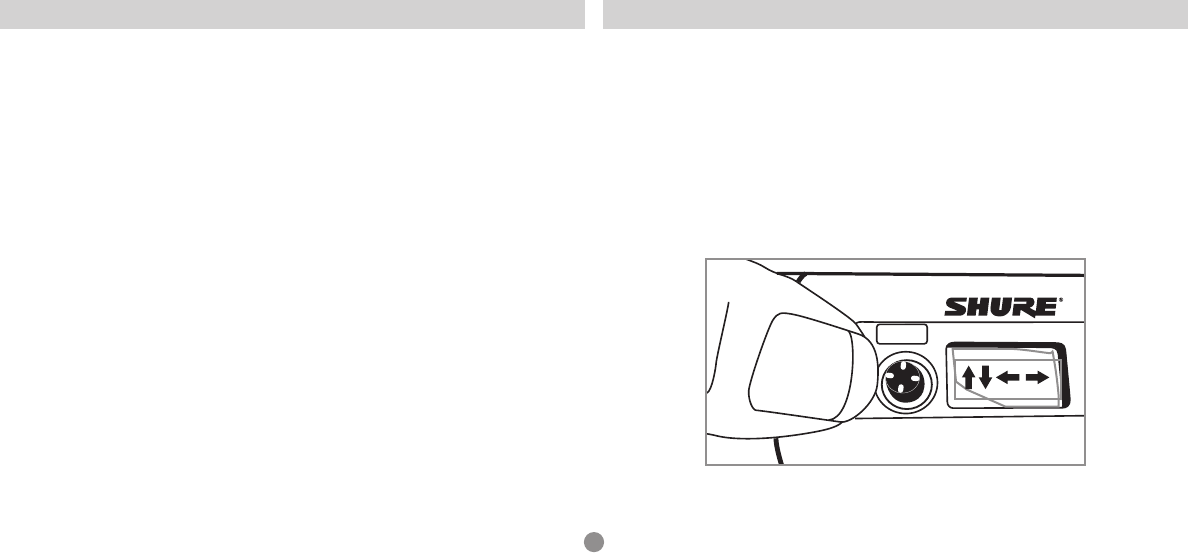

LockingandUnlockingtheTransmitter
To lock the transmitter, select UTILITIES > LOCK.
To unlock the transmitter:
1. From the home screen, hold the joystick to the right for 5 seconds or until UN-
LOCK? appears.
2. Push right again.
An on-screen key appears showing the joystick sequence to unlock the transmit-
ter.
3. Follow the pattern to unlock the transmitter (up, down, left, right).
UtilityMenu
UTILITIESMenu
LOCK
Locks the transmitter to prevent changes to settings.
MICPRESET
Acesses the preset list.
DISPLAY
Changes the home screen display format.
BATTERY
Sets battery type for more accurate battery life metering.
CONTRAST
Adjusts display contrast (press up/down).
RESTORE
Restores the factory default settings.
SHURE
606.125MHz
MIC
8
PresetSubmenu
Use the preset submenu to add,
modify, or delete presets, or to clear
the preset list. The submenu is not
available until the first preset has been
entered.
Note: The UR3 is shipped with an
empty preset list.
1. Access the preset list:
UTILITIES > MIC PRESET
2. Scroll down to select a preset.
3. Push right to access the menu for
the selected preset.
SELECT
Activates the selected preset.
MODIFY
Modify the selected preset.
ADD
Add a new preset after the selected
preset.
DELETE
Deletes the selected preset.
DELETEALL
Deletes all presets.
COPY/PASTE
Copy and paste the entire preset list to
another UR3.
MicrophonePreset
The transmitter holds up to 10 microphone presets.
To change or modify the presets, you must enter the microphone preset submenu:
UTILITIES > MIC PRESET. From the sub-menu you can select, modify, add or
delete and copy/paste settings.
AccessingPresets
Addingapreset:
UTILITIES > MIC PRESET>ADD
Use EXIT and ENTER to scroll between parameters. Use UP/DOWN to change
parameter values.

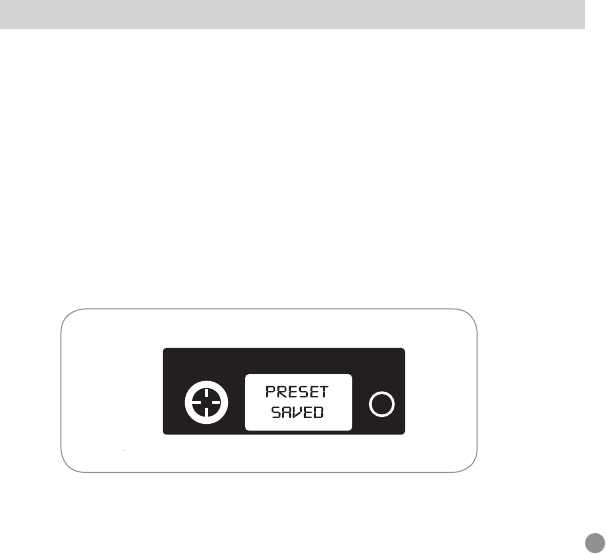

Note: ENTER through all parameter to save values.
9
CopyandPastePresetList
1. On the destination UR3: select UTILITIES > MIC PRESET
Highlight MIC PRESET.
2. From the source UR3: select UTILITIES > MIC PRESET > COPY/PASTE.
3. Align the IR windows and press enter on the source UR3.
SUCCESS appears on the LCD of the destination UR3.
ModifyMicrophonePresets
Choose a preset from the preset list, enter the submenu, and choose MODIFY.
Usethejoysticktoeditvalues:
Right: move to the next value.
Down: edit the selected value.
Left: exit the preset without saving changes.
To exit and save: Continue to scroll right, through all fields, until PRESET SAVED
appears.
To edit the eight-character name:
1. Highlight the preset name and press the joystick down.
2. Scroll up/down to change the character.
3. Scroll right to move to the next character.
4. To exit, continue to scroll right past the last character.
PoweronwithRFOFF(RFSafetyMode)
Use this to turn on the transmitter without transmitting RF. This allows you to
change frequency settings on the transmitter without accidentally interfering with a
frequency being used by another transmitter.
1) Hold joystick to the left (exit) while turning on the transmitter power. RF OFF is
displayed on home screen.
2) Change and save your frequency settings as you normally would – the transmit-
ter will not broadcast.
3) To transmit RF, power the transmitter off or turn the RF on thru the Main Menu,
MAIN MENU>RADIO> ENABLE RF.
4) Change and save your frequency settings as you normally would – the transmit-
ter will not broadcast.
Lock
Use this shortcut to power on the transmitter with the interface locked. This pre-
vents accidental changes to transmitter settings.
1. While holding the joystick to the right, power on the transmitter.
The home screen displays the lock icon.
2. To unlock the transmitter, hold the joystick to the right for 5 seconds and follow
the on-screen instructions.
10
FrequencyBand FrequencyRange(MHz) RFPower(mW)*
G1, G1E 470 - 530 10 / 50
H4, H4E 518 - 578 10 / 50
H4HK 518 - 565 10
J5 578-608, 614-638 10 / 50
J5E 578-638 10 / 50
J5HK 578 - 638 10
K4E 606 - 666 10 / 50
L3, L3E 638 - 698 10 / 50
M5E 694 - 758 10 / 50
P8 710 - 790 10 / 50
P9 710 - 787 10 / 50
Q5 740 - 814 10 / 50
R9 790 - 865 10 / 50
(10 mW only from 863-865)
MA24 779-788, 797-806 10
MJBX 806 - 810 10
R16 794 - 806 10 / 50
R18 794 - 806 10
X2 925 - 932 10
X1 944 - 952 10 / 50
* conductive into 50 ohms
Modulation FM (45kHz max. deviation)
FrequencyRange 470 – 952 MHz (varies by region)
WorkingRange Under typical conditions - 150 m (500 ft.)
Line-of-sight, outdoors for a single system -
500 m, (1600 ft.)
Note: Actual range depends on RF signal
absorption,antenna efficiency, reflections, and
interference.
TuningBandwidth Up to 80 MHz (varies by region)
Antenna Dipole - Antenna is formed from the UR3 and attached
microphone
CarrierFrequen-
cies
Up to 3200, tunable in steps of 25 kHz (varies by region)
RFPowerOutput Selectable 10 mW or 50 mW max. (depending on region)
PowerRequire-
ments
(2) 1.5V AA alkaline
BatteryLife 10 hours (alkaline) without phantom power @ 10mW,
typical (freq. band dependent)
3-4 hours (alkaline), with 48V phantom power @ 50mW,
typical (freq. band dependent)
Specifications
11
GainAdjustment
Range
-10 to +20 dB, MIC or LINE input setting
Pilot Tone 32 kHz
Frequencystability ± 0.0015%
SpuriousRadiation 75 dB below carrier (typical)
Equivalentinput
noise
-127.0dBV, A-weighted (audio front end)
Max.AudioInput
level
+24 dBV (Line Input, 0dB gain)
-21 dBV (Mic Input, 0dB gain)
DifferentialInput
impedance
6kΩLINEInputSetting
3kΩMICInputSetting
SystemFrequency
response
35Hz – 17kHz, (+1.5dB, -3dB)
Note: Overall system frequency response depends on
the microphone element and receiver.
HighPassFilter Two-pole (12dB per octave), selectable cut off frequency
from 40 Hz to 240Hz
SystemTHD+N <0.3%, 1kHz sine wave @ 6dB below clip (line and mic
input setting)
SystemDynamic
Range
107 dB typical, Line Mode, A-weighted through a UR4
105 dB typical, Mic Mode, A-weighted through a UR4
102 dB typical, Line Mode, A-weighted through a UR5
100 dB typical, Mic Mode, A-weighted through a UR5
Audioinputjack 3-pin female XLR, Pin 1: Ground. Pin 2: Hot, Pin 3:
Cold
PhantomPower +48V ± 4V, 7mA max.
+12V ± 1V, 7mA max.
Weight 196g (6.9 oz.) (with AA batteries)
Dimensions 99 x 66 x 23 mm
3.9 x 2.6 x 0.9 in.
H x W x D
12
LICENSING INFORMATION:
Licensing: A ministerial license to operate this equipment may be required in certain areas.
Consult your national authority for possible requirements.
Changes or modifications not expressly approved by Shure Incorporated could void your
authority to operate the equipment. Licensing of Shure wireless microphone equipment is
the user’s responsibility, and licensability depends on the user’s classification and applica-
tion, and on the selected frequency. Shure strongly urges the user to contact the appropriate
telecommunications authority concerning proper licensing, and before choosing and ordering
frequencies.
Certifications:
UR3: Type Accepted under FCC Parts 74 (FCC ID: DD4UR3A, DD4UR3B,
DD4UR3C, DD4UR3E, DD4UR3P).
Certified by IC in Canada under RSS-123 and RSS-102 (IC: 616A-UR3A, 616A-
UR3B, 616A-UR3C, 616A-UR3E).
Meets essential requirements of the following European Directives:
R&TTE Directive 99/5/EC
•WEEEDirective2002/96/EC,asammendedby2008/34/EC
Please follow your regional recycling scheme for electronic waste
RoHS Directive 2002/95/EC, as ammended by 2008/35/EC Conforms to European
Regulation (EC) No. 1275/2008, as amended.
Meets requirements of the following standards: EN 300 422 Parts 1 and 2,
EN 301 489 Parts 1 and 9, EN60065.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/
compliance
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference,and (2) this device must accept any interference, including interfer-
ence that may causeundesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux ap-
pareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en comprom - ettre le fonctionnement.
AUDIO
HPF
SENS/GAIN
PHANTOM
UTILITIES LOCK
LIST
ADD
DELETEALL
COPY/PASTE
MICPRESET
DISPLAY
BATTERY
CONTRAST
SETFREQ
DISABLERF
RFPWRLVL
RADIO
radio
audio
UTILITIES
radio
audio
UTILITIES
RESTORE
SHURE Incorporated http://www.shure.com
United States, Canada, Latin America, Caribbean:
5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.
Phone: 847-600-2000 U.S. Fax: 847-600-1212 Int’l Fax: 847-600-6446
Europe, Middle East, Africa:
Shure Europe GmbH, Phone: 49-7262-9249-0 Fax: 49-7262-924911-4
Asia, Pacific:
Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055

Navigation menu
