Shyam Telecom HB-20-800 Home Cellular Booster User Manual
Shyam Telecom Inc. Home Cellular Booster
User Manual
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 1/12
Antenna – Electronic
Communication Systems
Home Booster
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
A
AN
ND
D
O
OP
PE
ER
RA
AT
TI
IO
ON
N
M
MA
AN
NU
UA
AL
L
H
HB
B-
-2
20
0

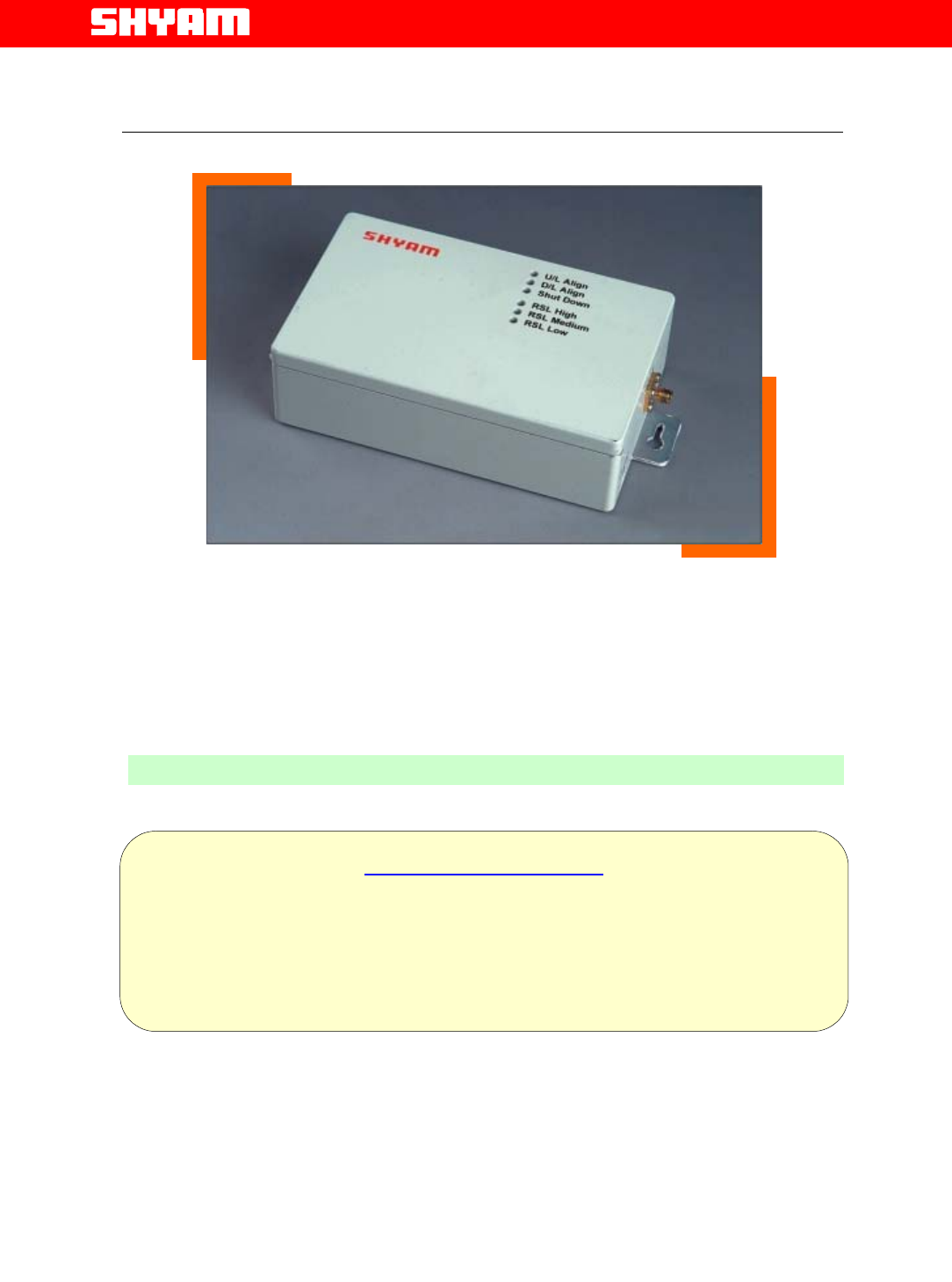

Home Booster 800 MHz
Proprietary Information
The information contained herein is proprietary to Shyam Telecom Limited. Use
or disclosure of this document or the information contained herein, for any purpose
other than that for which it was furnished is not permitted or it shall not be disclosed
or divulged to any third Party without the prior written consent of Shyam Telecom
Limited.
5700 9004 050 REV. 1.0 Feb
,
2005
SHYAM Telecom Ltd.
A-60, Naraina Industrial Area, Phase-I, New Delhi-110028 (INDIA)
Tel: +91-11-51411076 Fax: +91-11-51411078 Email: repeater@shyamtelecom.com
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 2/12
Antenna – Electronic
Communication Systems
Contents
PREAMBLE ..................................................................................................3
About the manual.......................................................................................3
1.0 About the manual ................................................................................4
2.0 Important Safety Information ............................................................4
3.0 Introduction: Booster Theory / Background..................................5
4.0 Description of HB-20 Booster installation Kit ...............................6
5.0 System Design and Setup.................................................................7
6.0 Installing the HB-20.............................................................................7
6.1 Pre-installation considerations .................................................................7
6.2 Installation Tools ......................................................................................7
6.3 Installation Procedure: Do It Yourself .....................................................8
6.4 Power Startup / Alarm Checks / Coverage Testing .................................8

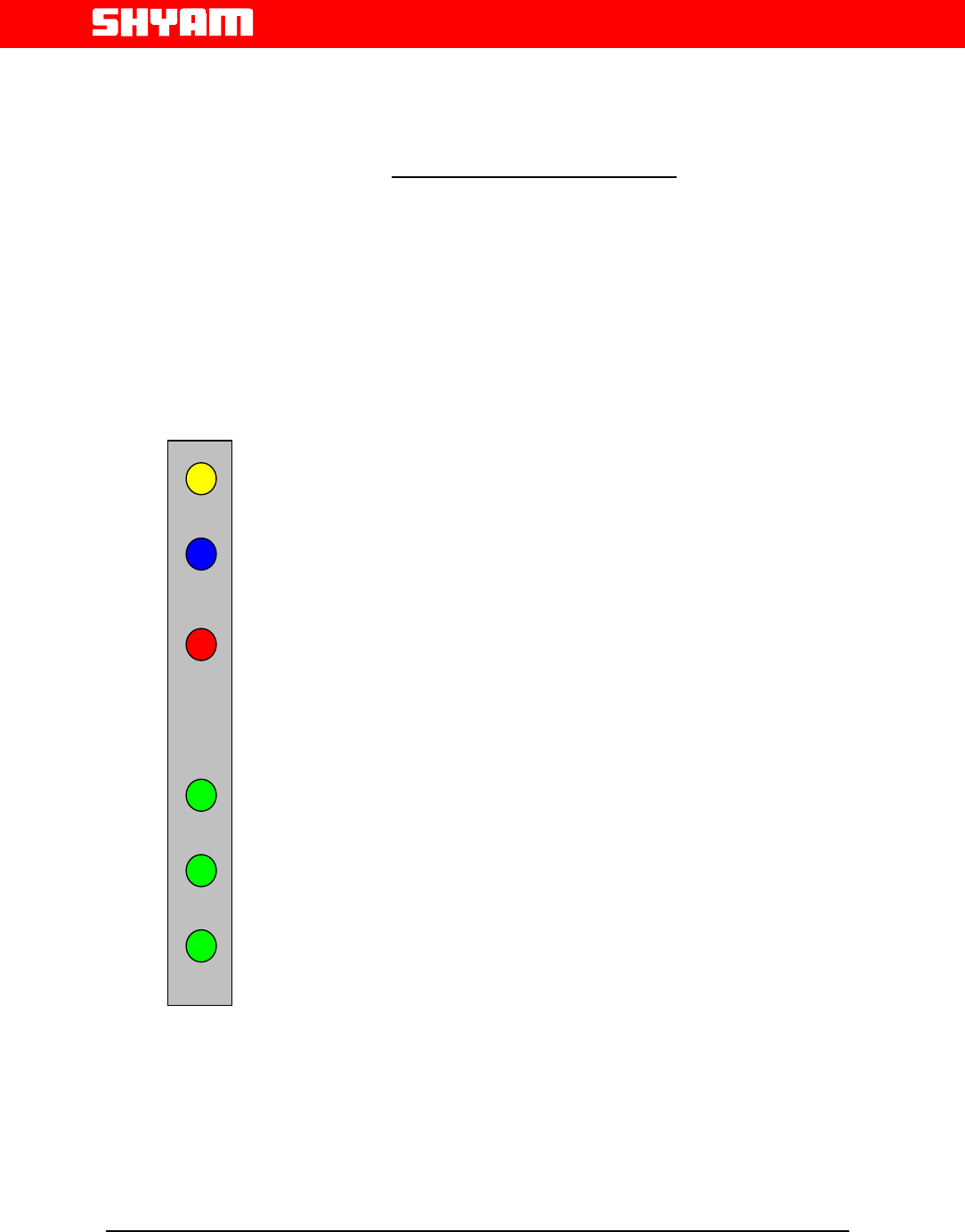

6.5 Display Details of HB-20 ..........................................................................9
Technical Specification: Boosters HB-20...............................................10
Trouble shooting procedure HB-20 ........................................................11
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 3/12
Antenna – Electronic
Communication Systems
PREAMBLE
In cellular systems boosters / repeaters are used, to enhance the coverage of a
Base station in a region where, due to topological conditions, poor field strengths
disable communication. SHYAM is a leading manufacturer of boosters /
repeaters. These boosters / repeaters provide excellent electrical characteristics,
are lightweight and easy to install.
Any intervention has to be performed by authorized persons only. If you need
technical assistance, please contact at the following address:
SHYAM Telecom Ltd.
A-60, Naraina Industrial Area, Phase-I, New Delhi-110028 (INDIA)
Tel: +91-11-51411076 Fax: +91-11-51411078
Email: repeater@shyamtelecom.com
Under consideration of all references given in this manual, the repeater should be
taken into service without any complications and should operate trouble free for a
long time.
However we have country wide after sales support network to assist you if
required.
Please visit to our web site www.shyamtelecom.com for our country wide after
sales support offices.
About the manual
The “Installation and Operation manual” is intended to be used for SHYAM
HB-20 Booster installation. It contains the general guidelines for the field
engineers /technicians. Read carefully before starting the installation.
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 4/12
Antenna – Electronic
Communication Systems
1.0 About the manual
The “Installation and Operation manual” is intended to be used for SHYAM HB-20
booster installation. It contains the general guidelines for the person installing the
HB-20 booster. Read carefully before starting the HB-20 booster installation.
2.0 Important Safety Information
The HB-20 booster has been designed for maximum safety when installed and
operated according to the instructions in this manual. Refer to all safety
instructions as per the antenna installation instruction sheets.
Do not bypass any of the safety features with the equipment provided, nor
operate the system in an inappropriate environment.
WARNING! Installation of antennas near power lines is dangerous. For your
safety, follow all installation directions and keep safe distance from any
high voltage power lines that could result in shock or loss of life.
WARNING! This equipment complies with FCC & IC radiation exposure
limits set forth for an uncontrolled environment. This transmitter must not
be co-located or operating in conjunction with any other antenna or
transmitter. The signal booster with server antenna must be installed to
provide minimum 20 cm separation distance between the server antenna to
the body of user or near by person. The donor antenna used for this
transmitter must be fixed-mounted on outdoor permanent structures with a
separation distance of at least 1.5 meters from all persons during normal
operation.
Additional wiring required to install the HB-20 system should comply with national
or local governing Electrical Codes. Indoor RF coaxial cable installations should
comply with local Electrical Code requirements.
The HB-20 booster is designed for indoor application. The housing is not
waterproof, so please keep it away from water, rain and any chemical liquid.
Do discharge the static before you touch the connectors of the booster.
Do not open the module inside the booster unless you are authorized.
The power supply unit in the HB-20 booster is supplied from the mains (primary
AC power) that contains dangerous voltage level which will cause electric shock,
Please turn off the mains before you install / uninstall the booster.
The primary AC power should be in the range of AC90-240V, 50/60Hz. Booster
will be damaged if the primary AC power is out of the range.
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 5/12
Antenna – Electronic
Communication Systems
The RF electric performance of the HB-20 booster conforms to ETSI
requirement of the inter modulation and spurious emission. It avoids the
interference problem.
3.0 Introduction: Booster Theory / Background
In mobile cellular communication system, boosters provide the radio frequency
(RF) coverage to areas, which either lack signal, or the required signal strength
for adequate mobile phone performance. To the typical user, this translates to the
inability to place or receive mobile phone calls in or out of the area, and in most
cases will result in a dropped call while entering into the poor coverage area.
Insufficient wireless coverage can occur both indoors and outdoors, and may
include indoor areas such as office buildings, parking garages, apartment
buildings, shopping malls, and residential homes. Outdoor areas are degraded by
geographic topologies such as mountains, valleys, dense foliage and high rising
urban landscapes which can easily degrade or obstruct the cell site’s signal from
the mobile phone.
The weak coverage problem can be solved by installing an active booster
system, designed for use in a multitude of installation configurations. Booster
systems provide an effective solution by redirecting, filtering and amplifying the
available signal at the donor antenna, into the weak coverage area, through a
properly selected interior coverage antenna. The illumination of the weak
coverage area allows the user’s handset to operate as intended within the
building or weak coverage area, while maintaining the user’s call clarity and
quality, which reduces service complaints and potential subscriber churn.

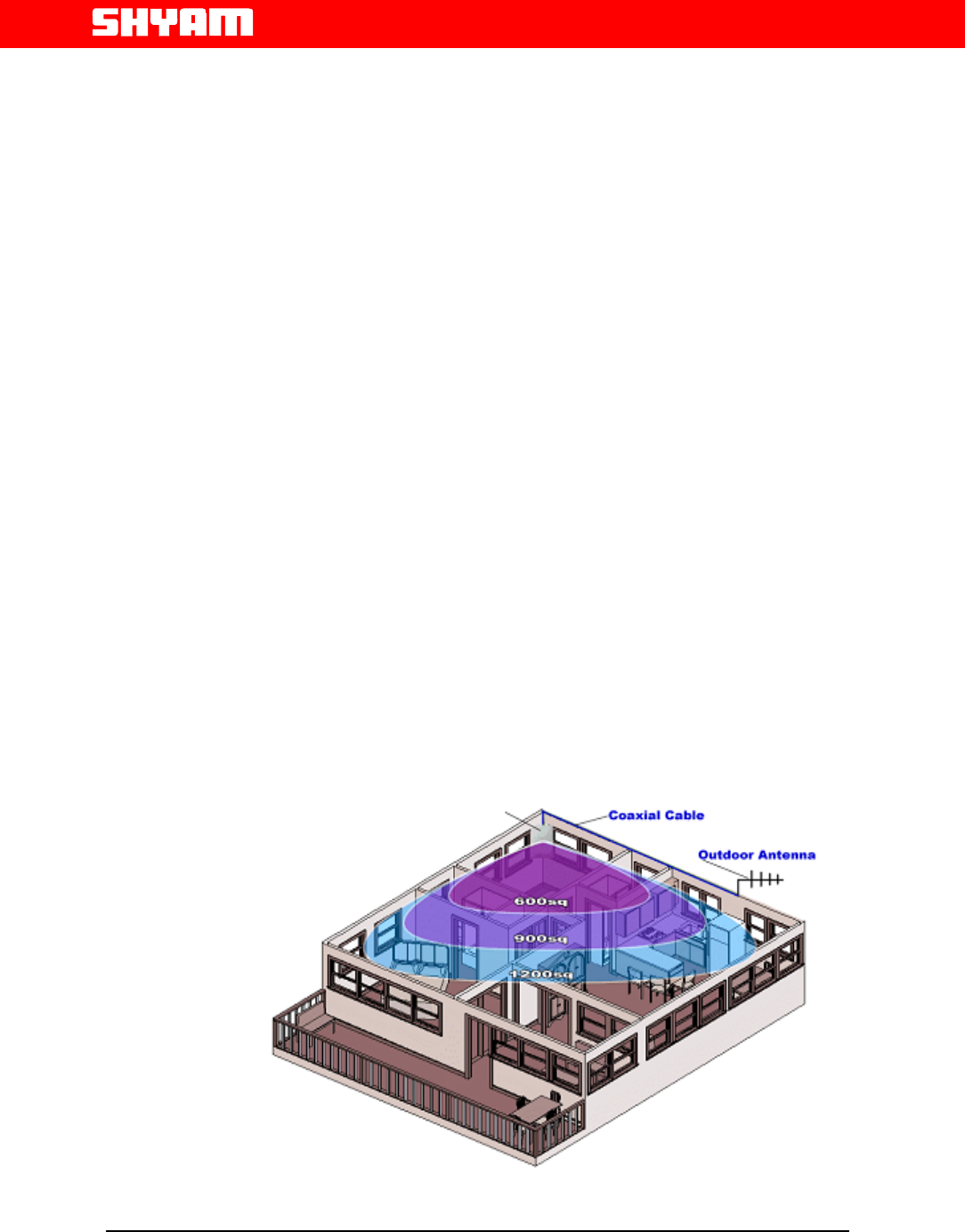

Figure 1: Typical Booster/Coverage Configuration
Booster
Antenna
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 6/12
Antenna – Electronic
Communication Systems
4.0 Description of HB-20 Booster installation Kit
The HB-20 booster system contains an automatic power control, bi-directional
amplifier (BDA) supplied along with a donor antenna (highly directive outdoor
antenna) and server antenna (indoor omni directional antenna), specifically
designed for interior configurations. The donor antenna must be pointed toward
the cell of the base station from where the signal is to be picked up and is usually
mounted on the exterior of the building so as to receive the maximum forward
signal level from the base station. The indoor antenna of HB-20 booster provides
RF signal in all directions downward and outward from the installation point.. A
adopter is supplied with HB-20, powered by universal 90/240 VAC mains supply.
A standard length of 7 mm RF coaxial cable with connectors is supplied to
connect the donor antenna and HB-20 booster. Any other RF coaxial cable length
is also available optionally, on request.
.

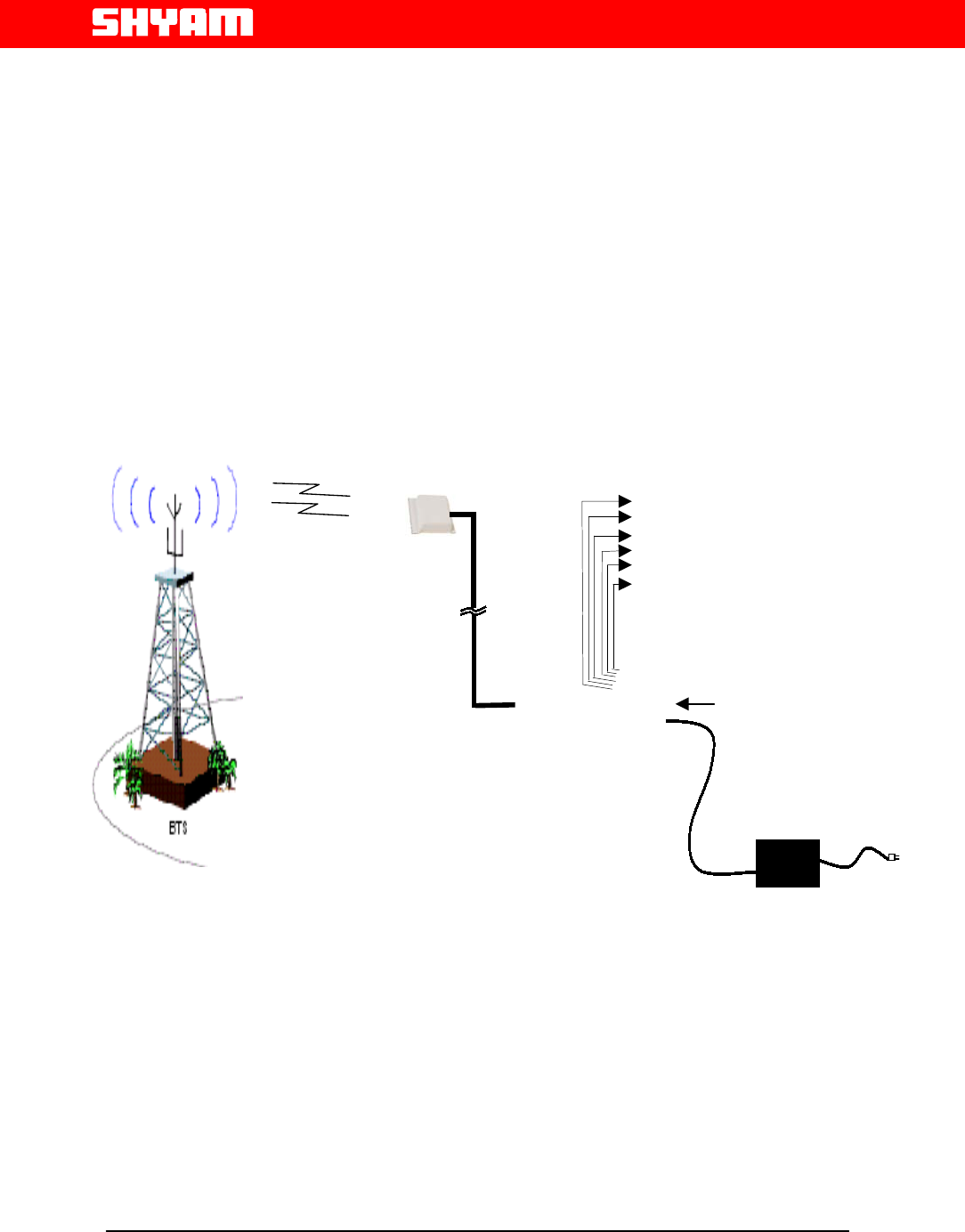

Figure 4.0 : Installation Diagram of Home Booster
List of Installation Kit
1. Donor Antenna – Patch Antenna (Optional 0 dbi)
2. Server Antenna - Whip Antenna. (Optional 7 dbi )
3. RF coaxial cable with SMA to SMA (M) connector. (Optional)
4. Booster HB-20.
5. AC/DC Adapter (9VDC/2.0 Amp.).
6. Mounting Kit.
7. Installation and Operational Manual
Donor Antenna
Coaxial Cable
+9V DC
AC/DC
Adapter
Donor Antenna
Server Antenna
U/L Align
D/L Align
Shut Down
RSL Low
RSL Mid
RSL High
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 7/12
Antenna – Electronic
Communication Systems
5.0 System Design and Setup
The HB-20 is designed to provide optimal coverage for areas of 500 Sq Meters
(5,000 sq. ft) to 1,000 Sq Meters (10,000 sq. ft). However, performance also
depends on the amount of in-building shadowing, and the available forward
signal level at the donor antenna. Typical coverage is usually planned for
relatively small areas such as large conference room or several adjacent rooms
in smaller office areas. Indoor coverage varies greatly due to the nature of
various building construction techniques and materials.
The system design is quite simple & straightforward. The signal from the base
station (of the selected Operator) is picked up, preferably on the rooftop.
The built in receive signal level indicator in HB-20 booster helps in aligning the
donor antenna towards the selected base station & it always shows the received
signal level from the base station. It is imperative to monitor the received signal
level from the base station, also called downlink signal. Downlink signal may
change if some high building, trees or any other obstruction comes in the way of
line of site (LOS) between the BTS & the Donor antenna. This may reduce the
downlink received signal level & will result in poor service.
6.0 Installing the HB-20
6.1 Pre-installation considerations
1. Once the expected coverage area is determined, identify the installation
location for the donor antenna and HB-20 booster. Ensure that the donor
antenna has a direct line-of-site to the service provider’s base station.
2. HB-20 installation site location criterion
i. A cool, dry location, away from other heat generating appliances or
equipment.
ii. Accessibility to electric power point.
iii. Flat, structural mounting surface.
iv. Accommodation for the indoor antenna providing line-of-site coverage to
as much of the coverage area as possible.
6.2 Installation Tools
You will only need the standard wrenches/hammer/screwdrivers/pliers set
for installing the HB-20 booster and donor antenna.
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 8/12
Antenna – Electronic
Communication Systems
6.3 Installation Procedure: Do It Yourself
To install HB-20 booster, follow the steps as mentioned below:
1. Locate weak signal areas by moving around with a mobile phone and the
SIM card of the cellular operator, and check the signal level indicated by
the number of bars on the mobile phone display.
2. Similarly, locate donor (outdoor) antenna position by observing the
maximum signal received from the base station.
3. Unpack the equipment supplied and check as per the packing list.
4 Mount the donor (outdoor) antenna at the position selected (ref 2 above).
5 Mount the HB-20 booster in the area of weak signal (ref 1 above)
6 Route the RF coaxial cable and interconnect it with the donor
antenna and HB-20 booster, which is supplied in the installation kit.
7 Ensure that the three-pin power point has proper earthing
connection, before switching on the power to booster.
Please remember the following important points:
i. The RF cable must not be kinked, cut or damaged in any way.
ii. Connect the RF cable to the donor antenna taking care to avoid cross
threading or stripping. The RF connections should be snug and tight.
iii. Seal the outdoor connectors with waterproof sealant (such as M–
seal) or the appropriate weather tight boot.
6.4 Power Startup / Alarm Checks / Coverage Testing
1. Plug in the AC/DC Power Adapter power cord to AC main and other side
DC plug insert 9V DC socket in Home Booster.
2. When the booster is ON initially all the LED’s will blink two times.
3. The system will automatically control the attenuation to keep the both uplink
and downlink output power at a constant level of 10dBm. The system will
insert or release the attenuation by 1dB step.
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 9/12
Antenna – Electronic
Communication Systems
4. Alarm indication LED will glow red colour, After inserting all the attenuation
the output power is greater than the desired level ( 10dBm ) the system
will shutdown the PA for 30 seconds and restart . If so, refer annexure 2for
rectification or contact SHYAM technical support team on +91-11-
25798544 or email at repeater@shyamtelecom.com
5. Review the intended coverage area according to the site installation
plan.Using a mobile NOKIA handset loaded with NET engineering
software and the SIM card of cellular operator, measure and monitor the
signal level at various points within and around the perimeter of the
coverage area.
6.5 Display Details of HB-20
• UL ALIGN LED will glow after DL ALIGN is completed.
• DL ALIGN LED will blink when the system is in the Downlink
alignment mode.When the alignment is over the DL ALIGN LED
will glow.
• SHUT DOWN LED will glow when the downlink power is more
than the desired level. The systems will shutdown the PA and then
restart after 30 seconds.
Downlink RSSI is monitored continuously and display through 3
LED’s.
• When the RSSI is greater than –40, glow the RSL High LED.
• When the RSSI in between –60 & -40, glow the RSL Mid LED.
• When the RSSI is less than –60, glow the RSL Low LED.
U/L ALIGN
D/L ALIGN
SHUT DOWN
RSL HIGH
RSL MID
RSL LOW
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 10/12
Antenna – Electronic
Communication Systems
Annexure 1
Technical Specification: Boosters HB-20
Parameter HB-20 : 800 MHz
Frequency Range Uplink : 824-849 MHz
Downlink : 869-894 MHz
Frequency Bandwidth (Ver. A) Full band of 25 MHz
Frequency Bandwidth (Ver. B) 6.2, 15, 20 or 25 MHz (other version available upon request)
Operator, State Selective
Version OSS
*Specific models for different operators world-wide
Contact SHYAM with coverage area & Operator name
Nominal Gain 70 dB
Nominal 20 db BW 36 Mhz
Automatic Gain adjustment 31 dB steps of 1 dB
Auto Power Control range 10 dB (from 6dBm to 16dBm)
DL Power Output 16 dBm
UL Power Output 16 dBm
Inter Modulation Products
(two tone method, +7 dBm per tone)
Spurious Emission (ETS 300
609 4/GSM 11.26) and (ETS
300 577 GSM 05.05)
<-36dBm @ 9 KHz – 1 GHz
<-36dBm @ 9 KHz – 1 GHz
Noise Figure 8dB Max.
V.S.W.R 1.5 Max.
Power adapter (9V DC, 2 Amp.) AC90-240V, 50/60 Hz
RF Connector (Donor and
Server Antenna)
SMA (F) TYPE
Dimensions (HxWxD) approx. 86 x 170 x 40 mm
Weight Approx. 0.8 Kg.
Operating Temperature Range -5o C ~ 55o C
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 11/12
Antenna – Electronic
Communication Systems
Annexure 2
Trouble shooting procedure HB-20
Conditions Possible Reasons & Solutions
A. Initially all the LED’s
will blink two times
1 Check the power cord and the AC power socket
2 Please note that the AC main power has to be within the
range 90~240VAC
3 Verify the D.C Adapter output voltage is 9V.
B. Signals are not
amplified after
completing the
installation
1. Check all the connectors of the repeater system for proper
connections. The “BTS” connector has to be connected to
donor antenna, and the “MS” connector has to be
connected to server antenna.
2. The poor isolation between donor and server antenna will
cause system oscillation and it may damage the amplifier of
the repeater. It is to note that the repeater gain should
be at least 10 db lower than the antenna isolation.
C. The system performed
well in the beginning
but after few days the
performance has
degraded.
1. The received signal level from the base station might have
degraded due to environmental changes such as new
building construction and so on. If so, please follow the
suggestions below:
a. Try to re-align the donor antenna towards the base
station
b. Adjust the gain attenuation of the Up or Down link
direction
c. Relocate the donor antenna to solve the problem
2. RF Cable problem: Check the RF cable for physical
damage by rats etc. Also check for sharp bands or RF cable
pressed. Under these conditions, RF signal losses could
have increased. If so, replace RF cable.
3. Indoor structural change: The signal level will vary
according to the interiors. Look for any interior changes
subsequent to the repeater installation or site survey. If so,
adjust the gain of repeater or re-align the server antenna
without affecting the existing coverage.
D. Alarm indication LED
will glow in red colour.
It indicates that the received signal level from BTS is high or
forward / reverse gain of repeater is high. If alarm persists for a
long time contact SHYAM technical support team.
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 12/12
Antenna – Electronic
Communication Systems
IC Statement
1.Quality Norms : The Testing of the equipment is carried out as the norms laid in
IC standards.
2. Labeling : Home Booster model HB-20-800 when sold in Canada will have
(a) The certification number, prefixed by the term "IC: ",
i.e. IC: 5751A-HB20800
(b) The manufacturer's name, trade name or brand name,
i.e. SHYAM TELECOM
(c) A model name or number, i.e. HB-20-800
3. External Control
The Home Booster does not have any external controls
accessible to the user for any adjustments, to operate in
violation of the limits prescribed in this Standard.
Furthermore, information on internal adjustments,
reconfiguration or programmability of the device shall only
be made available to service depots and agents of the
equipment supplier and NOT to the public.
4. Exposure of Humans to RF Field : The equipment conform
to RSS-102
5.Multi carrier operation : Rated output power of this
equipment is for single carrier operation. For situations
when multiple carrier signals are present, the rating would
have to be reduced by 3 to 3.5 dB. This power reduction is
to be by means of input power or gain reduction and not by
an attenuator at the output of the device.
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 13/12
Antenna – Electronic
Communication Systems
For Customer Use Only ……..
SHYAM Telecom Ltd.
A-60, Naraina Industrial Area, Phase-I, New Delhi-110028 (INDIA)
Tel: +91-11-51411076 Fax: +91-11-51411078 Email: repeater@shyamtelecom.com
File Doc. No. Date Version Page
HB-20 5700 9004 050 Feb 05 1.0 14/12
Antenna – Electronic
Communication Systems
