Sichuan AI-Link Technology Co.,Ltd. Wireless Module Users Manual
User Manual
WF-M601-UWS2 Wireless Module
IEEE 802.11b/g/n 1T1R USB WiFi Module
Features：
Reserving System
IEEE Std. 802.11b
IEEE Std. 802.11g
IEEE Std. 802.11n
Chip Solution
WIFI ：MTK MT7601UN/B
Size
28.0mm*16.0mm*6.0mm
Model Overview：
Module Installation Standard Rate Band Power
Supply
WF-M601-UWS2 SMT IEEE 802.11b/g/n 150Mbps 2.4 GHz 3.3V
Sichuan AI-Link Technology Co.,Ltd
Add:Anzhou,Industrial park,Mianyang,Sichuan
Web: www.changhong.com
Phone：13881190925
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 2of 13
Feedback of customer’s Confirmation
We accept the specification after Confirmed
Customer name Customer signature Confirmation Date
Please feed back this paper and first paper after your signature by the address,thanks!
ADD：Anzhou,Industrial park,Mianyang,Sichuan
Factory：Sichuan AI-Link Technology Co.,Ltd.
Approved Checked Designed Product WiFi Module
Model WF-M601-UWS2
Date 2018-03-02
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 3of 13
Record of Modification
No Date of
modification
Main content of
modification
Reason of
modification
Serial number of
modification Confirm
A 20180302 Original Release Feng Jie
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 4of 13
1. Brief description:
WIFI MODULE WF-M601-UWS2 is based on MTK MT7601UN/B complied with IEEE 802.11b/g/n standard from
2.4GHz-2.5GHz.Supported for 150Mbps high speed wireless network connection.

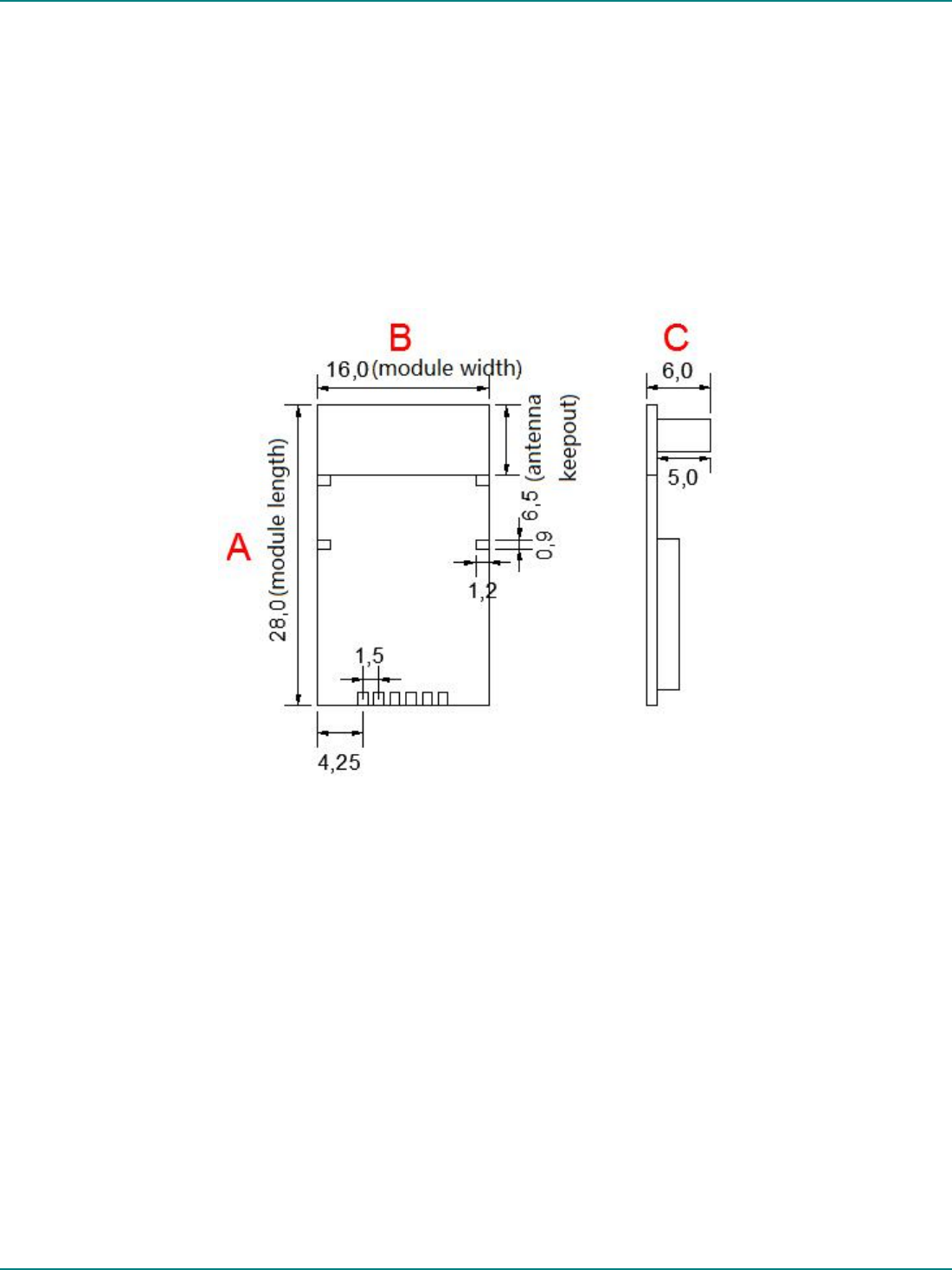

2. Package outline and Mounting:
Bottom View Side View
NOTE1:General tolerance ±0.2mm unless otherwise stated
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 5of 13

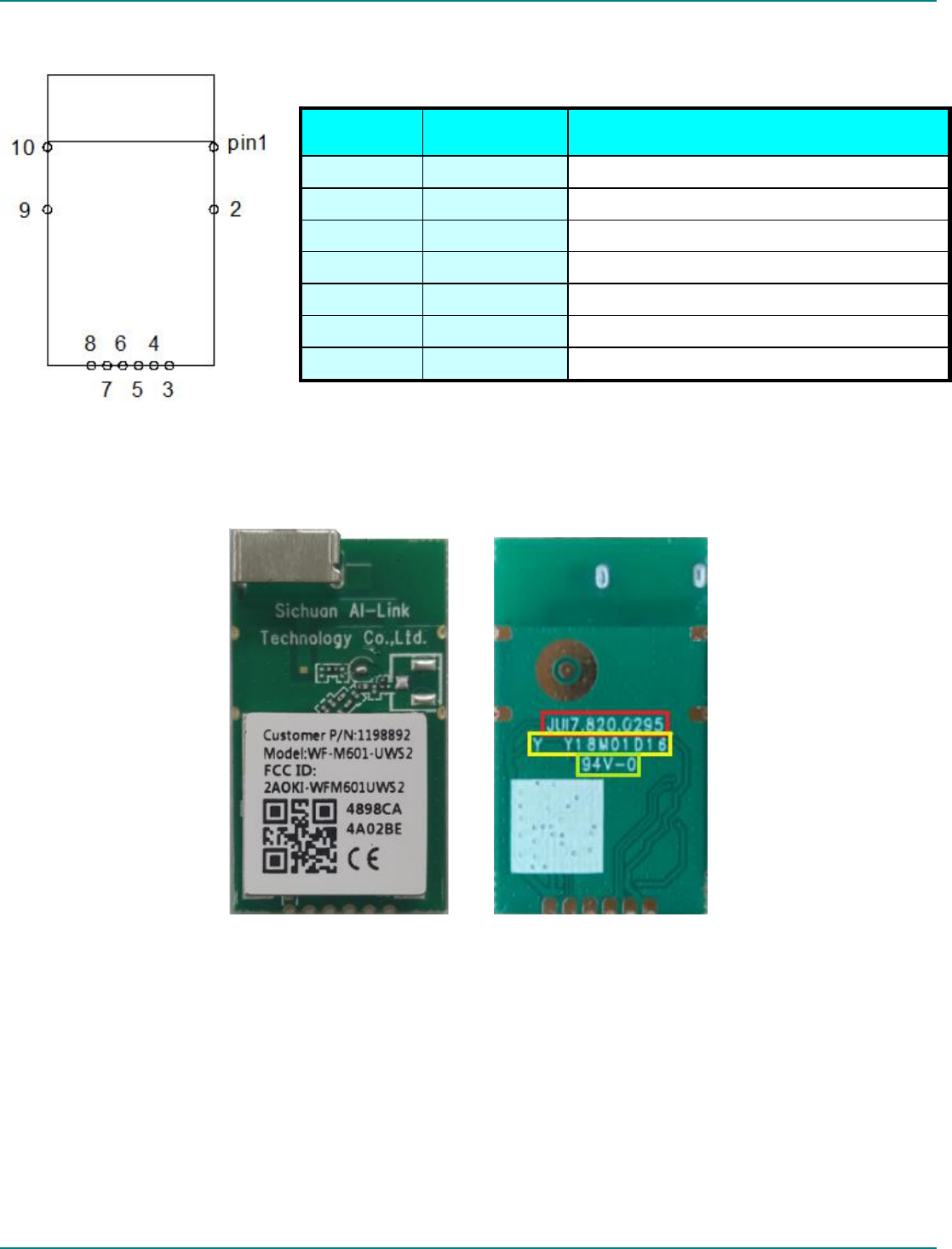

3. Pin Definition:
Top View Pin Definition
4. Product Picture
TOP VIEW BOTTOM VIEW
Silkscreen Description：
1.The characters in the red block are PCB P/N;
2.The characters in the green block are PCB flame retardant grade;
3.The characters in the yellow block are PCB batch number;
Pin Symbol Description
1、2、5 GND Connected to Ground
3 WOW Wake WLAN
4 RST Reset the WLAN
6 D+ USB Data DP
7 D- USB Data DN
8 VDD +3.3V DC Power supply input
9、10 GND Connected to Ground
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 6of 13
5. Key Materials：
Item Sorts MPN Description MFR Notes
1 IC MT7601UN/B 40-QFN MTK
2 PCB JUI7.820.0295 FR-4,2LAY
Sunlodrd
IQPCB
SHPCB
3Crystal E3SB40E00001BE 40M
JWT
Hosonic
H.ELE.

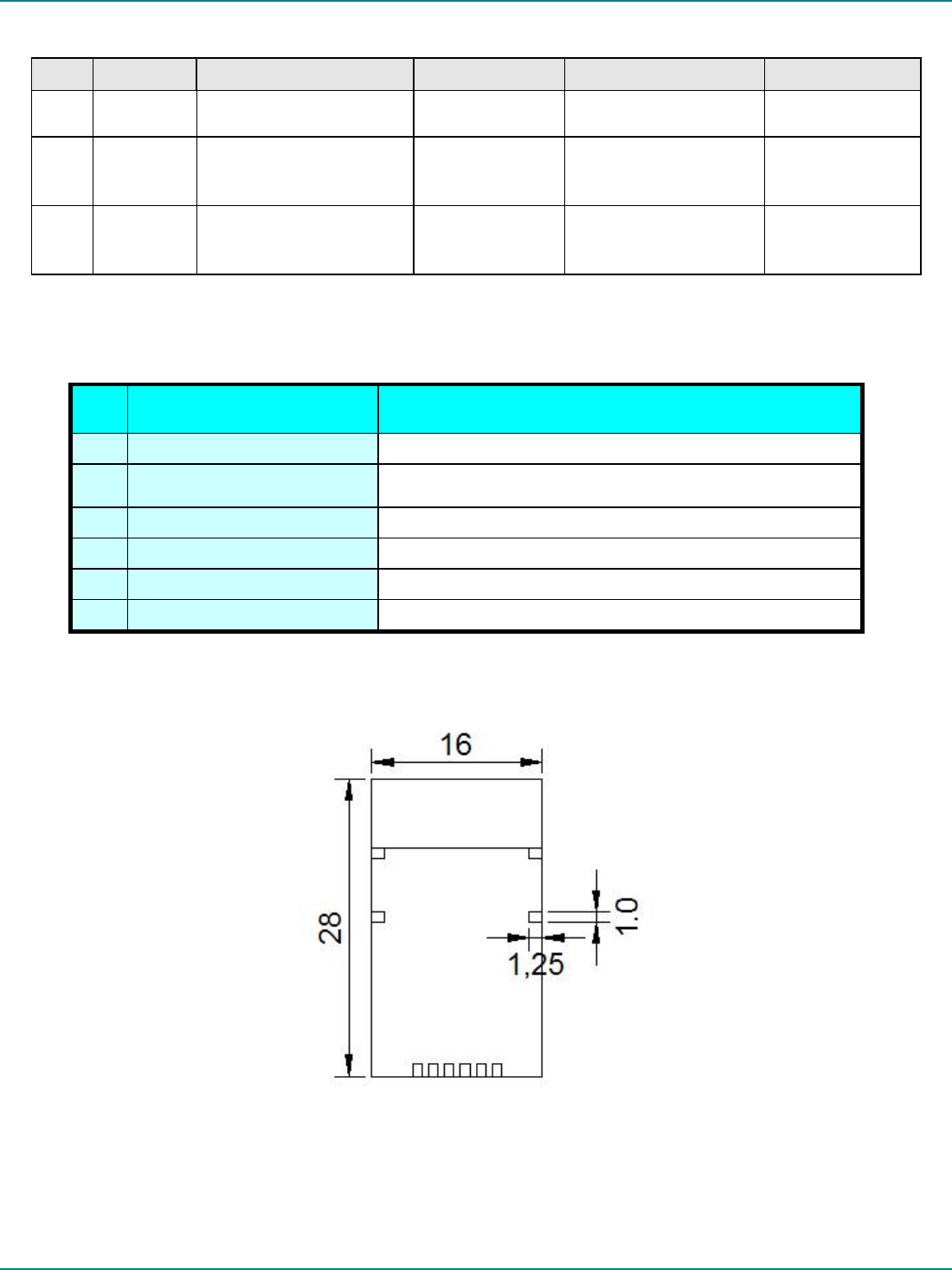

6. General Requirements:
7. Recommend Layout：（unit：mm）
No. Feature Description
7-1 Operation Voltage 3.3V+/-0.3
7-2 Current Consumption Total3.3V@Max 410mA
BW 40 MHZ@13dbm
7-3 Operation Temperature 0°C to +60°C
7-4 Antenna Type Integral antenna
7-5 USB High Speed USB 2.0 Interface
7-6 Storage Temperature -25°C to +85°C
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 7of 13
8. Electrical Characteristics:
8
-1 IEEE 802.11b Section:
Items Contents
Specification IEEE802.11b
Mode CCK
Channel CH1 to CH13
Data rate 1, 2, 5.5, 11Mbps
Min. Typ. Max. Unit Remark
TX Characteristics
1. Power Levels(Calibrated)
1) For Each antenna port 15.5 17 18.5 dBm
2. Spectrum Mask @ target power
1) fc +/-11MHz to +/-22MHz - - -30 dBr
2) fc > +/-22MHz - - -50 dBr
3 Constellation Error(EVM)@ target power
1) 1Mbps - - -10 dB
2) 2Mbps - - -10 dB
3) 5.5Mbps - - -10 dB
4) 11Mbps - -10 dB
4. Frequency Error -10 -5 10 ppm
RX Characteristics Min. Typ. Max. Unit
5 Minimum Input Level Sensitivity(each chain)
1) 1Mbps (FER ≦8%) - -83 dBm
2) 2Mbps (FER ≦8%) - -80 dBm
3) 5.5Mbps (FER ≦8%) - -79 dBm
4) 11Mbps (FER ≦8%) - -76 dBm
6 Maximum Input Level (FER ≦8%) -10 - - dBm
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 8of 13
8-2 IEEE 802.11g Section:
Items Contents
Specification IEEE802.11g
Mode OFDM
Channel CH1 to CH13
Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps
Min. Typ. Max. Unit Remark
TX Characteristics
1. Power Levels
1) For Each antenna port 13.5 15 16.5 dBm
2. Spectrum Mask @ target power
1) at fc +/-11MHz - - -20 dBr
2) at fc +/-20MHz - - -28 dBr
3) at fc > +/-30MHz - - -40 dBr
3 Constellation Error(EVM)@ target power
1) 6Mbps - - -5 dB
2) 9Mbps - - -8 dB
3) 12Mbps - - -10 dB
4) 18Mbps - - -13 dB
5) 24Mbps - - -16 dB
6) 36Mbps - - -19 dB
7) 48Mbps - - -22 dB
8) 54Mbps - -25 dB
4 Frequency Error -10 -5 10 ppm
RX Characteristics Min. Typ. Max. Unit
5 Minimum Input Level Sensitivity(each chain)
1) 6Mbps (PER ≦10%) - -85 dBm
2) 9Mbps (PER ≦10%) - -84 dBm
3) 12Mbps (PER ≦10%) - -82 dBm
4) 18Mbps (PER ≦10%) - -80 dBm
5) 24Mbps (PER ≦10%) - -77 dBm
6) 36Mbps (PER ≦10%) - -73 dBm
7) 48Mbps (PER ≦10%) - -69 dBm
8) 54Mbps (PER ≦10%) - -65 dBm
6 Maximum Input Level (PER ≦10%) -20 - - dBm
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 9of 13
8-3 IEEE 802.11n HT20 Section:
Items Contents
Specification IEEE802.11n HT20 @ 2.4GHz
Mode OFDM
Channel CH1 to CH13
Data rate (MCS index) MCS0/1/2/3/4/5/6/7/8/9/10/11/12/13/14/15
Min. Typ. Max. Unit Remark
TX Characteristics Min. Typ. Max. Unit
2. Power Levels
1) For Each antenna port 13.5 15 16.5 dBm
3. Spectrum Mask @14.5dBm
1) at fc +/-11MHz - - -20 dBr
2) at fc +/-20MHz - - -28 dBr
3) at fc > +/-30MHz - - -45 dBr
4. Constellation Error(EVM)@ target power
1) MCS0 - - -5 dB
2) MCS1 - - -10 dB
3) MCS2 - - -13 dB
4) MCS3 - - -16 dB
5) MCS4 - - -19 dB
6) MCS5 - - -22 dB
7) MCS6 - - -25 dB
8) MCS7 - -28 dB
5. Frequency Error -10 - 10 ppm
RX Characteristics Min. Typ. Max. Unit
6. Minimum Input Level Sensitivity(each chain)
1) MCS0 (PER ≦10%) - -82 dBm
2) MCS1 (PER ≦10%) - -79 dBm
3) MCS2 (PER ≦10%) - -77 dBm
4) MCS3 (PER ≦10%) - -74 dBm
5) MCS4 (PER ≦10%) - -70 dBm
6) MCS5 (PER ≦10%) - -66 dBm
7) MCS6 (PER ≦10%) - -65 dBm
8) MCS7 (PER ≦10%) - -64 dBm
7. Maximum Input Level (PER ≦10%) -20 - - dBm
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 10 of 13
8-4 IEEE 802.11n HT40 Section:
Items Contents
Specification IEEE802.11n HT40 @ 2.4GHz
Mode OFDM
Channel CH3 to CH11
Data rate (MCS index) MCS0/1/2/3/4/5/6/7/8/9/10/11/12/13/14/15
Min. Typ. Max. Unit Remark
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) For Each antenna port 13.5 15 16.5 dBm
2. Spectrum Mask @13dBm
1) at fc +/-22MHz - - -20 dBr
2) at fc +/-40MHz - - -28 dBr
3) at fc > +/-60MHz - - -45 dBr
3. Constellation Error(EVM)@target power
1) MCS0 - - -5 dB
2) MCS1 - - -10 dB
3) MCS2 - - -13 dB
4) MCS3 - - -16 dB
5) MCS4 - - -19 dB
6) MCS5 - - -22 dB
7) MCS6 - - -25 dB
8) MCS7 - -28 dB
4. Frequency Error -10 -5 10 ppm
RX Characteristics Min. Typ. Max. Unit
5. Minimum Input Level Sensitivity(each chain)
1) MCS0 (PER ≦10%) -79 dBm
2) MCS1 (PER ≦10%) -76 dBm
3) MCS2 (PER ≦10%) -74 dBm
4) MCS3 (PER ≦10%) -71 dBm
5) MCS4 (PER ≦10%) -67 dBm
6) MCS5 (PER ≦10%) -63 dBm
7) MCS6 (PER ≦10%) -62 dBm
8) MCS7 (PER ≦10%) - -61 dBm
6. Maximum Input Level(PER ≦10%) -20 - - dBm
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 11 of 13
9. Software Requirements
The driver supports the following operating systems: Linux, Microsoft Windows XP, Vista and Win7.
Mfg. software tool version is MT7601 USB QA V1.0.9.0 or later.

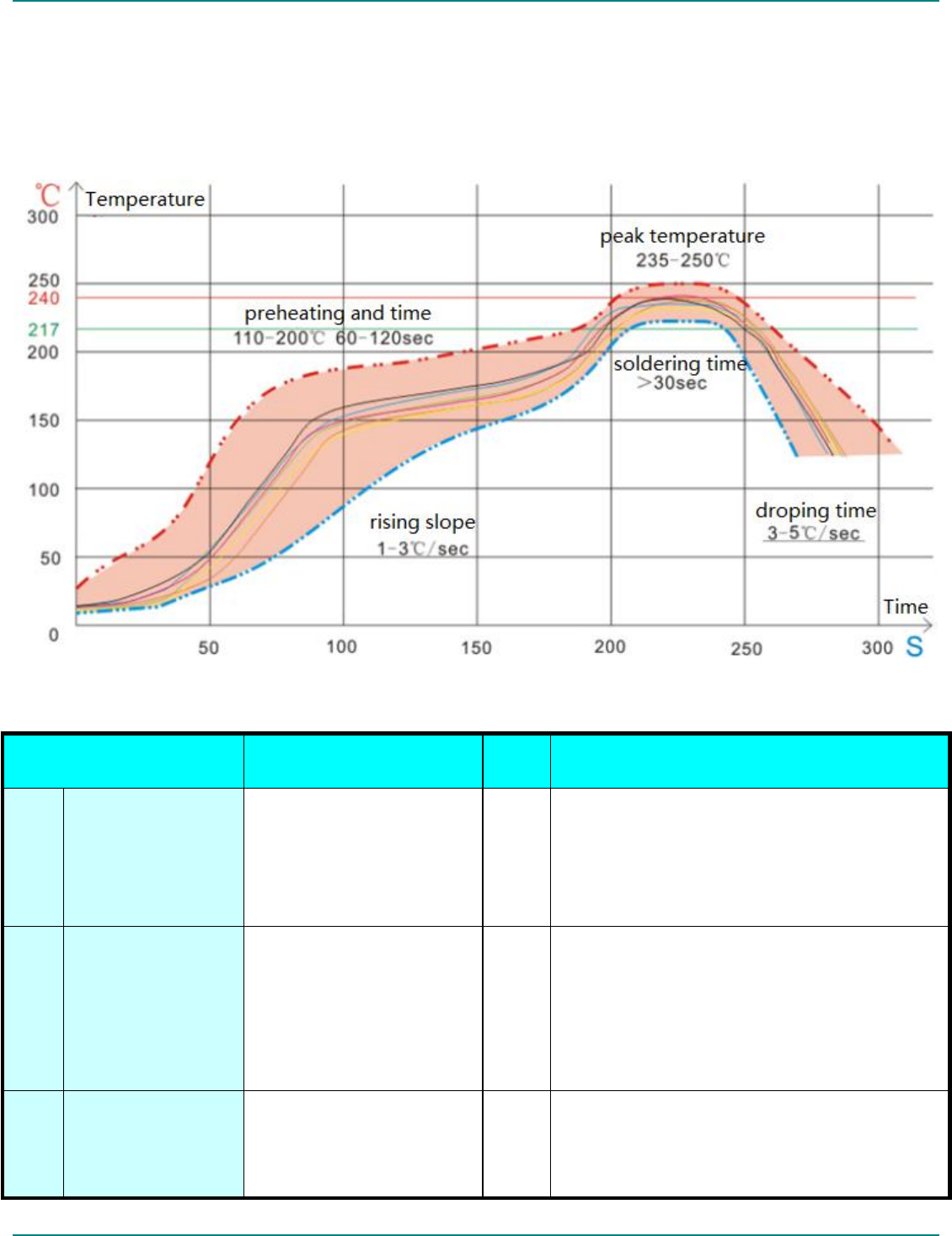

10. Refelow Standard Condition
11. Mechanical, Environmental and Reliability Tests
Test Items Test Conditions Qty Criteria Condition
4-1 Drop test
The packed samples within
100Kg can be tested
Drop height:
Face Side: 800/600/450mm
Edge line: 600/450/350mm
Drop time: 1 each Face and
edge.
1xBox After drop test, the outer box and inner box will
not been broken by appearance visual
inspection.
4-2 Vibration test
X-Y-Z direction, first
Frequency changing from
10Hz to 30Hz to 10Hz
,amplitude 0.75mm, 5 times
vibrations, then frequency
Changing from 30Hz to 55
Hz to 30 Hz, amplitude
0.15mm, 5 time vibration.
3
After test, the Appearance, Power EVM and
Frequency error shall be satisfied with the
specification.
4-3 Impact test
Impact acceleration:
50m/sec2;
Impact duration: 16ms；
Impact times: 1000.
3
After test, the Appearance, Power EVM and
Frequency error shall be satisfied with the
specification.
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd. page 12 of 13
4-4 Soldering ability
test
Soldering temperature:
235±5℃
Soldering duration:
2±0.5S
3
1. After soldering, the soldered area must be
covered by a smooth bright solder layer, some
deficiencies such as a small amount of the
pinhole, not wetting are allowed, but the
deficiencies can not be in the same place；
2. At least 90% of soldered area shall be covered
continuously by the soldering material.
4-5 Humidity test Leave samples in 40±3℃,
93% RH @ 96 hours 3
Leave samples in standard test condition for 2
hours then test, the Appearance, Power, EVM
and Frequency error functional parameter shall
be satisfied with the test specification.
4-6 High temperature
load life test
Thermostat cabinet
temperature: 55±5℃
Applied voltage:
110% rated voltage
Working duration: 200 hour
(Supply Voltage Cycle
23h power on, 1h power off)
60
After test, leave samples in standard condition
for 1 hour and test, Power, EVM and Frequency
error shall be satisfied with the test specification.
4-7 High temperature
load test
Temperature: 55±5℃
Samples work for 16 hours 3
After test, the Appearance, Power, EVM and
Frequency error shall be Satisfied with the test
specification.
4-8 Low temperature
storage test
Leave the samples in
-25±3℃@24 hours 3
Leave samples in standard test condition for 2
hours then test, the Appearance, Power, EVM
and Frequency error shall be satisfied with the
test specification.
4-9 Low temperature
load test
Leave samples in
-15±3℃@ 2 hours,
samples’ function
shall be normal, the let
samples work for 1 hour
3
After test, leave the samples in standard
condition and tested the Appearance, Power,
EVM and Frequency error shall be satisfied with
the test specification.
4-10 Temperature circle
test
One cycle duration
-10±3℃@3H
40±3℃@3H
Total cycle: 10x
3
After test, leave the samples in standard
condition and tested Power EVM and Frequency
error shall be qualified and all the characters
shall be satisfied with the test specification.
4-11 Continuous
TP test
Twice cycle duration
-10±3℃@4H
+60±3℃@4H,
+25@2H@2H
3
During test, There will not been appeared signal
disconnection or interruption between DUT and
AP.
4-12 ESD
Discharge voltage: 2kV
C: 150pF
Discharge resistance：330Ω
Positive10 times
1 time for each second
3The products can recoverable smoothly after
ESD test.
WF-M601-UWS2
IEEE 802.11b/g/n 1T1R USB WiFi Module
Sichuan AI-Link Technology Co., Ltd.
page 13 of 13
12、Statement
12.1 CE Radiation Exposure Statement
Herby,Sichuan AI-Link Technology CO.,Ltd declares that this Wireless Module，WF-M601-UWS2 is in
compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
Operation temperature:Use the WF-M601-UWS2 in the environment with the temperature between 0℃
and 60℃.
Operation Frequency:2412~2472MHz.
MAX RF Output Power:20dBm.
Manufacturer：Sichuan AI-Link Technology CO.,Ltd
Address：Anzhou,Industrial park,Mianyang,Sichuan
Tel: +86 0816-2438701
Fax: +86 0816-2416943
E-mail: caixia.hu@changhong.com

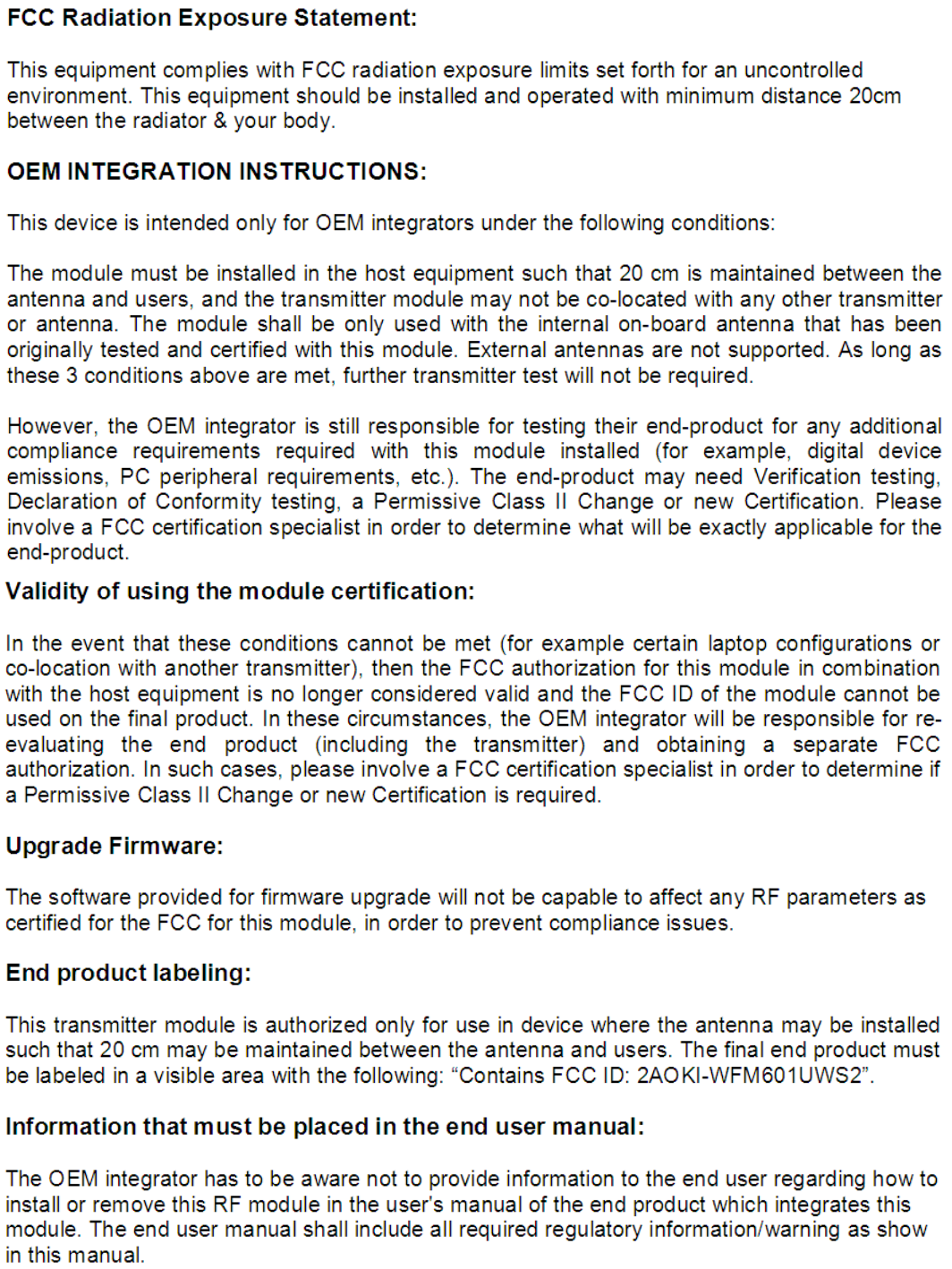

12.2 FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions
(1)this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
In accordance with Article 10(2) and Article 10(10), this product allowed to be used in all
EU member states.
