Siemens Information and Communication Mobile TOPSEC701 PCMCIA board User Manual Users manual part1
Siemens Information and Communication Mobile LLC PCMCIA board Users manual part1
Users manual part1
Dear Customer,
We thank you for having bought
this Siemens product and hope
you will have success with it.
In the event your Siemens product
needs guarantee service, please
contact your dealer or a member
of our authorized service network.
For technical questions please
contact the service station.
Gentile Cliente,
La ringraziamo per aver
acquistato questo prodotto
della Siemens e Le auguriamo
di aver con esso molto
successo. Qualora il Suo
prodotto Siemens dovesse
subire un guasto durante il
periodo di garanzia, La
preghiamo di rivolgersi al
Suo rivenditore autorizzato,
presso il quale ha acquistato
questo prodotto oppure ad
uno dei nostri servizi
di assistenza autorizzati.
Per questioni tecniche si
prega di rivolgersi al service
apposito.
▼
S T A R T
Nous vous remercions d'avoir
choisi un produit Siemens et nous
vous souhaitons beaucoup de
succès avec cet équipement.
Si votre produit Siemens devait
présenter un défaut quelconque
au cours de la période de garantie,
veuillez vous adresser à votre
revendeur ou à l'un de nos services
après-vente agréés. Pour toute
question technique, adressez-vous
au service après-vente.
Cher Client, Estimado cliente,
Le agradecemos que haya
adquirido este producto
Siemens y esperamos que
siga satisfecho con su
compra. Si se diese el
caso de que su producto
Siemens requiriese al
servicio de garantía,
póngase en contacto
con su distribuidor o con
un representante de
nuestra red de servicio
autorizado. En caso de
consultas técnicas,
diríjase al Servicio al
cliente.
Service:
Siemens Aktiengesellschaft
ICM CD IS
Integration & Customer Service
Hofmannstrasse 51
D-81359 München
Fax: +49 (0)89-722 49880
e-mail: mc.support@mch.siemens.de
internet: http://www.crypto.mch.siemens.de
Hotline: +49 (0)89-722 49311 from 8:00 to 16:00 h on working days
Sehr geehrte Kundin,
sehr geehrter Kunde,
wir freuen uns, daß Sie
sich für ein Produkt von
Siemens entschieden haben
und wünschen Ihnen viel
Erfolg damit. Sollte Ihr
Siemens-Produkt innerhalb
der Garantie-Zeit einen Defekt
aufweisen, wenden Sie sich
bitte an Ihren Fachhändler,
bei dem Sie dieses Produkt
gekauft haben oder an eine
unserer autorisierten
Kundendienststellen. Bei
technischen Fragen wenden
Sie sich bitte an den
Service.
1
Contents
Siemens AG
©
Product Informations "TopSec®"
Open the file start.pdf with the double click.
Title
Prologue, Service, Start
Contents 1
Copyright Statement, Trade Marks 2
Introduction 3
Technical Data 4
Contents of the CD-ROM
TopSec 701
Contents
Page Page
▼
▼
▼
"TopSec 701_PC Card” Operating Instructions
Data Transmission with Mobile Phone via IrDA
- Modem operation to GSM network
- Transmission device "mobile phone” 28
Data Transmission with Mobile Phone via RS232
- Modem operation to GSM network
- Transmission device "mobile phone with integrated modem”
- Establishing a connection between "modem” and
"TopSec 701” with "modem cable” 29
Modem Data Transmission via RS232 Interface
- Modem operation to telephone cable network
- Transmission device "modem” 30
TopSec® Encryption System
for "Teleworkers” 31
Original Accessory
- TopSec 701_Modem Cable 32
Important Notices
- Notes on presentation 5
- Safety Notices 5
- FCC Compliance Statement 6
- Problem Solutions and Tips 7
The First Steps
- Installing the PC Card 8
- Removing the PC Card 8
Installation and Configuration
- Installation Instructions 9
- Short Operating Instructions 9
For Windows 95/98 10
- Installation 10 -11
- Configuration 12 – 14
For Windows NT 4.0 15
- Installation 15 -17
- Configuration 18 – 20
For Windows 2000 21
- Installation 21 – 23
- Configuration 24 – 27
2
TopSec 701_PC Card
Copyright Statement Trade Marks
Siemens AG
©
Microsoft®
MS®
MS-DOS®
Windows® 95/98
Windows® NT 4.0
Windows® 2000
Copyright © Siemens AG 2000.
Siemens Aktiengesellschaft
ICP CD IS; Hofmannstrasse 51, D-81379 München
© Siemens AG 2000
All Rights Reserved
TopSec®
TopSec 701
TopSec 701_PC Card
Copyright Statement Trade Marks
All rights reserved, in particular those of translation, reprinting,
copying or similar process (even in part).
Any person violating these rights is liable to pay damages.
All rights reserved, in particular in the case of a patent being
granted or a utility model being registered.
Delivery and technical alterations reserved.
Published
by the division Information & Communication Mobile.
are registered trade marks of the Microsoft Corporation.
TopSec® is a registered trade mark of Siemens AG.
The product "TopSec 701” is subject to export permission.
Introduction
3
The "TopSec 701" provides a mobile employee with secure
access to data in the head office. It has been implemented as
a PCMCIA card and behaves like a modem card.
All information transmitted via the" TopSec 701" can be encrypted.
A modem has not been integrated into the "TopSec 701" but
rather is connected externally. This provides the greatest flexibility
since any modem can be connected to the serial port. Mobile
telephones which contain modem functionality can be connected
through the infrared (IrDA) interface.
When using devices from the TopSec family, data which is to
be transmitted between two TopSec devices over a public
network can be encrypted. Therefore between two TopSec 701
devices any data can be exchanged in an encrypted form as
long as the connecting modems can communicate with each
other. In addition it is possible to exchange data between
"TopSec 701" devices and TopSec devices in an ISDN network
(TopSec 703/730). Top Sec ISDN devices support V.110 protocol
for adapting the data rate of the modem connected to the
"TopSec 701".
Operating
In the factory the devices are configured so that they can
communicate in a so-called public user group. The "TopSec 701"
can be operated encrypted or unencrypted. The type of operation
is chosen by a mode number which is prefixed onto the telephone
number of the remote end when dialing.
Additional security is provided by the administration of a TopSec
device. The device is given an individual certificate from the
administrator site (accessory). The device checks the certificate
from the remote site after a connection has been established.
In this way closed systems can be established. Issuing
certificates and assigning rights is done by the customer from
the administrator site.
Introduction
Product Description
Encryption
TopSec devices work according to public key procedures. This
makes key management easier for the user. The user data is
encrypted using a symmetrical algorithm according to a
procedure developed by Siemens. This algorithm uses a 128 bit
key. Both partner devices need the same key for this procedure.
This is achieved by Diffie Hellmann key negotiation procedures
using random numbers. The Diffie Hellmann procedure works
with TopSec devices using a 1024 bit key. After the symmetric
key's period of use is over, the key is deleted and re-created
at the next connection.
An authentication is additionally carried out for administration
devices. This is done according to the RSA procedure. This
procedure also uses a 1024 bit key.
cSiemens AG
Remote Devices
"TopSec 701" serves to protect the transmission of any
electronic data from access by third parties in public
communications networks. Example: Safe transmission of
confidential information to mobile employees.
Applications
Mobile phones with integrated modem function.
Terminal adapter with V.110 support.
Analogue modems (no connection to TopSec ISDN devices).
TopSec 701
Technical Data
4

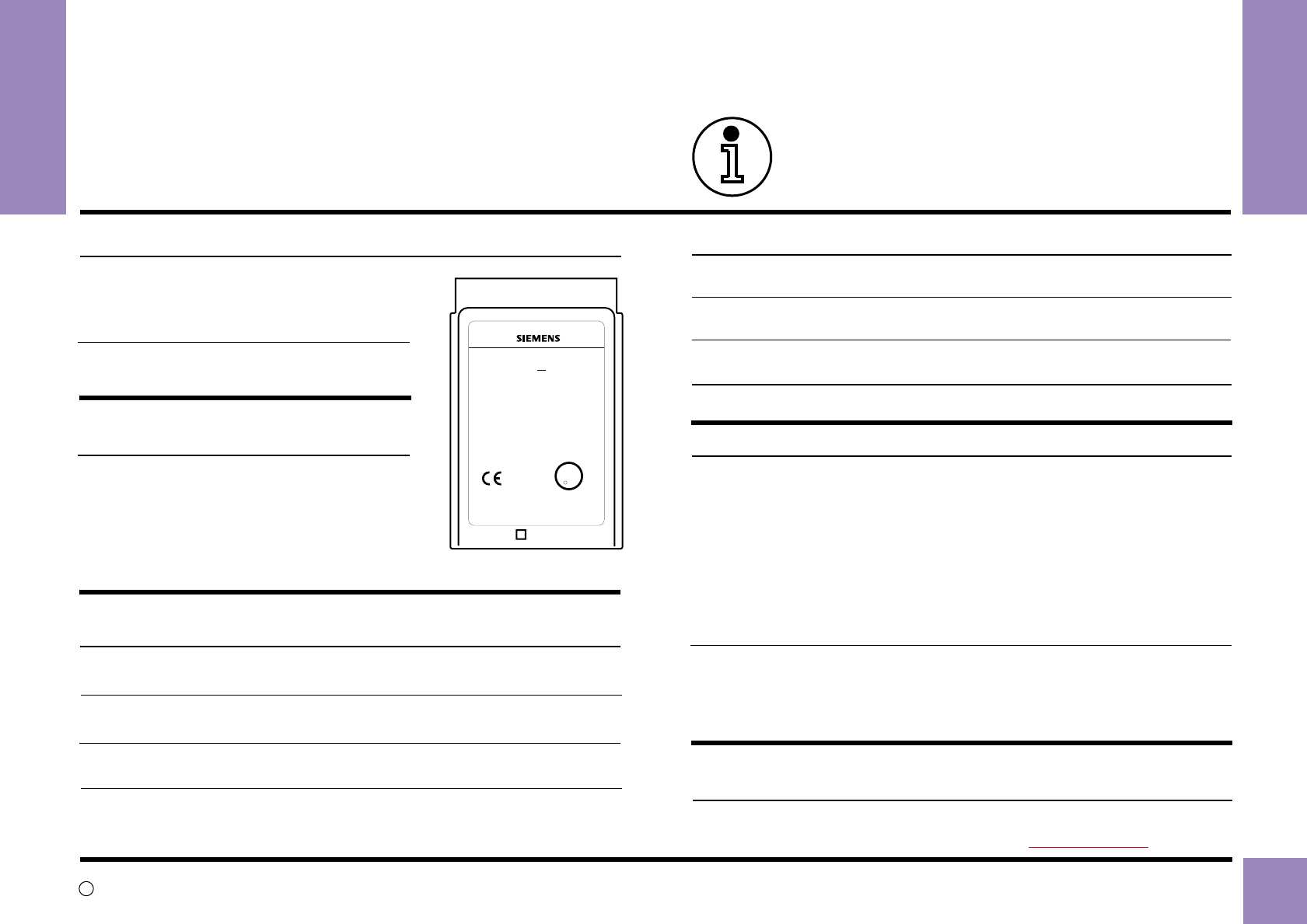

Technical Data
Description and Dimensions
TopSec 701,
PC Card
(PCMCIA 2.1) Typ II card (5mm)
Dimensions L x B x H :
85,6 mm x 54,0 mm x 5,0 mm
Encryption
Symmetrical user data encryption with
128 bit key.
Asymmetrical key negotiation according to
Diffie Hellmann with 1024 bit key.
Authentication according to RSA with
1024 bit key.
Environmental Conditions
Condition Temperature of Environment Relative Humidity
In operation 0°C to +60° C 20% to 85%
Storage
out of operation -20°C to +70° C 10% to 90%
Transport in -25°C to +60°C 10% to 98%
appropriate
packaging
Electrical Requirements
Power supply 3.3 V
Serial interface V.24 / RS232, 4,8 -- 115 kbps
Infrared interface IrDA, 9.6 -- 115 kbps
(range ca. 30 cm)
Certifications
93/68/EEC EU guideline for CE classification
89/336/EEC Electromagnetic compatibility (EMC)
EN 60721-3-7 Vibration
EN 60721-3-3 Operating temperature
EN 60721-3-1 Storage temperatue
EN 60721-3-2 Transport conditions
(in appropriate packaging)
Combination approval according to US guidelines
and Canadian guidelines: File E208121, Project 00SC03443,
Control number: 75ZK, Product Identity: I.T.E.
FCC ID: L82TOPSEC701
System Requirements
Operating Systems:
Windows 95/98
Windows NT 4.0
Windows 2000
Pentium processor (166 MHz or higher recommended)
Adobe Acrobat Reader 4.0 (on CD-ROM)
Original Accessory
Order number:
Modem Cable A5B00100019876
This product was successfully tested for electrical safety and electromagnetic
compatibility by the following organizations.
Secure Communications
UL
CSA
DEMCO
FCC
cSiemens AG
CE
EN 50082-1 Basic specification, interference immunity
EN 55022 class B Radio noise characteristics /
Information-technology systems
EN 61000-4-2 ESD (enhanced requirements
TopSec 701 PC Card
Secure Communications
V.24 / RS232, 4.8 – 115 kbps
IrDA, 9.6 – 115 kbps
L
U US CR
LISTED
I.T.E.
75ZK
PCMCIA 2.1
3 V
A1Z10289783
FCC ID: L82TOPSEC701
TopSec 701
Important Information
This PCMCIA card fulfills the requirements of the EU guideline
89/336/EEC "electromagnetic compatibility".
5
In this manual the following typographical conventions
are used:
!A notification flagged by a warning symbol means that if you
ignore it your health, the functioning of your PC Card or the
security of your data is endangered.
Information symbol indicates additional information and tips.
Indicates a step that you must curry out.
Represents steps, explanations and onscreen directions
(buttons) in the displayed screenshots.
Indicates commands, menu items or the page index
(bottom right next to page number).
Indicate a "Link" you can click on.
.
▲
▲
Safety Precautions
!Observe the safety precautions pertaining to the usage of your
PC Card.
The system requirements must be checked and filled.
Before operating the PC Card observe the information
pertaining to environmental requirements in the
Technical Data chapter.
Remove the power plug from all affected devices if you
connect or disconnect a device. During an electrical storm you
should neither plug-in nor unplug the cables.
This product is tested and approved for the UL and C-UL
classification according to the US guidelines and
Canadian guidelines.
Reference-No.: File E208121, Project 00SC03443,
Control number: 75ZK, Product Identity: I.T.E.
Important Information
Typographical Conventions Safety Precaution
Bold text
Italics text
Underlined text
Typographical Conventions
FCC ID: L82TOPSEC701
TopSec 701
L
U US CR
LISTED
I. T. E.
75ZK
oder
▲
When using the product, pay attention to the notes in the
Installation and Configuration chapters.
Siemens AG
©
Important Information
6
This equipment has been tested and found to comply with the
limits for a class B digital peripheral, pursuant to Part 15 of the
FCC Rules and meets all requirements of the Canadian
Interference-Causing Equipment Regulations. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment on and off, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/T.V. technician for
help
Change or modifications not expressly approved by
Siemens Aktiengesellschaft
could void authority to operate the equipment.
Important Information
FCC Compliance Statement
FCC ID: L82TOPSEC701
Information to the User
NOTE:
FCC Compliance Statement
If necessary, the user should contact the dealer or an
experienced radio/television technician for additional
suggestions. The user may find the following booklet,
prepared by the Federal Communications Commission
helpful:
"How to Identify and Resolve Radio-TV Interference Problems."
This booklet is available from the US. Government Printing
Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.
cSiemens AG
TopSec 701
