Remote Scan Control
The main interaction device in the examination room is the Remote
Scan Control (RSC).
WARNING
Wrong handling of batteries!
Electric shock or burn from high short-circuit current.
◆Observe proper precautions.
◆Servicing should be performed by qualified service personnel
knowledgeable of batteries and required precautions.
◆Keep unauthorized personnel away from batteries.
A wired RSC is a standard configuration and is connected via a cable
to the system. Optionally, you can also have a wireless one. The RSC
can be put on or taken off from the cradle on the gantry.
1
Remote Scan Control
1
1
(1) Cradle for Remote Scan Control
To avoid unintended activation of any key, the RSC is designed with a
dead man's switch. This switch needs to be activated to enable any of
the other keys on the device. The dead man's switch is activated
when the user holds the RSC or the RSC is placed on the cradle of the
gantry. In other situations, the switch is deactivated.
Do not place the Remote Scan Control on the patient or the
patient table!
Remote Scan Control
2
Wireless Remote Scan Control
1
3
5
2
12
10
9
6
8
4
11
7

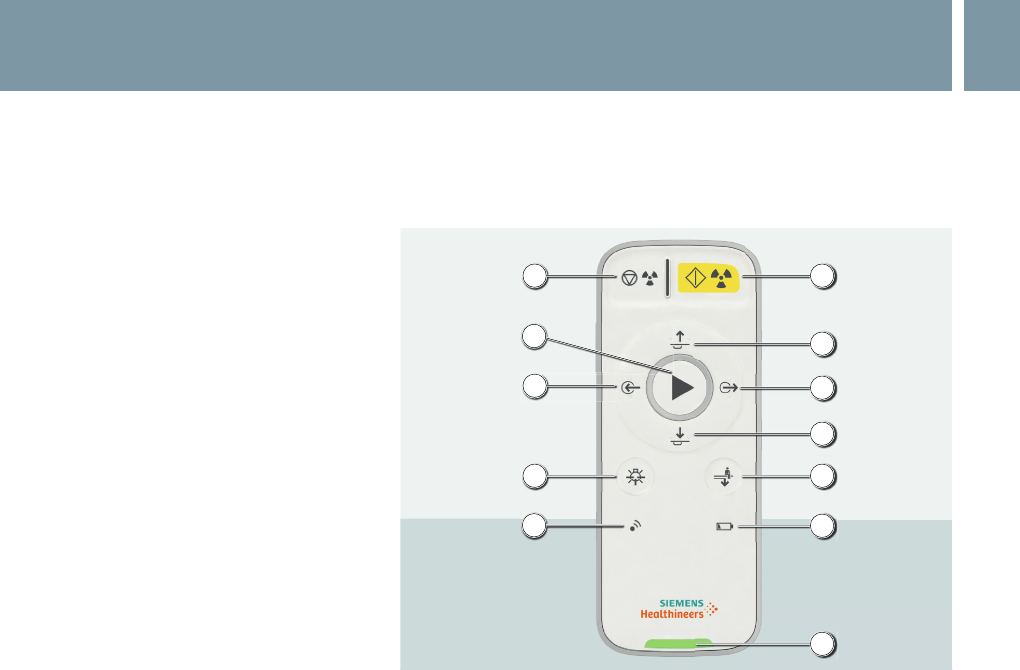

(1) Start key: Press this key to trigger a scan (not active if neither
an in-room monitor nor a tablet is installed). The X-ray indicator
is illuminated when ready for a scan or during the scan.
(2) Feed Up key: Press this key to move the patient table up (not
active if the table does not support this motion).
(3) Feed Out key: Press this key to move the patient table out of
the gantry.
(4) Feed Down key: Press this key to move the patient table down
(not active if the table does not support this motion).
(5) Unload key: Use this key to unload a patient.
(6) Low battery indicator
(7) Pairing label: Identical labels on the wireless RSC and the gantry
enable you to identify if they are paired to function together.
(8) Out of Range indicator
(9) Light Marker key: Press this key to turn on or off the light
marker
1.1
Remote Scan Control
3
(10) Feed In key: Press this key to move the patient table into the
gantry.
(11) Move key: Press this key to move the table to the preselected
scanning position or tilt the gantry to the next measuring
position.
(12) Suspend key: Press this key to hold the scan procedure. This is
the preferred method for interrupting a scan before completion.
You should not use the STOP key for this purpose.
With a wireless RSC, you can unload a patient from within the gantry
while moving from the control room to the examination room. You
can put the wireless RSC in your pocket with the clip on the back.
The wireless RSC is limited to certain operating range. The Out of
Range indicator blinks when you are at the limit of the operating
range. And it turns to red when you are out of the operating
range. The connection is turned off.
Remote control wireless receiver
The Remote Control wireless receiver is a device which is installed in
CT gantry. It can be connected to the remote control wireless via
bluetooth and also can be connected with CT system via CAN bus.
The wireless Remote Control receiver contains a PCB board and a
wireless transmitter. The RF module used in device is TI CC2540 that
is BLE 4.0 technology.

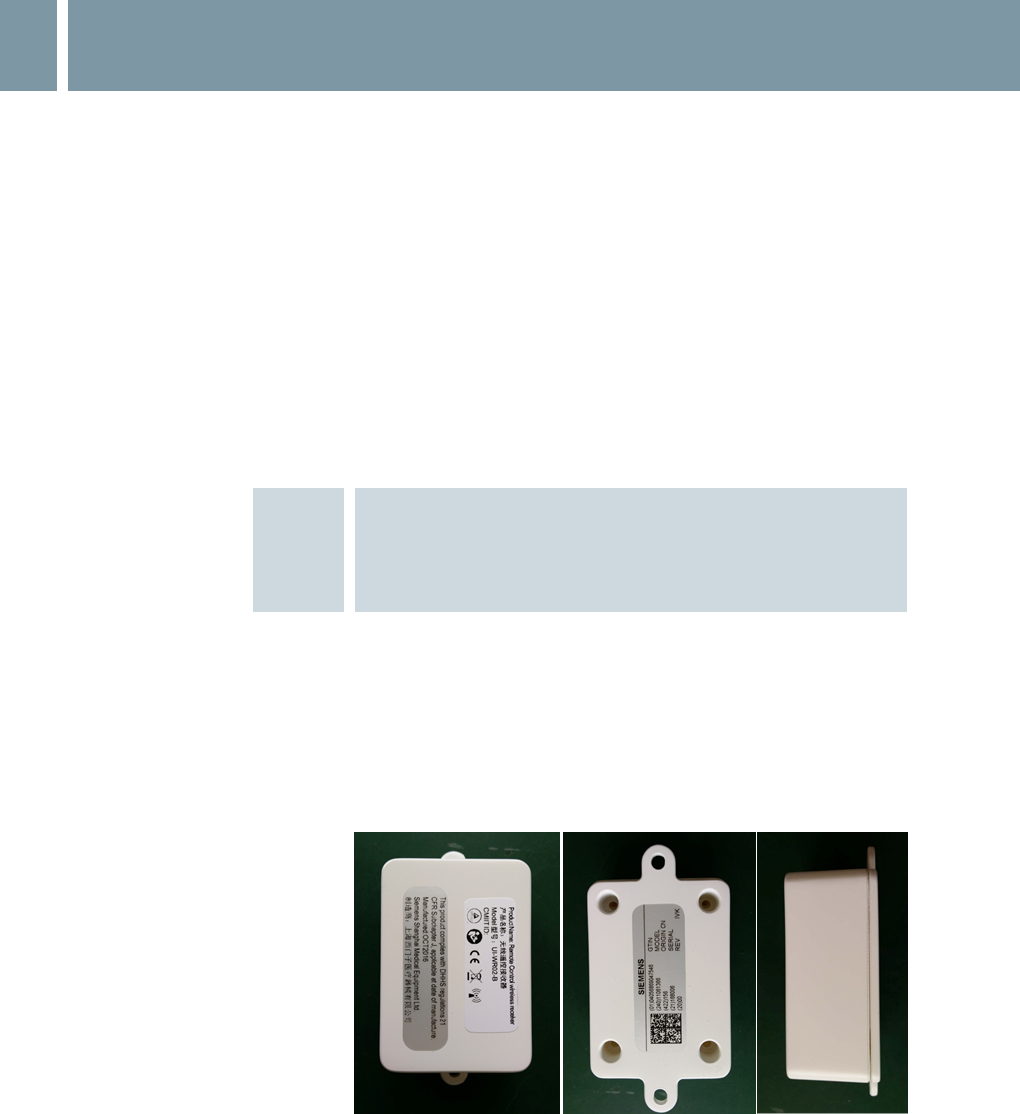

The Remote Control wireless receiver is located inside the CT gantry.
1.1.1
Remote Scan Control
4

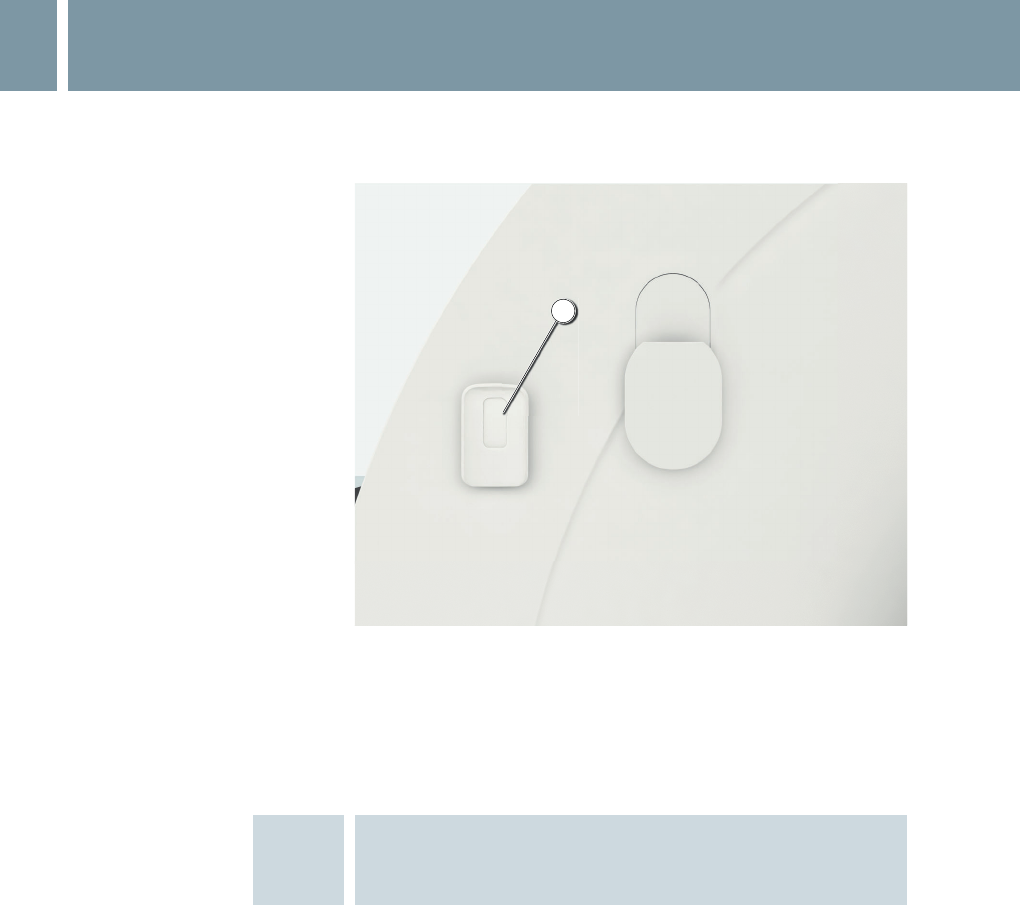

(1) Position of RMC wireless
(2) Position of nuts
Legal statements
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
◾This device may not cause harmful interference, and
◾This device must accept any interference received, including
interference that may cause undesired operation.
1.1.2
Remote Scan Control
5
This product has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
product generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this product does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
◾Reorient or relocate the receiving antenna.
◾Increase the separation between the equipment and receiver.
◾Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
◾Consult the dealer or an experienced radio/TV technician for
help.
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
◾this device may not cause interference, and
◾this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radioexempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
◾l'appareil ne doit pas produire de brouillage, et
◾l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Remote Scan Control
6
This equipment should be installed and operated with a minimum
distance 20cm between the radiator and your body
Cet équipement doit être installé et utilisé à une distance minimale
dey 20 cm entre le radiateur et votre corps
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d'un type et d'un
gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le
type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
Technical data
The Remote Control wireless is a device for in-room manual
movement and scan operation. It can be connected via wireless to
the system. The wireless Remote Control contain a hand operator
(including housing, all function buttons, batteries and wireless
transmitter) and a master board (wireless receiver located in system
and connected to system board).
Part No. 11061360 11061366
Material description Remote control wireless Remote control wireless receiver
Function Control the function of laser/X-
ray and movement of CT table
and also communicate with
wireless remote control receiver.
Communication with CT and
remote control
Technology BLE4.0 BLE4.0
Transmit/receive Transmit/receive Transmit/receive
Frequency 2.4 GHz 2.4 GHz
Operation range 3- 5 meters 3- 5 meters
Modulation GFSK GFSK
1.1.3
Remote Scan Control
7
Part No. 11061360 11061366
Frequency band 2402 - 2480 MHz 2402 - 2480 MHz
Wired Remote Scan Control

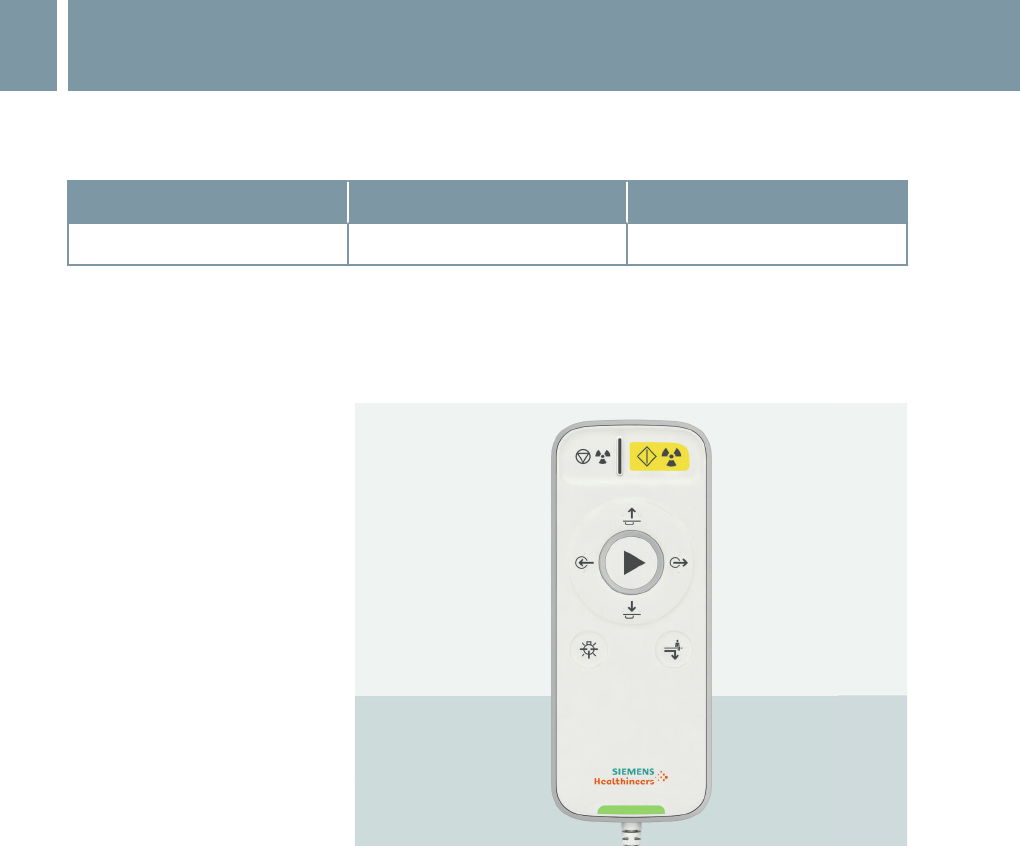

The wired RSC has the same function keys as the wireless one, except
for the Out of Range indicator and the Power Off indicator.
1.2
Remote Scan Control
8
