Siemens Medical Equipment 11333743 Remote control wireless receiver User Manual
Siemens Shanghai Medical Equipment Ltd. Remote control wireless receiver Users Manual
Users Manual
1 / 4
Wireless remote control receiver (model:
11333743)
Product description and technical manual
1
1.
1
product
The w
i
The Blu
e
(includi
a wirele
connect
e
The c
control
returns
corresp
o
and sto
p

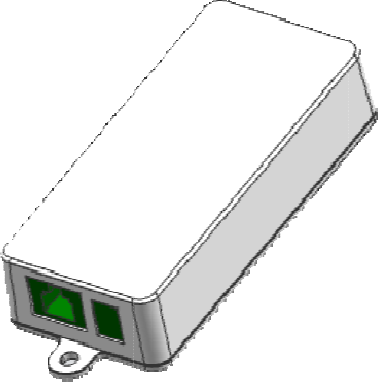

1
appeara
n
use desc
r
i
reless r
e
e
tooth wi
r
ng the sh
e
ss remote
e
d to the
orrespond
(model:
1
the corr
o
nding lig
h
p
scannin
g
n
ce:
r
iption
e
mote cont
r
r
eless re
m
e
ll, all
f
control r
system b
o
ing butto
n
1
1333741).
esponding
h
t. It is
u
g
the X r
a
r
ol recei
v
m
ote cont
r
f
unction
b
eceiver (
t
o
ard).
n
value i
s
The wir
e
feedbac
k
u
sed to co
n
a
ys and t
h
v
er is use
d
r
ol syste
m
b
uttons,
b
t
he wirel
e
s
sent to
t
e
less rem
k
signal
n
trol the
m
h
e contro
l
d
in SIEME
N
m
consist
s
b
atteries
e
ss recei
v
t
he recei
v
ote contr
to the r
m
ovement
o
l
lights.
N
S medical
s
of a wi
r
and wirel
e
v
er is loc
a
v
er throu
g
ol recei
v
emote co
n
o
f the pat
i
equipmen
t
r
eless re
m
ess trans
m
a
ted in t
h
g
h the wir
e
v
er (mode
l
n
trol to
i
ent stat
i
1
t
CT machi
n
m
ote cont
r
m
itters)
a
h
e system
a
e
less rem
o
l
: 113337
4
control
t
i
on, to st
a
1
/ 4
n
e.
r
ol
a
nd
a
nd
o
te
4
3)
t
he
a
rt
2 / 4
1.1 electrical specifications
1.2 electrical parameters
Serial
number
technical
parameter
specification value
1 Voltage 24VDC±10%
2 Electric current 200mA
3 Power waste ＜40mW
4 modulation mode GFSK
5 Data rate 1Mbps
6 Channel interval 2MHz
7 Antenna gain 5.3dBi
8 Equivalent
omnidirectional
radiation power
Antenna gain＜10dBi：≤100mW or≤20dBm;
Antenna gain≥10dBi：≤500mW or≤27dBm;
9 Maximum power
spectral density Direct sequence spread spectrum (DSSS) or
other working methods:
Antenna gain＜10dBi：≤10dBm/MHz(EIRP);
Antenna gain≥10dBi：≤17dBm/MHz(EIRP).
The mode of FM work:
Antenna gain ＜ 10dBi ： ≤
20dBm/100kHz(EIRP);
Antenna gain ≥ 10dBi ： ≤ 27dBm/100k
Hz(EIRP).
10 frequency range ≤-80dBm/Hz(fL≥2.4GHz;fH≤2.4835GHz)
11 Occupancy bandwidth ---
12 Carrier frequency
tolerance ≤20×10-6
13 Stray emission ≤-36dBm/100kHz(30-1000MHz);
≤-33dBm/100kHz(2.4-2.4835GHz);
≤-40dBm/1MHz(3.4-3.53GHz);
≤-40dBm/1MHz(5.725-5.85GHz);
≤-30dBm/1MHz(其它 1-12.75GHz);
3 / 4
1.3 electrical interface
Pin# Definition describe
1 CAN_H Bus H
2 CAN_L Bus L
3 GND Place of communication
4 NC empty
5 NC empty
6 NC empty
7 GND Power supply
8 24V power supply
Shield Shielding layer
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following
two conditions: (1) This device may not cause harmful interference, and (2) this
device
must accept any interference received, including interference that may cause
undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B
digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party
responsible
for compliance could void the user's authority to operate the equipment.
