MOBY I Configuration, Installation and Service Manual
(4) J31069-D0033-U001-A8.1-7618
5.6 SLG 42
The SLG 42 is a middle-of-the-line read/write device. With its larger an-
tenna, the SLG 42 generates a much larger field than the SLG 41, and a
greater range can be achieved with the same data memories. In dynamic op-
eration, larger amounts of data can be read from and written to the MDS.
See chapter 3.4.

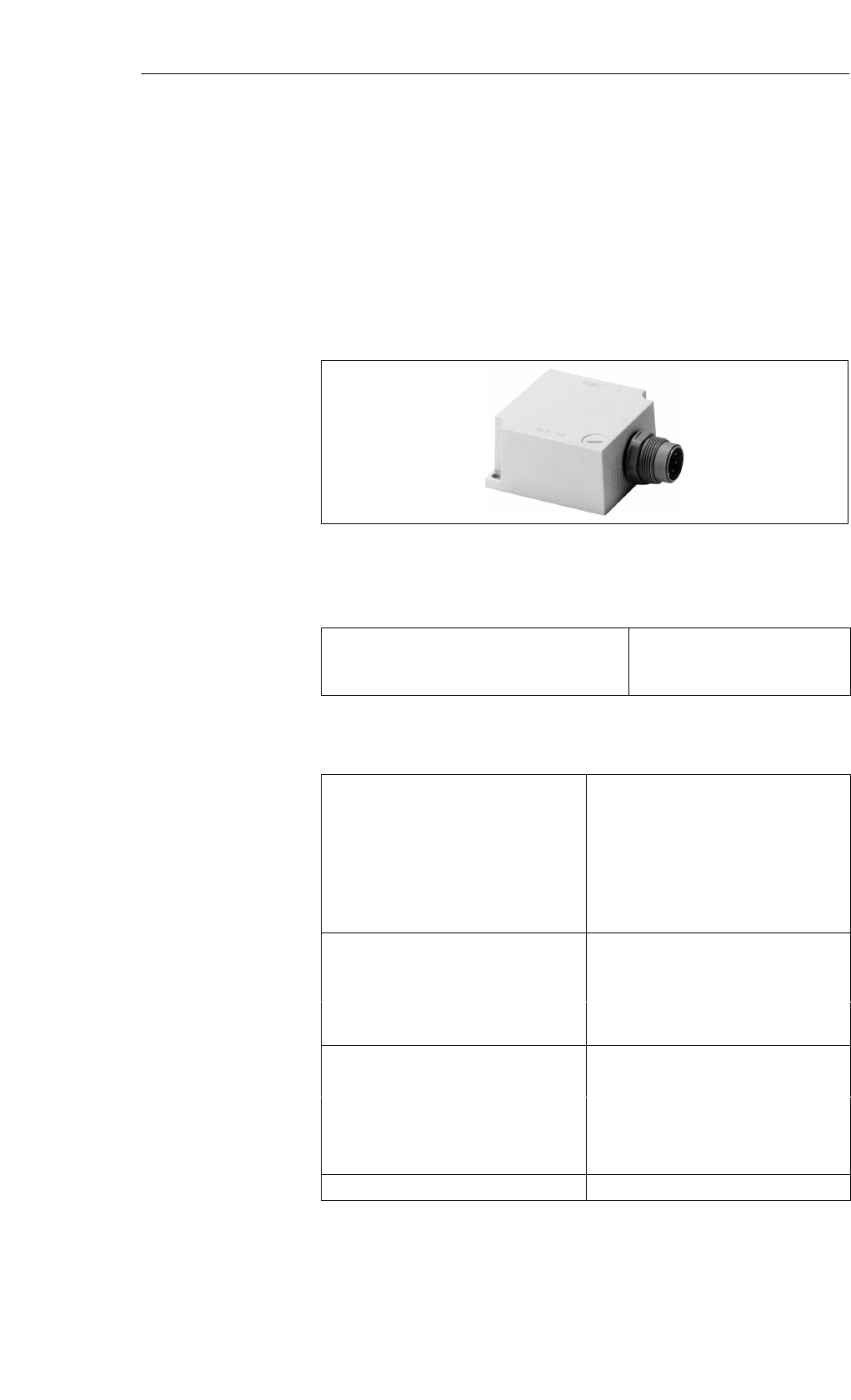

Figure 5-23 SLG 42 read/write device
Table 5-14 Ordering data for SLG 42
Read/write device SLG 42
up to 70 mm (medium power)
SLG plug connector and stub lines
6GT2 001-0BA00
See chapter 3.10
Table 5-15 Technical data of SLG 42
Inductive interface to MDS
Data transmission speed
Read/write distance
SLG to MDS (max.)
Transmission frequency
Power
Data
19200 baud
70 mm (see field data table)
134 kHz
1.81 MHz
Serial interface to ASM 6-pin SLG plug connector in acc. w.
DIN 43651
Transmission speed 19200 baud, RS 422
Line length, ASM to SLG (max.)
at 24 V DC 120 m
Supply voltage (via serial interface)
Nominal value 24 V DC
Permissible range 20 to 30 V DC
Current consumption
Idle/operation 60 mA/180 mA
MTBF 2 x 106
Application area
Ordering data
Technical data
Read/Write Devices
5-22MOBY I Configuration, Installation and Service Manual
(4) J31069-D0033-U001-A8.1-7618
Table 5-15 Technical data of SLG 42
Housing
Dimensions in mm (W x H x D) 75 x 40 x 75
Color Gray
Material Polyamide 12
Plug connection DIN 43651
Protection rating
Shock
Vibration
IP65
50 g
20 g
Mounting of SLG
Turning moment (at room temperature)
4 M5 screws
2 Nm
Ambient temperature
During operation
During transportation and storage
–25° to +70° C
–40° to +85° C
Weight (approx.) 250 g
Silicon free Yes
The exact field data depend on the type of MDS used.
Table 5-16 Field data of SLG 42
Operating distance (Sa)0 to 55 mm
Limit distance (Sg)70 mm
Median deviation (L) Depends on MDS
Minimum distance from SLG to SLG (D) > 800 mm
Made in Germany
SIEMENS MOBY I SLG 42
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
Caution
Field data
FCC information
Read/Write Devices
UNDESIRED OPERATION.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
5-23
MOBY I Configuration, Installation and Service Manual
(4) J31069-D0033-U001-A8.1-7618
MM
Length of trans-
mission win-
dow (L)
Transmission
window at ope-
rating distance

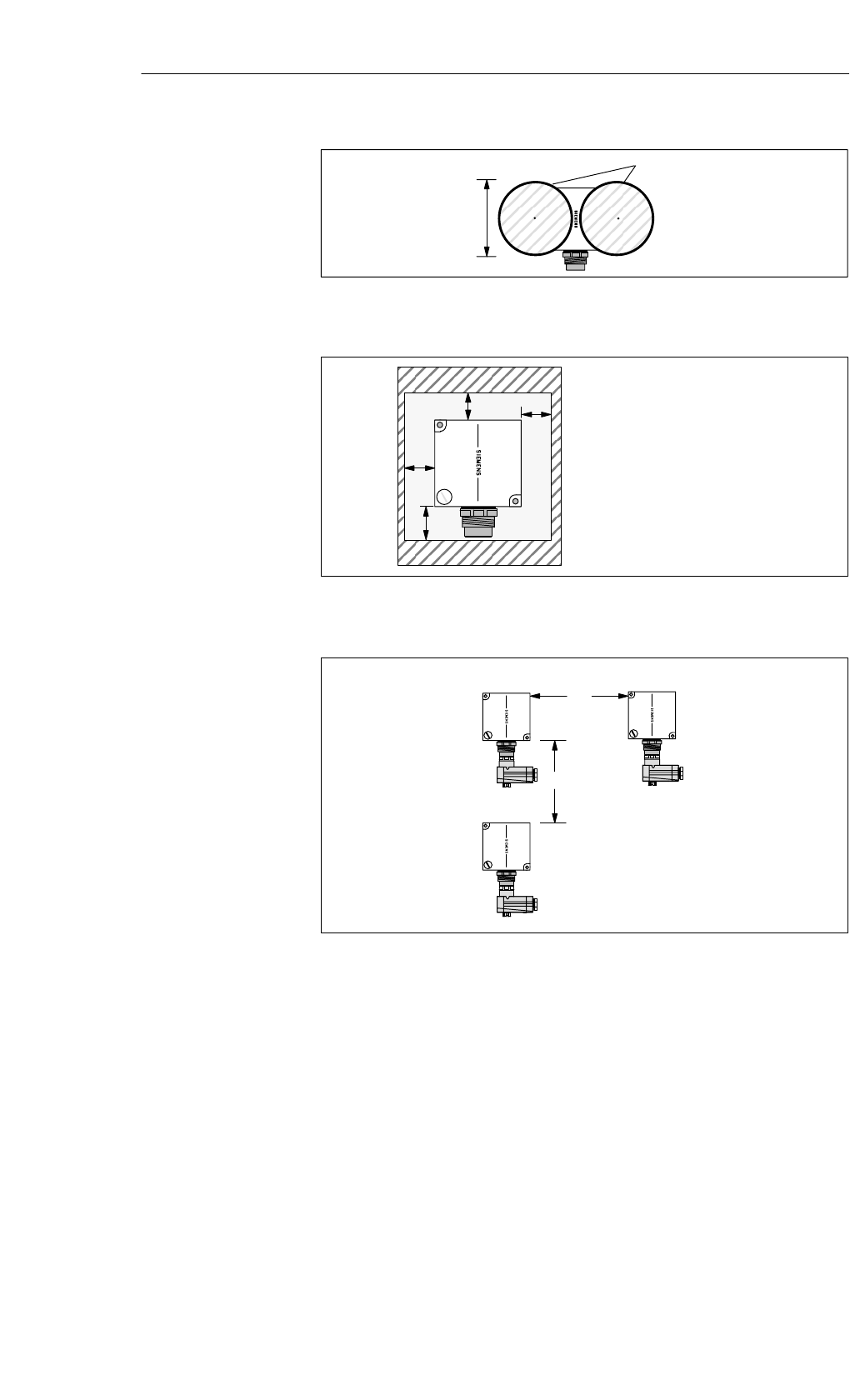

Figure 5-24 Transmission window of SLG 42
a
a
a
a
a = 30 mm
Metal-free space with
flush installation
Figure 5-25 Metal-free space for SLG 42
D
D
SLG 42
SLG 42
SLG 42
Figure 5-26 Distance D: SLG 42
Transmission
window
Metal-free space
Definition of
distance D
Read/Write Devices
5-24MOBY I Configuration, Installation and Service Manual
(4) J31069-D0033-U001-A8.1-7618
7565
5
5
75
6
40
5.5
75
49
25

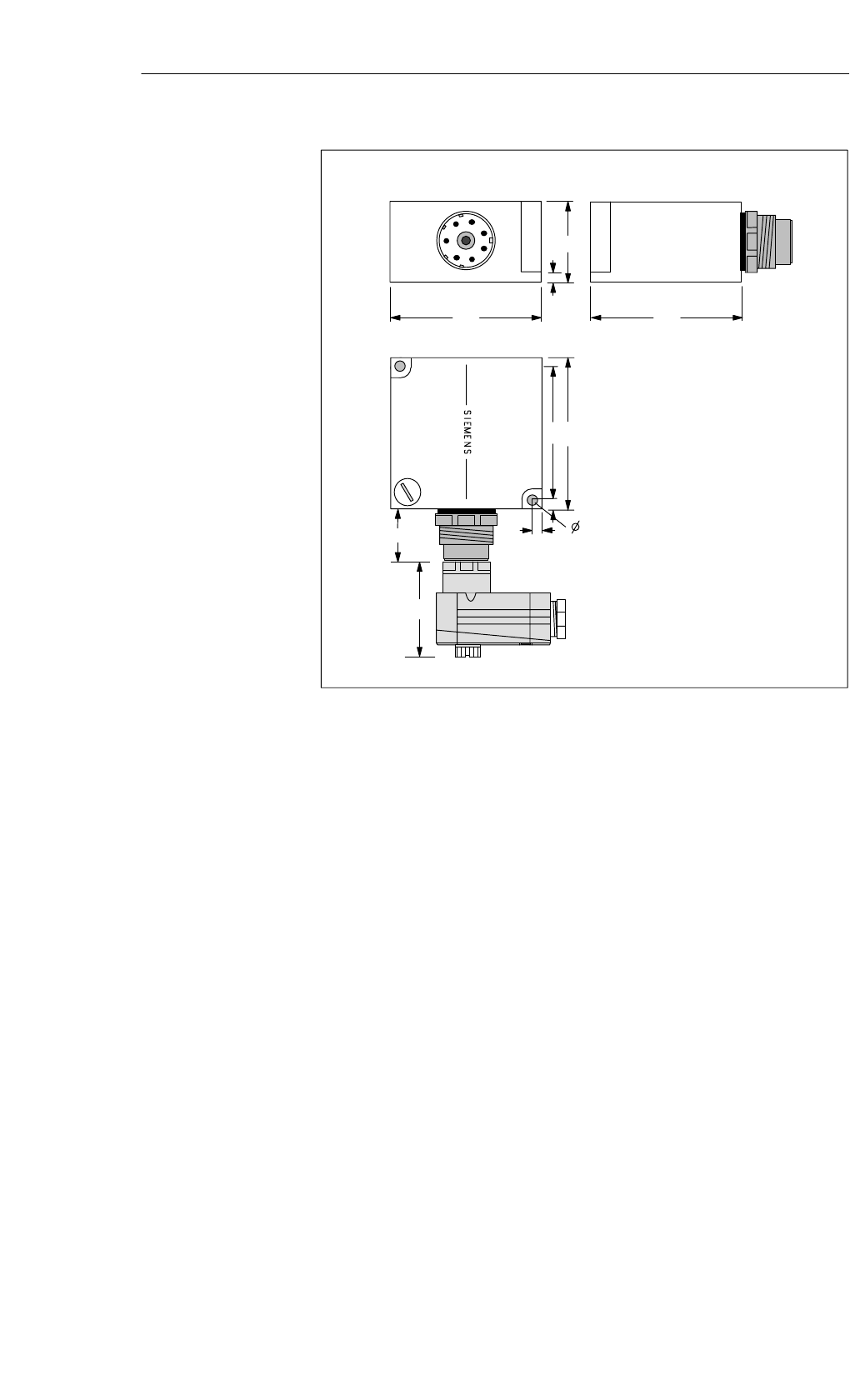

Figure 5-27 Dimensional diagram of SLG 42
Dimensions
(in mm)
Read/Write Devices
