MOBY
U

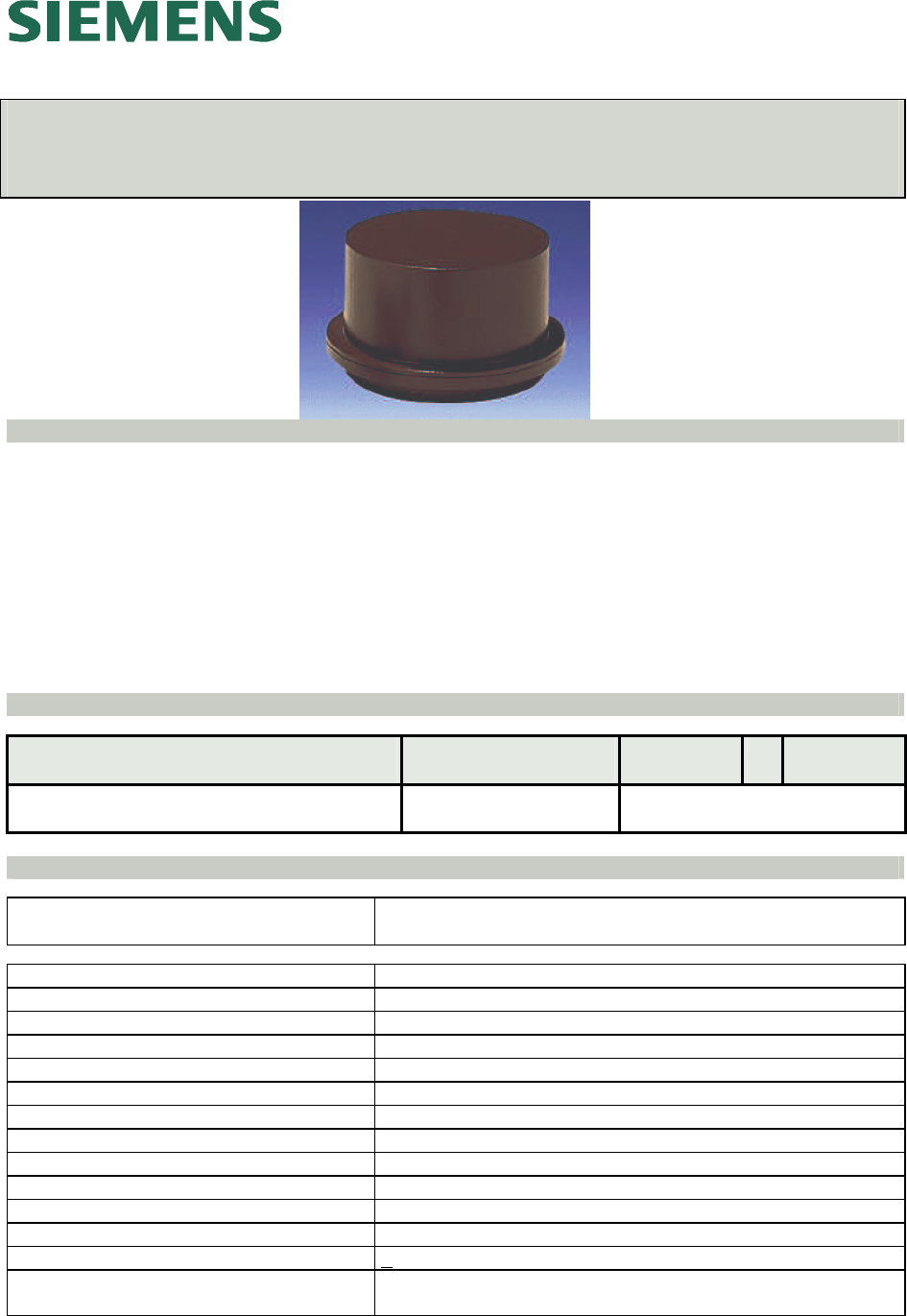

Product Sheet
Mobile Data Memory - MDS U589
Version: 01.00 of 19.09.02
A&D SE PS 3, R. Völler
Description
The MDS U589 is a mobile data memory of the MOBY U long range identification system. It offers a
large, 32-Kbyte memory and can be used at high temperatures (up to +220° C cyclically). It is designed
for paint shop applications in the automotive industry. Very low power consumption ensures a long life of
approx. 5 years. The extremely sturdy, interference-resistant MDS can be read and write-accessed at a
distance of up to 3 m. Addressing of the MDS U589 is easy with the filehandler familiar from MOBY I
(logical file addressing). In addition, the MDS can also be used with only direct memory access. With its
transmission frequency in the ISM frequency band at 2.4 GHz, the MDS offers a very high net data
transmission speed of approx. 8 Kbytes per second without multitagging and approx. 4 Kbytes per sec-
ond even with multitagging and two MDSs.
Ordering Data
Product Description Order No. L-Price
EURO/Unit AL
ECCN
Mobile data memory MDS U589 with 32-
Kbyte memory for high temperatures 6GT2500-5JK10 See FDB.
Technical Data
MDS type
Identification system MDS U589
MOBY U
Fixed code memory MDS identification number (32 bits)
Read only memory 128 bits, can be written once by user
Application memory
Memory technology RAM
Memory size 32 Kbytes
Memory organization Byte access, filehandler mode
Data retention 10 years
MTBF (at +40° C) 2.5 x 10
6
hours (regardless of battery)
Read/write cycles 10
7
at +25° C
Read/write distance 0.15 m to 3 m
Multitag capability Yes
Power supply Battery
Battery lifespan > 5 years
1)
; no changing
Shock/oscillation in acc. w. DIN EN
60721-3-7, class 7 M3 50 g/5 g
![](/img.php?id=386949&img=bg2.png)
MOBY
U Product Sheet Version 01.00
Mobile Data Memory - MDS U589 19.09.02
File: Produktinfo_MDS U589_V01_00_e.doc 2 of 3
Subject to change without
prior notice
Free fall in acc. w. DIN EN 60068-2-32 1 m
Torsion and bending stress Not permitted
Mounting
Recommended distance to metal Can be mounted directly on metal
Protection rating in acc. w. DIN EN
60529 IP 68
Chemical resistance See configuration manual
Housing
Dimensions [ø x H] in mm 114 x 83
Color/material Brown/PPS
Ambient temperature
During operation -25° C +220° C (cyclic)
During transportation and storage -40° C to +85° C
Weight, approx. 600 g
Certifications RF: I-ETS 330440+C1:1997
SAR: 99/519/EG
Safety: EN 60950:2000
EMC: EN 301489-01:2000
EN 301489-03:2000
ENV 50204:1995
FCC Part 15C
C
UL
US
Safe for pacemakers
1)
The lifespan depends on several factors - the temperature, the time the MDS remains in the antenna
field of the SLG (zones 1 and 2) and the amount of data read/written.
Field Data
Standard
Minimum
Maxi-
mum
Limit distance (S
g
), approx. 2.0 m 0.50 m 3.0 m
Working distance (S
a
) 1.4 m 0.35 m 2.1 m
Transmission window at S
a
Length/width 2.8 m 0.70 m 3.6 m
Over-the-horizon transmissions can be
actively limited (in 0.5 m steps from 0.5
m to 3.5 m) by SLG.
The field data apply to reading and writing the MDS together with SLG U92 without FCC certification.
Applications with SLG U92 with FCC certification have reduced declarations for the transmission field
(see product sheet Read/Write Device – SLG U92 wit FCC).
Cyclic Use of the MDS at Temperatures > 85° C
At temperatures up to +85° C, cyclic operation is n ot necessary (i.e., the MDS can be used continuously
up to this temperature).
Heating up Cooling down
Temperature Time Temperature Time
220° C Briefly 25° C > 30 min
200° C 0.5 hr 25° C > 1 hr
200° C 1 hr 25° C > 4 hr
![](/img.php?id=386949&img=bg3.png)
MOBY
U Product Sheet Version 01.00
Mobile Data Memory - MDS U589 19.09.02
File: Produktinfo_MDS U589_V01_00_e.doc 3 of 3
Subject to change without
prior notice

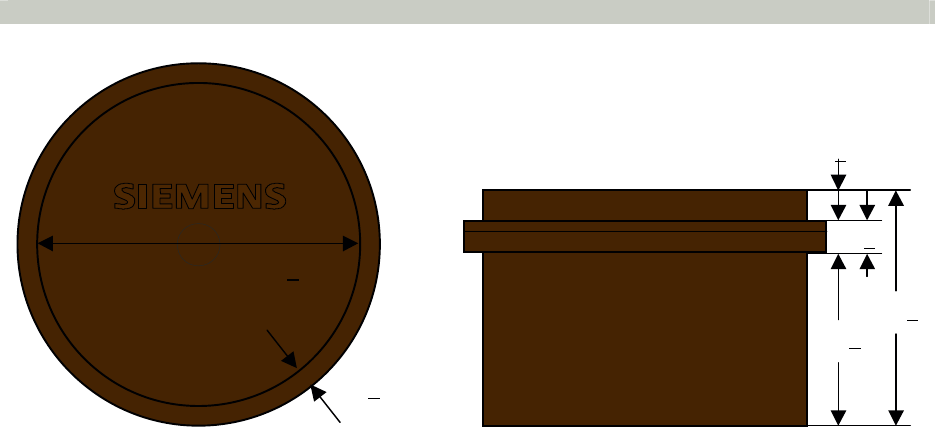

Dimensional Drawing - MDS U589
114 + 0.5
7.5 + 0.5
83 + 3
61 + 1
11 + 1
11 + 1
