Siemens AG WLAN N-Module Installation Guide

Contents

Installation Guide

MPCIE-R1-ABGM-U3 PCIe WLAN Radio Card
Preliminary Data Sheet V1.1
FCC-ID: LYHMPCIE1V1
IC-ID: 267AA-MPCIE1V1
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 2 of 22
Contents
1 Overview ............................................................................................................................................................. 3
2 Specifications .................................................................................................................................................... 3
2.1 Mechanical Specifications ..................................................................................................................... 6
2.2 Electrical Specifications ......................................................................................................................... 8
3 Label............................................................................................................................................................. 17
4 FCC and IC Notes.......................................................................................................................................... 18
5 Host devices ................................................................................................................................................. 22
6 Ordering Information .................................................................................................................................. 22
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 3 of 22
1 Overview
The Siemens MPCIE-R1-ABGM-U3 PCI-e Minicard is a Dual-Band (2.4GHz and 5GHz) PCI-e
Minicard, based on the Atheros AR9390 chipset. It supports 3x3 MiMo technology, which pro-
vides an maximum data rate up to 450Mbps.
2 Specifications
Standard
802.11a/b/g/n
FCC-ID
FCC-ID: LYHMPCIE1V1
IC-ID
IC-ID: 267AA-MPCIE1V1
RoHS compliance
fullfilled
ƒ Chipset
Atheros AR9390
ƒ Host Interface
PCI Express, PCI-e Minicard
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 4 of 22
Radio
Antenna
3 U.FL (Ultra-miniature coaxial) connectors
Operating Frequency
11b/g/n ISM band: 2.392GHz to 2482GHz
11a ISM Band: 5.170GHz to 5835GHz
Modulation
802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11b: DSSS (BDSK, DQPSK, CCK)
802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Output Power
802.11a: 16dBm – 15dBm @36Mbps
802.11a: 13dBm – 11dBm @54Mbps
802.11b/g: 19dBm @36Mbps
802.11b/g: 17dBm– 16dBm @54Mbps
802.11n: 18dBm @120Mbps (2,4GHz band)
802.11n: 12dBm @450Mbps (2,4GHz band)
Transmit Power tolerance ±1.5dBm
For further details refer to the transmit power in chapter Electrical
Specifications.
Receive Sensitivity
802.11a: -81dBm @54Mbps
802.11b: -90dBm @11Mbps
802.11g: -80dBm @54Mbps
802.11n HT20: -93dBm @19,5Mbps (2,4GHz band)
802.11n HT40: -89dBm @45Mbps (2,4GHz band)
Receive Sensitivity tolerance ±2.0dBm
For further details refer to the receiver sensitivity in chapter Electri-
cal Specifications.
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 5 of 22
Power consumption
Continuous TX
max. 3.0W
Operating voltage
DC 3.3V ± 5%
max. 3.0W
Environmental operating conditions
Storage Temperature
Range
-40°C to 105°C
Operating Temperature
Range:
-20°C to 85°C
Storage Humidity
Operating Humidity:
5% to 95%
Physical Specifications
Dimensions
50.8mm x 30.0mm x 3.2mm
Weight
7g ±0.5g
Software
Driver
Windows XP/ Vista, Windows 7, 8, 10, Linux
Security
64/128-bit WEP, WPA, WPA2
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 6 of 22

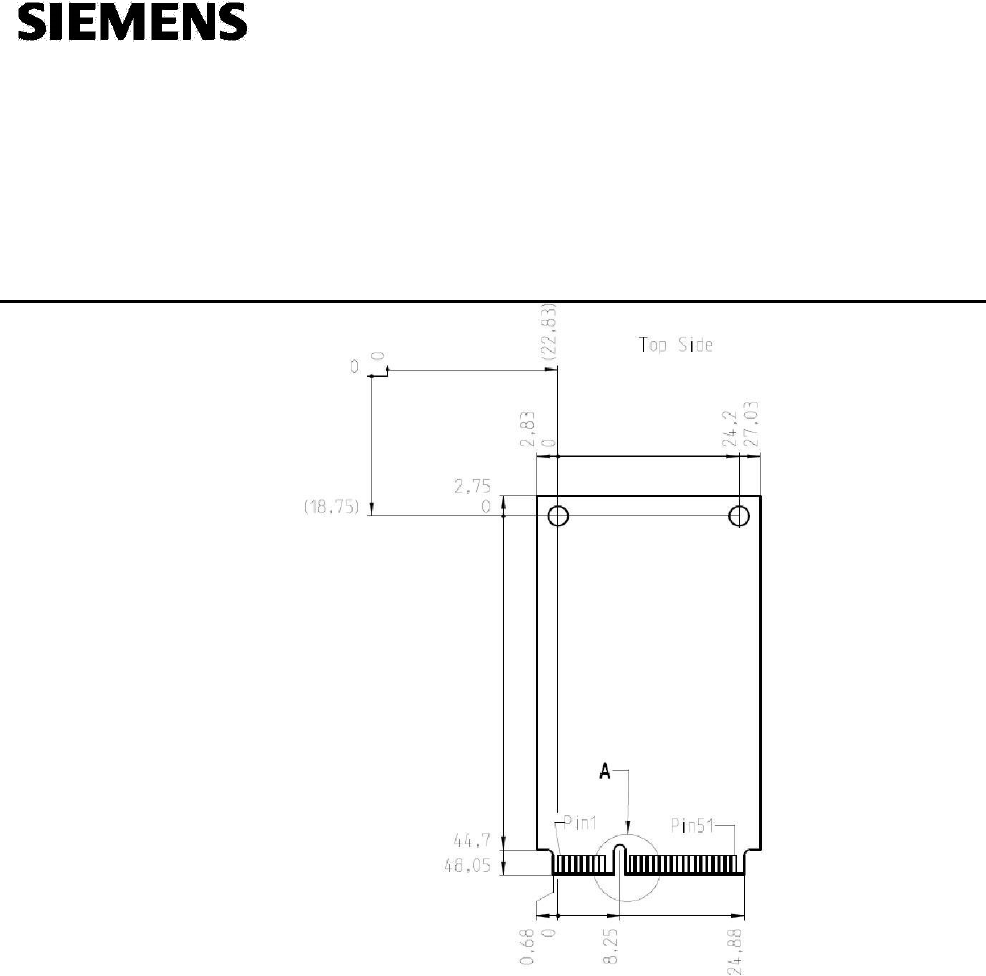

2.1 Mechanical Specifications
Full size PCI-e Minicard
Top Side
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 7 of 22
Bottom Side
Details
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 8 of 22
2.2 Electrical Specifications
Data transfer rates
all modes support auto-fallback function
802.11b
11Mbps
5.5Mbps
2Mbps
1Mbps
802.11g
54Mbps
48Mbps
36Mbps
24Mbps
18Mbps
12Mbps
9Mbps
6Mbps
802.11g
108Mbps
(Turbo mode)
96Mbps
72Mbps
48Mbps
36Mbps
24Mbps
18Mbps
12Mbps
802.11a
54Mbps
48Mbps
36Mbps
24Mbps
18Mbps
12Mbps
9Mbps
6Mbps
802.11a
108Mbps
(Turbo mode)
96Mbps
72Mbps
48Mbps
36Mbps
24Mbps
18Mbps
12Mbps
802.11n
450Mbps – 6.5Mbps
Transmit Power (Output Power conducted)
802.11a 5,180GHz to 5,825GHz
data rate
transmit frequency
5,18GHz–
5,50GHz–
5,70GHz
5,745GHz–
5,32GHz
5,60GHz
5,825GHz
1MBit/s – 36MBit/s
16dBm
16dBm
16dBm
15dBm
48MBit/s
14dBm
13dBm
12dBm
12dBm
54MBit/s
13dBm
12dBm
11dBm
11dBm
802.11b/g 2.412GHz to 2.484GHz
data rate
transmit frequency
2,412GHz
2,442GHz
2,472GHz
1MBit/s – 24MBit/s
19dBm
19dBm
19dBm
36MBit/s
19dBm
19dBm
19dBm
48MBit/s
18dBm
18dBm
17dBm
54MBit/s
17dBm
17dBm
16dBm
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 10 of 22
802.11n
20MHz channel width
2.412GHz to 2.472GHz
modulation
transmit frequency
(data rate, steams)
2,412GHz
2,442GHz
2,472GHz
MSC0 – MSC6
18dBm
18dBm
18dBm
(6,5MBit/s – 65MBit/s,
1 stream)
MCS7
17dBm
17dBm
17dBm
(65MBit/s – 72,2MBit/s,
1 stream)
MCS8 – MCS11
18dBm
18dBm
18dBm
(13MBit/s – 57,8MBit/s,
2 streams)
MCS12
17dBm
18dBm
17dBm
(78MBit/s – 86,7MBit/s,
2 streams)
MCS13
16dBm
17dBm
16dBm
(104MBit/s –
115,6MBit/s, 2 streams)
MCS14
15dBm
16dBm
15dBm
(117MBit/s – 130MBit/s,
2 streams)
MCS15
14dBm
15dBm
14dBm
(130MBit/s –
144,4MBit/s, 2 streams)
MCS16 – MCS19
18dBm
18dBm
18dBm
(19,5MBit/s –
86,7MBit/s, 3 streams)
MCS20 – MCS21
14dBm
15dBm
14dBm
(117MBit/s –
173,3MBit/s, 3 streams)
MCS22
14dBm
14dBm
14dBm
(175,5MBit/s –
195MBit/s, 3 streams)
MCS23
13dBm
13dBm
13dBm
(195MBit/s –
216,7MBit/s, 3 streams)
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 11 of 22
802.11n
20MHz channel width
5,180GHz to 5,825GHz
modulation
transmit frequency
(data rate, steams)
5,18GHz–
5,50GHz
5,60GHz
5,70GHz
5,745GHz–
5,32GHz
5,825GHz
MSC0 – MSC5
16dBm
16dBm
16dBm
16dBm
15dBm
(6,5MBit/s – 57,8MBit/s,
1 stream)
MCS6
14dBm
14dBm
14dBm
14dBm
14dBm
(58,5MBit/s – 65MBit/s,
1 stream)
MCS7
13dBm
13dBm
13dBm
13dBm
13dBm
(65MBit/s – 72,2MBit/s,
1 stream)
MCS8 – MSC12
16dBm
16dBm
16dBm
16dBm
15dBm
(13MBit/s – 86,7MBit/s,
2 streams)
MCS13
14dBm
13dBm
13dBm
12dBm
12dBm
(104MBit/s –
115,6MBit/s,
2 streams)
MCS14
13dBm
12dBm
12dBm
10dBm
10dBm
(117MBit/s – 130Bit/s,
2 streams)
MCS15
12dBm
11dBm
11dBm
8dBm
8dBm
(130MBit/s –
144,4MBit/s,
2 streams)
MCS16 – MCS19
16dBm
16dBm
16dBm
16dBm
15dBm
(19,5MBit/s–
86,7MBit/s,
3 streams)
MCS20
12dBm
11dBm
10dBm
9dBm
9dBm
(117MBit/s –
130,7MBit/s,
3 streams)
MCS21
12dBm
11dBm
9dBm
8dBm
8dBm
(156MBit/s –
173,3MBit/s,
3 streams)
MCS22 – MSC23
11dBm
10dBm
8dBm
7dBm
7dBm
(175,5MBit/s–
216,7MBit/s,
3 streams)
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 12 of 22
802.11n
40MHz channel width
2,522GHz to 2,462GHz
modulation
transmit frequency
(data rate, steams)
2,422GHz
2,447GHz
2,462GHz
MSC0 – MSC5
18dBm
18dBm
18dBm
(13,5MBit/s –
120MBit/s,
1 stream)
MCS6
17dBm
17dBm
17dBm
(121,5MBit/s –
135MBit/s,
1 stream)
MCS7
16dBm
16dBm
16dBm
(135MBit/s – 150MBit/s,
1 stream)
MCS8 – MCS11
18dBm
18dBm
18dBm
(27MBit/s – 120MBit/s,
2 streams)
MCS12
16dBm
17dBm
16dBm
(162MBit/s – 180MBit/s,
2 streams)
MCS13
15dBm
16dBm
15dBm
(216MBit/s – 240MBit/s,
2 streams)
MCS14
14dBm
15dBm
14dBm
(143MBit/s –270MBit/s,
2 streams)
MCS15
13dBm
14dBm
13dBm
(270MBit/s – 300MBit/s,
2 streams)
MCS16 – MCS19
18dBm
18dBm
18dBm
(40,5MBit/s –
180MBit/s,
3 streams)
MCS20 – MCS21
13dBm
14dBm
13dBm
(243MBit/s – 270MBit/s,
3 streams)
MCS22
13dBm
13dBm
13dBm
(364,5MBit/s –
405MBit/s,
3 streams)
MCS23
12dBm
12dBm
12dBm
(405MBit/s – 450MBit/s,
3 streams)
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 13 of 22
802.11n
40MHz channel width
5,190GHz to 5,795GHz
modulation
transmit frequency
(data rate, steams)
5,19GHz–
5,51GHz
5,59GHz
5,67GHz
5,755GHz–
5,31GHz
5,795GHz
MSC0 – MSC4
16dBm
16dBm
16dBm
16dBm
15dBm
(13,5MBit/s – 90MBit/s,
1 stream)
MCS5
15dBm
15dBm
15dBm
15dBm
15dBm
(108MBit/s – 120MBit/s,
1 stream)
MCS6
14dBm
14dBm
14dBm
14dBm
14dBm
(121,5MBit/s –
135MBit/s,
1 stream)
MCS7
13dBm
13dBm
13dBm
13dBm
13dBm
(135MBit/s – 150MBit/s,
1 stream)
MCS8 – MSC12
16dBm
16dBm
16dBm
16dBm
15dBm
(27MBit/s – 180MBit/s,
2 streams)
MCS13
14dBm
13dBm
13dBm
11dBm
11dBm
(216MBit/s – 240MBit/s,
2 streams)
MCS14
13dBm
12dBm
12dBm
10dBm
10dBm
(243MBit/s – 270Bit/s,
2 streams)
MCS15
12dBm
11dBm
11dBm
8dBm
8dBm
(270MBit/s – 300MBit/s,
2 streams)
MCS16 – MCS19
16dBm
16dBm
16dBm
16dBm
15dBm
(40,5MBit/s –
180MBit/s,
3 streams)
MCS20
12dBm
11dBm
10dBm
9dBm
9dBm
(243MBit/s – 270MBit/s,
3 streams)
MCS21
12dBm
11dBm
9dBm
8dBm
8dBm
(324MBit/s – 360MBit/s,
3 streams)
MCS22 – MSC23
11dBm
10dBm
8dBm
7dBm
7dBm
(364,5MBit/s –
450MBit/s,
3 streams)
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 14 of 22
Receiver Sensitivity PER (Packet Error Rate) <10% at PSDU length of 1000Bytes
802.11b
data rate
2,4GHz band
(measurement at 2,442GHz)
1Mbps
-98dBm
2Mbps
-93dBm
5,5Mbps
-94dBm
11Mbps
-90dBm
802.11a/g 802.11g 802.11a
data rate
2,4GHz band
5GHz band
(measurement at 2,442GHz)
(measurement at 5,500GHz)
6Mbps
-95dBm
-94dBm
9Mbps
-95dBm
-94dBm
12Mbps
-93dBm
-95dBm
18Mbps
-93dBm
-94dBm
24Mbps
-89dBm
-90dBm
36Mbps
-86dBm
-87dBm
48Mbps
-81dBm
-83dBm
54Mbps
-80dBm
-81dBm
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 15 of 22
802.11n 20MHz channel width
modulation (data rate)
2,4GHz band
5GHz band
(measurement at 2,442GHz)
(measurement at 5,500GHz)
MCS0 (6,5MBit/s)
-95dBm
-94dBm
MCS1 (13MBit/s)
-93dBm
-94dBm
MCS2 (19,5MBit/s)
-91dBm
-93dBm
MCS3 (26MBit/s)
-87dBm
-88dBm
MCS4 (39MBit/s)
-85dBm
-86dBm
MCS5 (52MBit/s)
-80dBm
-81dBm
MCS6 (58,5MBit/s)
-79dBm
-80dBm
MCS7 (65MBit/s)
-78dBm
-78dBm
MCS8 (13MBit/s)
-93dBm
-94dBm
MCS9 (26MBit/s)
-90dBm
-91dBm
MCS10 (39MBit/s)
-88dBm
-89dBm
MCS11 (52MBit/s)
-85dBm
-86dBm
MCS12 (78MBit/s)
-82dBm
-83dBm
MCS13 (104MBit/s)
-78dBm
-78dBm
MCS14 (117MBit/s)
-76dBm
-76dBm
MCS15 (130MBit/s)
-76dBm
-75dBm
MCS16 (19,5MBit/s)
-93dBm
-93dBm
MCS17 (39MBit/s)
-90dBm
-90dBm
MCS18 (58,5MBit/s)
-87dBm
-88dBm
MCS19 (78MBit/s)
-83dBm
-85dBm
MCS20 (117MBit/s)
-82dBm
-81dBm
MCS21 (156MBit/s)
-77dBm
-76dBm
MCS22 (175,5MBit/s)
-75dBm
-74dBm
MCS23 (195MBit/s)
-74dBm
-68dBm
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 16 of 22
802.11n 40MHz channel width
modulation (data rate)
2,4GHz band
5GHz band
(measurement at 2,447GHz)
(measurement at 5,510GHz)
MCS0 (13,5MBit/s)
-89dBm
-91dBm
MCS1 (27MBit/s)
-90dBm
-90dBm
MCS2 (40,5MBit/s)
-89dBm
-89dBm
MCS3 (54MBit/s)
-85dBm
-85dBm
MCS4 (81MBit/s)
-82dBm
-83dBm
MCS5 (108MBit/s)
-78dBm
-78dBm
MCS6 (121,5MBit/s)
-77dBm
-76dBm
MCS7 (135MBit/s)
-75dBm
-74dBm
MCS8 (27MBit/s)
-90dBm
-90dBm
MCS9 (54MBit/s)
-88dBm
-88dBm
MCS10 (81MBit/s)
-86dBm
-86dBm
MCS11 (108MBit/s)
-82dBm
-83dBm
MCS12 (162MBit/s)
-79dBm
-79dBm
MCS13 (216MBit/s)
-75dBm
-74dBm
MCS14 (243MBit/s)
-74dBm
-72dBm
MCS15 (300MBit/s)
-72dBm
-69dBm
MCS16 (45MBit/s)
-89dBm
-90dBm
MCS17 (81MBit/s)
-87dBm
-88dBm
MCS18 (121,5MBit/s)
-84dBm
-85dBm
MCS19 (162MBit/s)
-81dBm
-81dBm
MCS20 (243MBit/s)
-76dBm
-72dBm
MCS21 (324MBit/s)
-74dBm
-71dBm
MCS22 (364,5MBit/s)
-72dBm
-66dBm
MCS23 (405MBit/s)
-70dBm
-63dBm
Seite 16 von 21
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 17 of 22
3 Label
The following figure shows the label of the MPCIE-R1-ABGM-U3
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 18 of 22
4 FCC and IC Notes
FCC-approval
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
IEEE802.11b or g operation of this product in the USA is firmware-limited to
channels 1 through11.
______________________________________________________________________________
Notice
Changes or modifications made to this equipment not expressly approved by SIEMENS
may void the FCC authorization to operate this equipment.
______________________________________________________________________________
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
______________________________________________________________________________
Notice
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20
cm between the radiator and your body.
______________________________________________________________________________
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 19 of 22
Professional Installation Notice
To comply with FCC part 15 rules in the United States, the system must be professionally
installed to ensure compliance with the Part 15 certification. It is the responsibility of the
operator and professional installer to ensure that only certified systems are deployed in
the United States. The use of the system in any other combination (such as co-located
antennas transmitting the same information) is expressly forbidden.
RSS-247 of Industry Canada
This device complies with Industry Canada’s licence-exempt RSSs.
"Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device." "This device has been designed to operate with the
antennas listed below, and having a maximum gain of 14,2 dBi including the antenna cable.
Antennas not included in this list or having a gain greater 14,2 dBi (including the antenna cable)
are strictly prohibited for use with this device. The required antenna impedance is 50 ohms." "To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted
for successful communication."
"That the device for the band 5150 -5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems." "Users should also be cautioned to
take note that high power radars are allocated as primary users (meaning they have priority) of
5250- 5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage
to LE-LAN devices."
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 20 of 22
Antenna List
Type
Properties
Order number
ANT792-6MN
Omni antenna, mast/wall mounting, 6 dBi 2.4 GHz, N-
6GK5 792-6MN00-
Connect female
0AA6
ANT793-6MN
Omni antenna, mast/wall mounting, 5 dBi 5 GHz, N-Connect
6GK5 793-6MN00-
female
0AA6
ANT792-8DN
Directional antenna, mast/wall mounting, 14 dBi 2.4 GHz, N-
6GK5 792-8DN00-0AA6
Connect female
ANT793-8DJ
Directional antenna, mast/wall mounting, 18 dBi 5 GHz, 2 x
6GK5 793-8DJ00-0AA0
N-Connect female
ANT793-8DK
Directional antenna, mast/wall mounting, 23 dBi 5 GHz, 2 x
6GK5 793-8DK00-0AA0
N-Connect female
ANT793-6DT
Wide angle antenna (MIMO), mast/wall mounting, 8 dBi 5
6GK5 793-6DT00-0AA0
GHz, 3 x QMA connector female
ANT795-6DC
Wide angle antenna, mast/ wall mounting, 9 dBi 2.4 GHz
6GK5 795-6DC00-0AA0
and 5 GHz, N-Connect female
ANT793-6DG
Wide angle antenna, mast/ wall mounting, 9 dBi 5 GHz, 2 x
6GK5 793-6DG00-0AA0
N-Connect female
ANT795-6MN
Omni antenna, mounted on roof/vehicle, 6/8 dBi 2.4 GHz
6GK5 795-6MN10-
and 5 GHz, N-Connect female
0AA6
ANT795-6MT
Omni antenna (MIMO), mounted on roof/vehicle/ceiling, 5/7
6GK5 795-6MT00-0AA0
dBi 2.4 GHz and 5 GHz, 3 x QMA connector female
ANT795-4MC
Omnidirectional antenna, 3/5 dBi, 2.4 GHz and 5 GHz, IP65,
6GK5 795-4MC00-
N-Connect male for direct installation on the device, straight
0AA3
connector, set of 3 antennas.
ANT795-4MD
Omnidirectional antenna, 3/5 dBi, 2.4 GHz and 5 GHz, IP65,
N-Connect male for direct installation on the device, 90°
connector, set of 3 antennas.
6GK5 795-4MD00-0AA3
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 21 of 22
Type
Properties
Order number
ANT795-4MA
Omni antenna, mounted directly on the device, 3/5 dBi 2.4
6GK5 795-4MA00-0AA3
GHz and 5 GHz, IP30, R-SMA connector male for direct
mounting on the device, connector angle adjustable 0° to
180°, set of 3 antennas.
ANT792-4DN
RCoax helical antenna, circular polarization, 4 dBi, 2.4 GHz,
6GK5 792-4DN00-0AA6
N-connect female.
ANT793-4MN
RCoax λ5/8 antenna with vertical polarization, 6 dBi, 5 GHz,
6GK5 793-4MN00-
N-connect female.
0AA6
IWLAN RCoax cable 2.4
Omni antenna, 0 dBi
6XV1875-2A
GHz PE 1/2"
2.400 - 2.485 GHz, N-Connect female.
IWLAN RCoax cable 5
Omni antenna, 0 dBi
6XV1875-2D
GHz PE
5.150 - 5.875 GHz, N-Connect female.
ANT795-4MX
Omni antenna 2/2,5 dBi, 2,4 GHz und 5 GHz, IP69K,
N-Connect male
6GK5795-4MX00-0AA0
ANT795-6MP
Omni Antenna 5/7dBi, 2,4 and 5 GHz, IP67, N-Connect
female
6GK5795-6MP00-0AA0
ANT896-6MM
Omni Antenna for Mobile Wireless, WLAN and GPS, WLAN:
6/7 dBi, 2,4 and 5 GHz, IP68, IP69K, QMA-Connect female,
Port 2
6GK5896-6MM00-0AA0
ANT793-8DL
Directional Antenna , 5 GHz, 14 dBi, IP66, 2xN-Connect
female
6GK5793-8DL00-0AA0
Notes:
The directed antenna ANT793-8DJ may be used only with minimum 5 m antenna cable, Type 6XV
1875-5CH50 with cable loss 4.4 dB at 5.7 GHz.
The directed antenna ANT793-8DK may be used only with minimum 10 m antenna cable, Type 6XV
1875-5CN10 with cable loss 8.8 dB at 5.7 GHz.
Copyright (c) Siemens AG 2016. All Rights reserved. Confidential page 22 of 22
5 Host devices
The MPCIE-R1-ABGM-U3 PCIe WLAN Radio Card is integrated in following Host devices:
Host device
Certification name
FW-version Host device
SCALANCE W 788-1 M12
RAPN-W1-M12-E3
5.2
SCALANCE W 788-2 M12
RAPN-W2-M12-E3
5.2
SCALANCE W 748-1 M12
RAPN-W1-M12-E3
5.2
SCALANCE W 788-1 RJ45
RAPN-W1-RJ-E3
5.2
SCALANCE W 788-2 RJ45
RAPN-W2-RJ-E3
5.2
SCALANCE W 748-1 RJ45
RAPN-W1-RJ-E3
5.2
SCALANCE W 788-2 M12 EEC
RAPN-W2-M12-E3
5.2
Host device
Certification name
FW-version Host device
SCALANCE W 786-1 RJ45
EAPN-W1-RJ-E3
5.2
SCALANCE W 786-2 RJ45
EAPN-W2-RJ-E3
5.2
SCALANCE W 786-2 IA RJ45
EAPN-W2-RJ-I3
5.2
SCALANCE W 786-2 SFP
EAPN-W2-SFP-E3
5.2
Host device
Certification name
FW-version Host device
SCALANCE W 788C-2 M12
RAPN-W2-M12-E3
9.21
SCALANCE W 788C-2 M12 EEC
RAPN-W2-M12-E3
9.21
SCALANCE W 788C-2 RJ45
RAPN-W2-RJ-E3
9.21
Host device
Certification name
FW-version Host device
SCALANCE W 786C-2 RJ45
EAPN-W2-RJ-E3
9.21
SCALANCE W 786C-2IA RJ45
EAPN-W2-RJ-I3
9.21
SCALANCE W 786C-2 SFP
EAPN-W2-SFP-E3
9.21
WS-AP3765e (SCALANCE W 786C-2 RJ45)
EAPN-W2-RJ-E3
9.21
WS-AP3765i (SCALANCE W 786C-2IA RJ45)
EAPN-W2-RJ-I3
9.21
WS-AP3767e (SCALANCE W 786C-2 SFP)
EAPN-W2-SFP-E3
9.21
6 Ordering Information
MLFB
6GK5795-2MP10-0AA0
