1

Full Range of Siemens

Home Appliances.

2012/GCC

Germany's No.1

32

Welcome to a world of innovation.

Welcome to Siemens.

“Progress in the service of mankind” was the vision that Werner von Siemens

created for his company, and it’s an ethos that has not only kept Siemens

at the cutting edge of innovation for more than 160 years, but has helped

Siemens become the world‘s largest supplier of green products and

solutions. No other company in the world does more to help preserve the

Earth‘s natural resources and reduce harmful emissions globally.

In the big wide world, it means that we aim to help customers worldwide

slash their annual CO2 emissions by 275 million tons – an amount equal to

the combined annual CO2 output of six large cities. In the home, it’s led to

the creation of a non-stop production line of highly advanced water and

energy saving innovations engineered into brilliantly simple products.

Sometimes the two worlds meet.

In the pages of this catalogue you’ll find the world’s first precision dosing

washing machine which produces outstanding wash results and can save up

to 7,062 litres of water a year. Discover activeSteam, a totally new tumble

dryer technology that could make frequent trips to the dry cleaners a thing

of the past, and meet the most energy efficient tumble dryer in the world.

We also present the new speedMatic generation of dishwashers featuring

the world’s first and only Zeolith® drying system; an award-winning

technological innovation that sets new standards for performance and

energy efficiency. Not to mention refrigerators and freezers that never

have to be defrosted, and that turn the science of food preservation into

an art form.

Read on to discover all of these innovations, and many more.

Siemens. The future moving in.

54

Investing in all our futures.

Siemens is committed to protecting the earth’s natural resources. We invest some $2.4 billion

a year in the development of eco-friendly technology, and hold roughly 30,000 patents. Nearly

half of our entire patent portfolio is in the environmental field.

Our solutions to the world’s toughest questions include everything from the world’s leading

energy saving motors and the world’s most efficient gas turbine, to the world’s first and brightest

white low-energy light emitting diode (LED).

We’re the global market leader in the offshore wind farm energy sector, and we’re developing

processes to capture and securely store the CO2 emitted by fossil fuel power generation.

World-class performance, minimum

environmental impact.

Our domestic appliances are designed with minimum impact to the environment in mind.

Approximately 98% of all the components in Siemens appliances are recyclable, and where

possible, we continually strive to reduce our carbon footprint.

Siemens A+++ rated fridge freezers are 60% more energy efficient than A-rated products,

while our dishwashers are so efficient that you can save up to 39 litres of water, per load,

when compared to washing by hand. The world’s most energy efficient tumble dryer is a

Siemens, and if everyone living in the UK switched their current washing machine to an

A-rated Siemens appliance, we would save enough CO2 to fill more than half a million

olympic-sized swimming pools!

In buying a Siemens product, you can expect outstanding, world-class performance as well

as a clear conscience.

Innovation Prize for Climate and Environment, 2010

We are proud recipients of the first Innovation Prize, jointly presented by the German Federal

Ministry for the Environment and the Federation of German Industries (BDI), for our Zeolith®

drying system for dishwashers.

Home appliances are responsible for

50% of your energy usage. Reduce your

energy consumption with Siemens

efficient home appliances.

Energy savings begin at home – that is, with the choice of energy-efficient home

appliances. Fifty percent of the power consumed by private households can be traced

back to home appliances. Not only does the environment suffer, but the endless rise in

energy costs is also hard on your budget. Home appliances are a great place to begin

reducing energy consumption and costs. Using new and more efficient appliances can

have a significant impact.

Ideas that do more while using less energy:

ecoPLUS from Siemens.

Energy efficiency is more than just a passing trend – it is critical to protect our environment.

Technical innovation allows Siemens to offer you the highest efficiency with continuously

improving performance and maximum convenience. In the last 15 years for example,

we have been able to substantially decrease energy consumption in all categories, reducing

energy usage in refrigerator/freezer combinations by up to 74%. Siemens household appliances

currently have the highest EUenergy classifications – and many considerably exceed those

standards. The eco PLUS label can be found on the best Siemens appliances as a sign of their

extreme energy efficiency and low use of resources. It makes it even easier to recognise and

buy the most energy-efficient household appliances, to save the environment and your budget.

Now Siemens helps you discover the many intelligent options for initiating environmental

protection at home, without sacrificing performance or convenience. On the following pages,

we’ll show you how your choice of household appliances can be good for the environment

and good for your budget.

76

Save energy with Siemens home appliances.

Washing machines

up to

–50 %

20111996

0.26

kWh

0.13

kWh

up to

–46 %

13.0

Litres

7.0

Litres

20111996

Consumption per kg

laundry (hot/colours 60°C)

Energy

consumption*

Water

consumption*

* Based on a normal programme setting,

comparison of consumption values for the

Siemens WM14S743 Washing Machine from

2011 with values for a comparable standard

Siemens appliance from 1996 during a

standard 60°C whites/coloureds cycle with

a full load.

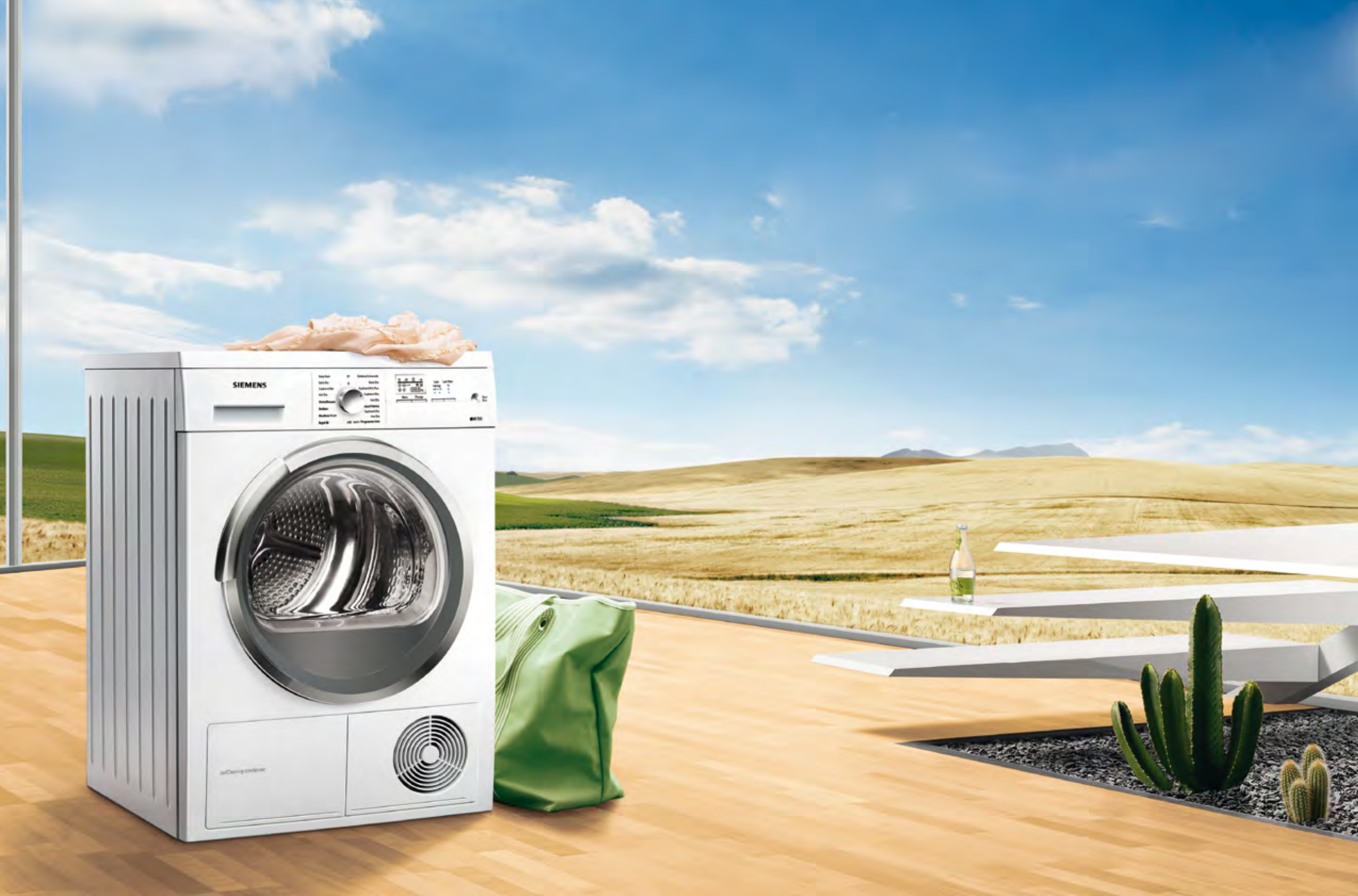

Dryers

*Based on a normal programme setting,

comparison of consumption values for

the Siemens WT 46W562 Condensation

Dryer from 2011 with values for a

comparable standard Siemens appliance

from 1996.

Consumption per kg

laundry

(cotton, cupboard dry,

rotation speed: 1,000 rpm)

Energy consumption*

0.61

kWh

0.23

kWh

20111996

up to

–62 %

Dishwashers

up to

–58 %

1.33

Litres

1996 2011

up to

–47 %

0.10

kWh

0.05

kWh

1996 2011

Energy

consumption*

Water

consumption*

Consumption per

load/place setting

1996: 12 place settings

2011: 13 place settings

* Based on a normal programme setting,

comparison of consumption values for the

Siemens SN 26T898EU Dishwasher from

2011 with values for a comparable standard

Siemens appliance from 1996 during a

standard 50°C economy cycle.

Refrigeration appliances

* Based on a normal programme setting, comparison of

consumption values for the Siemens Refrigerator (1) KI

24RA61, the Siemens Freezer (2) GS 40NAW40, or the

Siemens Combination Refrigerator/Freezer (3) KG 36NSB40

from 2011 with values for a comparable Siemens appliance

from 1996.

up to

–68%

20111996

0.50

kWh

0.16

kWh

0.15

kWh

up to

–73 %

20111996

0.55

kWh

0.30

kWh

20111996

0.13

kWh

up to

–57%

Energy consumption per 100 litres

in 24 hours*

Refrigerator

1

Freezer2 Combination

refrigerator/

freezer3

Electric ranges/ovens

* Based on a normal programme setting,

comparison of consumption values for the

HB 38AB570 Electric Range/Oven from 2011

with the values for a comparable Siemens

appliance from 1999.

Energy consumption

to DIN EN 50304*

up to

–37 %

20111999

1.10

kWh

0.69

kWh

0.56

Litres

98

Contents

Home appliances by Siemens. The future moving in.

Cookers Ovens

Hoods CookersHobs

Cooling Dishwashing

Washing

‘And the winner is...you’

Once considered nothing more than a workspace, the kitchen is increasingly an important living area in many homes.

And if you’re living, relaxing and having fun in your kitchen, you naturally have special expectations about how your appliances

should look and function. You’ll enjoy the timeless design of Siemens home appliances for many years – their clear, bold lines,

the high-quality materials and the high-precision craftsmanship. But don’t just take our word for it.

It is not just about design. Siemens also holds many quality awards and certifications. The latest development on a national basis

is the Emirates Quality Mark that Siemens holds as one of the first home appliances manufacturers in the Middle East.

product

design

award

2011 2011

Germany’s No.1 Brand

In a country known for its technical excellence, Siemens is the trusted and preferred choice

of the people. Every appliance leaving the factory is engineered to the highest standard and

perfected to the last detail. When you choose Siemens, you can be assured of quality.

Why Siemens?

Experience: In the kitchen, we have over a century of experience in bringing you reliable,

cleverly designed and quietly efficient products.

Best Quality: All our products are developed only after exhaustive research and testing.

Siemens products are designed for life.

Beneficiary Technology: A uniquely interactive technology called totalKitchen Management

ensures that we meet your needs, with excellent after-sales service.

Inspired Design: The design of our products is inspired by how they function, resulting in

a perfect balance between dazzling design and technology that benefits you.

Lowest in consumption: Siemens appliances are designed to utilise the lowest water and

energy consumption without compromising on the performance.

An Overview

Every Siemens appliance is carefully created to the exact standards that our customers require.

There is no compromise, no cutting corners. Owning a Siemens appliance brings confidence and

style to your home life.

We draw on many years of manufacturing experience and our relationship with customers to design

machines that meet your needs. Extensive research and testing of every part brings you a level of

reassurance that will last for many years.

Germany's No.1

Cookers

1312

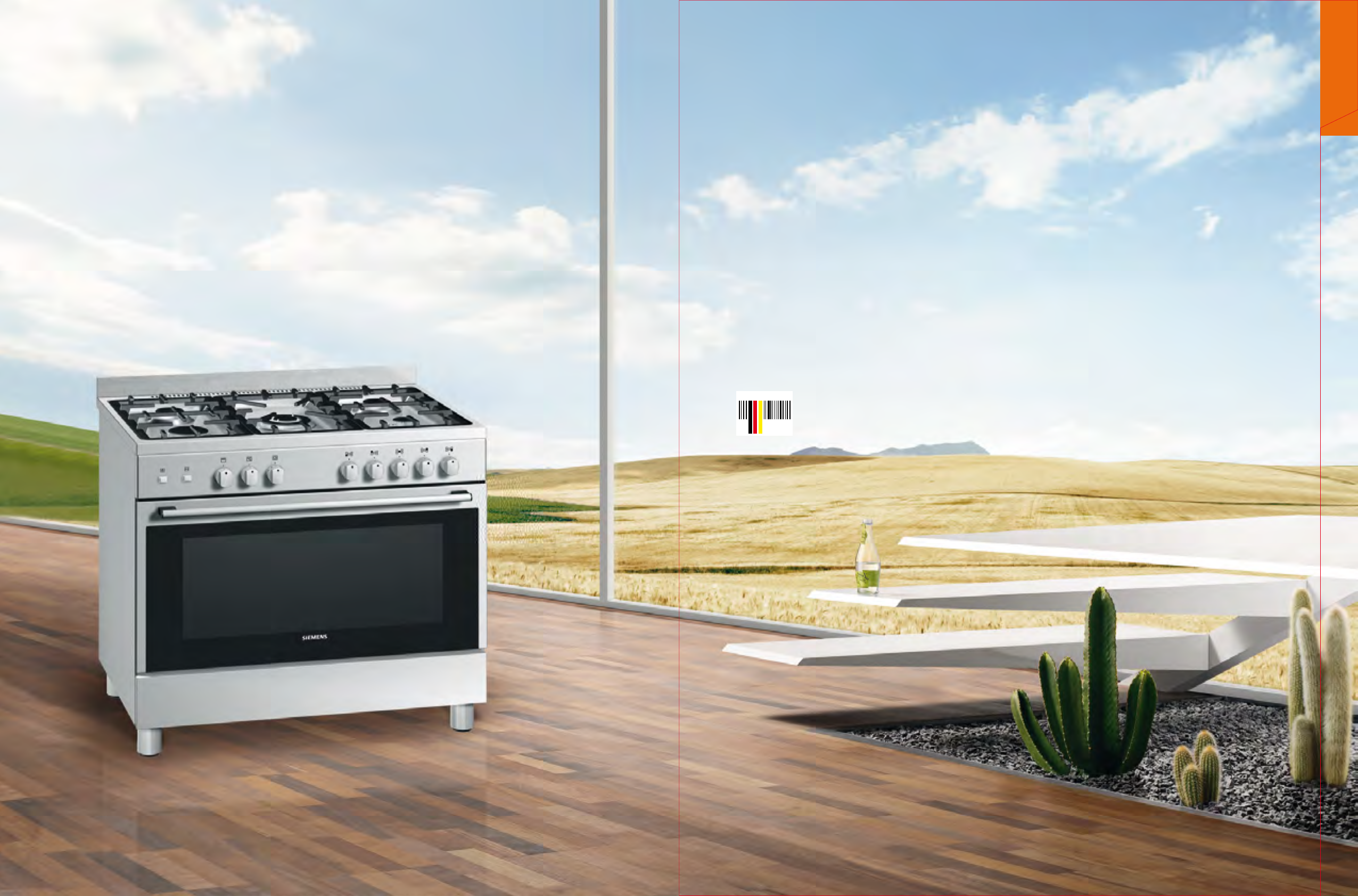

Freestanding Gas Cookers

HG72G7125MHG72G6155MHG72G7155MHG72G8155M

Main Features

fCast iron pan supports with

rubber feet

fFull flame safety for hob and oven

fCatalytic self cleaning (Rear wall

and Side)

fTriple glass door

fClosed door grilling and baking

fElectric 1-hand ignition

General information

fWhite enamelled gas hob

f1 rapid, 2 standard, 1 economy,

1 wok burner

fNumber of pan supports: 2 double

pan supports, 1 single pan support

fConventional gas oven

fOperating methods: Centre-area

grill/broiler, rotisserie, Gas bottom

heating, Gas top/bottom heat

fCooker ignition with Knob ignition

fThermoelectric ignition for hob

and oven

fGrill heating element: Gas

fStorage compartment

fGlass cover lid

Technical Information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

845 x 895 x 600 mm

fGross Weight: 80.5 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

Main Features

fCast iron pan supports with

rubber feet

fFull flame safety

fTriple glass door

fClosed door grilling and baking

fElectric 1-hand ignition

General information

fWhite enamelled gas hob

f1 rapid, 2 standard, 1 economy,

1 wok burner

fNumber of pan supports: 2 double

pan supports, 1 single pan support

fConventional gas oven

fOperating methods: rotisserie,

Centre-area grill/broiler, Gas top/

bottom heat, Gas bottom heating

fCooker ignition with Knob ignition

fThermoelectric ignition for hob

and oven

fGrill heating element: Gas

fStorage compartment

fGlass cover lid

Technical Information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

845 x 895 x 600 mm

fGross Weight: 80.5 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

Main Features

fCast iron pan supports with

rubber feet

fFull flame safety for hob and oven

fCatalytic self cleaning (Rear wall

and Side)

fTriple glass door

fClosed door grilling and baking

fElectric 1-hand ignition

General information

fWhite enamelled gas hob

f1 rapid, 2 standard, 1 economy,

1 wok burner

fNumber of pan supports: 2 double

pan supports, 1 single pan support

fConventional gas oven

fOperating methods: Centre-area

grill/broiler, rotisserie, Gas bottom

heating, Gas top/bottom heat

fCooker ignition with Knob ignition

fThermoelectric ignition for hob

and oven

fGrill heating element: Gas

fStorage compartment

fGlass cover lid

Technical Information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

845 x 895 x 600 mm

fGross Weight: 79 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

Main Features

fGas hob (2.5cm height) stainless

steel

fCast iron pan supports with rubber

feet

fFull flame safety for hob and oven

fCatalytic self cleaning (Rear wall

and Side)

fTriple glass door

fClosed door grilling and baking

fElectric 1-hand ignition

General information

f1 rapid, 2 standard, 1 economy,

1 wok burner

fNumber of pan supports: 2 double

pan supports, 1 single pan support

fConventional gas oven

fOperating methods: rotisserie,

Centre-area grill/broiler, Gas top/

bottom heat, Gas bottom heating

fCooker ignition with Knob ignition

fThermoelectric ignition for hob

and oven

fGrill heating element: Gas

fGlass door with stainless steel design

fStorage compartment

Technical Information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

850 x 895 x 600 mm

fGross Weight: 75 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

Freestanding Gas Cookers

HG72G3054MHG72G4124M

Main Features

fGas hob (2.5cm height)

stainless steel

fSteel pan support

fFlame safety for the oven

fDouble glass door

fClosed door grilling and baking

fElectric 1-hand ignition

General information

f1 rapid, 2 standard, 1 economy,

1 wok burner

fNumber of pan supports: 2 double

pan supports, 1 single pan support

fConventional gas oven

fOperating methods: Centre-area grill/

broiler, rotisserie, Gas top/bottom

heat, Gas bottom heating

fCooker ignition with Knob ignition

fThermoelectric ignition for hob

and oven

fGrill heating element: Gas

fStorage compartment

fGlass cover lid

Technical Information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

840 x 895 x 600 mm

fGross Weight: 70.7 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

Main Features

fSteel pan support

fFull flame safety

fClosed door grilling and baking

fElectric 1-hand ignition

General information

fWhite enamelled gas hob

f1 rapid, 2 standard, 1 economy,

1 wok burner

fNumber of pan supports: 2 double

pan supports, 1 single pan support

fConventional gas oven

fOperating methods: rotisserie,

Centre-area grill/broiler, Gas top/

bottom heat, Gas bottom heating

fCooker ignition with Knob ignition

fThermoelectric ignition for hob

and oven

fGrill heating element: Gas

fStorage compartment

fGlass cover lid

Technical Information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

845 x 895 x 600 mm

fGross Weight: 72.6 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

HG72G5154M

Main Features

fMixted hob stainless steel

f1 high speed, 2 standard, 1 economy

burner, 2 hotplates

fElectric 1-hand ignition

fFull flame safety

fSteel pan support

fNumber of pan support: 2 double

pan supports

General information

fGlass cover lid

fConventional gas oven

fOperating methods: Centre-area

grill/broiler, Gas bottom heating,

rotisserie, Gas top/bottom heat

fCooker ignition with Knob ignition

fThermoelectric ignition for hob

and oven

fGrill heating element: Gas

fCatalytic self cleaning (Rear wall

and Side)

fStorage compartment

Technical Information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

845 x 895 x 600 mm

fGross Weight: 72.6 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

fStainless steel

f90 cm wide

fStainless steel

f90 cm wide

fStainless steel

f90 cm wide

fWhite

f90 cm wide

fWhite

f90 cm wide

fStainless steel

f90 cm wide

fStainless steel

fGas-mixed cooker

f90 cm wide

1514

Freestanding Gas Cookers

HP243527M HP22B511M

Main Features

fCast iron pan supports

fFull flame safety for hob and oven

fExtra large capacity oven with

grey enamel

fFull glass inner door

fElectronic timer

General information

fGas hob and gas oven

fBurners: 2 standard, 1 economy,

1 wok

fFront left: Rapid burner 3 KW

fRear left: Standard burner 1.7 KW

fRear right: Standard burner 1.7 KW

fFront right: Economy burner 1 KW

fTwo hand ignition via control knobs

f2 cooking functions: Gas bottom

heat, Gas grill

fGlass cover lid

fOven illumination

fDrawer for kitchen utensils

Technical Information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

850 x 600 x 600 mm

fAdjustable feet

fGross Weight: 54 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

Main Features

fSteel pan supports

fFull flame safety

fExtra large capacity oven with

grey enamel

fFull glass inner door

General information

fGas hob and gas oven

fBurners: 1 standard, 1 economy,

1rapid, 1 standard cooking zone

fFront left: Rapid burner 3 KW

fRear left: Standard electric cooking

zone 1 KW

fRear right: Standard burner 1.7 KW

fFront right: Economy burner 1 KW

fTwo hand ignition via control knobs

f2 cooking functions: Gas bottom

heat, Gas grill

fGlass cover lid

fOven illumination

fDrawer for kitchen utensils

Technical Information

fPreset of liquid gas (28-30/37mbar)

fDimensions of the product (HxWxD):

850 x 600 x 600 mm

fAdjustable feet

fGross Weight: 55 kg

fAccessories: 1 x wire shelf, 1 x baking

tray, 1 x Espresso set (Cast iron)

fStainless steel

f60 cm wide

fStainless steel

f60 cm wide

Electric Cookers

HD421210

fFreestanding electric cooker

fWhite

f60 cm

HC724220

fFreestanding electric cooker

fWhite

f60 cm

HC744540

fFreestanding electric cooker

fStainless steel

f60 cm

Main features

fHob with 2 high-speed and 2

standard hotplates

fExtra large capacity oven (72 litres)

with grey enamel

f4 cooking functions: Top/bottom

heat, Bottom heat, Full width variable

grill, Half width variable grill

General information

fFront left: High speed plate 2 KW

fRear left: Standard zone 1 KW

fRear right: Standard zone 2 KW

fFront right: High speed plate 1.5 KW

fGrey enamel oven interior

fConventional oven

fOven illumination

fShelf support rails

fTelescopic shelf rails as optional

accessory

fFull glass inner door

fsymControl

fDrawer for kitchen utensils

fAdjustable feet

Technical information

fDimensions of the product (HxWxD):

850 x 600 x 600 mm

fConnected load: 9.3 kW

fGross Weight: 45.5 kg

Main features

f4 HighSpeed cooking zones including

1 dual circuit zone

f4-fold residual heat display

fExtra large capacity oven (67 litres)

with grey enamel

fCatalytic back-/sideliners and roof

fMultifunction heating system

f8 cooking functions: Top/bottom

heat, Bottom heat, Hot air, Pizza

setting, Defrost setting, hot air

grilling, Full width variable grill, Half

width variable grill

General information

fCeramic hob

fFront left: Standard zone 1.8 KW

fRear left: Roaster zone 2.4 KW,

1.6 KW

fRear right: Standard zone 1.2 KW

fFront right: Dual-circuit cooking zone

0.75 KW, 2.2 KW

fFast heating

fOven illumination

fShelf support rails

fTelescopic shelf rails as optional

accessory

fFull glass inner door

fDrawer for kitchen utensils

fAdjustable feet

Technical information

fDimensions of the product (HxWxD):

850 x 600 x 600 mm

fConnected load: 10.9 kW

fGross Weight: 51.5 kg

Main features

f4 HighSpeed cooking zones including

1 dual circuit zone

f4-fold residual heat display

fExtra large capacity oven (67 litres)

with grey enamel

fCatalytic back-/sideliners and roof

fMultifunction heating system

f8 cooking functions: Top/bottom

heat, Bottom heat, Hot air, Pizza

setting, Defrost setting, hot air

grilling, Full width variable grill, Half

width variable grill

fChild safety lock: key function

General information

fCeramic hob

fFront left: Standard zone 1.8 KW

fRear left: Roaster zone 1.6 KW,

2.4 KW

fRear right: Standard zone 1.2 KW

fFront right: Dual-circuit cooking zone

2.2 KW, 0.75 KW

fElectronic clock

fAutomatic fast heating

fOven illumination

fShelf support rails

fTelescopic shelf rails as optional

accessory

fFull glass inner door

fDrawer for kitchen utensils

fAdjustable feet

Technical information

fDimensions of the product (HxWxD):

850 x 600 x 600 mm

fConnected load: 11.1 kW

fGross Weight: 51.8 kg

–20% –20% –20%

1716

Ovens

Our new ovens don’t just have great brains.

They have great looks too.

With their elegant framed design flush fitting doors, the brand new ovens range is a breakthrough

in Siemens design and technology. Their unique styling – no other oven looks anything like them –

in high quality stainless steel and black glass is combined with smart sensor technology and cutting-

edge control panel design to create a range of ovens second to none in the marketplace.

Ovens

1918

Function symbol models

• Split glass and metal control fascia

• lightControl

• Function symbols

• Blue indicator lights for control dial and buttons

• Single, pop-out full metal control dial and stainless

• Steel finish door handle

• Framed design with flush fitting door

clearText display model

Has all of the features of the function symbols model

above but with the addition of an LCD digital display with

clearText instead of function symbols.

Electronic control clearText display

First-class information in black on white and white on black.

The new style clearText display makes it pretty easy to keep

track of things while you’re cooking. The large letters and

the alternating black and white background of the display

immediately tells you all about the current settings – in

addition to the current time, programme status and other

details. The information displayed on a white background

shows you the settings you can change. The black

background indicates settings that are not currently active.

Clock display options

As you’d expect from Siemens, the clocks do rather more than just tell the time - although they do it beautifully. They all

act as minute minders and most will let you pre-set the oven to switch off, or even on and off at a specific time. Ovens with

a graphic display and clearText offer you the choice of four different display variations: three analogue and one digital.

lightControl

Because cooking is often an intuitive process, the

Siemens lightControl concept applies that instinctive

approach to how our ovens work. That flexibility begins

the second you turn the oven on; the retractable control

dial is highlighted in a cool, elegant blue, and while

you’re cooking you’ll always have the most important

data in view – the blue push button illumination shows

you just which functions are currently active.

2120

Stylish tubular bar handle

All our ovens have tubular bar handles that both look and feel top quality.

Cooling fan

The integral cooling fan is designed to keep the control

panel operating components cool and also helps reduce

the temperatures on both the oven door and any

adjacent furniture.

Recessed grill element

We recessed the grill element into the roof. Not only does

this make for energy efficient grilling, it also leaves more

room inside the oven and prevents any accidental contact

with the heating element.

Child lock

The optional telescopic rail is ideal if your oven is tucked

away. The shelves just glide out effortlessly, allowing you

to make light work of those heavy roasts. The telescopic

rail set shown at right is suitable for use on most ovens.

Our new flush fitting doors.

Stunningly, uniquely, Siemens.

Our new and unique designs – no other oven looks anything like them – make use of high quality stainless steel. This

high quality material wraps gracefully around the door of the Siemens’ oven, as far as the lateral inner edges. This level

of detailing does more than convey an elegant impression of absolute quality – it also allows for a seamless transition

between front panel and door and near perfect co-ordination between appliances.

All Siemens ovens share common features and benefits such as

electronic clocks with 24-hour automatic programmers.

Smart technology that guides you through the process in a logical step-by-step progression, so that your food is cooked to

perfection even when you are out.

Child safety lock

Our childproof setting is a superb safety feature

on our ovens. It stops curious little fingers inadvertently

activating the oven. Simply pressing the key

symbol for approximately 4 seconds activates

the safety lock, which disables the controls of the

oven. To remove the lock, repeat the process.

Retractable controls

Our retractable controls make it easier to keep the oven

clean and, because the buttons cannot be depressed

when the oven is on, you can see at a glance whether

the oven is on or off.

Interior

The grey enamel interior is very hardwearing and scratch

resistant. It is not susceptible to chemical erosion from

things like fruit juice and is impact resistant as well.

The roasting/grill pan that comes with the ovens also has

this special protective grey enamel coating.

We deliberately made the interior lighter than most

ordinary ovens. This, together with the improved oven

lighting, provides better illumination of the oven cavity,

letting you see exactly what’s going on inside the oven

without having to open the door, so heat escapes.

Choice of door design options

The side opening door offers unobstructed access to the

oven. Opening a full 160º, it is available with right or left

hinge options so you can fit two ovens side by side for

that range cooker effect. Ideal in confined kitchens or for

customers with limited mobility.

The classic drop down door design works for both built-in

and built-under installation.

2322

Oven residual heat indicator

With the residual heat indicator bars, the temperature of the oven is displayed even after the oven has been switched off,

reducing in stages down to 60°C, so that food can be kept warm until you need it. Once all the bars have extinguished, the

residual temperature will be under 60ºC. For meals with long cooking times, you can switch off the oven 5–10 minutes

earlier thereby saving energy.

cookControl

Allows for the simple and trouble-free cooking of stews, casseroles and roasts. All you have to do is select the desired

programme from the menu and enter the weight. The oven will automatically select the cooking function, temperature

and time. You can, if you want, adjust the programme to suit your personal taste. The programmes are designed so you

don’t need to turn, stir, baste or otherwise tend to the food. Depending on the model, cookControl offers 34 specially

and intensively tested programmes, focusing on meat, poultry, fish, stews and casseroles. Please check individual product

specifications to see which models have this feature.

Technology and innovation are paramount at Siemens.

If there‘s one thing we‘re proud of at Siemens, it‘s the continuous stream of innovative ideas and imaginative technology

our designers turn out every day. Suffice to say, a great many of their ideas make it to your kitchen.

pyroKlean

Cleaning should be as much of a pleasure as cooking.

We know you want easy-to-clean ovens, which is why we‘ve developed a range of pyroKlean and activeKlean

cleaning systems for our ovens.

If cooking is a pleasure, now the cleaning is too. Siemens recognises that you want easy-to-clean ovens, which is

why we’ve developed a range of pyroKlean cleaning systems for our ovens.

Electronic controls

Our ovens are designed to be clear and simple to use. The hi-precision electronic temperature sensor is accurate right down

to the last few degrees. With a range from 30°C to 300°C, this incredible sensor is able to maintain the temperature of the

oven to a more accurate temperature level. This means that the ultra-low temperature required for producing yoghurt is just

as accurately maintained as the 200°C for baking bread, ensuring total success time after time.

Memory

When you start cooking, if you select function,

temperature and cooking duration and press

the ‘M’ button, the process is stored in the

oven‘s memory. To recall the stored process,

simply press ‘M‘ and the start button. Please

check individual product specifications to see

which models have this feature.

M

At Siemens the environment

means a great deal.

That‘s why all Siemens single ovens and double oven main cavities

achieve an ‘A’ energy rating and all secondary double oven cavities

a ‘B’ rating.

Energy class A-20%

The EU has put legislation in place to encourage

the development and marketing of energy-

efficient appliances. Naturally, as the number

one brand in Built-in Appliances in Europe,

we not only welcome this scheme but actively

support and promote these initiatives.

Automatic temperature display proposal

Depending on which cooking function you choose, the oven will

automatically suggest the temperature at which that function

will produce the optimum results. Temperature can be manually

adjusted using the central control dial or the +/- keys.

The ultimate in interior lighting

Because it gives off an extra bright, crisp, white light, the halogen

interior light has many advantages over standard lights. It’s perfect

for illuminating large interiors for a clear view of the contents as

well as using very little energy.

Fast pre-heating function

No more waiting for the oven to reach the right

temperature! Siemens have now made fast

pre-heating available on all our multi-function

models. This uses all the heating elements at

full power to heat up the oven around 30% faster

than normal, and once the required temperature

is reached, an alarm signal sounds on the

electronic multi-function models and the oven

automatically reverts back to the chosen cooking

mode.

On the standard multi-function ovens, this

feature is operated by selecting the correct

position on the cooking dial and then selecting

the cooking temperature. Once the temperature

is achieved, you simply return the dial to the

required cooking function.

Source: BSH Bosch and Siemens Hausgerate GmbH

90% of the environmental impact of an appliance

occurs during use, which is why our most important

contribution towards protecting the environment is to

develop products that conserve energy. A comparison

of energy consumption between a 1993 oven and the

latest model shows a reduction of a third.

Energy consumption per kg

2524

Built-in Ovens

HB331E0GC

fBuilt-in single oven

fStainless steel

HB43AB550B

fBuilt-in single oven

fStainless steel

HB75GB550B

fBuilt-in single oven

fStainless steel

HB22AR521E

fBuilt-in single oven

fStainless steel

Main features

fMultifunctional oven

fFull glass inner door: Triple glass door

fHeating system multifunction

(5 heating modes: Bottom heat,

Top/bottom heat, 3D-hot air, hot air

grilling, Full width variable grill)

General information

fOven capacity 67 litres

fSmooth cavity for easy cleaning

fMinute minder

fOven interior light

fCable (1.00 m)

Technical information

fDimensions of the product (HxWxD):

595 x 595 x 548 mm

fRequired niche size for installation:

575-597 mm x 560 mm x 550 mm

fConnection load: 3.6 KW

Main features

fPower consumption: A -20%; 20%

more economical (0.79 kwh) than

the standard value (0.99 kwh) for

qualifying for energy class A

fMultifunction oven (5 cooking

functions: conventional heat, hot air

plus, bottom heat, hot air grilling,

full width variable grill)

fLarge capacity oven (67 litres)

fAutomatic activeKlean system - roof,

back and side liners

fFull glass inner door

General information

fIntegral cooling fan

fRack for accessories

fElectronic clock

fOven interior light

fAutomatic fast heat up function

fLight design white and blue

fRetractable controls

fGrey enamel oven interior

fDay/night fascia panel concept

fHandle with professional look

fChild lock function

fRecipe book

fTelescopic shelf rails as optional

accessory

Technical information

fCable (1.50 m)

fDimensions of the product (HxWxD):

595 x 595 x 548 mm

fRequired niche size for installation:

575-597 mm x 560 mm x 550 mm

fConnection load: 3.5 KW

Main features

fpyroKlean function

fMultifunction oven with 10 cooking

functions: conventional heat,

conventional baking, hot air plus,

pizza setting, bottom heat, hot air

grilling, full width variable grill, half

width variable grill, defrost, keep

warm setting

fMaximum window temperature 50°C

fChild lock function: oven door can

be locked

General information

fAccurate temperature control

30-300°C

fElectronic function selector with

fAutomatic roasting function -

AutoPilot

fExtra large capacity oven

fAutomatic fast heat up function

fAutomatic switch off

fFull metal illuminated retractable

controls

fElectronic clock

fOven interior light

fFull glass inner door

fGrease and odour filter as optional

accessory

fIntegral cooling fan

fRecipe book

fTelescopic shelf rails as optional

accessory

fCable (1.50 m)

f-20% (0.89 kwh) than the standard

value (0.99 kwh) for qualifying for

energy class A

Technical information

fDimensions of the product (HxWxD):

595 x 595 x 548 mm

fRequired niche size for installation:

575-597 mm x 560 mm x 550 mm

fConnection load: 3.65 KW

Main features

fMultifunctional oven

fFull glass inner door: Triple glass door

fHeating system multifunction

(7 heating modes: Bottom heat,

Circulating Air, Defrost setting,

Half width variable grill, Full width

variable grill, hot air grilling, Top/

bottom heat)

General information

fOven capacity 62 litres

fSmooth cavity for easy cleaning

fMinute minder

fChild lock function

fOven interior light

fCable (0.95 m)

Technical information

fDimensions of the product (HxWxD):

595 x 595 x 515 mm

fRequired niche size for installation:

575-597 mm x 560 mm x 550 mm

fConnection load: 3.58 KW

60

–20%

60

–20%

60

–20%

6060

–20%

Pizza setting

A crisp underside to pizza bases, quiches

and pastry cases can be achieved by

activating the intensive hot air setting.

No need to pre-heat the oven when

using this setting when cooking from

frozen.

Speed cooling

This function combines upper heating elements, a ring

element and a fan, together with a heated ceramic base.

No pre-heating is required. Frozen food can be cooked up to

30% quicker than by conventional methods. Particularly good

for bread or convenience foods such as pizza.

3D Hot air plus

Ideal for all types of foods, cooking

on up to 3 levels at the same time.

Great for baking and roasting, ideal

for larger joints.

Conventional heat

Ideal for single shelf cooking and gives a

crisper, drier result. Good for meat and

fruit pies. Rich fruit cakes will not be

peaked in the centre if cooked using this

cooking system. The oven needs to be

pre-heated on this setting.

Hot air grilling

This cooking system is ideally suited for

poultry and duck up to 2.5kg/5lb and

for smaller cuts of meat. Also ideal for

crisping the crackling on pork (use this

for the last 30 minutes of the cooking

time for the perfect crispy finish).

Half width variable grill

Because you only use the centre of the

grill this is perfect for cooking smaller

quantities.

Low temperature cooking

Good quality meat and poultry trimmed

of all fat. Meat is pan fried to seal in the

juices and then transferred to an oven

proof dish with a lid. This is then placed

in the oven at a pre-defined, fixed low

temperature without any additional

liquid added. The oven will slowly cook

the meat, keeping it moist juicy and

tender, without overcooking.

Gentle defrost

Delicate gateaux or large joints of meat

or turkey can be defrosted on this

setting. It circulates room temperature

air around the food, whilst keeping the

food away from pests.

Hydro baking

The moisture produced by the food

during cooking will remain inside

the oven, giving more moist results.

This setting improves the texture and

keeping qualities of cakes, breads and

pastry items. The oven needs to be

pre-heated on this setting.

Full width variable grill

The three stage variable grill gives you

precision grill temperature control for

a full width grill.

The controls on our ovens come in a wide range of styles.

Straightforward dials or the latest in touch sensitive electronic technology is yours with a Siemens oven. Dial controls can

be pushed flush to achieve a stylish, sleek appearance, and all the controls are easy to reach, simple to use and centrally

positioned on the fascia making them very user-friendly.

2726

Built-in Ovens

HSL6EI23

fBuilt-in single Gas oven

fStainless steel

HB90055

fBuilt-in single oven

fStainless steel

HB953R50

fBuilt-in single oven

fStainless steel

Main features

fGas oven with electric grill heating

element

f3 Operating methods: Max Rotisserie,

Gas bottom heating, Full-surface

grill/broiler

fFull glass inner door: Triple glass door

fAppliance colour Stainless steel

General information

fOven capacity 60 litres

fOven burner with Knob ignition

fThermoelectric ignition for hob

and oven

fOven light

Technical information

fPreset of liquid gas (28-30/37mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (HxWxD):

593 x 595 x 538 mm

fRequired niche size for installation:

580 mm x 560 mm x 560 mm

fConnection load: 2.4 KW

fAccessories: 1 X deep pan, 1 x wire

shelf, 1 x aluminium pastry plate

Main features

fMultifunction oven

f90 cm wide

fHeating system Multifunction 3D

with hot air, 3D hot air, conventional

heat, full width variable grill, bottom

heat, top heat, hot air grilling, defrost

fMaximum window temperature 50°C

General information

fOven capacity 71 litres

fExtra large capacity oven

fOven interior light with two lamps

fElectronic clock

fSmooth cavity for easy cleaning

fBar handle

Technical information

fDimensions of the product (HxWxD):

471 x 894 x 545 mm

fRequired niche size for installation:

460 mm x 860 mm x 550 mm

fCable (2.30 m)

fConnection load: 2.9 KW

Main features

fCatalytic side and back liner

fMultifunction oven with 8 cooking

functions: conventional heat, hot air,

pizza setting, bottom heat, hot air

grilling, full width variable grill, half

width variable grill, defrost

fMaximum window temperature 50°C

General information

fOven capacity 71 litres

fExtra large capacity oven

fRapid heating up

fRetractable

fElectronic clock

fOven interior light

fFull glass inner door

fIntegral cooling fan

f1 level telescopic shelf

Technical information

fDimensions of the product (HxWxD):

468 x 894 x 545 mm

fRequired niche size for installation:

460 mm x 860 mm x 550 mm

fCable (2.30 m)

fConnection load: 3.55 KW

606060

All compact ovens and microwave ovens share a number

of smart and practical features and benefits.

The oven, like all the compact appliances, benefits from the customary high Siemens standards of styling and design.

2928

Multi-function oven with microwave

The Siemens compact oven is primarily a normal multi-function oven, but offers the option of a microwave function, which

can be used independently or in combination with many of the standard cooking functions. Perfect for those occasions

when traditional results are needed, but in a fraction of the time. And that’s not all – choose from one of the 70 automatic

defrost, cooking and combination programmes for perfect results every time!

The compact oven offers design co-ordination with other compact oven models.

Stylish built-in microwaves not only look good but free up

valuable worktop space.

Standard microwaves

Siemens also offers a range of microwaves with side

control panel and fitting frame, including models with

and without grill. The options include models for

installation in tall housing units or in wall cabinets;

and all feature a choice of five microwave power levels,

electronic control and automatic weight defrost, and

cooking programmes.

Perfect co-ordination

All Siemens compact appliances co-ordinate with each other perfectly. Whether you are aiming for clean, vertical lines or

are positioning two or three models side by side, everything lines up perfectly.

3130

Compact Appliances

60

HF24G561M

Main Features

f800 W Microwave

f5 settings: 800 W, 600W, 360W,

180W, 90W

fGrill 1000 W

fCombination of Grill and Microwave

power levels 360/180/90 W

f3 cooking programs

f4 defrost programs

f8 combi programs

General information

fCapacity 25 litres Stainless steel

fUser-friendly electronics with push-

buttons and pop-out control.

fMemory-Function (1 setting)

fLED clock and timer

fSide opening door with large viewing

window, Left-hand hinged

fTurn table 24.5 cm Glass

fPower cord with plug 130 cm

Technical Information

fCan be built in a 60 cm wall cupboard

(at least 30cm deep)

fDimensions of the product (HxWxD):

290 x 462 x 320 mm

fRequired niche size for installation:

380 x 560 x 550 mm

fOut put power 1.27 kW

Compact Appliances

HB86K572BHB36D572B

fCombination steam oven fCombination microwave oven fMicrowave oven

HF35M562B

Main features

fEcolytic self-cleaning: Rear wall

fTop/bottom heat, circulating air, hot

air, Fan air grill system, Microwave,

combined operation, bottom heating,

Intensive heat, gentle cooking,

warming, pre-heating, full width

variable grill, half width variable grill

f70 automatic programming

fMemory-function (6 settings)

fMinute timer, automatic fast heat up

function, key button, start delay

f900 W Microwave

f5 settings: 900 W, 600W, 360W,

180W, 90W

fChild safety button

General information

fRetractable Rotary Control full metal

fLED clock and timer

fCapacity 42 litres

fFeatures innowave technology

fCombined operation, gentle cooking,

warming, pre-heating

fHeating modes stage cooking: yes

fClear text display: Yes

fAutomatic switch off, child safety

button

fPower cord Fixed connection 180 cm

Technical information

fCan be built in a 60 cm wall cupboard

(at least 30cm deep)

fDimensions of the product (HxWxD):

454 x 595 x 531 mm

fRequired niche size for installation:

450 mm x 560 mm x 550 mm

fOut put power 3.6 kW

Main features

f70 automatic programmes

fFunctions: Regeneration,

fermentation, defrost, gentle

cooking, pre-heating, warming

fSteam 100% 35°C till 100°C, Hot Air

30°C till 230°C, Hot air + steam 120°C

till 230°C

fMemory function

fHeating-up control

fAutomatic temperature proposal

fAutomatic programming

fAutomatic boiling point detection

fActual temperature display

fCleaning help

fDescaling programme

fChild lock

General information

fFull metal illuminated retractable

controls

fWith Shelf support rails, 4 PC slide-in

level and 35 litres

fIntegral cooling fan

fFull glass inner door

fClear text display

fWater tank with 1.3 litres

fAutomatic switch off

fConstruction type: built-in\

Technical information

fConnecting cable with plug, 180 cm

fTotal connected load electric: 1.9 KW

fDimensions of the product (mm):

454 x 594 x 550

fRequired niche size for installation

(mm): 450 x 560 x 550

Main features

f9 automatic programming

fLED clock and timer

f1000 W Microwave

General information

fRetractable Rotary Control

f5 settings: 1000 W, 600W, 360W,

180W, 90W

fFeatures innowave technology

fCapacity 36 litres Stainless steel

fPower cord with plug 150 cm

Technical information

fCan be built in a 60 cm wall cupboard

(at least 30cm deep)

fCan be built in a 60 cm wall cupboard

(at least 30cm deep)

fDimensions of the product (HxWxD):

454 x 595 x 563 mm

fRequired niche size for installation:

450 mm x 560 mm x 550 mm

fOut put power 1.22 kW

60 60 60

fMicrowave oven with grill

Steam

combination

oven

3332

The stylish coffee machine and warming drawers

co-ordinate with all ovens and the compact range.

3534

Compact Appliances Warming Drawer

TK76K573GB

Main features

fInnovative heating system “senso

flow system”

fReduced heating-up time: Fastest

first cup!

fInnovative brewing technology with

“AromaPro Concept”

fHigh-value milk nozzle with suction

function “CreamPro Concept”

fHigh-value ceramic grinding unit “silent

ceram drive”

fCoffee and espresso from bean to cup

at one touch

General information

fHigh-quality LCD display; programmable

languages

f“One touch” function for: latté

macchiato and cappuccino, milk coffee

& personalized “My Coffee” function

fPersonalized “My Coffee” function

fSimultaneous two-cup brewing: two

grinding & brewing cycles, no diluting

fIndividually adjustable temperatures for

coffee ( 3 levels) & hot water (4 levels),

individually adjustable grinding degree

(4 levels)

fFrothing nozzle for cappuccino and

cafe latté

fWater & milk are handled separately

with seperate coffee and milk nozzles

fComfortable quick rinsing of milk

system “Cream Cleaner”

fAutomatically rinses when switched

on or off

fFully automatic descaling and cleaning

program yes

fAll milk nozzle parts are easily

removable, separable, easy to clean &

dishwasher-proof

fSound absorption for noise reduction

fHeight-adjustable coffee outlet & milk

nozzle (max. 150 mm) for large “latté

macchiacto” glasses

fDisplay of remaining cups before

cleaning/ descaling/ change of

water filter

fEarly warning when bean container or

water tank are close to empty

fElectronic cartridge exchange indicator

fWater pump with 19 bar pressure

fSeparate container for pre-grounded

coffee

fIlluminated coffee outlet

fMilk nozzle integrated in coffee outlet

fBean container with aroma

preservation lid for up to 400 g

fSingle portion cleaning

Technical information

fWattage: 1700 W

60 6060

HW140562BHW290562B

Main Features

fFunctions: dough proving, thawing

of delicate foods, keeping drinks and

food warm, pre-warming of crockery,

gentle cooking

fTemperature control in 4 levels, ca.

30-80°C (glass surface temperature)

fCool door

General information

fMax. loading espresso cups: 80 PC or

Max. loading plates: 12 PC

fHeating plate made of toughened

glass

fStainless steel cavity

fLoading up to 25 kg

Technical Information

fLength wire connection: 150 cm

fDimensions of the product (mm):

141 x 594 x 544

fRequired niche size for installation

(mm): 141 x 560 x 550

Main Features

fFunctions: dough proving thawing

of delicate foods, keeping drinks and

food warm, pre-warming of

crockery, gentle cooking

fTemperature control in 4 levels, ca.

30-80°C (glass surface temperature)

fCool door

General information

fMax. loading espresso cups: 120 PC

or Max. loading plates: 40 PC

fLoading up to 25 kg

fTelescopic rails

fEasy to clean heated ceramic glass

base

fLength wire connection: 150 cm

Technical Information

fCan be built in a 60 cm wall cupboard

(at least 30cm deep)

fDimensions of the product (HxWxD):

290 x 594 x 544 mm

fRequired niche size for installation:

290 mm x 560 mm x 550 mm

fConnection load 0.81 kW

Fully automatic coffee machine

Aroma Whirl System

Experience the finest brewing results with

our unique Aroma Whirl brewing system. This dynamic

brewing process ensures that all coffee granules are fully

compressed and reached by the water for optimum

extraction of flavour and a rich taste.

Single Portion Cleaning

With Single Portion Cleaning, every cup of coffee or

espresso is brewed hygienically. After each brewing

process, the water pipes are rinsed automatically of

lead and cold water residue, to ensure 100% fresh and

clean hot water for every single cup.

Be prepared

Are dinner party guests running late?

A Siemens warming drawer is the ideal

solution! Designed to co-ordinate with

Siemens ovens and compact models,

the range consists of models in 29 cm

or 14 cm height, with four temperature

options ranging from 40-80°C. 14 cm

models are available with co-ordinating

handles or with a handleless ‘push-pull’

mechanism; and new for 2009, is a

design co-ordinated accessory drawer.

Easy access

The fully extendable pull-out drawer

allows easy access to the contents and

can accommodate up to 25kg.

Cleaning made simple

The warming drawer’s easy to clean

smooth and hard-wearing ceramic glass

base is recessed, which allows for any

spills to be easily contained.

fStainless steel

fFully automatic coffee machine fWarming drawer fWarming drawer

3736

Traditional hot air cooking

The combination model offers hot

air cooking with a temperature

range of 30-230ºC – ideal for

traditional baking and roasting.

Great for midweek meals when a

smaller capacity is required.

Our new wall steamer saves space, but won’t

compromise on looks or ability.

This 36cm high steamer can be installed into a wall unit

to save space, or co-ordinates beautifully in column, in

a tall housing onathers single oven. With 22L capacity,

5 steam levels, 3 cooking levels and no less than 20

automatic programmes, its diminutive size means you

won’t compromise on functions.

Automatic programmes

Choose any one of up to 40 automatic cooking

programmes for perfect results every time.

Simply select the food type, enter the weight and

press the start button.

Multi-talented, healthy and co-ordinated.

Siemens compact45 steam ovens have it all.

Thanks to the multi-operational features of our steam ovens, you can cook gently with steam, bake and

roast with hot air or even do both at the same time. And now with the introduction of a new steamer that can

be installed into a wall unit, the benefits of steam cooking are even more accessible.

Steam

combination

oven

Cooking using steam

Steam and steam combination cooking is used extensively in commercial

catering and baking as it ensures moist and tender results. Steam cooking is

gentler than traditional cooking methods, so there is no loss of texture, taste

or colour. And it’s healthier too. Far fewer vital vitamins, minerals and nutrients

are lost with steam cooking, so there is no need to add salt or oil.

Reheating

Reheating leftovers or food for latecomers using steam

ensures the food is refreshed, moist and retains its

texture, while using less energy than other methods.

Cleaning and de-scaling

Siemens steam ovens feature durable high quality

stainless steel interiors and catering quality stainless

steel accessories for easy cleaning. There are also

dedicated de-scaling and cleaning programmes – the

electronic display advises you when they need to be run.

How does it work?

Siemens steam are quick and easy to install. They

don’t need plumbing-in. The removable water tank

has sufficient capacity to provide up to 70 minutes steam

cooking at full power. Water is fed into the oven cavity

and heated by a powerful element in the base of the

appliance, and as only the amount of water needed for

the cooking process is heated, no energy is wasted.

The ovens are thermostatically controlled to allow steam

temperatures of 35-100ºC – ideal for all types of fish,

meat, poultry and vegetables.

3938

Technical Drawings

Cooking

Built-in Ovens Compact Appliances

HB36D572B

HF24G561M

HW140562B

Ventilation area in the

base, min. 50 cm2

Ventilation openings

behind, min. 250 cm2

4

19 (*20)

454

454

450

450

600

Back panels

open

min.

550

min.

550

45

45

520

595

450

min. 550

min. 6

50 5040

60 60

40

450

340340

min.

550

*20mm for metal fascias

560+8

600

560+8

595

880+4

min. 550 20.5

287290

525

560+8

min.

20

Ovens with a height of

595 mm can be installed

above a warming drawer

in the HW 290 range.

An intermediate floor

is not required.

Compact appliances with

a height of 454 mm can be

installed above a warming

drawer in the HW 140 range.

An intermediate floor

is not required.

595

590+4

560+8

min. 550

45

141

525

20.5

127

8

3

HB953R50 HB90055

HB75AB550B

60

Space for oven

connection socket

320x115

595 548

570

595

405 180

600+4

560+8

145

max

520

min.

550

max. 50

max. 20

*19

*20mm for

metal fascias

590

(min. 575

max. 597)

20

595

min.550

595

60

Space for oven

connection socket

320x115

548

560+8

max. 50

*19

180

405 145

max

520

570

*20mm for

metal fascias

HB43AB550B HB86K572B

TK76K573

Ventilation area in the

base, min. 50 cm2

Ventilation openings

behind, min. 250 cm2

4

19 (*20)

454

454

450

450

600

Back panels

open

min.

550

min.

550

45

45

563

595

450

min. 550

min. 6

90

250

80

450

245

min.

550

*20mm for metal fascias

560+8

600

560+8

HB331E0GC

HW290562B

595

880+4

min. 550 20.5

287290

525

560+8

min.

20

Ovens with a height of

595 mm can be installed

above a warming drawer

in the HW 290 range.

An intermediate floor

is not required.

Compact appliances with

a height of 454 mm can be

installed above a warming

drawer in the HW 140 range.

An intermediate floor

is not required.

595

590+4

560+8

min. 550

45

141

525

20.5

127

8

3

HB22AR521E

HF35M562B

Ventilation area in the

base, min. 50 cm2

Ventilation openings

behind, min. 250 cm2

4

19 (*20)

454

454

450

450

600

Back panels

open

min.

550

min.

550

45

45

563

595

450

min. 550

min. 6

90

250

80

450

245

min.

550

*20mm for metal fascias

560+8

600

560+8

4140

Hobs

Introducing our brand new range of fully co-ordinated

appliances. Good looking on their own and fabulous together,

they‘re not labelled for nothing!

Eye-catching design is at the heart of our hobs. Razor-sharp looks and style harmonise with an array of

cutting-edge and easy-to-use functions and benefits. Now, our hobs are part of Siemens’ brand new range.

Hobs

4342

Welcome to the world of Induction.

Better energy efficiency

Only areas of the flexInduction cook surface that are

actually in contact with the cookware are active at any

particular time, so no energy is wasted.

More reliable small object detection

As each of the unique inductors work independently, the

hob is extremely good at recognising what is – and what

isn’t – a pan. The area of the cook surface under, say,

a discarded spoon will not be activated, even while the

pans on the surface continue to be heated normally.

Liberate your pans from restricted cook zones, with flexInduction.

Each flexInduction zone uses four innovative elongated oval inductors beneath the glass, each of which can act independently

to sense the presence of cookware on the hob. Only if the cookware is detected will the individual inductors work, ensuring

efficient operation whether a 10cm diameter milk pan is placed in one corner, or a large griddle plate covers the whole zone.

Induction is a form of cooking where the heat used for cooking is generated in the cooking vessel, rather than the stovetop. It’s a

faster and more energy-efficient way of cooking than a traditional electric hob.

Safety switch off

The second you press the power button, all the cooking zones instantly switch off – so should you be called away from the

kitchen for any reason, you can rest assured that everything is under control.

Simply press the main on/off sensor for a few seconds to lock the controls and prevent inadvertent operation. Easily

re-activated by repeating the process.

Domino hob

With the domino modular hob, you have the freedom of designing your own cooking centre. Using a combination of

gas, ceramic hob and cook burner of barbecue grill, these units can be built in separately or combined, for the ultimate

cooking experience.

Quality, safety and cleaning.

At Siemens, we‘ve found the higher, the former, the easier,

the latter.

With their slim shape and tough stain and scratch resistant wipe clean surfaces, it’s easy to see why our smooth,

high-gloss finish ceramic hobs are the ideal electric hobs for so many people.

Effective automatic pan recognition

Like our traditional induction hobs, Siemens

flexInduction hobs feature automatic pan recognition

technology. The flexInduction zone will react to a pan

placed anywhere on the extended cook surface – right

up to the edges.

Better heat distribution

The innovative elongated shape of the inductors means

that larger pans enjoy more evenly distributed heat, and

there are no ‘cool spots’ where the pan is not over an

induction coil, which means your dish will be beautifully

and evenly cooked.

4544

ET975SV11DEH611TA16E

Main features

f5 HighSpeed cooking zones,

including:

f1 triple zone

f1 dual zone

f1 extendible triple zone

fZone extension activation with a

Touch sensor

fResidual heat indicator: digital 2-step

fSafety switch-off

fChildproof lock

General information

fFacetted design (with front facette

and side profiles)

fCan be combined with all hobs in

comfort design

fHighSpeed ceramic glass

fcountDown-fuction

fTimer with switch-off function for

all zones

fElectronic regulation 17 power levels

fWipe protection function

fElectronic display

fPower on indicator light

fMain switch

Technical information

fMin. worktop thickness: 20 mm

fDimensions of the product (HxWxD):

50 x 912 x 520 mm

fRequired niche size for installation

(HxWxD): 45 x 880 x 500 mm

fConnected load: 8.25 kW

Main features

f4 Induction zones

fBoost function for all zones

f1 dual zone

fElectronic display

fResidual heat indicator: digital 2-step

fTimer with switch-off function for

all zones

fChildproof lock

fSafety switch-off

General information

fHighSpeed ceramic glass

fElectronic regulation 17 power levels

fFront control

fPower on indicator light

fMain switch

fFrameless design

Technical information

fMin. worktop thickness: 20 mm

fDimensions of the product (HxWxD):

50 x 592 x 522 mm

fRequired niche size for installation

(HxWxD): 51 x 560 x 490 mm

fConnected load: 4.6 kW

fCeramic hob

f90 cm

90

Child lockChild lock

Electric Hobs

EH975SZ11E

fFlex Induction hob

f90 cm

EH675MV11E

Main features

f5 induction cooking zones

f2 flexInduction cooking zones

f1 triple zone

fAutomatic pan recognition sensor

General information

f17 power levels

fBoost function for all zones

fTimer with switch-off function for

all zones

fCountDown-fuction

fsymControl, symmetrical position

of displays

fAutomatic pan recognition sensor

fChildproof lock

fSafety switch-off

fWipe protection function

fpowerManagement Function

fResidual heat indicator for each zone

fMain switch

ftouchSlider operating (multi)

Technical information

fMin. worktop thickness: 20 mm

fDimensions of the product (HxWxD):

57 x 912 x 520 mm

fRequired niche size for installation

(HxWxD): 51 x 880 x 490-500 mm

fConnection cable (1.1 M )

fConnected load: 10.8 kW

Main features

f4 induction cooking zones

f2 flexInduction cooking zones

fAutomatic pan recognition sensor

General information

f17 power levels

fBoost function for all zones

fTimer with switch-off function for

all zones

fcountDown-fuction

fsymControl, symmetrical position

of displays

fChildproof lock

fSafety switch-off

fWipe protection function

fpowerManagement Function

fResidual heat indicator for each zone

fMain switch

ftouchSlider operating (mono)

Technical information

fMin. worktop thickness: 20 mm

fDimensions of the product (HxWxD):

57 x 602 x 520 mm

fRequired niche size for installation

(HxWxD): 51 x 560 x 490-500 mm

fConnection cable (1.1 M )

fConnected load: 7.2 kW

90 60 60

Child lockChild lock

ET651RF11E

Main features

f4 HighSpeed cooking zones,

including:

f1 dual zone

fElectronic display

fDigital 1-step

fTimer with switch-off function for

all zones

fSafety switch-off

fChildproof lock

General information

fHighSpeed ceramic glass

fElectronic regulation 17 power levels

fZone extension activation with a

Touch sensor

ftouchControl operation, Front control

fPower on indicator light

fMain switch

Technical information

fMin. worktop thickness: 20 mm

fDimensions of the product (HxWxD):

50 x 592 x 522 mm

fRequired niche size for installation

(HxWxD): 39 x 560 x 490 mm

fConnected load: 6.6 kW

ET975MD11Q ET675MN11E

Main features

f4 HighSpeed cooking zones,

including:

f1 triple zone

f1 dual zone

f1 extendible triple zone

fTotal power limited to 7000 W by

powermanagement function

fResidual heat indicator: digital 2-step

fSafety switch-off

fChildproof lock

General information

fFacetted design (with front facette

and side profiles)

fHighSpeed ceramic glass

fTimer with switch-off function for

all zones

fElectronic regulation 17 power levels

fZone extension activation with a

Touch sensor

fWipe protection function

fElectronic display

fPower on indicator light

fMain switch

ftouchSlider operating (mono)

Technical information

fMin. worktop thickness: 20 mm

fDimensions of the product (HxWxD):

50 x 912 x 520 mm

fRequired niche size for installation

(HxWxD): 45 x 880 x 500 mm

fConnected load: 7 kW

Main features

f4 HighSpeed cooking zones,

including:

f1 dual zone

fElectronic display

fResidual heat indicator: digital 2-step

fTimer with switch-off function for

all zones

fChildproof lock

fSafety switch-off

General information

fHighSpeed ceramic glass

fElectronic regulation 17 power levels

fZone extension activation with a

Touch sensor

ftouchControl operation, Front control

fPower on indicator light

fMain switch

fFacetted design (with front facette

and side profiles)

Technical information

fMin. worktop thickness: 20 mm

fDimensions of the product (HxWxD):

50 x 602 x 520 mm

fRequired niche size for installation

(HxWxD): 45 x 560 x 490-500 mm

fConnected load: 7.2 kW

6060 60

Child lockChild lockChild lock

Electric Hobs

fCeramic hob

f90 cm

fCeramic hob

f60 cm

fCeramic hob

f60 cm

fFlex Induction hob

f60 cm

fInduction hob

f60 cm

Induction Induction Induction

touchSlider

4746

ET13051EU ET375GU11E

Electric Hobs

ET130501

fSealed plate cooktop

f60 cm

ET375GF11E

30 30 30

fCeramic hob

f30 cm

fSealed plate cooktop

f30 cm

fBarbecue grill

f30 cm induktions

Main features

f2 High speed cooking zones

fPower on indicator light

General information

fChrome nickel steel

fSurface-mounted controls

Technical information

fConnecting cable 1.5 m

fMin. worktop thickness: 30 mm

fDimensions of the product (HxWxD):

50 x 288 x 505 mm

fRequired niche size for installation

(HxWxD): 42.5 x 268 x 490 mm

fConnected load: 3.5 kW

Main features

fStainless steel grill to be used with

water or lava stones

fRemovable cast iron grille for easy

cleaning

fPower on indicator light

General information

fCan be combined with 60, 70, 80 and

90 cm hobs

ffacetted design (with front facette

and side profiles)

fRemovable black glass lid

fElectronic regulation 9 power levels

fSurface-mounted controls

fElectric cable, without plug

fDrain valve

Technical information

fMin. worktop thickness: 30 mm

fDimensions of the product (HxWxD):

50 x 302 x 520 mm

fRequired niche size for installation

(HxWxD): 236 x 270 x 490-500 mm

fConnected load: 2.4 kW

Main features

f4 hotplates

fPower on indicator light

General information

fChrome nickel steel

fSurface-mounted controls

f4 infinitely variable high-speed

cooking zones

Technical information

fMin. worktop thickness: 30 mm

fConnection cable 1 M

fDimensions of the product (HxWxD):

65 x 580 x 510 mm

fRequired niche size for installation

(HxWxD): 45 x 560 x 490 mm

fConnected load: 7 kW

Main features

f 2 HighSpeed cooking zones,

including:

f1 dual zone

General information

fZone 1: 0.8 - 2 kW dual zone,

120 - 180 mm diameter

fZone 2: 1.2 kW, 145 mm

fKnob

fElectronic regulation 9 power levels

fHighSpeed ceramic glass

ffacetted design (with front facette

and side profiles)

fSurface-mounted controls

fResidual heat indicator for each zone

fPower on indicator light

fCan be combined with 60, 70, 80 and

90 cm hobs

Technical information

fElectric cable, without plug

fMin. worktop thickness: 20 mm

fDimensions of the product (HxWxD):

50 x 302 x 520 mm

fRequired niche size for installation

(HxWxD): 48 x 270 x 490-500 mm

fConnected load: 3.2 kW

60

4948

Simmer cap

Only found on our gas hobs, this special extra wide

burner cap fits on the smallest burner and is designed to

diffuse the minimum power heat (and spread

the higher power heat) over a wider surface area,

avoiding hot spots and absolutely perfect for simmering.

Design

Siemens gas hobs come in 60 cm, 70 cm and 90 cm widths, plus special 30 cm wide domino models with trims designed

to co-ordinate with ceramic and induction dominos or with larger hobs with the same trim style. Models vary in terms of

configuration; combinations of economy, standard, high power, and wok burners in 4, 5 or 6 burner versions are available.

Whether your preference is for high quality stainless steel, toughened black glass or durable slimline ceramic glass, Siemens

has the hob for you.

Prefer gas? With our gas hobs, you’re really cooking.

Our gas hobs not only offer various configurations but are also equipped with the latest in high-speed wok burner

technology. Top models feature up-to-the-minute electronic ignition and power on reminder indicators.

The cast iron pan supports provide a strong contemporary look and a stable base for any size of pan.

Siemens hobs are available in different trim types, including a stunning facetted front edge ceramic design with

elegant brushed stainless steel side trims for that really stylish look. Start with

Siemens models have a flame failure safety device available

to each individual burner. Should the flame be extinguished

for any reason, the thermostatic control senses that drop

in temperature and shuts the gas flow to the individual

burner. Ignition is achieved via the control dials – simply

push and turn; no need to press separate ignition buttons.

Feature wok burners delivering up to 6 kW of power

depending on the model

Siemens gas hobs now feature wok burners delivering

power depending on the model – meeting the increasing

demand for high speed cooking. The higher power

burners will boil water up to 20% faster than some of

our previous wok burners, but can still offer optimum

control, as they can be reduced down to just

0.3 kW – perfect for simmering or melting chocolate.

5150

Gas Hobs

EC645PB80QEC945RB91E ER64051LT

Main features

f4 gas burners

fFlame failure safety device

fSteel pan supports

f1-handed ignition via control knobs

General information

f1 rapid, 2 standard, 1 economy

burner

fFront left: Standard burner 1.7 KW

fRear left: Standard burner 1.7 KW

fRear right: Rapid burner 3 KW

fFront right: Economy burner 1 KW

Technical informtation:

fConnecting cable 1 m

fPreset of liquid gas (28-30/37 mbar)

fNatural gas nozzles (20 mbar)

included

fDimensions of the product (mm):

52 x 582 x 520

fRequired niche size for installation:

45 mm x 560 mm x 480-490 mm

Main features

f5 gas burners

fFlame failure safety device

fCast iron pan supports

General information

f1 rapid, 2 standard, 1 economy

burner

f1 dual wok burner

fFront left: Rapid burner 3 KW

fRear left: Economy burner 1 KW

fRear right: Standard burner 1.7 KW

fFront right: Standard burner 1.7 KW

f1-hand ignition via control knobs

Technical information

fConnecting cable 1.5 m

fPreset of natural gas (20mbar)

fLiquid gas nozzles (28-30/37mbar)

included

fDimensions of the product (HxWxD):

53 x 915 x 520 mm

fRequired niche size for installation:

45 mm x 850 mm x 490-500 mm

Main features

f5 gas burners

fFull flame safety for hob and oven

fCast iron pan supports

General information

f1 rapid, 2 standard, 1 economy

burner

f1 dual wok burner

fLeft: WOK burner 6 KW

fCenter front: Standard burner 1.9 KW

fCenter rear: Economy burner 1.1 KW

fRear right: Rapid burner 2.8 KW

f1-hand ignition via control knobs

Technical information

fConnecting cable 1.5 m

fPreset of natural gas (20mbar)

fLiquid gas nozzles (28-30/37mbar)

included

fDimensions of the product (HxWxD):

57 x 912 x 520 mm

fRequired niche size for installation:

45 mm x 850 mm x 490 mm

Main features

f4 gas burners

fSteel pan supports

f1-hand ignition via control knobs

General information

f1 rapid, 2 standard, 1 economy

burner

fFront left: Rapid burner 3 KW

fRear left: Standard burner 1.7 KW

fRear right: Standard burner 1.7 KW

fFront right: Economy burner 1 KW

Technical information

fConnecting cable 1 m

fPreset of liquid gas (28-30/37mbar)

fDimensions of the product (HxWxD):

43.5 x 580 x 510 mm

fRequired niche size for installation:

33 mm x 560 mm x 490 mm

6060 60

90

Gas Hobs

ER326BB90EER64155LT

Main features

f2 gas burners

fFull flame safety for hob and oven

fCast iron pan supports

General information

f1 rapid, 1 standard burner

fIn front: Standard burner 1.9 KW

fRear: High-speed burner 2.8 KW

f1-hand ignition via control knobs

Technical information

fConnecting cable 1 m

fPreset of natural gas (20mbar)

fLiquid gas nozzles (28-30/37mbar)

included

fDimensions of the product (HxWxD):

52 x 302 x 520 mm

fRequired niche size for installation:

45 mm x 270 mm x 490-500 mm

fCan be combined with domino glass

ceramic hobs

Main features

f4 gas burners

fFull flame safety for hob and oven

fCast iron pan supports

General information

f1 rapid, 2 standard, 1 economy

burner

fFront left: Rapid burner 3 KW

fRear left: Standard burner 1.7 KW

fRear right: Standard burner 1.7 KW

fFront right: Economy burner 1 KW

f1-hand ignition via control knobs

Technical information

fConnecting cable 1.5 m

fPreset of liquid gas (28-30/37mbar)

fDimensions of the product (HxWxD):

43.5 x 580 x 510 mm

fRequired niche size for installation:

33 mm x 560 mm x 490 mm

60 30

ER926SB90E

f60 cm Gas hob

fStainless steel

f90 cm Gas hob

fCeramic

f60 cm Gas hob

fStainless steel

f60 cm Gas hob

fStainless steel

f60 cm Gas hob

fStainless steel

f30 cm Gas hob

fCeramic

5352

EH611TA16E

ET651RF11E

ET975SV11D

EH975SZ11E EH675MV11E

ET975MD11Q

ET675MN11E

ER926SB90E

490+1

**Position of the gas connection

in the cut-out

*Minimum distance from

the hob cut-out to the wall

45

520 912

850+1

min.

600

min. 30

*min. 150

min. 50

59

57

42

**26

EC945RB91E

ER64051LT ER64051LT

EC645PB80Q

ER64155LT

Technical Drawings

Hobs

Electric Hobs Gas Hobs

5554

Hoods

Style, speed and silent running.

Style, speed and silent running are what sets a Siemens hood apart from the competition. That, and the fact

that they’re all installed with a variety of ingenious and easily operated functions.

One of the major driving forces behind the creation of Siemens’ brand new range was to offer the customer

the ability to achieve seamless design co-ordination between appliances.

Hoods

5756

New wall mounting system

Once you’ve chosen which option you want to go for and you’re ready to install, we have made life even easier.

Offset ‘cam’ rings mean that the fixings can be adjusted within a 6mm radius, making it simpler than ever to level

the hood when fixing it.

Ducting your hood

For optimum performance, your extractor hood should be ducted to the outside of the house using ducting with as large a

diameter as possible. The larger the ducting size, the greater the volume of air that can be extracted from the kitchen, and

the quieter the hood will be. All Siemens hoods are now suitable for use with a 150mm diameter ducting, which increases

efficiency and lowers noise levels even further, though 120mm ducting can still be used. Use of ducting with a lesser

diameter should be avoided if possible. Ducting lengths should be as short and as direct as possible to ensure that the air

is extracted to the outside as quickly as possible. Bends should be kept to a minimum and the ducting itself should be as

smooth as possible to ensure smooth, unobstructed airflow.

How to choose a hood.

With open-plan living becoming more of the norm, a quiet and efficient extractor is necessary to deal with the

strong cooking odours as well as the grease-laden air that can otherwise linger throughout the house. As far as

style and design is concerned, with the Siemens range of cooker hoods, you’ll be spoilt for choice. But there are

also two vital technical points to consider when choosing a hood. The first is whether you want the hood to be

ducted or re-circulating, and the second is its power rating – and what you will require depends on your kitchen

space. Here are some helpful pointers.

Choosing a hood: Ducted or re-circulated operation?

For optimum performance, your extractor hood should be ducted to the outside of the house, so that the extracted air is

vented outside. But sometimes it is just not practical for the hood to be ducted to the outside, so most Siemens hoods can

also operate in re-circulating mode (an additional carbon odour filter re-circulating kit is required to do this - please check

individual product specifications for details of suitable accessories). In re-circulating mode, the extracted air is passed

through the metal filter to remove grease, and then through a carbon filter to remove odours before being directed back

into the kitchen. Although the extraction rate is slightly lower (when using this method) than ducted extraction and the

odour filter will need to be replaced on a regular basis, recirculating the air offers an energy efficiency benefit, in that cool

air is retained in the home in the summer, and does not vent out warm air during winter months.

Choosing a hood: the power to perform

Your chosen hood must be powerful enough to

effectively remove moisture and cooking odours from

your kitchen. As a rule of thumb, the hood should

be able to change the air in the kitchen 10 times per

hour. Here is a quick calculation you can make to check

whether a hood is sufficiently powerful:

Firstly, calculate the volume of the kitchen

(H x W x D metres). Next, multiply that figure by 10.

The resulting figure is the minimum extraction rate you

require.

For example: Room: 4m x 4m x 2.5m = 40m3; 10 changes

per hour = 10 x 40m3 = 400m3/h; so the hood must

achieve a minimum of 400m3/h.

Minimizing noise

To keep noise to a minimum, we would suggest selecting a model that can comfortably meet the aforementioned

requirements on an intermediate speed (e.g. level 2) rather than at the highest speed.

5958

Noise levels and sound insulation

There are two commonly used measures for noise levels –

sound pressure (dBA) and sound power (dB re 1pW).

Although dBA (sound pressure) is the most quoted,

particularly by other manufacturers, it can be highly

subjective and the test guidelines open to wide

interpretation, making comparisons virtually impossible.

Siemens prefer to use the sound power method, which

requires measurements to be made in a sound insulated

room of preset size, using six pre-defined microphone

points. This ensures that meaningful comparisons can be

made between different models tested in this way.

Many Siemens models use additional sound insulation

around the motor to keep noise as low as possible.

Dishwasher-safe metal grease filters and filter boxes

All the metal grease filters on our hoods can be cleaned

in a dishwasher. Some of our models (particularly those

with glass canopies) have their filters in a box which are

removable and can be placed in the dishwasher.

All our hoods come fully

fitted with a number of

features and benefits.

They include lamps to illuminate the cooking area and

the latest easily changeable grease filters. They also offer

a range of extraction speeds including intensive, and all

feature easy to use ergonomic controls.

They are all also very easy to install, with the added

benefit that almost all hood models can either be set

for ducted or re-circulated extraction depending on

the design of the kitchen. This means that you are not

restricted to fitting a hood to an outside wall.

Auto after running

Some models have an automatic run on facility, which

keeps the hood working for an additional 10 minutes, to

help remove any lingering cooking odours.

Typical Siemens technology and innovation intensive

setting with automatic reset facility

The intensive setting gives an extra boost to the

extraction level – particularly useful when extra

extraction is needed, for example stir frying. As the

intensive setting is only required for a short period of

time, the hood will automatically revert back to

a lower speed setting after a few minutes.

Softlight dimmer function

Thanks to the dimmer light function you can set the

brightness of the hood to provide atmospheric lighting

in the kitchen. When the light is switched on, it does not

shine at its maximum strength immediately, but builds

up gradually. Similarly when you switch the light off,

the light gradually fades away. When the light is on,

its intensity can even be adjusted to suit your individual

requirements.

All the quality and safety you’d expect.

All Siemens hood extraction and noise levels are measured to recognised European standards. Therefore all figures quoted

accurately relate to the performance of the hood when it’s either connected to the relevant ducting components or set to the

re-circulating mode – so that you can accurately select the most appropriate hood to meet your own requirements.

6160

Extractor Hoods

LC96WA530BLC98BD540BLF98BC540B

Main features

fMaximum extraction rate exhaust air

450 m³/h according to EN 61591

f2 x 25 W high volt halogen spot

f3-stage + intensive control

General information

fChimney hood

f900 mm wide

fWall mounted hood

fDucted/Recirculating operation

fFor recirculated extraction or CleanAir

recirculation kit (accessory) needed

fChimney hood wall fixing syst.

fPush buttons, backlighted for

extractor speeds and light

fTwin channel high performance

fan motor

fMetal grease filter, dishwasher safe

fBrushed steel canopy and chimney

section

fSpecial chimney solutions possible

Technical information

fAdditional noise insulation

fNoise level according to EN 60704-3

und EN 60704-2-13 exhaust air:

fMax. normal use: 54 dB(A) re 1 pW

(40 dB(A) re 20 µPa sound pressure)

fIntensive: 64 dB(A) re 1 pW (50 dB(A)

re 20 µPa sound pressure)

fDimensions exhaust air (HxWxD):

672-954 x 900 x 500 mm

fDimensions recirculating (HxWxD):

672-1064 x 900 x 500 mm

fDiameter pipe Ø 150 mm (Ø 120 mm

enclosed)

fPower rating: 260 W

Optional accessories

fRecirculating kit DHZ5345

Main features

fExtraction rate according to DIN/EN

61591 Ø 15 cm: max. Normal 550

m³/h Intensive 820 m³/h

fElectronic via Push button controls

with 7-segment display

f3 x 20 W low halogen spot

f3-stage + intensive control

General information

fChimney hood

f900 mm wide

fWall mounted hood

fDucted/Recirculating operation

fFor recirculated extraction or CleanAir

recirculation kit (accessory) needed

fChimney hood wall fixing syst.

fPush button controls with 7-segment

display

fTwin channel high performance

fan motor

fMetal grease filter, dishwasher safe

fSpecial chimney solutions possible

fBrushed steel canopy and chimney

section

Technical information

fNoise level according to EN 60704-3

und EN 60704-2-13 exhaust air:

fMax. normal use: 59 dB(A) re 1 pW

(45 dB(A) re 20 µPa sound pressure)

fIntensive: 68 dB(A) re 1 pW (54 dB(A)

re 20 µPa sound pressure)

fAdditional noise insulation

fDimensions exhaust air (HxWxD):

628-954 x 900 x 500 mm

fDimensions recirculating (HxWxD):

628-1064 x 900 x 500 mm

fDiameter pipe Ø 150 mm (Ø 120 mm

enclosed)

fPower rating: 320 W

Main features

fExtraction rate according to DIN/EN

61591 Ø 15 cm: max. Normal 550

m³/h Intensive 820 m³/h

fTwin channel high performance

fan motor

fElectronic via Push button controls

with 7-segment display

f4 x 20 W low halogen spot

f3-stage + intensive control

General information

fIsland chimney hood

f900 mm wide

fCeiling mounted hood

fDucted/Recirculating operation

fInner frame

fPush button controls with 7-segment

display

fFor recirculated extraction or CleanAir

recirculation kit (accessory) needed

fMetal grease filter, dishwasher safe

fAdditional noise insulation

fSpecial chimney solutions possible

fBrushed steel canopy and chimney

section

Technical information

fNoise level according to EN 60704-3

und EN 60704-2-13 exhaust air:

fMax. normal use: 59 dB(A) re 1 pW

(45 dB(A) re 20 µPa sound pressure)

fIntensive: 68 dB(A) re 1 pW (54 dB(A)

re 20 µPa sound pressure)

fDimensions exhaust air (HxWxD):

744-924 x 900 x 600 mm

fDimensions recirculating (HxWxD):

744-1044 x 900 x 600 mm

fDiameter pipe Ø 150 mm (Ø 120 mm

enclosed)

fPower rating: 340 W

Extractor Hoods

LC66BB530BLC98GE540LC98GB540B

Main features

fMaximum extraction rate exhaust air

430 m³/h according to EN 61591

f2 x 28 W

f3-stage + intensive via Push buttons,

backlighted

General information

fChimney hood

f600 mm wide

fWall mounted hood

fDucted/Recirculating operation

fTwin channel high performance

fan motor

fFor recirculated extraction or CleanAir

recirculation kit (accessory) needed

fChimney hood wall fixing syst.

fPush buttons, backlighted for

extractor speeds and light

fMetal grease filter, dishwasher safe

Technical information

fAdditional noise insulation

fNoise level according to EN 60704-3

und EN 60704-2-13 at max. normal

use exhaust air: 57 dB(A) re 1 pW (43

dB(A) re 20 µPa sound pressure)

fDimensions exhaust air (HxWxD):

642-954 x 600 x 500 mm

fDimensions recirculating (HxWxD):

642-1064 x 600 x 500 mm

fDiameter pipe Ø 150 mm (Ø 120 mm

enclosed)

fPower rating: 260 W

Main features

fExtraction rate according to DIN/EN

61591 Ø 15 cm: max. Normal 510

m³/h Intensive 700 m³/h

fElectronic via Push button controls

with 7-segment display

f2 x 20 W low halogen spot

f3-stage + intensive control

General information

fChimney hood

f900 mm wide

fWall mounted hood

fDucted/Recirculating operation

fFor recirculated extraction or CleanAir

recirculation kit (accessory) needed

fChimney hood wall fixing syst.

fPush button controls with 7-segment

display

fTwin channel high performance

fan motor

fMetal grease filter, dishwasher safe

fSpecial chimney solutions possible

fBrushed steel canopy and chimney

section

Technical information

fNoise level according to EN 60704-3

und EN 60704-2-13 exhaust air:

fMax. normal use: 62 dB(A) re 1 pW

(48 dB(A) re 20 µPa sound pressure)

fIntensive: 70 dB(A) re 1 pW (56 dB(A)

re 20 µPa sound pressure)

fAdditional noise insulation

fDimensions exhaust air (HxWxD):

638-954 x 900 x 540 mm

fDimensions recirculating (HxWxD):

638-1064 x 900 x 540 mm

fDiameter pipe Ø 150 mm (Ø 120 mm

enclosed)

fPower rating: 300 W

Main features

fMaximum extraction rate exhaust air

510 m³/h according to EN 61591

f2 x 28 W low halogen spot

f3-stage + intensive via Push button

controls

General information

fChimney hood

f900 mm wide

fBrushed steel chimney section with

coloured glass canopy

fChimney hood with glass canopy

fTwin channel high performance

fan motor

fWall mounted hood

fFor recirculated extraction or CleanAir

recirculation kit (accessory) needed

fChimney hood wall fixing syst.

fInner frame

fPush button controls for extractor

speeds and light

fMetal grease filter, dishwasher safe

fSpecial chimney solutions possible

Technical information

fNoise level according to EN 60704-3

und EN 60704-2-13 at max. normal

use exhaust air: 62 dB(A) re 1 pW

(48 dB(A) re 20 µPa sound pressure)

fDimensions exhaust air (HxWxD):

634-954 x 900 x 540 mm

fDimensions recirculating (HxWxD):

634-1064 x 900 x 540 mm

fDiameter pipe Ø 150 mm (Ø 120 mm

enclosed)

fPower rating: 300 W

fIsland chimney hood, 90 cm

fStainless steel

fBox slimline design

fChimney hood, 90 cm

fStainless steel

fBox slimline design

fChimney hood, 90 cm

fStainless steel

fPyramidal slimline design

fChimney hood, 90 cm

fStainless Steel

fGlass design

fChimney hood, 60 cm

fStainless steel

fBox design

LC96BB530B

Main features

fMaximum extraction rate exhaust air

450 m³/h according to EN 61591

f2 x 28 W

f3-stage + intensive via Push buttons,

backlighted

General information

fChimney hood

f900 mm wide

fWall mounted hood

fDucted/Recirculating operation

fTwin channel high performance fan

motor

fFor recirculated extraction or CleanAir

recirculation kit (accessory) needed

fChimney hood wall fixing syst.

fPush buttons, backlighted for

extractor speeds and light

fMetal grease filter, dishwasher safe

Technical information

fAdditional noise insulation

fNoise level according to EN 60704-3

und EN 60704-2-13 at max. normal

use exhaust air: 54 dB(A) re 1 pW (40

dB(A) re 20 µPa sound pressure)

fDimensions exhaust air (HxWxD):

642-954 x 900 x 500 mm

fDimensions recirculating (HxWxD):

642-1064 x 900 x 500 mm

fDiameter pipe Ø 150 mm (Ø 120 mm

enclosed)

fPower rating: 260 W

fChimney hood, 90 cm

fStainless steel

fBox design

fChimney hood, 90 cm

fStainless Steel

fGlass design

90 90 90 90 90 90 60

LC98KB540B

Main features

fExtraction rate according to DIN/EN

61591 Ø 15 cm: max. Normal 520

m³/h Intensive 750 m³/h

fElectronic via Push button controls

with 7-segment display

f3 x 20 W low halogen spot

f3-stage + intensive control

General information

fChimney hood

f900 mm wide

fWall mounted hood

fDucted/Recirculating operation

fFor recirculated extraction or

CleanAir recirculation kit

(accessory) needed

fChimney hood wall fixing syst.

fPush button controls with

7-segment display

fTwin channel high performance

fan motor

fMetal grease filter, dishwasher safe

fSpecial chimney solutions possible

fLight conception white/blue

Technical information

fNoise level according to EN 60704-3

und EN 60704-2-13 exhaust air:

fMax. normal use: 57 dB(A) re 1 pW

(43 dB(A) re 20 µPa sound pressure)

fIntensive: 66 dB(A) re 1 pW (52 dB(A)

re 20 µPa sound pressure)

fAdditional noise insulation

fDimensions exhaust air (HxWxD):

865-1153 x 900 x 417 mm

fDimensions recirculating (HxWxD):

865-1263 x 900 x 417 mm

fDiameter pipe Ø 150 mm

(Ø 120 mm enclosed)

fPower rating: 320 W

fChimney hood, 90 cm

fStainless steel

fInclined design

90

6362

Extractor

LU14150SGCLU22350MGC

Main features

fTwin motor

fExtraction rate according to EN

61591 max. 420 m3/h

f3 speeds control

f2 x 40 W lights

General information

fFor installation underneath a wall

cupboard or on the wall

f600 mm wide

fSuitable for ducted or re-circulated

extraction

fCharcoal cassette filter

fExtraction rate freeblowing max.

480 m³/h

Technical information

fNoise level according to DIN/EN

60704-2-13: 63 dB (re1pW) on max.

Normal 420 m3/h

fDimensions of the product (HxWxD),

with chimney - if exist (mm): 135 x

600 x 495 mm

fConnection load: 340

Main features

fSingle motor

fExtraction rate according to EN

61591 max. 290 m3/h

f3 speeds control

f2 x 40 W lights

General information

fFor installation underneath a wall

cupboard or on the wall

f900 mm wide

fSuitable for ducted or re-circulated

extraction

fCharcoal cassette filter

fExtraction rate freeblowing max.

320 m³/h

Technical information

fNoise level according to DIN/EN

60704-2-13: 57 dB (re1pW) on max.

Normal 290 m3/h

fDimensions of the product (HxWxD),

with chimney - if exist (mm): 135 x

900 x 495 mm

fConventional hood, 90 cm

fStainless steel

fConventional hood

f600 mm wide

90 60

6564

LC98BD540B

*From upper edge

of pan support

min. 550 electric

recommendation 650

min. 650 gas*

45

300 (900mm)

210 (600mm)

209 (900mm)

124 (600mm)

394.5 51.5

*From upper edge

of pan support

min. 550 electric

recommendation 650

min. 650 gas*

Ducted air

outlet

300/

240

min. 450

min. 500

335

245

min. 60

Socket

dia. 120

dia. 150

424

438 379

max. 20

If a back panel is used,

the design of the appliance

must be considered.

(1) Re-circulated air

(2) Ducted air

(3) Air outlet - slot for exhaust

to be mounted facing down

900 / 600

500

448

250

342/

257

247

580

345/

260

min. 126

(3)

46

min. 120 (1)

min. 10 (2)

628-954 (1)

628-1064 (2)

LC98GB540B

*From upper edge

of pan support

min. 550 electric

recommendation 650

min. 650 gas*

45

210

124

394.5 51.5

*From upper edge

of pan support

min. 500 min. 450

min. 60

Socket Ducted

air outlet

240

245 250

min. 550 electric

recommendation 650

min. 650 gas*

dia. 120

dia. 150

If a back panel is used,

the design of the appliance

must be considered.

max. 20

46

424

379

350

900

350 52

46 500

min. 120 (1)

min. 10 (2)

634-954 (1)

634-1064 (2)

540

(1) Re-circulated air

(2) Ducted air

(3) Air outlet - slot for exhaust

to be mounted facing down

247

250 260

257

(3)

min. 126

442

580

LC96BB530B

*From upper edge

of pan support

min. 550 electric

recommendation 650

min. 650 gas*

45

300 (900mm)

210 (700/600mm)

209 (900mm)

124 (700/600mm)

394.5 51.5

*From upper edge

of pan support

min. 550 electric

recommendation 650

min. 650 gas*

Ducted air

outlet

300/

240/

240

min. 450

min. 500

335 / 250 / 250

245

min. 60

Socket

(1) Re-circulated air

(2) Ducted air

(3) Air outlet - slot for exhaust

to be mounted facing down

dia. 120

dia. 150

424

438 379

max. 20

If a back panel is used,

the design of the appliance

must be considered.

900 / 700 / 600

500

434

250

342/

257/

257

247

580

345/

260/

260

min. 126

(3)

46

min. 120 (1)

min. 10 (2)

642-954 (1)

642-1064 (2)

LC98GE540

R 2000

6

51

43

If a back panel is used,

the design of the appliance

must be considered.

dia. 120

dia. 150

max. 20

424

379

350

*From upper edge

of pan support

Ducted air

outlet

250

245

240 min. 450

min. 500

min. 60

Socket

min. 550 electric

recommendation 650

min. 650 gas*

(1) Re-circulated air

(2) Ducted air

(3) Air outlet - slot for exhaust

to be mounted facing down

min. 120 (1)

min. 10 (2)

(3)

57

min. 144

580

442

900 / 600

350

500

540

257

247

638-954 (1)

638-1064 (2)

250 260

*From upper edge

of pan support

min. 550 electric

recommendation 650

min. 650 gas*

45

210

124

395 52

LF98BC540B

height-adjustable

in 20mm

increments

(744-1,044)

46

453

min. 245

min.

35

257

352

264 359

900

600

*From upper

edge of pan support

min. 550 electric

recommendation 650

min. 650 gas*

Re-circulated air

min. 744

max. 1,044

46

453

580

900

min. 245

min.

155

257

352

600

*From upper

ed

g

e of pan support

min. 550 electric

recommendation 650

min. 650 gas*

Ducted air

min. 744

max. 924

264 359

430

385

dia. 120

dia. 150

249

277

225

337 191

170

37

203

LC96WA530B

*From upper edge

of pan support

45

209 (900mm)

124 (700/600mm)

300 (900mm)

210 (700/600mm)

51.5

394.5

*From upper edge

of pan support

min. 550 electric

recommendation 650

min. 650 gas*

min. 550 electric

recommendation 650

min. 650 gas*

Ducted

air outlet

Socket

min. 60

min. 500 min. 450

245

max. 20

424

379

dia. 120

dia. 150

438

(1) Re-circulated air

(2) Ducted air

(3) Air outlet - slot for exhaust

to be mounted facing down

(3)

30

250

500

90

404

247

580

min. 126

min. 120 (1)

min. 10 (2)

672-954 (1)

672-1064 (2)

335 / 250 / 250

300/

240/

240

900 / 700 / 600

342/

257/

257

345/

260/

260

If a back panel is used,

the design of the appliance

must be considered.

LC66BB530B

LU22350MGC

Built-under hood

Dimensions in mm

LU14150SGC

Built-under hood

Dimensions in mm

Extractor Hoods

Technical Drawings

Hoods

Chimney Hoods

6766

Cooling

Introducing the next generation

of cooling appliances.

Fridges, Freezers and Fridge Freezers from Siemens.

Saving energy is paramount to Siemens, as is clean design, first-class quality and smart thinking. Together, they’re the

backbone of our approach to everything we create. It’s an attitude that runs right through our entire range of cooling

products; from the smallest under-the-counter model to our stunning American-style fridge freezers and right through

to the new range of bottom freezers, our latest innovation in cooling.

One of the major driving forces behind the creation of Siemens’ brand new range was to offer the customer the ability to

achieve seamless design co-ordination between appliances. So the range comes in four distinct variants that cover almost

every kitchen appliance we make, with all the pieces designed to combine effortlessly with each other.

Cooling

6968

Smart cooling: the Freshness Centre.

The science of food preservation is about creating the right conditions for the right foodstuff. That science has led to the

development of the Siemens Freshness Centre, featuring the humidity-controlled hydroFresh vegetable drawer and the chilled

coolBox drawer, each designed to provide the perfect conditions for storing different types of food for longer. And they do so in

style. The sturdy and spacious drawers slide smoothly and securely on telescopic rails; they are transparent for convenience, and

with a sleek steel-look trim, they reflect perfectly Siemens’ philosophy of beautiful design.

Food storage times in coolBox

Food Max. storage time (days) Handling recommendation

Meat

Beef 5

Keep in original packaging,

cover tightly

Poultry 3 - 5

Game 5

Lamb 3 - 5

Pork 3 - 5

Minced meat 1

Meat products

Cold cuts 5 - 7 Keep in original packaging,

cover tightly

Sausages 5 - 7

Cooked leftovers 3 - 5

Store in plastic or glass

container, cover tightly,

refrigerate quickly

NB. storage time are guidelines only, and depend on the quality and freshness of the food.

Some fruit and vegetables are sensitive to chilling temperatures, and should be

stored at a higher temperature:

Food Temperature for best quality retention

Fruit 10°C Avocado, banana, grapefruit, lemon, mandarin,

mango, orange, papaya, pineapple

Vegetables 8°C Peppers, cucumber, aubergine, green beans,

potatoes, pumpkin, tomatoes, courgettes

hydroFresh coolBox

The coolBox – quicker, cooler, twice as fresh

The coolBox is an extra cool fridge drawer

where the temperature is maintained

at 1-4ºC below the rest of the fridge

compartment. It’s the ideal home for fish,

meat, cold cuts, poultry and beverages, and

at a fridge setting of 4ºC, the coolBox keeps

food fresh for twice as long*. Temperature-

controlled airflow within the coolBox ensures a uniform

temperature and means faster cooling of the contents –

great for cold drinks on a hot day.

*Compared with a standard frost free

fridge compartment.

The hydroFresh vegetable drawer

The hydroFresh vegetable drawer keeps

vegetables, salad and fruit fresh for twice

as long*. By manually controlling internal

humidity, the hydroFresh compartment

keeps food from drying out, thus

preserving precious vitamins, and keeping

it crisp, flavoursome and more nutritious

for longer. Because it doesn’t spoil as quickly, you end up

throwing much less away.

*Compared with a standard frost free fridge compartment.

7170

First class thinking

Four star freezing compartments allow frozen food to be

stored at below -18°C. This means that fresh food can be

frozen and stored for longer periods up to 12 months.

Foamed in evaporator

All models feature a foamed-in evaporator to protect

it from damage. The evaporator in a Siemens fridge is

hidden behind the interior wall of the appliance, giving

more interior space in the fridge. This smooth interior

surface also makes the fridge easier to clean, looks more

attractive, and reduces the potential of damaging an

exposed evaporator.

All our built-in fridges, freezers and fridge freezers enjoy

common features and benefits.

Constant freezing

All Siemens standard freezers have individual freezing

elements for each drawer, which means that you can

freeze food wherever there is space as the temperature

is kept constant throughout the cabinet.

Removable magnetic door seals

To make the door seals easy to clean or replace, we’ve

made them magnetic. You simply pull the seal away from

the inner door lining, give everything a good clean and

then put it back. It really is that simple.

Anti-spill safety glass shelving

Accidents will happen. That’s why our shelves have been

designed to handle spillages of up to three quarters of a

pint at least, without overflowing onto the area below.

Humidity control panel

The humidity control panel is found on most of our cool-

ing appliances. This clever piece of technology alters the

humidity of the vegetable compartment to optimise the

appearance and preservation of the food.

A place for everything

In some models, one of the

safety glass shelves can be divided.

So taller items can be stored in

the fridge. This is ideal for storing

wine bottles inside the fridge.

A handy bottle storage support is

also provided on some models in

the door, to prevent bottles from

rocking and tipping. It can hold up

to four 2-litre bottles.

Transparent design

The spacious robust freezer drawers keep temperature

loss to a minimum.

The drawers glide in and out easily, even when fully

loaded, and the safety stops prevent the drawers from

being accidentally pulled out. The freezer baskets have

transparent drawer fronts, which look attractive and

allow viewing of the contents without having to pull out

the drawer.

7372

Bottom Freezer

KG57DPI20M KG56NAI20M KG57NVL20M KF91NPJ10N KA80DA40MEKG57NSB20M

Main Features

fAutomatic defrost in freezer and

fridge section

fSeparate fridge and freezer control

fSupercool function with automatic

deactivation

fOptical and acoustic door open

warning system

fLCD electronic control

General Information

fHigh door, BlackGlass, side panels

Metallic chrome

fInterior with metal applications

fTwo Cooling Systems

Fridge Section

fMulti Airflow-System

fHydroFresh compartment

fBottle rack

f2 large door shelves

fLED interior light

Freezer Section

f2 freezer drawers

fFreezing calendar

f2 ice cube trays

Technical Information

fTotal capacity: 505 litres

fCapacity refrigeration zone: 385 litres

fFreezer capacity: 120 litres

fFreezing capacity: 10 kg in 24 hours

fStorage time in power failure:

20 hours

fClimate Class SN-T

fDimensions: H 185 cm x L 70 cm x

D 75 cm

fHeight adjustable front feet, roles in

the back

fConnection load 160 W

fRated Voltage 220 - 240 V

Main Features

fAutomatic defrost in freezer and

fridge section

fSeparate fridge and freezer control

fWater dispenser with canholders

fSupercool function with automatic

deactivation

fOptical and accoustic door open

warning system

fLCD electronic control

General Information

fHigh door, Camberred, Door Inox-

easyclean, side panels Metallic

chrome

fInterior with metal applications

fTwo Cooling Systems

Fridge Section

fMulti Airflow-System

fHydroFresh compartment

fBottle rack

f2 large door shelves

fLED interior light

Freezer Section

f2 freezer drawers

fFreezing calendar

f2 ice cube trays

Technical Information

fTotal capacity: 505 litres

fCapacity refrigeration zone: 385 litres

fFreezer capacity: 120 litres

fFreezing capacity: 10 kg in 24 hours

fStorage time in power failure:

20 hours

fClimate Class SN-T

fDimensions: H 185 cm x L 70 cm x

D 75 cm

fHeight adjustable front feet, roles in

the back

fConnection load 160 W

fRated Voltage 220 - 240 V

Main Features

fAutomatic defrost in freezer and

fridge section

fSeparate fridge and freezer control

fSuper cool function

fOptical and accoustic door open

warning system

fTwin LED electronic control

fDoor shutter and door stop, reversible

General Information

fHigh door, Cambered, Door Inox-

easyclean, side panels Metallic

chrome

fInterior with metal applications

fTwo Cooling Systems

Fridge Section

fMulti Airflow-System

fBottle rack

f2 large door shelves

fLED interior light

Freezer Section

f2 freezer drawers, incl. 1 Big Box

fFreezing calendar

f2 ice cube trays

Technical Information

fTotal capacity: 497 litres

fCapacity refrigeration zone: 328 litres

fFreezer capacity: 169 litres

fFreezing capacity: 10 kg in 24 hours

fStorage time in power failure:

20 hours

fClimate Class SN-T

fDimensions: H 185 cm x L 70 cm x

D 75 cm

fHeight adjustable front feet, roles in

the back

fConnection load 160 W

fRated Voltage 220 - 240 V

Main Features

fAutomatic defrost in freezer and

fridge section

fSeparate fridge and freezer control

fSuperfreez function

fLED electronic control for freezers

General Information

fHigh door, InoxLook, side panels

Metallic chrome

fInterior with metal applications

fTwo Cooling Systems

Fridge Section

fMulti Airflow-System

f2 vegetable compartments

fBottle rack

f2 large door shelves

Freezer Section

f2 freezer drawers

fFreezing calendar

f2 ice cube trays

Technical Information

fTotal capacity: 505 litres

fCapacity refrigeration zone: 385 litres

fFreezer capacity: 120 litres

fFreezing capacity: 10 kg in 24 hours

fStorage time in power failure:

20 hours

fClimate Class SN-T

fDimensions: H 185 cm x L 70 cm x

D 75 cm

fHeight adjustable front feet, roles in

the back

fConnection load 160 W

fRated Voltage 220 - 240 V

Main Features

fnoFrost

fIn-door ice and water dispenser:

Water, Crushed Ice, Ice Cubes, Quick

Ice, Water filter. Dispenser features:

Child Lock, LED-light, LCD-Display and

indicator for filter replacement

fIce cube output 1.9 kg / 24 h

fFrench Door Design

General Information

fIn-door LCD control

fSuper cool function

fAutomatic defrost in fridge section

fOptical and acoustic warning System

Fridge Section

fMulti Airflow-System

fChiller

f5 glass shelves, of which 3 are safety

glass and height adjustable

f2 adapted HydroFresh container

fSetting at 4 ° C for up to 2x longer

fresh in comparison to the fridge

section

fBig Chiller on Telescopic rails

fLED interior light

Freezer Section

fPantry compartment with addition

drawer on base with telescopic rails

and Divider in Freezer Compartment

fAutomatic ice cube maker

fLED Illumination

Technical Information

fEnergy Efficiency Class: A

kWh/Year: 595

fTotal capacity: 762 litres

fFridge section capacity: 512 litres

fFreezer capacity: 250 litres

fFreezing capacity: 9 kg in 24 hours

fStorage time in power failure: 22

Hours

fDimensions: H 178 cm x L 91 cm x

D 92 cm

fClimate Class SN-T

fConnection load 170 W

fRated Voltage 220 - 240 V

fFixed water connection with hose

3m, 3/4”

fHeight adjustable front feet, roles in

the back

Main Features

fnoFrost

f7 segment electronic control

fSeparate digital electronic

temperature control for fridge and

freezer section; Display control for

temperature, water filter and key on

the door

fIlluminated water and ice / crushed

ice dispenser

fHomebar

f

General Information

fSoftline-Design , Inox-look

fDoor open warning tone for fridge

and freezer section

Fridge Section

f3 safety glass shelves of which 2

are height adjustable, incl. one

extendable shelf

fActive cooling via integrated fan

fMulti Airflow-System

fTemperature controlled drawer for

fish and meat

fBox for meat or dried herbs

fDairy compartment

fLED illumination

Freezer Section

f3 plastic shelf

f2 transparent freezer drawers

f4 Door bin

fAutomatic ice cube maker

fLED freezer light

Technical Information

fEnergy Efficiency Class: A

fTotal capacity: 764 litres

fFridge section capacity: 474 litres

fFreezer capacity: 290 litres

fFreezing capacity: 10 kg in 24 hours

fStorage time in power failure: 5

Hours

fDimensions: H 182 cm x L 93 cm x

D 91 cm

fClimate Class T

fConnection load 300 W

fRated Voltage 220 - 240 V

f7.0 m food grade hose with

connecting nut

fHeight adjustable front feet, roles in

V the back

Side by SideFrench Door

KA58NA70NEKA60NA40NE

Main Features

fDoor Stainless steel, side panels Grey

fIlluminated water and ice / crushed

ice dispenser

fDoor open warning tone for fridge

and freezer section

General Information

fSoftline-Design , Inox-easyclean

fDoor open warning tone for fridge

and freezer section

Fridge Section

f3 safety glass shelves of which 2

are height adjustable, incl. one

extendable shelf

fActive cooling via integrated fan

fMulti Airflow-System

fBox for meat or dried herbs

fDairy compartment

f2x25 Watt

Freezer Section

f3 plastic shelf

f2 transparent freezer drawers

f4 Door bin

fAutomatic ice cube maker

fFreezer light

Technical Information

fEnergy Efficiency Class: A

kWh/Year: 590

fTotal capacity: 604 litres

fFridge section capacity: 377 litres

fFreezer capacity: 227 litres

fFreezing capacity: 10 kg in 24 hours

fStorage time in power failure: 5

Hours

fDimensions: H 180 cm x L 90 cm x

D 79 cm

fClimate Class SN-T

fConnection load 300 W

fRated Voltage 220 - 240 V

f7.0 m food grade hose with

connecting nut

fHeight adjustable front feet, roles in

the back

Main Features

fnoFrost

f7 segment electronic control

fSeparate digital electronic

temperature control for fridge and

freezer section; Display control for

temperature, water filter and key on

the door

fIlluminated water and ice / crushed

ice dispenser

fHomebar

General Information

fSoftline-Design , Inox-look

fDoor open warning tone for fridge

and freezer section

Fridge Section

f3 safety glass shelves of which 2

are height adjustable, incl. one

extendable shelf

fActive cooling via integrated fan

fMulti Airflow-System

fBox for meat or dried herbs

fDairy compartment

f2x25 Watt

Freezer Section

f3 plastic shelf

f2 transparent freezer drawers

f4 Door bin

fAutomatic ice cube maker

fFreezer light

Technical Information

fEnergy Efficiency Class: NO_FEATURE

kWh/Year: 590

fTotal capacity: 604 litres

fFridge section capacity: 377 litres

fFreezer capacity: 227 litres

fFreezing capacity: 10 kg in 24 hours

fStorage time in power failure: 5

Hours

fDimensions: H 180 cm x L 90 cm x

D 79 cm

fClimate Class T

fConnection load 300 W

fRated Voltage 220 - 240 V

f7.0 m food grade hose with

connecting nut

fHeight adjustable front feet, roles in

the back

fBottom freezer

fStainless steel

fWater dispenser

fBottom freezer,

fBlack glassdoor

fBottom freezer,

fStainless steel

fBottom freezer,

fInoxLook

fFrench door

fStainless steel

fSide-bySide

fInox-look

fSide-bySide

fInox-look

fSide-bySide

fStainless steel easyclean

Frost free

fresh

Protectbox

easyLift

Frost free

fresh

Protectbox

Frost free

Frost free

separate

control

Frost free

bottleRack

2 cooling

s

y

stems

separate

control

Frost free

bottleRack

2 cooling

s

y

stems

separate

control

Frost free

bottleRack

2 cooling

s

y

stems

7574

Side by Side / Fridges and Freezers Fridges and Freezers / Built-in Cooling

KS38RA92ME

Main Features

f7 segment electronic control

fSuper cool function

fActive cooling via integrated fan

fEasy access door handle

fSoftline-Design, Cambered, Inox-

easyclean

fInterior with metal applications

fAutomatic defrost in fridge section

General Information

f7 safety glass shelves of which 5 are

height adjustable

fOther (Meat box, dried herbs)

fBottle rack

fVegetable container with humidity

control

f2 dairy compartments

f5 large door shelves

fLED interior light

f2 x egg tray, 1 x connection set

Technical Information

fTotal capacity: 357 litres

fDimensions: H 185 cm x L 60 cm x

D 65 cm

fHeight adjustable front feet, roles in

the back

fClimate Class SN-T

fConnection load 90 W

fRated Voltage 220 - 240 V

fUpright freezer 1-door

fStainless steel easyclean

fUpright fridge 1-door

fStainless steel easyclean

fUpright freezer 1-door

fWhite

GS32NA95ME

Main Features

fEnergy Efficiency Class: A+

fnoFrost

fVertical bar handle

fEasy opening with Air Channel

System

f7 segment electronic control

fHigh door, Softline-Design,

Cambered, Stainless steel

fMulti-Alarm-System with memory

function and “Door open” warning

tone

General Information

fDoor opening aid

fAutomatic

f5 freezer drawers, incl. 1 Big Box

fFreezing calendar

fIce cube tray

fLED Illumination

Technical Information

fFreezer capacity: 276 litres

fFreezing capacity: 20 kg in 24 hours

fStorage time in power failure: 24

Hours

fClimate Class SN-T

fHeight adjustable front feet, roles in

the back

fDimensions: H 185 cm x L 60 cm x

D 65 cm

fRated Voltage 220 - 240 V

fConnection load 90 W

Main Features

f7 segment electronic control

fSuper cool function

fActive cooling via integrated fan

fEasy access door handle

fSoftline-Design, Cambered, White

fInterior with metal applications

fAutomatic defrost in fridge section

General Information

f7 safety glass shelves of which 5 are

height adjustable

fOther (Meat box, dried herbs)

fBottle rack

fVegetable container with humidity

control

f2 dairy compartments

f5 large door shelves

fLED interior light

f2 x egg tray

Technical Information

fTotal capacity: 357 litres

fClimate Class T

fDimensions: H 185 cm x L 60 cm x

D 65 cm

fHeight adjustable front feet, roles in

the back

fRated Voltage 220 - 240 V

fConnection load 90 W

KS38RA01ME

Main Features

fnoFrost

fvertical bar handle

feasy opening with Air Channel

System

f7 segment electronic control

fMulti-Alarm-System with memory

function and “Door open” warning

tone

General Information

fHigh door, Softline-Design,

Cambered, White

fDoor opening aid

fAutomatic

f5 freezer drawers, incl. 1 Big Box

fFreezing calendar

fIce cube tray

fLED Illumination

Technical Information

fFreezer capacity: 276 litres

fFreezing capacity: 20 kg in 24 hours

fStorage time in power failure: 24

Hours

fClimate Class T

fDimensions: H 185 cm x L 60 cm x

D 65 cm

fHeight adjustable front feet, roles in

the back

fRated Voltage 220 - 240 V

fConnection load 90 W

GS32NA23ME KI32NA50GB

Main Features

fEnergy Efficiency Class: A+

kWh/Year: 300

fNoFrost

fFully integrated

fTwo Cooling Systems

fAutomatic defrost in freezer and

fridge section Separate fridge and

freezer control

fActive cooling via integrated fan

fFreezer-door open alarm

fAktiv Warning System

Comfort and Safeness

f4 safety glass shelves of which 3 are

height adjustable

fPull out drawer

fInterior with metal applications

f2 vegetable containers with humidity

control

f1x25W fridge light

Freezer Section

f4 transparent freezer drawers

fFreezing calendar

Technical Information

fTotal capacity: 262 litres

fFridge section net: 147 litres

fFreezing capacity: 7 kg in 24 hours

fStorage time in power failure: 22

Hours

fDoor right hinged, reversible

fClimate Class SN-T

fNiche Dimension H x W x D: 177.5 cm

x 56.2 cm x 55 cm

fDimensions: H 177.2 cm x L 53.8 cm

x D 53.3 cm

f2 x cold accumulator, 1 x butter dish,

1 x egg tray, 1 x ice cube tray

fRated Voltage 220 - 240 V

fConnection load 120 W

fBuilt-in fridge freezer, bottom freezer

fIntegrated, Flat hinge

Main Features

fEnergy Efficiency Class: A+

fEasy clean interior

General Information

fFully integrat. with special

hinged door

f1 compressor/1 cold circuit

fAutomatic defrost in fridge section

Fridge Section

f5 safety glass shelves of which 4 are

height adjustable

fVegetable container with wavy

bottom

f5 large door shelves

f1 fridge light

Freezer Section

f3 transparent freezer drawers

Technical Information

fEnergy Efficiency Class: A+

kWh/Year: 276

fTotal capacity: 294 litres

fFreezing capacity: 3 kg in 24 hours

fStorage time in power failure: 13

Hours

fClimate Class ST

fDimensions: H 177.2 cm x L 54.1 cm

x D 54.5 cm

fNiche Dimension H x W x D: 177.5 cm

x 56.2 cm x 55 cm

fRated Voltage 220 - 240 V

fConnection load 90 W

KI38VV20GB

fBuilt-in fridge freezer, bottom freezer

fIntegrated, Sliding hinge

fBuilt-in fridge

fIntegrated, Flat hinge

KI24RA50GB

Main Features

fEnergy Efficiency Class: A+

fEasy clean interior

fElectronic control

fAutomatic defrost in fridge section

Fridge Section

f6 safety glass shelves of which 5 are

height adjustable

fVegetable container with wavy

bottom

f4 large door shelves

f1 fridge light

Technical Information

fTotal capacity: 227 litres

fCapacity refrigeration zone: 227 litres

fDoor right hinged, reversible

fClimate Class SN-ST

fNiche Dimension H x W x D:

122.5 cm x 56 cm x 55 cm

fDimensions: H 122.1 cm x L 54.1 cm

x D 54.2 cm

fConnection load 90 W

separate

control

Frost free

easyLift

2 cooling

s

y

stems

bottleRack

Frost free

Frost free

bottleRack

KA56NV40NE

Main Features

fnoFrost

fLED electronic control

General Information

fSoftline-Design , Inox-look

fDoor open warning tone for fridge

and freezer section

Fridge Section

f4 safety glass shelves of which 3

are height adjustable, incl. one

extendable shelf

fActive cooling via integrated fan

fMulti Airflow-System

fVegetable container, 2 vegetable

containers

fDairy compartment

f2x25 Watt

Freezer Section

f4 plastic shelf

f2 transparent freezer drawers

f5 door bin

f2 ice cube trays

fFreezer light

Technical Information

fEnergy Efficiency Class: A

kWh/Year: 590

fTotal capacity: 618 litres

fFridge section capacity: 377 litres

fFreezer capacity: 241 litres

fFreezing capacity: 10 kg in 24 hours

fStorage time in power failure: 5

Hours

fDimensions: H 180 cm x L 90 cm x D

67.45 cm

fClimate Class SN-T

fConnection load 300 W

fRated Voltage 220 - 240 V

f7.0 m food grade hose with

connecting nut

fHeight adjustable front feet, roles in

the back

fSide-bySide

fInox-look

Frost free

fUpright freezer 1-door

fWhite

7776

KU15LA60GB

KI38VV20GB

545

1089

592

557

1772

541

674

min.

550

min. 50

1176+Ü

(max.)

592+A

(min.)

670+A

(max.) 1098+Ü

(min.)

Ü

4 4

Ü

A A

1772

+8

1772

+8

min.

560

Ventilation space

in the base

min. 200cm2

A

i

r outlet

min. 200cm2

Front panel overhang

Lower edge of

front panel

The given measurements are for a door

gap of 4mm. If using a different width of

gap (max. 14mm) the measurements must

be adjusted when planning the kitchen.

KI24RA50GB

min. 50

min.

550

1221

542

min.

560

Air outlet min. 200cm2

1221

541

+7

Ventilation space

in the base

min. 200cm2

KI32NA50GB

min.

550

min. 50

533 538

861

904

875

868

893+O

(max.)

875+D

(min.)

904+D

(max.) 868+O

(min.)

O

44

OFront panel overhang

Lower edge of

front panel

DD

1772

1771,5

+8

1772+8

min.

560

Ventilation space

in the base

min. 200cm2

Air outlet

min. 200cm2

For recesses with larger

dimensions (1780-1790),

a spacing strip must be

fitted to the recess ceiling.

The specifiied unit door

dimensions are valid

for a door gap of 4mm.

If a different gap width

is used (max. 14mm),

the dimensions must

be adjusted.

17

*Variable base/

structure height

Space for electrical

connection next to the

appliance on the left or

right hand-side.

Ventilation in the base.

100

150*

170

220*

818

868*

548

598

600

min.

550

820

870*

600

580

100/150*

100/150*

30-85

170/220*

Technical Drawings

Cooling

Built-in Refrigerators

Build-under Refrigerator

Built-in Cooling

KU15LA60GB

Main Features

fEnergy Efficiency Class: A++

f0.381 kwh/24 h energy consumption

fSoft Close Door

fHeight adjustable feet in the front

Comfort and Safeness

fMechanical control

fAutomatic defrost in fridge section

f1 compressor/1 cold circuit

Fridge Section

f2 safety glass shelves of which 2 are

height adjustable

fBig pull out tray

fVegetable container with lid

fDairy compartment

f1 door shelf large, 2 door shelf small

fBottle holder in x-deep door tray

f1x25 Watt Daylight

f1x25 Watt Daylight in fridge section

Freezer Section

fIce cube tray

Technical Information

fEnergy Efficiency Class: A++

kWh/Year: 140

fTotal net capacity: 125 litres

fNet capacity refrigeration zone: 110

litres

f4 star freezer section 15 litres

fFreezing capacity: 2 kg in 24 hours

fStorage time in power failure: 12

Hours

fDoor right hinged, reversible

fClimate Class SN-ST

fNiche Dimension (HxWxD): 82.0 cm x

60.0 cm x 55.0 cm

fDimensions ( H x W x D): 82.0 cm x

59.8 cm x 54.8 cm

fConnected load 90 W

fRated Voltage 220 - 240 V

Accessories

f1 x egg tray, 1 x ice cube tray

fBuild under refrigerator

fFlat hinge

Dishwashing

Intoducing our new brand range of dishwashers that work in

complete harmony. Good looking on their own and fabulous

together, they’re not labelled for nothing!

We’re always looking for ways to improve our dishwashers. And now, thanks to a Zeolith-based technological

breakthrough, our new machines return an astonishingly energy efficient 0.73 kWh.

All of our dishwashers offer excellent time and energy savings alongside complete flexibility and versatility.

They also come fully equipped with an assortment of inventive, stylish and easy-to-use functions.

One of the major driving forces behind the creation of Siemens’ brand new range was to offer the customer

the ability to achieve seamless design co-ordination between appliances. So the range comes in four distinct

variants that covers almost every kitchen appliance we make - with all the pieces designed to combine effortlessly

with each other.

Dishwashing

Introducing speedMatic

dishwashers from Siemens. Easy Hygiene

We know you won’t settle for less. When we talk about hygiene, we mean temperatures so

high germs won’t survive them. And with such sparkling solutions at the touch of a button,

there’s really no need to get any of that greasy stuff on your hands.

Facts:

fWater is heated up to 75º Celsius for optimum results

Reduced energy, significant savings

You’ll definitely feel good about this. Contrary to what many think, our dishwashers use

significantly less water per wash than one would use to stand over a sink and do dishes. What

does this mean? You now need less water to be heated for each wash. That’s less water, less

energy, more utility bill savings. Wow!

Facts:

fSaves 30 litres per wash

Efficient on time

Apart from soaking in suds, churning elbow grease and boring yourself silly, washing dishes can

prove to be significantly time consuming. With a Siemens dishwasher, take a load off your sink,

and off your mind, with wash cycles that get the job done effectively and very, very efficiently.

Facts:

fSave and average of 12 days a year in washing time

Effortless usability

Peace of mind in the kitchen is an unprecedented luxury. And with an abundance of dish

cleaning programs at the touch of a button, it’s a luxury you can now afford. Just press for

peace of mind.

Facts:

fVarious auto programmes

Conveniently organized

When you decide to cook up a storm, your kitchen leaves behind a rubble of cutlery, utensils and

dishes. Lucky for you, our dishwashers have a well-appointed place for it all. All you need to do

is pile up your mess in an orderly manner.

Facts:

fOrganise every load with RackMatic and VarioFlex Plus basket system

81

8382

Faster drying and lower energy consumption. Naturally.

Siemens engineers have always worked hard to make our machines just that little bit better, and as a result we have achieved a

worldwide reputation for the highest standards of technology and performance.

This time, however, the breakthrough is down to nature not nurture.

1. Drying phase

Zeolith® absorbs moisture

and converts it to heat

energy.

2. Cleaning phase

As the mineral is heated

during the cleaning cycle,

it is recharged and ready

to absorb moisture once

more. Shine and Dry: add an extra sparkle to your glassware at the touch of the button

Shine and Dry is a unique new energy-efficient function that produces table ready, gleaming glassware by

harnessing the power of Zeolith®. This special drying cycle gently brings out a streak-free shine in most

delicate glassware and tableware. And it doesn’t only benefit your glass and tableware, Shine and Dry also

means extra dry, stain free plastics, pots and pans.

Shine & Dry

B

e

s

t

i

n

e

n

e

r

g

y

I

d

e

a

s

f

o

r

g

r

e

a

t

e

r

e

f

f

i

c

i

e

n

c

y

Washing Drying

Siemens dishwashers with Zeolith® set the standard

for energy efficiency.

Our new super-efficient drying technology makes use of Zeolith®, a class

of naturally occurring minerals with the astonishing ability to absorb water

molecules and then release them as energy. The results? Very dry dishes –

even plastic ware – in less time, and using less energy.

Zeolith®

drying Siemens dishwashers with Zeolith® are the most energy efficient you can buy

Zeolith® science combined with our smart energy-saving hydroDry technology help make our premium dishwashers

the most energy efficient you can buy, giving great A-rated wash results, and really dry dishes, yet consuming as little

as 0.73 kWh* per cycle. And with a standby energy consumption of nil, they can save you money even when they are

doing nothing!

*Based on: Economy 50ºC

standard programme

And these unique abilities don’t wear off

The mineral is stored safely in the depths of the dishwasher, and

keeps working for the entire lifetime of the machine.

8584

Half load

12

iQDrive

Innovative friction-free, brushless magnet technology

means that wear and tear on the iQDrive motor is virtu-

ally non-existent. So whether you’re using the eco setting,

or intensive programme, the high performance motor will

give you cleaning results just as perfect and energy effi-

cient as the first time you use it, wash after wash.

Extremely

quiet

intensiveZone

Automatic

programme

Tried and tested to last 10 years.

All our dishwashers are fully tested during production for safety, function and noise. A

percentage of dishwashers are selected and kept continuously on test in our factory for 24 hours

a day on the 50ºC programme for up to 2,200 washes – that’s the equivalent of 10 years’ usage.

So you can be confident that your new Siemens dishwasher is not only built to last, but will

continue to do its job perfectly for many years to come. More so, a 10-year warranty is included

against rust-through of the dishwasher’s inner tub.

Faster by design

More and more dishwasher owners are demanding clean dishes but in less time. Because of this we have

introduced varioSpeed to our range of built-in dishwashers that will save up to 50% of wash time. Just press

the varioSpeed button in conjunction with your desired programme and it will run in half the time without

compromising on quality. That’s clean and dry in half the time.

Intensive Zone

To save you the chore of scrubbing heavily

soiled pots and pans, the entire bottom

basket can be transformed into a power

cleaning zone with increased spray pressure

and a higher cleaning temperature, while in

the top basket delicate glasses and dishes are

rinsed gently and protectively.

Auto daily programme: for perfect results every time

With the auto daily programme, the

hydroSensor monitors the cleanliness and

volume of the water and keeps it between

the ideal temperatures of 45ºC and 65ºC for

perfect cleaning, while using as little water

and energy as possible.

Sound engineered

Extensive sound research is carried out in

a special laboratory to identify noise levels, their

acceptability to the ‘ear’ and the impression

they make. This research is then applied to all

Siemens dishwashers to reduce noise levels by

thorough sound reducing materials, extensive insulation

and quality components. This means it is quiet enough

to use whilst you are still entertaining.

Half load

No need to wait for a full load. The half load

option does what it says; washing half

a load with no restrictions of where to stack

your dishes, plus it saves up to 20% in water

and 10% in energy whilst maintaining an ‘A’

rated wash performance. Perfect for smaller

households or when you are in a hurry.

8786

loadSensor

The loadSensor notices the slightest change in the amount of water running through the machine. Any perceived loss in

water (due to putting a cup in the wrong way round, for instance) and the sensor compensates, ensuring that the optimal

amount of water is being used at any one time. Even better, because the loadSensor makes sure that the pump always

operates at exactly the right speed for the volume of water, no air is sucked in and the pump operates quietly.

Siemens dishwashers with loadSensor run with very little noise at all.

Energy and water savings that are second to none. The Eco2 Dishwasher from Siemens.

Thanks to Zeolith drying technology and the water storage tank, the new Eco2 Dishwasher consumes a modest

7 litres of water and 0.73 kWh in energy per cycle - a world record in dishwasher efficiency. The water storage

tank stores water from your final rinse for reuse in the next wash cycle, while Zeolith absorbs humidity and

guarantees fast and efficient drying. And of course, you can always expect brilliant results from our Water

Saving World Champion.

Zeolith

®

drying

Three plus filter system

Our easy-to-remove and clean filter system comes

in three parts: a fine micro-filter, fine filter and

coarse filter.

With 50% more surface area between them, they allow

up to 15% more water to circulate through the system.

These extra 12 litres have the cleaning power of over 50

baths of water.

How much extra can we pack in? Introducing the varioDrawer.

The varioDrawer is an additional loading level that offers a great deal more flexibility. Unlike most ordinary

cutlery drawers, its specially designed shape provides room for not only cutlery, but also soup ladles, salad

servers and small delicate items like espresso cups. Even better, as you no longer need a cutlery basket on

the lower rack, it means you can now load up to 14 place settings with a Siemens dishwasher that has a

varioDrawer.

varioDrawer

Gentle when it matters and powerful where you need it.

Welcome to the intensiveZone.

How do you clean heavily soiled saucepans and fragile glasses at the same time? Until we invented the

intensiveZone option, you didn’t. Whatever programme you’ve selected, with intensiveZone the items in

the lower rack are subjected to 20% more spray pressure at a higher temperature (which is great for burnt

on food and stubborn stains). Whilst on the upper rack, the programme you have selected stays unaffected

and delicate items like long stemmed wine glasses are washed gently and carefully.

intensiveZone

rackMatic

rack™

The height of the top basket can be adjusted to 3

different levels, at spaces of 2.5 cm and

5 cm, which offers flexible loading of

different types and sizes of plates, glasses

and other dishes, even when fully loaded.

Nothing can bring out the full power of the detergent like

dosageAssist.

These days, tabs are the most commonly used form of detergents for dishwashers. But because most dishwashers have been

designed to make the best use of powders, gels or liquids, tabs tend to fall straight into the main body of the washer and so

can’t work at their most effective. This has all changed with the creation of our unique dosageAssist idea. The tab falls from

the detergent chamber into a small catch pan at the front of the upper basket. Once it’s inside, a precisely aimed jet of water

dissolves it and then helps distribute it evenly around the entire machine for the best dishwashing results every time. And of

course, dosageAssist works just as well with powders, gels or liquid detergents.

varioFlexPlus

varioFlex Plus basket system. Maximum flexibility for your pots and pans, dishes, glasses and cutlery.

varioFlex Plus is an innovative and premium racking system that offers remarkably new levels of comfort

and flexibility when loading the upper and lower baskets. A superb glass rack design, it lets you stack up to

12 wine glasses in the lower basket and up to 6 on the upper. What’s more, up to 6 rows of prongs can be

folded in both the upper and lower baskets to make extra room for pots and pans. And since the depth of the

baskets has been increased by 4 cm, there is now room for 13 rather than 12 place settings. Combine this

with the varioDrawer models, and you can achieve 14 place settings.

8988

V V

Child lock

Most Siemens dishwashers include a

child lock that prevents children from

opening the door.

Child lock

Water

Whisper

quiet

Hygiene option

If you’re concerned about germs and bacteria,

this option is ideal. During the final rinse, the

water temperature will be raised (depending on

the chosen programme) as high as 70°C and kept

there for an extra long period.

It offers hygiene performance in

accordance with the US sanitation

standard NSF and the German

standard for professional sanitation. Hygiene

hydroSafe

aquaStop

Freestanding Dishwasher

Main Features

f6 programmes: Auto 65-75°C, Auto

45-65°C,

fAuto 35-45°C, Economy 50°C, Quick

Wash 45°C, Pre Rinse

f4 special options: Shine & Dry,

intensiveZone, varioSpeed, Sanitation

fConsumption in programme Economy

50: 1970 litres water per year / 195 kwh

energy per year. Based on 280 standard

cleaning cycles using cold water fill

and the consumption of the low power

modes.

fProgramme time in programme

Economy 50: 175 min

fNoise level: 44 dB (re 1 pW), built-under

fCapacity: 12+1 place settings place

settings

General information

fEnergy Efficiency Class: A+++

fspeedMatic hydraulic system

fAqua-Sensor, Load Sensor

fDetergent Automation

fHeat exchanger

fAlternating spray technique

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fLED colour on indicators Amber

fVarioFlexPlus basket system

fSilver XXL baskets with pullout handle

frackMatic height-adjustable top basket

(3 stage)

f6 foldable plate racks in top basket

f6 foldable plate racks in bottom basket

faquaStop with guarantee

fChildproof door lock

fServo lock for effortless door closing

fGlass care protection system

Technical information

fDimensions of the product (HxWxD):

84.5 x 60 x 60 cm

fBLDC motor for heat and drain pump

SN26M295GC

Main Features

f6 programmes: Intensive 70°C, Auto

45-65°C,

fEconomy 50°C, Delicate 40°C, Quick

Wash 45°C, Pre Rinse

f4 special options: intensiveZone,

varioSpeed, Half Load, extraDry

fConsumption in programme Economy

50: 2800 litres water per year / 266

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 175 min

fNoise level: 42 dB (re 1 pW), built-

under

fCapacity: 14 place settings place

settings

General information

fEnergy Efficiency class: A Wash

Performance class: A Drying class: A

fEnergy consumption when connected

to hot water in programme Economy

50: 0.7 kwh

fspeedMatic hydraulic system

fAqua-Sensor, Load Sensor

fDetergent Automation

fHeat exchanger

fAlternating spray technique

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fProgramme flow display

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fLED colour on indicators Amber

fVarioFlexPlus basket system

fSilver XXL baskets with pullout

handle

frackMatic height-adjustable top

basket (3 stage)

f6 foldable plate racks in top basket

f6 foldable plate racks in bottom

basket

f2 x foldable cup shelves

f2 shelves in bottom basket

fGlass rack one-piece

faquaStop with guarantee

fChildproof door lock

fChildproof control lock

fServo lock for effortless door closing

fGlass care protection system

Technical Information

fDimensions of the product (HxWxD):

84.5 x 60 x 60 cm

fBLDC motor for heat and drain pump

aquaStop

Automatic

programme

varioFlexPlus

intensiveZone

varioDrawer

Automatic

Detergent

aquaStop

It’s comforting to know that most

Siemens washing machines are

guaranteed to be 100% leak proof.

If ever a leak occurs, the sensor shuts

down the machine immediately.

fExtraklasse made in Germany

fspeedMatic 60 cm dishwasher

fFreestanding - White

SN26M895GC

Main Features

f6 programmes: Intensive 70°C, Auto

45-65°C,

fEconomy 50°C, Delicate 40°C, Quick

Wash 45°C, Pre Rinse

f4 special options: intensiveZone,

varioSpeed, Half Load, extraDry

fConsumption in programme Economy

50: 2800 litres water per year / 266

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 175 min

fNoise level: 42 dB (re 1 pW),

built-under

fCapacity: 14 place settings place

settings

General information

fEnergy Efficiency Class: A++

fEnergy Efficiency class: A Wash

Performance class: A Drying class: A

f5 cleaning temperatures

fspeedMatic hydraulic system

fAqua-Sensor, Load Sensor

fDetergent Automation

fHeat exchanger

fSelf-cleaning filter system with 3-fold

corrugated filter

fAlternating spray technique

fProgramme flow display

fTime remaining indicator front

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fLED colour on indicators Amber

fVarioFlexPlus basket system

fSilver XXL baskets with pullout

handle

frackMatic height-adjustable top

basket (3 stage)

f6 foldable plate racks in top basket

f6 foldable plate racks in bottom

basket

f2 x foldable cup shelves

f2 shelves in bottom basket

fGlass rack one-piece

faquaStop with guarantee

fChildproof door lock

fChildproof control lock

fServo lock for effortless door closing

fGlass care protection system

Technical Information

fDimensions of the product (HxWxD):

84.5 x 60 x 60 cm

fBLDC motor for heat and drain pump

fExtraklasse made in Germany

fspeedMatic 60 cm dishwasher

fFreestanding - silver inox

fExtraklasse made in Germany

fspeedMatic 60 cm dishwasher

fFreestanding - silver inox

dosageAssist

a

SN26M837GC

Main Features

f6 programmes: Intensive 70°C, Auto

45-65°C,

fEconomy 50°C, Delicate 40°C, Quick

Wash 45°C, Pre Rinse

fSpecial option: varioSpeed, Half Load

fConsumption in programme Economy

50: 2800 litres water per year / 262

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 175 min

fNoise level: 46 dB (re 1 pW), built-

under

fCapacity: 12+1 place settings place

settings

General information

fEnergy Efficiency class: A Wash

Performance class: A Drying class: A

fEnergy Efficiency Class: A++

f5 cleaning temperatures

fspeedMatic hydraulic system

fAqua-Sensor, Load Sensor

fDetergent Automation

fHeat exchanger

fAlternating spray technique

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fLED colour on indicators Amber

fvarioFlex basket system

fSilver XXL baskets with pullout

handle

frackMatic height-adjustable top

basket (3 stage)

f2 foldable plate racks in top basket

f4 foldable plate racks in bottom

basket

fCutlery rack in top basket

fVariable cutlery basket in bottom

basket

faquaStop with guarantee

fChildproof door lock

fChildproof control lock

fServo lock for effortless door closing

fGlass care protection system

Technical Information

fDimensions of the product (HxWxD):

84.5 x 60 x 60 cm

fBLDC motor for heat and drain pump

fStainless steel

aquaStop

Automatic

programme

varioFlexPlus

fMade in Germany

fspeedMatic 60 cm dishwasher

fFreestanding - silver inox

intensiveZone

varioDrawer

aquaStop

Automatic

programme

V V

varioFlexPlus

Automatic

Detergent

SN26U893EU

Zeolith®

drying

varioFlexPlus

intensiveZone

Hygiene

emotionLight

Automatic

programme

hydroSafe Fingerprint

free

varioDrawer

Automatic

Detergent

‘A’ energy, wash and dry performance

All dishwashers have to display

an energy efficiency label. The

aim of this is to offer consumers a

standardised method of choosing the

most energy efficient appliances. All Siemens

dishwashers are rated ‘A’ for washing and

drying performance, and an outstanding A-30%

for energy performance.

Low water consumption

At Siemens we are constantly developing our dishwashers to

reduce water consumption. That’s why most of our dishwashers

can consume as little as 7 litres of water, compared to

up to 60 litres if you wash up the same load by hand.

The energy required to heat that amount of water from

15°C to 50°C is around 4 kWh. A Siemens dishwasher

uses only 0.73 kWh on an eco 50°C wash programme.

Hydraulic pump

Thanks to an innovative new pump design, which uses

the science of hydraulics, some of our new dishwashers

now operate at a noise level of no more than 41dB,

which is actually quieter than a whisper.

Automatic

Detergent

9190

Freestanding Dishwasher / Built-in Dishwasher

dosageAssist

a

aquaStop

a

Automatic

Detergent

Main Features

f5 programmes: Intensive 70°C, Auto

45-65°C, Economy 50°C, Delicate

40°C, Quick Wash 45°C

fSpecial option: varioSpeed, Half Load

fConsumption in programme Economy

50: 2800 litres water per year / 262

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 175 min

fNoise level: 46 dB (re 1 pW),

built-under

fCapacity: 12+1 place settings place

settings

General information

fEnergy Efficiency class: A

Wash Performance class: A

Drying class: A

fEnergy consumption when connected

to hot water in programme Economy

50: 0.7 kwh

f5 cleaning temperatures

fspeedMatic hydraulic system

fAqua-Sensor, Load Sensor

fDetergent Automation

fHeat exchanger

fAlternating spray technique

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fLED colour on indicators Amber

fvarioFlex basket system

fSilver XXL baskets with pullout

handle

frackMatic height-adjustable top

basket (3 stage)

f2 foldable plate racks in top basket

f4 foldable plate racks in bottom

basket

fCutlery rack in top basket

fVariable cutlery basket in bottom

basket

f2 x cup shelves

faquaStop with guarantee

fChildproof door lock

fChildproof control lock

fServo lock for effortless door closing

fGlass care protection system

fTechnical Information

fDimensions of the product (HxWxD):

84.5 x 60 x 60 cm

fBLDC motor for heat and drain pump

Main Features

f4 programmes: Intensive 70°C,

Economy 50°C, Quick Wash 45°C, Pre

Rinse 0°C

f1 special options: Half Load

fConsumption in programme Economy

50: 3920 litres water per year / 290

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 195 min

fNoise level: 52 dB (re 1 pW)

f12 place settings place settings

General information

fEnergy Efficiency Class: A+

fPush button top controls

fSpeedMatic hydraulic system

fCutlery basket in bottom basket

fLoad Sensor

fDosageAssist

fDetergent Automation

fSelf-cleaning filter system with 3-fold

corrugated filter

fLED salt refill indicator

fLED rinse aid refill indicator

fLED colour on indicators red/-

fServo lock for effortless door closing

fGlass care protection system

Technical Information

fDimensions of the product (HxWxD):

81.5 x 59.8 x 55 cm

fBLDC motor for heat and drain pump

SN25M237GC SN64E003TR

Automatic

programme

varioFlexPlus

aquaStop

fMade in Germany

fSpeedMatic 60 cm dishwasher

fFreestanding - White

SN25E209GC SN64E005EU

Main Features

f5 programmes: Intensive 70°C, Auto

45-65°C, Economy 50°C, Delicate

40°C, Quick Wash 45°C

fSpecial option: varioSpeed, Half Load

fConsumption in programme Economy

50: 3360 litres water per year / 294

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 175 min

fNoise level: 48 dB (re 1 pW), built-

under

fCapacity: 12+1 place settings place

settings

General information

fEnergy Efficiency Class: A+

fEnergy Efficiency class: A Wash

Performance class: A Drying class: A

fEnergy consumption when connected

to hot water in programme Economy

50: 0.7 kwh

f5 cleaning temperatures

fspeedMatic hydraulic system

fDosageAssist

fAqua-Sensor, Load Sensor

fDetergent Automation

fAlternating spray technique

fRegenerative electronics

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fLED colour on indicators Amber

fvario basket system

fLightSilver XXL baskets

fHeight adjustable top basket

f2 foldable plate racks in bottom

basket

fCutlery rack in top basket

fCutlery basket in bottom basket

f2 x cup shelves

faquaStop with guarantee

fServo lock for effortless door closing

fGlass care protection system

Technical Information

fDimensions of the product (HxWxD):

84.5 x 60 x 60 cm

fBLDC motor for heat and drain pump

Main Features

f4 programmes: Intensive 70°C,

Normal 65°C, Economy 50°C, Quick

Wash 45°C

f1 special options: Half Load

fConsumption in programme Economy

50: 3360 litres water per year / 294

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 175 min

fNoise level: 48 dB (re 1 pW)

fCapacity: 12+1 place settings place

settings

General information

fEnergy Efficiency Class: A+

fSpeedMatic hydraulic system

fLoad Sensor

fDetergent Automation

fAlternating spray technique

fSelf-cleaning filter system with 3-fold

corrugated filter

f3, 6, 9-hour automatic timer

fLED salt refill indicator

fLED rinse aid refill indicator

fLED colour on indicators red/-

fVario basket system

fLightSilver XXL baskets

fHeight adjustable top basket

f2 foldable plate racks in top basket

f2 foldable plate racks in bottom

basket

faquaStop with guarantee

fServo lock for effortless door closing

fGlass care protection system

Technical Information

fDimensions of the product (HxWxD):

81.5 x 59.8 x 55 cm

fBLDC motor for heat and drain pump

Automatic

programme

varioFlexPlus

aquaStop

12 L

dosageAssist

Automatic

Detergent

fMade in Germany

fSpeedMatic 60 cm dishwasher

fFreestanding - White

SN56U592EU

Main Features

f6 programmes: Auto 65-75°C, Auto

45-65°C,

fAuto 35-45°C, Economy 50°C, Quick

Wash 45°C, Pre Rinse

f4 special options: Shine & Dry,

intensiveZone, varioSpeed, Sanitation

fEnergy consumption in programme

Economy 50: 218 kwhper year,

based on 280 standard cleaning

cycles using cold water fill and the

consumption of the low power

modes. Actual energy consumption

will depend on how the appliance

is used.

fEnergy consumption in programme

Economy 50: 0.76 kwh

fWater consumption in programme

Economy 50: 2800 litres per year,

based on 280 standard cleaning

cycles. Actual water consumption will

depend on how the appliance is used.

fNoise level: 42 dB (re 1 pW)

fCapacity: 14 place settings place

settings

General information

fEnergy Efficiency class: A

Wash Performance class: A

Drying class: A

fEnergy consumption when connected

to hot water in programme Economy

50: 0.6 kwh, 5 cleaning temperatures

fSpeedMatic hydraulic system,

fDosageAssist, Aqua-Sensor, Load

Sensor, Detergent Automation

fHeat exchanger, Alternating spray

technique, Regenerative electronics

fSelf-cleaning filter system with 3-fold

corrugated filter, Stainless steel

fPush button top controls, LCD

control panel with plain text, Time

remaining indicator internal, Acoustic

end of cycle indicator, LED colour

on indicators blue/white, Electronic

delay timer: 1-24 hours, LED salt refill

indicator, LED rinse aid refill indicator

fVarioFlexPlus basket system, 3rd

Rack 2.0, Silver XXL baskets with

pullout handle, RackMatic height-

adjustable top basket (3 stage), 6

foldable plate racks in top basket, 6

foldable plate racks in bottom basket,

2 x foldable cup shelves, 2 shelves in

bottom basket, Glass rack one-piece,

AquaStop with guarantee, Childproof

door lock, Servo lock for effortless

door closing, Glass care protection

system, Front-adjustable rear foot

fInclusive Steam protection plate

Technical Information

fDimensions of the product (HxWxD):

81.5 x 59.8 x 57.3 cm

SN55M536EU SN54E502EU SK75M531EU

Main Features

f5 programmes:

fIntensive 70°C, Auto 45-65°C,

Economy 50°C, Quick Wash 45°C,

Pre Rinse

fSpecial option: varioSpeed, Half Load

fEnergy consumption in programme

Economy 50: 262 kwhper year, based

on 280 standard cleaning cycles using

cold water fill and the consumption of

the low power modes. Actual energy

consumption will depend on how the

appliance is used.

fWater consumption in programme

Economy 50: 2800 litres per year,

based on 280 standard cleaning

cycles. Actual water consumption will

depend on how the appliance is used.

fNoise level: 46 dB (re 1 pW)

fCapacity: 12+1 place settings place

settings

General information

fEnergy Efficiency Class: A++

fEnergy consumption when connected

to hot water in programme Economy

50: 0.7 kwh

f4 cleaning temperatures

fSpeedMatic hydraulic system

fDosageAssist

fAqua-Sensor, Load Sensor

fDetergent Automation

fAlternating spray technique

fRegenerative electronics

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fLED colour on indicators red/red

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fVarioFlex basket system

fSilver XXL baskets with pullout handle

fRackMatic height-adjustable top

basket (3 stage)

f2 foldable plate racks in top basket

f2 foldable plate racks in bottom

basket

fCutlery rack in top basket

fVariable cutlery basket in bottom

basket

f2 x cup shelves

fAquaStop with guarantee

fChildproof door lock

fChildproof control lock

fServo lock for effortless door closing

fGlass care protection system

fFront-adjustable rear foot

fInclusive Steam protection plate

Technical Information

fDimensions of the product (HxWxD):

81.5 x 59.8 x 57.3 cm

Main Features

f4 programmes: Intensive 70°C,

Normal 65°C, Economy 50°C, Quick

Wash 45°C

f1 special options: Half Load

fConsumption in programme

Economy 50:

f12 l water / 1.03 kwh electricity / 175

min duration

fNoise level: 48 dB (re 1 pW)

fCapacity: 12+1 place settings place

settings

General information

fEnergy Efficiency class: A

Wash Performance class: A

Drying class: A

fEnergy consumption when connected

to hot water in programme Economy

50: 0.7 kwh

f4 cleaning temperatures

fSpeedMatic hydraulic system

fDosageAssist

fLoad Sensor

fDetergent Automation

fAlternating spray technique

fRegenerative electronics

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fLED colour on indicators red/red

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fRetractable rotary knob

fVario basket system

fLightSilver XXL baskets

fHeight adjustable top basket

f2 foldable plate racks in bottom

basket

fCutlery rack in top basket

fCutlery basket in bottom basket

f2 x cup shelves

faquaStop with guarantee

fServo lock for effortless door closing

fGlass care protection system

fFront-adjustable rear foot

fInclusive Steam protection plate

Technical Information

fDimensions of the product (HxWxD):

81.5 x 59.8 x 57.3 cm

Main Features

f5 programmes: Intensive 70°C, Auto

45-65°C,

fEconomy 50°C, Delicate 40°C, Quick

Wash 45°C

fSpecial option: varioSpeed, Sanitation

fConsumption in programme Economy

50: 2100 litres water per year / 174

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 170 min

fNoise level: 49 dB (re 1 pW)

f6 place settings

General information

fEnergy Efficiency Class: A+

f5 cleaning temperatures

fSpeedMatic hydraulic system

fAqua-Sensor, Load Sensor

fDetergent Automation

fHeat exchanger

fRegenerative electronics

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fLED colour on indicators blue/white

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fFlexible Basket System

- silver coloured basket

- foldable plate racks

- variable cutlery basket

- cup shelves

fAquaStop with guarantee

fChildproof control lock

fServo lock for effortless door closing

fGlass care protection system

fInclusive Steam protection plate

Technical Information

fBLDC motor for heat and drain pump

fDimensions of the product (HxWxD):

45.4 x 59.5 x 50 cm

Built-in Dishwasher

fspeedMatic 60 cm dishwasher

fIntegrated - Stainless steel

fspeedMatic 60 cm dishwasher

fIntegrated

fspeedMatic 60 cm dishwasher

fIntegrated

fModular dishwasher

fIntegrated

Au

tomatic

Detergent

12 L

varioFlexPlus

dosageAssist

Automatic

Detergent

aquaStop

Zeolith®

drying

varioFlexPlus

aquaStop

H

y

giene

varioDrawer

intensiveZone

dosageAssist

Automatic

Detergent

Automatic

programme

dosageAssist

a

Automatic

Detergent

Automatic

programme

varioFlexPlus

aquaStop

12 L 12 L

varioFlexPlus

varioFlexPlus

dosageAssistdosageAssist

Automatic

Detergent

Automatic

Detergent

aquaStopaquaStop

H

y

giene

fspeedMatic 60 cm dishwasher

fFully integrated

fspeedMatic 60 cm dishwasher

fFully integrated

9392

SK26E800EU

Main Features

f6 programmes: Intensive 70°C,

Auto 45-65°C,

fEconomy 50°C, Delicate 40°C,

Quick Wash 45°C, Pre Rinse

fSpecial option: varioSpeed, extraDry

fConsumption in programme Economy

50: 2100 litres water per year / 174

kwh energy per year. Based on 280

standard cleaning cycles using cold

water fill and the consumption of the

low power modes.

fProgramme time in programme

Economy 50: 170 min

fNoise level: 52 dB (re 1 pW), built-

under

f6 place settings

General information

fEnergy Efficiency Class: A+

f5 cleaning temperatures

fspeedMatic hydraulic system

fAqua-Sensor, Load Sensor

fRegenerative electronics

fSelf-cleaning filter system with 3-fold

corrugated filter

fTime remaining indicator front

fLED colour on indicators Amber

fElectronic delay timer: 1-24 hours

fLED salt refill indicator

fLED rinse aid refill indicator

fRetractable rotary knob

fFlexible basket system:

-silver coloured basket

-variable cutlery basket

-cup shelves

fMultiple water protection

fGlass care protection system

Technical Information

fBLDC motor for heat and drain pump

fDimensions of the product (HxWxD):

45 x 55.1 x 50 cm

Compact Dishwasher

fTable top appliance - silver inox

9594

SN64E005EU

SN56U592EU, SN55M536EU,

SN54E502EU

SN65U090EU SN65U090EU

SN55M536EU

SN64E003TR, SN64E005EU

SN56T598EU

Integrated

Connection dimension for 60 cm Dishwashers

Technical Drawings

Dishwashers

Fully Integrated

9796

Washing

Introducing our brand new range of fully co-ordinated

washing and drying. Good looking on their own and fabulous

together.

A new range of energy-efficient models reinforce Siemens‘ claim to have led the way in creating reliable,

cleverly-designed and quietly efficient washing machines and dryers for over 100 years.

A combination of aesthetically pleasing looks with groundbreaking innovation, our machines make washing

clothes a chore no longer.

Everything about a Siemens laundry appliance is designed to help you manage the range and complexity of

modern textiles with even the smallest details examined and tweaked to give you the ultimate in performance.

One of the major driving forces behind the creation of Siemens’ brand new range was to offer the customer the

ability to achieve seamless design co-ordination between appliances. So the range comes in two distinct variants,

that cover almost every kitchen appliance we make.

The best example of this is the all new iDos - the latest in Siemens washing machines that take guesswork out of

dosing, automatically measuring and dispensing detergent so you dont have to. Just sit back and relax while the

Master Class takes care of your laundry.

Siemens recommends

Persil Gel detergent

Washing

9998

The new integrated i-Dos Automatic.

Doing the laundry has never been this easy. Just follow these three steps:

The new intelligent automatic programmes.

With the two intelligent automatic programmes of the Master Class, you only need to choose between “Automatic” for

normal laundry or “Automatic soft” for delicates. The washing machine does the rest. Thanks to a suite of sensors, the

innovative i-Dos technology automatically determines the laundry amount, type of textile and even the degree of soiling,

and adjusts the amount of detergent and the entire laundering process for perfect results.

Finally a washing machine that automatically

measures and dispenses the detergent.

The new Siemens Master Class with i-Dos takes better care of your laundry than ever before. With its integrated

intelligent measuring system, at the push of a button it measures and dispenses exactly the right amount of

detergent, to wash more thoroughly, yet more gently and efficiently, than any other washing machine. You’ll

never have to use a measuring cup again.

The new integrated i-Dos Automatic.

You’ll never have to measure and dispense detergent again. The new intelligent i-Dos system automatically calculates and

dispenses the ideal detergent amount for any laundry load. Your laundry always gets exactly the right amount of liquid

detergent, down to the milliliter. This prevents over and under-application alike, so you can reduce your annual water usage

by up to 7062 liters with the Siemens Master Class with i-Dos (as confirmed by the wfk research institute*). And naturally

the Siemens Master Class always cleans your laundry thoroughly, and always treats your clothes with the best of care.

* Source: wfk Institute for Applied Research, Test report WL 5132/10

The Master Class with i-Dos has integrated dispensing chambers for liquid detergent and fabric softener* for about 20

laundry loads (about a month’s worth) They’re easy to remove for cleaning, and naturally you can change detergent or

softener between loads at any time. The special spouts make it simple to empty the chambers of detergent or softener.

Of course, the Master Class also has a manual compartment you can use to manually add powdered or liquid detergent and

other laundering products.

* i-Dos 1 tank 1.3 l liquid detergent

i-Dos 2 tank 0.5 l liquid detergent/softener

101100

State-of-the-art anti-vibration design. The innovative iQdrive.

Maximum energy efficiency.

The iQdrive is powered by a frictionless permanent magnet, allowing it to remain cool while eliminating

unnecessary loss of energy through frictional heat. At the same time, high-precision electronics control the

overall temperature profile.

The result: the Master Class uses only 0.13 kWh/kg, making it 30 percent more efficient than the requirement

(0.19 kWh/kg) for the highest rating, energy efficiency class A – even when the drum contains a full load of up

to 8 kg of laundry. *

* Siemens appliances that carry the eco PLUS logo are especially energy-efficient.

Whisper

quiet

Vibrations reduced to a minimum: the new sidewalls.

The anti-vibration Design of the new sidewalls help stabilise the washing machine for a noticeable reduction in

vibrations. The automatic stabilisation system has highly sensitive sensors that detect even the smallest vibrations

and work directly to optimise spinning behavior and compensate every imbalance, no matter how slight. Together,

they make the new washing machine extremely quiet even at the highest spin speeds. This makes the Master

Class ideal for bathrooms or installation as a built-in appliance.

Ultra-quiet even at the highest speeds.

Now you can do your laundry at night, thanks to the magnetic drive of the new iQdrive, whose frictionless

operation eliminates noise. This means that it remains quiet even during the fastest spin cycle, making the

Master Class one of the quietest washing machines ever.

Durable, reliable, progressive: the new iQdrive.

If your washing machine is to provide you with years of satisfactory service, all its parts must be especially wear-

free. That was the reasoning behind the development of a totally new motor concept for the iQdrive: a brushless

magnetic drive. This revolutionary design has resulted in an extremely reliable high-output motor whose

innovative magnet technology activates the iQdrive in a frictionless way. Whether you wash 8-kg loads just once

a week or several times a day, you will be able to rely on the progressive Master Class for years to come.

103102

It knows how to save time and energy:

varioPerfect.

Perfect laundry done quickly, or with maximum energy efficiency? With the new varioPerfect technology, it’s your choice. You can

activate either function for any standard or special wash cycle except for wool/hand wash and super15.

The world’s first stain removal system.

speedPerfect ecoPerfect

optiWave

drum

varioSoft

Gentle as never before. The varioSoft drum.

You can trust the new Master Class to do whatever it takes to wash your most delicate articles both gently and

thoroughly. The unique varioSoft drum is precisely controlled by new, state-of-the-art electronics, combining

maximum gentleness with maximum laundering performance.

The ideal treatment of any wash load: new electronics.

Wash cycles and temperatures are precisely controlled by new, sophisticated electronics. The perfectly controlled drum

movements make optimal use of the design of the varioSoft drum and its softDesign paddles. Depending on the wash cycle,

your laundry is washed more gently or more vigorously. This means that your favourite articles of clothing are given the

necessary customised treatment, for instance during the special outdoor, Shirt/Business, or super15 wash cycles.

waterPerfect

It can’t do “too much” or “too little” – it only knows “just right.” waterPerfect from Siemens: the intelligent water

management system.

The right amount of water for every situation: a feat only the new waterPerfect model with intelligent water management

system can accomplish. Thanks to its sophisticated 3D sensors, the new washing machine from Siemens uses the optimal

amount of water for every cycle and every load.*

* (42 litres for standard wash cycle: hot water, 60°C, Eco setting)

For everyone who enjoys saving time:

speedPerfect.

Too busy and no time to do laundry for a while? Just

press the speedPerfect option button in addition to your

selected wash cycle. The wash time for the standard or

special cycle you selected will be reduced

automatically by up to 60 percent – with outstandingly

clean results for loads of up to 5 kg.

For everyone who enjoys saving energy:

speedPerfect.

If you want to save electricity, activate the ecoPerfect

option along with your normal wash cycle. Naturally

you’ll still get perfectly clean laundry. When you use the

ecoPerfect option, the machine automatically adjusts

the wash cycle and lowers the water temperature to

wash up to 7 kg of laundry using up to 30 percent less

energy.

The right treatment for every stain: grass, tomato sauce, coffee – every

stain is different.

It’s great that Siemens helps you target and remove 16 of the toughest stains. Thanks to the innovative stain

removal system, each stain gets the specific treatment it needs. The very latest Siemens technology controls

the machine’s intelligent cycles and drum movements for each of the different stain options, so the clothes are

washed gently or more vigorously as needed. And our unique varioSoft drum design supports stain removal just as

actively as our specially shaped asymmetric paddles. Stains come out easily without requiring any additional stain-

removers. The stain removal system is available for use on all wash cycles (except super15 and wool/hand wash).

105104

rainFlow

A two-way water in-flow system called rainFlow allows for rapid soaking, reducing the dry friction within the drum to

protect delicate fabrics. This smart water flow system gives a constant flow of up to 4 litres per minute, which reduces

soaking time, saves water and improves the distribution of water and in turn the detergent throughout all the clothes. The

asymmetric paddles distribute the water and detergent mix around the drum faster, for a more effective wash performance

using less water and detergent.

Energy and water saving

All our washing machines have an energy performance level of 10% better than the standard for class A and precise load

recognition technology that will adjust the amount of water needed according to the size of the load. That’s why our

washing machines use only 7 litres of water per kg of dry laundry. 10% more efficient models use 0.17 kW/kg below the

threshold value of 0.19 kW/kg.

Multiple water protection

All our machines are fitted with a supply hose designed to withstand 7 times normal water pressure. They also have

overflow prevention in the event of a malfunction of the machine, safe water circulation through the appliance interior and

electrical locking on the porthole to prevent it being opened unintentionally.

As you’d expect, our machines take full advantage of the latest in

technology and innovation.

The touch control technology found on the fascia of our new washing machines is a world first for laundry products.

Durable and easy to clean, the buttons offer you precision control with just the lightest of touches.

All our laundry appliances offer superb features and benefits.

They all use our unique Siemens digital sensing technology and totalTextile Management system. Their display panels

show the progress of the machine through the different programme stages. They have large capacities. They also sport

aquaSafe leak protection and are sound engineered for an extremely quiet operation.

super15

The super15 programme shortens the rinse and spin cycles for small amounts of only slightly dirty laundry. It’s

especially ideal for active people who need to wash sports clothing frequently, although it’s not very dirty.

Energy efficiency class A -30%

To say that our machines are very

economical to use and save on

electricity is something of an

understatement. All our washing

machines boast an energy

performance level that is -30% better than the

standard for class A.

saving

30

Self cleaning dispenser

The new self-cleaning detergent tray has been

completely redesigned. Specially positioned jet-inlet

sprays force water into the tray on every wash, rinsing

away any left over powder or tablet residue.

Stainless steel inner drum

Made from stainless steel, the

inner drum is securely encased in

the outer drum. The outer drum

is made of polynox, a material

used extensively in the aerospace

and automobile industry, where

strength and longevity are

essential. This special material

does not rust and helps to

maintain heat within the drum for

efficient energy usage.

hydroSafe

aquaStop

aquaStop

It’s comforting to know that most Siemens

washing machines are guaranteed to be 100%

leak proof. If ever a leak occurs, the sensor

shuts down the machine immediately.

Tried and tested

All our washing machines and our washer dryer are 100% tested during production

for safety, function and noise. Door hinges and metal door catches are tested to open

a minimum of 20,000 times: that’s equal to 48 years use – whilst one door was tested

for up to 60,000 uses. Furthermore, 98% of all components in our washing machines

are recyclable.

107106

8kg 8kg + 7kg

WM12S425GCWM12P260GCWM14S790GCWM16Y790GBWM14Y890GB

Main features

fCapacity: 8 kg

fXXL Drum volume: 65 litres

fSpin speed selection 1200 to 400 rpm

Programmes

fSpecial programmes: down, lingerie,

rapid 15 min, mixture, differing

program description, 30°C, Standard

cold - 40°C

Options

fVarioPerfect: time- or energy

optimized programs with perfect

wash performance

Comfort and safety

fvarioSoft Drum

fWater Management

fEltek hose

fLarge display for programme progress

indication, temperature, spin speed,

remaining time and 24 h end time

delay

f24 h end time delay / remaining time

fTouch control buttons: Start / Reload,

Spin speed reduction, Temperature,

Time delay, Modify, Menu

fFoam detection system

fAutomatic stabilisation

fChildproof door lock

fBuzzer to indicate the end of cycle

f32 cm porthole, silver-black grey with

165° opening door

fMetal door closing hook

fMagnetic porthole lock

Technical information

fNoise level washing dB (A) re 1 pW:

54

fNoise level spinning dB (A) re 1 pW:

72

fDimensions (HxWxD): 84.2 x 60 x

62 cm

fcan be built-under

fConnection load: 2.3 kW

Main features

fLabel: A / A / B

fEnergy Efficiency Class: A+++

fElectricity 1.03 kwh, water 56 litres in

label-/normprogramme

fEnergy consumption 189 kWh per year,

based on 220 standard washing cycles

for cotton programmes at 60°C and

40°C at full and partial load, and the

consumption of the low power modes.

Actual energy consumption will depend

on how the appliance is used.

fCapacity: 8 kg

fXXL Drum volume: 65 litres

fSpin-drying efficiency class: B

fMax. spin speed: 1400 rpm

fRemaining moisture: 52 %

Programmes

fSpecial programmes: lingerie, dark

laundry, shirts, sensitive, rapid 15 min,

curtains 30°C, outdoor/waterproofing,

quick wash/mixture, 30°C, 30°C

Options

fvarioPerfect: time- or energy

optimized programs with perfect wash

performance

fAnti stain automatic with 16 stain

options

Comfort and safety

fvarioSoft Drum

fwaterPerfect: resource gentle

watermanagement

fFlow-through sensor

fTurbidity sensor

faquaStop with guarantee

fiQdrive: BLDC motor; energy saving and

silent technology

fClear text display for programm

optimisation and additional functions

f24 h end time delay / remaining time

fFoam detection system

fAutomatic stabilisation

fSelf cleaning detergent drawer

fDivider for Liquid Detergent

fChildproof door lock

fBuzzer to indicate the end of cycle

fNoise insulation

f32 cm porthole, Alu-Look, white with

165° opening door

fMagnetic porthole lock

Technical information

fNoise level washing dB (A) re 1 pW: 49

fNoise level spinning dB (A) re 1 pW: 71

fDimensions (HxWxD): 84.2 x 60 x

59 cm

fcan be built-under

fConnection load: 2.3 kW

Main features

fCapacity: 8 kg

fXXL Drum volume: 65 l

fSpin speed selection 1200 to 400 rpm

Programmes

fSpecial programmes: Easy-care plus

shirts, sensitive, rapid 15 min, quick

wash/mixture, Woollen / Hand Wash

30°C, Delicate Programme 30°C

Options

fVarioPerfect: time- or energy

optimized programs with perfect wash

performance

Comfort and safety

fvarioSoft Drum

fWater Management

fMultiple water protection

fLarge display for programme progress

indication, temperature, spin speed,

remaining time and 24 h end time delay

f24 h end time delay / remaining time

fSpin speed reduction, Temperature, Time

delay, Less Ironing

fFoam detection system

fAutomatic stabilisation

fChildproof door lock

fBuzzer to indicate the end of cycle

f32 cm porthole, Silver with 165°

opening door

fMetal door closing hook

fMagnetic porthole lock

Technical information

fNoise level washing dB (A) re 1 pW: 54

fNoise level spinning dB (A) re 1 pW: 75

fDimensions (HxWxD): 85 x 60 x 59 cm

fCan be built-under

Main features

fLabel: A / A / A

fEnergy Efficiency Class: A+++

fElectricity 1.03 kwh, water 56 litres in

label-/normprogramme

fEnergy consumption 189 kWh per

year, based on 220 standard washing

cycles for cotton programmes at 60°C

and 40°C at full and partial load, and

the consumption of the low power

modes. Actual energy consumption will

depend on how the appliance is used.

fCapacity: 8 kg

fXXL Drum volume: 65 litres

fspin-drying efficiency class: B

fMax. spin speed: 1600 rpm

fRemaining moisture: 46 %

Programmes

fSpecial programmes: lingerie, dark

laundry, shirts, sensitive, rapid 15 min,

curtains 30°C, outdoor/waterproofing,

quick wash/mixture, 30°C, 30°C

Options

fvarioPerfect: time- or energy

optimized programs with perfect wash

performance

fAnti stain automatic with 16 stain

options

Comfort and safety

fvarioSoft Drum

fwaterPerfect: resource gentle

watermanagement

fFlow-through sensor

fTurbidity sensor

faquaStop with guarantee

fiQdrive: BLDC motor; energy saving

and silent technology

fClear text display for programm

optimisation and additional functions

f24 h end time delay / remaining time

fFoam detection system

fAutomatic stabilisation

fSelf cleaning detergent drawer

fDivider for Liquid Detergent

fChildproof door lock

fBuzzer to indicate the end of cycle

fNoise insulation

f32 cm porthole, Alu-Look, white with

165° opening door

fMagnetic porthole lock

Technical information

fNoise level washing dB (A) re 1 pW: 49

fNoise level spinning dB (A) re 1 pW: 72

fDimensions (HxWxD): 84.2 x 60 x

59 cm

fConnection load: 2.3 kW

Main features

fEnergy Efficiency Class: A+++

fEnergy consumption 189 kWh per

year, based on 220 standard washing

cycles for cotton programmes at 60°C

and 40°C at full and partial load, and

the consumption of the low power

modes. Actual energy consumption will

depend on how the appliance is used.

fCapacity: 8 kg

fXXL Drum volume: 65 l

fMax. spin speed: 1400 rpm

fRemaining moisture: 52 %

Programmes

fSpecial programmes: Automatic,

Automatic Soft, down, dark laundry,

shirts, sensitive, sports, rapid 15 min,

quick wash/mixture, Cold, 30°C

Options

fVarioPerfect: time- or energy

optimized programs with perfect wash

performance

fStain-automatic with 16 stain options

Comfort and safety

fSelf cleaning

fVarioSoft Drum

fFlow-through sensor

fDrum interior light

fAquaStop with guarantee

fEcoSilence Drive: BLDC motor

fAntiVibration Design: More stable and

silent

fClear text display for programm

optimisation and additional functions

f24 h end time delay / remaining time

fTouch control buttons: Start / Reload,

i-DOS 1, i-DOS 2, Temperature, Spin

speed reduction, Menu, Modify

fTurbidity sensor

fInfinitely variable

fFoam detection system

fAutomatic stabilisation

fSelf cleaning detergent drawer

fChildproof door lock

fBuzzer to indicate the end of cycle

fWater Management

fNoise insulation

f32 cm porthole, Alu-Look, black grey

with 165° opening door

fMagnetic porthole lock

Technical information

fDimensions (HxWxD): 84.2 x 60 x

59 cm

fNoise level washing dB (A) re 1 pW: 49

fNoise level spinning dB (A) re 1 pW: 74

fConnection load: 2.3 kW

Washing

optiWave

drum

Washing

optiWave

drum

Washing

optiWave

drum

Spining

B

Spining

B

Spining

A

optiWave

drum

Washing

Spining

B

Spining

B

WM10E467GCWM12E467GCWM12Q46XGC

Main features

fLabel: A / A / C

fEnergy Efficiency Class: A++

fElectricity 1.05 kwh, water 47 litres in

label-/normprogramme

fEnergy consumption 197 kWh per

year, based on 220 standard washing

cycles for cotton programmes at 60°C

and 40°C at full and partial load, and

the consumption of the low power

modes. Actual energy consumption

will depend on how the appliance is

used.

fCapacity: 7 kg

fDrum volume: 55 litres

fSpin-drying efficiency class: C

fMax. spin speed: 1000 rpm

fRemaining moisture: 66 %

fSoccer Series

Programmes

fSpecial programmes: outdoor, shirts,

rapid 15 min, jeans, quick wash/

mixture, Cold, Standard cold - 40°C

Options

fvarioPerfect: time- or energy

optimized programs with perfect wash

performance

Comfort and safety

fMultiple water protection

fLarge display for programme progress

indication, temperature, spin speed,

remaining time and 24 h end time

delay

fFully electronic control dial for all

wash- and special programs

fTouch control buttons: Start / Reload,

Less Ironing, Rinse plus, EcoPerfect,

SpeedPerfect, Spin speed reduction/

Yes

fAquatronic wash system

fMultiple-stage

fFoam detection system

fUnbalanced load detection

fAquaSensor for optimum rinse results

fBuzzer to indicate the end of cycle

fChildproof door lock

f30 cm-porthole, Silver with 180°

opening door

fMetal door closing hook

fMagnetic porthole lock

Technical information

fNoise level washing dB (A) re 1 pW: 58

fNoise level spinning dB (A) re 1 pW: 74

fDimensions (HxWxD): 84.8 x 60 x

59 cm

fConnection load: 2.3 kW

Main Features

fLabel: A / A / B

fEnergy Efficiency Class: A++

felectricity 1.05 kwh, water 47 litres in

label-/normprogramme

fEnergy consumption 197 kWh per

year, based on 220 standard washing

cycles for cotton programmes at 60°C

and 40°C at full and partial load, and

the consumption of the low power

modes. Actual energy consumption

will depend on how the appliance is

used.

fCapacity: 7 kg

fDrum volume: 55 litres

fSpin-drying efficiency class: B

fMax. spin speed: 1200 rpm

fRemaining moisture: 63 %

fHygiene Edition

Programmes

fSpecial programmes: Easy-care plus

outdoor, shirts, rapid 15 min, quick

wash/mixture, Cold, Standard cold

- 40°C

Options

fvarioPerfect: time- or energy

optimized programs with perfect wash

performance

Comfort and safety

fMultiple water protection

fLarge display for programme progress

indication, temperature, spin speed,

remaining time and 24 h end time

delay

fFully electronic control dial for all

wash- and special programs

fTouch control buttons: Start / Reload,

Less Ironing, Rinse plus, EcoPerfect,

SpeedPerfect, Spin speed reduction/

Yes

fAquatronic wash system

fMultiple-stage

fFoam detection system

fUnbalanced load detection

fAquaSensor for optimum rinse results

fBuzzer to indicate the end of cycle

fChildproof door lock

f30 cm-porthole, Silver with 180°

opening door

fMetal door closing hook

fMagnetic porthole lock

Technical information

fNoise level washing dB (A) re 1 pW: 59

fNoise level spinning dB (A) re 1 pW: 76

fDimensions (HxWxD): 84.8 x 60 x

59 cm

fConnection load: 2.3 kW

Main Features

fLabel: A / A / B

fCapacity: 7 kg

fEnergy Efficiency Class: A+++

felectricity 1.05 kwh, water 42 litres in

label-/normprogramme

fEnergy consumption 174 kWh per

year, based on 220 standard washing

cycles for cotton programmes at 60°C

and 40°C at full and partial load, and

the consumption of the low power

modes. Actual energy consumption

will depend on how the appliance is

used.

fDrum volume: 58 litres

fSpin-drying efficiency class: B

fMax. spin speed: 1200 rpm

fRemaining moisture: 55 %

Programmes

fSpecial programmes: Easy-care

pluslingery, outdoor, shirts, rapid 15

min, quick wash/mixture, gentle spin,

Cold, Standard cold - 40°C

Options

fvarioPerfect: time- or energy

optimized programs with perfect wash

performance

Comfort and safety

fwaveDrum

fwaterPerfect: resource gentle

watermanagement

fMultiple water protection

fAntiVibration Design - More stability

fLarge display for programme progress

indication, temperature, spin speed,

remaining time and 24 h end time

delay

fFully electronic control dial for all

wash- and special programs

fTouch control buttons: Start / Reload,

Less Ironing, Rinse plus, EcoPerfect,

SpeedPerfect, Spin speed reduction/

Yes

fAquatronic wash system

fFoam detection system

fUnbalanced load detection

fSelf cleaning detergent drawer

fChildproof door lock

fBuzzer to indicate the end of cycle

f32 cm porthole, silver inox with 165°

opening door

fMetal door closing hook

fMagnetic porthole lock

Technical information

fNoise level washing dB (A) re 1 pW: 54

fNoise level spinning dB (A) re 1 pW: 75

fDimensions (HxWxD): 84.8 x 59.8 x

55 cm

fConnection load: 2.3 kW

Washing

Spining

B

-20%

Washing

Spining

B

-20%

Washing

Spining

C

-20%

fiQ 800 varioPerfect

fiDos

fiQ 800 varioPerfect

fiDos

fiQ 700 varioPerfect

fAutomatic washing machine

fSiemens iQ 500

fAutomatic washing machine

fiQ 300

fAutomatic washing machine

fIQ 500 varioPerfect

fAutomatic washing machine

fiQ 300 varioPerfect

fAutomatic washing machine

fiQ 300 varioPerfect

fAutomatic washing machine

109108

Built-in

WI12A200GC

Main features

fLabel: A / A / B

f10% more economical (0.17 kWh/

kg) than the standard value (0.19

kWh/kg) for qualifying for energy

efficiency class A

felectricity 1.02 kwh, water 45 litres in

label-/normprogramme

f6 kg capacity

fDrum volume: 52 l

fSpin speed selection 1200 to 500 rpm

Programmes

fSpecial programmes: easy care plus,

night wash, sensitive, outdoor, wool,

delicates/silk

Options

fButtons: Start/pause, Temperature,

Spin speed reduction, Start delay,

Water plus

Comfort and safety

fMultiple water protection

fDisplay for programme progress,

temperature, spin speed, remaining

time and 24 h end time delay

fFully electronic control dial for all

wash- and special programmes

fAquatronic wash system

fAutomatic load adjustment system

fFoam detection system

fUnbalanced load detection

f30 cm-porthole, white with 95°

openingdoor

fMetal door closing hook

fDoor hinging interchangeable

Technical information

fNoise level washing (dB): 58

fNoise level spinning (dB): 72

fDimensions (HxWxD): 82 x 59.5 x

56.5 cm

fFully integratable

Washing

Spining

B

-20%

fAutomatic washing machine

fFully integrated

fIQ300

WM10A166GC

Main features

fLabel: A / A / C

fEnergy Efficiency Class: A+

fEnergy consumption 175 kWh per

year, based on 220 standard washing

cycles for cotton programmes at 60°C

and 40°C at full and partial load, and

the consumption of the low power

modes. Actual energy consumption

will depend on how the appliance

is used.

fElectricity 0.93 kwh, water 44 l in

label-/normprogramme

fCapacity: 5.5 kg

fDrum volume: 42 l

fSpin-drying efficiency class: C

fMax. spin speed: 1000 rpm

fRemaining moisture: 66 %

Programmes

fSpecial programmes: Rapid 30 min,

Cold, 30°C

Options

fButtons: Start, Rinse Hold, Spin speed

reduction

Comfort and safety

fMultiple water protection

fFully electronic control dial for wash

programmes, temperature and

special programmes

fAquatronic wash system

fFoam detection system

fUnbalanced load detection

fLED programme progress indicators

f30 cm-porthole, white with 140°

opening door

Technical information

fNoise level washing dB (A) re 1 pW:

59

fNoise level spinning dB (A) re 1 pW:

73

fDimensions (HxWxD): 85 x 60 x

56 cm

fConnection load: 2.3 kW

Washing

Spining

C

-10%

fiQ 100

fAutomatic washing machine

5kg

111110

Washer / Dryer

WK14D320GBWD12D523GBWD14H420GB

Main features

fLabel: B / A

fElectricity consumption wash and

dry 4.85 kwh, water consumption

wash and dry 83 litres in label-/

normprogramme

fCapacity: 6 kg washing - 3 kg drying

fDrum volume: 52 litres

fNon-stop wash and dry programme

4 kg

fSpin speed selection 1400 to 600 rpm

Programmes

fSpecial programmes: Cold, 30°C

fSpecial programme: Fluff-removal

cycle

Options

fButtons: Start, Spin speed reduction,

Menu, Drying, select

Comfort and safety

fEltek hose

fDisplay for programme progress

indication, remaining time and 19 h

end time delay

fFully electronic control dial for all

wash- and special programs

fTimed programmes

fAquatronic wash system

fFoam detection system

fUnbalanced load detection

fBuzzer to indicate the end of cycle

f30 cm porthole with 95 degree

opening

fPorthole with glass cover

fDoor hinging left

fDecor door is reversible

fMetal door closing hook

fMagnetic porthole lock

Technical information

fNoise level washing (dB): 57

fNoise level spinning (dB): 74

fDimensions (HxWxD): 82 x 59.5 x

58.4 cm

fConnection load: 2.3 kW

Main features

fLabel: C / A

fElectricity consumption wash and

dry 4.56 kwh, water consumption

wash and dry 106 litres in label-/

normprogramme

fCapacity: 5 kg washing - 2.5 kg

drying

fDrum volume: 42 litres

fNon-stop wash and dry programme

2.5 kg

fSpin speed selection 1200 to 400 rpm

Programmes

fSpecial programmes: dark laundry,

mixture, outdoor, shirts, rapid 15

min, Cold, Standard cold - 40°C

fSpecial programme Drying: Low heat

drying

Comfort and safety

fMultiple water protection

fLC Display for recommended load,

child lock, over dosage, drying

time, start time delay, remaining

time, autodry, programme process

indication

fTimed programmes, Autodry

ftouchControl-buttons: start/pause,

Rinse plus, Stains, Prewash

fAquatronic wash system

fMultiple-stage

fFoam detection system

fUnbalanced load detection

fBuzzer to indicate the end of cycle

fChildproof door lock

fPorthole with glass cover

fDoor hinging left

fMetal door closing hook

Technical information

fNoise level washing (dB): 62

fNoise level spinning (dB): 75

fDimensions (HxWxD): 86 x 60 x

56 cm

fConnection load: 2.3 kW

Main features

fLabel: B / A

fElectricity consumption wash and

dry 5.67 kwh, water consumption

wash and dry 57 litres in label-/

normprogramme

fCapacity: 7 kg washing - 4 kg drying

fDrum volume: 56 litres

fNon-stop wash and dry programme

4 kg

fSpin speed selection 1400 to 400 rpm

Programmes

fSpecial programmes: Intensive/rapid

Power Wash 60, mixture, outdoor/

waterproofing, rapid 15 min, Cold,

Standard cold - 40°C

fSpecial programme: Fluff-removal

cycle

Comfort and safety

fEltek hose

fExtra large display for programme

progress indication, temperature,

spin speed, remaining time and 24 h

start time delay, child lock

fFully electronic control dial for all

wash- and special programs

fTimed programmes, Autodry

fAir Condensation Technology: no

waterconsumption during drying

fAquatronic wash system

fFoam detection system

fUnbalanced load detection

fLoading introduction

fUnbalanced load detection

fBuzzer to indicate the end of cycle

fselfCleaning condenser

f32 cm porthole, silver-black grey with

165° opening door

fPorthole with glass cover

fDoor hinging left

fMetal door closing hook

fMagnetic porthole lock

Technical information

fNoise level washing (dB): 54

fNoise level spinning (dB): 73

fDimensions (HxWxD): 84.2 x 60 x

59 cm

fConnection load: 2.3 kW

Washing

Spining

B

Spining

B

Washer / Dryer

A world’s first! Uses only air where others use water: airCondensation technology.

Did you know that conventional

washer dryers use water to dry? To

extract the water from wet laundry, the hot

air has to be cooled down in the heat exchanger. Most washer

dryers do this by using lots of fresh,

cold water. Not

the Wash & Dry from

Siemens, though: it uses nothing but cold air to cool the hot air with

out consuming a single

drop of

additional water, thus saving up to

40 litres of water per drying cycle. The result: fresh, cupboard-dry

laundry using much less water.

Dries gently and precisely to the point: autoDry.

Unlike other washer dryers, the new Siemens Wash & Dry has several temperature and moisture sensors for precisely

measuring and controlling temperature and moisture levels. autoDry thus protects your wash from excessive heat and

uneven drying, and the drying process is especially gentle and perfectly accurate. The result: less time ironing, energy

savings, and more convenience than ever before.

Continuous automatic cleaning for constant energy efficiency: self-cleaning

condenser.

Every washer dryer has a condenser. Where you once had to clean the condenser regularly yourself,

Wash & Dry automatically cleans it during every drying cycle. Several times. Thoroughly. The results speak

for themselves: you get a lint-free condenser with top long-term energy efficiency. And energy use stays low

throughout the life of the appliance. Extremely low. This makes Wash & Dry even more appealing to its owner.

fIQ300

fAutomatic washer dryer

fAutomatic washer dryer

fD 12-52 wash & dry 5/2.5kg

fIQ300 Wash&Dry

fAutomatic washer dryer,

fully integrated

113112

Worldwide lowest energy consumption.

blueTherm: the condenser dryer technology from

Siemens.

blueTherm, the best condenser dryer in the world for conserving energy resources.

It uses its energy efficiently. For life. The innovative blueTherm heat pump condenser dryer bears the energy

efficiency label A. However, there is A and there is A. Our machines rated A-50% consume more than half as much

energy as a condenser dryer belonging to energy efficiency class B. It retains these unbelievable values constantly

throughout its service life. This is absolutely unique. Worldwide.

blueTherm with automatic self cleaning system.

Continuous automatic cleaning for constant energy efficiency. Every condenser dryer features a condenser.

And if fluff is not removed regularly or only rarely, the energy consumption increases quickly and energy

efficiency A drops to energy efficiency B and even to label D. But now there is a condenser dryer which can

clean its condenser: the blueTherm from Siemens. Whereas before you had to regularly clean the condenser

yourself, it is now automatically cleaned intensively during each drying process. And even repeatedly. The result is

remarkable: a fluff free condenser through which the heat can circulate freely. Therefore the energy consumption

remains constantly low for the service life of the appliance. Extremely low.

The condenser cleans itself without additional water consumption. This technology is so unique that the

condenser dryer does not require water from the tap for the self cleaning process which runs several times during

the drying process. The condenser dryer uses and re-uses condensation water extracted from the washing which

is to be dried, of course not without removing the fluff beforehand.

The activeAir technology.

Extra soft and gentle. The activeAir technology ensures a permanent air flow and drying at lower temperatures. The

warm air dries the garments more gently and efficiently than was possible until now. Together with the softDry drum

and smooth inside of the glass door which protects the washing, the mechanical load on the textiles is reduced. The

garments glide through the drum as if moving on an air cushion. Even large items are dried evenly.

In addition, your laundry is less creased thanks to the large-volume drum.

115114

Condensation / Dryer Technical Drawings

Washing Machine

Automatic Washing Machine

WT44C101GCWT46S515GC

Main features

fLabel: B

f7 kg capacity

fConsumption of 7 kg cotton cupboard

dry: 1400 U/min - 3.32 kwh - 98 min

1000 U/min - 3.92 kwh - 117 min

Options

fStart/Stop, low heat, less ironing

Comfort and safety

fDUO-Tronic

fActive flow drying system: Big

Galvalume with textile care structure,

soft design paddles

fLED programme progress indicator

and service notes

fFully electronic control dial for sensor

drying programmes and timed

programmes

fAnti crease cycle 90 min at the end of

the programme

fCondensation tank at the bottom

fDoor hinge: Right-hand

Technical information

fNoise level drying (db): 66

fDimensions (HxWxD): 84.2 x 59.9 x

63.5 cm

fConnection load: 2.8 kW

Main features

fLabel: B

f8 kg capacity

fConsumption of 8 kg cotton cupboard

dry: 1400 U/min - 3.74 kwh - 105 min

1000 U/min - 4.49 kwh - 122 min

Programmes

fSpecial programme with steam to

iron: Cotton non iron, Syhthetic non

iron

fspecial programme with steam to

refresh: Business Refresh, Casual

Refresh

fSpecial programmes: Woollen finish,

outdoor, lingerie, Super 40

Options

fAnti crease cycle 120 min at the end

of the programme

fTouch control buttons: Start/Stop,

low heat/super delicate, less ironing,

Menu, change

Comfort and safety

fDUO-Tronic

fActive flow drying system: Big

Stainless steel with textile care

structure, soft design paddles

fLC display for remaining time,

time delay, programme progress

indication, special functions and

service hints

fFully electronic control dial for sensor

drying programmes, timed and

special programmes

fDrum interior light

fBuzzer to indicate the end of cycle

fProtection filter for condensor

fNoise insulation

fDoor hinge: Right-hand

fMetal door closing hook

Technical information

fNoise level drying (db): 63

fDimensions (HxWxD): 84.2 x 59.8 x

62.5 cm

fConnection load: 2.8 kW

B

optiWave

drum

B

optiWave

drum

fIQ 500

fCondenser dryer fCondenser dryer

WT48Y800GB

Main features

fLabel: A

fHeat-Pump-Technology

f-60% 0.19 kWh/kg) than the standard

value (0,48 kWh/kg) for qualifying for

energy efficiency class A

f8 kg capacity

fConsumption of 8 kg cotton cupboard

dry: 1400 U/min - 1.27 kwh - 146 min

1000 U/min - 1.54 kwh - 170 min

Programmes

fSpecial programmes: woollen finish,

mix, outdoor, towels, synthetic

blankets, Time prog. 30 min. cold,

Time prog 60min. warm, Timed

program 30 min. warm, pillow,

lingerie, rapid 40, shirts/blouses

Options

fVarioPerfect: time- or energy

optimized programs

fAnti crease cycle 120 min at the end

of the programme

fTouch control buttons: Start/pause,

less ironing, options, drying aim,

Memory 1, Memory 2, base settings,

ecoperfect, speedperfect, 24 h end

time delay

Comfort and safety

fActiveAir technology

fDUO-Tronic

fActive flow drying system: Big

Stainless steel with textile care

structure, soft design paddles

fLC display for remaining time,

time delay, programme progress

indication, special functions and

service hints

fFully electronic control dial for sensor

drying programmes, timed and

special programmes

fDrum interior light

fChildproof door lock

fBuzzer to indicate the end of cycle

fselfCleaning condenser

fDoor hinge: Right-hand

fMetal door closing hook

Technical information

fNoise level drying (db): 65

fDimensions (HxWxD): 84.2 x 59.8 x

62.5 cm

fCan be built-under

fConnection load: 1kW

optiWave

drum

-60%

fCondenser dryer

Washer / Dryer

117116

Over 160 years, Siemens has built a reputation as one of the most trusted, reliable and durable

brands in the world. And now, it has become one of the world’s largest green companies. Our great

attention to detail and the highest quality standards have made us Germany’s No. 1 brand. A solid

global presence and strong local partnerships allow us to offer customers fast, local, tailor-made

solutions – in the Middle East, our presence in the region includes factories, R&D facilities and hub

offices – so we are always where you want us to be.

The first choice in Germany,

the favourite around the globe.

Germany's No.1

119118

Siemens Customer Service.

Knowledge and expertise only the manufacturer can provide.

Our Services.

Choosing a Siemens appliance gives you access to an expert Customer Service Team who will always be there to help, for the

lifetime of your appliance. Whether it’s replacement spare parts or accessories, our highly trained Siemens Customer Service staff

are on hand for fast, expert, reliable advice and assistance. Siemens Customer Service is fully supported by our excellent online

services, including engineer booking, Siemens eShop, FAQs with videos, and an instruction manual download page. The Siemens

precision and vision that goes into our manufacturing process extends right through to our customer service.

Expert advice

Our Product Advice team is here to help you before and after you buy a Siemens appliance. Our advisors can

assist you in choosing an appliance to suit your needs by guiding you through the models in our range. After

you have bought the appliance, we can help with product features and programmes. Visit our website where

you will find a variety of helpful tips on the function, operation and maintenance of our appliances.

Accessories and cleaning products

You can also keep your appliance looking good and working to optimum performance with our range of

tested and approved cleaning and care products.

Original replacement spare parts

As the manufacturer, we only use original spare parts. We can even supply parts for at least ten years

because we know our appliances last at least that long!

120

BSH Home Appliances FZE

Regional Headquarters

Middle East – Africa – South Asia

P.O. Box 17312,

Jebel Ali Free Zone - Dubai, UAE

Tel +971 4 8030 400

www.siemens-home.com/ae
