The handset at a glance
Base station at a glance
- Base station key
Safety precautions
Menu tree
Making calls
Operating the handset
Using the directory and lists
SMS (text messages)
Setting handset/base station
Web configurator
- De-registering
Appendix

Gigaset C450 IP

cyan magenta yellow black Liebreich Medienproduktion

Issued by

Siemens Home and Office Communication Devices GmbH & Co. KG

Schlavenhorst 66

D-46395 Bocholt

Rights of modification reserved.

www.siemens.com/gigaset

BA Cover C450 IP.qxd 28.10.2005 11:40 Uhr Seite 1

The handset at a glance

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / overview.fm / 01.03.2006

Version 4, 16.09.2005

The handset at a glance

Base station at a glance

Handset keys

1Display in idle status (example)

2Battery charge status

e V U (1/3 charged to fully

charged)

= flashes: battery nearly empty

e V U flashes: battery charging

3Control key (page 14)

4Display keys (page 14)

5End call key, On/Off key

End call, cancel function, go back one menu

level (press briefly), back to idle status

(press and hold), activate/deactivate hand-

set (press and hold in idle status)

6Message key

Open calls and message lists

Flashes: new message or new call

7Hash key

Keypad lock on/off (press and hold,

page 14)

Toggle between upper/lower case letters

and digits for text entry

8Alarm clock key (page 18)

Activate/deactivate the alarm clock

9Microphone

10 Recall key (not for VoIP connections)

Enter flash (press briefly)

Insert a pause (press and hold)

11 Star key

Ringtones on/off (press and hold in idle

status)

12 Connection socket for headset

13 Handsfree key

Switch between earpiece and handsfree

mode

Lights up: handsfree talking activated

Flashes: incoming call

14 Talk key

Accept a call, open last number redial list

(press briefly in idle status), select connec-

tion type and start dialling (press briefly/

press and hold after entering the number)

15 Signal strength

¦ § ¨ (low to high)

¥ flashes: no reception

Base station key

1Paging key

Lights up: LAN connection active (phone is

connected to router)

Flashes: data transfer to LAN connection

Press briefly: start paging

Press and hold: set base station to registra-

tion mode

¨ V

11.03.06 11:56

§§§§§§INT§§§§§ §§§§Menu§

Contents

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / C450IP_KBAIVZ.fm / 01.03.2006

Version 4, 16.09.2005

Contents

The handset at a glance . . . . . . . . 1

Base station at a glance . . . . . . . . 1

Safety precautions . . . . . . . . . . . . 3

Gigaset C450 IP –

more than just making calls . . . . . 4

VoIP – Making calls via the

Internet . . . . . . . . . . . . . . . . . . . . . 4

First Steps . . . . . . . . . . . . . . . . . . . . 5

Pack contents . . . . . . . . . . . . . . . . . . . . 5

Setting up the handset for use . . . . . . . 5

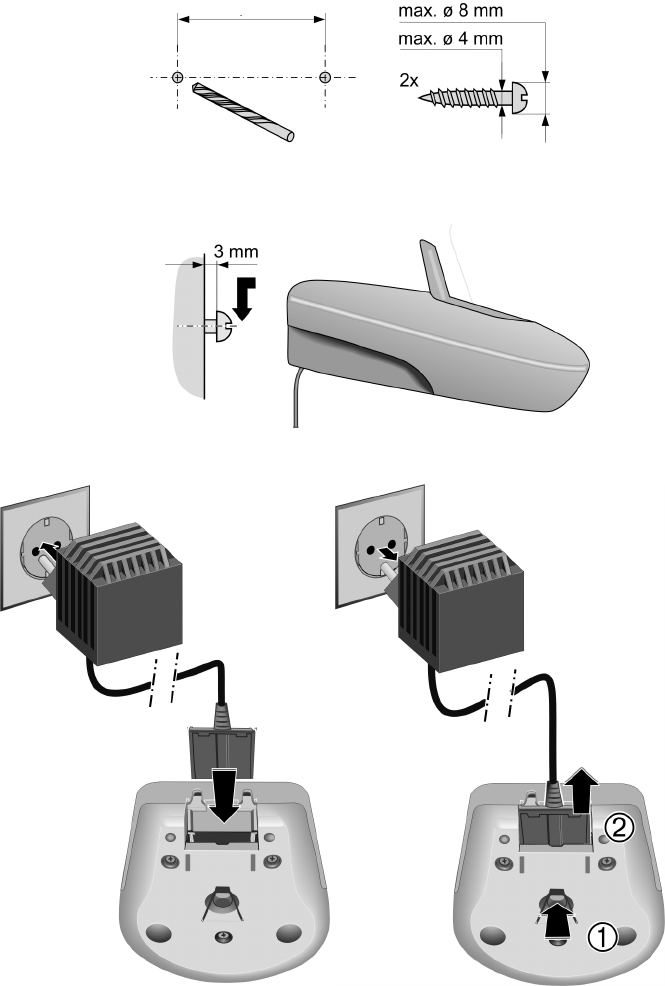

Installing the base station . . . . . . . . . . 6

Connecting the base station . . . . . . . . 7

Making settings for VoIP telephony . . . 8

Menu tree . . . . . . . . . . . . . . . . . . 10

Making calls . . . . . . . . . . . . . . . . . 13

Making an external call . . . . . . . . . . . 13

Ending a call . . . . . . . . . . . . . . . . . . . . 13

Answering a call . . . . . . . . . . . . . . . . . 13

Switching between earpiece and

handsfree mode . . . . . . . . . . . . . . . . . 13

Dialling the emergency number . . . . 13

Operating the handset . . . . . . . . 14

Switching the handset on/off . . . . . . . 14

Activating/deactivating the

keypad lock . . . . . . . . . . . . . . . . . . . . . 14

Control key . . . . . . . . . . . . . . . . . . . . 14

Display keys . . . . . . . . . . . . . . . . . . . . 14

Returning to idle status . . . . . . . . . . . 14

Using the directory and lists . . . 15

Directory . . . . . . . . . . . . . . . . . . . . . . . 15

Last number redial list . . . . . . . . . . . . 15

Opening lists with the message key . 15

Dialling with directory/list . . . . . . . . . 16

SMS (text messages) . . . . . . . . . . 17

Writing/sending/saving SMS . . . . . . . . 17

Receiving/reading SMS . . . . . . . . . . . . 17

Managing SMS lists . . . . . . . . . . . . . . 17

Setting handset/base station . . 18

Adjusting the loudspeaker volume . . . 18

Setting the ringtone volume . . . . . . . . 18

Activating/deactivating advisory

tones . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Using the handset as an alarm

clock . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Changing the base station

system PIN . . . . . . . . . . . . . . . . . . . . . . 19

Setting the default connection . . . . . . 19

Web configurator . . . . . . . . . . . . 19

Connecting your PC to the Web

configurator . . . . . . . . . . . . . . . . . . . . 20

De-registering . . . . . . . . . . . . . . . . . . . 20

Appendix . . . . . . . . . . . . . . . . . . 21

Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Contact with liquid . . . . . . . . . . . . . . . 21

Questions and answers . . . . . . . . . . . . 21

Service (Customer Care) . . . . . . . . . . . 22

Authorisation . . . . . . . . . . . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . 23

Gigaset C450 IP – Free software . . . . . 24

Safety precautions

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / security.fm / 01.03.2006

Version 4, 16.09.2005

Safety precautions

Caution:

Read the safety precautions and the user guide before use.

Explain their contents to your children, and the potential hazards associated with using the tele-

phone.

Only use the mains adapter supplied, as indicated on the underside of the base station.

Fit only the recommended rechargeable batteries (page 23) of the same type! This

means that you must never use any other battery type or non-rechargeable batteries as

this could result in significant health risks and personal injury.

Insert rechargeable batteries with the correct polarity, and use them according to this user

guide (polarity symbols can be seen in the handset's battery compartment, page 5).

The operation of medical appliances may be affected. Be aware of the technical conditions

in your particular environment, e.g. doctor's surgery.

Do not hold the rear side of the handset to the ear when it rings or when you have acti-

vated on the handsfree function. Otherwise you risk serious and permanent damage to

your hearing.

The handset may cause an unpleasant humming noise in hearing aids.

Do not install the base station in bathrooms or shower rooms. The handset and base sta-

tion are not splashproof (page 21).

Do not use your phone in environments subject to explosion hazard, e.g. paint shops).

If you give your Gigaset to someone else, make sure you also give them the user guide.

All electrical and electronic devices should be disposed of separately from general house-

hold waste using the places designated by local authorities.

If this symbol showing a crossed-out rubbish bin appears on a product, this product is sub-

ject to the European Directive 2002/96/EC.

The appropriate disposal and separate collection of used devices serve to avoid potential

damage to the environment and to health. They are a precondition for the re-use and recy-

cling of used electrical and electronic devices.

For further information on disposing of your used device, please contact your local

authority, your refuse collection service or the dealer you purchased the product from.

‹

Note:

Not all of the functions described in this manual are available in all countries.

Gigaset C450 IP – more than just making calls

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / starting.fm / 01.03.2006

Version 4, 16.09.2005

Gigaset C450 IP –

more than just making calls

Your phone lets you make calls both via

the fixed network and (cost effectively) via

the Internet (VoIP) without using a PC. It

is secured against Internet viruses by its

own network interface with protected

operating system.

And your phone can do much more

besides:

uBy registering a second handset to your

base station, you can use one handset

to make a call via the fixed network and

the other to make a call via the Internet.

uConfigure the phone connection for

VoIP without a PC. Your phone's con-

nection wizard downloads general data

about your VoIP provider from the

Internet and guides you through enter-

ing your personal data (account). This

makes it easy for you to start using VoIP

(page 8).

uIf necessary, establish any further

required VoIP settings on a PC. The

phone has a Web interface (Web con-

figurator) that can be accessed via

your PC's Web browser (page 19).

uAssign your own password (system

PIN) to protect your device and the Web

configurator from unauthorised access

(page 19).

uYou can operate your phone behind a

router or a switch (depending on your

provider). To operate behind a switch,

you may need a firmware update from

the Internet.

uSend and receive SMS messages via the

fixed network (page 17).

uSave 100 phone numbers on your

handset (page 15).

uYou can programme the keys of your

phone with important phone numbers.

The phone number is then dialled by

simply pressing the respective key

(page 15).

uUse the handsfree function to keep

your hands free when making a call

(page 13).

uUse your handset as an alarm clock

(page 18).

Have fun using your new telephone!

VoIP – Making calls via the

Internet

With VoIP (Voice over Internet Protocol),

your calls are not made via a fixed connec-

tion as in the telephone network, but

rather they are transmitted via the Inter-

net in the form of data packets.

You can take advantage of all the benefits

of VoIP with your phone:

uYou can make cost-effective calls with

high voice quality with subscribers on

the Internet, the fixed network or the

mobile phone network.

uYour VoIP provider will give you a per-

sonal number, with which you can be

reached from the Internet, the fixed

network and any mobile phone net-

work.

To be able to use VoIP, you need the fol-

lowing:

uA broadband Internet connection (e.g.

DSL) with flat rate or volume-based

price

uInternet access, i.e. you need a router

that will connect your phone to the

Internet. You can find a list of recom-

mended routers on the Internet at:

http://siemens.com/gigaset

uAccess to the services of a VoIP pro-

vider. Open an account with a VoIP pro-

vider.

First Steps

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / starting.fm / 01.03.2006

Version 4, 16.09.2005

First Steps

Pack contents

The pack contains:

uone Gigaset C450 IP base station

uone Gigaset C45 handset

uone mains adapter for the base station

uone charging cradle incl. mains adapter

uone phone cord

uone Ethernet cable (LAN cable)

utwo batteries

uone battery cover

uone belt clip

uone quick guide

Documentation

A more detailed description of your

Gigaset C450 IP and your Web configura-

tor is available on the Internet at:

www.siemens.com/gigaset

This full description is in PDF format. You

will need Adobe® Reader® to view these

documents. Adobe® Reader® is available

on the Internet at www.adobe.com.

Setting up the handset for use

The display is protected by a plastic film.

Please remove the protective film!

Inserting the batteries

¤Insert the batteries the right way round

(see figure).

The polarity is indicated in the battery

compartment.

The handset switches on automatically.

You will hear a confirmation tone.

Closing the battery cover

¤Place the cover on the battery compart-

ment as shown in the diagram, then

push it up until it clicks into position.

Opening the battery cover

¤Press down on the battery cover below

its upper end and slide the cover down.

Connecting the charging cradle

Connecting the charging cradle and

mounting it on the wall (if required) is

described at the end of this user guide.

¤To charge the batteries, leave the hand-

set in the charging cradle.

Caution:

Use only the rechargeable batteries recom-

mended by Siemens on page 23! This means

that you must never use conventional (non-

rechargeable) or other battery types as this

could result in significant health risks and

damage to property. For example, the outer

casing of the batteries could be destroyed or

the batteries could explode. The phone could

also malfunction or be damaged as a result of

using batteries that are not of the recom-

mended type.

Notes:

– Only place the handset in the charging cra-

dle that is intended for it.

– If the handset has switched itself off

because the batteries are flat and if it is

then placed in the charging cradle, it will

switch itself on automatically.

First Steps

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / starting.fm / 01.03.2006

Version 4, 16.09.2005

Initial charging and discharging of

batteries

Battery charging is indicated in the top

right of the display by a flashing battery

icon e, V or U. During handset

operation, the battery icon indicates the

charge status of the batteries (page 1).

The correct charge status can only be dis-

played when the batteries are first fully

charged and discharged through use.

¤To do this, leave the handset in the

charging cradle without interruption

until the battery icon stops flashing in

the display (approx. 13 hours).

¤Once the batteries are fully charged,

remove the handset from the charging

cradle and do not put it back again until

the batteries are fully discharged.

Please note:

uAlways repeat the charging and dis-

charging procedure if you remove the

batteries from the handset and insert

them in again.

uThe batteries may warm up as they are

charging. This is not dangerous.

uAfter a while the charge capacity of the

batteries will decrease for technical rea-

sons.

Setting the date and time

§Menu§ ¢Settings ¢Date/Time

~Enter the day, month and year

with 6 digits and press §OK§. Use

q to move between the fields.

~Enter hours and minutes with

4 digits (e.g. 0 7 1 5 for 07.15

hrs) and press §OK§. Use q to

move between the fields.

The date and time are shown in the hand-

set's idle display (page 1).

Registering the handset to the base

station

Your handset is registered to the base sta-

tion by default.

For how to register other handsets to the

base station and make internal calls free of

charge, please see the full user guide

(page 5).

Installing the base station

The base station is designed for use in

closed, dry rooms with a temperature

range of +5 °C to +45 °C.

¤Install/hang your base station at a cen-

tral point in the house.

Mounting the base station on a wall

Please note:

uNever expose the telephone to heat

sources, direct sunlight or other electri-

cal appliances.

uProtect your Gigaset from moisture,

dust, corrosive liquids and vapours.

Note:

After the first battery charge and discharge,

you may replace your handset in the charging

cradle after every call.

First Steps

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / starting.fm / 01.03.2006

Version 4, 16.09.2005

Connecting the base station

In order to be able to make calls with your

phone via the fixed network and via VoIP,

you must connect the base station to the

fixed network and the Internet,

see Figure 1.

1 Internet connection:

Router with integrated modem or

router and modem or

switch and modem

2 Gigaset C450 IP base station

3 Gigaset C45 handset

4PC in LAN

Follow the steps in the order given below:

1. Connect the base station with the fixed

network phone connection

2. Connect the base station with the

mains power supply

3. Connect the base station with the

router

Connecting the base station with the

fixed network and the mains power

supply

¤Please first connect the phone jack

and then the mains adapter, as shown

below.

1 Phone jack with phone cord

2 Underside of the base station

3 Mains adapter 230 V

Figure 1 Connecting the phone to the fixed network and the Internet

Internet

Fixed network

LAN

First Steps

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / starting.fm / 01.03.2006

Version 4, 16.09.2005

Please note:

uKeep the mains adapter plugged in at

all times for operation, as the phone

does not work without mains connec-

tion.

uIf you buy a replacement phone cord

from a retailer, ensure that the phone

jack is connected correctly.

You can now use your phone to make calls

via the fixed network and can be reached

at your fixed network number!

Connecting the base station with the

router

For Internet access you need a router or a

switch, connected to the Internet via a

modem (if necessary, this can be inte-

grated in the router).

1 Side view of the base station

2 Network plug (LAN) with network cable

3 Router (or switch) network plug

As soon as the cable connecting the

phone and router is plugged in, the paging

key lights up on the front of the base

station.

Making settings for VoIP

telephony

Precondition: You have registered with a

VoIP provider (e.g. via your PC) and set up

an account. The provider must support

the VoIP SIP standard.

The following phone settings are neces-

sary in order for you to use VoIP. You will

receive all information from your VoIP pro-

vider.

uYour user name with the VoIP provider,

if this is required by the VoIP provider

uYour registration name

uYour password with the VoIP provider

uVoIP provider general settings

The connection wizard will help you with

the settings.

For many VoIP providers, the connection

wizard downloads the general settings

directly from the Internet. If your provider

settings are not available for download,

you must enter the data manually via the

Web configurator (page 19).

Starting the connection wizard

Precondition: The base station is con-

nected to the mains power supply and the

router.

Once the handset battery is sufficiently

charged, the message key f on the hand-

set will flash (around 20 minutes after you

have put the handset in the charging cra-

dle). Press the message key f to start the

connection wizard.

If the connection wizard starts, a prompt

will be displayed:

§Yes§ Press the display key to con-

firm the prompt.

Make the VoIP settings with the help of

the connection wizard.

Correct phone jack assignment

1unused

2unused

5unused

6unused

First Steps

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / starting.fm / 01.03.2006

Version 4, 16.09.2005

Making VoIP settings

Precondition: The base station is con-

nected to the Internet, i.e. the base station

is connected to the router and the router

has an Internet connection (page 8).

Downloading VoIP provider data

qSelect country and press §OK§.

qSelect VoIP provider and press

§OK§.

The necessary data for your VoIP provider

is downloaded and saved on the phone.

Entering VoIP user data

Username:

If this is required by your pro-

vider, enter name and press

§OK§.

Authentication Name:

Enter name and press §OK§.

Authentication Password:

Enter password and press §OK§.

If the settings are correct and complete, a

message will be displayed to this effect.

You can now use your phone to make calls

via the fixed network and the Internet!

Callers can reach you on your fixed

network number and your VoIP number!

Note:

The connection wizard will also start automat-

ically if you try to establish a connection via

the Internet, before you have made the neces-

sary settings.

You can also call up the connection wizard at

any time via the menu (page 11).

Note:

If the data for your VoIP provider is not availa-

ble for download, you can make the necessary

settings with the Web configurator (page 19).

You can also use the Web configurator to make

additional settings for your Internet connec-

tion.

Note:

To ensure that you can always be reached via

the Internet, the router should be permanently

connected to the Internet.

Menu tree

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / menuetree.fm / 01.03.2006

Version 4, 16.09.2005

Menu tree

There are two ways to select a function:

uUsing the number combinations in the following menu tree ("shortcut")

¤Example: §Menu§ 422 for "Set handset language".

uScrolling through the menus

¤Press §Menu§, scroll to the function with the control key s and press §OK§

1 SMS

1-1 Write Message

1-2 Incoming 00+00

1-3 Outgoing

1-6 Settings 1-6-1 Service Centres 1-6-1-1 Service Centre 1

… [to]

1-6-1-4 Service Centre 4

1-6-2 Register to Service

Centres

2 Alarm Clock

2-1 Activation

2-2 Wake up time

3 Audio Settings

3-1 Ringer Volume

3-2 Ringer Melody 3-2-1 External Calls

3-2-2 Internal Calls

3-2-3 Alarm Clock

3-3 Advisory Tones

3-4 Battery Low 3-4-1 Off

3-4-2 On

3-4-3 During Call

Menu tree

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / menuetree.fm / 01.03.2006

Version 4, 16.09.2005

4 Settings

4-1 Date/Time

4-2 Handset 4-2-1 Display 4-2-1-1 Screensaver

4-2-1-2 Colour Scheme

4-2-1-3 Contrast

4-2-1-4 Backlight

4-2-2 Language

4-2-3 Auto Answer

4-2-4 Register Handset

4-2-5 Reset Handset

4-3 Base 4-3-1 Select Services 4-3-1-2 Network Mailbox

Only displayed if Default

Line Type = fixed line is

set.

4-3-1-6 For All Calls

4-3-1-7 Cancel Ringback

4-3-2 System PIN

4-3-3 Base Reset

4-3-4 Additional Features 4-3-4-1 Dialling Mode

4-3-4-2 Recall

4-3-4-3 Repeater Mode

4-3-4-5 Additional Emergency

No.

4-3-6 VoIP Configuration 4-3-6-1 Connection Assistant

4-3-6-2 Select VoIP Provider

4-3-6-3 Username

4-3-6-4 Authentication Name

4-3-6-5 Authentication Pass-

word

4-3-6-6 IP Configuration

4-3-7 Default Line Type 4-3-7-1 IP

4-3-7-2 fixed line

4-3-8 Firmware Update

Menu tree

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / menuetree.fm / 01.03.2006

Version 4, 16.09.2005

5 Voice Mail

5-1 Set Key 1 5-1-1 Network Mailbox

Not all menu points are described in this quick guide. For a comprehensive description,

see the full user guide for your Gigaset C450 IP on the Internet (page 5).

Making calls

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / telephony.fm / 01.03.2006

Version 4, 16.09.2005

Making calls

Making an external call

External calls are those that are made via

the public telephone network (fixed net-

work) or the Internet (VoIP). You deter-

mine what type of connection you want to

use when you dial.

If you want to call a fixed-network sub-

scriber via VoIP, you must always dial the

number with the dialling code.

~c Enter number/IP address and

briefly press/press and hold

the talk key.

A default connection is established on

your phone (fixed network or VoIP).

¤Briefly press the talk key c if you want

to make a call via this default

connection.

¤Press and hold the talk key c if you

want to make the call via the other con-

nection type.

Cancelling the dialling operation

You can cancel the dialling operation with

the end call key a.

Entering an IP address

Via VoIP you can also dial an IP address

instead of a phone number.

¤Press the star key P to separate the IP

address number blocks from each other

(e.g. 149*246*122*28).

¤If necessary, press the hash key # to

attach the SIP port number of the per-

son you are calling to the IP address

(e.g. 149*246*122*28#5060).

Ending a call

aPress the end call key.

Answering a call

The handset indicates an incoming call in

three ways: by ringing, by a display on the

screen and by the flashing handsfree

key d.

You can answer the call by:

¤Pressing the talk key c.

¤Pressing the handsfree key d.

If the handset is in the charging cradle and

the Auto Answer function is activated

(page 11), the handset will take a call

automatically when you lift it out of the

charging cradle.

Switching between earpiece and

handsfree mode

¤Press the handsfree key d to activate/

deactivate handsfree talking during a

call.

If you wish to place the handset in the

charging cradle during a call:

¤Hold down the handsfree key d while

placing the handset in the charging cra-

dle. If the handsfree key d does not

light up, press the key again.

Dialling the emergency number

If a number is saved as an emergency

number, it is automatically dialled via the

fixed network, regardless of whether you

press and hold or briefly press the talk key.

~c Enter the emergency number

and press the talk key.

Notes:

– You can change the setting for the default

connection type (fixed network or VoIP)

(page 19).

– To make a call in handsfree mode, you can

also press briefly/press and hold the hands-

free key d instead of the talk key c.

Operating the handset

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / telephony.fm / 01.03.2006

Version 4, 16.09.2005

Operating the handset

Switching the handset on/off

aPress and hold the end call

key.

You will hear the confirmation tone.

Activating/deactivating the

keypad lock

#Press and hold the hash key.

You will hear the confirmation tone. The

Ø icon appears in the display when the

keypad lock is activated.

Control key

1 Control key

In this user guide, the side of the control

key that you must press in the given oper-

ating situation is shown in black (top, bot-

tom). Example: t for "press the top of the

control key".

The control key has a number of different

functions:

When the handset is in idle status

s Open the directory.

tAdjust the ringtone volume of

the handset (page 18).

In lists and menus

t/ s Scroll up/down line by line.

In an input field

t/ s Move the cursor left or right.

During an external call

s Open the directory.

tAdjust loudspeaker volume for

earpiece and handsfree mode.

Display keys

The current display functions are shown in

the bottom display line in reversed high-

lights. The function of the display keys

changes depending on the particular

operating situation.

Example:

1 Current display key functions

2 Display keys

Returning to idle status

You wish to return to idle status from any-

where in the menu:

¤Press the end call key a and hold.

Changes that you have not confirmed/

saved by pressing §OK§ will be rejected.

For additional information on using your

Gigaset C450 IP, please see the full user

guide (page 5).

§§§§INT§§§ §§Menu

Using the directory and lists

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / directories_charges.fm / 01.03.2006

Version 4, 16.09.2005

Using the directory and lists

The options are:

uDirectory

uLast number redial list

uSMS list

uCaller list

Directory

¤With the handset in idle status, open

the directory by pressing the s key.

You can save 100 entries in the directory.

Length of an entry

Number: max. 32 digits

Name: max. 16 characters

Storing a number in the directory

s ¢§Menu§ ¢New Entry

~ Enter number and press §OK§.

~ Enter the name and press §OK§.

Assigning a key

§Menu§ ¢Shortcut

Assign the current entry for quick dial

to Q or one of the keys from 2 to O.

To dial the number, press and hold the

appropriate quick dial key.

Managing directory entries

You can use the directory menu to, e.g.:

uChange or delete entries or send them

to another of the base station's hand-

sets

uDelete the directory or send it to

another handset

¤Select a directory entry and press §Menu§

to open the menu.

For additional information, please see the

full user guide for your Gigaset C450 IP

(page 5).

Last number redial list

The last number redial list contains the ten

numbers last dialled with the handset.

¤Briefly press the talk key c to open the

last number redial list.

Opening lists with the message

key

You can use the message key f to open

the following lists:

uSMS list

uNetwork mailbox

If your network provider supports this

function and the network mailbox is

configured for fast access via key 1

(page 12).

uCalls list (precondition: Calling Line

Identification enabled)

The numbers of the last 30 outgoing

calls are saved. Multiple calls from the

same number are only saved once (the

last call).

Notes:

– Always enter the phone number with a dial-

ling code. You will need this if you want to

call a fixed network subscriber via VoIP.

– You can assign a number from the directory

to a key for speed dialling.

Using the directory and lists

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / directories_charges.fm / 01.03.2006

Version 4, 16.09.2005

An advisory tone sounds as soon as a new

message arrives in a list. The message key

f flashes. A message appears in the dis-

play.

If you press the flashing f key, you will

see all the lists that contain new mes-

sages. If only one list contains new mes-

sages, this will be opened automatically.

Opening list

f ¢If necessary, select list

qSelect entry.

For additional information on the lists,

please see the full user guide for your

Gigaset C450 IP (page 5).

Dialling with directory/list

¤Open directory/list.

¤Select entry with q.

¤Briefly press/press and hold the talk

key c (page 13).

Note:

If calls are saved in the network answering

machine you will receive a message if the

appropriate settings have been made (see the

network mailbox instructions of your network

provider).

Note:

You can only dial IP addresses via VoIP.

SMS (text messages)

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / sms_neutral.fm / 01.03.2006

Version 4, 16.09.2005

SMS (text messages)

Your unit is supplied ready for you to send

SMS messages immediately.

When an SMS is sent, the base station

automatically establishes a connection via

the fixed network.

Requirements:

uCalling Line Identification (CLIP) has

been enabled for your telephone con-

nection.

uYour network provider supports SMS in

the fixed network (information on this

can be obtained from your network

provider).

uYou are registered with your service

provider to send and receive SMS.

Writing/sending/saving SMS

An SMS may contain up to 160 characters.

§Menu§ ¢SMS ¢Write Message

~Write an SMS.

§Menu§ Send Text

Select and press §OK§.

s/ ~Enter the number with dialling

code (including your local area

code) from the directory or key

it in manually, and press §OK§.

For SMS to an SMS mailbox:

put the mailbox ID at the end

of the number.

The SMS is sent.

Or:

§Menu§ ¢ Save Text

Select and press §OK§.

The SMS is saved in the draft

message list. You can later edit

and send it.

Opening the draft message

list: §Menu§ ¢SMS ¢Outgoing.

Receiving/reading SMS

All received SMS messages are saved in

the message list. Linked SMS messages

are displayed as one message. 160 charac-

ters displayed.

New SMS messages are signalled on all

Gigaset C45 handsets by a message in the

display, the flashing message key f and

an advisory tone.

Reading a text message

¤Open the incoming message list with

the message key f (page 15) or via

Menu§ ¢SMS ¢Incoming 01+05.

¤Select SMS

¤Select Menu§ ¢Read SMS and press OK§.

Managing SMS lists

You can use the incoming message and

draft message lists to, e.g.:

uDelete individual SMS or the entire list

uForward or reply to an SMS

¤Select SMS and press §Menu§ to open the

menu.

For additional information, please see the

full user guide for your Gigaset C450 IP

(page 5).

Note:

When you call up the SMS menu for the first

time, you are automatically registered with

accessible SMS centres whose number you

have entered. You can then receive SMS from

these SMS centres.

You can enter further SMS centres and register

with them with the help of the registration

wizard. To find out how to do this, please read

the full user guide for your Gigaset C450 IP

(page 5).

Note:

If you are interrupted by an external call whilst

writing the SMS, it is automatically saved in

the draft message list.

Setting handset/base station

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / settings_bs_hs_pabx.fm / 01.03.2006

Version 4, 16.09.2005

Setting handset/base

station

The handset and base station are preset,

but you can change these settings to suit

your individual requirements. You will find

the relevant functions in the submenus

§Menu§ ¢Settings and §Menu§ ¢Audio Set-

tings (page 10).

The base station settings are carried out

using a registered Gigaset C45 handset.

Adjusting the loudspeaker

volume

You can set the loudspeaker volume for

handsfree talking to five different levels

and the earpiece volume to three different

levels. You can only adjust the loud-

speaker volume during a call.

You are conducting an external call.

t Press the control key.

q Adjust the volume and press

§OK§.

If t is assigned a different function, e.g.

toggling:

§Menu§ Open menu.

Volume Select and press §OK§.

Make settings (see above).

Setting the ringtone volume

The ringtone volume is the same for all

types of ring.

§Menu§ ¢Audio Settings ¢Ringer Volume

Or in idle status:

t Press briefly.

Then:

q Adjust the volume and press

§OK§.

aPress and hold (idle status).

Activating/deactivating the ringtone

You can turn off the ringtone on your

handset before you take a call or while the

phone is in idle status. You can take a call

so long as it is displayed on the screen.

Deactivating the ringtone

PPress the star key and hold

until the Ú icon appears in the

display.

Re-activating the ringtone

PPress and hold the star key in

idle status.

Activating/deactivating advisory

tones

§Menu§ ¢Audio Settings ¢Advisory Tones

Select and press §OK§ (‰=on).

All advisory tones are activated or deacti-

vated.

Using the handset as an alarm

clock

Activating/deactivating the alarm

clock

§Menu§ ¢ Alarm Clock ¢ Activation

(‰=on)

Or:

gPress the alarm clock key.

After you activate the alarm clock, the

menu for setting the wake up time opens

automatically (page 19).

Note:

The handsfree volume can only be adjusted

when this function is set.

Web configurator

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / settings_bs_hs_pabx.fm / 01.03.2006

Version 4, 16.09.2005

Setting the wake up time.

§Menu§ ¢Alarm Clock ¢Wake up time

¤Enter the wake up time in hours and

minutes, then press §OK§.

When the alarm clock rings…

Alarm repeat after 5 minutes

§Snooze§ Press the display key or any

key.

If you press §Snooze§ three times the alarm

clock switches off for 24 hours.

Switching off the alarm clock for 24 hours

§Off§ Press the display key.

Changing the base station

system PIN

You can change the base station's 4-digit

default system PIN ("0000") to a 4-digit

PIN known only to yourself.

§Menu§ ¢Settings ¢Base

¢System PIN

~Enter current system PIN and

press §OK§.

~Enter your new system PIN

and press §OK§.

For security reasons, "****" is displayed

instead of the system PIN.

a Press and hold (idle status).

Setting the default connection

You can make settings according to

whether you want to make calls via VoIP or

fixed network by default.

§Menu§ ¢Settings ¢Base

¢Default Line Type

IP / fixed line

Select and press §OK§ (‰=on).

For additional information on the phone

and VoIP settings, please see the full user

guide for your Gigaset C450 IP (page 5) on

the Internet.

Web configurator

The Web configurator is the Web interface

for your handset. It allows you to make the

settings for your phone's base station via

your PC's Web browser.

Requirements:

uA standard Web browser is installed on

the PC, e.g. Internet Explorer version

6.0 or higher, or Firefox version 1.0.4 or

higher.

uThe phone and PC are connected to

each other via a router or a switch.

Web configurator

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / settings_bs_hs_pabx.fm / 01.03.2006

Version 4, 16.09.2005

Connecting your PC to the Web

configurator

¤Launch the Web browser on your PC.

¤Enter the phone's IP address in the

address field of the Web browser, e.g.

http://192.168.1.10.

¤Press the return key.

A connection is established to the phone's

Web configurator.

De-registering

In the menu bar at the top right of every

Web page in the Web configurator, you

will see the command Log Off. Click on Log

Off to de-register from the Web configura-

tor.

You will find information on the Web

configurator in the full user guide for your

Gigaset C450 IP on the Internet (page 5).

Note:

You can check the phone's current IP address

on the handset:

§Menu§ £Settings £VoIP Configuration

£IP Configuration £IP Address.

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

Appendix

Care

¤Wipe the base station and handset with

a damp cloth (do not use solvent) or an

antistatic cloth.

Never use a dry cloth. This can cause

static.

Contact with liquid

If the handset has come into contact with

liquid:

¤Switch the handset off and remove

the batteries immediately.

¤Allow the liquid to drain from the hand-

set.

¤Pat all parts dry, then place the handset

with the battery compartment open

and the keypad facing down in a dry,

warm place for at least 72 hours (not

in a microwave, oven etc.).

¤Do not switch on the handset again

until it is completely dry.

When it has fully dried out, you will nor-

mally be able to use it again.

Questions and answers

If you have any queries about the use of

your phone, you can contact us any time

www.siemens.com/gigasetcustomercare.

You can also find information on common

problems and possible solutions in the full

user guide.

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

Service (Customer Care)

You can get assistance easily when you have technical questions or questions about how

to use your device by using our online support service on the Internet at:

www.siemens.com/gigasetcustomercare

This site can be accessed at any time wherever you are. It will give you 24/7 support for all

our products. It also provides interactive troubleshooting, a list of FAQs and answers plus

user guides for you to download. You will also find frequently asked questions and answers

in the Questions and Answers section of this user guide in the appendix (page 21).

If the device needs to be repaired, please contact one of our Customer Care Centers:

Please have your record of purchase ready

when calling.

Replacement or repair services are not

offered in countries where our product is

not sold by authorised dealers.

Abu Dhabi. . . . . . . . . . . . . . . 0 26 42 38 00

Argentina . . . . . . . . . . . . 0 80 08 88 98 78

Australia . . . . . . . . . . . . . . .18 00 62 24 14

Austria . . . . . . . . . . . . . . . . 05 17 07 50 04

Bahrain . . . . . . . . . . . . . . . . . . . . . 40 42 34

Bangladesh . . . . . . . . . . . . . . 0 17 52 74 47

Belgium . . . . . . . . . . . . . . . . 0 78 15 22 21

Bosnia Herzegovina . . . . . . . 0 33 27 66 49

Brazil . . . . . . . . . . . . . . . . 0 80 07 07 12 48

Brunei . . . . . . . . . . . . . . . . . . . 02 43 08 01

Bulgaria. . . . . . . . . . . . . . . . . . 02 73 94 88

Cambodia . . . . . . . . . . . . . . . . 12 80 05 00

Canada . . . . . . . . . . . . . . 1 88 87 77 02 11

China . . . . . . . . . . . . . . . 0 21 50 31 81 49

Croatia . . . . . . . . . . . . . . . . . 0 16 10 53 81

Czech Republic . . . . . . . . . . 02 33 03 27 27

Denmark . . . . . . . . . . . . . . . . . 35 25 86 00

Dubai . . . . . . . . . . . . . . . . . . 0 43 96 64 33

Egypt. . . . . . . . . . . . . . . . . . . 0 23 33 41 11

Estonia . . . . . . . . . . . . . . . . . . 06 30 47 97

Finland . . . . . . . . . . . . . . . .09 22 94 37 00

France. . . . . . . . . . . . . . . . .01 56 38 42 00

Germany. . . . . . . . . . . . . . .01805 333 222

Greece . . . . . . . . . . . . . . 0 80 11 11 11 16

Hong Kong . . . . . . . . . . . . . . . 28 61 11 18

Hungary . . . . . . . . . . . . . . .06 14 71 24 44

Iceland . . . . . . . . . . . . . . . . . . . 5 11 30 00

India . . . . . . . . . . . . . . 01 13 73 85 89 - 98

Indonesia . . . . . . . . . . . . 0 21 46 82 60 81

Ireland . . . . . . . . . . . . . . . . 18 50 77 72 77

Italy. . . . . . . . . . . . . . . . . . .02 66 76 44 00

Ivory Coast . . . . . . . . . . . . . . . 80 00 03 33

Jordan. . . . . . . . . . . . . . . . . . 0 64 39 86 42

Kenya . . . . . . . . . . . . . . . . . . . . 2 72 37 17

Kuwait . . . . . . . . . . . . . . . . . . . 2 45 41 78

Latvia . . . . . . . . . . . . . . . . . . . . 7 50 11 14

Lebanon . . . . . . . . . . . . . . . . . 01 44 30 43

Libya . . . . . . . . . . . . . . . . . .02 13 50 28 82

Lithuania . . . . . . . . . . . . . . . 8 22 74 20 10

Luxembourg . . . . . . . . . . . . . 43 84 33 99

Macedonia. . . . . . . . . . . . . . . . 02 13 14 84

Malaysia. . . . . . . . . . . . . . . 03 21 63 11 18

Malta . . . . . . . . . . . . 00 35 32 14 94 06 32

Mauritius . . . . . . . . . . . . . . . . . . 2 11 62 13

Mexico . . . . . . . . . . . . . .01 80 07 11 00 03

Morocco . . . . . . . . . . . . . . . . . 22 66 92 09

Netherlands. . . . . . . . . . . . 0900-3333102

New Zealand . . . . . . . . . . . 08 00 27 43 63

Norway . . . . . . . . . . . . . . . . . . 22 70 84 00

Oman. . . . . . . . . . . . . . . . . . . . . . 79 10 12

Pakistan . . . . . . . . . . . . . . . 02 15 66 22 00

Philippines . . . . . . . . . . . . . . 0 27 57 11 18

Poland . . . . . . . . . . . . . . . . 08 01 30 00 30

Portugal . . . . . . . . . . . . . . . . 8 00 85 32 04

Qatar . . . . . . . . . . . . . . . . . . . . 04 32 20 10

Romania . . . . . . . . . . . . . . 02 12 04 60 00

Russia. . . . . . . . . . . . . . . . (800) 200 10 10

Saudi Arabia . . . . . . . . . . . . 0 22 26 00 43

Serbia. . . . . . . . . . . . . . . . . 01 13 22 84 85

Singapore . . . . . . . . . . . . . . . . 62 27 11 18

Slovak Republic . . . . . . . . . 02 59 68 22 66

Slovenia . . . . . . . . . . . . . . . . 0 14 74 63 36

South Africa. . . . . . . . . . . . 08 60 10 11 57

Spain . . . . . . . . . . . . . . . . . . 9 02 11 50 61

Sweden . . . . . . . . . . . . . . . . 0 87 50 99 11

Switzerland . . . . . . . . . . . . 08 48 21 20 00

Taiwan . . . . . . . . . . . . . . . . 02 25 18 65 04

Thailand. . . . . . . . . . . . . . . . 0 22 68 11 18

Tunisia . . . . . . . . . . . . . . . . . 0 71 86 19 02

Turkey . . . . . . . . . . . . . . . 0 21 65 79 71 00

Ukraine . . . . . . . . . . . . . .8 80 05 01 00 00

United Arab Emirates . . . . . 0 43 31 95 78

United Kingdom . . . . . . .0 87 05 33 44 11

USA . . . . . . . . . . . . . . . . . 1 88 87 77 02 11

Vietnam . . . . . . . . . . . . . . . . . . 45 63 22 44

Please address any questions about the

DSL and cable connection to your Inter-

net provider.

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

Authorisation

This device is intended for analogue

phone lines in your network.

Voice over IP telephony is possible with an

additional modem via the LAN interface.

Country-specific requirements have been

taken into consideration. We, Siemens

Home and Office Communication Devices

GmbH & Co. KG, declare that this device

meets the essential requirements and

other relevant regulations laid down in

Directive 1999/5/EC.

A copy of all international 1999/5/EC Dec-

larations of Conformity is available at:

http://www.siemens.com/gigasetdocs

Specifications

Recommended rechargeable batteries

(Valid at the time of going to press)

Nickel-metal-hydride (NiMH):

uSanyo Twicell 650

uSanyo Twicell 700

uSanyo NiMH 800

uPanasonic 700 mAh "for DECT"

uGP 550mAh

uGP 700mAh

uGP 850mAh

uYuasa Technology AAA Phone 600

uYuasa Technology AAA Phone 700

uYuasa Technology AAA 800

uVARTA Phone Power AAA 700mAh

The handset is supplied with two recom-

mended batteries.

Handset operating times/charging

times

The following information relates to bat-

teries with a capacity of 650 mAh.

The operating and charging times apply

only when using the recommended bat-

teries.

Base station power consumption

Depending on current status, around

2.5 W.

General specifications

Standby time around 125 hours (5 days)

Talktime around 13 hours

Charging time around 7.5 hours

Interfaces Fixed network, Ethernet

DECT standard is supported

GAP standard is supported

No. of channels 60 duplex channels

Radio frequency

range

1880–1900 MHz

Duplex method Time multiplex,

10 ms frame length

Channel grid 1728 kHz

Bit rate 1152 kbit/s

Modulation GFSK

Language code 32 kbit/s

Transmission

power

10 mW,

average power per chan-

nel

Range up to 300 m outdoors,

up to 50 m indoors

Base station

power supply

230 V ~/50 Hz

Environmental

conditions for

operation

+5 °C to +45 °C;

20% to 75% relative

humidity

Dialling mode DTMF (touch tone dial-

ling)/DP (dial pulsing)

Flash time 250 ms

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

Gigaset C450 IP – Free software

Your Gigaset C450 IP's firmware contains,

amongst other things, free software that

is licensed under the GNU Lesser General

Public License. This free software was

developed by a third party and is protected

by copyright. You will find the licence text

in its original English version on the pages

that follow.

The software is provided free of charge.

You are authorised to use this free soft-

ware in accordance with the above-men-

tioned licence conditions. In the event of

contradictions between these licence con-

ditions and the licence conditions that

apply for the software according to

Siemens Home and Office Communica-

tion Devices GmbH & Co. KG, the above-

mentioned licence conditions shall take

precedence for the free software.

The GNU Lesser General Public License

(LGPL) is supplied with this product. You

can also download the licence conditions

from the Internet:

uThe LGPL is available on the Internet at:

http://www.gnu.org/copyleft/

lesser.html

uThe source text, including copyright

notices for free software, is currently

available on the Internet at:

http://www.siemens.com/developer/

c450ip

For more information and Internet links to

the source text of the free software, see

the Online Support pages on the Internet

at:

www.siemens.com/gigasetcustomercare

If it is not already supplied with the prod-

uct, you can request the source text,

including copyright notices, from Siemens

Home and Office Communication Devices

GmbH & Co.KG. There is a charge to cover

the cost of copying and postage. Please

submit this request by Email or fax to the

following address or fax number within

3 years of purchasing this product. Please

state the exact device type plus the ver-

sion number of the installed device soft-

ware.

Use of the free software contained in this

product extending beyond the program

sequence intended by Siemens Home and

Office Communication Devices GmbH &

Co. is at the user's own risk – i.e. there

shall be no claims for liability for defects

against Siemens Home and Office

Communication Devices GmbH & Co. KG.

The GNU Lesser General Public License

contains notes regarding the author's lia-

bility for defects or other proprietors of the

free software.

Codecs G711, G726, G729AB with

VAD/CNG

Quality of Service TOS, DiffServ

Protocols DECT, SIP, RTP, DHCP, NAT

Traversal (STUN)

Base station

dimensions

105 x 132 x 46 mm

(L x W x D)

Dimensions,

handset

141 x 53 x 31mm

(L × W × H)

Base station

weight

130 g

Weight of handset

with battery

116 g

Small Parts Dispatch Com Bocholt

Email: kleinteileversand.com@siemens.com

Fax: 02871 / 91 30 29

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

You shall have no right to assert a claim

against Siemens Home and Office

Communication Devices GmbH & Co. KG

based on liability for defects, if a defect in

the product is or could be due to changes

you have made to the programs or their

configuration. Furthermore, you shall

have no right to assert a claim against

Siemens Home and Office

Communication Devices GmbH & Co. KG

based on liability for defects if the free

software violates the copyright of third

parties.

Siemens Home and Office

Communication Devices GmbH & Co. KG

shall not provide technical support for the

software, including the free software

included within it, if it has been changed.

GNU LESSER GENERAL PUBLIC

LICENSE

Version 2.1, February 1999

Foundation, Inc., 59 Temple Place, Suite 330,

Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute

verbatim copies of this license document, but

changing it is not allowed.

[This is the first released version of the Lesser

GPL. It also counts as the successor of the GNU

Library Public License, version 2, hence the

version number 2.1.]

Preamble

The licenses for most software are designed to

take away your freedom to share and change it.

By contrast, the GNU General Public Licenses

are intended to guarantee your freedom to

share and change free software--to make sure

the software is free for all its users.

This license, the Lesser General Public License,

applies to some specially designated software

packages--typically libraries--of the Free Soft-

ware Foundation and other authors who decide

to use it. You can use it too, but we suggest you

first think carefully about whether this license

or the ordinary General Public License is the

better strategy to use in any particular case,

based on the explanations below.

When we speak of free software, we are refer-

ring to freedom of use, not price. Our General

Public Licenses are designed to make sure that

you have the freedom to distribute copies of

free software (and charge for this service if you

wish); that you receive source code or can get it

if you want it; that you can change the software

and use pieces of it in new free programs; and

that you are informed that you can do these

things.

To protect your rights, we need to make restric-

tions that forbid distributors to deny you these

rights or to ask you to surrender these rights.

These restrictions translate to certain responsi-

bilities for you if you distribute copies of the

library or if you modify it.

For example, if you distribute copies of the

library, whether gratis or for a fee, you must

give the recipients all the rights that we gave

you. You must make sure that they, too, receive

or can get the source code. If you link other

code with the library, you must provide com-

plete object files to the recipients, so that they

can relink them with the library after making

changes to the library and recompiling it. And

you must show them these terms so they know

their rights.

We protect your rights with a two-step method:

(1) we copyright the library, and (2) we offer

you this license, which gives you legal permis-

sion to copy, distribute and/or modify the

library.

To protect each distributor, we want to make it

very clear that there is no warranty for the free

library. Also, if the library is modified by some-

one else and passed on, the recipients should

know that what they have is not the original

version, so that the original author's reputation

will not be affected by problems that might be

introduced by others.

Finally, software patents pose a constant threat

to the existence of any free program. We wish

to make sure that a company cannot effectively

restrict the users of a free program by obtaining

a restrictive license from a patent holder. There-

fore, we insist that any patent license obtained

for a version of the library must be consistent

with the full freedom of use specified in this

license.

Most GNU software, including some libraries, is

covered by the ordinary GNU General Public

License. This license, the GNU Lesser General

Public License, applies to certain designated

libraries, and is quite different from the ordi-

nary General Public License. We use this license

for certain libraries in order to permit linking

those libraries into non-free programs.

When a program is linked with a library,

whether statically or using a shared library, the

combination of the two is legally speaking a

combined work, a derivative of the original

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

library. The ordinary General Public License

therefore permits such linking only if the entire

combination fits its criteria of freedom. The

Lesser General Public License permits more lax

criteria for linking other code with the library.

We call this license the "Lesser" General Public

License because it does Less to protect the

user's freedom than the ordinary General Public

License. It also provides other free software

developers Less of an advantage over compet-

ing non-free programs. These disadvantages

are the reason we use the ordinary General

Public License for many libraries. However, the

Lesser license provides advantages in certain

special circumstances.

For example, on rare occasions, there may be a

special need to encourage the widest possible

use of a certain library, so that it becomes a de-

facto standard. To achieve this, non-free pro-

grams must be allowed to use the library. A

more frequent case is that a free library does

the same job as widely used non-free libraries.

In this case, there is little to gain by limiting the

free library to free software only, so we use the

Lesser General Public License.

In other cases, permission to use a particular

library in non-free programs enables a greater

number of people to use a large body of free

software. For example, permission to use the

GNU C Library in non-free programs enables

many more people to use the whole GNU oper-

ating system, as well as its variant, the GNU/

Linux operating system.

Although the Lesser General Public License is

Less protective of the users' freedom, it does

ensure that the user of a program that is linked

with the Library has the freedom and the

wherewithal to run that program using a modi-

fied version of the Library.

The precise terms and conditions for copying,

distribution and modification follow. Pay close

attention to the difference between a "work

based on the library" and a "work that uses the

library". The former contains code derived from

the library, whereas the latter must be com-

bined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DIS-

TRIBUTION AND MODIFICATION

0. This License Agreement applies to any soft-

ware library or other program which contains a

notice placed by the copyright holder or other

authorized party saying it may be distributed

under the terms of this Lesser General Public

License (also called "this License"). Each licen-

see is addressed as "you".

A "library" means a collection of software func-

tions and/or data prepared so as to be conven-

iently linked with application programs (which

use some of those functions and data) to form

executables.

The "Library", below, refers to any such soft-

ware library or work which has been distributed

under these terms. A "work based on the

Library" means either the Library or any deriva-

tive work under copyright law: that is to say, a

work containing the Library or a portion of it,

either verbatim or with modifications and/or

translated straightforwardly into another lan-

guage. (Hereinafter, translation is included

without limitation in the term "modification".)

"Source code" for a work means the preferred

form of the work for making modifications to it.

For a library, complete source code means all

the source code for all modules it contains, plus

any associated interface definition files, plus

the scripts used to control compilation and

installation of the library.

Activities other than copying, distribution and

modification are not covered by this License;

they are outside its scope. The act of running a

program using the Library is not restricted, and

output from such a program is covered only if

its contents constitute a work based on the

Library (independent of the use of the Library in

a tool for writing it). Whether that is true

depends on what the Library does and what the

program that uses the Library does.

1. You may copy and distribute verbatim copies

of the Library's complete source code as you

receive it, in any medium, provided that you

conspicuously and appropriately publish on

each copy an appropriate copyright notice and

disclaimer of warranty; keep intact all the

notices that refer to this License and to the

absence of any warranty; and distribute a copy

of this License along with the Library.

You may charge a fee for the physical act of

transferring a copy, and you may at your option

offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the

Library or any portion of it, thus forming a work

based on the Library, and copy and distribute

such modifications or work under the terms of

Section 1 above, provided that you also meet all

of these conditions:

a) The modified work must itself be a software

library.

b) You must cause the files modified to carry

prominent notices stating that you changed the

files and the date of any change.

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

c) You must cause the whole of the work to be

licensed at no charge to all third parties under

the terms of this License.

d) If a facility in the modified Library refers to a

function or a table of data to be supplied by an

application program that uses the facility, other

than as an argument passed when the facility is

invoked, then you must make a good faith

effort to ensure that, in the event an applica-

tion does not supply such function or table, the

facility still operates, and performs whatever

part of its purpose remains meaningful.

(For example, a function in a library to compute

square roots has a purpose that is entirely well-

defined independent of the application. There-

fore, Subsection 2d requires that any applica-

tion-supplied function or table used by this

function must be optional: if the application

does not supply it, the square root function

must still compute square roots.)

These requirements apply to the modified work

as a whole. If identifiable sections of that work

are not derived from the Library, and can be

reasonably considered independent and sepa-

rate works in themselves, then this License, and

its terms, do not apply to those sections when

you distribute them as separate works. But

when you distribute the same sections as part

of a whole which is a work based on the Library,

the distribution of the whole must be on the

terms of this License, whose permissions for

other licensees extend to the entire whole, and

thus to each and every part regardless of who

wrote it.

Thus, it is not the intent of this section to claim

rights or contest your rights to work written

entirely by you; rather, the intent is to exercise

the right to control the distribution of derivative

or collective works based on the Library.

In addition, mere aggregation of another work

not based on the Library with the Library (or

with a work based on the Library) on a volume

of a storage or distribution medium does not

bring the other work under the scope of this

License.

3. You may opt to apply the terms of the ordi-

nary GNU General Public License instead of this

License to a given copy of the Library. To do

this, you must alter all the notices that refer to

this License, so that they refer to the ordinary

GNU General Public License, version 2, instead

of to this License. (If a newer version than ver-

sion 2 of the ordinary GNU General Public

License has appeared, then you can specify that

version instead if you wish.) Do not make any

other change in these notices.

Once this change is made in a given copy, it is

irreversible for that copy, so the ordinary GNU

General Public License applies to all subsequent

copies and derivative works made from that

copy.

This option is useful when you wish to copy part

of the code of the Library into a program that is

not a library.

4. You may copy and distribute the Library (or a

portion or derivative of it, under Section 2) in

object code or executable form under the terms

of Sections 1 and 2 above provided that you

accompany it with the complete corresponding

machine-readable source code, which must be

distributed under the terms of Sections 1 and 2

above on a medium customarily used for soft-

ware interchange.

If distribution of object code is made by offering

access to copy from a designated place, then

offering equivalent access to copy the source

code from the same place satisfies the require-

ment to distribute the source code, even

though third parties are not compelled to copy

the source along with the object code.

5. A program that contains no derivative of any

portion of the Library, but is designed to work

with the Library by being compiled or linked

with it, is called a "work that uses the Library".

Such a work, in isolation, is not a derivative

work of the Library, and therefore falls outside

the scope of this License.

However, linking a "work that uses the Library"

with the Library creates an executable that is a

derivative of the Library (because it contains

portions of the Library), rather than a "work

that uses the library". The executable is there-

fore covered by this License.

Section 6 states terms for distribution of such

executables.

When a "work that uses the Library" uses mate-

rial from a header file that is part of the Library,

the object code for the work may be a derivative

work of the Library even though the source

code is not.

Whether this is true is especially significant if

the work can be linked without the Library, or if

the work is itself a library. The threshold for this

to be true is not precisely defined by law.

If such an object file uses only numerical

parameters, data structure layouts and acces-

sors, and small macros and small inline func-

tions (ten lines or less in length), then the use

of the object file is unrestricted, regardless of

whether it is legally a derivative work. (Execut-

ables containing this object code plus portions

of the Library will still fall under Section 6.)

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

Otherwise, if the work is a derivative of the

Library, you may distribute the object code for

the work under the terms of Section 6.

Any executables containing that work also fall

under Section 6, whether or not they are linked

directly with the Library itself.

6. As an exception to the Sections above, you

may also combine or link a "work that uses the

Library" with the Library to produce a work con-

taining portions of the Library, and distribute

that work under terms of your choice, provided

that the terms permit modification of the work

for the customer's own use and reverse engi-

neering for debugging such modifications.

You must give prominent notice with each copy

of the work that the Library is used in it and that

the Library and its use are covered by this

License. You must supply a copy of this License.

If the work during execution displays copyright

notices, you must include the copyright notice

for the Library among them, as well as a refer-

ence directing the user to the copy of this

License. Also, you must do one of these things:

a) Accompany the work with the complete cor-

responding machine-readable source code for

the Library including whatever changes were

used in the work (which must be distributed

under Sections 1 and 2 above); and, if the work

is an executable linked with the Library, with

the complete machine-readable "work that uses

the Library", as object code and/or source code,

so that the user can modify the Library and then

relink to produce a modified executable con-

taining the modified Library. (It is understood

that the user who changes the contents of def-

initions files in the Library will not necessarily

be able to recompile the application to use the

modified definitions.)

b) Use a suitable shared library mechanism for

linking with the Library. A suitable mechanism

is one that (1) uses at run time a copy of the

library already present on the user's computer

system, rather than copying library functions

into the executable, and (2) will operate prop-

erly with a modified version of the library, if the

user installs one, as long as the modified ver-

sion is interface-compatible with the version

that the work was made with.

c) Accompany the work with a written offer,

valid for at least three years, to give the same

user the materials specified in Subsection 6a,

above, for a charge no more than the cost of

performing this distribution.

d) If distribution of the work is made by offering

access to copy from a designated place, offer

equivalent access to copy the above specified

materials from the same place.

e) Verify that the user has already received a

copy of these materials or that you have already

sent this user a copy.

For an executable, the required form of the

"work that uses the Library" must include any

data and utility programs needed for reproduc-

ing the executable from it. However, as a spe-

cial exception, the materials to be distributed

need not include anything that is normally dis-

tributed (in either source or binary form) with

the major components (compiler, kernel, and

so on) of the operating system on which the

executable runs, unless that component itself

accompanies the executable.

It may happen that this requirement contradicts

the license restrictions of other proprietary

libraries that do not normally accompany the

operating system. Such a contradiction means

you cannot use both them and the Library

together in an executable that you distribute.

7. You may place library facilities that are a

work based on the Library side-by-side in a sin-

gle library together with other library facilities

not covered by this License, and distribute such

a combined library, provided that the separate

distribution of the work based on the Library

and of the other library facilities is otherwise

permitted, and provided that you do these two

things:

a) Accompany the combined library with a copy

of the same work based on the Library, uncom-

bined with any other library facilities. This must

be distributed under the terms of the Sections

above.

b) Give prominent notice with the combined

library of the fact that part of it is a work based

on the Library, and explaining where to find the

accompanying uncombined form of the same

work.

8. You may not copy, modify, sublicense, link

with, or distribute the Library except as

expressly provided under this License. Any

attempt otherwise to copy, modify, sublicense,

link with, or distribute the Library is void, and

will automatically terminate your rights under

this License. However, parties who have

received copies, or rights, from you under this

License will not have their licenses terminated

so long as such parties remain in full compli-

ance.

9. You are not required to accept this License,

since you have not signed it. However, nothing

else grants you permission to modify or distrib-

ute the Library or its derivative works. These

actions are prohibited by law if you do not

accept this License. Therefore, by modifying or

distributing the Library (or any work based on

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

the Library), you indicate your acceptance of

this License to do so, and all its terms and con-

ditions for copying, distributing or modifying

the Library or works based on it.

10. Each time you redistribute the Library (or

any work based on the Library), the recipient

automatically receives a license from the origi-

nal licensor to copy, distribute, link with or

modify the Library subject to these terms and

conditions. You may not impose any further

restrictions on the recipients' exercise of the

rights granted herein.

You are not responsible for enforcing compli-

ance by third parties with this License.

11. If, as a consequence of a court judgment or

allegation of patent infringement or for any

other reason (not limited to patent issues), con-

ditions are imposed on you (whether by court

order, agreement or otherwise) that contradict

the conditions of this License, they do not

excuse you from the conditions of this License.

If you cannot distribute so as to satisfy simulta-

neously your obligations under this License and

any other pertinent obligations, then as a con-

sequence you may not distribute the Library at

all. For example, if a patent license would not

permit royalty-free redistribution of the Library

by all those who receive copies directly or indi-

rectly through you, then the only way you could

satisfy both it and this License would be to

refrain entirely from distribution of the Library.

If any portion of this section is held invalid or

unenforceable under any particular circum-

stance, the balance of the section is intended to

apply, and the section as a whole is intended to

apply in other circumstances.

It is not the purpose of this section to induce

you to infringe any patents or other property

right claims or to contest validity of any such

claims; this section has the sole purpose of pro-

tecting the integrity of the free software distri-

bution system which is implemented by public

license practices. Many people have made gen-

erous contributions to the wide range of soft-

ware distributed through that system in reli-

ance on consistent application of that system; it

is up to the author/donor to decide if he or she

is willing to distribute software through any

other system and a licensee cannot impose that

choice.

This section is intended to make thoroughly

clear what is believed to be a consequence of

the rest of this License.

12. If the distribution and/or use of the Library

is restricted in certain countries either by pat-

ents or by copyrighted interfaces, the original

this License may add an explicit geographical

distribution limitation excluding those coun-

tries, so that distribution is permitted only in or

among countries not thus excluded. In such

case, this License incorporates the limitation as

if written in the body of this License.

13. The Free Software Foundation may publish

revised and/or new versions of the Lesser Gen-

eral Public License from time to time. Such new

versions will be similar in spirit to the present

version, but may differ in detail to address new

problems or concerns.

Each version is given a distinguishing version

number. If the Library specifies a version

number of this License which applies to it and

"any later version", you have the option of fol-

lowing the terms and conditions either of that

version or of any later version published by the

Free Software Foundation. If the Library does

not specify a license version number, you may

choose any version ever published by the Free

Software Foundation.

14. If you wish to incorporate parts of the

Library into other free programs whose distri-

bution conditions are incompatible with these,

write to the author to ask for permission. For

software which is copyrighted by the Free Soft-

ware Foundation, write to the Free Software

Foundation; we sometimes make exceptions

for this. Our decision will be guided by the two

goals of preserving the free status of all deriva-

tives of our free software and of promoting the

sharing and reuse of software generally.

NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF

CHARGE, THERE IS NO WARRANTY FOR THE

LIBRARY, TO THE EXTENT PERMITTED BY APPLI-

CABLE LAW.

EXCEPT WHEN OTHERWISE STATED IN WRITING

THE COPYRIGHT HOLDERS AND/OR OTHER PAR-

TIES PROVIDE THE LIBRARY "AS IS" WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESSED

OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABIL-

ITY AND FITNESS FOR A PARTICULAR PURPOSE.

THE ENTIRE RISK AS TO THE QUALITY AND PER-

FORMANCE OF THE LIBRARY IS WITH YOU.

SHOULD THE LIBRARY PROVE DEFECTIVE, YOU

ASSUME THE COST OF ALL NECESSARY SERVIC-

ING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLI-

CABLE LAW OR AGREED TO IN WRITING WILL

ANY COPYRIGHT HOLDER, OR ANY OTHER

PARTY WHO MAY MODIFY AND/OR REDISTRIB-

UTE THE LIBRARY AS PERMITTED ABOVE, BE LIA-

BLE TO YOU FOR DAMAGES, INCLUDING ANY

GENERAL, SPECIAL, INCIDENTAL OR CONSE-

Appendix

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / appendix.fm / 01.03.2006

Version 4, 16.09.2005

QUENTIAL DAMAGES ARISING OUT OF THE USE

OR INABILITY TO USE THE LIBRARY (INCLUDING

BUT NOT LIMITED TO LOSS OF DATA OR DATA

BEING RENDERED INACCURATE OR LOSSES SUS-

TAINED BY YOU OR THIRD PARTIES OR A FAILURE

OF THE LIBRARY TO OPERATE WITH ANY OTHER

SOFTWARE), EVEN IF SUCH HOLDER OR OTHER

PARTY HAS BEEN ADVISED OF THE POSSIBILITY

OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New

Libraries

If you develop a new library, and you want it to

be of the greatest possible use to the public, we

recommend making it free software that every-

one can redistribute and change. You can do so

by permitting redistribution under these terms

(or, alternatively, under the terms of the ordi-

nary General Public License).

To apply these terms, attach the following

notices to the library. It is safest to attach them

to the start of each source file to most effec-

tively convey the exclusion of warranty; and

each file should have at least the "copyright"

line and a pointer to where the full notice is

found.

You should have received a copy of the GNU

Lesser General Public License along with this

library; if not, write to the Free Software Foun-

dation, Inc., 59 Temple Place, Suite 330, Bos-

ton, MA 02111-1307 USA

Also add information on how to contact you by

electronic and paper mail.

You should also get your employer (if you work

as a programmer) or your school, if any, to sign

a "copyright disclaimer" for the library, if neces-

sary. Here is a sample; alter the names:

<one line to give the library's name and a brief

idea of what it does.>

This library is free software; you can redistrib-

ute it and/or modify it under the terms of the

GNU Lesser General Public License as pub-

lished by the Free Software Foundation; either

version 2.1 of the License, or (at your option)

any later version.

This library is distributed in the hope that it will

be useful, but WITHOUT ANY WARRANTY;

without even the implied warranty of MER-

CHANTABILITY or FITNESS FOR A PARTICULAR

PURPOSE. See the GNU Lesser General Public

License for more details.

Yoyodyne, Inc., hereby disclaims all copyright

interest in the library `Frob' (a library for

tweaking knobs) written by James Random

Hacker. <signature of Ty Coon>, 1 April 1990

Ty Coon, President of Vice

Gigaset C450 IP KBA / IM-Nord EN / A31008-M1713-R201-1-7643 / montage_charger_base.fm / 01.03.2006

Version 4, 16.09.2005

22.2 mm

Siemens Gigaset C450 Ip Users Manual C450IP_KBA

C450 IP to the manual a0875253-ff22-46d6-8c01-e7880edc4a5a

Navigation menu

Versions of this User Manual:

Views

Navigation
