SF65

Issued by

Information and Communication mobile

Haidenauplatz 1

D-81667 Munich

© Siemens AG 2004

All rights reserved. Subject to availability.

Rights of modification reserved.

Siemens Aktiengesellschaft

www.siemens.com/sf65

cyan magenta yellow black LIEBREICH, Medienproduktion

ss

Designed for life

BA Cover SF65.QXD 23.09.2004 19:42 Uhr Seite 1

right page (1) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:53)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_TOC.fm

Table of Contents 1

VAR Language: en; VAR issue date: 040929

Safety precautions ..................... 2

Overview of the phone .............. 4

Display symbols ......................... 8

Getting started ........................... 9

Switch on/off, PIN entry ........... 12

General information ................ 13

Standard functions .................. 15

Security .................................... 16

Text entry ................................. 18

Calling ...................................... 20

Phonebook ............................... 23

Call records .............................. 26

Camera ..................................... 27

SMS .......................................... 29

MMS ......................................... 31

Email ......................................... 36

Voice mailbox ........................... 38

IrDA ........................................... 39

Surf & Fun ................................. 40

Setup ........................................ 44

Organiser .................................. 49

Extras ........................................ 50

My stuff ....................................52

Customer Care .......................... 54

Care and maintenance ............. 56

Product data ............................. 57

Guarantee certificate (UK) ....... 58

Guarantee certificate (IRL) ....... 59

Menu tree ................................. 61

Index ......................................... 68

Table of

Contents

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_SecurityInfo.fm

left page (2) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Safety precautions2

VAR Language: en; VAR issue date: 040929

Safety precautions

Information for parents

Please read the operating instructions and safety precautions carefully before use.

Explain the content and the hazards associated with using the phone to your children.

Remember to comply with legal

requirements and local restric-

tions when using the phone. For

example in aeroplanes, petrol

stations, hospitals or while

driving.

Mobile phones can interfere

with the functioning of medical

devices such as hearing aids or

pacemakers. Keep at least

20 cm/9 inches between phone

and pacemaker. When using

the mobile phone hold it to the

ear which is further away from

the pacemaker. For more infor-

mation consult your doctor.

Small parts such as the SIM

card, sealing stop, lens ring and

lens cap can be dismantled and

swallowed by small children.

The phone must therefore be

stored out of the reach of small

children.

The mains voltage specified on

the power supply unit (V) must

not be exceeded. Otherwise the

charging device may be

destroyed.

The power supply must be

plugged into an easily accessi-

ble AC mains power socket

when charging the battery. The

only way to turn off the charging

device after charging the battery

is to unplug it.

The ringtone (page 44), info

tones and handsfree talking are

reproduced through the loud-

speaker. Do not hold the phone

to your ear when it rings or when

you have switched on the

handsfree function (page 20).

Otherwise you risk serious per-

manent damage to your

hearing.

Do not use an optical magnifier

to look at the activated infrared

interface [Class 1 LED product

(classification as per

IEC 60825-1)].

Only use original Siemens bat-

teries (100 % mercury-free) and

– charging devices. Otherwise

you risk serious damage to

health and property. The battery

could explode, for instance.

You may only open the phone to

replace the battery (100 % mer-

cury-free) or SIM card. You

must not open the battery under

any circumstances. All other

changes to this device are strict-

ly prohibited and will invalidate

the guarantee.

right page (3) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_SecurityInfo.fm

3Safety precautions

VAR Language: en; VAR issue date: 040929

Important:

Please dispose of unwanted

batteries and phones as permit-

ted by the laws in your country.

The phone may cause interfer-

ence in the vicinity of TV sets,

radios and PCs.

Use only Siemens original ac-

cessories. This will avoid poten-

tial risks to health or property

and ensure compliance with all

relevant regulations.

Improper use will invalidate the guarantee!

These safety instructions also apply to

Siemens original accessories.

Improved data transmission

In order for your phone to be able to trans-

mit data at higher speeds, it is necessary to

have a good connection to the network.

Transmitting data can be delayed by the

process of establishing a connection. To

comply with guidelines on the effects of ra-

dio waves, you should keep the phone a

distance of 22 mm from your body while

transmitting data.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Overview.fm

left page (4) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Overview of the phone4

VAR Language: en; VAR issue date: 040929

Overview of the phone

1 Joystick

C Press vertically down on the

joystick to start an application

or function.

I Scroll left, right, up and down

to navigate in the menus.

C OK key. Press briefly to con-

firm an action.

In standby mode:

C Press and hold to access the

Voice dial or Voice command.

@ Press to access functions:

up (Profiles), down (Phone-

book), left (Sound album),

right (Picture album).

2 A Call key

Make calls, take incoming calls, most

recent calls displayed.

3 B On/Off/End key

• Switched off: press and hold to

switch on.

• Press to end a call during conversa-

tion or to reject an incoming call.

•Press briefly to go back to the stand-

by mode.

• Press and hold to switch off.

4 <>/øù Soft keys

The current functions of these keys are

shown in the bottom line of the display

as §Text§/symbol (e.g. p). (The keys

below the display also function as

soft keys.)

5 —˜ Volume keys

• In standby mode: Press to increase

or decrease the ringer volume level.

• During a call: Press to increase or

decrease the earpiece volume level.

• Receiving a call: Press either of the

keys briefly to mute the ringer.

Press and hold either of the keys to

reject the incoming call.

Z £ X

Service provider

01.05.2004 10:10

Menu MMS

right page (5) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Overview.fm

5Overview of the phone

VAR Language: en; VAR issue date: 040929

1 Loudspeaker

2 Call led

Located on the reverse side of the

clamshell. Activates e.g. when you re-

ceive a call or a new MMS or SMS.

3 Display

4 Integrated antenna

Do not obstruct the phone above the

battery cover unnecessarily. This re-

duces the signal quality.

5 Input keys

6 IrDA interface

7 *Ringtone

Press and hold in standby mode:

switch all audible signals on/off

(except alarm).

8Connection socket

For charger, headset, etc.

9 Camera lens

: Flash/Torch

Accessories

You can find Original Siemens Accessories

at: www.siemens-mobile.com/shop

Z £ X

Service provider

01.05.2004 10:10

Menu MMS

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Overview.fm

left page (6) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Overview of the phone6

VAR Language: en; VAR issue date: 040929

Changing to camera mode:

To change the phone from the phone mode

to the camera mode:

1 Flip the clamshell gently 180° to the

right (anti-clockwise) until it is on the

reverse side 1.

2 Close the clamshell 2.

The camera switches automatically to the

camera mode.

Additional information

The display can only be turned

anti-clockwise!

Warning!

Follow the handling instructions carefully to

avoid causing damage to the display hinge.

Pay special attention to the correct direction

to turn the display!

right page (7) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Overview.fm

7Overview of the phone

VAR Language: en; VAR issue date: 040929

Camera functions:

(These functions are only available when the

phone is in the camera mode!)

1 – Camera key

• Press to take a photo.

• Press again to save the photo in the

picture album.

2 —˜ Volume keys

• In camera preview: Press to activate /

deactivate the Flash to take a picture

or to use as a torch.

3 öZoom in key

• Zoom in the preview image.

• In menus: Press to go back a level in

the list menu.

4 õ Zoom out key

• Zoom out from the preview image.

• In menus: Press to go forward a level

in the list menu.

5 ù Menu key

• Press to open the camera options

menu.

• In menus: Press to go forward a level.

6 ø Landscape/Portrait key

• Press to switch between the land-

scape and portrait orientation.

• In menus: Press to go back a level.

• Receiving a call: Press to reject an

incoming call.

Additional information

It is not possible to make a call when the

phone is in camera mode!

Additional information

If you receive a call, a notification will be dis-

played, but you need to change the phone to

the phone mode to accept the call!

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Displaysymbols.fm

left page (8) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:50)

Display symbols8

VAR Language: en; VAR issue date: 040929

Display symbols

Display symbols (selection)

Z Signal strength

W Battery charge level e.g. 50%

L Phonebook

P Call records

± Surf & Fun/

Service provider portal

‘ All calls forwarded

ΠCalls forwarded to mailbox

Q Organiser

M SMS

q Read

s Sent

S Extras

N My stuff

T Setup

a IrDA

¿ Ringer off

¹ Alarm set

£ Activated and available

o No network

Events (selection)

v Missed call

u WAP alert

Organiser events

n Task

Ü Meeting

Ý Holiday

Message symbols (selection)

p SMS unread (white envelope)

p MMS unread (yellow envelope)

z E-mail forwarded

{ E-mail with attachment

À Voice mail received

Dynamic symbols

‹ Homezone activated

Š WAP alert received

” Voice mail received

† MMS received (yellow

envelope)

„ SMS received (white envelope)

ƒ SMS received, SIM memory full

‚ Vibrator mode set

‡ Memory full

… Handset connected to another

network

right page (9) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

9Getting started

VAR Language: en; VAR issue date: 040929

Getting started

Inserting the SIM

card/battery

The service provider supplies you

with a SIM card that stores all the

important data for your connection.

Remove the SIM card from its holder

before inserting it into the phone.

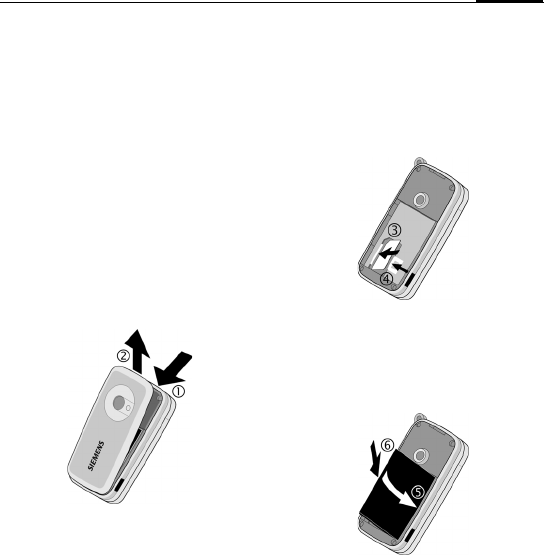

• Press the back cover button on the

short side of the upper end of the

phone 1 until the latch comes

out of the slot, and remove the

cover 2.

• Insert the SIM card under the met-

al clip, with the contact surface

facing downwards, until it is in

place. 3 (Ensure that the cham-

fered corner is in the correct posi-

tion.) Press the metal clip over the

SIM card 4.

• Place the battery sideways in the

slots. First insert its right side

against the right edge of the

phone 5, then press it down-

wards 6 until it clips.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

left page (10) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Getting started10

VAR Language: en; VAR issue date: 040929

• To remove the battery, press the

inner clips one after another and

lift the battery from the right edge

of the phone.

• To replace the back cover, hook

the clips onto the hinges on the

bottom of the phone 7 and press

the cover down 8 until the latch

catches.

Charging the battery

Charging procedure

The battery is not fully charged

when delivered. Plug the charger

cable into the bottom of the phone

9, plug the power supply unit into a

mains power socket and charge for

at least two hours.

Charging time

A flat battery is fully charged after

about 3 hours. Charging is only possi-

ble within a temperature range of

0 °C to 45 °C. If the temperature ris-

es/falls 5°C above/below this, the

charge symbol flashes a warning.

The mains voltage specified on the

power supply unit must not be

exceeded.

Additional information

Please switch off your phone before re-

moving the battery!

Only 3-V SIM cards are supported. Please

contact your service provider if you have an

older card.

right page (11) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

11Getting started

VAR Language: en; VAR issue date: 040929

Operating time

The operating time depends upon

the conditions of use. Extreme tem-

peratures considerably reduce the

phone’s standby time. Avoid placing

the phone in the sun or on a heater.

Talktime: 140 to 400 minutes

Standby time: 160 to 400 hours

Charge icon not visible

If the battery has been discharged

fully, the charge icon is not immedi-

ately visible when the power supply

is plugged in. It will appear with two

hours. In this case the battery is fully

charged after 3 to 5 hours.

Only use the power supply unit included

in the delivery!

Display while in use

Charge level display during opera-

tion (flat-fully charged):

V W X

A beep sounds when the battery is

nearly flat. The charge level of the

battery is only displayed correctly

after an uninterrupted charging/

discharging cycle. You should

therefore not remove the battery unnec-

essarily and where possible not finish

the charging process prematurely.

Additional information

The power supply unit heats up when used

for long periods. This is normal and not

dangerous.

If the battery is removed for longer than

30 seconds, the clock must be reset.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

left page (12) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Switch on/off, PIN entry12

VAR Language: en; VAR issue date: 040929

Switch on/off, PIN entry

Switching phone on/off

BPress and hold.

Entering the PIN

The SIM card can be protected with a

4-8 digit PIN.

JEnter the PIN using the

number keys. The charac-

ters appear as **** to en-

sure that nobody else can

read your PIN code on the

display. Correct with ].

CConfirm by pressing the

joystick. Logging on to

the network will take a

few seconds.

Emergency number

(SOS)

Only to be used in real emergencies!

By pressing the §SOS§ soft key you can

make an emergency call on any net-

work without a SIM card and without

entering a PIN. (Please note that this

option is not available in all

countries.)

Switching on your phone

for the first time

Time/date

During initial set up, the phone first

prompts you to check the date and

time. After that, you can set the

clock so that it displays the correct

time. You will not have to make this

setting again.

JFirst enter the date

(day/month/year),

then the time

(24-hour format).

CPress this key. The time

and date are updated.

Copying SIM addresses

The first time the SIM card is insert-

ed, the entries on it can be copied

into the Addressbook memory.You

can interrupt the copying procedure

to, for example, receive a call, and

then relaunch the copying process

from settings in Phonebook.

You can also copy data from the

SIM card at a later time (see

page 23).

Additional information

Change PIN..................................page 17

Clear SIM card barring .................page 17

right page (13) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

13General information

VAR Language: en; VAR issue date: 040929

General information

Standby mode

The phone is in Standby mode and is

ready for use when the name of the

service provider appears on the

display.

BPress briefly to return

(long press switches the

phone off). You can re-

turn to the standby mode

from any situation.

Signal strength

ZStrong signal.

[Weak signal.

A weak signal reduces the

call quality and may lead

to loss of the connection.

Change your location.

Main menu

Use the following keys to navigate in

the main menu.

Main menu options

§Options§ Open menu.

Different functions are available

depending on the context.

C Call up from standby

mode.

<> Select the application

symbols.

C Start an application.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

left page (14) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

General information14

VAR Language: en; VAR issue date: 040929

User guide

Menu controls

The steps needed to reach a function

are shown in a condensed form in the

user guide. For example, the con-

densed form for displaying the call

history for all calls is as follows:

C¢ P¢Call history

This comprises the following steps:

COpen main menu.

¢Select P, then the Call

history function.

§Select§ Press to confirm.

Symbols

The following symbols are used to

explain an operation:

J Enter numbers/letters

B On/Off/End key

A Call key

<> Soft keys

§Menu§ Displays a soft key

function.

C Press vertically down

on the joystick, e.g. to

access the menu.

D F E

H I G

Press the joystick in the

direction indicated.

= Function dependent on

the service provider;

special registration may

be required.

right page (15) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

15Standard functions

VAR Language: en; VAR issue date: 040929

Standard functions

Option menus

Below is a summary of functions that

recur in options menus.

§Options§ Open menu.

Edit Open the entry to edit. You

cannot change the lan-

guage during editing.

View Display entry.

Delete/

Delete all Delete entry/delete all en-

tries after confirmation.

<New> Create new entry.

Send via... Select transmission service

and medium for sending or

printing.

Reply A message replies to the

sender, "Re" is placed in

front of the subject matter

and the received text is

included in the new

message.

Save Store entry.

Copy to

addressb. Save entries in the current

Phonebook.

Rename Rename selected entry.

Show Display properties of the

highlighted object.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

left page (16) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Security16

VAR Language: en; VAR issue date: 040929

Security

The phone and SIM card are protect-

ed against misuse by several security

codes.

Change codes

C¢T¢Security

¢Change codes

¢Select function.

PIN control

The PIN is usually requested each

time the phone is switched on. You

can deactivate this feature but if you

do so, you risk unauthorised use of

the phone. To be able to use all avail-

able security codes, you must have

the PIN control activated. Some serv-

ice providers do not permit deacti-

vating the control.

§Select§ Press.

JEnter PIN.

CConfirm entry.

§Change§ Press.

CConfirm.

Keep these security codes in a safe

place where you can access them again

if required.

PIN

CODE Protects your SIM card (per-

sonal identification number).

PIN2

CODE This is needed to set the

charge detail display and to

access additional functions on

special SIM cards.

PUK

CODE

PUK2

CODE

Key code. Used to unlock SIM

cards after the wrong PIN has

been entered repeatedly.

Barring

code Used to set restrictions that

prevent calling to certain types

of numbers.

right page (17) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Startup.fm

17Security

VAR Language: en; VAR issue date: 040929

C¢T¢Security

¢Change codes

¢Select function.

Change PIN

You can change the PIN to any

4-8 digit number you find easier

to remember.

JEnter current PIN.

CPress.

J,CEnter new PIN.

J,CRepeat and confirm

new PIN.

Change PIN2

(Display only if PIN2 is available)

Proceed as with Change PIN.

Change barring code

Proceed as with changing other

codes.

Clearing SIM card barring

If the PIN is entered incorrectly three

times, the SIM card is barred. Enter

the PUK (MASTER PIN) provided by

your service provider with the SIM

card in accordance with the instruc-

tions. If the PUK (MASTER PIN) has

been lost, please contact your

service provider.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Text.fm

left page (18) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Text entry18

VAR Language: en; VAR issue date: 040929

Text entry

Text entry without T9

Press a number key repeatedly until

the required letter appears. For

example:

2Press once briefly to write

the letter a, twice to write

b etc. Press and hold to

write the number.

]Press briefly to delete the

letter before the cursor;

press and hold to erase the

whole word.

FMove the cursor

forwards/backwards.

#Press briefly: Switch be-

tween abc, Abc, T9abc,

T9Abc, T9ABC, 123.

*Press to activate/

deactivate the

special characters.

0Press once/repeatedly:

. , ? ! ’ " 0 + - ( ) @ / : _

Press and hold: writes 0.

1Writes blank.

Press twice: writes 1.

Press and hold: writes 1.

Special characters

*Press to activate/

deactivate the special

characters.

I,FNavigate to the table of

characters that contains

the special character you

need:

JPress a matching key in

the keypad to choose the

special character you

need.

1.2,3?

4:5;6!

7“8‘9@

1+2-3=

4*5/6%

7<8>9#

1$2£3¥

4&5¡6¿

7(8)9_

right page (19) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Text.fm

19Text entry

VAR Language: en; VAR issue date: 040929

Text input with T9

"T9" combines the correct word from

the various key inputs.

#Activate/deactivate T9.

Write with T9

It is best if you finish a word without

looking at the display.

You simply press the keys where the

relevant letter is located once.

1/EA blank space or moving

to the right ends the

word.

Do not use special characters such

as Ä. Instead use the standard char-

acters such as A and T9 will do the

rest for you.

T9 word suggestions

If several options are found in the

dictionary for a word, the most prob-

able is displayed first.

^Press. If this word is also

incorrect, press the key

again.

^Keep pressing until the

correct word is displayed.

Additional information

#Press briefly: Switch

between abc, Abc,

T9abc,T9Abc, 123.

*Press to activate/deactivate

special characters: (page 18).

T9® Text Input is licensed under one or more of

the following:

U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480,

5,945,928 and 6,011,554;

Canadian Pat. No. 1,331,057;

United Kingdom Pat. No. 2238414B;

Hong Kong Standard Pat. No. HK0940329;

Republic of Singapore Pat. No. 51383;

Euro.Pat. No. 0 842 463 (96927260.8);

DE/DK, FI, FR, IT, NL, PT, ES, SE, GB;

and additional patents are pending worldwide.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Phone.fm

left page (20) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Calling20

VAR Language: en; VAR issue date: 040929

Calling

JEnter the number (always

with dialling code/inter-

national dialling code).

] A short press clears the

last digit, a long press

clears the entire phone

number.

ADial the phone number.

End call

BPress the End key briefly.

Set volume

—˜ Use volume keys to regu-

late the volume.

Switch to handsfree mode

A long press on the green key

switches the phone to handsfree

mode.

Redial previous numbers

APress twice. The phone

number last called is

redialled.

Call up the redial list:

APress once.

IChoose the phone

number, then to dial

press the …

A... key.

Auto redial

§Auto redial§

The phone number is di-

alled ten times at increas-

ing time intervals.

Accept call

APress.

Or

§Options§ Open and select Accept

call or Accept in h/free.

Reject call

BPress briefly.

Or

§Options§ Open and select Reject

or Silent.

right page (21) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Phone.fm

21Calling

VAR Language: en; VAR issue date: 040929

Call options

§Options§ Functions that are only

available during the call

are offered.

Swapping between

2 calls

Establish a second connection

§Options§ Open menu.

ISelect new number from

phonebook.

Or

JDial in the new numberdi-

rectly, the current call will

automatically be put on

hold.

§Options§ Open menu.

Swap Swap between calls.

Or

Iuse joystick to swap

between calls.

Incoming calls during a call

You will hear the "Call waiting" tone

and you can now:

•Accept the waiting call in addition

to the first

AAccept the call and put

the current call on hold.

Or

§Options§ Press to accept the call.

•Reject the waiting call

§Reject call§ Reject the call, or transfer

it to the mailbox via Trans-

fer option in the Call op-

tions menu.

Or, use

Bto reject the incoming

call.

•Accept the waiting call and end the

current call

§Accept§ Accept the new call.

Or

IAccept the new call with

joystick.

BEnd the call currently in

progress.

Additional information

Accept the call before bringing the phone to

your ear in order to avoid ear damage

caused by the ringtones.

Call with handsfree

§Activate handsfree§

Playback via loudspeaker

(handsfree calling).

Always switch off handsfree

talking before holding the

phone to your ear! Otherwise,

you may damage your

hearing!

International dialling codes

0Remember to add a "+" in

front of the number.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Phone.fm

left page (22) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Calling22

VAR Language: en; VAR issue date: 040929

End call(s)

BPress the End key.

§Yes§ Resume held call.

§No§ End all calls.

Conference

You can call up to 5 conference par-

ticipants one after the other. Once

you have established a connection:

§Options§ Open menu. The current

call is put on hold.

IChoose the new number

from Calls list or from

Phonebook.

Or

JDirectly dial the new

number.

§Options§ Press when the new con-

nection is established and

select Conference. Repeat

until all participants are

connected.

End

BWhen the End key is

pressed, all calls in the

conference are ended.

right page (23) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Adressbook.fm

23Phonebook

VAR Language: en; VAR issue date: 040929

Phonebook

You can save e.g., the names and

numbers of your acquaintances in

your phone as contacts. You can

save the contacts either in the mem-

ory of the SIM card (Phonebook op-

tion) or in the phone memory

(Addressbook option). The Address-

book option is set as standard.

To save your contacts, select:

C¢L¢Settings¢Select

¢ Addressbook / Phonebook

New entry

To add a new contact to your Phone-

book, do as follows:

HOpen Phonebook.

HSelect Names list.

HSelect <New>.

JFill in the input fields:

ENTER NAME:

Enter first and/or last names.

Phone number:

Always enter the phone number

with dialling code. An entry will not

be saved without a phone number.

Number type:

Select the type of the new entry, e.g,

mobile, home, fax.

You can also select the following:

Select group: (in the Addressbook

option)

Allocate the entry to a group

(page 25).

Email: (in the Addressbook option)

Enter the e-mail address.

Note: (in the Addressbook option)

You can enter text, if you want to

add comments about the contact.

CSave the new entry.

Additional information

International dialling codes:

0Remember to add a "+" in

front of the number.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Adressbook.fm

left page (24) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Phonebook24

VAR Language: en; VAR issue date: 040929

Find entry/Call

IOpen Phonebook.

ISelect Names list.

J/ISelect a name with the

first letter and/or scroll.

ACall the selected number.

Change entry

ISelect entry in Phone-

book.

§Options§ View options.

ISelect desired input field.

JMake changes.

IPress to save the changes.

Editing the entries

The following options are available

depending on what is currently

selected.

§Options§ Open menu.

Change You can edit the name,

number and type of the

selected entry.

Delete You can delete the en-

tire selected entry.

Send SMS You can send an SMS

to selected recipient(s).

Send MMS You can send an MMS

to selected recipient(s).

IrDA You can send the se-

lected entry by IrDA.

Show You can view the details

of the selected entry.

Copy to

phonebook

(in the Address-

book option)

You can manually copy

entries from the phone

memory to the SIM

card.

Copy to ad-

dressb. (in the

Phonebook

option)

You can manually copy

entries from the SIM

card to the phone

memory.

Call handsfree You can call the select-

ed recipient with the

handsfree function.

Voice dial You can record a Voice

dial to speed access to

the selected entry.

Flash dial You can access a

speed dial to an entry

by programming a

Flash dial to the

selected entry.

right page (25) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Adressbook.fm

25Phonebook

VAR Language: en; VAR issue date: 040929

Settings

The following functions are availa-

ble, depending on what is currently

selected.

§Options§ Open menu.

Group setup

To manage your Addressbook entries

clearly, arrange your entries. You

can select a group when creating a

new entry or select an existing entry

to modify the group settings. You

can select a melody and a picture for

the group. These are displayed when

a caller from the group is calling.

IOpen Phonebook.

ISelect Names list.

J/ISelect the required entry.

ISelect §Options§.

<Press Select group.

Own numbers

Enter "own" phone numbers for

information when Phonebook or

Addressbook is selected.

Emergency call

The Emergency call is always dis-

played at the end of the Names list.

You cannot change the Emergency

call as it is predefined (see also

page 12).

Select

group Select the group allocated

to the contact.

Select Select either Address-

book or Phonebook.

Delete all Delete the entire content

saved in Addressbook /

Phonebook.

Copy to

addressb. Copy all entries from the

Phonebook memory to the

Addressbook memory.

(For standard functions see page 15)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Records_Time.fm

left page (26) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Call records26

VAR Language: en; VAR issue date: 040929

Call records

Phone numbers are saved to make

it easier to redial them.

Call history

The call list can store up to 30 en-

tries. For example calls missed, calls

received or calls dialled can be listed.

C¢P Call history

ISelect record.

COpen record.

ISelect phone number.

§Options§/§OK§

Select Call, Call back h/free,

Send SMS, Send MMS,

Details, Save, Delete.

Access to the last calls

AFast access in standby

mode.

Reset

The call records are deleted.

Durat/charges

C¢P¢Durat/charges

¢Select function.

Last call records, Outgoing, Incoming,

Total cost

ISelect.

COpen report or settings.

§Reset§ Reset the selected setting.

§Cancel§ Cancel the selected

setting.

Total cost

COpen menu.

Charge rate

Enter the currency as well as the

charge per unit.

Show balance

The remaining amount of credit or

units is displayed.

Cost limit

Special SIM cards allow you or the

service provider to define a credit

limit.

§Reset§ Reset the selected setting

§Cancel§ Cancel the selected

setting.

right page (27) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Camera.fm

27Camera

VAR Language: en; VAR issue date: 040929

Camera

You can view photos taken on the in-

tegrated camera immediately and

• use the photo as a background

image.

• send the photo via MMS, IrDA or

e-mail.

Switch on

• Flip the screen gently 180 ° to the

right until the screen is on the re-

verse side.

• Close the clamshell, see Overview

of phone (page 4).

• The camera switches automatical-

ly to camera mode.

• For functions of the keys in cam-

era mode, see Overview of phone

(page 4).

The current (preview) image is dis-

played. You will see the following in

the first line from left to right:

œResolution

›Night mode

¥Self-timer

™Flash activated

ÑSaving

½Burst mode

1,5 Zoom value, e.g, 1,5

Settings prior to taking a photo:

ö/õPress to zoom in and out

in the preview image.

Pict. resolution

It is possible to set the quality of

the image regardless of the preview

image resolution.

The resolution may decrease de-

pending on the selected digital

zoom. The wallpaper is adapted

to the phone’s screen resolution.

Additional information

The camera feature is automatically in use

once you switch the phone to camera

mode.

Premium: 1280 × 960 (SXGA)

High: 640 × 480 (VGA)

Wallpaper: 128 × 160

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Camera.fm

left page (28) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Camera28

VAR Language: en; VAR issue date: 040929

Taking a photo

–Press to take a photo.

–Press to save the photo.

The photo is saved in the

picture album.

§Delete§ Delete the photo.

§Send§ Send the photo by:

•IrDA

•MMS

•Email

SlideShow

See all available photos displayed on

the screen one after another. Press-

ing any key stops the slideshow.

Sleep mode

If you do not use the camera for two

minutes, it automatically switches

to the sleep mode. Press any key to

return to the preview when sleep

mode is activated.

Camera options

The following functions are availa-

ble, depending on the current

situation.

§Options§ Open menu.

Options •Settings:

Picture quality, sound set-

ting, reset settings.

•Frames:

Choose Default frames,

Own frames, or none.

•Colour mode:

e.g, black, white, sepia.

•Pict. Album

•Self-timer :

The camera automatically

takes the photo approxi-

mately 10 seconds after

triggering. You hear a beep

before last 3 seconds.

•Flash:

Activate the flash before

taking the photo.

•Burst mode:

Take multiple photos with

one shot.

•Night mode:

Use when the exposure is

very dark.

•Picture orientation:

Use portrait for the phone

screen and landscape for

PC screen.

(For standard functions see page 15)

right page (29) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_SMS.fm

29SMS

VAR Language: en; VAR issue date: 040929

SMS

You can transmit and receive

very long messages (up to 760

characters) on your phone. They

are automatically composed of

several "normal" SMS messages of

160 characters (note the higher

charges).

You can also send pictures and

sounds with or without accompany-

ing text in an SMS. Also, SMS does

not support all types of pictures

and/or sounds.

Write/send

C¢M¢SMS¢Send SMS

ISelect <Add contact> to

select a name in the dis-

played Names list or enter

a new number. Repeat

the procedure if you want

add more contacts.

ISelect <New>.

IEnter text (see also

page 18) or select Tem-

plate to use a standard

message.

ISelect <Add Media> if

you want to insert a

picture, text or a sound

in the SMS.

Select from a list of possi-

ble attachments and

press OK.

ISelect Save if you want to

save the message in the

message list.

ISelect Send now to send

the SMS to the selected

recipient(s).

The SMS is transmitted to the service

centre from where it will be sent.

Archive

C¢M¢Archive

The list of SMS messages stored in

the phone is displayed.

SMS to group

Perform the same procedure as

when writing a standard SMS. Re-

peat the procedure as many times as

necessary to add more contacts.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_SMS.fm

left page (30) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

SMS30

VAR Language: en; VAR issue date: 040929

Read

pArrival of a new SMS an-

nounced on the display.

CTo read the SMS, press the

joystick or press §Read§.

IScroll through message

line by line.

ISelect from the following

list of options.

§Options§ Open menu.

SMS settings

Signature

C¢M¢SMS¢SMS settings

¢Signature

You can enter a "signature" with a

maximum of 16 characters. This sig-

nature will then be attached to each

SMS except when changes are made

to an existing SMS.

In SMS settings, you can also deter-

mine the settings for the following:

Standard messages

C¢M¢SMS¢Template

Standard messages can be stored in

the phone and added to your other

messages.

Reply Answer the SMS now dis-

played immediately.

Forward Forward the selected mes-

sage to a chosen recipient.

Delete Delete the selected

message.

Move to

Archive Store the message in the

phone memory.

Call back Call the sender of the se-

lected message.

Auto save Save the sent SMS mes-

sages automatically in the

phone memory. Set On or

Off.

SMS centre Select the service centre

number to be used as de-

fault each time you send a

new SMS.

Validity

period Select the period within

which the service centre

must try to deliver the

message:

1 hour,12 hours,

1 day, 1 week, Maximum*

* Maximum period that the

service provider permits.

Reply path Set On to send the service

centre number along with

the SMS message, so the

recipient can reply using

this number

Delivery

Report Request delivery confir-

mation for sent messages.

right page (31) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MMS.fm

31MMS

VAR Language: en; VAR issue date: 040929

MMS

The Multimedia Messaging Service

enables you to send texts, pictures

and sounds in a combined message

to another mobile phone or to an

e-mail address.

Depending on your phone settings,

you will either receive the complete

message or only a notification with

sender details and size. The actual

MMS can then be downloaded man-

ually later.

Create

An MMS consists of the address

header and the content. The content

may be several pages long. Each

page may contain a text, a picture

and a sound. Remember that pic-

tures and sounds may be protected.

Create new MMS

C¢M¢MMS¢New MMS

ISelect <New>.

ISelect <Add contact> to

select a name in the dis-

played Names list or enter

a new number or e-mail.

Repeat the procedure if

you want add more

contacts.

ISelect <Add Media> to add

a picture, text or a sound.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MMS.fm

left page (32) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

MMS32

VAR Language: en; VAR issue date: 040929

Send MMS

Once your new MMS message is

complete:

ISelect Send now to send

the MMS to the selected

recipient(s) immediately.

Options

§Options§ Open menu.

Templates

C¢M¢MMS¢Templates

MMS templates are saved MMSs

without an address. They can be sent

as new MMS messages or used as

part of a new MMS. A maximum of

99 templates can be saved depend-

ing on the memory available in the

phone.

Create templates by writing a new

MMS or using an MMS that you have

already received.

§Options§ Open menu and select

Save as template.

Receive

wArrival of new MMS/notifi-

cation announced on the

display.

You can select automatic or manual

retrieval mode. (See Settings

below.)

§Options§ open and select Read

to read the MMS or

press §OK§.

Add Slide Create a new slide and

add it to your slideshow.

Next slide Move to the next slide.

Previous slide Move to the previous

slide.

Edit Subject Edit and change or enter

the subject of your

message.

Delete slide Delete the selected

slide.

Save as draft Save your message as a

draft, if you want to edit,

complete and send it

later on.

Save as

template Save created MMS as a

template. See also be-

low:

Slide duration Change the value of the

slide duration and set a

delay between each

slide.

Preview MMS Preview the slides

created.

(For standard functions see page 15)

Additional information

In case the size of the MMS download is

bigger than the memory available, the

phone gives you a notification. Delete

some data in order to free memory for the

new MMS.

right page (33) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MMS.fm

33MMS

VAR Language: en; VAR issue date: 040929

The sender of the message may have

asked for a Read Report.

<Press §OK§ to send a report

or press Delete to remove

the report.

Read

An MMS has been received in full.

ISelect Inbox and select the

required MMS.

<Press §OK§ to access the

Player options:

Manage folders

You can use four different folders.

The active folder is the one you last

selected.

Play Switch back to the Auto-

matic mode, the MMS

then plays as a continu-

ous slideshow.

Previous Slide Move to the previous

slide.

Next Slide Move to the next slide.

Rewind Move to the first slide.

Save picture Detach the picture from

the current slide and

save it in the Picture

album.

Save sound Detach the sound of the

current slide and save it

in the Sound album.

Close Close the MMS and go

back to the Inbox.

Drafts Lists all MMS messages you

save as drafts, or which were

automatically saved if you

quit the MMS menu before

saving or sending the MMS.

You can select: Play mes-

sage, Edit MMS, Send MMS

and Delete.

Templates Lists all MMS messages you

save as templates. You can

select:

Play message, Edit MMS

and Delete.

Outbox Lists all the MMS messages

you have sent or created but

not sent yet. You can select:

Play message or Delete,

Forward or Re send MMS to

someone, or view the MMS

Details of the messages.

Inbox Lists all the Delivery report,

Read report, MMS read and

MMS deleted. You can se-

lect: Read or Delete reports

and notifications. You can al-

so select: Play message,

Reply to or Forward the

MMS message or view MMS

Details or Delete the MMS

message.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MMS.fm

left page (34) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

MMS34

VAR Language: en; VAR issue date: 040929

Settings

C¢M¢MMS¢Settings

¢Select function.

Select profile

Five MMS profiles can be set. The

sending properties are specified in

these profiles. If the setting has not

yet been set, you will receive the

necessary data from the service

provider or:

www.siemens-mobile.com/sf65

ISelect profile.

COpen to edit the profile.

Application settings

Set the MMS dispatch to suit your

requirements:

Delivery

Report Request delivery confirma-

tion for sent messages.

Read

Report Request confirmation that the

MMS has been read.

Auto save Save the MMS messages

sent from the Outbox auto-

matically. Set On or Off.

Validity

period Select the period within which

the service centre must try to

deliver the message:

1 hour,12 hours,

1 day, 1 week, Maximum*

* Maximum period that the

service provider permits.

Slide

duration Select the duration between

the slides of the MMS.

Retrieval

mode You can choose to receive a

complete MMS or only a noti-

fication of its arrival.

Manual: Connect manually to

the server by selecting the

notification in the Inbox, se-

lecting Read to download,

then Play.

Automatic: Received MMS

messages are placed in the

Inbox. Select the message

and then Play.

right page (35) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MMS.fm

35MMS

VAR Language: en; VAR issue date: 040929

Network settings

Network account is used to select a

connection profile of the networks

you have set.

All the MMS settings should be set

when you buy your phone. Please

contact your network provider.

Bearer: Select the type of network

used when launching a con-

nection: GSM, GPRS or

GPRS first.

MMS center Enter the MMS address of

the server to which you

connect.

Gateway

Address/

Gateway

Port

Enter both the IP and Port

numbers of the server’s

gateway.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Email.fm

left page (36) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Email36

VAR Language: en; VAR issue date: 040929

Email

Your telephone has an e-mail pro-

gram (client) with which you can

write and receive e-mails. Depend-

ing on which e-mail you wish to

read, select the respective mailbox.

Write/send

C¢M¢Email

¢Send email

Enter address data:

<Add Media>

Validate the list of

addresses.

<Add contact>

Add addressees to the list.

If you have saved your

contacts in the Address-

book, you can select the

addressees from the

Names list displayed for

selection.

SUBJECT: Enter the heading of the

e-mail.

Attach file: Add text files, pictures

and sounds as

attachments.

To send:

§Options§ Select.

Save Save the e-mail.

Send now Send immediately.

Edit mail Enter text.

Receive/read

C¢M¢Email ¢Open mailbox

¢Select function.

Before an e-mail can be read, it must

be retrieved from the server.

Details See detailed content of

the header.

Get mail Receive selected e-mail

from the server.

Delete Delete the selected

e-mail.

Add to addressbook

Save the sender’s address

to Addressbook.

Re: Reply to the e-mail.

Fwd: Forward the e-mail.

right page (37) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Email.fm

37Email

VAR Language: en; VAR issue date: 040929

Setting

C¢M¢Setup¢Email

Before using this service, you must

set the server access and your e-mail

options. You will receive the neces-

sary data from your service provider

or: www.siemens-mobile.com/sf65

Network access

Set the type of network used with

e-mail connections.

Network

GSM The phone will only use

GSM bearers for e-mail

connections.

GPRS The phone will only use

GPRS bearers for e-mail

connections.

GPRS first The phone first tries to

connect to a GPRS bearer.

If this is not available,

then to a GSM bearer.

GSM settings

You can change the GSM settings.

GPRS settings

You can change the GPRS settings.

Email server

Set the required settings to connect

to your e-mail server.

JEnter your Login, Password

and Email address.

Advanced

The advanced settings such as POP3

address, SMTP address and DNS ad-

dress are usually already set, so you

should not have to change these set-

tings. For more information on the

advanced settings, contact your

service provider.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Mailbox_CB.fm

left page (38) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Voice mailbox38

VAR Language: en; VAR issue date: 040929

Voice mailbox

C¢T¢Call Setup

If you have a mailbox, a caller can

leave a voice message for you:

• if your phone is switched off or

not ready to receive

• if you do not want to answer

• or if you are making a phone call.

You may have to register for this

function and set it manually.

Setup b

The service provider supplies you

with two phone numbers:

Save mailbox number

Call this phone number to listen to

your voice messages.

C¢Setup¢Voice mailbox

Enter the phone number and con-

firm with §OK§.

Save call divert number

Calls are transferred to this phone

number.

C¢T¢Call Setup¢Call divert

¢e. g, Calls missed¢Set

Enter the phone number and

register it on the network by

pressing §OK§.

Listen to message b

A new voice message can be an-

nounced as follows, depending

on the service provider:

ÀSymbol plus beep.

Or

pNotification via SMS

plus beep.

Or

You receive a call with an automatic

announcement.

Call your mailbox and play the mes-

sage(s) back.

1Press and hold (if neces-

sary enter mailbox

number once).

SMS broadcast

C¢M¢SMS broadcast

Some service providers offer infor-

mation services (info channels, Cell

Broadcast). If reception is activated

you will receive messages about the

activated topics in your Topics.

right page (39) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_IrDA.fm

39IrDA

VAR Language: en; VAR issue date: 040929

IrDA

You can receive and send data to and

from other IrDA-compliant devices

such as a PC or a PDA.

The types of data you can exchange

via IrDA include name cards, events,

pictures, sound files or JavaTM files.

However, you can only download,

but not send JavaTM files.

Make sure that the distance between

two IrDA devices does not exceed

30 cm and that nothing obstructs

the IrDA beam.

Receiving data via IrDA

C¢a¢Receive data

Delete Delete the received data.

Save Save the received data.

Show Display the received pic-

ture or play the received

sound.

Connecting to Windows®

PCs using IrDA

C¢a¢ Data/Fax

Connecting to Windows®

PCs

You can connect your phone using

IrDA or a data cable (Accessories) to

a Windows® PC. The Windows® PC

program MPM (Mobile Phone Man-

ager) enables you to upload/down-

load pictures and sounds.You can

download the Mobile Phone Manag-

er from the Internet at

www.siemens-mobile.com/sf65

Additional information

The data exchange may fail if the IrDA link

is broken, the transferred file is too large,

the phone does not connect before the time

out is reached, or you cancel the action.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Internet.fm

left page (40) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Surf & Fun40

VAR Language: en; VAR issue date: 040929

Surf & Fun

Get the latest information from the

Internet that is specifically adapted

to the display options of your phone.

In addition, you can download

games and applications to your

phone. Internet access may require

registration with the service

provider.

WAP

C¢O¢WAP

The browser is activated with the

preset option as soon as you access

the function (Browser settings,

page 41; may be specified/pre-as-

signed by the service provider).

Browser menu

§Options§ Open the menu.

End connection

B/>Press briefly the End key /

Press and hold the right

soft key to close the con-

nection and the browser.

Navigation in the browser

Display symbols in the browser

Enter text/special characters

To enter text/special characters, see

Text entry (page 18).

Homepage Call up the preset

homepage or the current

profile (page 41).

Bookmarks Display bookmarks stored

in the phone; save book-

mark.

Go to URL Enter a URL.

Push Inbox Select a message to be

displayed.

Settings Browser settings

(page 41).

C • Select a link.

• Settings, status on/off.

I • One input field/link

forward/back.

• Scroll one line.

> • One input field/link

forward/back.

• Scroll one line.

µ GSM online

³ GPRS online

right page (41) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Internet.fm

41Surf & Fun

VAR Language: en; VAR issue date: 040929

Browser settings

C¢O¢WAP

§Options§ Open menu.

Settings Select.

Profiles

Preparation of the phone for Internet

access depends on your service

provider:

Profile preset

In most cases, access profiles have

already been created for one or more

service provider(s).

ISelect profile.

CActivate profile.

Set profile manually

You will receive the necessary data

from the service provider or:

www.siemens-mobile.com/sf65

Bookmarks

C¢O¢Bookmarks

URLs stored in the phone are dis-

played. New bookmarks can be

saved. You can manage the book-

marks in folders.

Wallbreaker

C¢O¢ Wallbreaker

In the brick game, you destroy the

bricks by hitting them with the ball.

Destroying all the bricks gets you to

the next level.

4/6Move the racket left or

right.

*/#Launch the ball left or

right.

0Pause the game.

The game pauses for 2 minutes, af-

ter which the screen returns to the

standby mode and the game is over.

Select

profile The list of profiles is dis-

played for activation/setting

(see below).

Network Set protocol parameters,

e.g. select network access

and the bearer or access se-

curity settings.

Browser

Options Select whether you want to

download pictures for

displaying.

Rename

profile Rename the selected profile.

Cache Delete the content of the

cache.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Games&Apps.fm

left page (42) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Surf & Fun42

VAR Language: en; VAR issue date: 040929

Surf & Fun Games & more

Games and applications are offered

on the Internet. Your phone features

JavaTM. This enables you to down-

load JavaTM-compatible applications

to your phone from the network.

Most applications include instruc-

tions. Some applications and games

are already pre-installed on your

phone. You will find these listed at:

www.siemens-mobile.com/sf65

Settings

C¢O¢Games & more

¢Games & More

¢Settings

Auto. start

Select Auto. start to automatically

launch the installed application

when the installation is complete.

ISet Auto. start on/off.

CConfirm selection.

Network access

Network account

You can select one of the

network profiles you have

defined in Setup

(page 44).

Network You can select the type of

network used when

launching a connection,

such as GSM or GPRS.

DNS address

You can enter the DNS ad-

dress of the external data

network you wish to

connect.

Requirements

WAP profile (page 41) and access

(page 48) must be configured.

Download

Select the correct access depending

on whether you are loading games

or applications:

C¢O¢Games & more

¢Start applications

In addition to URLs and service pro-

viders for the download, any availa-

ble applications/games and folders

will be displayed.

right page (43) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Games&Apps.fm

43Surf & Fun

VAR Language: en; VAR issue date: 040929

Additional information

You can use the browser to download applica-

tions (e.g. ringtones, games, images, animations)

from the Internet.

Siemens excludes all warranty and liability claims

in respect of or in connection with any applica-

tions subsequently installed by the customer and

any software not included in the original delivery

package. This also applies to functions enabled

subsequently at the customer's instigation. The

purchaser bears sole risk for the loss of, damage

to, and any defects arising in, this device or the

applications and for any direct damage or conse-

quential damage of whatever nature resulting

from the use of this application.

For technical reasons, such applications and sub-

sequent enabling of certain functions are lost in

the event of the device being replaced/re-sup-

plied and may be lost if it is repaired. In such cas-

es, the buyer is required to download or release

the application again. These applications are

then exclusively intended for your phone and

cannot be transferred from this even to create a

backup.

Siemens does not warrant, guarantee or accept

any liability for the customer's ability to download

or enable applications again or to do so free of

charge. It is recommended from time to time to

back up applications on the PC using the "Mobile

Phone Manager"

(www.siemens-mobile.com).

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Setup.fm

left page (44) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Setup44

VAR Language: en; VAR issue date: 040929

Setup

Profiles

C¢T¢Profiles

Several settings can be stored in a

phone profile, e.g., in order to adapt

the phone to the surrounding level

of noise.

Five standard profiles are provided

with default settings. They can be

changed however: Normal envi., Meet-

ing, Noisy environ., Car Kit, Headset.

Profile settings

ISelect profile.

CConfirm selection.

Car Kit

If an original Siemens Car Kit is used,

the profile is switched on automati-

cally when the phone is connected

to the Car Kit.

Headset

The profile is only switched on

automatically if an original

Siemens Headset is used

(see also accessories).

Display

C¢T¢Display

¢Select function.

Language

Set the language of the display text.

Wallpaper

Set wallpaper graphic for the display.

Animations

You can remove any of the anima-

tions used.

Backlight

You can set the keypad/screen back-

light to switch off after 60 seconds.

Sounds

C¢T¢Sounds

¢Select function.

Set the tones on the phone to suit

your requirements.

Ringer volume

Set the ringer volume level.

Ring tone

Select the ring tone.

right page (45) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Setup.fm

45Setup

VAR Language: en; VAR issue date: 040929

Key tones

Activate/deactivate the key tone.

When activated, you hear a tone

each time you press a key.

Equaliser

You can change the audibility either

via the equaliser or during a call.

Sound alerts

Activate/deactivate the sound alert.

The list of possible sound alerts is

displayed for selection.

1 minute beep

During the call, you (and only you)

will hear a beep every minute so you

can check the call's duration.

Silent alert

Activate/deactivate the silent alert.

You can activate the silent alert func-

tion as an alternative to the ring

tone. This function is deactivated

when the battery is being charged

and accessories are connected (ex-

cept the Headset).

*You can also press and

hold this key in standby

mode to switch all audible

signals on/off.

SMS/MMS ringer

Activate/deactivate the SMS/MMS

ringer if you wish the phone to signal

you that you have received a new

message. The list of possible mes-

sage alerts is displayed for selection.

Call Setup

C¢T¢Call Setup

¢Select function.

Hide identity b

If activated, your phone number

does not appear on the other party’s

display (depending on the service

providers).

Call waiting b

If you are registered for this service,

you can check whether it is set and

you can activate/deactivate it.

Call divert

You can specify when calls should be

transferred to your mailbox or to

other numbers.

Additional information

Please make sure you have accepted the

call before holding the phone to your ear.

This will avoid damage to your hearing from

loud ringtones.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Setup.fm

left page (46) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Setup46

VAR Language: en; VAR issue date: 040929

Set up call transfer (example)

Calls missed b

ISelect Calls missed.

(Includes the conditions

Not reachable, No reply,

Busy, for other possibili-

ties, see below).

CConfirm and select Set,

then enter the phone

number to which the call

will be transferred.

CConfirm. The network

confirms the setting.

All calls b

All calls are transferred.

ÇIcon in the top line of the

display in standby mode.

Other possibilities for transfer:

Not reachable, No reply, Busy, Fax calls,

Data calls

Any key to answer

Incoming calls can be accepted by

pressing any key (except for B).

Info at call end

Displays call information after the

call.

Voice mailbox

Stores the received voice mail.

Open to answer

You can accept the call once you

have opened the clamshell.

Auto redial

The phone redials the number until it

is reached or until 10 attempts have

been made.

Phone setup

C¢T¢Phone setup

¢Select function.

Auto. switch off

The phone switches off each day at

the set time. You can set the phone

to switch off each day, only once,

and each day except the weekend.

right page (47) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Setup.fm

47Setup

VAR Language: en; VAR issue date: 040929

Auto. switch on

The phone switches on each day at

the set time. You can set the phone

to switch on each day, only once,

and each day except weekend. The

phone asks for the PIN code as usual.

Hotkeys

You can set speed dial to access your

favourite functions on the phone

keys from 2 – 9.

Voice command

Record a voice command with which

you can activate your favourite

functions.

Voice dial

Record a voice dial to speed access to

a wanted entry in your Phonebook.

Time/date

C¢T¢Time/date

¢Select function.

Set time

Set the time.

Set date

Set the date.

Time zone

Select a time zone.

Thai

Switch between Thai/Buddhist year.

Daylight saving

Activate/deactivate the daylight

saving.

Security

C¢T¢Security

¢Select function.

Public names b

Restrict calls to SIM-protected num-

bers in the Phonebook.

Change codes

Access PIN control. For description,

see page 16:

Change PIN, Change PIN2, Barring code

Additional information

When using the Auto. switch on function,

remember the restrictions of usage of the

phone in e.g., aeroplanes!

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Setup.fm

left page (48) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

Setup48

VAR Language: en; VAR issue date: 040929

Call barring b

Restrict different types of calls.

Calls dialled

All outgoing calls except emergency

numbers are barred.

International

(Outgoing international)

Only national calls can be made.

Out.int.x.home

(Outgoing international

without home country)

No international calls, only calls to

the home country.

Incoming

The phone is barred for all incoming

calls.

When roaming

You will not receive calls when out-

side your home network.

Status

Status check for network barring.

Network

C¢T¢Network

¢Select function.

Data calls

When activated, you can manage

several sets of WAP, MMS and Java

profiles. The list of profiles is dis-

played for selection.

The phone default setting varies

from service provider to service pro-

vider. You will receive any data nec-

essary from the service provider or:

www.siemens-mobile.com/sf65

GPRS settings

You can see if the network GPRS is

currently attached.

GPRS

(General Packet Radio Service)

GPRS is a new method for transmit-

ting data faster in the mobile net-

work. For symbols in the display, see

page 8.

Preferred net

Set the service providers you prefer

when you leave your home network.

Register again

When selecting Register again, you

can choose either manual or

automatic.

Available networks

You can see the list of GSM networks

currently available, if you want to

register manually.

right page (49) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Organizer.fm

49Organiser

VAR Language: en; VAR issue date: 040929

Organiser

C¢Q¢Select function.

Calendar

You can enter events in the calendar.

The time and date must be set

correctly.

The calendar offers you three views:

Month view, Week view, and

Day view.

The various entries are colour-cod-

ed. Events are shown as icons on the

horizontal hour/day division.

Navigation:

FScroll between

Month/Week/Day.

Events

Events are displayed in chronological

order in a list.

Enter new event

<New> Select.

Profiles

nTask: Text input for

description.

ÜMeeting: Text input for

description.

ÝHoliday: Enter start and

end date.

Different input/selection fields are

displayed depending on the type.

Delete old events

C¢Q¢Select function.

Task

A task is displayed like other events

in the agenda of the selected day.

However, unlike other events it does

not require a time. When no time is

entered, the task appears at the top

of the list every day until it is marked

as completed.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Extras.fm

left page (50) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Extras50

VAR Language: en; VAR issue date: 040929

Extras

C¢S¢ Select function.

Services b

Your service provider may offer ap-

plications such as mobile banking,

share prices, etc. via the SIM card.

USymbol for SIM services.

For further information, please con-

tact your service provider.

Alarm clock

There are three alarm clocks availa-

ble. The list of possible alarm clocks

is displayed for selection. The alarm

rings at the time you set, even when

the phone is switched off.

IActivate (/deactivate) the

alarm.

§OK§ Confirm setting.

JSet the time for the alarm

call (hh:mm).

INavigate to the frequency

options.

CSelect either Daily, On

weekdays, or Once.

§OK§ Confirm setting.

ISet alarm type.

§OK§ Confirm setting.

You can set the alarm to repeat with

Snooze.

Calculator

The calculator can be used in a basic

version and with an extended range

of functions.

JEnter number(s).

DPress to enter -.

EPress to enter +.

GPress to enter x.

HPress to enter /.

§OK§ Press to compute.

Unit converter

You can convert from euros to your

national currency and from your na-

tional currency to euros.

JEnter the value you want

to convert.

0Press and hold to add a

decimal point.

<Press to convert.

Additional information

¹Alarm clock, alarm set.

An alarm sounds even when the phone is

switched off.The phone does not go to

standby mode. To deactivate it press any

key.

right page (51) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Extras.fm

51Extras

VAR Language: en; VAR issue date: 040929

Lunar calendar b

You can see the corresponding dates

between the Gregorian calendar and

Chinese calendar.

JEnter Gregorian date.

CSee the corresponding

date in lunar mode.

You can see the date in year-month-

day mode with the corresponding

lunar symbols.

Horoscope b

You can read your horoscope for to-

day or for some other day. First set

your date of birth or your

constellation.

Setting sign

ISelect settings to enter

your sign.

IChoose your star sign

among the horoscopes.

Or

JEnter your date of birth.

CConfirm setting.

Displaying horoscope

ISee horoscope of the day.

Or

JEnter a date to see the

horoscope of a chosen

day.

Chinese festivals b

You can find information on the six

next major Chinese festivals.

CDisplay the festivals from

today.

JEnter the date you want

to display the festivals

from.

Additional information

The following functions are only available

when Chinese language is set on.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MediaFolder_Player.fm

left page (52) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

My stuff52

VAR Language: en; VAR issue date: 040929

My stuff

C¢N¢ Select function.

Memory status

You can display the percentage of

memory available in your phone.

You can also check which type of da-

ta requires plenty of memory space.

Voice memo

You can record a maximum of

1 minute sound as a voice memo.

Depending on the memory status,

you can record up to 20 different

sounds.

ISelect <New> to record a

new sound.

CConfirm the recording.

IPlay the recording by se-

lecting it in the list.

<Select §Options§ to delete

or rename the recording.

Sound album

You can manage and listen to the

sounds stored in your phone.

ISelect the sound.

—˜ Increase/decrease the

volume level.

<Select §Options§.

Sound processing

Depending on the context you can

have the following §Options§:

Rename Rename the selected

sound.

Delete Delete the selected

sound.

Set as ringer

Set the selected sound as

a ringer.

As SMS/MMS ringer

Set the selected sound as

a message ringer.

Send via... Send the selected sound

by Email, MMS or IrDA.

right page (53) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MediaFolder_Player.fm

53My stuff

VAR Language: en; VAR issue date: 040929

Pict. Album

You can manage and display the pic-

tures stored in your phone.

ISelect the picture.

FDisplay the picture.

<Select §Options§.

Picture processing

Depending on the context you have

the following §Options§:

Rename Rename the selected

picture.

Delete Delete the selected

picture.

Edit picture

Change the selected

picture (see below).

Rotate Rotate the entry point of

the selected picture.

Set as wallpaper

Set the selected picture as

a wallpaper.

Send via... Send the selected melody

by Email, MMS or IrDA.

Picture editing

You can add text, a frame or an icon

in the selected picture.

ISelect to add

text/frame/icon.

@Press briefly to move the

object of 1 pixel or press

and hold to move the ob-

ject of 5 pixels to the re-

quired direction.

CConfirm adding the object

to the picture.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Hotline.fm

left page (54) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Customer Care54

VAR Language: en; VAR issue date: 040929

Customer Care

You can also get personal advice about our

range of products on our Premium Hotline:

United Kingdom ............................ 0906 9597500

(0.75 £ per minute)

Qualified Siemens employees are waiting to

offer you expert information about our

products and installation.

In some countries repair and replace servic-

es are impossible where the products are

not sold through our authorised dealers.

If repair work is necessary, please contact

one of our service centres:

Abu Dhabi .........................................0 26 42 38 00

Argentina .....................................0 80 08 88 98 78

Australia..........................................13 00 66 53 66

Austria.............................................05 17 07 50 04

Bahrain .................................................... 40 42 34

Bangladesh.......................................0 17 52 74 47

Belgium.............................................0 78 15 22 21

Bolivia ...............................................0 21 21 41 14

Bosnia Herzegovina..........................0 33 27 66 49

Brazil............................................0 80 07 07 12 48

Brunei ................................................. 02 43 08 01

Bulgaria............................................... 02 73 94 88

Cambodia ........................................... 12 80 05 00

Canada ........................................1 88 87 77 02 11

China ...........................................0 21 38 98 47 77

Croatia ..............................................0 16 10 53 81

Czech Republic.................................2 33 03 27 27

Denmark ............................................. 35 25 86 00

Dubai ................................................0 43 96 64 33

Egypt.................................................0 23 33 41 11

Estonia................................................ 06 30 47 97

Finland............................................09 22 94 37 00

France.............................................01 56 38 42 00

Germany *....................................0 18 05 33 32 26

Greece ............................................80 11 11 11 16

Hong Kong.......................................... 28 61 11 18

Hungary ..........................................06 14 71 24 44

Iceland .................................................. 5 11 30 00

India.............................22 24 98 70 00 Extn: 70 40

Indonesia .....................................0 21 46 82 60 81

Ireland.............................................18 50 77 72 77

Italy .................................................02 24 36 44 00

Ivory Coast.......................................... 05 02 02 59

Jordan...............................................0 64 39 86 42

Kenya.................................................... 2 72 37 17

Kuwait ................................................... 2 45 41 78

Latvia .................................................... 7 50 11 18

Lebanon.............................................. 01 44 30 43

Libya ...............................................02 13 50 28 82

Lithuania ...........................................8 52 74 20 10

Luxembourg........................................ 43 84 33 99

Macedonia .......................................... 02 13 14 84

Malaysia....................................+ 6 03 77 12 43 04

Malta.......................................+ 35 32 14 94 06 32

Mauritius ............................................... 2 11 62 13

Mexico .......................................01 80 07 11 00 03

Morocco .............................................. 22 66 92 09

Netherlands .................................0 90 03 33 31 00

New Zealand...................................08 00 57 43 63

Nigeria ..............................................0 14 50 05 00

Norway................................................ 22 70 84 00

Oman ....................................................... 79 10 12

We offer fast, individual advice! You have

several options:

Our online support on the Internet:

www.siemens-mobile.com/

mobilescustomercare

We can be reached any time, any place.

You are given 24 hour support on all as-

pects of our products. Here you will find an

interactive fault-finding system, a compila-

tion of the most frequently asked ques-

tions and answers, plus user guides and

current software updates to download.

When calling customer service, please

have ready your receipt and the phone

identity number (IMEI, to display press

*#06#), the software version (to display,

press *#06#, then §About§) and if availa-

ble, your Siemens Service customer

number.

* 0,12 Euro/min.

right page (55) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Hotline.fm

55Customer Care

VAR Language: en; VAR issue date: 040929

Pakistan..........................................02 15 66 22 00

Paraguay ..........................................8 00 10 20 04

Philippines ........................................0 27 57 11 18

Poland.............................................08 01 30 00 30

Portugal ............................................8 08 20 15 21

Qatar....................................................04 32 20 10

Romania .........................................02 12 04 60 00

Russia..........................................8 80 02 00 10 10

Saudi Arabia .....................................0 22 26 00 43

Serbia .............................................01 13 07 00 80

Singapore ............................................62 27 11 18

Slovak Republic ..............................02 59 68 22 66

Slovenia............................................0 14 74 63 36

South Africa ....................................08 60 10 11 57

Spain.................................................9 02 11 50 61

Sweden.............................................0 87 50 99 11

Switzerland .....................................08 48 21 20 00

Taiwan ............................................02 23 96 10 06

Thailand ............................................0 27 22 11 18

Tunisia ................................................ 71 86 19 02

Turkey..........................................0 21 65 79 71 00

Ukraine ........................................8 80 05 01 00 00

United Arab Emirates........................0 43 66 03 86

United Kingdom ...........................0 87 05 33 44 11

USA .............................................1 88 87 77 02 11

Vietnam...........................................84 89 20 24 64

Zimbabwe ........................................... 04 36 94 24

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Maintenance_Akku.fm

left page (56) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Care and maintenance56

VAR Language: en; VAR issue date: 040929

Care and maintenance

Your phone has been designed and manu-

factured to the highest of standards and

should be treated with great care. The sug-

gestions below will help you enjoy your

phone for many years.

• Protect your phone from moisture and hu-

midity! Precipitation, humidity and liquids

contain minerals that will corrode electron-

ic circuits. Should your phone nonetheless

become wet, disconnect it immediately

from any power supply, remove the battery

and leave the open phone to dry at room

temperature!

• Do not use or store the phone in dusty,

dirty areas. Its moving parts may become

damaged.

• Do not store your phone in hot areas. High

temperatures can shorten the life of elec-

tronic devices, damage batteries and warp

or melt certain plastics.

• Do not store your phone in cold areas.

When the phone warms up again (to its

normal ambient temperature), moisture

can form inside the phone, which may

damage electronic circuit boards.

• Do not drop, knock or shake your phone.

Rough handling can damage internal cir-

cuit boards!

• Do not use harsh chemicals, cleaning sol-

vents, or strong detergents to clean the

phone!

The suggestions given above apply equally

to your phone, battery, charger and all ac-

cessories. If any of these parts are not work-

ing properly, take them to your nearest

qualified service outlet. The personnel there

will assist you and, if necessary, repair the

device.

Battery quality

declaration

The capacity of your mobile phone battery

will reduce each time it is charged/dis-

charged. Storing the battery at temperatures

that are too high or too low also causes a

gradual loss of capacity. As a result the oper-

ating time of your mobile phone may be con-

siderably reduced, even after the battery has

been fully charged.

The battery is, however, designed to be ca-

pable of being charged and discharged for a

period of six months from the date when the

phone was purchased. Following this six-

month period, we recommend replacing your

battery if you experience a significant drop in

performance. Please buy only Siemens orig-

inal batteries.

Display quality

declaration

For technological reasons, a few small dots

with different colours may appear in the dis-

play in exceptional cases.

Please note that the appearance of brighter

or darker dots generally does not mean that

a fault has occurred.

right page (57) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:54)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Data.fm

57Product data

VAR Language: en; VAR issue date: 040929

Product data

Declaration of conformity

Siemens Information and Communi-

cation mobile hereby declares that

the phone described in this user

guide is in compliance with the es-

sential requirements and other rele-

vant provisions of European Direc-

tive 1999/5/EC (R&TTE). The

declaration of conformity (DoC) con-

cerned has been signed. Please call

the company hotline if you require a

copy of the original, or visit:

www.siemens-mobile.com/conformity

Technical data

Operating time

The operating time depends upon

the respective conditions of use:

Extreme temperatures considerably

reduce the phone’s standby time.

Avoid placing the phone in the sun

or on a heater.

Talktime: 140 to 400 minutes

Standby time: 160 to 400 hours

GSM class: 4 (2 watt)

Frequency range: 880 - 960 MHz

GSM class: 1 (1 watt)

Frequency range: 1,710 - 1,880 MHz

GSM class: 1 (1 watt)

Weight: 100 g

Size: 92 × 45 × 24 mm

(99 ccm)

Li-Ion battery: 650 mAh

Operating

temperature:

–10 °C to +55 °C

SIM card: 3.0 V

Phone ID

You will need the following details if you

lose your phone or SIM card:

The number of the SIM card (on the card):

..............................................................

15-digit serial number of the phone

(under the battery):

..............................................................

The customer service number of the

service provider:

..............................................................

Lost phone

If you lose your phone or SIM card contact

your service provider immediately to

prevent misuse.

Action taken Time

(min)

Reduction of stand-

by time by

Calling 1 85–180 minutes

Light * 1 30 – 60 minutes

Network

search

1 10–20 minutes

* Key input, games, organiser etc.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Guarantee_eng.fm

left page (58) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Guarantee certificate (UK)58

VAR Language: en; VAR issue date: 040929

Guarantee certificate (UK)

Without prejudice to any claim the user

(customer) may have in relation to the dealer

or retailer, the customer shall be granted a

manufacturer's Guarantee under the condi-

tions set out below:

• In the case of new devices and their com-

ponents exhibiting defects resulting from

manufacturing and/or material faults within

24 months of purchase, Siemens shall, at

its own option and free of charge, either re-

place the device with another device re-

flecting the current state of the art, or

repair the said device. In respect of parts

subject to wear and tear (including but not

limited to, batteries, keypads, casings,

small parts on casings, protective cover-

ings where included in the scope of deliv-

ery), this warranty shall be valid for six

months from the date of purchase.

• This Guarantee shall be invalid if the de-

vice defect is attributable to improper treat-

ment and/or failure to comply with

information contained in the user manuals.

• This Guarantee shall not apply to or ex-

tend to services performed by the author-

ised dealer or the customer themselves

(e.g. installation, configuration, software

downloads). User manuals and any soft-

ware supplied on a separate data medium

shall be excluded from the Guarantee.

• The purchase receipt, together with the

date of purchase, shall be required as evi-

dence for invoking the Guarantee. Claims

under the Guarantee must be submitted

within two months of the Guarantee de-

fault becoming evident.

• Ownership of devices or components re-

placed by and returned to Siemens shall

vest in Siemens.

• This Guarantee shall apply to new devices

purchased in the European Union. For

Products sold in the United Kingdom the

Guarantee is issued by Siemens plc, Sie-

mens House, Oldbury, Bracknell, Berk-

shire, RG12 8FZ.

• Any other claims resulting out of or in con-

nection with the device shall be excluded

from this Guarantee. Nothing in this Guar-

antee shall attempt to limit or exclude a

Customers Statutory Rights, nor the man-

ufacturer's liability for death or personal

injury resulting from its negligence.

• The duration of the Guarantee shall not be

extended by services rendered under the

terms of the Guarantee.

• Insofar as no Guarantee default exists,

Siemens reserves the right to charge the

customer for replacement or repair.

• The above provisions does not imply a

change in the burden of proof to the

detriment of the customer.

To invoke this Guarantee, please contact the

Siemens telephone service. The relevant

number is to be found in the accompanying

user guide.

right page (59) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Guarantee_eng.fm

59Guarantee certificate (IRL)

VAR Language: en; VAR issue date: 040929

Guarantee certificate (IRL)

Without prejudice to any claim the user (cus-

tomer) may have in relation to the dealer or

retailer, the customer shall be granted a

manufacturer’s Guarantee under the condi-

tions set out below:

• In the case of new devices and their com-

ponents exhibiting defects resulting from

manufacturing and/or material faults within

24 months of purchase, Siemens shall, at

its own option and free of charge, either re-

place the device with another device re-

flecting the current state of the art, or

repair the said device. In respect of parts

subject to wear and tear (including but not

limited to, batteries, keypads, casings,

small parts on casings, protective cover-

ings where included in the scope of deliv-

ery), this warranty shall be valid for six

months from the date of purchase.

• This Guarantee shall be invalid if the de-

vice defect is attributable to improper care

or use and/or failure to comply with infor-

mation contained in the user manuals. In

particular claims under the Guarantee

cannot be made if:

• The device is opened (this is classed as

third party intervention).

• Repairs or other work done by persons not

authorised by Siemens.

• Components on the printed circuit board

are manipulated.

• The software is manipulated.

• Defects or damage caused by dropping,

breaking, lightning or ingress of moisture.

This also applies if defects or damage was

caused by mechanical, chemical, radio in-

terference or thermal factors (e.g.: micro-

wave, sauna etc.).

• Devices fitted with accessories not author-

ised by Siemens.

• This Guarantee shall not apply to or ex-

tend to services performed by the author-

ised dealer or the customer themselves

(e.g. installation, configuration, software

downloads). User manuals and any soft-

ware supplied on a separate data medium

shall be excluded from the Guarantee.

• The purchase receipt, together with the

date of purchase, shall be required as evi-

dence for invoking the Guarantee. Claims

under the Guarantee must be submitted

within two months of the Guarantee de-

fault becoming evident.

• Ownership of devices or components re-

placed by and returned to Siemens shall

vest in Siemens.

• This Guarantee shall apply to new devices

purchased in the European Union. For

Products sold in the Republic of Ireland the

Guarantee is issued by Siemens Ireland

Limited, Ballymoss Road, Sandyford In-

dustrial Estate, Dublin 18 - The Republic of

Ireland.

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_Guarantee_eng.fm

left page (60) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Guarantee certificate (IRL)60

VAR Language: en; VAR issue date: 040929

• Any other claims resulting out of or in con-

nection with the device shall be excluded

from this Guarantee. Nothing in this Guar-

antee shall attempt to limit or exclude a

Customers Statutory Rights, nor the man-

ufacturer’s liability for death or personal in-

jury resulting from its negligence.

• The duration of the Guarantee shall not be

extended by services rendered under the

terms of the Guarantee.

• Insofar as no Guarantee default exists,

Siemens reserves the right to charge the

customer for replacement or repair.

• The above provisions does not imply a

change in the burden of proof to the detri-

ment of the customer.

To invoke this Guarantee, please contact the

Siemens helpdesk on 1850 777 277. This

number is also to be found in the accompa-

nying user guide.

right page (61) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MenuTree.fm

61Menu tree

VAR Language: en; VAR issue date: 040929

Menu tree

IrDA >Receive data

Data/Fax

Call records >Call history >Call

Call back h/free

Show

Send SMS

Send MMS

Store number

Delete

Reset

Durat/charges >Last call records

Total duration >Outgoing

Incoming

Total cost >Charge rate

Show balance

Reset

Cost limit

Cost limit off

Surf & Fun >WAP >Homepage

Bookmarks

Go to URL

Settings

Push Inbox

Wallbreaker

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MenuTree.fm

left page (62) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Menu tree62

VAR Language: en; VAR issue date: 040929

Surf & Fun >Games & More >Settings >Auto. start

Start applications Network access

Messages >SMS >Archive

Send SMS ><New>

SMS to group

Read SMS >Edit SMS

Forward

Delete

Move to Archive

Call back

Call back h/free

Store number

SMS settings >Signature

Auto save

SMS centre

Validity period

Reply path

Delivery report

MMS >New MMS

Drafts >Play message

Edit MMS

Send MMS

Delete

Templates >Play message

Edit MMS

Delete

Outbox >Play message

Delete

right page (63) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MenuTree.fm

63Menu tree

VAR Language: en; VAR issue date: 040929

Messages >MMS >Outbox >Forward

Re send MMS

MMS Details

Inbox >Play message

Reply

Forward

MMS Details

Delete

Settings >Activate

Modify

Rename

Email >Mailbox 1

Mailbox 2

Open mailbox >Details

Get mail

Delete

Add to addressbook

Re:

Fwd:

Send email ><Add contact>

<Add Media>

SUBJECT:

Save as draft

Save

Send now

Edit mail

Re:

Fwd:

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MenuTree.fm

left page (64) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Menu tree64

VAR Language: en; VAR issue date: 040929

Messages >Email >Setup >Network access

Account name

Advanced

Email server

SMS broadcast >District code

Reception

Topics

Organiser >Events ><New> >Task

Month view Meeting

Week view Holiday

Day view

Delete old events

Extras >Services

Alarm clock

Calculator

Unit converter

Lunar calendar

Horoscope

Chinese festivals

My stuff >Memory status

Voice memo

Sound album

Pict. Album

right page (65) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MenuTree.fm

65Menu tree

VAR Language: en; VAR issue date: 040929

Setup >Profiles >Normal envi.

Meeting

Noisy environ.

Car Kit

Aircraft mode

Headset

Display >Language

Wallpaper

Animations

Backlight

Sounds >Ringer volume

Ring tone

Key tones

Equaliser

Sound alerts >1 minute beep

Silent alert Organiser alert

Silent Low battery

SMS/MMS ringer Missed call

Call Setup >Hide identity

Call waiting

Caller ID

Call divert >Voice calls

Any key to answer Fax calls

Info at call end Data calls

Voice mailbox

Open to answer

Auto redial

Phone setup >Auto. switch off

Hotkeys

Voice command

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MenuTree.fm

left page (66) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

Menu tree66

VAR Language: en; VAR issue date: 040929

Setup >Phone setup >Voice dial

Time/date >Set time

Set date

Time zone

Date format

Daylight saving

Security >Public names

Change codes

PIN protection >Change PIN

Change PIN2

Barring code

Call barring >Incoming

Outgoing

Network >Access settings

GPRS settings

Preferred net

Register again >Manual

Auto Network

right page (67) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:51)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_MenuTree.fm

67Menu tree

VAR Language: en; VAR issue date: 040929

Phonebook >Settings >Select group

Select >Addressbook

Delete all Phonebook

Copy to phonebook

Copy to addressb.

Names list ><New> >Change

Own numbers Delete

Emergency call Send SMS

Select group

Send MMS

Send by IrDA

Show

Copy to addressb.

Call

Call handsfree

Voice dial

Flash dial

Camera >Burst mode

SlideShow

Picture orientation

Flash

Self-timer

Colour mode

Own photos

Night mode

Frames

Settings

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_SIX.fm

left page (68) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:53)

Index68

VAR Language: en; VAR issue date: 040929

Index

A

Alarm (alarm clock) .................... 50

All calls (diversion) ..................... 46

Animation .................................. 44

Any key answer .......................... 46

Appointment

See Events .............................. 49

Auto. redial ................................ 20

B

Battery

Charge.................................... 10

Insert........................................ 9

Operating time ................. 11, 57

Bookmarks ................................. 41

Browser...................................... 40

C

Calculator................................... 50

Calendar..................................... 49

Call

Accept .................................... 20

Charges .................................. 26

Conference............................. 22

End......................................... 20

Hold ....................................... 21

Menu...................................... 21

Reject ..................................... 20

Swap (change)........................ 21

Call records ................................ 26

Call waiting ................................ 45

Call with handsfree..................... 21

Calls dialled (call record)............. 26

Calls received (call record) .......... 26

Camera

Options .................................. 28

Switch on ............................... 27

Taking a photo........................ 28

Car Kit......................................... 44

Care of phone ............................. 56

Cell Broadcast (CB)......................38

Change Barring code...................17

Charges

Cost limit ................................26

Charging the battery ...................10

Chinese festivals ......................... 51

Clearing SIM card barring ............17

Clock .......................................... 47

Codes ......................................... 16

Conference ................................. 22

Connecting to Windows® PCs...... 39

Copying entries

from SIM card ............................. 24

Copying SIM entries .............. 12, 25

Credit limit..................................26

D

Dialling code............................... 20

Dialling with number keys ...........20

Display

Symbols .................................... 8

Divert ......................................... 45

Durat/charges ............................. 26

E

E-mail

Receive/read............................ 36

Settings ..................................37

Write.......................................36

Emergency number

Emergency call........................ 25

SOS......................................... 12

Euro converter ............................ 50

Events ........................................49

Extras .........................................50

right page (69) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:53)

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_SIX.fm

69Index

VAR Language: en; VAR issue date: 040929

G

Games and more ........................ 42

GPRS .................................... 47, 48

Groups ....................................... 25

Guarantee certificate .................. 58

Guarantee certificate (IRL) .......... 59

H

Handsfree talking ....................... 21

Headset...................................... 44

Hide ID ....................................... 45

Highlighting mode...................... 15

Hold call ..................................... 21

Holiday (Organiser) .................... 49

Horoscope.................................. 51

Hotline ....................................... 54

I

Information services (CB)............ 38

Infrared

see IrDA.................................. 39

International dialling code .......... 21

Internet...................................... 40

IrDA ........................................... 39

Receive data ........................... 39

Send data ............................... 39

J

Java............................................ 42

L

Loss of phone, SIM card.............. 57

Lunar calendar ........................... 51

M

Main menu................................. 13

Maintenance of phone................ 56

Meeting (Organiser) ................... 49

Memory status ........................... 52

Menu

Controls.................................. 14

Menu tree...................................61

Message

CB...........................................38

e-mail ..................................... 36

MMS ....................................... 31

SMS .................................. 29, 30

Minute alert................................45

Missed calls (call record) ............. 26

MMS

Manage folders .......................33

Read .......................................33

Receive ................................... 32

Settings ..................................34

Write.......................................31

Multimedia

Messaging Service ......................31

My stuff ......................................52

O

Operating times (battery)...... 11, 57

Organiser.................................... 49

Own (phone) numbers................ 25

P

Phone data ................................. 57

Phone number transmission........45

Phonebook .................................23

Entering contacts .................... 23

Find entry/Call......................... 24

Groups....................................25

Settings ..................................25

View entry ..............................24

Picture Album ............................. 53

PIN

Change ...................................17

Control.................................... 16

Enter....................................... 12

Product data ............................... 57

Profiles (telephone) .................... 44

©

Siemens AG 2003, \\Itl-eu\wien\Projekte_20\Siemens\SF65\output\sug\en\ohne_SAR\S_Electra_SIX.fm

left page (70) of SF65 SUG en, A31008-H7360-A1-1-7619 (12.10.2004, 16:53)

Index70

VAR Language: en; VAR issue date: 040929

R

Records ...................................... 26

Redial......................................... 20

Ringtones................................... 44

S

Safety precautions........................ 2

Saving contacts .......................... 23

Security...................................... 16

Settings...................................... 44

Short message (SMS).................. 29

Signal strength ........................... 13

Silent alert.................................. 45

SIM card

Clear barring........................... 17

Insert........................................ 9

SIM services................................ 50

SMS

Archive................................... 29

Read....................................... 30

To group................................. 29

Write ...................................... 29

SOS............................................ 12

Sound album.............................. 52

Special characters....................... 18

Speech time (battery) ................. 57

Standard functions ..................... 15

Standby mode ............................ 14

Standby time.............................. 11

Surf & fun................................... 40

Swap between calls .................... 21

Switch off phone

Automatic............................... 46

Manually ................................ 12

Switch on phone ........................ 12

Symbols ....................................... 8

T

T9

Text entry ...............................19

Word suggestions.................... 19

Task (Organiser).......................... 49

Technical data............................. 57

Time zones ................................. 47

Transferring calls......................... 45

U

Unanswered ...............................46

Upper and lowercase letters ........ 18

User Guide symbols..................... 14

V

Volume

Handset volume ...................... 20

Profiles....................................44

W

Wallpaper (display) ..................... 44

WAP............................................ 40
