Photos Test Setup WCDMA
DAT-P-174/04-00 CNAS L0447 Registration
No.910917
Appendix1 TEST SETUP
Report No.: SRTC2010-H024-E0018
Product Name: GSM/GPRS/EDGE/
WCDMA/HSDPA/HSUPA/HSPA+ Module
Product Model: MC8705
Applicant: Sierra Wireless Inc.
Manufacture: Sierra Wireless Inc.
Specification: FCC Part 24E, Part 22H, Part 2
(October 1, 2009 edition)
IC RSS-132 (Issue 2, September 2005)
IC RSS-133 (Issue 5, February 2009)
FCC ID: N7NMC8705
IC: 2417C-MC8705
The State Radio_monitoring_center Testing Center (SRTC)
No.80 Beilishi Road Xicheng District Beijing, China
Tel: 86-10-68009202 Fax: 86-10-68009205
No.: SRTC2010-H024-E0018
FCC ID: N7NMC8705
IC: 2417C-MC8705
The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 2
Tel: 86-10-68009202 68009203
Fax: 86-10-68009195 68009205 Copyright © SRTC

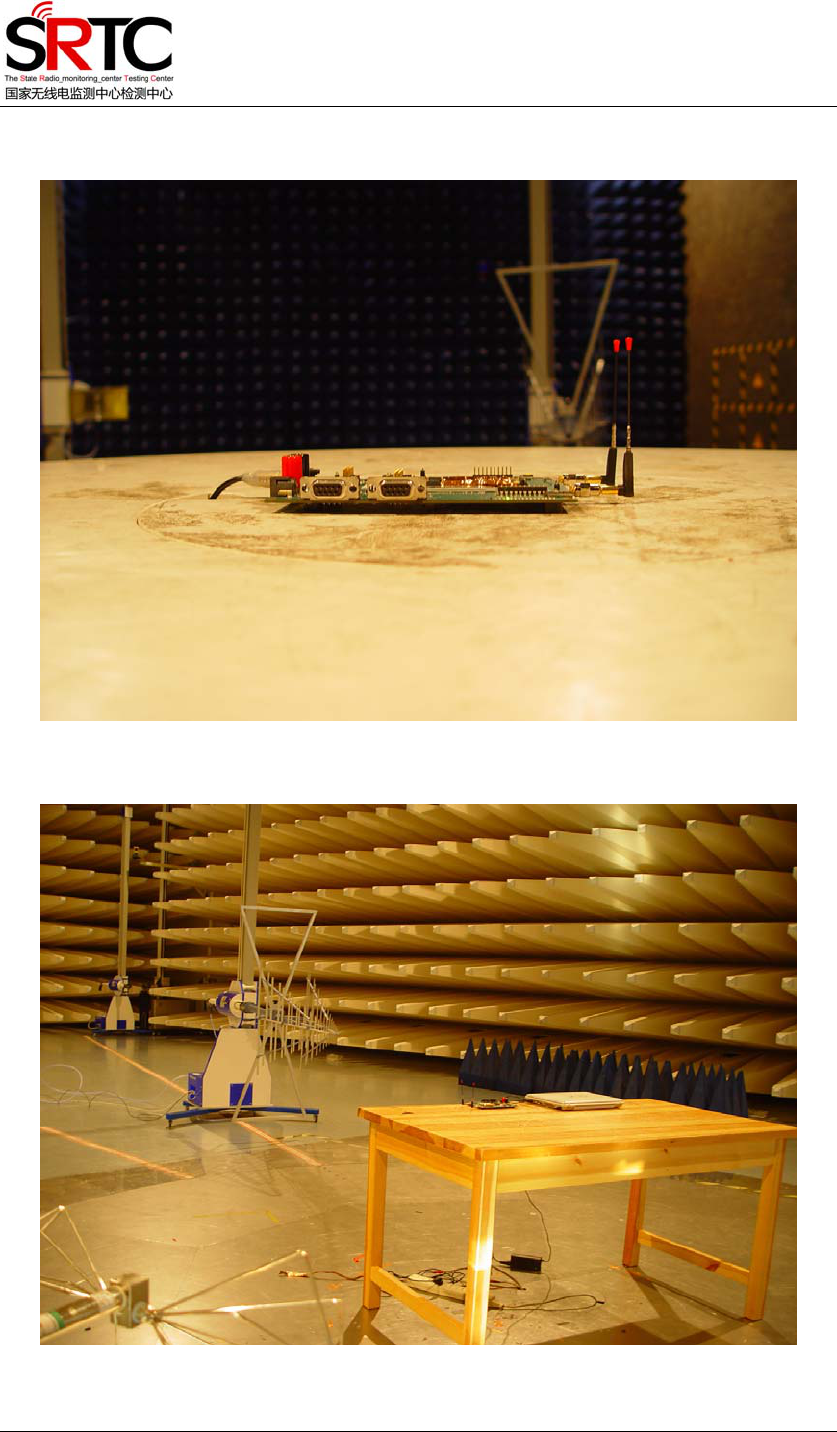

Appendix1 Test Setup
Radiated Spurious Emissions Test setup
Receiver Spurious Emission Test Setup
