RReeddwwiinngg GGPPRRSS User Guide Version 1.08 AirLink Communications, Inc. September 29, 2003 AirLinkCommunications

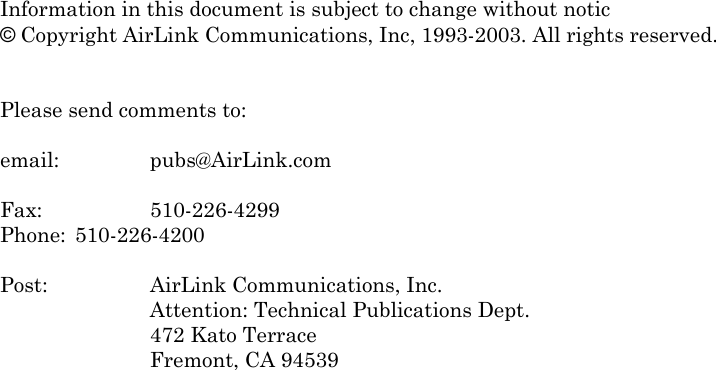

Information in this document is subject to change without notic © Copyright AirLink Communications, Inc, 1993-2003. All rights reserved. Please send comments to: email: pubs@AirLink.com Fax: 510-226-4299 Phone: 510-226-4200 Post: AirLink Communications, Inc. Attention: Technical Publications Dept. 472 Kato Terrace Fremont, CA 94539

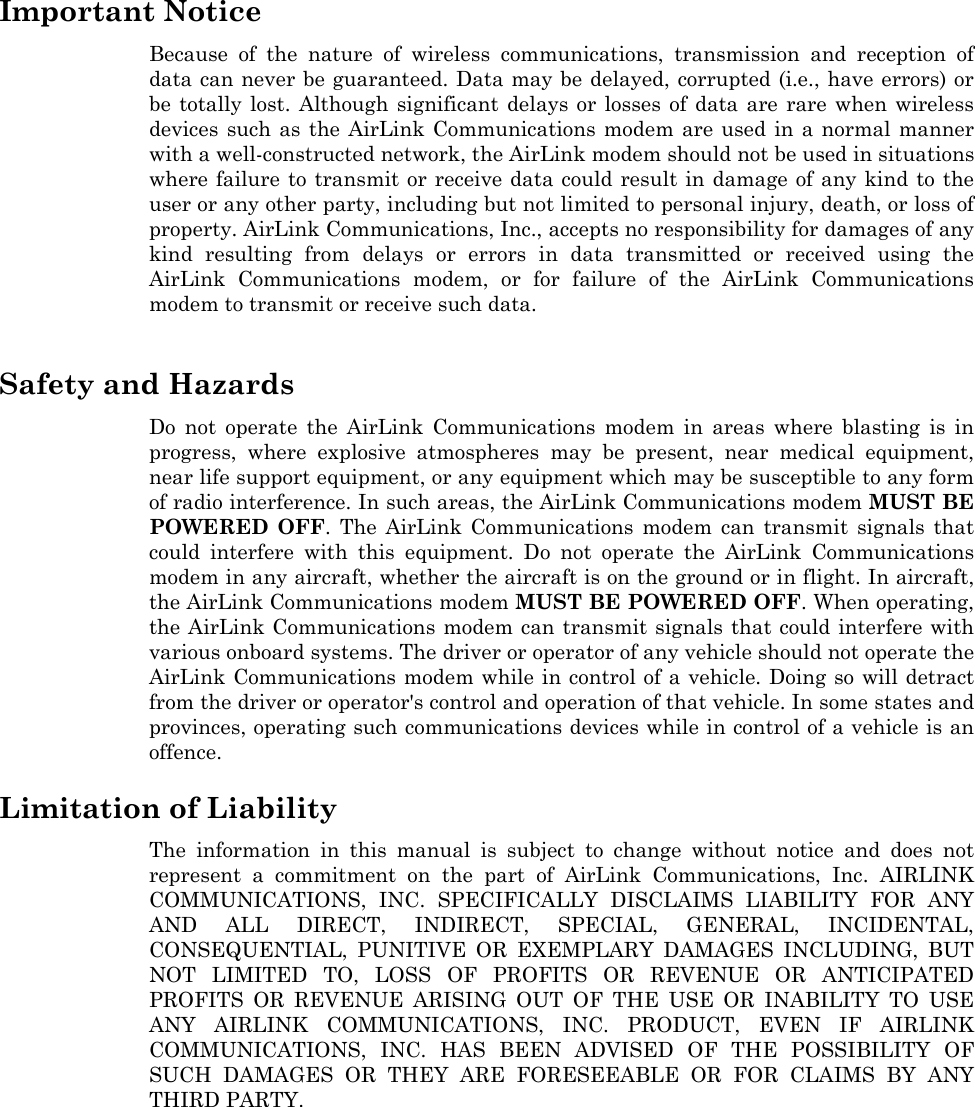

Important Notice Because of the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the AirLink Communications modem are used in a normal manner with a well-constructed network, the AirLink modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. AirLink Communications, Inc., accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the AirLink Communications modem, or for failure of the AirLink Communications modem to transmit or receive such data. Safety and Hazards Do not operate the AirLink Communications modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the AirLink Communications modem MUST BE POWERED OFF. The AirLink Communications modem can transmit signals that could interfere with this equipment. Do not operate the AirLink Communications modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the AirLink Communications modem MUST BE POWERED OFF. When operating, the AirLink Communications modem can transmit signals that could interfere with various onboard systems. The driver or operator of any vehicle should not operate the AirLink Communications modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of AirLink Communications, Inc. AIRLINK COMMUNICATIONS, INC. SPECIFICALLY DISCLAIMS LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY AIRLINK COMMUNICATIONS, INC. PRODUCT, EVEN IF AIRLINK COMMUNICATIONS, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY.

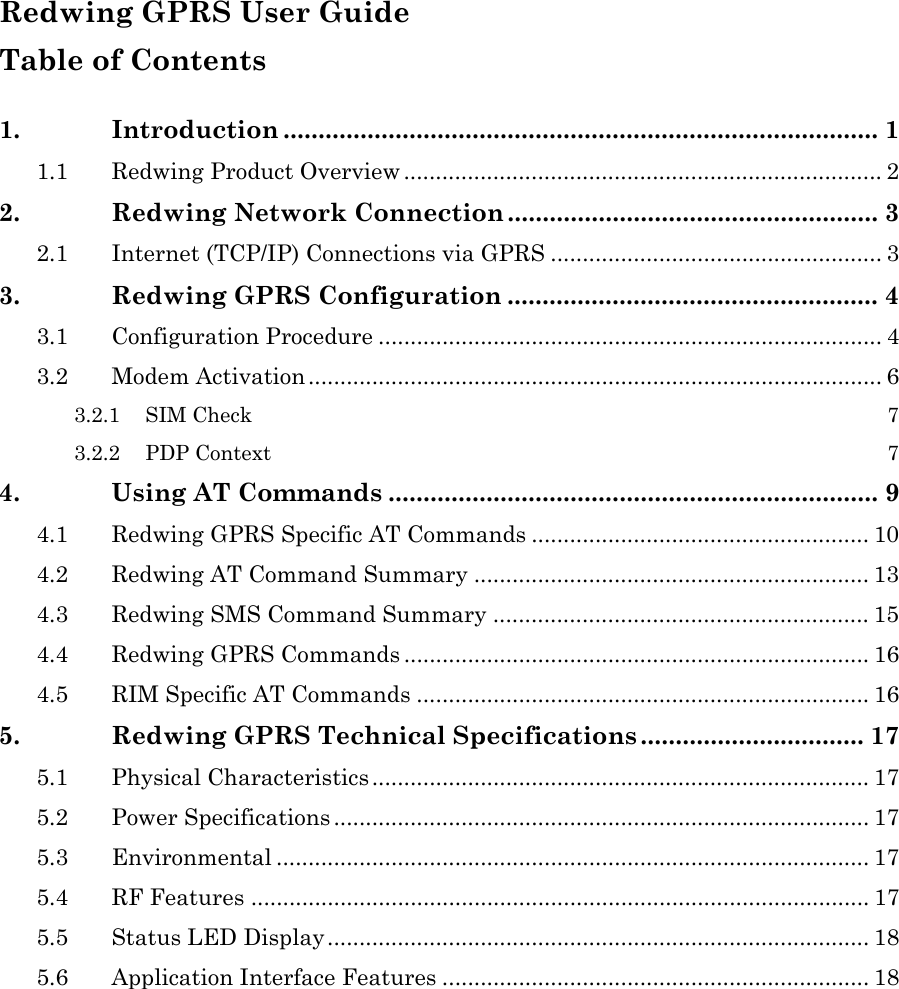

Redwing GPRS User Guide Table of Contents 1. Introduction ..................................................................................... 1 1.1 Redwing Product Overview ........................................................................... 2 2. Redwing Network Connection ..................................................... 3 2.1 Internet (TCP/IP) Connections via GPRS .................................................... 3 3. Redwing GPRS Configuration ..................................................... 4 3.1 Configuration Procedure ............................................................................... 4 3.2 Modem Activation.......................................................................................... 6 3.2.1 SIM Check 7 3.2.2 PDP Context 7 4. Using AT Commands ...................................................................... 9 4.1 Redwing GPRS Specific AT Commands ..................................................... 10 4.2 Redwing AT Command Summary .............................................................. 13 4.3 Redwing SMS Command Summary ........................................................... 15 4.4 Redwing GPRS Commands ......................................................................... 16 4.5 RIM Specific AT Commands ....................................................................... 16 5. Redwing GPRS Technical Specifications ................................ 17 5.1 Physical Characteristics .............................................................................. 17 5.2 Power Specifications .................................................................................... 17 5.3 Environmental ............................................................................................. 17 5.4 RF Features ................................................................................................. 17 5.5 Status LED Display..................................................................................... 18 5.6 Application Interface Features ................................................................... 18

Redwing GPRS User Guide 1. Introduction The GSM/GPRS wireless network combines the world’s leading wireless standard—the Global System for Mobile Communications (GSM)—with fast, packet-switched access to data networks such as the Internet. Providing this fast access is the General Packet Radio Service (GPRS). The AirLink GPRS modems are designed to operate in GSM/GPRS networks. Two data services are available in the GSM/GPRS networks: GPRS, a packet switched connection, and SMS, a short message service.. GPRS GPRS is an IP-based service that offers fast, packet-switched access to data networks such as the Internet. It is a mobile service that improves the peak-time capacity of a GSM network. GPRS gives packet-switched access over GSM to external data networks with high peak transfer capacity. The main objective of GPRS is to offer access to standard data networks such as TCP/IP. GPRS is a non-voice service designed specifically for transmitting data. It breaks data messages into separate packets for transmission from the mobile device and sends them to destinations in an external network. Most any Internet-based application or service will run on GPRS. GPRS offers peak throughputs of 40 Kbps (53.6 Kbps raw) Because GPRS capacity is shared among active users in the same coverage area, actual throughputs may vary. GPRS Network Internet

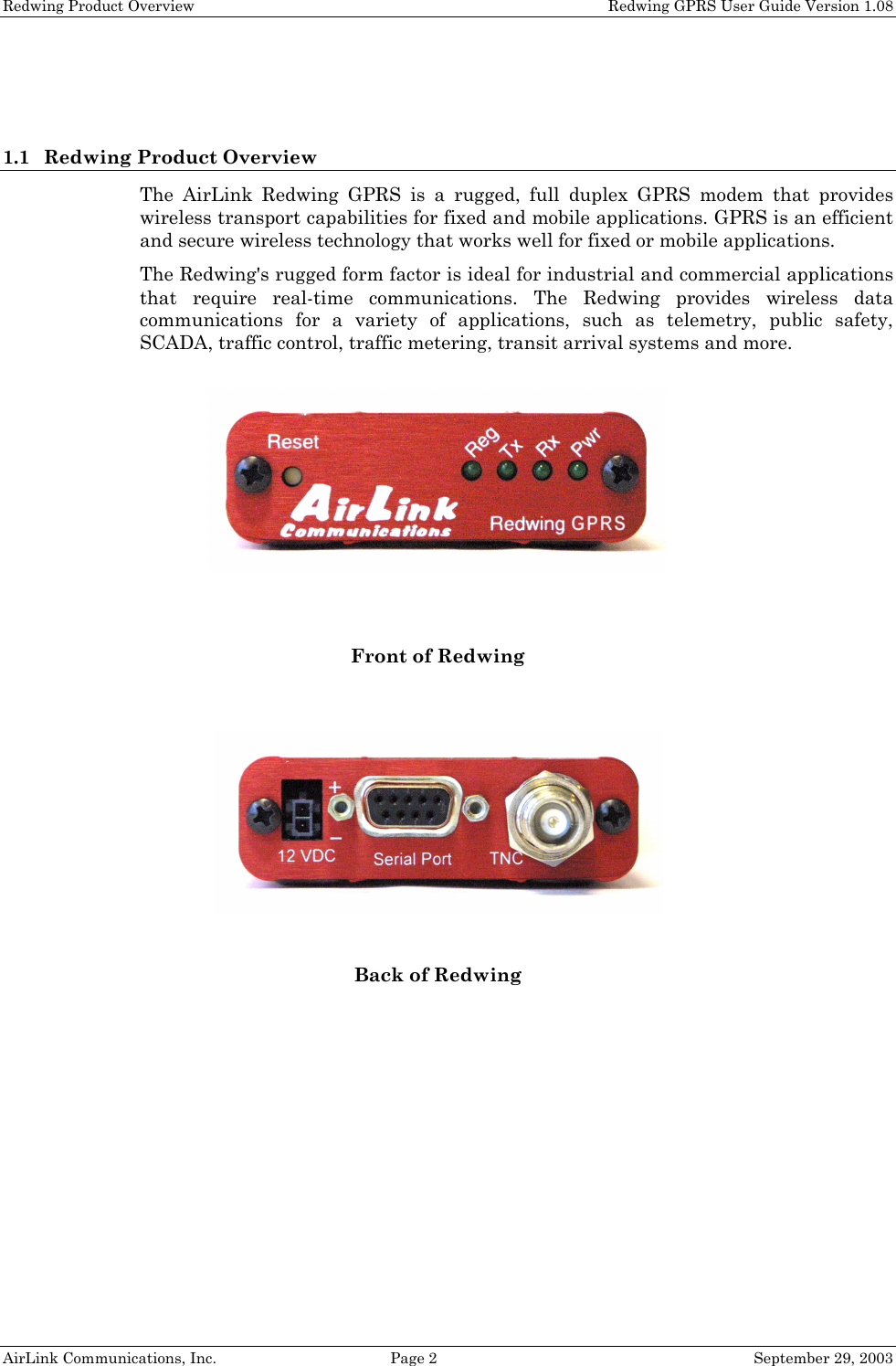

Redwing Product Overview Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 2 September 29, 2003 1.1 Redwing Product Overview The AirLink Redwing GPRS is a rugged, full duplex GPRS modem that provides wireless transport capabilities for fixed and mobile applications. GPRS is an efficient and secure wireless technology that works well for fixed or mobile applications. The Redwing's rugged form factor is ideal for industrial and commercial applications that require real-time communications. The Redwing provides wireless data communications for a variety of applications, such as telemetry, public safety, SCADA, traffic control, traffic metering, transit arrival systems and more. Front of Redwing Back of Redwing

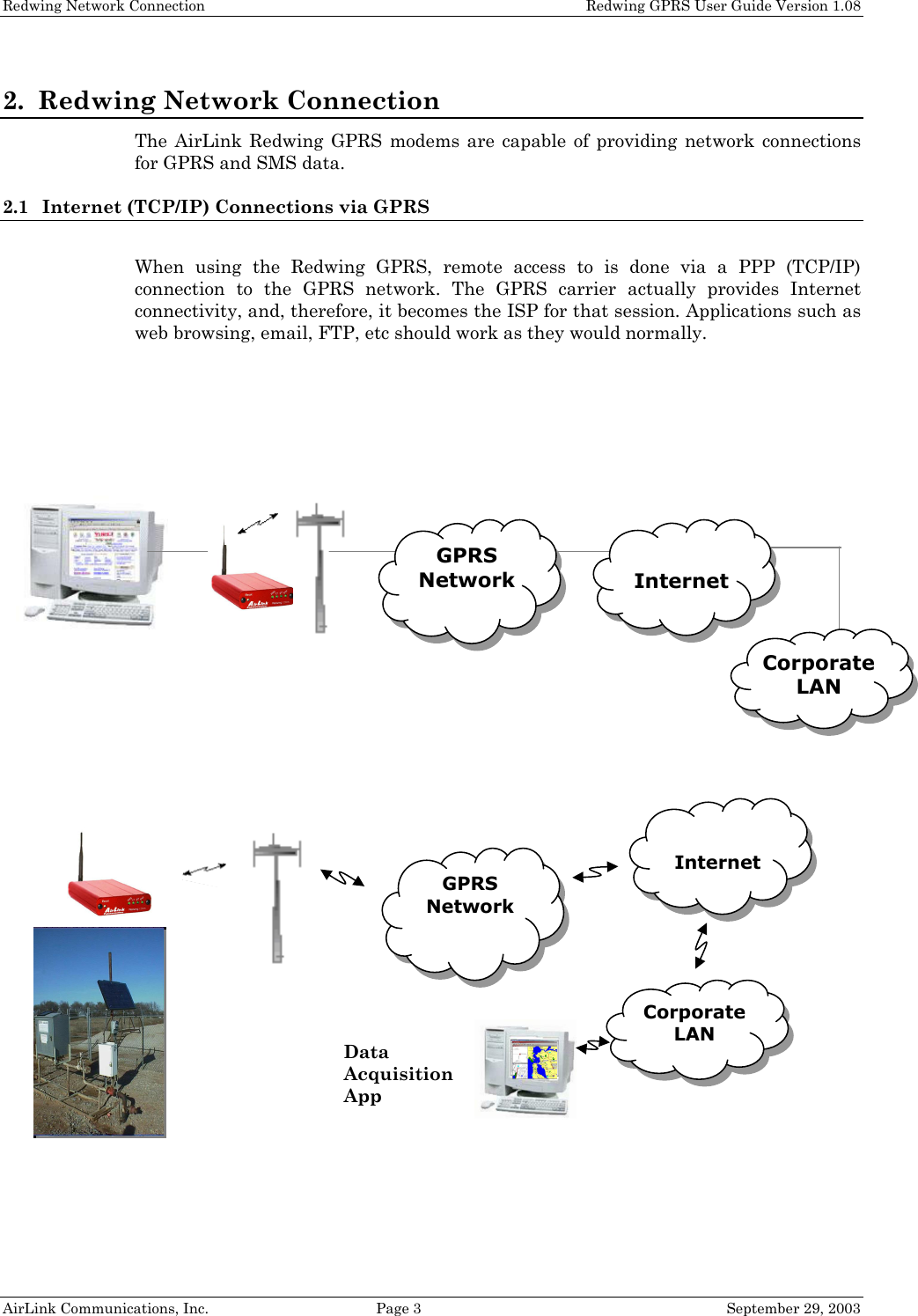

Redwing Network Connection Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 3 September 29, 2003 2. Redwing Network Connection The AirLink Redwing GPRS modems are capable of providing network connections for GPRS and SMS data. 2.1 Internet (TCP/IP) Connections via GPRS When using the Redwing GPRS, remote access to is done via a PPP (TCP/IP) connection to the GPRS network. The GPRS carrier actually provides Internet connectivity, and, therefore, it becomes the ISP for that session. Applications such as web browsing, email, FTP, etc should work as they would normally. GPRS Network Internet Corporate LAN Data Acquisition App GPRS Network Corporate LAN Internet

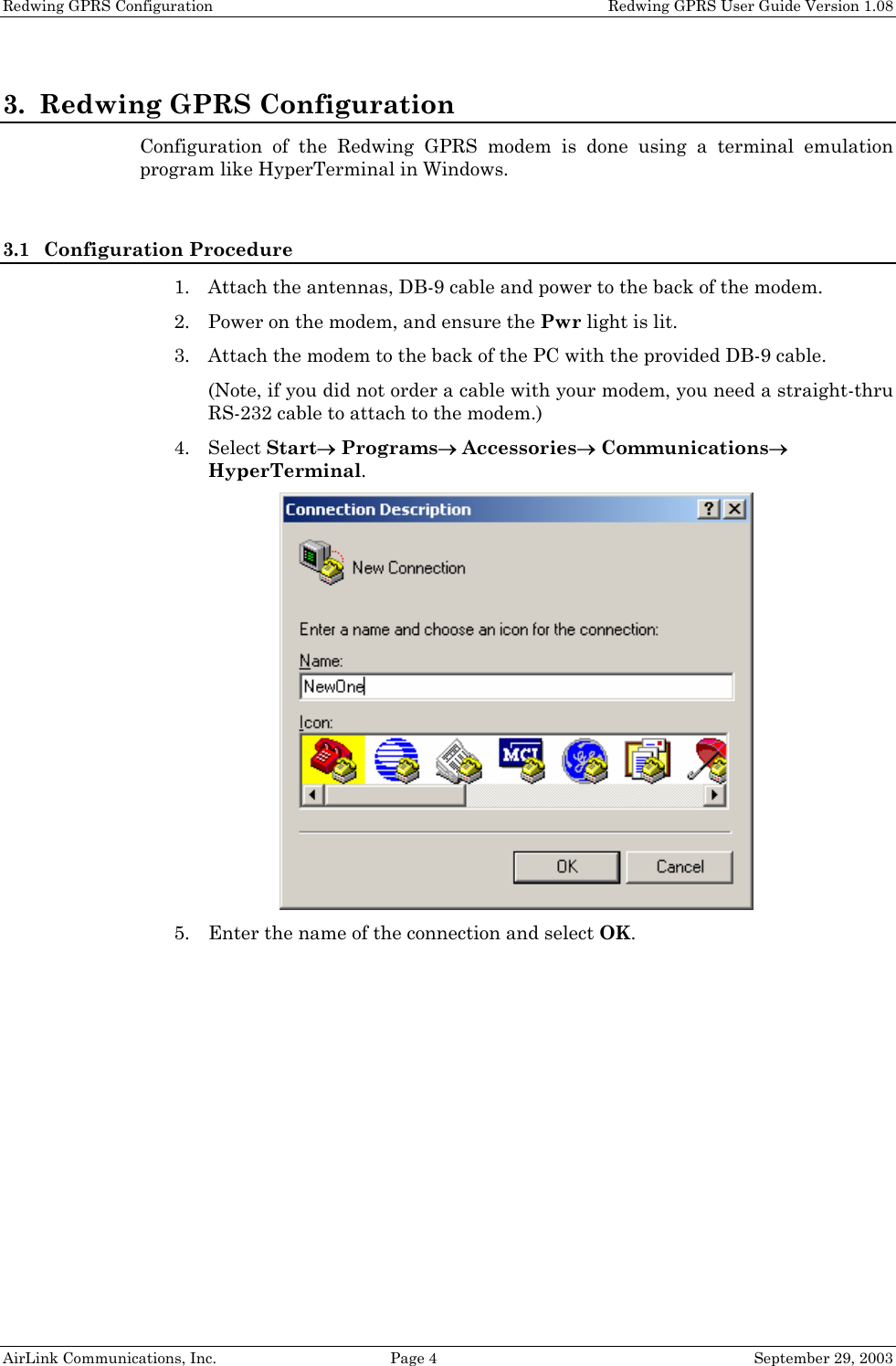

Redwing GPRS Configuration Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 4 September 29, 2003 3. Redwing GPRS Configuration Configuration of the Redwing GPRS modem is done using a terminal emulation program like HyperTerminal in Windows. 3.1 Configuration Procedure 1. Attach the antennas, DB-9 cable and power to the back of the modem. 2. Power on the modem, and ensure the Pwr light is lit. 3. Attach the modem to the back of the PC with the provided DB-9 cable. (Note, if you did not order a cable with your modem, you need a straight-thru RS-232 cable to attach to the modem.) 4. Select Start→ Programs→ Accessories→ Communications→ HyperTerminal. 5. Enter the name of the connection and select OK.

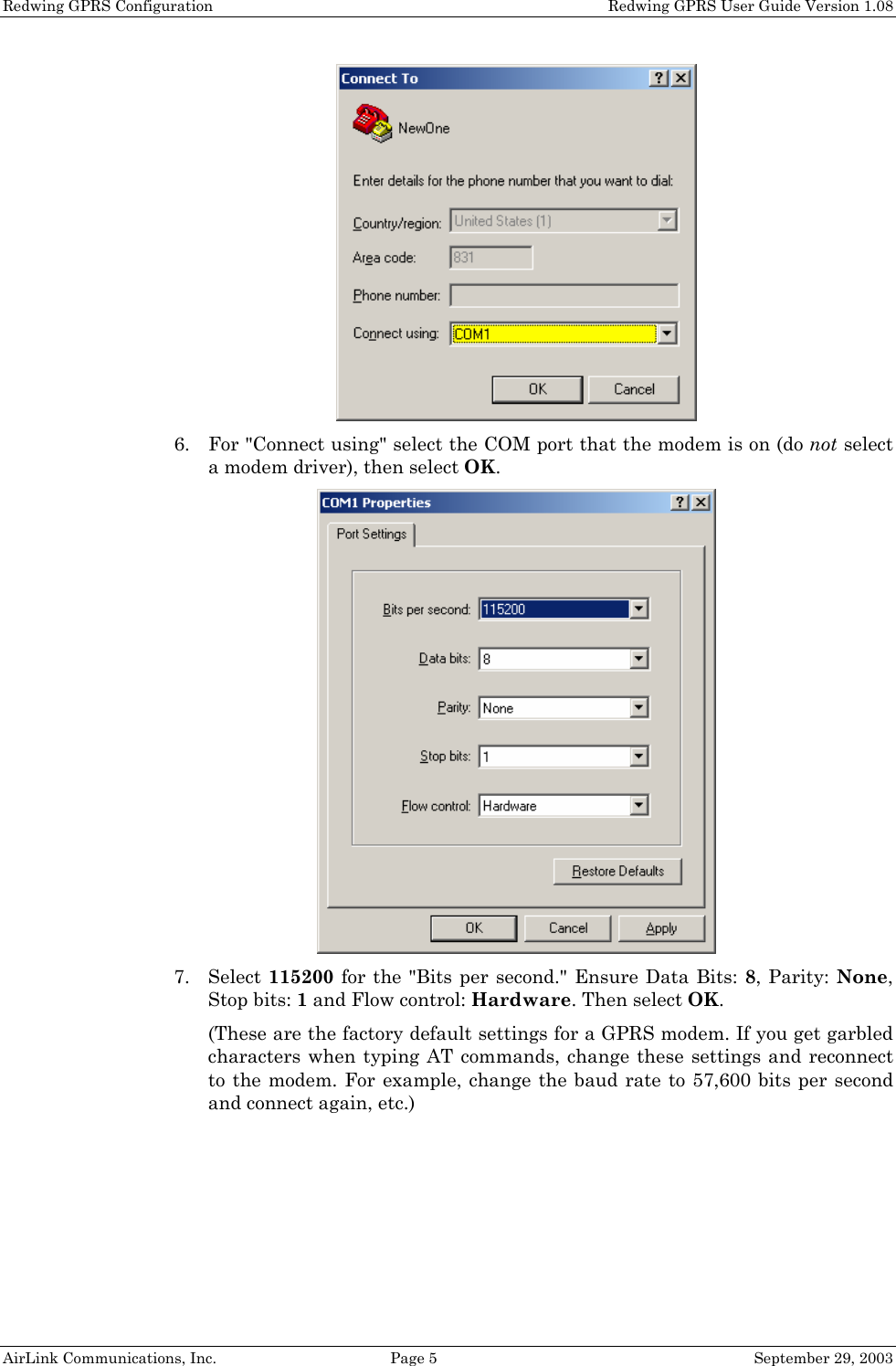

Redwing GPRS Configuration Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 5 September 29, 2003 6. For "Connect using" select the COM port that the modem is on (do not select a modem driver), then select OK. 7. Select 115200 for the "Bits per second." Ensure Data Bits: 8, Parity: None, Stop bits: 1 and Flow control: Hardware. Then select OK. (These are the factory default settings for a GPRS modem. If you get garbled characters when typing AT commands, change these settings and reconnect to the modem. For example, change the baud rate to 57,600 bits per second and connect again, etc.)

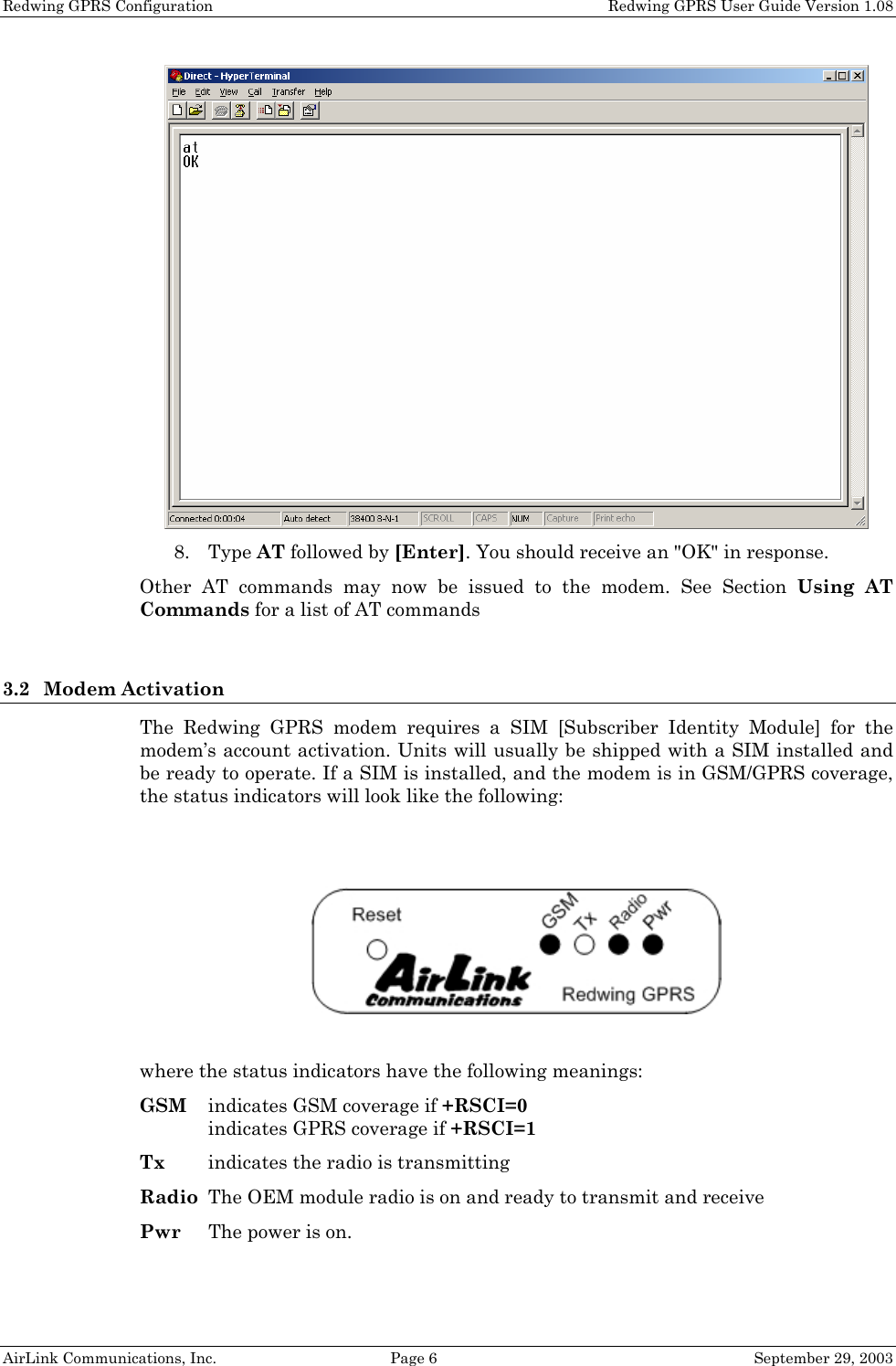

Redwing GPRS Configuration Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 6 September 29, 2003 8. Type AT followed by [Enter]. You should receive an "OK" in response. Other AT commands may now be issued to the modem. See Section Using AT Commands for a list of AT commands 3.2 Modem Activation The Redwing GPRS modem requires a SIM [Subscriber Identity Module] for the modem’s account activation. Units will usually be shipped with a SIM installed and be ready to operate. If a SIM is installed, and the modem is in GSM/GPRS coverage, the status indicators will look like the following: where the status indicators have the following meanings: GSM indicates GSM coverage if +RSCI=0 indicates GPRS coverage if +RSCI=1 Tx indicates the radio is transmitting Radio The OEM module radio is on and ready to transmit and receive Pwr The power is on.

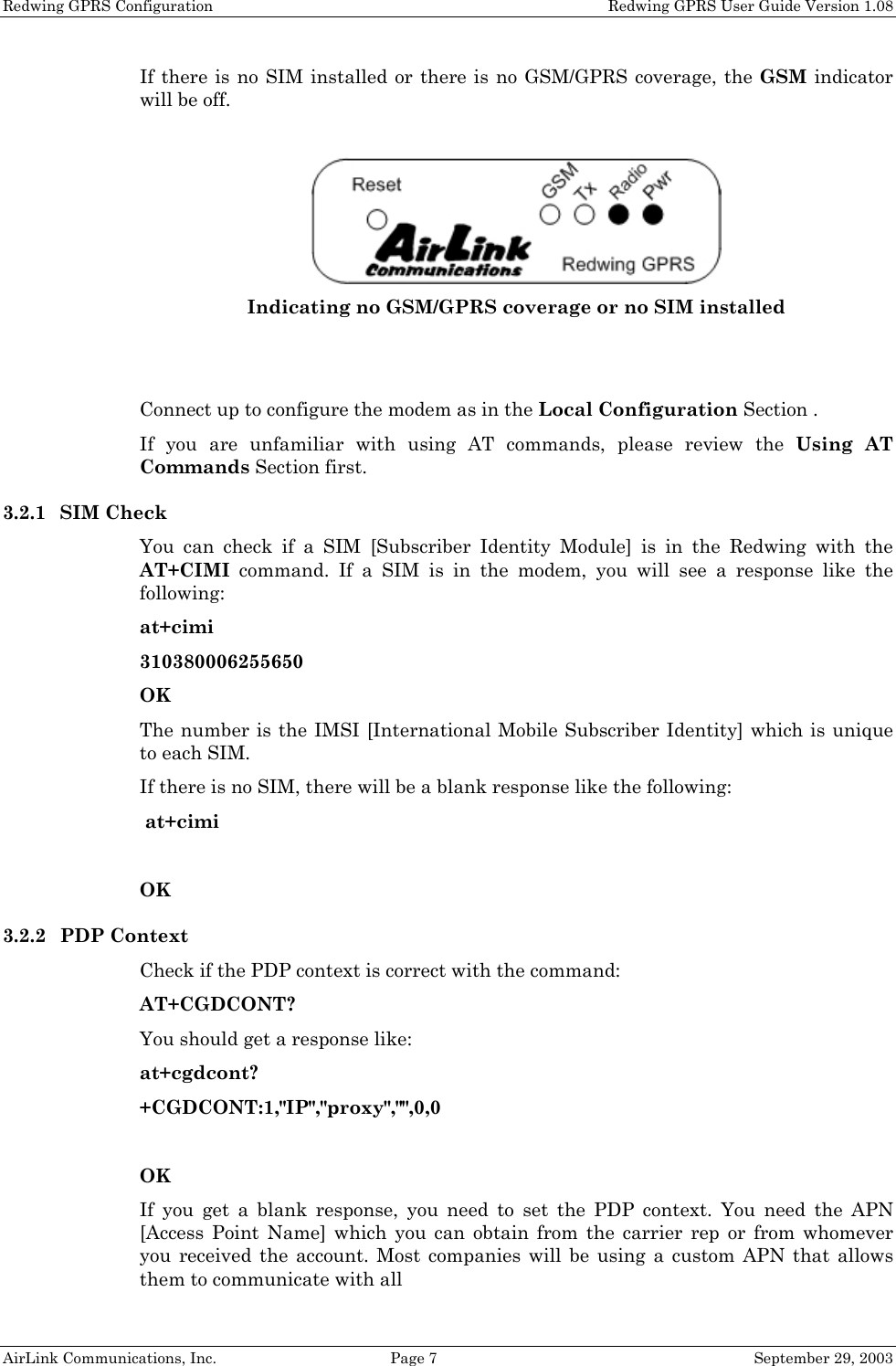

Redwing GPRS Configuration Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 7 September 29, 2003 If there is no SIM installed or there is no GSM/GPRS coverage, the GSM indicator will be off. Indicating no GSM/GPRS coverage or no SIM installed Connect up to configure the modem as in the Local Configuration Section . If you are unfamiliar with using AT commands, please review the Using AT Commands Section first. 3.2.1 SIM Check You can check if a SIM [Subscriber Identity Module] is in the Redwing with the AT+CIMI command. If a SIM is in the modem, you will see a response like the following: at+cimi 310380006255650 OK The number is the IMSI [International Mobile Subscriber Identity] which is unique to each SIM. If there is no SIM, there will be a blank response like the following: at+cimi OK 3.2.2 PDP Context Check if the PDP context is correct with the command: AT+CGDCONT? You should get a response like: at+cgdcont? +CGDCONT:1,"IP","proxy","",0,0 OK If you get a blank response, you need to set the PDP context. You need the APN [Access Point Name] which you can obtain from the carrier rep or from whomever you received the account. Most companies will be using a custom APN that allows them to communicate with all

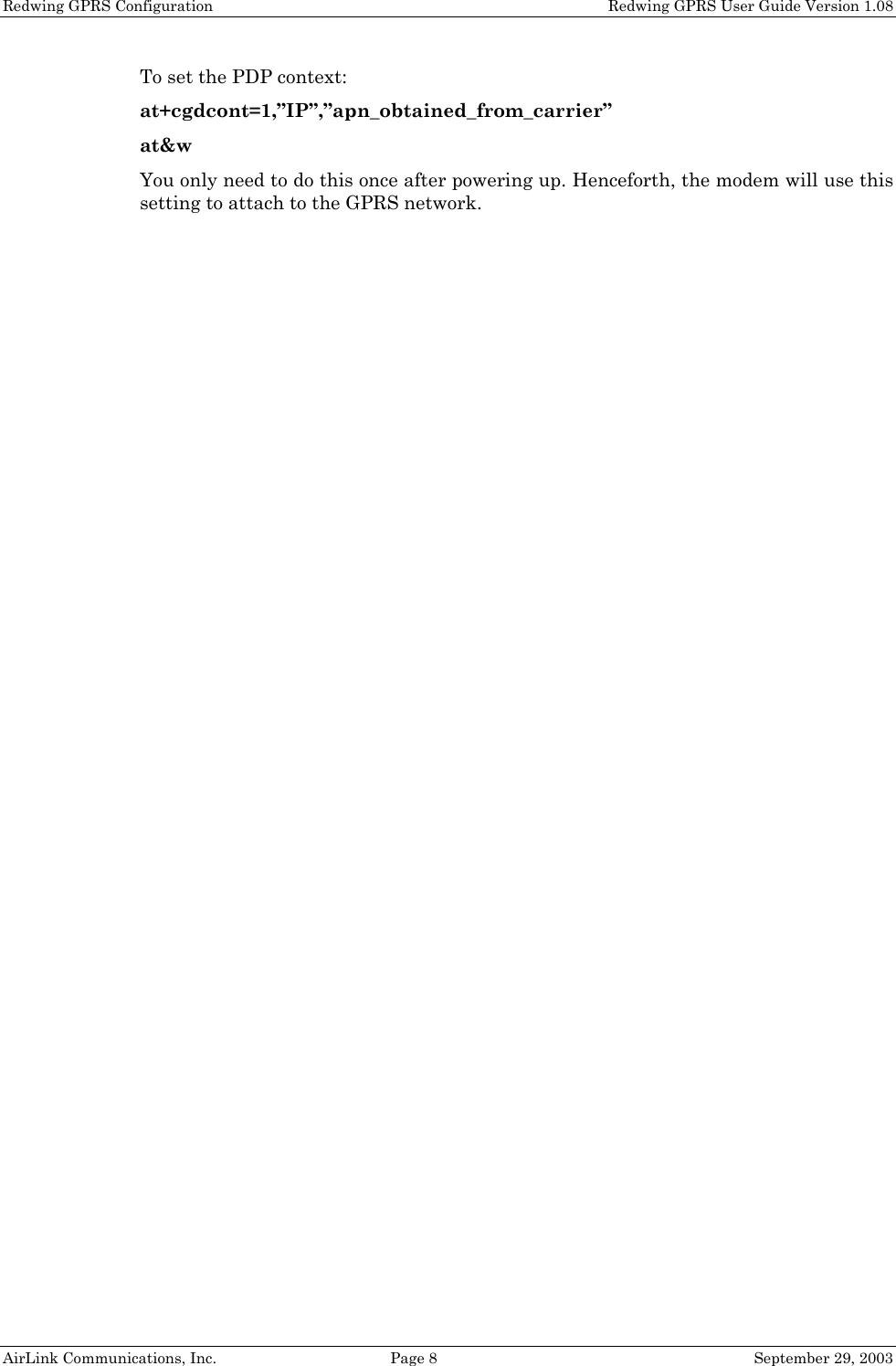

Redwing GPRS Configuration Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 8 September 29, 2003 To set the PDP context: at+cgdcont=1,”IP”,”apn_obtained_from_carrier” at&w You only need to do this once after powering up. Henceforth, the modem will use this setting to attach to the GPRS network.

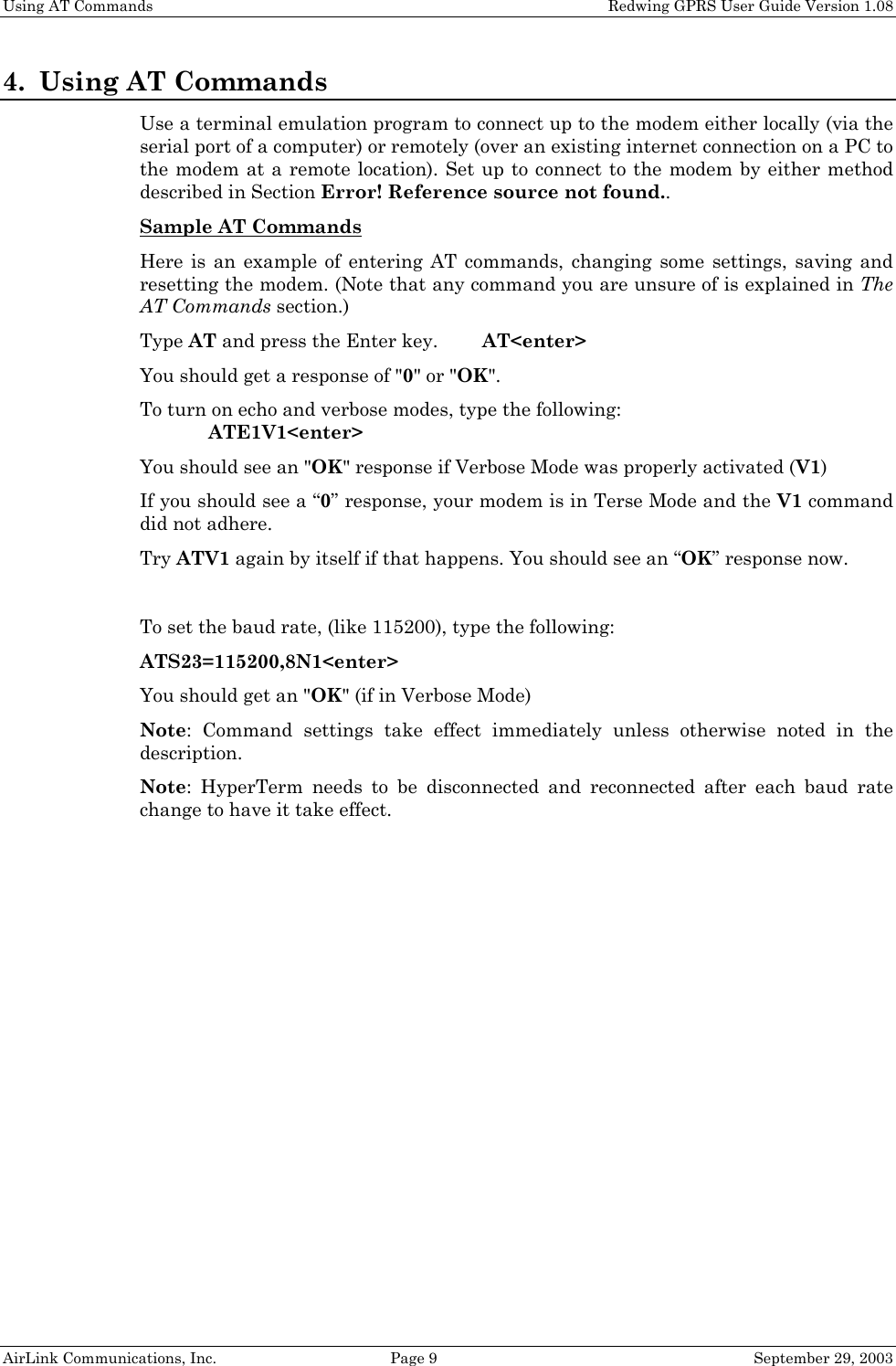

Using AT Commands Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 9 September 29, 2003 4. Using AT Commands Use a terminal emulation program to connect up to the modem either locally (via the serial port of a computer) or remotely (over an existing internet connection on a PC to the modem at a remote location). Set up to connect to the modem by either method described in Section Error! Reference source not found.. Sample AT Commands Here is an example of entering AT commands, changing some settings, saving and resetting the modem. (Note that any command you are unsure of is explained in The AT Commands section.) Type AT and press the Enter key. AT<enter> You should get a response of "0" or "OK". To turn on echo and verbose modes, type the following: ATE1V1<enter> You should see an "OK" response if Verbose Mode was properly activated (V1) If you should see a “0” response, your modem is in Terse Mode and the V1 command did not adhere. Try ATV1 again by itself if that happens. You should see an “OK” response now. To set the baud rate, (like 115200), type the following: ATS23=115200,8N1<enter> You should get an "OK" (if in Verbose Mode) Note: Command settings take effect immediately unless otherwise noted in the description. Note: HyperTerm needs to be disconnected and reconnected after each baud rate change to have it take effect.

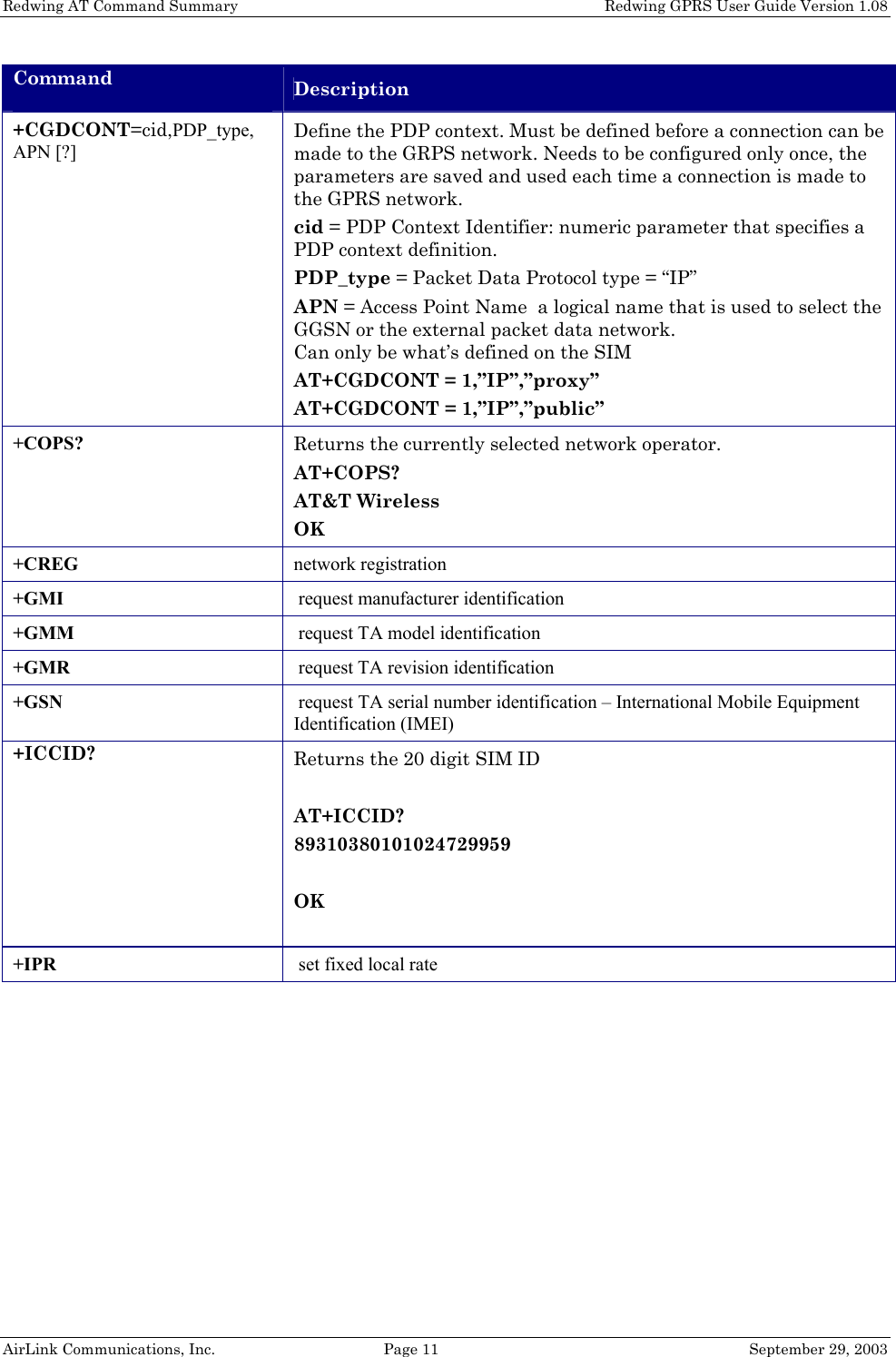

Redwing AT Command Summary Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 11 September 29, 2003 Command Description +CGDCONT=cid,PDP_type, APN [?] Define the PDP context. Must be defined before a connection can be made to the GRPS network. Needs to be configured only once, the parameters are saved and used each time a connection is made to the GPRS network. cid = PDP Context Identifier: numeric parameter that specifies a PDP context definition. PDP_type = Packet Data Protocol type = “IP” APN = Access Point Name a logical name that is used to select the GGSN or the external packet data network. Can only be what’s defined on the SIM AT+CGDCONT = 1,”IP”,”proxy” AT+CGDCONT = 1,”IP”,”public” +COPS? Returns the currently selected network operator. AT+COPS? AT&T Wireless OK +CREG network registration +GMI request manufacturer identification +GMM request TA model identification +GMR request TA revision identification +GSN request TA serial number identification – International Mobile Equipment Identification (IMEI) +ICCID? Returns the 20 digit SIM ID AT+ICCID? 89310380101024729959 OK +IPR set fixed local rate

Redwing AT Command Summary Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 12 September 29, 2003 Command Description +RCIQ? Returns the current cell information. AT+RCIQ? Serving Cell Info: BSIC: 5 TCH: 563 RSSI: -82dBm LAC: 6035 Cell ID: 4043 Dedicated Channel Info: TCH: 564 Channel Mode: 0 OK If there is not coverage, or unit has not yet registered: AT+RCIQ? +RCIQ: Not Registered with Network BSIC = Base Transceiver Station Identity Code TCH = Traffic Channel RSSI = Received Signal Strength Indicator LAC = Location Area Code

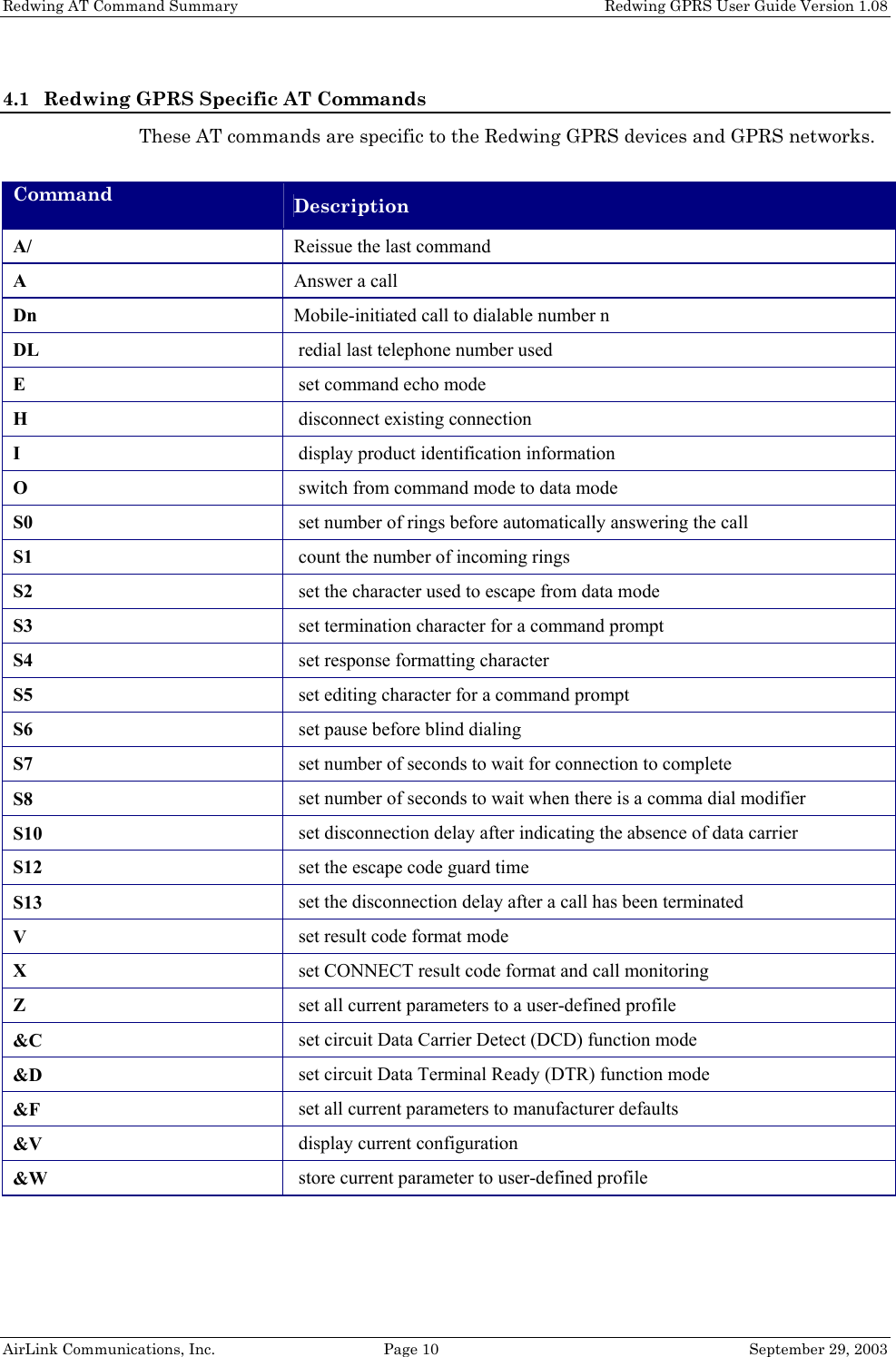

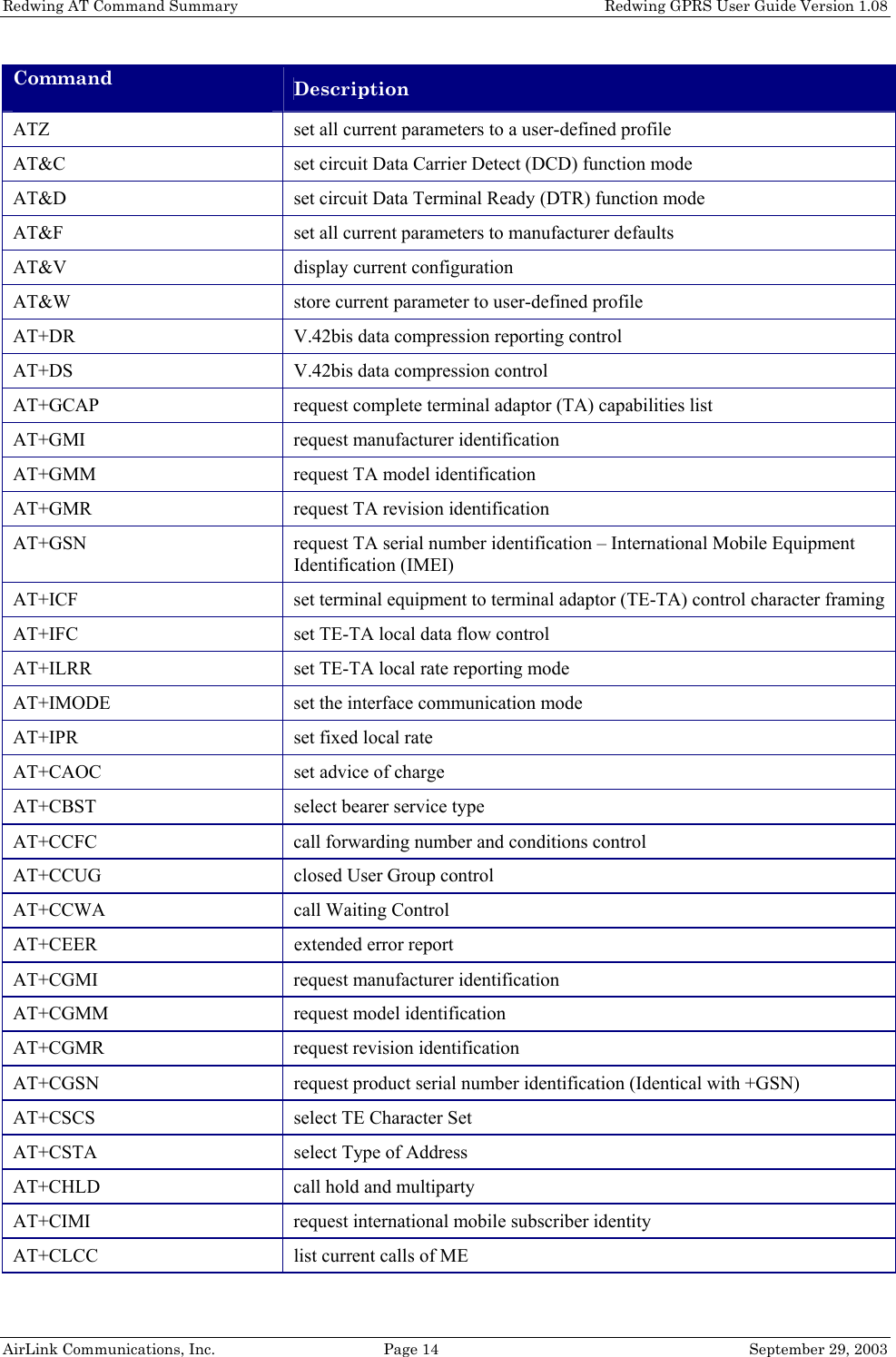

Redwing AT Command Summary Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 13 September 29, 2003 4.2 Redwing AT Command Summary Following is a summary of all the AT commands for the Redwing GPRS. For more information on these commands, see AT Command Reference Guide for the RIM OEM Radio Modem 1902G and 1802G. Command Description A/ reissue the last command +++AT ESC from data mode to command mode ATA answer a call ATD mobile-initiated call to dialable number ATD><mem><n> initiate call to phone number in memory <mem> ATD><n> initiate call to phone number in current memory ATD><str> initiate call to phone number in memory with corresponding alphanumeric field ATDL redial last telephone number used ATE set command echo mode ATH disconnect existing connection ATI display product identification information ATL set monitor speaker volume ATM set monitor speaker mode ATO switch from command mode to data mode ATP select pulse dialing ATQ set result code presentation mode ATS0 set number of rings before automatically answering the call ATS1 count the number of incoming rings ATS2 set the character used to escape from data mode ATS3 set termination character for a command prompt ATS4 set response formatting character ATS5 set editing character for a command prompt ATS7 set number of seconds to wait for connection to complete ATS8 set number of seconds to wait when there is a comma dial modifier ATS10 set disconnection delay after indicating the absence of data carrier ATS12 set the escape code guard time ATS13 set the disconnection delay after a call has been terminated ATV set result code format mode ATX set CONNECT result code format and call monitoring

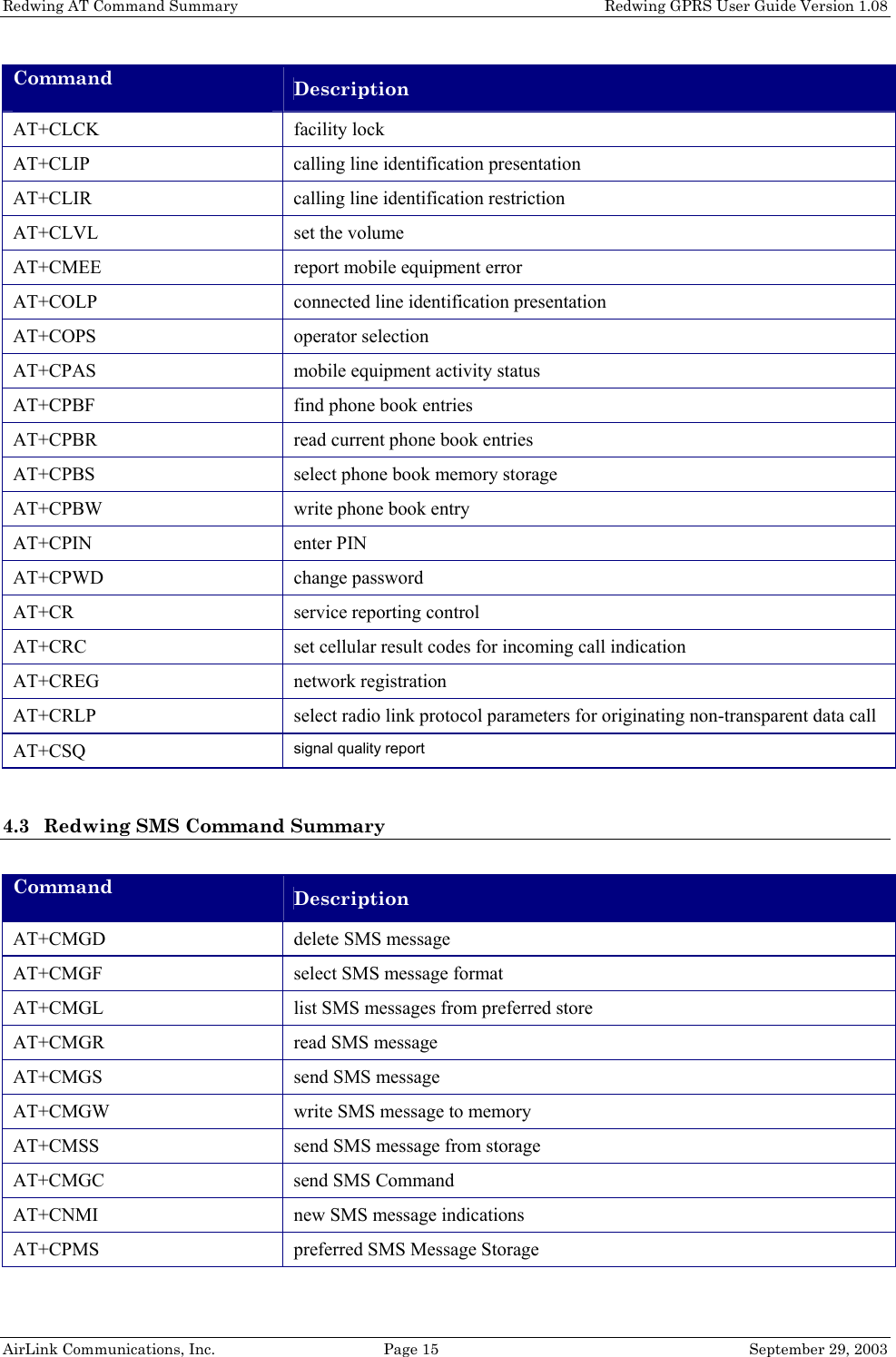

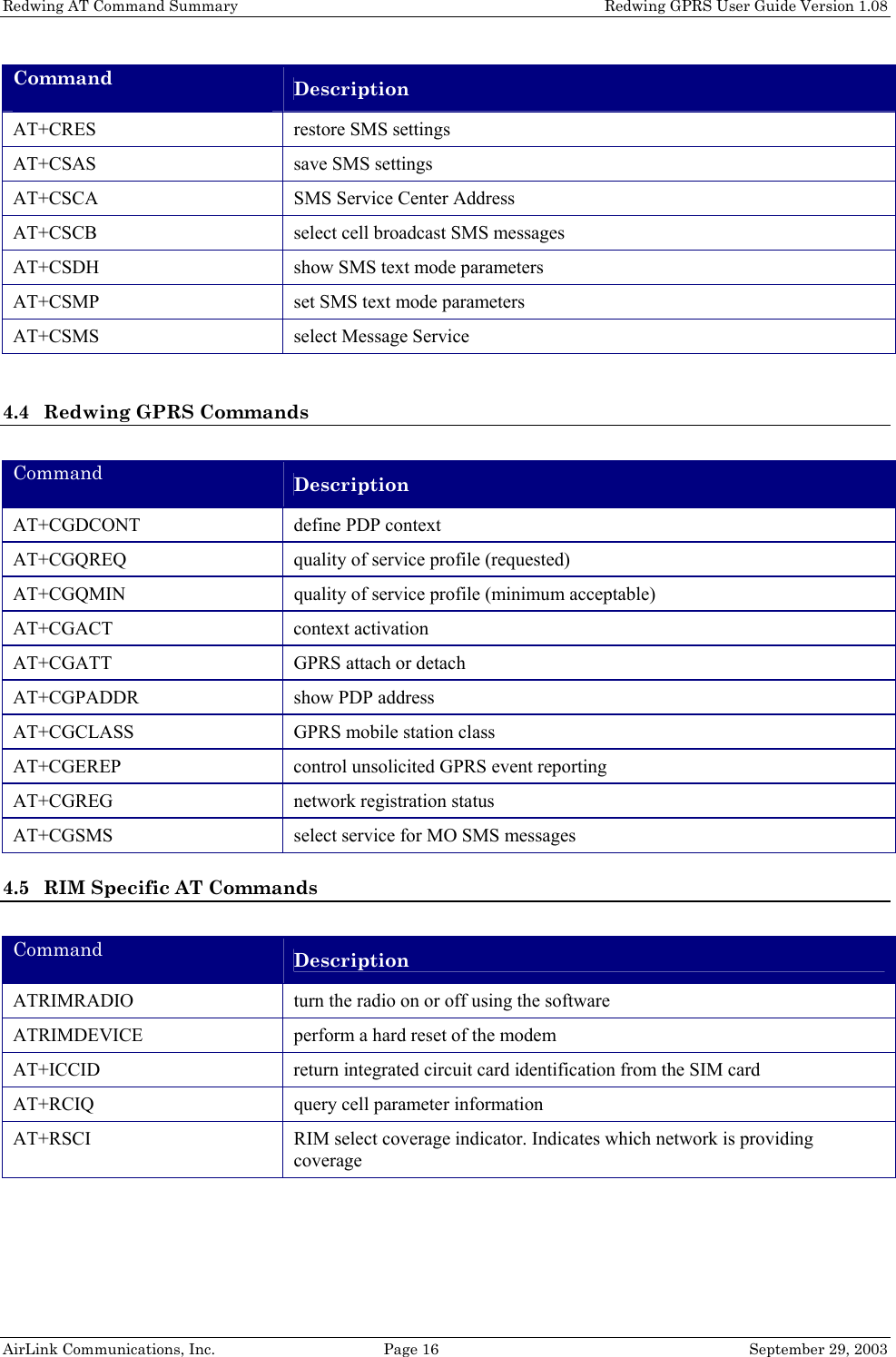

Redwing AT Command Summary Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 15 September 29, 2003 Command Description AT+CLCK facility lock AT+CLIP calling line identification presentation AT+CLIR calling line identification restriction AT+CLVL set the volume AT+CMEE report mobile equipment error AT+COLP connected line identification presentation AT+COPS operator selection AT+CPAS mobile equipment activity status AT+CPBF find phone book entries AT+CPBR read current phone book entries AT+CPBS select phone book memory storage AT+CPBW write phone book entry AT+CPIN enter PIN AT+CPWD change password AT+CR service reporting control AT+CRC set cellular result codes for incoming call indication AT+CREG network registration AT+CRLP select radio link protocol parameters for originating non-transparent data call AT+CSQ signal quality report 4.3 Redwing SMS Command Summary Command Description AT+CMGD delete SMS message AT+CMGF select SMS message format AT+CMGL list SMS messages from preferred store AT+CMGR read SMS message AT+CMGS send SMS message AT+CMGW write SMS message to memory AT+CMSS send SMS message from storage AT+CMGC send SMS Command AT+CNMI new SMS message indications AT+CPMS preferred SMS Message Storage

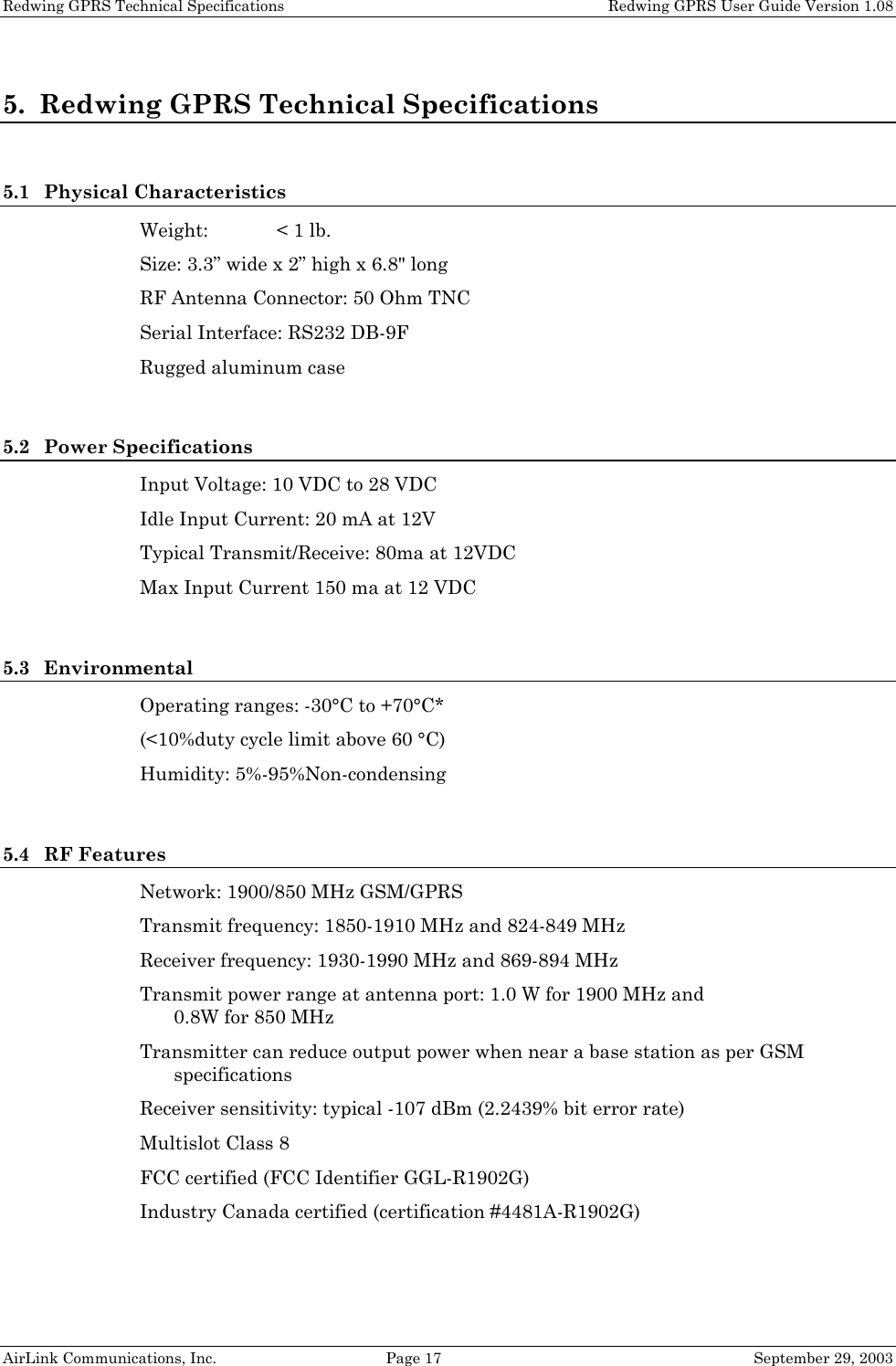

Redwing GPRS Technical Specifications Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 17 September 29, 2003 5. Redwing GPRS Technical Specifications 5.1 Physical Characteristics Weight: < 1 lb. Size: 3.3” wide x 2” high x 6.8" long RF Antenna Connector: 50 Ohm TNC Serial Interface: RS232 DB-9F Rugged aluminum case 5.2 Power Specifications Input Voltage: 10 VDC to 28 VDC Idle Input Current: 20 mA at 12V Typical Transmit/Receive: 80ma at 12VDC Max Input Current 150 ma at 12 VDC 5.3 Environmental Operating ranges: -30°C to +70°C* (<10%duty cycle limit above 60 °C) Humidity: 5%-95%Non-condensing 5.4 RF Features Network: 1900/850 MHz GSM/GPRS Transmit frequency: 1850-1910 MHz and 824-849 MHz Receiver frequency: 1930-1990 MHz and 869-894 MHz Transmit power range at antenna port: 1.0 W for 1900 MHz and 0.8W for 850 MHz Transmitter can reduce output power when near a base station as per GSM specifications Receiver sensitivity: typical -107 dBm (2.2439% bit error rate) Multislot Class 8 FCC certified (FCC Identifier GGL-R1902G) Industry Canada certified (certification #4481A-R1902G)

Redwing GPRS Technical Specifications Redwing GPRS User Guide Version 1.08 AirLink Communications, Inc. Page 18 September 29, 2003 5.5 Status LED Display GSM indicates GSM coverage if +RSCI=0 indicates GPRS coverage if +RSCI=1 Tx indicates the radio is transmitting Radio The OEM module radio is on and ready to transmit and receive Pwr The power is on. 5.6 Application Interface Features RS232, 1200 bps to 115.2 kbps
