OWNERS MANUAL
KILO®
KILO2400BDX™ 6x20mm LASER RANGEFINDER
WITH BALLISTIC DATA XCHANGE™
2
TABLE OF CONTENTS
This manual is available in the following languages: French, Spanish, German, Italian, Portuguese,
Russian, Afrikaans, Swedish, and Norwegian. Please visit sigsauer.com for Owners Manual downloads , or
download to your Smart device with the SIG BDX App.
Introduction ..............................................................3
Contents .................................................................4
Key Features ..............................................................5
Product Identification .....................................................6
Operation .............................................................. 17
Display Information ..................................................... 21
Changing Modes of Operation .......................................... 22
Programming Sequence ................................................ 23
Frequently Asked Questions (FAQs) ...................................... 38
Specifications ........................................................... 40
SIG SAUER® Electro-Optics Infinite Guarantee™ ........................... 46
3
sigsauer.com
INTRODUCTION
Congratulations on the purchase of your SIG SAUER® Laser Rangefinder. The KILO2400BDX™ is part of a new,
advanced family of rangefinders from SIG SAUER that feature Low Energy Bluetooth embedded Applied
Ballistics Ultralight and the free downloadable SIG™ BDX App as part of SIG SAUER’s new Ballistic Data Xchange™
technology. All of SIG SAUER’s rangefinders feature the most advanced digital signal processing engine while
streamlining the user interface for a no hassle, out of the box experience.
Scan mode refreshes at
ultra-fast 4x/second
Twist eyecup for individualized,
custom fit
Rear-loading CR2 Battery
Compact form factor
easily fits in pocket
4
CONTENTS:
• KILO2400BDX™ Digital Laser Rangefinder
• CR2 Battery (1)
• Premium Padded Ballistic Nylon Case
• Lanyard
• Quick Start Guide
5
sigsauer.com
KEY FEATURES:
• SIG SAUER’S Patent Pending Ballistic Data Xchange™ Technology utilizes, low energy LE Bluetooth
with embedded Applied Ballistics Ultralight and the free BDX™ App to sync custom gun profiles and
environmental conditions to your KILO® and pair your KILO to any BDX enabled riflescope or sight for shots
out to 800 yards.
• 6x20mm monocular with SpectraCoat™ anti-reflection coatings for superior light transmission and optical
clarity.
• Revolutionary Lightwave™ DSP Technology for the fastest and longest distance rangefinder engine.
• HyperScan provides 4 range updates per second in scan mode while RangeLock reports the last range result
when ranging distant targets.
• Features line of sight or angle modified range. Units in yards or meters to tenth Y/M resolution.
• High Transmittance HT-LCD display for superior low-light performance.
• Compact, lightweight polymer housing with diopter adjustment.
• Simplified user interface with RANGE and MODE buttons only.
• Rangefinder configuration can now be done through the free SIG BDX™ App.
• Displays windage and elevation within KILO HUD for every target that is scanned.
6
PRODUCT IDENTIFICATION:
A- Power/Range Button
B- Eyecup / Diopter Focus Adjustment
C- Mode Button
D- Battery Compartment
E- Lanyard
A B
C
E
D
7
sigsauer.com
LIGHTWAVE™ DSP TECHNOLOGY
SIG SAUER’s proprietary Lightwave DSP engine leverages HyperScan – an advanced power management
technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances up to a
mile. Our DSP engine uses the latest generation field programmable gate array (FPGA) running sophisticated
signal processing algorithms to reduce false positives while finding weak or distant targets.
RANGING ACCURACY, RESOLUTION AND MAXIMUM RANGES
The KILO2400BDX™ provides line of sight or angle modified range information accurate to ±0.5 yards or
meters out to 500 yards; ±1 yard from 500 - 1000 yards and ±2 yards beyond 1000 yards. Range is displayed in
0.1 yard or meter resolution.
SIG SAUER BALLISTIC DATA RANGING PERFORMANCE IN HYPERSCAN MODE
Reflective Trees Deer
KILO2400BDX™ Up to 1,600 yds Up to 950 yds Up to 750 yds
8
XCHANGE (BDX)
SIG SAUER’s Patent Pending BDX system takes the guesswork out of determining the proper range and
ballistics solution for hitting your target with the first round. Low Energy Bluetooth combined with an
embedded ballistic calculator (Applied Ballistics Ultralight) allows the user to configure up to 25 bullet profiles
on the free BDX App and sync to your KILO. Line of sight range, elevation and wind hold information is
calculated instantly and displayed based on the active profile. When combined with one of SIG SAUER’s BDX
enabled riflescopes, the user ranges a target and the firing solution is instantly shared with the BDX riflescope
where the holdover dot is selectively illuminated.
9
sigsauer.com
GENERAL OPERATION
Your rangefinder provides 3 modes of operation: AMR, LOS and ABU. AMR and LOS will be explained on the
next page. When ABU is selected the user can pair the KILO with a nearby smartphone where the BDX App

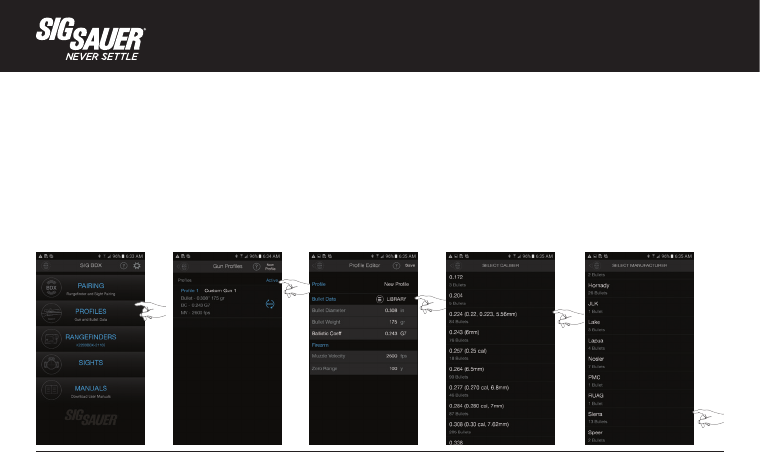

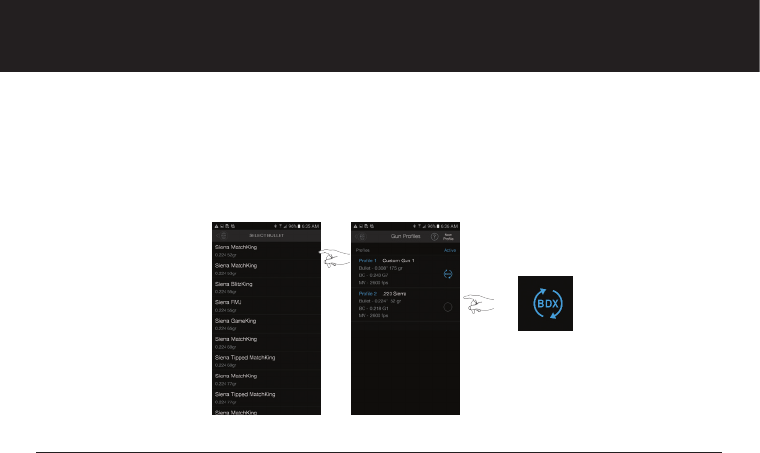

should already be installed. The user configures a bullet profile in the app, which is actively synced with a
paired rangefinder. For example, the user downloads and installs the BDX App, selects a 0.308 caliber bullet
and chooses a Barnes LRXBT 200 gr bullet – this profile is selected and saved in real-time. The user will then
configure the muzzle velocity, zero range, temperature and altitude within the BDX App.
10

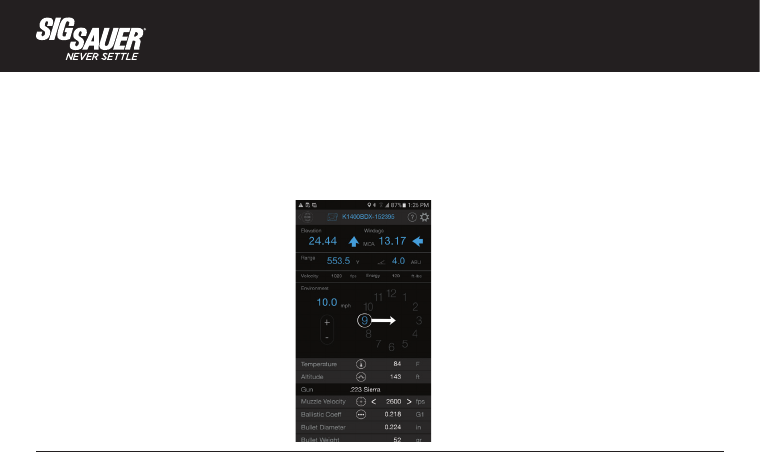

APPLIED BALLISTICS ULTRALIGHT (ABU)
Your rangefinder has an embedded ballistics solver developed by Sig Sauer, Applied Ballistics and nVisti.
By pairing your KILO with the free BDX App you can enter custom ballistics information for up to 25 bullet
profiles and sync one at a time to your KILO. The active ballistic profile is now saved on your KILO, and when
in ABU mode, will provide an accurate ballistic solution out to 800 yards maximum. The LOS range and angle
of incline will be displayed for 2 seconds, then the elevation holdover value and finally the windage hold. This
range and holdover information will continue to be displayed for 30 seconds or longer depending upon the
timeout setting in the BDX App.
Wind direction and wind speed can also be configured within the App. The smartphone will actively sync all
inputs with the KILO and the KILO can then be used without a smartphone. BDX provides a firing solution out
to a maximum of 800 yards. Custom drag curves are not provided within the BDX App. For users that require
more precision or will be shooting further than 800 yards, the KILO2400ABS with Applied Ballistics Elite is the
preferred solution. When in ABU mode, paired and bonded with a BDX enabled sight the Bluetooth icon will
be visible and will flash when a new ballistic solution is calculated – which confirms your BDX enabled sight
received the new holdover information.
MODES OF OPERATION - ANGLE MODIFED RANGE (AMR) AND LINE OF SIGHT (LOS)
11
sigsauer.com

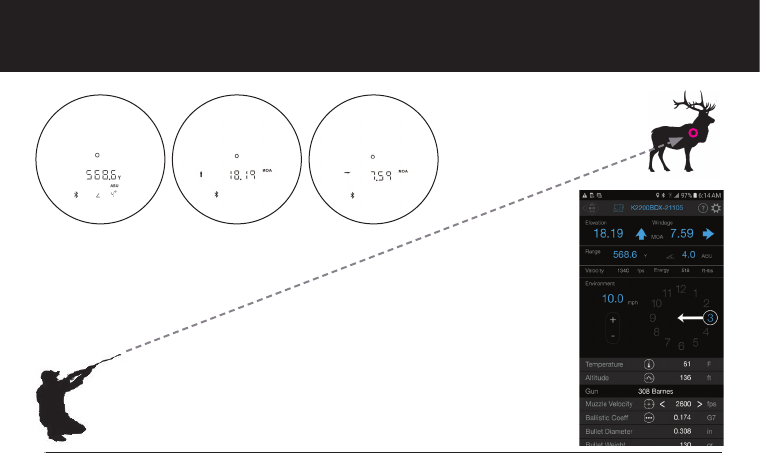

Example: LOS range = 568.6 yards with 0.308 Barnes
Elevation adjustment = 18.19 MOA Up
Windage adjustment = 7.59 MOA Right
Line of Sight (LOS) range of 568.6 yards at 4 degrees incline
12
Angle modified range is the equivalent horizontal range to the target and is comparable to the “horizontal
leg” of a triangle. AMR is also known as “rifleman’s rule” and uses the LOS range and angle of incline to
calculate the horizontal distance the projectile travels between shooter and target. AMR is very accurate for
shorter distances (i.e. < 400 yards) and archery.
Line of sight is the range to the target independent of angle. It is comparable to the “hypotenuse” of a
triangle. When ranging in LOS mode, the distance is displayed in addition to the angle of incline. This
method is preferred for those long range shooters and hunters wanting to use the LOS range and angle of
incline to calculate a very precise holdover using a ballistic calculator smartphone application and/or wind
measurement device.
For example, if the rangefinder is in LOS mode the line of sight range of 500 yards would be displayed along
with the angle of -30 (degrees decline). Use LOS in combination with a ballistic calculator to calculate an exact
holdover in minutes of angle or milliradians.
If the rangefinder is in AMR mode the angle modified range of 433.0 yards would be displayed. This is the
equivalent horizontal range and can be used in combination with a ballistic / holdover reticle or with the SIG
Ballistic Turret SBT™ dial.
LIQUID CRYSTAL DISPLAYS (LCD)
13
sigsauer.com

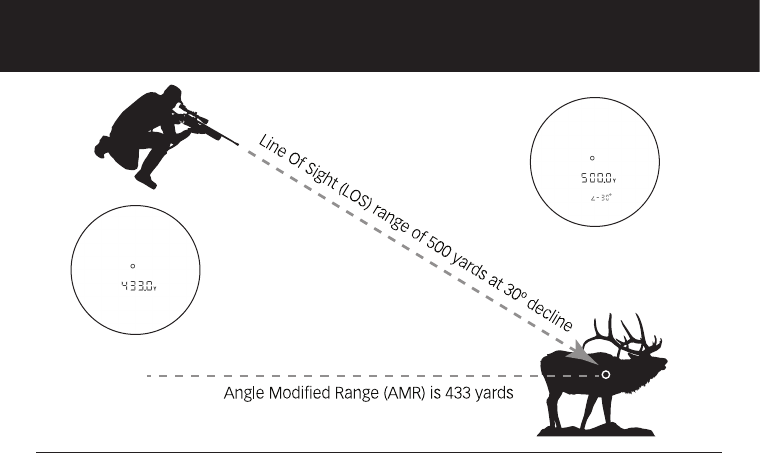

Example:
LOS range of 500 yards at
30’ decline is equivalent to
an AMR range of 433 yards
ANGLE MODIFIED RANGE
14
The KILO2400BDX™ rangefinder features a High-Transmittance LCD for superior low-light performance.
A – Circle center aiming feature
B – Holdover Directional indicators (Up, Down, Left or Right)
C – Target Selection: BEST or LAST target
D – Low Energy Bluetooth indicator (on with ABU)
E – Battery Status indicator
F – Angle of incline / decline
G – Mode Selection: LOS, AMR, ABU
H – Holdover Unit of Measure: MOA, MIL or IN (on with ABU)
I – Range Unit of Measure: Y or M
J – 5 Character alphanumeric digits for range and holdover information
OPERATION
The KILO2400BDX is designed to get you up and running without the typical complexity of buried menus
15
sigsauer.com
A
B
C
D
E
J
I
H
G
F
16
Safety and Operation Procedures
The KILO is classified as a Class 3R product.
Do not depress the RANGE button while aiming at the human eye or while looking into the transmitting optics
on the objective side
• Do not leave the KILO within reach of small children
• Do not take the product apart or modify the product in any way to expose internal electronics that might
cause damage or electric shock
• Do not use any other power source other than a CR2 battery or equivalent.
W WARNING
17
sigsauer.com
and programming modes. The rangefinders come out of box in the following configuration and can also be
configured with the free BDX App:
(a) Angle Modified Range (equivalent horizontal range)
(b) Best Target (rangefinder returns the best or most likely target, not the first or last)
(C) Units of Measure in Yards
SET UP

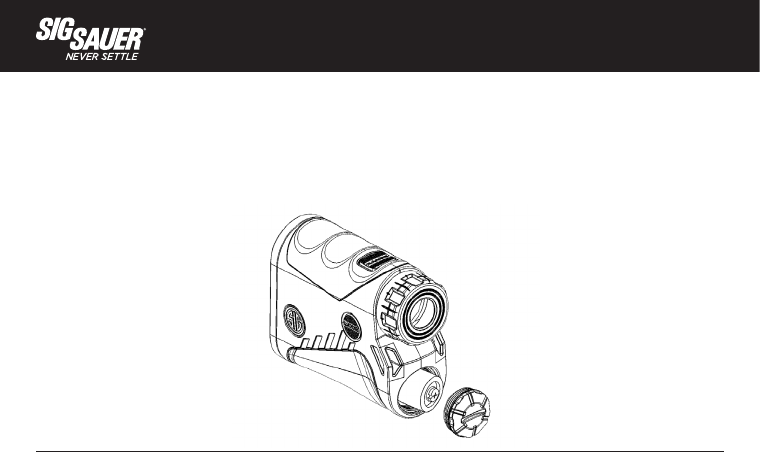

Installing the Battery
18
Remove the battery cap by turning the cap in a counter-clockwise direction. Insert (1) CR2 Primary Lithium
battery (-) terminal side first. The (+) terminal should be facing out. Place the cap onto the (+) battery terminal
and reinstall the battery cap by turning the cap in the clockwise direction.
W CAUTION - Be careful to not cross-thread the cap.
After installation of the battery and depressing the RANGE button, the status of the rangefinder is displayed:
19
sigsauer.com

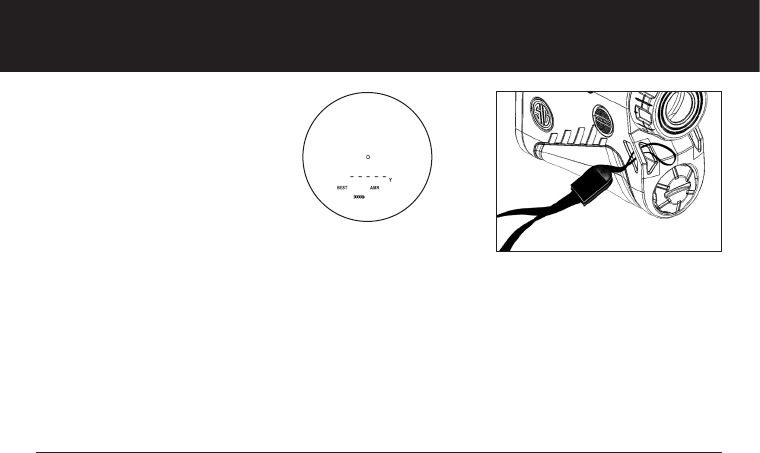

Installing the Lanyard
Install the lanyard loop through the lanyard attachment point.
Pass the lanyard back through the loop for secure attachment.

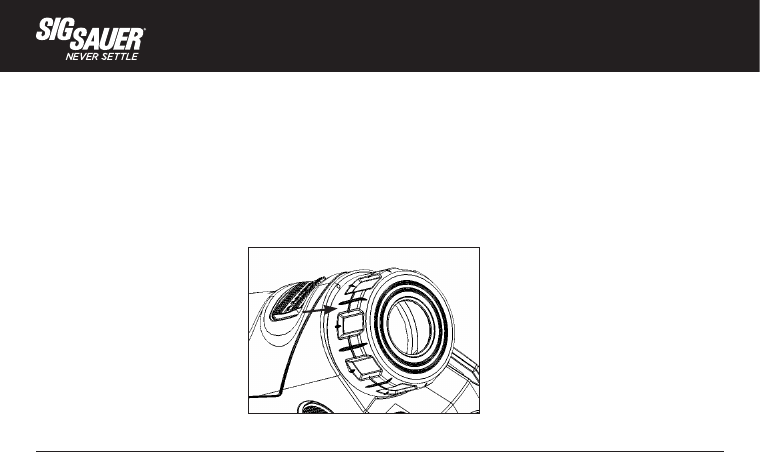

Diopter Adjustment
The diopter or focus adjustment is integral to the eyecup. The focus adjustment is used to bring the LCD
display into sharp focus along with the target image. The diopter adjustment can turn clockwise or counter-
clockwise depending upon the user’s prescription
20
DISPLAY INFORMATION
The LCD displays show you the center aiming circle, the unit of measure (Y), Angle Modified Range mode
(AMR) and the remaining battery status. The display will remain active for up to 10 seconds , or whatever
timeout has been set within in the SIG BDX App. You can then press the RANGE button to determine range to
target.
21
sigsauer.com
If you press the RANGE button while the rangefinder is off and continue to hold the RANGE button down, the
rangefinder will automatically switch into SCAN mode within 1 second.
After determining the distance to the target, the rangefinder will continue to display the center aiming circle
and range data for 10 seconds – and only the range data. All other information is not shown after initial
wakeup to prevent clutter in the field of view.
HyperScan MODE
While the rangefinders support single button push ranging operation, it is highly recommended that you push
and hold the RANGE button down to activate HyperScan mode. This mode allows you to scan targets at 4X/
second which significantly improves ranging performance at extreme distances. As the ranging distances are
Display at initial wakeup Display when ranging
22
updated very quickly in HyperScan mode, once you release the RANGE button the last acquired distance will
be displayed. When in HyperScan mode ranging distant targets, the display may update between no result
and a distant range - by using RangeLock technology the rangefinder will report the last range result when the
RANGE button is released.
CHANGING MODES OF OPERATION
The rangefinder ships with the most common modes already configured. However, you can access and
change the following features:
• Line of Sight (LOS), Angle Modified Range (AMR) or Applied Ballistics Ultralight (ABU)
• Best or Last Target
• Units of Measure (Y or M)
RANGEFINDER CONFIGURATION – PROGRAMMING SEQUENCE

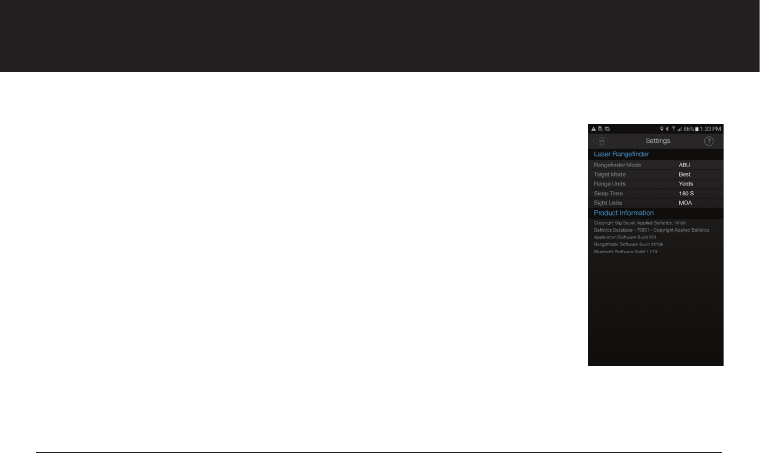

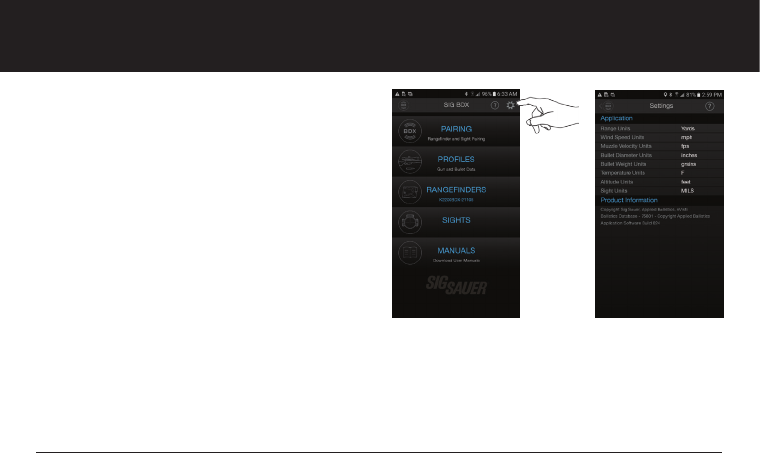

Note – the rangefinder can more easily be programmed and configured by using the
free Sig BDX App.
23
sigsauer.com
1. Mode Selection (AMR, LOS or ABU)
To enter programming mode, press and release the RANGE button to wakeup the rangefinder. Once the
display is visible, press and hold the MODE button for 2 seconds – then release the MODE button and the
current selection will be flashing (AMR is the default setting). You can switch between AMR, LOS or ABU by
pressing and releasing the RANGE button. Confirm your selection by pressing and releasing the MODE button
which will save your setting and index to the next setting for configuration. If you do not press and release
the MODE button the rangefinder will save your selection and turn off. If the user intends to use a calculated
ballistic solution, the rangefinder must be in ABU mode. Instructions for downloading and configuring the
BDX App on your smartphone will be detailed later in the instructions.
2. Target Selection (BEST or LAST)
BEST or LAST should be flashing (BEST is the default setting). You can toggle between BEST or LAST by
pressing and releasing the RANGE button. Confirm your selection by pressing and releasing the MODE button
which will save your setting and index to the next setting for configuration. If you do not press and release
the MODE button the rangefinder will save your selection and turn off. BEST Target can be used for most
situations, however, when hunting through foliage or in high grass the LAST Target is recommended.
24
3. Unit of Measure Selection (Y or M)
Your current selection will be flashing (Yards is default). You can toggle between Y or M by pressing and
releasing the RANGE button. Confirm your selection by pressing and releasing the MODE button which will
save your setting and index to the next setting for configuration. If you do not press and release the MODE
button the rangefinder will save your selection and turn off.
DIGITAL BALLISTICS XCHANGE – DOWNLOADING AND CONFIGURING THE FREE BDX APP
In this section you will download the BDX App, pair the App with your KILO and create a custom bullet profile.

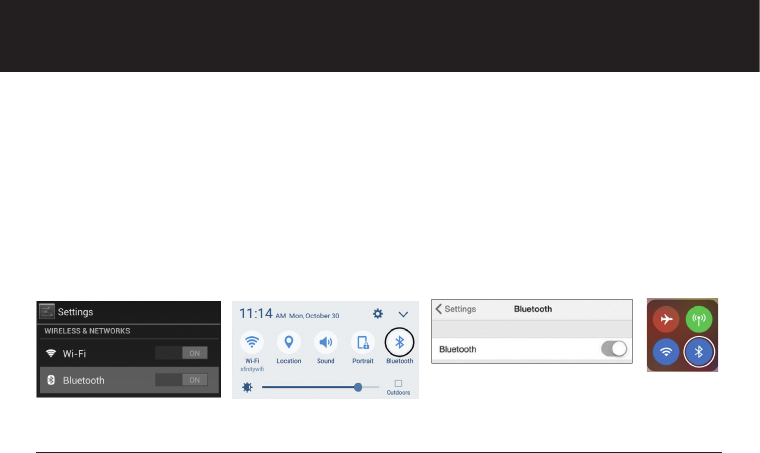

1. Turn Bluetooth on
Check in Settings on your Android or iOS device to make sure that Bluetooth is on. If Bluetooth is off, switch it
on.
25
sigsauer.com
2. Download the BDX App from the App Store / Google Play Store
Go to the App Store or the Google Play store and download the SIG SAUER BDX App.

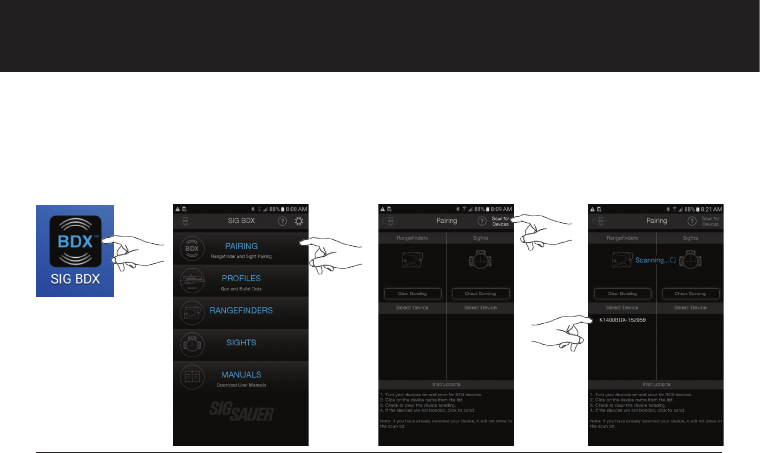

3. Launch the free SIG SAUER BDX App and Pair with your KILO (Enter your PIN code)
On your smartphone, open the BDX App, click on PAIRING, turn on your KILO by pressing and releasing the
RANGE button and then press “Scan for Devices” on the App. Your KILO should be listed below the KILO icon
and “Select Device”. Your rangefinder ID should be listed in white letters. Touch the ID in white. (continued
on next page)
26

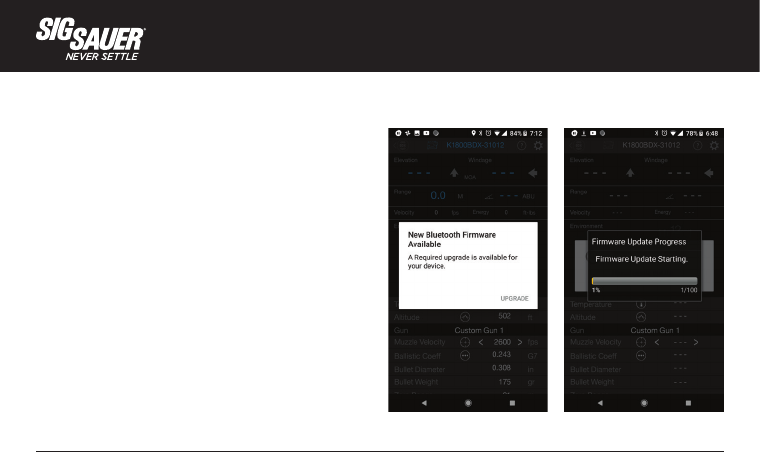

3a. Updating your KILO to the latest software during Pairing
You may be prompted to update the software on your KILO. These software updates are mandatory and allow
27
sigsauer.com
Sig Sauer to ensure that your BDX App and KILO perform optimally. Most updates take less than 1 minute.
Ensure that your KILO is turned on and that your smartphone has at least 25% battery life remaining before
installing any software updates. For best operation be sure to keep your smartphone awake during the entire
installation process.
28

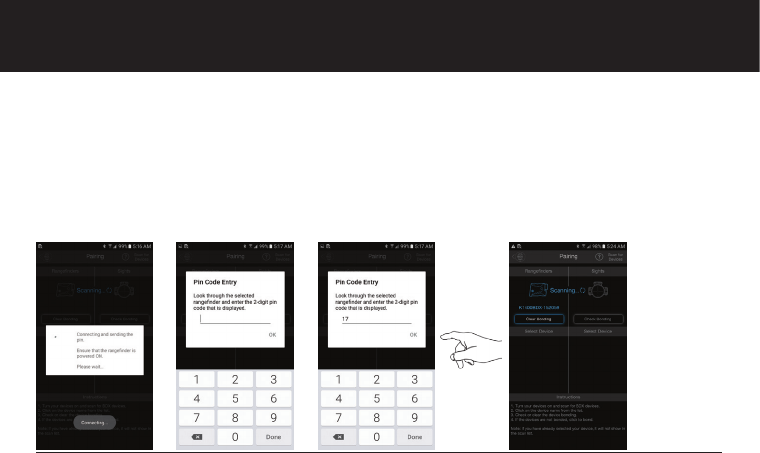

Make sure your KILO stays on during the pairing
process by periodically pressing and releasing the
RANGE button. You will be prompted to look through
your KILO for a PIN number. Type this PIN number into
the open dialogue box within the App. The PIN in your
KILO and the PIN entered on your smartphone must
match. Press OK to complete the pairing operation.
You will now see your KILO ID in blue listed below the
KILO icon. You can now exit this screen. If you enter
the incorrect PIN code you can restart this process
over again. If you encounter any problems during
this process close your App and let the KILO time out;
restart the process over.
29
sigsauer.com
4. Configure up to 25 custom bullet profiles
The BDX App allows you to create and modify up to 25 profiles. From the home screen of the App touch
PROFILES. Only one profile can be active at any time and is denoted by the BDX Icon in blue to the right of the
screen. The BDX App comes with one default 0.308 profile. You can edit this profile by touching “Profile 1”
or create a new one by touching the “New Profile” in the upper right corner of the App. Next, touch LIBRARY
then select a caliber and bullet manufacturer. On the Gun Profiles page you can rename the profile by
touching on the “Custom Gun 1” and typing in a new name.
30
After selecting a bullet manufacturer, select the actual bullet you intend to use. Once selected you will return
to the Gun Profile page where you will need to click on the sync icon to the right to activate this profile. In this
example the new profile is called “.223 Sierra” – be sure to activate this profile.
KILO SETTINGS
From the Settings menu you can fully configure the following:
31
sigsauer.com
1. Mode of Operation (LOS, AMR or ABU)
2. Target Mode (BEST or LAST)
3. Unit of Measure (Yards or Meters)
4. Sleep Timeout (30, 60, 120 or 180 seconds)
5. Holdover / Sight unit of Measure (MOA or MILS)
32
RANGEFINDER HEADS-UP DISPLAY (HUD)
From the home screen of your BDX App select RANGEFINDERS to display the HUD. The HUD displays all range,
environmental and ballistic information and allows you to configure your KILO.
KILO ID and Status
Grey = disconnected / Blue = connected
Back to Home Screen
Elevation data
Range to target and unit of measure Bullet
velocity at target range
Wind speed
Ambient temperature
Active gun profile
Ballistic coaefficient
Bullet weight
Help and Settings menu
Windage data
Angle of include and Mode of Operation
Bullet energy at target range
Wind direction
Local altitude
Muzzle velocity and MV Calibration
Bullet diameter
33
sigsauer.com
You can toggle all fields by simply touching the letters in white. Your KILO must
be turned on and paired. To save your settings touch the BDX icon in the upper
left corner of the display. This will save your settings. You can also access the help
menu by clicking on the “?” icon in the upper right of the screen.
Note – The KILO will not range when the Settings menu is open and active.
Note – The rangefinder must be in ABU mode to calculate Real time ballistic
solutions and send them to the SIG BDX Riflescope with Bluetooth.

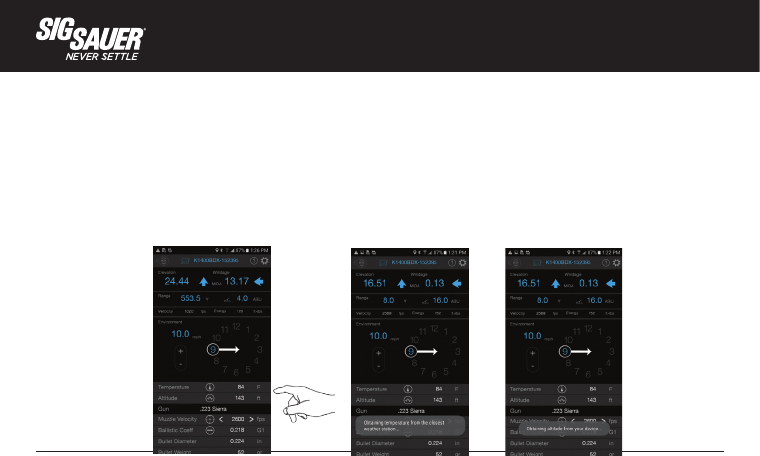

TEMPERATURE AND ALTITUDE
Once your KILO is paired and actively synced with your smartphone, when you
enter the RANGEFINDER HUD screen your smartphone will automatically pull the
local temperature and altitude from the closest weather station. If you are not in
cell range you can manually update both temperature and altitude by touching
on the white numbers in each field and manually updating these environmental
conditions.
34

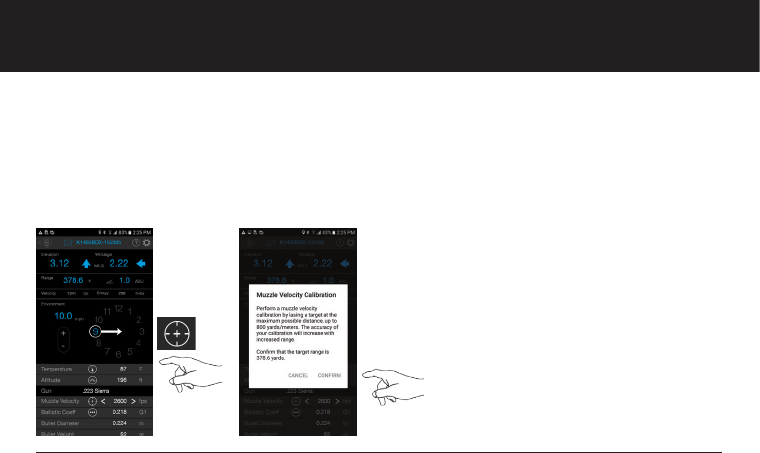

MUZZLE VELOCITY (MV) CALIBRATION
The most important input for calculating accurate Applied Ballistics solutions is getting your MV correct.
You need to either chronograph your firearm or use the embedded MV Calibration routine built into the
BDX App. To use the MV Calibration routine make sure your scope is zeroed (i.e. at 100 yards) and verify
that the BDX App is showing zero holdover values at the zero distance by ranging the target at the zero
range and verifying the your holds are in fact zero
Use the MV Calibration routine at the farthest distance you intend to shoot. The greater the distance the more
35
sigsauer.com
accurate the MV calculation will be. In this example the target was at 378 yards. Confirm your max target
range.
Note – ABU only provides ballistic solutions out to 800 yards maximum.

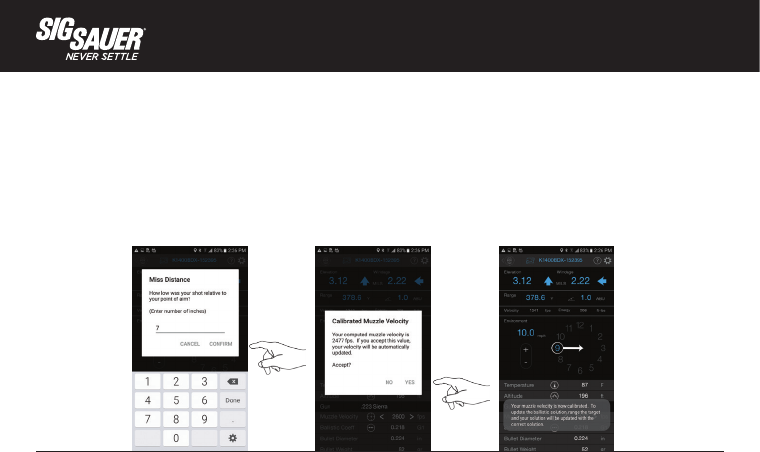

MUZZLE VELOCITY (MV) CALIBRATION (continued)
Now enter the elevation offset between
point of impact and point of aim and
select CONFIRM. In this example the
3 shot group was 7 inches low. A new
MV of 2477 fps was calculated. Select
YES to confirm and this MV will now
be used for ballistic solutions going
forward. See the confirmation dialogue
box in the image below right.
36
CONFIGURING GLOBAL SETTINGS IN THE BDX APP
From the Home Screen of the BDX App you can configure Global Settings. Any field that is in white
can be changed by touching on the unit of measure and toggling between values. The help menu is
available to assist you. Global Settings include:
1. Range Unit (Y, M)
2. Wind Speed Unit (mph, m/s, kph)
3. Muzzle Velocity Unit (fps, m/s)
37
sigsauer.com
4. Bullet Diameter Unit (inches, cm)
5. Bullet Weight Unit (grains, grams)
6. Temperature Units (F / C)
7. Altitude Units (feet, meters)
8. Sight Units (MOA, MILS)
FREQUENTLY ASKED QUESTIONS (FAQ):
Q: I can’t get the display to focus.
A: You need to adjust the diopter ring to your vision. Rotate the eyecup / diopter ring in either direction until the
display comes into sharp focus.
Q: I can’t seem to range very far past trees or animals.
A: Your KILO will perform differently based on changes in ambient conditions such as bright sunlight or snow, rain or
38
fog, temperature and the reflectivity of the target being ranged. For example, at dusk and dawn your rangefinder may
be able to range trees at over 1000 yards but in bright sunlight may only achieve 500 yards. If your KILO will not range
at least 400 yards under normal conditions (fog and rain excluded) please contact customer service. Your product
may have fallen out of alignment.
Q: I can’t get my KILO to pair with the BDX App on my smartphone.
A: Delete the BDX App from your smartphone. Download and reinstall on your phone. Make sure you have a fresh
battery in your KILO. Relaunch the App, turn on your KILO and repeat the Pairing instructions in this manual.
Q: I can’t locate the BDX App on the Apple or Android Stores.
A: Search for Sig Sauer or BDX at the store.
Q: My battery drains too fast.
A: Most rangefinders will provide over 4000 individual range calculations using a fresh CR2 primary lithium battery.
Your KILO exceeds this specification. When heavily using SCAN mode the battery may appear to drain faster since
your KILO is ranging 4x per second in HyperScan mode. This is normal operation but you should keep a spare CR2
battery when heading out to remote locations.
Q: My ballistic solution in the HUD and displayed in the KILO is always off a few inches.
A: For accurate ballistic solutions make sure you have updated the temperature and altitude within the App to your
39
sigsauer.com
current location, you have the correct bullet caliber (diameter) and weight selected, your zero distance is correct and
that your muzzle velocity is correct. Using the MV Calibration routine provides the most accurate MV and will improve
the accuracy of the ballistic calculator. It is always best to use the MV Calibration routine at the farthest distance you
intend to shoot. Calibrating at 500 yards will yield a better MV than calibrating at 200 yards.
Q: My blue LED on the power selector ring on my SIERRA3 will not turn on.
A: Look through our SIERRA3. You most likely have the Digital Ballistic Reticle turned on. Go into your BDX App, make
sure you are paired with your SIERRA3. Click on the SIGHTS link and turn DBR OFF.
This product has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. The equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with these instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this product does cause interference to radio or television reception the user is encouraged to try to correct
the interference by one or more of the following:
• Reorient or relocate the receiving antenna
40
KILO2400BDX™ 6x20mm SPECIFICATIONS
Magnification 6x
Objective Clear Aperture 20mm
Exit Pupil 3.33mm
Eye Relief 15mm
Angular (FOV) 6.5°
FOV @ 100yds 34.18 ft
Laser Divergence 1.9 mrad
Range Response Time .25 sec
Scanning Yes
Range Resolution Under 100 yds .1 yds
Max Range Reflective up to 1,600 yds Trees up to 950 yds Deer up to 750 yds
Weight with Battery 5 oz / 140 g
41
sigsauer.com
KILO2400BDX™ 6x20mm SPECIFICATIONS
Magnification 6x
Objective Clear Aperture 20mm
Exit Pupil 3.33mm
Eye Relief 15mm
Angular (FOV) 6.5°
FOV @ 100yds 34.18 ft
Laser Divergence 1.9 mrad
Range Response Time .25 sec
Scanning Yes
Range Resolution Under 100 yds .1 yds
Max Range Reflective up to 1,600 yds Trees up to 950 yds Deer up to 750 yds
Weight with Battery 5 oz / 140 g
NOTES:
42
A – 2.9 in / 76mm
B – 3.9 in / 107mm
C – 1.4in / 33mm
A
43
sigsauer.com
C
B
44
FCC STATEMENT:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate
the equipment.
NOTE:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
45
sigsauer.com
help.
INDUSTRY CANADA:
This device complies with Industry Canada’s licence-exempt RSSs
Operation is subject to the following two conditions:
• This device may not cause interference, and
• This device must accept any interference, including interference
that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d’Industrie Canada
applicable aux appareil radio exempts de licence.
L’exploitationestautorisée aux deux conditions suivantes:
• l’appareil ne doit pas produire de brouillage, et
• l’utilisateur de l’appareildoit accepter tout brouillage
radio électrique subi, mêmesi le brouillage est susceptible
d’encompromettre le fonctionnement
The device meets the exemption from the routine evaluation
limits in section 2.5 of RSS 102 and compliance with RSS-102 RF
exposure,users can obtain Canadian information on RF exposure
and compliance.
46
• Increase the separation between this product and the receiver
• Connect the equipment to an alternative outlet or receiver
• Consult a technician.
Shielded interference cable must be used with the equipment in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
Specifications and designs are subject to change without any notice or obligation on the part of the
CLASS 3R LASER PRODUCT INVISIBLE LASER RADIATION - AVOID DIRECT EYE
EXPOSURE
This product complies with IEC 60825-1: 2014-05 Ed 3.0 and complies with FDA performance standards for
laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Class 3R: P o < 20W, λ = 905 nm, t = 22 ns
W DANGER
47
sigsauer.com
manufacturer.
Use of controls or adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
W CAUTION
LASER APERTURE
CLASS 3R L ASER PRODUCT INVISIBLE LASER
RADIATION AVOID DIRECT EYE EXPOSURE
This product complies with IEC 60825-1:2014 Ed.3 and complies
with FDA per formance standards for laser products except for
deviations pursuant to Laser Notice No .50,dated June 24,2007.
FCC ID:2AP8SK22 IC:24032-K22
SIG SAUER I nc.
27100 S W P ar kw ay Avenue
W ils onville, Or egon 97070
48
I
N
F
I
N
I
T
E
G
U
A
R
A
N
T
E
E
S
I
G
S
A
U
E
R
SIG SAUER Electro-Optics Infinite Guarantee™
SIG SAUER has manufactured the most rugged, dependable high-performance firearms
for over two centuries. Our heritage of design, engineering and precision-manufactured
quality predates the existence of any other optics company worldwide. We understand
the importance of quality in the line of fire, at the shooting range or on your next hunt. SIG
SAUER Electro-Optics had to earn the right to wear that badge and the Infinite Guarantee
has your back, forever. Period.
We will repair or replace your SIG SAUER product in the event it becomes damaged or defective, at no charge
to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or
better physical condition. It doesn’t matter how it happened, whose fault it was, or where you purchased it.
SIG SAUER Infinite Guarantee™
• Unlimited Lifetime Guarantee
• Fully Transferable
• No Warranty Card Required
• No Receipt Required
• No Time Limit Applies
• No Charge
If you ever have a problem, no
49
sigsauer.com
L
I
M
I
T
E
D
5
Y
E
A
R
W
A
R
R
A
N
T
Y
E
L
E
C
T
R
O
N
I
C
&
T
R
I
T
I
U
M
matter the cause, we promise to take care of you when it counts.
Please note that our Infinite Guarantee does not provide coverage for intentional damage, misuse, cosmetic
damage that does not affect the performance of the optic, loss, theft or unauthorized repair or modification.
Excludes electronic components.
SIG SAUER Electronic & Tritium Component Limited 5-Year Warranty
For components not included under the SIG SAUER® Infinite Guarantee™, this warranty
covers any defects in materials and workmanship in the electronic and Tritium
components of illuminated riflescopes/sights, pistol sights, electronic sights, flashlights,
lasers, binoculars, spotting scopes, and rangefinders. This warranty lasts for five years from
the date of manufacture. If, during that five-year period, these products are found to have
electronic or Tritium component defects in materials or workmanship, SIG SAUER will repair your product, at
no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order
of equal or better physical condition.
P/N 7401004-01 R01
FOR PRODUCT SERVICE ON THIS MODEL, PLEASE CALL 603-610-3000
27100 SW Parkway Avenue, Wilsonville, Oregon 97070 USA
sigsauer.com
