UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

UZB-SD3503

Z-Wave USB Adapter

User’s Manual

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

CONTENTS

1. INTRODUCTION ..........................................................................................................................3

2. SPECIFICATIONS ..........................................................................................................................4

3. PC CONTROLLER APPLICATION SOFTWER INSTALLATION .............................................................5

4.1 Installation .............................................................................................................................5

4.2 Start the Z-Wave PC Controller application ..............................................................................8

4.3 Remove Z-Wave PC Controller application Software ................................................................9

4.4 User Interface ....................................................................................................................... 10

4. FCC NOTICE TO USERS ............................................................................................................... 22

5. EU DECLARATION OF CONFORMITY ........................................................................................... 23

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

1. INTRODUCTION

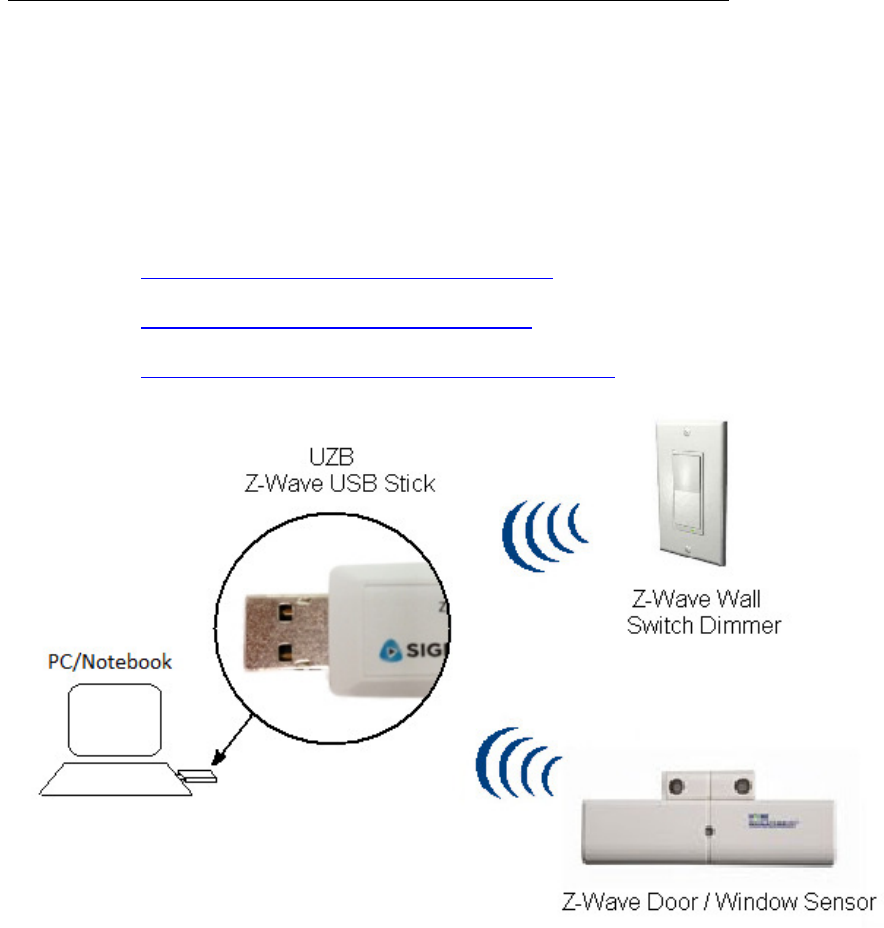

UZB, Z-Wave USB Stick and bundled application software (PC Controller) enables you to control a

range of Z-Wave enabled devices through your PC or Notebook.

Z-wave is an established short range interoperable two-way RF mesh network technology.

Refer to http://www.z-wave.com/modules/ZwaveStart/ for detail of the technology.

Refer to http://www.z-wave.com/modules/Products/ for various Z-Wave ready products.

Refer to http://www.z-wavealliance.org/modules/AllianceStart/ for Z-Wave Alliances.

Features



Simply plug in UZB to USB port of a PC/Notebook with PC Controller installed



Fully compatible with Z-wave enable network that can communicate with any Z-wave

certified device.

System Requirements

 Windows 2000/XP/Vista 7 32 & 64 bit

 Linux kernel 2.6.24+

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

2. SPECIFICATIONS

Z-Wave & RF Specification

RF EU US

Z-Wave Chip SD3503

Z-Wave Library Serial API Version 4

Basic Device Class Static Controller

Z-Wave Protocol Z-Wave version ZDK 4.5x and ZDK6.0x

Data Rate 9.6kbps / 40kbps / 100kbps

Frequency 9.6 kbps:

40 kbps:

100 kbps:

868.42 MHz

868.40 MHz

869.85 MHz

9.6 kbps:

40 kbps:

100 kbps:

908.42 MHz

908.40 MHz

916.00 MHz

Range Typical 40 meters

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

3. PC CONTROLLER APPLICATION SOFTWER INSTALLATION

4.1 Installation

1. Exit all programs.

2. Run the installation file of the Z-Wave PC Controller application.

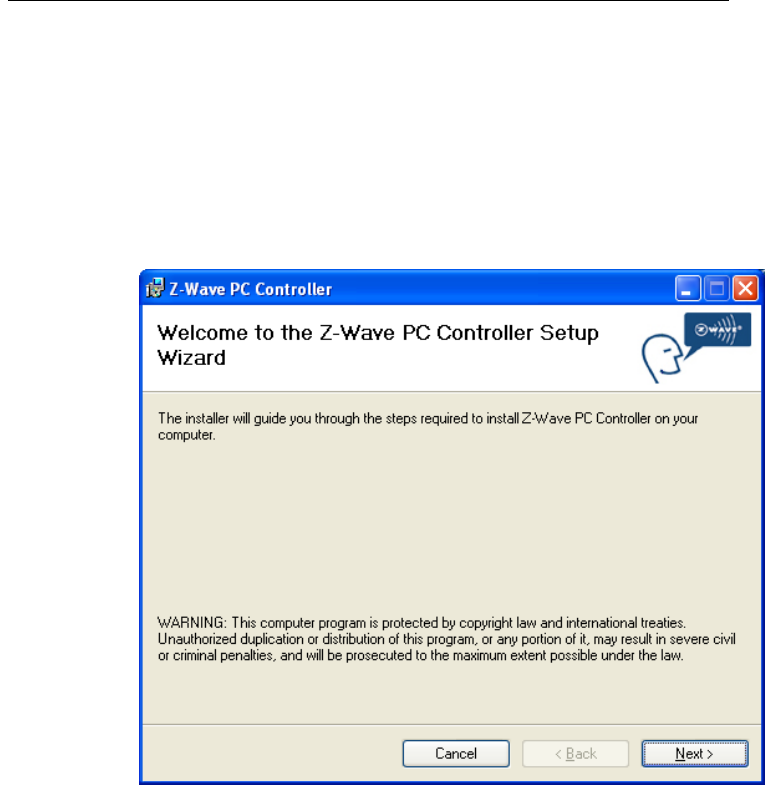

Figure 1. Welcome page of Z-Wave PC Controller installation

3. Select the installation folder and who should be able to use the Z-Wave PC Controller

application. Please note, that it is not recommended to move the Z-Wave PC Controller

application manually after it has been installed into the above specified folder.

When done, click Next.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

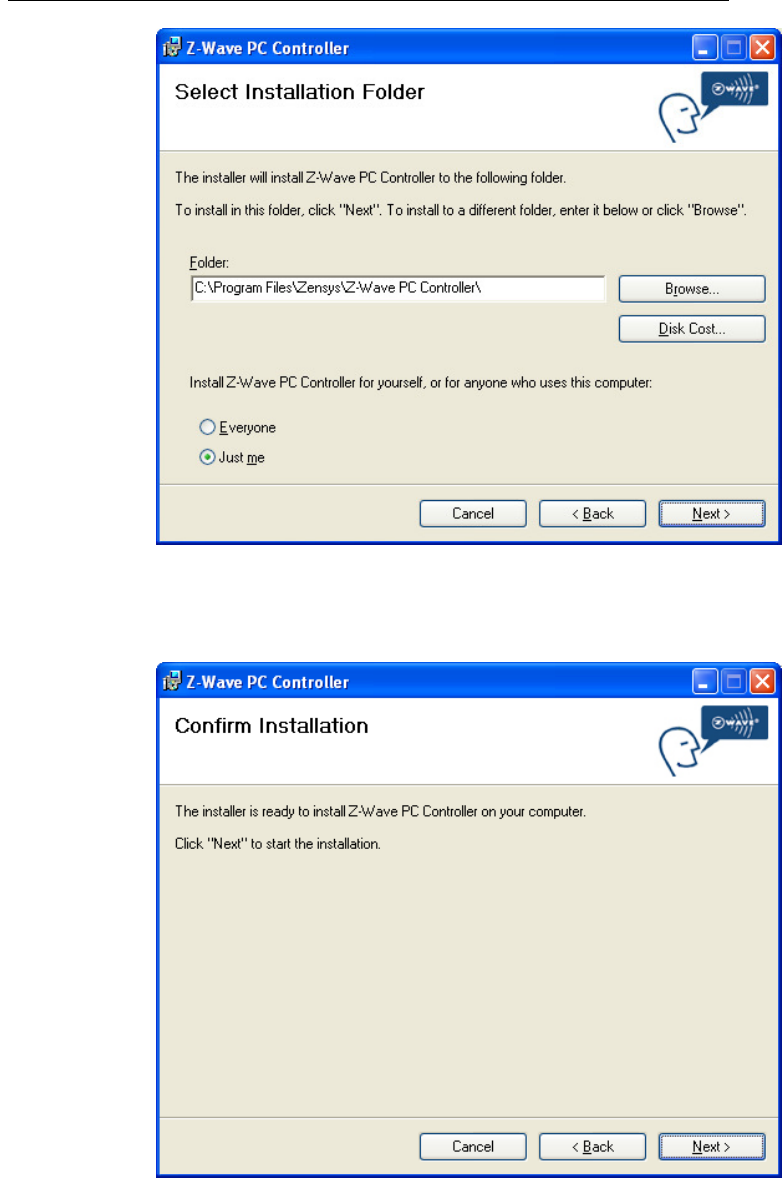

Figure 2. Installation folder

4. Installation confirmation appears. Click Next again to confirm and start the installation.

Figure 3. Confirmation page of Z-Wave PC Controller installation

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

5. The actual installation procedure will pass with progress indicator and final confirmation

appears.

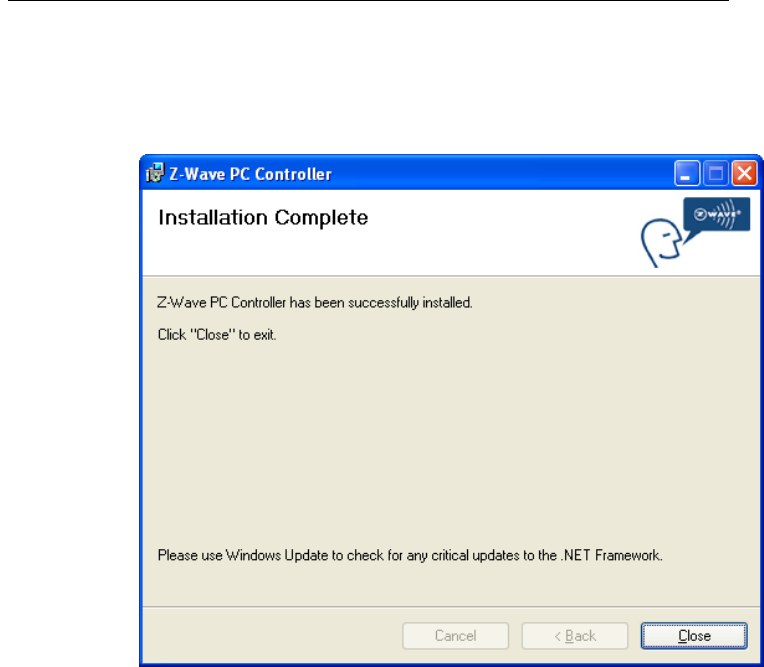

6. Click Close to complete the installation.

Figure 4. Installation complete

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

4.2 Start the Z-Wave PC Controller application

You can start the Z-Wave PC Controller using the Start menu. To open the Start menu, click the Start

button in the lower-left corner of your screen. Or, press the Windows logo key on your keyboard. The

Start menu appears.

To open Z-Wave PC Controller, click its icon shown in the left pane of the Start menu that displays the

most frequently used programs list. If you don't see its icon there, click All Programs at the bottom of

the left pane. Instantly, the left pane displays a long list of programs in alphabetical order, followed by a

list of folders. Click Sigma Designs folder, then click Z-Wave PC Controller folder and finally Z-Wave PC

Controller icon.

Each time you start Z-Wave PC Controller, you are actually running the “C:\Program

Files\SigmaDesigns\Z-Wave PC Controller\ZWaveController.exe” executable file, although you do not

usually type its name or even see it.

Run the PC based Controller application, and the Main window will appear as shown below:

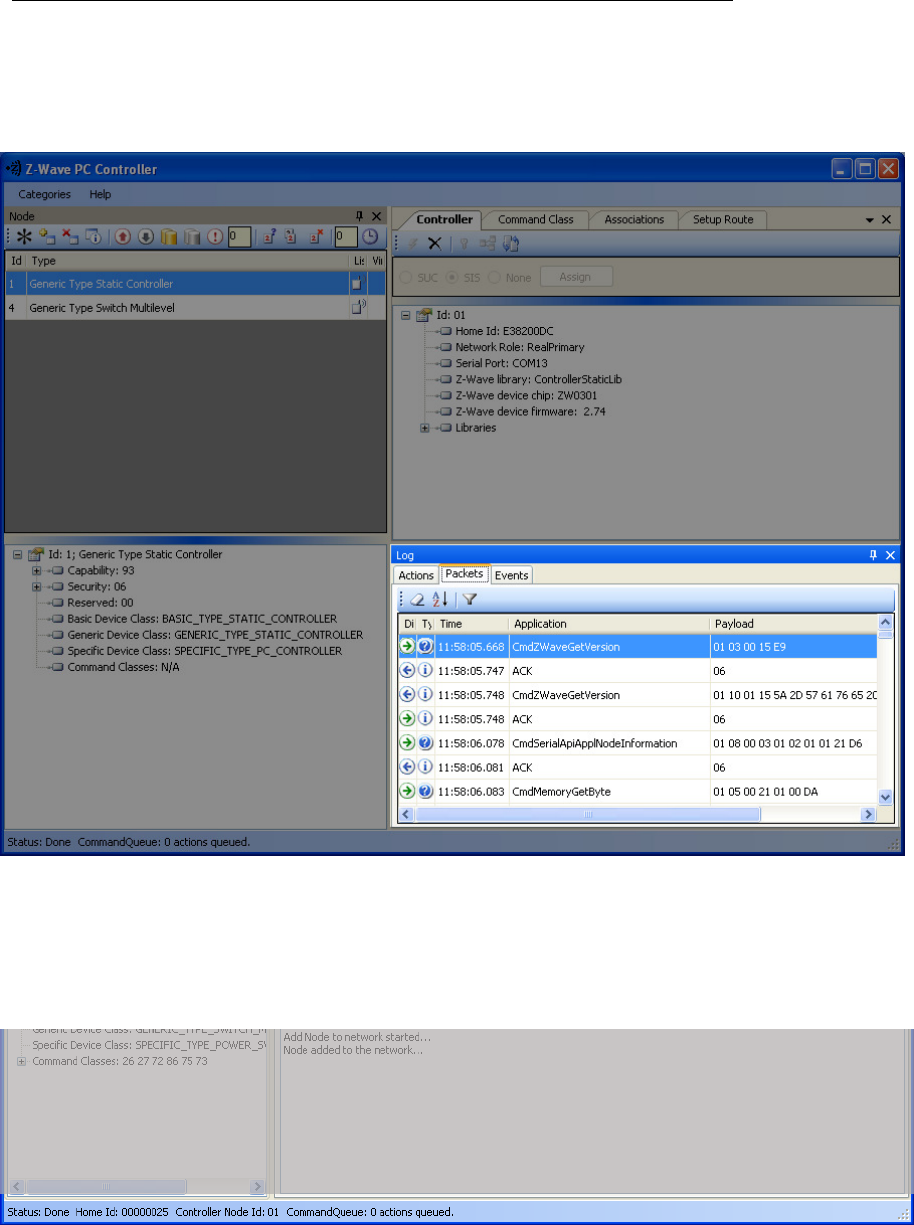

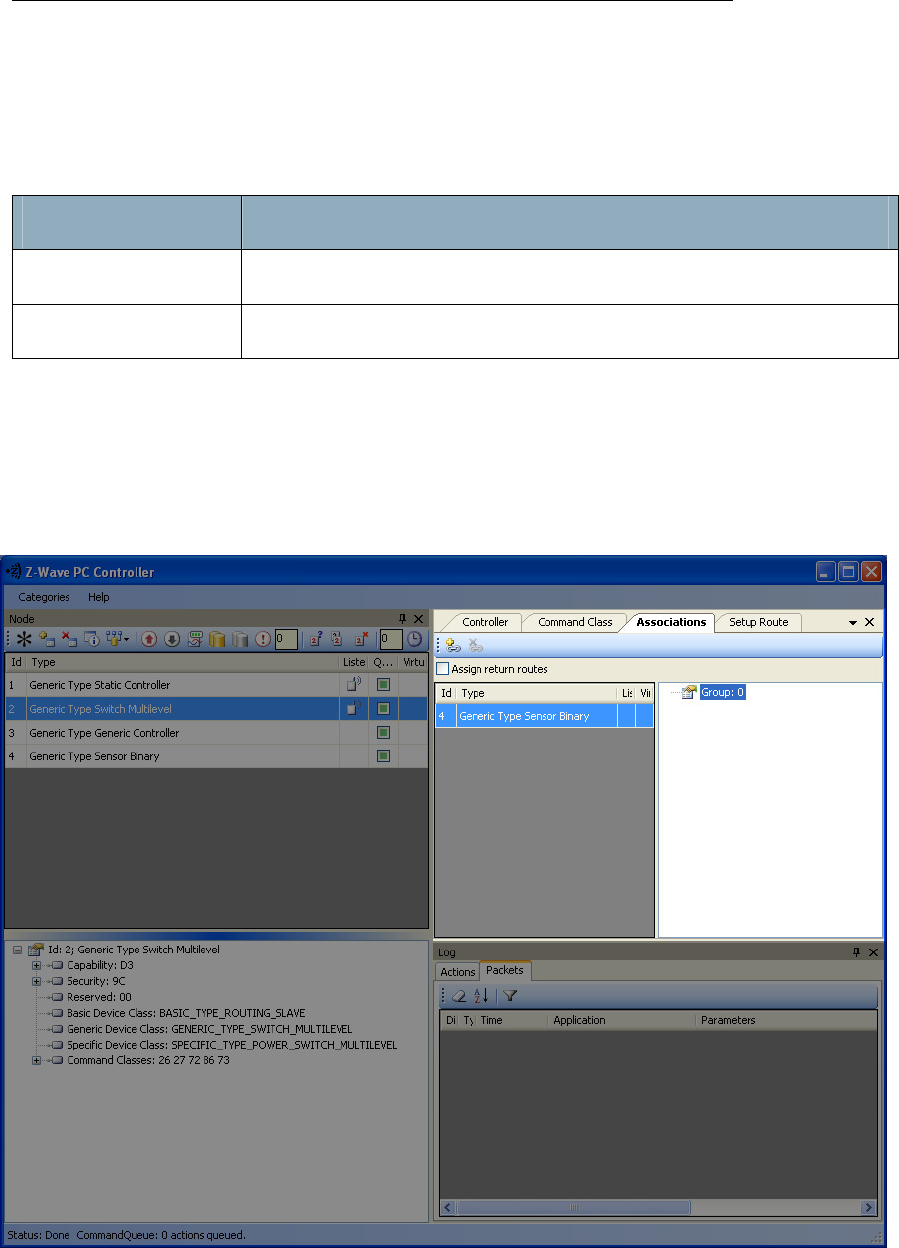

Figure 5. PC based Controller Main Window

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

4.3 Remove Z-Wave PC Controller application Software

You can uninstall Z-Wave PC Controller from your computer if you no longer use it.

1. Open Add or Remove Programs in Control Panel.

To do it, click Start, then click Control Panel (in Classical View – click Start, then point to

Settings, and click Control Panel), and then double-click Add or Remove Programs.

2. Click the program in the list and then click the Remove button. You can sort programs by

selecting different options in Sort by.

3. Standard confirmation dialog appears. Click Yes to continue the removal of the Z-Wave PC

Controller software.

4. Z-Wave PC Controller and its settings will be removed without prompting you further.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

4.4 User Interface

The PC Based Controller application Main window (See Figure 3) is divided into the following views:

• Title bar

• Menu bar

• Node

• Controller

• Command Class

• Associations

• Setup Route

• Node Info

• Log

• Status Bar

3.4.1 Main Menu

On top of the Main window is the Application Main Menu. It has the following items:

Categories Menu

Menu item Description

Node Toggle shows the Node section

Controller Toggle shows the Controller section

Cmd Class Toggle shows the Command Class section

Associations Toggle shows the Associations section

Setup Route Toggle shows the Setup Route section

Log Toggle shows the Log section

Settings

To detect available serial ports and query them to find all

connected Z-Wave devices

Security Test

Schema

Toggle shows the Security Test Schema tab (only in Z-Wave

Security PC Controller)

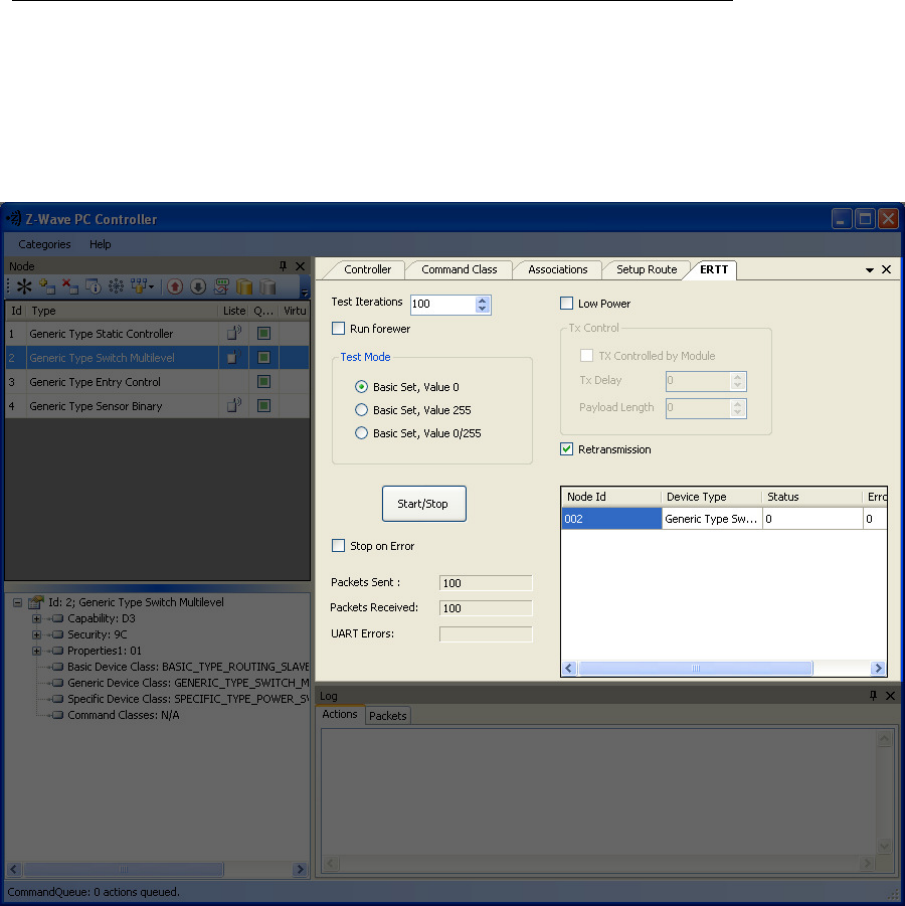

ERTT Toggle shows the ERTT tab

Exit To exit the application.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

Help menu

Z-Wave Pc Controller comes with its own built-in Help system. The Help menu includes the items to

access this Help system.

Menu item Keyboard Shortcut Description

Index Browses Help system by keywords.

Contents F1 Browses Help system by topics.

Search Opens search tab of the Help system.

About… Displays the version and short status information of

the application

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

3.4.2 Node View

The Node View contains Menu Bar, Node List and Node information for the selected node.

It is used for operations with nodes.

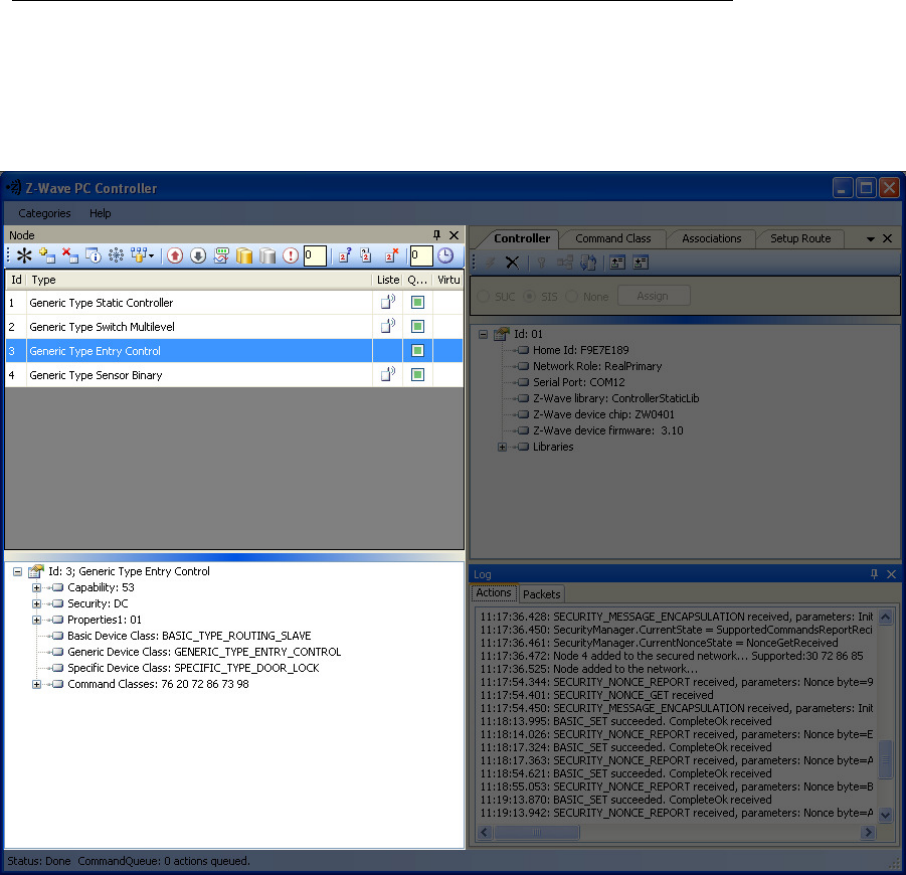

Figure 6. Node section

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

The Node’s Menu Bar has the following items:

Menu item Description

NW Inclusion Network Wide Inclusion, to include all nodes into

network once they have been reset and given power

Add To Add a node

Remove To Remove a node

Node Info To request Node info from a node

Request Node Neighbor Update To get the neighbors from the specified node.

Set SUC/SIS To set the “Set SUC” or “Set SIS” command to the

selected Controller

Basic Set On Send the BASIC SET ON command to Switch a selected

node(s) ON

Toggle Basic Get Starts/stops sending consequent BASIC GET commands

to the selected node(s)

Basic Set Off Sends the BASIC SET OFF command to Switch a selected

node(s) OFF

Switch All On To switch all nodes in the network ON

Switch All Off To switch all nodes in the network OFF

Send NOP ‘No Operation’ – to send a frame not carrying any

functional info to a node

Numeric box after NOP To enter the Node ID of the node to which a NOP frame

is to be sent

Is Failed To send a Failure signal to a node

Replace failed To Replace a failed node

Remove Failed To Remove a failed node

Wake Up Interval (Set) To set up the Wake Up Interval for a non-listening node

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

The Node List has three columns:

• Node Id – shows the IDs of all nodes in the network;

• Device Type – shows description of the type of every node in the network;

• Status – shows the current status of a node.

The Node Info section gives structured information about the selected node. For more information,

please refer to Z-Wave Device Class Specification documentation.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

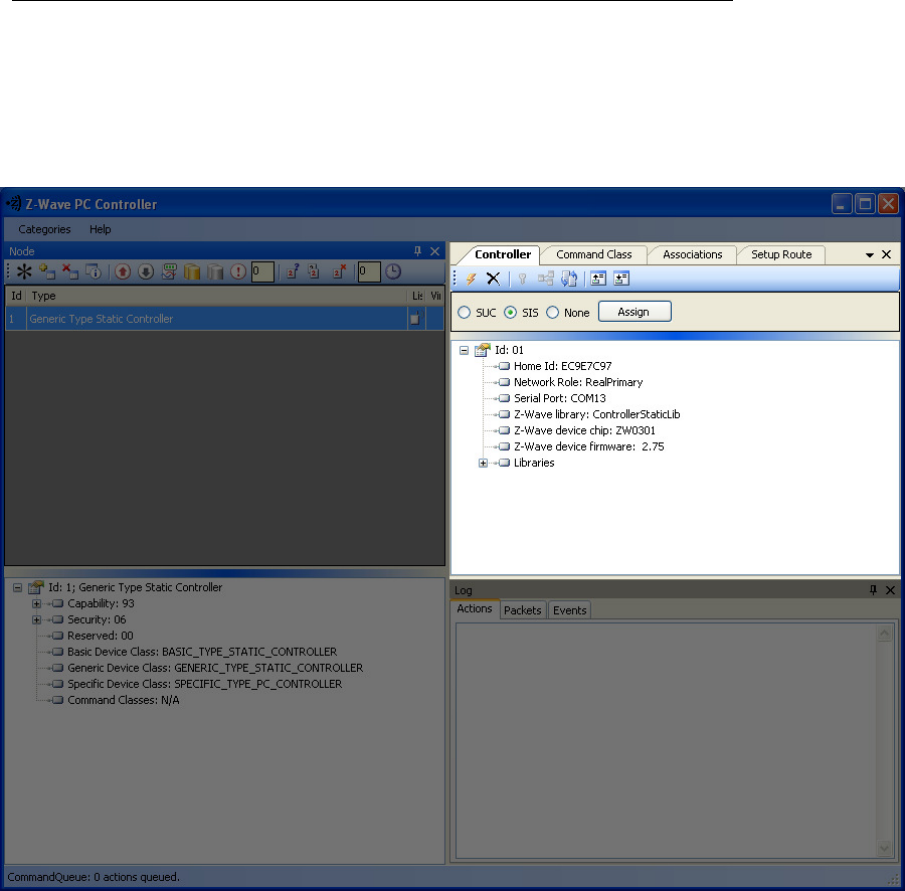

3.4.3 Controller View

The Controller view includes Menu Bar, Network Role Option and Controller Information sections.

The Controller view is used for operations with controllers.

Figure 7. Controller view

The Controller’s Menu Bar has the following items:

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

Menu item Description

Start Learn Mode Starts learn mode for the controller if it is needed to include it in another

controller’s network

Reset Resets a controller

Create New Primary A SUC can create a new Primary Controller in the network if the existing

Primary controller fails

Request Update An Inclusion controller can request network updates from a SUC or a SIS

Shift Is used to shift primary role to another controller in the network

Load Command Classes

from device memory

To load command classes from the device memory (previously saved to

device memory)

Save Command Classes

to device memory

To save command classes from the PC Controller application memory to the

Static Controller device memory

The Network Role Option section has controls to assign the role of the SC in the network:

• SUC – Static Update Server

• SIS – Static Update Controller with ID server

• None

General information regarding the SC is displayed in the Controller Information section in the following

items:

Section Description

Controller ID

Displays the

node ID

of the PC based SC

Controller Home ID Displays the current Home ID of the PC based SC

Controller Network Role Displays the PC based SC network role

Serial Port Displays the serial port in use.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

3.4.4 Associations View

The Associations view has a Menu bar, and two fields: Source and Groups. It is used to set up

associations between nodes.

The Menu bar has two items:

Menu item Description

Create Association Creates an association between selected nodes

Remove Association Removes selected association

The Source field shows the list of available source nodes that support the Association command class,

e.g. Binary sensor.

The Groups field shows the association groups that can be or have been created.

The “Assign Return Routes” checkbox is to define whether the Controller should assign return routes

together with setting the association.

Figure 8. Associations view

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

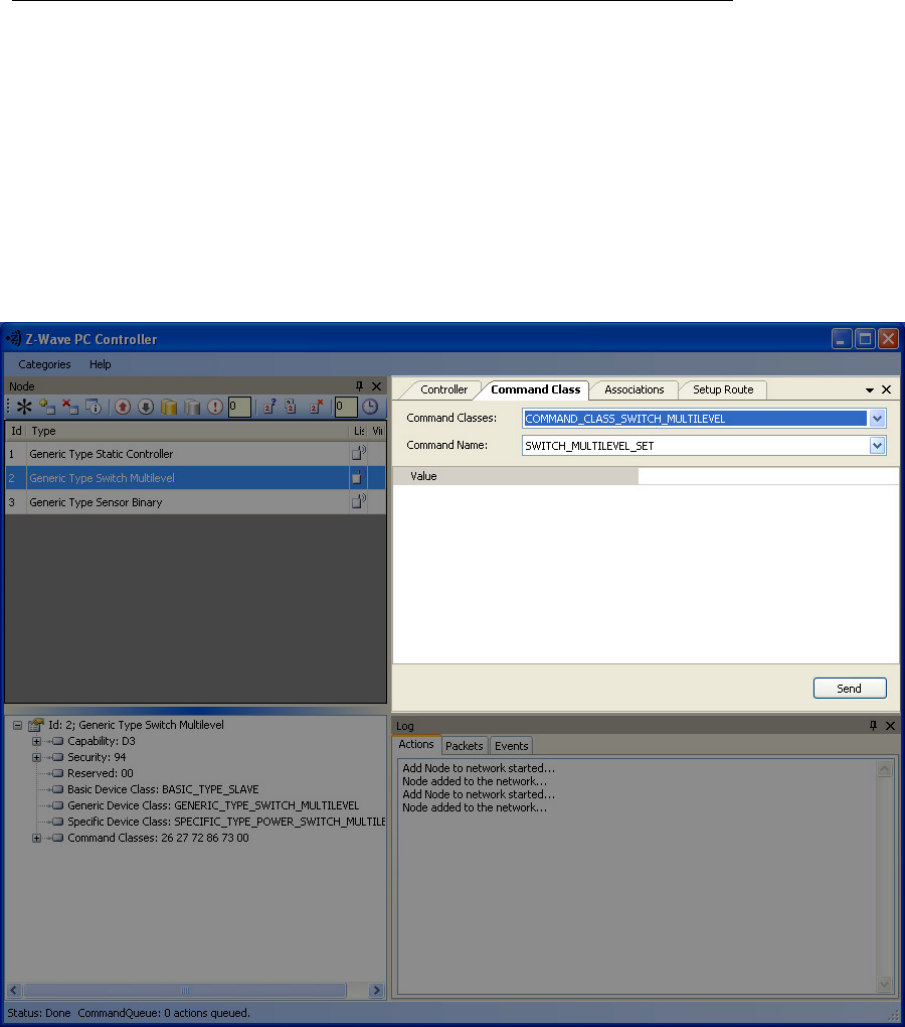

3.4.5 Command Class View

The Command Class view is used to send a specified command class to a selected node. It has the

following items:

• Command Classes: drop-down list to select a command class;

• Command Name: drop-down list to select a command name belonging to the selected class;

• Command Parameters Grid: to enter command parameters.

Figure 9. Command Class view

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

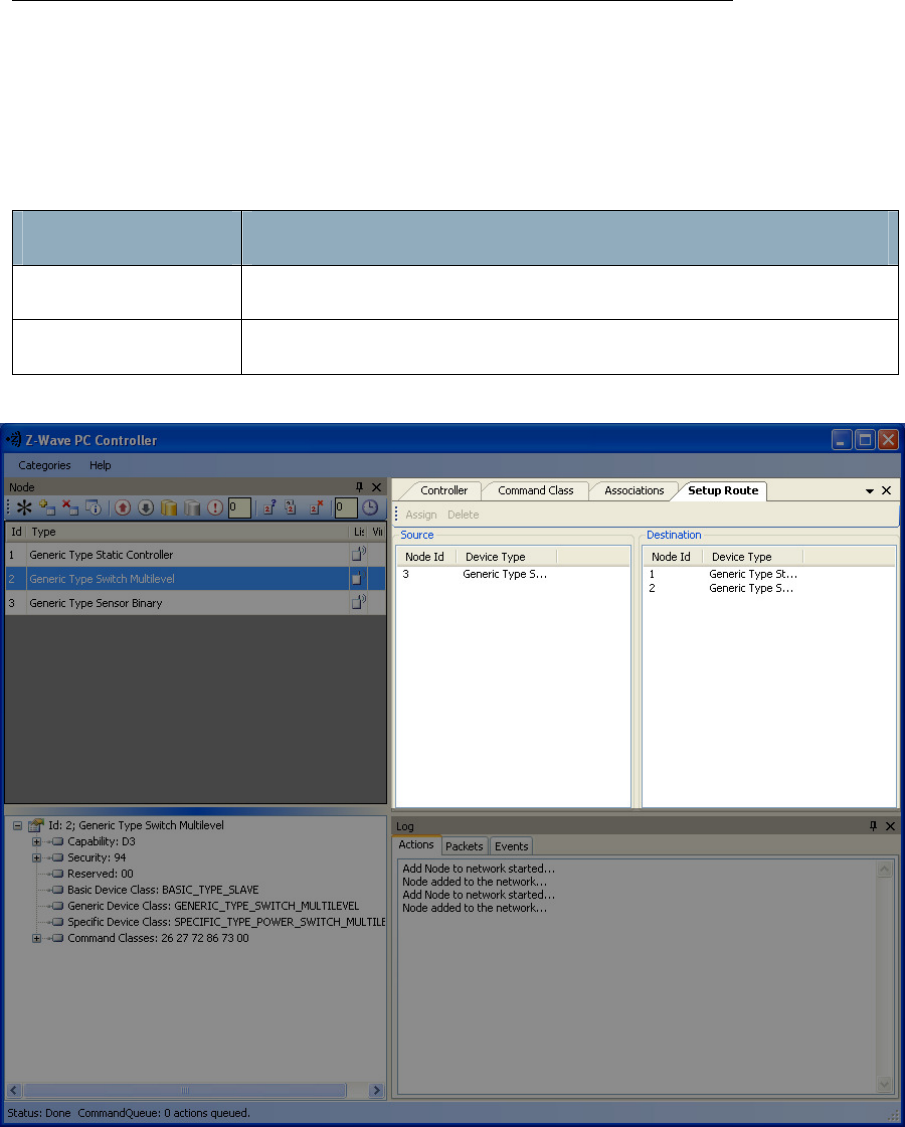

3.4.6 Setup Route View

The Setup Route view has a Menu Bar, Source Node list and Destination Node list. It is used to set up

routes between nodes.

The Menu Bar has two items:

Menu item Description

Assign To assign routes via nodes

Delete To delete assigned routes

Figure 10. Setup Route view

Source Node list and Destination Node list show the lists of source and destination nodes in a routed

network respectively.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

3.4.7

ERTT

Z-Wave PC Controller has the Enhanced Reliability Test Tool implemented. It can be activated as a tab

through the Categories menu or through Ctrl+E keyboard shortcut.

Figure 11. ERTT

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

3.4.8

Log View

Here output of current actions is recorded. The two tabs, Actions and Packets, show full information

about what is happening within the PC Controller.

Figure 12. Log View

3.4.9

Log View

Status Bar displays Home ID, controller node ID and Command queue status.

Figure 13. Status Bar

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

4. FCC NOTICE TO USERS

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

Any changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

5. EU DECLARATION OF CONFORMITY

EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following

test methods have been applied in order to prove presumption of conformity with the essential

requirements of the R&TTE Directive 1999/5/EC:

- EN 60950-1: 2006/A12: 2011

Safety of Information Technology Equipment

- EN 300 220-1/-2 V2.4.1 (2012-05)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range

Devices (SRD);

Radio equipment to be used in the 25 MHz to 1 000 MHz frequency range with

power levels

- EN 301 489-1 V1.9.2 (2011-09)

Electromagnetic compatibility and Radio Spectrum Matters (ERM);

ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;

Part 1: Common technical requirements

- EN 301 489-3 V1.4.1: (2002)

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 3: Specific

conditions for Short-Range

- EN 62479: 2010

Assessment of the compliance of low power electronic and electrical equipment

with the basic restrictions related to human exposure to electromagnetic fields (10

MHz to 300 GHz

0560

Česky

[Czech]

[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a

dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Dansk

[Danish]

Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets

typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Deutsch

[German]

Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit

den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der

Richtlinie 1999/5/EG befindet.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

Eesti

[Estonian]

Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of

equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele

teistele asjakohastele sätetele.

English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with

the essential requirements and other relevant provisions of Directive 1999/5/EC.

Español

[Spanish]

Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con

los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva

1999/5/CE.

Ελληνική

[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ

ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Français

[French]

Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux

exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Italiano

[Italian]

Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Latviski

[Latvian]

Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment /

iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem

noteikumiem.

Lietuvių

[Lithuanian]

Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir

kitas 1999/5/EB Direktyvos nuostatas.

Nederlands

[Dutch]

Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming

is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.

Malti

[Maltese]

Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-

ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.

Magyar

[Hungarian]

Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ

követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

UZB-SD3503 Z-Wave USB Adapter

1 1

All information are correct at the time of release. Sigma Designs owns the proprietary rights to the information contained herein this document. It may not be

edited, copied or circulated without prior written agreement by Sigma Designs.

Polski

[Polish]

Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi

wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

Português

[Portuguese]

[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos

essenciais e outras disposições da Directiva 1999/5/CE.

Slovensko

[Slovenian]

[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi

relevantnimi določili direktive 1999/5/ES.

Slovensky

[Slovak]

[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky

príslušné ustanovenia Smernice 1999/5/ES.

Suomi

[Finnish]

[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä]

tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin

muiden ehtojen mukainen.

Svenska

[Swedish]

Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga

egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Sigma Designs SG-UZB3503 Z-Wave USB Adapter User Manual 8 UZB SD3503 D02

Sigma Designs Inc Z-Wave USB Adapter 8 UZB SD3503 D02

User Manual.pdf

Navigation menu

Namespaces

Views

Navigation
