PREFACE AND CONTENTS OF PACKAGE

PREFACE

Congratulations on choosing a bicycle

computer from SIGMA SPORT®. Your

new SIGMA ROX 10.0 will be a faithful cycling

companion for years to come. To learn about

the various functions on your new bicycle

computer, please read these operating

instructions carefully. SIGMA SPORT®

hopes that you enjoy using your SIGMA

ROX 10.0.

The SIGMA ROX 10.0 is a multifunctional

bicycle computer, which provides a wide

variety of information during and after your

ride:

k Information about the ride –

speed, time, distance etc.

k Information about your location –

altitude, inclination etc.

k Information about your physical state –

heart rate, training zones etc.

k Transfer of all information to a PC

to review the results of your ride in

graphical form.

CONTENTS OF PACKAGE

• SIGMA ROX 10.0 (GPS enabled Bike Computer)

• ANT+ Speed Transmitter

• ANT+ Cadence Transmitter

• ANT+ R1 Heart Rate Transmitter & comfortex+ textile chestbelt

• Micro-USB-Cable (for Data transfer to PC and battery loading purpose)

• USB Charger (conforms to EN 62684:2010) – US or EU Version (depends on your country)

• Bracket

• Attachement fittings

• Sigma Data Center CD

ROX 10.0 Manual 16.11.2012

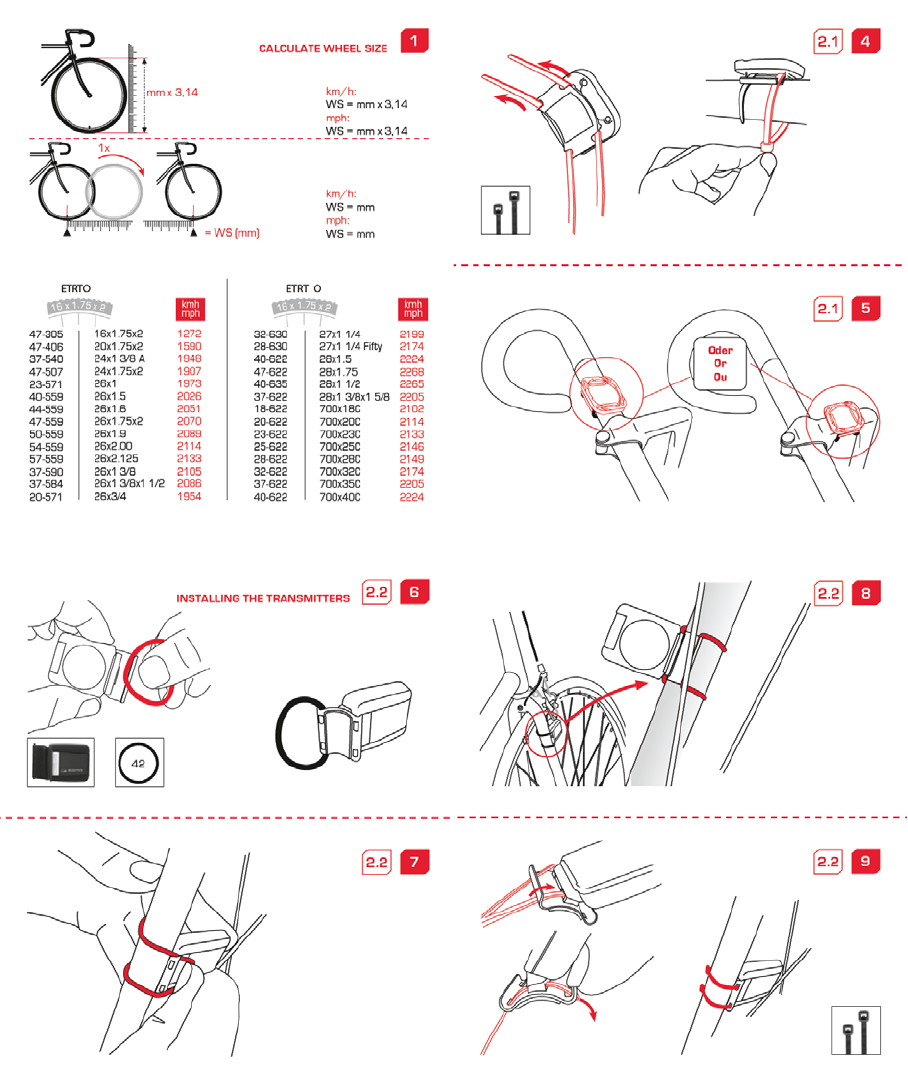

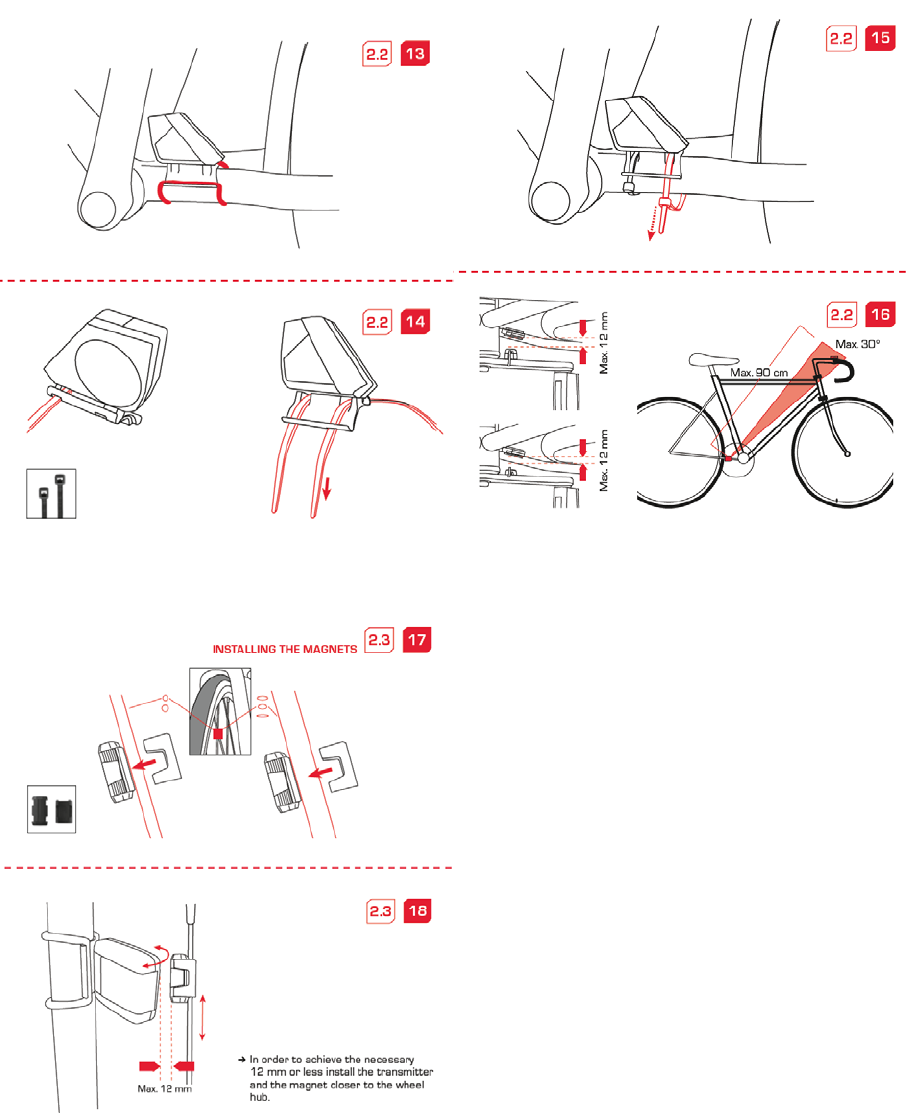

INSTALLING THE SIGMA ROX 10.0 AND ITS ACCESSORIES

16.11.2012 ROX 10.0 Manual

ROX 10.0 Manual 16.11.2012

USING OF ROX 10.0

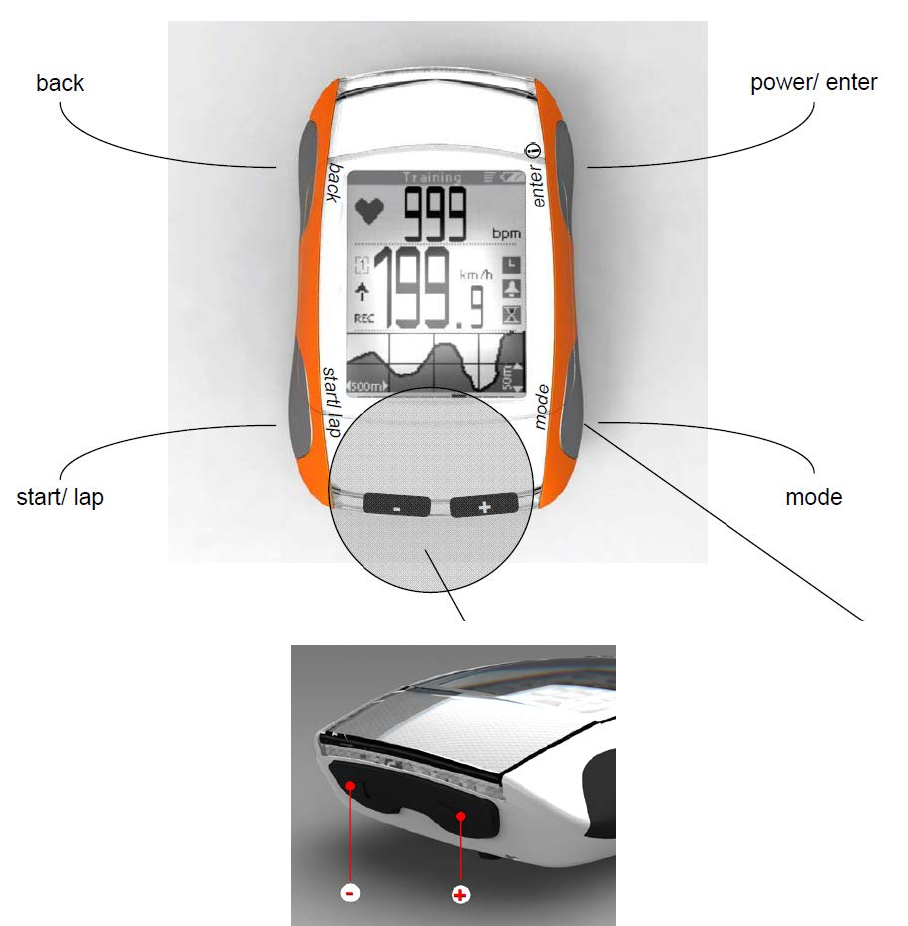

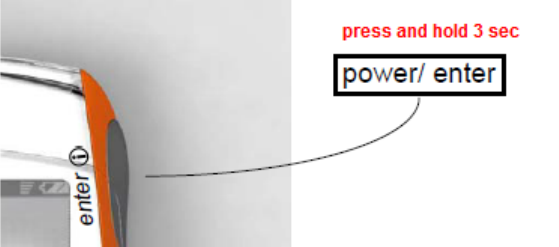

BUTTON DESCRIPTION

16.11.2012 ROX 10.0 Manual

POWER ON & MAIN MENU

POWER ON:

ROX 10.0 Manual 16.11.2012

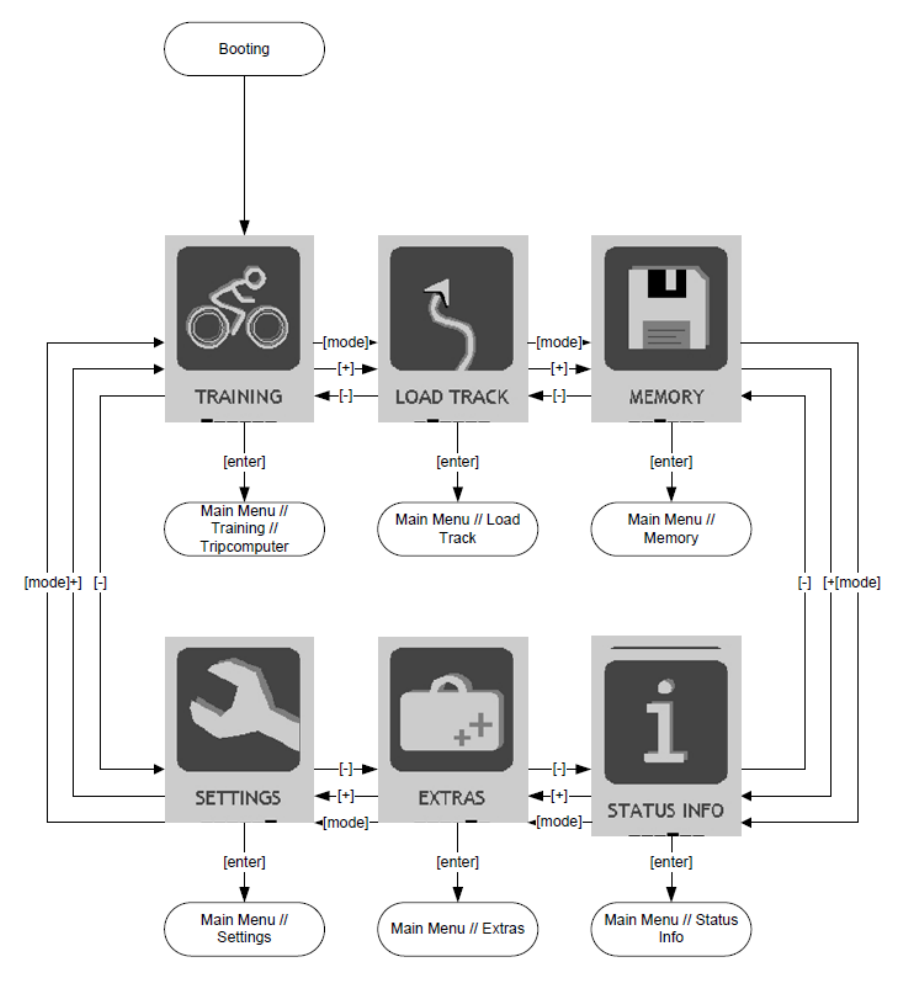

MAIN MENU:

16.11.2012 ROX 10.0 Manual

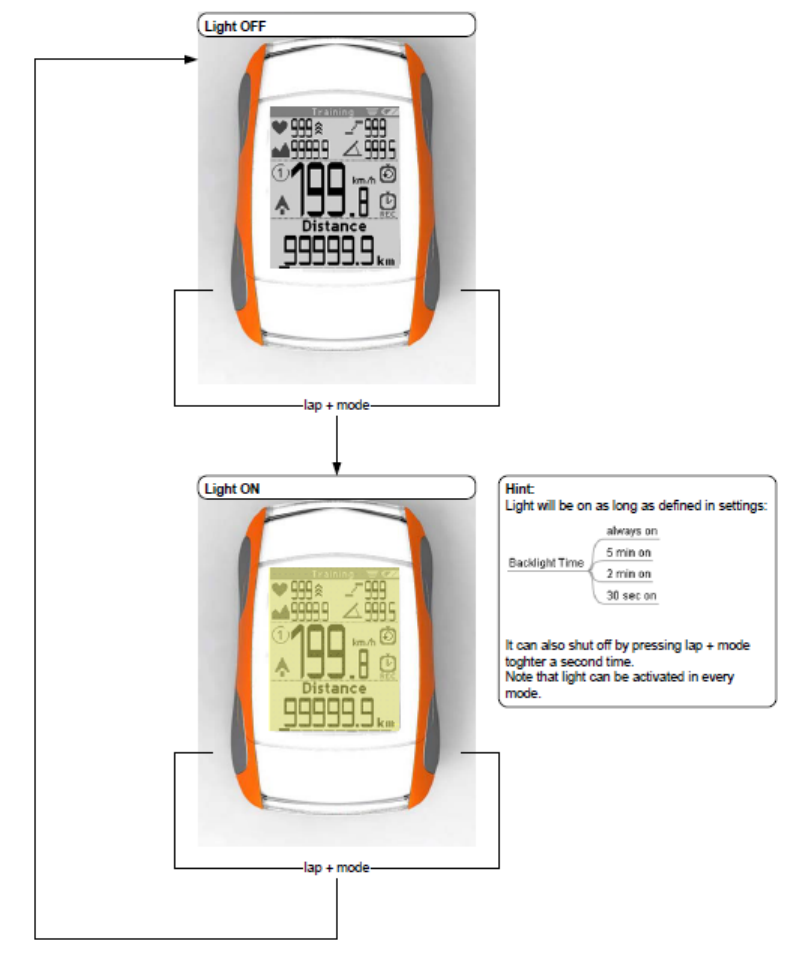

BACKLIGHT

ROX 10.0 Manual 16.11.2012

TRAINING MENU

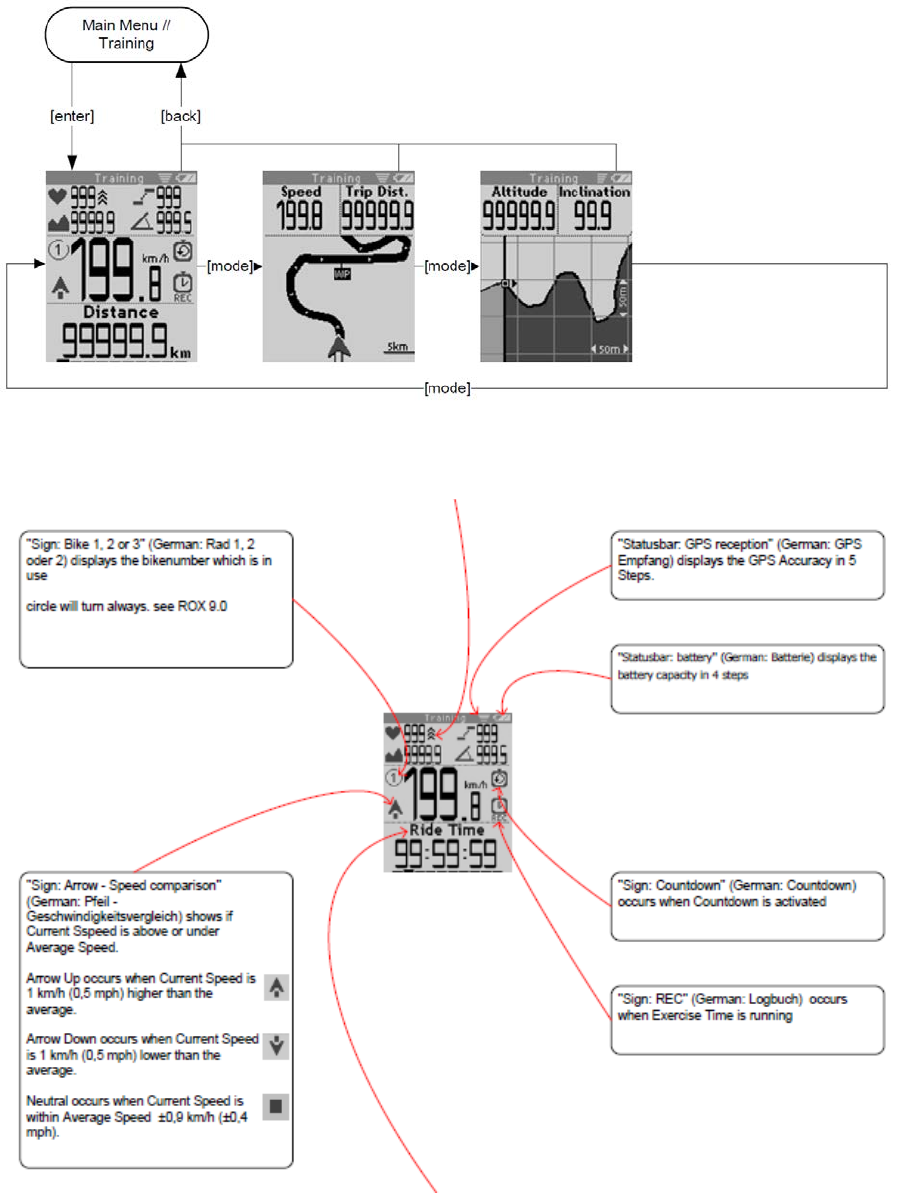

TRAINING MENU – DISPLAY DESCRIPTION:

16.11.2012 ROX 10.0 Manual

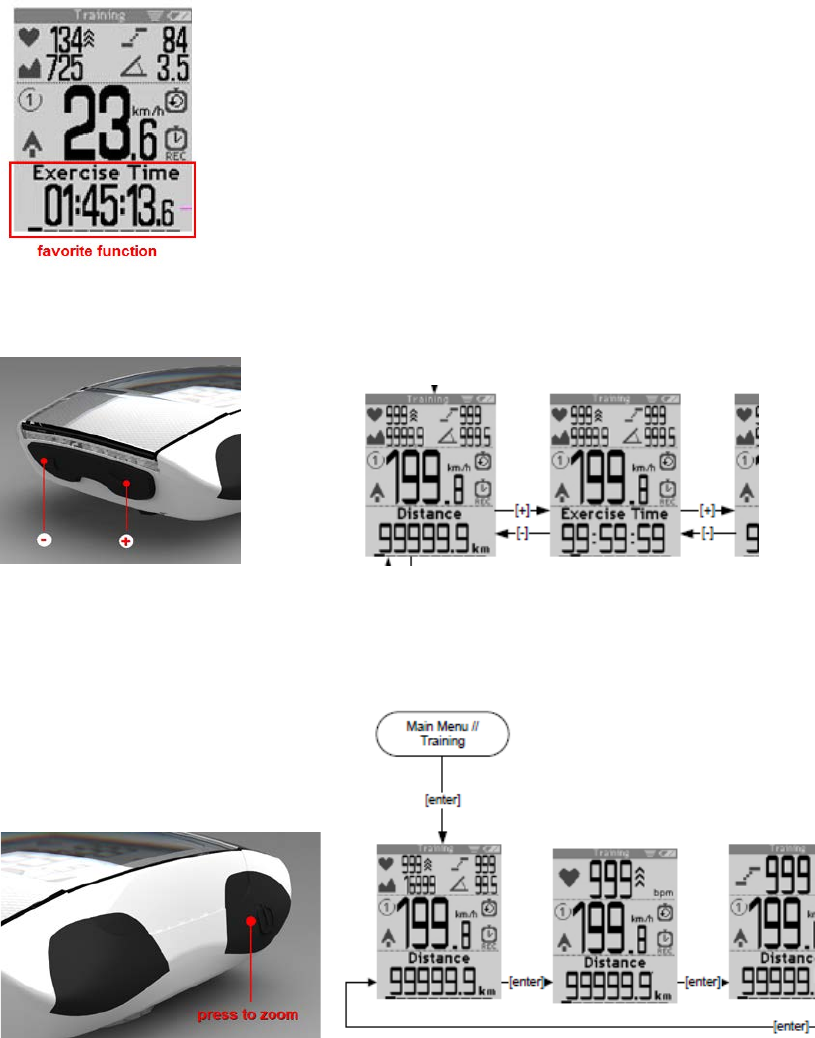

SWITCHING BETWEEN FAVORITE FUNCTIONS:

To switch between the favorite functions press the Plus- or Minus-button:

ZOOM UPPER PART:

ROX 10.0 Manual 16.11.2012

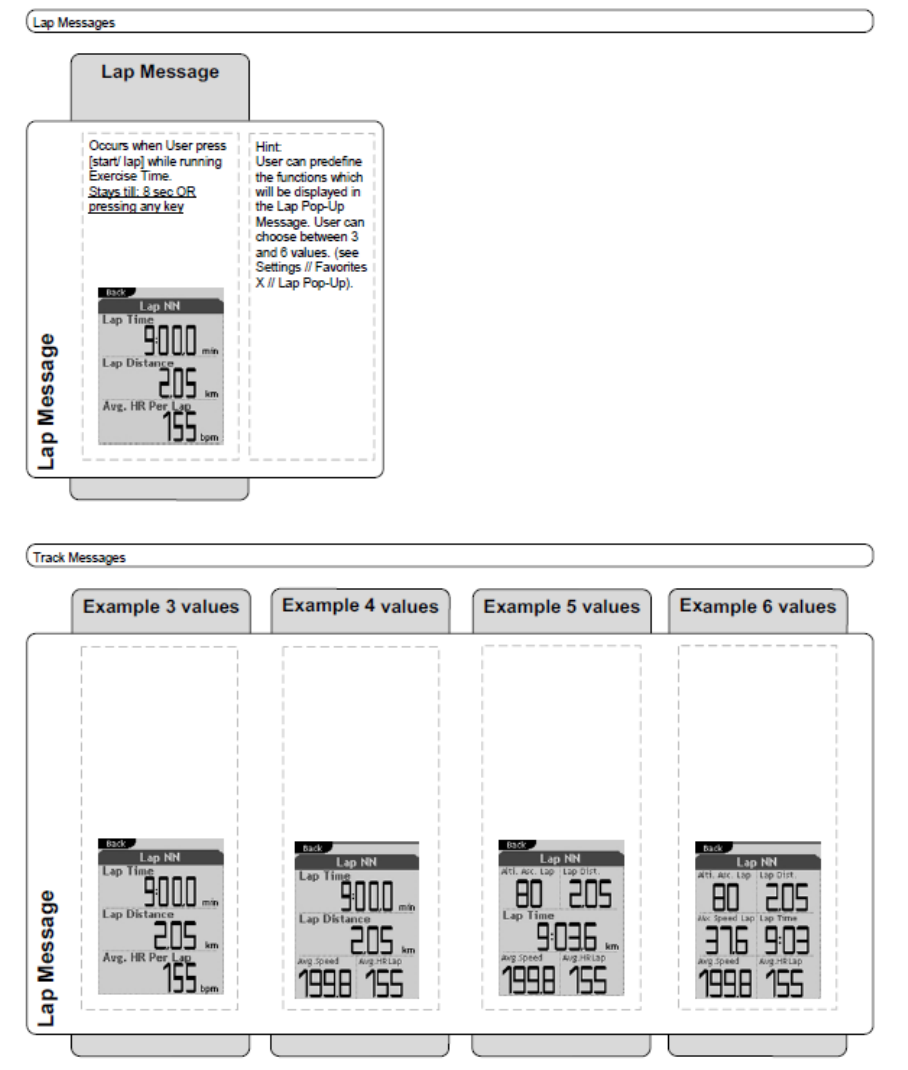

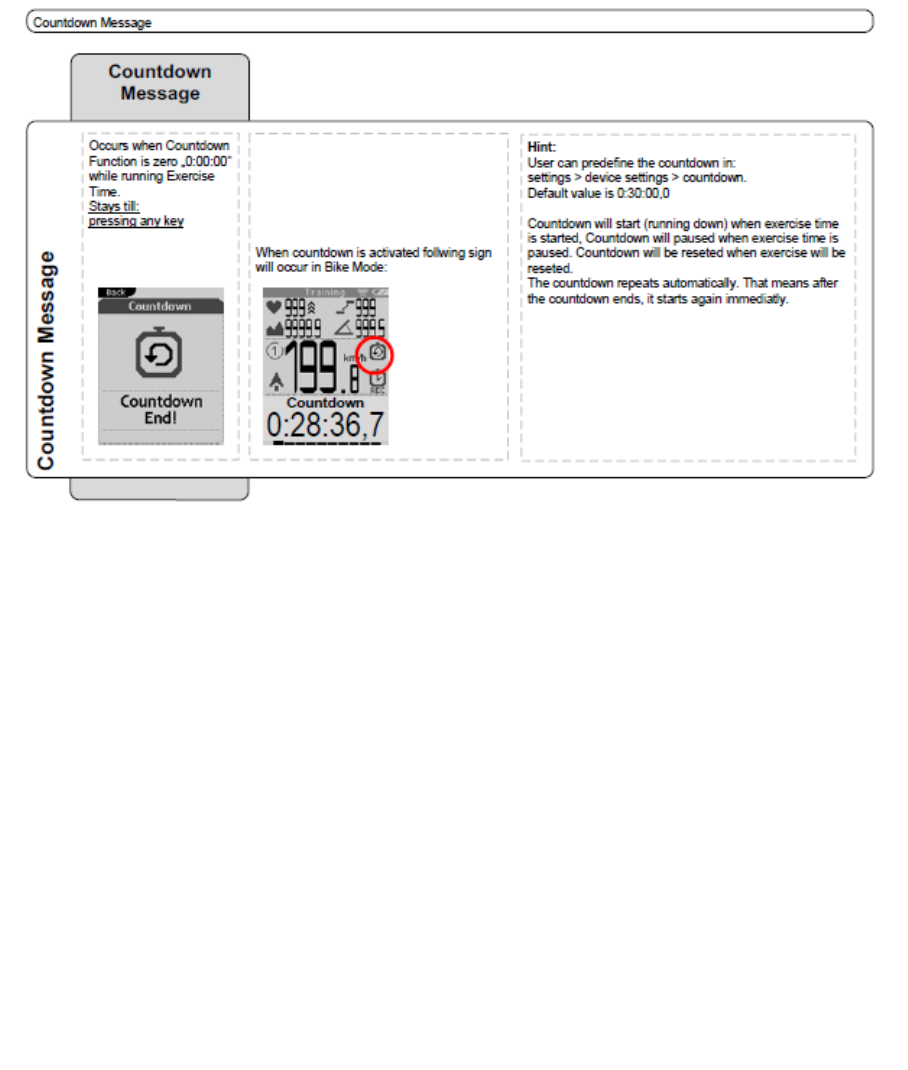

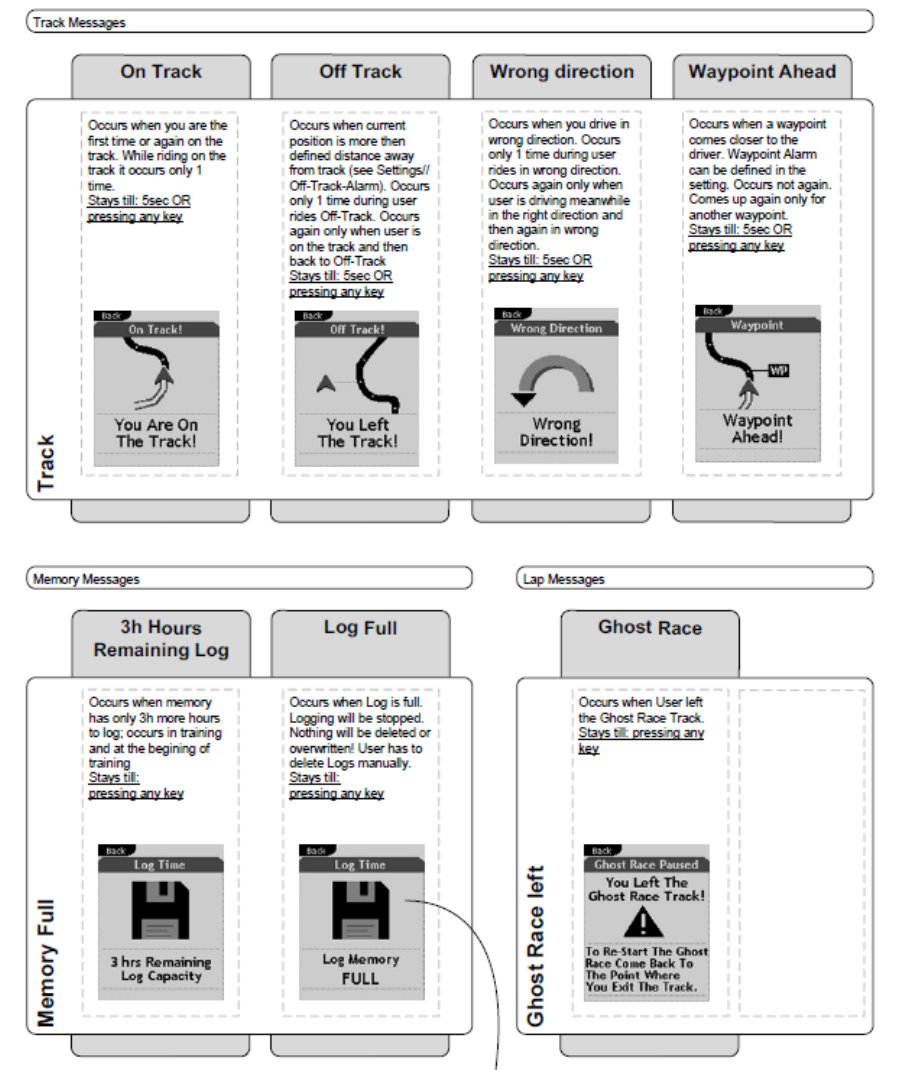

MESSAGES DURING TRAINING:

16.11.2012 ROX 10.0 Manual

ROX 10.0 Manual 16.11.2012

16.11.2012 ROX 10.0 Manual

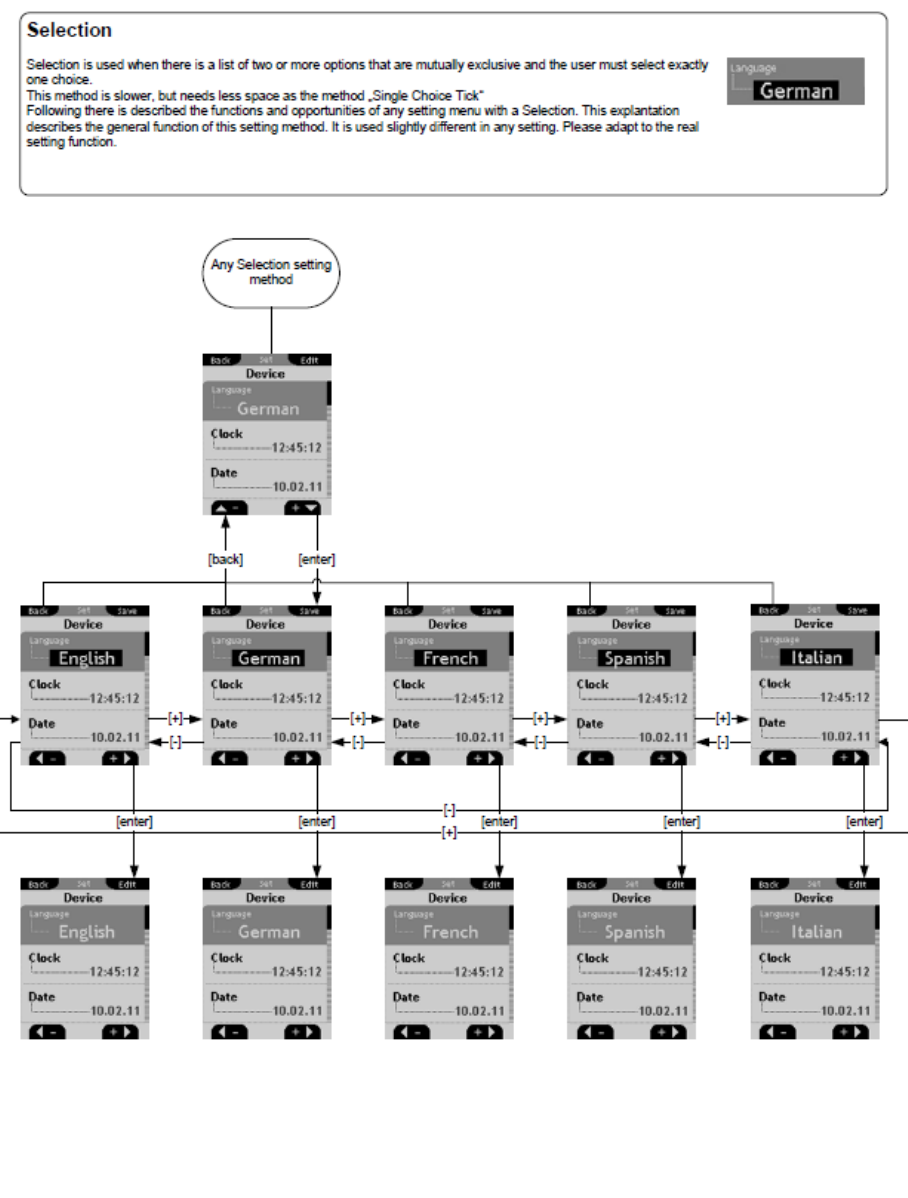

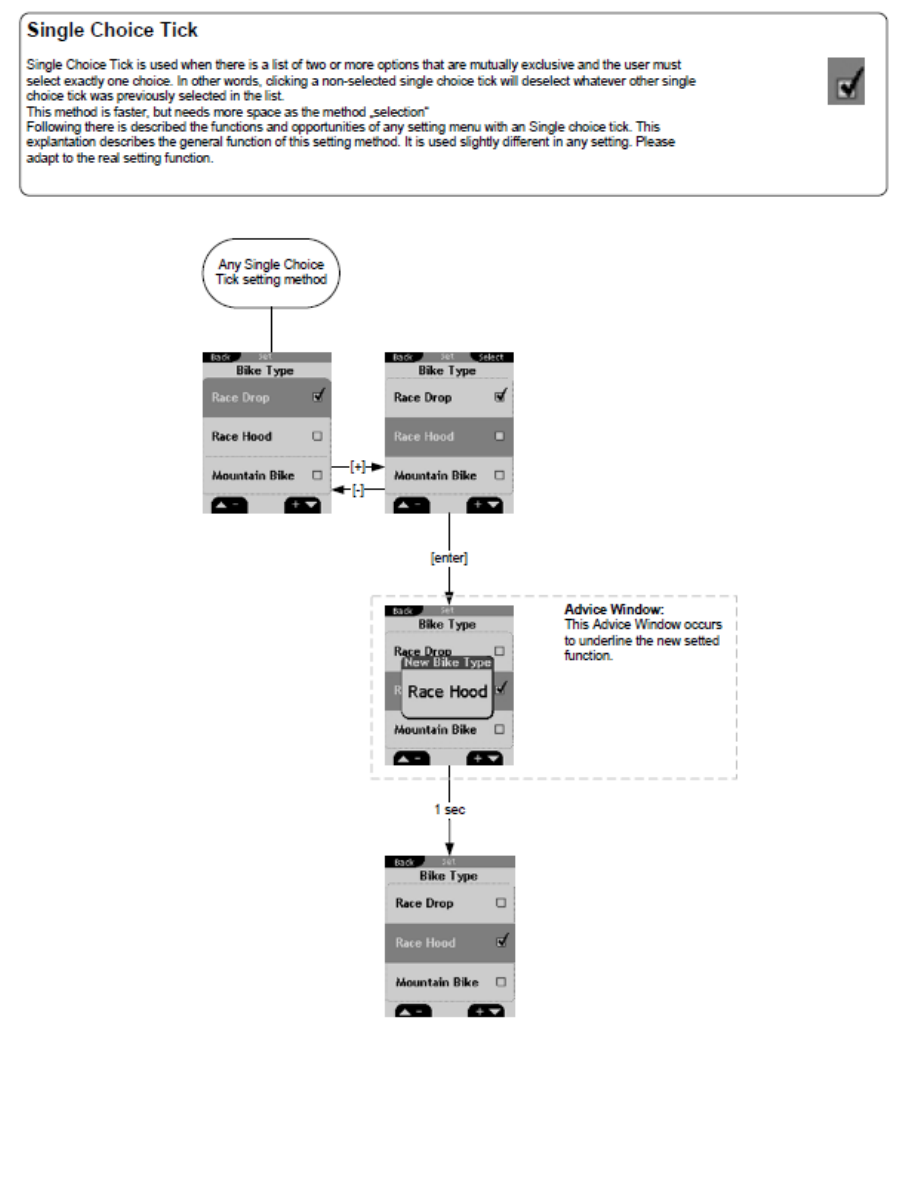

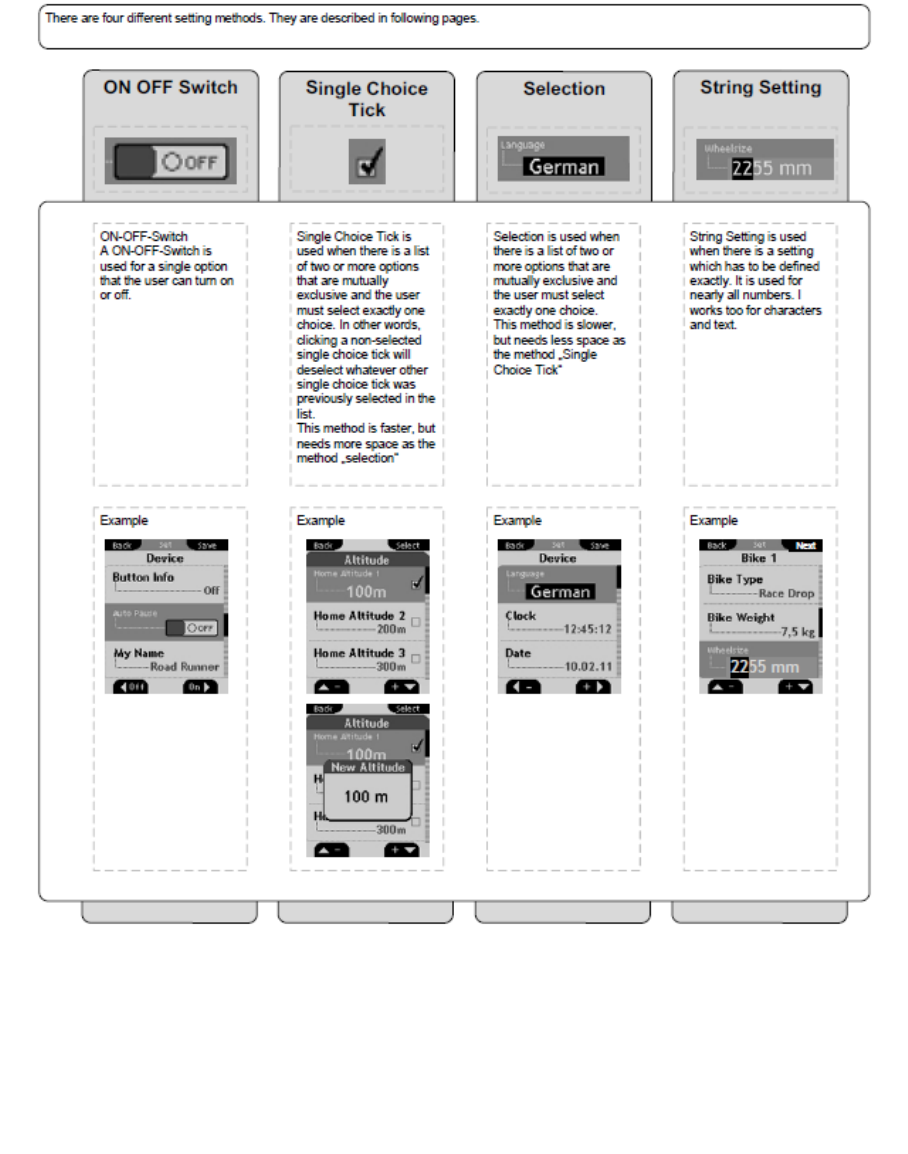

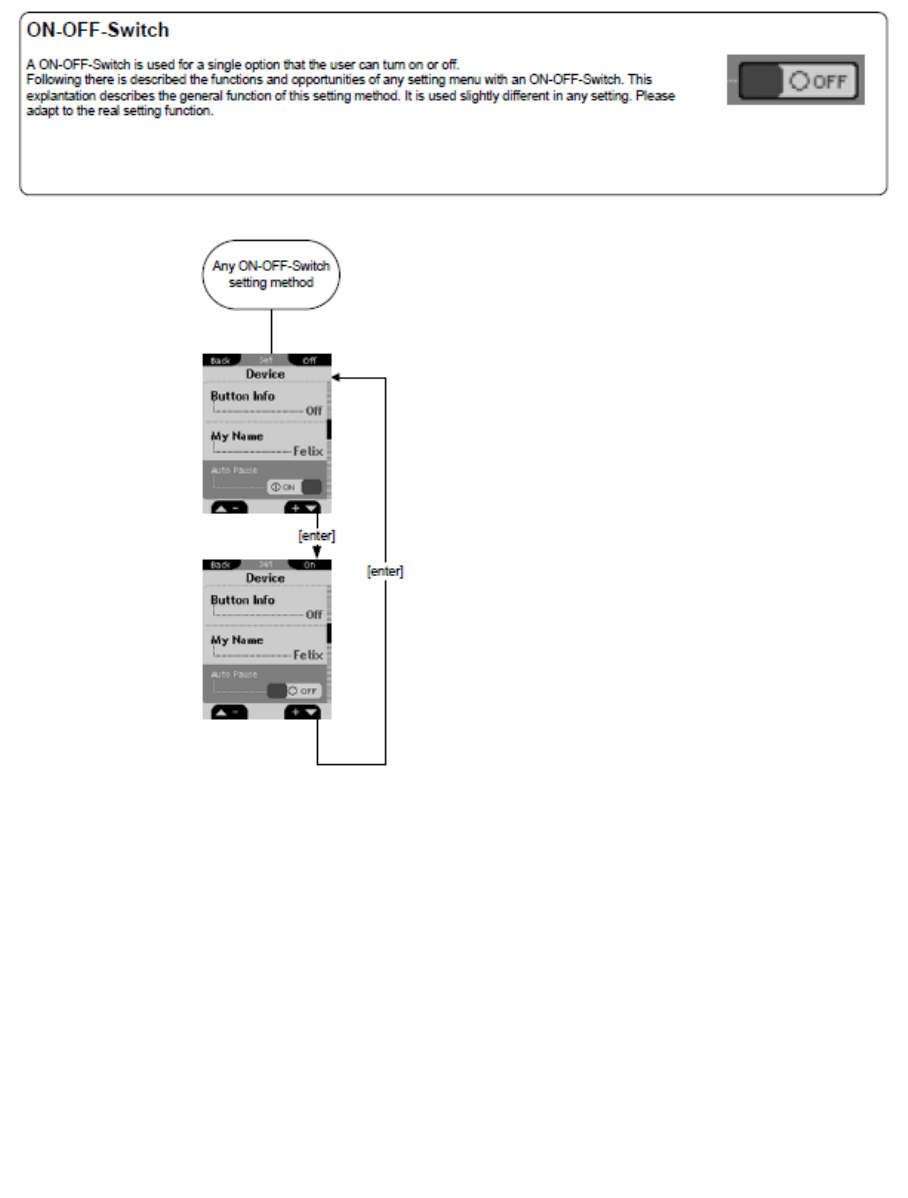

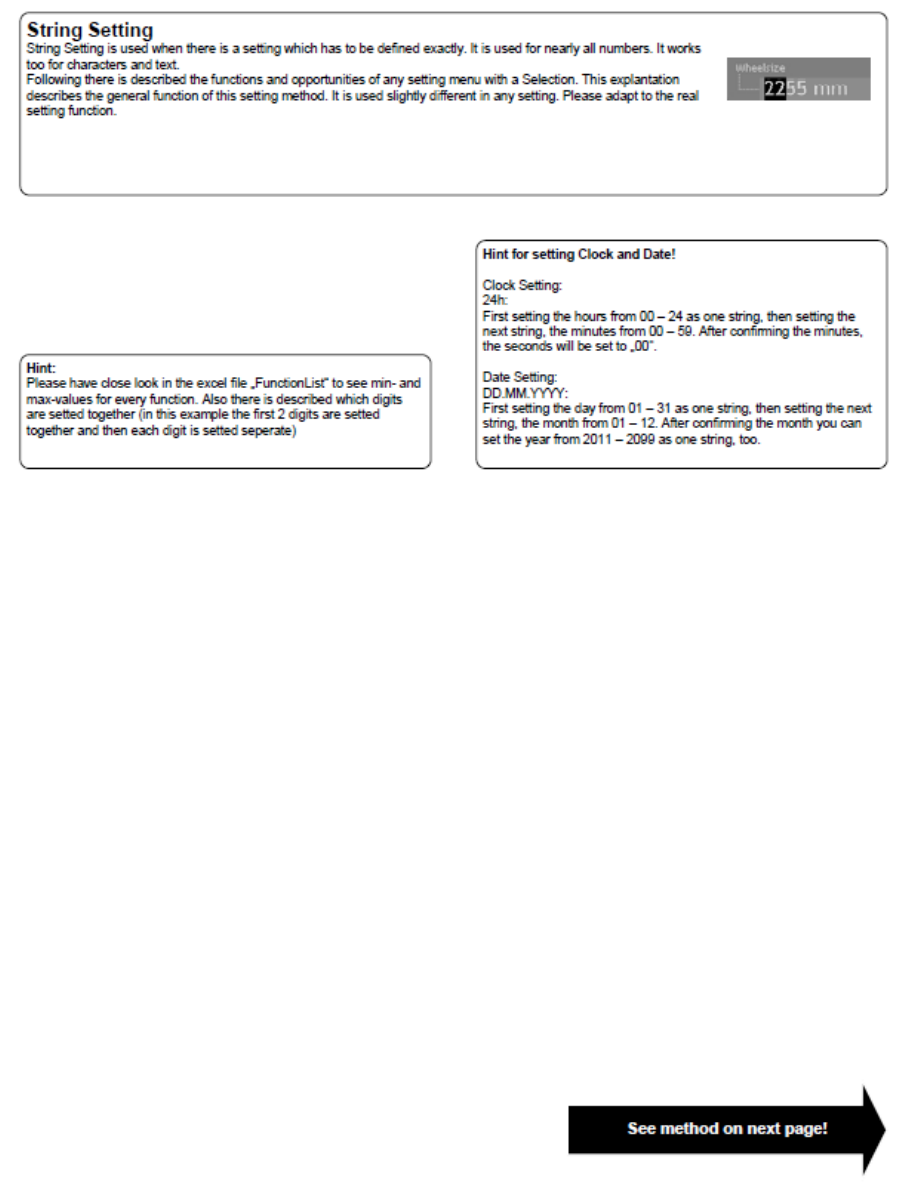

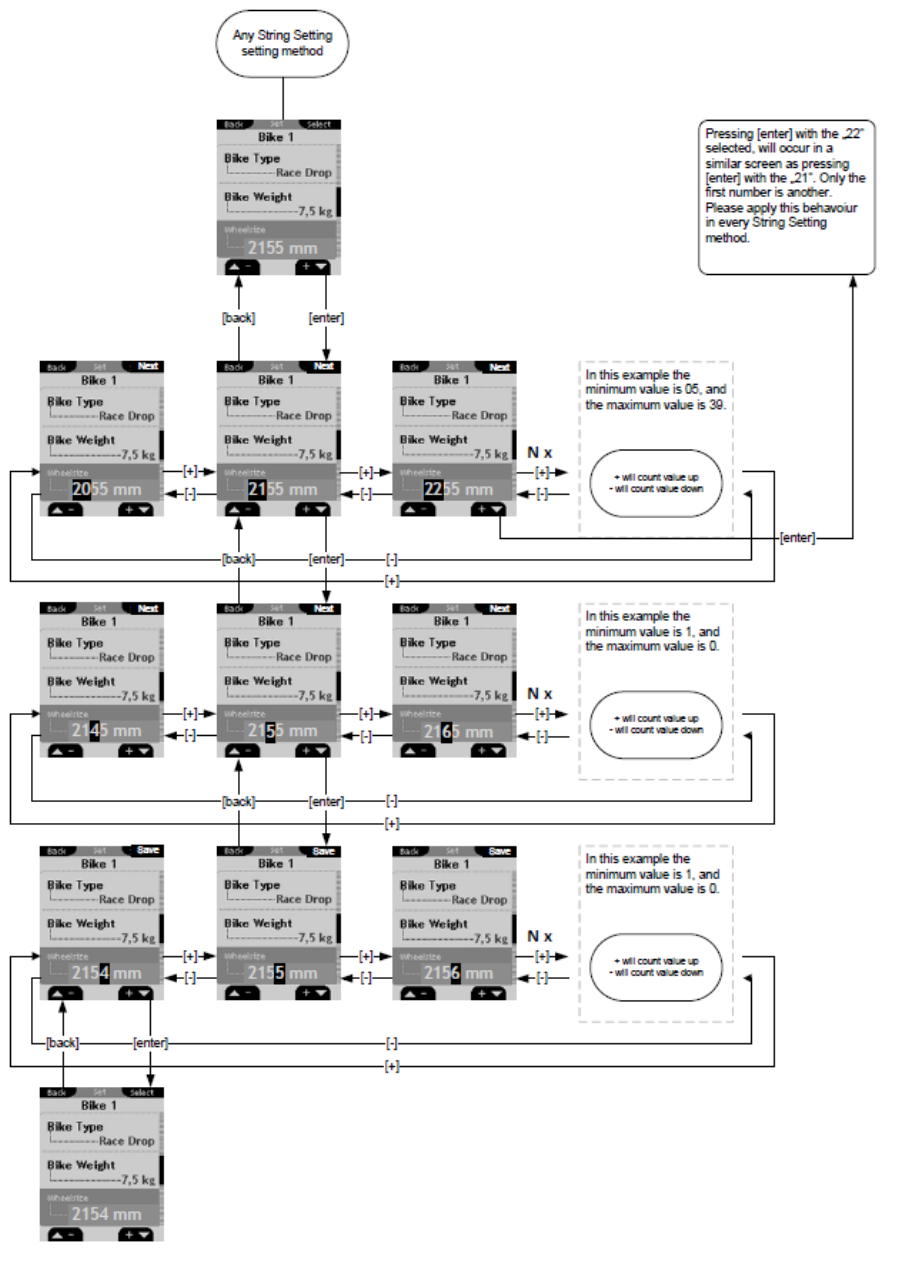

SETTING METHODS

ROX 10.0 Manual 16.11.2012

16.11.2012 ROX 10.0 Manual

ROX 10.0 Manual 16.11.2012

16.11.2012 ROX 10.0 Manual

ROX 10.0 Manual 16.11.2012

16.11.2012 ROX 10.0 Manual

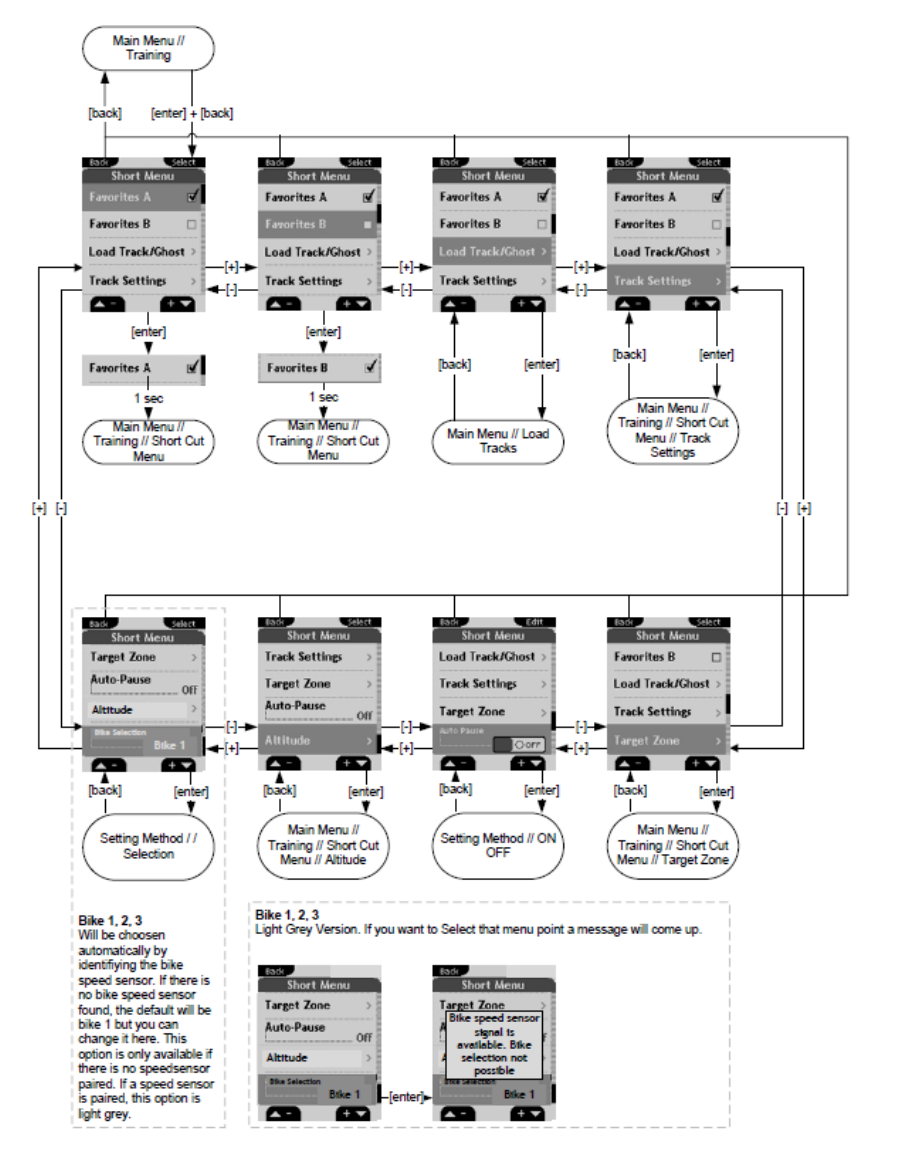

SHORT CUT MENU

ROX 10.0 Manual 16.11.2012

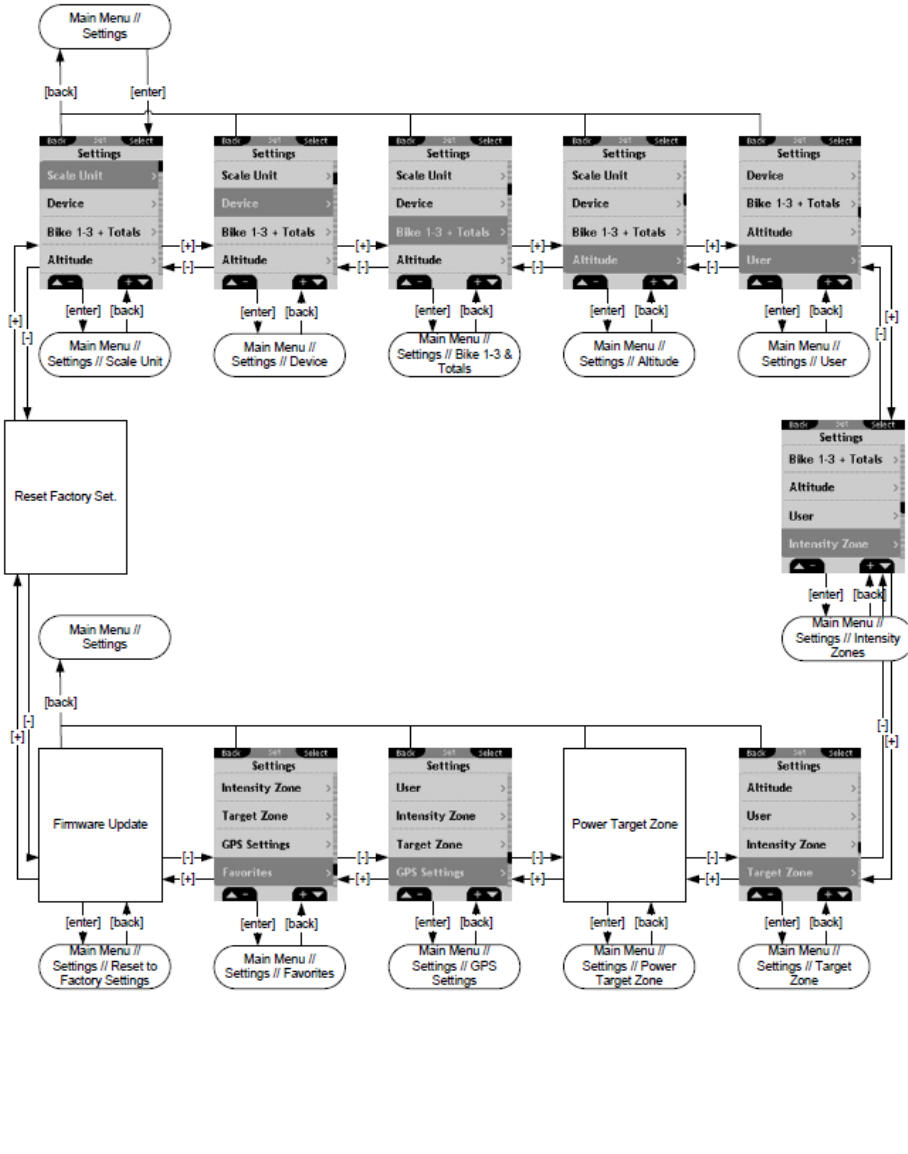

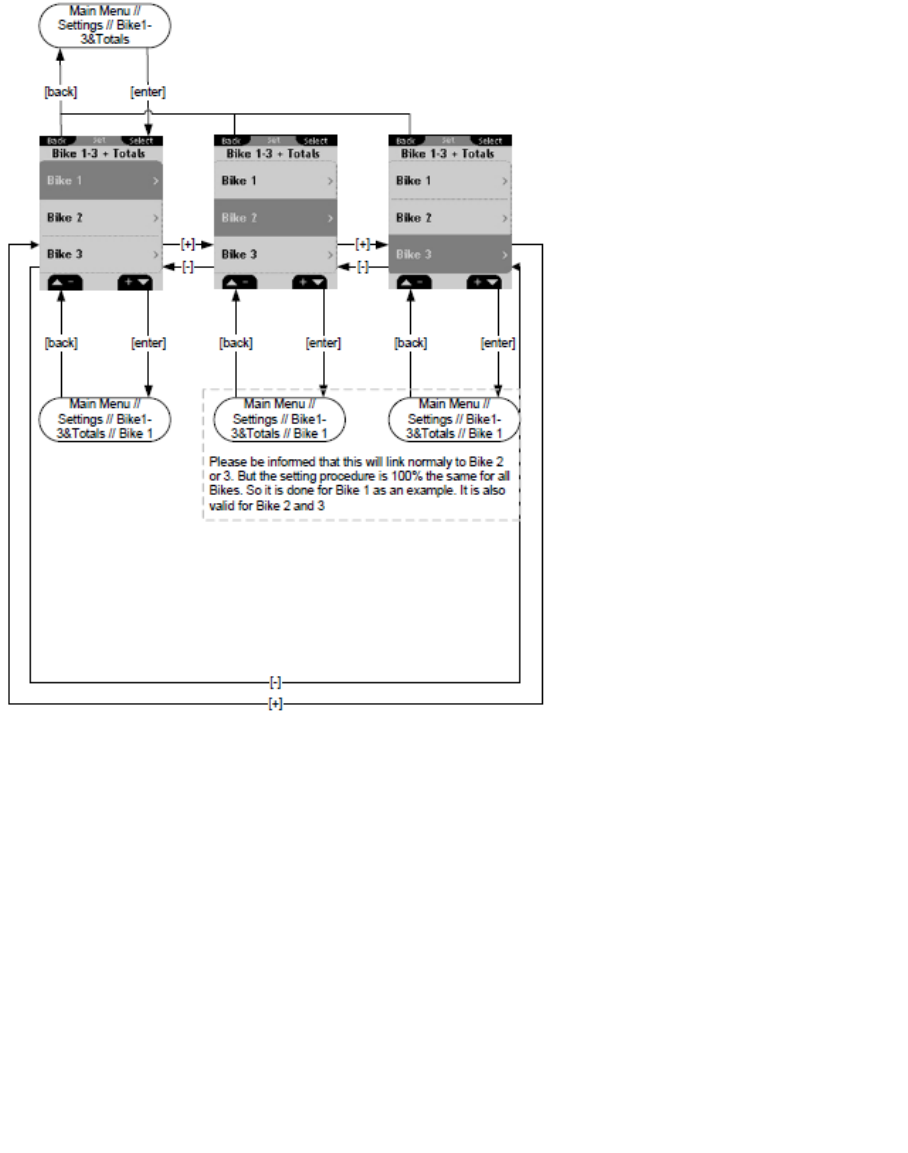

SETTINGS

16.11.2012 ROX 10.0 Manual

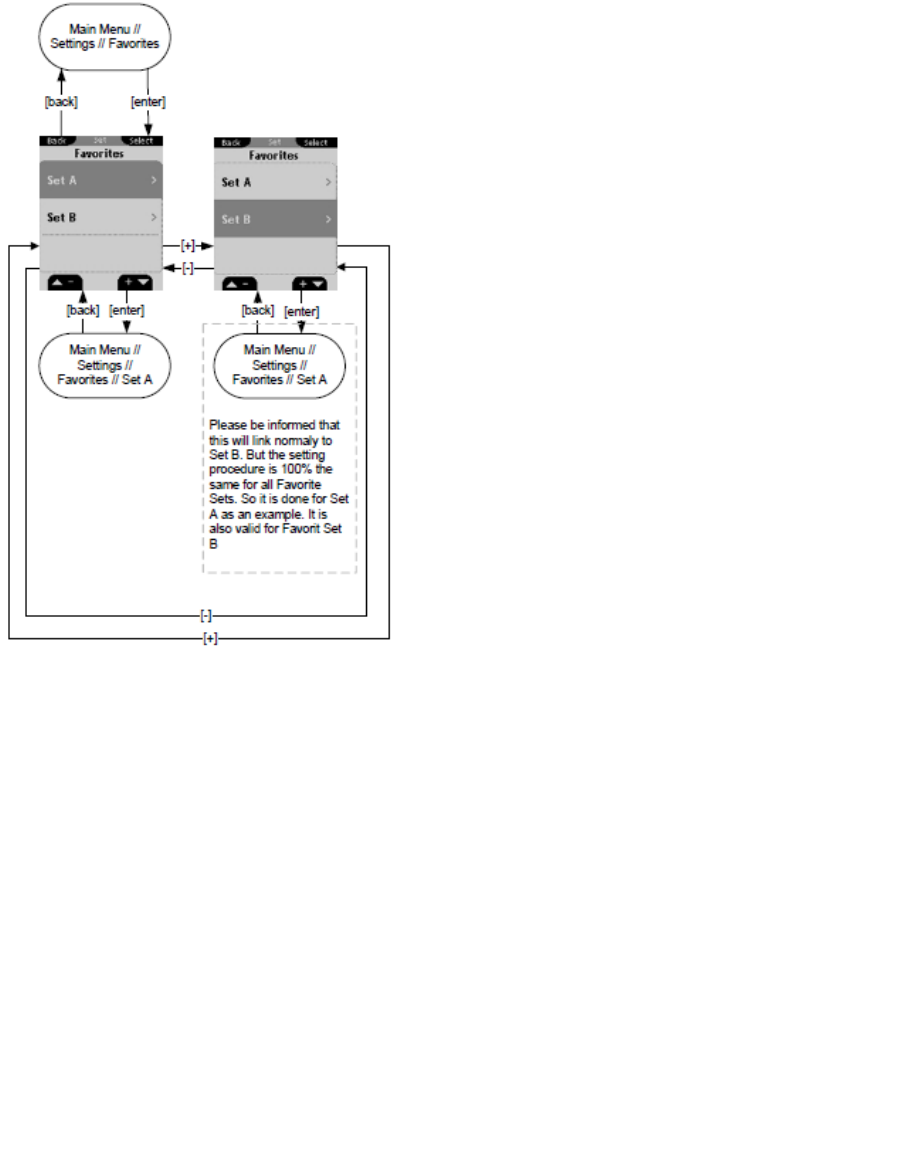

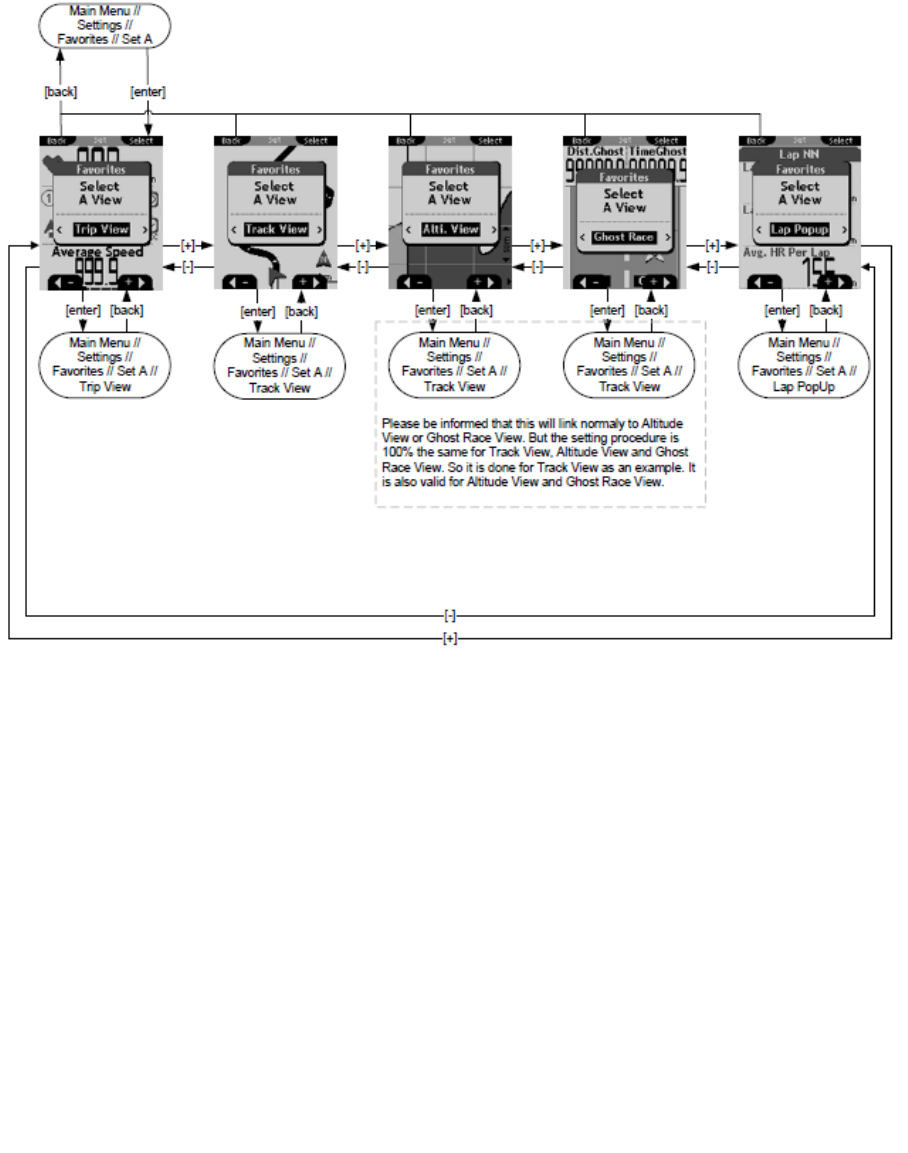

FAVORITE SETTINGS

ROX 10.0 Manual 16.11.2012

And then please follow the instructions on display.

16.11.2012 ROX 10.0 Manual

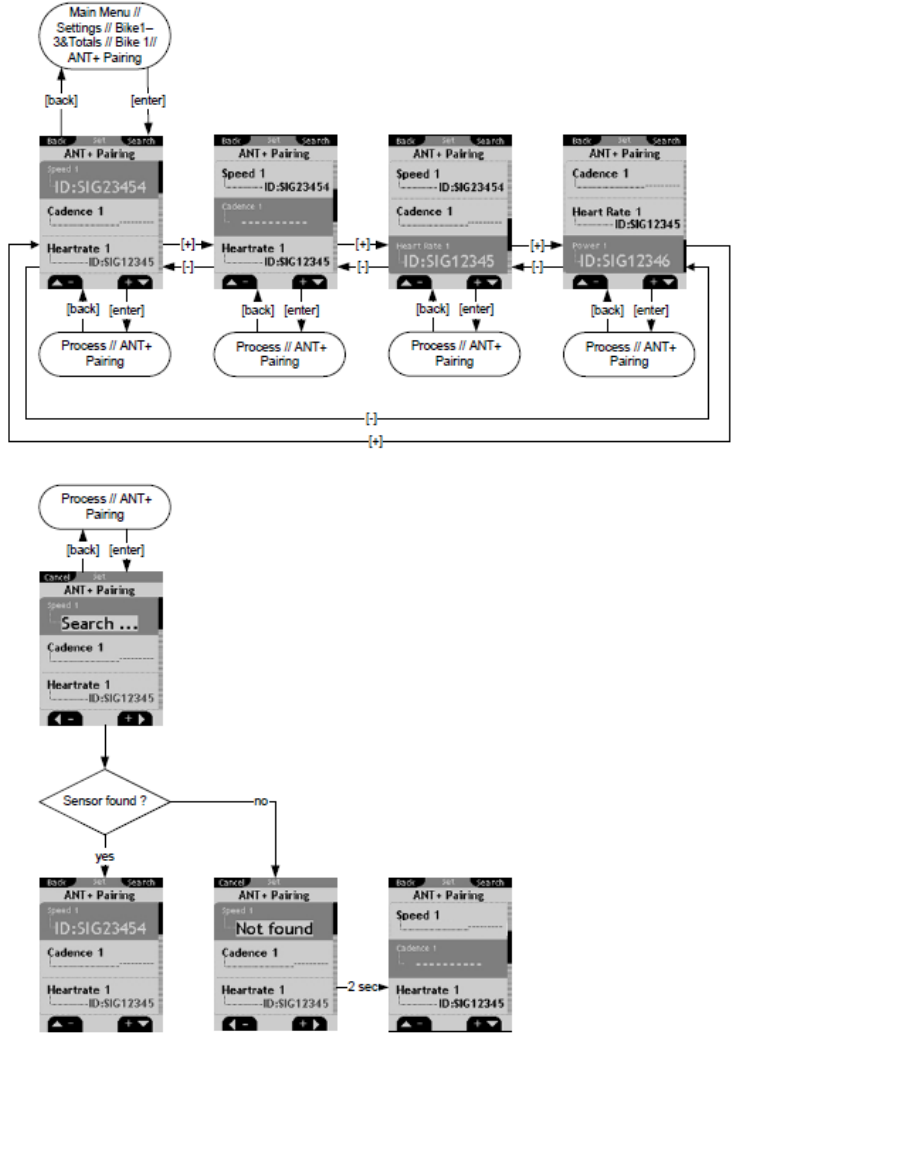

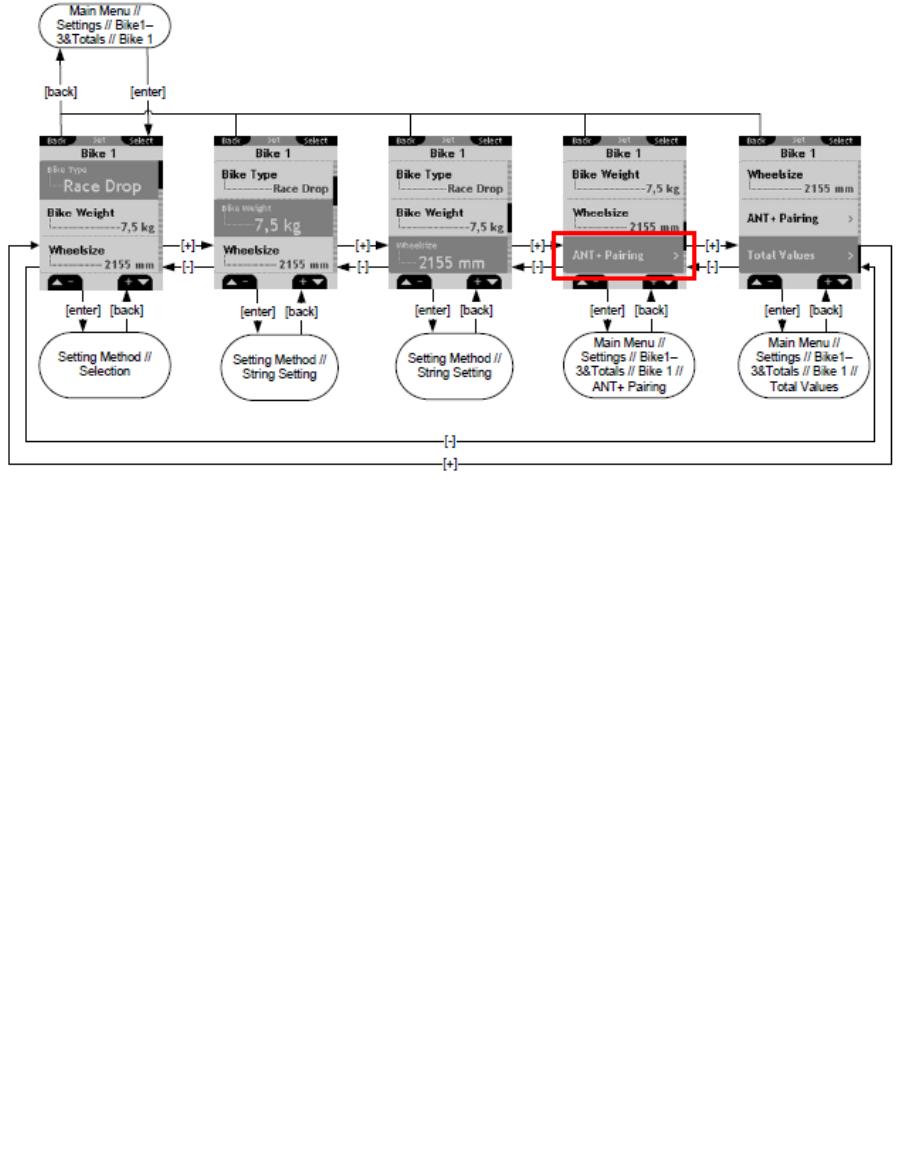

ANT+ PAIRING

ROX 10.0 Manual 16.11.2012

16.11.2012 ROX 10.0 Manual

ROX 10.0 Manual 16.11.2012

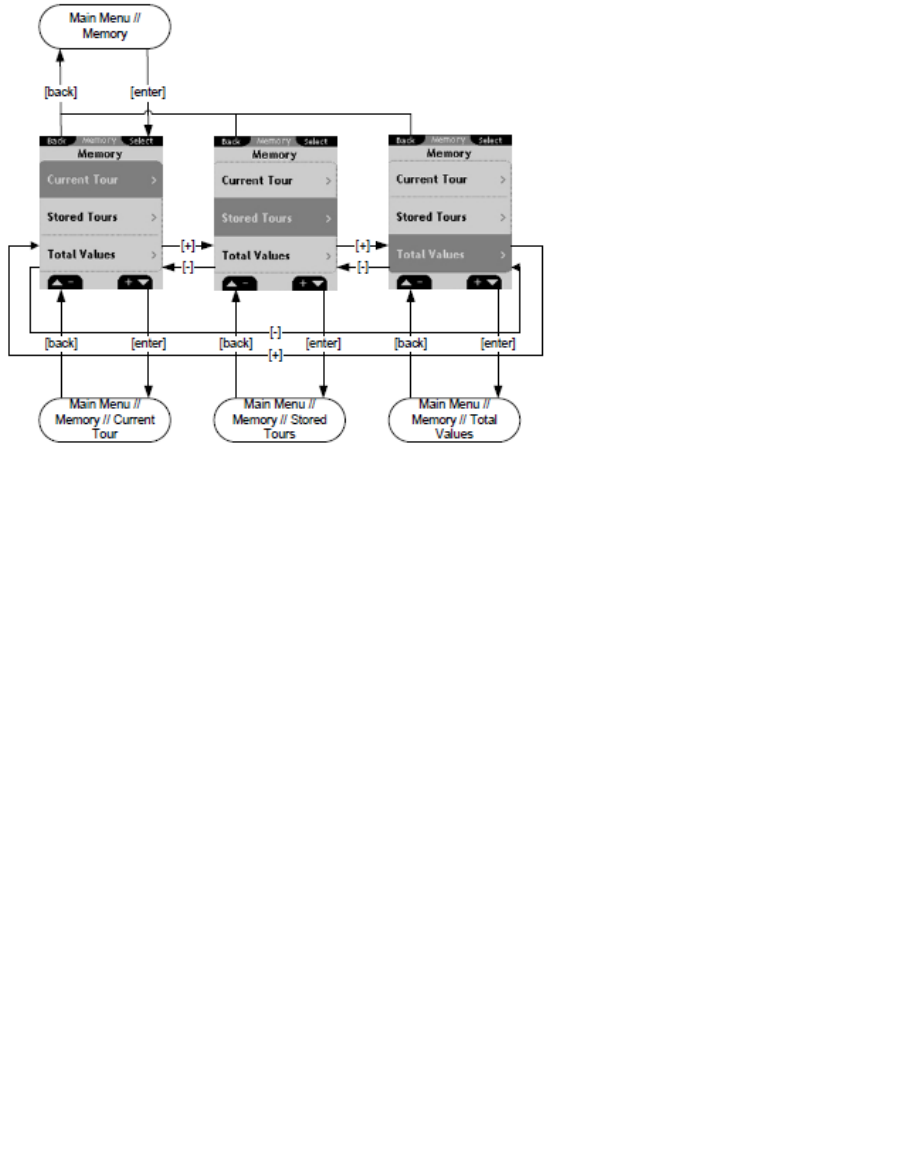

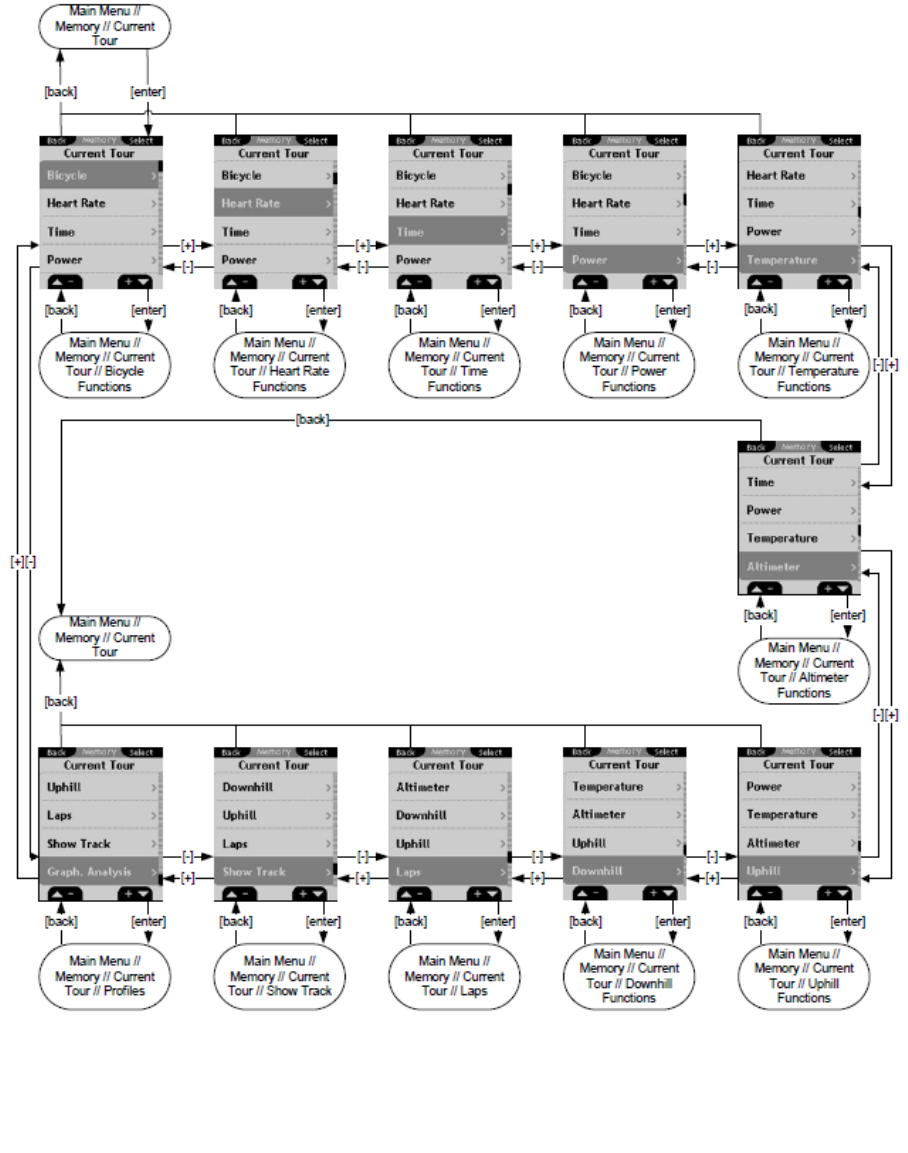

MEMORY

16.11.2012 ROX 10.0 Manual

ROX 10.0 Manual 16.11.2012

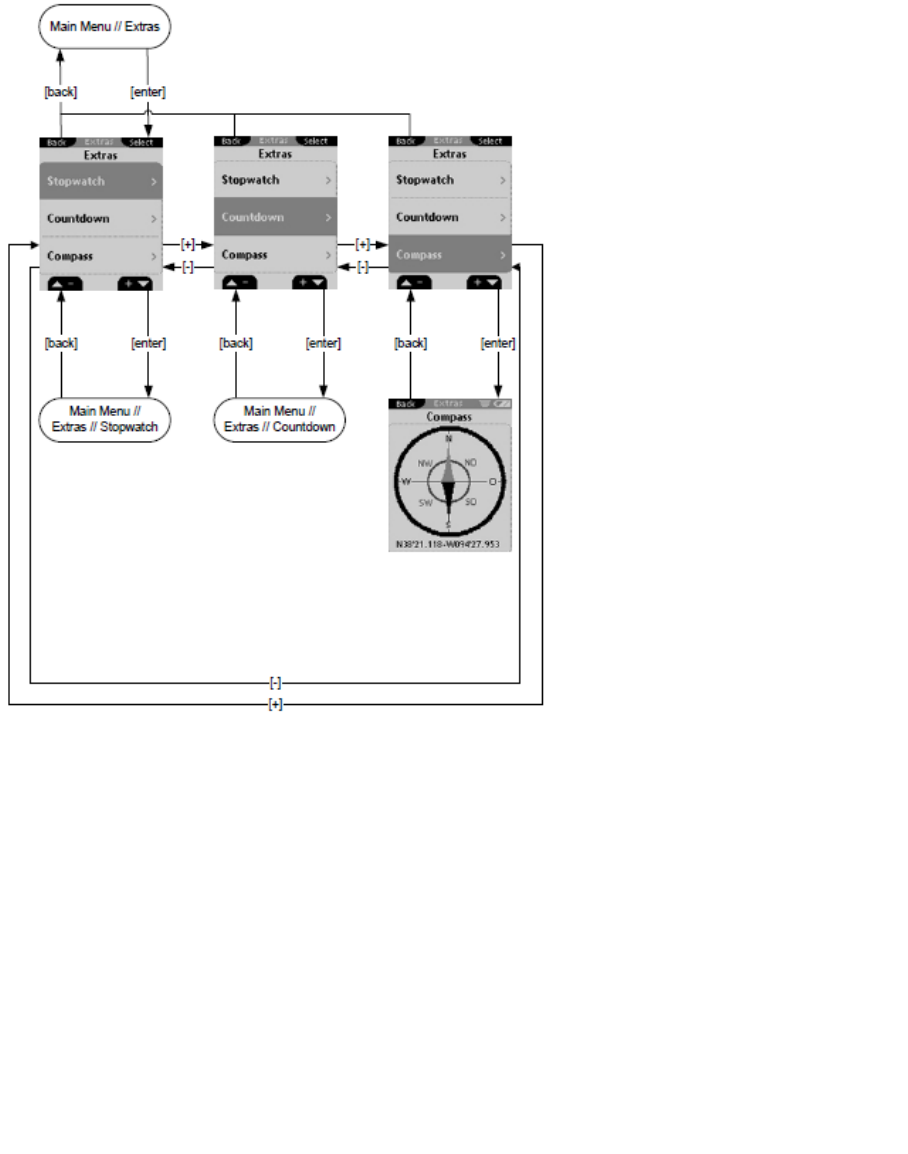

EXTRAS

16.11.2012 ROX 10.0 Manual

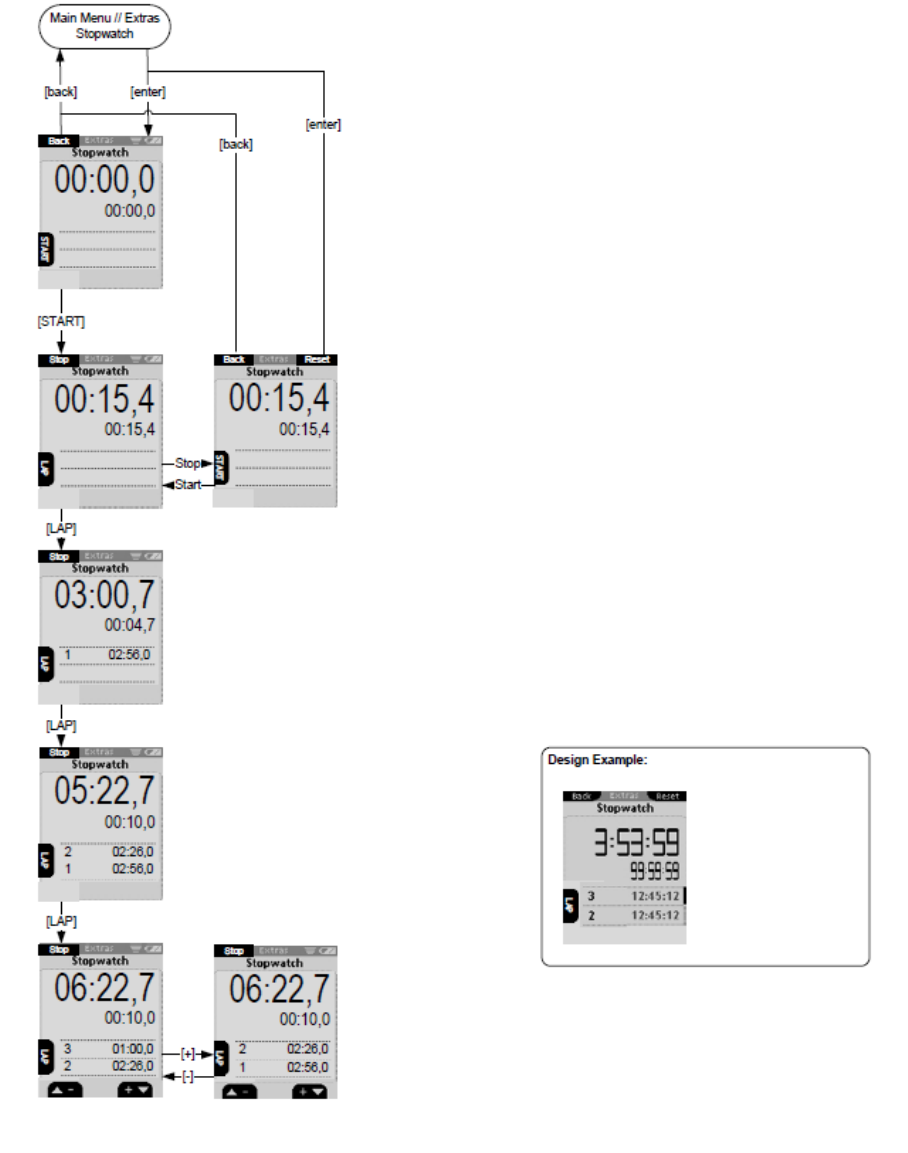

STOPWATCH

ROX 10.0 Manual 16.11.2012

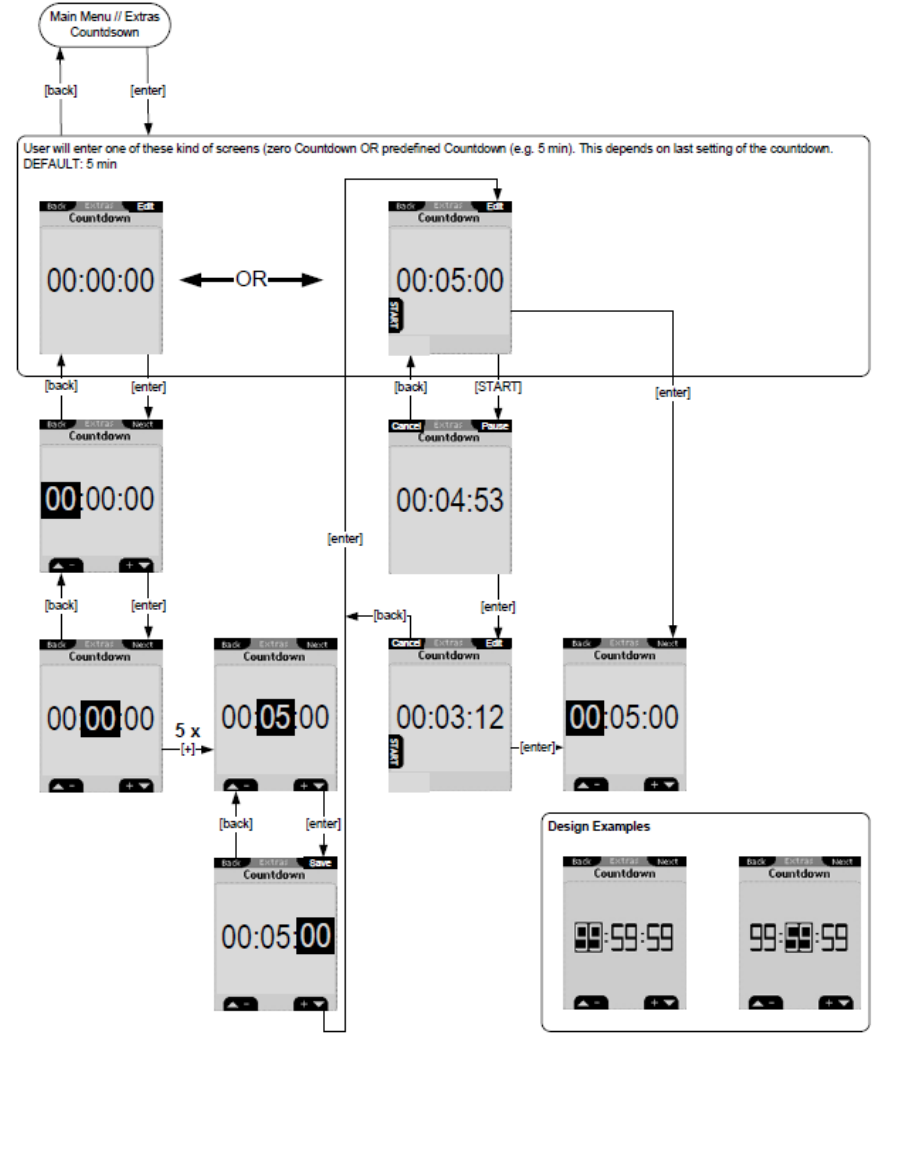

COUNTDOWN

16.11.2012 ROX 10.0 Manual

IMPORTANT NOTES/TROUBLESHOOTING/FAQ

WATERTIGHTNESS OF THE SIGMA ROX 10.0

The ROX 10.0 is watertight according to IPX7 Water tightness. The device can be placed in 1m water

deep for maximum 30 min (no current water flow!). In addition to that SIGMA devices fulfill special

rain test for outdoor use.

CARE OF THE COMFORTEX+ CHEST BELT

The COMFORTEX+ textile chest belt can

be washed in the washing machine at

+40°C/104°F hand wash. Standard

detergents may be used, but please do not

use bleaching agents or detergents with

bleach additives.

Do not use soap or fabric softener. Do not

give COMFORTEX+ for dry cleaning. The belt

and transmitter should not be put in the dryer.

Put the belt to dry out. Please do no wring

or pull apart or hang in wet condition. The

COMFORTEX+ must not be ironed.

MEDICAL ADVICE

Consult your doctor before beginning any

exercise program. This is particularly

important if you have underlying cardiovascular

problems.

For people with pace makers, we recommend

checking the compatibility of the SIGMA

ROX 10.0 and your pace maker with your

doctor before using the chest belt.

ROX 10.0 Manual 16.11.2012

WARRANTY CONDITIONS

We are liable to our contracting partners for defects

in line with legal provisions. In the event of a warranty

claim, please contact the retailer from whom you

purchased your bike computer. You can also send

your bike computer, together with your receipt and all

accessories, to the address below. Please ensure you

pay sufficient postage.

Warranty claims can be made in the event of material

and workmanship errors. The warranty does not cover

batteries, wear and tear parts, or wear caused by

commercial use or accidents. Warranty claims shall

only be valid if the SIGMA product has not been opened

without authorization and the purchase receipt is

provided.

SIGMA-ELEKTRO GmbH hereby declares that the

wireless bike computers comply with the fundamental

requirements and other relevant regulations of

Directive 1999/5/EC.

SIGMA-ELEKTRO GmbH

Dr.-Julius-Leber-Strasse 15

D-67433 Neustadt an der Weinstrasse

Tel.: +49 (0) 63 21- 91 20 -118

Fax.: +49 (0) 63 21- 91 20 -34

E-mail: service@sigmasport.com

In the event of justified warranty claims, you will

receive a replacement device. You will only be entitled

to the model available at the time of replacement.

The manufacturer retains the right to make technical

modifications.

Batteries must not be disposed of in household waste

(European Battery Law)! Please take the batteries to

an official collection point for disposal.

Electronic devices must not be

disposed of in household waste.

Please take the device to an official

waste collection point.



Thisdevicecomplieswithpart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

11 FCC STATEMENT



(1)Thisdevicemaynotcauseharmfulinterference

and

(2)thisdevicemustacceptanyinterferencereceived,

includinginterferencethatmaycauseundesired

operation.NOTE:Thisequipmenthasbeentested

andfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttopart15oftheFCCRules.

Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,

usesandcanradiateradiofrequencyenergyand,if

notinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguarantee

thatinterferencewillnotoccurinaparticular

installation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,which

canbedeterminedbyturningtheequipmentoffand

on,theuserisencouragedtotrytocorrectthe

interferencebyoneormoreofthefollowing

measures:

Reorientorrelocatethereceivingantenna.

Increasetheseparationbetweentheequipment

andreceiver.

Connecttheequipmentintoanoutletonacircuit

differentfromthattowhichthereceiverisconnected.

Consultthedealeroranexperiencedradio/TV

technicianforhelp.Changesormodificationsnot

expresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatethe

equipment.YoucanfindtheCEDeclarationunder:

www.sigmasport.com



35 ROX 10.0 Manual 16.11.2012
