Users Manual
WiViEW
WMT-1000I
WMT-1000O
USER’S MANUAL
Version 1.0
Notice
This device has been approved by FCC for a home
appliance and is suitable for all residential areas.
z © 2006 Copyright SIGMACOM CO., LTD. All right reserved
z All trademarks are the properties of their respective owner.
z The information contained herein is subjected to change without notice.
1
WMT-1000O Specification
■ Power Supply
Adaptor
IN: 100-240V~50/60Hz 0.5A
OUT: 12V, DC 1.25A
■ Power Consumption : 2.5mW/MHz
■ Digital Modulation : OFDM
■ Channel
3Channel (5180MHz, 5200MHz, 5220MHz), BAND WIDTH : 20MHz
■ VIDEO
OUTPUT : Composite, S-Video, Component (480i)
■ AUDIO
OUTPUT : 2-Channel Stereo
■ FRONT
LED Lamps : Power (Red), Signal (Green)
■ Physical Specification
Size (W * H * D) : 42 * 230 * 195 (Without Stand)
85 * 240 * 195 (With Stand)
Operating Temperature : -10℃ ~ +50℃
Storage Temperature : -10℃ ~ +70℃
2
WMT-1000I Specification
■ Power Supply
Adaptor
IN: 100-240V~50/60Hz 0.5A
OUT: 12V, DC 1.25A
■ Power Consumption : 2.5mW/MHz
■ Digital Modulation : OFDM
■ Channel
3Channel (5180MHz, 5200MHz, 5220MHz), BAND WIDTH : 20MHz
■ VIDEO
INPUT : Composite, S-Video, Component (480i, 480p, 720p, 1080i)
■ AUDIO
INPUT : 2-Channel Stereo
■ PC Interface : USB
■ 2-Input IR Blaster
■ FRONT
LED Lamps : Power (Red), Signal (Green)
■ Physical Specification
Size (W * H * D) : 42 * 230 * 195 (Without Stand), 85 * 240 * 195 (With Stand)
Operating Temperature : -10℃ ~ +50℃
Storage Temperature : -10℃ ~ +70℃
3
Overview of WiVIEW
Safety notice and Warning
Restricted to indoor use.
FCC notice to users and product statements
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions; (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This appliance and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter. A minimum separation distance of 20 cm must be
maintained between the antenna and the person for this appliance to satisfy the RF
exposure requirements.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
4
European CE notice to users and product statements
This product is CE marked according to the provisions of the R & TTE Directive
(99/5/EC). Hereby, Sigmacom Co., Ltd declares that this product is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC. For
further information, please contact http://www.sigmacom.co.kr/eng/main/
Operating Matrix
1. Connect video-out of PC or VIDEO out-put device(DVD player, DVR) to video-in of
the WMT-1000I(server) with cable.
2. Connect video-in of TV or other displays to image-out of the WMT-1000O(client)
with cable.
3. WMT-1000I encode a video data into MPEG2 and transmit encoded data to
WMT000O in the band of 5180khz,5200khz and 5220khz in 802.11a protocol.
4. After WMT-1000O receives the encoded data, WMT-1000O decode the data into
analog signal and transmits to TV or other displays.
5. According PC connection, remotecontrol transmits PC control-signal to WMT-
1000O and WMT-1000O transmit the signal to WMT-1000I by wireless and WMT-10001
transmits the signal to PC by USB port.
Contents
Overview of Wi-VIEW
Safety notices and warnings
Checking Wi-VIEW package
Each part description
Using remote control
- Controlling Wi-VIEW
- Controlling SMC(Sigma Multimedia Center)
- Installing batteries
Placing Wi-VIEW on the stand
5
Hardware Installation
Connecting Wi-VIEW
Connecting to WMT-1000I of Wi-VIEW
- Connecting satellite receiver or cable TV receiver
- Connecting VCR
- Connecting DVD Player or Game console
- Using the remote control of external video device
Connecting to WMT-1000O of Wi-VIEW
- Connecting analog TV set
- Connecting HDTV Ready set
Main functions
Using the remote control of menu screen

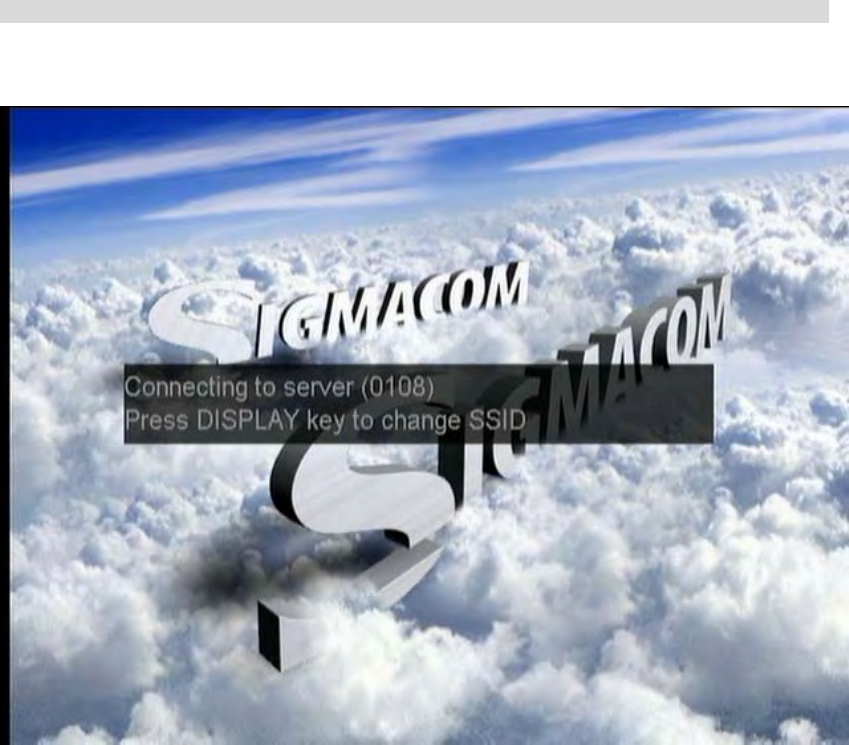

Starting Wi-VIEW
Setting Input
Setting Output

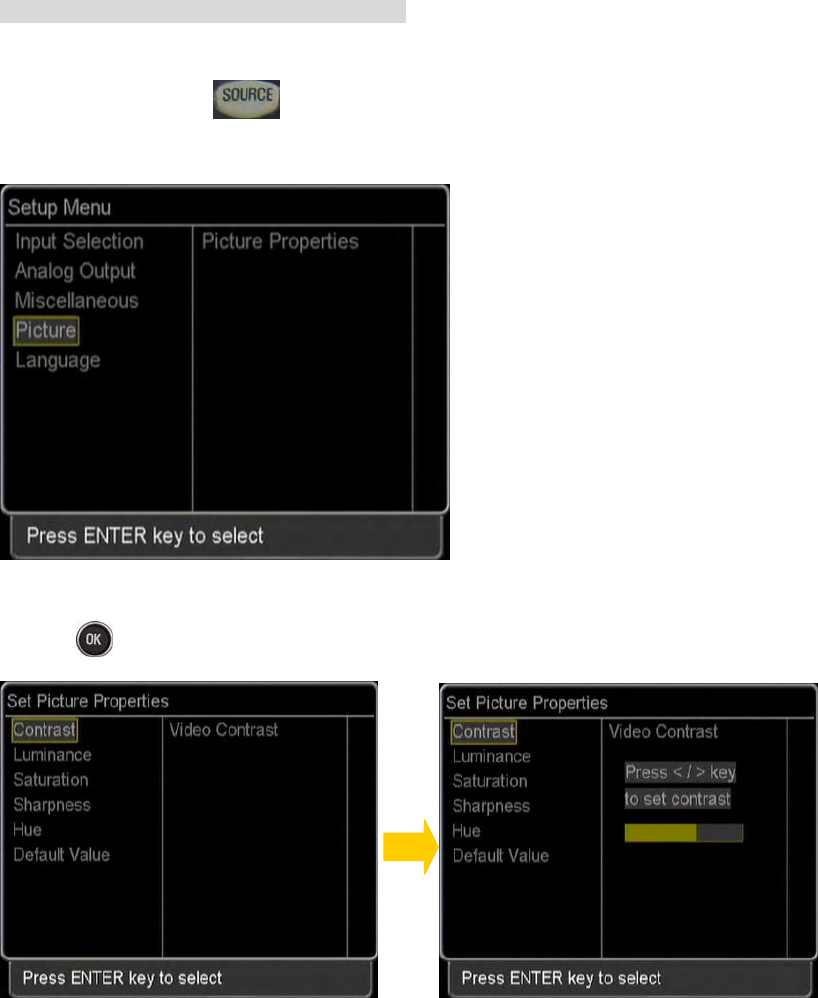

Adjusting image quality
Setting OSD language
Additional functions

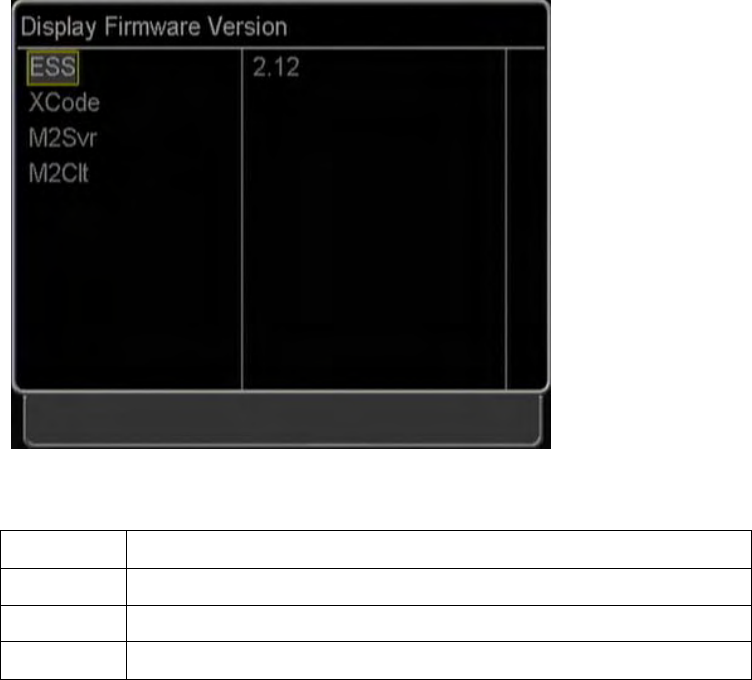

- Checking Wi-VIEW’s information
- Setting screen saver

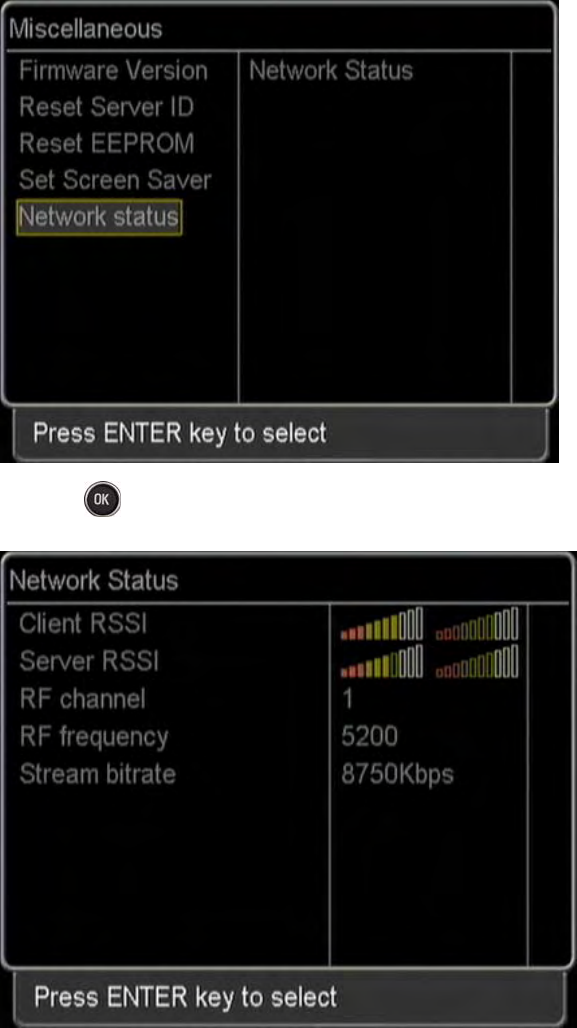

- checking network status

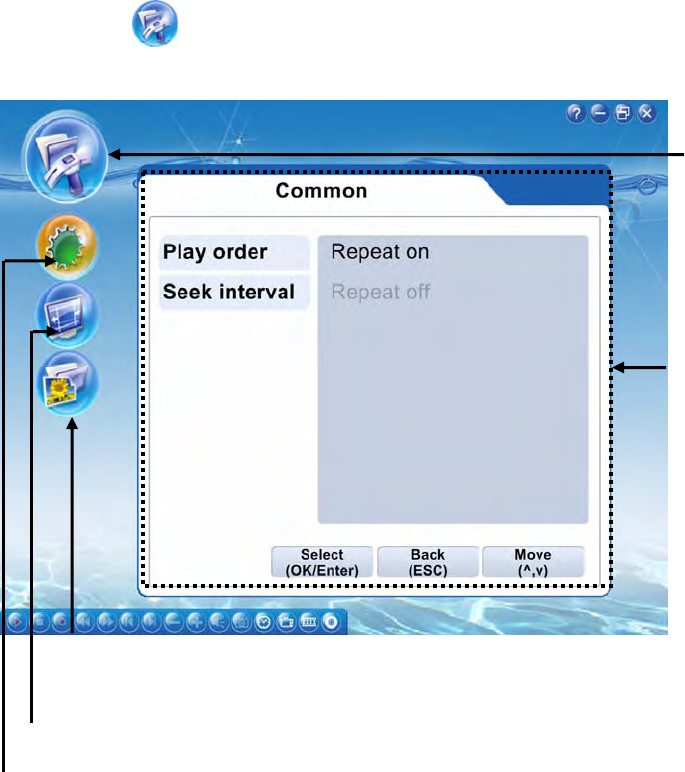

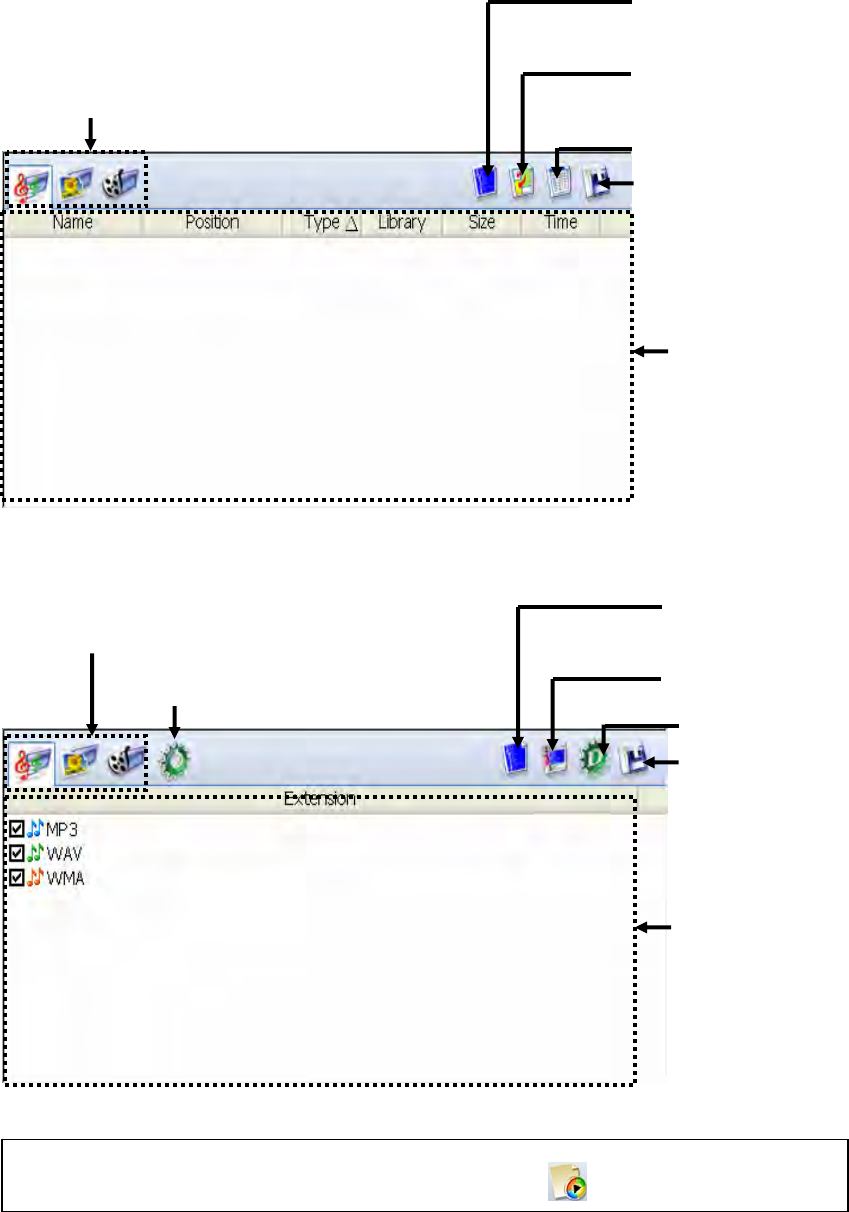

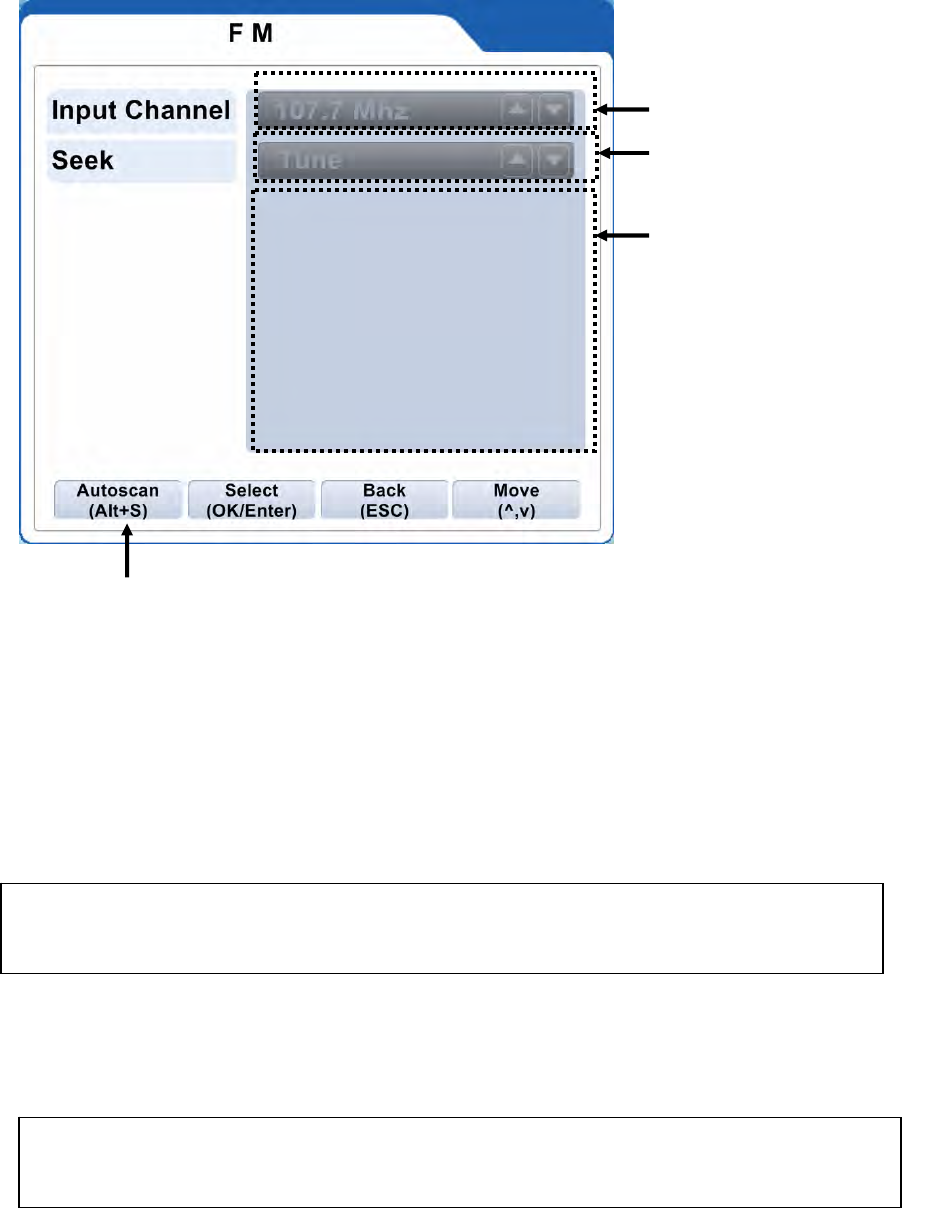

Using SMC (Sigma Multimedia Center)
Basic screen content
Description of each button of the remote control
SMC function
1) TV
- Running TV program

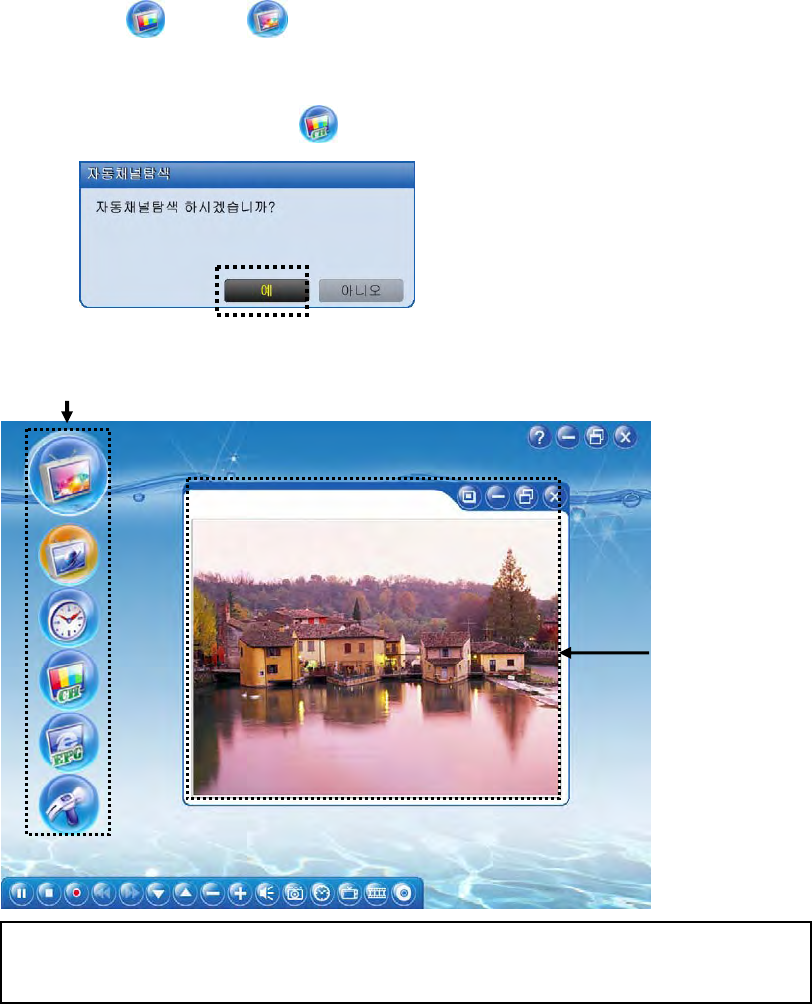

- Setting antenna

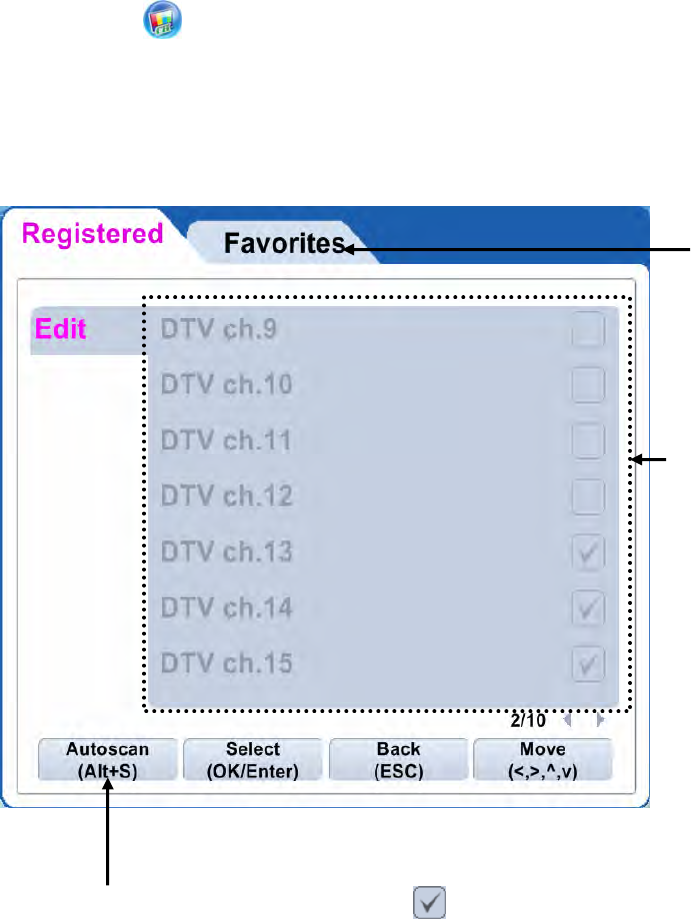

- Setting TV channel (registered/preferred)

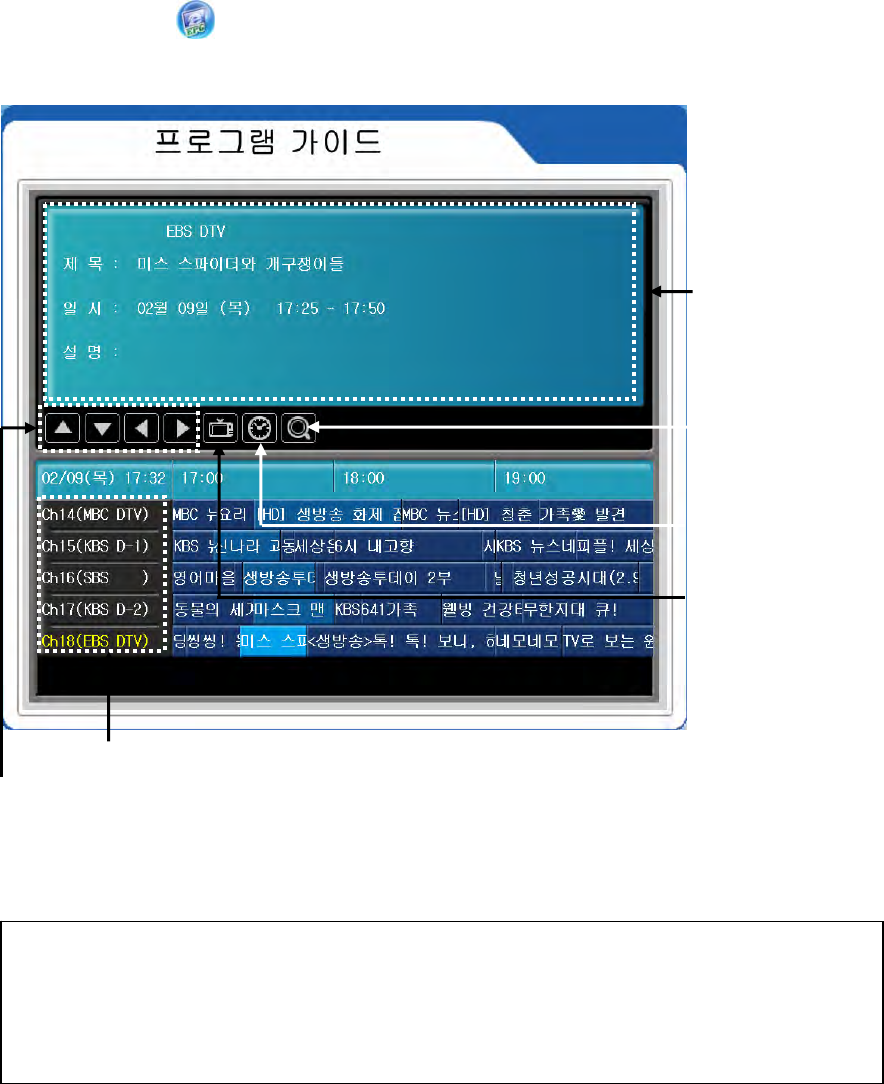

- EPG(Electronic Programming Guide)
- Reservation
- Multi-screen

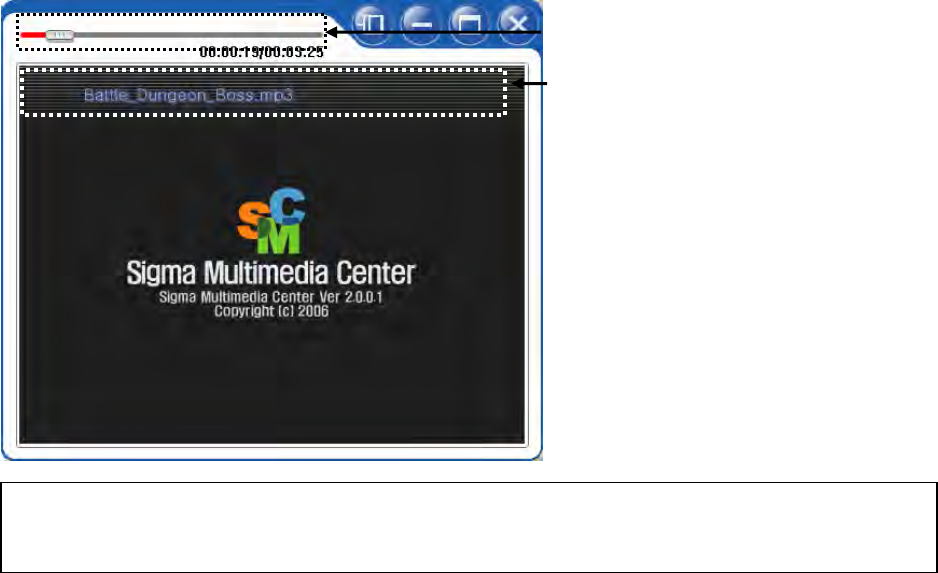

2) Music
6
3) Picture
4) Video
5) DVD
6) Radio
7) Setup
- Standard setting
- TV setting
- File setting
- Multimedia setting
7
Accessories
Thank you for purchasing the Wi-VIEW.
When removing the package, make sure that the following contents are included.
If you find any missing part, please contact our near dealer or distributor.
Holder – 2EA
WMT-1000I
- 1 EA
Remote control
WMT-1000O
- 1 EA
Sound(2RCA) cable
Power Adaptor
- 2EA
IR Blaster cable
Composite (3 RCA) cable
- 2EA
USB cable
Component (YPbPr) cable
- 2EA
S-Video cable
- 2EA
8
Part name

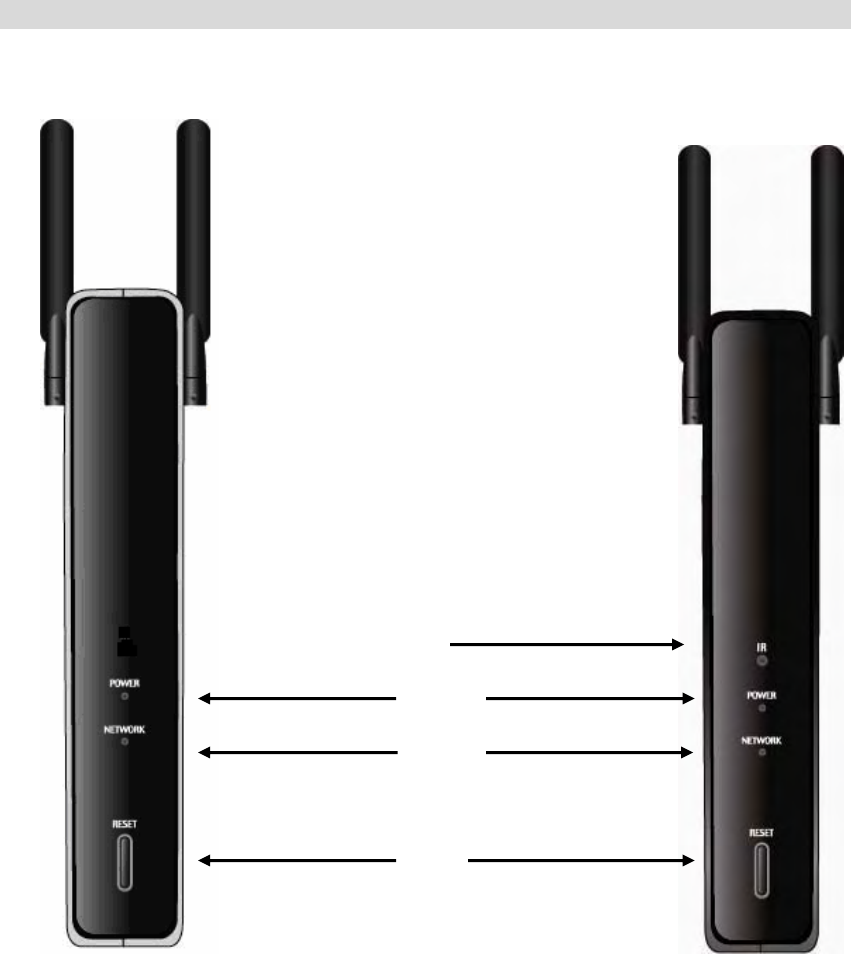

Front
IR
POWER
Network
RESET
< Server Input> < client Output>
WMT-1000I WMT-1000O
IR: The status of remote control receiver
z Power: The status of Power Power: The status of Power
z Network : The status of wireless connection Network : The status of wireless connection
z Reset : Used for reboot Reset : Used for reboot
9

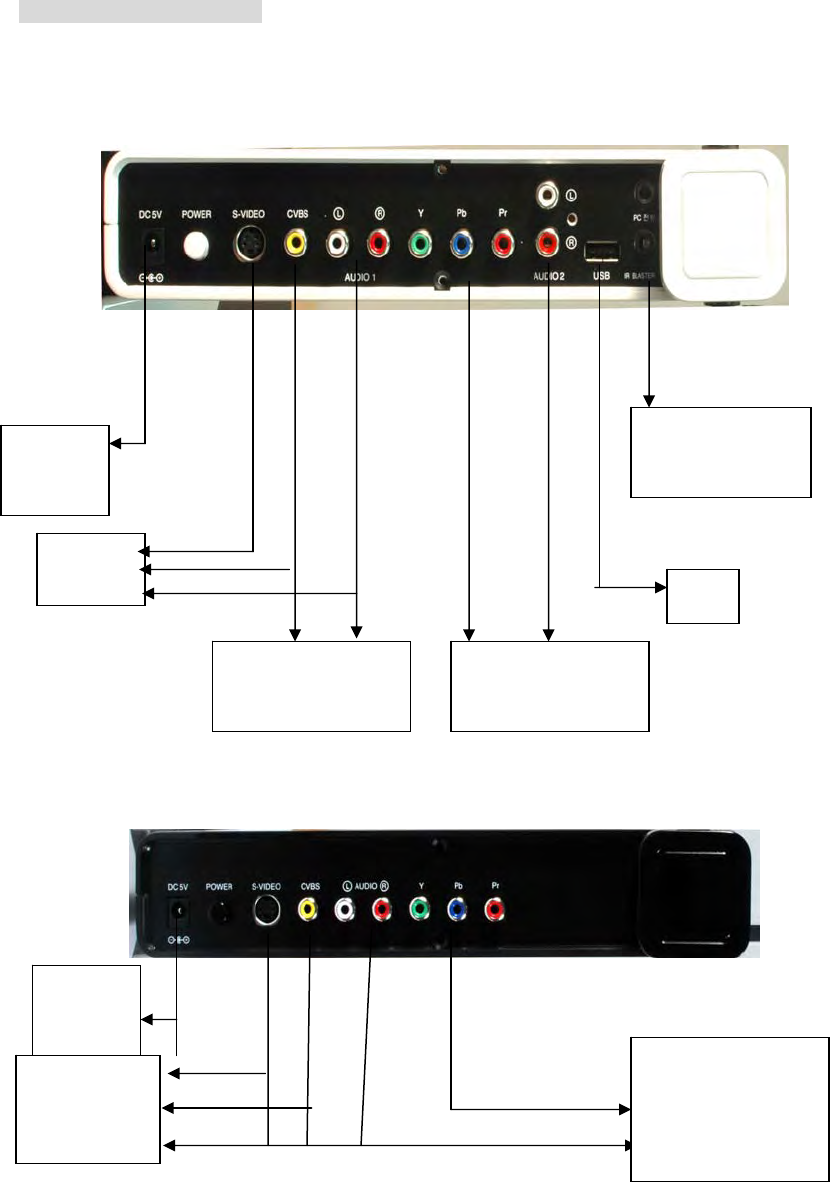

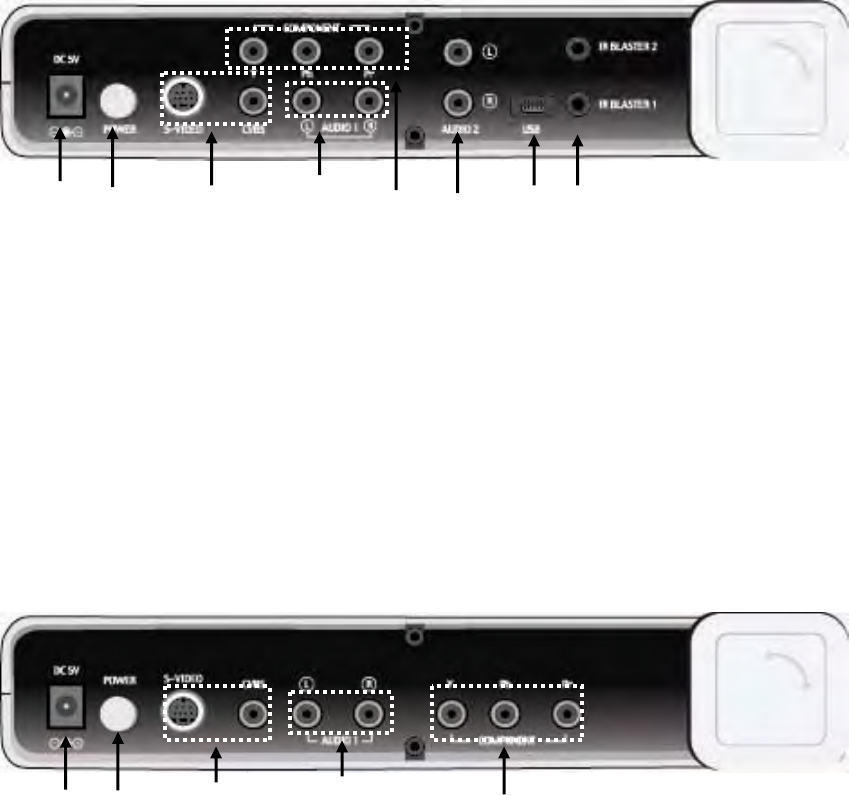

* Back
. WMT-1000I
1. DC-In: Used for Power In
2. Power button: Used for power on
3. Video In(S-VIDEO&CVBS): Used for receiving video signal (S-VIDEO, COMPOSITE) from
external devices.
4. Sound In: Used for receiving audio signal(S-VIDEO, COMPOSITE) from external devices.
5. Video In (Component): Used for receiving video signal (COMPONENT) from external devices.
6. Sound In: Used for receiving audio signal (COMPONENT) from external devices.
7. USB Port: Used for upgrading the firmware from PCs
8. IR Blaster Port: Used for a remote control of external devices.
. WMT-1000O
3 4
5
6 7
1 8
4
3
1 2 5
1. DC-In: Used for power In
2. Power button: Used for power on
3. Video Out (S-VIDEO&CVBS): Used for sending video signal (S-VIDEO, COPOSITE) to Wi-
VIEW input.
4. Sound Out: Used for sending audio signal to Wi-VIEW input.
5. Component (YPbPr) out: Used for sending video signal Component) to Wi- VIEW input.
10
Using remote control

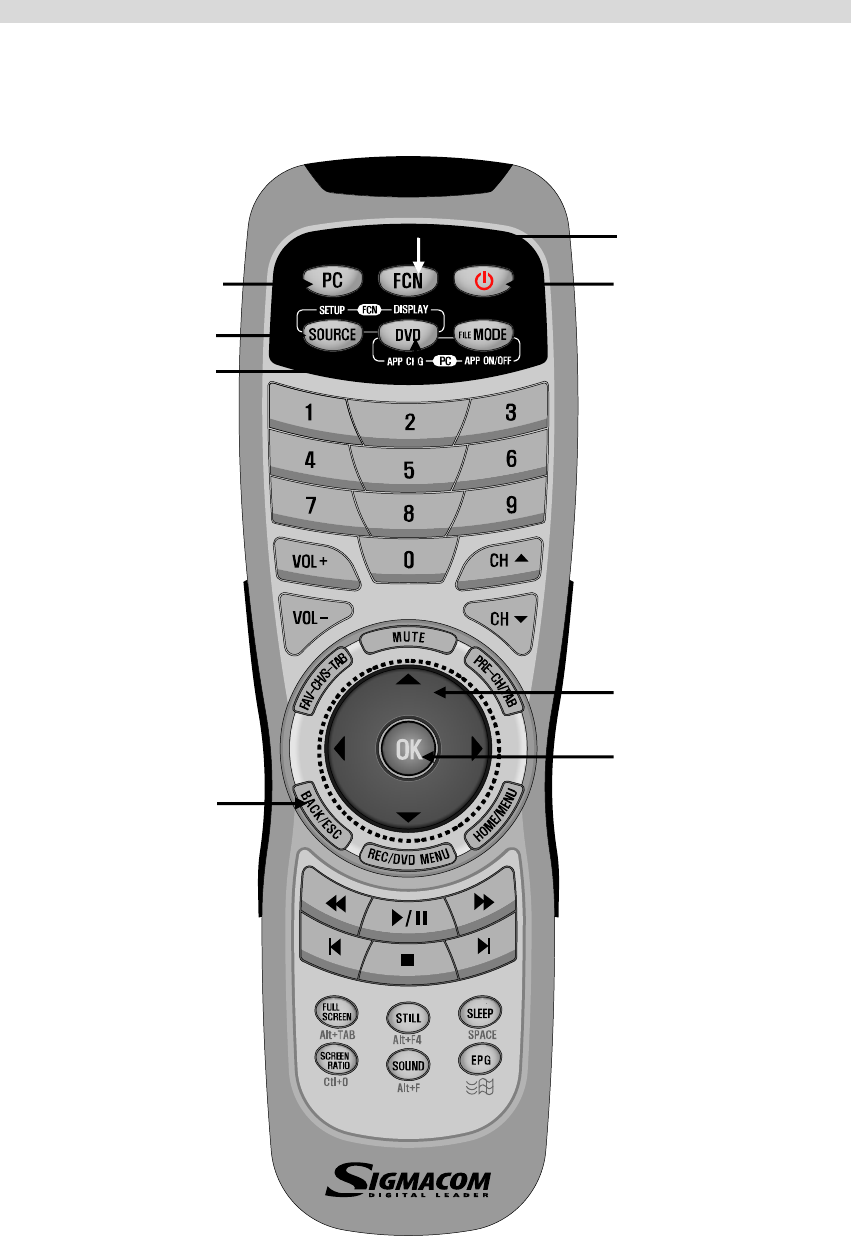

* Wi-VIEW control
WiVIEW control button.
PC (SMC) Control Button
Power On/Off
External Source Input
Selection
Client ID set-up
(see page 21)
Arrow keys for up/down
Left/right direction
MENU selection
Back/Previous MENU.
11

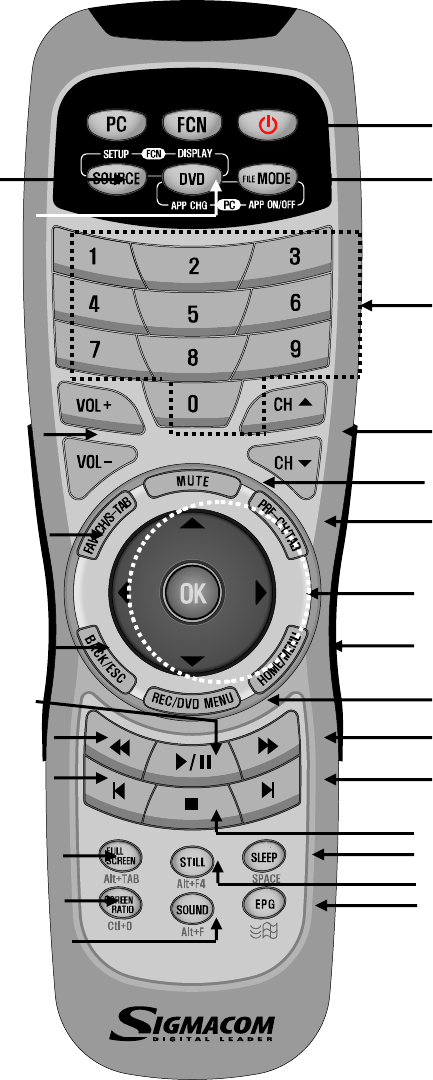

* SMC (Sigma Multimedia Center) control
SMC On/Off
Input Channel
Change File Mode
DVD
Numeric Button
Channel
up/down
Volume
up/down Mute
Previous Channel/ TAB
Favorite Channel
selection /TAB Control cursor on
the Main MENU/enter
Home/Menu
Back/Previous
Record Movie
Backward
Play/Pause
Forward
Next Track
Previous Track
Stop
Sleep Timer
Full Screen
Still capture
Aspect ratio
EPG
Sound Mode
12
* Inserting Batteries in the Remote control
+
-
-
+
<Open the cover> <Insert batteries >

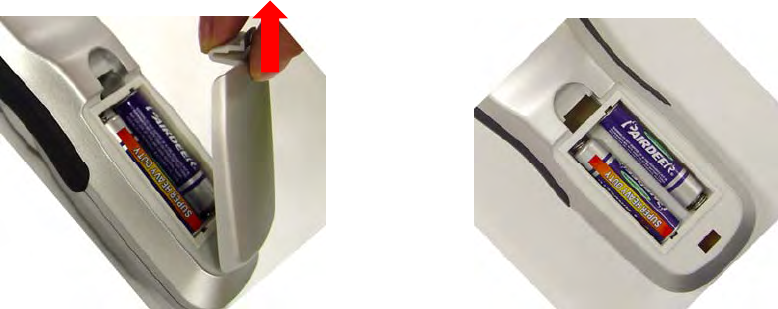

1. Open the battery cover.(see the above figure)
2. Insert two AAA-size batteries (1.5V) into the battery compartment by matching + and –
3. Close the cover and push the latch back to lock the cover.
13
Placing Wi-VIEW on the stand

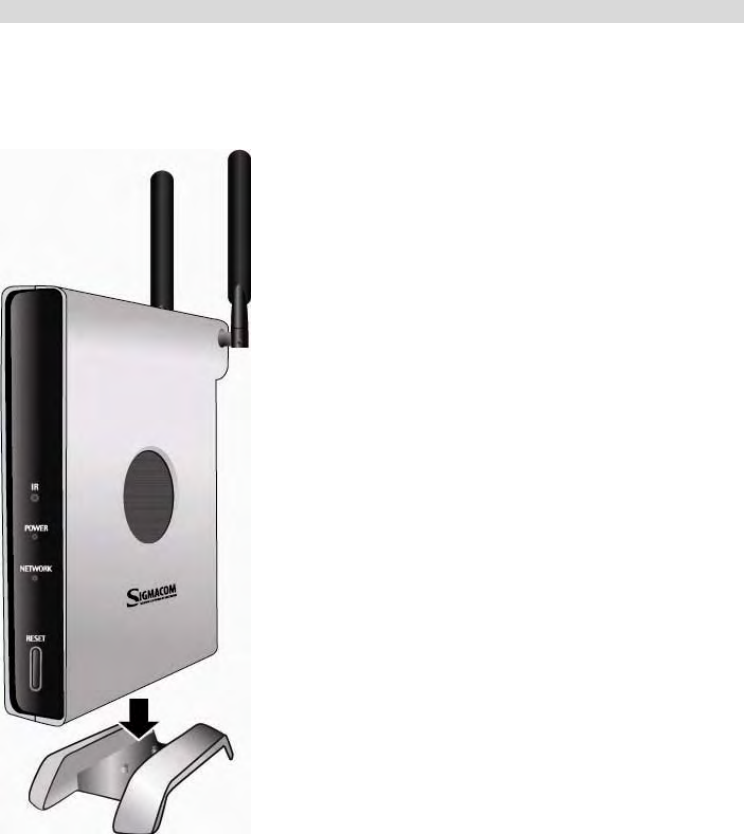

The figure below is to place the Wi-VIEW in standing position.
1. Put the Wi-VIEW into the holder.
2. Fix the position by matching two wholes on the bottom.
14
Installation
Connecting the Wi-VIEW
You can connect the Wi-VIEW to external devices such as VCR, DVD and game console.
* Connecting WMT-1000I diagram
Power
Adapter
VCR
PC
Remote control
External device
Satellite receiver
Cable box
DVD Player
Game console
* Connecting WMT-1000O diagram
Power
Adapter
HDTV Ready
CRT TV
(Analog TV)
15
Connecting Server(Input)

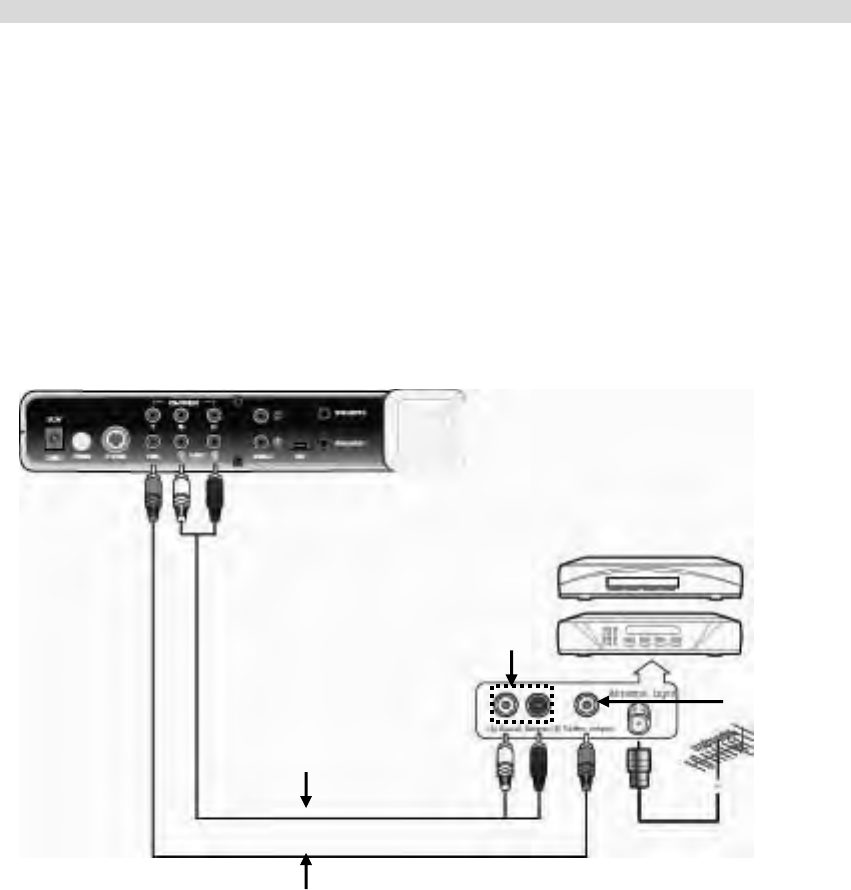

◆ Connecting to Satellite receiver or cable TV receiver
. Video connection
You should connect Video out (composite/Yellow) of a satellite receiver or cable TV receiver to Video
In (CVBS port) of the Wi-VIEW with the composite cable. (Yellow).
. Audio connection
You should connect Audio out (composite, White/Red) of a satellite receiver or cable TV receiver to
Audio In(Audio 1,White/Red) of the Wi-VIEW with the composite cable(White/Red).
Video Out (Yellow))
Sound Out-put
(White/Red)
Composite (White/Red)
Composite(Yellow)

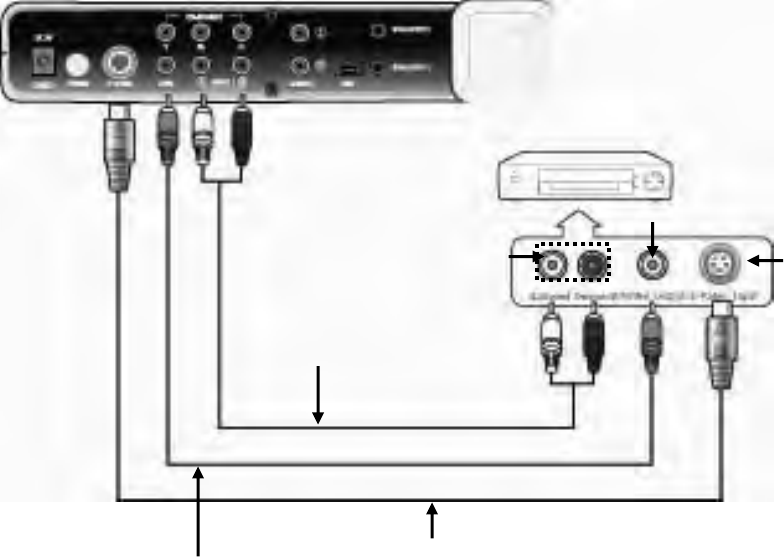

◆ Connecting VCR
16
. Video connection
1. You should connect Video out (Yellow) of a VCR to Video In (CVBS) of the Wi-VIEW with the composite
cable (Yellow).
2. For S-VIDEO connection, you should connect S-VIEO out of a VCR to Video In (S-VIDEO) of the Wi-
VIEW with the S-VIDEO cable.
. Audio connection
You should connect Audio out (White/Red) of a Satellite receiver or cable TV receiver
to Audio In (Audio 1, White/Red) of the Wi-VIEW with the composite cable(White/Red).
Video out (Yellow))
Sound out
(White/Red) S-VIDEO out
Composite
(White/Red)
S-VIDEO cable
Composite(Yellow)
Note
. You should select a connection from S-VIDEO or Composite.
17

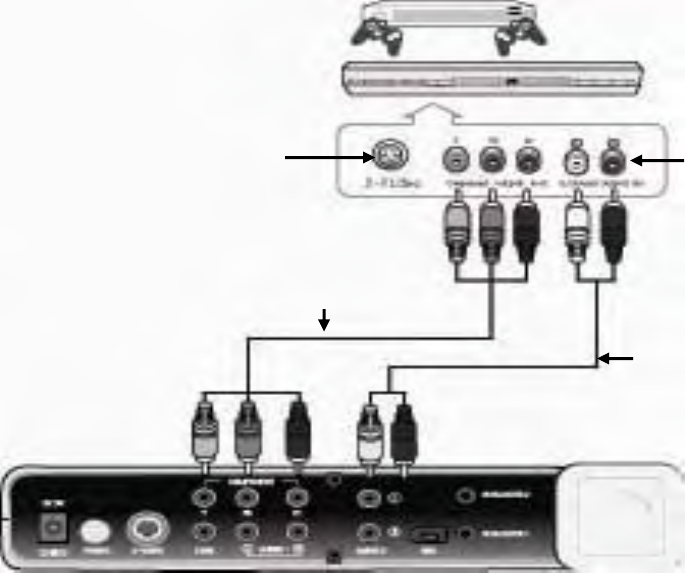

◆ Connecting DVD Player & Game console
1. Video connection
You should connect Component In (YPbPr) of the WI-VIEW to Component out of a DVD player or
Game console with the component cable(R/G/B).
2. Audio connection
You should connect Composite In(White/Red) of the Wi-VIEW to Composite out of a DVD player or
Game console with the composite cable.
Audio out
(White/Red)
Video(Component) out
(Green/Blue/Red)
Component cable
(Green/Blue/Red)
Composite cable
(White/Red)
18
◆ Using the remote control of an external video device

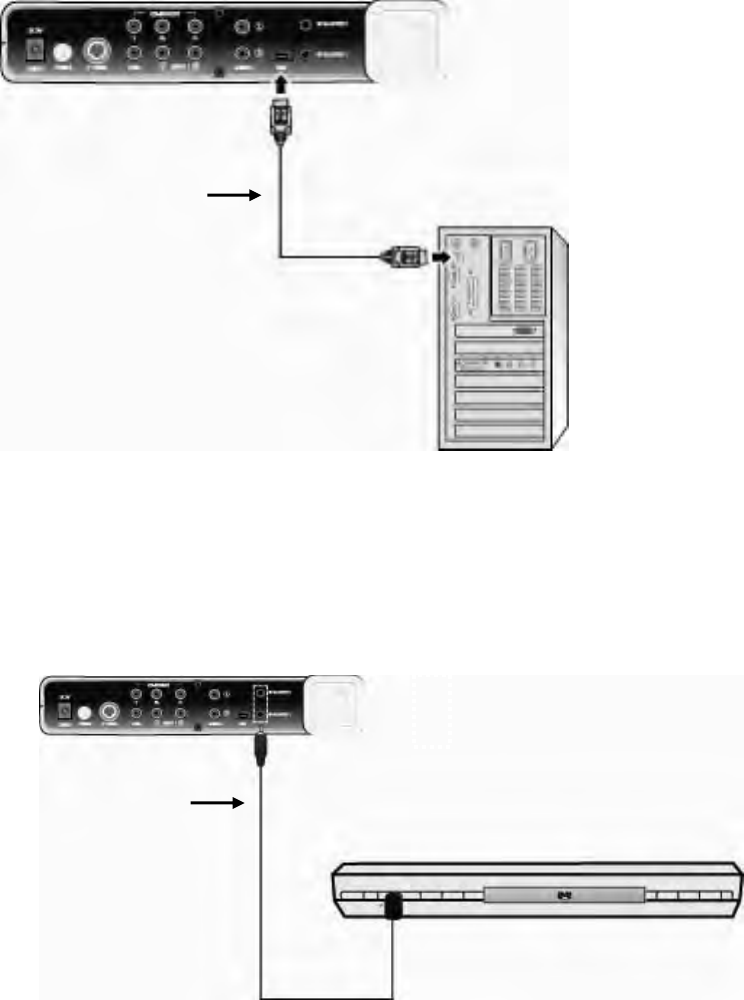

. When using with PCs
You should connect the USB port of PC to the Wi-VIEW(server) with the USB cable.
USB cable
. When using with external video devices
1. Connect IR blaster as shown below.
2. Remove the sticker of IR blaster cable and attach it to the remote control receiver of external
video device.
IR blaster cable
19
Connecting Client(output)

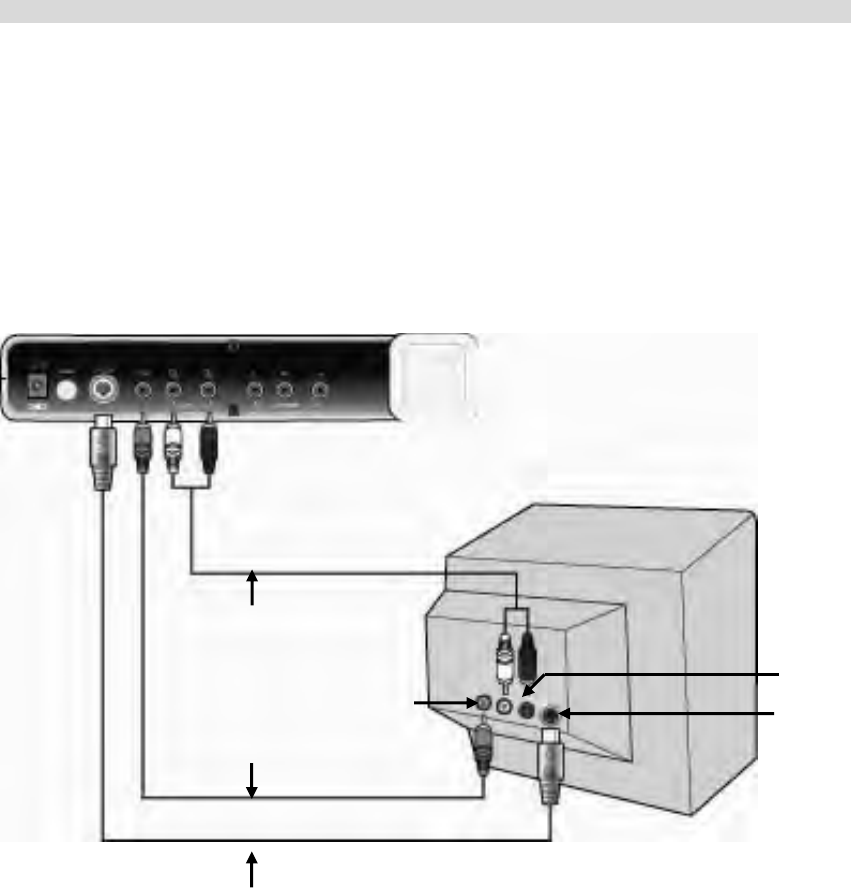

◆ Connecting analog TV
. Video connection
You should connect Composite (CVBS) or S-Video of the WIVIEW to an available input of a TV set with an
appropriate cable.
. Audio connection
You should connect Audio out of the WIVIEW to Audio In(White/Red) with the composite cable.
Composite cable
(White/Red) Audio In
(White/Red)
Video In(yellow) S-VIDEO In
Composite cable(yellow)
S-VIDEO cable
Note)
You should select one connection only from S-Video or composite.
20

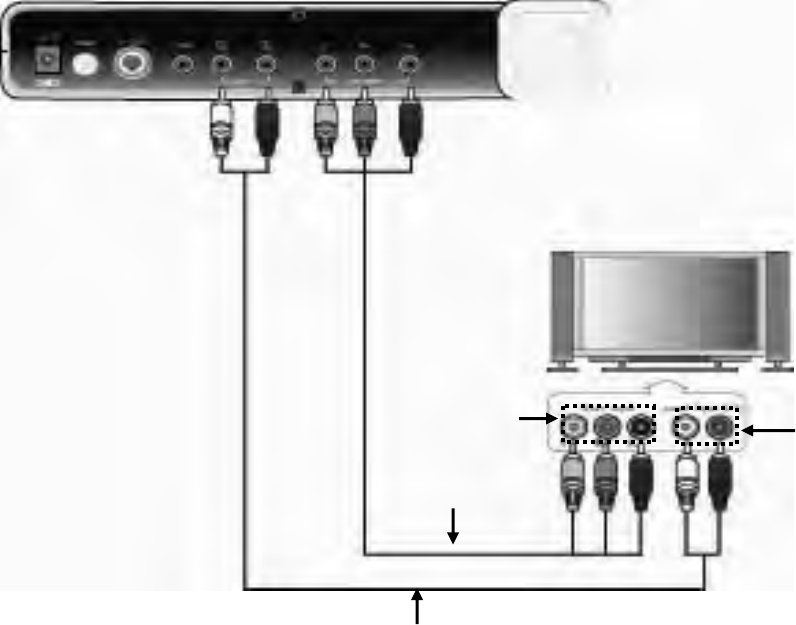

◆ Connecting HDTV Ready
1. Use the composite connection with WIVIEW and HDTV ready TV set.
2. Use the composite cable(white/red) for audio connections.
Component(YPbPr) In
(Green/Blue/Red) Audio In
(White/Red)
Component cable
(Green/Blue/Red)
Composite cable(White/Red)
21
Basic functions
Using the remote control on the menu
◆ Button descriptions
. SOURCE [figure]: Used for calling or quitting the menu screen.
. BACK/ESC [figure]: Used for going back to the previous step.
. Up/down [figure] : Used for going up and down from the menu screen.
. Left/right [figure]: Used for going left or right from the menu screen.
. Enter[figure] : Used for going to sub menu or changing setup values.
*** Using remote control for Menu setup
. Main menu: This is the Root menu and can be moved by up/down buttons.
. Sub menu: This is the Sub menu that branches from the main menu and can be moved by up/down
buttons. You can also use left/right buttons when changing setup values.
Select a category then press ENTER
to go to the sub menu Select an item that you want to change then
press ENTER to select.
22
Starting the WiVIEW
When pressing the power on the remote control, the following ID information is displayed
Note
. To change ‘Input’ ID, refer to ~ page.
. Keep 3M away from the server and client system.
23
Server (input) setup
This function is to set connections with the server and external video devices. (DVD player or PC)

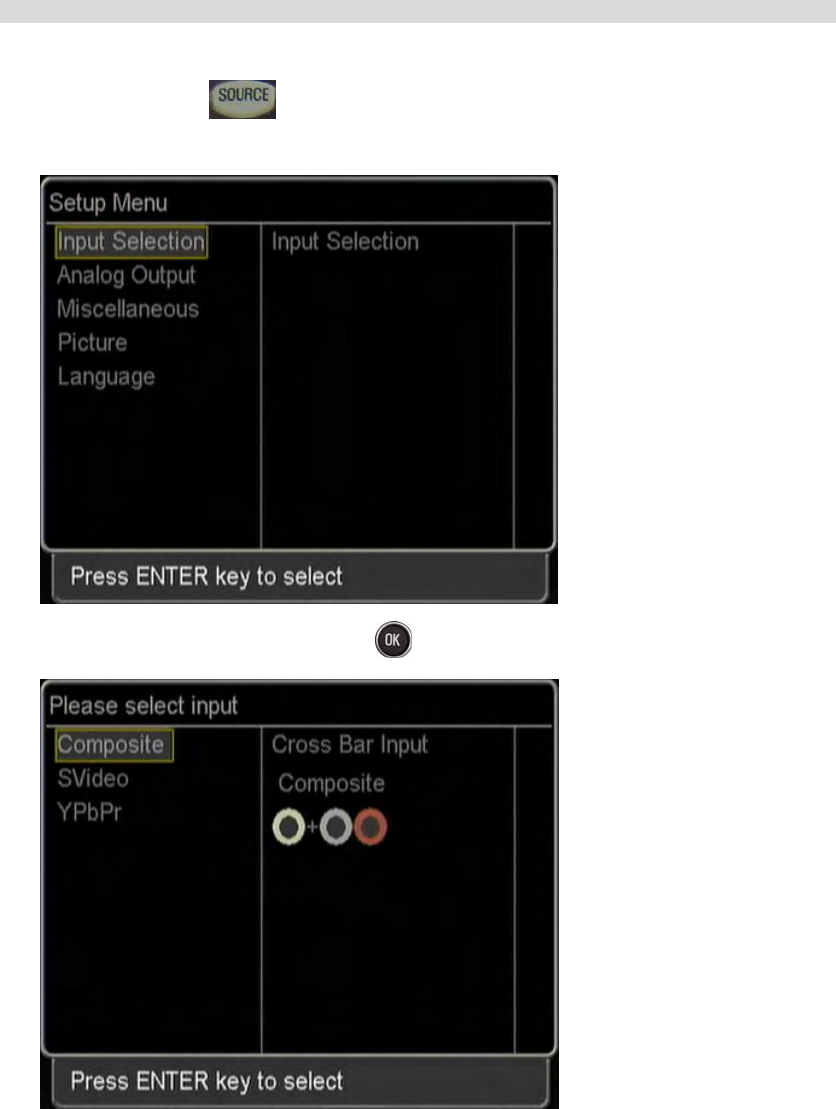

1. Press SOURCE[ ] on the remote control, then Setup Menu appears.

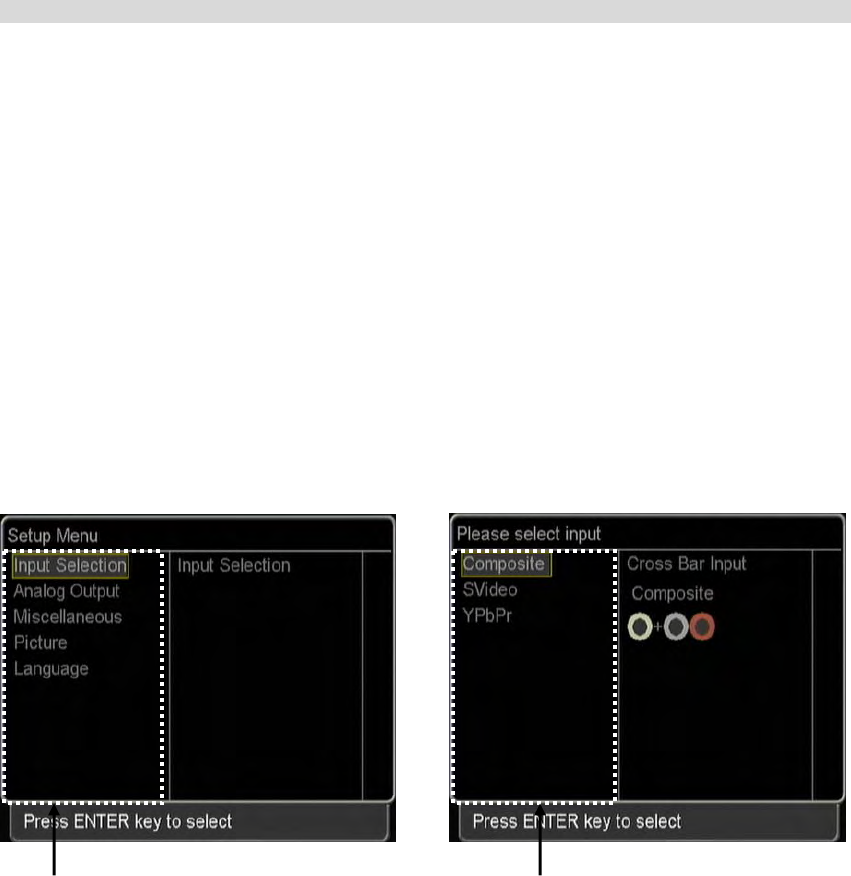

2. Select “Input Selection”
3. Select an available input, then press [ ].
24

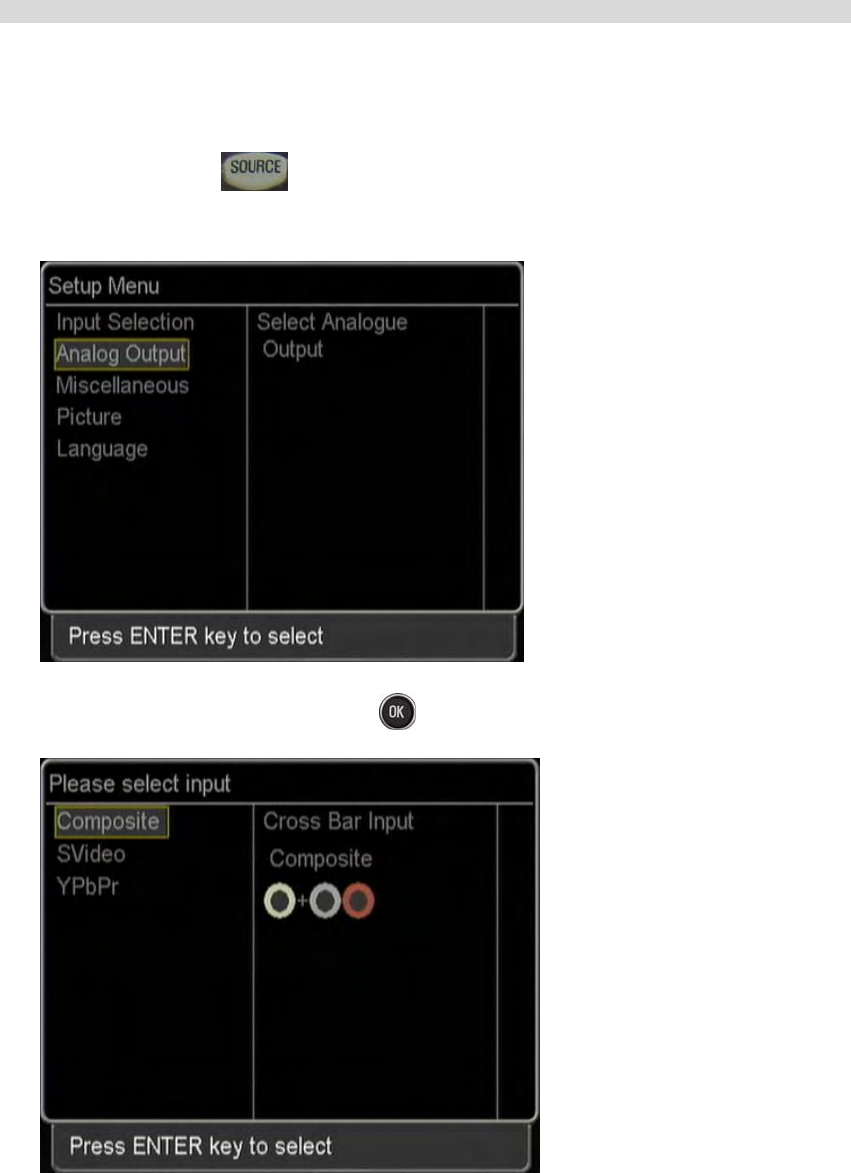

Client (Output) setup
This function is to set connections with the client and display devices (TV or monitor).
1. Press “SOURCE”[ ]’ on the remote control, then “Setup Menu” appears.
2. Select “Analog Output”
3. Select an available input‘, then press [ ].
25
Quality control
This function is to adjust the image quality on the TV screen.
1. Press ‘SOURCE[ ]’ then “Setup Menu” appears.
2. Select “Picture”
3. Select one of the Contrast, Luminance, Saturation, Sharpness and Hue.
4. Press [ ] then adjust the color value using [◀/▶].
Note
Above pictures are the examples when selecting [Contrast].
26

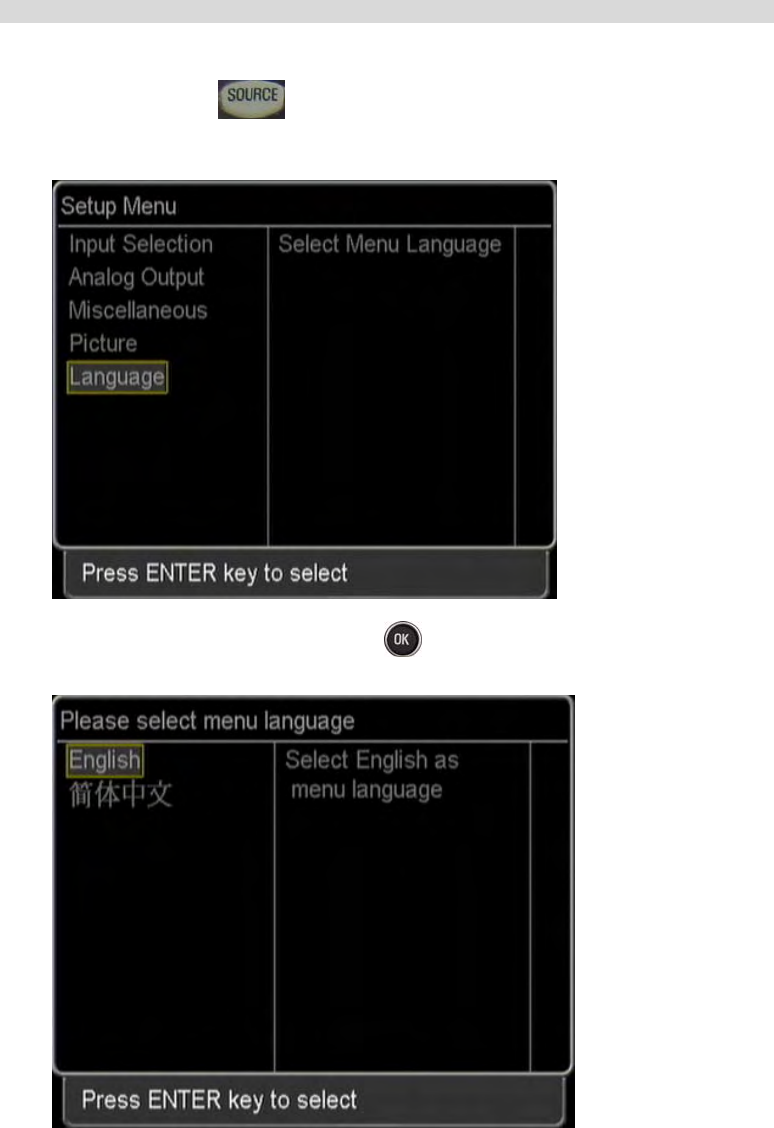

OSD language
This function is to select OSD menu language.
1. Press ‘SOURCE [ ]’ on the remote control, then “Setup Menu” appears.
2. Select “Language”
3. Select OSD menu language, then OK [ ].
27
Miscellaneous
This function is to show basic information on firmware version, server ID, EEPROM, screen saver, and
network status.
1. Press[ ]’ on the remote control.

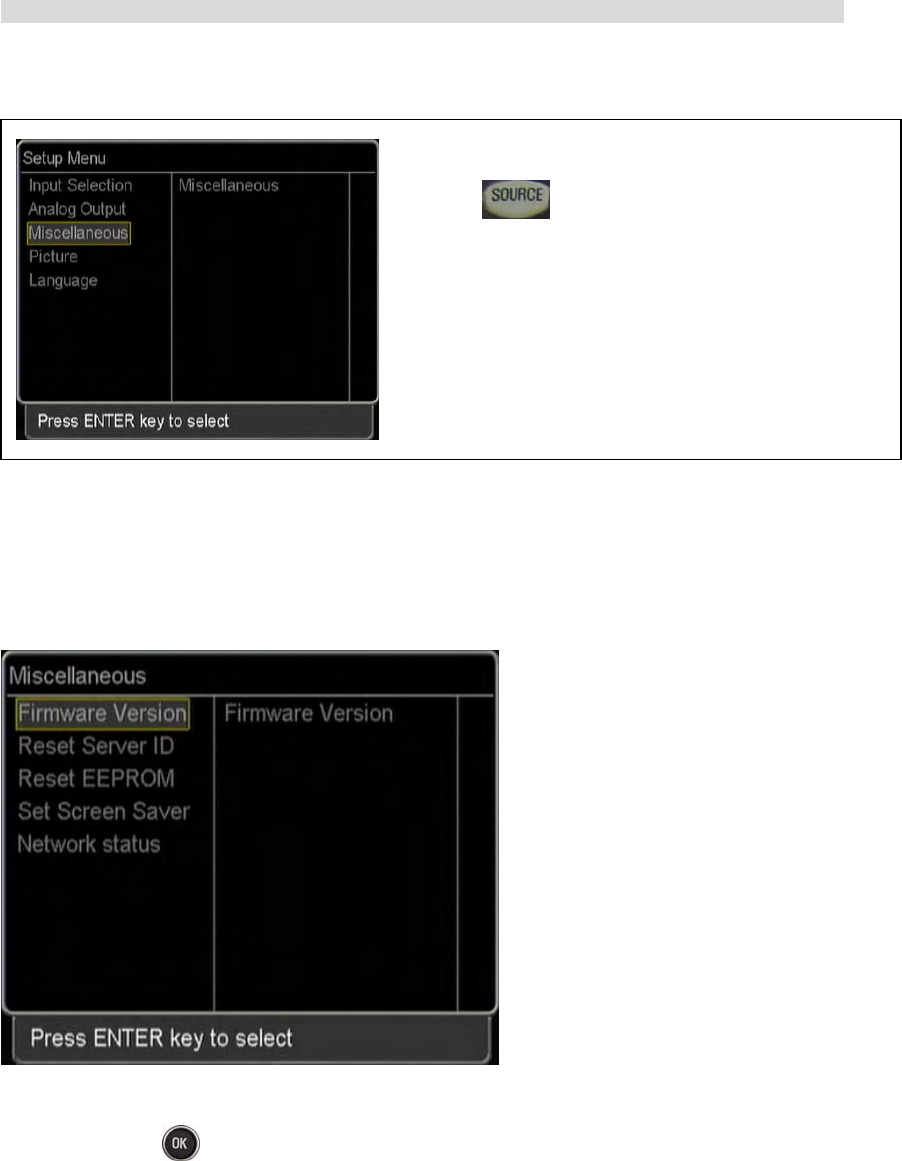

2. ‘Setup Menu’ appears then select [Miscellaneous]
. Checking Wi-VIEW information
Information on firmware versions of MPEG Decoder, Wireless Chip, Mpeg Encoder, and Wireless Chip can
be checked as below.
1. Select “Firmware Version”
2. By pressing OK[ ], firmware versions for server and client can be checked.
28
Notice
ESS MPEG decoder version for server
Xcode MPEG encoder version for client
M2Svr Wireless Chip version for server
M2Clt Wireless Chip version for client
29
. Setting Screen Saver
This function is to show a screen saver on the black screen when external video devices are not
connected. This is useful when you do not know whether the server and client are activated or not.

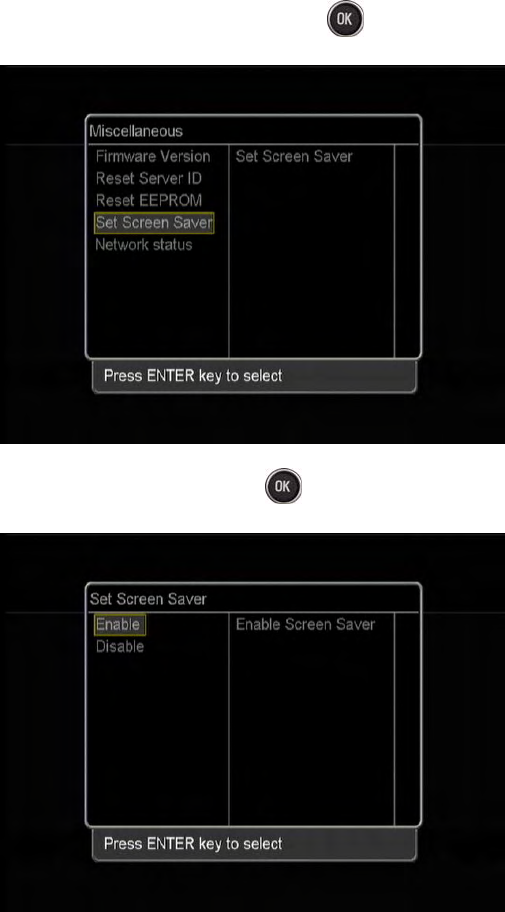

1. Select “Set Screen Saver” then press [ ].
2. Select “Enable” then press [ ].
30
. Checking the network status
This shows Client RSSI, Server RSSI, RF channel, RF frequency and stream bit rate.
1. Select “Network Status.”
2. Press [ ] then appropriate information appears.
31
Chapter 4. Using SMC(Sigma Multimedia Center)
SMC is an entertainment tool to be used to watch DVD/TV, listen to music, and view the digital
photos. This can be a unified easy control panel for all complicated interface buttons.

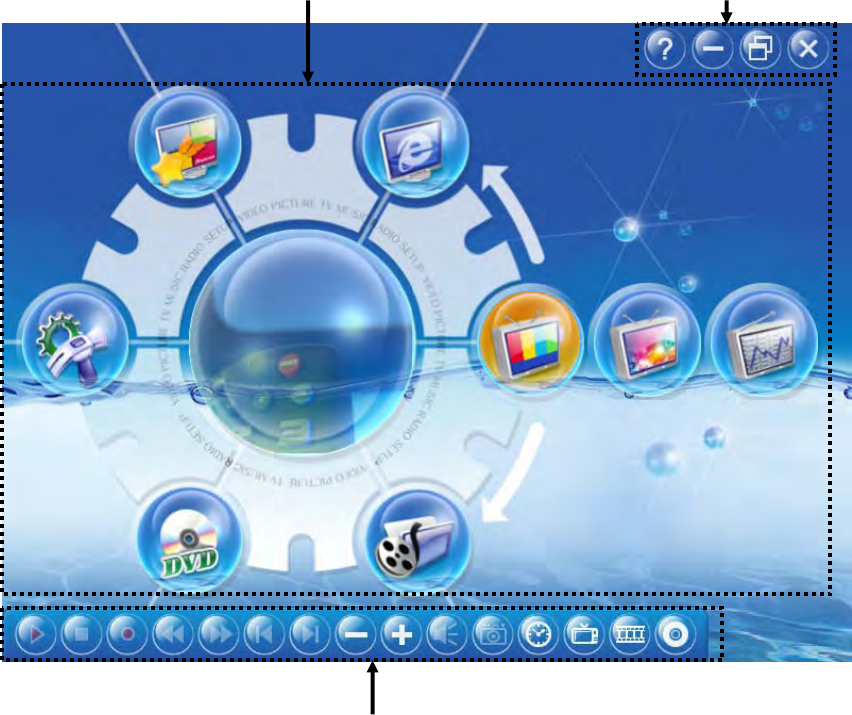

◆ Main menu screen
Main menu Windows menu
Search menu(control panel)
32
z Each menu function
■ Main menu
. Analog TV[ ], Digital TV[ ]) / Radio[ ]
These functions are used to watch TV and listen to Radio.
(SIGMA TV card should be installed in your system to enable TV functions.)
. Movie[ ] / Music[ ] / Picture[ ]
These functions are used to watch movies, listen to music and view digital photos.
.DVD [ ]
This function is used to play DVD titles.

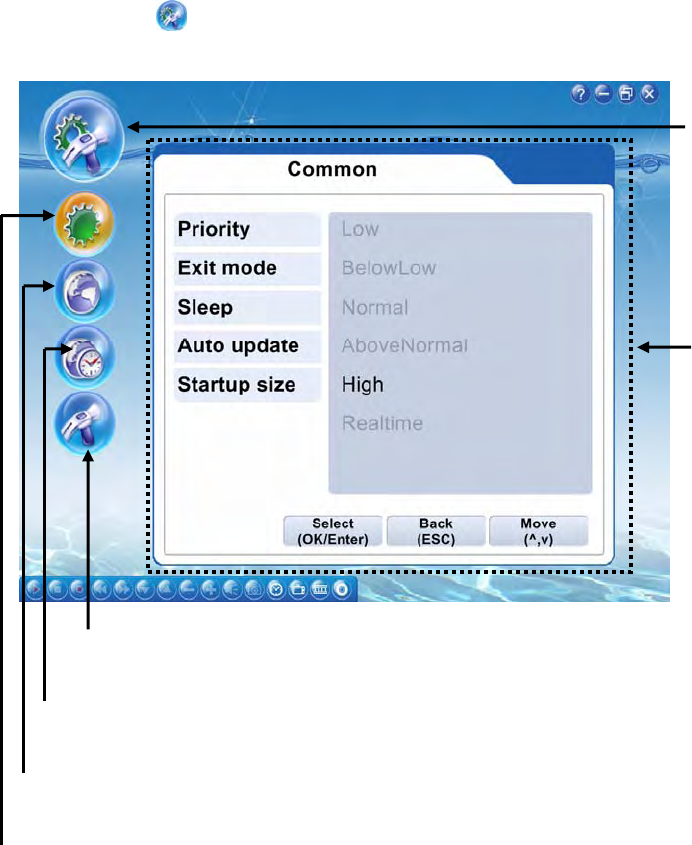

. Common[ ], TV Config[ ], File Config[ ], Multimedia Config[ ]
These functions are used to set configuration for TV, file play or multimedia control.
. Go to SIGMACOM home page[ ]
This function is to go to SIGMACOM web site.
■ Windows menu
. Help[ ]: shows program information on SMC.
. Minimize[ ]: iconizes SMC program window.
. Restore Previous Size[ ]: turns to full screen.
. Close[ ]: quits SMC program.
33
■ Search menu
.Play/Pause[ / ] : plays or pauses video(TV, video, DVD) or music files.
.Stop[ ] : stops video(TV, video, DVD) or music files.
.Record[ ] : records a watching scene as a file.
(This function is possible when TV menu has been selected.)
.Rewind/Fast Forward[ / ]: go backward or forward a video on play.
.Previous file/Next file[ / ] : go previous or next track or title.
.Previous channel/next channel[ / ]: go previous or next channel on TV or radio.
.Volume up /down / ] : volume up or down
.Sound off[ ] : makes MUTE
.Still Capture[ ] : captures a scene on the screen as a still image
(This function is enabled when TV menu has been selected.)
.Reservation[ ] : makes a reservation to turn TV on or off
.Quick TV[ ] : moves to TV mode quickly.
. Quick VIDEO[ ]: moves to VIDEO mode quickly.
. Quick DVD[ ]: moves to DVD mode quickly.
34

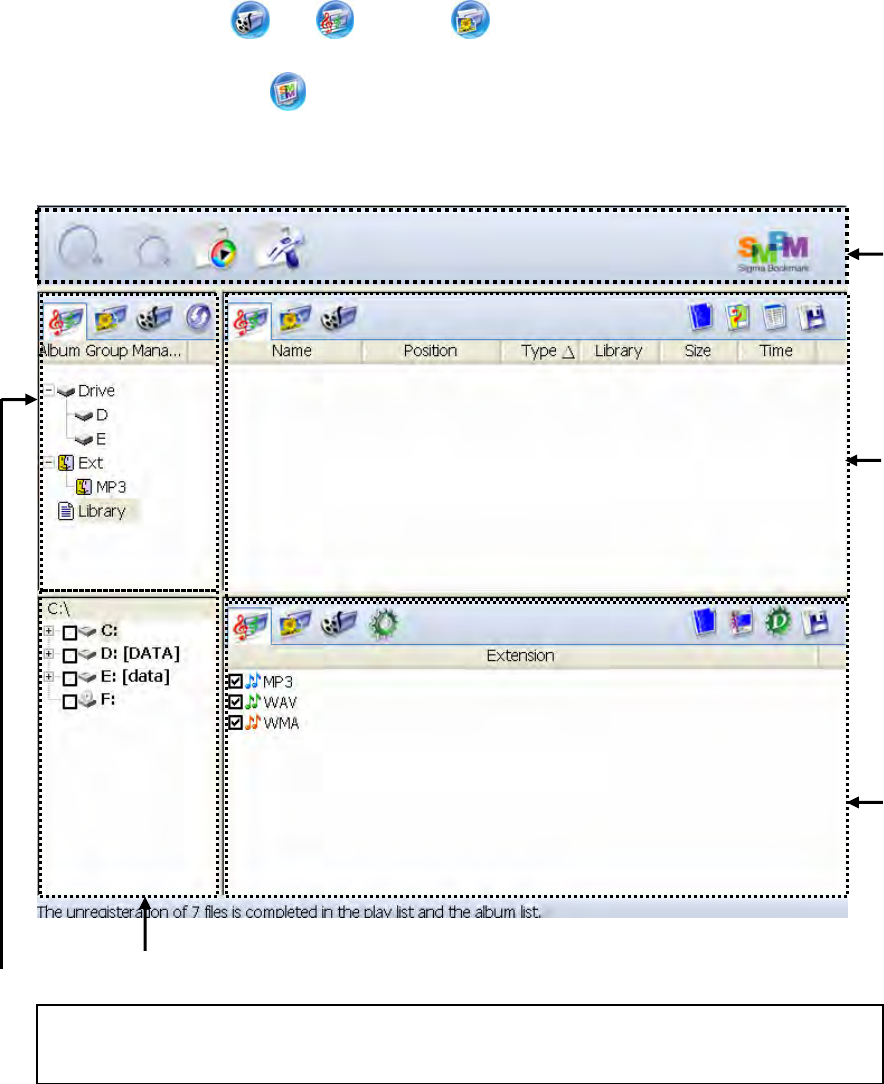

◆ Watching PC contents(video, music, picture) thru WiVIEW
This function is to view video files as album or file more conveniently. In using media (video, music,
picture)menu, files should be registered in book mark.
1. Select a media (video music and picture to be used in the main menu.
2. When pressing bookmark , the following window appears.
(Below is an example when registering music files.)
Menu
File list
Configuration
setup
File search folder
Album list
Note
If a file has not been registered, bookmark(SMBM) window appears when selecting a media menu.
35
■ Menu

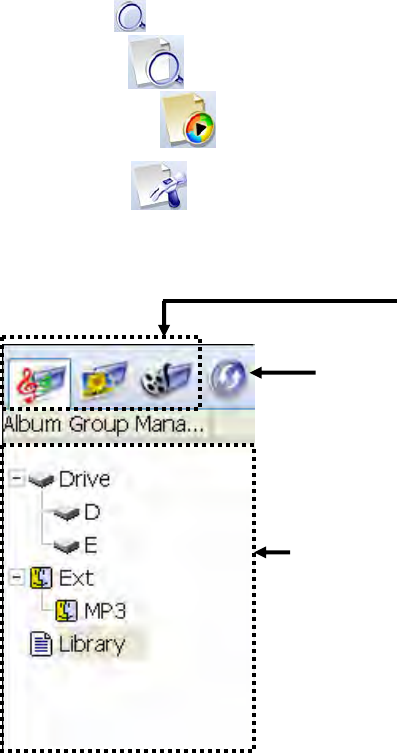

.Search files[ ] : scans media files(video, music, picture)
.Mode change[ ] : switches to Search mode or Edit mode
.Show the playlist[ ] : shows media file list(video, music, picture)
.Configuration[ ] : shows configuration to set SMBM
■ Album list
Used to select media files(video, music, picture)
Used to add, delete or change libraries
Shows scanned media contents(video, music, picture)
■ File search folder
Used to set drive or folder for searching media files (video, music, picture)
36
■ File list
Used to select media files(video, music, picture)
Used to store configuration setup
Used to arrange or mark
media files
Used to move, register or
delete a selected file
Used to select or release all media files
Used to show scanned
media files
■ Configuration setup Used to select or release all media files
Used to select media files(video, music, picture)
Used to set a font for (SMBM)
Used to store configuration
Used to turn it back to the
default value
Used to register, release or
delete a selected item
Used to show media files
Note If there is a scanned file, it turns to
p
la
y
list when selectin
g
[
]
’
37
■ Scanning files

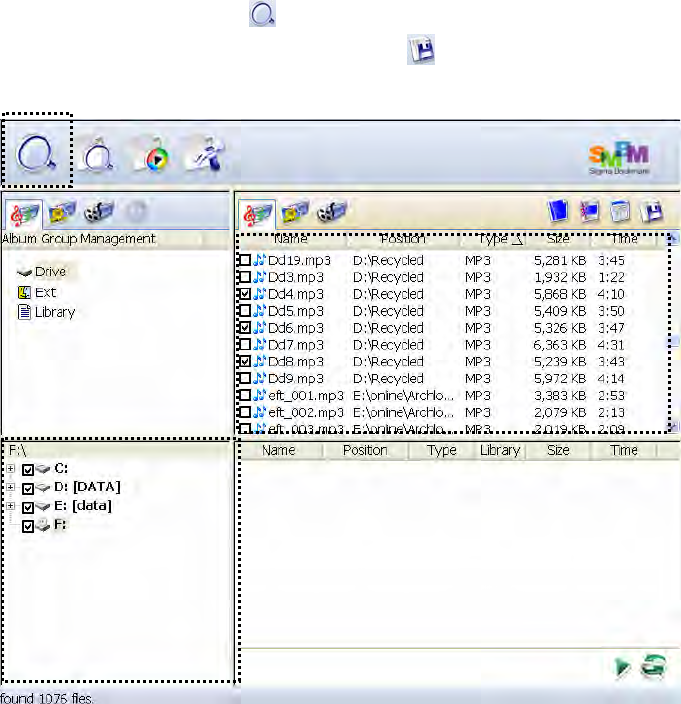

1. Select a folder to scan in the folder window.
2. When pressing ‘File search[ ]’ , scanned files appear in the file list.
3. After selecting a file to register,, press ‘file save[ ]’.
②
③
①

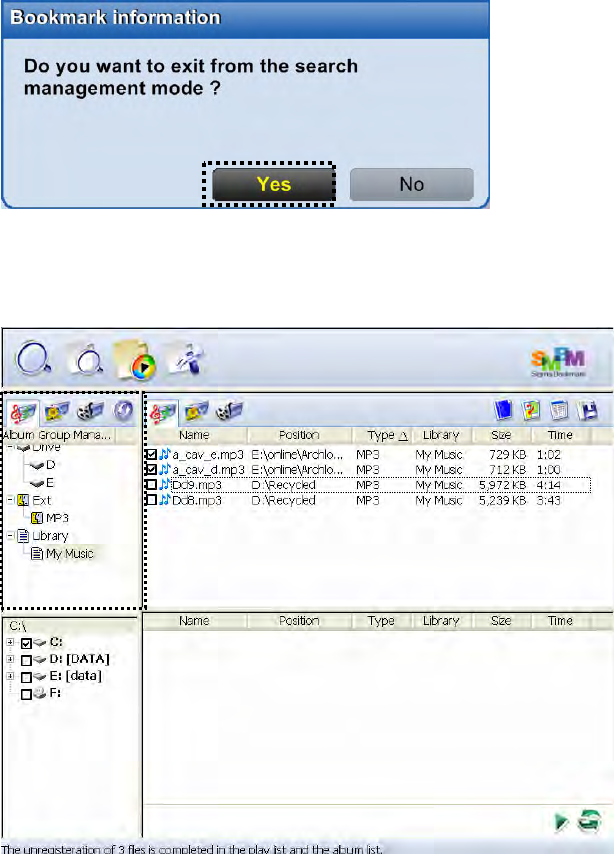

4. A message that album setting has been changed appears then press OK.
Note
In ‘Search mode’, the title color is changed to orange.
38
5. Select an item(drive, extention, library)in the album list then the following message appears.Click YES.
6. It will changed from Search mode to Edit mode and Drive, scanned file extensions, and libraries will
be created at the same time.
Check-point
A wanted file format can be searched only in the book mark. It will turn to a window that the file format can
be selected by clicking “Configuration setup”. Save by clicking “file save” after selecting a file format.
39
■ Registering files in the list
1. Select a file to register in the file list then it will be registered in “configuration setup and play list”
automatically.
2. Click “file save” to save in the “file list”.

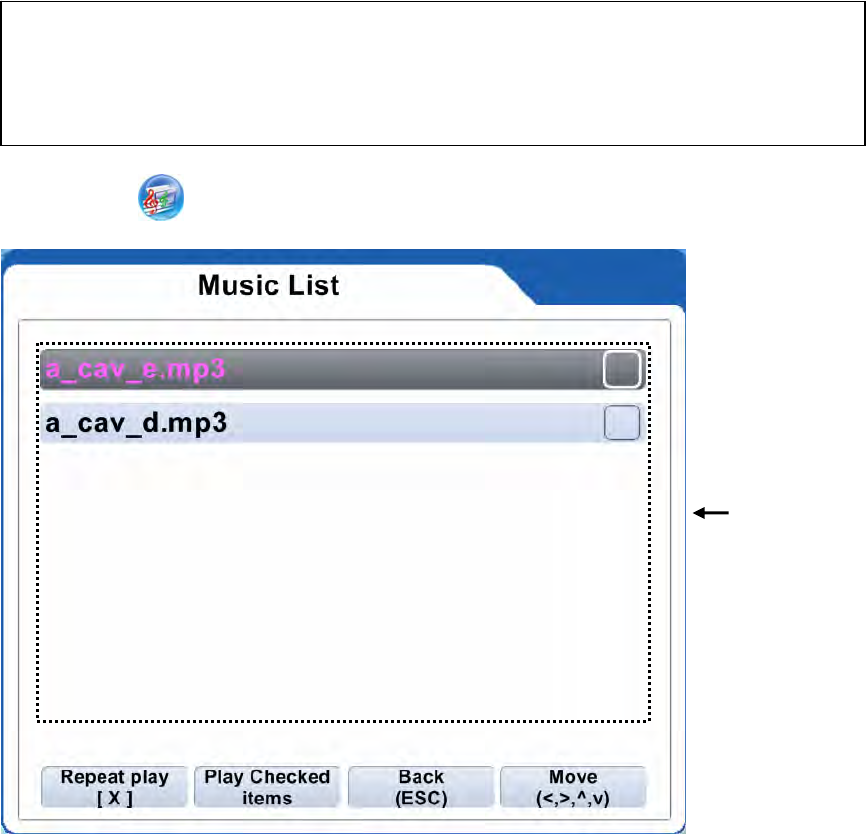

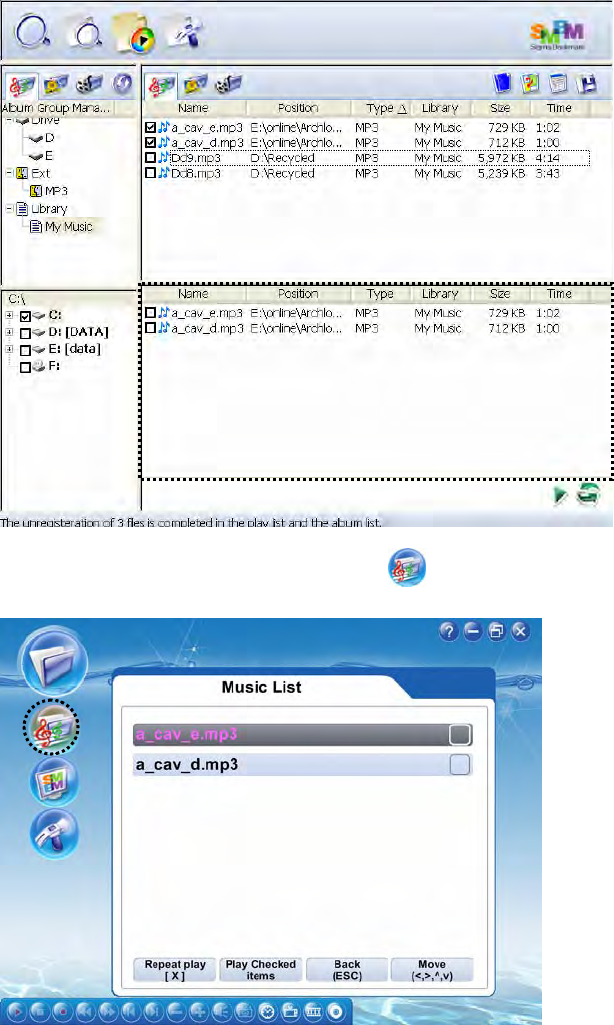

3. Saved files can be checked by clicking ‘Music[ ]’.
40
◆ SMC function
1) TV function (analog TV/digital TV)
This function is used with a TV capture card. If a TV tuner card is not installed in your system, you can not
use this function with SMC program.
z Running the TV program
1. Select ‘TV[ ]’ or ‘DTV[ ]’in the menu.
2. If this is the first time to run the SMC program, it will ask you for auto-scan as follows. Click YES to
proceed. (or by clicking ‘Auto-scan[ ]’in the TV menu)
3. If the channel scan is finished, the following screen appears.
Screen window
Menu
Note
If you can not see a TV show on the screen, make sure the antenna is connected correctly.
Refer to page ~ for antenna connection.
41
. Menu
Moves to the main screen
Shows available programs
Pre-schedules to record a TV program
Edits(add/delete) channels or favorite channels
EPG function
Configuration setup for TV programs

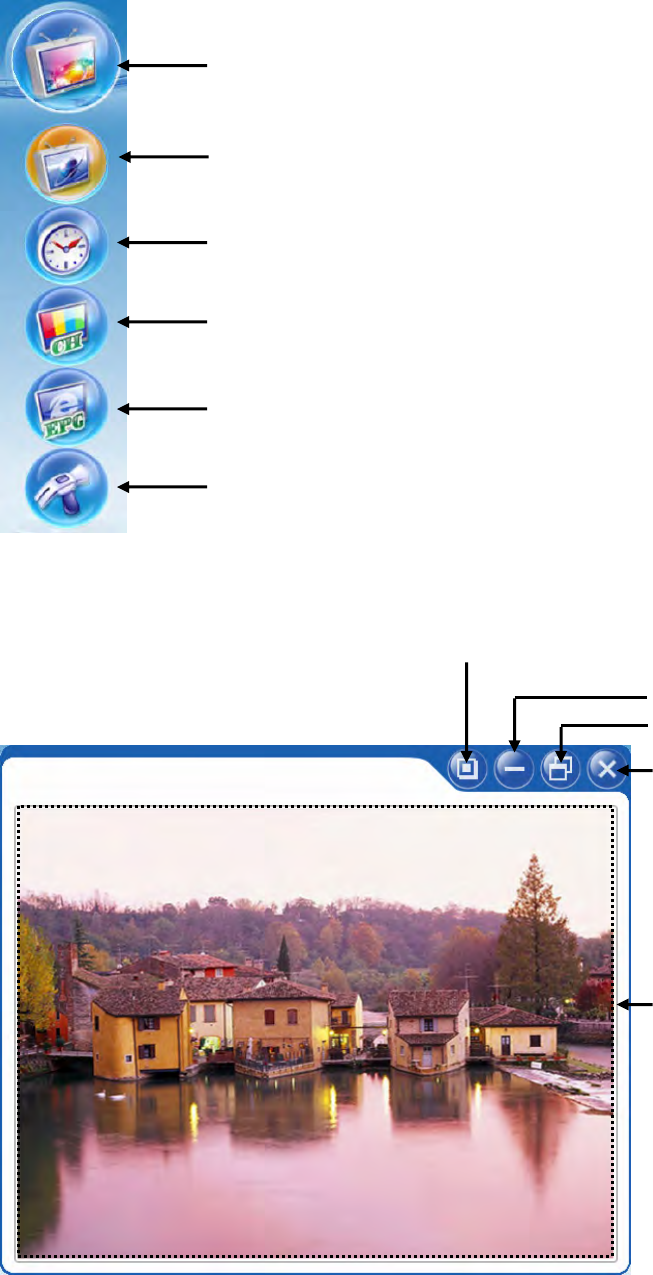

. Screen window
Shows the screen always on the top
Iconization of the screen
Maximize to full screen
Close the screen
Shows a selected TV program
42

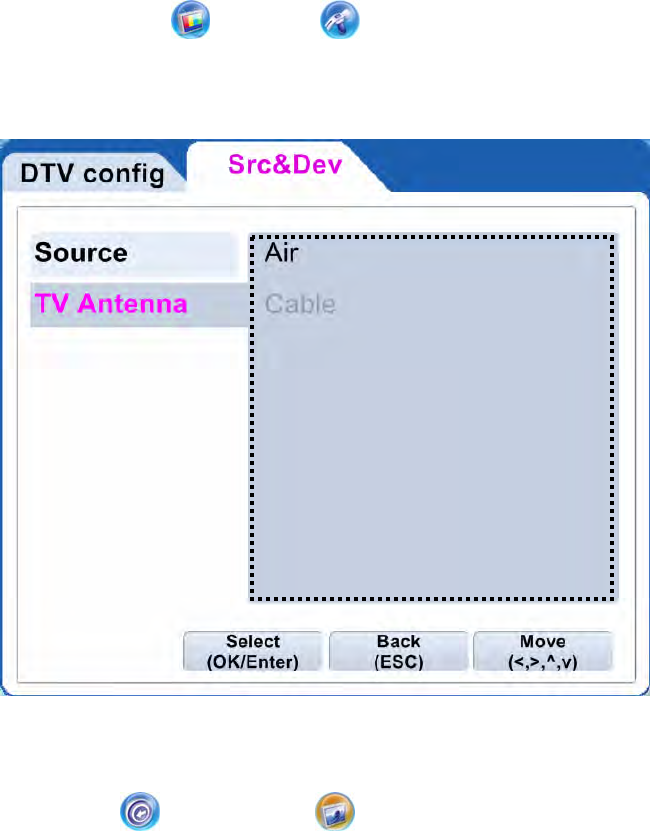

z Setting antenna
This is used to select a TV antenna connection.

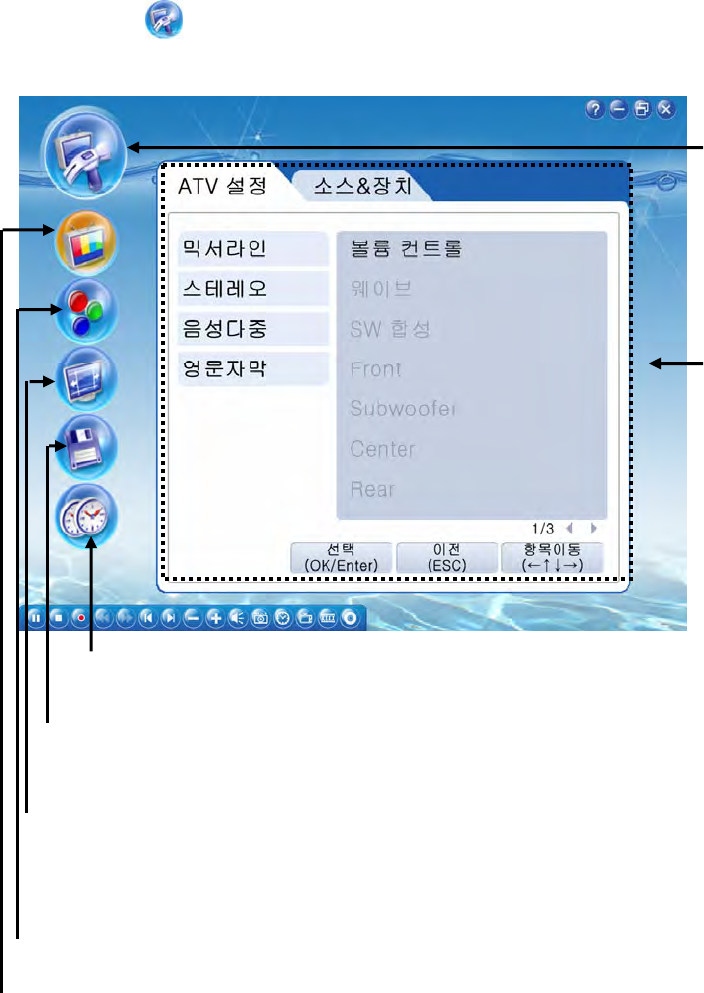

1. Select Options in ‘TV Config
2. Select ‘Src&Dev’ and TV antenna.
3. Select an available antenna connection.
4. When moving back to the previous screen by pressing ESC or BACK/ESC, the configuration
is saved automatically.
5. Press Back and select Live TV to check the TV screen.
43
z Setting TV channel
This is used to search available TV channels from the over-the-air or cable and to set channel save/delete
or favorite channels
Select ‘auto-scan[ ]’ in the menu.
■ Registered channel(channel memory/delete)
This shows scanned channel list and it also can be used to add or delete channels.
Switches to Favorites
Shows channel list
Scanned channels are marked in the check-box. ‘[ ]’
44
■ Favorite channel
This is used to manage favorite TV channels only.
. Adding a favorite channel

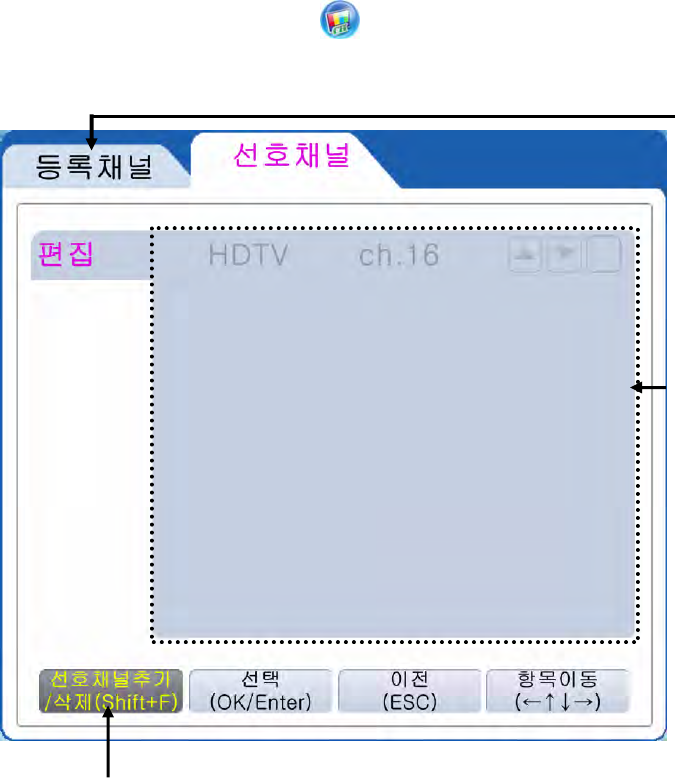

1 Select Favorite channel’ in ‘Auto-scan[ ]’ menu.
2. Select a favorite channel to be shown in the list then click “favorite channel add”.
Switches to Favorite channel
Shows favorite channels
Adds or delete favorite channels
4. By pressing ESC on the keyboard or BACK/ESC on the remote control, the settings are saved.
45
z EPG(Electronic Programming Guide)
This function is a TV program guide provided by national TV broadcast service providers. It can be used
to record a favorite TV show at a convenient time.
When selecting ‘EPG[ ]’, the following program guide window appears.
EPG search
Shows program information
Records the current program
Moves to the current selected
program
Scanned channels
Moves the table up/down/left/right
. Recording by pre-schedule
1. Select a TV program to record in the EPG table.
2. Click [ ]’ then it is registered in the pre-scheduled list automatically.
(Reserved program list can be checked in ‘pre-scheduled[ ]’menu. Refer to ~page.
Note
. The current available channels are marked in sky-blue color.
. One or more channels should be stored to run EPG.
. This function is supported in DTV mode only and the screen should be activated.
46
z Reservation
This is used to record or quit a TV program by pre-schedule system.

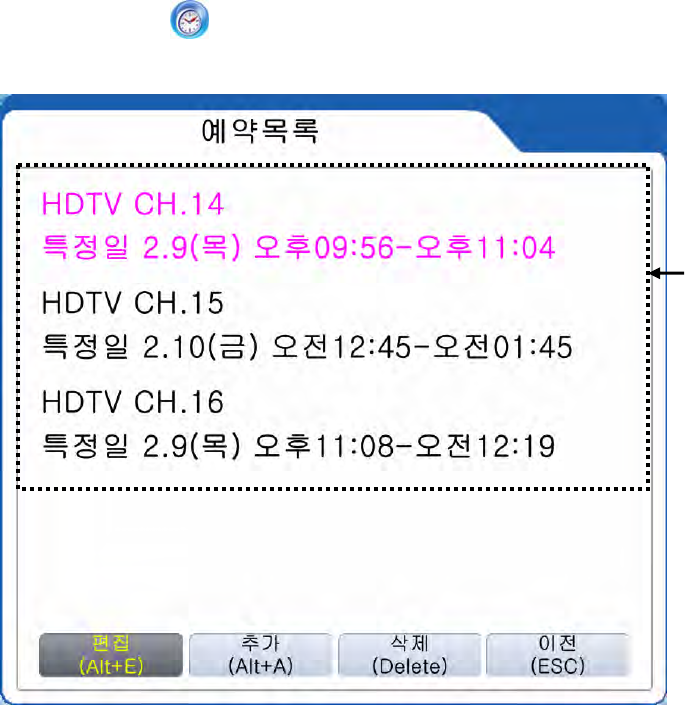

Select ‘Pre-schedule[ ]’ then pre-schedule list appears.
Shows program information to
be pre-scheduled.
47
■ Adding Reservation list
This function is to reserve a TV program in advance daily, weekly or b-weekly.

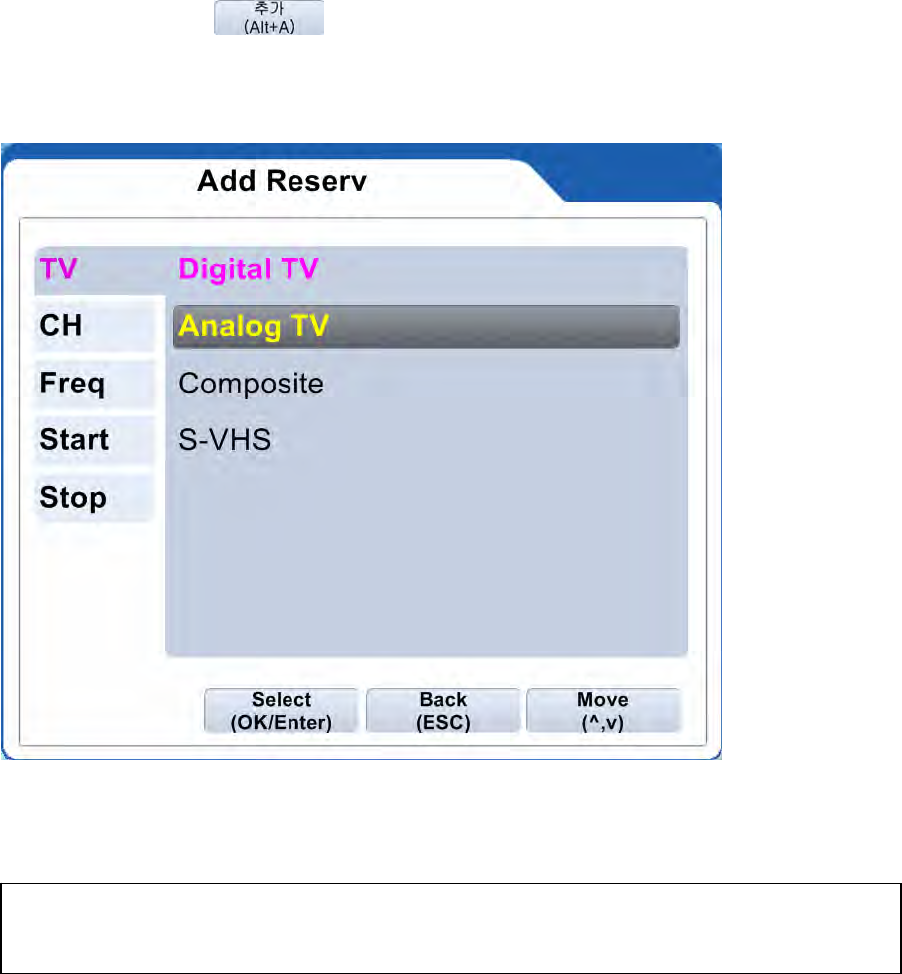

Select ‘Add reservation [ ]’ then “Add Reservation” window appears.
(Following menu is an example for DTV mode. Note that analog TV mode may have a different menu.)
1. Set a channel to reserve (virtual channel), input mode, frequency, start and stop time.
2. Press ‘Save’ to store the configurations.
Note
Reservation can be easily set by EPG. Refer to page ~ for more information on EPG.
48
z Multi-screen
This function can be used in analog TV mode only. Available channels are shown in the multi-channel
window in serial.

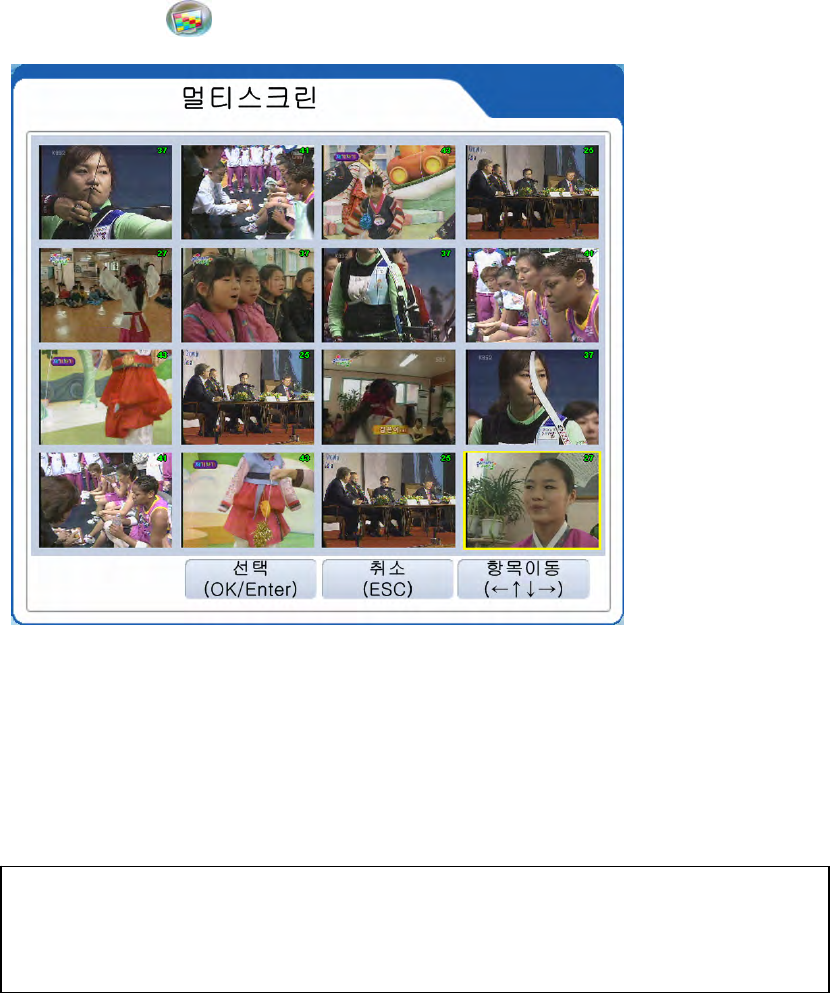

Select ‘channel edit ’ in the menu then the available channels are displayed as below.
. Watching one channel
Click a channel to view in full screen.
. Switching to window screen
Double-click a channel in the multi-screen window then it will turn to the windows screen.
Note
Available channels should be registered to watch in the multi-screen. To register channels, refer
page ~.
49
2) Music
This function is used to play music files (mp3/wav/wma) from HDD or CD-ROM Drive.
Note
Music files should be registered to use MUSIC function. Refer to page~.
1. Select ‘Movie [ ]’ in the menu then the following Music list appears.
Shows registered music files
50
2. Click “Play checked items” after selecting a music file.
Shows the current playing status
Shows the name of the music file
Note
Picture files can be shown while playing if picture files are registered while playing. Refer to page ~ to add files.
51
3) Picture
This function is used to see picture files(BMP/GIF/JPEG/JPG/PNG/TIFF) from HDD or CD-ROM Drive.
Note
Picture files should be registered in the Book Mark to use Picture function. Refer to page ~ for more
information.

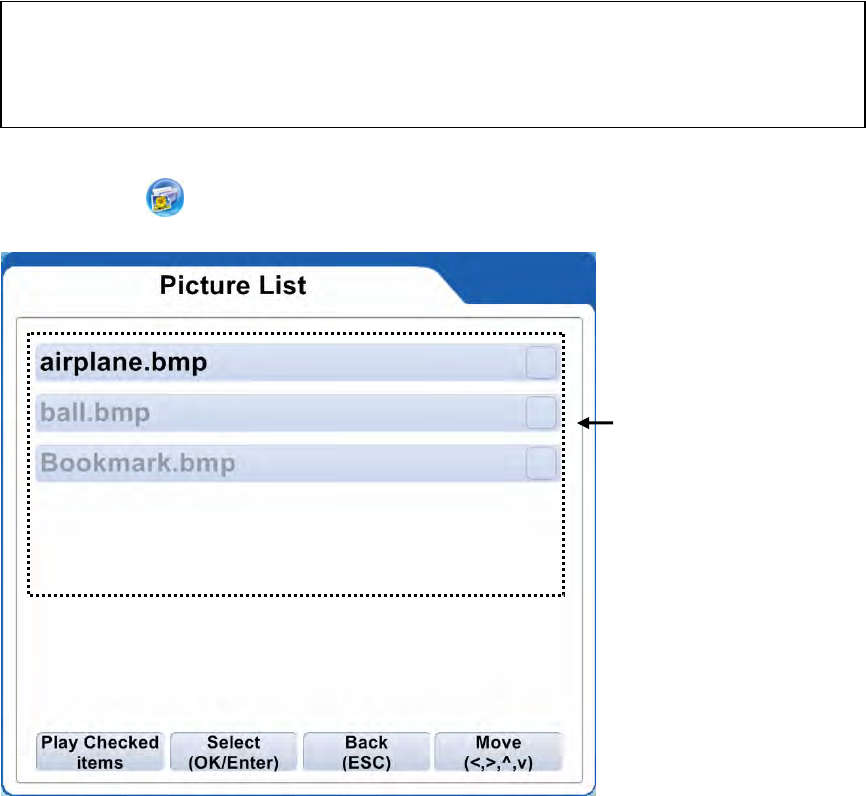

1. Select ‘Picture [ ]’ in the menu.
Shows selected picture files
2. Selected picture files will be shown by clicking ‘Play Checked item’.
52
4) Movie
This function is used to see video files(ASF/AVI/MPEG/MPG/TP/TRP/TP) from HDD or CD-ROM Drive.
. 동영상 파일을 재생하려면
Note
Video files should be registered in Book Mark to use Movie function. Refer to page~ for more
information.

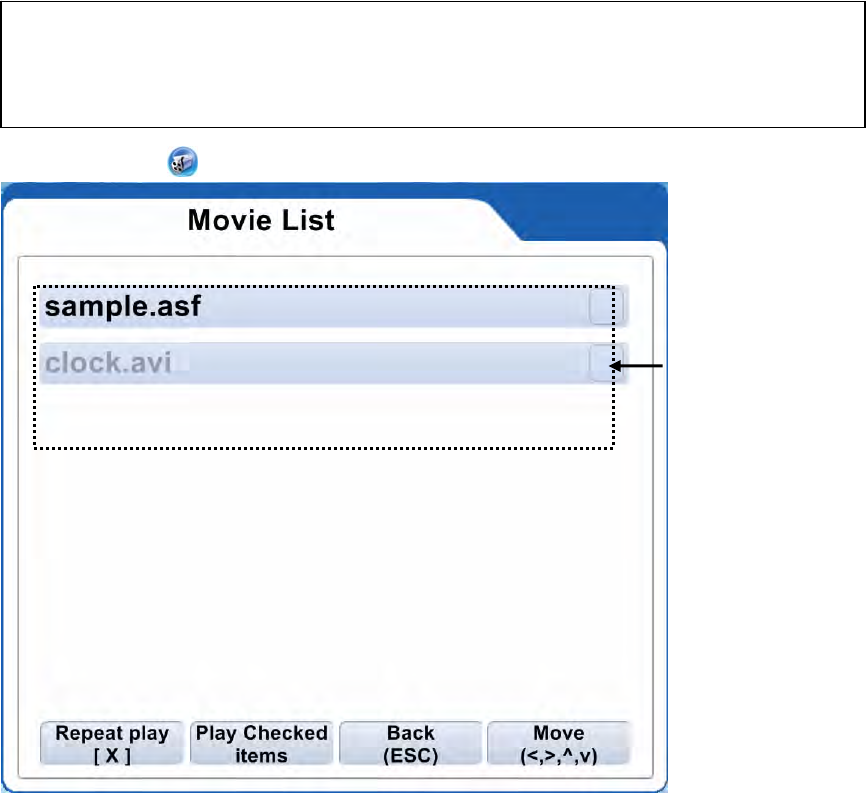

1. Select ‘Movie[ ]’in the menu then the following box appears.
Shows selected video files
53
2. Click “Play Checked items” after selecting a video file.
Shows the current playing status
(The playing position can be changed
with the mouse dragging.)
Screen window
54
5) DVD function
This function is used to play DVD titles on the DVD-ROM.

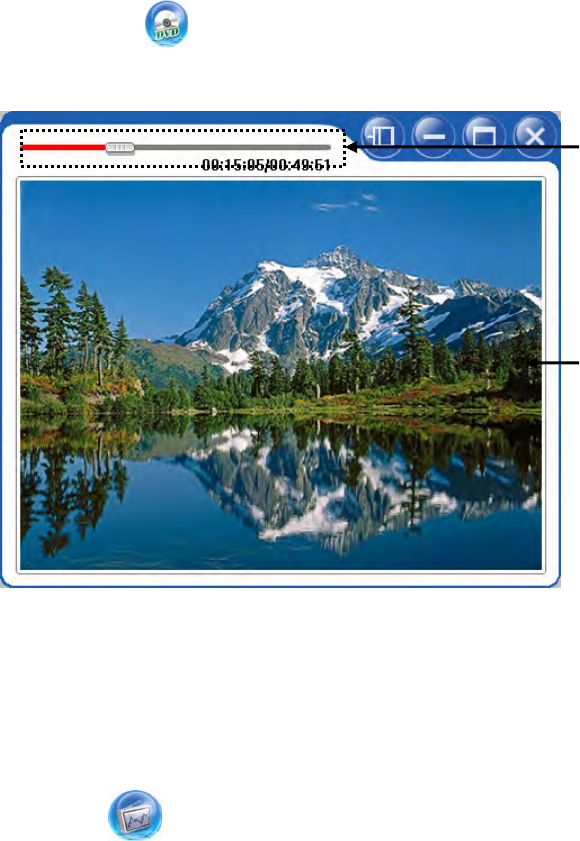

1. Insert a DVD title into the DVD-ROM.
2. Click ‘DVD[ ]’ in the menu then it will run automatically.
Playing status bar
(You can move a playing position
by mouse-dragging.)
Screen window
Note
Sub-title and angle options can be set in Setting Multimedia. Refer to the page “ “.
6) Radio function
This is used to receive radio signals from local radio stations.
Select ‘FM[ ]’ then the following menu appears.
55
Shows saved frequency table
Scans fine tune
Step search
Scans available frequencies
. Manual input for frequencies
1. Select “input channel” in FM window.
2. Input a channel you want in the input channel window and press Save.
Note
For FM radio reception, a FM radio card is required to install in your system.
Note
An antenna is required for fine frequency scan.
56
7) Setting
This is used to show configurations for each function(TV/music/file/video/picture).
The default set values can be changed.
When selecting a function to change, appropriate setup window appears.
■ General setting
This is used to set country, time zone and screen size. In addition priority, exit mode, sleep, auto update
and startup size can be set.
Select ‘Common[ ]’ in the main menu.
Moves to main menu
Sets priority, exit mode, sleep, auto update and startup size
Sets the country
Sets time
Sets the screen size
Shows selected menu
57
■ Setting TV
This menu is used to set configurations for TV input modes and pre-schedule.
.
Select ‘TV Config[ ]’ in the main menu.
Moves to previous menu
Sets TV color values
Sets required values for still image and video capture
Sets to reserve a time for start and quit
Sets overla
y
and screen size
Shows selected menu
Sets audio format from analog TV, sub-title, input modes, and antenna types
58
■ Setting File configuration
This menu is used to set play order, search time duration, aspect ratio and screen size for music and
video files.
Select ‘File Config[ ]’ in the main menu.
Moves to previous menu
Shows info on picture files and sets slide show time
Sets aspect ratio and screen size
Shows selected menu
Sets play order and search time duration
59
■ Setting Multimedia
This menu is used to set configurations for DVD or Digital Camcoder.

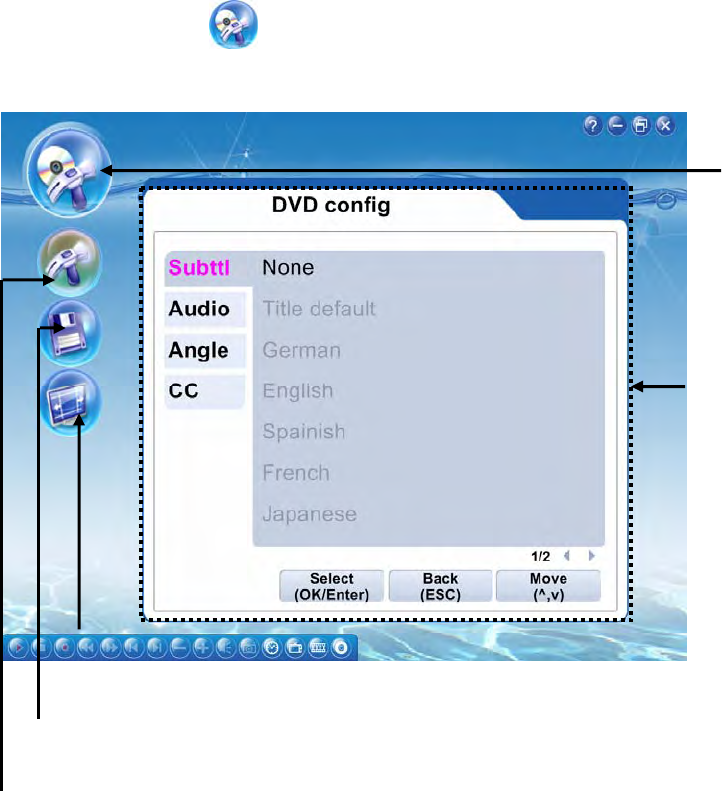

Select ‘Multimedia Config[ ]’ in the menu.
Moves to previous menu
Sets aspect ratio or screen size
Sets recording folder, file format and recording time
Shows selected menu
Sets sub-title, audio, angle and closed caption
60
