Signal Technology 1-51001EX Valve Watch Transceiver User Manual SUHNER PLANAR ANTENNA

Signal Technology Corporation Valve Watch Transceiver SUHNER PLANAR ANTENNA

Contents

Antenna information

horizontal
vertical
Radiation Pattern

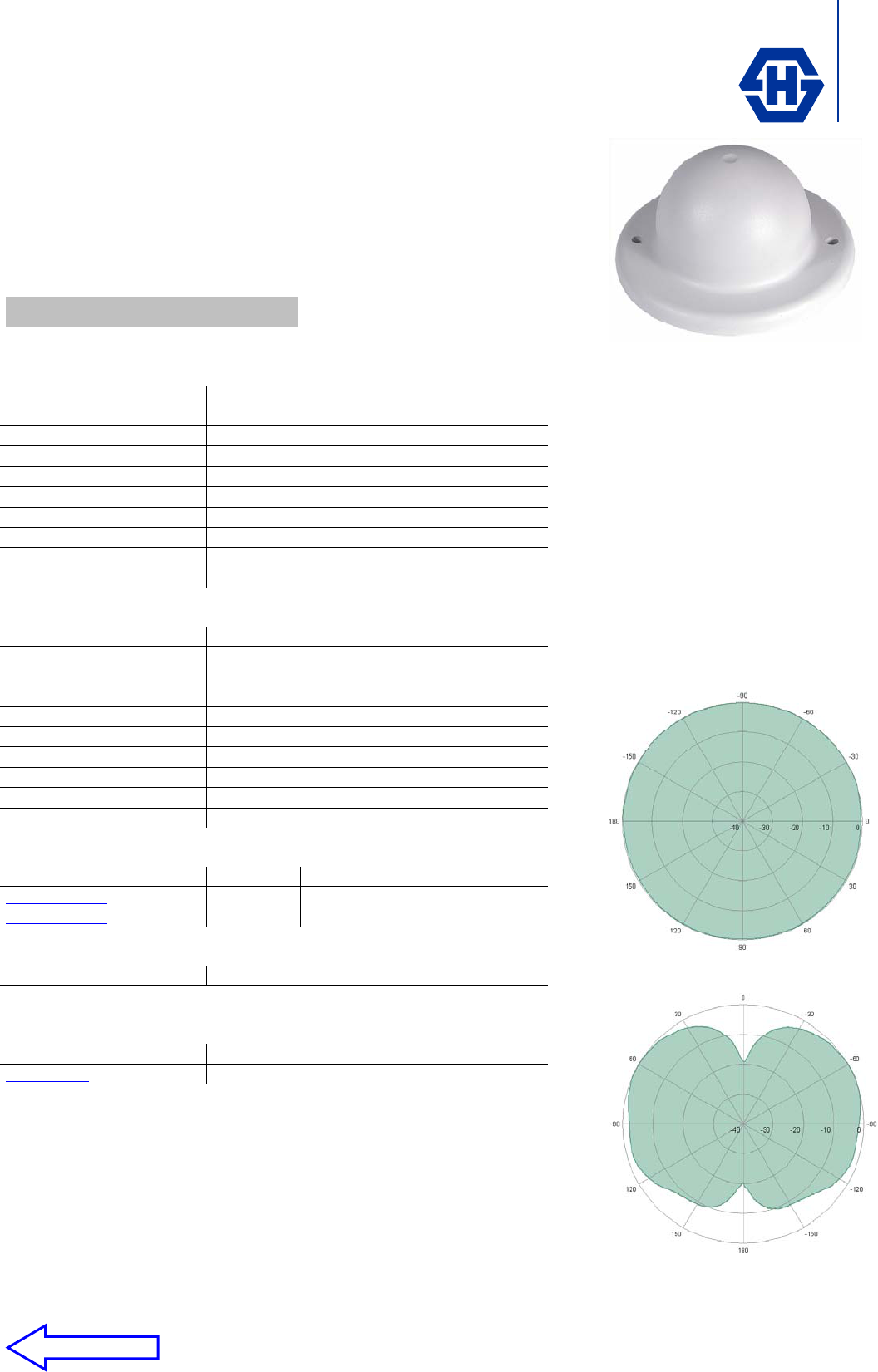

HUBER+SUHNER®
OMNI ANTENNA
FOR WIRELESS COMMUNICATION
SOA 2400/360/4/20/V
Technical Data
Electrical Properties
Frequency range 2400 - 2500 MHz
Impedance 50 Ω
VSWR 1.5
Polarization linear, vertical
Gain 4.0 dBi
3 dB beamwidth horizontal 360°
3 dB beamwidth vertical 25°
Downtilt 20°
Max. power 75 W (CW) at 25°C
Mechanical Properties
Dimensions Ø 86 x 43 mm
(Ø 3.39” x 1.69”)
Weight 0.3 kg (0.66 lbs.)
Housing material aluminium
Radome material ASA
Radome color RAL 7035 (light grey)
Operating temperature range - 40°C to + 80°C
Storage temperature range - 40°C to + 80°C
Windload 10 N at 160km/h (100mph)
Available Types Article no.
1324.17.0026 23004161 N female
1324.19.0035 23009880 SMA female
Mounting Hardware
Ceiling mounting material included.
Documents
01.02.0777 security instruction
Back to Main Menu
Document no.: 01.02.0868
Uncontrolled Copy
Issue no.: 7 Issued/Checked/Released: 4159/4417/10.2004
Supersedes: 10.2004 Last amended: 4159
HUBER+SUHNER AG
Mobile Communications + Electronics Sector
Communication Equipment Components
CH-9100 Herisau , Switzerland
Tel.: +41 (0)71 353 41 11
Fax: +41 (0)71 353 47 51
www.hubersuhner.com
HUBER+SUHNER®
OMNI ANTENNA
FOR WIRELESS COMMUNICATION
SOA 2400/360/4/20/V

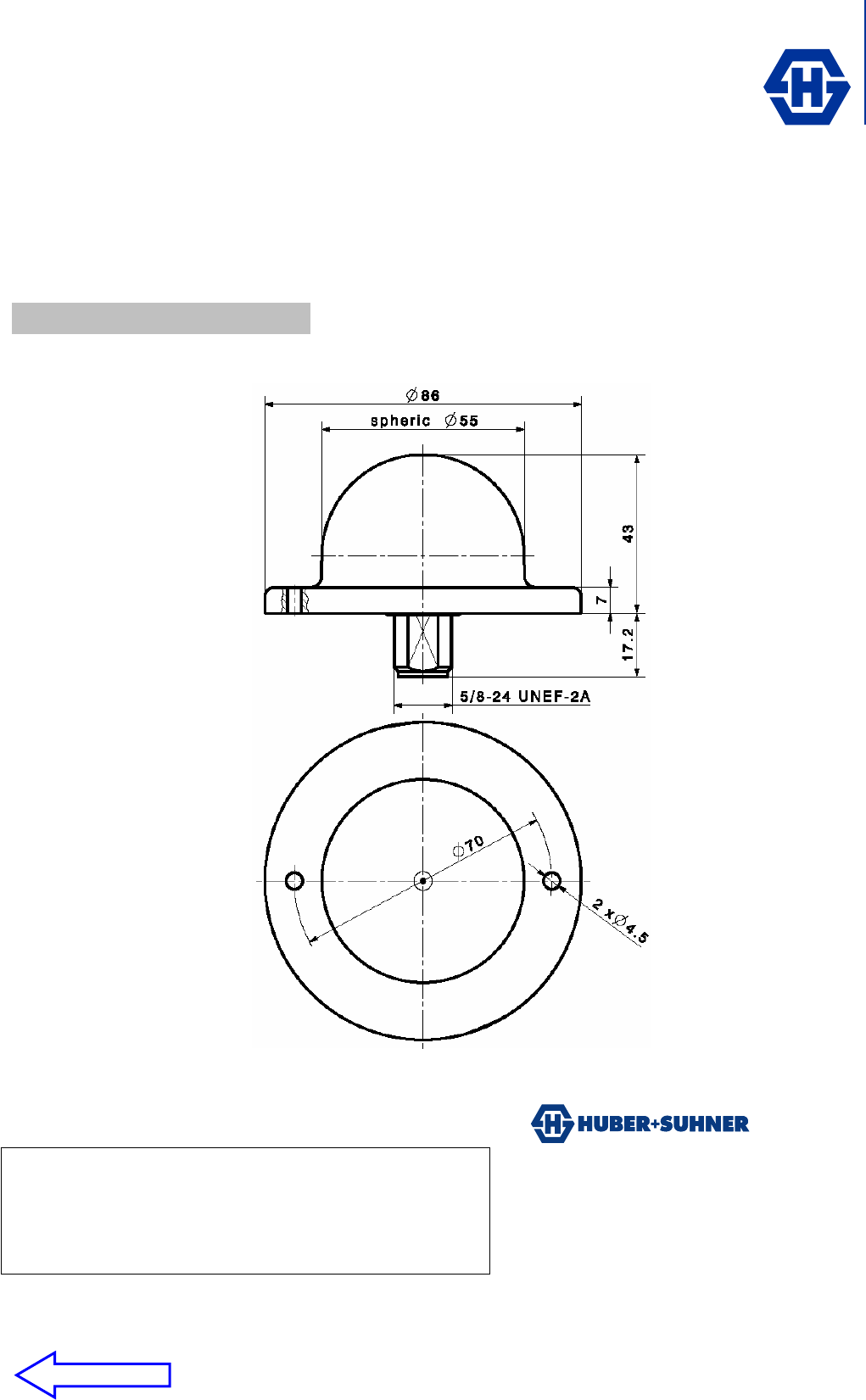

Dimensions (mm)
WAIVER!
While the information contained has been carefully compiled to the best of our present
knowledge, it is not intended as representation or warranty of any kind on our part
regarding the fitness of the products concerned for any particular use or purpose and
neither shall any statement contained herein be construed as a recommendation to
infringe any industrial property rights or as a license to use any such rights. The fitness of
each product for any particular purpose must be checked beforehand with our specialists.
HUBER+SUHNER group is certified according
to ISO 9001 and ISO 14001.
