Signcomplex LCORGBD420 WIFI 4-in1 DIMMING controller User Manual 1

Signcomplex Limited WIFI 4-in1 DIMMING controller 1

USER MANUAL

Features
RoHS
CO MPLIANT
To ensure properly use and install the light, please carefully read and keep
this instruciton manual for future reference.
◎LED CONTROLLER
INSTRUCTIONS
WIFI 4-in-1 Dimming Controller
1.Be suitable for 10S7.1, Android 4.0 + system;
2.Can get software of Apple and Android system free, no plug-ins;
3.Individualized interface design, humanized interface,easy to use;
4.There are single color,bi-color, RGB and RGBW correspond to dimming controller,
CCT controller, RGB controller,RGBW controller respectively.

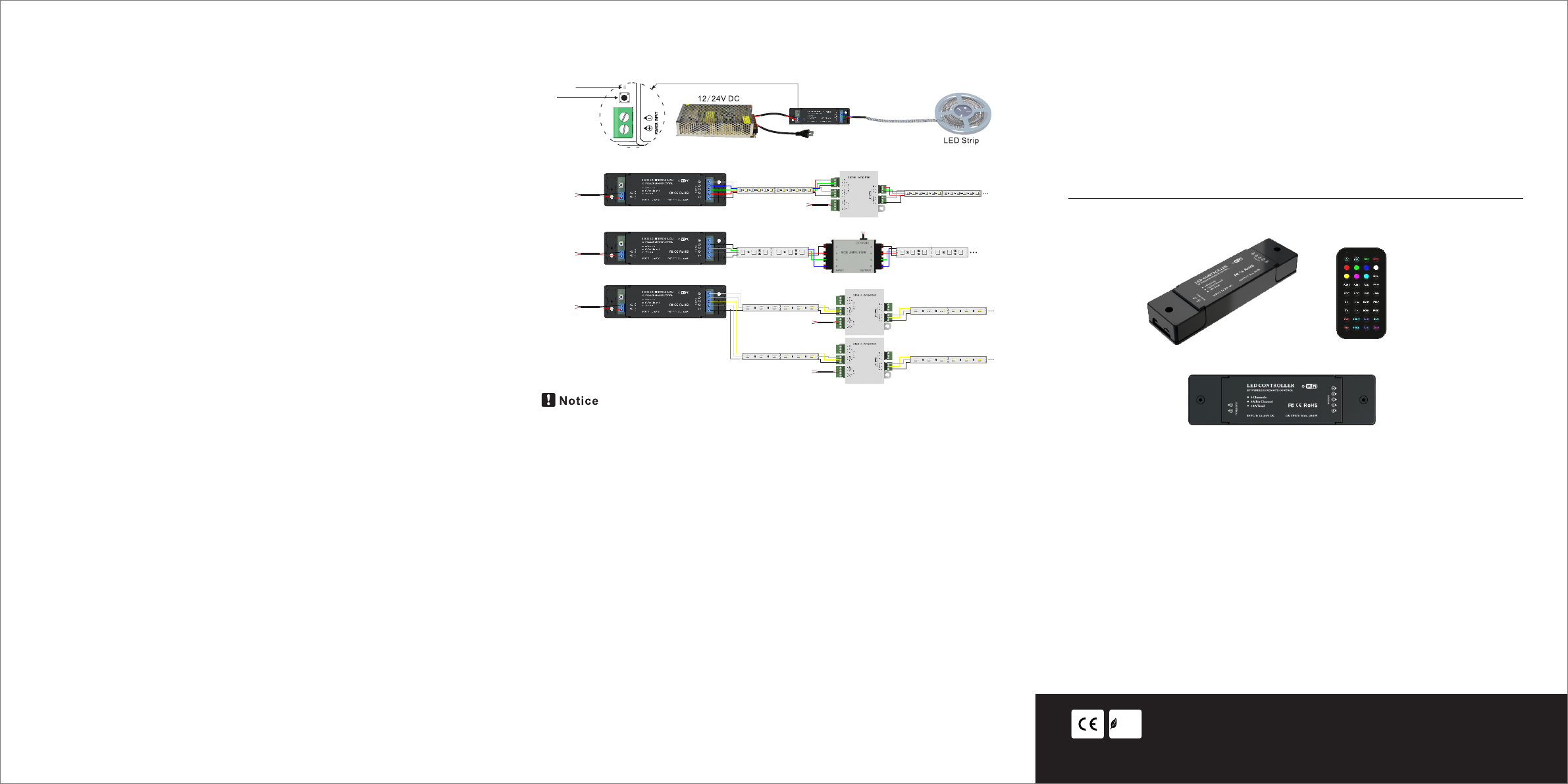

Wiring diagram:
DC 12/24V
+
B
R
G
W
+
B
R
G
W
+
B
R
G
W
+
B
R
G
W
5m RGBW Strip
+
B
R
G
W
+
B
R
G
W
+
B
R
G
W
+
B
R
G
W
5m RGBW Strip
+
W
B
G
R
RJ45
12-24V DC
DC 12/24V
+
B
R
G
+
B
R
G
+
B
R
G
+
B
R
G
5m RGB Strip
+
B
R
G
+
B
R
G
+
B
R
G
+
B
R
G
5m RGB Strip
RJ45
12-24V DC
RJ45
12-24V DC
DC12/24V
+
WW
5m WW/W St rip 5m WW/W St rip
W
+
WW
W
+
WW
W
+
WW
W
+
WW
W
+
WW
W
WW W WW W WW W WW W WW W WW W
+
WW
W
+
WW
W
WW W WW W WW W WW W WW W WW W
+
WW
5m WW/W St rip 5m WW/W St rip
W
+
WW
W
+
WW
W
+
WW
W
+
WW
W
+
WW
W
WW W WW W WW W WW W WW W WW W
+
WW
W
+
WW
W
WW W WW W WW W WW W WW W WW W
DC12/24V
LED Light
ID learning key
RF & WIFI
RF & WIFI
WIFI
1.Please use DC12-24V power supply to supply controller;please don’t use civil high-voltage
power supply;
2.Output power can’t exceed maximum output power in order to avoid damaging controller;
3.If wireless network signal is lost during using process,and the controller can’t be connected:
a) Exit software, and close software;
b) Reboot controller, disconnect power supply, and connect power supply again;
c) Enter setting, shut down wireless network, then turn on wireless network;
d) After connect wireless network again, turn on integrated APP control software, then enter
into PlayLED5.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Dimension(mm):
Technical Parameter:
150mm
130.9mm
22mm
40mm
60.5mm
98.18mm
13mm
7.65mm
57mm
107 mm
Model
Version
Input voltage
Output channel
Output current
Output power
Protection grade
Remote distance
With controller or not
Color type
Packing dimension
Weight
LC-RGBW-WiFi-02
WiFi
12V-24V DC
4 channels
4A for each channel,16A in total
192W(12V)-384W(24V)
IP20
30m
No
RGB,RGBW,RGB,W/WW LED strip
Dimension of external carton
Packing qty.
LC-RGBW-WiFi-04
WiF
12V-24V DC
4 channels
192W(12V)-384W(24V)
IP20
30m (under empty condition)
Yes
407*304.5*298mm
48pcs
Parameters
1.How to realize dimming via APP (take RGBW controller as an example)
After install corresponding control software,ensure turn on your WI-FI of mobile device,and
choose access point(such as PlayLED5),successfully connected. First turn on integrated APP
control software,then enter into PlayLED5. Enter into main interface figure(1), touch
.enter into figure 2 interface, touch interface of Back figure 1; touch Static Color, enter into
static mode; you can choose the colors you like via finger, gravity sense or random choose the
colors, and RGBW lamp will presentthe color you choose. Choose color via finger, gravity
sense, random ball as figure 2,figure3,figure 4 respectively.
APP function description
figure1
2.How to switch normal mode via APP
Click Mode Select to switch to mode select interface(figure5),and slide list up and down to
choose color mode .
a)Choose 4 modes in Mode(1. :static,2. :jump change,3. ：bright and
dark gradual change ; 4. :hybrid gradual change).In effect,you can choose effect of
single color or multiple colors.
b)In Mode 1:when effect choose single color bar, the color chosen when the lamp is on is valid
when choose multiple color bar.Then click ,the lamp bright can be adjusted when slide
bar(7) appear;
c)In mode2: when effect chose single color bar,the color chosen when the the lamp is on will
from out to bright,from bright to out; when choose multiple color bar, jump between different
color lumps. Then click ,slide bar appear (figure 6), jump change speed of lamp can be
adjusted.
d)In mode3: Effect choose single color bar,the color chosen when the lamp is on will from dark
to bright,then from bright to dark; when choose multiple color bar,one color block of lamp will
from dark to bright,and from bright to dark. After the process finish, next color block of lamp will
be bright,repeat above gradual process. Then click ,jump change speed of lamp can be
adjusted when slide bar appear.
e) In mode 4:when Effect choosesingle color bar,the color chosen when the lamp is on will from
dark to bright, then from bright to dark;when choose multiple color bar, the color block will
became dark,then became bright, and the gradual change process will be repeated. Then click
, the lamp jump change speed can be adjusted when slide bar appear.
f) is pause function, is on/off function.
figure2 figure3 figure4
3.How to realize timing function via APP
Click Timing setting of lower right corner in figure 2,enter into figure 8,click of top right
corner in figure8, and figure 9 appear, the interface is used to set timing cycle, click chosen
week,set and click OK; Click icon below Color in figure 8, and figure 10 popup,the color can be
set, click to confirm; click ON or OFF in interface 8, figure 11 popup, and the starting time
and closing time of timing function can be set.
figure5 figure6 figure7
figure8 figure9 figure10 figure11
4.How to realize music control via APP
Enter into integrated interface of APP(figure12),click in top right corner of the interface,
figure 13 pop-up; click Music Mode to enter into music interface(figure 14), click to pop
up local music menu, choose music and you can play.
