EasySense Quick Guide

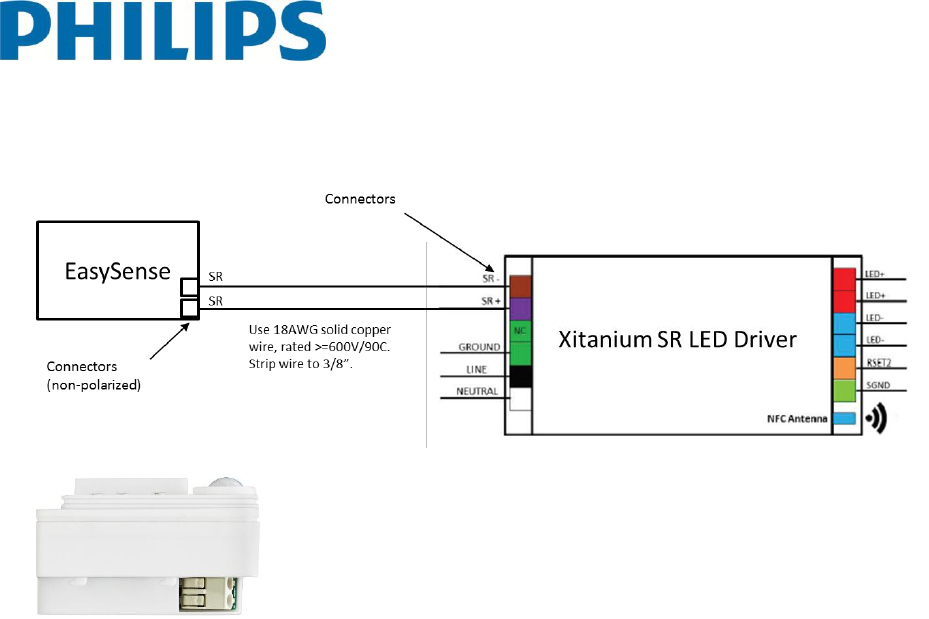

Wiring diagram
LED indicator
The product contains two indicator LEDs for compliance with California Title 20 requirements. The LED indicator by
default is enabled, and it can be disabled through the phone App. The behavior of the LED is as listed below:
Yellow LED on: = Vacancy & Sensor is functional
Red LED on: = Motion is detected and hold time is not expired yet
Sensor Functionality
The device controls the light output based on the occupancy, day light regulation and field task level.
1. Daylight based control
Daylight based control is enabled by default. The light sensor is auto calibrated every time the sensor is
switched on, meaning when the driver mains is switched on. The min dim level is set by Background Light
Level. E.g. if Background Light Level is set to be 20%, during daylight harvesting, the light will only dim
down to 20%.
2. Occupancy based control:
Upon detection of occupancy, lighting system is switched on in a number of steps, summarized as the
Switch On Sequence. Similarly, upon detection of vacancy, the lights are switched off in a Switch Off
sequence. Both sequences are described in the next sub-requirements.
If occupancy is detected, lights are dimmed up to the Switch On Light Level in 0,7 second. This is not configurable by
the user. Switch On Light Level is a predefined output level that will be activated when occupancy is detected. The
Switch On Light level is not configurable and is set to 100%.

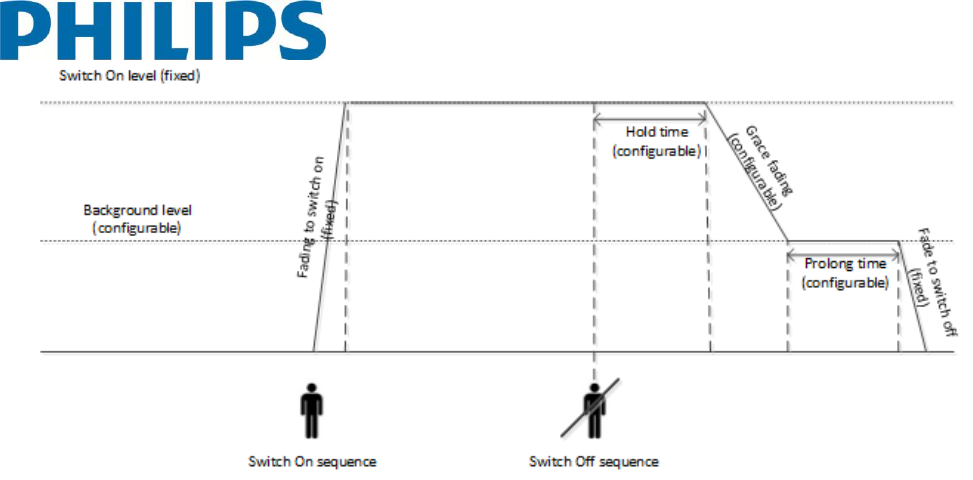

When occupancy is not detected anymore, following lighting Switch Off Sequence is executed as shown in the
diagram above. When no more occupancy is detected, the device will wait until the hold time is expired before going
to the Background Light Level. After Hold Time is expired, the light is faded to Background level in the time set by
the configurable parameter Grace Fading. The light level is kept on the background level for amount of time -
Prolong Time. After prolong time is expired, the light is faded from the Background level to off. The Fade Time is a
fixed value of 0.7 seconds.
3. Task Tuning
Field Task Tuning is a feature to reduce the maximum output of fixture to a certain percentage of the AOC current of
the driver. Task light level can be adjusted into a value between 5% and 100% of the max setting through App based
on occupant task requirement.
Configuration
The sensor can be configured through App using NFC technology. In summary, features can be configured are
Occupancy based control (Enable/ Disable, Hold time, Prolong time, Background light level, Grace fading), Daylight
based light control (Enable/ Disable), LED indicator (Enable/ Disable) and Task Tuning. The configuration range for
each parameter are listed in the EasySense datasheet.
Configuration steps:

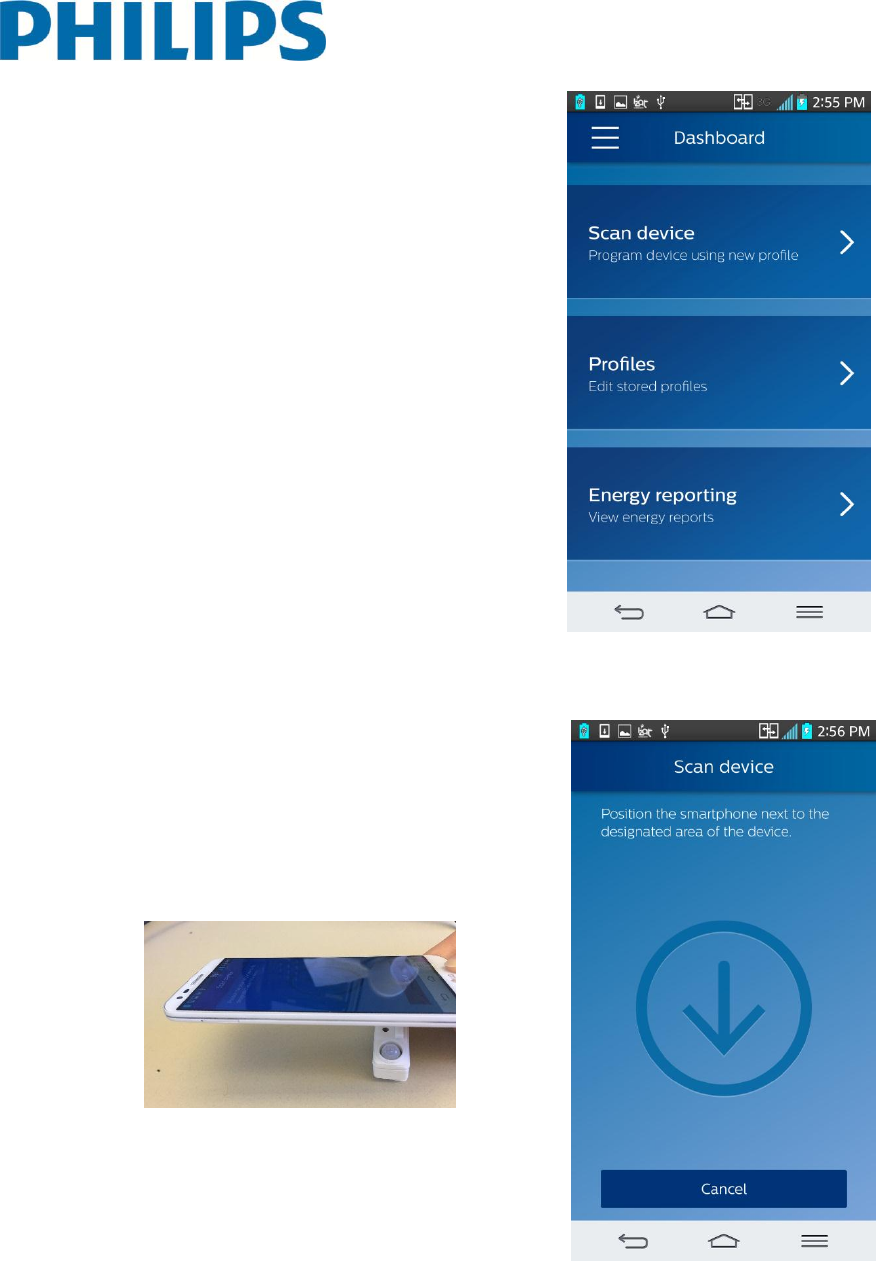

1. Select Scan device:
2. Place the back of the smartphone onto the sensor
face

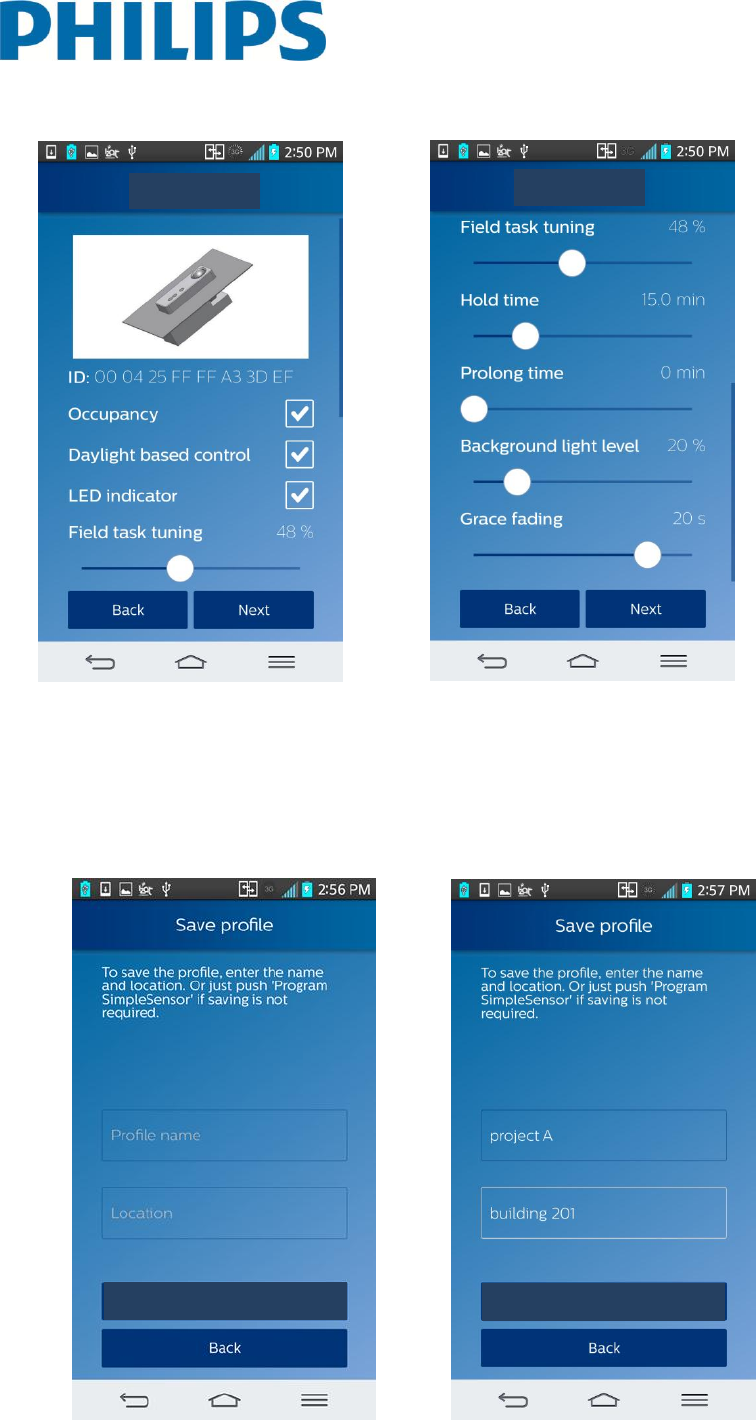

3. After hearing a beep, following screen shall show up to configure parameters. After configuration,
please press “Next”.
4. The App also provides an option to save this profile for future use by entering Profile name and
Location. This profile will be saved. You can skip entering this information and program the EasySense
sensor by press “Program EasySense”.
EasySense
EasySense
Program EasySense
Program EasySense
5. Repeat step 2.
6. After programming successfully, a green arrow shows up on the screen. More EasySense sensor can be
programmed with the same setting by press “Program EasySense”. Or press “Done” to finish
configuration.

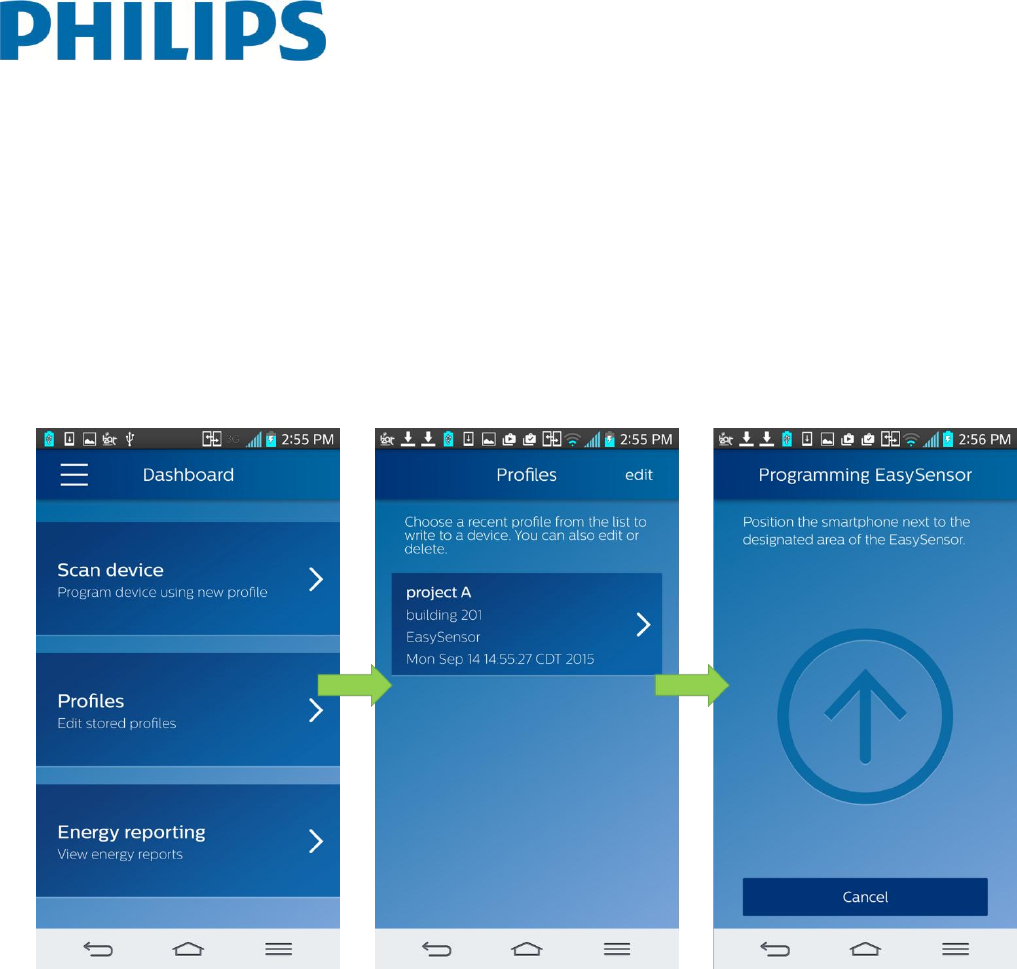

7. Once a sensor is programed, its profile is automatically saved for future use. One can go to Profile from
the main menu and select desired profile and program sensors.
FCC/IC compliance statement
This device complies with part 15 of the FCC rules for the United States and Industry Canada (IC) license-
exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Any changes or modifications not expressly approved by
Philips could void the user’s authority to operate this equipment. This product is intended for commercial
use only.
DÉCLARATION DE CONFORMITÉ À LA FCC/IC
Ce dispositif est conforme à la partie 15 des règles de la Federal Communications Commission (FCC) des
États-Unis et d'Industrie Canada (IC) exempts de licence RSS norme(s). Son fonctionnement est assujetti
aux deux conditions suivantes : (1) Ce dispositif ne doit pas provoquer de brouillage préjudiciable, et (2) il
doit accepter tout brouillage reçu, y compris le brouillage pouvant entraîner un mauvais fonctionnement.
Tous les changements ou modifications non expressément approuvés par Philips, sont susceptibles
d’annuler le droit de l’utilisateur à se servir de cet équipement. Ce produit est exclusivement destiné à un
usage commercial
©2014 Philips Lighting Electronics N.A.
A Division of Philips Electronics North America Corporation
All rights reserved.
4435 631 00331 REV. A
Philips Lighting Electronics N.A.
10275 West Higgins Road
Rosemont, IL 60018
Tel: 1-800-322-2086 Fax: 888-423-1882
Customer Support/Technical Service: 800-372-3331
