Signify North America SNS200 Ceiling Luminaire mounted light sensor User Manual 20180801 v1 PLt 15142QG EasySense QIG RevD 061818
Philips Lighting North America Corporation Ceiling Luminaire mounted light sensor 20180801 v1 PLt 15142QG EasySense QIG RevD 061818
User Manual_20180801_v1 - PLt-15142QG_EasySense QIG_RevD_061818
Sensors
EasySense
Fixture-Mount
Philips EasySense Quick Installation Guide
Commercial Product Name Order Code
EasySense Fixture-Mount Sensor SNS102
SNS200
SNS201
SNS300
Connection Color
White Neutral
Black Line
Green Ground
Purple SR+
Brown SR-
Compatible LED Drivers
Sensor Part Number
Driver Model Number Description
XI040C110V054VPT1 Xitanium 40W 0.1-1.1A 27-54V 120-277V SR
XI075C200V054VPT1 Xitanium 75W 0.1-2.0A 27-54V 120-277V SR
Specications available at www.philips.com/XitaniumSR.
Note: Below data applicable only for SNS200. Refer to Certied partner documentation for information applicable to SNS300.
Wiring Diagram
XITANIUM SR
LED DRIVER
EASYSENSE LED+
LED+
LED-
LED-
RSET2
SGND
NFC ANTENNA
SR-
Connectors
SR+
SR
SR
LINE
NEUTRAL
GROUND NC
Connectors
(non-polarized)
Use 18AWG solid copper wire,
rated >=600V/90C.
Strip wire to 3/8”.
Electrical Information
Input Voltage Powered by SR driver low-voltage interface
Current Consumption 13mA
Nominal Power Consumption 200mW
Standby Power < 1 W on luminaire level, including driver standby power
Occupancy Sensing
Type Passive infrared (PIR)
Enable/Disable Default enabled
Detection O/Auto-on; Red LED indicates “on”
Eco On Level 0-100%
Hold Time 0.5-60 minutes
Viewing Angle X=72°, Y = 86° ( See detection pattern)
Background Light Level 0-100%
Prolong Time 0 minutes - innity
Grace Fading 0-25 sec
Response Time/Fading to Switch On/O 0.7Sec
Daylight Sensing
Enable/Disable Default enabled
Auto-calibration Upon power-up
Viewing Angle 40° (half value sensitivity); 2% cut-o point at 75°
Task Tuning
Full Light Setting 0-100%
Environment & Approbation
Operating Ambient Temperature Range 0°C to 55°C
Operating Humidity 0–95% non condensing
Storage Temperature -25°C to 85°C
Storage Humidity 0-95% non condensing
Max Case Temperature (Tcase) 55°C
Agency Approbations UL, CSA; FCC; Tested and approved for use in plenums
Certication California Title 20
Limited Warranty 5 years
Digital Interface Xitanium SR
Other
Status Indicators Red, Yellow. Yellow LED on: Vacancy & Sensor is functional;
Red LED on: Motion is detected
No. Drivers per Sensor Four (max)
Field Conguration via NFC or IR. Parameters set via Philips eld apps
© 2018 Philips Lighting Holding B.V. All rights reserved.
Philips reserves the right to make changes in specications
and/or to discontinue any product at any time without notice
or obligation and will not be liable for any consequences
resulting from the use of this publication.
philips.com/easysense
Philips Lighting North America Corporation
10275 W. Higgins Road, Rosemont IL 60018
Tel: 800-322-2086 Fax: 888-423-1882
Customer/Technical Service: 800-372-3331
OEM Support: 866-915-5886
Philips Lighting Canada Ltd.
281 Hillmount Rd, Markham, ON, Canada L6C 2S3
Tel. 800-668-9008
PLt-15142QG_EasySense QIG_RevD_061818 06/18 page 1 of 2
Document #: 4435 631 00371 REV. D
Operation and Conguration via Mobile App
EasySense operates immediately upon installation and energization without further commissioning. If changes from
default settings are desired, EasySense can be congured via Philips eld apps through NFC or IR. For a complete
description of the features and default settings—as well as details on the app—refer to www.philips.com/easysense.
FCC and IC Statement
This device complies with part 15 of the FCC rules for the United States and Industry Canada (IC) license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. Any
changes or modications not expressly approved by Philips could void the user’s authority to operate this equipment.
This product is intended for commercial use only.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
Déclaration De Conformité À La Fcc/Ic
Ce dispositif est conforme à la partie 15 des règles de la Federal Communications Commission (FCC) des États-Unis et
d’Industrie Canada (IC) exempts de licence RSS norme(s). Son fonctionnement est assujetti aux deux conditions suivantes
: (1) Ce dispositif ne doit pas provoquer de brouillage préjudiciable, et (2) il doit accepter tout brouillage reçu, y compris
le brouillage pouvant entraîner un mauvais fonctionnement. Tous les changements ou modications non expressément
approuvés par Philips, sont susceptibles d’annuler le droit de l’utilisateur à se servir de cet équipement. Ce produit est
exclusivement destiné à un usage commercial.
Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
Connection Color
Red LED+
Blue LED-
Orange RSET2
Green SGND
1.72 [43.8] MAX
0.96 [24.3] MAX
0.66 [16.8] MAX
1.97 [50.0] MAX
0.30 [7.5] MAX
0.75 [19.0] MAX
1.73 [44.0]
0.67 [17.0]
R0.09 [2.3]
1.71 [43.5] 1.71 [43.5]
0.63 [16.0]0.63 [16.0]

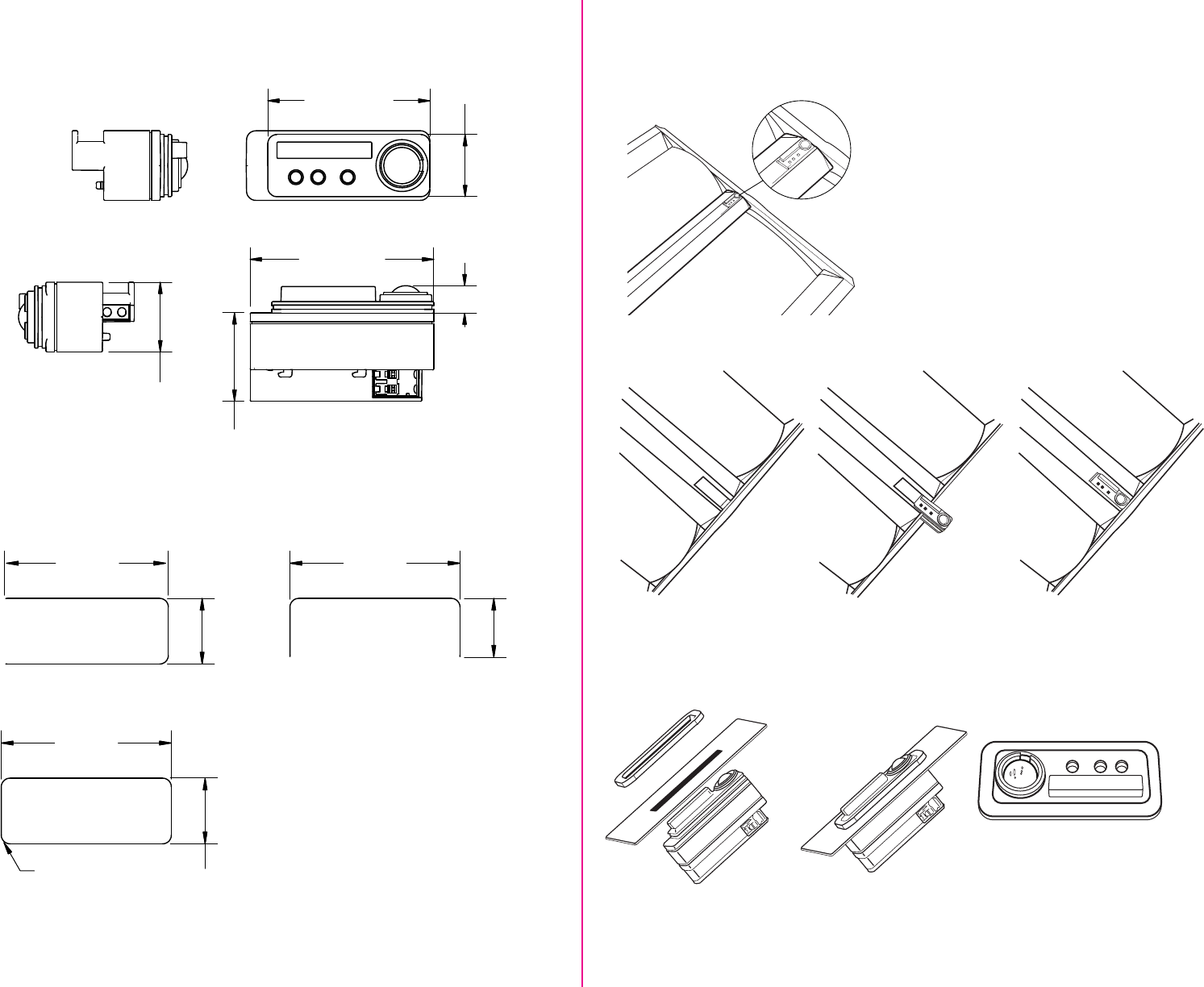

Sensor Dimensions (in/mm)
Mounting Dimensions (in/mm)
Mounting in U-shaped slot in sheet metal (max thickness 1 mm)
Mounting in cut-out in sheet metal (thickness 0.7 mm to 1.0 mm)
Fixture with EasySense installed
Mounting in a slot
Mounting in a cut-out with mounting ring
Note: Consult factory for accessory
mounting ring to secure sensor to cut-out. Accessory Mounting Ring
• Part Number SMR-50 / Set of 50.
• Ordered separately, not included.
Accessory Mounting Bracket
• Part Number SMB-50 / Set of 50.
• - Ordered separately, not included.
