INSTALLATION GUIDE
Figure 1:Layout guide for using the internal antenna
Page 2 of 8

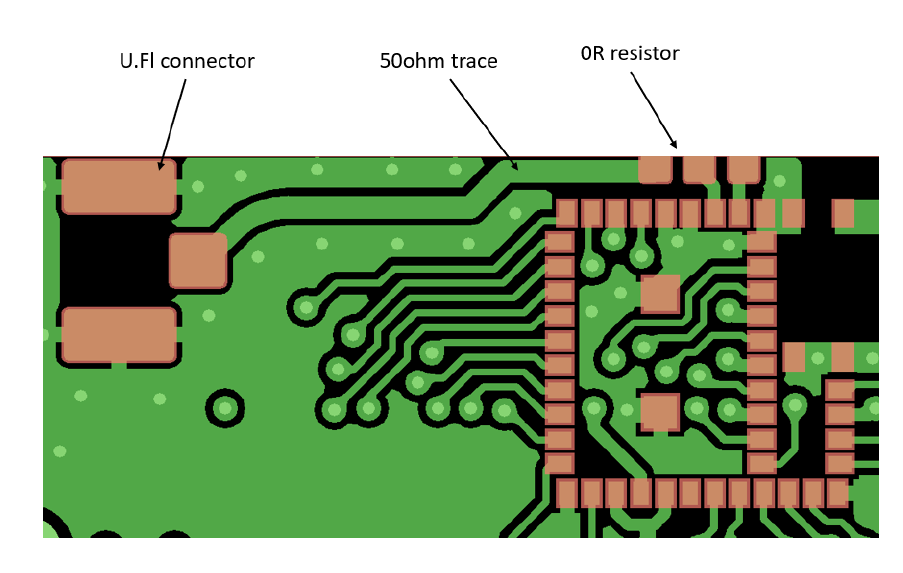

Figure 2: Layout guide for using external antenna
Page 3 of 8
Qualified Antenna Types
This device has been designed to operate with a standard 2.14 dBi dipole antenna. Any
antenna of a different type or with a gain higher than 2.14 dBi is strictly prohibited for use
with this device. Using an antenna of a different type or gain more than 2.14 dBi will require
additional testing for FCC, CE and IC. The required antenna impedance is 50 Ω.
Antenna type
Maximum gain
Dipole
2.14 dBi
Table 1: Qualified antennas for BGM13Px
Note: if an installer wishes to deviate from the detailed instructions of layout with an external antenna,
a Class 2 Permissive Change will be necessary
Japan
BGM13S22A and BGM13S22E models are certified in Japan with certification number 209-
J?????.
Since September 1, 2014 it is allowed (and highly recommended) that a manufacturer who
integrates a radio module in their host equipment can place the certification mark and
certification number (the same marking/number as depicted on the label of the radio
module) on the outside of the host equipment. The certification mark and certification
number must be placed close to the text in the Japanese language which is provided below.
This change in the Radio Law has been made in order to enable users of the combination
of host and radio module to verify if they are actually using a radio device which is approved
for use in Japan.
Certification Text to be Placed on the Outside Surface of the Host Equipment:
当該機器には電波法に基づく、技術基準適合証明等を受けた特定無線設備を装着している。
Translation of the text:
“This equipment contains specified radio equipment that has been certified to the Technical
Regulation Conformity Certification under the Radio Law.”
The "Giteki" marking shown in the figure below must be affixed to an easily noticeable
section of the specified radio equipment. Note that additional information may be required if
the device is also subject to a telecom approval.
??????

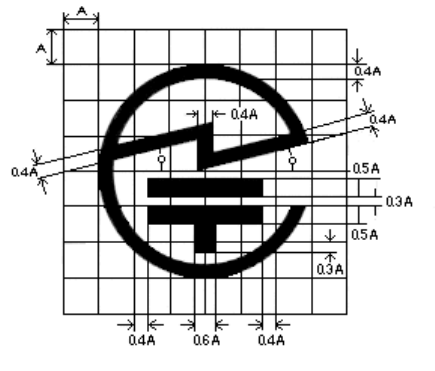

Figure 3: GITEKI mark and ID
Page 4 of 8
Figure 4:GITEKI mark
CE
The BGM13S22 modules are in conformity with the essential requirements and other
relevant requirements of the Radio Equipment Directive(RED). Please note that every
application using the BGM13S will need to perform the radio EMC tests on the end product
according toEN 301 489-17. Separate RF testing is not required provided that the customer
follows the module manufacturer's recommendations and instructions and does not make
modifications e.g. to the provided antenna solutions or requirements. A formal DoC is
available via www.silabs.com
BGM13S32 module is in conformity with the essential requirements and other relevant
requirements of the Radio Equipment Directive(RED) at nominal 10 dBm transmit power.
The transmit power of the module is not limited and when an end product is using
BGM13S32, the end product manufacturer is responsible that the end product is in
inconformity of all relevant requirements of the RED.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by Silicon Labs could void the user’s authority to
operate the equipment.
Page 5 of 8
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter meets both portable and mobile limits as
demonstrated in the RF Exposure Analysis. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter except in accordance with
FCC multi-transmitter product procedures.
OEM Responsibilities to comply with FCC Regulations
OEM integrator is responsible for testing their end-product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC
peripheral requirements, etc.).
With BGM13S32 the antenna(s) must be installed such that a minimum separation
distance of 50.5 mm is maintained between the radiator (antenna) and all persons at
all times.
With BGM1SP22 the antenna(s) must be installed such that a minimum separation
distance of 0 mm is maintained between the radiator (antenna) and all persons at all
times.
The transmitter module must not be co-located or operating in conjunction with any
other antenna or transmitter except in accordance with FCC multi-transmitter product
procedures.
IMPORTANT NOTE: In the event that the above conditions cannot be met (for certain
configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
The variants of BGM13P Modules are labeled with their own FCC ID. If the FCC ID is not
visible when the module is installed inside another device, then the outside of the device into
which the module is installed must also display a label referring to the enclosed module. In
that case, the final product must be labeled in a visible area with the following:
Contains Transmitter Module FCC ID: QOQ13
or
Contains FCC ID: QOQ13
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module or change RF related parameters in the user
manual of the end product.
ISED Canada
Page 6 of 8
This radio transmitter (IC: 5123A-13) has been approved by Industry Canada to operate with
the antenna types listed above with the maximum permissible gain indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that type,
are strictly prohibited for use with this device
This device complies with Industry Canada’s license-exempt RSS standards. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device
RF Exposure Statement
Exception from routine SAR evaluation limits are given in RSS-102 Issue 5.
The models BGM13P32E and BGM13P32A meet the given requirements when the minimum
separation distance to human body is 40 mm.
The models BGM13P22A and BGM13P22E meet the given requirements when the minimum
separation distance to human body is 20 mm.
RF exposure or SAR evaluation is not required when the separation distance is same or
more than stated above. If the separation distance is less than stated above the OEM
integrator is responsible for evaluating the SAR.
OEM Responsibilities to comply with IC Regulations
The BGM13P modules has been certified for integration into products only by OEM
integrators under the following conditions:
The antenna(s) must be installed such that a minimum separation distance as stated
above is maintained between the radiator (antenna) and all persons at all times.
The transmitter module must not be co-located or operating in conjunction with any
other antenna or transmitter.
As long as the two conditions above are met, further transmitter testing will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed (for example, digital
device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for certain
configurations or co-location with another transmitter), then the ISEDC authorization is no
longer considered valid and the IC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate ISEDC authorization.
End Product Labeling
The BGM13P modules are labeled with their own IC ID. If the IC ID is not visible when the
module is installed inside another device, then the outside of the device into which the
module is installed must also display a label referring to the enclosed module. In that case,
the final end product must be labeled in a visible area with the following:
Page 7 of 8
Contains Transmitter Module IC: 5123A-13
or
Contains IC: 5123A-13
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module or change RF related parameters in the user
manual of the end product
ISEDC (Français)
Industrie Canada a approuvé l’utilisation de cet émetteur radio (IC: 5123A-13) en
conjonction avec des antennes de type dipolaire à 2.14dBi ou des antennes embarquées,
intégrée au produit. L’utilisation de tout autre type d’antenne avec ce composant est
proscrite. Ce composant est conforme aux normes RSS, exonérées de licence d'Industrie
Canada. Son mode de fonctionnement est soumis aux deux conditions suivantes :
1. Ce composant ne doit pas générer d’interférences
2. Ce composant doit pouvoir est soumis à tout type de perturbation y compris celle pouvant
nuire à son bon fonctionnement.
Déclaration d'exposition RF
L'exception tirée des limites courantes d'évaluation SAR est donnée dans le document RSS-
102 Issue 5. Les modules BGM13P32GA et BGM13P32GE répondent aux exigences
requises lorsque la distance minimale de séparation avec le corps humain est de 40 mm.
Les modules BGM13P22GA et BGM13P22GA répondent aux exigences requises lorsque la
distance minimale de séparation avec le corps humain est de 20 mm.
La déclaration d’exposition RF ou l'évaluation SAR n'est pas nécessaire lorsque la distance
de séparation est identique ou supérieure à celle indiquée ci-dessus. Si la distance de
séparation est inférieure à celle mentionnées plus haut, il incombe à l'intégrateur OEM de
procédé à une évaluation SAR.
Responsabilités des OEM pour une mise en conformité avec le Règlement du Circuit
Intégré
Le module BGM13P a été approuvé pour l'intégration dans des produits finaux
exclusivement réalisés par des OEM sous les conditions
suivantes:
• L'antenne (s) doit être installée de sorte qu'une distance de séparation minimale indiquée
ci-dessus soit maintenue entre le radiateur
(antenne) et toutes les personnes avoisinante, ce à tout moment.
• Le module émetteur ne doit pas être localisé ou fonctionner avec une autre antenne ou un
autre transmetteur que celle indiquée plus haut.
Tant que les deux conditions ci-dessus sont respectées, il n’est pas nécessaire de tester ce
transmetteur de façon plus poussée. Cependant, il incombe à l’intégrateur OEM de s’assurer
de la bonne conformité du produit fini avec les autres normes auxquelles il pourrait être
soumis de fait de l’utilisation de ce module (par exemple, les émissions des périphériques
numériques, les exigences de périphériques PC, etc.).
REMARQUE IMPORTANTE: dans le cas où ces conditions ne peuvent être satisfaites (pour
certaines configurations ou co-implantation avec un autre émetteur), l'autorisation ISEDC
n'est plus considérée comme valide et le numéro d’identification ID IC ne peut pas être
apposé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera responsable de
Page 8 of 8
la réévaluation du produit final (y compris le transmetteur) et de l'obtention d'une autorisation
ISEDC distincte.
Étiquetage des produits finis
Les modules BGM13P sont étiquetés avec leur propre ID IC. Si l'ID IC n'est pas visible
lorsque le module est intégré au sein d'un autre produit, cet autre produit dans lequel le
module est installé devra porter une étiquette faisant apparaitre les référence du module
intégré. Dans un tel cas, sur le produit final doit se trouver une étiquette aisément lisible sur
laquelle figurent les informations suivantes :
"Contient le module transmetteur : 5123A-13"
ou
"Contient le circuit: 5123A-13
L'intégrateur OEM doit être conscient qu’il ne doit pas fournir, dans le manuel d’utilisation,
d'informations relatives à la façon d'installer ou de d’enlever ce module RF ainsi que sur la
procédure à suivre pour modifier les paramètres liés à la radio.
