Silicon Laboratories Finland ETRX1 Telegesis ETRX1 Module type TG-ETRX1-PM-01-106 User Manual Distributor Information

Telegesis (UK) Limited TG-ETRX1-PM-01-106 1

ETRX1 Preliminary Product Manual 1.06

TG-ETRX1-PM-01-106

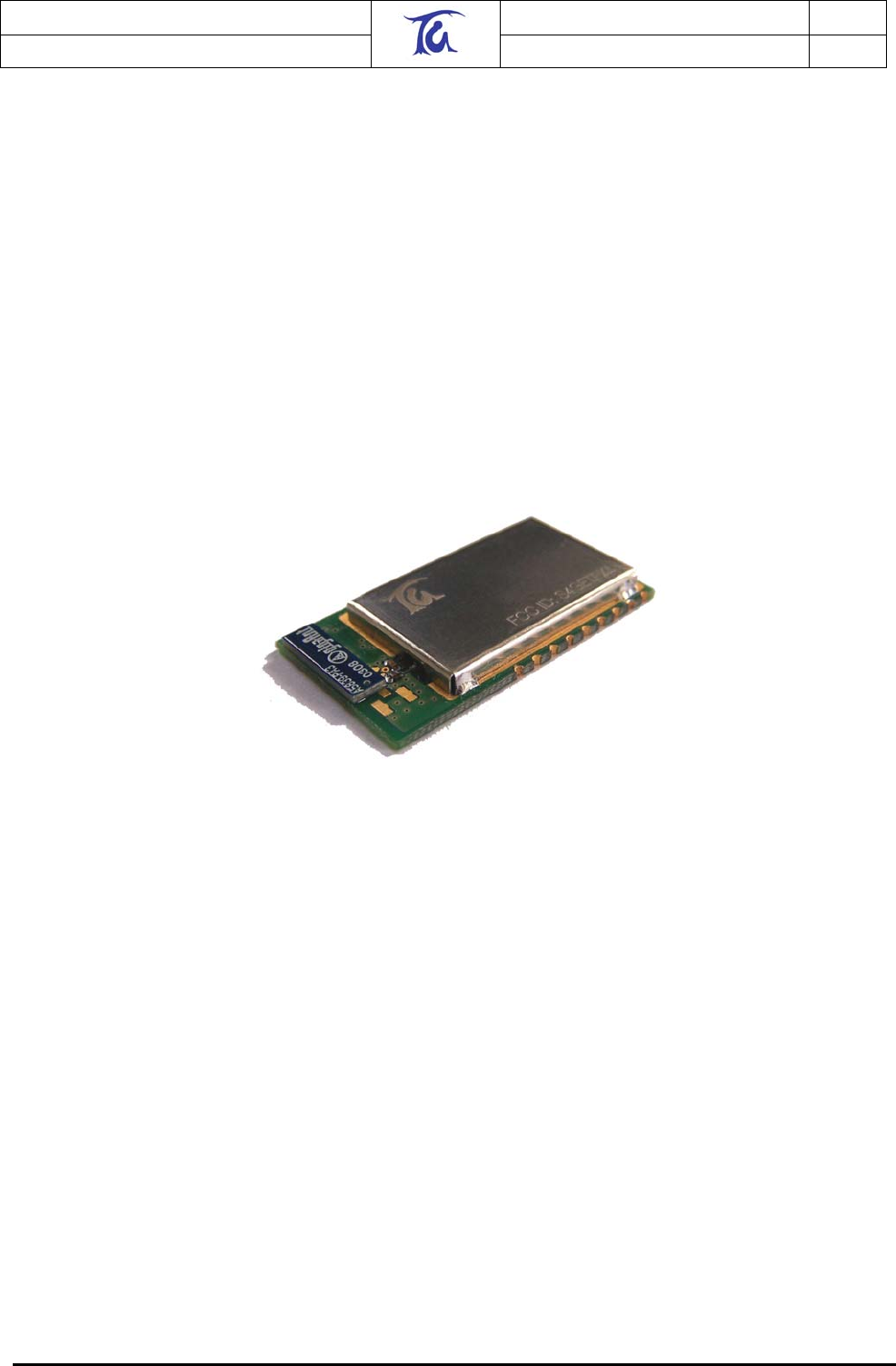

ETRX1 (ZIGBEE™ READY) MODULE

PRODUCT MANUAL

Telegesis

Telegesis (UK) Limited TG-ETRX1-PM-01-106 2

ETRX1 Preliminary Product Manual 1.06

Table of Contents

1. INTRODUCTION..........................................................................................................3

2. ETRX1 FUNCTION SUMMARY ..................................................................................4

3. PRODUCT APPROVALS ............................................................................................5

3.1. CE & FCC Approvals ................................................................................................ 5

3.2. IEEE 802.15.4........................................................................................................... 5

3.3. The ZigBee™ Protocol.............................................................................................. 5

4. FREQUENTLY ASKED QUESTIONS .........................................................................6

5. ABSOLUTE MAXIMUM RATINGS..............................................................................8

6. OPERATING CONDITIONS ........................................................................................8

7. ELECTRICAL SPECIFICATIONS ...............................................................................9

8. FUNCTIONAL DESCRIPTION ..................................................................................10

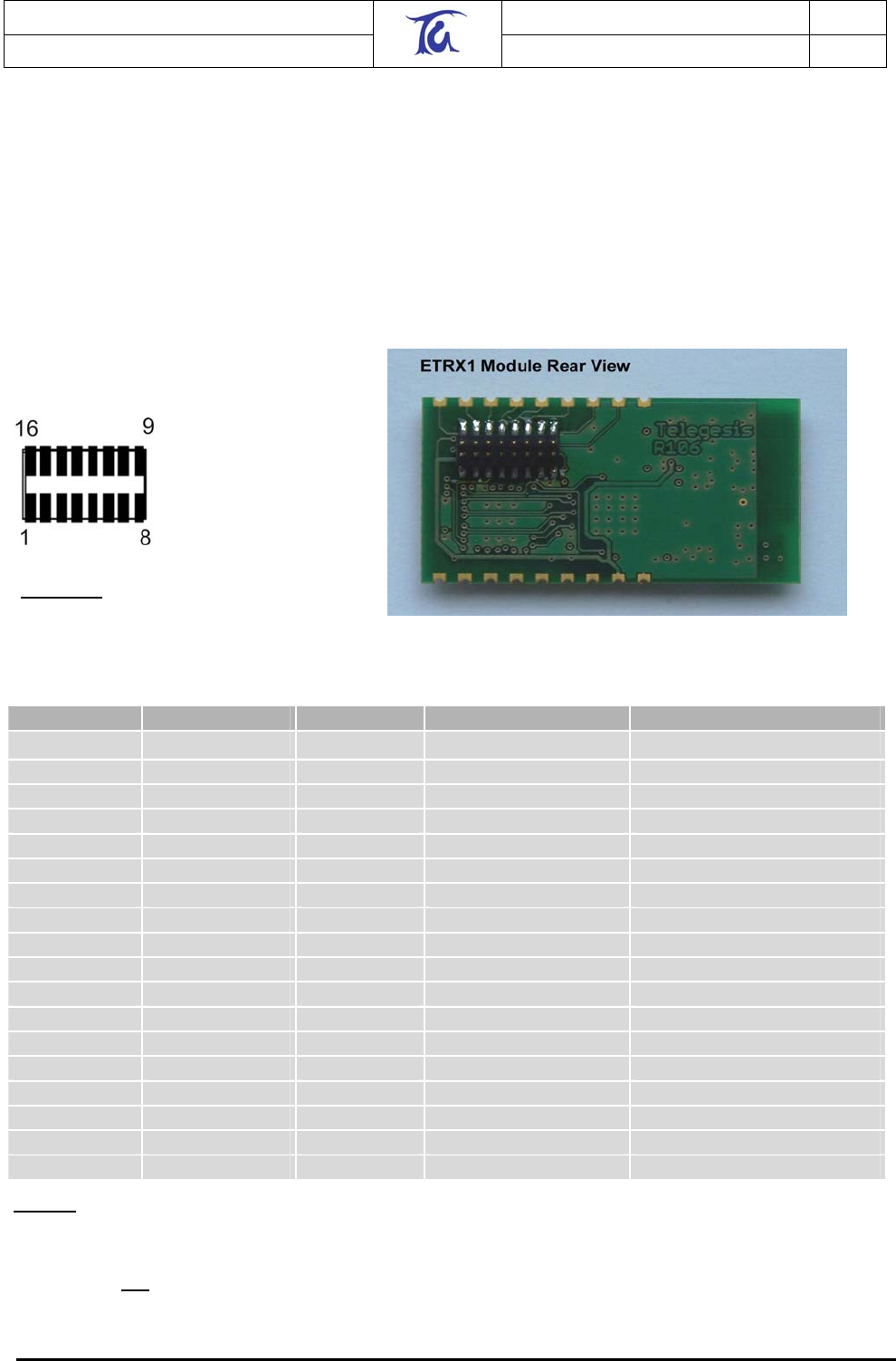

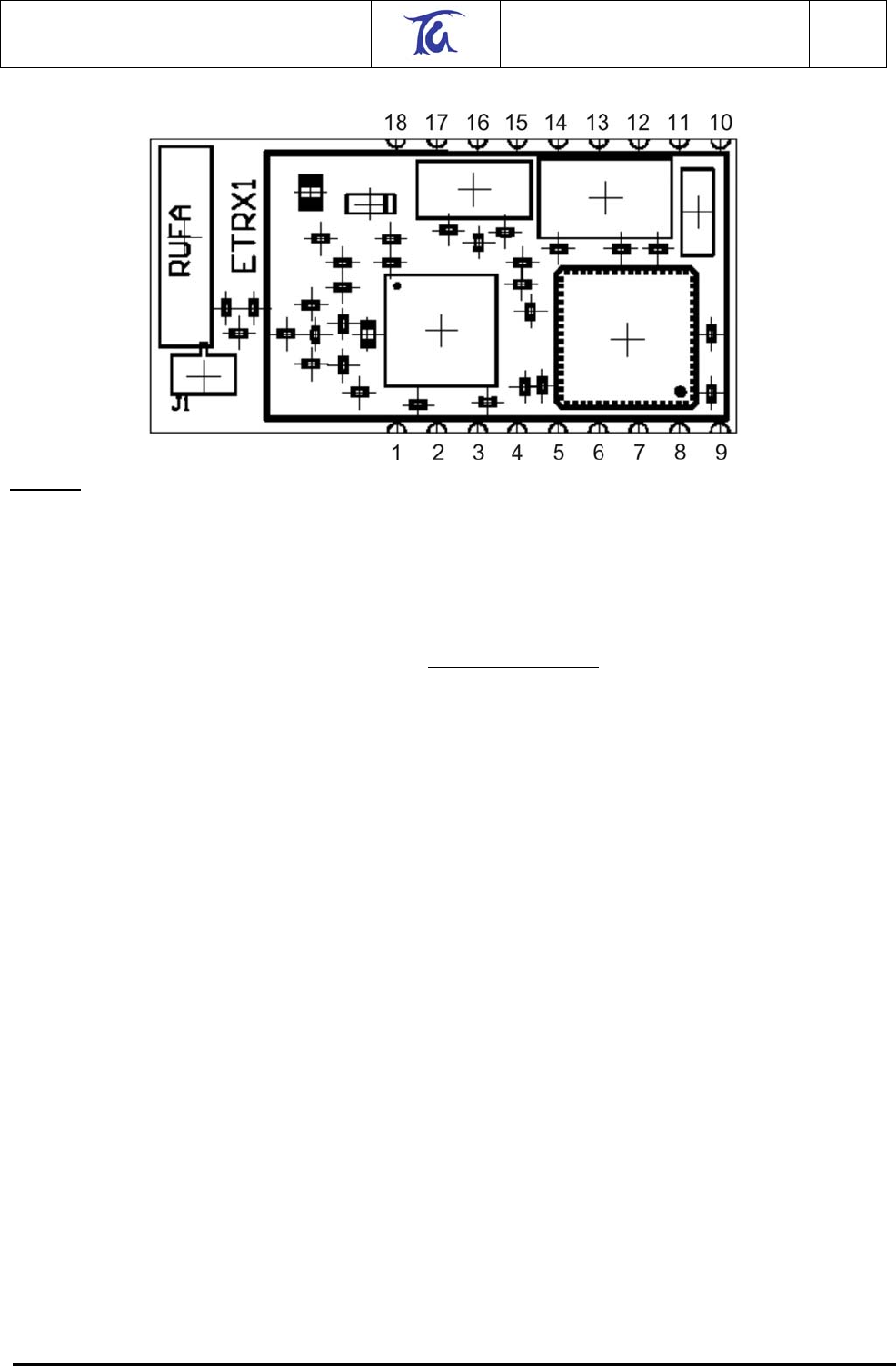

8.1. Device Pin-out ......................................................................................................... 11

8.2. Firmware Description .............................................................................................. 12

8.2.1. Custom Firmware.................................................................................................... 12

8.3. Interface Description............................................................................................... 13

9. AT STYLE COMMAND CONVENTIONS ..................................................................14

9.1. Using parameters.................................................................................................... 14

9.2. AT Command Syntax.............................................................................................. 15

9.2.1. Module Control & Configuration Commands .......................................................... 16

9.2.2. Communication Commands.................................................................................... 20

9.2.3. I/O Commands........................................................................................................ 30

10. S-REGISTERS...........................................................................................................31

10.1. Standard S-Registers.............................................................................................. 32

10.2. Extended S-Registers ............................................................................................. 36

11. LIST OF ERROR CODES..........................................................................................40

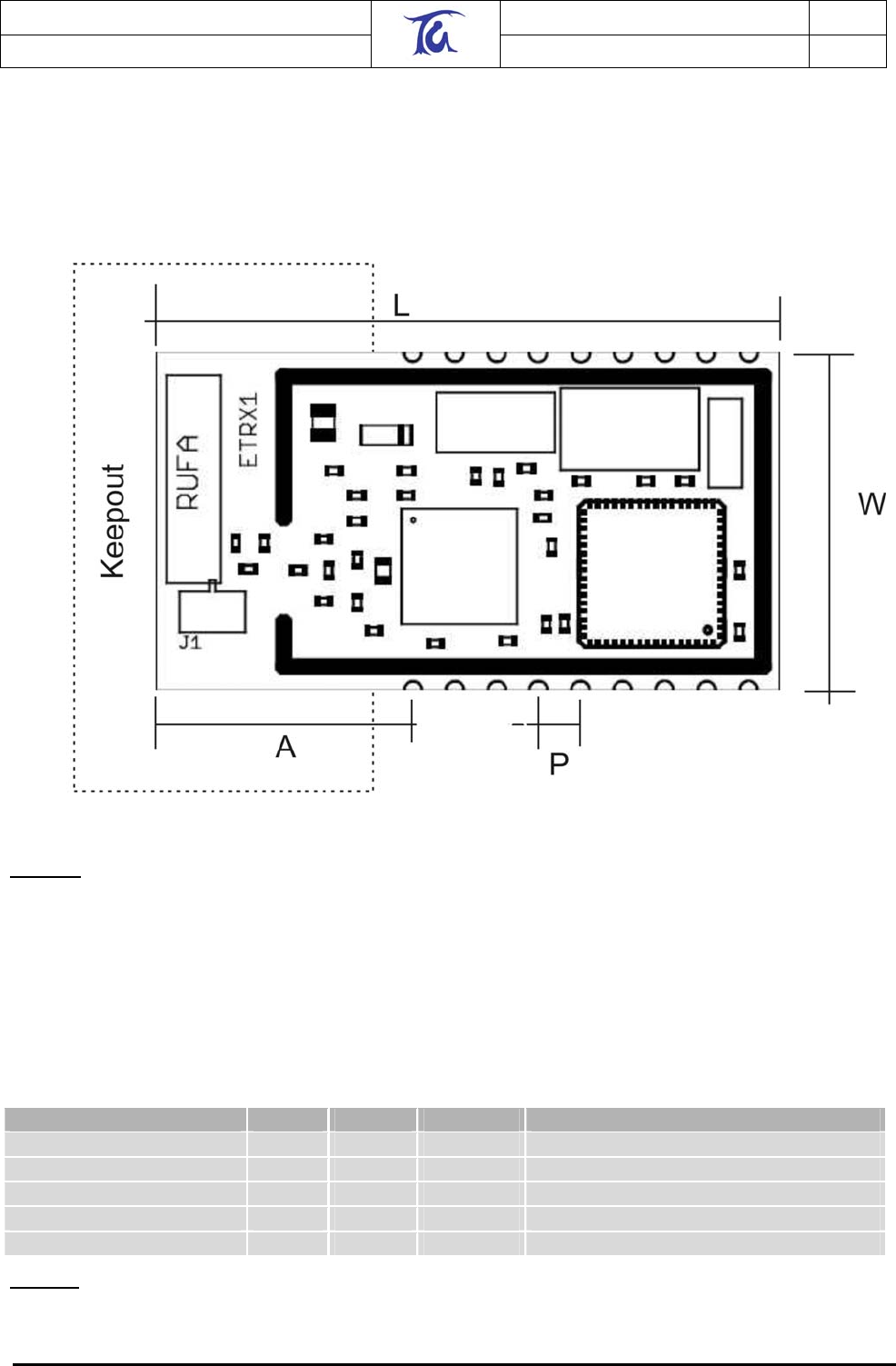

12. PHYSICAL DIMENSIONS .........................................................................................41

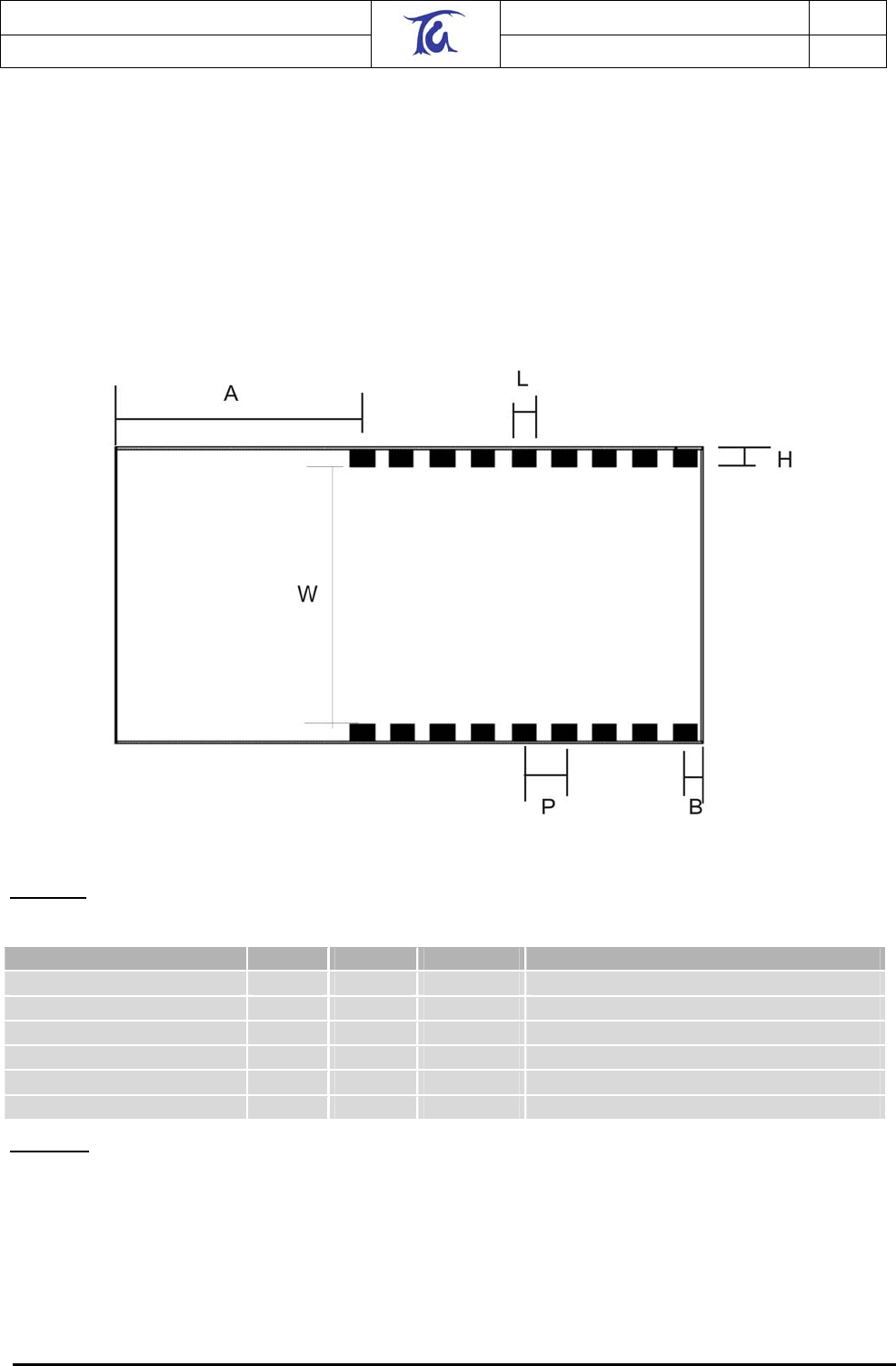

13. RECOMMENDED FOOTPRINT ................................................................................42

14. ORDERING INFORMATION .....................................................................................43

15. TRADEMARKS..........................................................................................................44

16. DISCLAIMER.............................................................................................................44

17. CONTACT INFORMATION .......................................................................................44

18. REFERENCES...........................................................................................................44

Telegesis (UK) Limited TG-ETRX1-PM-01-106 3

ETRX1 Preliminary Product Manual 1.06

1. Introduction

This document describes the Telegesis ETRX1 wireless meshing Module which has been

designed to be integrated into another device and to provide a fast, simple and low cost (ZigBee

compatible with adoption of the EmberZstack) interface.

The Telegesis ETRX1 Module has been designed to be built into any device and provide a low

cost low power radio, ZigBee™ ready meshing solution, using the Ember technologies EmberNet

stack. Integration into a wide range of applications is made easy using a simple AT style software

interface and advanced hardware design.

No RF experience or expertise is required to add this powerful wireless networking capability to

your products. The ETRX1 offers fast integration opportunities and the shortest possible time to

market for your product.

Telegesis (UK) Limited TG-ETRX1-PM-01-106 4

ETRX1 Preliminary Product Manual 1.06

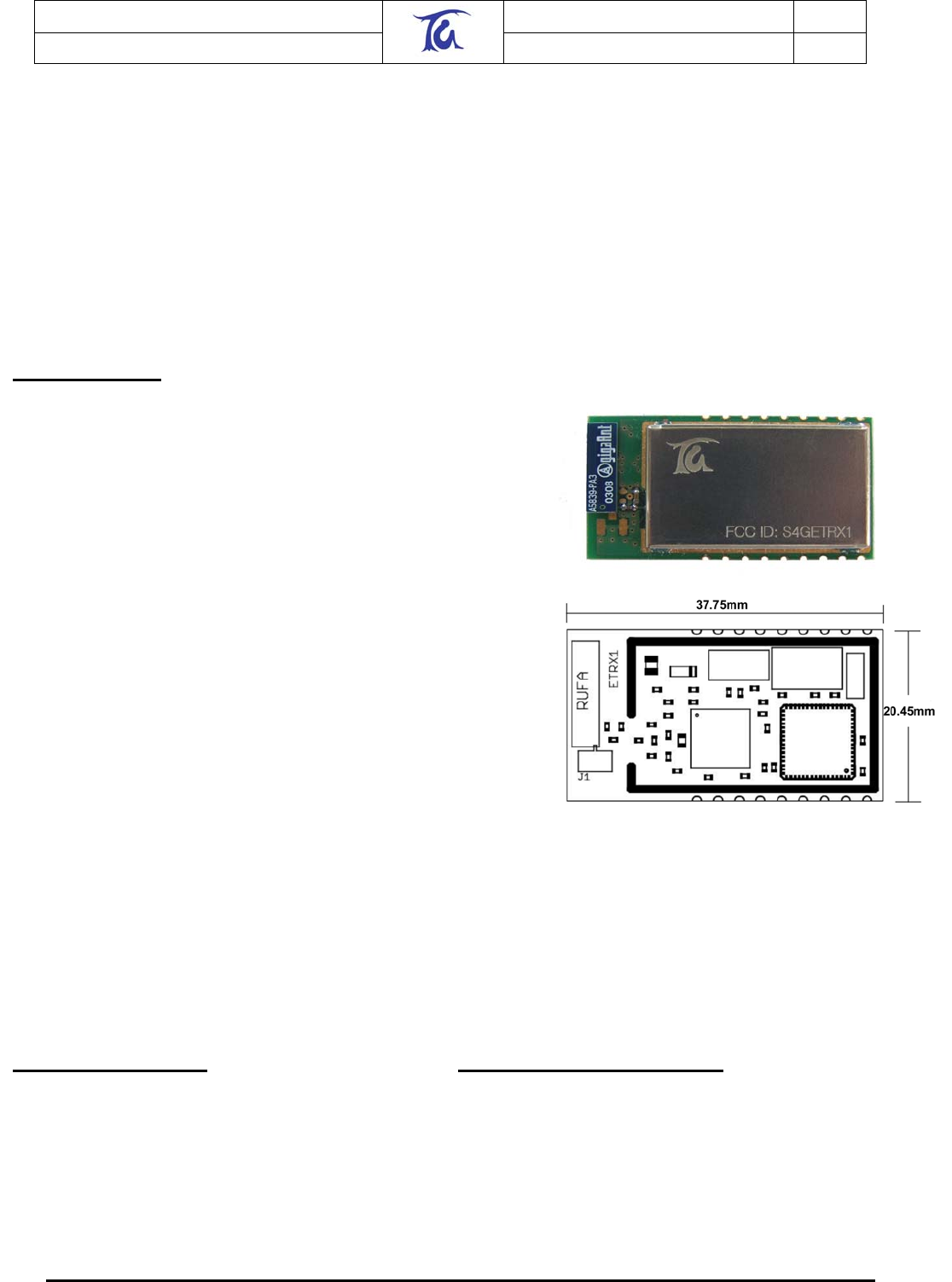

2. ETRX1 Function Summary

Module Features

• Small form factor, SMT module 37.75mm x 20.45mm x

3.4mm

• Optional board to board or board to cable plug-in connector

• Integrated antenna or alternative Hirose U.FL antenna

connector

• UART interface for easy communication

• IEEE 802.15.4 compliant

• Can act as FFD, RFD and Coordinator

• Hosts the Atmel Atmega 128L and the Ember EM2420

• 128k flash, 4kbytes EEPROM and 4kbytes of RAM

• Up to 8 MIPS processing power

• Module comes with standard Telegesis AT style software

interface.

•

A

lso available without Telegesis AT style interface or with

customer specific firmware

• 8 general purpose I/O lines and 2 analogue inputs

• In System programmable

• Optional JTAG Support

• Supports 5 different power down modes

• Based on the proven EmberNet classic Stack

• Full ZigBee™ compliance will be available with the upcoming

EmberZNet stack

• Firmware upgrades via RS232 or over the air (password

protected)

• Hardware supported encryption (AES-128)

• Supply voltage 2.7V – 3.6V

• Current Consumption as low as 15uA in sleep mode

• Tested for CE and FCC compliance (with integrated

antenna)

• Operating temperature range -200C to +650C

Suggested Applications

• AMR – Automatic Meter Reading

• Wireless Alarm and Security

• Home/Building Automation

• Wireless sensor Networks

• Industrial Control

• ZigBee™ systems

• PC Peripherals

• IEEE 802.15.4 systems

The Telegesis ETRX1 has been designed to be built into any device and

provide a low cost, low power, ZigBee™ ready meshing solution, using the

proven EmberNet technology. No RF experience or expertise is required

to add this powerful wireless networking capability to your products. The

ETRX1 offers fast integration opportunities and the shortest possible time

to market for your product. The AT style command line interface allows

the adopter to quickly integrate meshing radio technology into any product

without the need for complex programming or RF design work.

Example AT-Style Commands

• AT+SN Search network & discover

devices

• AT+BCAST Sends a Broadcast

• AT+UCAST:<address> Sends a Unicast

• AT+ASS:<address> Associate Node

At Power-up the last configuration is loaded from EEPROM.

This can eliminate the need for an additional Host

Controller.

Radio Features

• Based on the Ember EM2420, 2.4GHz

ISM Band.

• Direct Sequence Spread Spectrum RF

transceiver (DSSS)

• 250kbit/s effective data rate

• Very Low Power ( – 30mA in Rx)

• 16 channels (802.15.4 Channel 11 to 26)

• Up to –1dBm output power

Development Support

•

A

Development Kit is available with a

development board with RS232 connectivity

and I/O break-outs

• For high volume customers the AT style

software interface command dictionary can be

extended

• Custom software development can be provided

on request

Telegesis (UK) Limited TG-ETRX1-PM-01-106 5

ETRX1 Preliminary Product Manual 1.06

3. Product Approvals

3.1. CE & FCC Approvals

The ETRX1 has been designed to meet all national regulations for World-wide use. It has been

tested and approved by a certified laboratory for RF Transmission, EMC and for general product

safety.

Using the integrated Antenna it conforms with EN300 440 (Europe) and FCC CFR 47 Part 15

(USA).

This device complies with Part 15 of the FCC rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

FCC ID: S4GETRX1

Please Note:

The ETRX1 device carries FCC authorization and is marked with the FCC ID Number. Whilst any

device into which this authorized module is installed will not normally be required to obtain FCC

authorization, this does not preclude the possibility that some other form of authorization or testing

may be required for the finished device.

When the ETRX1 module is integrated inside another device/product, then the outside surface of

that device/product must display a label referring to the enclosed module. This exterior label can

use wording such as “Contains Transmitter Module FCC ID: S4GETRX1” or “Contains FCC ID:

S4GETRX1” although any similar wording that expresses the same meaning may be used.

This module complies with the USA SAR requirements and is not intended to be operated with in

20cm of the body.

3.2. IEEE 802.15.4

IEEE 802.15.4 is a standard for low data rate wireless networks (typically data rates of 250 kbps,

40 kbps, and 20 kbps) which focuses on low cost, low duty cycle, long primary battery life

applications as well as mains-powered applications. It is the basis for the open ZigBee™ Protocol.

3.3. The ZigBee™ Protocol

The ZigBee™ Protocol is a new set of standards for wireless connectivity between any devices

over short distances (100 metres). The specification was ratified in December 2004, paving the

way for companies to start making low-power networks a reality.

ZigBee™ uses an IEEE 802.15.4 radio specification running on the 2.4GHz band, plus three

additional layers for networking, security, and applications. What makes the specification unique is

its use of a mesh network architecture which, in bucket chain style, passes data from one node to

the next until it lands at its endpoint.

Telegesis (UK) Limited TG-ETRX1-PM-01-106 6

ETRX1 Preliminary Product Manual 1.06

4. Frequently Asked Questions

• What is the ZigBee™ Alliance?

The ZigBee™ Alliance is an association of companies working together to enable reliable, cost-

effective, low-power, wirelessly networked, monitoring and control products based on an open

global standard.

The goal of the ZigBee™ Alliance is to provide the consumer with ultimate flexibility, mobility, and

ease of use by building wireless intelligence and capabilities into every day devices. ZigBee™

technology will be embedded in a wide range of products and applications across consumer,

commercial, industrial and government markets worldwide. For the first time, companies will have

a standards-based wireless platform optimised for the unique needs of remote monitoring and

control applications, including simplicity, reliability, low-cost and low-power.

• Why do we need ZigBee™ ?

Until The ZigBee™ Standard was ratified in December of 2004 there was no standard approach

that addressed the unique needs of most remote monitoring and control applications. The

ZigBee™ Standard enables the broad-based deployment of reliable wireless networks with low

complexity, low cost solutions and provides the ability for a product to run for years on inexpensive

primary batteries (for a typical monitoring application). It is also, of course, capable of

inexpensively supporting robust mesh networking technologies

• What is the EmberZNet Stack?

The Telegesis ETRX1 utilises the EmberNet/EmberZNet protocol stacks and can form a scalable,

self-organizing, self-healing wireless networking platform based on the ZigBee™ specifications.

The EmberZNet supports a variety of network topologies for wireless monitoring and control

applications, including mesh, star, and cluster tree. Applications running the EmberZNet stack can

be interoperable with other ZigBee™ nodes. EmberZNet provides all of the standard benefits that

come with ZigBee™ including: flexible topologies, high security, broad interoperability, low cost,

long battery life, and integrated network management. In addition, EmberZNet applications can

take advantage of the industrial strength reliability and unprecedented ease of use of the Ember

Transport Layer capabilities.

Until now, much of the cost of deploying sensing and control devices was in installing the network

to connect them. With EmberZNet, the value, like the network, is embedded in the devices

themselves. EmberZNet’s self-organizing, self-healing mesh algorithms produce networks that are

reliable, flexible, secure, and easy to use. Adding devices only makes EmberZNet sensing and

control networks stronger and more efficient. Designed from the ground up for developers of

sensing and control products, the EmberZNet product suite enables rapid development and

deployment of embedded wireless networks that virtually “see around corners,” and that have no

single point of failure.

The EmberZNet Protocol Stack is a compact, scalable implementation of the ZigBee

specifications which translates into lower cost MCU options for device manufacturers. The stack is

available in different configurations optimized for the various ZigBee node types; PAN

coordinators, full function devices, and reduced function devices. The stack is already available for

several microprocessor platforms supported by Ember.

Telegesis (UK) Limited TG-ETRX1-PM-01-106 7

ETRX1 Preliminary Product Manual 1.06

• Where would my application sit?

There are a number of options. When using the Telegesis AT style command interface the

application sits on a host microcontroller which is external to the ETRX1 Module. Additionally the

ETRX1 can be used stand-alone using the pre-defined functionality defined in the non volatile S-

Registers. The S-Registers (shown in Section 10) are mostly non-volatile registers holding the

configuration data of the ETRX1 wireless meshing module. If you decide to develop your own

firmware instead of using the Telegesis “AT style” command interface then it can run on the Atmel

ATmega128L on the ETRX1 module.

• What do I need to start my development?

The quickest and easiest way to begin your development is to use a set of ETRX1DV development

kits, but if you wish you could integrate the ETRX1 onto your own carrier boards. To connect the

ETRX1 to a PC you will need to use an RS232 level converter or alternatively connect the ETRX1

straight to a host microcontroller.

Telegesis (UK) Limited TG-ETRX1-PM-01-106 8

ETRX1 Preliminary Product Manual 1.06

5. Absolute Maximum Ratings

Parameter Min. Max. Units Condition

Supply Voltage Vdd -0.3 3.6 V

Voltage on any pin -0.3 Vdd+0.3, max 3.6 V

Input RF level 10 dBm

Storage Temperature range -50 150 °C

Reflow Soldering Temperature 260 °C T=10s

Table 1: Absolute Maximum Ratings

The absolute maximum ratings given above should under no circumstances be violated.

Exceeding one or more of the limiting values may cause permanent damage to the device.

Caution! ESD sensitive device. Precautions should be used when handling the

device in order to prevent permanent damage.

6. Operating Conditions

Typical values at 3.3V 25°C.

Parameter Min. Typ. Max. Units Condition

Supply Voltage, Vdd 2.7 3.3 3.6 V

30 mA TX –1dBm

22 mA TX – 10dBm

19 mA TX –20dBm

18 mA TX –30dBm

30 mA RX

10 mA Sleep Mode 1

3.3 mA Sleep Mode 2

4.2 mA Sleep Mode 3

4.2 mA Sleep Mode 4

Supply Current

15 uA Sleep Mode 5

Operating ambient

temperature range

-20 25 70 °C

Table 2: Operating Conditions

Telegesis (UK) Limited TG-ETRX1-PM-01-106 9

ETRX1 Preliminary Product Manual 1.06

7. Electrical Specifications

Parameter Min. Typ. Max. Units Condition

Radio Characteristics

Frequency Range 2.405 2.480 GHz

Adjustable output power -31 -1 dBm

Receiver sensitivity TBA dBm PER=1%

Channel Spacing 5 MHz

TBA dBm TX 30-1000MHz

TBA dBm TX 1-12.75GHz

TBA dBm TX 1.8-1.9Ghz

TBA dBm TX 5.15-5.3GHz

TBA dBm RX 0-1000MHz

Spurious Emissions

TBA dBm RX 1-12.75GHz

Optimum load Impedance 50 Ω Using external

Antenna

46 dB +5MHz Adjacent channel rejection

39 dB -5MHz

58 dB +10MHz Alternate Channel

Rejection 55 dB -10MHz

Frequency error tolerance -300 300 kHz

Symbol rate error

tolerance

120 ppm

DC Characteristics

Input Low Voltage -0.5 0.2*VCC V

Input High Voltage 0.6*VCC VCC+0.5 V

Output Low Voltage 0.5 V VCC=3V I=10mA

Output High Voltage 2.4 V VCC=3V

IO Pin Pull-up Resistor 20 50 k Ω

ADC Input Resistance 55 100 M Ω

AC Characteristics

UART Baud Rate 1200 38400 38400 Bps

0.2 %

-0.8 %

0.2 %

UART Error

1200

2400

4800

9600

14400

19200

28800

38400 2.1 %

ADC Conversion Time 2 µs

ADC Input Bandwidth 38.5 kHz

Special function Pin output

frequency

4MHz PWM available below

2MHz

Table 3: Electrical Specifications

Telegesis (UK) Limited TG-ETRX1-PM-01-106 10

ETRX1 Preliminary Product Manual 1.06

8. Functional Description

The Telegesis ETRX1 Module has been designed to be built into any device and provide a low

cost, low power, ZigBee™ ready meshing solution, using the Ember technologies EmberNet stack.

Integration into a wide range of applications is made easy using a simple AT style command

interface.

As shown in Figure 1, the module hosts the Ember EM2420 802.15.4 Transceiver and the Atmel

Atmega 128L. The flexible architecture also allows the module to be used for custom software

based on any existing or upcoming software stack.

The on-board antenna allows easy integration without the need for RF expertise. If required the

module can be supplied with a U.FL antenna connector to connect an external antenna.

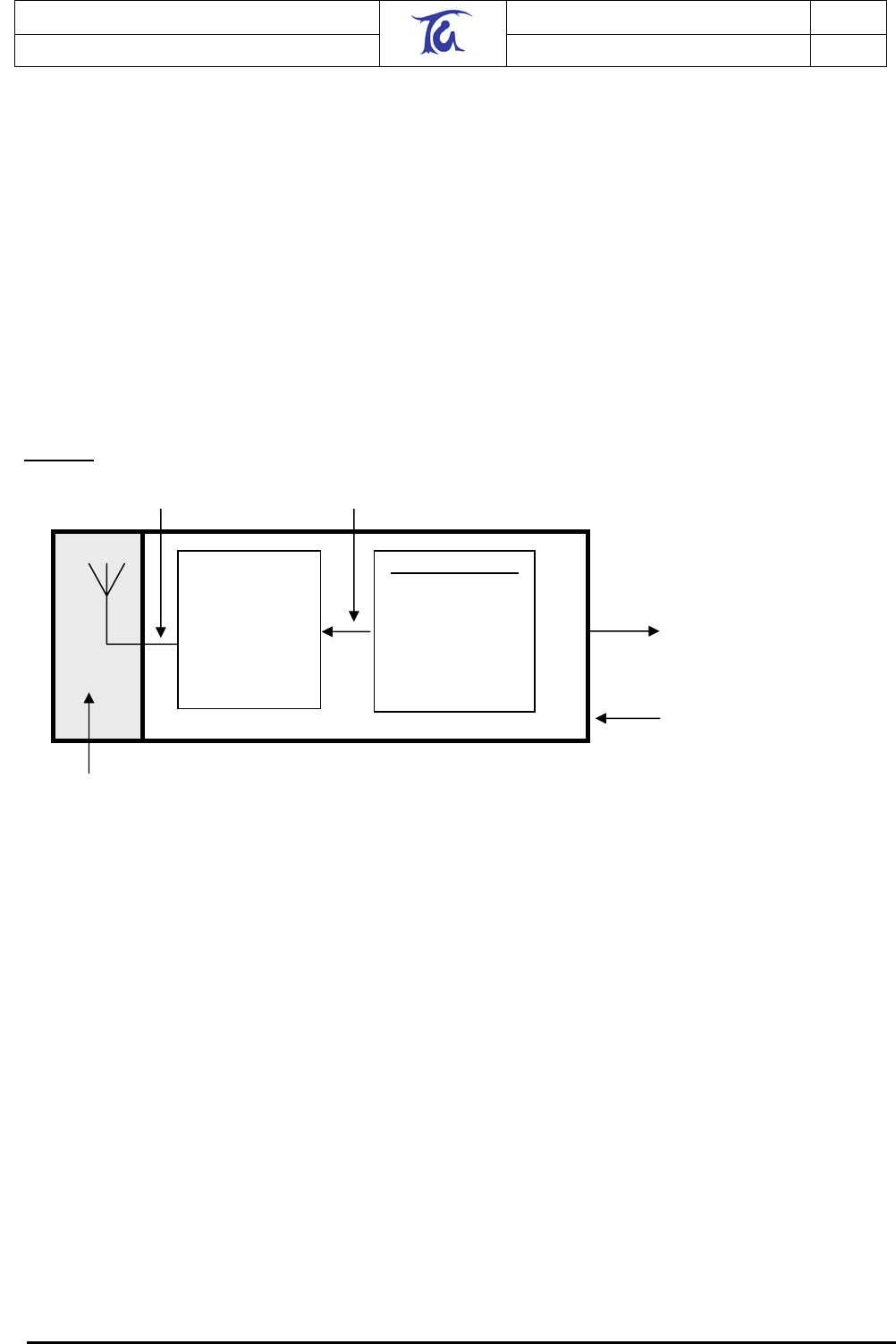

Figure 1. Block Diagram

Balun Matching Circuit Data and Commands

Ember EM2420

IEEE 802.15.4 RF

Transceiver

Atmel Atmega 128

Bootloader

AT-Command

Interpreter

EmberNet Stack

IEEE 802.15.4

8x Digital I/O

2 x Analogue Inputs

UART Interface

ISP

PWM

Optional JTAG

2.7 – 3.6 V

Integrated Antenna or

optional Hirose U.FL

connector

The Atmel Atmega 128L is clocked at 8MHz delivering up to 8MIPS of processing power. For

timekeeping an additional 32.768kHz crystal is used. The microcontroller can be programmed in

circuit using an in-circuit programmer. Alternatively the pre-programmed boot-loader can be used

to upgrade the firmware via the UART or over the air. Note that in circuit programming using a

programmer will erase the boot-loader.

The EM 2420 transceiver uses Direct Sequence Spread Spectrum (DSSS) with 2 Mchip/s chip rate

giving a raw data rate of 250k/bits. The modulation format is Offset Quadrature Phase Shift

Keying (O-QPSK). The DSSS makes the communication link robust in noisy environments when

sharing the same frequency band with other applications.

For full details on the Ember EM2420 2.4GHz transceiver and the Atmel Atmega 128L please

consult the respective data sheets.

The use of RF frequencies and maximum allowed RF power is limited by national regulations. The

ETRX1 complies with the applicable regulations for the world-wide 2.45GHz ISM band. For full

details please see Section 3 on Product Approvals.

Telegesis (UK) Limited TG-ETRX1-PM-01-106 11

ETRX1 Preliminary Product Manual 1.06

8.1. Device Pin-out

There are two ways of interfacing with the ETRX1 module. Firstly, the module can be surface

mounted using the 18 pads situated on the edges of the module. Secondly, a 2x8, 1.27mm pitch

surface mount header (included) can be attached to the bottom of the board to allow a plug-in

solution. The latter is ideally suited for applications where the radio needs to be retrofitted as an

upgrade in the field.

Table 4. Gives an overview of the pin-out and its functionality.

Figure 2: Pin configuration of Socket

The pin configuration shown in Figure 2 is valid when looking down onto the Socket of the

carrier PCB (i.e. devboard) with pin 1 facing towards the Antenna of the ETRX1.

Corner Pad Connector Pin Name Functionality ATMEGA Pin

1 1 GND GND GND

2 8 VCC VCC VCC

3 1 GND GND GND

4 2 A/D1 A/D JTAG1PF7 (ADC7/TDI)

5 3 A/D2 A/D JTAG1PF6 (ADC6/TDO)

6 4 I/O7 I/O JTAG1PF5 (ADC5/TMS)

7 5 I/O6 I/O JTAG1PF4 (ADC4/TCK)

8 6 I/O5 I/O ISP PE1 (TXD0/PDO)

9 7 I/O4 I/O ISP PE0 (RXD/PDI)

10 9 SCK ISP2PB1 (SCK)

11 10 I/O3 I/O PB4 (OC0)

12 11 I/O2 I/O SFPIN PB7 (OC2/OC1C)

13 12 RESET Reset Reset

14 13 I/O1 I/O INT1 TWI3PD1 (SDA/INT1)

15 14 I/O0 I/O INT0 TWI3PD0 (SCL/INT0)

16 16 TXD TXD PD3 (TXD1/INT3)

17 15 RXD RXD PD2 (RXD1/INT2)

18 1 GND GND GND

Table 4: Pin Configuration

1 By default JTAG is disabled. Enabling JTAG functionality will sacrifice A/D1, A/D2 as well as I/O7

and I/O6.

2 SCK must not be used for any other purpose than in-system programming!

3 The TWI (Two wire interface) is not supported by the current firmware release, but can be used

with custom specific firmware.

Telegesis (UK) Limited TG-ETRX1-PM-01-106 12

ETRX1 Preliminary Product Manual 1.06

Figure 3: Pin Configuration of the corner pads

8.2. Firmware Description

The modules are pre-loaded with the Ember bootloader which supports over-the-air bootloading as

well as serial bootloading of new firmware. The modules also contain the current release of the

Telegesis AT style command interface. Check www.telegesis.com for updates.

Each module comes with a unique 64 bit 802.15.4 identifier which is stored in EEPROM.

The default AT-style command interface firmware is based on the EmberNet classic stack which

implements a full function device (FFD). The AT style command line interpreter has been

developed by Telegesis to allow easy access to the low level functionality.

The module is able to act as a PAN coordinator through external host control. The AT style

command line supplies all the tools required to set up and manage mesh and star topologies or a

mixture of both.

Using the command line interface RFD or leaf devices are emulated by using the EmberNet classic

stack with the routing features disabled. This allows them to go to sleep as they have no routing

responsibilities in the network. The ETRX1 uses the full functionality stack, rather than the

EmberNet Leaf Stack for RFD’s and leaf nodes to overcome some of the routing restraints of

classic leaf nodes whilst still allowing them to save power being asleep.

The firmware allows low level access to physical parameters such as channel and power level.

Parameters which define the functionality of the ETRX1 module and also allow standalone

functionality are saved in non volatile EEPROM organised in so called S-Registers.

The TWI (Two wire interface) is not supported by the current firmware release, but can be used

with custom firmware.

8.2.1. Custom Firmware

For high volume customers the firmware can be customised on request.

Telegesis (UK) Limited TG-ETRX1-PM-01-106 13

ETRX1 Preliminary Product Manual 1.06

8.3. Interface Description

ADC

The module has two analogue inputs A/D1 and A/D2. Readings with reference to Vcc can be

made locally as well as remotely.

I/O

Pins I/O7 down to I/O0 are bi-directional I/O ports which can be controlled locally as well as

remotely by accessing local as well as remote S-registers. Although they are on different ports of

the microcontroller they can be controlled using three single 8 bit registers representing the data

direction, the output buffer and the input buffer.

ISP

Pins I/O5, I/O4, SCK and reset can be used to in-circuit program the module if required.

Reprogramming the flash of the microcontroller will delete the bootloader.

UART

Via the TXD and RXD pins the AT style command interpreter can be accessed. The ETRX1 can

buffer up to 128 bytes of incoming data in a software FIFO buffer and uses XON/XOFF flow

control. See the datasheet of the Atmel Atmega 128L for more information about the build-in

UART.

Interrupt

Level changes on pins I/O0 and I/O1 will cause an interrupt to the module if defined as input in the

corresponding data direction register.

Reset

Pulling the reset pin low will cause the module to restart. A external pull-up is not required.

PWM

I/O4 can alternatively act as a special function pin which can generate clocks up to 4MHZ or act as

a PWM. This functionality can be controlled locally as well as remotely by accessing local as well

as remote S-registers.

Antenna

Matching is provided to match the radio to the integrated antenna or to an optional external general

purpose 2.4GHz antenna. The internal Rufa antenna is supplied by GigaAnt. For full data on the

Rufa antenna please refer to the gigaAnt Rufa data sheet, www.gigaant.com.

Power

The module is able to operate from 3.6V down to 2.7V which makes it ideally suited for battery

powered applications.

Telegesis (UK) Limited TG-ETRX1-PM-01-106 14

ETRX1 Preliminary Product Manual 1.06

9. AT Style Command Conventions

To simplify the communication with the ETRX1 module an AT command set, similar to the industry

standard Hayes modem control language, is used.

Each command must be preceded by the "AT" or "at" prefix. To terminate a command line enter

<CR>. Any data not following this pattern is either not accepted by the module or will cause an

error message in response. Also, a mix of upper and lower case letters like “At+BloAd” will not be

accepted. Commands need to be issued either completely in upper case or completely in lower

case characters.

Commands are followed by a response that includes .<CR><LF><response><CR><LF>. Any data

which is prompted to the user is delivered in the format <prompt><CR><LF>. Prompts may

appear whenever the corresponding event occurs. A prompt intersecting a command being

entered will not affect the command itself.

Throughout this document, only the responses are presented, <CR><LF> are omitted intentionally.

It is recommended to wait for a response before issuing the next command. Also sequences of AT

commands in a single line are not supported.

The ETRX1 features a 128 byte receive FIFO to buffer incoming characters. To prevent a buffer

overflow caused by incoming data in excess of 128 bytes XON/XOFF handshaking is used.

Read Command

AT+XXX? Commands ending with a ‘?’ return the currently

set value of the parameter or parameters

Write Command

AT+XXX=<…>

This command sets user-definable parameters as

indicated by the ‘=’ sign.

Execution Command

AT+XXX

This command executes routines of the module

and returns parameters

Table 5: Types of AT commands and responses

9.1. Using parameters

There are no default or optional parameter sets, so each parameter must be entered in the correct

format.

<XX>

8 bit hexadecimal number. Valid characters are 0-

9, a-f and A-F.

n, <n> Number from 0-9

S Sign

C character

<errorcode> 8 bit hexadecimal error code as explained in 11.

<EUI64> 32 bit 802.15.4 address in hexadecimal e.g.

0123456789ABCDEF

Telegesis (UK) Limited TG-ETRX1-PM-01-106 15

ETRX1 Preliminary Product Manual 1.06

Table 6: Different formats of parameters

9.2. AT Command Syntax

The AT commands can be divided into the three following sections, namely module control &

configuration commands, communication commands and I/O commands. The following table

gives a quick reference of all commands available.

Command Overview

ATZ Software Reset

AT&F Restore Factory Settings

AT+REMZ Reset Remote Node

ATI Display Product Identification Information

AT+BLOAD Enter the Bootloader Menu

AT+CLONE Clone Local Node to Remote Node

AT+TEST Run Self Test

ATSn S-Register Access

AT+PDWN Power Control

AT+BTABLE Display the Devices Binding Table

AT+COO Display the Devices Coordinator

AT+ESCAN Scan the Energy of the Current Channel

AT+SN Scan Network for other Nodes

AT+EN Establish PANetwork

AT+SORPHAN Scan for Orphans

AT+EBN Establish PANetwork using Beacons

AT+SNEIGHBOURS Scan for Neighbours

AT+PING Indicate Presence in the Network

AT+ASS Associate Node

AT+ASACK Accept Association Request from Coordinator

AT+DASSR Disassociate Remote device from PAN

AT+DASSL Disassociate Local device from PAN

AT+BCAST Transmit a Broadcast

AT+UCAST Transmit a Unicast

AT+CCAST Transmit a Unicast to the Coordinator

AT+COST Cost to Talk to Remote Node

AT+OPCHAN Open a Channel to a Remote Node

AT+ACKCHAN Accept Channel

+++ Close Channel

AT+SREMn Remote S-Register Access

AT+TOKDUMP Display all local S-Registers

AT+ADLOC Request a Reading from the Local A/D Converter

AT+ADREM Request a Reading from a Remote A/D Converter

AT+IDENT Play a Tune on Remote Devboard

Table 7: Command Overview

Telegesis (UK) Limited TG-ETRX1-PM-01-106 16

ETRX1 Preliminary Product Manual 1.06

9.2.1. Module Control & Configuration Commands

Z – Software Reset

Execute Command

ATZ

Response

Module Performs a software reset

All S Registers keep the user defined values

SW release R100

&F – Restore Factory Defaults

Execute Command

AT&F

Response

Module Performs a software reset

All non volatile S Registers are updated with the

factory defaults

SW release R100

+REMZ – Reset Remote Node

Execute Command

AT+REMZ:<EUI64>

Use on:

Coordinator

FFD’s

RFD’s

Response

OK

or

ERROR<errorcode>

<errorcode> represents the error code explained

in section 11. On receiving this command the

remote node will soft reset itself. Note: If the

remote node is an FFD, packets which are

currently relayed by this node may get lost.

SW release R103

I – Display Product Identification Information

Execute Command

ATI

Response

TELEGESIS

Ryyy

<EUI64>

OK

Where yyy is the software revision and <EUI64> is

the IEEE 802.15.4 identifier

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 17

ETRX1 Preliminary Product Manual 1.06

+BLOAD – Enter the bootloader menu

Execute Command

AT+BLOAD

Response

The device leaves the AT command line and

enters the Ember bootloader menu for

downloading new firmware.

Please note that the bootloader menu will run at a

data rate of 38k4, no parity, 8 data bits regardless

of the current data rate and the S3 register setting.

SW release R100

+CLONE – Clone Local node to remote node

Execute Command

AT+CLONE:<EUI64>,cccccccc

Use on:

Coordinator

FFD’s

RFD’s

Response

Cloning…

or

ERROR<errorcode>

Where <errorcode> represents the error code

explained in section 11.

Clones the firmware of the local node to a remote

node which address is given by <EUI64>.

cccccccc represents the remote nodes 8 digit

cloning protection password. After completion a

soft reset is caused on both ends.

SW release R100

+TEST – Run self test

Execute Command

AT+TEST

Module Performs a self test in order to check

for hardware problems

Note: If JTAG is activated by programming

the appropriate fuses of the Atmega128, the

self test will display an error message which

can be ignored.

Response

OK

Or if any problems occur

ERROR<errorcode>

Where <errorcode> represents the error code

explained in section 11.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 18

ETRX1 Preliminary Product Manual 1.06

Sn – S-Register access

Read Command

ATSn?

Response

<data>

OK or ERROR<errorcode>

The module displays the contents of S-register n or

an error message, where <errorcode> represents

the error code explained in section 11.

Write Command

ATSn=<data> Response

OK or ERROR<errorcode>

The data is written to S-register number n and if

applicable stored in non volatile EEPROM. The

data format for each individual S Register is given

in the S-Register description.

<errorcode> represents the error code explained in

section 11.

SW release R100

+PDWN – Power control

Read Command

AT+PDWN?

Response

+PDWN:<N>

OK

Write Command

AT+PDWN=<n>

Response

OK or ERROR<errorcode>

Where <errorcode> represents the error code

explained in section 11.

Parameter

<n>

The default Power mode after reset is defined by

register SA.

SW release R100

0. Module awake

1. Transceiver Power down, processor

active

2. Transceiver Power Down, processor

runs on reduced clock rate, RS232

baudrate goes down to 4800bps

3. Module power down, complete wakeup

by UART or external interrupt (falling

edge on I/O0 or I/O1)

4. Module power down, wakeup into

mode 1 by UART or external interrupt

(falling edge on I/O0 or I/O1)

5. Module Power Down complete wakeup

by external interrupt or reset only

Telegesis (UK) Limited TG-ETRX1-PM-01-106 19

ETRX1 Preliminary Product Manual 1.06

+BTABLE – Display the devices binding table

Read Command

AT+BTABLE?

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained in

section 11. The binding table can be displayed for

debugging purposes. It lists all nodes registered

with the local node. The first entry (if used)

represents the binding to the co-ordinator and the

last entry is the multicast ID.

SW release R100

+COO – Display the devices Coordinator

Read Command

AT+COO?

Use on:

Coordinator

FFD’s

RFD’s

Response

+COO:NONE

or

+COO:<EUI64>

followed by

OK or ERROR<errorcode>

<errorcode> represents the error code explained in

section 11. <EUI64> id the address of the

coordinator. In case the device is not associated to

a PAN the result is “none”.

SW release R100

+ESCAN – Scan the energy of the current channel

Read Command

AT+ESCAN?

Use on:

Coordinator

FFD’s

RFD’s

Response

+ESCAN:XX

OK or ERROR<errorcode>

<errorcode> represents the error code explained in

section 11. XX represents the average energy on

the current channel. The number represents the

RSSI reading of the EM2420. See the manual of

the EM2420 for detailed explanation of the RSSI

reading. This command can be used to measure

channel utilisation.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 20

ETRX1 Preliminary Product Manual 1.06

9.2.2. Communication Commands

+SN – Scan Network for other nodes

Execute Command

AT+SN

Use on:

Coordinator

FFD’s

RFD’s

Response

OK or ERROR<errorcode>

FFD:<EUI64>

RFD:<EUI64>

COO:<EUI64>

<errorcode> represents the error code explained in

section 11.

Actively Scans the network and requests all

devices in the same channel and PAN ID which are

up to 16 hops away to report within a few seconds.

The prefix FFD,RFD or COO indicates the remote

devices functionality as defined by S8. Note that

RFD’s will not respond if in a power down mode

higher than 0.

SW release R100

+EN – Establish PANetwork

Execute Command

AT+EN

Use on:

Coordinator

Note:

When issuing this command the local device

becomes a Coordinator and bits 1:0 in S8

are set 10 (coordinator).

There should only be a single coordinator in

a PAN.

Response

OK or ERROR<errorcode>

FFD:<EUI64>

RFD:<EUI64>

COO:<EUI64>

<errorcode> represents the error code explained in

section 11.

Same functionality as AT+SN above with the

exception that each RFD and FFD found will be

asked to join the PAN.

Remote Action Prompt

Depending on the setting of bit 2 in the remote S8

If unset the node will automatically join the PAN

(default)

if set the remote node will output the request in the

format

PAN:<EUI64>

The remote device has to acknowledge the request

using the command AT+ASACK in order to join the

PAN.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 21

ETRX1 Preliminary Product Manual 1.06

+SORPHAN – Scan for orphans

Execute Command

AT+SORPHAN

Use on:

Coordinator

Note:

When issuing this command the local device

becomes a Coordinator and bits 1-0 in S8

are set 10 (coordinator).

There should only be a single coordinator on

a PAN.

Response

OK or ERROR<errorcode>

FFD:<EUI64>

RFD:<EUI64>

<errorcode> represents the error code explained in

section 11.

Actively Scans the network and requests all

devices in the same channel and PAN ID which are

not associated with this particular coordinator to

report within a few seconds. Any devices reporting

back are asked to join the PAN in case bit 3 in S8

is not set. If bit 3 in S8 is set use AT+ASS to ask

them to join the PAN.

The prefix FFD or RFD indicates the devices

functionality as defined by the remote S8. Note

that any nodes will not respond if in a power down

mode higher than 0.

Remote Action

Will only take place if bit 3 in S8 is not set on

the coordinator.

Prompt

Depending on the setting of bit 2 in the remote S8

If unset the node will automatically join the PAN

(default)

if set the node will display the request in the format

PAN:<EUI64>

The remote device has to acknowledge the request

using the command AT+ASACK in order to join the

PAN.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 22

ETRX1 Preliminary Product Manual 1.06

+EBN – Establish PANetwork using beacons

Execute Command

AT+EBN

Use on:

Coordinator

Notes:

Command sets S8 bit 5.

If a orphan is found and does not join the

network it will be rediscovered with every

beacon. To disable beaconing clear bit 5 of

S8.

Response

OK or ERROR<errorcode>

FFD:<EUI64>

RFD:<EUI64>

COO:<EUI64>

<errorcode> represents the error code explained in

section 11.

Same functionality as AT+EN with the exception

that following the initial scan an orphan scan is

automatically executed every three seconds and

any device found is automatically asked to join the

PAN if bit 3 of S8 is not set on the Coordinator.

Remote Action Same as AT+EN

SW release R100

+SNEIGHBOURS – Scan for Neighbours

Execute Command

AT+SNEIGHBOURS:XX

Use on:

Coordinator

RFD’s

FFD’s

Response

OK or ERROR<errorcode>

FFD:<EUI64>

RFD:<EUI64>

COO:<EUI64>

Parameters

XX RANGING FROM 00 TO FF

<errorcode> represents the error code explained in

section 11.

Same functionality as AT+SN with the exception

that only neighbours which are up to XX hops

away are listed. If X=00 only direct neighbours will

reply

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 23

ETRX1 Preliminary Product Manual 1.06

+PING – Indicate presence in the network

Execute Command

AT+PING

Use on:

Coordinator

RFD’s

FFD’s

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Remote Action Prompt

FFD:<EUI64>

RFD:<EUI64>

COO:<EUI64>

The prompt above will be displayed on all nodes

which can hear the ping.

The prefix FFD,RFD or COO indicated the senders

functionality as defined by S8.

<EUI64> is the identifier of the sending device. If

received by a Coordinator which is defined to

automatically join any reporting nodes (bit 3 unset

in S8) the Node will be asked to join the PAN by

the coordinator.

SW release R100

+ASS – Associate Remote Node

Execute Command

AT+ASS:<EUI64>

Use on:

Coordinator

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Ask remote node to join the PAN. The response

will be OK as soon as the command has been

received by the remote device even if it refuses to

join the network.

Remote Action Prompt

Depending on the setting of bit 2 in the remote S8

If unset the node will automatically join the PAN

(default)

if set the node will display the request in the format

PAN:<EUI64>

The remote device has to acknowledge the request

using the command AT+ASACK in order to join the

PAN.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 24

ETRX1 Preliminary Product Manual 1.06

+ASACK – Accept association request from coordinator

Execute Command

AT+ASACK:<EUI64>

Use on:

RFD’s

FFD’s

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Join the PAN which coordinator ID is <EUI64>

which was previously advertised with:

PAN:<EUI64>

SW release R100

+DASSR – Disassociate remote device from PAN

Execute Command

AT+DASSR:<EUI64>

Use on:

Coordinator

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Instruct remote device to leave the PAN.

Note: If using AT+EBN the remote device can

rejoin the PAN with the next beacon sent by the

coordinator.

SW release R100

+DASSL – Disassociate local device from PAN

Execute Command

AT+DASSL

Use on:

RFD’s

FFD’s

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Instruct local device to leave the PAN.

Note: If using AT+EBN on the coordinator the

device can rejoin the PAN with the next beacon

sent by the coordinator.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 25

ETRX1 Preliminary Product Manual 1.06

+BCAST – Transmit a Broadcast

Execute Command

AT+BCAST:<data>

Use on:

Coordinator

FFD’s

RFD’s

Response

OK or ERROR<errorcode>

Where <errorcode> represents the error code

explained in section 11.

Parameters

Up to 70 bytes (50 using encryption) are sent to all

devices with the same PAN ID defined in S1. The

response OK shows successful transmission.

Successful transmission does not guarantee

successful reception. To make sure data has been

received by a specific node use a uni-cast

message.

Remote action Prompt

BCAST:<EUI64>=<data>

Every node in the same PAN ID defined in S1

which has received the broadcast message will

prompt the above message where <EUI64> is the

address of the sender and <data> is the data which

was attached to the broadcast

SW release R100

+UCAST – Transmit a Unicast

Execute Command

AT+UCAST:<EUI64>,<DATA>

Use on:

Coordinator

FFD’s

RFD’s

Response

OK or ERROR<errorcode>

Where <errorcode> represents the error code

explained in section 11.

Parameters

Up to 70 bytes (50 using encryption) are sent to

the node with address <EUI64>. The <EUI64> and

<DATA> need to be separated by a ‘,’. The

response OK shows successful acknowledgement.

A missing acknowledgement does not guarantee

that the message has not reached its destination.

Remote action Prompt

UCAST:<EUI64>=<data>

Where <EUI64> is the address of the sender.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 26

ETRX1 Preliminary Product Manual 1.06

+CCAST – Transmit a Unicast to the Coordinator

Execute Command

AT+CCAST:<DATA>

Use on:

FFD’s

RFD’s

Response

OK or ERROR<errorcode>

Where <errorcode> represents the error code

explained in section 11.

Parameters

Up to 70 bytes (50 using encryption) are sent to

the coordinator. The response OK shows

successful acknowledgement. A missing

acknowledgement does not guarantee that the

message has not reached its destination.

Remote action Prompt

UCAST:<EUI64>=<data>

Where <EUI64> is the address of the sender.

SW release R100

+COST – Cost to talk to remote node

Read Command

AT+COST:<EUI64>?

Use on:

Coordinator

RFD

FFD

Response

+COST:YY

OK

or

ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

YY represents the cost to transmit to a device. The

cost is higher the more hops are required and/or

the worse the link quality is.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 27

ETRX1 Preliminary Product Manual 1.06

+OPCHAN – Opens a channel to a remote node

Execute Command

AT+OPCHAN:<EUI64>

Use on:

Coordinator

FFD’s

RFD’s

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Once the channel is established it acts like a virtual

wire and transmits any data entered bi-

directionally. There is no local echo of the data

entered. To close the channel enter +++ on any

end of the virtual wire.

Parameters

The module’s address <EUI64>.

Examples

AT+OPCHAN:01234567890ABCDEF

OK

>Hello world

My second data line

And the third one

The last one +++

CLOSED

Prompt

ERROR<errorcode>

In case the channel breaks down an error message

is displayed on both ends, where <errorcode>

represents the error code explained in section 11.

Remote Action Prompt

Depending on the setting of bit 4 in the remote S8

If unset the node will automatically accept the

channel.

if set the node will display the request in the format

CHAN:<EUI64>

The remote device has to acknowledge the request

using the command AT+ACKCHAN command.

If this command is not issued within 10 seconds

the channel request will time out.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 28

ETRX1 Preliminary Product Manual 1.06

AT+ACKCHAN – Accept Channel

Execute Command

AT+ACKCHAN

After an attempt to connect has been

prompted the unit has a window of 10

seconds to accept the channel using this

command.

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Example

Prompt:

CHAN:<EUI64>

Reply:

AT+ACKCHAN

The unit gets prompted that a remote unit is trying

to establish a channel to this unit.

If required the channel can be acknowledged which

will cause the channel to open.

In S8 the unit can be configured to automatically

accept every incoming channel if not connected to

another active channel.

SW release R100

+++ – Close channel and leave transmit terminal mode

Execute Command

+++

Response

Close or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Remote Action Prompt

Close

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 29

ETRX1 Preliminary Product Manual 1.06

SREMn – Remote S-Register access

Read Command

ATSREMn:<EUI64>?

Use on:

Coordinator

FFD’s

RFD’s

Response

<data>

OK

Or

ERROR<errorcode>

The module displays the contents of S-register n or

an error message, where <errorcode> represents

the error code explained in section 11. The data

format for each individual S Register is given in the

S-Register description.

Write Command

ATSREMn:<EUI64>=<data> The hexadecimal value is written to remote S-

register number n and if applicable stored in non

volatile eeprom.

Response

OK

Or if any problems occur

ERROR<errorcode>

Where <errorcode> represents the error code

explained in section 11.

Note that some S- registers are read only and will

return an error when trying to write to them

SW release R100

TOKDUMP – Display all S-Registers

Read Command

AT+TOKDUMP

Use on:

Coordinator

FFD’s

RFD’s

Response

<data>

OK

Or

ERROR<errorcode>

The module displays the contents of all S-registers

on the local node or an error message, where

<errorcode> represents the error code explained

in section 11. The data format for each individual S

Register is given in the S-Register description.

SW release R104

Telegesis (UK) Limited TG-ETRX1-PM-01-106 30

ETRX1 Preliminary Product Manual 1.06

9.2.3. I/O Commands

Except with the A/D converter the I/O is controlled via registers Sx to Sy, whereas remote I/O can

be controlled by accessing the remote S registers Sx to Sy.

+ADLOC? – Request a reading from the local A/D converters

Execute Command

AT+ADLOC?

Response

+ADLOC: XXX,YYY

OK

or

ERROR<errorcode>

<errorcode> represents the error code explained

in section 11. XXX is the 10 bit reading of A/D1 and

YYY is the 10 bit reading of A/D2

SW release Extended to 10 bits in R102

+ADREM? – Request a reading from remote A/D converters

Execute Command

AT+ADREM:<EUI64>?

Use on:

Coordinator

FFD’s

RFD’s

Response

+ADREM: XXX,YYY

OK

or

ERROR<errorcode>

<errorcode> represents the error code explained

in section 11. XXX is the 10 bit reading of the

remote A/D1 and YYY is the 10 bit reading of the

remote A/D2

SW release Extended to 10 bits in R102

+IDENT – Play a tune on remote devboard

Execute Command

AT+IDENT:<EUI64>

Use on:

Coordinator

RFD’s

FFD’s

Response

OK or ERROR<errorcode>

<errorcode> represents the error code explained

in section 11.

Plays a tune on a remote devboard if the Beeper is

connected. Useful to identify remote nodes. See

devkit manual for details about connecting a

beeper to the ETRX1.

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 31

ETRX1 Preliminary Product Manual 1.06

10. S-Registers

Most of the S-Registers of the ETRX1 can be read and written locally as well as remotely. With

the exception of S4, S5 and S9 the S-registers are stored in non-volatile memory and will keep

their user defined settings unless reset to the factory defaults using the “AT&F” command. S4,S5

and S9 are directly accessing the volatile I/O registers to prevent EEPROM corruption due to

constant I/O access. The non-volatile registers SC, SD and SE represent the non volatile registers

which define the contents of S4, S5 and S9 respectively after booting up.

The standard set of S-registers ranging from S0 to S7 determines the modules standard feature

set, whereas the extended S-register set from S8 to SC allows the user to customise the modules’

behaviour after start-up to allow standalone operation without the need for a host processor.

Altering the extended S-registers is only required for custom specific applications. The S-

Registers are summarised in table 8 below.

S-Register Overview

S0 Channel Number

S1 PAN ID

S2 Transmit Power Level

S3 Baudrate

S4 Data Direction of I/O Port (DDR) (volatile)

S5 Output Buffer of I/O Port (PORT) (volatile)

S6 Input Buffer of I/O Port (PIN)

S7 Encryption key

S8 Main Function

S9 Operation of the Special Function Pin

SA Functionality at Start-up

SB Timer at Start-up

SC Clone Password

SD Initial value of S4

SE Initial value of S5

SF Initial value of S9

SG User Definable name

Table 8: S-Register Overview

Telegesis (UK) Limited TG-ETRX1-PM-01-106 32

ETRX1 Preliminary Product Manual 1.06

10.1. Standard S-Registers

S0 – Channel Number

Description

The 802.14.2 channel number.

Sets the frequency to the defined channel.

Operations

R/W LOCAL

R/W REMOTE

Execution

After Soft or Hard Reset

Storage

Non Volatile

Parameters

NN

Where nn represents a 8 bit decimal number.

Range

0-15 representing 802.14.2 channel numbers 11-

26

Factory Default

7

SW release Changed default to 7 in R102

S1 – PAN ID

Description

The devices PAN ID

Only devices with the same PAN ID will be

able to hear one another.

Operations

R/W LOCAL

R/W REMOTE

Execution

After Soft or Hard Reset

Storage

Non Volatile

Parameters

XXXX

Where XXXX represents a 16 bit hexadecimal

number.

Range

0000-FFFF

Factory Default

2A2A

SW release R100

S2 – Transmit Power Level

Description

The devices transmit power level in dBm.

Operations

R/W LOCAL

R/W REMOTE

Execution

After Soft or Hard Reset

Storage

Non Volatile

Parameters

SNN

Where snn represents a signed 8 bit decimal

number.

Range

-1 TO -32

Factory Default

-1

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 33

ETRX1 Preliminary Product Manual 1.06

S3 – Baudrate

Description

The devices RS232 Baudrate and mode.

The default setting of 0500 results in:

19200bps, no parity, 1 stop bit, 8 data bits.

Operations

R/W LOCAL

R/W REMOTE

Execution

After Soft or Hard Reset

Note

Ember does only guarantee proper operation

of the stack up to 19200 baud.

Storage

Non Volatile

Parameters

XXXX

Where XXXX represents an 16 bit hexadecimal

number.

Range of 1st two digits

00 TO 07

0. 1200 baud

1. 2400 baud

2. 4800 baud

3. 9600 baud

4. 14400 baud

5. 19200 baud

6. 28800 baud

7. 38400 baud

Range of 2nd two digits

00 TO FF

bit 0 set: even parity enabled

bit 1 set: odd parity enabled

bit 2 set: 2 stop bits instead of one

bit 3 set: 7 data bits instead of 8

bit 4 set: reserved

bit 5 set: reserved

bit 6 set: reserved

bit 7 set: reserved

Factory Default

0500

SW release Revised in R101 (see update guide if using R100)

Telegesis (UK) Limited TG-ETRX1-PM-01-106 34

ETRX1 Preliminary Product Manual 1.06

S4 – Data Direction of I/O Port

Description

The data direction of the module’s I/O port

Operations

R/W LOCAL

R/W REMOTE

Execution

Instantly

Storage

Volatile

Parameters

XX

Where XX represents an 8 bit hexadecimal

number.

Range

00 TO FF

representing I/O pins

76543210 (little endian)

e.g. setting bit 7 to 1 will turn I/O pin 7 into an

output, setting it to 0 will make it an input

respectively.

Factory Default

Defined in SD

SW release R100

S5 – Output Buffer of I/O Port

Description

The output buffer of the module’s I/O port

Operations

R/W LOCAL

R/W REMOTE

Execution

Instantly

Storage

Volatile

Parameters

XX

Where XX represents a 8 bit hexadecimal number.

Range

00 TO FF

representing I/O pins

76543210 (little endian)

If the I/O pin has been defined as an output in S4

the pin will drive the logic level defined by S5. If

defined as an input setting the output buffer to 1

activates the internal pull-up, which should be

avoided if power consumption is critical.

Factory Default

DEFINED IN SE

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 35

ETRX1 Preliminary Product Manual 1.06

S6 – Input Buffer of I/O Port

Description

The Logical Levels at the I/O Pins

Operations

R LOCAL

R REMOTE

Execution

Instantly

Storage

Instant Reading of Port Status

Range

00 TO FF

representing I/O pins

76543210 (little endian)

S6 represents the logic level at each pin of the I/O

port.

SW release R100

S7 – Encryption Key

Description

The encryption key

Operations

W LOCAL

Execution

After Soft or Hard Reset

Storage

Non Volatile

Range

FROM 0 TO 2128-1

The 128 bit AES encryption key.

If set to 0 encryption is switched off.

Note that using encryption reduces the payload for

all transmission types down to 50 bytes.

SW release Since R102 write only for security reasons

Telegesis (UK) Limited TG-ETRX1-PM-01-106 36

ETRX1 Preliminary Product Manual 1.06

10.2. Extended S-Registers

S8 – Main Function

Description

Defines the behaviour of the Device.

Operations

R/W LOCAL

R/W REMOTE

Action

Instantly

Storage

Non Volatile

Parameters

XX

Where XX represents a 8 bit hexadecimal number.

Range

00 TO FF

Bit 7 (MSB):

Set: Behaviour of I/O3 is defined by S9.

Unset: I/O acts as a standard I/O pin.

Bit 6:

RESERVED, SHOULD BE ALWAYS CLEARED

Bit 5:

Set: Coordinator beaconing enabled is

automatically set when executing AT+EBN

Unset: Coordinator beaconing disabled

Bit 4:

Set: Prompt user if a channel has been requested

Unset: Automatically accept channel

Bit 3: (Coordinator only)

Set: Coordinator does not ask to join when doing

an orphan scan or receiving a ping

Unset: Coordinator automatically joins RFD’s and

FFD’s pinging in and any devices found running an

orphan scan

Bit2:

Set: RFD’s and FFD’s prompt user when asked to

join by AT+EN, AT+EBN, AT+SORPHAN, AT+ASS

Unset: Devices auto join a coordinator when asked

to.

Bit 1 & Bit 0 (LSB):

The mode of the local device

00 FFD

01 RFD

10 Coordinator

Factory Default

00

SW release R100

Telegesis (UK) Limited TG-ETRX1-PM-01-106 37

ETRX1 Preliminary Product Manual 1.06

S9 – Operation of the special function pin

Description

The mode of operation for the special

function pin

Operations

R/W LOCAL

R/W REMOTE

Action

Instantly

Storage

Volatile

Parameters

XXXX

Range

0000 TO FFFF

If the special function pin is enabled by setting bit 7

of S8, the first byte of S9 is written to the OCR2

register of the Atmega128 and the second byte of

S9 is written to the TCCR2 register of the Atmel

A

tmega 128L. This allows I/O3 to output a PWM

or constant carrier signal. For more information see

the Atmega128 datasheet.

Factory Default

DEFINED IN SF

SW release R100

SA – Functionality at start-up

Description

Custom functionality which the node fulfils

after power up. If required customer specific

functionality can be added on request.

Operations

R/W LOCAL

R/W REMOTE

Action

Instantly

Note: If 3 messages to a coordinator fail the

coordinator is assumed unavailable and a

ping is sent from thereon. If using mode 02

or 03 the node should be set to be a RFD as

it cannot have routing responsibility.

Storage

Non Volatile

Parameters

XX

Range

00 TO 04

00: Normal operation.

01: A falling edge on I/O1 (devboard Button 3)

sends the reading of the I/O port and both A/D

ports to the coordinator and if no coordinator is

known unit sends a ping.

02: Same as 01, but unit wakes up from sleep,

transmits and goes back to sleep mode 5. Unit

goes to sleep after 1st falling edge or after soft or

hard reset. A falling edge on I/O0 (devboard Button

4) wakes the unit up permanently.

03: Same as 02, but after transmission the unit

stays awake for 20 seconds to allow for incoming

data.

04: In predefined intervals the unit sends a reading

of the I/O port and both A/D ports to the

coordinator and if no coordinator is known unit

sends a ping. The interval of the transmissions is

the content of SB in seconds.

Factory Default

00

Remote Action Prompt

CDATA:<EUI64>=XX,YYY,ZZZ

Where XX is the reading of the remote port, YYY is

the reading of the remote A/D1 and ZZZ is the

reading of the remote A/D2.

SW release A/D reading extended to 10 bits in R102

Telegesis (UK) Limited TG-ETRX1-PM-01-106 38

ETRX1 Preliminary Product Manual 1.06

SB – Timer at start-up

Description

Times seconds for any functionality defined

in SA.

Operations

R/W LOCAL

R/W REMOTE

Action

Instantly

Storage

Non Volatile

Parameters

XX

Range

00-FF

Note:00 equals an interval of 256 seconds

Factory Default

0A

SW release R100

SC – Clone Password

Description

The password needed when trying to clone a

remote nodes firmware onto the local node

Operations

W LOCAL

Action

Instantly

Storage

Non Volatile

Parameters

cccccccc

8 case sensitive characters (8 bytes).

In order to clone itself to a remote node using the

AT+CLONE command, the password of the remote

node must be known.

Factory Default

TG-ETRX1

SW release Since R102 write only for security reasons

SD – Initial Setting of S4

Description

The initial setting of S4 stored in non volatile

memory

Operations

R/W LOCAL

R/W REMOTE

Action

After Soft or Hard Reset

Storage

Non Volatile

Parameters

XX

Where XX represents the initial value of S4 which

is loaded after boot-up, soft or hard reset.

Factory Default

F8

SW release R103

Telegesis (UK) Limited TG-ETRX1-PM-01-106 39

ETRX1 Preliminary Product Manual 1.06

SE – Initial Setting of S5

Description

The initial setting of S5 stored in non volatile

memory

Operations

R/W LOCAL

R/W REMOTE

Action

After Soft or Hard Reset

Storage

Non Volatile

Parameters

XX

Where XX represents the initial value of S5 which

is loaded after boot-up, soft or hard reset.

Factory Default

F0

SW release R103

SF – Initial Setting of S9

Description

The initial setting of S9 stored in non volatile

memory

Operations

R/W LOCAL

R/W REMOTE

Action

After Soft or Hard Reset

Storage

Non Volatile

Parameters

XXXX

Where XXXX represents the initial value of S9

which is loaded after boot-up, soft or hard reset in

case Bit 7 of S8 is set.

Factory Default

0000

SW release R103

SG – User Readable Name

Description

A Used defined name which can be used to

identify the node

Operations

R/W LOCAL

R/W REMOTE

Action

Instantly

Storage

Non Volatile

Parameters

cccccccccccccccccccc

Any name with up to 20 characters.

Factory Default

NoName

SW release R103

Telegesis (UK) Limited TG-ETRX1-PM-01-106 40

ETRX1 Preliminary Product Manual 1.06

11. List of Error codes

01 Too many characters have been entered on the command line

02 Unknown command

03 Reserved

04 Invalid S-Register

05 Invalid Parameter

06 Unicast could not be sent

07 Unicast was not acknowledged

08 Reserved

09 Channel Failed

0A Awaiting channel from different node

0B No channel has been stated when issuing the command acknowledge channel

0C Reserved

0D A/D reading not possible

0E Reserved

0F No response from remote device

10 Reserved

11 Association Failed

12 Message Payload too long

13 I/O problem

14 Binding Problem

15 No Coordinator Known

16 Cost unknown

17 Binding in use

18 Error sending Broadcast

19 Out of Buffers

20 Invalid clone password

21 Invalid S-Register selected

22 Co-ordinator Lost

23 PWM currently not in use

24 Channel is Engaged

Telegesis (UK) Limited TG-ETRX1-PM-01-106 41

ETRX1 Preliminary Product Manual 1.06

12. Physical Dimensions

The physical dimensions are shown in table 9. Units are in mm.

Figure 4. Physical Dimensions of Module

For ideal RF-Performance when using the on-board antenna, the antenna should be located at the

edge of the carrier PCB. There should be no components, tracks or copper planes in the keep out

area which should be as large as possible, preferably 10-15mm around the antenna.

If using the U.FL RF-Connector the keep out area can be significantly reduced. The Module

transmit/receive range will depend strongly on the antenna used and also the housing of the

finished product.

Label Min. Typ. Max. Description

L 37.75 Length of the module

W 20.45 Width of the module

P 2.54 Pitch

A 15.5 Distance corner/centre 1st pad

H 3.4 3.6 Height of the Module

Table 9: Dimensions of module in mm

Telegesis (UK) Limited TG-ETRX1-PM-01-106 42

ETRX1 Preliminary Product Manual 1.06

13. Recommended Footprint

In order to surface mount the module, it is recommended to use pads which are 1.5mm wide and

1.2mm high as shown in table 10.

Care must be taken to ensure that on the surface underneath the module there are no exposed

pads or vias which might contact with the pads for the optional connector or any vias of the module

itself.

Figure 5. Recommended Footprint

Label Min. Typ. Max. Description

L 1.5 Length of a Pad

H 1.5 Width of a Pad

P 2.54 Pitch

B 1.9 Distance right corner/ centre pad 9

A 15.5 Distance left corner/centre pad 1

W 18.5 Distance between pad inside edges

Table 10: Dimensions of Footprint in mm

Telegesis (UK) Limited TG-ETRX1-PM-01-106 43

ETRX1 Preliminary Product Manual 1.06

14. Ordering Information

Ordering/Product Code Description

ETRX1 *

Ember ZigBee Ready Module with:

• AT Style Command Interpreter

• Integrated 2.4Ghz Antenna

• No Harwin Connector included

ETRX1HR *

Ember ZigBee Ready Module with:

• AT Style Command Interpreter

• Hirose U.FL Antenna Connector

• No Harwin Connector included

ETRX1DVK *

Ember ETRX1 Development Kit with:

• 1 x ETRX1 Module

• 1 x ETRX1HW Module (with Harwin Connector fitted)

• 1 x ETRX1DV Development Board

• 1 x PSU

• 1 x RS232 Cable

Notes:

• Customers’ PO’s must state the Ordering/Product Code.

• There is no “blank” version of the ETRX1 Module available. All Modules carry both the

EmberNet Stack and the Telegesis AT style Command Layer. (Where customers wish to

add their own firmware they can erase and write it to the flash memory of the Atmel).

• Please contact Telegesis if you require additional AT style commands or specific

integration assistance.

Table 11. Ordering Information

Telegesis (UK) Limited TG-ETRX1-PM-01-106 44

ETRX1 Preliminary Product Manual 1.06

15. Trademarks

All trademarks, registered trademarks and products names are the sole property of their respective

owners.

16. Disclaimer

Product and Company names and logos referenced may either be trademarks or registered

trademarks of their respective companies. We reserve the right to make modifications and/or

improvements without prior notification. All information is correct at time of issue. Telegesis (UK)

Ltd does not convey any license under its patent rights or assume any responsibility for the use of

the described product

17. Contact Information

Website: www.telegesis.com

E-mail sales@telegesis.com

Telegesis (UK) Limited

Marlow Business Centre

84 Station Road

Marlow

Bucks. SL7 1NX

UK

Tel: 01628 894347

Fax: 01628 894333

18. References

Telegesis - www.telegesis.com/etrx1

Ember - www.ember.com

Atmel - www.atmel.com

Gigaant - www.gigaant.com

Silicon Laboratories Finland ETRX1 Telegesis ETRX1 Module type TG-ETRX1-PM-01-106 User Manual Distributor Information

Telegesis (UK) Ltd Telegesis ETRX1 Module type TG-ETRX1-PM-01-106 Distributor Information

User manual

Navigation menu

Namespaces

Views

Navigation
