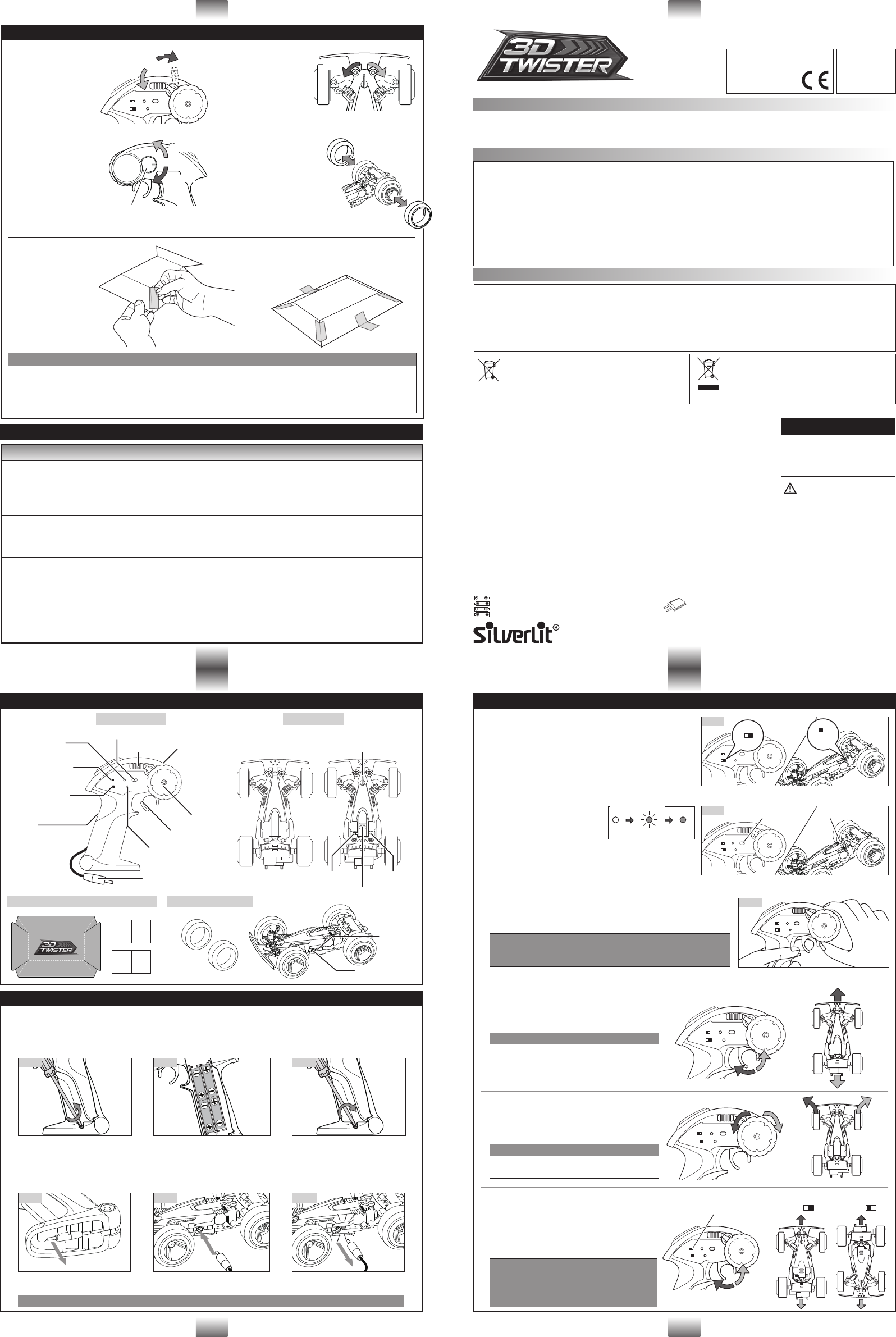

Silverlit Toys Manufactory Ltd. 3D Twister / 2X Twisters 82333 EN 6L A5 v2 a5

Users Manual

EI-3419
Instruction Manual
ENGLISHENGLISH
ENGLISH
1
ENGLISH
4
2 3
Cautions:
Care and Maintenance:
Note:
- Parents, this toy is recommended for children. To ensure that your child's play is both safe and fun, please review the operating
instructions with your children.
- DO NOT pick up moving vehicle.
- Keep hands, hair and loose clothing away from the tires and the wheel hubs when power switch is turned ON.
- Remove battery from the toy when not in use.
- DO NOT operate your vehicle on street. Avoid hitting people, pets or home furnishings.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
When this appliance is out of use, please remove all batteries
and dispose of them separately. Bring electrical appliances to the
local collecting points for waste electrical and electronic
equipment. Other components can be disposed of in domestic
refuse.
Waste Electrical and Electronic Equipment (WEEE)
The crossed-out dustbin symbol indicates that batteries, rechargeable
batteries, button cells, battery packs, etc. must not be put in the
household waste. Batteries are harmful to health and the environment.
Please help to protect the environment from health risks. Tell your
children to dispose of batteries properly by taking them to the local
collecting points. This way batteries are recycled safely.
TIPS
Best performance can be
only obtained by using
new alkaline batteries.
For ages 5+
Ab 5 Jahre
A partir de 5 ans
Leeftijd vanaf 5 jaar
A partir de 5 años
Dai 5 anni in su
WARNING:
CHOKING HAZARD - Small parts.
Not for Children under 3 years.
- Non-rechargeable batteries are not to be recharged.
- Rechargeable batteries are to be removed from the toy before being charged.
- Rechargeable battery are only to be charged by an adult.
- Different types of batteries or new and used batteries are not to be mixed. (Transmitter only)
- Only batteries of the same or equivalent type as recommended are to be used.
- Batteries are to be inserted with correct polarity.
- Exhausted batteries are to be removed from the toy.
- The supply terminals are not to be short-circuited.
- Do not mix old and new batteries. (Transmitter only)
- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. (Transmitter
only)
- Always remove batteries from the toy when it is not being used for a long period of time.
- Wipe the toy gently with a clean damp cloth.
- Keep the toy away from direct sunlight and/or direct heat.
- Do not submerge the toy into water that can damage the electronic assemblies.
- Parental guidance is recommended when installing or replacing batteries.
- Users should keep and retain this information for future reference.
- Users should keep strict accordance with the instruction manual while operation the toy.
- Under the environment with electrostatic discharge, the toy may malfunction and require user to reset the toy.
- Vehicle
- Transmitter
- Instruction manual
- 2x Spare Rear Tire
- 8x cellular tape
- Paper ramp
Battery requirement for Transmitter:
Power Supply :
Rating : DC 6 V , 2.7 W
Batteries : 4 x 1.5 V "AA"/LR6/AM3(not included)
Battery requirement for Vehicle:
Power Supply :
Battery ratings : DC 3.7 V , 2 W
Batteries : 1 x 3.7 V LiPo Rechargeable Battery Pack (included)
Capacity : 90 mAh
Delivery Contents
Safety Precautions
Symptom Cause Correction
Vehicle runs slowly
or does not run.
Vehicle does not
react, or react
poorly to operation
by transmitter.
- Channel selection is not correct.
- Out of the control range of distance.
- Enter into power save mode.
- ON/OFF switch is not in "ON".
- Low battery.
- Hair, carpet or dirt might be
trapped between wheels.
- Pair the vehicle and the transmitter by press and hold
both pairing buttons.
- Vehicle runs distance up to 15 meters (or 50 feet)
indoor.
- Switch off the vehicle and turn on again.
The vehicle is not
driving straight
- The vehicle is not adjusted properly.
- The front and rear tires are
misplace.
- Adjust the steering axle adjust.
- Check the tires. If issue persists, try swaping left and
right tires or insert them in different orientation.
Components are
loose or detached.
- Bumpers or wheels are out of place. - Insert the bumper to the slot in the front of the vehicle.
- Place the tires evenly on the rims. The front tires are
thinner and the rear tires are thicker.
- Switch on the power.
- Recharge the vehicle.
- Carefully remove such foreign materials.
The vehicle will automatically enter power saving mode after
10 minutes not in use. To turn it on again, simply switch the
ON/OFF switch to ‘OFF’ position and then ‘ON’ position again.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
1)This device may not cause harmful interference, and
2)This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Transmitter
Paper Ramp & Cellular Tape Spare Rear Tire
Vehicle
FCC Statements
Silverlit SAS, Espace Green Parc, Route de Villepecle, 91280 Saint Pierre du Perray / France.
©2011 Silverlit. All rights reserved.
This product is in compliance with
the essential requirements and
other relevant
provisions of Directive
1999/5/EC.
(i) Forward & Backward
Pull throttle control (trigger) to drive the vehicle
forward and lift the throttle control to drive in reverse.
(ii) Turning Left & Right
Rotate the steering wheel clockwise to steer
the vehicle right and rotate the steering wheel
anticlockwise to steer the vehicle left.
3.1 Pairing
3.2 Control
(iii) Flip & Unflip
Select the ‘Flip/ Unflip’ switch to choose which side
to move forward when the throttle trigger is pulled. it
does not affect the driving when the top side is on
top. However, when the vehicle flips, bottom side on
top, the player can choose which driving direction
the trigger corresponds to.
Top side Bottom side
Charging socket
Side view
Charging
indicator
4. Hold the transmitter with your left hand like holding a pistol (fig. 9).
Off Flashing On
Status indicator
Note: 1. The vehicle can operate for about 4 - 5 minutes per every 12 - 20 minutes charging.
2. Before recharging the battery, wait 10 - 15 minutes for it to cool down.
1. Pull out the charging plug from the bottom of the transmitter (fig. 4).
2. Switch off the vehicle. Insert the charging plug into the charging socket on the vehicle (fig. 5).
3. Switch on the transmitter. The charging process will begin automatically and the charging indicator will
light up. Unplug the charging plug after the charging indicator turns off. Charging is completed (fig. 6).
fig. 5fig. 4 fig. 6
1. Switch off the transmitter
2. Open the battery compartment by loosening the screw (fig. 1).
3. Put 4 Type AA battery in the battery compartment as per the polarity shown inside (fig. 2).
4. Place back the battery compartment cover (fig. 3).
Charging the vehicle
Transmitter battery installation
ON/OFF Switch
Steering axle adjuster
Pairing button
Status indicator
Charging plug
Throttle trigger
Pairing button
Status indicator
ON/OFF switch
Flip/Unflip switch
Steering wheel
Gear lever
Vehicle battery
indicator
Battery
compartment cover
(at the back)
Throttle trimming dial
(at the back)
Forward
Backward
fig. 9
Vehicle
fig. 7
Forward
Backward
Bottom side on top
‘Unflip’‘Flip’
1. Part Identification 3. Operation
2. Battery Installation and Charging
fig. 1 fig. 2
Backward
Forward
Left Right Left Right
Flip/ Unflip Switch
Backward
Forward
5. Trouble Shooting
1. Set the gear lever to
select driving speed.
Select ‘Hi’ for high
speed mode and ‘Lo’
for normal speed mode
for easier control.
2. Turn the steering axle
adjuster at the bottom
towards left when the
vehicle drives to the
right involuntarily. If it
turns left involuntarily,
turn the adjuster
towards right.
3. Adjust the throttle
trimming dial to establish
an idle setting for the
vehicle. If the vehicle
rolls forward by itself,
turn the dial clockwise
until it stops moving. Turn
it anticlockwise to
compensate for reverse
idle.
5. Set up the paper ramp
Forward
Backward
Throttle trimming dial
4. Rear Tires Replacement
Rear tires with larger
diameter are available as
replacement. Change to the
spare rear tires to obtain top
speed performance. It is
recommended to get familiar
with the control before using
them.
High speed
Low speed
Right
Left
Bottom side
4. Config
fig. 3
Transmitter
ONOFF
Pairing buttons Pairing buttons
ON/OFF
Vehicle
fig. 8
Transmitter
To achieve maximum speed, operate the
vehicle indoor on dust-free floor. Avoid to
drive it in thick /soft carpet, The vehicle may
be damaged as the result.
TIPS!
Due to the high speed, please do more
practice to turn precisely within control.
TIPS!
Flip: The vehicle front always faces forward.
Unflip: When the vehicle bottom side is on
top, the driving direction is reversed. The
back of the vehicle drives forward when the
trigger is pulled.
When the vehicle battery indicator on the transmitter starts blinking, recharge the vehicle .
Driving Tips:
1. The turning speed and radius may vary at different control combination.
2. Operate only on flat, smooth (but not slippery), dry surfaces and low pile carpet, as hair, carpet or dirt can
affect the operation of the vehicle.
3. Don't drive your vehicle in sand or through water or snow, if your vehicle get wet, wipe with a towel and allow
to dry completely.
1. After installed all batteries required for transmitter and the
vehicle, you can start to do the pairing.
2. Firstly turn on the transmitter through the ON/OFF
switches.
Secondly turn on the vehicle through the ON/OFF
switches. (fig. 7)
3. Press and hold the pairing
buttons (fig. 8) on the
transmitter and the vehicle.
The red status indicator will
start flashing. Once the
allocation is finished, the status indicator turns red.
To avoid different vehicles using the same channel when
there is more than one player, all players should perform
pairing within a maximum of 5m area, so that each vehicle
will be assigned a different channel.
(i) Fold the flaps down
to form a ramp.
Place four pieces of
cellular tape on the
four corner edges to
secure the ramp.
(ii) Affix the paper ramp on the floor by
two pieces of cellular tape.
