Silverlit Toys FCC82372 3D Twister - Sharpz User Manual 82372 EN 6L A5 R01
Silverlit Toys Manufactory Ltd. 3D Twister - Sharpz 82372 EN 6L A5 R01
User Manual
EI-3419b
Instruction Manual
ENGLISHENGLISH
ENGLISH
1
ENGLISH
4
2 3
Cautions:
Care and Maintenance:
Note:
- Parents, this toy is recommended for children. To ensure that your child's play is both safe and fun, please review the operating
instructions with your children.
- DO NOT pick up moving vehicle.
- Keep hands, hair and loose clothing away from the tires and the wheel hubs when power switch is turned ON.
- Remove battery from the toy when not in use.
- DO NOT operate your vehicle on street. Avoid hitting people, pets or home furnishings.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
When this appliance is out of use, please remove all batteries
and dispose of them separately. Bring electrical appliances to the
local collecting points for waste electrical and electronic
equipment. Other components can be disposed of in domestic
refuse.
Waste Electrical and Electronic Equipment (WEEE)
The crossed-out dustbin symbol indicates that batteries, rechargeable
batteries, button cells, battery packs, etc. must not be put in the
household waste. Batteries are harmful to health and the environment.
Please help to protect the environment from health risks. Tell your
children to dispose of batteries properly by taking them to the local
collecting points. This way batteries are recycled safely.
TIPS
Best performance can be
only obtained by using
new alkaline batteries.
For ages 5+
Ab 5 Jahre
A partir de 5 ans
Leeftijd vanaf 5 jaar
A partir de 5 años
Dai 5 anni in su
WARNING:
CHOKING HAZARD - Small parts.
Not for Children under 3 years.
- Non-rechargeable batteries are not to be recharged.
- Rechargeable batteries are to be removed from the toy before being charged.
- Rechargeable battery are only to be charged by an adult.
- Different types of batteries or new and used batteries are not to be mixed. (Transmitter only)
- Only batteries of the same or equivalent type as recommended are to be used.
- Batteries are to be inserted with correct polarity.
- Exhausted batteries are to be removed from the toy.
- The supply terminals are not to be short-circuited.
- Do not mix old and new batteries. (Transmitter only)
- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. (Transmitter
only)
- Always remove batteries from the toy when it is not being used for a long period of time.
- Wipe the toy gently with a clean damp cloth.
- Keep the toy away from direct sunlight and/or direct heat.
- Do not submerge the toy into water that can damage the electronic assemblies.
- Parental guidance is recommended when installing or replacing batteries.
- Users should keep and retain this information for future reference.
- Users should keep strict accordance with the instruction manual while operation the toy.
- Vehicle
- Transmitter
- Instruction manual
- 2 x Spare Rear Tire
- 8 x adhesive tape
- Paper ramp
Battery requirement for Transmitter:
Power Supply :
Rating : DC 6 V , 2.7 W
Batteries : 4 x 1.5 V "AA"/LR6/AM3(not included)
Battery requirement for Vehicle:
Power Supply :
Battery ratings : DC 3.7 V , 2 W
Batteries : 1 x 3.7 V LiPo Rechargeable Battery Pack (included)
Capacity : 75 mAh
Delivery Contents
Safety Precautions
Symptom Cause Correction
Vehicle runs slowly
or does not run.
Vehicle does not
react, or react
poorly to operation
by transmitter.
- PAIRING / SYNC Procedure is not
yet completed or done.
- Out of the control range of distance.
- Enter into power save mode.
- ON/OFF switch is not in "ON".
- Low battery.
- Hair, carpet or dirt might be
trapped between wheels.
- Pair the vehicle and the transmitter by press and hold
both pairing buttons.
- Vehicle runs distance up to 15 meters (or 50 feet)
indoor.
- Switch off the vehicle and turn on again.
The vehicle is not
driving straight
- The vehicle is not adjusted properly.
- The front and rear tires are
misplace.
- Adjust the steering axle adjust.
- Check the tires. If issue persists, try swaping left and
right tires or insert them in different orientation.
Components are
loose or detached.
- Bumpers or wheels are out of place. - Insert the bumper to the slot in the front of the vehicle.
- Place the tires evenly on the rims. The front tires are
thinner and the rear tires are thicker.
- Switch on the power.
- Recharge the vehicle.
- Carefully remove such foreign materials.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
1)This device may not cause harmful interference, and
2)This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Transmitter
Spare Rear Tire
Vehicle
FCC Statements
Silverlit SAS, Espace Green Parc, Route de Villepecle, 91280 Saint Pierre du Perray / France.
©2011 Silverlit. All rights reserved.
This product is in compliance with
the essential requirements and
other relevant
provisions of Directive
1999/5/EC.
Top side Bottom side
Charging socket
Side view
Charging
indicator
Note: 1. The vehicle can operate for about 4 - 5 minutes per every 12 - 20 minutes charging.
2. Before recharging the battery, wait 10 - 15 minutes for it to cool down.
1. Pull out the charging plug from the bottom of the transmitter (fig. 4).
2. Switch off the vehicle. Insert the charging plug into the charging socket on the vehicle. Switch on the
transmitter. The charging process will begin automatically and the charging indicator will light up (fig. 5).
3. Unplug the charging plug after the charging indicator turns off. Charging is completed (fig. 6).
fig. 4
1. Switch off the transmitter
2. Open the battery compartment by loosening the screw (fig. 1).
3. Put 4 Type AA battery in the battery compartment as per the polarity shown inside (fig. 2).
4. Place back the battery compartment cover (fig. 3).
Charging the vehicle
Transmitter battery installation
ON/OFF Switch
Steering axle adjuster
PAIR/SYNC
button
Charging plug
Throttle trigger
PAIR/SYNC button
ON/OFF switch
Steering wheel
Gear lever
Vehicle battery
indicator
Battery
compartment cover
(at the back)
Throttle trimming dial
(at the back)

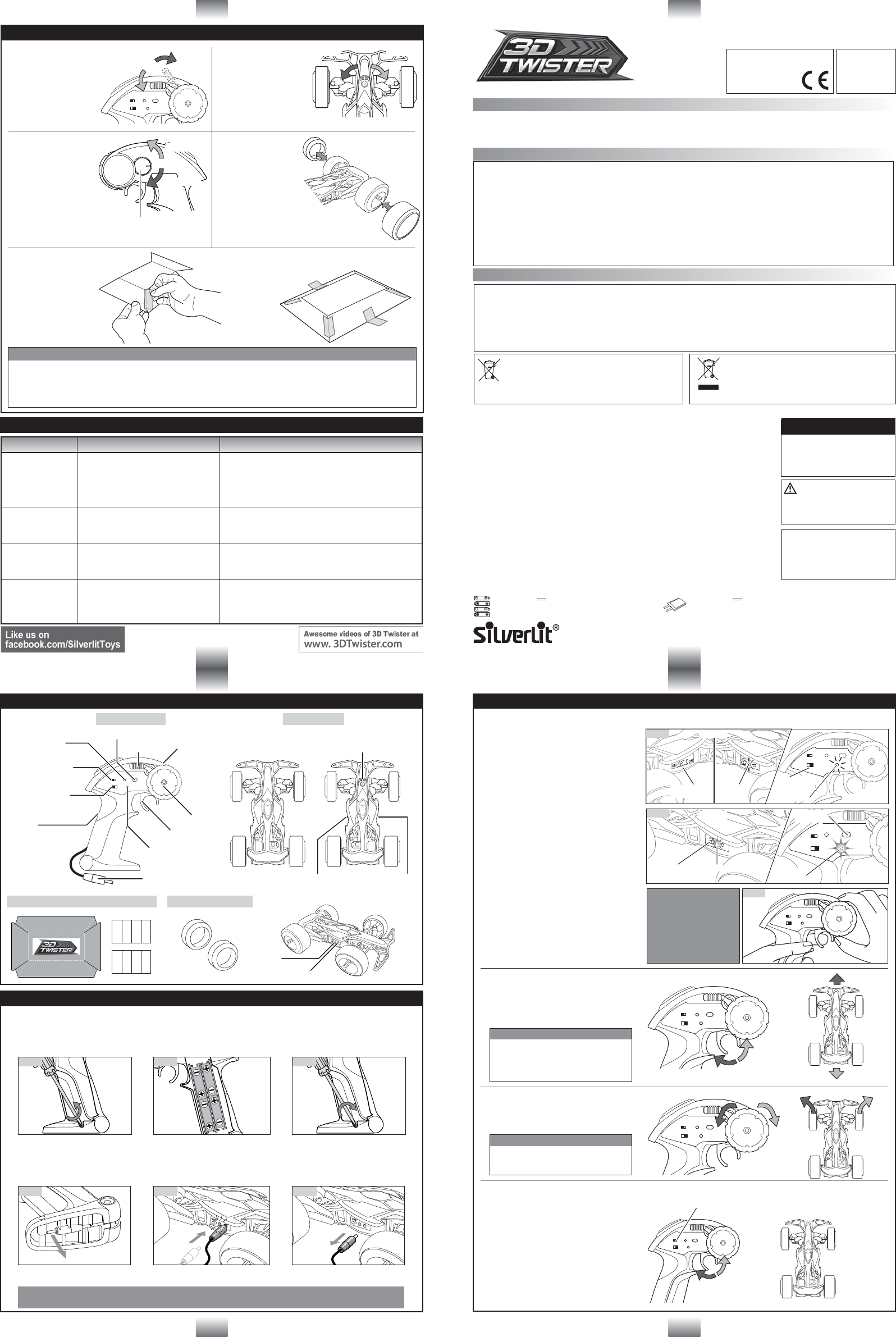

1. Part Identification
2. Battery Installation and Charging
fig. 1 fig. 2
5. Trouble Shooting
1. Set the gear lever to
select driving speed.
Select ‘Hi’ for high
speed mode and ‘Lo’
for normal speed mode
for easier control.
2. Turn the steering axle
adjuster at the bottom
towards left when the
vehicle drives to the
right involuntarily. If it
turns left involuntarily,
turn the adjuster
towards right.
5. Set up the backflip ramp
High speed
Low speed
Bottom side
fig. 3
(i) Fold the flaps down
to form a ramp.
Place four pieces of
cellular tape on the
four corner edges to
secure the ramp.
(ii) Affix the paper ramp
on the floor by two
pieces of cellular
tape.
4. Configuration/Adjustments
Driving Tips:
1. The turning speed and radius may vary at different control combination.
2. Operate only on flat, smooth (but not slippery), dry surfaces and low pile carpet, as hair, carpet or dirt can
affect the operation of the vehicle.
3. Don't drive your vehicle in sand or through water or snow, if your vehicle gets wet, wipe with a towel and allow
to dry completely.
power indicator
Paper Ramp & Adhesive Tape
The transmitter receives a signal from the car when the battery is low.
When the vehicle battery indicator on the transmitter starts blinking, recharge the vehicle ..
Flipping System
switch
3. Some times the throttle
signal between the racer
and transmitter may
need adjustment so the
racer stays still in the
idle mode. Adjust the
throttle trimming dial to
establish an idle setting
for the vehicle. If the vehicle
rolls forward by itself, turn the
dial clockwise until it stops
moving. Turn it anticlockwise to
compensate for reverse idle.
Forward
Backward
Throttle trimming dial
4. Rear Tires
Replacement
Rear tires with larger
diameter are available
as replacement.
Change to the spare
rear tires to obtain top
speed performance. It
is recommended to get
familiar with the control
before using them.
3. Operation
3.1 Procedure for PAIRING / SYNCHING the Vehicle and Transmitting
2.4 GHz technology allows for many
racers to run without signal interference. A
connection, or pairing, must be made
between the car and the transmitter to
function. Sometimes, the pairing will
happen automatically. If it does not, or if
the connection is lost then follow these
steps to sync the racer and the
transmitter.
1. Turn the Power Switch button to 'ON'
position both on the Vehicle and
Transmitter, Red LED will then flash
(fig. 7).
2. Press the PAIR/SYNC button both on
the Vehicle and Transmitter.
The Synchronize/Pairing procedure is
COMPLETED when you can see the
Red LED light up solid (not blinking) on
both Vehicle and Transmitter (fig. 8).
3. Hold the transmitter with your left hand
like holding a pistol (fig. 9).
For better driving experience, crash
feedback is integrated to the
transmitter. The transmitter will vibrate
when the vehicle hits an object.
(ii) Turning Left & Right
Rotate the steering wheel clockwise to
steer the vehicle right and rotate the
steering wheel counter clockwise to
steer the vehicle left.
(iii) Flipping System Switch
The car is designed to know which side
is on top, and it will send a signal back
to the transmitter allowing the
transmitter to steer right or left no matter
which is on top.
When the Flipping System switch is
turned to OFF, the transmitter will not
sense the flipping motion of the car,
which will affect the steering. To have
the best steering performance, keep the
Flipping System Switch in the ON
position.
Forward
Backward
Backward
Forward
Left Right Left Right
(i) Forward & Backward
Pull throttle control (trigger) to drive the
vehicle forward and push the throttle
control away from you to drive in
reverse.
3.2 Control
To achieve maximum speed, operate
the vehicle indoor on dust-free floor.
Avoid driving it in thick /soft carpet,
The vehicle may be damaged as a
result.
TIPS!
The car runs at very high speed. It will
take practice to steer it precisely. Try it
in low gear to start.
TIPS!
Flipping System Switch
F
o
r
w
a
r
d
B
a
c
k
w
a
r
d
When the flipping system is OFF, the
side of the car Steering axle adjuster
will be recognized as the top.
Top side
The vehicle will
automatically enter power
saving mode after 10
minutes not in use. To
turn it on again, simply
switch the ON/OFF switch
to ‘OFF’ position and then
‘ON’ position again.
fig. 9
Under the environment with
electrostatic discharge, the
sample may malfunction
and require user to pair the
controller and car again.
Right
Left
PAIR/SYNC
button
RACERSYNC
Transmitter
Red LED
PAIR/SYNC
button
Power Switch
button
Red LED
ON/POWER
OFF
fig. 7
Transmitter
Red LED
Power Switch
button
Vehicle
fig. 8
Red LED
Vehicle
fig. 5 fig. 6
