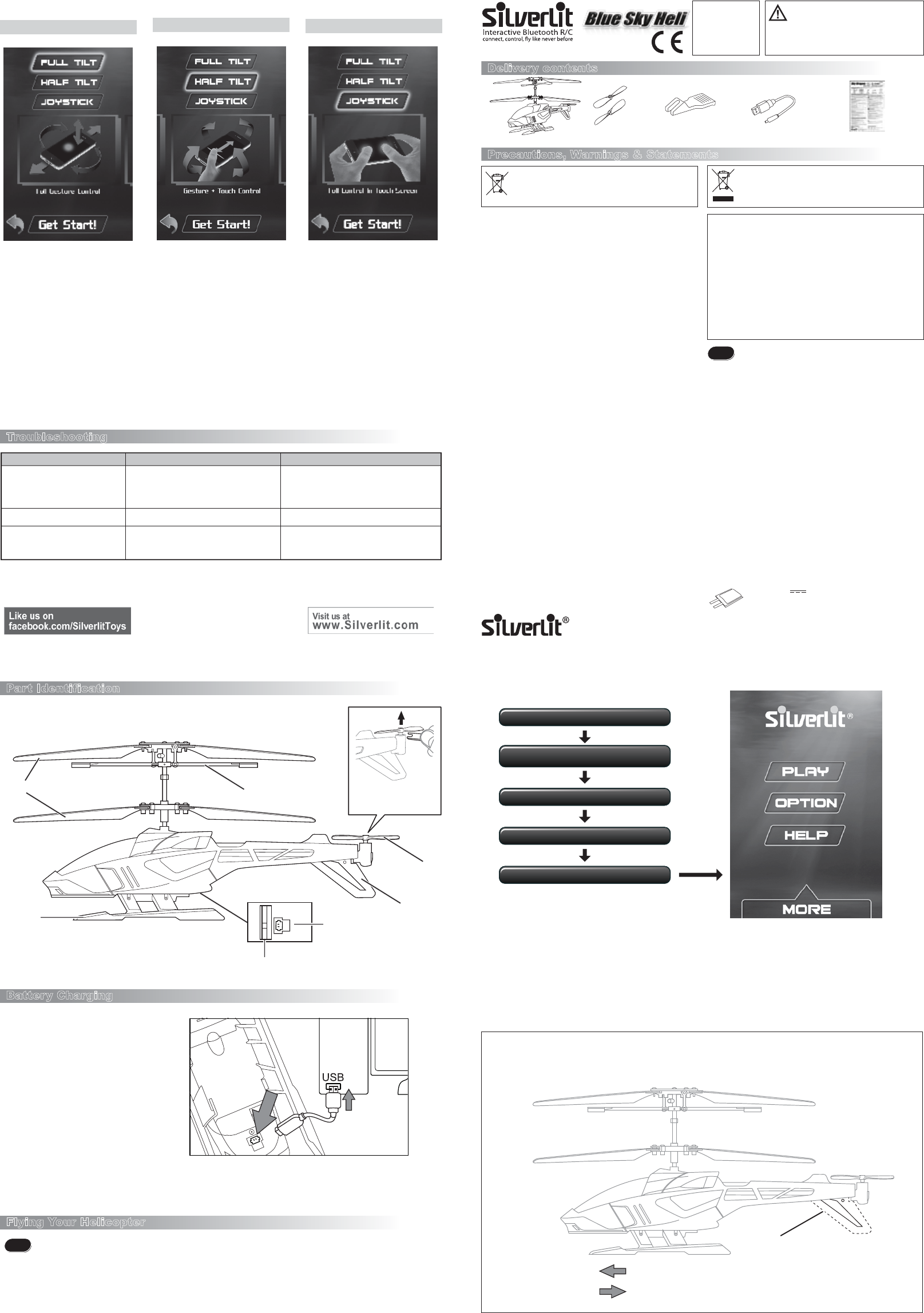

Silverlit Toys TX00024G-1106 Remote Controlled Toy User Manual 84620 EN 6L r01
Silverlit Toys Manufactory Ltd. Remote Controlled Toy 84620 EN 6L r01
Manual
Battery requirements helicopter:
Special notes to adults:
- Parents: Please read the operating instructions carefully with your children prior to the first
use.
- Only operate the toy indoor under adult supervision.
- Assembly should be performed under adult supervision (changing batteries/ spare parts,
trimming etc.).
- Parental guidance is recommended when installing or replacing batteries.
This helicopter is equipped with a LiPo rechargeable battery,
please pay attention to the following cautions for safety use:
- Do not dispose the battery in fire or heat.
- Do not use or leave the battery near a heat source such as fire or heater.
- Do not strike or throw the battery against hard surface.
- Do not immerse the battery in water, and keep the battery in a cool dry environment.
- When recharging, only use the battery charger specifically for that purpose.
- Do not over-discharge the battery.
- Do not connect the battery to an electrical outlet.
- Do not directly solder the battery and pierce the battery with a nail or other sharp object.
- Do not disassemble or alter the battery.
- Charge the battery every 6 months.
- Do not transport or store the battery together with metal objects such as necklaces, hairpins etc.
- As for a used battery, please recycle after covering the battery terminals with insulation tape or
inserting it to an individual poly-bag.
Care and Maintenance:
- Always remove batteries from the toy when it is not being used for a long period of time.
(Transmitter only)
- Regularly examine for damage to the plug, enclosure and other parts. In the event of any
damage, the toy must not be used with the transmitter charger until the damage has been
repaired.
- Wipe the toy gently with a clean cloth.
- Keep the toy away from direct heat.
- Do not submerge the toy into water that can damage the electronic assemblies.
Notes:
- Under the environment with electrostatic discharge, the toy may malfunction and require
user to reset the toy.
- New alkaline batteries are recommended to use in this toy to obtain best and maximum
performance.
- This toy must only be used with the recommended charger.
Battery warnings:
- Non-rechargeable batteries are not to be recharged.
- Rechargeable batteries are to be removed before being charged. (Transmitter only)
- Rechargeable batteries are only to be charged under adult supervision.
- Different types of batteries or new and used batteries are not to be mixed. (Transmitter only)
- Only batteries of the same or equivalent type as recommended are to be used.
- Batteries are to be inserted with correct polarity.
- Exhausted batteries are to be removed from the toy. (Transmitter only)
- The supply terminals are not to be short-circuited.
- Do not mix old and new batteries. (Transmitter only)
- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
(Transmitter only)
Helicopter
The crossed-out dustbin symbol indicates that batteries, rechargeable batteries,
button cells, battery packs, etc. must not be put in the household waste. Batteries
are harmful to health and the environment. Please help to protect the environment
from health risks. Tell your children to dispose of batteries properly by taking them to
the local collecting points. This way batteries are recycled safely.
Waste Electrical and Electronic Equipment (WEEE)
When this appliance is out of use, please remove all batteries and dispose of them
separately. Bring electrical appliances to the local collecting points for waste electrical
and electronic equipment. Other components can be disposed of in domestic refuse.
WARNING:
CHOKING HAZARD - Small parts.
Not for Children under 3 years.
Part Identification
Flying Your Helicopter
Battery Charging
Safety precautions:
Warning:
Conversion or modifications to this product not expressly approved by the party responsible
for compliance could void the user's authority to operate the product.
- The transmitter-charger is tailor-made for the LiPo rechargeable battery used in helicopter. Do not use it
to charge any battery other than that in the helicopter.
Instructions manual
Delivery contents
Precautions, Warnings & Statements
- If the helicopter is crashed, switched off the helicopter and the transmitter. Examine the helicopter and ensure it has no damage
before switching them on again.
- Don’t operate the helicopter under the direct bright light it will affect the control system of your helicopter.
- Don’t cover the IR diodes of the transmitter as it will block the IR signal.
- Don’t stick any other label onto the helicopter as it will affect receiving of IR signal.
Tip! Operation hints
- Switch on the helicopter, the red LED in the canopy will flash.
- Place the helicopter on the ground with the tail point towards you and the nose pointing away.
- Make sure the throttle stick is at the minimum position, then switch on the transmitter.
- Put the helicopter on a smooth surface. Uneven floor surface will affect its lifting off.
- Slowly increase the throttle.
- Do not look at the iPhone / iPod Touch / iPad but focus on the helicopter.
- As soon as the helicopter leaves ground, reduce the throttle slightly. (In the worst case, helicopter will go back to the floor but
that is better than crashing against the ceiling.)
- Very gently increase the throttle if the helicopter descends.
- Very gently reduce the throttle if the helicopter ascends.
- For turning, give short and small inputs to the direction stick. (Most beginners will easily overcontrol the helicopter.)
2. Lift-off procedures (after trimming procedure):
ENGLISH 1
ENGLISH 3
4 ENGLISH
2 ENGLISH
1. Flight Environment
Choose the place which meets the following condition:
1. Indoor environment with calm air. Beware of the air circulation from the air-conditioner.
2. Caution: There must not be any dangerous objects (electric fan, air-conditioner, reading lamp, etc) on the flight path.
Note: 1. The helicopter can operate for about 4 - 5 minutes per every 30 - 45 minutes charging.
2. Before recharging the battery, wait 10 - 15 minutes for it to cool down.
- Never take apart or attempt to modify the product. This could damage the product.
- Helicopter piloting requires specific skills and should be learned under direct supervision of an
experienced adult.
- Never operate this product if it has damaged parts.
- This product is designed for indoor use only. Wind and short transmission range can lead to loss of
control.
- Attention! Do not fly the helicopter near persons and animals.
- Do not fly the helicopter in the vicinity of water and power lines.
- For better flight results, make sure you choose a sufficiently large room, free of obstacles such as
lamps, loose objects, etc.
- Always keep your eyes on the helicopter and prevent it from landing or crashing near your head, your
body, or on other people.
- Stand during operation in order to get out of the way of the helicopter quickly if necessary.
- Always switch the helicopter and the transmitter off when not operating.
- Warning! Do not touch the running rotors. Keep hands, hair and loose clothes away from moving
parts to avoid injury.
- Never hold or throw any objects into the running rotors.
- Attention! Risk of eye injuries! Keep a safety distance of at least 1 metre.
- Keep this instruction manual for future reference.
Tip! Safety hints
Connect the USB cable to a USB socket. Switch off the
helicopter. Insert DC plug (circular) into the charging
socket on the helicopter.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
1)This device may not cause harmful interference, and
2)This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installat
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is enco:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Statements
Power supply :
Battery ratings : DC 3.7 V , 8.5 W
Batteries : 1 x 3.7 V Li-Po Rechargeable Battery Pack (included)
Capacity : 200 mAh
EI-3760
Tool for Tail Rotor
Blade Replacement
Spare tail
rotor blade
For Ages 10+
Ab 10 Jahre
Pour 10 ans et plus
Voor leeftijd 10+
Para 10+ años
Dai 10 anni in su
Silverlit SAS, Espace Green Parc, Route de Villepecle, 91280 Saint Pierre du Perray / France.
©
2011 Silverlit. All rights reserved.
Helicopter
Stabiliser
Main rotor blade
Landing gear
Tail rotor
Charging Helicopter
Troubleshooting
Symptom Cause Correction
The helicopter does not response. - The helicopter and/ or the iPhone / iPod Touch / iPad is
switch off ("OFF").
- The battery of the helicopter is weak.
- Channel selection on iPhone / iPod Touch / iPad is not
correct.
- Set the power switch to "ON"
- Recharge the battery of the helicopter.
- Reset the correct channel.
Suddenly stop and drop down when flying. - Recharge the battery of the helicopter.- The battery of the helicopter is weak.
Loss of control.
Press the headlight button once to switch the LED headlight on. Press the button again to switch the LED off.
3. Helicopter headlight:
Caution:
Spare tail rotor
blade must be replaced by
adult.
Balance adjuster
Move towards the nose - Increasing forward speed.
Balance adjuster
Move towards the tail - decrease or stop the forward speed.
Operation step
USB Cable
Go App Store
Search “Silverlit Bluetooth RC”
down load & install
Click “Go”
Turn on the helicopter
Go into App interface
Joystick Mode
Full Gesture Mode Partial Gesture Mode
- Out of the transmission range. - The vehicle has a transmission range of 5 meters (16
feet) in open space.
OFF/
CHG
ON
Charging socket
Power switch
OFF/
CHG
ON
Balance Adjuster
- Moving the balance adjuster to change the centre of gravity of the helicopter will adjust the forward speed.
- Slide the balance adjuster towards the nose of the helicopter to increase the forward speed. To decrease or cease
the forward speed, slide the balance adjuster towards the tail. Slide the balance adjuster in a small amount.
