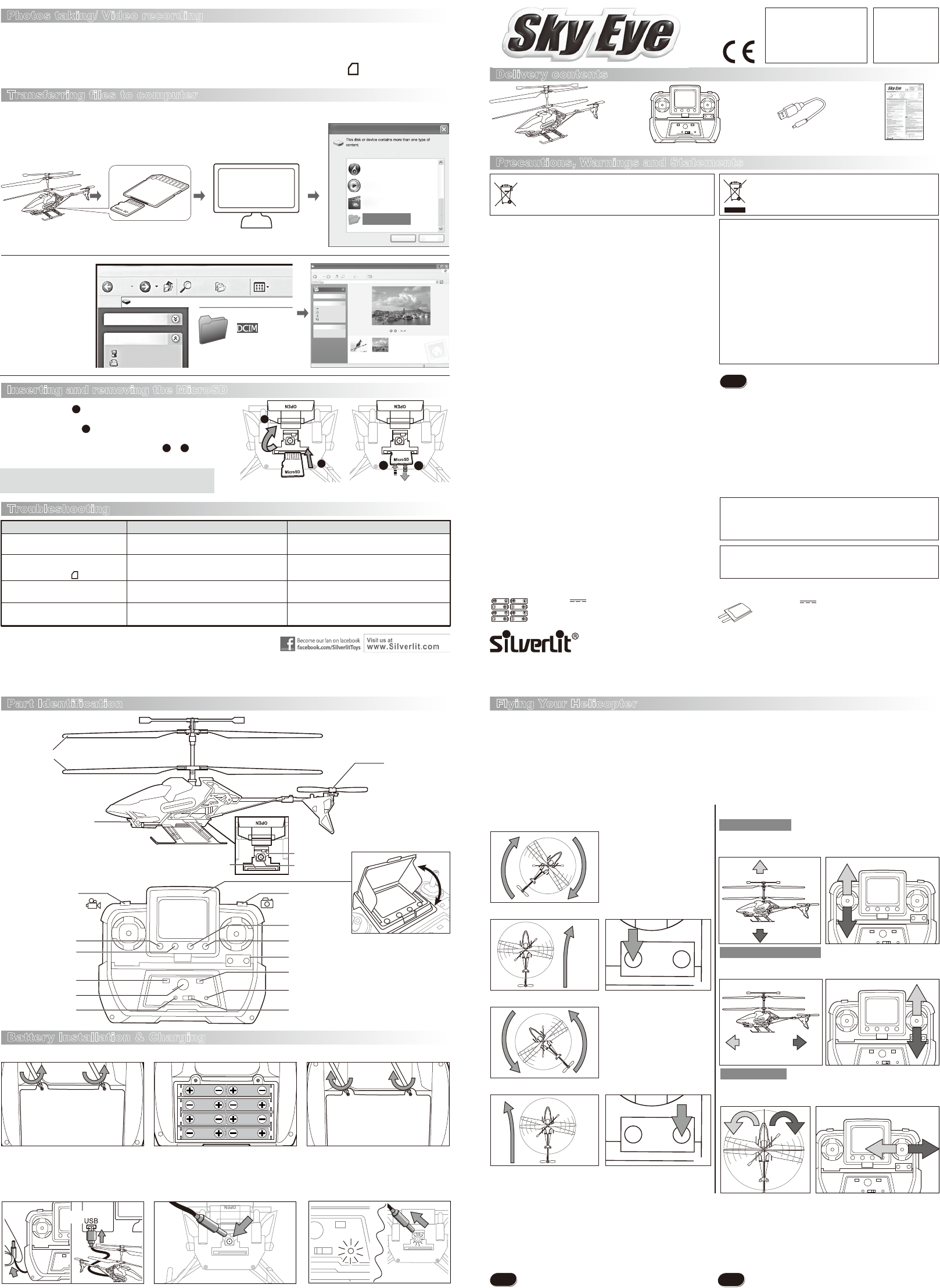

Troubleshooting
Photos taking/ Video recording
Press the photographing button to take photo through the camera on the helicopter. The Photo taking indicator will flash
when a photo is taken.
Press the video recording button to start recording video. Press the button again to stop recording. The Video recording
indicator will turn on during recording.
When the memory card is full, the icon on the upper right corner of the screen will be changed to . Move/ remove the
saved data from the internal memory before taking photos again.
Symptom Cause Correction
The helicopter does not response. - The helicopter and/ or the transmitter is switch off ("OFF").
- The battery of the helicopter is weak.
- Set the power switch to "ON"
- Recharge the battery of the helicopter.
The video/ photo was not recorded.
The icon on the upper right corner of the
screen will be changed to .
- The battery of the helicopter is weak.
- The memory card is full.
- Recharge the battery of the helicopter.
- Move/ remove some photos/ videos.
4 ENGLISH
The helicopter does not react, or react poorly
to operation by transmitter.
- PAIRING / SYNC Procedure is not yet completed or done.
- Out of the control range of distance.
- Tail rotor blade is deformed or distorted.
- The transmission range is up to 50 meters in open space.
- Replace the tail rotor blade with the spare one provided.
Loss of control.
- Reset by switch off both helicopter and transmitter then
switch both on again.
Transferring files to computer
Inserting and removing the MicroSD
Opening stored photos and videos
1. Be sure your Helicopter has been switched OFF. Remove MicroSD card from
helicopter. Insert it into adaptor and then connect with computer. A pop-up window will
appear.
2. Enter the camera
folder, find the image
files to needed
location. Copy the
images or videos to
your computer.
OFF/CHGON
34
File and Folder Tasks
Address
I:\
Back
File Edit View Favorites Tools Help
Search Folders
Other places
My Computer
My Documents
What do you want Windows to do?
Removable Disk (I:)
Copy Disc
Play
Make a muvee with video
Open folder ti view files
using Windows Explorer
using muvee Reveal Seagate Edition
using Windows Media Player
using Roxio Creator Copy
OK
Cancel
OFF/CHGON
1
2
MicroSD card
(not included)
1. Open the cover.
2. Insert the MicroSD card (not included) with the gold-colored
contacts facing up.
3. Push gently the card until the card disengages from the
Helicopter, and then pull it out of the slot.
1
2
3 4
&
OFF/CHGON
Transmitter
Helicopter
Battery Installation & Charging
Part Identification
2 ENGLISH
Note: 1. The helicopter can operate for about 4 - 5 minutes per every 60 - 80 minutes charging.
2. Before recharging the battery, wait 10 - 15 minutes for it to cool down.
Note: When the power indicator on the transmitter starts blinking, replace the batteries.
Transmitter Battery Installation (*Make sure the power switch is set to "OFF".)
Charging Helicopter
2. Insert 8 AA batteries in the battery compartment with
correct polarity.
3. Close the battery compartment.
3. Switch on the transmitter. The charging process will
begin automatically and the green helicopter low
battery indicators (helicopter and transmitter) will
light up. Unplug the charging plug after both
charging indicators turn off, charging is completed.
1. Open the battery compartment by loosening the
screw.
2. Switch off the helicopter. Insert the charging plug into
the charging socket on the helicopter.
Battery compartment cover Battery compartment cover
ST.TRIM
PRESS TO OPEN
VIDEO
POWER
AEROPLANE
LOW BATTERY
L R
OFF/CHGON
OFF/CHGON
Power switch
Charging Socket
Main rotor blades
Camera
Tail rotor
Micro SD Slot
ST.TRIM
VIDEO
DISPLAY MODE
PAIR ON OFF
HELICOPTER
LOW BATTERY
L R
Video recording indicator
Display on/off button
Power/Pair indicator
Photo taking indicator
Helicopter Low battery indicator
Power switch
Trimmer L and R button
Photo taken button
ENTER button
MENU/BACK button
DOWN button
UP button
Video recording button
ST.TRIM
PRESS TO OPEN
VIDEO
POWER
HELICOPTER
LOW BATTERY
L R
OR
1. Pull out the cover and take the charging plug from the
transmitter or connect the USB recharge cable to a
USB socket.
ST.TRIM
L R
fig. 6
ST.TRIM
L R
fig. 3
- For controlling the sticks on transmitter, try not to push the sticks immediately any extreme
positions. It should be like steering a bicycle rather than pressing computer game sticks.
- For the novice pilot (after the trimming procedure is completed), it is highly recommended to
focus exclusively on learning to control the throttle stick first. If the helicopter turns around by
itself there is no need to keep it straight. For the first flight, it is important to learn to keep the
helicopter at a constant altitude of around 1 meter with very gentle inputs on the throttle stick.
Once the pilot masters this, he may start learning to take control with the direction stick.
Flying Your Helicopter
Tip! Piloting hints
2. Trimming the helicopter:
- Gently push the throttle up to raise your helicopter about 0.5 to 1 meter high.
- When the helicopter spirals (fig. 4)
or keeps turning anticlockwise (fig.
5), press the right side of the yaw
trim button ("R") repeatedly until the
helicopter flies straight (fig.6).
Spiral anticlockwise
Keep turning anticlockwise
Spiral clockwise
- When the helicopter spirals (fig. 1) or
keeps turning clockwise (fig. 2), press
the left side of the yaw trim button ("L")
repeatedly until the helicopter flies
straight (fig. 3).
Keep turning clockwise
3. Flight control:
- Put the helicopter on a smooth surface. Uneven floor surface will affect its lifting off.
- Slowly increase the throttle.
- Do not look at the transmitter but focus on the helicopter.
- As soon as the helicopter leaves ground, reduce the throttle slightly. (In the worst case, helicopter will go back to the floor but that is better than crashing against the ceiling.)
- Very gently add the throttle if the helicopter descends.
- Very gently reduce the throttle if the helicopter ascends.
- For turning, give short and small inputs to the direction stick. (Most beginners will easily overcontrol the helicopter.)
4. Lift-off procedures (after trimming procedure):
ENGLISH 3
Hover up
Hover down
Forward Backward
ST.TRIM
PRESS TO OPEN
VIDEO
POWER
HELICOPTER
LOW BATTERY
L R
When the helicopter flies steadily, slowly push the throttle stick up to make helicopter
fly higher, or lower the stick a bit to make helicopter fly lower. Only small amounts of
stick position change are required for smooth flying.
Maintain the helicopter at a certain height. Push the direction stick toward left to turn
the helicopter anticlockwise, and push the direction stick toward right to turn it
clockwise.
Maintain the helicopter at a certain height. Push the direction stick upward to fly the helicopter
forward. Push it downward to fly the helicopter backward.
Forward and backward flight:
Hover up and down:
Turn left and right:
- If the helicopter is crashed, switched off the helicopter and the transmitter. Examine the helicopter and
ensure it has no damage before switching them on again.
- Don’t operate the helicopter under the direct bright light it will affect the control system of your
helicopter.
- Don’t cover the IR diodes of the transmitter as it will block the IR signal.
- Don’t stick any other label onto the helicopter as it will affect receiving of IR signal.
Tip! Operation hints
fig. 1
fig. 2
fig. 5
fig. 4
ST.TRIM
PRESS TO OPEN
VIDEO
POWER
HELICOPTER
LOW BATTERY
L R
ST.TRIM
PRESS TO OPEN
VIDEO
POWER
HELICOPTER
LOW BATTERY
L R
Procedure for PAIR / SYNC the Helicopter and Transmitting
2.4 GHz technology allows for many helicopters to run without signal interference. A connection, or pairing, must be made between the helicopter and the transmitter to function.
Sometimes, the pairing will happen automatically. If it does not, or if the connection is lost then follow these steps to sync the helicopter and the transmitter.
1. Place the helicopter on the ground with the tail point towards you and the nose pointing away.Make sure the throttle stick is at the minimum position.
2. Turn the Power Switch button to 'ON' position both on the Helicopter and Transmitter, Red LED will then flash.
3. The Synchronize/Pairing procedure is automatically COMPLETED when you can see the Red LED light up solid (not blinking) on both Helicopter and Transmitter.
Choose the place which meets the following condition:
1. Indoor environment with calm air. Beware of the air circulation from the air-conditioner.
2. Caution: There must not be any dangerous objects (electric fan, air-conditioner, reading lamp, etc) on the flight path.
1. Flight environment
Delivery contents
ENGLISH 1
For ages 15+
Ab 15 Jahre
A partir de 15 ans
Leeftijd vanaf 15 jaar
A partir de 15 años
Dai 15 anni in su
Transmitter
ST.TRIM
PRESS TO OPEN
VIDEO
POWER
HELICOPTER
LOW BATTERY
L R
Instructions manual
This helicopter is equipped with a LiPo rechargeable battery,
please pay attention to the following cautions for safety use:
- Do not dispose the battery in fire or heat.
- Do not use or leave the battery near a heat source such as fire or heater.
- Do not strike or throw the battery against hard surface.
- Do not immerse the battery in water, and keep the battery in a cool dry environment.
- When recharging, only use the battery charger specifically for that purpose.
- Do not over-discharge the battery.
- Do not connect the battery to an electrical outlet.
- Do not directly solder the battery and pierce the battery with a nail or other sharp object.
- Do not disassemble or alter the battery.
- Charge the battery every 6 months.
The crossed-out dustbin symbol indicates that batteries, rechargeable batteries,
button cells, battery packs, etc. must not be put in the household waste. Batteries
are harmful to health and the environment. Please help to protect the environment
from health risks. Tell your children to dispose of batteries properly by taking them
to the local collecting points. This way batteries are recycled safely.
Waste Electrical and Electronic Equipment (WEEE)
When this appliance is out of use, please remove all batteries and dispose of
them separately. Bring electrical appliances to the local collecting points for
waste electrical and electronic equipment. Other components can be disposed
of in domestic refuse.
Precautions, Warnings and Statements
Warning:
Conversion or modifications to this product not expressly approved by the party responsible
for compliance could void the user's authority to operate the product.
- The transmitter-charger is tailor-made for the LiPo rechargeable battery used in helicopter. Do not use it
to charge any battery other than that in the helicopter.
- Photographing or video recording should only take place with the consent from all involved parties.
- Never take apart or attempt to modify the product. This could damage the product.
- Helicopter piloting requires specific skills and should be learned under direct supervision of
an experienced adult.
- Never operate this product if it has damaged parts.
- Attention! Do not fly the helicopter near persons and animals.
- Do not fly the helicopter in the vicinity of water and power lines.
- Always keep your eyes on the helicopter and prevent it from landing or crashing near your
head, your body, or on other people.
- Stand during operation in order to get out of the way of the helicopter quickly if necessary.
- Always switch the helicopter and the transmitter off when not operating.
- Warning! Do not touch the running rotors. Keep hands, hair and loose clothes away from
moving parts to avoid injury.
- Never hold or throw any objects into the running rotors.
- Attention! Risk of eye injuries! Keep a safety distance of at least 1 metre.
- Keep this instruction manual for future reference.
Tip! Safety hints
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
1)This device may not cause harmful interference, and
2)This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Statements
Power Supply :
Rating : DC 12 V , 7.2 W
Batteries : 8 x 1.5 V "AA"/LR6/AM3 (not included)
Power Supply :
Rating : DC 3.7 V , 24 W
Batteries : 1 x 3.7 V LiPo Rechargeable Battery Pack (included)
Capacity : 600 mAh
Silverlit SAS, Espace Green Parc, Route de Villepecle, 91280 Saint Pierre du Perray / France.
©
2012 Silverlit. All rights reserved.
Battery requirement (Helicopter):Battery requirement (Transmitter):
The normal function of the product may be disturbed by Strong Electro
Magnetic Interference. If so, simply reset the product to resume normal
operation by following the instruction manual.
In case the function could not resume, please use the product in other
location.
Helicopter
Care and Maintenance:
- Always remove batteries from the product when it is not being used for a long period of
time. (Transmitter only)
- Regularly examine for damage to the plug, enclosure and other parts. In the event of any
damage, the product must not be used with the transmitter charger until the damage has
been repaired.
- Wipe the product gently with a clean cloth.
- Keep the product away from direct heat.
- Do not submerge the product into water that can damage the electronic assemblies.
Special notes:
- Please read the operation instructions carefully prior to the first use.
Notes:
- Under the environment with electrostatic discharge, the product may malfunction and
require user to reset the product.
- New alkaline batteries are recommended to use in this product to obtain best and
maximum performance.
- This product must only be used with the recommended charger.
Battery warnings:
- Non-rechargeable batteries are not to be recharged.
- Rechargeable batteries are to be removed before being charged. (Transmitter only)
- Different types of batteries or new and used batteries are not to be mixed. (Transmitter only)
- Only batteries of the same or equivalent type as recommended are to be used.
- Batteries are to be inserted with correct polarity.
- Exhausted batteries are to be removed from the product. (Transmitter only)
- The supply terminals are not to be short-circuited.
- Do not mix old and new batteries. (Transmitter only)
- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
(Transmitter only)
This product is in compliance
with the essential
requirements and other
relevant provisions of
Directive 1999/5/EC.
USB Cable
For upload photo & video function of the plane may be disturbed by
Strong Electro Magnetic Interference. If so, the plane need to do the
steps again to re-connect to the PC. In case the function could not
resume, please use the product in other location.
Note: Memory card slot : MicroSD card (not included), up
to 32GB
F
F
