User and Installation Manual
The home theater projector
HT300 PLUS
cod.46.0280.000

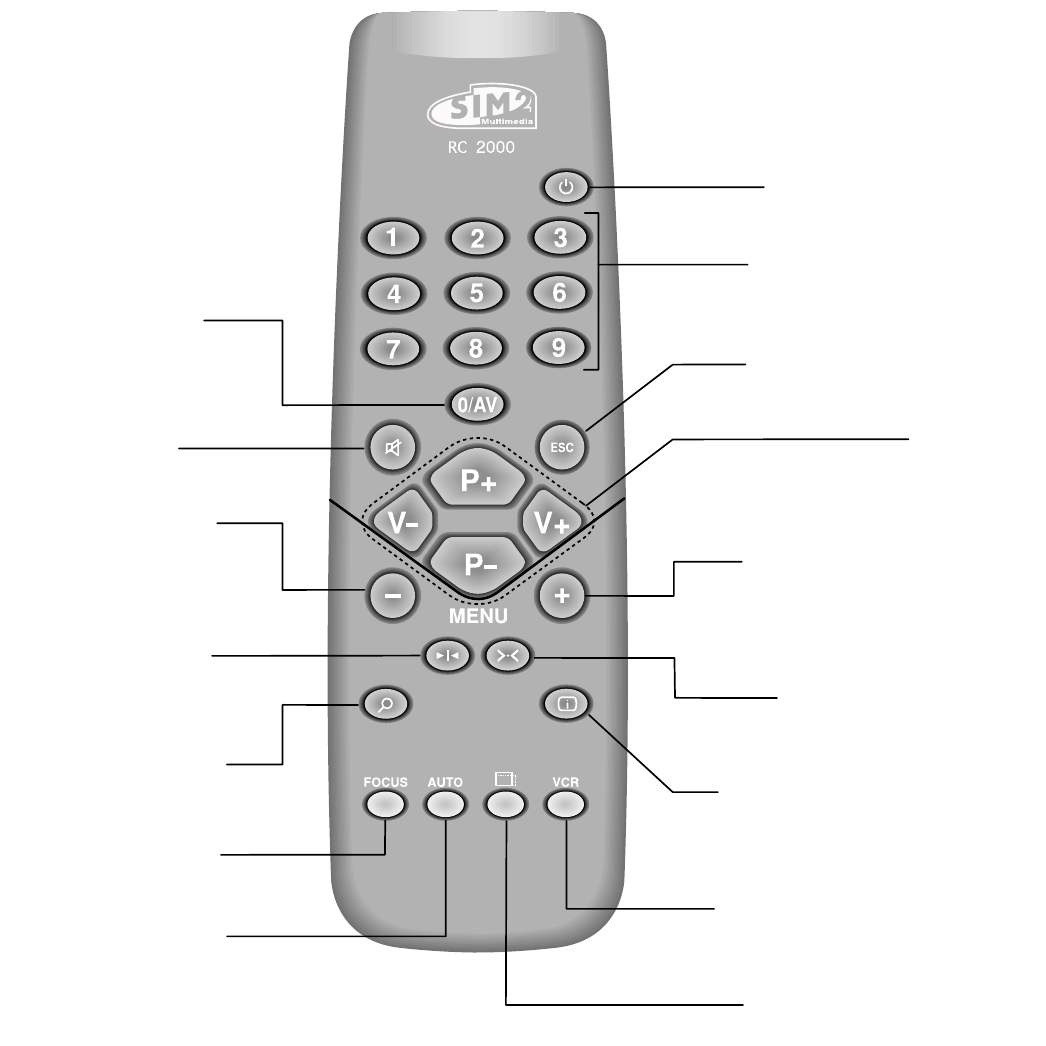

Not active
in this model.
Not active

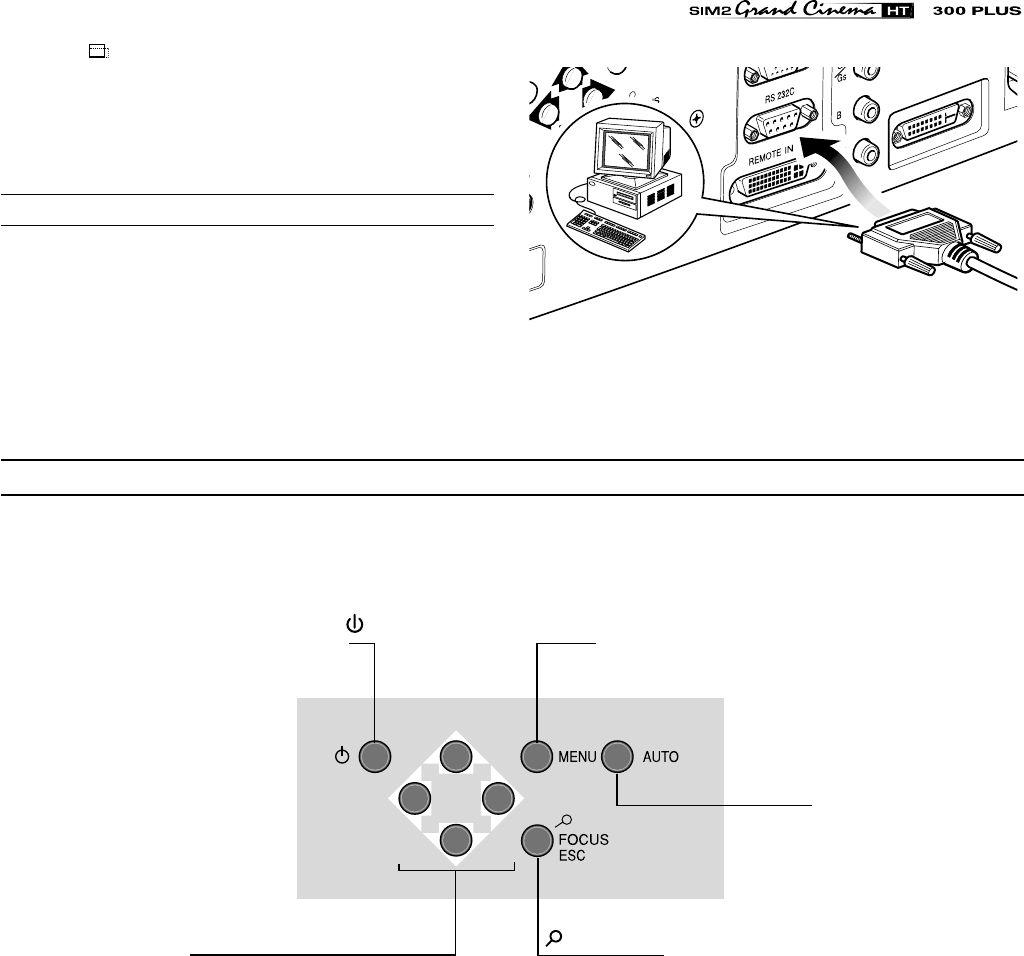

in this model.

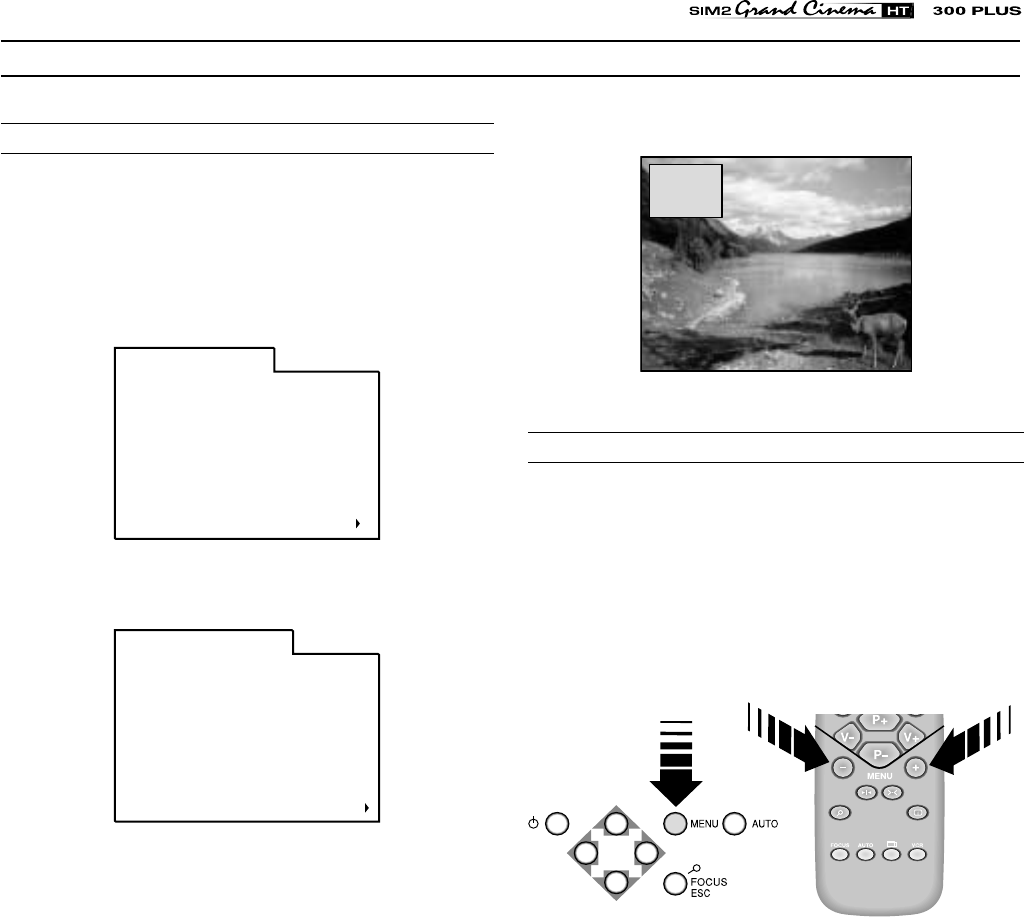

MENU -
Activates the On Screen
Display menus.
Navigates menu pages.
FREEZE
Freezes a moving
picture.
FOCUS
Selects focus
lens adjustment.
STAND-BY
Switches off to stand-by.
0-9 Keys
Switch on from stand-by
and allow direct source
selection.
MENU +
Activates the On Screen Display menus.
Navigates menu pages.
INFO
Displays the selected source information
and the projector status.
VCR
Improves the video recorder
signals quality.
ASPECT
Selects image Aspect ratio.
SOURCE
Displays the Source
Selection menu.
Up/Down/Left/Right Arrow keys
Navigate through and make adjustments
to the On Screen menus.
Arrow Up/Down activate Quick
menus.
AUTO
Selects Auto Adjust
(automatic optimisation
of the displayed image).
ZOOM
Selects lens zoom
adjustment.
ESCAPE
Deactivates the On Screen Display.
1
1 INTRODUCTION
Congratulations and thank you for choosing the HT 300
PLUS, a SIM2 Multimedia SpA product
(Fig. 1)
.
C-SYNC
DVI
2
A sophisticated proprietary optical system, coupled with a hight
performance zoom lens ensures hight contrast images, superior
uniformity and edge-to-edge definition.
A new 6-segment colour wheel dramatically reduces the so
called “rainbow effect” and gives a better contrast, better
colorimetry and a lower black level to the image.
The new HD-2 DMD™ chip ensures, on top of the high definition
resolution (1280 x 720 pixels), an increased contrast ratio of >
1800:1 thus delivering on the screen an even more realistic
image.
The DVI-D input allows a complete digital connectivity to an
increasing amount of video sources equipped with digital
outputs, thus guaranteeing a perfect reproduction, without any
loss of information or interference in the signal.
The renowned DCDi™ technology is adopted for deinterlacing:
conversion from interlaced to progressive produces a smooth
and natural image, without flickering, loss of vertical resolution
and jaggedness along diagonal lines.
The low-noise ventilation system – with variable speed fans –
ensures appropriate cooling and maximizes projector reliability.
To fully appreciate your new projector we recommend the use
of a good quality screen and surround-sound system. Contact
your nearest authorized SIM2 Multimedia dealer for further
details.
SIM2 carries out comprehensive functional testing
in order to guarantee the maximum product quality.
For this reason, when you start using the product
lamp operating hours may already be at between
30 and 60.
In addition to the regular tests, the Quality Control
department performs additional statistical tests at
the time of shipment.
In this case the packing may show signs of having
been opened, and the accumulated lamp operating
hours may be slightly higher than the hours associ-
ated with the standard tests.
Fig. 1
Using the very latest in DLP™ technology, this projector has
been designed specifically for high quality “Home Cinema”
applications.
Sophisticated digital processing and a wide choice of inputs
enable the connection of a variety of sources such as DVD
players, analogue and digital VCRs, analogue and digital sa-
tellite receivers and personal computers etc.

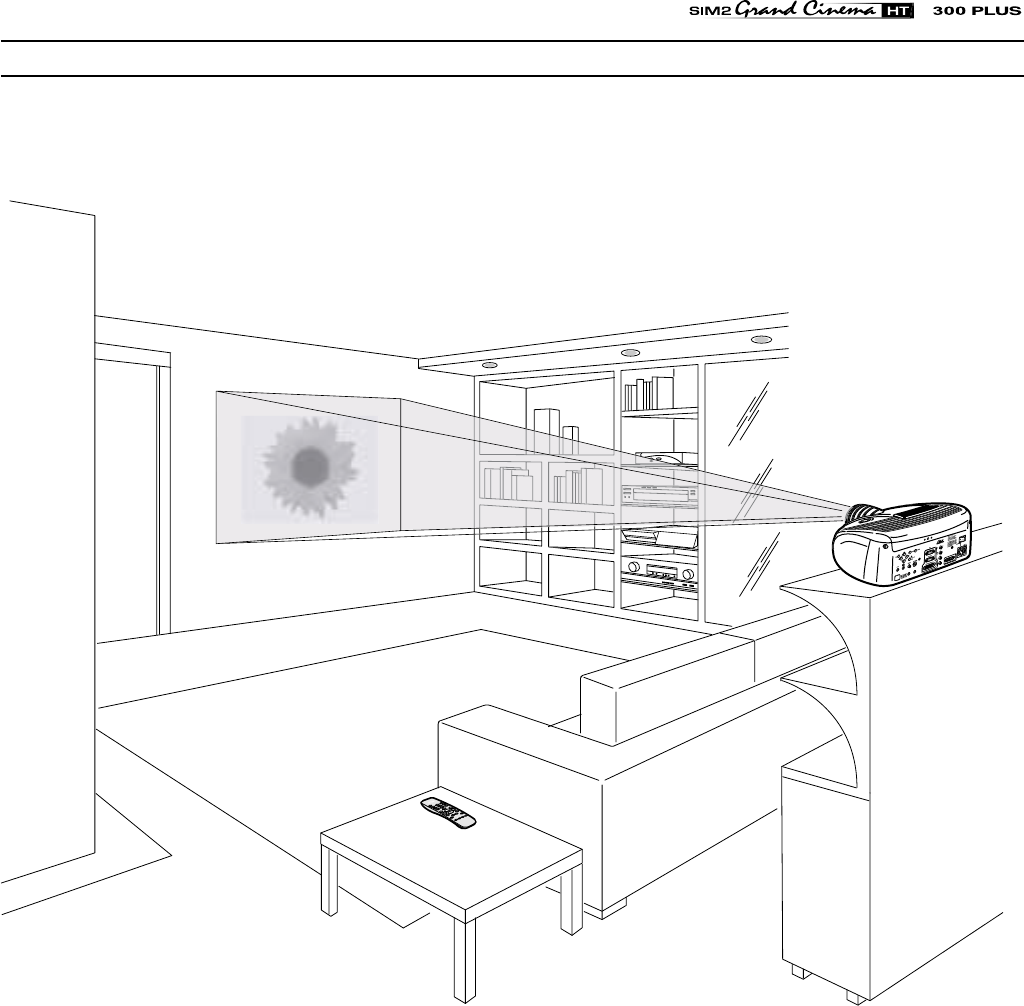

The long throw zoom lens allows the position of the projector to
be located behind the viewer, thus reproducing a cinema-like
installation
(Fig. 2)
.
C-SYNC
DVI
Fig. 2
DLP and DMD are registered trademarks of Texas Instruments.
DCDi is a registered trademark of Faroudja, a division of Genesis
Microchip, Inc.
3

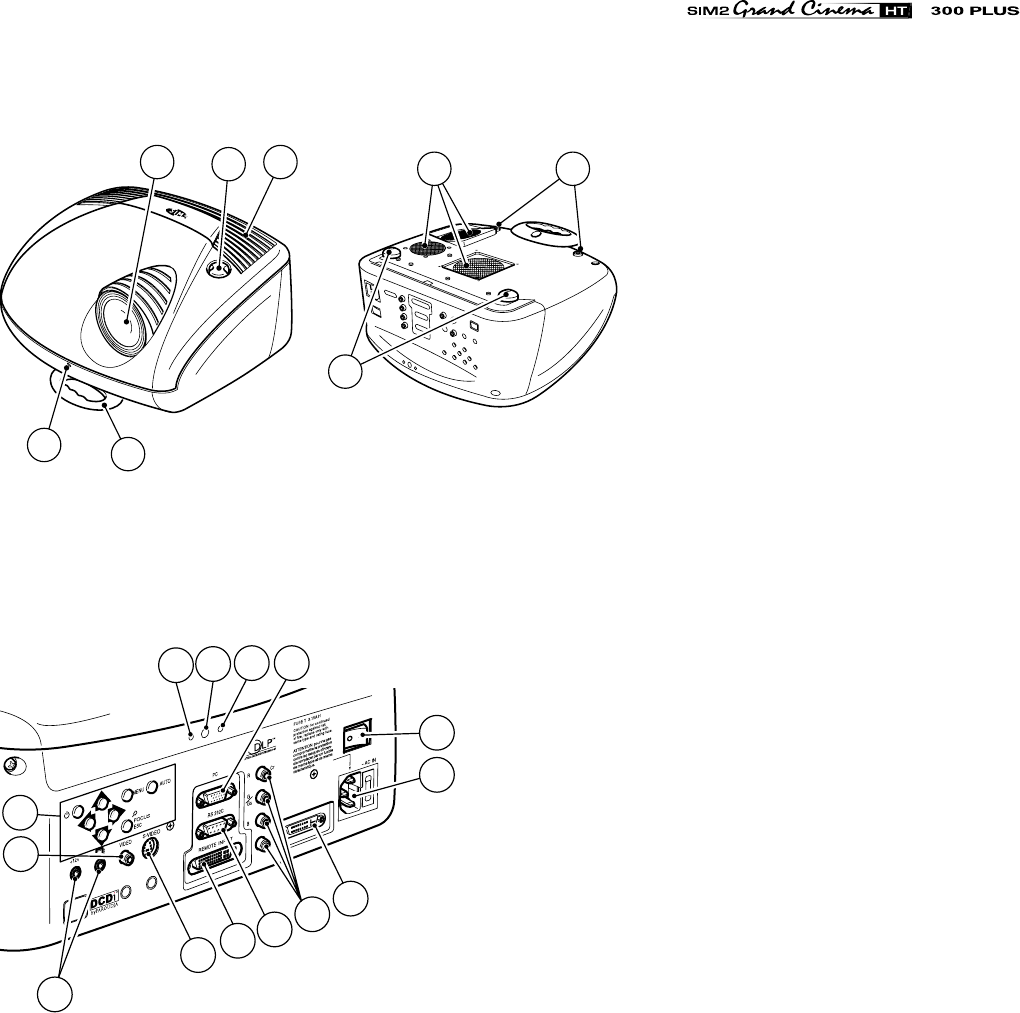

1 Projection lens
2 Lens shift knob
3 Cooling air inlet vents
4 Remote control IR sensor
5 Cooling air outlet vents
6 Adjustable carry-handle
7 Adjustable levelling feet
8 Ceiling/wall bracket fixing holes
6
4
1235 8
7
C-SYNC
DVI
12 11 13 17
9
10
22
16
20
15
14
18
21
19
9 Fused power socket
10 Main power switch
11 Remote control rear IR sensor
12 Green LED
13 Red LED
14 Rear keyboard pad

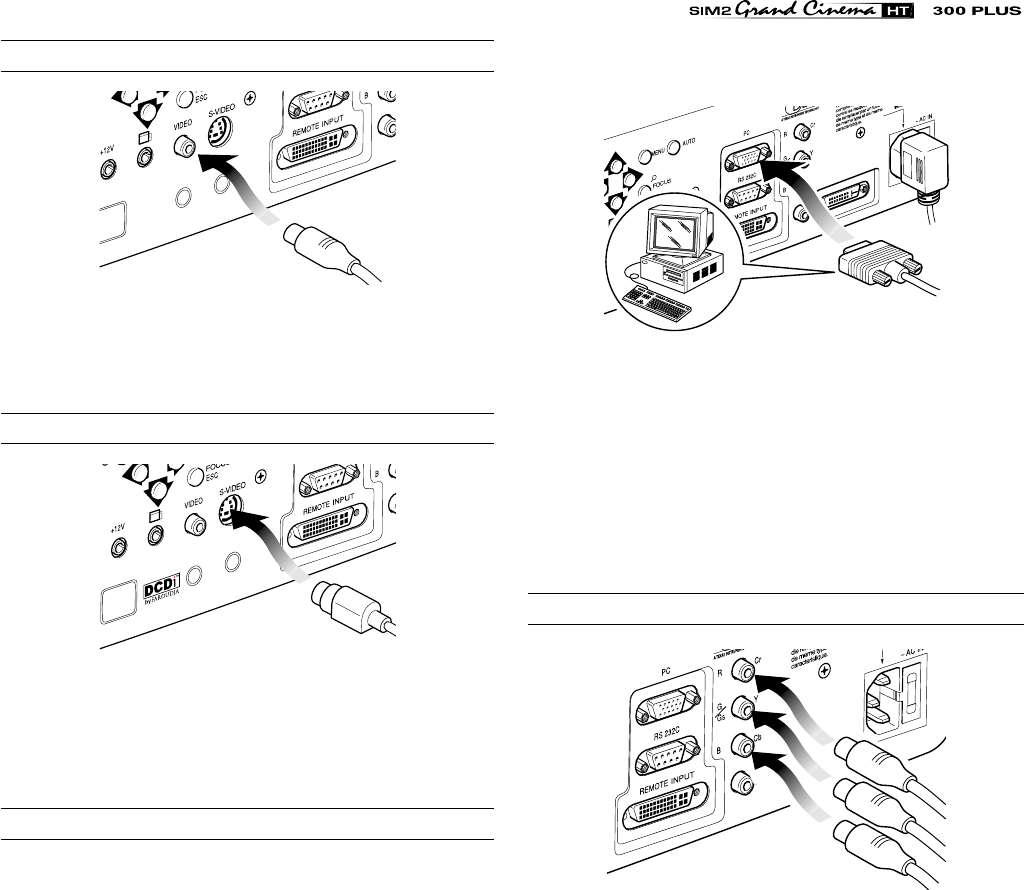

15 Composite video input
16 S-Video input
17 VGA input
18 RGB / YCrCb input

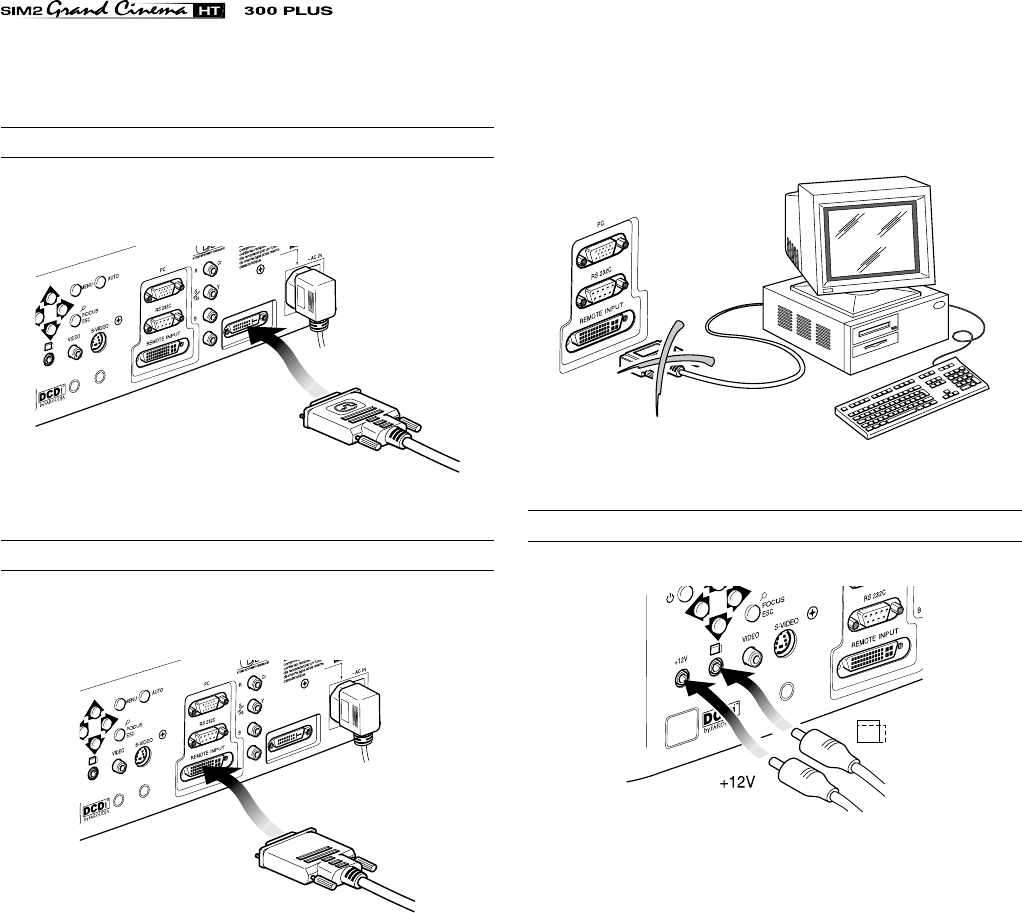

19 DVI-D
20 12Vdc screen output
21 RS232 interface connector
22 Remote Input Interface EVC connector
4
!
CAUTION
RISK OF ELECTRIC SHOCK!
DO NOT REMOVE THE TOP COVER
Prior to switching on the projector please read each chapter of this manual carefully as this manual provides basic
instructions for using the projector.
The installation of the lamp assembly, preliminary adjustments and procedures that necessitate the removal of the
top cover, must be carried out by authorised, trained technicians. There are no user serviceable parts inside. To
ensure safe and long term reliability please use power cables supplied with the projector. Observe all warnings and
cautions.
ATTENTION:
To reduce the risk of electric shock, disconnect the
power supply cable on the rear panel before removing
the top cover of the projector.
Refer to trained, authorised personnel for technical
assistance.
• Federal Communication Commission (FCC Statement)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is used in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determinated by turning the equipment off and on,
the user is encuraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• For customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
For customers in the United Kingdom
ATTENTION: This apparatus must be earthed
The wires in this mains lead are coloured in accordance with the following code:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug
proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth
symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
This symbol indicates the possible electric shock
hazard associated with uninsulated live components
in the interior of the unit.
This symbol indicates the presence of important
instructions regarding use and maintenance of the
product.
2 IMPORTANT SAFETY INSTRUCTIONS
5
Please follow carefully the warnings listed below, to ensure safe
and long term performance of your projector.

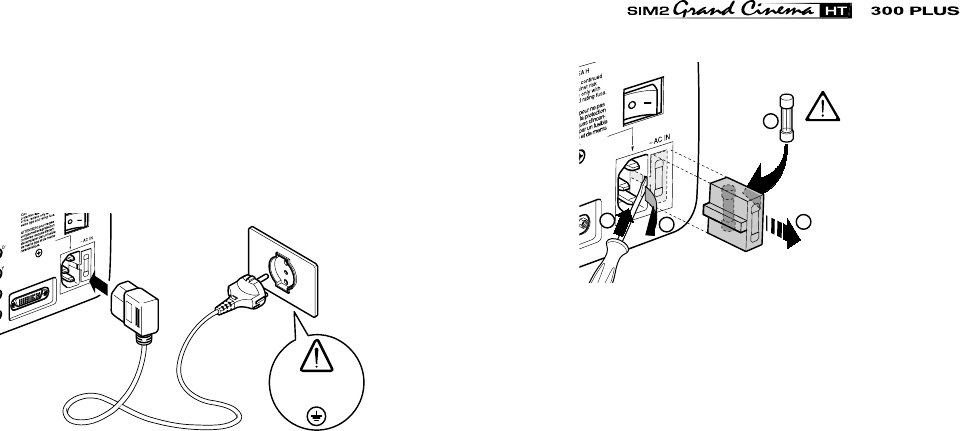

Connect the projector to a power supply with a nominal
voltage within the following values: 100-240 Vac, 50/60 Hz,
earthed
(Fig. 3)
.
100-240 Vac
50/60 Hz
DVI
Fig. 3
The mains plug is the disconnect device. Take care, when
installing, that the mains plug and socket outlet are easily
accessible. Never pull on the cable to take it out of the socket.
If the system is unlikely to be used for a number of days,
disconnect the power cable and other apparatus connected
to it.
To save energy, switch off the projector by using the power
switch at the rear; when in stand-by (red light on) the
projector continues to draw a minimal amount of power.
Only replace the safety fuse (on the power socket at the
rear of projector) with a fuse identical in type and
characteristics (T 3.15A H)
(Fig. 4)
.
250 V
T 3.15A H
23
4
1
Fig. 4
Do not switch on your projector when flammable liquids or
fumes are present. Do not pour or drop fluids in the vents.
Do not use the projector when the room temperature is above
35°C (95°F).
Do not obstruct the cooling air inlets on the top cover, or the
air outlets underneath the projector.
Do not switch on the projector if it is standing on soft surfaces
such as cushions, pillows, blankets, mattresses and carpets:
the air cooling outlets underneath could become obstructed.
Do not switch-on the projector if it is standing on surfaces
sensitive to heat, as this may result in damage caused by
the hot air outlets underneath. Should this be unavoidable
take extra precaution of protecting the surfaces with a layer
of heat resistant material.
Intense Light Source! Do not stare directly into the projection
lens as possible eye damage could result. Be especially
careful that children do not stare directly into the beam.
Do not open the projector’s cover; no user serviceable parts
are inside. Refer servicing to qualified service personnel.
Opening the projector’s cover will invalidate warranty
.
6
3 PACKAGING AND CONTENTS

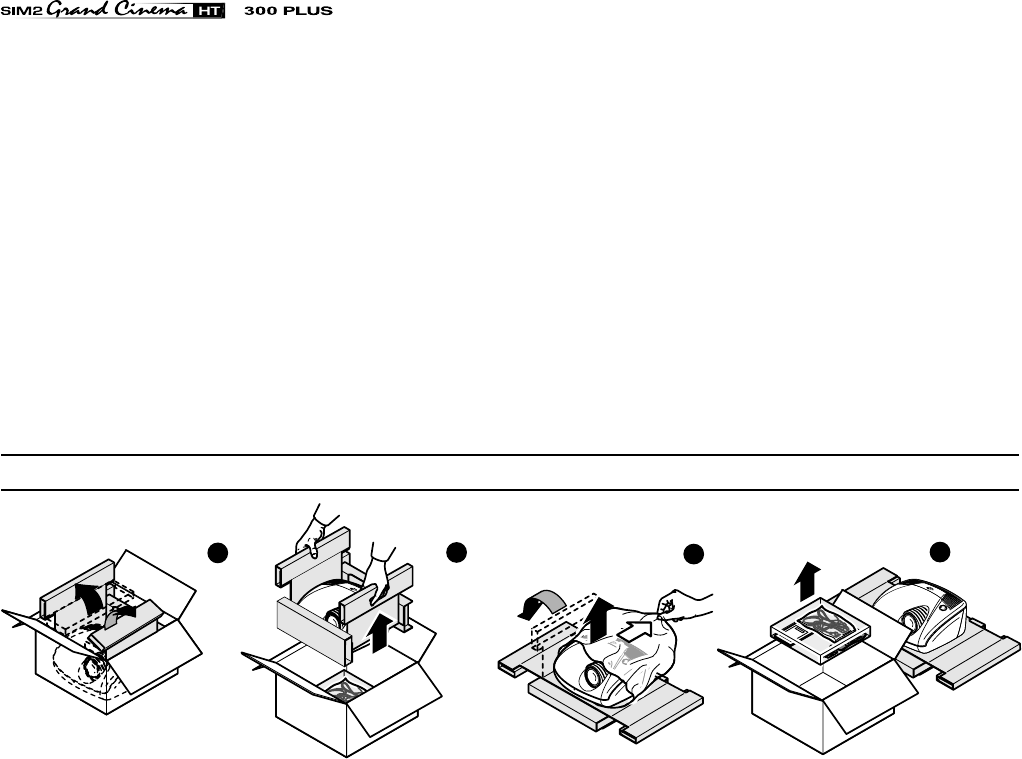

To unpack the projector safely and easily please follow steps 1
to 4, as per drawing
(Fig. 5).
It is recommended that the carton and packaging is retained
for future use and in the unlikely event that your projector needs
to be returned for repair.
The carton should contain the following:
- the projector
- the remote control
- four 1.5V AAA batteries (for remote control)
- three power cables (EU, UK, USA)
- the user manual.
Fig. 5
1234
Take care not to shake the projector whilst carrying it by the
handle.
Always position the projector away from direct heat sources.
Do not touch the surface of the projection lens.
The projector must be positioned on a stable, suitable
platform or be installed using a bracket for fixed ceiling or
wall installation. Do not rest the projector on the side panels
or on the rear panel when in operation.
Take care to position cables safely, especially in dark places,
in order to avoid a trip hazard.
For installations using a ceiling or wall-mounted bracket,
carefully follow the installation and safety instructions
provided with the bracket’s literature.
Please remove batteries from the remote control if not in use
for a long period of time.
A special EVC socket on the projector’s rear panel will allow
connection to the optional Remote Input Interface (a special
cable is required).
This is not to be confused with a VESA “Plug & Display”.
Never connect a computer to this socket, as the projector
and the computer may be damaged.
7
Position the projector on a stable, suitable platform or utilise
the optional bracket for a fixed ceiling or wall installation.
CAUTION: In the case of ceiling or wall mounting
using a suspension bracket, follow the instructions
carefully and comply with the safety standards you
will find in the box together with the bracket. If you
use a bracket different to the one supplied by SIM2
Multimedia, you must make sure that the projector
is at least 65 mm (2-9/16 inch) from the ceiling and
that the bracket is not obstructing the air vents on
the lid and on the bottom of the projector.

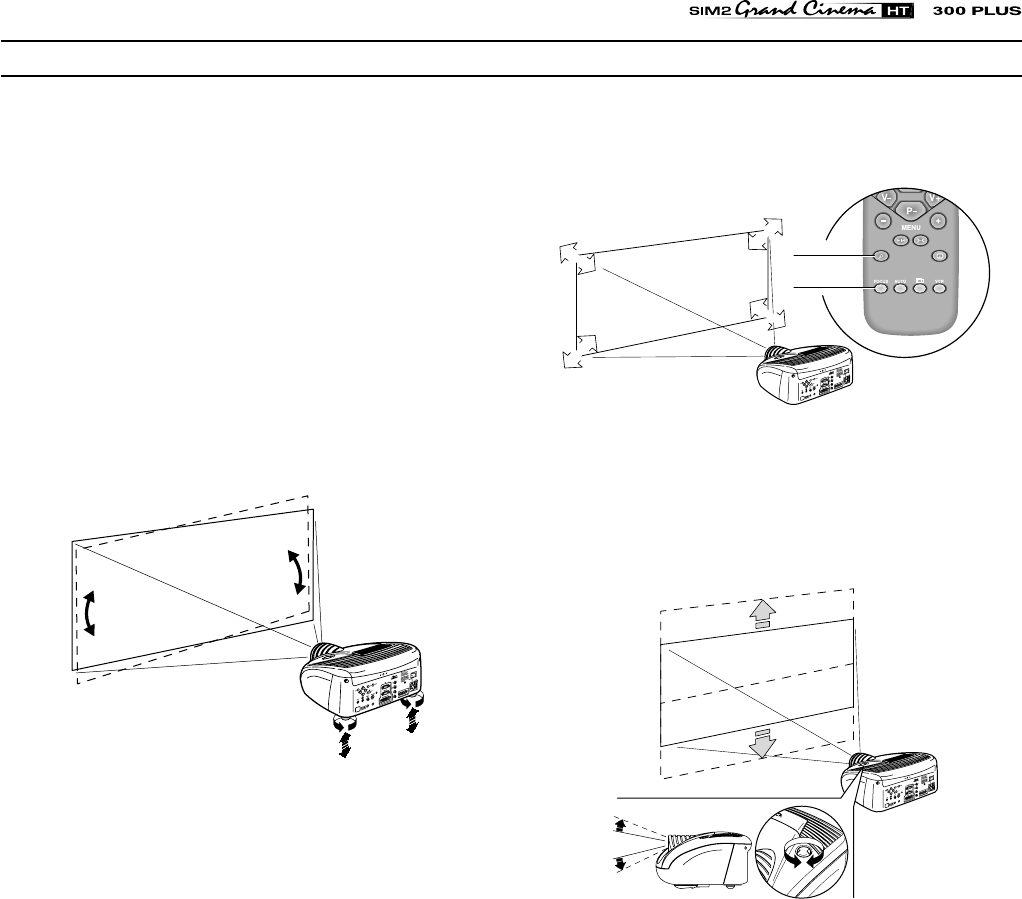

Adjust the feet underneath to obtain a level position, lining up
the base of the projected image to the base of the projection
screen
(Fig. 6)
.
C-SYNC
DVI
Fig. 6
Position the projector the desired distance from the screen:
the size of the projected image is determined by the distance
from the lens of the projector to the screen and the zoom setting.
See “Appendix B”: Projection distances” for more information.
Use the motorised lens zoom to adjust the image size and the
motorised lens focus to achieve maximum clarity. With optimum
focus you should be able to clearly see each single pixel when
within close proximity to the screen
(Fig. 7)
.
ZOOM
ZOOM
ZOOM
ZOOM
FOCUS
FOCUS
FOCUS
ZOOM
FOCUS
C-SYNC
DVI
Fig. 7

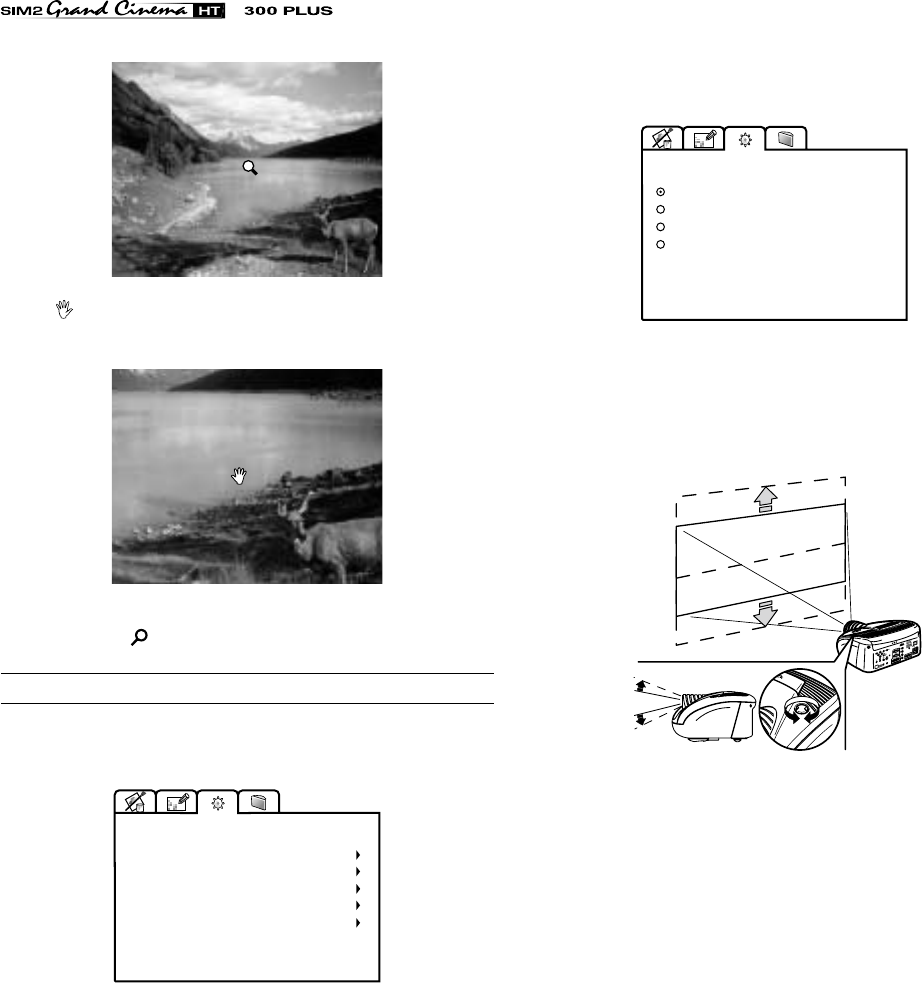

The manual lens shift adjustment allows the projected image
to be moved vertically, up or down, in relation to the centre of
the screen; the maximum adjustment being equal to half the
height of the image in either direction
(Fig. 8)
.
C-SYNC
DVI
Fig. 8
In the event you are unable to centre the image within the screen
area, tilt the projector until the image is correctly positioned.
Any keystone error can be removed by the Keystone adjustment
in the Set up menu
(Fig. 9)
.
4 INSTALLATION
8
KEYSTONE
20%
C-SYNC
DVI
Fig. 9
The Orientation adjustment in the Set up menu will allow the
projector to be used for desktop front, ceiling front, desktop
rear and ceiling rear installations
(Fig. 10)
.
C-SYNC
DVI
Fig. 10

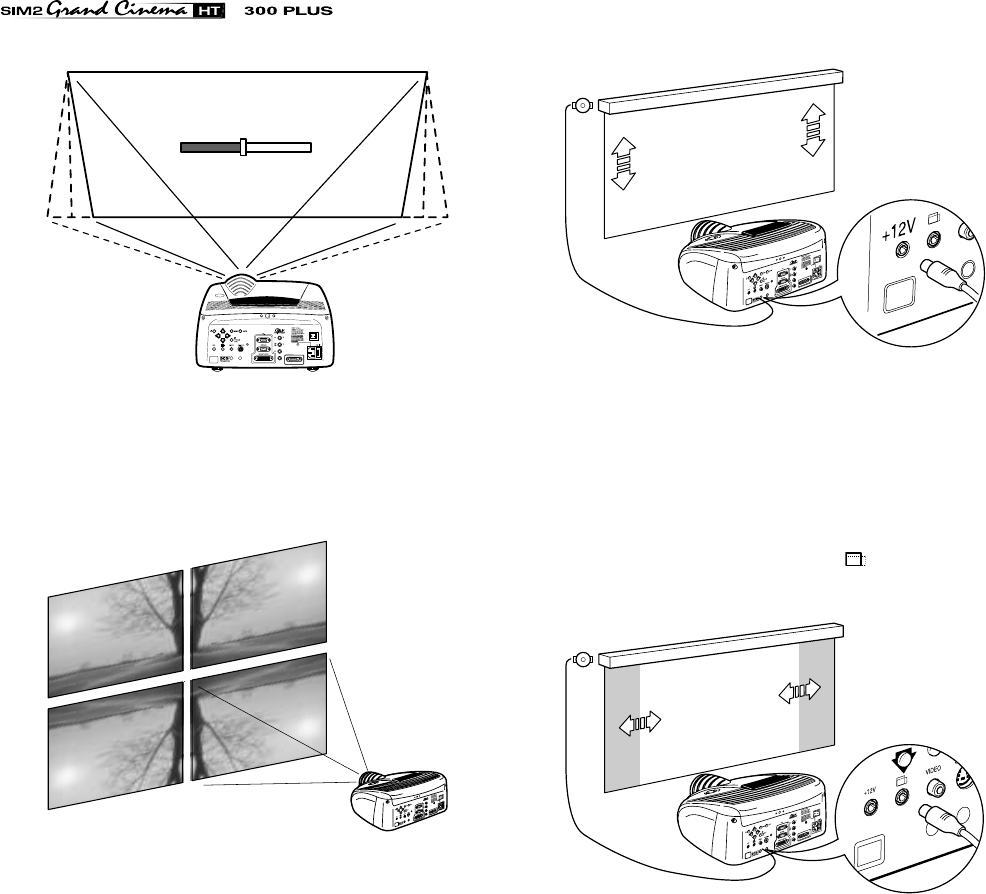

To activate an electric motorised screen a 12 Volt output is
provided at the rear of the projector or with the optional Remo-
te Input Interface. This can be connected to a screen interface
unit, which can be supplied by screen manufacturers
(Fig. 11)
.
C-SYNC
DVI
Fig. 11
The output is activated (Voltage: 12 Vdc) when the projector is
switched on and is de-activated (no Voltage output) when the
projector is in stand-by mode.
Some manufacturers offer screen-masking systems to help fra-
me the projected image and improve picture contrast. These
systems can be connected to output , at the rear of the
projector
(Fig. 12)
, or on the optional Remote Input Interface.
C-SYNC
DVI
Fig. 12
For rear projection the screen must be translucent.
For front projection, we recommend the use of screens with
low gain specifications (i.e. 1.3 to 2). The use of high gain
screens should be avoided due to their limited viewing angle,
9
which is undesirable for a large audience.
Preferably, use a screen with black, non-reflecting borders,
which will perfectly frame the projected image.
Avoid light shining directly on the screen during projection as
this will reduce contrast and black level detail on the projected
image. For the true cinema experience best results are
achieved with little or no ambient light.
Furniture and other objects with reflecting surfaces, as well as
light coloured walls should be avoided, as they are likely to
interfere with the screen’s characteristics.
5 SWITCHING ON AND OFF THE PROJECTOR

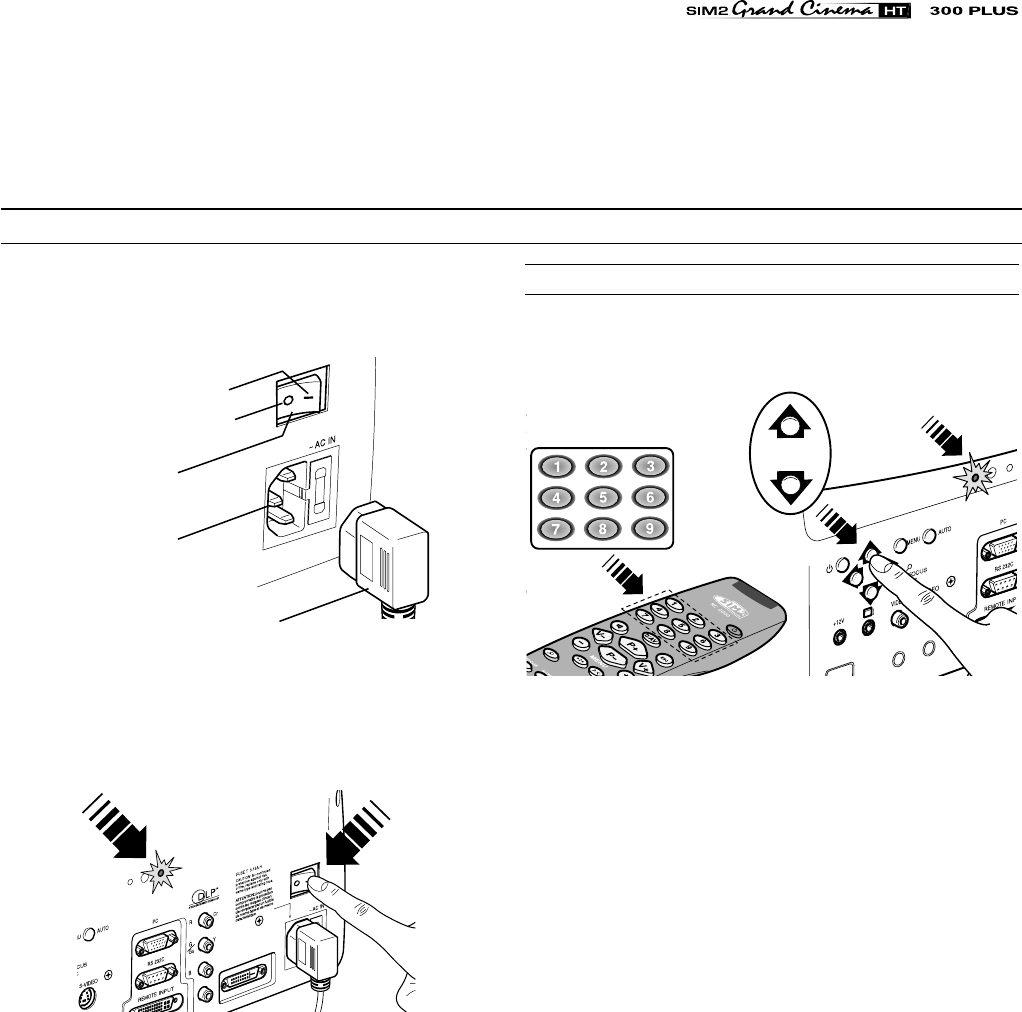

CAUTION: Connect the projector to a power supply
with a nominal voltage within the following values:
100-240 Vac, 50/60 Hz. It must be earthed
(Fig. 13)
.
Position I : ON
Position O : OFF
Power switch
Fused power socket
Power plug
Fig. 13
Upon switch on (in position I) the projector will initialise (red
and green LEDs on). Followed by stand-by mode (red LED on)
(Fig. 14).
C-SYNC
DVI
Fig. 14
SWITCH ON FROM STAND-BY
By remote control: press one of 1...9
By keyboard: press Up or Down Arrow .
Fig. 15
When switching on from stand-by, the projector will turn on the
lamp; after a brief warm up period the image will be displayed
(green LED on).The input automatically selected will be the
last one memorised prior to switch off
(Fig. 15)
.
You may experience difficulties switching on the projector shortly
after switching off: the lamp may fail to come on as it is too hot.
Just wait a few minutes to cool it down.
10
SWITCHING OFF AND RETURNING TO STAND-BY
By remote control: press
By keyboard: press key
When switching off, the projector goes in to stand-by
memorising the input selection at the time of switch-off.
The fans will continue to work until the lamp has cooled down
(red and green LEDs flashing) and will stop automatically after
this period.

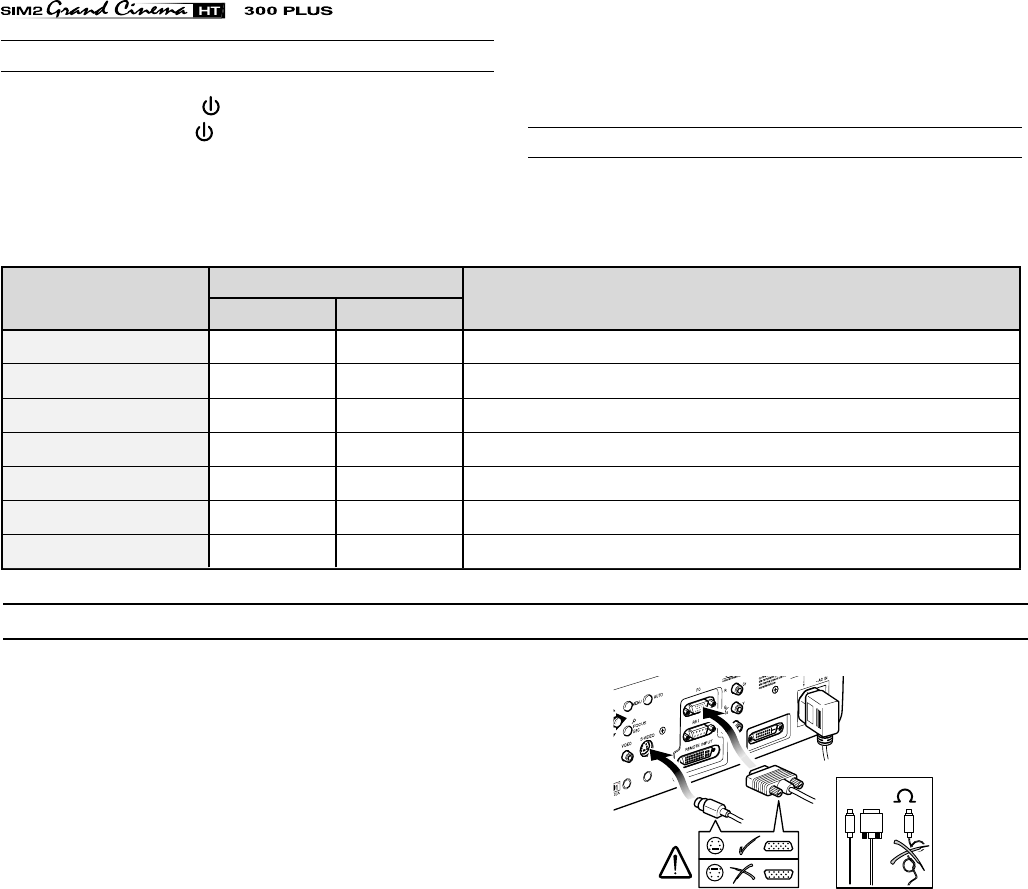

LED INDICATORS
The LED indicators, located in the top-rear of the projector,
provide information about the state of the projector (see table
below).
6 CONNECTIONS
To obtain the best performance from your projector, we
recommend the use of good quality “video cables” to the various
signal sources (75 ohm Impedance).
Poor quality cables will cause inferior picture performance.
For optimum connectivity we recommend you follow these
simple steps:
- With exception of coaxial RCA/Phono type connectors,
always double-check that the plug is inserted the correct
way round to avoid damaging the plugs or the sockets on
the projector
(Fig. 16)
.
75
C-SYNC
DVI
Fig. 16
- Remove cables by the plug and do not pull on the cable
itself.
- Avoid tangled cables.
- Position the cables carefully to avoid a trip hazard - especially
in low light areas.
POWER OFF
INITIALIZATION
STATE NOTES
INDICATORS
GREEN RED
STANDBY
OPERATING
COOLING LAMP
WARNING
ERROR
The Power is turned off
Power button has been pressed and the software is initialized (15 s)
Projector is in standby mode
Projector is on
Projector is powering down; the fans are running to cool the lamp (1 min)
Problems to display one or more source
Internal circuit failure
OFF
ON
OFF
ON
OFF
OFF
ON
ON
OFF
FLASHINGFLASHING
FLASHING OFF
FLASHING
11
100 Hz. Computer Resolutions of VGA, SVGA, XGA, SXGA and
UXGA can be displayed.
C-SYNC
DVI
Fig. 19
This input is suitable for a RGB video signal, or for a Component
(YCrCb) type, with composite synchronisation on the green
signal (RGsB) or on the luminance (Y) signal (YsCrCb) through
a cable with RCA/Phono type connector
(Fig. 20)
.
Only horizontal scanning frequencies of 15 kHz (standard vi-
deo resolution) or 32 kHz (high definition video, with progressi-
ve scanning) can be applied to this input.
RGB/YCRCB INPUT
RG
S
B - Y
S
C
R
C
B
COMPONENT
VIDEO
C-SYNC
Fig. 20
This input is suitable for a RGB video signal, or for a Component
(YCrCb) type, with composite synchronisation on the green
signal (RGsB) or on the luminance (Y) signal (YsCrCb) through
a cable with RCA/Phono type connector
(Fig. 20)
.
COMPOSITE VIDEO INPUT
CVBS
COMPOSITE VIDEO
Fig. 17
This input is suitable for a “Composite Video CVBS” via a cable
with an RCA/Phono connector
(Fig. 17)
.
S-VIDEO INPUT
S-VIDEO
Fig. 18
This input is suitable for equipment fitted with a S-Video output
to give improved picture performance (S-VIDEO/S-VHS)
Connection is made via a 4-pin mini-DIN
(Fig. 18)
.
VGA INPUT
Personal Computers, Video Processors (scalers) and Video
Game consoles can be connected to the projector via the HDB
15-Pin (VGA) terminal.
Ensure the output of equipment connected is RGB with one of
the following synchronisation options: separate H/V Sync, H+V
Composite Sync, (RGsB) composite sync on the green signal
(Fig. 19)
. This input accepts a Horizontal Scan Frequency of
between 15-80 kHz and a Vertical frequency of between 40-
12
Only horizontal scanning frequencies of 15 kHz (standard vi-
deo resolution) or 32 kHz (high definition video, with progressi-
ve scanning) can be applied to this input.
DVI INPUT
A DVI-D signal (digital RGB) can be applied to this input (
Fig.
21)
.
C-SYNC
DVI
Fig. 21
REMOTE INPUT INTERFACE CONNECTING CABLE
With a special cable (optional), it is possible to connect the
Remote Input Interface (optional) to the projector(
Fig. 22)
.
C-SYNC
DVI
Fig. 22
Connect/disconnect the special Remote Input Interface cable
only when the projector is switched off and disconnected from
the mains (switch in position O).
CAUTION: This is not a VESA Plug & Display
connector. Never connect a computer to this socket
as the projector and the computer may be damaged
(Fig. 23)
.
Fig. 23
MOTORISED PROJECTION SCREEN OUTPUT
Fig. 24
The projector is equipped with two outputs (Voltage: 12 Vdc)
for motorised projection screen and screen masking systems.
These 12V outputs should be connected to the appropriate
screen interface provided by the screen manufacturer
(Fig. 24)
.
The +12V output is activated when the projector is switched on
(green LED on) and is de-activated when the projector is in
stand-by mode (red LED on).
13
The output can be used to control a screen masking system;
its output can be set with the “Screen control” adjustment in
the “Aspect” menu.
This output allows reduction in the area of a 16:9 screen, into a
4:3 format, by activating a screen masking system (refer to
screen manufacturer for further information).
RS232 INTERFACE CONNECTOR
It is possible to control the projector through a personal com-
puter. First, load the appropriate projector control software onto
your PC, then simply connect this input to a cable from your
PC’s RS232 serial port
(Fig. 25)
.
SYNC
RS 232
Fig. 25
7 KEYBOARD PAD
Up/Down/Left/Right arrow keys
Navigate through and make adjustments to the
On Screen menus.
Arrow Up/Down switch on from stand-by and
recall Source Selection menu.
Switches off to stand-by.
Menu
Activates the On Screen Display menus. Navigates
Menu pages.
-Focus-Esc
De-activates the On Screen Display and
gives access to the lens Zoom/Focus
adjustment functions.
Auto
Selects Auto Adjust
(automatic optimisation of the
displayed image).
Eight push buttons, at the rear of the projector, will allow com-
plete operation without the use of the remote control.
14
8 REMOTE CONTROL

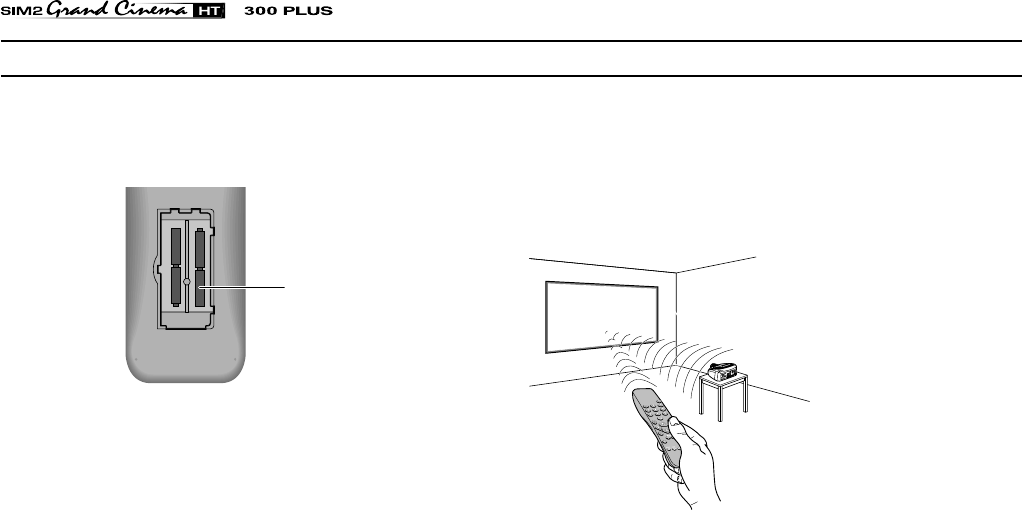

Insert the batteries, taking care to match the polarity, as
indicated in the battery recess of the remote
(Fig. 26)
.
+-
+-
+
-
+
-
four 1.5V
AAA alkaline
batteries
Fig. 26
Change the batteries in the remote control if experiencing
difficulty in sending commands to the projector.
If the remote control is not to be used for a long period of time
remove the batteries. Replace all batteries at the same time;
do not replace one new battery with a used battery. If the
batteries have leaked, carefully wipe the case clean and replace
with new batteries.
The remote control sends commands to the projector via
infrared signals.
It is possible to control the projector by pointing the remote
control at the screen; the sensor at the front of the projector will
pick up the reflected infrared commands.
(Fig. 27)
.
C-SYNC
DVI
Fig. 27
Avoid placing obstructions between the remote control and the
infrared sensor at the front of the projector; this will impair the
remote control performance.
15

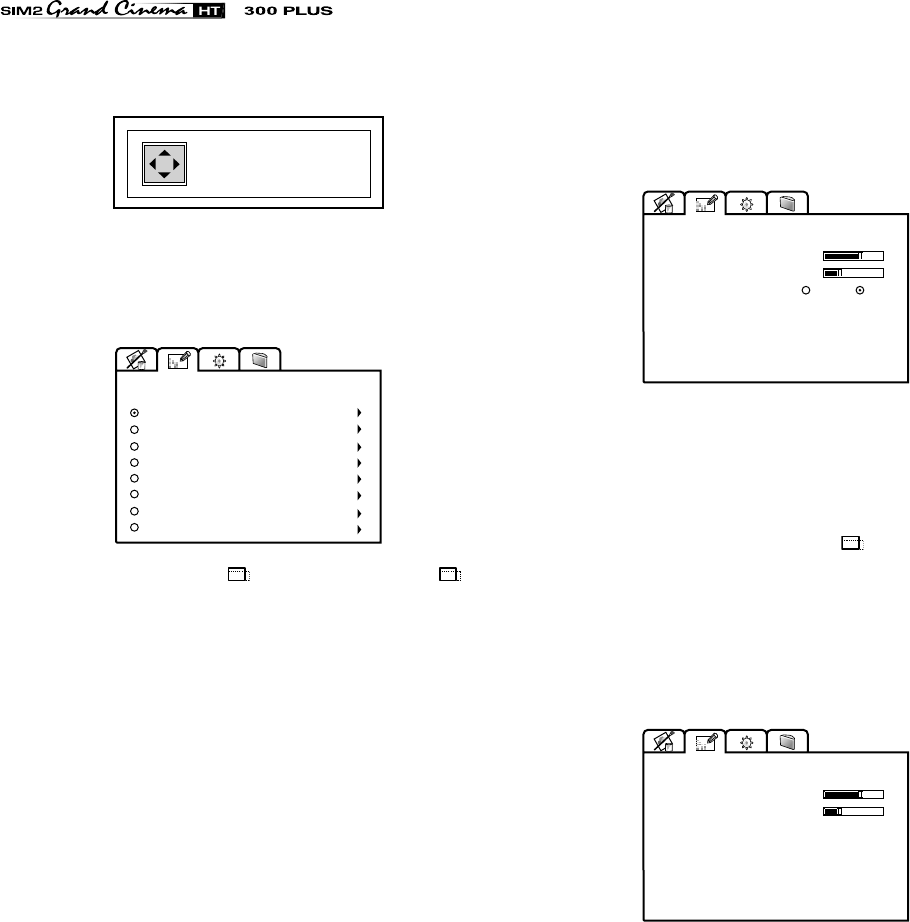

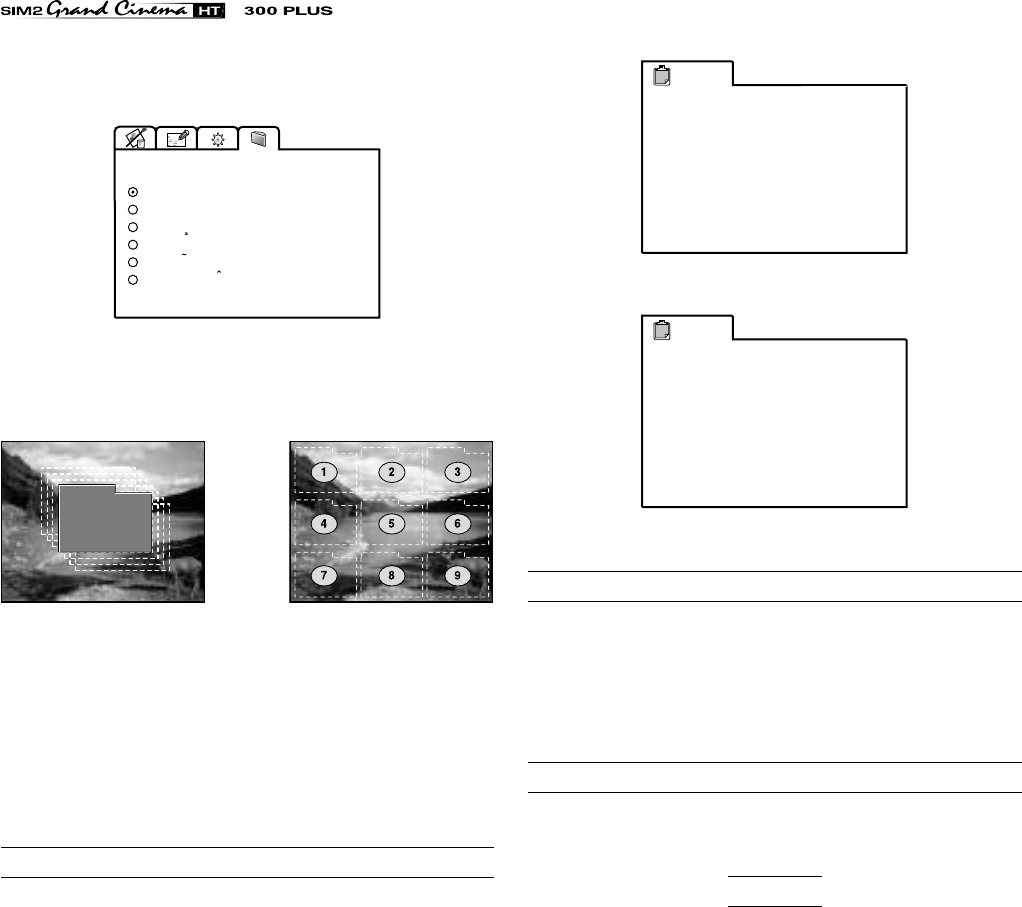

9 ON SCREEN MENUS
Video
NTSC/60Hz
Normal
Fig. 28
MAIN MENU
To access the main On Screen Display menu, press the Menu
key on the keyboard or the key Menu + or Menu - on the
remote control
(Fig. 29)
.
The main menu is divided into four sections to cover various
adjustments in a practical and logical manner.
The on-screen menu layout is dependant upon the chosen input
signal so various options may not be applicable, i.e. some typical
adjustments to the video signal are not applicable to the graphic
RGB signals from PC and viceversa.
Fig. 29
SOURCE SELECTION
The Source Selection menu is recalled by pressing the key:
0/AV of the remote control or the Up/Down Arrow key of the
keyboard pad. The selected source will be highlighted in yellow.
Use Up and Down Arrow keys to browse sources. Right
Arrow to select the desired source.
Alternatively, use the remote control to directly select the
required source (1 to 8).
Source Selection
1
2
3
4
5
6
7
8
Video
S-Video
RGBS 15 kHz
YCrCb 15 kHz
RGBS 32 kHz
YCrCb 32 kHz
Graphics RGB
DVI-D
0RI2 inputs
When using the optional Remote Input Interface press the 0/
AV key twice to display Remote Input Interface sources.
Source Selection / RI2
1
2
3
4
5
6
7
8
Video 1
Video 2
S-Video 1
S-Video 2
RGBS 15 kHz
YCrCb 15 kHz
RGBS 32 kHz
YCrCb 32 kHz
9 Graphics RGB
0Projector Inputs
When a new source is selected a box appears on the screen
with the following indications: selected source, standard vi-
deo (for video signals), resolution (for graphic signals) and
aspect
(Fig. 28).
16

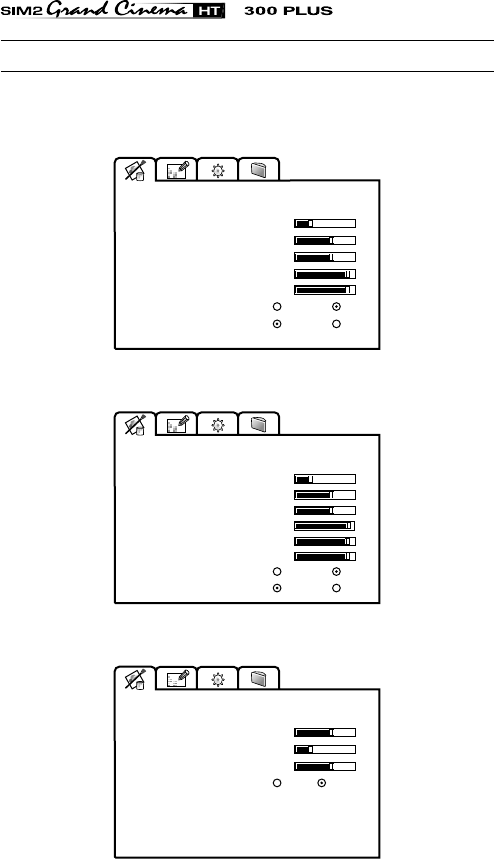

This menu features adjustments relating to the projected image
quality.
BRIGHTNESS
CONTRAST
COLOR
SHARPNESS
FILTER
20
50
50
7
6
CINEMA MODE
Off
Auto
VIDEO TYPE
Normal
VCR
VIDEO
BRIGHTNESS
CONTRAST
COLOR
20
50
50
TINT 85
SHARPNESS
FILTER
7
6
CINEMA MODE
Off
Auto
VIDEO TYPE
Normal
VCR
VIDEO-NTSC
BRIGHTNESS
CONTRAST
50
20
SHARPNESS 5
SHARPNESS MODE
Video
Graphics
RGB-DVI
BRIGHTNESS
Use this control to adjust the image’s black level.
COLOR
Use this control to adjust the colour level.
TINT
Controls the purity of the colours, to NTSC coded signal
standards. Tint is only applicable to video input with NTSC stan-
dard, to RGB 15kHz and YCrCb 15kHz inputs and YCrCb 32kHz
(no RI2).
SHARPNESS
Use this adjustment to increase and decrease the level of
picture detail.
SHARPNESS MODE
It allows to select the type of processing that determines the
detail. In progressive or de-interlaced video signals the Video
option is suggested, with graphic signals from a PC the
Graphic option is suggested.
FILTER
For video signals it improves the image’s horizontal/vertical
definition and sharpness.
CINEMA MODE
In Auto the de-interlacer recognizes if the video signal is
originated from a cinematographic film (resulting from Teleciné
with 3:2 or 2:2 Pull Down) and applies an interpolation algorithm
optimized for this type of signal.
Instead if the video signal does not originate from a
cinematographic film, or Off is chosen, the de-interlacer applies
a “Motion Compensated” algorithm optimized for signals
coming from a videocamera.
VIDEO TYPE
Inserts a filter that improves stability of images from video-
recorders. To toggle between Normal and VCR mode, press
the VCR key on the remote control.
17
IMAGE ADJUSTMENTS

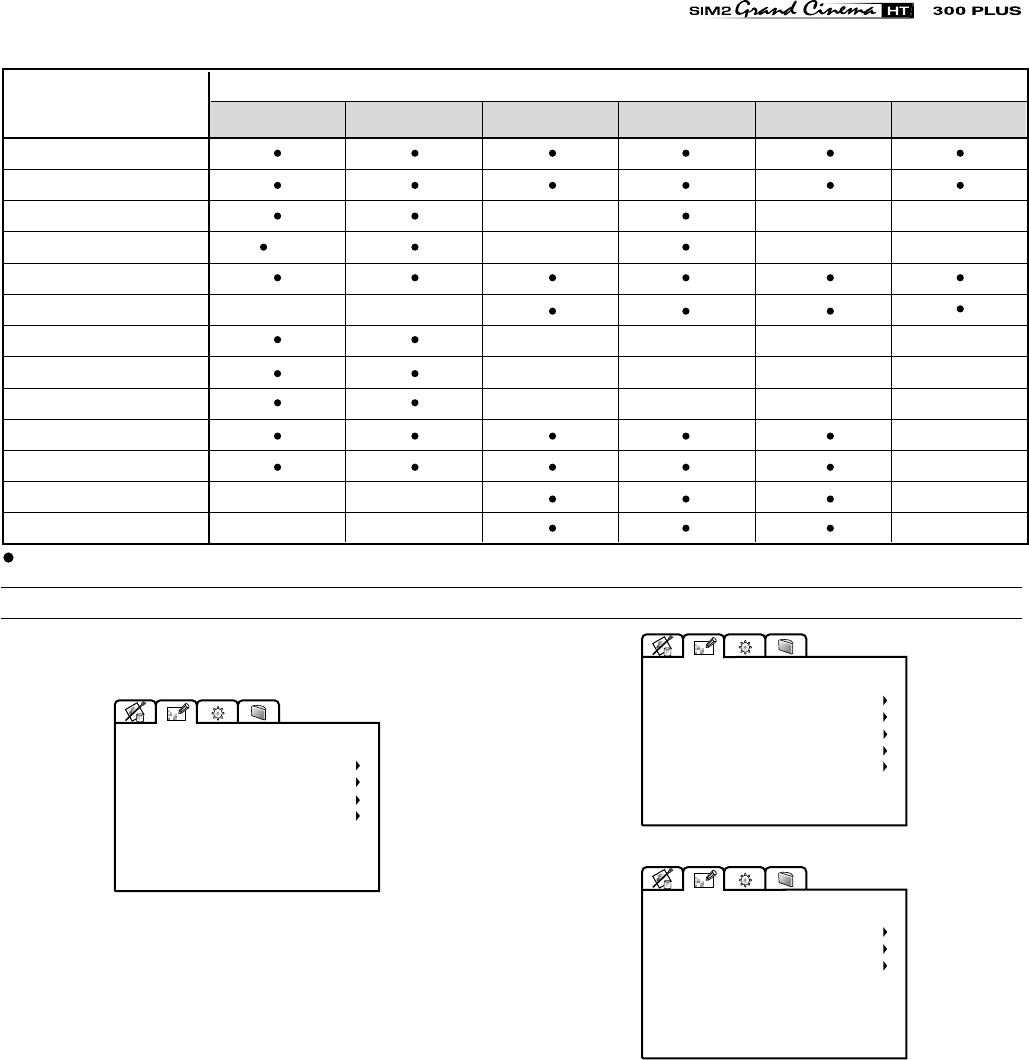

INPUT SIGNALS AND ADJUSTABLE/SETTING ITEMS
This menu features adjustments relating to position, aspect ratio
and magnification etc.
POSITION
ASPECT
ADVANCED SETTINGS
MAGNIFICATION
IMAGE ADJUSTMENTS
VIDEO
RGB
RGB-DVI
ADJUSTMENTS
-(*)
adjustable/can be set not adjustable/can not be set not adjustable if RI2 input
BRIGHTNESS
CONTRAST
Video
S-Video RGBS 32 kHz YCrCb 32 kHz RGB Graphics DVI-D
RGBS 15kHz
YCrCb 15kHz
SOURCE
COLOR --
-
--
--
--
-
-
-
-
-
-
-
-
-
-
TINT (NTSC)
(*)
(*)
SHARPNESS
SHARPNESS MODE
FILTER
CINEMA MODE
VIDEO TYPE
PHASE
FREQUENCY
VERTICAL POSITION
HORIZONTAL POSITION
-
-
-
-
-
-
-
-
-
POSITION
ASPECT
FREQUENCY/PHASE
ADVANCED SETTINGS
MAGNIFICATION
IMAGE ADJUSTMENTS
ASPECT
ADVANCED SETTINGS
MAGNIFICATION
IMAGE ADJUSTMENTS
18

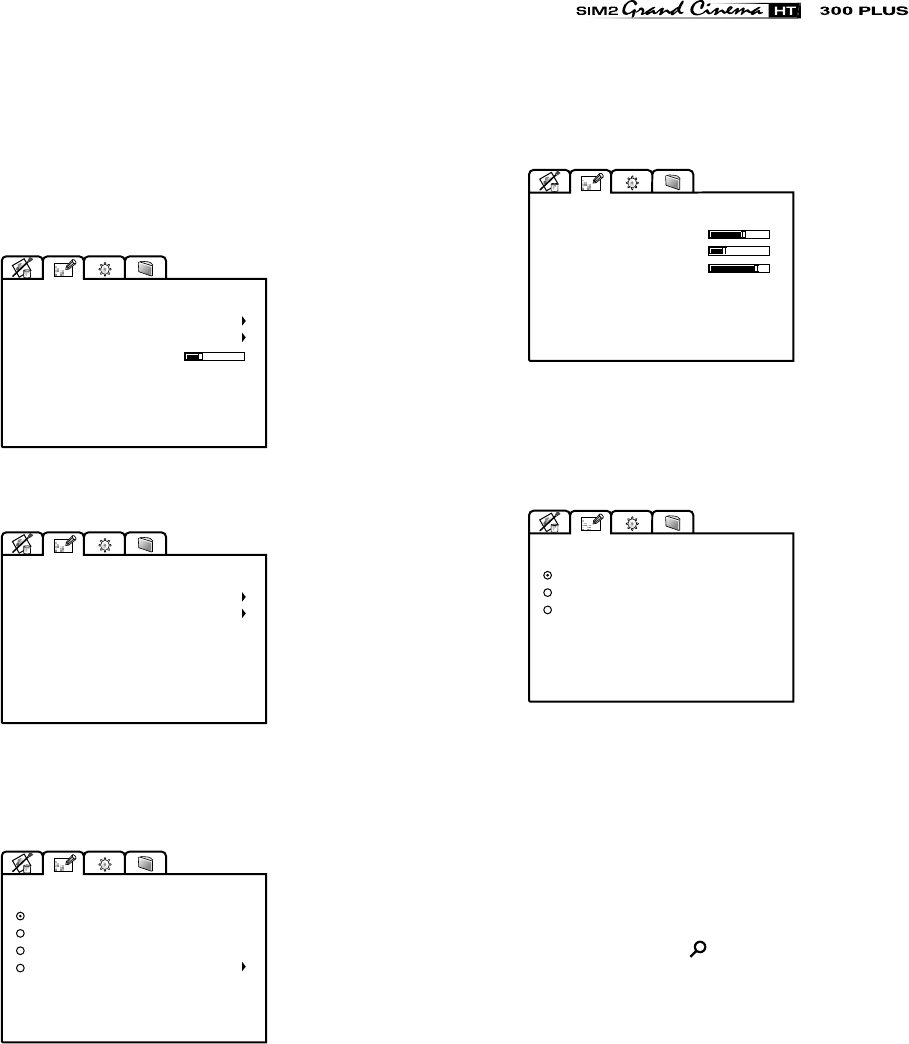

POSITION
Use this adjustment to position the image vertically and
horizontally.
HORIZONTAL: 9
VERTICAL: 6
ASPECT
Determines the aspect ratio of the projected image.
From this menu it is possible to select the aspect ratio by using
the numeric keys 1...8 of the remote control.
5 PIXEL TO PIXEL
7 USER 2
8 USER 3
6 USER 1
1 NORMAL
2 ANAMORPHIC
3 LETTERBOX
4 PANORAMIC
ASPECT
By repeatedly pressing the key or by pressing the and
one of the numeric keys 1...8 of the remote control, it is possible
to select the aspect ratio.
Normal
This aspect projects the image occuping the full vertical
dimension of the screen and maintaining the correct aspect
(4:3 or 16:9).
Anamorphic
This aspect allows to properly visualize a 16:9 image.
Letterbox
This aspect allows to project a 4:3 letterbox image, filling the
16:9 screen and maintaining the correct aspect ratio.
Panoramic
This aspect stretches the 4:3 image slightly cutting the upper
and lower parts. It's ideal to project a 4:3 image in a screen of
16:9 aspect ratio.
Pixel to Pixel
This aspect projects the signal as it is input without scaling up
or down.
Image is projected in the center of screen.
User 1, 2, 3
Should you wish to use a format different to those preset, go to
User menus.
ASPECT / USER 1
HORIZONTAL
VERTICAL
SCREEN CONTROL
0
-10
On
Off
By using the Horizontal and Vertical adjustments it is
possible to select the screen shape of your choice. It is important
to keep the relation between height and width so that the correct
aspect ratio can be maintained.
Screen Control. If an appropriate screen-masking interface
is connected to the 12V output socket “ ” it is possible to re-
frame the screen to a variety of aspect ratios and screen sizes
(please refer to the screen manufacturer’s manual).
FREQUENCY / PHASE
In the case of RGB graphic signals this adjustment is used for
synchronization of the RGB image to the number of pixels on
the display panel.
FREQUENCY / PHASE
FREQUENCY
PHASE
1312
-12
RGB
Frequency
The correct frequency adjustment eliminates vertical band
interference.
19
Phase
The phase adjustment determines the stability and sharpness
of the vertical lines in the projected image.
ADVANCED SETTINGS
Advanced colour settings are accessible via this menu.
We recommend the use of these settings only to the
experienced user, as their adjustment can seriously affect final
image quality.
2
COLOR TEMPERATURE
GAMMA CORRECTION
Y/C DELAY
ADVANCED SETTINGS
VIDEO
COLOR TEMPERATURE
GAMMA CORRECTION
ADVANCED SETTINGS
RGB-DVI
Colour temperature
Select the colour temperature of the projected image.
HIGH
MEDIUM
LOW
USER
COLOR TEMPERATURE
zione
There are three fixed colour temperature settings, which are:
High (9000÷9500 degrees K), Medium (circa 6500 degrees
K), Low (circa 5000 degrees K).
The User option will allow you to select the colour temperatu-
re of your choice.
BLU 28
0
-16
COLOR TEMP. /USER
RED
GREEN
Gamma correction
Selects the Gamma’s correction curve. It determines the
projector’s response to the grey scale, emphasizing - more or
less - the different grades of brightness (blacks, dark, medium,
light greys, whites) in the projected image.
VIDEO
FILM
GRAPHICS
GAMMA CORRECTION
Y / C Delay
Use this adjustment in the event of horizontal colour misalignment
within the projected image. It is recommended that a colour bar
test pattern be used for this adjustment.
MAGNIFICATION
Use this adjustment to magnify the projected image (please
note the higher the magnification the poorer the quality of the
image).
Adjust the level of enlargement using the Left and Right
Arrow (the magnifying lens icon will appear at the centre
of the image).
20
Select Pan (zoom button on the remote control) to choose
the area of image to enlarge, using all four arrow keys.
Via remote control, it is possible to alternate between modes,
by pressing the key.
SETUP
The installation menu gives access to features that will allow
for correct installation of the projector.
ORIENTATION
KEYSTONE
PROJECTION LENS
TEST PATTERNS
FACTORY DEFAULTS
SETUP
ORIENTATION
Select the option that best describes the installation i.e. desktop
front, ceiling front, desktop rear and ceiling rear.
FLOOR
CEILING
FLOOR-REAR
CEILING-REAR
ORIENTATION

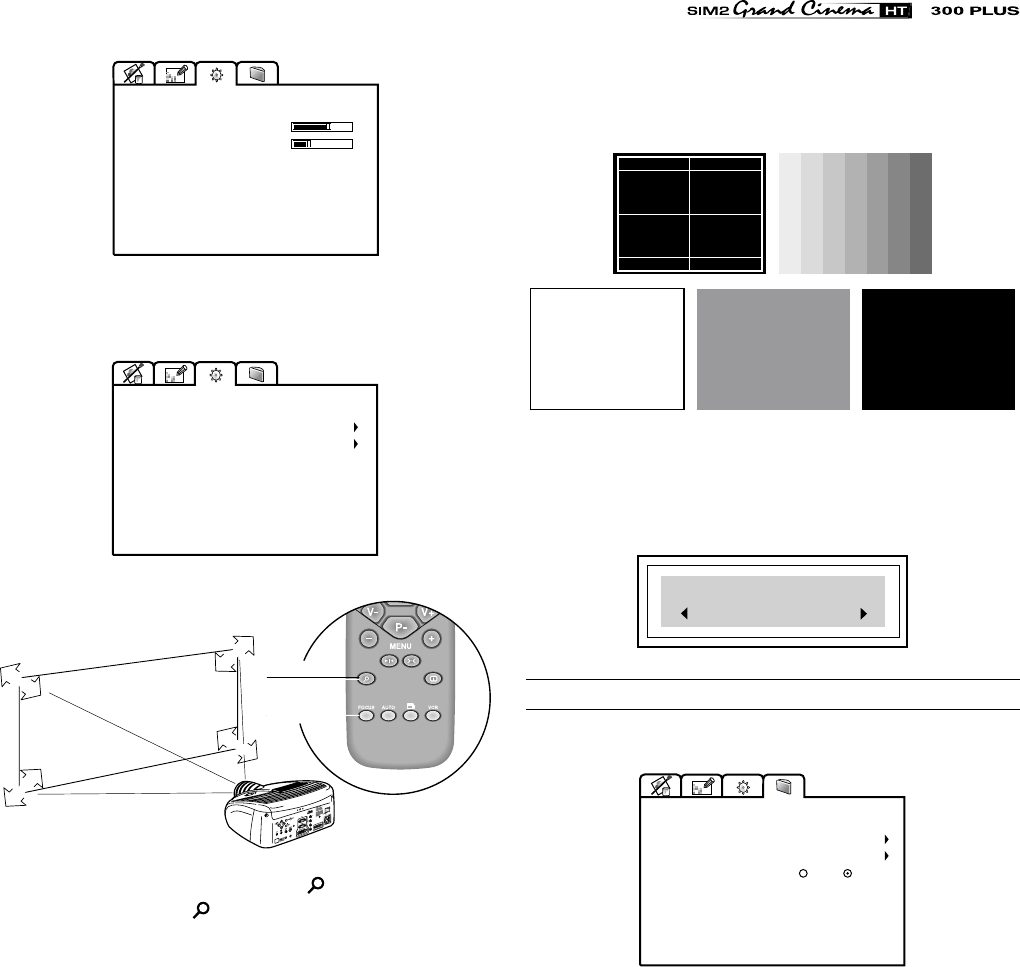

HORIZONTAL / VERTICAL KEYSTONE
To obtain maximum quality of the projected image, we
recommend the installation of the projector on a level platform
parallel and central to the screen. In the event that the picture
is not correctly positioned use the lens shift feature
(Fig. 30)
.
C-SYNC
DVI
Fig. 30
Should it not be possible to centralize the image by adjusting
the lens height, tilt the projector and use the keystone
adjustment to restore the projected image to the correct shape.
21
0
-10
KEYSTONE
HORIZONTAL
VERTICAL
PROJECTION LENS
To adjust Focus and Size of the projected image, use the
lens settings.
FOCUS
ZOOM
PROJECTION LENS
ZOOM
ZOOM
ZOOM
ZOOM
FOCUS
FOCUS
FOCUS
ZOOM
FOCUS
C-SYNC
DVI
Alternatively, press keys Focus and (Zoom) on your re-
mote control, or the key -Focus-Esc on keyboard pad.
TEST PATTERNS
Displays a series of five test patterns, useful for the installation
of the projector.
Press Up and Down Arrow keys to browse pattern.
FACTORY DEFAULTS
Reconfigures the projector to original factory settings except
Position, Orientation, Y/C Delay, Zoom and Focus.
No
Confirm?
Yes
MENU
This menu covers the On Screen Display adjustments.
LANGUAGE
OSD POSITION
OSD BACKGROUND
15 sec
MENU
OSD TIMEOUT
Clear
Solid
22
LANGUAGE
Lists the languages options available for the On Screen Display
menus.
ENGLISH
ITALIANO
FRANCAIS
LANGUAGE
DEUTSCH
ESPANOL
PORTOGUES
OSD POSITION
To position the On Screen Display within the picture area, use
the arrow keys
(Fig. 31a)
or press the 1 to 9 keys on the remo-
te control
(Fig. 31b)
.
Fig. 31a Fig. 31b
OSD BACKGROUND
Gives a choice of backgrounds for the On Screen Display.
OSD TIMEOUT
Use this adjustment to set the display time after which the On
Screen Display will disappear. Left and Right Arrow keys
set the timing (within a 5-60 second timeframe).
INFO
This function displays the current status of the projector, input
type, input frequency, etc.
Info
Source
Standard Video
Horiz Frequency
Aspect
Color Temperature
Lamp Hour Meter
Software Version
Video
Mode 4:3
NTSC 60Hz/4.43MHz
15.7kHz
Video Type Normal
Panoramic
Low
362
2.08 H P (038)
VIDEO
Info
Source
Horiz Frequency
Vertical Frequency
Aspect
Color Temperature
Lamp Hour Meter
Software Version
RGB Graphic
Mode 4:3
56.5kHz
70Hz
Resolution 1024x768 Mode:77
Normal
Low
362
2.08 H P (038)
RGB-DVI
QUICK MENUS
The Quick menus allows the adjustment of most of the picture
quality controls without recalling the main On Screen menus.
Brightness, Contrast, Color, Tint, Sharpness and Filter
adjustments appear at the bottom of the screen, one after
another, when Up and Down Arrow keys are pressed.
MESSAGES
The following messages could appear on your screen:
No Signal
The projector does not recognise any signal sent through the
selected input.
- Check that the selected input is actually connected to
a video or graphic signal.
- Verify compatibility of video/graphic signals with technical
specifications of your projector.
23
10 CLEANING AND MAINTENANCE
- Check the integrity of cables used to connect various
sources.
- If you are using the Remote Input Interface, do not to confuse
the menu for selection of projector’s inputs (Source
Selection), with the menu for selection of remote inputs
(Source Selection / RI2).
Out of range
Either the resolution or the horizontal/vertical frequency of the
input signal is too high.
- Input a signal that is within specifications.
High temperature
The projector detects temperature internally; if it is too high it
will switch itself off.
- Check temperature of the room: it must be below 35°C
(95°F)
- Check projector air vents on top and underneath the projector:
they must be free of obstruction.
- If the problem persists, consult your Dealer.
The projector does not require internal cleaning. There are no
user serviceable parts inside the projector. Please refer all
service requirements to qualified personnel.
Cleaning the projectors cover:
Use a soft slightly damp cloth. Do not use abrasive cleaners,
solvents or other harsh chemicals, as this will damage the finish
of the cover. Avoid direct cleaning of the rear panel’s screen-
printing.
Cleaning the lens:
The lens may be cleaned with a very soft, non-abrasive small
brush, in order to remove dust particles. Alternatively, use a
soft dry cleaning cloth (of the type used for camera lens
cleaning) to remove fingerprints and grease marks.
No power (Green and red LED are OFF)
- Check the power switch at the rear: it must be in position I.
- Check if the power cable has been connected correctly to a
working socket.
- Check the power socket fuse, at the rear of the projector.
- Replace the fuse on the mains socket with an identical type
(T 3.15A H)
(Fig. 2)
.
- Should the problem persist, seek authorised technical
assistance.
The lamp is not coming on
- Allow a few minutes pause between switching off and turning
on again (from stand-by). This will allow the lamp to cool down
sufficiently.
- If the lamp doesn’t come on – even though the projector has
had sufficient time to cool down – seek technical assistance
from your nearest Dealer.
11 TROUBLESHOOTING GUIDE
24
No image
- Check that the selected input is actually connected to a active
video or graphic signal.
- Check that the above source actually works.
- Verify compatibility of video/graphic signals with the technical
specifications of the projector.
- Check the integrity of cables used to connect various sources.
- If you are using the Remote Input Interface, do not to confu-
se the menu for selection of projector’s inputs (Source
Selection), with the menu for selection of remote inputs
(Source Selection / RI2).
Image is disturbed, unstable or noisy
- Verify compatibility of video/graphic signals with the technical
specifications of the projector.
- Check the integrity of cables connecting projector to various
sources.
- If the signal source is a terrestrial broadcast (via a VCR) check
that the receiving channel has been correctly tuned in and
that the aerial system is in good working order.
- Should the problem be present with a signal coming from a
video-recorder, ensure that the videotape is an Original “first
generation” copy and in good condition.
- Adjust the VCR’s tracking control for optimum picture perfor-
mance. Ensure the VCR mode is active in the Picture menu.
Incomplete image along borders (vertical and horizontal)
- Compare compatibility of video/graphic signals and techni-
cal specifications of your projector.
- Press Auto (on your remote or keypad) to execute automatic
adjustments.
- Adjust the horizontal and vertical position of projected image
by selecting Position on the Image Adjustments menu.
- Adjust the width and height of image, selecting Aspect in
the Image Adjustments menu.
Image too dark, too pale or unnaturally coloured
- Verify compatibility of video/graphic signals with technical
specifications of your projector.
- Go to Picture menu, select and regulate any of the following,
accordingly: Contrast, Brightness, Color, and Tint.
- If necessary, reset the Color Temperature and Gamma
Correction (found on the Image Adjustments /
Advanced Settings menu).
Graphic image with poor quality vertical detail
- Verify compatibility of video/graphic signals with technical
specifications of your projector.
- Press Auto (on your remote or keypad) to execute
automatic adjustments.
- Adjust Frequency and Phase parameters, found in the
Image Adjustments menu, to optimise vertical detail of
the projected image.
Video Image showing colour misalignment on vertical
details
- Verify compatibility of video/graphic signals with technical
specifications of your projector.
- Adjust Y/C Delay settings in the Image Adjustments /
Advanced Settings to reduce colour misalignment. For
best results use an external colour bar test pattern source.
Remote control does not work
- Check the batteries and for correct polarity.
- Ensure that the area between the infrared sensor (front of
projector) and the remote control is free of obstruction.
- Ensure that infrared sensors (front and rear of projector) are
not exposed to intense light levels.
25
You can purchase the following optional accessories at your
Dealer:
- Remote Input Interface with 10 m Cable.
- Wall/Ceiling Bracket Kit.
12 OPTIONAL ACCESSORIES
Use only original, or SIM2 Multimedia approved,
accessories.
CAUTION: for ceiling/wall installation, by means of
suspension bracket, carefully follow the instructions
and safety instructions recommended by the
Manufacturer in the brackets literature.
A TECHNICAL SPECIFICATIONS
ELECTRICAL
Input Signals: CVBS on RCA/Phono type connector
S-VHS on Mini-DIN connector
RGBHV on DB15HD connector
RGBS / YCrCb on RCA/Phono type
connector
DVI-D
Horizontal frequency: from 15 to 80 kHz (up to to UXGA
format @ 60 Hz)
Vertical frequency: 40-100 Hz
Video standards : automatically selected (PAL B,G,H, I,
M,N,60, SECAM, NTSC 3.58, 4.43)
High definition video: ATSC HDTV (480p, 720p, 1080i)
Graphic standards : VGA, SVGA, XGA, SXGA, UXGA
Deinterlacer: Faroudja chip set, DCDi, 3:2 pull
down sequence convertion
Colour temperature: adjustable from 5000 to 9300 degrees
K
Video processor: DTI, CTI, comb filter, noise reduction.
Sharpness, Y/C delay and NTSC tint
adjustments
Remote control: via infrared remote control and via
computer through RS232 serial
interface
Remote inputs: via Remote Inputs Interface (optional)
and cable with EVC connector
OPTICAL
Projection system: optical engine based on 1 DMD™
chip, sealed housing, dusty proof
DMD™ panel: resolution 1280x720 pixel
Brightness uniformity: 10% above or below the average
Contrast ratio: > 1800:1 (full On / full Off)
Projection lens: zoom, 12 elements AR multilayer
coating, motorized focus and zoom,
manual elevation
Aperture f#: 2.7 (zoom max) - 3.3 (zoom min)
Picture size: 50-250 inches (diagonal measure)
Aspect ratio: 4/3 and 16/9
Throw ratio: 1.8:1 - 2.5:1
(throw distance: picture width)
Focus range: 2.2 - 13.0 m (7’ 3” - 42’ 8”)
Throw Distance: 60”: 2.4m - 3.3m (7’ 11” - 10’ 10”)
80”: 3.2m - 4.4m (10’ 6” - 14’ 5”)
100”: 4.0m - 5.5m (13’ 2” - 18’ 1”)
Keystone adjustement: up to 26° (optical: ± 8° digital: ±18°)
Lamp: 120 W UHP
Lamp life time: 6000 hours (average value measured
in the laboratory under optimal condi-
tions; it can be sensibly reduced by
the unit misusing)
26
Low Voltage Power Output: two 12 Vdc output, 100 mA max on
jack connectors
GENERAL
Supply: from 100 to 240 Vac, -10% +6%
tolerance
Frequency: from 48 to 62 Hz
Consumption: 180 W max
Fuse: T 3.15A H, 5 x 20 mm
Dimensions of projector: 352 mm x 174 mm x 318 mm
(LxHxD)
13”-7/8 x 6”-7/8 x 12”-1/2 (LxHxD)
Weight of projector: 5.0 kg (11 lbs)
Packaging and 400 mm x 275 mm x 405 mm
(LxHxD)
gross weight: 1’ 4” x 11” x 1’ 4” (LxHxD)
double reinforced carton;
expandable anti-shock
packaging;
gross weight, including
accessories:
8 kg (17.7 lbs); recyclable
packaging material
ENVIROMENTAL
Operation temperature: 0 to 35°C (32° to 95°F)
Transportation temp.: -10 to 55°C (14° to 131°F)
Storage temperature: -10 to 55°C (14° to 131°F)
Humidity: 10% to 90% relative humidity non-
condensing
Safety: EN 60950, UL 60950
Transportability: desktop equipment
Electromagnetic EN 55022 Class B
compatibility: EN 55024
EN 61000-3-2
EN 61000-3-3
Transportation: IEC 68-2-31, IEC 68-2-32

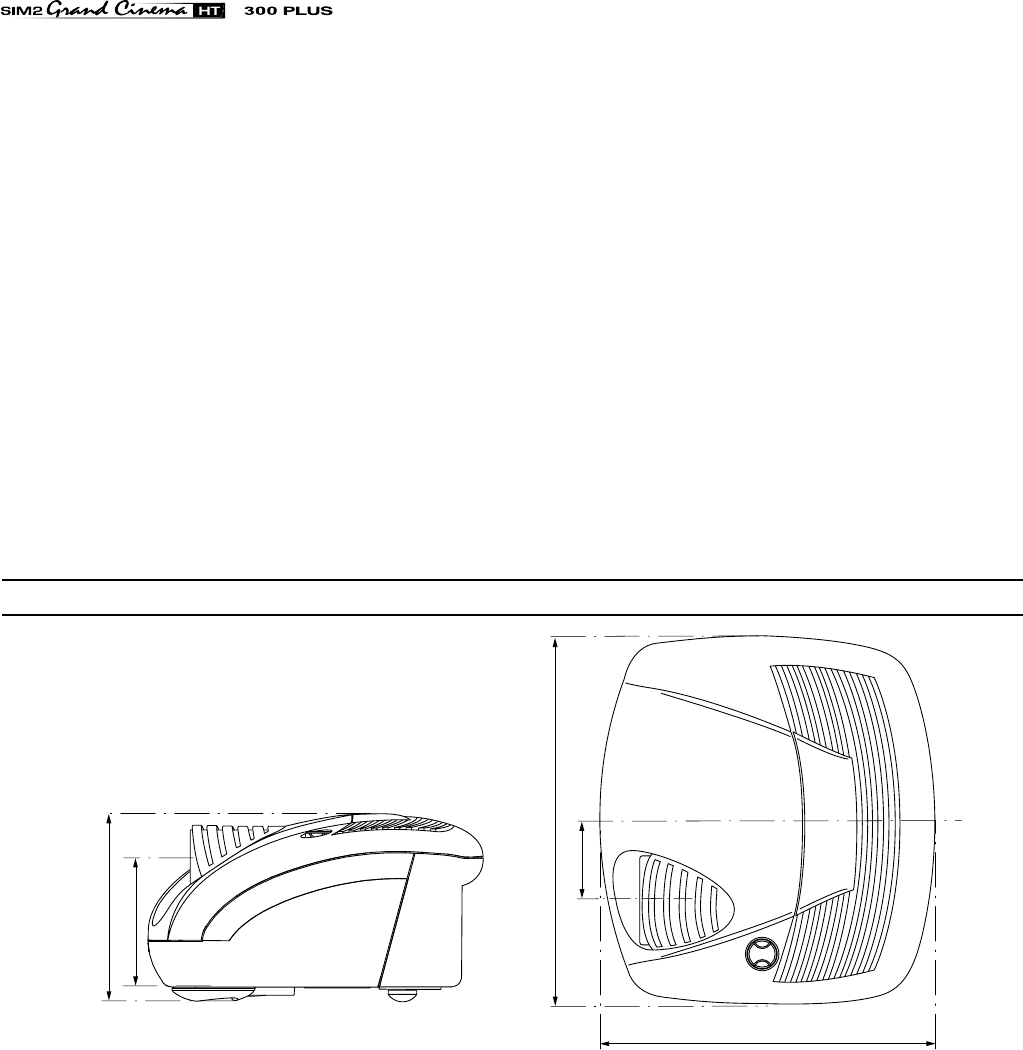

B DIMENSIONS
74 (2-
15/16
)
352 (13-
7/8
)
174 (6-
7/8
)
102 (4)
318 (12-
1/2
)
unit: mm (inches)
27
C PROJECTION DISTANCES
Follow the table below to determine the optimal projection distance (between the screen and the center of the lens). This will help
you to obtain the desired screen size.
Screen Screen Screen
size width width
(diagonal) min max min max
Projection distance Projection distance
4/3 16/9
in. m in. m ft. in. m ft. in. m in. m ft. in. m ft. in.
50" 1.0 40" 2.4 8' 0" 3.4 11' 0" 1.1 44" 2.0 6' 6" 2.7 9' 0"
60" 1.2 48" 2.9 9' 7" 4.0 13' 2" 1.3 52" 2.4 7' 10" 3.3 10' 9"
70" 1.4 56" 3.4 11' 2" 4.7 15' 7" 1.6 61" 2.8 9' 1" 3.8 12' 7"
80" 1.6 64" 3.9 12' 6" 5.4 17' 7" 1.8 70" 3.2 10' 5" 4.4 14' 4"
90" 1.8 72" 4.4 14' 4" 6.0 19' 9" 2.0 78" 3.6 11' 9" 4.9 16' 2"
100" 2.0 80" 4.9 16' 0" 6.7 22' 0" 2.2 87" 4.0 13' 1" 5.5 17' 11"
120" 2.4 96" 5.8 19' 2" 8.0 26' 5" 2.7 105" 4.8 15' 8" 6.6 21' 7"
150" 3.1 120" 7.3 23' 11" 10.1 33' 0" 3.3 131" 6.0 19' 7" 8.2 26' 11"
180" 3.7 144" 8.8 28' 9" 12.1 39' 7" 4.0 157" 7.2 23' 6" 9.9 32' 4"
200" 4.1 160" 9.7 31' 11" 13.4 44' 0" 4.4 174" 8.0 26' 1" 11.0 35' 11"
220" 4.5 176'” 10.7 35' 1" - - - 4.9 192" 8.8 28' 9" 12.0 39' 6"
250" 5.1 200" 12.2 39' 11" - - - 5.5 218" 9.9 32' 7" 13.7 44' 11"
28
1 INTRODUCTION 1
2 IMPORTANT SAFETY INSTRUCTIONS 4
3 PACKAGING AND CONTENTS 6
4 INSTALLATION 7
5 SWITCHING ON AND OFF THE PROJECTOR 9
Switch on from stand-by 9
Switching off and returning to stand-by 10
6 CONNECTIONS 10
Composite video input 11
S-VIDEO Input 11
VGA input 11
RGB/YCrCb Input 11
DVI Input 12
Remote Input Interface connecting cable 12
Motorised projection screen output 12
232 INTERFACE CONNECTOR 13
7 KEYBOARD PAD 13
8 REMOTE CONTROL 14
INDEX
9 ON SCREEN MENUS 15
Source selection 15
Main menu 15
Picture 16
Image adjustments 17
Setup 20
Menu 21
Info 22
Quick menus 22
Messages 22
10 CLEANING AND MAINTENANCE 23
11 TROUBLESHOOTING GUIDE 23
12 OPTIONAL ACCESSORIES 25
A TECHNICAL SPECIFICATIONS 25
B DIMENSIONS 26
C PROJECTION DISTANCES 27
29
Due to the constant product development, specifications and design might be subject to change without notice.
SIM2 Multimedia
S.p.a.
• Viale Lino Zanussi, 11 • 33170 Pordenone - ITALY
Phone +39.434.383.253-256 • Fax +39.434.383260-261
www.sim2.com • e-mail: info@sim2.it
SIM2 USA Inc.
• 10108 USA Today Way • 33025 Miramar FL - USA
Phone +1.954.4422999 • Fax +1.954.4422998
www.sim2usa.com • e-mail: sales@sim2usa.com
SIM2 Multimedia is certified
SIM2 Deutschland GmbH
• Gewerbepark, 17 D-35606 Solms
Phone 0800.800.7462 • Fax 0800.900.7462
www.sim.com • e-mail: info.de@sim2.it

Navigation menu
