Simbans TANGO 10.1 Inch Android Tablet User Manual
Simbans Limited 10.1 Inch Android Tablet
Simbans >
User manual
2
Tango Tablet

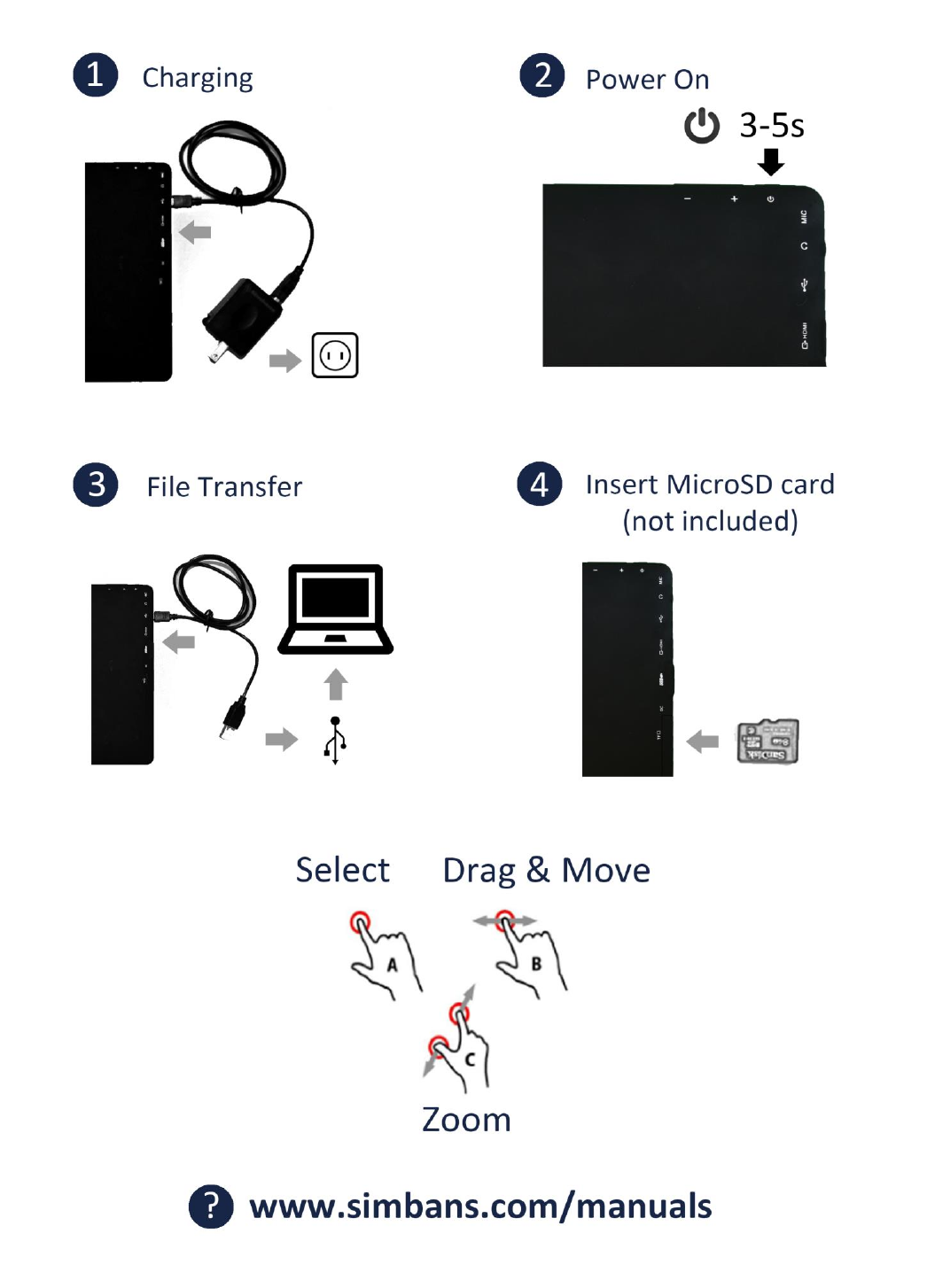

Quick Start Guide
This is a quick start guide only
For full user manual, please visit
www.simbans.com/manuals
Read me first
Please read this manual before operating your tablet, and keep it for future reference.
The descriptions in this manual are based on the default settings.
Images and screenshots used in this manual may differ from the actual product.
Available features and additional services may vary by device, software or service provider.
Our company is not liable for performance issues caused by third-party applications.
3
________________________________________________________________________________
Button
Description
1. Back Camera
5 Megapixel camera to take photos
2. Volume Key
Press to increase or decrease the volume
3. Power key
Press and hold the power button for a few seconds to turn on the tablet. To turn off the tablet, press and
hold the power button for a few seconds, and then select Power Off.
When the tablet is on, press the power button once to lock/ unlock the screen.
4. Mic
Built-in microphone captures sound and voice when it is used with an application capable of handling audio.
5. Headphone
Slot for earphones plug-in
6. MicroUSB
Connect your tablet to computer for file/ songs transfer
7. HDMI
Connect your tablet to laptop or TV with HDMI cable
8. USB
Connect your tablet to computer for file/ songs transfer
9. Reset
A very tiny hole. If your tablet freezes, please use a paperclip to gently press inside this hole to reset.
10. TF Card
Slot for MicroSD card expansion (supports up to 32 GB)
4
5
6
Charge the Tablet
The Tablet comes with a built-in rechargeable lithium-polymer battery. It is recommended to fully charge
the battery before first use.
To charge the Tablet, plug the charger to an electrical socket with the other end of the adapter
inserted to the microUSB input slot on the Tablet (Refer to Step 1 on the previous page).
You may continue to use the Tablet while it is charging. You may stop charging any time even when
it is not 100% charged.
If the Tablet is powered on, the battery charge status will be
indicated at the top right corner of the screen by the battery
meter. If the Tablet is powered off, it will charge until the
battery is full.
When the battery life runs out, the battery meter turns red and the device needs to be charged
soon. It will continue to operate as usual until it drops to 0%.
Disconnect the power adapter when the Tablet is fully charged.
Note: When the Tablet is connected to a computer via the USB cable, the battery will charge via the USB
socket, but at a much slower rate than the power adapter supplied.
Do not use any other power adapters than the one supplied. Using an incompatible power adapter
could damage the tablet and poses the potential risk of fire.
Turn on the Tablet
Press the power key circled in red for 5 seconds.
Wait for about 30 seconds for Android to load and start.
The Tablet will guide you through the basic setup.
Home screen
When you first turn on and unlock your tablet, you will get to the home screen. Each icon
represents an application (app). Whenever you want to return to the home screen, you
can press the Home button on the left side on the device or tap on the home button
located at the bottom of the screen (white circle icon).
Changing the language
The default language of the Tablet is English. To change the language:
Go to Settings by pressing icon on Home screen
Scroll to Personal section => Select Language & Input => Tap on Language
Select desired language
Connect to Wi-Fi
Go to Settings by pressing icon on Home screen
Under Wireless & network section => Select Wi-Fi
7
Turn on wi-fi by pressing the circled icon
A list of available wireless network names (SSID) will appear
Select your wireless network, enter the password and press connect
Wait while the Tablet connect to the network
An icon will be displayed in the status bar to show the wireless connection status
Once you are connected to a wireless network, you can select it on the list, to view the connection details
(e.g. signal strength, link speed and IP address). You can use the Forget option to disconnect from the
network and remove the stored password.
Sign in to Google account
Go to Settings by pressing icon on Home screen
Scroll to Personal section => Select Accounts => Add account => Google
If you have an existing Google account
Enter your Google email and press Next
Enter your Google account password and press Next
Accept the Terms of Service and Privacy Policy
Select backup options, payment info accordingly
If you do not have a Google account yet,
Select “Or create a new account”
Enter you first name and last name and press Next
Enter your desired username and press Next
Create your password with at least 8 characters and press Next
You will be prompted to add your phone number. You may insert your phone number or skip
this step.
Agree to the Privacy Policy and Terms of Service by pressing “I agree”
Sign in to your Google account by pressing Next
The Tablet is now ready for use.
8
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Simbans
Limited may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
