Simcom 0606020070210 Quad-band GSM/GPRS module User Manual SIM548Z GPRS Startup V1 00

Shanghai Simcom Ltd. Quad-band GSM/GPRS module SIM548Z GPRS Startup V1 00

Contents

Users Manual II

SIM548Z GPRS Startup
SIM548Z_GPRS Startup_V1.00
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
2
Document Title: SIM548Z GPRS Startup
Version: 1.00
Date:
Status: Created
Document Control ID: SIM548Z_GPRS Startup_V1.00
General Notes
Simcom offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Simcom. The information provided is
based upon requirements specifically provided to Simcom by the customers. Simcom has not
undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Simcom within a larger electronic system remains the responsibility of
the customer or the customer’s system integrator. All specifications supplied herein are
subject to change.
Copyright
This document contains proprietary technical information which is the property of SIMCOM
Limited., copying of this document and giving it to others and the using or communication of
the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the registration of
a utility model or design. All specification supplied herein are subject to change without
notice at any time.
Copyright © SIMCOM Limited. 2006
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
3
SCOPE
Thanks you select SIMCOM GSM/GPRS module.
This product has standard AT command interface, and can provide GSM call, short message and
GPRS net services, etc.
Please read this user guide carefully. You can realize the powerful function and the easy operation
method of the module.
This module is used in voice or data communication mainly. We are not charge with the duty of
personal injury and property loss for the custom abnormal operation. Please design the
corresponding product according to the technical specification and reference in the handbook. And
note the general safe item when use mobile product especially GSM product.
This document is subject to change without notice at any time.
This document suits for SIM100S, SIM100F, SIM100C, SIM200, SIM300, SIM508Z, SIM548Z
module.
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
4
Contents
1 Introduction.................................................................................................................5
1.1 References..........................................................................................................5
1.2 Abbreviations.....................................................................................................5
2 What you need ............................................................................................................6
2.1 GPRS settings from your network provider.......................................................6
2.2 Modem installation and configuration...............................................................6
2.3 Dial-Up network installation and configuration ................................................6
3 Setting up a Windows modem driver..........................................................................7
3.1 Adding a new modem ........................................................................................7
3.2 Configuring the modem driver...........................................................................9
4 Setting up the Dial-Up network................................................................................10
4.1 Adding a new connection.................................................................................10
4.2 Configuring the setting ....................................................................................11
5 Getting Started ..........................................................................................................12
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
5
1 Introduction
This document describes how to establish a PPP connection with Microsoft Windows NT4.0 using
the prototype of GSM/GPRS. Configurations and settings for other operating systems (Windows
2000/XP) may slightly different, but the general proceeding is similar.
1.1 References
/1/ SIMCOM_ATC
/2/ Request for Comments: 1661 - The Point-to-Point Protocol (PPP)
/3/ Request for Comments: 1994 - PPP Challenge Handshake Authentication Protocol (CHAP)
1.2 Abbreviations
APN Access Point Name
CHAP Challenge Handshake Authentication Protocol
CID Context Identity
DHCP Dynamic Host Configuration Protocol
DNS Domain Name Server
DSB Developer Support Box
GPRS General Packet Radio Service
GSM Global System of Mobile Communication
IP Internet Protocol
OS Operating System
PDP Packet Data Protocol
PIN Personal Identification Number
PPP Point to Point Protocol
QoS Quality of Service
RAS Remote Access Service
ROM Read Only Memory
SIM Subscriber Identity Module
TCP Traffic Control Protocol
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
6
2 What you need
2.1 GPRS settings from your network provider
Before you can set up your device to access the GPRS network, contact your network provider to
obtain the GPRS service.
2.2 Modem installation and configuration
You will need to set up the modem driver. Follow the steps in chapter 3.
Note:
Administrator rights for the operation system may be needed in order to install modem driver.
Connect your local system administrator for advice.
2.3 Dial-Up network installation and configuration
You will need to set up the Dial-Up network. Follow the steps in chapter 4.
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
7
3 Setting up a Windows modem driver

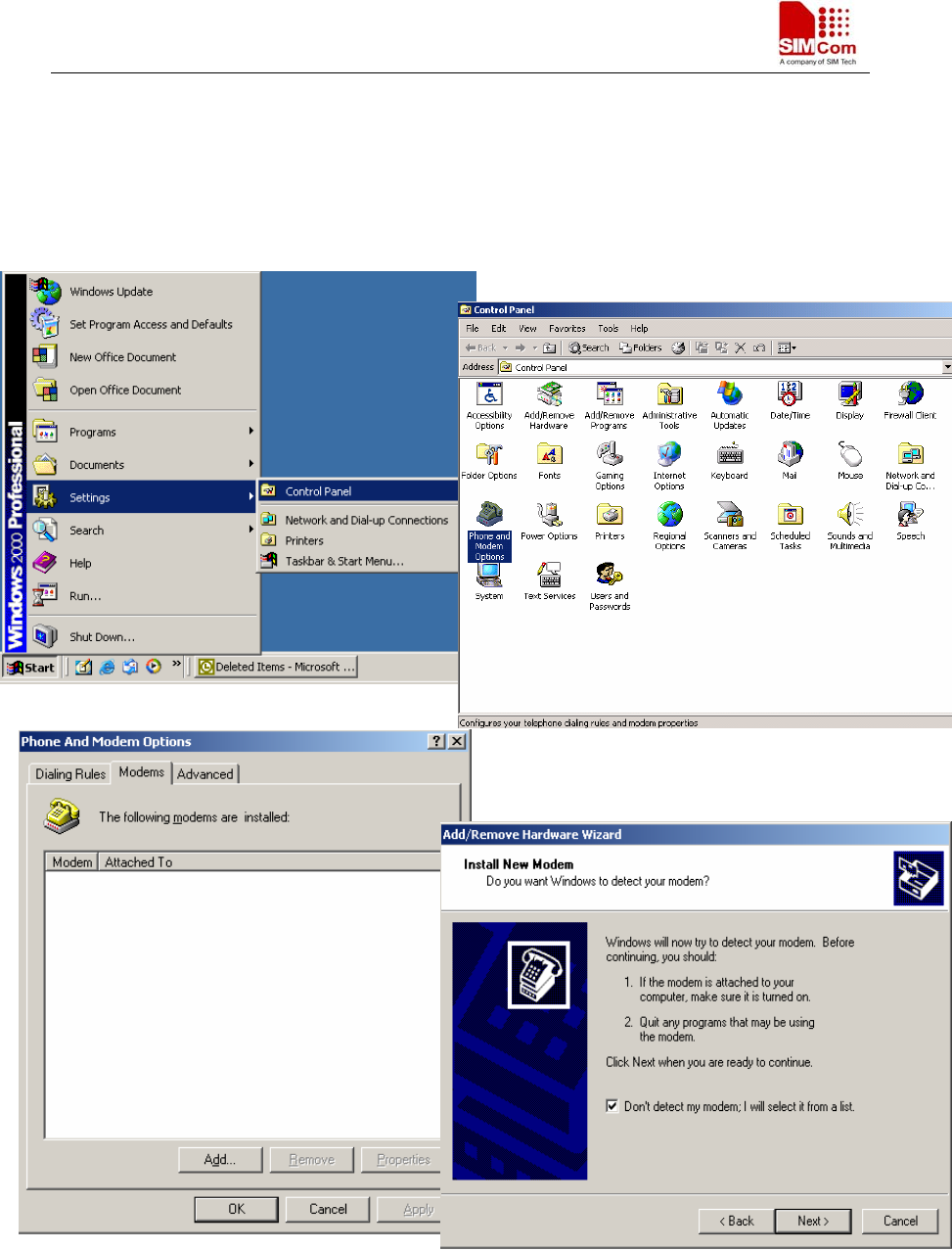

3.1 Adding a new modem
If no standard 19200bps modem has been installed, add a new standard modem to the modem
section of the control panel.
Click Start -> Setting -> Control Panel -> Phone and Modem option -> Modem -> add
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
8

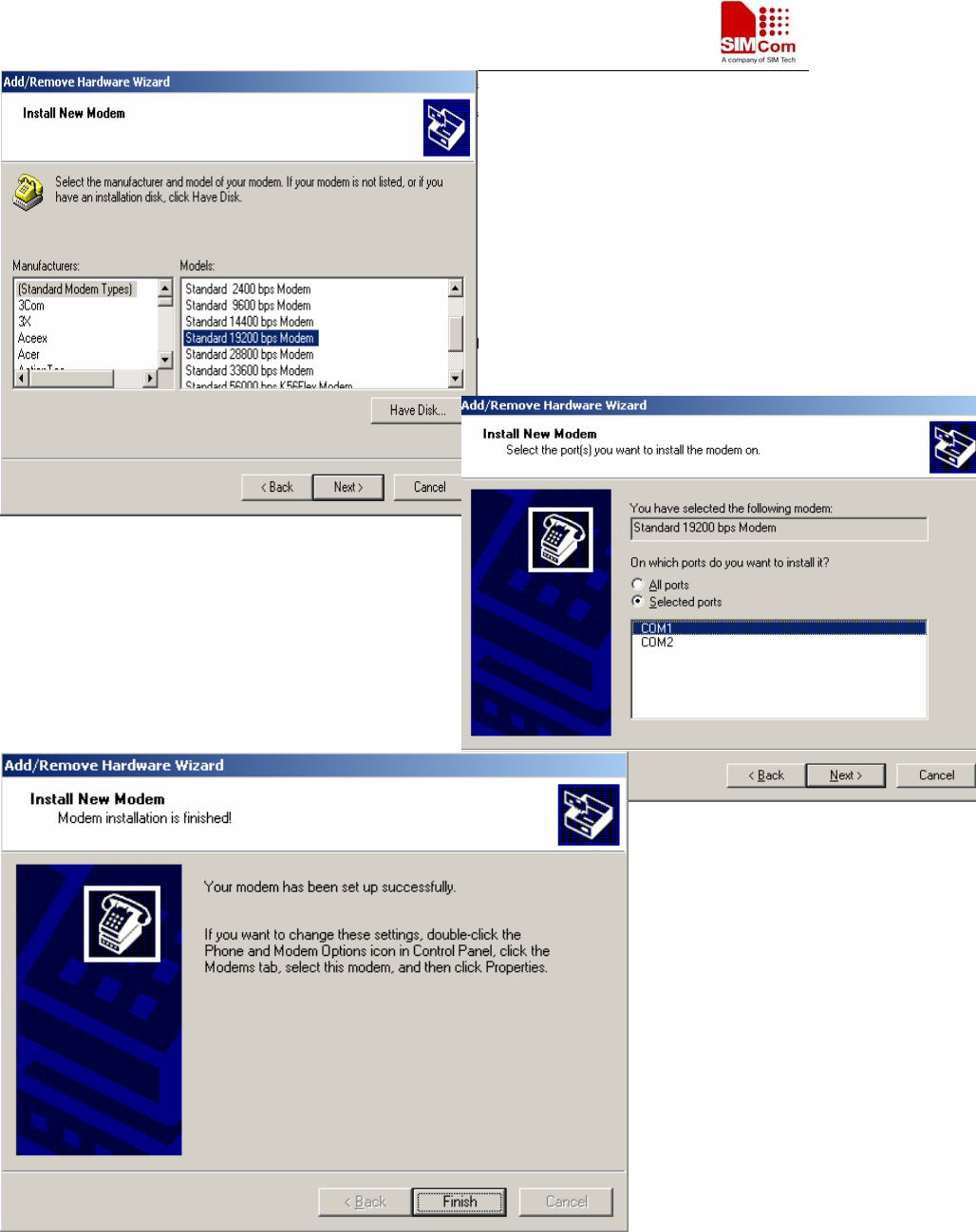

Follow the instructions on the screen and choose “19200 bps modem” and “COM1”, click
“NEXT”, till to finish the configuration.
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
9

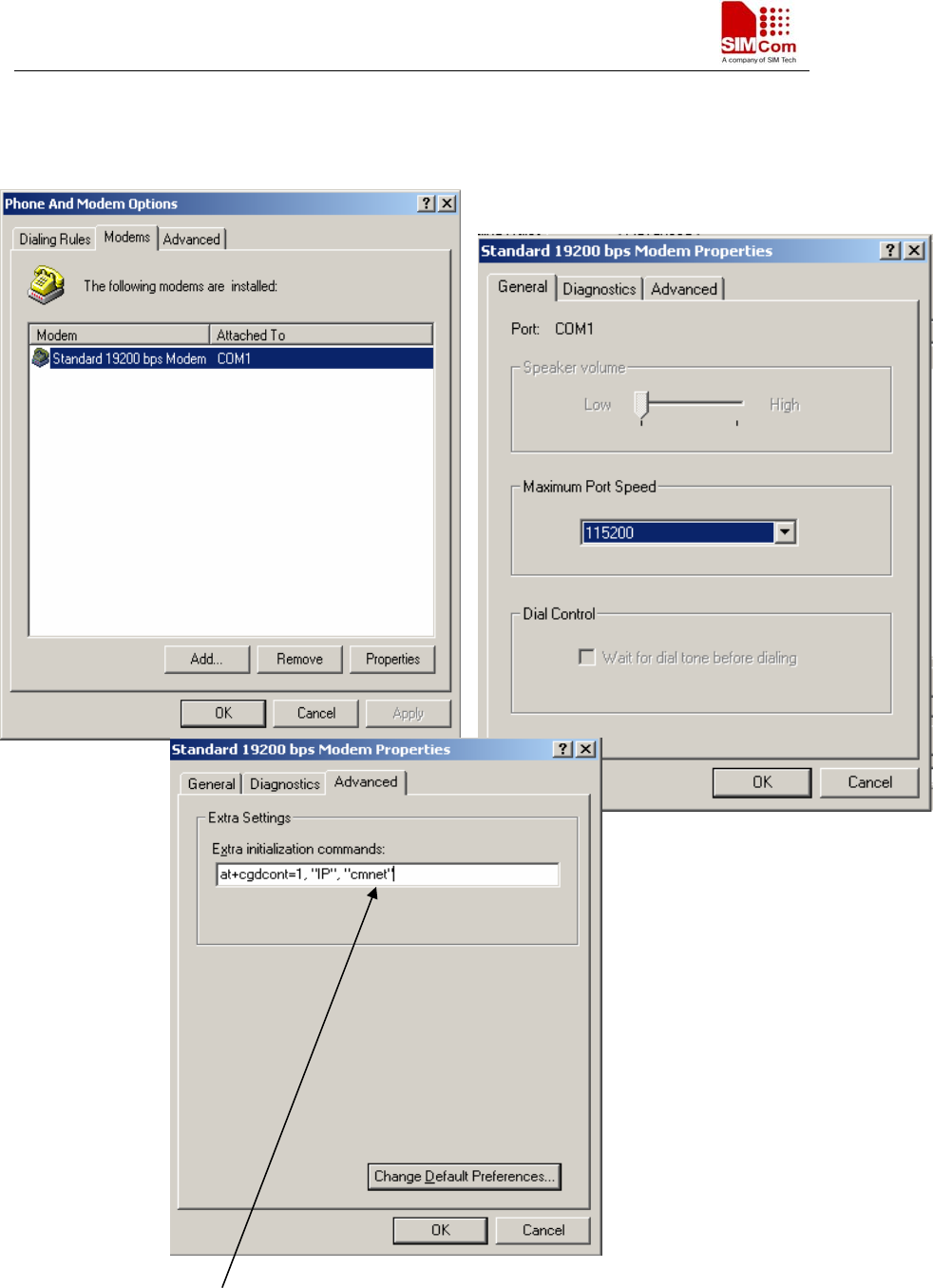

3.2 Configuring the modem driver
Choose the installed standard 19200bps modem, click “Properties”, choose it max port speed
(default value: 115200), and click “Advanced” to configure “Extra setting” as illustrated in the
figures below.
You can change the “cmnet” to your access point name (APN).
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
10
4 Setting up the Dial-Up network

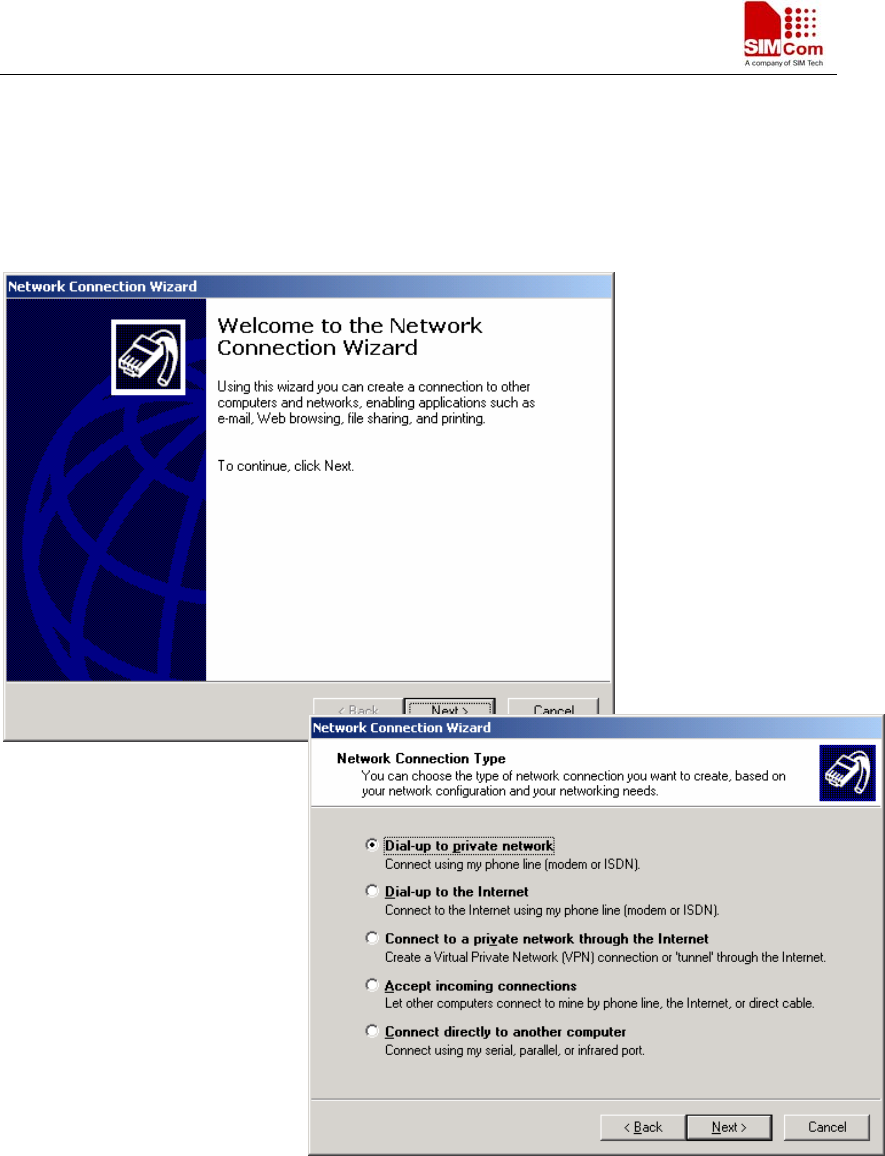

4.1 Adding a new connection
From the control panel select “Network and Dial-Up Connections” and then “Make new
connection”.
Select “Dialup to private network” -> click “Next”
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
11

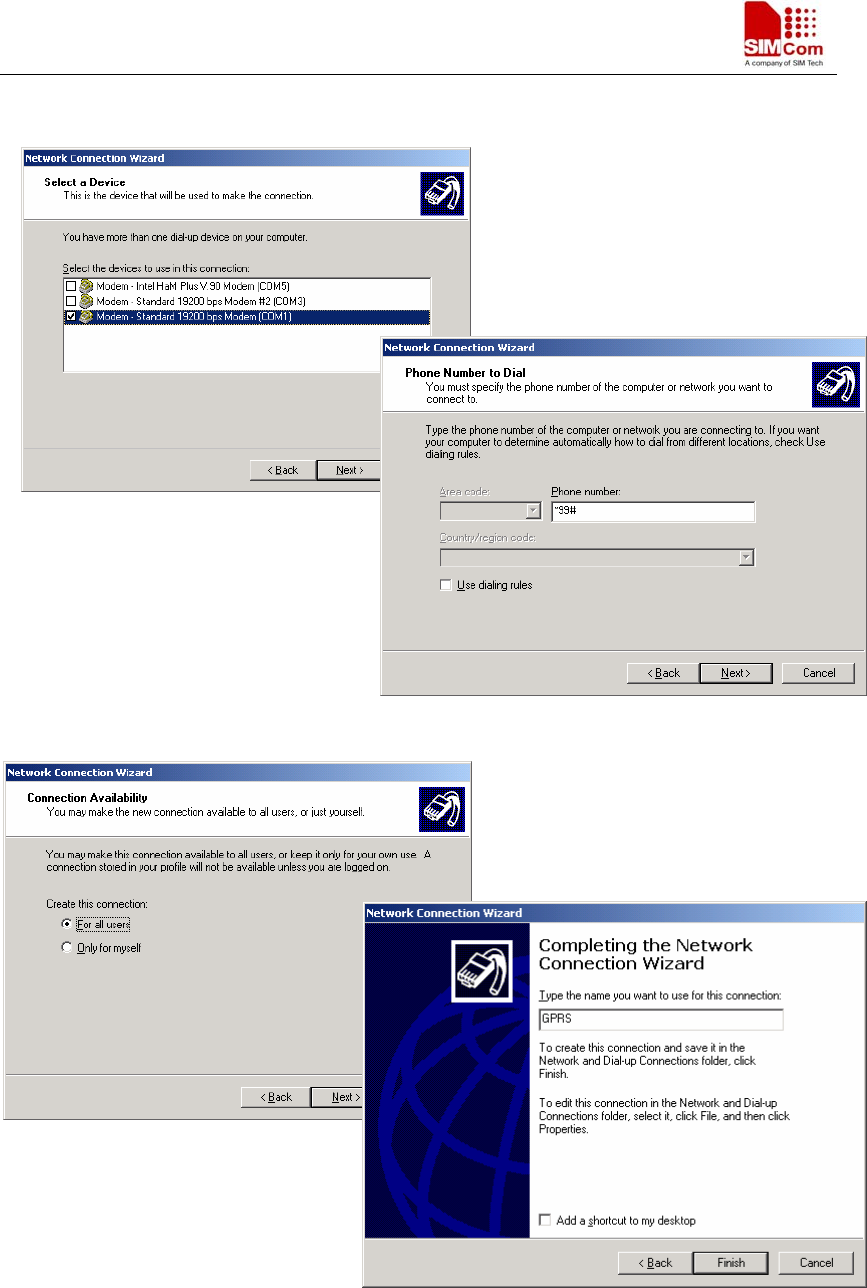

4.2 Configuring the setting
Choose Modem – standard 19200bps modem (COM1) -> Click “Next”
Type the number of GPRS connection (do not select “use dialing rules”) -> Click “Next”
Choose “For all users” -> Click “Next”
Type the name you want to use for this connection (such as “GPRS”) -> Click “Finish”
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
12

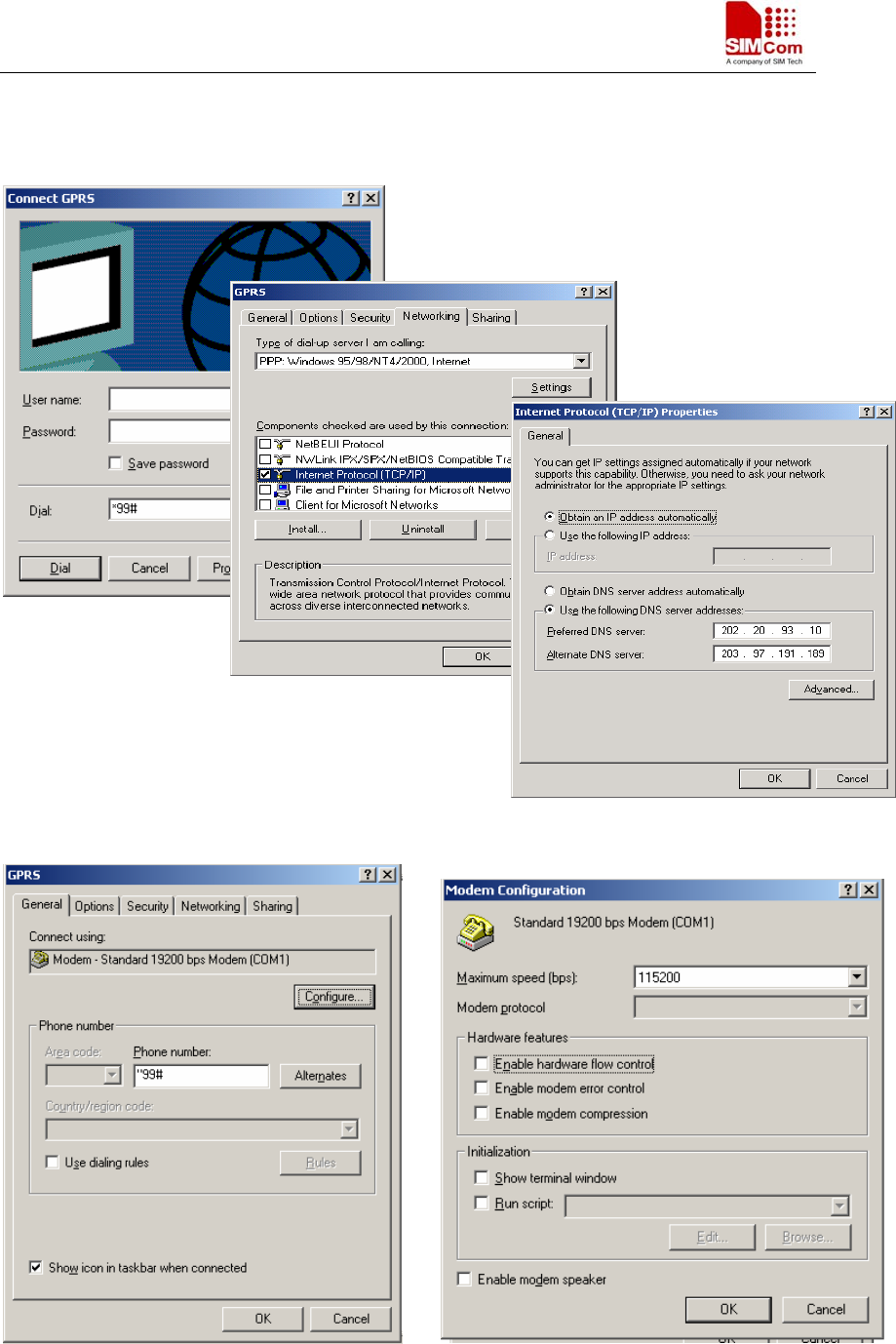

5 Getting Started
Ensure the “User name” and “Password” is blank
-> Choose “Networking” tab, only choose “Internet protocol (TCP/IP)” -> Click “Properties”,
setting DNS -> Click “OK” to finish the configuration
SIM508Z GPRS Startup
SIM508Z_GPRS Startup_V1.00
13

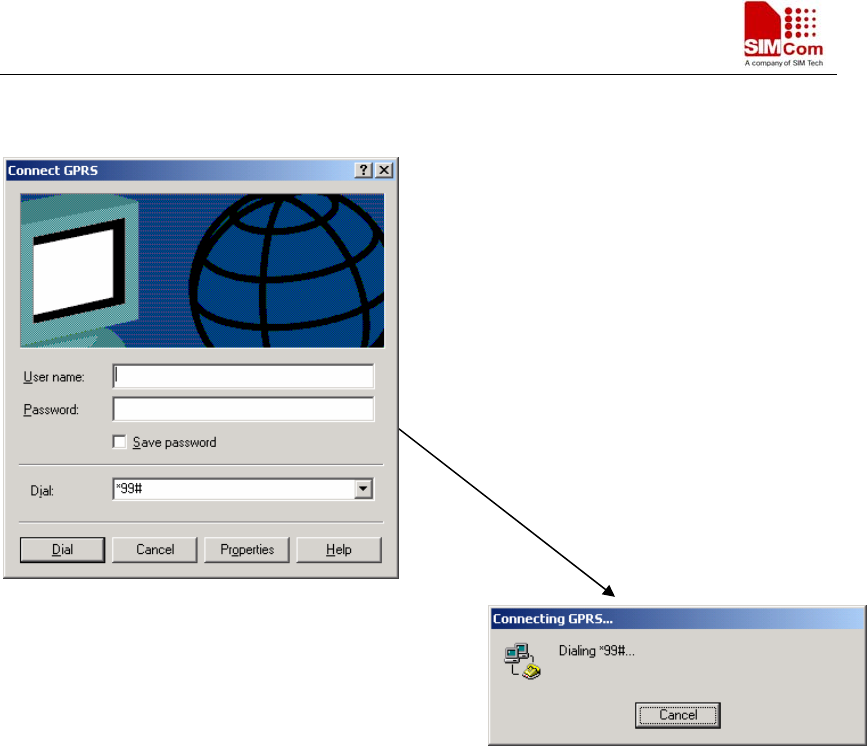

-> Click “Setting”, configure the max speed “115200” Click “OK”, the connection is complete ->
Click “Dial”
Contact us:
Shanghai SIMCom Ltd.
Add: SIM Technology Building, No. 700, Yishan Road, Shanghai,P. R. China 200233
Tel: +86 21 5427 8900
Fax: +86 21 5427 6035
URL: www.sim.com
