SIM508Z USER GUIDE
Document Name: SIM508Z User Guide
Version: 1.02
Date: 2006-07-07
Doc ID: SIM508Z_UGD_V1.02
Status: Released
General Notes
Simcom offers this information as a service to the customers, to support application and
engineering efforts that use the products designed by Simcom. The information
provided is based upon requirements specifically provided to Simcom by the customers.
Simcom has not undertaken any independent search for additional relevant information,
including any information that may be in the customer’s possession. Furthermore,
system validation of this product designed by Simcom within a larger electronic system
remains the responsibility of the customer or the customer’s system integrator. All
specifications supplied herein are subject to change.
Copyright
This document contains proprietary technical information which is the property of
SIMCOM Limited., copying of this document and giving it to others and the using or
communication of the contents thereof, are forbidden without express authority.
Offenders are liable to the payment of damages. All rights reserved in the event of grant
of a patent or the registration of a utility model or design. All specification supplied
herein are subject to change without notice at any time.
Copyright © SIMCOM Limited. 2006
Page 1 of 12
Contents
Contents ............................................................................................................................................2
1. SIM508Z EVB Schematic .............................................................................................................3
2. SIM508Z EVB overview...............................................................................................................3
3. EVB Accessory .............................................................................................................................5
4. EVB Interface ...............................................................................................................................6
4.1 Power interface ...................................................................................................................6
4.2 SIM card interface...............................................................................................................7
4.3 RS232 interface...................................................................................................................7
4.4 Antenna interface ................................................................................................................8
4.5 Audio interface....................................................................................................................9
5. EVB and accessory equipment....................................................................................................10
6. Operation.....................................................................................................................................10
6.1 Power on and running .......................................................................................................10
6.2 Connecting the Net and calling ......................................................................................... 11
6.3 Download and upgrade ..................................................................................................... 11
6.4 Turn off .............................................................................................................................11
6.5 Charge ............................................................................................................................... 11
6.6 GPRS start-up ................................................................................................................... 11
7 AT command ................................................................................................................................11
8 FCC statements ............................................................................................................................12
9 FCC RF exposure requirements...................................................................................................12
Page 2 of 12
1. SIM508Z EVB Schematic
Please check the document of SIM508Z-EVB_schematic.pdf for detail.

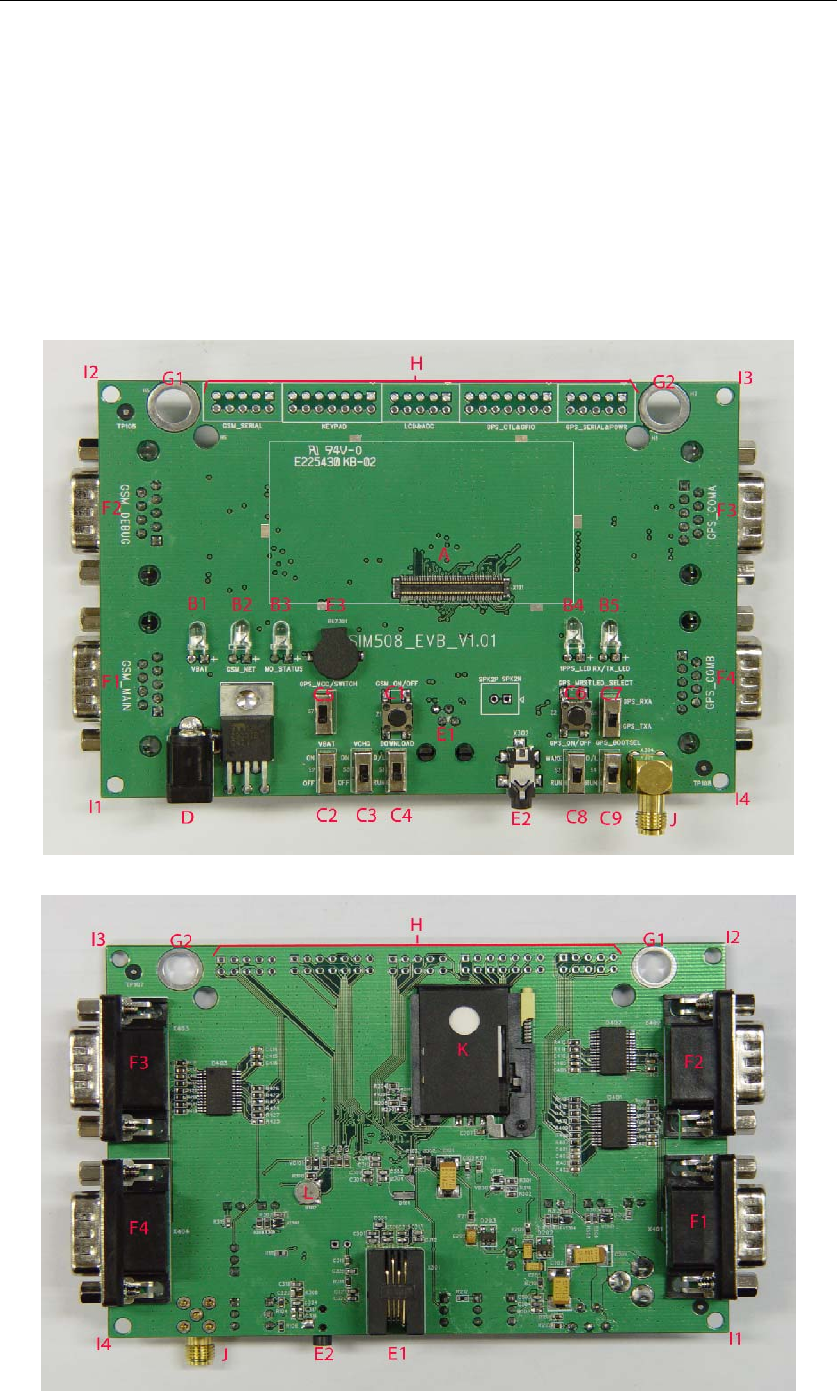

2. SIM508Z EVB overview
Figure 1: TOP view
Figure 2: BOTTOM view
Page 3 of 12
A: 80pin connector, SIM508Z module interface
B1-B5: LED indicator
B1: VBAT ON/OFF
B2: GSM net status
B3: The GSM part of the module ON/OFF status
B4: 1PPS output for GPS part
B5: GPS TX/RX status
C1-C9: Key control for various functions
C1: GSM part power-up / power down control (button Z1)
C2: VBAT ON/OFF control (shifter S2)
C3: VCHG ON/OFF control (shifter S5)
C4: GSM part program download control (shifter S1)
C5: GPS part power ON/OFF control (shifter S7)
C6: GPS part reset control (button Z2)
C7: GPS part RX/TX LED status selective shifter (shifter S6)
C8: GPS part wake up control (shifter S3)
C9: GPS part program download control (shifter S4)
D: Power source adapter interface
E1-E3: Audio interface
E1: Handset interface
E2: Headphone interface
E3: Buzzer
F1-F4: Serial ports
F1: Main serial port for downloading, AT command transmitting, data exchanging
F2: Debug serial port
F3: GPS part serial port A
F4: GPS part serial port B
G1-G2: Hole for antenna fixed
G1: Hole for GSM antenna fixed
G2: Hole for GPS antenna fixed
H: Expand port, such as keypad port, serial ports, display port
I1-I4: Hole for EVB board fixed
J: SMA connector for 1PPS output
K: SIM card connector
L: 3.3V Back-up battery for GPS part
Page 4 of 12

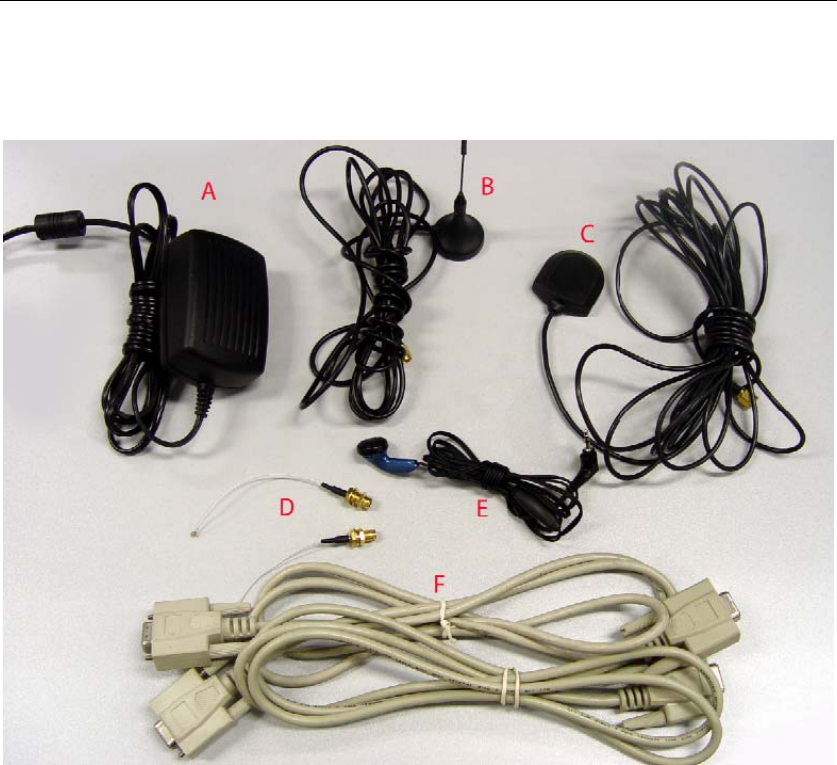

3. EVB Accessory
Figure 3: EVB accessory
A: antenna
A: 5V DC source adapter
B: GSM antenna
C: GPS antenna
D::RF cable
E: Earphone
F: serial port line
The part number of the GSM antenna is WT-C&G-28-90; please check the document of
WT-C&G-28-90.pdf for detail parameters.
Page 5 of 12
4. EVB Interface

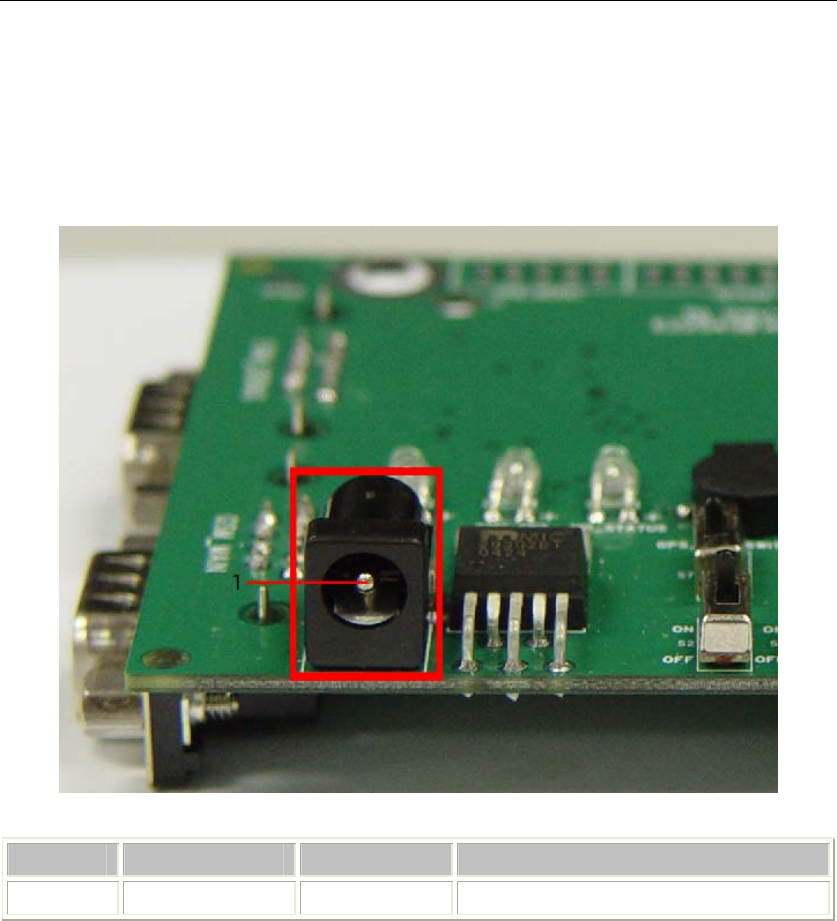

4.1 Power interface
Figure 4: Power interface
Pin Signal I/O Description
1 Adapter input I 5V/2.5A DC source input
Page 6 of 12

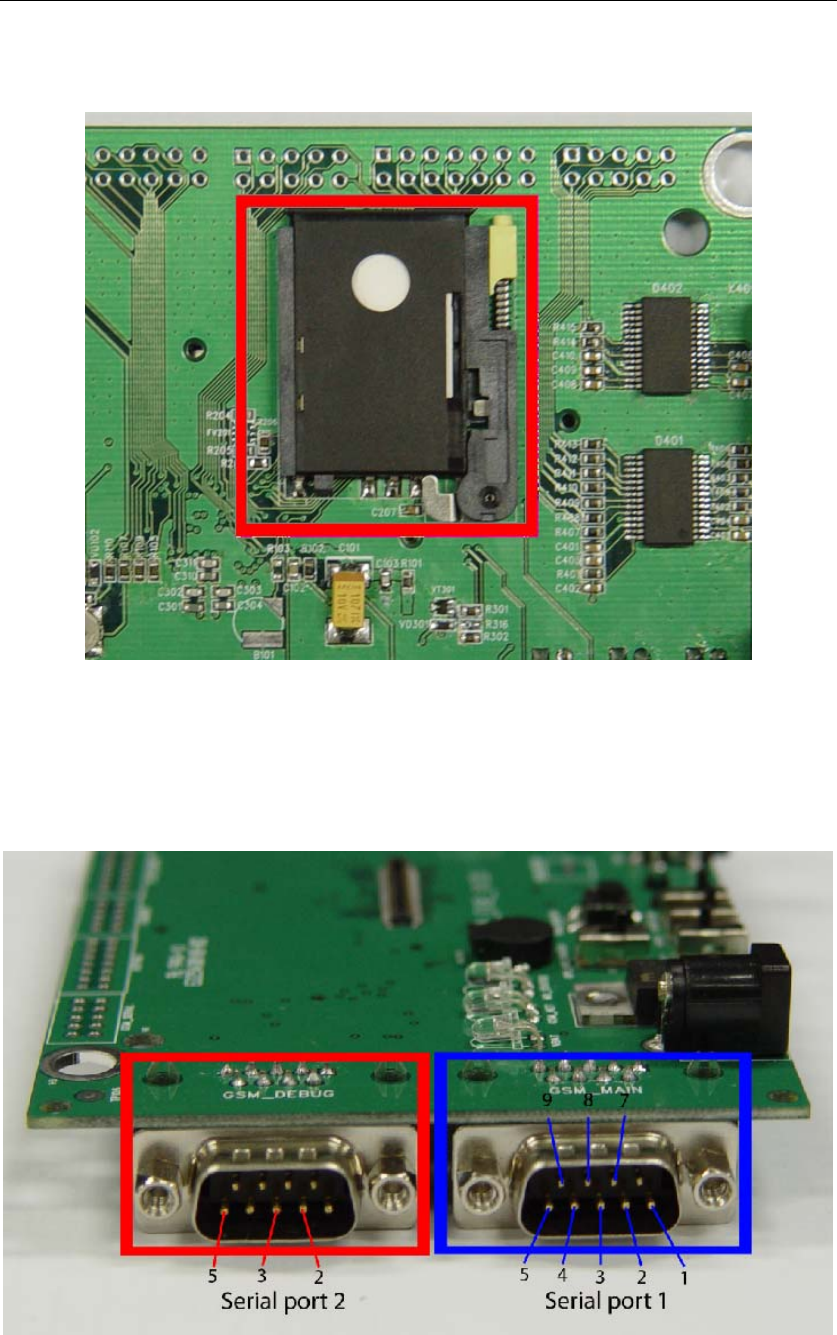

4.2 SIM card interface
Figure 5: SIM card interface
Please push the yellow button to open the holeder, the inset the SIM card.
4.3 RS232 interface
Figure 6: Serial ports
Page 7 of 12
Serial Port 1
Pin Signal I/O Description
1 DCD O Data carrier detection
2 TXD O Transmit data
3 RXD I Receive data
4 DTR I Data Terminal Ready
5 GND GND
7 RTS I Request to Send
8 CTS O Clear to Send
9 RI O Ring Indicator
Serial Port 2
Pin Signal I/O Description
2 DEBUG_TX O Transmit data
3 DEBUG_RX I Receive data
5 GND GND

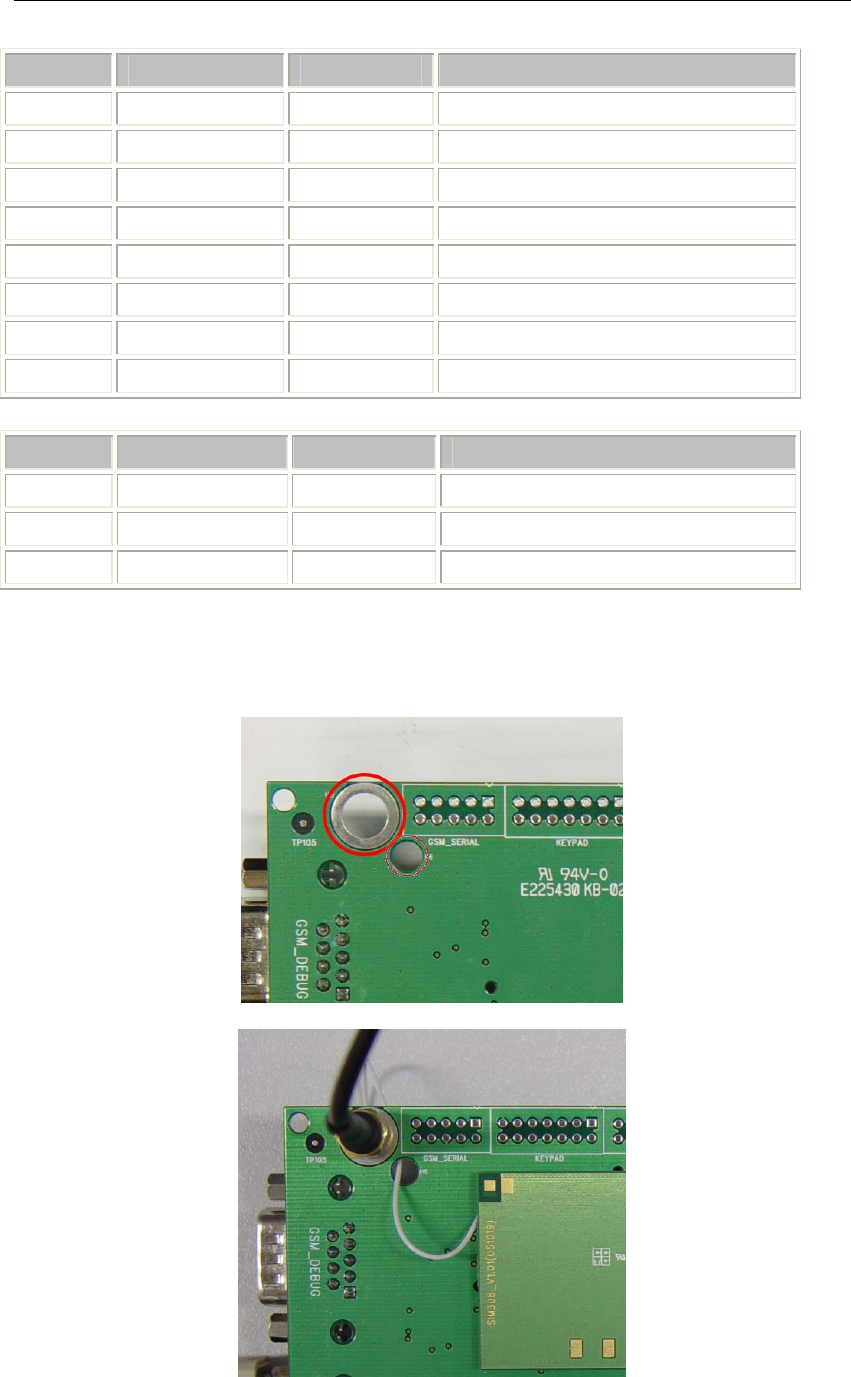

4.4 Antenna interface
Figure 5: Antenna interface
Page 8 of 12
4.5 Audio interface
Figure 8: Audio interface
Headset interface:
Pin Signal I/O Description
1 MIC1P I Positive microphone input
2 SPK1P O Positive microphone input
3 SPK1N O Negative microphone input
4 MIC1N I Negative microphone input
Headphone interface:
Signal Input/Output Description
5 MIC2P&SPK2P I/O Auxiliary positive input and output
Page 9 of 12

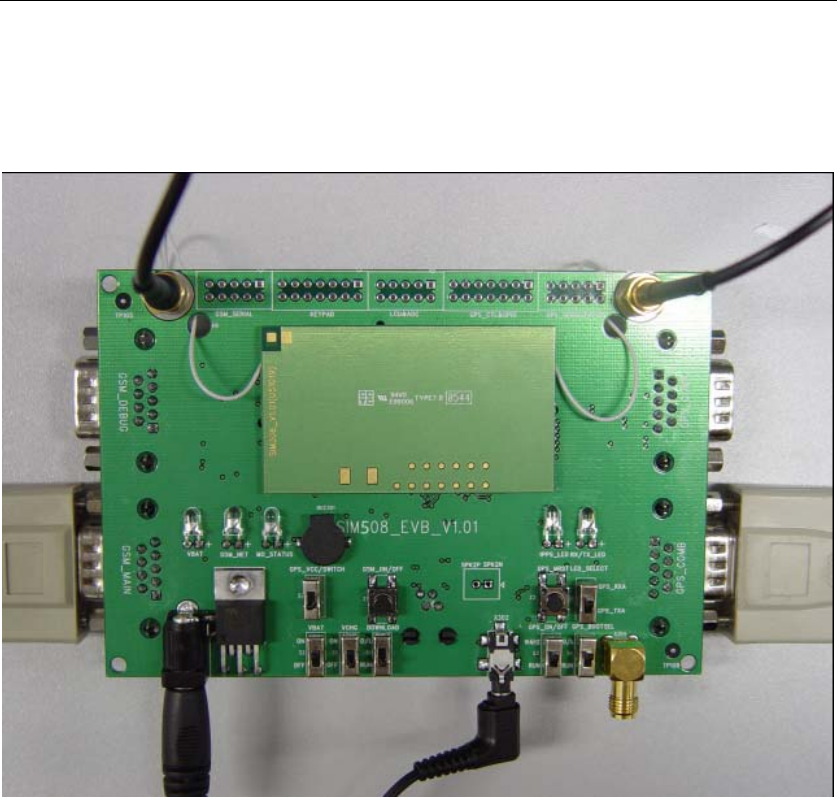

5. EVB and accessory equipment
At normal circumstance, the EVB and its accessory are equipped as the below figure:
Figure 9: EVB and accessory equipment
6. Operation
Firstly，please equip the module and accessories as the figure 9.
6.1 Power on and running
(1) Connect the SIM508Z module to the 80pins connector on the EVB, insert the 5V DC source
adapter, switch S1 to the RUN state and S2 to the ON state, and the LED of B1 will light;
(2) Press the GSM_ON/OFF button Z1 for about 2 seconds, then the module is power on
successful;
You will see the LED of B2 on the EVB glittering at a certain frequency corresponding to various
states, and you can judge the EVB and SIM508Z are running correctly. No function and test can
be executed when the necessary accessories are not connected.
Page 10 of 12
6.2 Connecting the Net and calling
(1) Connect the serial port line to the serial port 1, open the HyperTerminal (AT command
windows) on your personal computer, the location of the HyperTerminal in windows2000 is
START →accessory→ communication →HyperTerminal. Set the correct baud rate and COM
number firstly. The default baud rate of SIM508Z is 115200bps, and the COM number is based on
which port your serial port line inserts in, you should select such as COM1，COM3 or COMx etc;
(2) Connect the antenna to the SIM508Z module using an antenna transmit line, insert SIM card
into the SIM card holder, and insert headphone or handset into its interface; (acts as the figure 9)
(3) Power on the module referring the description in 6.1, then type the AT command (such as
ATI 、AT +C S Q、ATD112 in the AT command document) in the HyperTerminal. If you get the
correct response, it indicates the Hyper Terminal is successfully connected and the module is
working correctly.
About AT command and its response, please refer to the document of SIM508_ATC_V1.00.pdf.
6.3 Download and upgrade
Connect the serial port line to the serial port 1, connect the DC source adapter, run the download
flash tool and press the START key, then switch S2 to the ON state and S1 to the D/L state, and
then the download procedure or upgrade procedure is starting.
6.4 Turn off
Press the GSM_ON/OFF button Z1 for about 1 second, SIM508Z will be turned off.
6.5 Charge
Connect the SIM508Z module to the 80pin connector interface and the external battery to
charging interface provided on the EVB. Insert the DC source adapter; switch S2 to the OFF state
and S5 to the ON state, then the SIM508Z goes into the charging state.
6.6 GPRS start-up
（Please see the document of GPRS Startup_V1.00.pdf）
7 AT command
（please see the document of SIM508_ATC_V1.00.pdf）
Page 11 of 12
8 FCC statements
Please note:
SIM508Z complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) SIM508Z may not cause armful interference, and (2) SIM508Z must accept any
interference received, including interference that may cause undesired operation. And changes or
modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
9 FCC RF exposure requirements
To allow compliance with the FCC RF exposure requirements, the SIM508Z’s maximum output
power is 33dBm in GSM900 band and 30dBm in DCS1800/PCS1900 band，and the maximum
antenna gain is 3dBi and the minimum cable loss is 0.5dB。The antenna(s) used for this transmitter
must be installed to provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or transmitter。
