SIM340E User Guide
Document Name: SIM340E User Guide
Version: 1.00
Date: 2008-6-18
DocId: SIM340E User Guide_V1.00
Status: Release
General Notes
Simcom offers this information as a service to its customers, to support application and
engineering efforts that use Simcom products. The information provided is based upon
requirements specifically provided to Simcom by the customers. Simcom has not
undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of
this Simcom product within a larger electronic system remains the responsibility of the
customer or the customer’s system integrator. All specifications supplied herein are
subject to change.
Copyright
This document contains proprietary technical information which is the property of
SIMCOM Limited., copying of this document and giving it to others and the using or
communication of the contents thereof, are forbidden without express authority.
Offenders are liable to the payment of damages. All rights reserved in the event of grant
of a patent or the registration of a utility model or design. All specification supplied
herein are subject to change without notice at any time.
Copyright © SIMCOM Limited. 2008
Contents
1 SIM340E EVB and accessories .....................................................................................................4
1.1SIM340E EVB.............................................................................................................................4
1.2 accessories...................................................................................................................................5
2 EVB and accessory equipment.......................................................................................................5
3 Operational description..................................................................................................................6
3.1 Tune up procedure.......................................................................................................................6
3.2 SIM340E features .......................................................................................................................6
3.2.1 General specification................................................................................................................6
3.2.2 Hardware Specification............................................................................................................7
3.2.3 Software Specification.............................................................................................................8
3.2.4 Solution of SIM340E ...............................................................................................................9
3.2.5 Radio frequency units ..............................................................................................................9
3.2.6 Baseband units .......................................................................................................................11
3.2.7 Mechanical architecture.........................................................................................................13
3.2.8 Software Architecture ............................................................................................................14
4 AT command ................................................................................................................................14
5 FCC Labeling Requirement .........................................................................................................14
6 FCC RF exposure requirements...................................................................................................15
1 SIM340E EVB and accessories
1.1SIM340E EVB

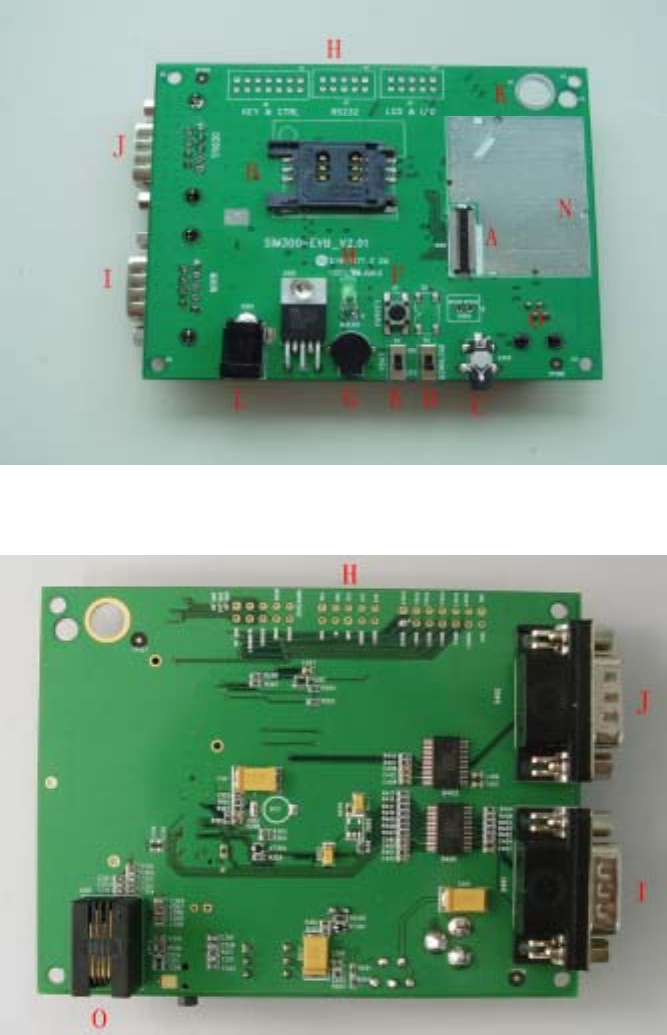

Figure 1： EVB TOP view
Figure 2： EVB BOTTOM view
A: SIM340E module interface
B: SIM card interface
C: headset interface
D: Download switch, turn on or off download function
E: VBAT switch, switch the voltage source from the adaptor or external battery
F: PWRKEY key, turn on or turn off SIM340E
G: buzzer
H: expand port, such as keypad port, main and debug serial port, display port
I: MAIN serial port for downloading, AT command transmitting, data exchanging
J: DEBUG serial port
K: hole for fixing the antenna
L: source adapter interface
M: light
N: hole for fixing the SIM340E
O: headphones interface

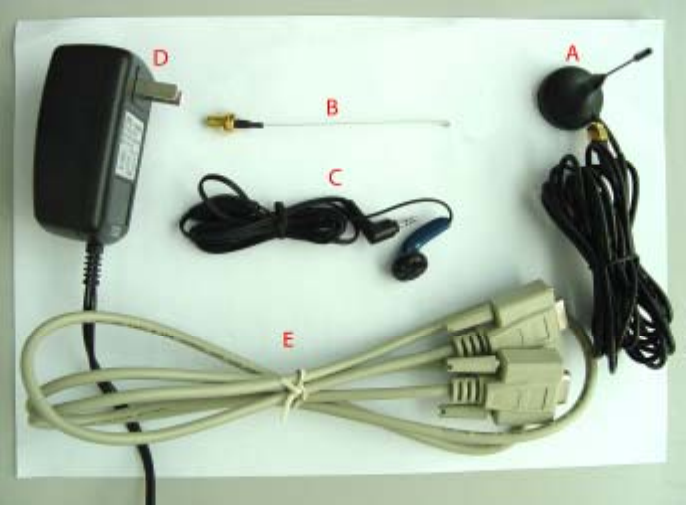

1.2 accessories
A: antenna
B: antenna transmit line
C: headset
D: 5V DC source adapter
E: serial port line
2 EVB and accessory equipment
At normal circumstance, the EVB and its accessory are equipped as the nether figure：

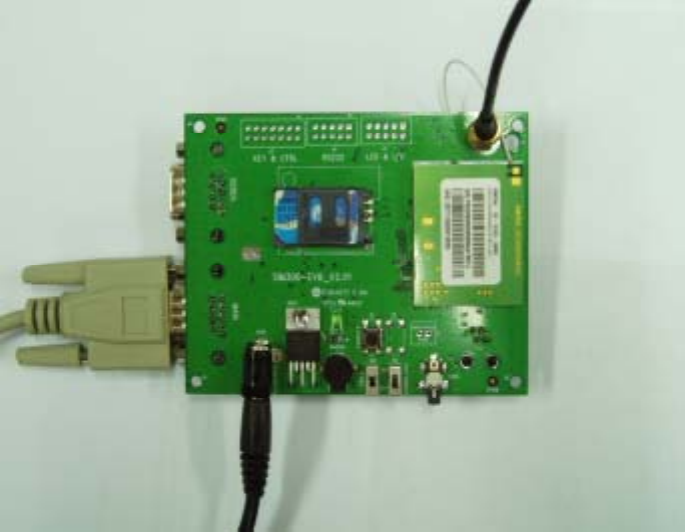

Figure 3： EVB and accessory equipment
3 Operational description
Firstly，please equip the module and accessories as the figure 3.
3.1 Tune up procedure
1）switching the S1 switch to off state, S2 switch to ON state；
2) Press the PWRKEY button for about 2 second, then the LED glint，and the module is tuning
up successfully；
3.2 SIM340E features
3.2.1 General specification
SIM340E is a Quad-band GSM/GPRS module with a SIM card holder and delivers GSM/GPRS
850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and
with low power consumption. SIM340E can be used for WLL applications/M2M application and
much more.
z Quad- band GSM/GPRS module with a size of 40x33x5.5mm
z Customized MMI and keypad/LCD support
z An embedded Powerful TCP/IP protocol stack
z Supply voltage range 3.4 ... 4.5 V
z Normal Operation Temperature: -20°C ~60°C
z GPRS multi-slot Class 10
z GSM R97/98
3.2.2 Hardware Specification

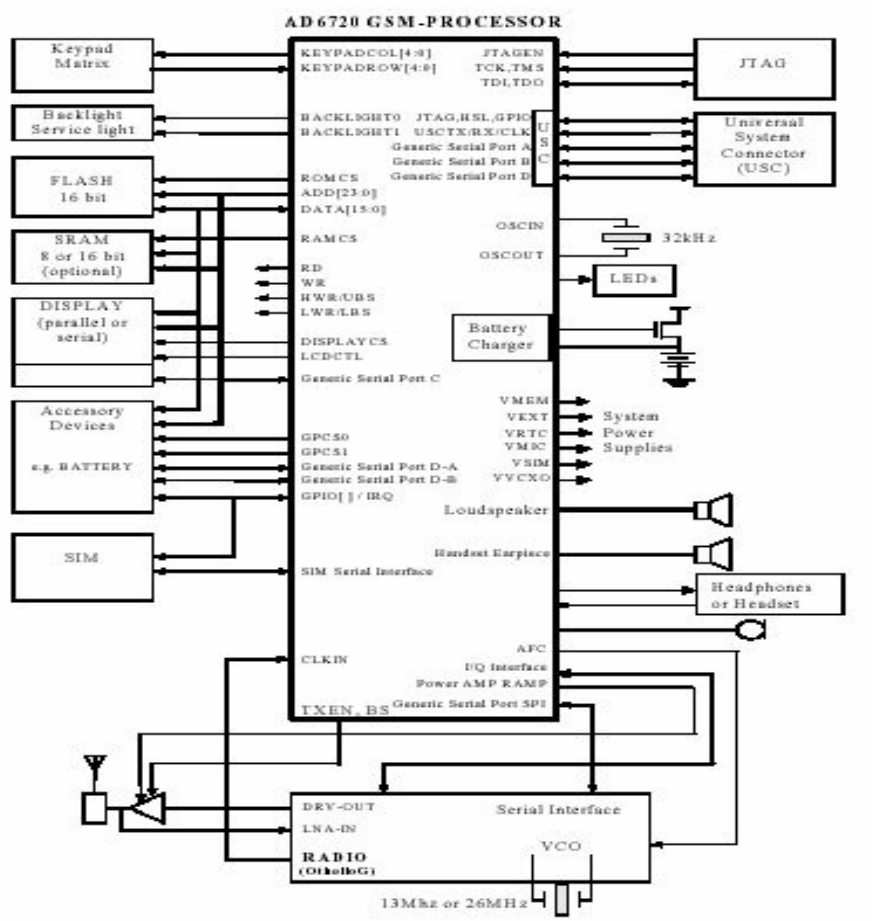

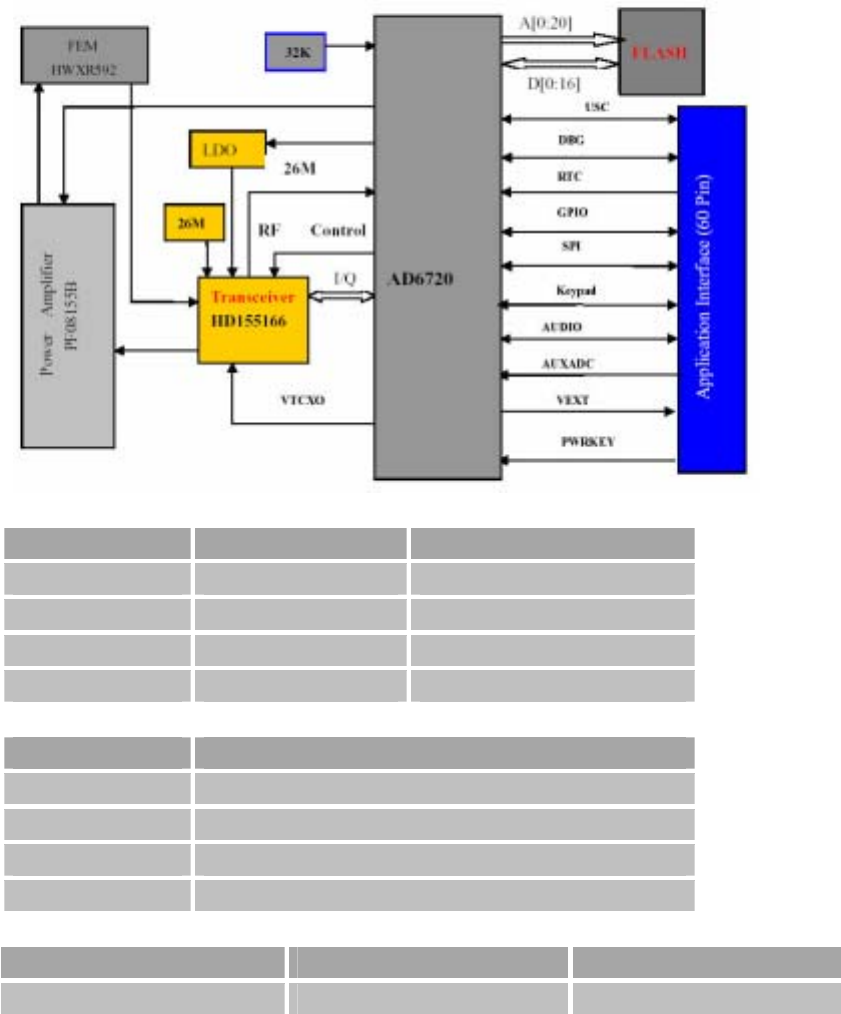

The hardware block diagram for SIM340E is shown as below:
The PCB for SIM340E is 8 layers.
Frequency Max Min
GSM850 33dBm ±2db 5dBm±5db
EGSM900 33dBm ±2db 5dBm±5db
DCS1800 30dBm ±2db 0dBm±5db
PCS1900 30dBm ±2db 0dBm±5db
Frequency Receive sensitivity
GSM850 < -106dBm
EGSM900 < -106dBm
DCS1800 < -106dBm
PCS1900 < -106dBm
Frequency Receive Transmit
GSM850 869 ～ 894MHz 824 ～ 849 MHz
EGSM900 925 ～ 960MHz 880 ～ 915MHz
DCS1800 1805 ～ 1880MHz 1710 ～ 1785MHz
PCS1900 1930 ～ 1990MHz 1850 ～ 1910MHz

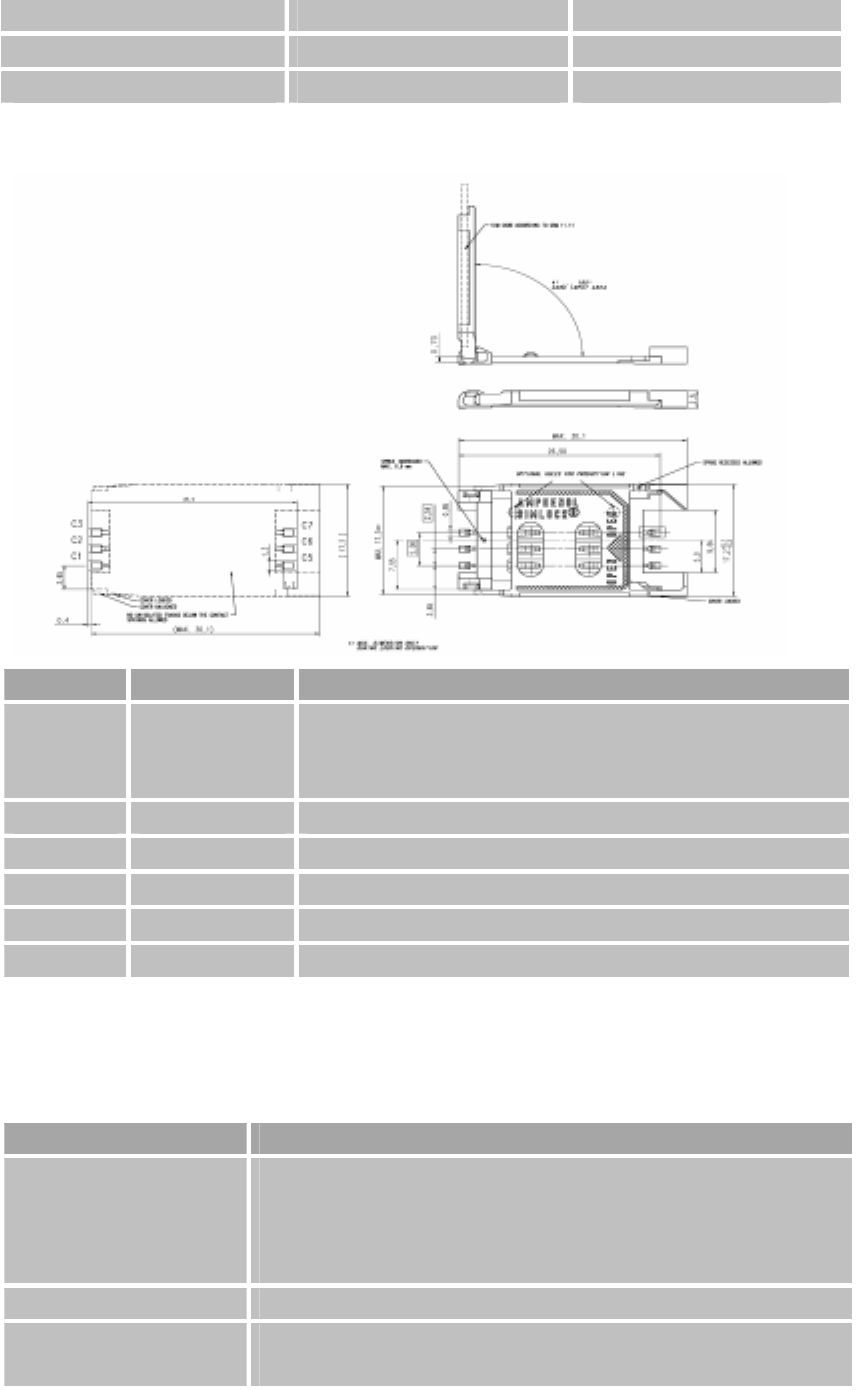

The mechanical architecture of SIM card holder and the definition of SIM card are shown below:
Pin Signal Description
C1 SIM_VDD SIM Card Power supply, it can identify automatically the SIM
Card power mode，one is 3.0V±10%, another is 1.8V±10%.
Current is about 10mA.
C2 SIM_RST SIM Card Reset.
C3 SIM_CLK SIM Card Clock.
C5 GND Connect to GND.
C6 VPP Not connect.
C7 SIM_DATA SIM Card data I/O.
3.2.3 Software Specification
Feature Implementation
Frequency Bands
SIM340E Quad-band: GSM 850, EGSM 900, DCS 1800, PCS 1900.
The SIM340E can search the 4 frequency bands automatically. The
frequency bands also can be set by AT command.
Compliant to GSM Phase 2/2+
GSM class Small MS
GPRS connectivity
GPRS multi-slot class 10 （default）
GPRS mobile station class B
DATA GPRS:
CSD:
GPRS data downlink transfer: max. 85.6 kbps
GPRS data uplink transfer: max. 42.8 kbps
Coding scheme: CS-1, CS-2, CS-3 and CS-4
SIM340E supports the protocols PAP (Password Authentication
Protocol) usually used for PPP connections.
The SIM340E integrates the TCP/IP protocol.
Support Packet Switched Broadcast Control Channel (PBCCH)
CSD transmission rates: 2.4, 4.8, 9.6, 14.4 kbps, non-transparent
Unstructured Supplementary Services Data (USSD) support
SMS MT, MO, CB, Text and PDU mode
SMS storage: SIM card
FAX Group 3 Class 1
SIM interface Support SIM card: 1.8V, 3V
Audio features Speech codec modes:
Half Rate (ETS 06.20)
Full Rate (ETS 06.10)
Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)
Echo Cancellation
Serial port and
Debug port
Serial Port: Seven lines on Serial Port Interface
Serial Port can be used for CSD FAX, GPRS service and send AT
command of controlling module.
Serial Port can use multiplexing function.
Autobauding supports baud rate from 4800 bps to 115200bps.
Debug Port: Two lines on Serial Port Interface /TXD and /RXD
Debug Port only used for debugging
Phonebook management Support phonebook types: SM, FD, LD, RC, ON, MC.
SIM Application Toolkit Support SAT class 3, GSM 11.14 Release 99
Real time clock Implemented
Timer function Programmable via AT command
Firmware upgrade Firmware upgrade by serial port.
3.2.4 Solution of SIM340E
The hardware solution is AD6720+HD155166+PF08155B+HWXR592+SST34HF3284;
The software solution is TTPcom Release 10.0.
3.2.5 Radio frequency units

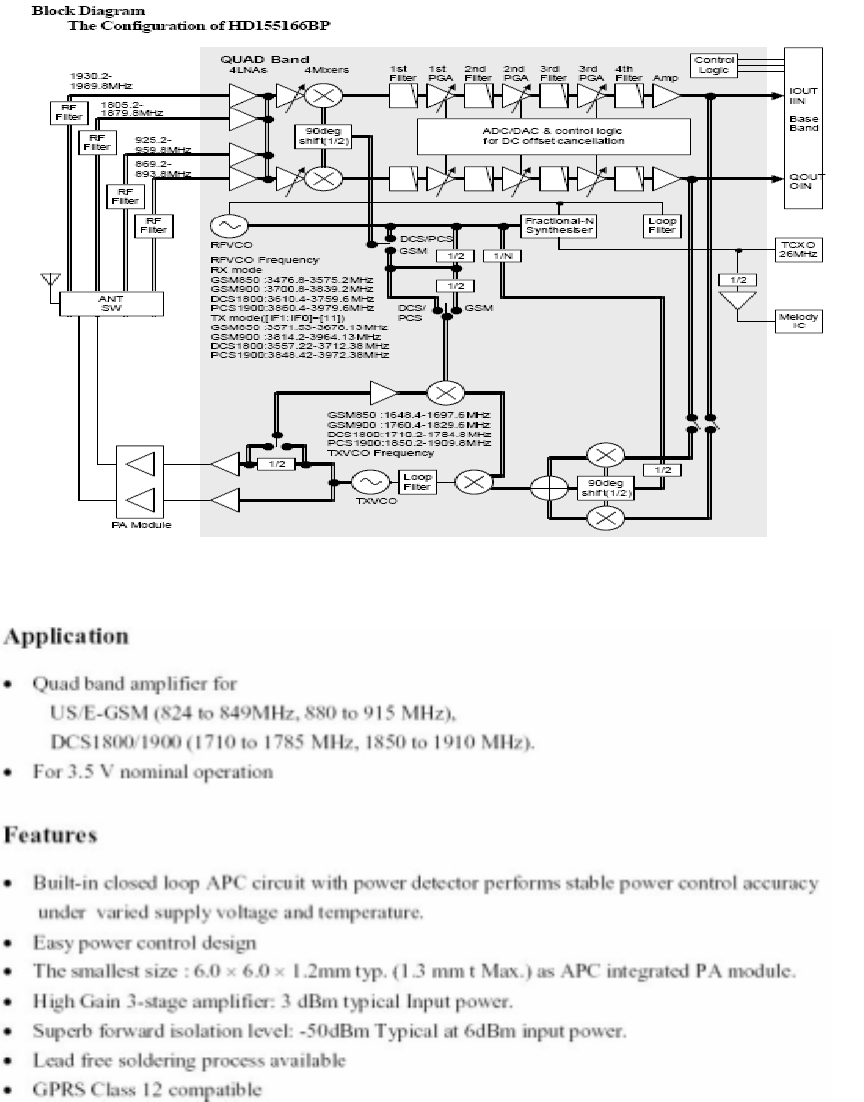

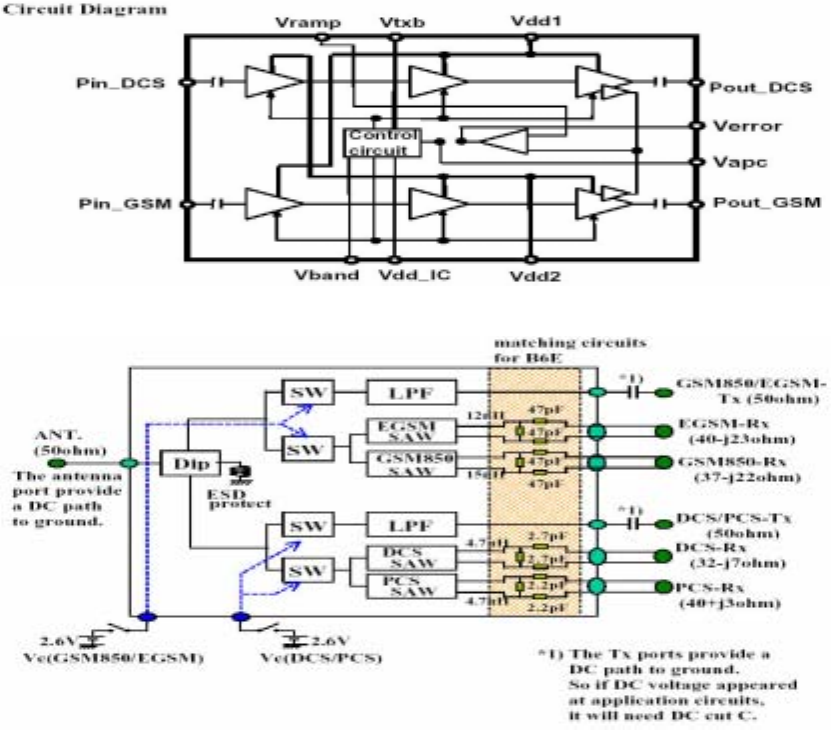

The RF units for SIM340E include HD15516(transceiver), PF08155(PA), HWXR592(FEM).
1) HD155166
2) PF08155
3) HWXR592
3.2.6 Baseband units
The baseband units for SIM340E include AD6720 and SST34HF.
1) AD6720 (AD6720 is integrated Digital baseband and analog baseband).
2) SST34HF
Features：
32-Mbit Flash and 8-Mbit PSRAM
2.7V~3.0V Operating voltage
Flash：
32-megabit（2M*16）
2.7V to 3.0V Read/Write
Access Time-70ns
Sector Erase Architecture
-Sixty-three 32K WordSectors With Individual Write Lockout
-Eight 4K Word Sectors with Individual Write Lockout
Fast Word Program Time-15us
Suspend/Resume Feature for Erase and Program
-Supports Reading and Programming from Any Sectors by Suspending Erase of a
Different Sector
-Supports Reading Any Word by Suspending Programming of Any Other Word
Low-power Operation
-12mA Active
-13uA Standby
PSRAM：
4-megabit（256K*16）/8-megabit(512K*16)
2.7V to 3.3V Vcc
70ns Access Time
3.2.7 Mechanical architecture

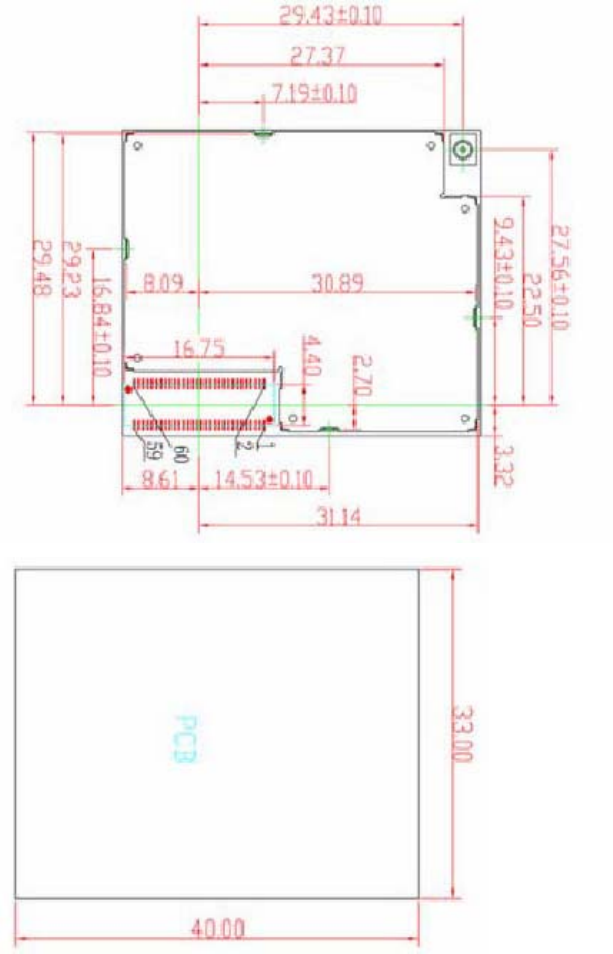

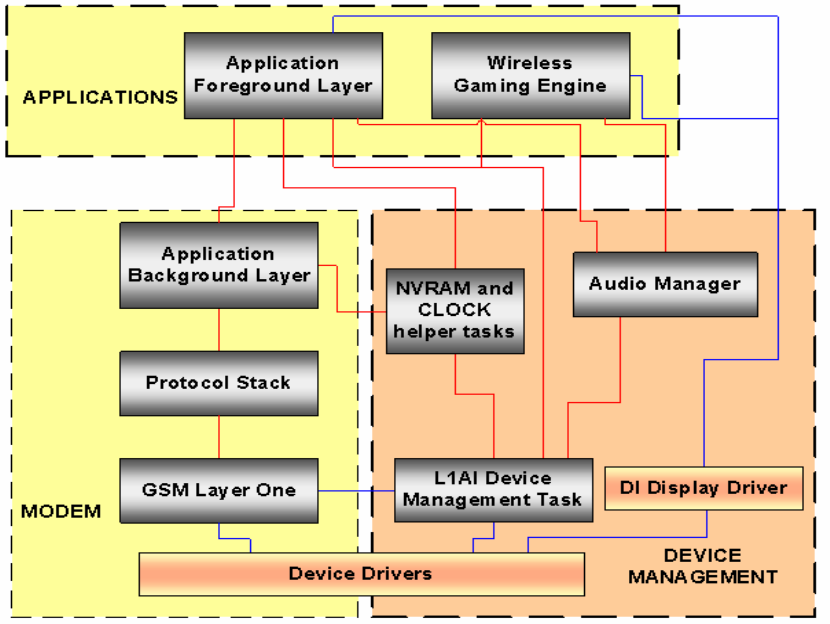

3.2.8 Software Architecture
4 AT command
（please see the AT command document）
5 FCC Labeling Requirement
Please note：
When the SIM340E is integrated into a final product, the FCC ID label must be visible through a
window on the final device or it must be visible when an access panel，door or cover is easily
removed. If not, a second label must be placed on the outside of the final device that contains the
following text：
“Contains FCC ID：UDV-0606020080701”

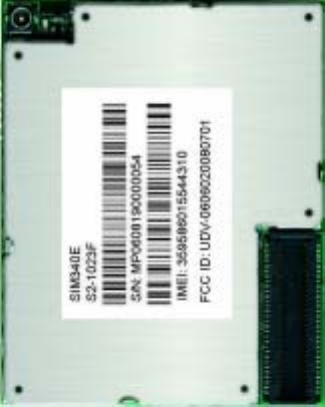

SIM340E FCC label is shown as：
6 FCC RF exposure requirements
The maximum measured power output is 770 mW（1900MHz）/1440mW（850MHz）,
the maximum antenna gain is 3 dBi.
The maximum permissible exposure is defined in 47 CFR 1.1310 with 1 mW/cm2.
The transmitter is using indoor antennas that operate at 20cm or more from nearby
persons.
the power density at 20 cm is 0.4596 mW/cm2.（1900MHz），the power density at 20
cm is 0.8594 mW/cm2.（850MHz）
This equipment complies with part15 of FCC Rules. Operation is subject to the
following two conditions: (1) this device may not caulse harmful interference, and
(2) this device must accep any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
