Simcom 0809182008007 GPS Locator User Manual GL100 0927
Shanghai Simcom Ltd. GPS Locator GL100 0927
Simcom >
User Manual
GL100 User Manual
0
GL100 A-GPS Locator
User Manual
GL100 User Manual
1
CONTENTS
1 Introduction .................................................................................................................... 2
2 Main Functions............................................................................................................... 3
2.1 A-GPS Scenario...............................................................................................................3
2.2 Alarm Scenario.................................................................................................................3
3 Parameters..................................................................................................................... 4
4 GL100 Start-up............................................................................................................... 5
4.1 Accessories.......................................................................................................................5
4.2 Charging the battery........................................................................................................5
4.3 Install SIM Card................................................................................................................5
5 Product Overview........................................................................................................... 6
5.1 Appearance.......................................................................................................................6
5.2 Button/MINI USB interface Description ........................................................................6
5.3 Two three-color LEDs Description.................................................................................7
6 GL100 Manager Setup Wizard....................................................................................... 8
7 Device Operation ......................................................................................................... 10
7.1 Turn on/ Turn off.............................................................................................................10
7.2 Select Operating Mode .................................................................................................10

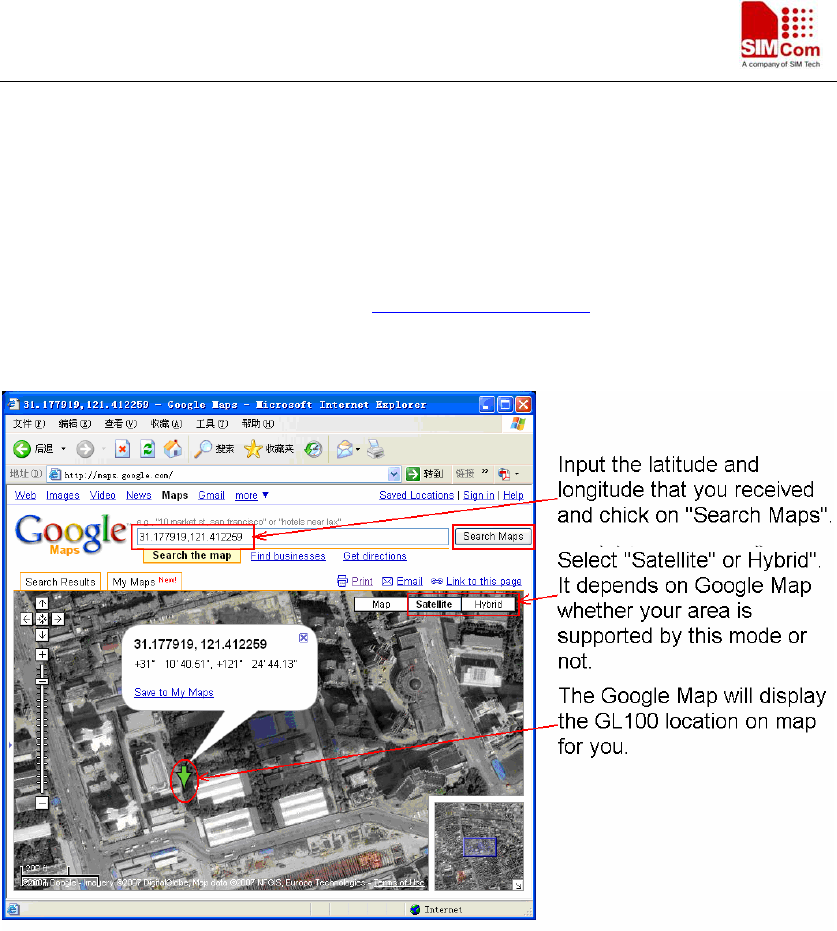

8 Displaying the location on map .................................................................................... 11
9 Troubleshooting and Safety info................................................................................... 12
GL100 User Manual
2
Section 15.19 Labelling requirements
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Section 15.21 Information to user
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment
Section 15.105 (b)
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
SAR INFORMATION
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device
types GL100 (FCC ID: UDV-0809182008007) has also been tested against this
SAR limit. The highest SAR value reported under this standard during product
certification for use at the ear is N/A W/kg and when properly worn on the body is
0.468 W/kg. This device was tested for typical body-worn operations with the back
of the handset kept 1.5cm from the body. To maintain compliance with FCC RF
exposure requirements, use accessories that maintain a 1.5cm separation
distance between the user's body and the back of the handset. The use of belt
clips, holsters and similar accessories should not contain metallic components in
its assembly. The use of accessories that do not satisfy these requirements may
not comply with FCC RF exposure requirements, and should be avoided.
GL100 User Manual
3
1 Introduction
GL100 is a powerful A-GPS Locator with mini size, light weight, anti-water and superior
sensitive receiving ability, fast TTFF which works on GSM frequencies 850/900/1800/1900.
GL100 is designed for many applications such as pets or human body, the specific target
to be tracked, the management for specific purpose and target.
2 Main Functions
• A-GPS Position
• Fixed time reporting
• Emergency Alarm
• Geo-fencing Alarm
• Remote Control Alarm
• Lower power Alarm
2.1 A-GPS Scenario
• TTFF(Time To First Fix)
If the device is used in A-GPS network, the TTFF will less than 12 seconds. The
TTFF of the GPS (no A-GPS network) is 42 seconds (average).
• Track
The monitor center can inquire the device to send back the location information. And
the device can send its location initiatively or periodically.
2.2 Alarm Scenario
• Geo-fencing alarm
The device provides Geo-fence features that can be used for territory management,
prohibited locations, and more. The device will automatically send alarm message to
the monitor center if the person carrying it enters and/or leaves the predefined areas.
• Remote control alarm
The monitor center requires the device to send back its location periodically (e.g.
pre-set 1 minute), if the device can not send back its location, the device will
considered to be in abnormal status.
GL100 User Manual
4
• Low power alarm
The message of low power notification will be sent before the battery dies out.
3 Parameters
Technical Specifications
Quad-Band:GSM850/900/1800/1900MHz
Compliant to GSM phase 2/2+
- Class 4 (2W @ 900MHz)
- Class 1 (1W @ 1800/1900MHz
Max out RF power: 33.0dBm±2dBm
Dynamic input range: -15 ~ -102dBm
Receiving delicacy: Class П RBER≤2％（-102dBm）
Stability of frequency: Superior to 2.5ppm
Max frequency error: ±0.1ppm
RMS Phase error: ≤5deg
GPS Chipset: SiRF Star III
Frequency: L1, 1575.42 MHz
Channels: 20 channel all-in-view tracking
Reacquisition: 0.1 sec., average
Hot start: 1 sec., average
Warm start: 38 sec., average
Cold start: 42 sec., average
Altitude Limit: 18,000 meters (60,000 feet) max
Velocity Limit: 515 meters/second (1000 knots) max
Dimension: 66mm*36mm*20mm
Weight: 76g
Battery Backup
Backup batteries: 1300mAh
Batteries standby time: 160 hours
Environment
Operating temperature range: -10°C to +50°C
Storage temperature range: -30°C to + 60°C
Relative humidity: 10% to 95%
Atmospheric pressure: 86kPa~106kPa
Ambient noise: ≤ 60dB (A)
Interface Specifications
One Mini USB connecter to PC
LED indicate: Power / GSM network / GPS
2 keys: Power on/Function
GL100 User Manual
5
4 GL100 Start-up

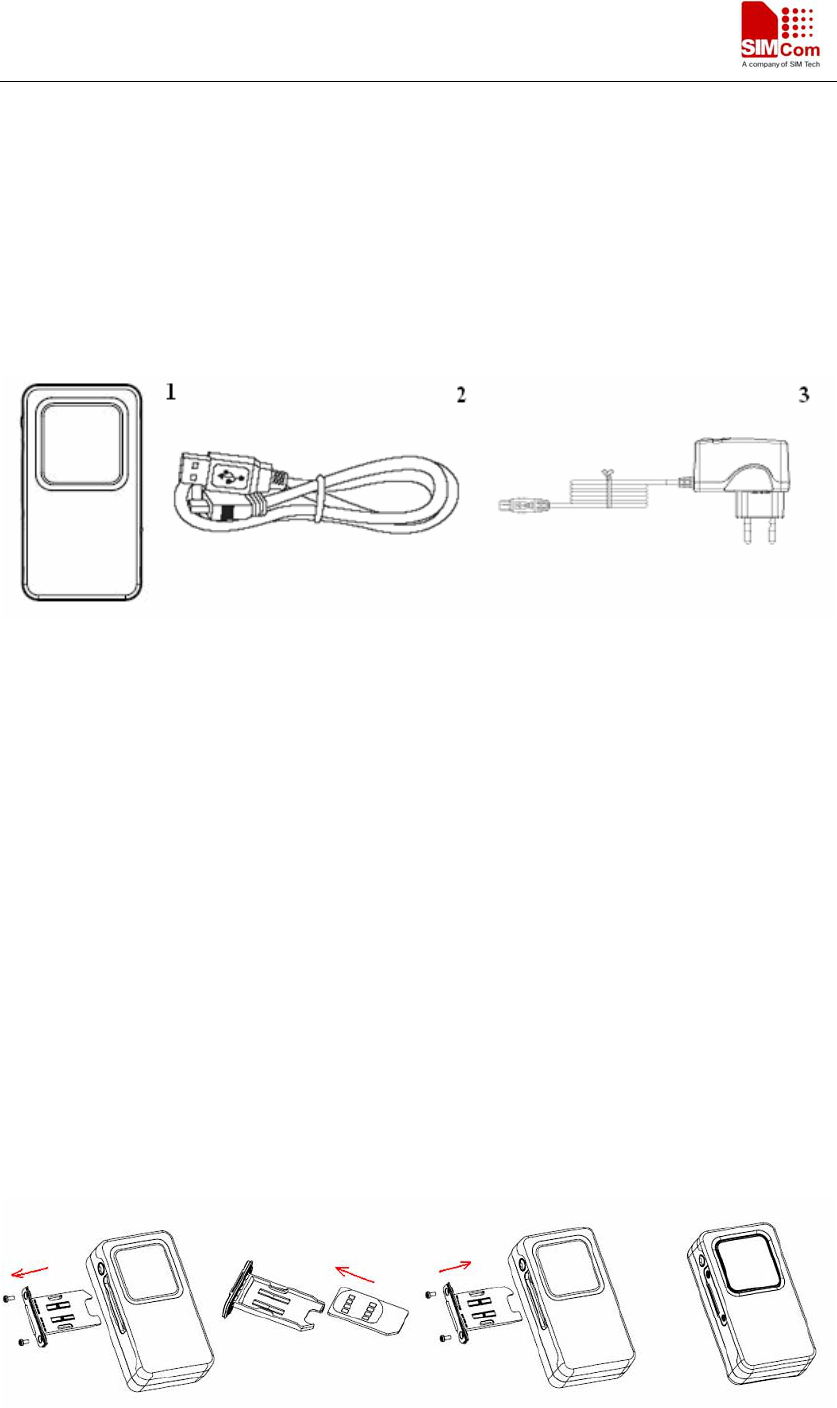

4.1 Accessories
1．GL100 Locator
2．Mini USB cable
3．AC power adapter
4.2 Charging the battery
z Please connect AC power adapter with GL100 for battery charging.
z Insert the AC power adapter into the power.
z During charging, the red LED 2 is blinking slowly. When the charge is completed, the
green LED 2 is lighting.
z You can also charge the battery by USB cable which connects GL100 with the PC.
z Charging about 3 hours.
Note: Before your first time using the GL100, please full charge the battery.
4.3 Install SIM Card
z Use a screwdriver to twist the two screws on the side of GL100
z Then remove the screws and SIM cover
z Insert the SIM card into the SIM cover according to the direction shown
z Finally, take the SIM cover into the SIM slot and tighten screws
GL100 User Manual
6
5 Product Overview

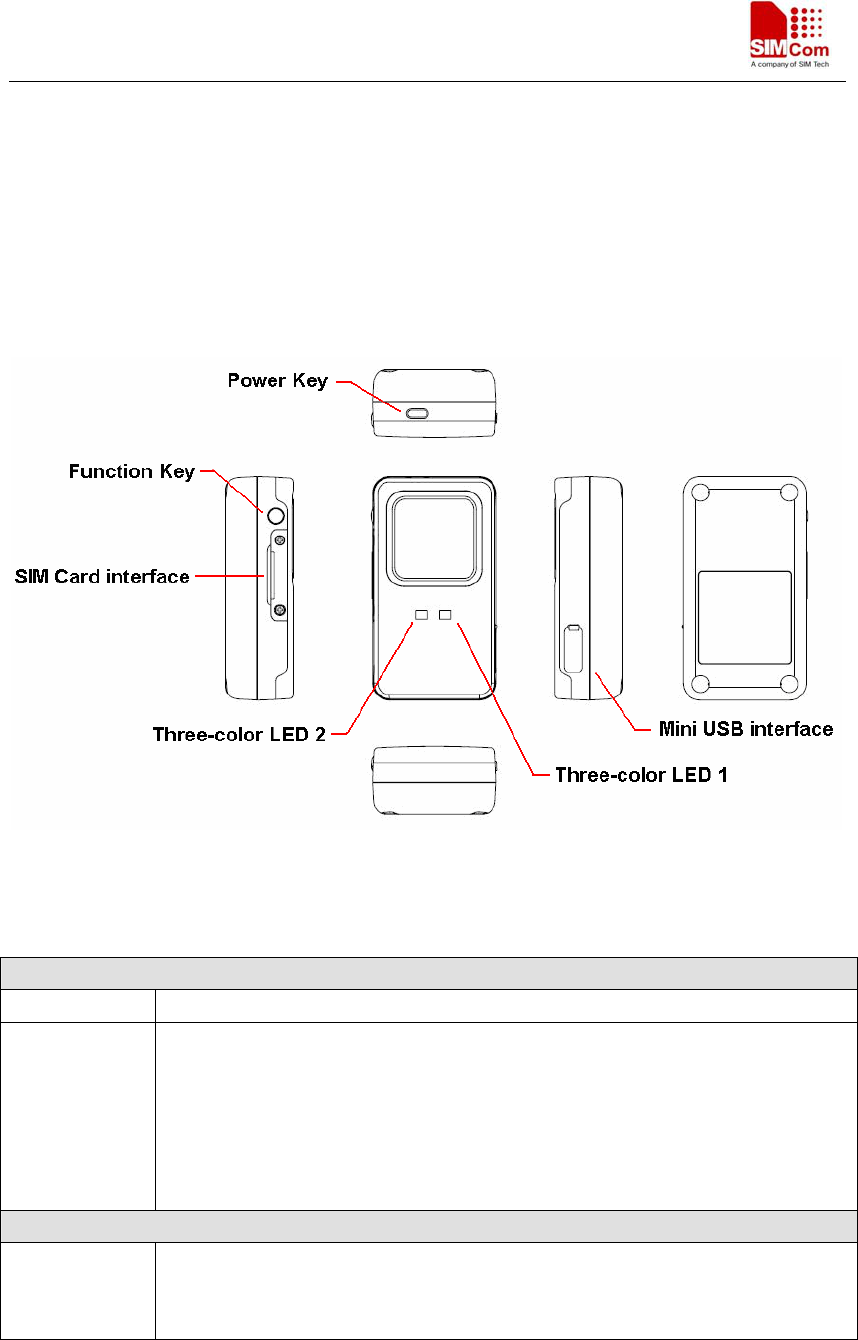

5.1 Appearance
5.2 Button/MINI USB interface Description
Button Function description
Power Key Turn on / Turn off GL100
Function Key Use this Key to switch the two operating modes: Geofence mode or
SOS mode
• Geofence mode (default)
Press the Key twice within 2 sec. to ON/OFF the Geofence mode.
• SOS mode
Keep pressing the key for 3 sec. to enter the SOS mode
MINI USB interface description
Mini USB
interface
• Plug in the AC power adapter to this interface for charging battery.
• By using USB cable to connect GL100 to PC, you can setup its
functions from software.
GL100 User Manual
7
5.3 Two three-color LEDs Description
There are two three-color LEDs in GL100. Each LED shows red, green and blue 3 colors
for indicating different state of GL100. In order to be easier to understand the 6 lights, we
call them Red LED 1, Green LED 1, Blue LED 1 and Red LED 2, Green LED 2, Blue
LED 2.
• Red LED 1 ——Power LED
State Meaning
Turn on • GL100 is turned on or turned off.
• When the GL100 terminal receives the
effective protocol commands.
• Green LED 1——GSM LED
State Meaning
Blinking quickly • Not register to a GSM network
Blinking slowly • Register to a GSM network
Constant lighting • SIM card have PIN lock
• Blue LED 1——GPS LED
State Meaning
Blinking quickly • Search GPS signal and fix location
• Red LED 2——Low power & Charging LED
State Meaning
Constant lighting • The battery power is low
Blinking slowly • During charging
• Green LED 2——Charging completed LED
State Meaning
Constant lighting • When battery charging is completed
• Blue LED 2——Function Operation LED
Operating Mode State Meaning
Constant lighting less
than 2 sec., and then
turned off immediately.
• Turn on or turn off the Geofence Mode
success.
Geofence Mode
Constant lighting for 2
sec., and then turned
off.
• Turn on or turn off the Geofence Mode
fail.
SOS Mode Constant lighting for 3
sec., and then turned
off.
• Enter the SOS Mode
GL100 User Manual
8

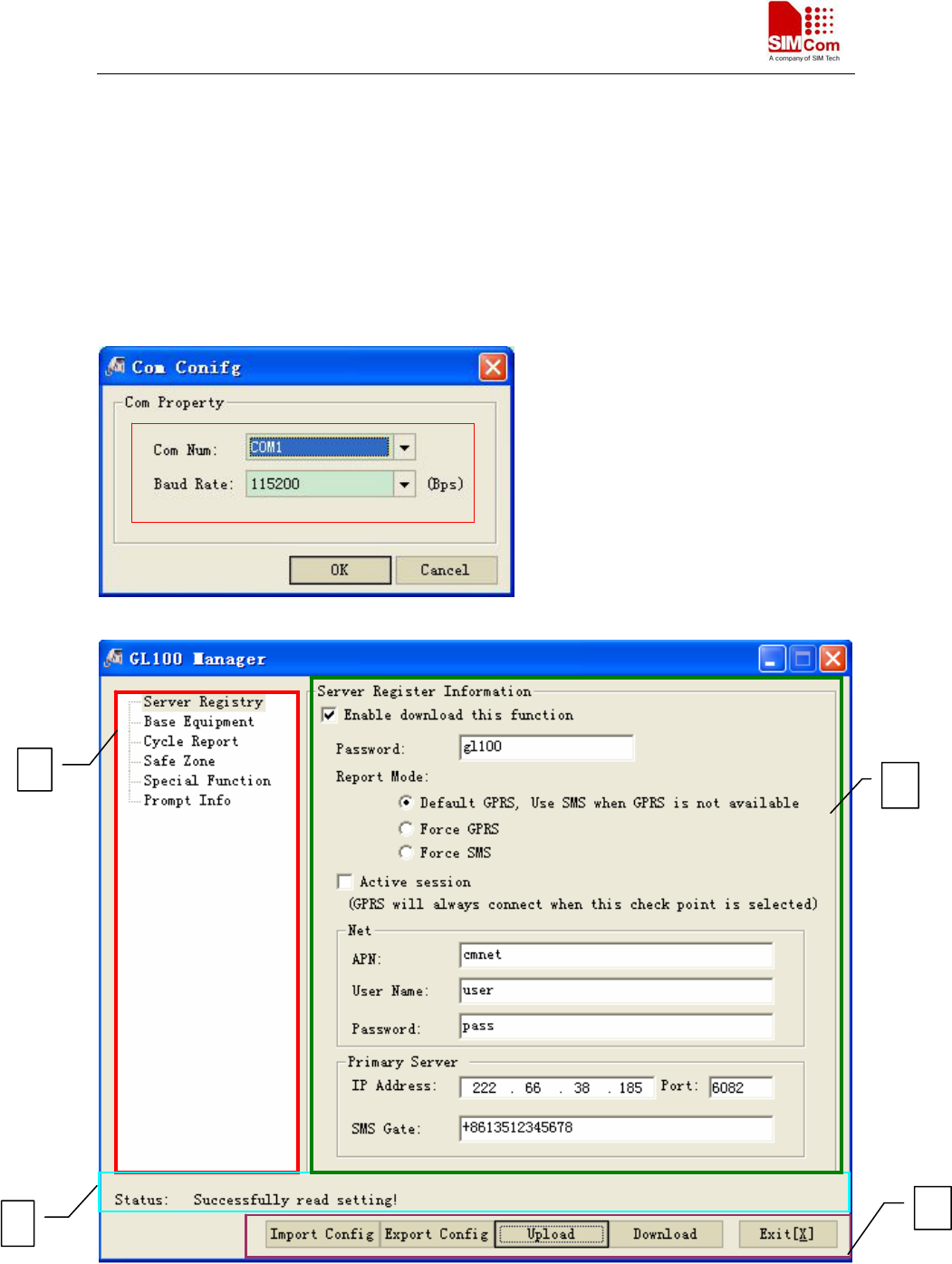

6 GL100 Manager Setup Wizard
1. Double click“Pl2303 drive.exe” to install USB-Serial driver.
1. Use Mini USB cable to connect GL100 and PC.
2. Turn on GL100. Double click “GL100 Manager.exe”,
3. Set right Com Number and Baud rate.
Note: The Com Number must be identical with Prolific USB-to-Serial com port.
4. The main window
1
3 4
2
GL100 User Manual
9
Illuminate：
1. The zone of function list
Display the functions list. If one of the options is selected, the option parameters will be
displayed in the right frame.
2. The zone of function setting
The zone of function setting is used to set and view the parameters of the function.
If you want to download the function parameters, the check box “Enable download this
function” should be selected.
3. The state display zone
Display the state of operation and suggestion. Include: the serial port open state; the
download state; the operation result. You can also get this information by select “Prompt
Info”.
4. The zone of operation
There are six buttons in the zone of operation (the COM buttons will display if the serial
port is error)
[COM] ：If you set an error COM port in the startup pop-up window, the com button will
display in the zone of operation. You can change the serial port after click it.
[Import Config]：Imports the setting from the local configuration.
[Export Config]：Exports the parameters from software. Backup the parameters.
[Upload]：Read and display the parameters of the terminal.
[DownLoad]：Download the parameters to the terminal.
Notice: you must select the “Enable Download This Function” selection before you click
the “Download” button.
[Exit]：Exit the software.
Note：For more information, please refer to document “GL100 Manager User Guide”
GL100 User Manual
10
7 Device Operation
7.1 Turn on/ Turn off
• Turn on: Press the Power key at least 3 seconds and release to turn on the GL100. At
this time, Red LED 1 will light on for 2~3 seconds. Then Green LED 1 starts to blink
quickly to search the GSM network. After the GSM network is registered, it turns to be
slowly.
• Turn off: Press the Power key at least 3 seconds; Red LED 1 will light on for 2~3
seconds and then turn off, it indicates that the GL100 is turned off.
7.2 Select Operating Mode
• First, user should configure the GL100 terminal though “GL100 Manager.exe” to
realize the A-GPS position, fixed time reporting and SOS alarm functions etc.
• Press the Function Key twice within 2 sec. to ON/OFF the Geofence mode. When
Geofence mode is ON, GL100 will open GPS module and get position information
every fixed “Fix interval”, and then send the gathered position information to remote
server every fixed “Send interval”.
Note: “Fix interval” and “Send interval” will be preset by users.
• Press the key for 3 sec. to enter the SOS mode. Here Blue LED 1 will blink quickly for
searching signal and fixing location. When the GPS signal is acquired and location is
fixed, the Blue LED 1 will light less than 2 minutes, and turned off. GL100 will send the
current position information to remote server immediately. If GL100 can not acquire
the GPS signal within in 2 minutes, the Blue LED 1 will be turned off directly.
GL100 User Manual
11
8 Displaying the location on map
z When receiving the location information of GL100, you can display the location on
map.
z Open the IE Browser and input http://maps.google.com to link the Google Map
website, enter the Latitude and Longitude information which received, you will see the
GL100’s position on the map. As follows:
GL100 User Manual
12
9 Troubleshooting and Safety info
z Troubleshooting
Trouble Reason Solution
The SIM card is not
inserted.
Please insert the SIM card
into GL100.
After GL100 is turned
on, the RED LED 1
flashes quickly always. The signal is too weak;
GL100 can’t register to the
network.
Please move GL100 into a
stronger signal place.
z Safety info
¾ Please do not remove the battery when GL100 is charging or it connects with PC.
¾ If GL100 can not be turned off properly, please remove the battery for at least 3
seconds. Put the battery back and then restart the device.
¾ When the device is ringing, please first press the answer button; next bring it to your
ear to avoid the ringtone damaging your ear.
¾ Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
¾ Please do not use GL100 on the airplane or near medical equipment.
