SCOPE
This device complies with part 15, part 22 and part 24 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation. (For FCC).
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired
operation of the device. (For IC).
This document gives the usage of SIM840W EVB, user can get useful information about the
SIM840W EVB quickly through this document.
This document takes SIM840W EVB as an example.
This document is subject to change without notice at any time.
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 6 2011-06-22

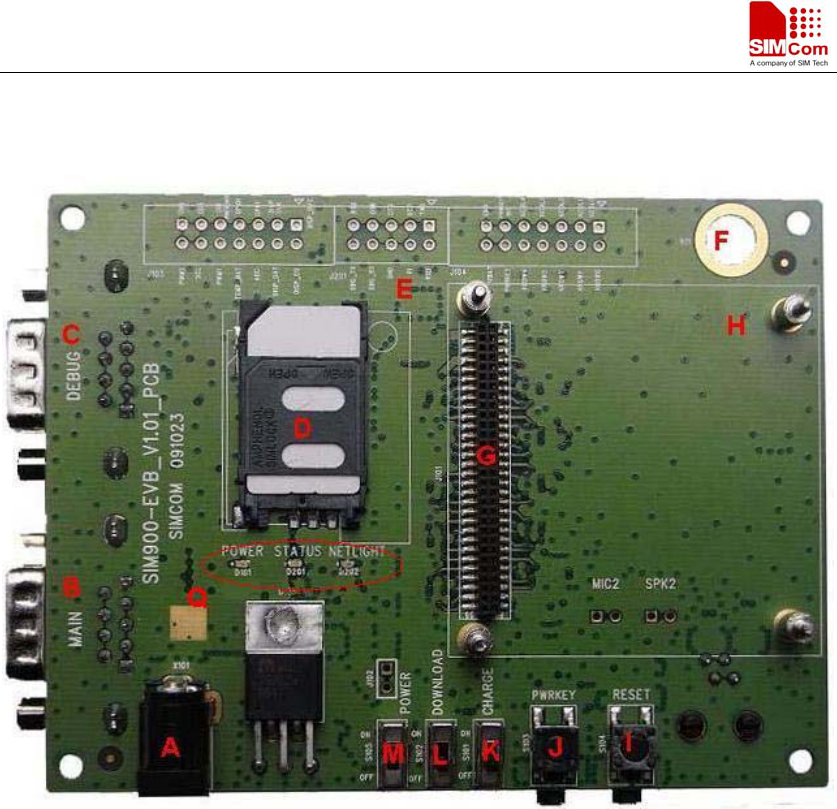

1. SIM840W EVB
Figure 1: EVB TOP view
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 7 2011-06-22

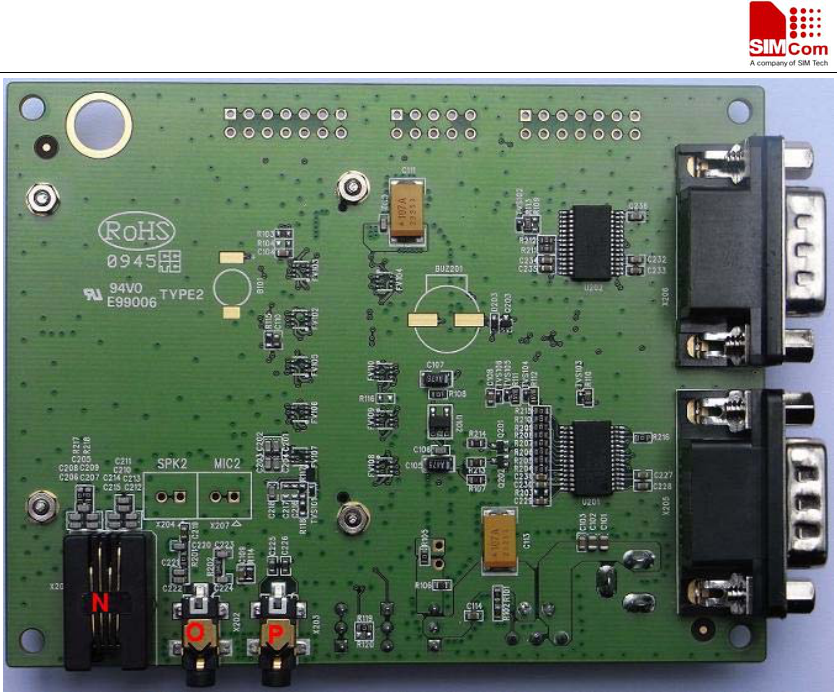

Figure 2: EVB BOTTOM view
A: Source adapter interface
B: MAIN serial port for downloading, AT command transmitting, data exchanging
C: DEBUG serial port
D: SIM card interface
E: Test point interface
F: Antenna fix hole
G: SIM840W-TE with SIM840W module interface
H: Module fix hole
I: Reset key ( reset the module )
J: Power key ( module ON/OFF control )
K: Charge switch ( charge ON/OFF control )
L: Download switch ( download control )
M: Power switch ( power ON/OFF control )
N: Headphones interface
O: Headset interface
P: Line in interface
Q: Status light
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 8 2011-06-22

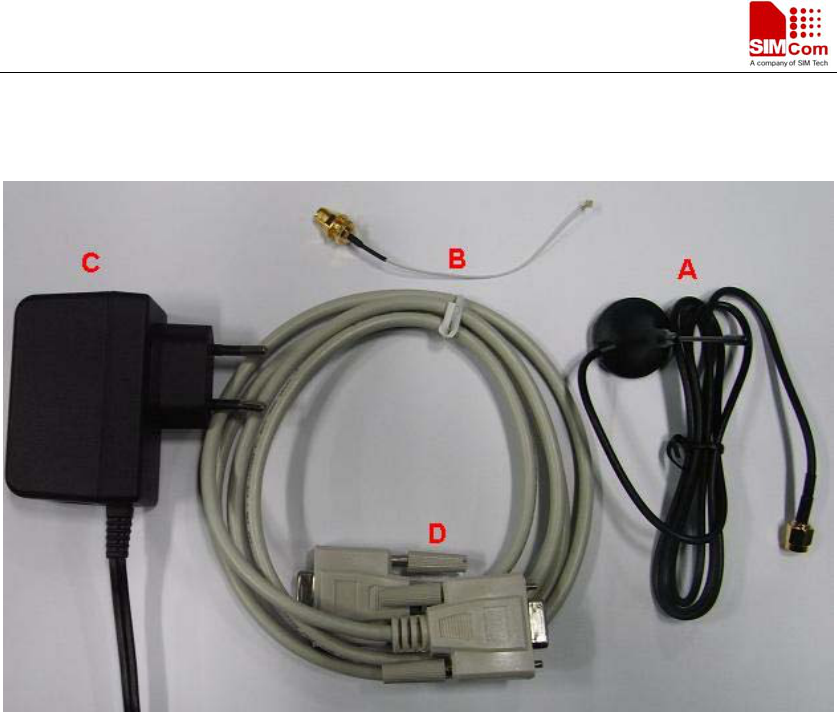

2. EVB accessory
Figure 3: EVB accessory
A: antenna
B: antenna transmit line
C: 5V DC source adapter
D: serial port line
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 9 2011-06-22
3. Accessory Interface
3.1 Power Interface
Figure 4: Power Interface
Pin Signal I/O Description
1 Adapter input I 5V/2.5A DC source input
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 10 2011-06-22

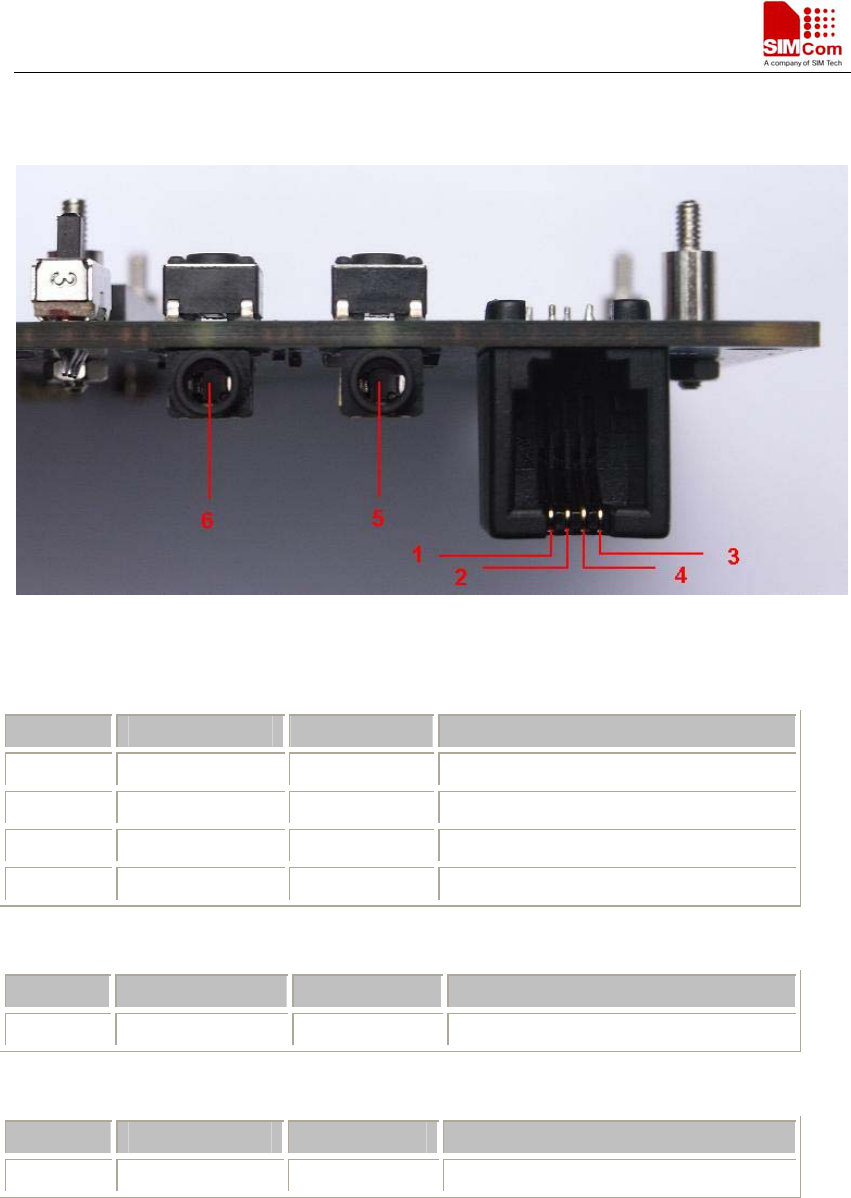

3.2 Audio Interface
Figure 5: Audio Interface
Headset interface:
Pin Signal I/O Description
1 MIC1P I Positive microphone input
2 SPK1P O Positive receiver output
3 MIC1N I Negative microphone input
4 SPK1N O Negative receiver output
Earphone interface:
Pin Signal Input/Output Description
5 MIC2P&SPK2P I/O Auxiliary positive input and output
Line in interface:
Pin Signal Input/Output Description
6 Line in R/L I/O Line in signal
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 11 2011-06-22
3.3 SIM card interface
Figure 6: SIM card interface
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 12 2011-06-22
3.4 Antenna Interface

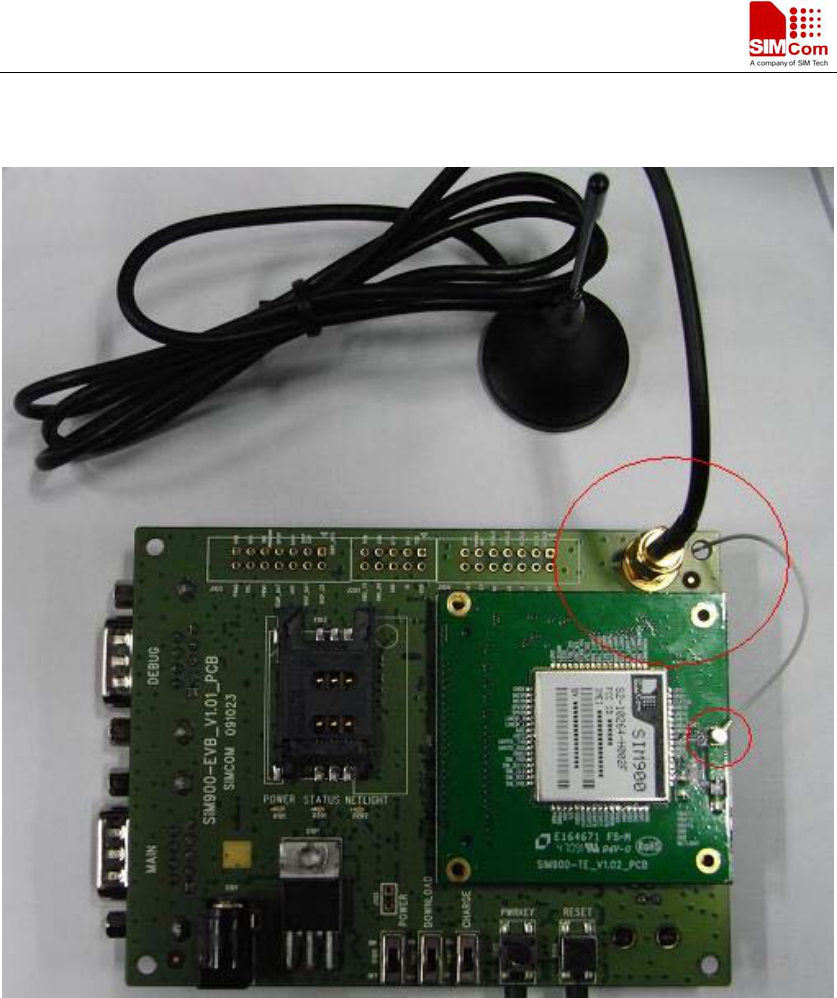

Figure 7: Antenna Interface
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 13 2011-06-22

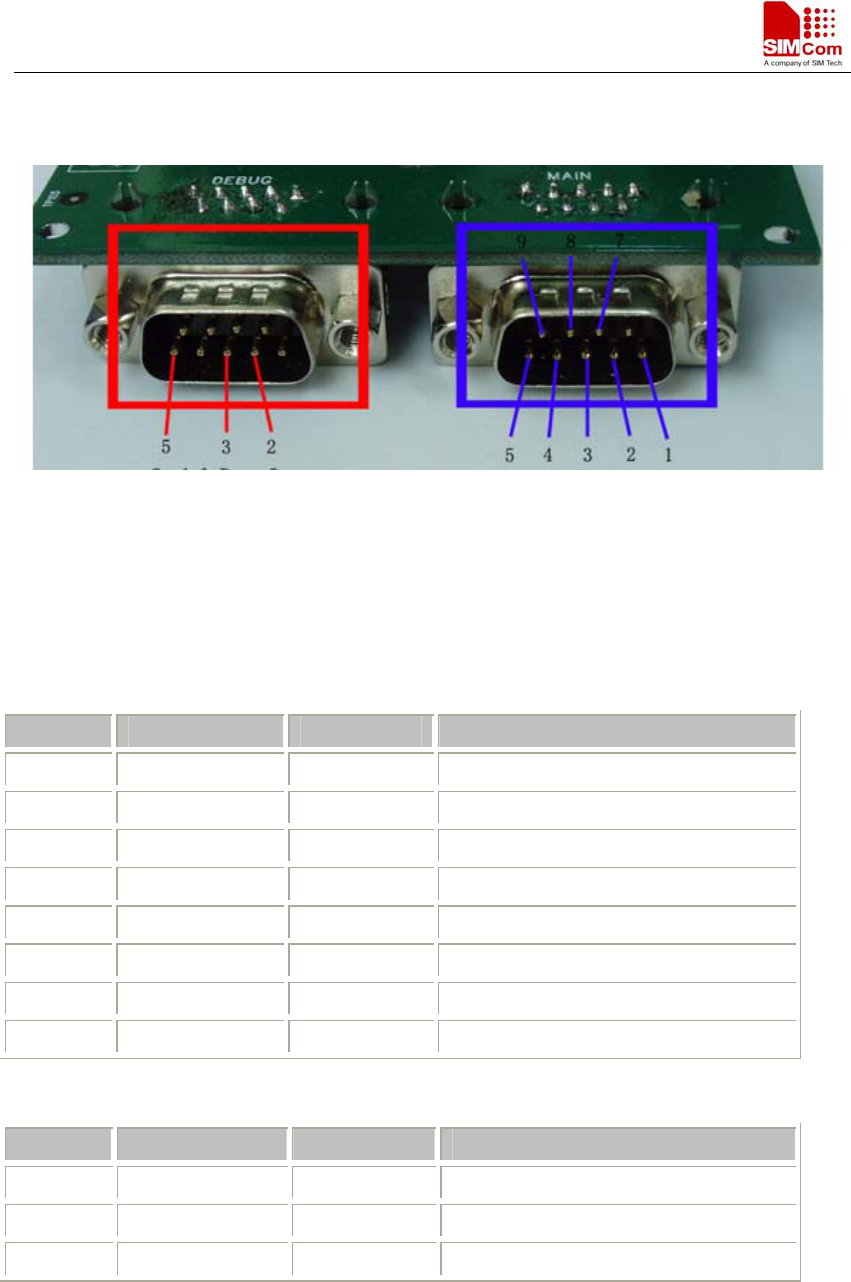

3.5 RS232 Interface
Figure 8: Serial Ports
Serial Port 1——MAIN Interface
Serial Port 2——DEGUG Interface
Main Interface:
Pin Signal I/O Description
1 DCD O Data carrier detection
2 TXD O Transmit data
3 RXD I Receive data
4 DTR I Data Terminal Ready
5 GND GND
7 RTS I Request to Send
8 CTS O Clear to Send
9 RI O Ring Indicator
Debug Interface:
Pin Signal I/O Description
2 DEBUG_TX O Transmit data
3 DEBUG_RX I Receive data
5 GND GND
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 14 2011-06-22

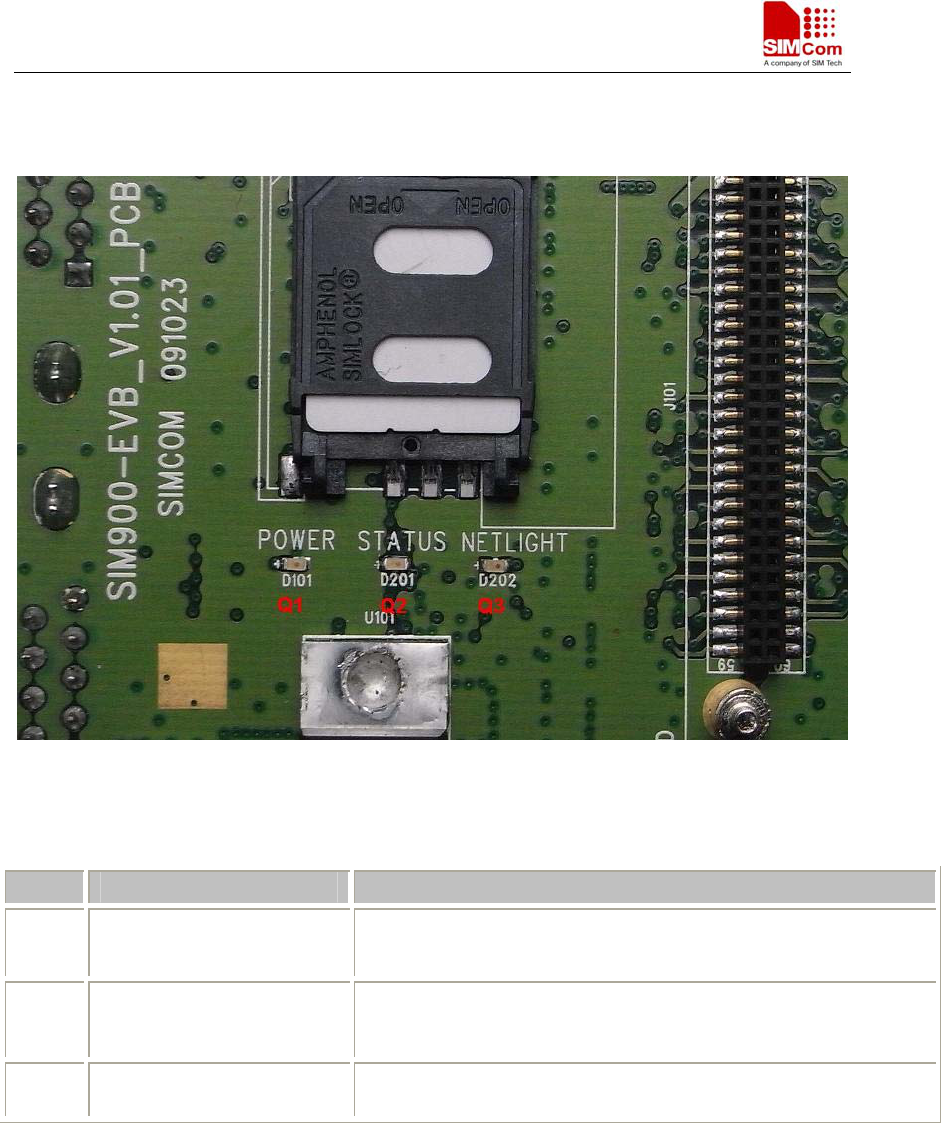

3.6 Operating Status LED
Figure 9: StatusLED
Working state of status LED as list:
Name Description STATUS
Q1 VBAT ON/OFF indicator Bright：VBAT ON;
Extinct: VBAT OFF
Q2 GSM part status indicator Bright: Module runs normally
Extinct: System is powered down or module runs
unconventionally
Q3 GSM_NET status indicator
Blinking at a certain frequency according various GSM net status
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 15 2011-06-22
4. Test Interface
Figure 10: Test interface overview

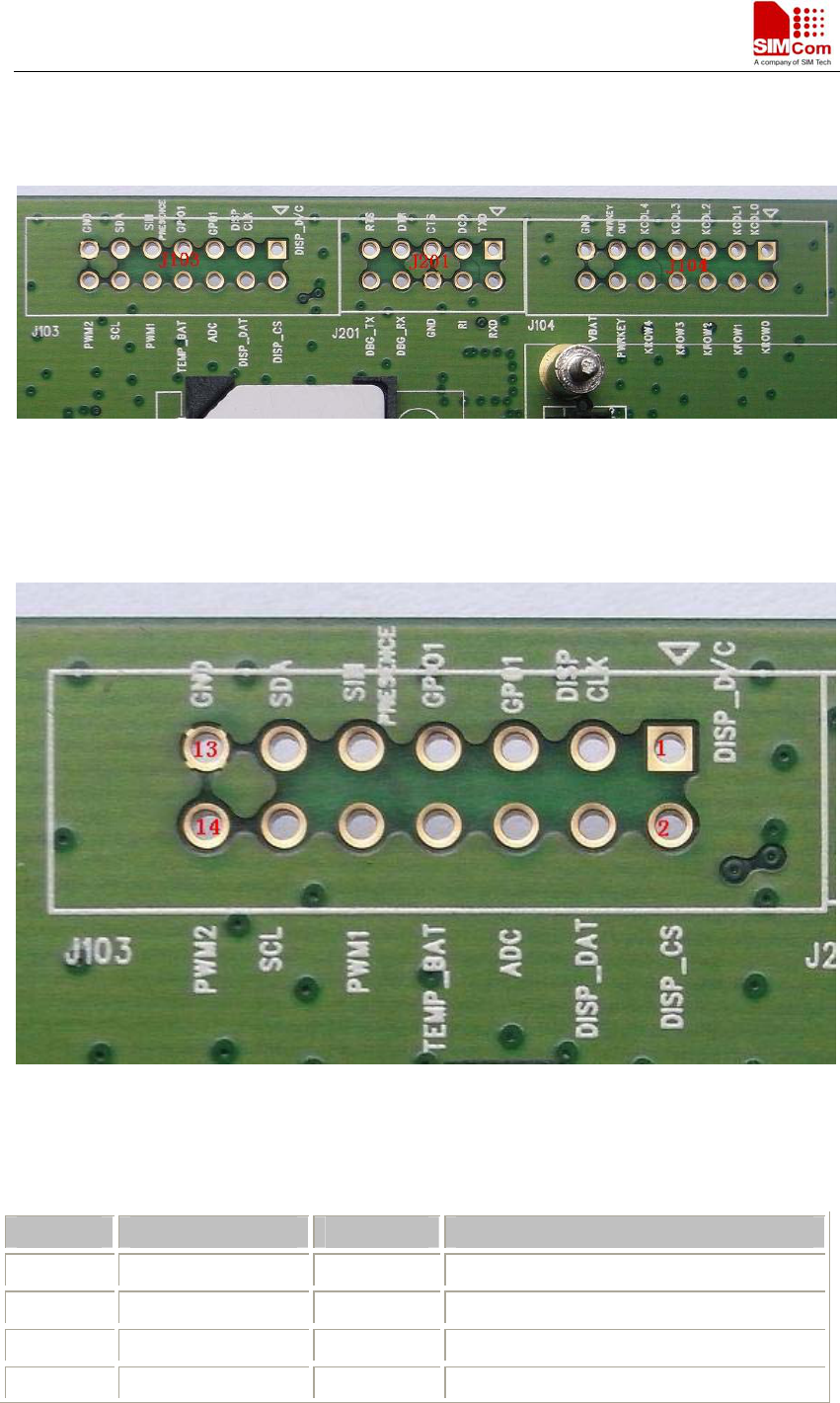

4.1 J103
Figure 11: J103 Interface
J103 Interface Pin List:
Pin Signal I/O Description
1 DISP_D/C O Display data or address select
2 DISP_CS O Display select output
3 DISP_CLK O Display clock output
4 DISP_DAT I/O Display data line
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 16 2011-06-22
5 GPO1 O GPO
6 ADC I ADC IN
7 GPIO1 I/O GPIO
8 TEMP_BAT I ADC input
9 SIMPRESENCE I SIM detect input
10 PWM1 O PWM output
11 SDA I/O I2C BUS DATA
12 SCL O I2C BUS CLOCK
13 GND POWER GND
14 PWM2 O PWM output
4.2 J201
Figure 12: J201 Interface
J201 Interface Pin List:
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 17 2011-06-22
Pin
Signal I/O Description
1 TXD O Transmit data
2 RXD I Receive data
3 DCD O Data carrier detection
4 RI O Ring Indicator
5 CTS O Clear to Send
6 GND GND
7 DTR I Data Terminal Ready
8 DEBUG_RX I Receive data
9 RTS I Request to Send
10 DEBUG_TX O Transmit data
4.3 J104
Figure 13: J104 Interface
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 18 2011-06-22
J104 Interface Pin List:
Pin Signal I/O Description
1 KCOL0
2 KROW0 I
3 KCOL1
4 KROW1
5 KCOL2
6 KROW2
7 KCOL3
8 KROW3
9 KCOL4
10 KROW4
Keypad array interface
11 PWRKEY_OUT O POWER KEY OUT
12 PWRKEY I POWER KEY IN
13 GND POWER GND
14 VBAT POWER POWER
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 19 2011-06-22

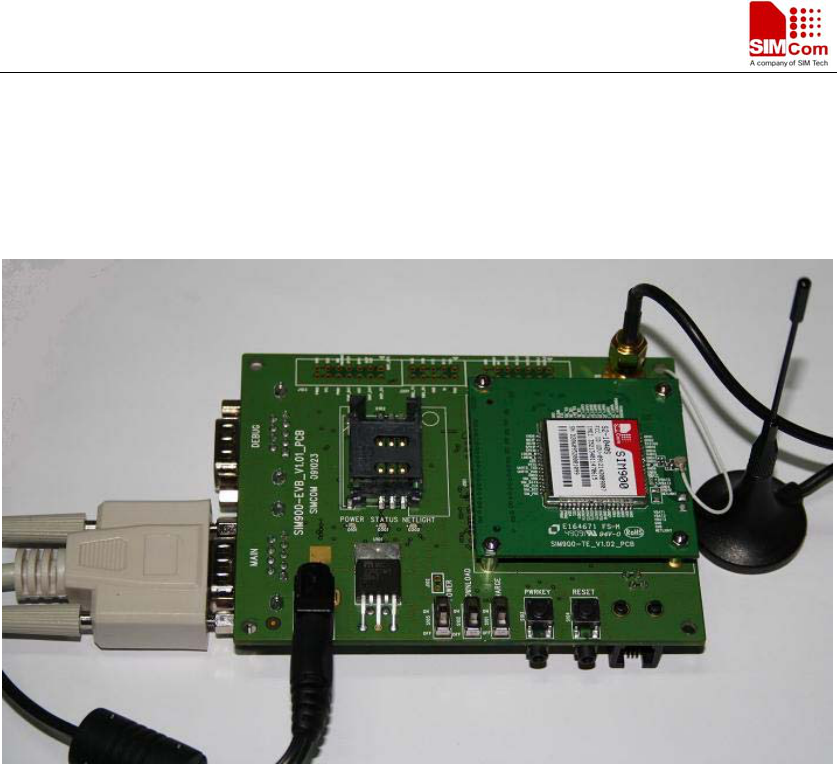

5. EVB and accessory equipment
At normal circumstance, the EVB and its accessory are equipped as the Figure 14.
Figure 14: EVB and accessory equipment
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 20 2011-06-22
6. Illustration:
6.1 Running:
(1) Connect the SIM840W-TE with SIM840W module to the 60pins connector on SIM840W
EVB, inserting 5V direct current source adapter, switching the S101,S102 switch on off
state, S105 switch on ON state;
(2) Press the PWRKEY for about 1 second, and then SIM840W module begins running.
You can see the light Q3 on the EVB flashing at a certain frequency. By the state, you can
judge whether the EVB and SIM840W can run or not. No function and test can be executed
when we have not connected necessary accessories.
6.2 Connecting Net and calling
(1) connect the serial port line to the MAIN serial port, open the HyperTerminal(AT
command windows) on your Personal computer, the location of the HyperTerminal in
windows2000 is START→accessory→communication→HyperTerminal. Set correct
Baud Rate and COM number. The Baud Rate of SIM840W is 115200, and the COM
number based on which USB port your serial port line insert in, you should select such
as COM3 or COM4 etc.
(2) Connect the antenna to the SIM840W-TE with SIM840W module using an antenna
transmit line, insert SIM card into the SIM card interface, insert headphones or headset
into its interface.
(3) Act on the step of running which mentioned above, power on the system, typing the
AT command in the HyperTerminal, and then the SIM840W module will execute its
corresponding function.
6.3 Downloading
Connect the serial port line to the MAIN serial port, connect the direct current source
adapter, run the download program and press the START key, then switch the S105 switch on ON
state, S102 switch on ON state, then EVB provide the function of downloading.
6.4 Turns off
Turn off SIM840W module: press the PWRKEY for about 2 second, SIM840W module will
be turned off.
SIM840W EVB User Guide
SIM840W-EVB_UGD_V1.00 21 2011-06-22
Contact us:
Shanghai SIMCom Wireless Solutions Ltd.
Add: SIM Technology Building，No.633，Jinzhong Road，Changning District，
Shanghai P.R. China 200335
Tel: +86 21 3235 3300
Fax: +86 21 3235 3301
URL: www.sim.com/wm

Navigation menu
