Simcom 201314 GSM/GPRS(850/900/1800/1900MHz)+BT Wireless Data Module User Manual SIM800 ver2

Shanghai Simcom Ltd. GSM/GPRS(850/900/1800/1900MHz)+BT Wireless Data Module SIM800 ver2

SIM800 User Manual-ver2

SIM800 Document
- 1 -
SIM800 User Manual
1. SIM800 Description
1.1. Summarize
SIM800 designed by SIMCom is a quad band module which supports GSM/GPRS. The baseband circuit is
based on MTK and RF circuit is based on RFMD. It works at quad bands------GSM850, EGSM900, DCS1800,
and PCS1900. CPU clock is based on 26MHz crystal. The main IC includes MT6260D and RF7196.
1.2. Feature
● Quad-Band 850/900/1800/1900MHz
● GPRS multi-slot class 12
● GPRS mobile station class B
● Bluetooth output power class 1
● Bluetooth v3.0 with data rates 3.0Mbps
● Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900 MHz)
– Class 1 (1 W @ 1800/1900MHz)
● Dimensions: 24*24*3 mm
● Weight: 3.14 g
● Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
● Supply voltage range 3.6~4.2 V
● Low power consumption
● Operation temperature:-30~80℃
● 68 SMT pads include
– Interface to external SIM 3V/1.8V
– Analog audio interface
– RTC backup
– Serial interface
– USB interface
– Keypad interface
– LCD interface
– Antenna pad
– PCM
– GPIO
– ADC
SIM800 Document
- 2 -
1.3. Pin
COL1/GPIO9
ROW1/GPIO4
ROW2/GPIO3
ROW3/GPIO2
ROW4/GPIO1
GND
SCL
COL0/GPIO10
PCM_CLK
GND
68
67
66
52
57
51
59
3
4
ROW0/GPIO5
GND
GND
COL4/GPIO6
COL3/GPIO7
COL2/GPIO8
46
45
9
10
11
12
13
14
15
16
RTS
5
6
7
8
58
65
64
63
62
17
PWRKEY
GND
DTR
RI
DCD
PCM_OUT
CTS
1
2
50
49
48
47
44
43
42
41
40
39
38
37
36
35
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
TXD
RXD
GPIO17
PCM_IN
GPIO19
PCM_SYNC
VDD_EXT
RESET
GND
MIC_P
MIC_N
SPK_P
SPK_N
KPLED
VBUS
ADC
VRTC
USB_DP
USB_DM
GND
SIM_VDD
SIM_DATA
SIM_CLK
SIM_RST
SIM_PRESENCE
SDA
PWM2/GPIO23
PWM1/GPIO22
RF_SYNC
STATUS
GND
GND
GND
GND
GND
RF_ANT
NETLIGHT
GND
GND
VBAT
VBAT
SIM800
(顶视图)
VBAT
GND
ANT_BT
53
56
55
54
61
60
SIM800 Document
- 3 -
1.4. Picture

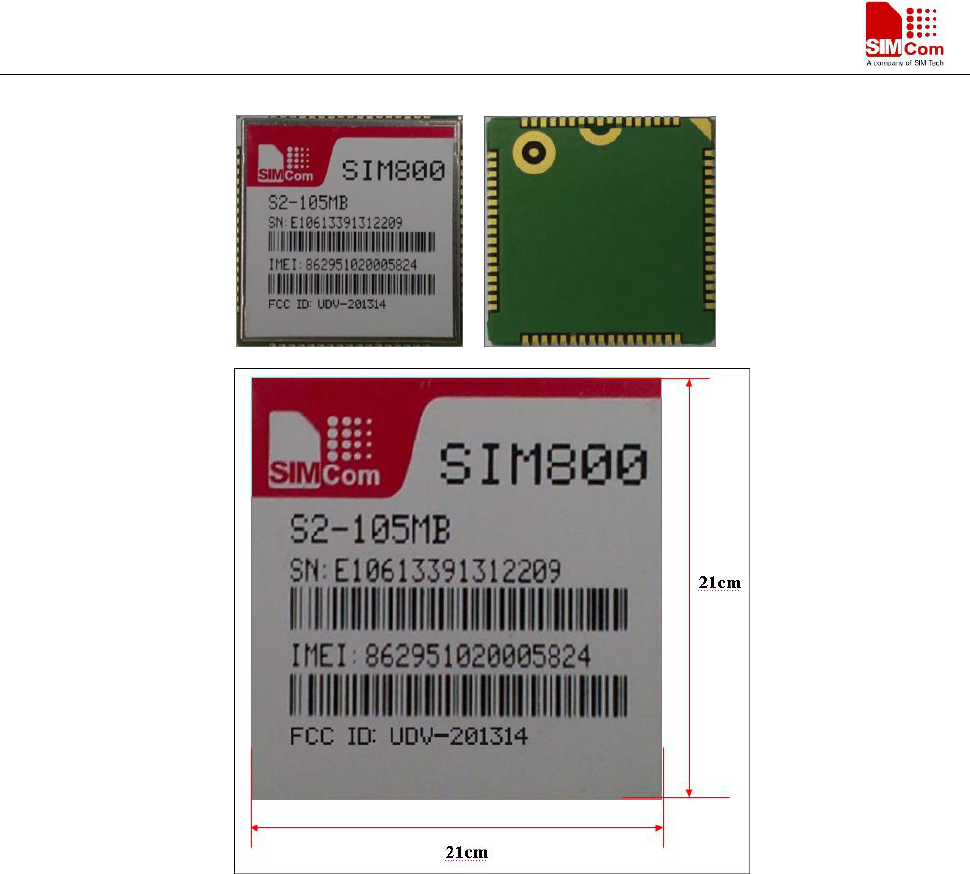

Figure 1: Top and Bottom view of SIM800
SIM800 Document
- 4 -
1.5. Dimension

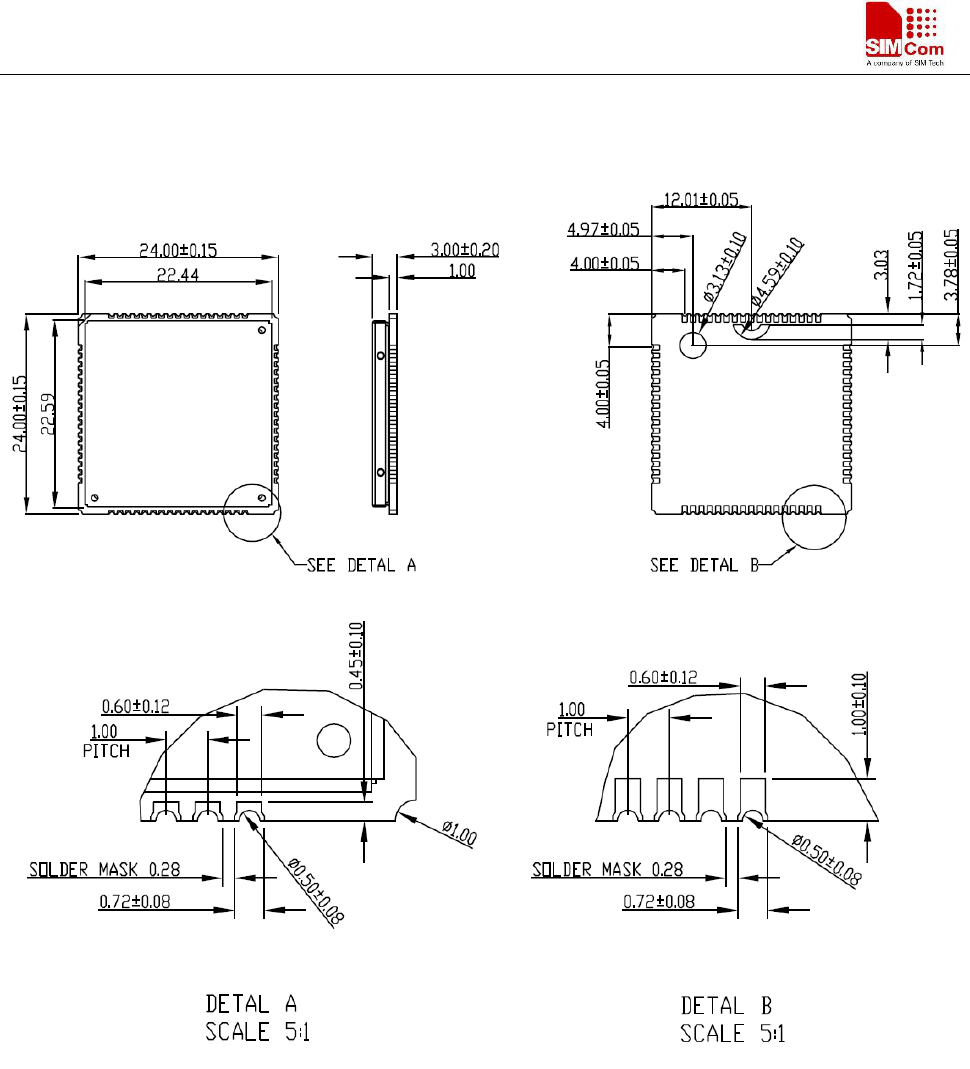

Figure 2: Dimention
SIM800 Document
- 5 -
2. Detail Block Diagram

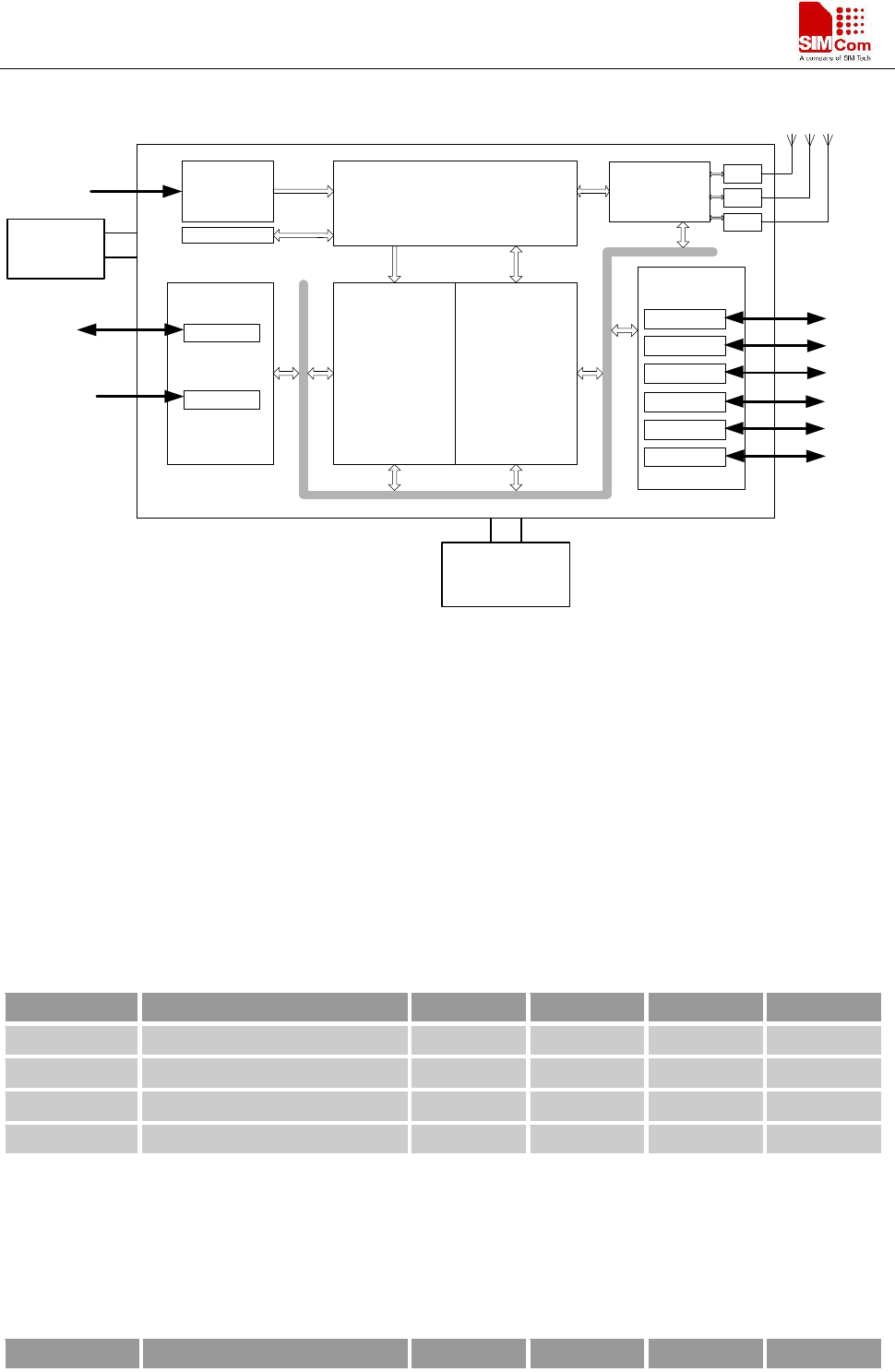

Figure 3: Block diagram of SIM800
3. Electrical and Reliability Characteristics
3.1. Absolute Maximum Ratings
The absolute maximum ratings stated in following table are stress ratings under non-operating conditions. Stresses
beyond any of these limits will cause permanent damage to SIM800.
Table 1: Absolute maximum ratings
Symbol
Parameter
Min
Typ
Max
Unit
VBAT
Power supply voltage
-
-
4.5
V
VBUS
-
-
30
V
VBUS
II*
Input current
-
-
8
mA
IO*
Output current
-
-
8
mA
*These parameters are for digital interface pins, such as keypad, GPIO, I2C, UART, LCD and DEBUG.
3.2. Digital Interface Characteristics
Table 2: Digital interface characteristics
Symbol
Parameter
Min
Typ
Max
Unit
SIM800 Document
- 6 -
IIH
High-level input current
2.1
-
3.1
V
IIL
Low-level input current
-0.3
-
0.7
V
VOH
High-level input voltage
2.4
-
-
V
VOL
Low-level input voltage
-
-
0.4
V
* These parameters are for digital interface pins, such as keypad, GPIO, I2C, UART, LCD, PWMs and DEBUG.
3.3. SIM Card Interface Characteristics
Table 3: SIM card interface characteristics
Symbol
Parameter
Min
Typ
Max
Unit
IIH
High-level input current
-1
-
1
uA
IIL
Low-level input current
-1
-
1
uA
VIH
High-level input voltage
1.4
-
-
V
2.4
-
-
V
VIL
Low-level input voltage
-
-
0.27
V
0.4
V
VOH
High-level output voltage
1.62
-
-
V
2.7
-
-
V
VOL
Low-level output voltage
-
-
0.36
V
-
-
0.4
V
3.4. SIM_VDD Characteristics
Table 4: SIM_VDD characteristics
Symbol
Parameter
Min
Typ
Max
Unit
VO
Output voltage
2.70
2.80
2.90
V
IO
Output current
-
-
50
mA
3.5. VRTC Characteristics
Table 5: VRTC characteristics
Symbol
Parameter
Min
Typ
Max
Unit
VRTC-IN
VRTC input voltage
2.8
V
IRTC-IN
VRTC input current
-
3
-
uA
VRTC-OUT
VRTC output voltage
-
2.8
-
V
IRTC-OUT
VRTC output current
-
2
mA
SIM800 Document
- 7 -
3.6. Current Consumption (VBAT = 3.8V)
Table 6: Current consumption
Symbol
Parameter
Conditions
Value
Unit
IVRTC
VRTC current
VBAT disconnects. Backup battery is 3 V
2
uA
IVBAT
VBAT current
Power down mode
50
uA
Sleep mode
BS-PA-MFRMS=9
1.0
mA
BS-PA-MFRMS=5
1.2
BS-PA-MFRMS=2
1.8
Idle mode
GSM 850
19
mA
EGSM 900
DCS 1800
PCS 1900
Voice call
GSM 850
EGSM 900
PCL=5
250
mA
PCL=12
110
PCL=19
76
DCS 1800
PCS 1900
PCL=0
168
PCL=7
89
PCL=15
76
Data mode
GPRS(1Rx,1Tx)
GSM 850
EGSM 900
PCL=5
240
mA
PCL=12
110
PCL=19
83
DCS 1800
PCS 1900
PCL=0
170
mA
PCL=7
95
PCL=15
80
Data mode
GPRS(4Rx,1Tx)
GSM 850
EGSM 900
PCL=5
270
mA
PCL=12
150
PCL=19
120
DCS 1800
PCS 1900
PCL=0
205
mA
PCL=7
130
PCL=15
115
Data mode
GPRS(3Rx,2Tx)
GSM 850
EGSM 900
PCL=5
440
mA
PCL=12
185
PCL=19
130
DCS 1800
PCS 1900
PCL=0
300
mA
PCL=7
155
PCL=15
122
SIM800 Document
- 8 -
IVBAT-peak
Peak current
During Tx burst
2
A
3.7. Electro-Static Discharge
SIM800 is an ESD sensitive component, so more attention should be paid to the procedure of handling and
packaging. The ESD test results are shown in the following table.
Table 7: The ESD characteristics (Temperature: 25℃, Humidity: 45 %)
Pin
Contact discharge
Air discharge
VBAT
±6KV
±12KV
GND
±6KV
±12KV
RXD, TXD
±2KV
±8KV
Antenna port
±5KV
±10KV
SPK_P/SPK_N/MIC_P/MIC_N
±2KV
±5KV
PWRKEY
±2KV
±8KV
4. Radio Characteristics
4.1. Module RF Output Power
The following table shows the module conducted output power, it is followed by the 3GPP TS 05.05 technical
specification requirement.
Table 8: SIM800 GSM 900 and GSM 850 conducted RF output power
GSM850、EGSM900
PCL
Nominal output power (dBm)
Tolerance (dB) for conditions
Normal
Extreme
5
33
±2
±2.5
6
31
±3
±4
7
29
±3
±4
8
27
±3
±4
9
25
±3
±4
10
23
±3
±4
11
21
±3
±4
12
19
±3
±4
13
17
±3
±4
SIM800 Document
- 9 -
14
15
±3
±4
15
13
±3
±4
16
11
±5
±6
17
9
±5
±6
18
7
±5
±6
19-31
5
±5
±6
Table 9: SIM800 DCS 1800 and PCS 1900 conducted RF output power
DCS1800、PCS1900
PCL
Nominal output power (dBm)
Tolerance (dB) for conditions
Normal
Extreme
0
30
±1
±1.5
1
28
±2
±3
2
26
±3
±4
3
24
±3
±4
4
22
±3
±4
5
20
±3
±4
6
18
±3
±4
7
16
±3
±4
8
14
±3
±4
9
12
±4
±5
10
10
±4
±5
11
8
±4
±5
12
6
±4
±5
13
4
±4
±5
14
2
±5
±6
15
0
±5
±6
For the module’s output power, the following is should be noted:
At GSM900 and GSM850 band, the module is a class 4 device, so the module’s output power should not exceed
33dBm, and at the maximum power level, the output power tolerance should not exceed +/-2dB under normal
condition and +/-2.5dB under extreme condition.
At DCS1800 and PCS1900 band, the module is a class 1 device, so the module’s output power should not exceed
30dBm, and at the maximum power level, the output power tolerance should not exceed +/-1dB under normal
condition and +/-1.5dB under extreme condition.
SIM800 Document
- 10 -
4.2. Module RF Receive Sensitivity
The following table shows the module’s conducted receive sensitivity, it is tested under static condition.
Table 10: SIM800 conducted RF receive sensitivity
Frequency
Receive sensitivity（Typical）
Receive sensitivity(Max)
GSM850
-108dBm
-106dBm
EGSM900
-108dBm
-106dBm
DCS1800
-108dBm
-106dBm
PCS1900
-108dBm
-106dBm
4.3. Module Operating Frequencies
The following table shows the module’s operating frequency range; it is followed by the 3GPP TS 05.05 technical
specification requirement.
Table 11: SIM800 operating frequencies
Frequency
Receive
Transmit
GSM850
869 ~ 894MHz
824 ~ 849 MHz
EGSM900
925 ~ 960MHz
880 ~ 915MHz
DCS1800
1805 ~ 1880MHz
1710 ~ 1785MHz
PCS1900
1930 ~ 1990MHz
1850 ~ 1910MHz
5. Antenna interface
There are three antenna ports for SIM800, GSM antenna port named RF_ANT, Bluetooth antenna port named
BT_ANT, The RF interface of the three antenna ports has an impedance of 50Ω.The maximum gain of the
antenna gain should not exceed 3dbi considering the SAR radio.
The input impendence of the antenna should be 50Ω, and the VSWR should be less than 2.
It is recommended that the GSM antenna and the BT antenna be placed as far as better.
The isolations of the three antenna should be bigger than 30db
5.1 GSM Antenna Interface
There is a GSM antenna pad named RF_ANT for SIM800 the connection of the antenna must be decoupled
from DC voltage. This is necessary because the antenna connector is DC coupled to ground via an inductor for
ESD protection.
The external antenna must be matched properly to achieve best performance, so the matching circuit is
necessary, the connection is recommended as following:
SIM800 Document
- 11 -
GND
Module
RF_ANT
GND
R101
C101 C102
RF Connector GSM
Antenna

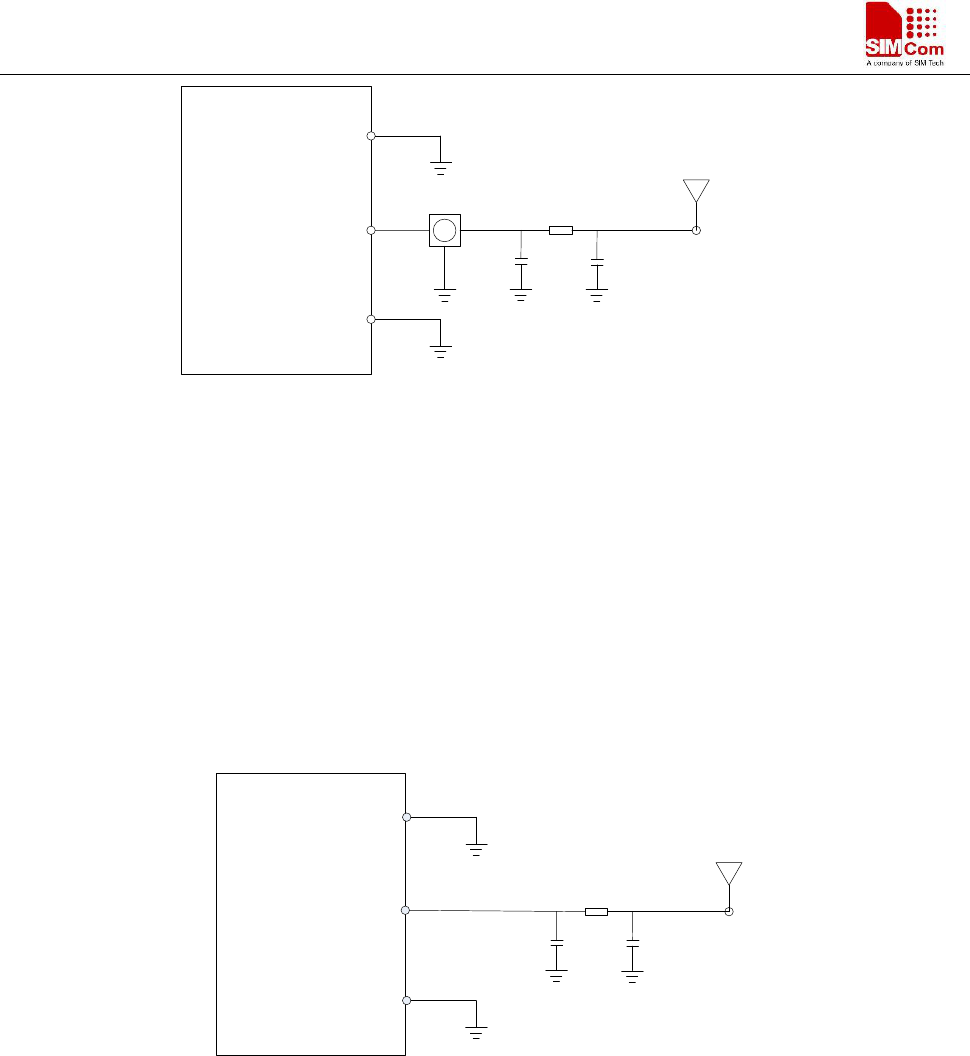

Figure1: GSM antenna matching circuit
R101，C101，C102 are the matching circuit, the value should be defined by the antenna design. normally R101
is 0Ω, C101 和C102 are not SMD. The RF connector is used for conducted
5.2 Bluetooth antenna interface
The module provides a Bluetooth antenna interface named BT_ANT.
The external antenna must be matched properly to achieve best performance, so the matching circuit is
necessary, the connection is recommended as following figure:
GND
Module
BT_ANT
GND
R201
C201 C202
BT
Antenna
Figure 5: BT antenna matching circuit
R201，C201，C202 are the matching circuit, the value should be defined by the antenna design. R201 is
recommended as 1.2NH and C202 is 1.5pF, C201 are not SMD.
There are some suggestions to components placing and lying for GSM and Bluetooth RF traces:
The RF connector is used for conducted test, so keep it as close as pin RF_ANT;
Antenna matching circuit should be closed to the antenna;
Keep the RF traces as 50Ω；
The RF traces should be kept far away from the high frequency signals and strong disturbing source.
SIM800 Document
- 12 -
5.3.1 GSM antenna
Model GSM antenna: WT-C&G-28-90
Frequency Range (MHz) 824 ~ 960 1710 ~ 1990
VSWR ≤1.5 (900MHz) ≤2 (1800MHz)
Gain (dBi): 3dBi (850MHz); 2dBi(1900MHz)
Input Impedance (Ω): 50
Polarization Type: Vertical
Connector Type: SMA

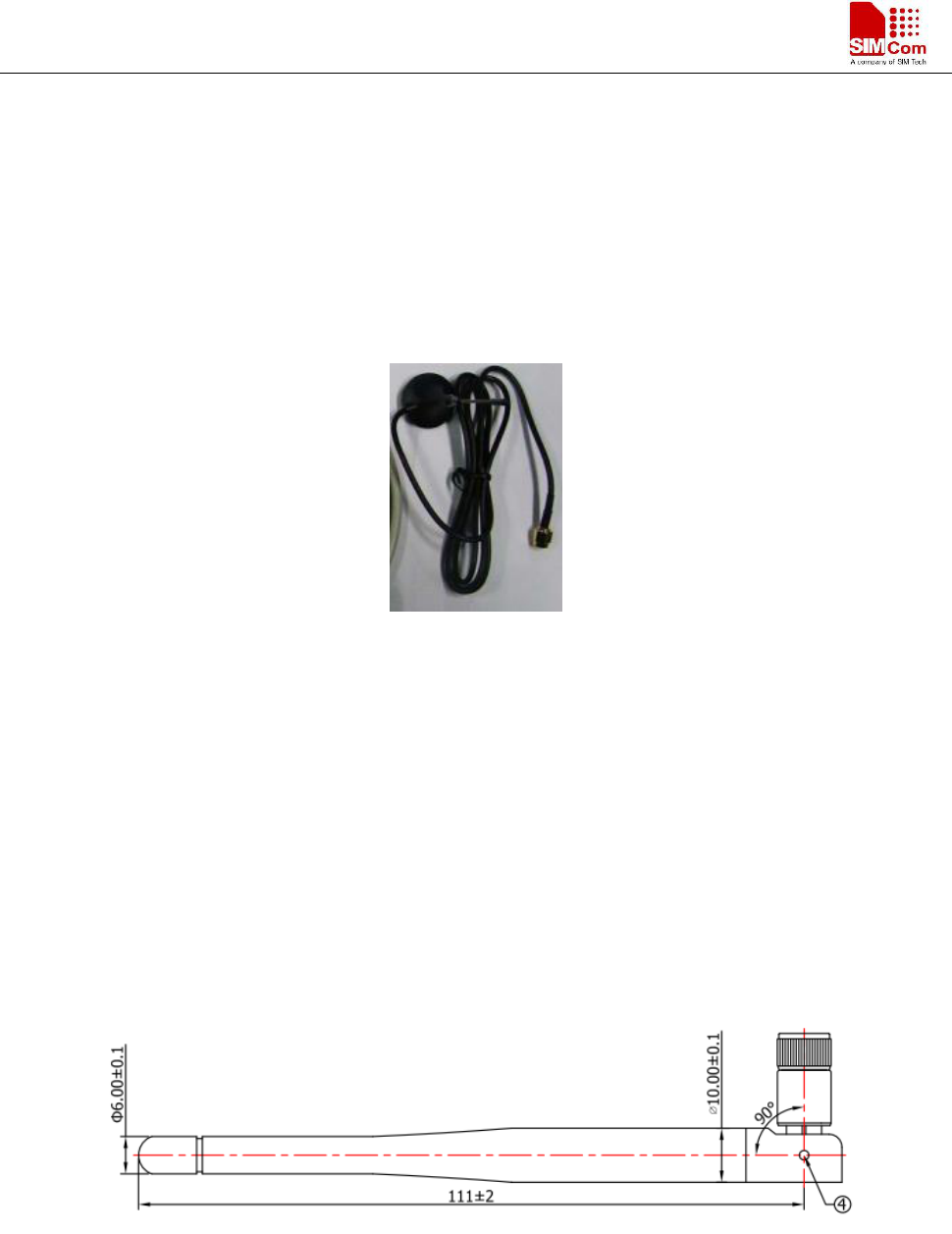

Figure 6 GSM antenna
5.3.2 Bluetooth antenna
1. Frequency Range: 2.4 GHz ~2.5GHz &5.15 GHz ~5.825 GHz
2. Impedance: 50 Ohms nominal
3. VSWR: ≦1.92
4. Gain: 2.0dBi
5. Admitted power radiation: 1W
6. Radiation: Omni
7. Polarization: Vertical
8. Connector Type: SMA P/S
Figure 7 Bluetooth antenna
For mobile and fixed operating configurations the antenna gain, including cable loss, must not exceed 2 dBi at
1900 MHz and 3 dBi at 850 MHz as defined in 2.1091 for satisfying RF exposure compliance. Under no condition
may an antenna gain be used that would exceed the 7W erp Part 22 and the 2W eirp Part 24 power limits.
SIM800 Document
- 13 -
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1)This device may not cause harmful interference, and (2) this device must
accept any interference received,including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant toPart 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
Compliancecould void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
RF Exposure Compliance
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.The antenna(s) used for this transmitter must be installed to provide a separation distance of at
least20 cm from all persons and must not be co-located or operating in conjunction with any other antenna
orTransmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is stillresponsible for testing their end-product for any additional compliance requirements
required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be usedon the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product(including the transmitter) and obtaining
a separate FCC authorization.
SIM800 Document
- 14 -
End Product Labeling:
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may bemaintained between the antenna and users. The final end product must be labeled in a
visible area with the following: “Contains
FCC ID:UDV-201314. The grantee's FCC ID can be used only when all FCC compliance requirements
are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.

Navigation menu
