Simoco Wireless Solutions SRM9000UW UHF Mobile Tranceiver User Manual service manual

Simoco Australasia Pty Ltd UHF Mobile Tranceiver service manual

UserManual.wiki >

Simoco Wireless Solutions >

SRM9000UW User Manual >

service manual HTML Version

service manual

SRM 9000 Series

FM VHF/UHF Mobile

Radio Transceiver

Revision 9 Hardware

SERVICE MANUAL

TNM-M-E-0002

ISSUE 1.0

May 2006

ISO9001 Lic.QEC20848

SAI Global

SRM9000 Series Mobile Radio Transceiver Rev 9 Hardware TNM-M-E-0002 ~ Iss 1.0

SRM9000 SERIES SERVICE MANUAL

TABLE OF CONTENTS

APPENDICES........................................................................................................................................ III

DECLARATION.....................................................................................................................................IV

COPYRIGHT .........................................................................................................................................IV

ERRORS AND OMISSIONS..................................................................................................................IV

DOCUMENT HISTORY ..........................................................................................................................V

LIST OF ASSOCIATED PUBLICATIONS ..............................................................................................V

WARNINGS AND CAUTIONS...............................................................................................................VI

1. INTRODUCTION .......................................................................................................................... 1

1.1 GENERAL................................................................................................................................... 1

1.2 SCOPE ...................................................................................................................................... 1

1.3 DESCRIPTION ............................................................................................................................. 1

1.4 PRODUCT VARIANTS AND FACILITIES ............................................................................................ 2

1.5 SOFTWARE VERSIONS AND NAMING .............................................................................................. 5

1.5.1 Filename Structure........................................................................................................... 5

1.5.2 Application Code.............................................................................................................. 5

1.5.3 Software Type Code......................................................................................................... 5

1.5.4 Version Number............................................................................................................... 7

1.5.5 Exclusions........................................................................................................................ 7

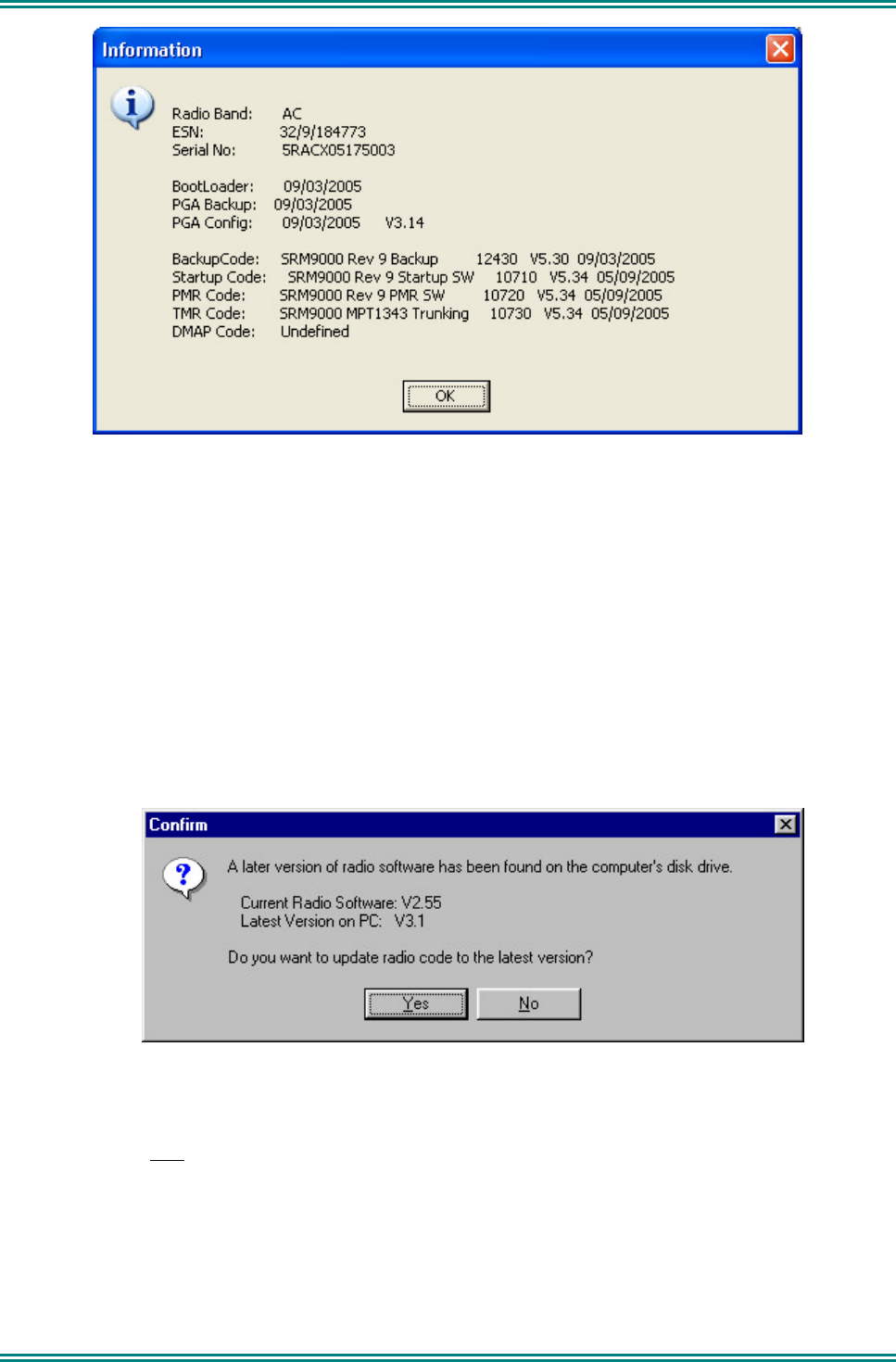

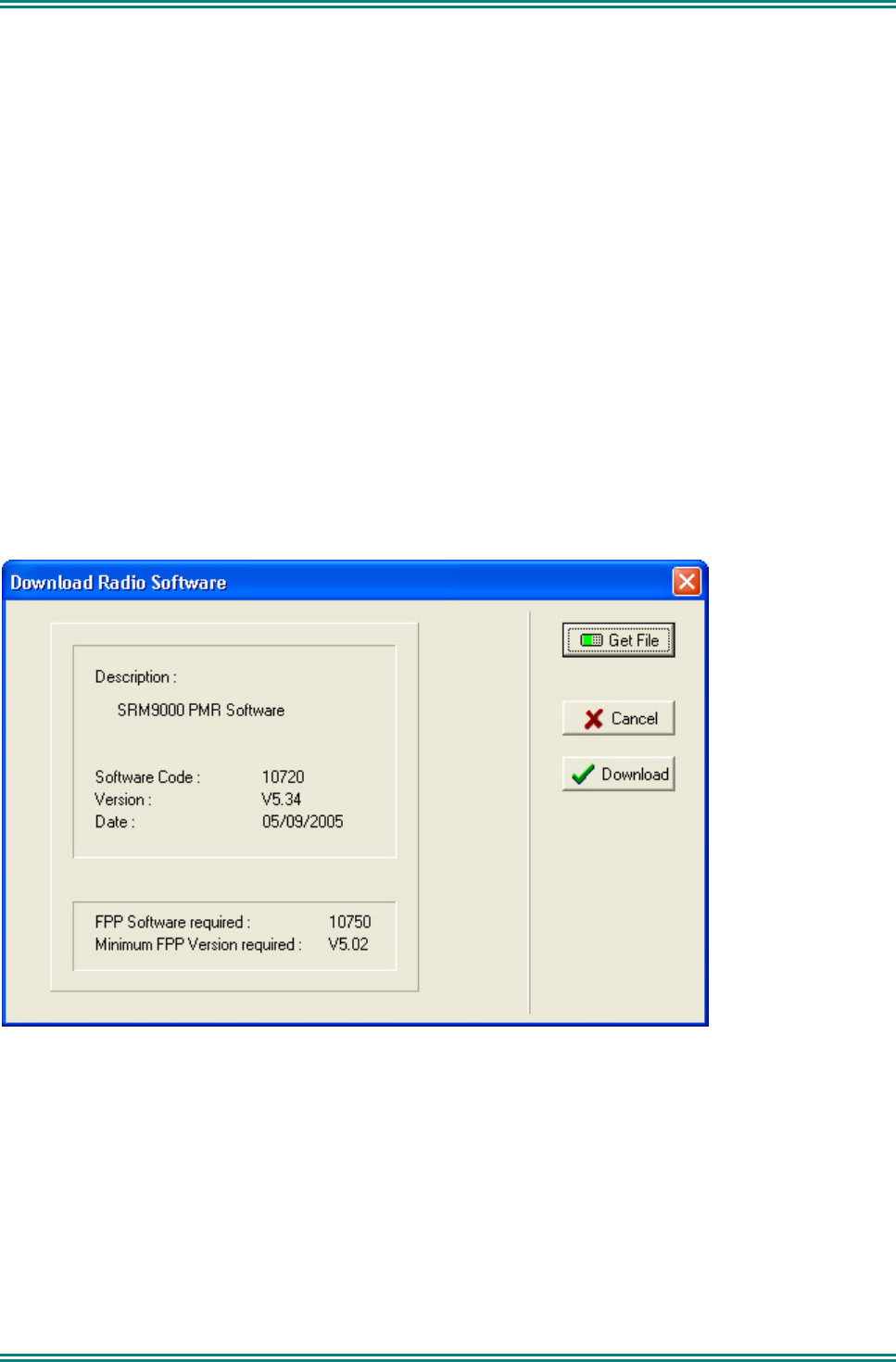

1.5.6 Displaying Software Versions........................................................................................... 7

1.5.7 Automatic Version Upgrade Prompting............................................................................. 8

1.5.8 Transceiver SW Description, Start-up and Backup-Software............................................ 9

1.5.9 Wailing Siren (Boot-up Software Corrupted)..................................................................... 9

1.6 ADJUSTMENT AND ALIGNMENT ..................................................................................................... 9

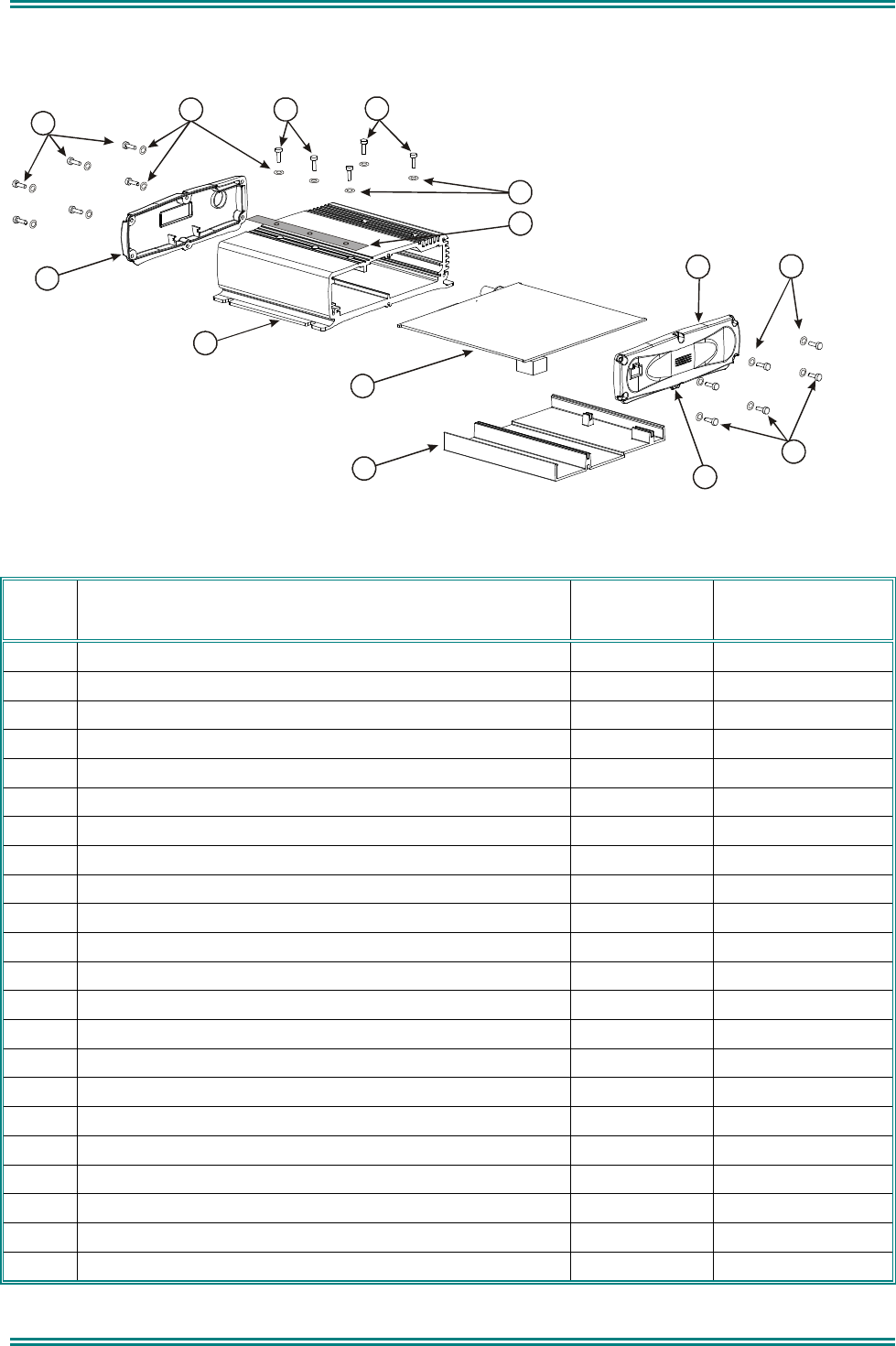

1.7 CHASSIS ASSEMBLY ................................................................................................................. 10

1.7.1 Torque Settings.............................................................................................................. 10

1.7.2 Thermal Compound Application ..................................................................................... 10

1.7.3 Assembly ....................................................................................................................... 10

1.8 SPECIFICATION......................................................................................................................... 10

1.8.1 General.......................................................................................................................... 10

1.8.2 Transmitter..................................................................................................................... 12

1.8.3 Receiver ........................................................................................................................ 13

1.8.4 Signalling....................................................................................................................... 14

1.8.4.1 CTCSS............................................................................................................... 14

1.8.4.2 FFSK.................................................................................................................. 15

1.8.4.3 Selcall ................................................................................................................ 15

1.8.4.4 DTMF................................................................................................................. 17

1.8.4.5 DCS ................................................................................................................... 18

1.8.4.6 C4FM ................................................................................................................. 18

1.8.5 Environmental................................................................................................................ 19

2. SERVICE PHILOSOPHY ............................................................................................................ 20

2.1 SERVICE CONCEPT ................................................................................................................... 20

2.2 WARRANTY.............................................................................................................................. 20

2.2.1 Service Within and Out Of Warranty.............................................................................. 20

2.2.2 Ancillary Items ............................................................................................................... 20

2.3 SOFTWARE POLICY................................................................................................................... 20

SRM9000 SERIES SERVICE MANUAL

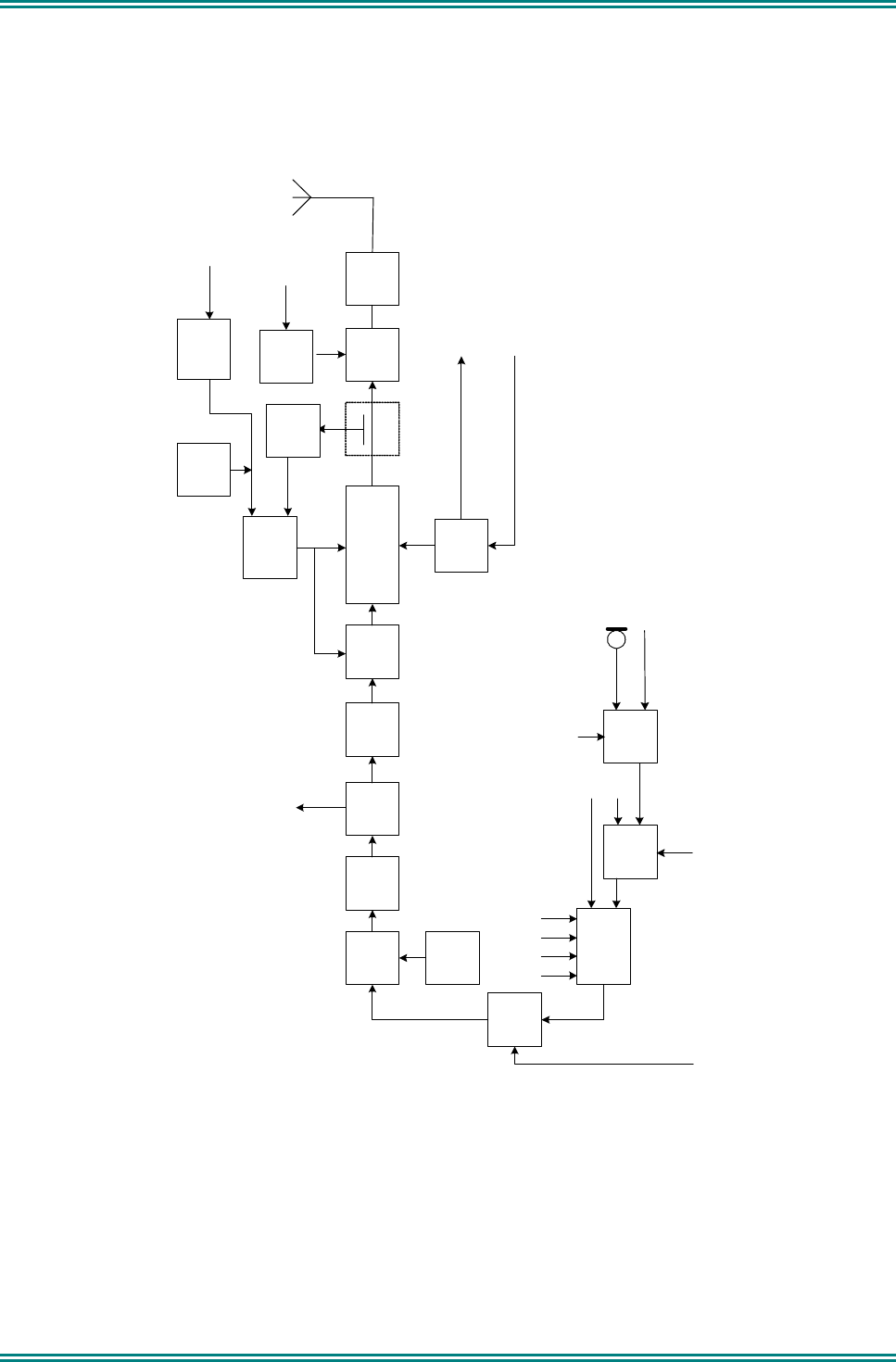

3. TECHNICAL DESCRIPTION...................................................................................................... 22

3.1 RECEIVER................................................................................................................................ 22

3.1.1 Front End Filters and RF Amplifier................................................................................. 22

3.1.2 First Mixer and IF Section .............................................................................................. 22

3.1.3 Quadrature Demodulator................................................................................................ 22

3.1.4 Receiver Audio Processing ............................................................................................ 24

3.2 TRANSMITTER .......................................................................................................................... 25

3.2.1 Drivers and PA Stages................................................................................................... 25

3.2.2 Power Control ................................................................................................................ 25

3.2.3 Antenna Changeover and Harmonic Filter...................................................................... 25

3.2.4 Transmitter Audio Processing......................................................................................... 25

3.3 FREQUENCY SYNTHESISER ........................................................................................................ 26

3.3.1 General.......................................................................................................................... 26

3.3.2 PLL ................................................................................................................................ 27

3.3.3 VCO’s ............................................................................................................................ 27

3.3.4 Negative Bias Generator and Loop Filter........................................................................ 27

3.3.5 Phase Modulator............................................................................................................ 27

3.3.6 Reference Oscillator....................................................................................................... 28

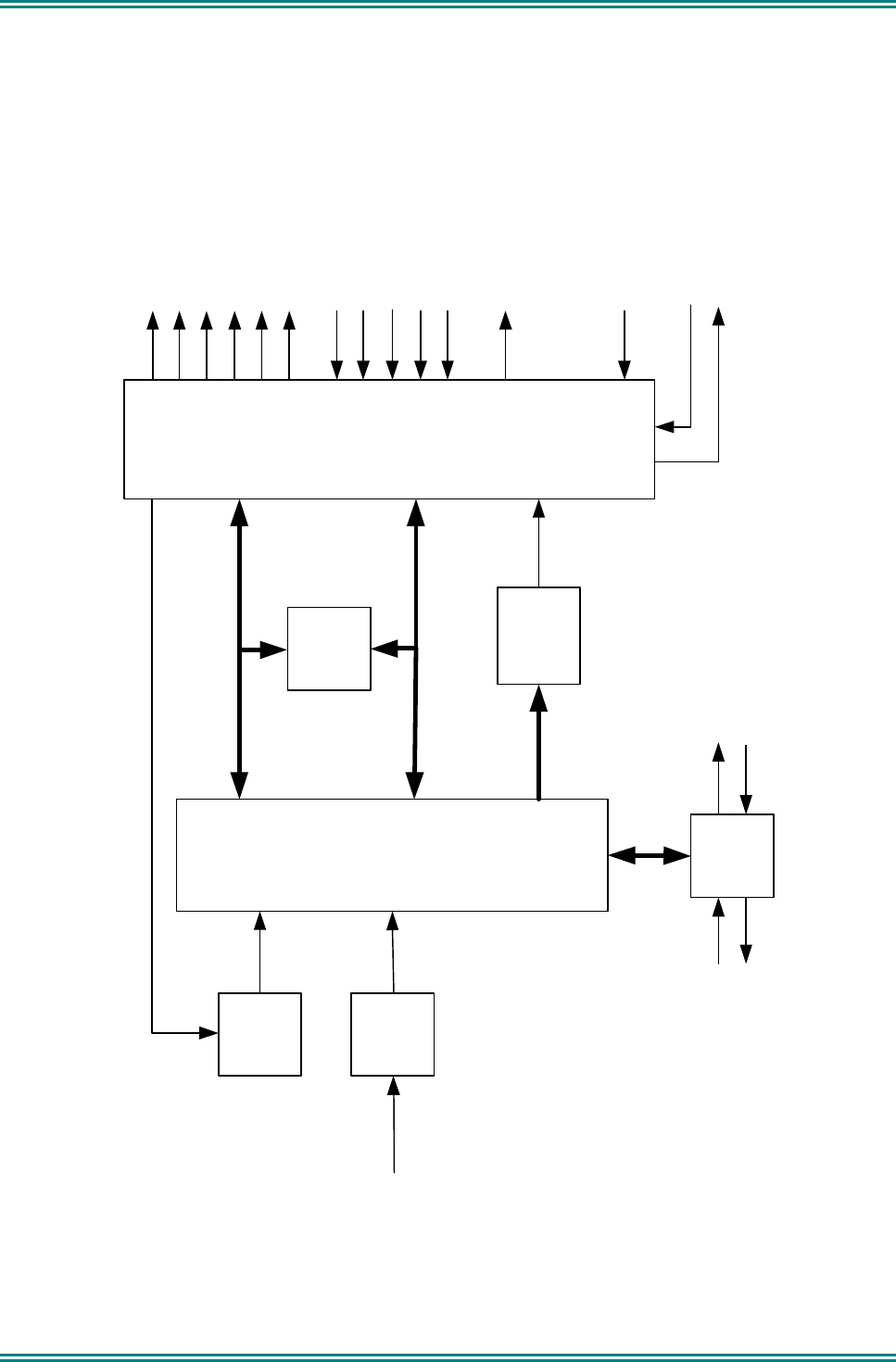

3.4 CONTROL ................................................................................................................................ 28

3.4.1 DSP and PLA................................................................................................................. 28

3.4.2 DSP Clock Oscillator...................................................................................................... 29

3.4.3 PLA PWM...................................................................................................................... 29

3.5 MEMORY ................................................................................................................................. 29

3.6 POWER SUPPLIES ..................................................................................................................... 31

3.6.1 Power On Function ........................................................................................................ 31

3.6.2 Power Supplies.............................................................................................................. 31

3.6.2.1 8V Regulator U900 ............................................................................................. 31

3.6.2.2 5V Regulator U901 ............................................................................................. 31

3.6.2.3 3.3V Regulator U912 .......................................................................................... 32

3.6.2.4 2.5V Regulator U903 .......................................................................................... 32

3.6.2.5 Negative Power Supply U904E/F........................................................................ 32

3.6.2.6 Unswitched Battery (13V8_UNSW_F)................................................................. 32

4. ALIGNMENT (LEVEL 3 SERVICE ONLY).................................................................................. 33

4.1 TEST EQUIPMENT ..................................................................................................................... 33

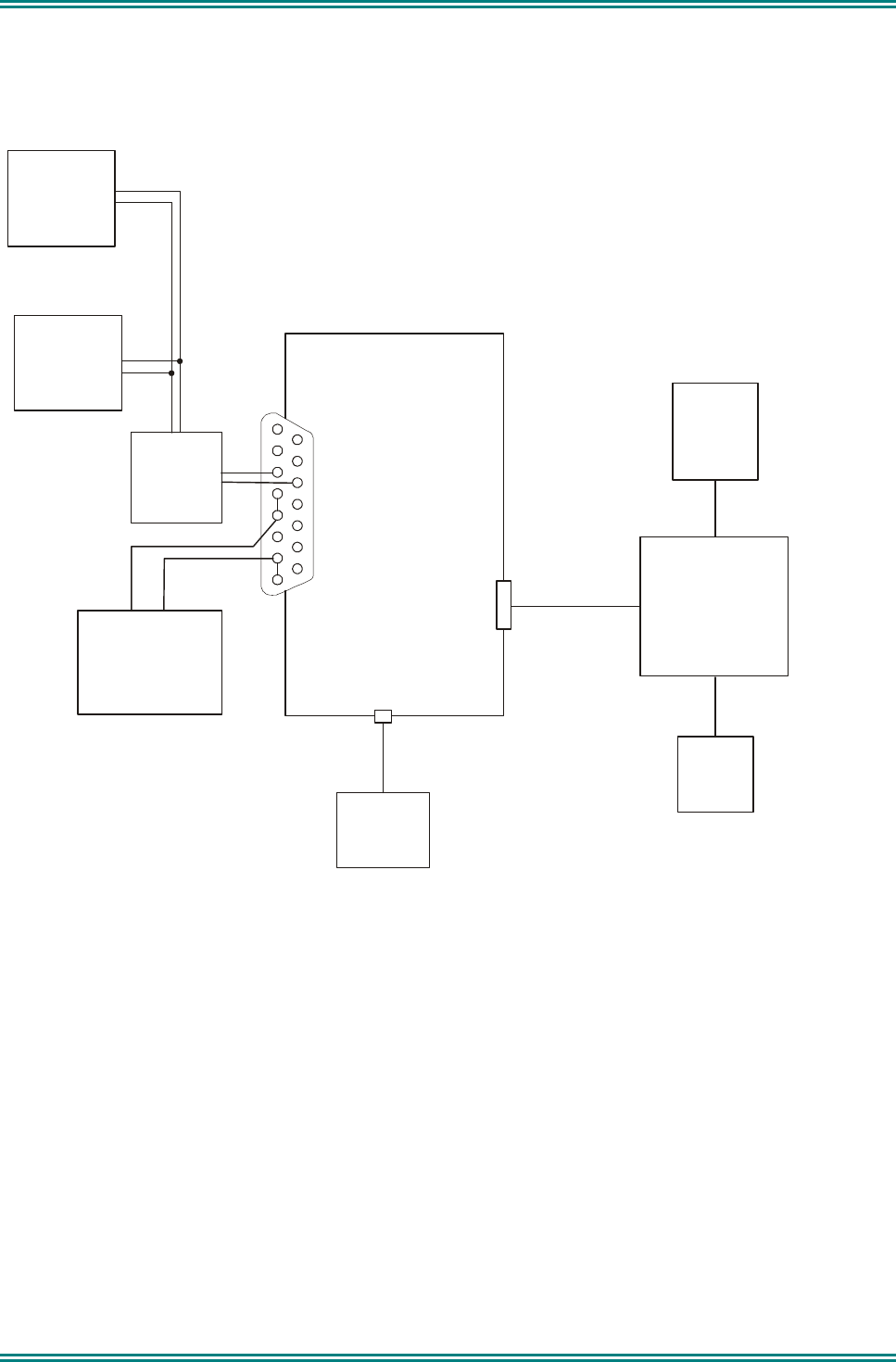

4.2 TEST SET-UP ........................................................................................................................... 35

4.2.1 COMMS Set up.............................................................................................................. 36

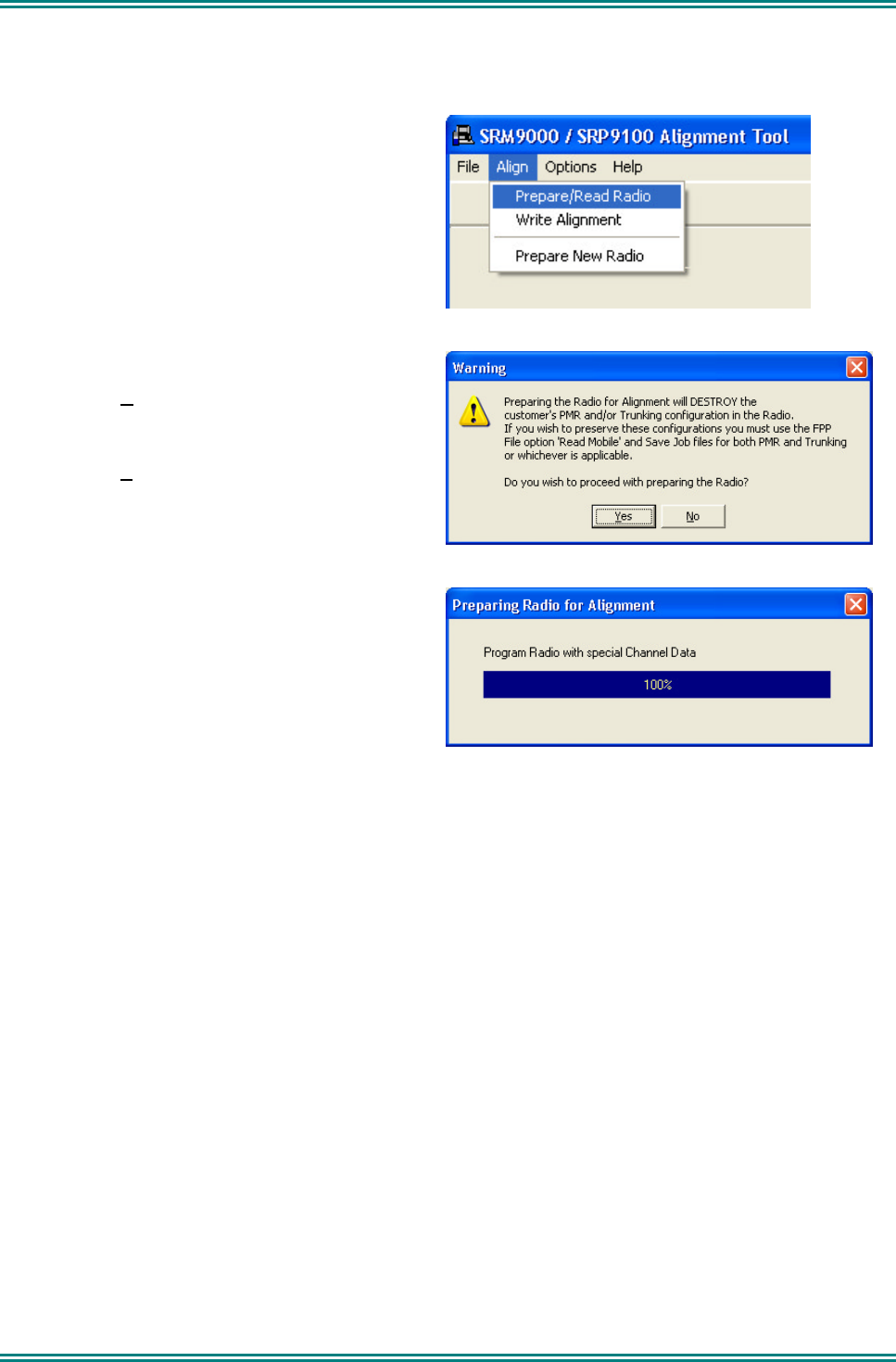

4.2.2 Radio Preparation .......................................................................................................... 37

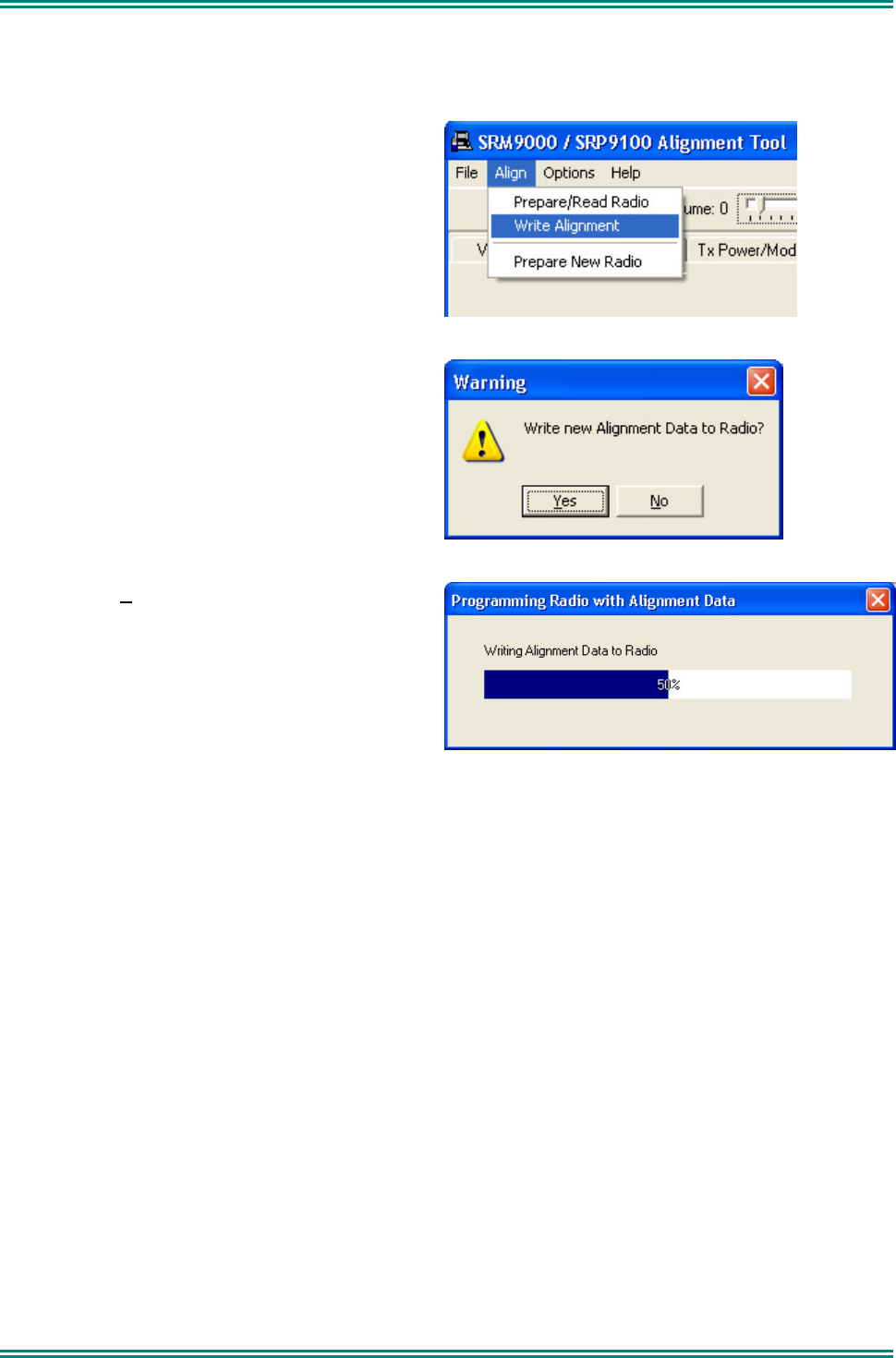

4.2.3 Alignment Procedure...................................................................................................... 38

4.2.3.1 VCO DAC Alignment .......................................................................................... 38

4.2.3.2 TCXO (Radio Netting Adjustment)...................................................................... 39

4.2.3.3 Rx Front End...................................................................................................... 40

4.2.3.4 Mute Adjustment................................................................................................. 41

4.2.3.5 RSSI................................................................................................................... 42

4.2.3.6 Tx Power............................................................................................................ 43

4.2.3.7 Modulation.......................................................................................................... 44

4.2.3.8 Programming...................................................................................................... 45

4.2.3.9 Customers Radio Personality Data ..................................................................... 45

5. REPLACEABLE PARTS............................................................................................................. 46

5.1 COMMON PARTS ...................................................................................................................... 46

5.2 BAND-SPECIFIC PARTS ............................................................................................................. 47

6. CIRCUIT DIAGRAMS ................................................................................................................. 47

SRM9000 SERIES SERVICE MANUAL

6.1 ISSUE 9 CIRCUIT DIAGRAMS ...................................................................................................... 47

APPENDICES

APPENDIX A ~ GLOSSARY

APPENDIX B ~ TRANSCEIVER CONNECTIONS

APPENDIX C ~ SRM9010 MICROPHONE

APPENDIX D ~ SRM9020 MICROPHONE

APPENDIX E ~ SRM9022 MICROPHONE

APPENDIX F ~ SRM9030 CONTROL HEAD

APPENDIX G ~ ANCILLARIES

SRM9000 SERIES SERVICE MANUAL

Declaration

The performance figures quoted are subject to normal manufacturing and service tolerances. The right is

reserved to alter the equipment described in this manual in the light of future technical development.

prior permission of TMC Radio.

Errors and Omissions

The usefulness of this publication depends upon the accuracy and completeness of the information

contained within it. Whilst every endeavour has been made to eliminate any errors, some may still exist. It

is requested that any errors or omissions noted should be reported to:

TMC Radio Pty Ltd.

1270 Ferntree Gully Road

Scoresby Vic

3179 Australia

Ph: +61 3-9730-3800 (Direct: -3914)

Fax: +61 3-9730-3968

Mob: +61 408-160-661

E-mail: jkuhrt@tmcradio.com

www.tmcradio.com/

SRM9000 SERIES SERVICE MANUAL

Document History

Issue Date Comments

1 January 2006 Initial issue

List of Associated Publications

Document No. Description Issue

TNM-I-E-0005 SRM9000 Series Installation Instructions 5

TNM-P-E-004 Selcall Product Manual 2.56

TNM-U-E-0012 SRM9020 Trunk Operating Instructions 2

TNM-U-E-0013 SRM9020 PMR Operating Instructions 2

TNM-U-E-0063 SRM9022 PMR Operating Instructions 1

TNM-U-E-0014 SRM9025 PMR Operating Instructions 2

TNM-U-E-0015 SRM9025 Trunk Operating Instructions 2

TNM-U-E-0003 SRM9030 PMR Operating Instructions 2

TNM-U-E-0004 SRM9030 Trunk Operating Instructions 2

TNM-U-E-0020 SRM9030 Brief User Guide 2

TNM-U-E-0042 SRM9010 Brief User Guide 2

TNM-U-E-0043 SRM9020 Brief User Guide 2

TNM-U-E-0044 SRM9025 Brief User Guide 2

SRM9000 SERIES SERVICE MANUAL

Caution

During disassembly and assembly, refer to Torque Settings in Section 1.7

Caution

Customer configuration files should be saved prior to any alignment adjustments.

Preparing the radio for alignment will erase from the radio all customer PMR and Trunking

configuration data (channel, signalling information etc). The only data retained by the

Alignment Tool is the factory alignment data for the radio (DAC settings for Tx power, front-end

tuning etc).

WARNING

SRM9000 radio equipment is to be connected only to 12-volt negative earth systems.

In vehicles

with a 24-volt supply, an approved 24V/12V converter must be used. The supply must not be

taken from a 12V tap on the battery.

WARNING

To avoid RF injury, do not touch the Antenna when the Transmitter is in use.

WARNING

Double-fused 12V Supply Leads, Antenna cables and Speaker wiring is to be routed as far

away as possible from gas or fuel lines or any electronic control device. The radio transceiver

and antenna are to be mounted as far away as possible from these devices and their cabling.

Equipment is to be installed, by a competent person, in accordance with the requirements of

local radio communications authorities and/or Health and Safety regulations.

Post installation checks should be performed to ensure that there is no effect on the operation

of the vehicle’s electronics.

WARNING

Do not operate your radio, without a handsfree kit, whilst driving a vehicle.

WARNING

Do not operate your radio in an explosive atmosphere. Obey the “Turn Off Two-way Radios”

signs where these are posted, e.g. on a petrol station forecourt.

WARNING

Compliance with RF Energy Exposure Standards: To minimise exposure to RF fields during

equipment service and repair, the antenna terminal of the SRM9000 radio should be connected

to a suitable non-radiating RF load when the transmitter is in use.

Warnings and Cautions

SRM9000 SERIES SERVICE MANUAL

1. INTRODUCTION

1.1 GENERAL

The SRM9000 series of FM mobile radio transceivers is designed for PMR and Trunked operation in VHF

and UHF radio systems.

The system is available in a number of functional variants. Each variant uses the standard SRM9000

mobile transceiver, which is software configured for different control ancillaries. The software configuration

together with the type of controller (Basic or Enhanced microphone, Handset, or Alphanumeric Control

Head) determines the radio features for the different variants as follows.

PMR/Trunked

Basic Telemetry Transceiver No Display or Control Head. SRM9005

Low Range Version with Basic Fist Microphone. SRM9010

Mid Range Version with Enhanced Alphanumeric Fist Microphone. SRM9020

High-end Version with Graphics Display Handset. SRM9022

High-end Version with Alpha Display Handset. SRM9025

System Level Remote Control Head with Alpha capability and Handset /

Fist Microphone / Desk Microphone options. SRM9030

1.2 SCOPE

This manual provides technical specifications, description and servicing details for the SRM9000 series of

mobile radio transceivers together with the related microphones and control heads.

Unless specifically stated otherwise, the text and illustrations refer to all versions in the series.

1.3 DESCRIPTION

The design concept utilises wide band analogue techniques for RF transmit and receive circuitry with digital

signal processing of analogue or digital modulation and demodulation. Electronic tuning is used throughout

the mobile to eliminate manual tuning and level adjustment.

A Digital Signal Processor (DSP) and a Programmable Gate Array (PLA) are used with other dedicated

devices in the SRM9000 to perform the following functions under software control:

• Frequency Synthesis of all operating frequencies.

• Modulation and demodulation of 10/12.5/20/25kHz FM signals on a per channel basis.

• Modem functionality for specified data modulation schemes.

• Filtering, pre-emphasis, de-emphasis, limiting, compression, muting, CTCSS, Selcall or any other

frequency or level dependent signal modification.

• Serial communications with the Control Ancillaries and Alignment Tool.

• Tuning Control data for Tx and Rx.

The SRM9000 Transceiver comprises a rugged extruded aluminium sleeve, which houses a single printed

circuit board assembly and provides all heatsink requirements. The sleeve housing is closed at each end

by high-impact plastic end caps; all cable ports and mechanical interfaces are sealed against moisture and

dust ingress.

The PCB assembly comprises a single, multi-layer PCB containing all the RF and control circuitry. The

PCB seats on an extruded aluminium tray that slides into the outer aluminium sleeve where it is secured

with screws accessed from the outside of the case. Provision is made under the main PCB tray assembly

for additional hardware options as well as optional accessories plugged directly into the main PCB.

There are two installation methods available for the SRM9000. The outer aluminium extrusion has side

flanges that allow the mobile to be bolted directly to any flat surface in the vehicle. A quick release cradle is

also available.

SRM9000 SERIES SERVICE MANUAL

1.4 PRODUCT VARIANTS AND FACILITIES

Product variants and facilities are detailed in Table 1-1, Table 1-2 and Table 1-3.

Table 0-1 Common Features for All Variants

Feature: Model: 9005 9010 9020 9022 9025 9030

Control None or

Serial or

Parallel if

Option

Board

Display

Microphone Display

Microphone Controller

Microphone Display

Handset

Control Unit

with

Microphone

Display - 1 digit LED 6 char LCD 8x14 char

LCD

Graphics

102x64

pixels

2x12 char

LCD 8x14 char

LCD

Graphics

102x64

pixels

Adjustable Display

Illumination

- - Yes Yes Yes Yes

Buttons and Keys - Vol Up/Down

Select

1 Function

Vol Up/Down

4 Function

Scroll

Up/Down

Vol Up/Down

6 Function

12 Keypad

Send/End

Menu + Scroll

Vol Up/Down

6 Function

12 Keypad

Send/End

Menu +

Scroll

6 Function

12 Keypad

Send/End

Menu +

Scroll

Speaker - Yes Yes Yes* Yes* Yes

Frequency Bands 66-88MHz, 136-174MHz, 174-208MHz, 208-245MHz, 335-375MHz,

400-480MHz, 440-520MHz

Channel Spacing 10/12.5/20/25kHz

Menu driven - - Yes Yes Yes Yes

Customisable Menus - - Yes Yes Yes Yes

* Note: Handsets have a built-in earpiece, therefore an external speaker is optional.

SRM9000 SERIES SERVICE MANUAL

Table 0-2 Conventional-PMR Variants

Feature: Model: 9005 9010 9020 9022 9025 9030

Channels 1000 10 100 + 1000 1000 1000

Signalling CTCSS/DCS CTCSS/DCS

ANI CTCSS/DCS

Selcall CTCSS/DCS

Selcall

Attack Operation - Yes Yes Yes Yes Yes

DTMF Encode - 2 Fixed Seq 2 Fixed Seq Yes Yes Yes

MPT1327 Trunking Yes Program-

mable User

selectable User

selectable

PTT Limit Timer

with warning beeps

Yes

Busy Channel

Lockout

Yes

PTT Inhibit on Busy Yes

Scanning Yes 10 groups

of up to 16

channels

per group.

10 groups

of up to 16

channels

per group, 4

user defined

scan

groups.

124 groups of up to 16 channels per group, 4

user defined scan groups.

Voting Yes 10 fixed

groups

consisting

of up to 16

channels

per group.

Up to 200 groups consisting of up to 16 channels per group.

Priority Scanning Yes

Nuisance Delete - - Yes Yes Yes Yes

Phonebook - - 250 entries 250 entries 250 entries 250 entries

Multiax Yes

Mod/Demod

Function

Option - - - - -

Ignition Sense Input Yes

VOX Handsfree Option Option Option Option Yes Option

600 Ohm Interface Option

SIB

DMAP Option

ASI Standard

Option

ASI with GPS Option

Direct GPS Option

RSM with GPS Option

P25 Option

Audio Discriminator Option

SRM9000 SERIES SERVICE MANUAL

Table 0-3 Trunked Variants

Feature: Model: 9005 9010 9020 9022 9025 9030

Channels 1024 channels in 50 sub-bands

Frequency Bands Specifically: 136-174MHz, 400-450MHz (and possible in all other bands)

Background Hunt

and Vote-Now

Yes Yes Yes Yes Yes Yes

MPT1343 dial strings Yes Yes Yes Yes Yes Yes

ANN Numbering - - - Yes Yes Yes

Phonebook

Memories

250 10 100+ 250 250 250

User Phonebook Recall

entries

configured

by FPP only

Recall

entries

configured

by FPP only.

Recall

entries

configured

by FPP only

Recall and

edit. Recall and

edit.

Alpha Status List - - Yes Yes Yes Yes

SDM/EDMs Yes - - Yes Yes Yes

NPDs Yes - - TBA TBA TBA

Mod/Demod

Function

Option - - - - -

Attack Operation Yes Yes Yes Yes Yes Yes

Ignition Sense Input Yes Yes Yes Yes Yes Yes

VOX Handsfree Option Option Option Yes* Yes* Yes*

General External IO Option Option Option Option Option Option

600 Ohm Interface Option Option Option Option Option Option

* Note: Requires external microphone for optimum performance.

SRM9000 SERIES SERVICE MANUAL

1.5 SOFTWARE VERSIONS AND NAMING

There are various associated items of Software (SW) required for the SRM9000 radio and programmer to

operate. This section simply defines the naming rules of the SW files to allow identification and conformity.

This allows different versions of SW to be distributed and co-exist without confusion.

The SRM9000 Transceiver has three items of SW for digital and analogue PMR, Trunking and Alignment.

The 9022/9025 Controller Mic/Handsets have one SW file for their PIC’s and 9030 Control Head has two

SW files for its Flash and EEPROM.

1.5.1 Filename Structure

Basically the Filename Structure is defined as follows:

• 2 character Application code

• 2 or 3 character SW Type code

• 3 character version number

• File Extension as required.

eg. 99tm533.bin

99p_533.bin

99s_533.bin

99cf101.hex

99ce101.hex

1.5.2 Application Code

This identifies the application the SW was initially designed for:

9k Standard SRM9000 Pre-Rev 9 Software

99 Standard SRM9000 Rev 9 Software

ak SRM9000 Pre-Rev 9 Software applicable for SRP9022

a9 SRM9000 Rev 9 Software applicable for SRP9022

rw Specific SW for Raywood Taxi Applications

1.5.3 Software Type Code

This identifies different types of SW within an application.

s_ Startup

p_ Standard PMR. DMAP or No option board

p_s PMR with Scrambler/Discriminator option board

p_g PMR with Direct GPS

p_a PMR with ASI Map27option board

p_u PMR with ASI SUP option board

p_q PMR with ASI-G Map27option board

a__ 9022 Standard PMR. DMAP or No option board

a_s 9022 PMR with Scrambler/Discriminator option board

a_g 9022 PMR with Direct GPS

SRM9000 SERIES SERVICE MANUAL

a_a 9022 PMR with ASI Map27option board

a_u 9022 PMR with ASI SUP option board

a_q 9022 PMR with ASI-G Map27option board

tm Standard MPT1343 Trunking. DMAP or No option board

ta Standard ANN Trunking. DMAP or No option board

tb Basic (9010/9020) MPT1343 Trunking. DMAP or No option board

tmg Standard MPT1343 Trunking. Direct GPS option board

tag Standard ANN Trunking. Direct GPS option board

tbg Basic (9010/9020) MPT1343 Trunking. Direct GPS option board

tma Standard MPT1343 Trunking. ASI Map27 option board

taa Standard ANN Trunking. ASI Map27 option board

tba Basic (9010/9020) MPT1343 Trunking. ASI Map27 option board

tmu Standard MPT1343 Trunking. ASI SUP option board

tau Standard ANN Trunking. ASI SUP option board

tbu Basic (9010/9020) MPT1343 Trunking. ASI SUP option board

tmq Standard MPT1343 Trunking. ASI-G option board

taq Standard ANN Trunking. ASI-G option board

tbq Basic (9010/9020) MPT1343 Trunking. ASI-G option board

TBD 9022 Trunking

bo Transceiver Boot-code

bc Transceiver Boot-Backup-code

bf Transceiver PLA-code

ba Transceiver PLA-Backup-code

Note. The above file names are not stored within the code. As a consequence, when the radio is read by the

FPP, the FPP will display version numbers and release dates for the Backup, Startup, PMR, TMR and

DMAP codes. The Bootloader, PLA Backup and PLA codes show release dates only.

SRM9000 SERIES SERVICE MANUAL

1.5.4 Version Number

This is a 3-digit number allocated by Engineering to identify the SW version.

e.g. 103 = Version 1.03

1.5.5 Exclusions

The Programmer SW does not follow the above rules as it is a PC based Program and its version number

can be easily identified by starting the SW. Later releases of SW will be backward compatible, unless

deliberately not so, in which case a different directory structure/path may be implemented.

1.5.6 Displaying Software Versions

Each Transceiver SW code file (e.g. 99tm533.bin, etc.) contains version information about itself and

possibly compatible Programming SW.

For Radio SW saved on Disk, this information can be displayed via the Programmer function:

Options : Upgrade_Software : Get_File

For Software loaded in the radio, information can be read from the Transceiver and displayed via the

Programmer function:

Options : Radio_Information

SRM9000 SERIES SERVICE MANUAL

SRM9030 Control Head SW can be displayed on the Control Head by holding the ‘3’ button down when the

radio is switched on. This is only implemented in CH V1.06 SW (Oct/2000) and later.

SRM9025 Handset SW has a similar method of Version identification.

SRM9020 Microphone SW has a similar method of Version identification.

SRM9022 Handset SW can be displayed by pressing the top side button when the radio is switched on.

SRM9010 Microphone does not have any method of determining loaded SW. There is only one version of

this SW in the field.

1.5.7 Automatic Version Upgrade Prompting

When a configuration is downloaded to the Transceiver, the Programmer performs a brief check on the SW

currently installed in the radio. If a later version of SW exists (on PC hard-disk) then the Programmer will

prompt the user with the following message:

NOTE. As early versions of FPP cannot recognise a more recent revision of the radio, it is important that

the latest FPP version is downloaded from http://www.tmcradio.com.

If YES is selected, the Transceiver Radio code is updated before the new configuration is downloaded.

If NO is selected, only the configuration is downloaded.

This process also updates the Startup code to ensure it is compatible with the loaded PMR or Trunk code.

Note : If the …\SRM9000\FPP\RadioSW folder contains no files, then the above check will not be

performed.

SRM9000 SERIES SERVICE MANUAL

1.5.8 Transceiver SW Description, Start-up and Backup-Software

The SRM9000 Transceiver software is split into the following separate modules:

• Bootloader and Backup Software

• Start-Up Software

• PLA and PLA-Backup Software

• Mainline PMR Software

• Mainline Trunk Software

When the Transceiver starts, it basically performs the following steps:

• Initial execution starts with the Bootloader code, which attempts to load the Start-Up Software (if

Start-Up checksum is bad, then the Backup Software is loaded.)

• Start-Up Software then downloads the PLA code (or PLA-Backup code if PLA checksum is bad)

to the PLA device. If both PLA and PLA-Backup checksums are bad then the radio is not

operational and serial communication is not possible.

• Start-Up Software then reads the On/Off switch plus Ignition-Sense lines and compares these

with saved parameters to determine if the radio should be continue to power-up or switch itself off

again.

• Start-Up software then attempts to load either PMR or Trunk Mainline Software (dependent on

saved parameter) and switches execution to complete the power-up process and start normal

operation.

If the Mainline Software cannot be loaded, or a Job file configuration has not been loaded (e.g. non-

existent or checksum fail) then execution switches to Backup Software until the error is corrected (e.g. by

FPPing the radio).

There are three states that the radio can configure after switch-on:

• Mainline Trunk Software or Mainline PMR Software (normal power-up)

If the radio does not have a valid Job file configuration loaded, then it will display a “No PMR Cfg”

or “No TMR Cfg” message.

• Start-Up Software (characterised by “Alignment Mode” shown on the display). This is also the

code that is running when the radio is being aligned using the Alignment Tool.

• Backup Software (via various paths from above.)

1.5.9 Wailing Siren (Boot-up Software Corrupted)

A “WAILING SIREN” sound is emitted from the Loudspeaker while the radio is running in Boot Backup

Software. In this mode the FPP can be used to re-load a Jobfile, or re-load Start-Up or Mainline Operating

Software.

Simply writing a Jobfile to the radio should allow the FPP to determine and update the offending software –

however there may be instances where the FPP cannot determine this and the Start-Up and Mainline

Software should be updated manually. This can be done using the FPP : Upgrade_Software : Get_File …

then Download. Both Start-Up Software (filename = 99s_xxx.bin) and Mainline PMR (99p_xxx.bin) or

Trunk (99txxxx.bin) should be loaded if the FPP cannot automatically fix the problem. The wailing siren

should stop once the problem is fixed.

Note: Should these steps fail to restore the set and the Wailing Siren cease, the radio will need to be

returned to a Level 3 Service Centre for FLASH replacement.

1.6 ADJUSTMENT AND ALIGNMENT

There are no manual internal adjustments in the SRM9000. Re-programming and alignment is done using

software tools with the PCB installed in its chassis. For servicing, the radio PCB can be operated as a

stand alone unit provided a temporary heatsink is fitted under the transmitter PA module for transmitter

SRM9000 SERIES SERVICE MANUAL

servicing and that the receiver audio output be kept below 100mW for receiver servicing. Radio

performance is not adversely affected by operating without the outer sleeve but there will be some change

to performance when the metal cans are removed from the RF sections of the board.

On re-assembly, the PA module should be checked for a thin layer of heat-conducting paste. If this is

missing or dried-out, it should be replaced prior to re-assembly.

1.7 CHASSIS ASSEMBLY

Important - Take Note!

1.7.1 Torque Settings

Assembly of 'Chassis' (Inner Extrusion) to 'Outer Extrusion' 1.4 Nm (PA x 2), 1.25Nm (Others x 3)

Assembly of 'Front' and 'Rear' end-caps to 'Outer Extrusion' 1.4 Nm.

1.7.2 Thermal Compound Application

For radios using a PA tray without full bottom surface with no cut-out, no thermal compound is necessary.

However, on later radios that have a tray containing a cut-out section in the bottom, just enough thermal

compound should be applied to provide good thermal contact with the chassis.

Note. If thermal compound is old and difficult to spread, it should be discarded.

1.7.3 Assembly

The Inner extrusion should initially be fitted to the PCB and the assembly then slid into place within the

chassis.

Then by holding the inner extrusion upwards by hand, it is then important to insert all screws by hand and

ensure they have been fully inserted through the PCB, thereby locating the assembly correctly.

Still holding the inner extrusion upwards to ensure the assembly does not twist, lightly torque up the centre

screw of the row of three followed by the PA module mounting screw towards the middle of the chassis.

The remaining screws can then be screwed up to full torque followed by re-torque of the first two screws

again.

1.8 SPECIFICATION

1.8.1 General

Operation

Single or two frequency simplex (half-duplex).

Modulation

Frequency modulation (phase) F3E, F1D, F1E.

Operational Temperature Range

-30°C to 60°C

Supply Voltage Requirements

10.8V to 16.3V DC negative earth (13.8V nom.)

Current Consumption

Mobile With Control Mic Mobile With Alpha Mic

Mobile With Alpha

Head

Radio off ≤ 5mA ≤ 5mA ≤ 5mA

Standby (squelched): ≤ 200mA ≤ 210mA ≤ 210mA*

SRM9000 SERIES SERVICE MANUAL

Rx Audio O/P:

300mW (not bridged) ≤ 450mA ≤ 470mA ≤ 500mA *

4.0W ≤ 1200mA ≤ 1220mA ≤ 1250mA*

Transmit: VHF UHF

25W ≤ 6.5A ≤ 6.5A

1W ≤ 1.5A ≤ 1.5A

*Add 250mA to current consumption for Control Head with backlight on.

Frequency Bands Frequency Range Band Frequency Range

E0 66 - 88 MHz R1 335 - 375MHz

AC 136 - 174MHz TU 400 - 480MHz

K1 174 - 208MHz UW 440 - 520MHz

KM 208 -245MHz

Switching Bandwidth

Radio covers the complete band without retuning

Channel Spacing

10/ 12.5 / 20 / 25kHz

Frequency Stability (-30°C to

60°C)

Less than ±2.0ppm

Dimensions (mm) Height Width Depth

Transceiver

9010/30 Microphone

9020 Alpha Display Microphone

9022 Graphics Display Controller

Mic

9025 Alpha Display Handset

9030 Graphics Display Control

Head

9030 Desk Microphone

9030 Handset

91*

96*

145*

165*

300

200

170

188

120

165

130

* Does not include cable or strain relief

Weight

Transceiver 1.8kg

Conformance Approvals

* Pending in some cases

ETS EN 300 086 *

EN 300 113 *

EN 300 489 *

EN 300 219 *

Australia AS4295 *

USA FCC (AC, UW)

SRM9000 SERIES SERVICE MANUAL

1.8.2 Transmitter

Power Output

Any two levels programmable from

High Power: 25W Adjustable down to 1W

Low Power: 1W Adjustable up to 25W

Transmitter Rise Time

Less than 40 ms

Duty Cycle

1 minute transmit: 4 minutes receive

Spurious Emissions

< 0.25uW (9kHz to 1GHz)

< 1.0uW (1GHz to 4GHz)

Residual Noise

60% deviation. CCITT Weighted

25kHz Channel Spacing >45dB

12.5kHz Channel Spacing >40dB

Audio Frequency Distortion ≤ 3% (at 60% deviation)

Audio Frequency Response

300 to 3000Hz* +1dB -3dB

Figures apply for a flat audio response or a 6dB/octave pre-

emphasis curve

(*2550Hz for 12.5kHz channel spacing)

Audio Sensitivity (1kHz)

(User programmable via FPP)

RJ8 Connector: 40mV±2dB

Option Audio: 40mV±2dB

SRM9000 SERIES SERVICE MANUAL

1.8.3 Receiver ETS AS4295

Sensitivity

≤0.5µV PD (-113dBm) for 20dB

SINAD

≤0.3µV PD (-117.5dBm) for 12dB

SINAD

≤0.5µV PD (-113dBm) for 20 dB

Quieting.

Adjacent Channel

Selectivity 25kHz Channel Spacing: >73dB

12.5kHz Channel Spacing: >60dB

25kHz Channel Spacing: >73dB

12.5kHz Channel Spacing: >65dB

Intermodulation Rejection >65dB >70dB

Spurious Response

Rejection >70dB >73dB

Blocking >95dB >95dB

Conducted Spurious

Emissions <2nW (-57dBm) - 9kHz to 1GHz

<20nW (-47dBm) - 1GHz to 4GHz

<20nW (-47dBm) - 9kHz to 4GHz

GENERAL

FM Residual Noise

(CCITT weighted) 25kHz Channel Spacing: >45dB

12.5kHz Channel Spacing: >40dB

Mute Range

Typically 6dB to 25dB SINAD

Typical setting 10dB to 12dB SINAD

Mute Response Time

<30mS (no CTCSS)

Add 200mS for CTCSS

Voting Response Time Searches at 50ms/channel

Audio Distortion 4W into 4Ω at <5% distortion

Audio Frequency

Response

300 to 3000Hz*: +1dB to -3dB

Figures apply for a flat audio response or a 6dB/octave de-emphasis curve

(*2550Hz for 12.5kHz channel spacing)

Deviation Sensitivity

(for rated audio at 1kHz) Speaker: 20% MSD±3dB

Option Audio Output at

60% MSD (P1-23) Standard build: Flat Unsquelched Audio: 200mV±1dB RMS-O/C (R871=NF,

R872=0R, R82=NF on Rev 9C or 0R/1k on Rev 9B), Flat Squelched Audio:

450mV±2dB RMS-O/C at Rated Speaker Audio (R871=1k or 0R, R872=NF,

R82=NF).

Option Audio Output at

60% MSD (P2-15) Standard build: Flat Unsquelched Audio: 160mV±1dB RMS (600 ohms) R871=1k,

R82=1k, C857=NF: Flat Squelched Audio: 88mV±2dB RMS (600 ohms) at Rated

Speaker Audio.

Handset Audio (S1-6) 230mV±2dB RMS (600 ohms) at Rated Speaker Audio.

SRM9000 SERIES SERVICE MANUAL

1.8.4 Signalling

1.8.4.1 CTCSS

All 38 standard CTCSS Tones are supported as per the table below.

Identifier Frequency Identifier Frequency Identifier Frequency

Q 67.0 C 107.2 0 167.9

R 71.9 L 110.9 1 173.8

S 74.4 D 114.8 2 179.9

T 77.0 M 118.8 3 186.2

U 79.7 E 123.0 4 192.8

I 82.5 N 127.3 5 203.5

V 85.4 F 131.8 6 210.7

A 88.5 O 136.5 7 218.1

W 91.5 G 141.3 8 885.7

J 94.8 P 146.2 9 223.6

= 97.4 H 151.4 * 241.8

B 100 X 156.7 # 250.3

K 103.5 Y 162.2 ‘ ‘ NONE

Encoder

Tone Deviation:

25kHz channel spacing 500 to 750Hz

20kHz channel spacing 400 to 600Hz

12.5kHz channel spacing 250 to 375Hz

Tone Distortion Less than 5.0%

Frequency Error Less than ±0.5%

SRM9000 SERIES SERVICE MANUAL

Decoder

Bandwidth Not greater than ±3.0%

Deviation Sensitivity Less than 6.0% of system deviation (for decode with full RF quieting)

Noise Immunity Less than 500ms dropout per minute at 10dB SINAD

(CTCSS tone deviation 10% of system deviation. RF deviation 60% at

1000Hz).

False Decode Rate Less than 5 false decodes per minute (no carrier input)

Talk-off For no dropouts in one minute, interfering tone at 90% of system deviation

(CTCSS tone at 10% of system deviation).

Full quieting signal: 310Hz to 3000Hz

20dB SINAD RF signal: 320Hz to 3000Hz

12dB SINAD RF signal: 350Hz to 3000Hz

Response Time Less than 250ms (full quieting/tone >100Hz)

Less than 350ms (full quieting/tone <100Hz)

De-Response Time Less than 250ms

Reverse Tone Burst none

1.8.4.2 FFSK

1200 Baud : 1200 / 1800 Hz MPT1317 based

2400 Baud : 1200 / 2400 Hz MPT1317 based

1.8.4.3 Selcall

The following tone sets are supported as per tables below:

• ST-500: CCIR, EEA, ZVEI, DZVEI, EIA

• ST500/CML: ZVEI_3, DZVEI

• CML: CCIR, EEA, ZVEI

• SIGTEC: CCIR, CCIRH, EEA, ZVEI_1, XVEI_2, ZVEI_3, NATEL, EIA

• SEPAC: CCIR, EEA, ZVEI_1, ZVEI_2, ZVEI_3, EIA

SRM9000 SERIES SERVICE MANUAL

Selcall Tone Frequency Table

Tone CML ST500 SIGTEC SIGTEC SEPAC CML ST500 SIGTEC

CCIR CCIR CCIR CCIRH CCIR EEA EEA EEA

0 1981 1981 1981 1981 1981 1981 1981 1981

1 1124 1124 1124 1124 1124 1124 1124 1124

2 1197 1197 1197 1197 1197 1197 1197 1197

3 1275 1275 1275 1275 1275 1275 1275 1275

4 1358 1358 1358 1358 1358 1358 1358 1358

5 1446 1446 1446 1446 1446 1446 1446 1446

6 1540 1540 1540 1540 1540 1540 1540 1540

7 1640 1640 1640 1640 1640 1640 1640 1640

8 1747 1747 1747 1747 1747 1747 1747 1747

9 1860 1860 1860 1860 1860 1860 1860 1860

A 2400 1055 2110 2400 2400 1055 1055 2110

B 930 .... 2400 930 1055 930 .... 1055

C 2247 2400 1055 2247 2247 2247 2400 2400

D 991 .... 2247 991 991 991 .... 2247

E 2110 2110 930 2110 2110 2110 2110 930

F .... .... 991 1055 .... .... .... 991

Tone SEPAC CML ST500 SIGTEC SEPAC SIGTEC SEPAC SIGTEC

EEA ZVEI ZVEI ZVEI-1 ZVEI-1 ZVEI-2 ZVEI-2 ZVEI-3

0 1981 2400 2400 2400 2400 2400 2400 2200

1 1124 1060 1060 1060 1060 1060 1060 970

2 1197 1160 1160 1160 1160 1160 1160 1060

3 1275 1270 1270 1270 1270 1270 1270 1160

4 1358 1400 1400 1400 1400 1400 1400 1270

5 1446 1530 1446 1446 1446 1446 1446 1400

6 1540 1670 1670 1670 1670 1670 1670 1530

7 1640 1830 1830 1830 1830 1830 1830 1670

8 1747 2000 2000 2000 2000 2000 2000 1830

9 1860 2200 2200 2200 2200 2200 2200 2000

A 1055 2800 970 2600 2800 970 885 2400

B 970 810 .... 2800 970 885 741 885

C 2247 970 2800 741 885 741 2600 741

D 2400 886 .... 970 .... 2600 .... 2600

E 2110 2600 2600 810 2600 2800 970 2800

F .... .... .... 886 .... 600 .... 600

SRM9000 SERIES SERVICE MANUAL

Tone SEPAC ST500/CML ST500 SIGTEC SIGTEC SEPAC ST500

ZVEI-3 ZVEI-3 DZVEI DZVEI NATEL EIA EIA EIA

0 2200 2400 2200 2200 1633 600 600 600

1 970 1060 970 970 631 741 741 741

2 1060 1160 1060 1060 697 882 882 882

3 1160 1270 1160 1160 770 1023 1023 1023

4 1270 1400 1270 1270 852 1164 1164 1164

5 1400 1530 1400 1400 941 1305 1305 1305

6 1530 1670 1530 1530 1040 1446 1446 1446

7 1670 1830 1670 1670 1209 1587 1587 1587

8 1830 2000 1830 1830 1336 1728 1728 1728

9 2000 2200 2000 2000 1477 1869 1869 1869

A 885 885 2600 825 1805 459 2151 2151

B 741 .... .... .... 1995 2151 1091 ....

C 2600 810 886 2600 1300 2600 2400 2010

D .... .... 810 .... 1700 2010 .... ....

E 2400 970 2400 2400 2175 2433 459 459

F .... .... .... .... 2937 2292 .... ....

Selcall Tone Periods

The Selcall tone period:

4 preset lengths selectable: 20ms and 30 seconds in 1ms increments.

1.8.4.4 DTMF

DTMF Encode supported via keypad:

TONES 1209Hz 1336Hz 1477Hz

697Hz 1 2 3

770Hz 4 5 6

852Hz 7 8 9

941Hz * 0 #

Tone Period, programmable: 0 – 2.55s in 10ms steps.

Inter-Tone Period, programmable: 0 – 2.55s in 10ms steps.

Link Establishment Time, programmable: 0 - 10s in 10ms steps.

Tx Hang Time, programmable: 0 – 9.99s in 10ms steps.

Side-Tone in Loudspeaker: selectable via programmer

SRM9000 SERIES SERVICE MANUAL

1.8.4.5 DCS

Data rate 134 bits per second, frequency modulated

7.46ms/bit

171.6ms per codeword continuously repeating

Deviation 0.5kHz for 12.5kHz systems

1kHz for 25kHz systems

Codeword size 23 bits comprising:

8 bits - DCS code (3 octal digits 000-777)

3 bits - Fixed octal code 4

11 bits - CRC (error detection) code

Available Codes 104 codes from 512 theoretically possible codes – see below

Turn off code 200ms 134Hz tone at PTT release

DCS Codes can be Transmitted “Normal” or “Inverted” (programmable).

The radio can Receive DCS codes in either Transmitted “Normal” or “Inverted” or both (selectable via

programmer).

Valid DCS Codes

023 132 255 413 612

025 134 261 423 624

026 143 263 431 627

031 145 265 432 631

032 152 266 445 632

036 155 271 446 654

043 156 274 452 662

047 162 306 454 664

051 165 311 455 703

053 172 315 462 712

054 174 325 464 723

065 205 331 465 731

071 212 332 466 732

072 223 343 503 734

073 225 346 506 743

074 226 351 516 754

114 243 356 523

115 244 364 526

116 245 365 532

122 246 371 546

125 251 411 565

131 252 412 606

1.8.4.6 C4FM

Digital speech format in accordance with TIA/EIA 102 requirements.

SRM9000 SERIES SERVICE MANUAL

1.8.5 Environmental

Note: Operation of the equipment is possible beyond the limits stated but is not guaranteed.

Operational Temperature

-30°C to +60°C

Storage Temperature

-40°C to +80°C

Vibration Specification

IEC 68-2-6 with additional frequency acceleration from 60 – 150Hz

Check

Cold

IEC 68-2-1 Test 5 hours at -10°C –30°C

Dry Heat

IEC 68-2-2 Test 5 hours at +55°C +60°C

Damp Heat Cycle

IEC 68-2-30 Test 2 cycles at +40°C

Product Sealing

Main Radio Unit: IEC529 rating IP54

Microphones: IEC529 rating IP54

Remote Control Head IEC529 rating IP54

MIL STD810

Low Pressure 500.4 Procedure II

High Temperature Storage 501.4 Procedure I

High Temperature Operation 501.4 Procedure II

Low Temperature Storage 502.4 Procedure I

Low Temperature Operation 502.4 Procedure II

Temperature Shock 503.4 Procedure I

Humidity 507.4 Figure 507.4-1

Sand and Dust 510.4 Procedure I – Blowing Dust

Random Vibration 514.5 Figure 514.5C-1

Transit Drop 516.5 Table 516.5-V1

Functional Shock of severity 25g

Acceleration, 6ms pulse duration,

500 shocks in 6 directions.

SRM9000 SERIES SERVICE MANUAL

2. SERVICE PHILOSOPHY

2.1 SERVICE CONCEPT

The SRM9000 series has been designed to provide low cost trunked, non-trunked analogue and digital

speech mobile transceivers, using common core electronics, software and interfacing. It is a requirement

that once the customer has purchased equipment, TMC Radio can follow this by providing an ongoing, high

level of customer support together with a competitive and professional servicing activity.

There are three levels of service available:

Level Activity Recommended Spares Recommended Test

Equipment

1 Replacement of complete

transceiver/antenna/fuses

Reprogramming

Antennas, Fuses

Ancillaries Multimeter P.C.

Radio software

Programmer

2 Replacement of PCB or

mechanical component

replacement, Cosmetic repair

Listed in Level 2 Spares

Schedule As above + service aids and

test equipment

3 Repair by PCB or mechanical

component replacement,

Cosmetic repair.

Repair of Radio PCB to

component level in CRU.

Listed in Level 2 Spares

Schedule

Radio PCB components

only available to CRU.

As above + service aids and

test equipment

2.2 WARRANTY

Initially, the normal 12-month warranty will apply to all radios and ancillaries.

2.2.1 Service Within and Out Of Warranty

The field Service Level for the SRM9000 mobile is LEVEL 2, PCB replacement.

LEVEL 2 Service, PCB (only) and case part replacement, will be carried out in field repair workshops, or the

Central Repair Unit (CRU) if required.

LEVEL 3 Service (Radio PCB component level repair) will ONLY be carried out in the Central Repair Unit.

For this, the complete radio must be returned to the CRU.

A PCB replacement program may be offered by the CRU in some countries.

2.2.2 Ancillary Items

All ancillary items (except remote alphanumeric control head) are Level 1 service.

These items should be replaced if faulty; they are non-repairable, and non-returnable to the CRU.

2.3 SOFTWARE POLICY

Software provided by TMC Radio shall remain the Company's property, or that of its licensors and the

customer recognises the confidential nature of the rights owned by the Company.

The customer is granted a personal, non-exclusive, non-transferable limited right of use of such software in

machine-readable form in direct connection with the equipment for which it was supplied only.

In certain circumstances the customer may be required to enter into a separate licence agreement and pay

a licence fee, which will be negotiated at the time of the contract.

SRM9000 SERIES SERVICE MANUAL

The customer undertakes not to disclose any part of the software to third parties without the Company's

written consent, nor to copy or modify any software. The Company may, at its discretion, carry out minor

modifications to software. Major modifications may be undertaken under a separate agreement, and will be

charged separately.

All software is covered by a warranty of 3 months from delivery, and within this warranty period the

Company will correct errors or defects, or at its option, arrange free-of-charge replacement against return of

defective material.

Other than in the clause above, the Company makes no representations or warranties, expressed or implied

such, by way of example, but not of limitation regarding merchantable quality or fitness for any particular

purpose, or that the software is error free, the Company does not accept liability with respect to any claims

for loss of profits or of contracts, or of any other loss of any kind whatsoever on account of use of software

and copies thereof.

SRM9000 SERIES SERVICE MANUAL

3. TECHNICAL DESCRIPTION

3.1 RECEIVER

Refer to Figure 3-1.

3.1.1 Front End Filters and RF Amplifier

The receiver input signal from the antenna passes through the harmonic filter and antenna switch. With the

mobile in receive mode, diodes D580, D540a and D541a in the antenna switch are reverse biased allowing

the receiver input signal to be coupled through to the receiver front-end with minimal loss. The overall

insertion loss of the harmonic filter and switch is approximately 0.8dB.

A noise blanker is also fitted to E0 band radios. The noise blanker samples the received signal and gates

the 45MHz signal in the IF stage in the event that high level noise transients are received. Due to inherent

time delays in the bandpass filters prior to the blanking gate, gating synchronisation occurs before the

transients can adversely affect the following stages.

Varactor-tuned bandpass filters at the input and output of the RF amplifier provide receiver front-end

selectivity. Varactor tuning voltages are derived from the alignment data stored in the radio. The DSP

processes this data to optimise front end tuning relative to the programmed channel frequencies, which may

be changed at any time without re-aligning the radio.

To achieve the required varactor tuning range an arrangement of positive and negative bias power supplies

is used to provide a total bias across the varactors of up to 14.0VDC. A fixed 2.5V positive bias derived

from the 5.0V supply and voltage divider R425/R426 is applied to the cathodes of the varactor diodes. The

negative bias supply originates at the DSP/PLA as a PWM signal (FE TUNE) for the four front-end tuning

voltages TUNE1 to 4, for the particular channel frequency selected. The PWM signal is dependent on

channel frequency and tuning and passes through level shifting transistors Q404 to Q411 where it is

converted to a negative voltage in the range -0.5V to -11.5V. The -12.0V rail of the level translators is

generated by U904E/F with D903 to D906 providing the required voltage multiplication.

The RF amplifier stage comprises a low noise transistor amplifier Q400 that is compensated to maintain

good linearity and low noise matching. This provides excellent intermodulation and blocking performance

across the full operating range. The overall gain of the front-end is typically 14dB for all bands.

3.1.2 First Mixer and IF Section

The output of the last front-end bandpass filter is coupled into single balanced mixer T400/D413 which

converts the RF signal to an IF frequency of 45MHz. The local oscillator injection level is typically +8dBm at

T400 pin 1 with low side injection used for UHF bands and high side for VHF bands.

Following the mixer is IF amplifier Q401 that provides approximately 15dB of gain and in association with

its output circuitry, presents the required load conditions to the 4 pole 45MHz crystal filters Z401A/Z401B.

The crystal filters provide part the required selectivity for adjacent channel operation with the remaining

selectivity provided by a DSP bandpass filter algorithm.

3.1.3 Quadrature Demodulator

Additional IF gain of approximately 44dB occurs in U401, which is a dedicated IF AGC amplifier/Quadrature

Demodulator. The AGC voltage for U401 is derived from the RSSI function of the DSP. The onset of AGC

operation occurs when RF input signal level at the antenna connector exceeds -90dBm and can reduce the

gain by approximately 100dB for strong signals.

Conversion of the 45MHz IF signal to I and Q baseband signals is carried out by the demodulator section of

U401. The 90MHz local oscillator signal is generated by VCO Q402 which is phase locked by the auxiliary

PLL output of U701 via feedback signal AUX_LO2.

SRM9000 SERIES SERVICE MANUAL

Antenna

Switch

D580/

D540/D541

Bandpass

FilterRF Amp

Q400 Bandpass

FilterMixer

T400 IF Amp

Q401

4-Pole

45 MHz

Filters

Z401A/B

Antenna

Filter

L582,

L584 &

L585

Demodulator

U401

TX/RX

Switch

D610/D611

RX VCO

Q600

RX VCO

Switch

Q601

VCO Buffer

Q604/Q605

Synthesiser

Buffer

Q607

90 MHz

VCO

Q402

TX/TX AF

Switch

U801C

CODEC

U800

Tx/Disc AF

Switch

U801B

Speaker

Switch

Q810/

Q811/Q813

Speaker

Amp

U805

AF Amp

U803B

VCO Control Volts

RX_PSU

To TX BufferAUX_CP

to U701

From PLA/DSP

TX Mod Out

To TX VCO

SPKR_ON

SPKR_OUT 1

SPKR_OUT 2

From PLATUNE_1, 2, 3 & 4

To TX PA

Tx Audio

from

PLA

U300

90 MHz

VCO

SWITCH

Q412

TX_PSU

from U701

ACK_LO2

Noise Blanker E0

band only

Aux Gain

Switch U806A

(Rev9C+only)

AF Amp

U803A

Rx Audio

Mode 2

U302C

Rx Audio Mode1

U806C

(Rev9C+ only)

GAIN

De-emphasis

Network

Rx Audio

Gate

U302B

Rx Audio Mode3

U806B

(Rev9C+ only)

AUDIO_OUT 3

(Option Audio)

AUDIO_OUT 1

(Option Audio)

AUDIO_OUT 2

( H/S Audio)

EN 1

EN 2

EN 3

Differential

Amp U402

Synthesiser

U701

RX_PSU

EN 4

AF Amp

U802A

CPP

TX_MOD

AGC

TX_MODEfrom

PLA

U300

DATA_EN

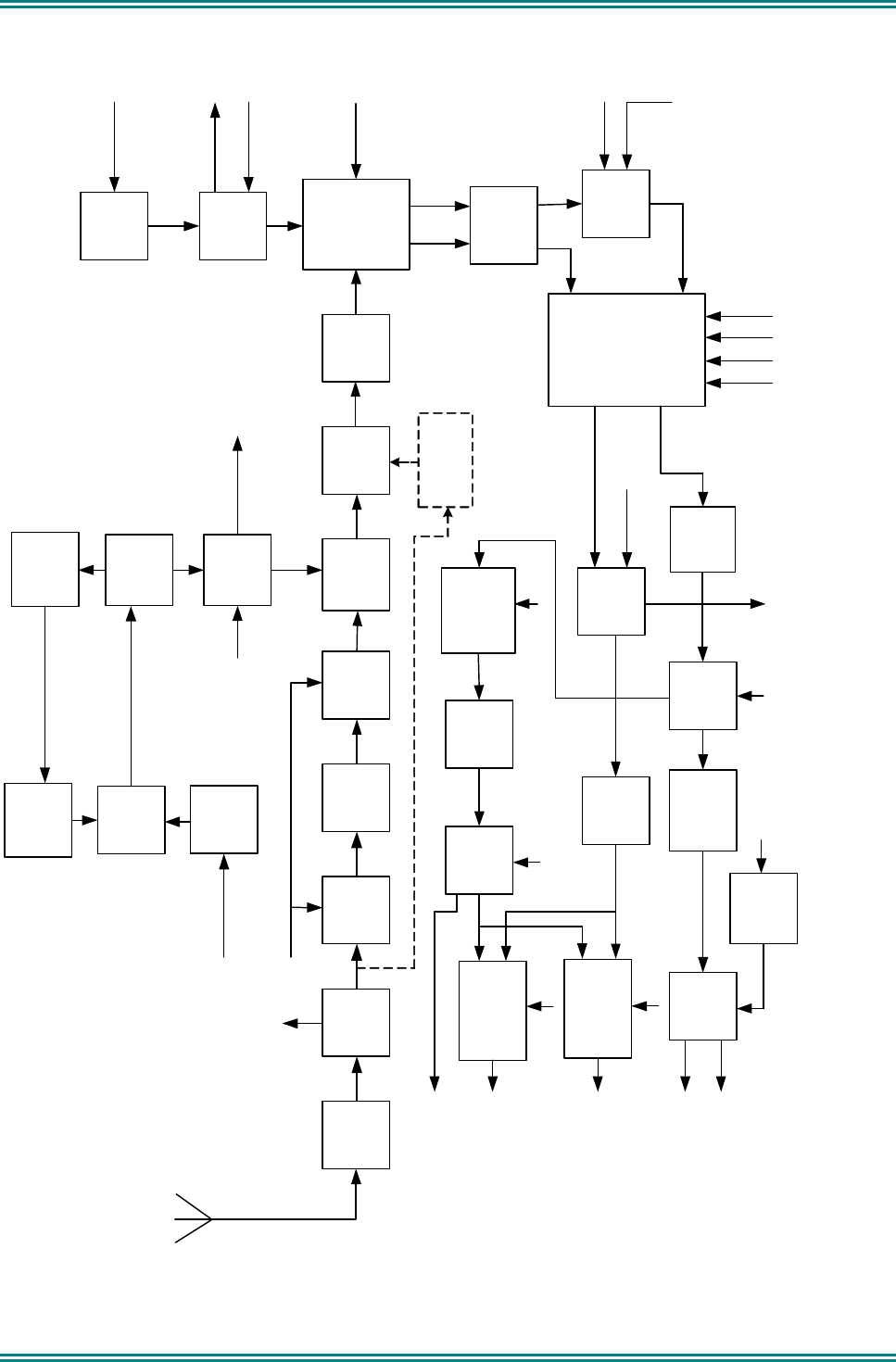

Figure 3-1 VHF/UHF Receiver Block Diagram

SRM9000 SERIES SERVICE MANUAL

3.1.4 Receiver Audio Processing

The base band audio from the IQ Demodulator is applied to a differential amplifier that cancels out DC

offsets and converts the balanced demodulator I/Q output signals to unbalanced inputs for the CODEC

U800.

All receiver audio processing and filtering functions are performed by the CODEC under the control of the

DSP. The receiver I and Q analogue baseband signals are converted to digital signals by the CODEC ADC

before being applied to a series of digital filters which provide the final stage of adjacent channel filtering,

high pass and low pass filtering, mute noise processing and volume control for narrow and wideband

operation. The fully processed signal is then converted to an analogue audio signal by the CODEC DAC

and then applied to conventional audio amplifiers U803A/B and the speaker amplifier U805.

In addition, Discriminator Audio is derived from the other CODEC output channel and then amplified by

U802A after which it is applied to one of the radio I/O connectors for option purposes. Discriminator Audio is

a preset level set by the FPP and is independent of squelch operation.

There are two speaker options available. A half bridged configuration using a speaker across balanced

output SPKR OUT1 and 2, which provides an audio output level of up to 4 watts into 4 ohms. The other

option is a full bridge configuration using a high power speaker across SPKR OUT1 and 2 and providing an

audio output level of up to 10 watts into 8 ohms. The carrier and signalling mute functions are performed

by Q810/811/813 under DSP control. De-emphasis to the audio PA U805 is performed by R861 and

capacitors C866 to C871. Flat audio is provided to S1-6 via amplifier U803A.

SRM9000 SERIES SERVICE MANUAL

3.2 TRANSMITTER

Refer to Figure 3-2.

3.2.1 Drivers and PA Stages

The RF output level from the VCO T/R switch D611a is typically +5dBm (UHF) and +8dBm (VHF). Tx

buffers Q606/Q612 increase this level to provide approximately 10dBm of drive power to the Tx driver

Q571. The Tx driver stage provides a maximum of 17dBm of drive to the PA module and provides part of

the power control function in conjunction with the first stage of the PA module. The buffer/driver circuits in

conjunction with their attenuator circuits also provide a high degree of VCO isolation from the Tx output.

The gains of PA driver Q571 and PA module are controlled by the power control loop to ensure that

transmitter output power remains within defined limits.

PA module U500 utilises three MOSFET stages (UHF) and two MOSFET stages (VHF) to achieve the

required maximum RF output power level of +44dBm (25 watts).

Note. Care should be taken during servicing since if for any reason the drive power is lost, while the power

control voltage is high, the current into the PA may exceed its specification. Therefore, the power supply

current should be monitored at all times and preset to as low as required. The radio has additional inbuilt

safeguards, but these should not be relied on.

Power output settings are derived from alignment data stored in flash memory during the initial factory

alignment. The DSP processes this data to optimise the power output level relative to the programmed

channel frequencies that may be changed at any time without retuning the radio.

PA current is monitored via comparator U520B, the output of which is passed via a temperature

compensation network R541 to R543 to ADC U301C. U301C samples the applied voltage after which it is

passed to the PLA and then processed by the DSP.

3.2.2 Power Control

Output power is stabilised by a power control feedback loop. A printed circuit transmission line, L580, R580,

D510 and associated components comprise the power detector. Comparator U520A and associated

components provide the power setting and control functions. Forward and reverse power is sampled by the

power detector and applied as a DC voltage to the inverting input of the comparator. The TX_PWR set

voltage is a DC voltage proportional to the programmed Tx power setting and is applied to the non-inverting

input of the comparator.

The TX_PWR voltage originates from the PLA as a PWM signal and is integrated for application to the

comparator.

PA module output level changes due to supply voltage, load or temperature variations are detected and

applied to the comparator that proportionally adjusts the PA module bias supply and the PA driver (Q571)

supply, and therefore the PA drive level. High temperature protection is provided by thermistor R552 that

progressively reduces the power level if the PA module temperature becomes excessive.

3.2.3 Antenna Changeover and Harmonic Filter

The antenna changeover circuit consisting of pin diodes D580/D540a/D541a, is switched by

Q541/Q542/Q543 and associated circuitry allowing the transmitter output to be coupled to the antenna while

providing isolation for the receiver input. With the transmitter switched on, the diodes are forward biased

allowing power to be coupled through to the antenna and isolating the receiver by grounding its input at

C588. The short circuit at the receiver input is transformed to an effective open circuit at D580 by L583,

which minimises transmitter loading. With the transmitter switched off the diodes are reverse biased

allowing the receiver input signal to reach the receiver front end with minimal loss. The harmonic rejection

low pass filter comprises L582/L584/L585 and associated capacitors.

3.2.4 Transmitter Audio Processing

The microphone audio input signal is applied to the microphone input (AUDIO_IN1) and is derived from an

external microphone unit with an applied nominal level of 40mV RMS. U801A is a control gate that switches

between AUDIO_IN1 and OPTION_AUDIO1 to provide external audio options and data input.

SRM9000 SERIES SERVICE MANUAL

U801C provides CODEC input switching which selects either the receiver I signal or transmitter audio/data

signals depending on the Tx/Rx mode. All pre-emphasis, filtering, compression and limiting processes for

narrow and wideband operation are carried out in the DSP after A-D conversion by CODEC U800. The

processed transmitter audio/data from the CODEC output at VOUTR is applied to the VCO as a modulation

signal with a level of approximately 200mV P/P via AF Switch U801B.

Directional

Coupler

TX VCO

Q602

VCO

Buffer

Q604/

Q605

TX/RX

Switch

D610/

Q611

TX Driver

Q571 TX PA U500

Antenna

Switch

D580/

D540/

D541

Power

Control

Comparator

U520A

Antenna

Filter

L582/

L584/L585

TX VCO

Switch

Q603

To RX Mixer

LO1_RX

ADC/DAC/

CODEC U800

TX_MOD

From PLA/DSP

RX/TX AF

Switch

U801C

Switch

U801A

Standard Microphone

External Accessory Audio

Current

Sense

U520BTX Current Sense to PLA

13V8_UNSW From L8

Audio

Gate

U801B

DATA_EN

TX Buffer

Amp

Q606/

Q612

TX/RX AF Control

From PLA

TX_MODE

Internal MIC/ External

Audio Control From PLA

MOD_SW

TX_CURRENT

Antenna

Switch

Control

Q541/

Q542

Power

Control

Detector

D510

Integrator

R308/C307

PWM TX Power

Set from PLA

PA_ONfrom PLA

Thermal

Shut Back

R552

TX_PWR

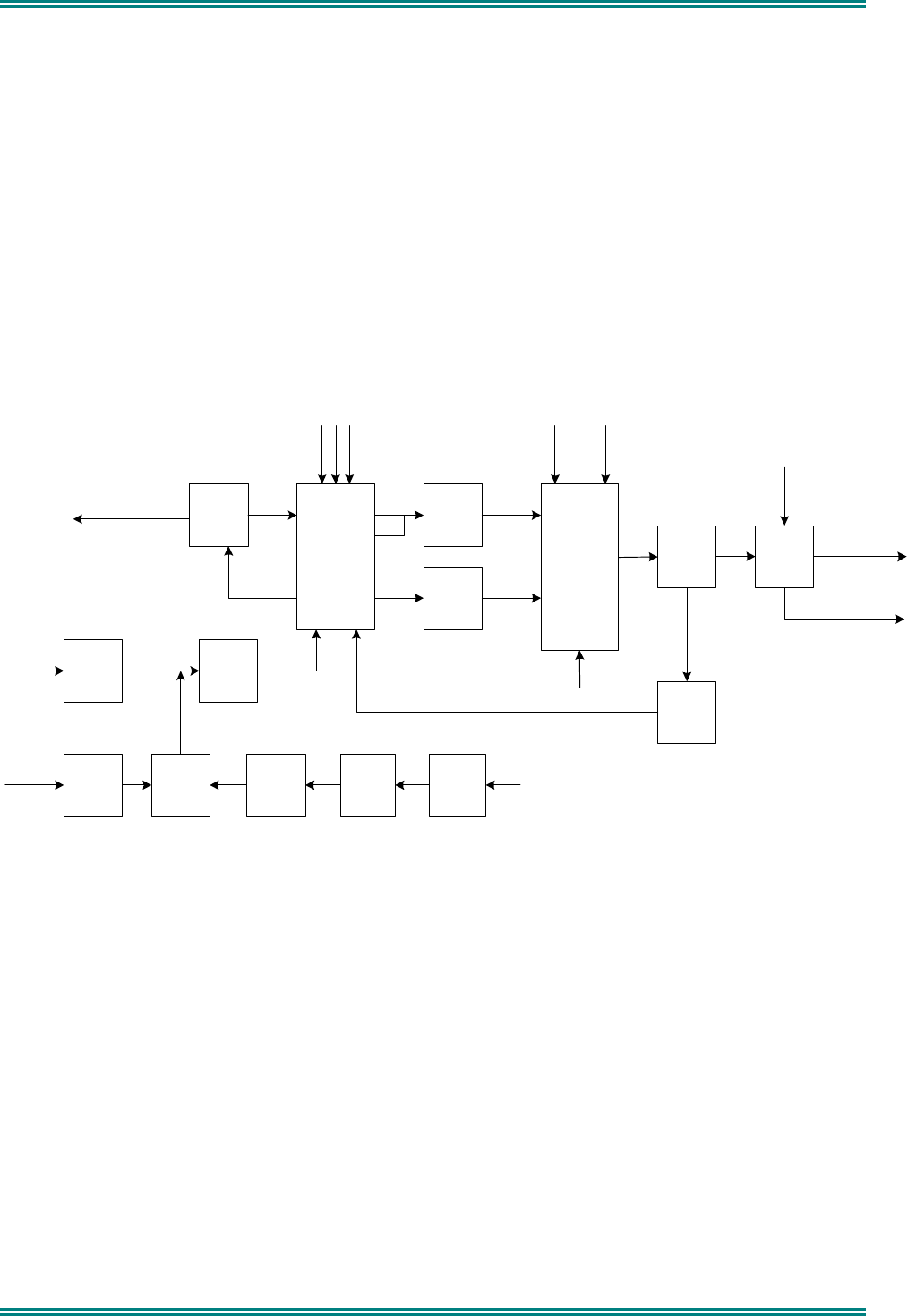

Figure 3-2 VHF/UHF Transmitter Block Diagram

3.3 FREQUENCY SYNTHESISER

3.3.1 General

Refer to Figure 3-3.

SRM9000 SERIES SERVICE MANUAL

The frequency synthesiser consists of one transmitter and two receiver voltage controlled oscillators, loop

filters, varactor negative bias generator, reference oscillator and an integrated dual phase locked loop

device U701.

3.3.2 PLL

The PLL device contains two prescalers, programmable dividers and phase comparators to provide a main

and auxiliary PLL. The main PLL of U701 controls the frequency of the Tx/Rx VCOs via Control Voltage

outputs at pins 2 and 3 and VCO feedback to pin 6. The auxiliary PLL is used to control the receiver 90MHz

second local oscillator via the Control Voltage output at pin 17 and VCO feedback to pin 15. The PLL

operation involves the division of the 14.4MHz reference oscillator frequency to 225kHz (VHF) or 450kHz

(UHF) by divider U710. It is then divided by the internal divider of U701 down to a low frequency that

corresponds to a sub-multiple of the radio channel spacing, ie. 6.25kHz for 12.5/25kHz channel spacing,

5kHz for 10/20kHz channel spacing or 7.5kHz if required. The VCO frequency is sampled and divided down

to the same frequency after which it is phase compared to the reference. Any error produces an offset to the

Control Voltage output that is used to correct the VCO frequency. A valid lock detect output is derived from

pin 20 and is sampled by the PLA. During transmit, if an unlocked signal is detected the radio will switch

back to receive mode. An unlocked signal in receive mode will cause the radio to beep.

3.3.3 VCO’s

The transmitter and receiver VCO’s use low noise JFET transistors Q600 (Rx), Q602 (Tx) and associated

parts to generate the signals for the required band coverage. Electronic tuning is provided by varactor

diodes D600 to D608 with their control voltages derived from the Loop Filter, PLL and Negative Bias

Generator. VCO selection and timing is controlled by the DSP/PLA via the Rx and Tx power supplies and

applied through switches Q601 (Rx) and Q603 (Tx). VCO buffer Q604/Q605 isolates the VCO from load

variations in following circuits and active power supply filter Q615 minimises supply related noise. A PLL

feedback signal is sampled from the VCO buffer output via buffer Q607.

The 90MHz receiver VCO comprises Q402 and associated parts. Automatic tuning is achieved by applying

a control voltage to D414/D415 via Loop Filter R445, R446, R701, C486, C701 and C702.

3.3.4 Negative Bias Generator and Loop Filter

A positive and negative varactor bias supply similar to the front-end varactor arrangement has been used to

achieve the required broadband tuning range of the VCO’s. PLL device U701 is programmed to deliver a

nominal +2.5V output from phase detector/charge pump CPPF or CPP regardless of the channel frequency

selected. This voltage is filtered to remove synthesiser noise and reference products by the Loop Filter

comprising C671 to C681 and R653/R654/R655. The resulting low noise voltage is applied to the cathode

side of the VCO varactor tuning diodes as a positive bias voltage. The negative bias supply originates as a

positive DC voltage (0.1V to 3.0V) at the DAC output of U701 (DOUT) with a level relative to the

programmed state of the radio (eg. channel frequency and Tx/Rx state). The voltage is translated to a

negative voltage between 0V and –16V by the circuit comprising Q700 to Q703. The -16V rail of this supply

is generated by U904E/F with D903 to D906 providing the voltage multiplying effect needed to achieve -

16V. The output of the negative supply is applied directly to the VCO varactor anodes as the negative

tuning voltage VCAP BIAS.

3.3.5 Phase Modulator

The modulation path for audio, data and higher frequency CTCSS signals is via varactor D609 and its

associated components in the Tx VCO. The reference input to the PLL (REF) provides the low frequency

modulation path via the Phase Modulator.

The phase modulator comprises the following sections:

- Integrator U711A is a low pass filter providing 6dB per octave attenuation to frequencies above

approximately 10Hz.

- Divider U710 divides the 14.4MHz reference frequency down to 225kHz (VHF) or 450kHz (UHF).

- Ramp generator Q711/Q712 provides a saw tooth output, the slope of which is adjustable

via the MOD_BAL line. This adjustment is set via a DAC output controlled from the Alignment

Tool. Adjustment of the ramp slope effectively changes the Phase Modulator gain by

modification of the Schmitt Trigger switching points after modulation from the Integrator is

combined to the saw tooth ramp.

SRM9000 SERIES SERVICE MANUAL

The divided reference signal is differentiated and discharges C744 via Q711 after which Q711 is turned

off allowing C744 to recharge via constant current source Q712/Q713.

- Schmitt Trigger comprising Q714 to Q716 converts the modulation combined with the saw tooth ramp

to a square wave output, the duty cycle of which is controlled by the ramp slope and modulation.

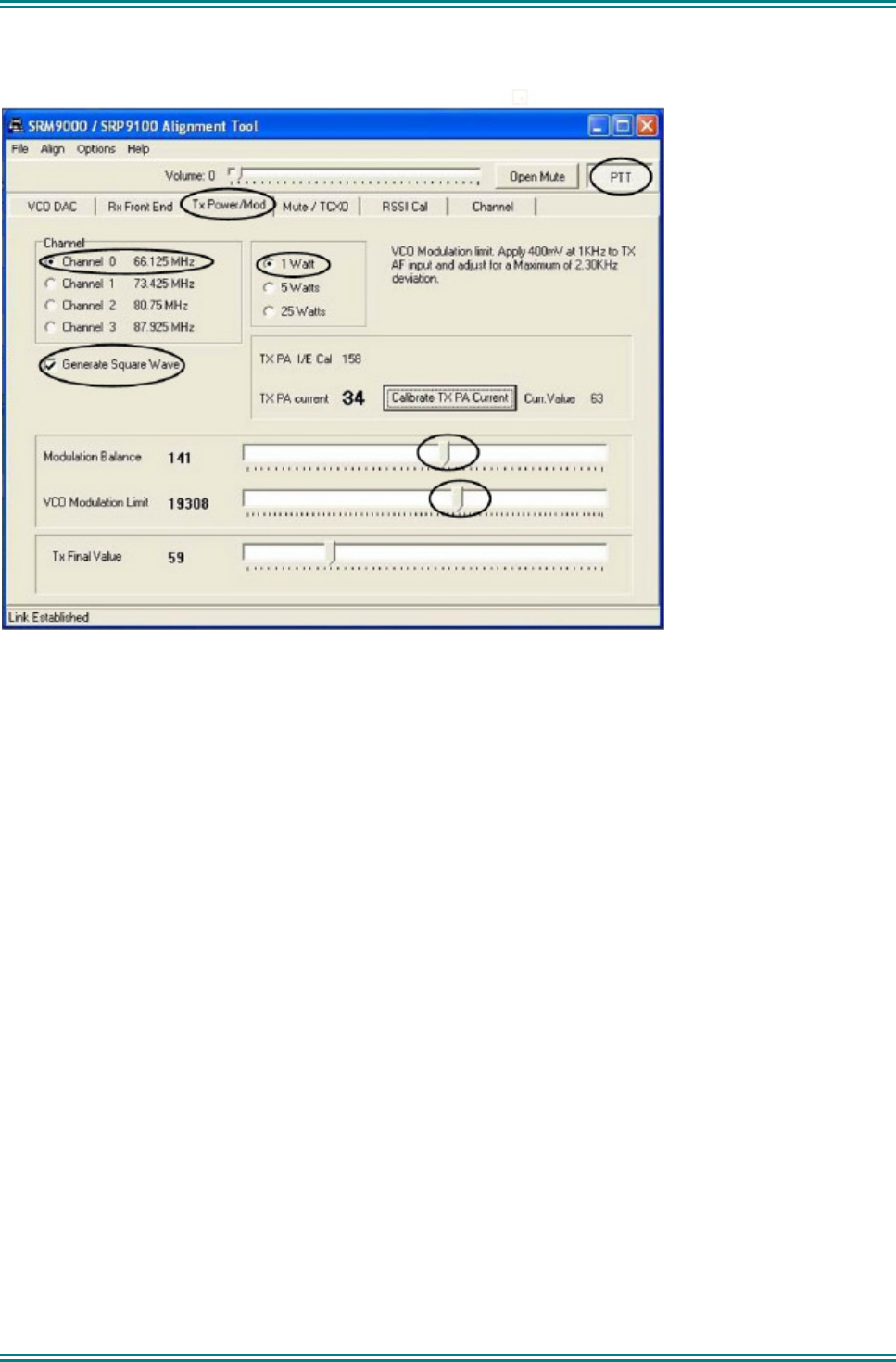

Modulation balance adjustment is carried out using a CODEC generated 100Hz square wave applied to

the TX_MOD input and set to give an optimum demodulated square wave output.

3.3.6 Reference Oscillator

TCXO U700 determines the overall frequency stability and frequency setting of the radio. The frequency

setting is achieved by adjusting its ADJ voltage with the Alignment Tool. In addition, the ADJ input is used in a

frequency control loop with the receiver I and Q signals to provide receiver AFC. U700 operates at 14.4MHz

and is specified at ±2.0ppm frequency stability over the temperature range -30° to +75°C.

90MHz

VCO Q402

Synthesiser

U701 RX/TX VCO

Q600/ Q602

TX/RX

Switch

D601/

D611

VCO

Buffer

Q604/

Q605

Data From

DSP

Phase

Modulator

Q714-

Q716

Ramp

Generator

Q711-

Q713

Integrator

U711A

TX_MOD

MOD_BAL Prog.

Divider

U710

Buffer

Q710

14.4MHz

Reference

Oscillator

U700

To TX Buffer

REF

PLL Loop

Filter

VCO Neg

Bias

Supply

Q700-

Q703

CPP

CPPF

DOUT VCAP_BIAS

AUX_LO2

AUX_CP

Divide 32 (UHF)

Divide 64 (VHF)

Synth

Buffer

Q607

SYNTH

LO1_RX

TX_MOD

To IQ

Demodulator

U400

LO2

AFC from

PLA

To RX Mixer

Buffer

U711B

RX_PSU

RX_PSU TX_PSU

Figure 3-3 VHF/UHF Synthesiser, Block Diagram

3.4 CONTROL

Refer to Figure 3-4.

3.4.1 DSP and PLA

The SRM9000 transceiver operates under the control of a DSP (U201) and PLA (U300) combination that

together with a number of other dedicated devices perform all the operational and processing functions

required by the radio. The PLA is configured by the DSP under software control to provide the following

functions:

• Channel set-up of all operating frequencies

• Modulation processing and filtering

• De-modulation processing and filtering

• Tx power output reference

SRM9000 SERIES SERVICE MANUAL

• Modulation Balance adjustment

• Receiver front-end tuning

• Serial communications with alignment tool, microphone and control head

• Modem functionality for data modulation

• All signalling / CTCSS generation and decoding

• DSP Crystal Oscillator control

• Receiver muting control

• RSSI / AGC control

• AFC

• Tx / Rx switching and PTT control

• PLL lock detect

• Audio switching

• Power On/Off control

• Interface functionality with Option Boards and External Devices

• Battery voltage and Tx current monitor

3.4.2 DSP Clock Oscillator

The DSP is clocked by a 15.360MHz oscillator that consists of crystal X200 and an internal DSP oscillator.

Q200 forms a crystal switching circuit with C205 which, when activated by a command from the PLA, steers

the oscillator away from potential interfering frequencies.

3.4.3 PLA PWM

The PLA must supply several analogue signals to control radio tuning. It does this with several Pulse Width

Modulated (PWM) outputs.

The front-end tune signals (TUNE1-TUNE4) originate from the PLA in the form of PWM signals. The

values for these signals are stored in flash memory from radio alignment and selected depending on the

channel that the radio is currently tuned to. These signals are integrated by RC networks to provide the

analogue tuning voltages that are then applied to the tuning varicap diodes.

Other analogue PWM derived signals used are transmitter power (TX_PWR), receiver AGC voltage (AGC),

LED’s (RED/GREEN) and modulation balance (MOD_BAL).

Analogue inputs are monitored by four comparators comprising U301A-D and a ramp generator, the ramp

being derived from a PWM signal from the PLA.

Analogue voltages to be monitored such as PLL Loop Voltage (LOOP_VOLTS), key detect (KEY_DET),

battery voltage (BAT SENSE), transmitter current (TX_CURRENT), volume level (VOLUME) and external

sense (EXT_SENSE) are connected to the inverting inputs. The analogue voltages are compared with the

ramp voltage as they increase and the comparator switches at the point where the input voltage exceeds

the ramp. The PLA compares the time that this occurs with the PWM signal and converts it to a binary

value.

3.5 MEMORY

Memory consists of the internal DSP memory and an external 8MB non-volatile Flash Memory U202. When

power is off, all program SW and data are retained in Flash Memory. At power-on, a boot program

downloads the DSP and PLA SW from Flash Memory to their internal RAM’s for faster program execution

and access to data. PLA SW is loaded by the factory into the Flash Memory and can be updated via the

SRM9000 SERIES SERVICE MANUAL

Alignment Tool. DSP SW comprises Start-up code that is also loaded by the factory. High-level SW

comprising Operational Code and Customer Configuration are loaded at distribution centres and are loaded

via the FPP Programmer.

DSP

U201

Synthesiser

U701

PLA

U300

Reset

U200

Clock

X200

Flash

Memory

U202

CODEC

U800

Serial port

TX_DATA

RX_DATA

XTAL_SHIFT

AGC

TX_Power

1. SPKR_ON

2. PA_ON

3. TX_MODE

4. OPTION ON/OFF

5. PWR_OFF

6. ANALOG GATE CONTROLS

7. SYNTH_FAST

Tune 1 - 4

BAT_SENSE

Audio

AFC

FUNCTION_EN

LOOP_VOLTS

EXT_SENSE

1. PTT_IN1

2. PTT_IN2

3. GAIN

4. DC PWR_STATUS

5. PWR_ON

Bit

Outputs

TX_CURRENT

BAT_SENSE

POWER_SENSE

MOD BAL

Bit

Inputs

LOCK

PWM

Outputs

Sampled Analog Inputs

UPDATE Figure 3-4 Controller Block Diagram

SRM9000 SERIES SERVICE MANUAL

3.6 POWER SUPPLIES

3.6.1 Power On Function

The unregulated 13.8V DC input (13V8_UNSW_F) is routed directly to all high current devices and is then

switched via FET Q900 to provide BAT_SW supply for all other circuits. The output from Q900 feeds three

low dropout series regulators and switched battery voltage These regulated supplies power auxiliary

supplies as well as the negative voltage generator. The radio ON/OFF function is achieved through Q902,

Q908 and Q909. A low voltage pulse from the control unit or microphone handset PWR ON or PWR OFF

momentarily turns on Q900/Q908 for approximately 1 sec. In this time, the radio DSP samples the

PWR_SENSE line and determines the state of the on-off switch. If the on-off switch is on, the DSP raises

the PWR_OFF line and latches the main FET on, which then maintains power to the radio circuitry.

The Power-off operation requires the On-Off switch to be turned off for more than 2 seconds. If the On-Off

switch is sensed going low by the DSP via the PWR_SENSE line, the DSP will save radio settings and then

lower the PWR_OFF line, thereby turning Q900 off.

3.6.2 Power Supplies

The following is a list of the SRM9000 power supplies and some of the devices and circuits they supply.

3.6.2.1 8V Regulator U900

Regulated 8.0V supply (8V0 and +8V)

• Tx buffers Q571, Q612

• VCO’s and VCO buffers via active filter Q615

• Rx second local oscillator via Q403

Regulated 8.0V switched supply (Rx PSU)

• Rx front end

• IF Amplifier

• Various switching functions

3.6.2.2 5V Regulator U901

Regulated 5.0V supply (5V0 and +5V)

• Rx front end varactor positive bias

• Synthesizer buffer Q607

• VCO varactor negative supply Q700 to Q703

• TCXO U700

• TCXO divider U710

• Rx audio amplifiers U802/U803

• Rx mute switch Q810 to Q813

• FE TUNE level translators, Q404 to Q411

• Analogue supply for U701

Regulated 5.0V switched supply (Tx PSU and Tx PSU+)

• Tx power control U520

• Tx buffer Q606

• Various switching functions

SRM9000 SERIES SERVICE MANUAL

3.6.2.3 3.3V Regulator U912

Regulated 3.3V supply (3V3)

• Reset U200

• PLA U300

• DSP U201

• Flash U202

• Digital supply for CODEC U800

Regulated 3.3V supply (3C3)

• Analogue supply for CODEC U800

Regulated 3.3V supply (3Q3)

• I/Q demodulator U401

Regulated 3.3V supply (3P3)

• Digital supply for PLL U701

Unregulated 13.8V (13V8_UNSW_F)

• Tx PA module U500

• Antenna changeover switch Q541/542/543

• Rx mute switch Q811

• Rx audio power amplifier U805

3.6.2.4 2.5V Regulator U903

Regulated 2.5V supply (2V5)

• DSP core U201

• PLA core U300

3.6.2.5 Negative Power Supply U904E/F

• -16V output (-16V) for VCO Varicap tuning drivers

• -12V Output (-12V) for Front end Varicap tuning drivers

3.6.2.6 Unswitched Battery (13V8_UNSW_F)

• Transmit Power Amplifier

• Speaker Amplifier

SRM9000 SERIES SERVICE MANUAL

4. ALIGNMENT (LEVEL 3 SERVICE ONLY)

This procedure is applicable to all versions of SRM9000 mobile transceivers.

If the radio contains customer configuration data that must be retained, you must first use the SRM/SRP

Personality Programmer (FPP) software to read all radio configuration files and save them on to alternative

media before commencing the alignment procedure.

When the Alignment is completed, use the FPP software to retrieve this stored data and write it back to the

radio.

It is preferred that the radio remain installed in its aluminium extruded case throughout this alignment

procedure. If the radio is to be aligned when removed from the case, a temporary heat sink must be fitted

under the Transmitter PA module and the receiver output must be kept below 100mW.

Note. Final Tx power adjustments must be performed with the radio board installed in the chassis.

4.1 TEST EQUIPMENT

1. Radio transceiver test set CMT, 52/82 or similar.

Note. For alternative equipment, the Mod

Balance test requires internal DC coupling

between the demodulated signal and

demodulation output connector.

2. Variable DC power supply 10.8V to 16.3V current limited to 7 amps

3. Oscilloscope 20 MHz bandwidth minimum

4. SRM9000 Programming & Alignment Breakout

Box As detailed in Figure 4-1

5. SRM9000 Speaker O/P Breakout Box As detailed in Figure 4-2

6. Personal Computer 486 DX 66 or better.

Operating system Windows 95 or later.

Minimum RAM - 16MB.

5MB free hard disk space.

Floppy drive - 1.44MB.

Mouse and serial port required

7. SRM/SRP Alignment Tool Computer Software file

8. SRM/SRP Field Personality Programmer

(FPP) Computer Software file

Caution

Preparing the radio for alignment will erase from the radio all customer PMR and Trunking

configuration data (channel, signalling information etc). The only data retained by the

Alignment Tool is the factory alignment data for the radio (DAC settings for Tx power, front-end

tuning, etc).

Using the Alignment Tool will allow changes to the original factory alignment an

d will invalidate

all warranties and guarantees unless performed by an authorised level 3 service centre.

SRM9000 SERIES SERVICE MANUAL

Black

Red

Yellow

Blue

Brown

Orange

Green(4)

White (8)

(Not Used)

470E

White

Green

Mic Audio in

Mic Ground

Ground

Handset AF Output

13.8V Switched

On/Off

Rx Data

Tx Data

RJ45

PRM80

Programming Cable

P/N 9525-001-00016

BNC (F)

Connector

22uF to 47uF

Tant. or Elect

DB25

Access and modify

cable as shown

9000_49/2

25-9 Way

Adaptor

SRM9000

AF Generator

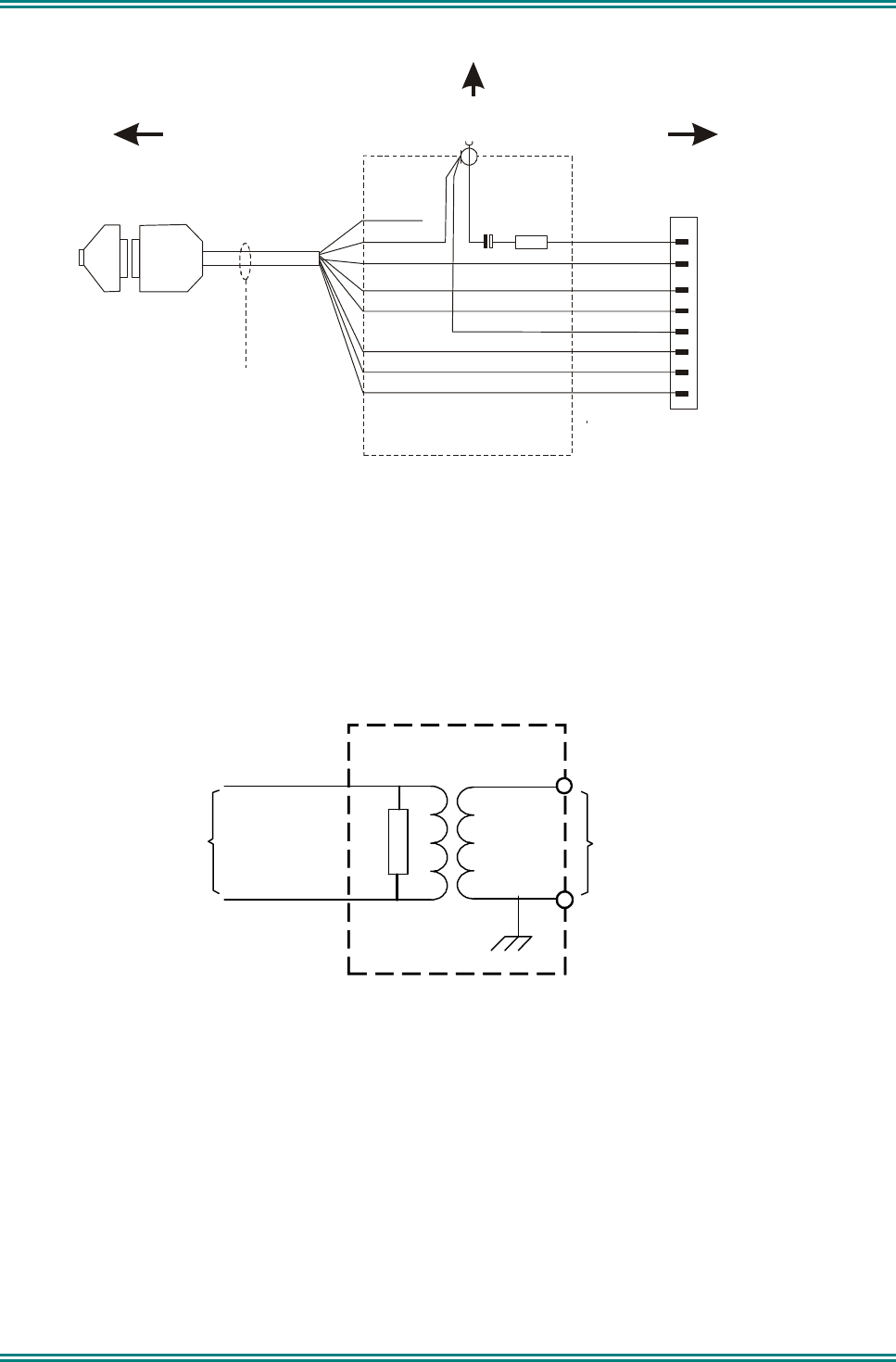

Figure 4-1 SRM9000 Programming & Alignment Breakout Box

SRM9000 P2

Pins 6 & 13

R = Audio power Load (set as appropriate)

Resistor 4R 4W for ½ Bridge Speaker option

Resistor 8R 12W for full Bridge Speaker option

600R 1:1

Line Matching

Transformer

Noise & Distortion Meter

Oscilloscope

9000_49/3b

Figure 4-2 SRM9000 Speaker Output Breakout Box

SRM9000 SERIES SERVICE MANUAL

4.2 TEST SET-UP

Figure 4-3 Test Set-up

1. Connect the radio to the test equipment as shown in

4. Figure 4-3.

5. Switch on the DC Power Supply.

SRM9000

(DB15M)

SRM9000

Programming

and

Alignment

Breakout

Box

Antenna Skt

RJ45

Generator

13.8V DC

Power Supply

CRO

9000_49

Radio

Transceiver

Test

Set

Noise &

Distortion

Meter

SRM9000

Speaker O/P

Breakout

Box

Coax

(<200 mm)

SRM9000 SERIES SERVICE MANUAL

4.2.1 COMMS Set up

1. Copy the SRM9000 Alignment Tool Computer Software

file to the PC hard drive and run the program

The Alignment Tool Opening Menu is displayed.

2. Go to the Options menu and choose Comms Setup.

3. The Comms Setup dialogue box is displayed.

Select the Comms Port setting appropriate to the

configuration of your PC and choose üOK.

(Usually COM1)

SRM9000 SERIES SERVICE MANUAL

4.2.2 Radio Preparation

Radio parameters are to be aligned sequentially as detailed in this procedure.

1. At the Opening Menu, select the Align Menu

and choose Prepare/Read Radio.

2. The WARNING is displayed.

Choose No if you want to save the

configuration and use the FPP software to

read and save the data to a file.

Choose Yes if you want to proceed and go to

step 3.

3. The radio alignment data is read (indicated

by percentage bar) and stored.

The test alignment data is downloaded into

the radio.

Note: In test alignment mode the radio is configured only for 12.5 kHz channel spacing, therefore all

alignment is carried out at 12.5 kHz settings unless otherwise specified. When the radio is

configured with the FPP for other channel spacings, the deviation related levels are calculated on

a per channel basis by the radio software.

SRM9000 SERIES SERVICE MANUAL

4.2.3 Alignment Procedure

Radio alignment must be done in the sequence detailed in the following paragraphs. This alignment

assumes that the radio is functioning normally.

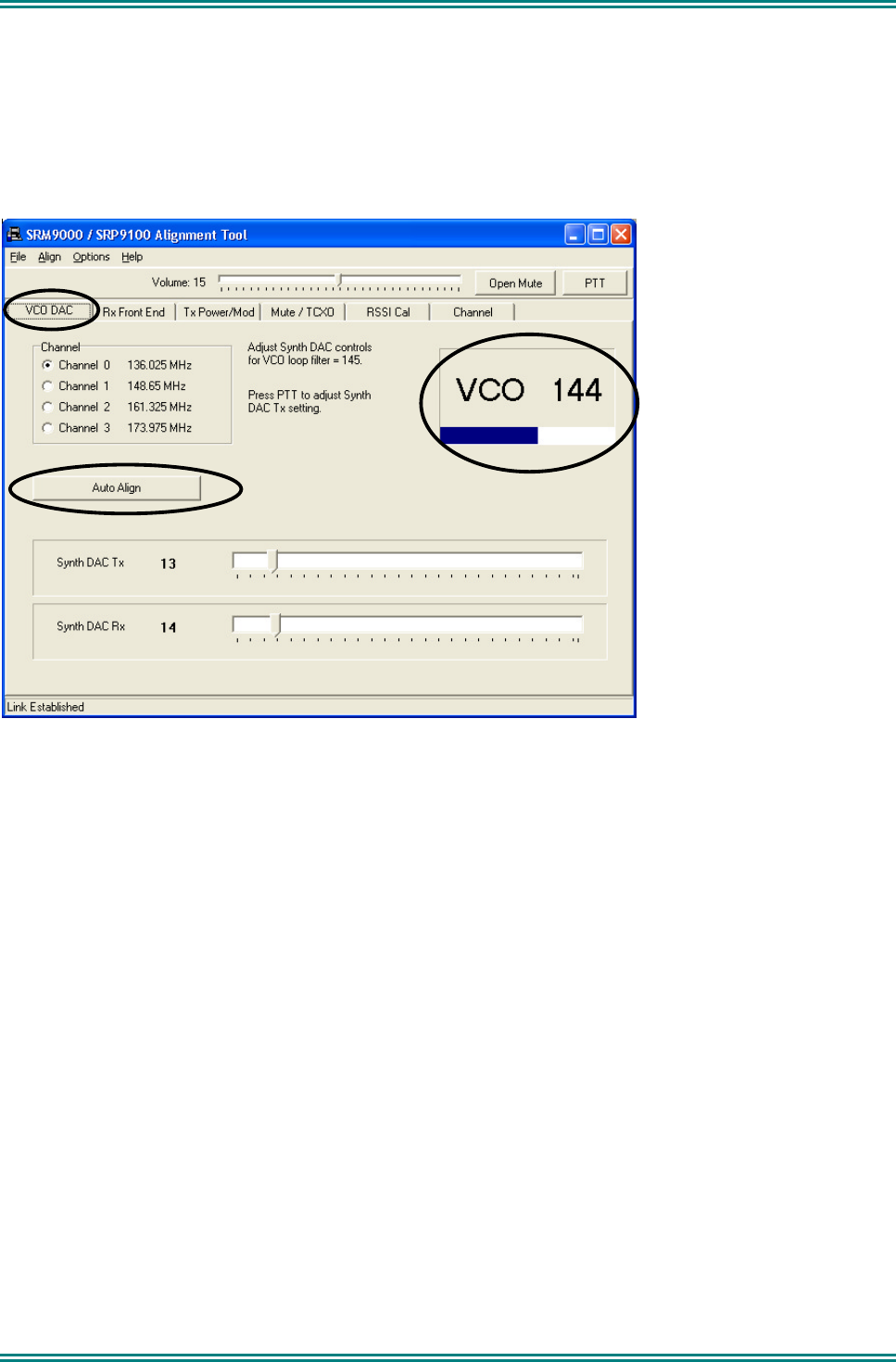

4.2.3.1 VCO DAC Alignment

1. Select the VCO DAC page.

2. Select Auto Align. The Synth DAC Rx slider will automatically adjust its value for each receiver

alignment frequency to set the VCO loop filter value between 140 and 150.

3. Select PTT and then select Auto Align. The Synth DAC Tx slider will automatically adjust its value for

each transmitter alignment frequency to set the VCO loop filter value between 140 and 150.

SRM9000 SERIES SERVICE MANUAL

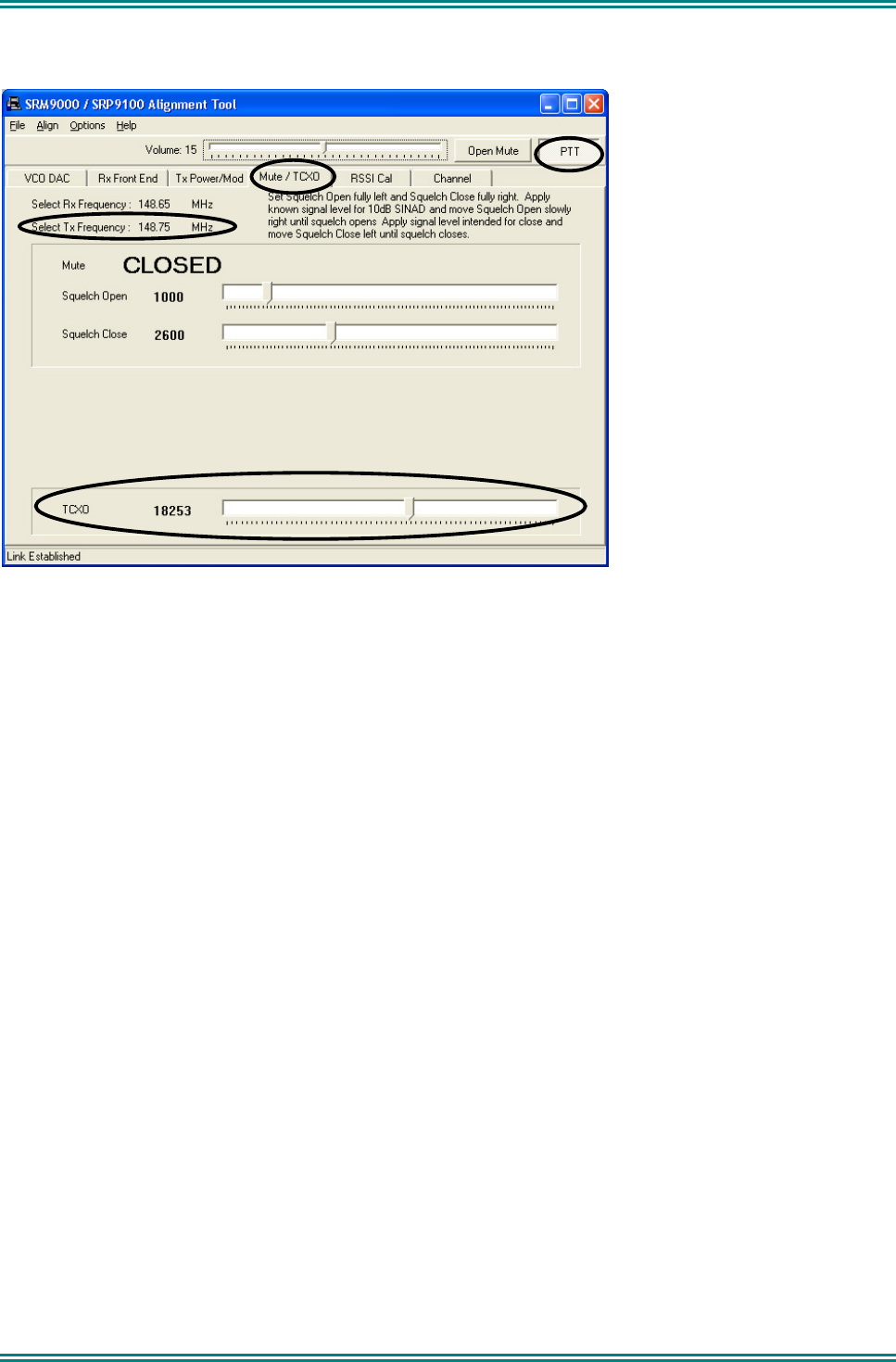

4.2.3.2 TCXO (Radio Netting Adjustment)

1. Select the Mute/TCXO page.

2. Select PTT.

3. Adjust the TCXO slider to ensure that the transmit frequency error is within 50Hz for the selected

channel (to be measured on the RF Test Set frequency counter).

SRM9000 SERIES SERVICE MANUAL

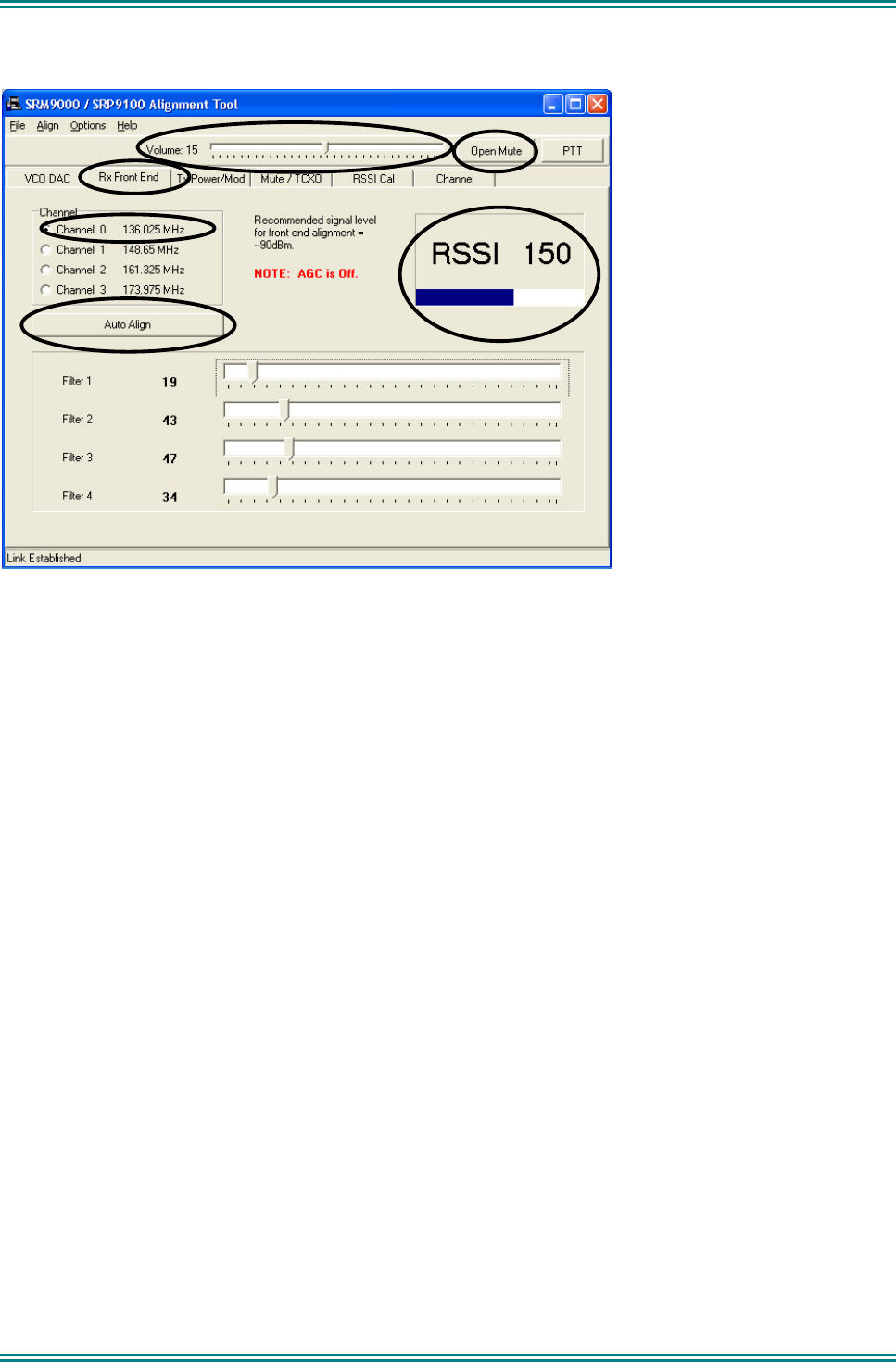

4.2.3.3 Rx Front End

1. Ensure that the TCX0 Alignment has been done before proceeding with this section.

2. Select the Rx Front End Page.

3. Select Open Mute.

4. Set the Volume slider to 15.

Speaker audio should now be visible on the Scope. If required readjust the Volume slider to a suitable

level.

5. Set the Signal Generator to the Channel 0 carrier frequency, with a 1000Hz modulation signal, a

deviation of ±2 kHz and an RF level of -90dBm.

6. Select Channel 0.

7. Select Auto Align.

The front end will be tuned automatically and finish with an RSSI reading of typically around 150.

8. Repeat Steps 7 to 8 for the remaining 3 Channels (1, 2, & 3).

9. Change deviation to 1.5kHz.

10. Verify that the receiver sensitivity is better than -117.5dBm for 12dB sinad on all channels.

(Sensitivity is typically -120dBm).

SRM9000 SERIES SERVICE MANUAL

4.2.3.4 Mute Adjustment

Note. This adjustment has default setting of 1000/2600 and should not need changing except for specific

requirements.

1. Select the Mute/TCXO page and select Open Mute.

2. Set the RF signal generator to the receiver alignment frequency, and adjust the RF level such that

the desired mute opening SINAD (typically 10dB SINAD) is achieved.

3. Select Close Mute and remove the RF input from the radio.

4. Set the Squelch Open and Squelch Close sliders to the fully left position. This ensures the receiver

will be muted.

5. Set the Squelch Close slider to the fully right position.

6. Reconnect the RF input to the radio.

7. Adjust the Squelch Open slider to the right until the mute opens.

8. Reduce the Signal Generator output level by approximately 2dB (or by an amount equal to the

desired mute hysteresis level).

9. Adjust the Squelch Close slider to the left until the mute closes.

10. The mute should now open and close at the desired RF levels.

15. Note. On revision 9 radios and higher, an additional Tx Audio Balance DAC is also provided.

For these radios, the Tx Audio Balance DAC is defaulted to zero for normal setting. However, for a

more accurate setting, the DC voltage at TP745 needs to be noted during Rx and adjusted by the Tx

Audio Balance DAC to give the same reading (to within 10mV).

SRM9000 SERIES SERVICE MANUAL

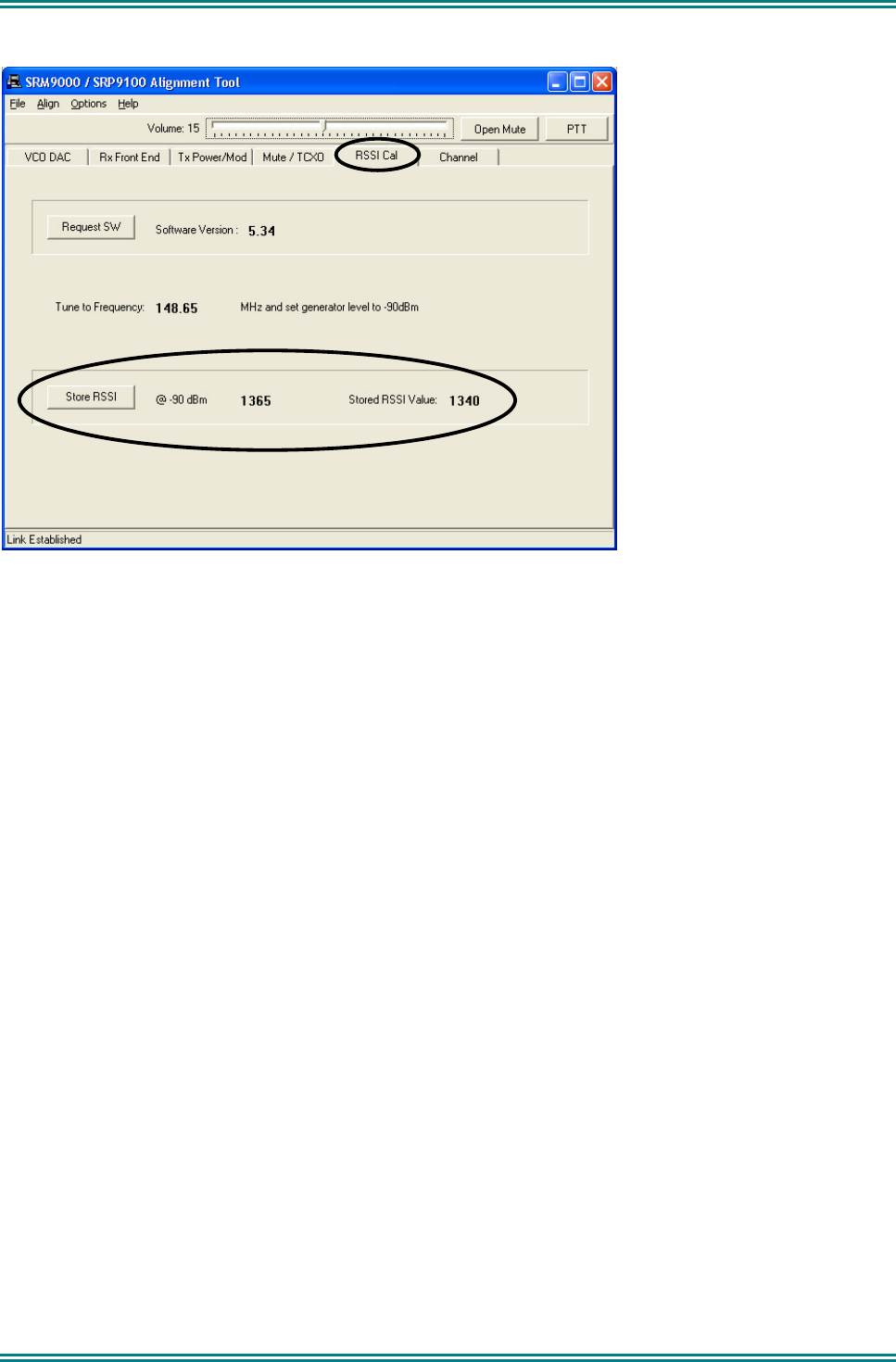

4.2.3.5 RSSI

1. Select the RSSI Cal page.

2. Set the Signal Generator for a RF output level of -90dBm and 2kHz deviation at the specified

frequency.

3. Activate the Store RSSI button.

The receiver RSSI threshold setting is calibrated.

SRM9000 SERIES SERVICE MANUAL

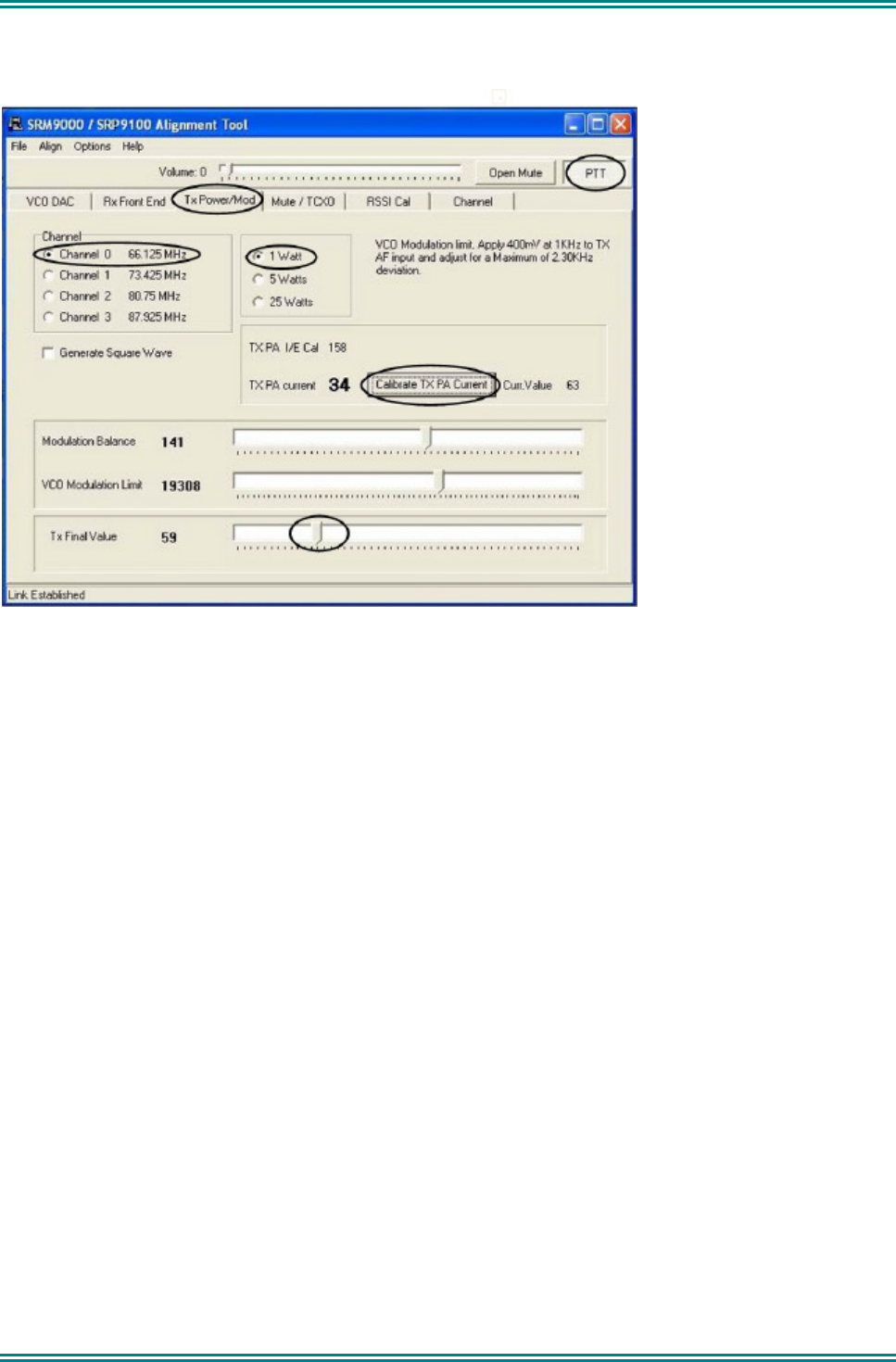

4.2.3.6 Tx Power

1. Select Tx Power/Mod page.

2. Select Channel 0.

3. Select the 1W power level.

4. Press the PTT button.

5. Adjust the Tx Final Value slider for a power output of 1W.

6. Repeat step 5 for the remaining 3 Channels (1, 2, & 3).

7. Select the 5W power level.

8. Adjust the Tx Final Value slider for a power output of 5W.

9. Repeat step 8 for the remaining 3 Channels (2, 1& 0).

10. Select the 25W power level.

11. Adjust the Tx Final Value slider for a power output of 25W.

Note that the supply current is less than 6.5A.

12. Repeat step 11 for the remaining 3 Channels (1, 2, & 3).

13 Rev 9C+ only, press “Calibrate TX PA Current” button to automatically set the maximum current

limit.

Note: This feature is not available on earlier radios and therefore will not be displayed.

14 Release the PTT button.

SRM9000 SERIES SERVICE MANUAL

4.2.3.7 Modulation

1. Select Tx Power/Mod page.

2. Select Channel 0.

3. Select the 1W power level.

4. Set the microphone input signal from the Audio Generator to 1000Hz at 400 mV RMS.

5. Adjust the VCO Modulation Limit slider for a maximum peak deviation of ±2.3kHz

6. Reduce the microphone input level to 40mV RMS and check that the deviation is within the range

±1.25 kHz to ±1.75 kHz.

7. Repeat steps 2 to 7 inclusive for the remaining 3 Channels (1, 2, & 3).

8. Remove the microphone audio input signal.

9. Select the Generate Square Wave function.

10. Select PTT and, while viewing the de-modulated signal on the transceiver test set oscilloscope,

adjust the Modulation Balance slider for the best square wave symmetry.

Note. DC coupling is required on the scope for optimum setting accuracy.

11. Repeat steps 8 to 11 inclusive for the remaining 3 Channels (1, 2, & 3).

SRM9000 SERIES SERVICE MANUAL

4.2.3.8 Programming

When all channels have been aligned the radio is programmed with the new alignment data:

1. Select Align and choose Write Alignment.

2. A warning message is displayed.

3. Choose Yes.

New alignment data is written to the radio.

4.2.3.9 Customers Radio Personality Data

If the Customers Radio Personality Data was saved as a separate file, use the FPP Programmer to write

this data to the radio.

SRM9000 SERIES SERVICE MANUAL

5. REPLACEABLE PARTS

456

9000_51b

Figure 5-1 Replaceable Parts

5.1 COMMON PARTS

Ident Description Quantity per

Assembly Part Number

2 Case 1 3513 901 70071

3 End Cap, Rear 1 6102 310 00212

4 Screw End Cap 12 3513 993 85009

5 Screw Tray Retention M3 x 16 3 3513 993 57117

6 Screw Tray Retention M3 x 12 2 3513 993 57116

7 Label Transceiver Top 1 6102 303 00101-0

8 End Cap, Front 1 3513 903 91072

9 Label Front End Cap 1 6102 303 00041-0

10 Inner Tray 1 3513 901 70083

11 Washer Fibre 17 3513 907 30241

Washer Seal BNC 1 3513 907 3255A

Gasket D Connector 1 3513 902 1082A

Gasket BNC 1 3513 902 10651

DC power installation kit 1 MA-DCPOWER

Tx PA Shield cover 1 3502 310 63223

RJ45 Connector S1 1 6102 621 00121-0

DB15 Connector P2 1 3513 993 02063

Antenna BNC connector S500 1 3513 505 05991

Audio PA Module U805 1 3513 999 52036

Voltage Regulator U900, U901, U912 1 6102 822 00121-0

Voltage Regulator U903 1 6102 822 00011

Temperature Controlled Crystal Oscillator U700 1 6102 982 00011-0

SRM9000 SERIES SERVICE MANUAL

Ident Description Quantity per

Assembly Part Number

Transient Suppressor Diode D900 1 6102 012 00031-0

Transmit Receive Switch Q541 1 3513 999 00006

ON/OFF FET Q7, Q900 1 6102 062 00051-0

5.2 BAND-SPECIFIC PARTS

Ident Description Quantity per

Assembly Part Number

Tx PA Module U500 (E0 Band) 1 6102 861 00112-0

Tx PA Module U500 (AC Band) 1 6102 861 00012-1

Tx PA Module U500 (TU Band) 1 6102 861 00052-0

Tx PA Module U500 (R1 & R2 Band) 1 6102 861 00022-0

Tx PA Module U500 (UW Band) 1 6102 861 00042-0

Tx PA Module U500 (K1 Band) 1 6102 861 00122-0

Tx PA Module U500 (KM Band) 1 6102 861 00132-0

6. CIRCUIT DIAGRAMS

Issue 9 Circuit Diagrams are contained in this Section. Previous releases of circuit diagrams are contained

in separate Service Manual Supplements. See the table below for details:

Supplement Number Description

TNM-S-E-0001 Issue 9 Circuit Diagrams

6.1 ISSUE 9 CIRCUIT DIAGRAMS

Figure Description Figure Description

6.1 Top Overlay of PCB 6.20 E0 Band Synthesizer

6.2 Bottom Overlay of PCB 6.21 AC Band Receiver

6.3 DSP/Flash 6.22 AC Band Transmitter

6.4 PLA 6.23 AC Band VCO’s

6.5 Tx/Rx Audio 6.24 AC Band Synthesizer

6.6 Power Supply 6.25 K1 Band Receiver

6.7 I/O Connections 6.26 K1 Band Transmitter

6.8 E0 Band Receiver 6.27 K1 Band VCO’s

6.9 E0 Band Transmitter 6.28 K1 Band Synthesizer

6.10 E0 Band VCO’s 6.29 KM Band Receiver

SRM9000 SERIES SERVICE MANUAL

6.11 KM Band Transmitter 6.30 R2 Band VCO’s

6.12 KM Band VCO’s 6.31 R2 Band Synthesizer

6.13 KM Band Synthesizer 6.32 TU Band Receiver

6.14 R1 Band Receiver 6.33 TU Band Transmitter

6.15 R1 Band Transmitter 6.34 TU Band VCO’s

6.16 R1 Band VCO’s 6.35 TU Band Synthesizer

6.17 R1 Band Synthesizer 6.36 UW Band Receiver

6.18 R2 Band Receiver 6.37 UW Band Transmitter

6.19 R2 Band Transmitter 6.38 UW Band VCO’s

6.39 UW Band Synthesizer

SRM9000 SERIES SERVICE MANUAL

APPENDIX A - GLOSSARY OF TERMS

A summary of common radio terms and some other terms used in this document, and their meanings, are

given below.

3RP Trunking Signalling Specification relating to trunked networks for shared use.

Used primarily for networks in France.

ADC Analogue to Digital Converter.

AFC Automatic Frequency Control.

AGC Automatic Gain Control.

Alarm A Selcall sequence sent from subscriber equipment to indicate an Emergency

situation.

When activated the radio will enter a repeating sequence consisting of an Alarm

Live Transmit Time and an Alarm Dead Receive Time.

Certain special conditions for the radio may also occur during the alarm.

A dedicated SFM (trunked system) that is sent by pressing the Alarm Key.

ANN Abbreviation for Algorithmic Network Numbering. This is the numbering system

where the numbers presented to the radio user can be mapped directly to the

MPT1327 PFIX/IDENTs and vice versa by use of a fixed algorithm in combination

with some other customisation parameters. See also FPP and MEP.

ANI Automatic Number Identification.

Auto Interrogate An Acknowledge identity sent as a response to an individual reset call.

Automatic Power Feature whereby the transmit power is automatically set to a level determined by

the level of the received signal. This is used to extend the battery life and/or

reduce radiated emissions.

Automatic Volume Feature whereby the background audio level is monitored and if this is found to be

noisy then the volume level is increased to compensate, allowing the user to hear

better.

Background Hunting The searching for an alternative and 'better' control channel whilst already on a

valid control channel.

BCAST MPT1327 broadcast message. Used to transmit information about the trunked

radio system to radio units.

Busy The state of a channel such that:

• For a non-signalling channel - if Busy this means that the carrier is above squelch.

• For a channel with CTCSS/DCS - if Busy this means a signal is being received

with either no CTCSS tone / DCS code or the correct CTCSS tone /DCS code.

• For a channel with Selcall - if Busy this means a closed channel where the signal

is above squelch.

A feature that equates to 'Do Not Disturb' such that the radio will reject all non-

emergency calls. This feature can be activated using the Busy key (if assigned) or

from a menu; it is reset to disabled at switch on.

C4FM Compatible 4-Level Frequency Modulation.

SRM9000 SERIES SERVICE MANUAL

Call Back A request, sent by the dispatcher, to a unit requesting that the unit calls the

dispatcher back.

CCSC Control Channel System Codeword.

Channel Spacing The distance (in Hz) between the defined frequency channels.

CHEKKER System Interface Specification for Trunked Networks in Germany.

CLIM Call Limit Time; time limit on calls made. Normally this is defined by the Call Time

Limit parameter but can by overridden by the TSC depending upon the setting of

TSCLIM.

CLIME Emergency Call Limit Timer.

Clipboard A temporary storage area in Windows used to store data in cut, copy and paste

operations.

Closed A state where transmit and receive are not allowed until a Selcall message to

open the channel has been received. A Closed Channel is one which defaults

(when selected or after timed reset) to its closed state. Contrast with Open.

Normally a Closed channel would have Selcall Mute and PTT Inhibit would be

enabled.

CODEC COde (Analogue to Digital Converter) / DECode (Digital to Analogue Converter).

Community Repeater A communications set-up whereby different groups of radios can operate by using

only one base station. This is achieved by the use of CTCSS tone signalling such

that each group has a different CTCSS tone (encode and decode) and radios can

only communicate with other radios in their group. Only one group of radios can

use the base station at any one time.

Continuous A continuous control channel is one that is only used by one site. There are no

breaks in the transmission of signalling. Emergency Call Time Limit

Control Channel A channel used for the transmission of messages that enables the TSC to control

radios. Control channels may either Continuous or Timed Shared.

Control Channel Burst A feature that enables control channel burst transmissions on systems using time-

shared control channels. It is unavailable if the control channel acquisition type is

not 'Time Shared'. To make available: go to Control Channel Acquisition Type and

set to Time-shared.

CRU Central Repair Unit

CTCSS CTCSS stands for Continuous Tone Controlled Signalling System. A continuous

tone (lower than the audio range of the receiver) is modulated onto the carrier as

well as other signalling or voice traffic. Compare with DCS. Only receivers that

have been instructed to recognise the same CTCSS tone are able to receive the

transmissions, since the squelch of receivers looking for different CTCSS tones

prevents the audio from being heard. This provides a simple method of sending

messages to selected receivers only and allows several different networks to use

the same frequencies. CTCSS is also known as Tone Lock or Tone Squelch.

DAC Digital to Analogue Converter.

Dash (-) digits Digits known as 'No Tone' digits used in Selcall Identities.

DCS Digital Coded Squelch system is based on sending a continuous stream of binary

code words using, low deviation, direct frequency shift keying. Only receivers

which have been instructed to recognise the same DCS sequence are able to

open their squelch and receive the associated speech transmissions. This

SRM9000 SERIES SERVICE MANUAL

provides a simple method of sending messages to selected receivers only and

allows several different networks to use the same frequencies.

Decode Reception of signalling. Either Selcall where encoded tone frequencies are

decoded and identified as specific tones digits or CTCSS/DCS where tones are

analysed to see if the channel should be opened.

Demanded Demanded Registration; a procedure in which the TSC forces a single radio unit to

attempt registration immediately (providing the radio is not already attempting to

Disabled The 'False' state of a parameter. That indicates this parameter is not active.

Typically this state is represented by an unmarked check box. Compare with

Enabled.

DSP Digital Signal Processor.

DTMF Abbreviation of Dual Tone Multi-Frequency signalling. Used to dial into Telephone

networks using tone dialling.

Dual Watch A facility that enables the Radio to periodically monitor another channel for a

signal above squelch. Typically applications are checking an emergency channel

whilst on another channel.

Dynamic User Groups These groups use a temporary user Ident to group a number of units together who

would not normally make up a group. These groups are formed by the TSC

(contrast with User Defined Groups) sending a special message to units instructing

them to add a new group Ident to their list of groups. Up to 8 groups can be

defined. These temporary groups are lost at switch off unless 'Save Groups at

Switch Off' is enabled.

Economiser A process by which the Receiver is powered down whilst there is no received

signal. Periodically the receiver is powered up to check for such a signal. This is

used to extend the battery life.

Enabled The 'True' state of a parameter. That indicates this parameter is active. Typically

this state is represented by a mark (either a tick or a cross) in a check box.

Compare with Disabled.

Encode Transmission of signalling. Either Selcall where Selcall tone digits are encoded

into tone frequencies or CTCSS/DCS where tones modulated onto the channel's

carrier.

ETS European Technical Standard.

External Alert A facility for switching on various ancillary devices to meet customer's individual

requirements (e.g. car horn, flashing lamp etc.) when 'called'.

Only available on a mobile radio. To make available: go to Hardware

Components, Terminal Settings and set Product Type to a Mobile type.

Fallback A mode of operation that may be entered when the Network is suffering a

malfunction. During this mode certain facilities (e.g. PSTN) may not be available.

FFSK Fast Frequency Shift Keying. This is a signalling system for the transfer of digital

information. It works by using one of two audio tones to represent transmit data..

Fleet A group of units formed such that only a shortened form of dialling (2 or 3 digits) is

required between them. These groups are normally assigned contiguous ident's.

FOACSU Full Off Air Call Set Up. A method of call set-up where the calling party has to

manually answer the incoming call before the trunking system will allocate a traffic

channel to the call. This reduces the loading on traffic channels as it prevents

SRM9000 SERIES SERVICE MANUAL

them being allocated to calls when the called party is not present to deal with the

call.

PLA Programmable Logic Array.

FPP Field Personality Programmer.

SRM9000 SERIES SERVICE MANUAL

Hash (#) digits These digits are used for two purposes:

• For Selcall identities (encode and decode) - known as User Id digits. These digits

are replaced by the user id entered at switch on (if enabled)

• Use in DTMF dialled strings - their use is network dependent to access special

services.

IDENT A 13 bit number used for Identification purposes. Associated with a Prefix (PFIX)

this forms a 20 bit address which is used for identification purposes in signalling

between the radio and the trunking system.

Identity Name given to a sequence of tones which is used in sequential tone signalling.

See Valid Selcall Digits.

Idle State The state of the radio when it is not in a call.

Inaccessible A state of a channel such that it is unavailable to the user through normal methods

of channel selection. Therefore inaccessible channels will not appear on the

channel menu.

Include Calls these types of calls are used to allow a 3rd party to join into an existing call.

Link Establishment A delay incorporated into the start of every selective call or DTMF transmission

Time which allows for the finite delay of the radio equipment in responding to any radio

signal. This includes both the commencement time of the originating transmitter

and the response time of the receiver.

Locked A state of a channel whereby it is not possible to change channels using the

normal up/down keys on the channel menu until the OK key is pressed. See Auto

Channel Selection Lock.

MEP Miniaturisation Extent Parameter. Used in systems that use ANN numbering.

Modifier Part of a dialled string that modifies the nature of the call made to a number (e.g.

dialling "*9" before the number that is to be dialled will modify the call to be an

emergency call).

MPT1327 A signalling standard for Trunked Private Land Mobile Radio Systems. Defined for

systems in the UK but also used outside the UK. Issued January 1988.

MPT1343 A System Interface Specification for commercial Trunking networks. Defined for

systems in the UK but also used outside the UK. Issued January 1988.

Noise Blanker A circuit designed to reduce automotive ignition interference.

NDD Network Dependent Data. This is a field within the CCSC codeword that is used by

the trunking system to identify information about the trunking network and, in

particular, information specific to the site that is radiating the control channel. It is

used by the radio when it is acquiring a control channel to identify valid channels.

Null Id A Selcall identity that is not defined and whose tones' field is displayed as a blank.

Open A state where transmit and receive are allowed. The channel is no longer open

when reset. Contrast with Closed.

Normally an Open channel would not have Selcall Mute and PTT Inhibit would be

disabled.

OPID Network Operator Identity used in Regional Systems. See Roaming.

PABX Private Automatic Branch Exchange.

SRM9000 SERIES SERVICE MANUAL

Password An optional password system available on the radio. This feature is only available

if the radio does has a display and a keypad. To make available: go to Hardware

Components, Terminal Settings and set Product Type to one which has a display

and a keypad.

PFIX The 7 most significant bits of an MPT1327 address number. Normally same fleet

units have same prefix. Relates to individual and group address numbers.

PLL Phased Locked Loop.

PMR Private Mobile Radio (not normally trunked).

Priority Channel A channel in a search group that is scanned between every other channel.

PSD Peak System Deviation.

PSTN Public Switched Telephone Network.

PTT Press To Talk. This is the term given to the operator’s key normally used to

commence transmitting a message.

PTT Inhibit A state whereby transmission using the PTT is not allowed. Also know as Tx

Lockout.

PWM Pulse Width Modulation.

Queuing The storing of an Selcall Identity for later transmission.

If inhibited from transmitting a selcall sequence because the channel is busy then

the radio can queue the Send 1 / Send 2 sequence for later transmission. When a

radio unit is in Queuing mode all incoming calls are stored automatically in a

queue for later examination. The caller is given an indication that the call has

been queued by the called party. The queue will contain the identity of the caller

and the status value received (if a status call). Up to 20 calls may be queued. The

Queuing mode may be selected using the Modes Menu.

Note: Connecting a MAP27 device to a radio that is in queuing mode will disable

queuing. All incoming calls will then be routed both to the radio user interface and

to the MAP27 device connected to the radio. Also known as Logging Mode

Reference Frequency Normally this is generated from a high stability crystal oscillator reference and is

divided digitally in a frequency synthesiser for comparison with other frequency

sources, e.g. a VCO.

Registration Registration is a technique used to ensure that the trunking system knows the

location of radio units that are using the system. This allows the system to setup

calls quickly without having to search the whole system for the called radio.

Repeat Tone A selcall tone that is used to replace repeated tones. Fixed at tone E.

Example: An identity entered as '12333' would be sent by the radio as '123E3'.

Reset Resetting is caused by Three Tone Reset, a Remote Reset, an Individual reset or

a Group reset (Call Types in Decode Identity). When a radio is reset the effect on

the radio will be as follows:

• Any Call Alerts will be stopped

• The Call LED flashing will stop

• If the channel is in Open mode then the channel is closed

• The PTT is optionally inhibited see PTT Inhibit After Reset Sequence.

• In searching - if paused on a selcall channel then searching resumes

SRM9000 SERIES SERVICE MANUAL

• If the Acknowledge property of a Decode Identity is set to 'Auto Interrogate' or

'Transpond & Auto Interrogate' then the Auto Interrogate encode identity is

transmitted.

Roaming This is a process that allows changing between regional trunking systems which

have different Operator Identities (OPID 's). Not allowed on MPT1343 Systems.

RSSI Received Signal Strength Indicator.

Scanning Process of switching between the channels in the nominated search group in

cyclic sequence, stopping when the search condition (which may be to look for

either a free or a busy channel) is satisfied.

SDM Short Data Message.

Search Group A group of channels that are either scanned for a signal above the search

threshold or are compared and voted for the strongest signal

Selcall Selective Calling - a system of signalling which allows 'dialling up' of specific

mobiles, portables and controllers. Such a system may be used to pass messages

as a data message to a specific user or group of users. It can be used to provide

remote switching facilities and to provide access control into community repeaters

or similar devices.

Selcall Mute A state of the audio gate whereby the loudspeaker is muted (closed).

Selcall System Selective Calling, uses a tone sequence at the start, and end, of a call to control

which members of a fleet react to the transmission.

SFM Short Form Memory.

Sidetone Sidetone is the audio which can be (optionally) heard when Selcall, DTMF and

toneburst transmissions are made.

Simplex Mode of operation whereby the radio operates as a conventional fixed channel

radio outside the Trunking network.

Squelch System used to prevent weak, unintelligible signals and random noise from being

heard by a radio operator while still allowing intelligible signals to be received

normally. This is accomplished by the use of a threshold below which any

received signals are ignored. Only signals whose signal-to-noise ratio is above the

squelch level cause the audio circuits of the radio to be enabled, with the result

that only satisfactory signals are received. The squelch level is specified in

SINAD.

Star (*) digits Digits known as Status or Message digits. These digits are used for three

purposes:

• Status Digits for Selcall Identities

• Wildcard digits in Status strings

• Use in DTMF dialled strings - their use is network dependent to access special

services.

Status A feature whereby a radio's status (or usually the status of the radio's user) can be

transmitted and a status message from other radios can be displayed. This

operates through status digits in Selcall identities. Either in Encode Identities or

Decode Identities as follows:

Encode Identities: Status digits within the identity are used to transmit the current

situation of the radio's user (e.g. "Out To Lunch").

Decode Identities: Status digits are looked up in a table (Status Menu) for possible

messages to display.

SRM9000 SERIES SERVICE MANUAL

SW Software.

SYS System Identity Code part of the CCSC.

TCXO Temperature Compensated Crystal Oscillator.

Temporary Temporary Registration; a process carried out by the Dispatcher due to some

system failure that prevents it from carrying out normal registration. The radios will

recognise this temporary registration mode but will otherwise use the network in

the same way as if they were registered. They may be required to re-register when

normal registration mode is resumed.

Three Tone Reset This is a system whereby a call to a user automatically reset all other users in a

group.

Example: a call to user '12345' would call 12345 and reset all other users on this

channel with an identity 123nn where n can be any digit 0-9, A-F.

Timed Reset Facility that causes the Radio, after a certain period of time, to restore current

channel to it's initial condition e.g. if it was previously searching it will resume

searching.

Time Shared A time-shared control channel is one that is used by more than one site. This

allows a wide coverage area to be obtained using only one frequency.

The forward channel from the TSC to the radio is divided into timeslots. Each site

using the channel is allocated one timeslot in which to transmit and send

signalling.

Therefore, when on a timeshared channel. the radio may be able to receive bursts

of signalling from different sites at different signal strengths and may receive

periods when no signalling is received.

Depending on the type of system, the radio may be able to perform transactions

with any site it can receive from or only with a specific site.

TMR Trunked Mobile Radio.

Tone Burst An audio tone is transmitted at the start of transmission to inform a relay

(repeater) station to switch itself on to relay the transmission.

Transpond An Acknowledge identity sent as a response to an individual call.

TRAXYS Air Interface for the PTT Telecom Trunked Radio Network, used in the

Netherlands.

TSC Trunking Site Controller. Central control required for the Trunking System to

function. Controls base stations.

Tx Inhibit A facility which prevents the user from transmitting,(other than alarms), while the

channel is Busy.

UMP User Memory Plug. A special device that contains the customisation data for the

radio. If this is removed then this can cause the radio to behave in a number of

ways.

User Defined Groups These groups are set up by the user (contrast with Dynamic User Groups) when

the user desires to be included, temporarily, in an existing group. Up to 8 groups

may be defined (in addition to the Network group Idents defined by Network Group

Numbers). This feature is only available if User Defined Groups parameter is

enabled. These temporary groups are lost at switch off unless 'Save Groups at

Switch Off' is enabled.

SRM9000 SERIES SERVICE MANUAL

User Identity This is a sequence of up to four digits entered by the user when the Radio is

switched on, if this option is programmed. These digits are then substituted into

any transmitted Selcall identity which includes # digits.

VCO Voltage Controlled Oscillator.

Vote Method used to compare the signal strength on a current channel with another

specified channel and then to choose the channel having the stronger signal.

Voting Feature used during searching when there is more than one channel that satisfies

the required conditions. It involves examining all the channels that satisfy the

required conditions, and then selecting the channel with the highest signal

strength.

VOX Voice Operated Transmit.
