SimpalTEK NXG-100 Nexx Garage User Manual

SimpalTEK LLC Nexx Garage

User Manual

Installation
Manual
2
Thank you for purchasing Nexx Garage!
Installation will be quick and easy and should take
about 30 minutes to complete. For additional
installation instructions, please visit our website or
email us.
Website:
http://www.nexxgarage.com
http://www.nexxgarage.com/support/
Customer Service / Support Email:
support@nexxgarage.com
Product Return:
return@nexxgarage.com
3
TABLE OF CONTENTS
Introduction ................................................................................................ 4
Installation Tools Needed ........................................................................... 4
Contents Of The Box ................................................................................... 5
Installation .................................................................................................. 6
1 Test Device For Opener Compatibility ................................................ 6
2 Install Mobile App & Create Account ................................................. 7
3 Register Device & Set Up Wi-Fi .......................................................... 8
4 Test Sensors For Notifications ......................................................... 11
5 Mount The Device ............................................................................ 14
6 Connect The Device To Your Opener ............................................... 15
7 Power Up Nexx Garage Device ........................................................ 17
8 Mount The Sensors .......................................................................... 18
9 Test Mobile App For Notifications ................................................... 22
Nexx Garage Mobile App Features ........................................................... 24
Nexx Garage Alexa Skill Setup .................................................................. 27
Nexx Garage Google Home Setup ............................................................ 32
4
INTRODUCTION
Nexx Garage is a companion device to an existing garage door
opener. It securely allows multiple users to open, close, and
monitor their garage door from anywhere in the world. You can
also control the opening or closing of garage door by voice
command.
INSTALLATION TOOLS NEEDED
During installation of Nexx Garage, you will need following tools:
• A Flathead screwdriver ---------------------------
• A Stepladder -------------------------------------------
• Masking tape -----------------------------------------
5
CONTENTS OF THE BOX
Your Nexx Garage Box is packaged with the following parts:
A. Nexx Garage Device
B. Door sensors and cable
C. 8 Double-sided adhesive tapes
D. 4 Self-tapping screws
E. Single wire
F. Installation Manual G. Quick Start Guide
Note:
When unpacking, please make sure all these items are included in the box.
6
INSTALLATION
Please follow the steps as detailed in the order below
for best results.
1 TEST DEVICE FOR OPENER COMPATIBILITY
Use the included single wire or take a straightened-out paper clip
and put each end to the same terminals as the wall button wires
are terminated to. By doing so, your garage door should activate.
Check out Nexx Garage website http://nexxgarage.com/videos for
video of this test.
If this test fails, your device may not be compatible so STOP and
contact support@nexxgarage.com for an adapter that can get
Nexx Garage to work with your garage.
7
2 INSTALL MOBILE APP & CREATE ACCOUNT
First make sure you are on your home Wi-Fi and NOT
mobile Wi-Fi. As Nexx Garage requires a good Wi-Fi signal
to work properly, and if your Wi-Fi is weak, a Wi-Fi extender
is highly recommended.
1) Download and install "Nexx Garage" app from Google Play
Store or Apple App Store.
2) Launch "Nexx Garage" app.

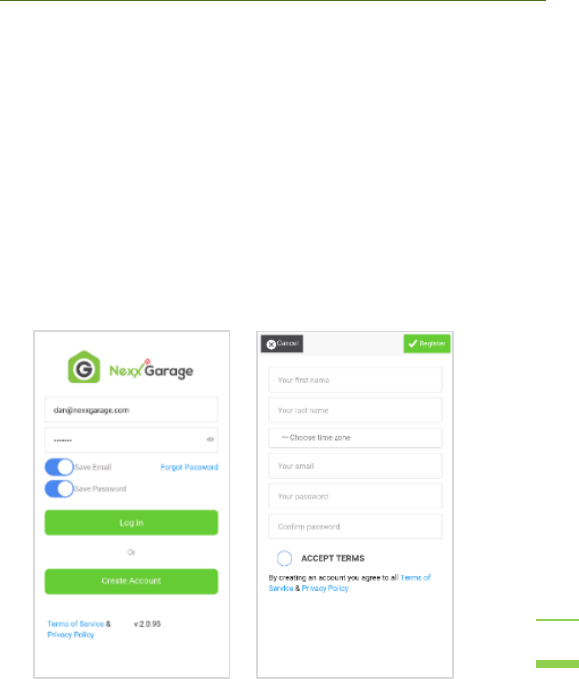

3) From Login screen, tap "Create Account". Enter required
fields and tap “Register” located at upper right corner.
8
3 REGISTER DEVICE & SET UP WI-FI
1) Plug in your Nexx Garage device. The LED light from the
device should be solid green.
2) Log in with your newly created account and tap
menu->Register Devices. Then tap “+” and “Yes, light is
steady green”.
Once your device is registered, follow the onscreen wizard setup
process or as detailed out below to connect the Nexx Garage Wi-
Fi to your home Wi-Fi network.

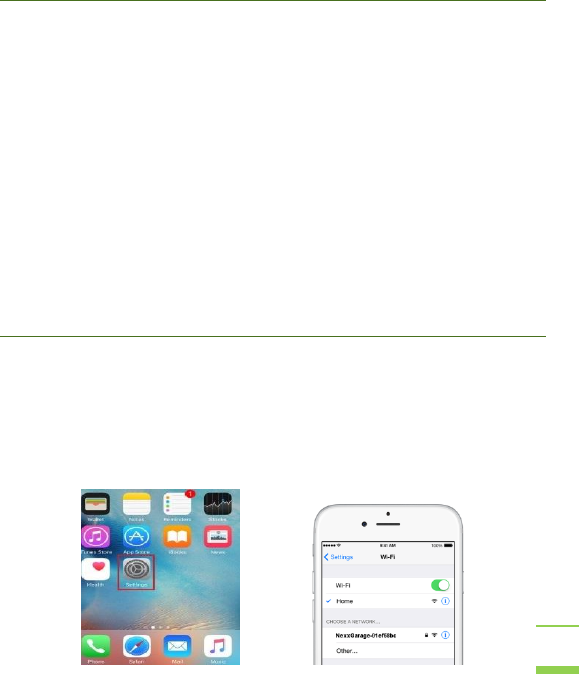

CONNECT TO NEXX GARAGE WI-FI NETWORK
1) Switch to your Wi-Fi Settings and select the Nexx Garage
Wi-Fi Network.
2) If prompted, enter 12345678 as password and tap
join. This may not be necessary for newer firmware.
9
CONNECT TO YOUR WI-FI NETWORK
1) Switch to Nexx Garage app.
2) Select your home Wi-Fi network and enter the password.
3) Verify your Wi-Fi network and password.
4) Save your configurations.
After applying these settings, your Nexx Garage device will reboot.
The LED light should blink several times. When the LED light is off,
your device has successfully connected to your Wi-Fi network.
10
REGISTER TO CLOUD SERVICE
1) Enter a name for your device.
2) Tap “Register to Cloud”.
Note:
If there is an error registering to Cloud, make sure your phone is on
your HOME network and try again.
11
4 TEST SENSORS FOR NOTIFICATIONS
This step is to verify if the sensors are working and you are getting
notifications when the garage door is opened or closed.
1) Connect the sensor with the connector to the Nexx
Garage device connector.
12

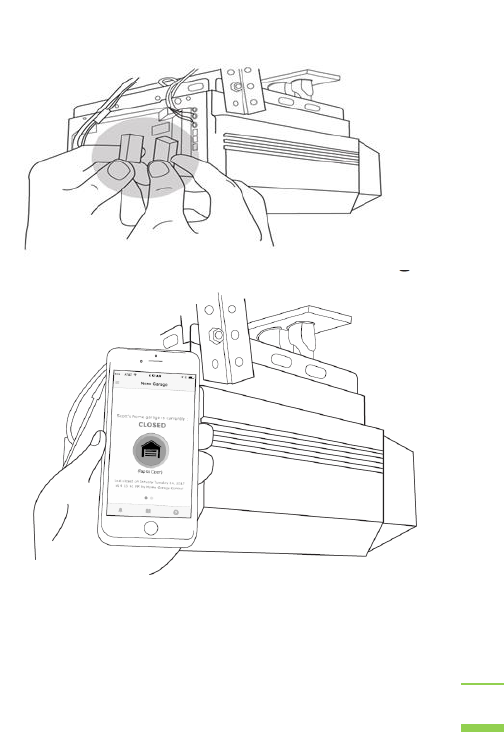

2) Tap and hold sensors together. LED light should blink
and app should show door is closed.
13
3) Wait for 3 seconds then move the sensors apart. LED
light should blink and app should show door is open.
If you are not getting the proper notifications, your sensors may
be defective so STOP and contact customer support at
support@nexxgarage.com, and we will send you new sensors.
If both the Compatibility Test and the Sensors Test succeed,
then continue with the remaining installation steps.
14
5 MOUNT THE DEVICE
1) Clean the surface on top of your garage door opener
before using the double-sided tape to secure the device.
2) Mount the device on top of your garage door opener
(GDO) near the GDO terminals using the double-sided
adhesive tape.
3) Make sure the device is close enough to the terminals of
the GDO so that you can connect wires to the device to
the GDO.
15

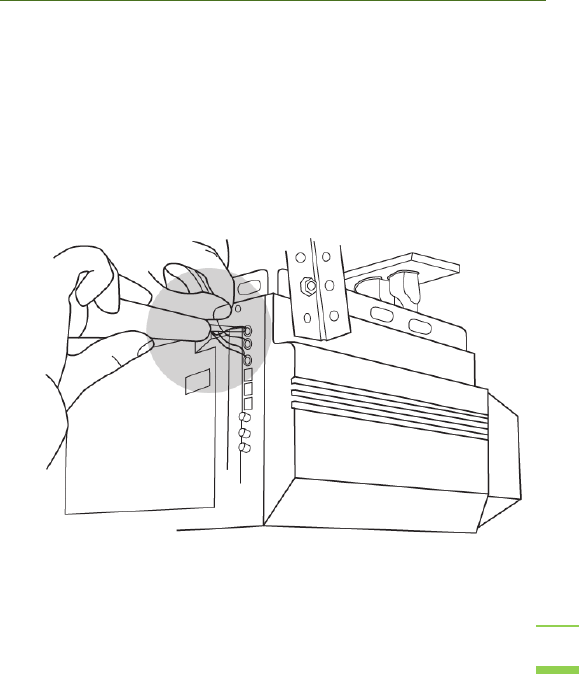

6 CONNECT THE DEVICE TO YOUR OPENER
1) Locate the two exposed wires coming out of the Nexx
Garage device.

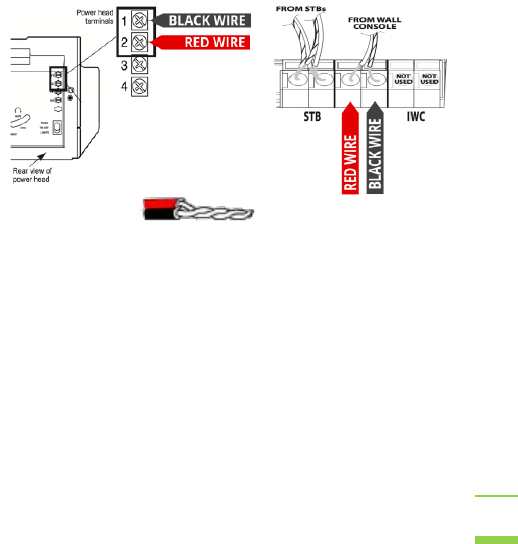

2) Connect these two exposed wires to your garage door
opener (GDO). Connect them to the same wire as your
wall console or manual button to open/close the
garage door (see diagram below).
16

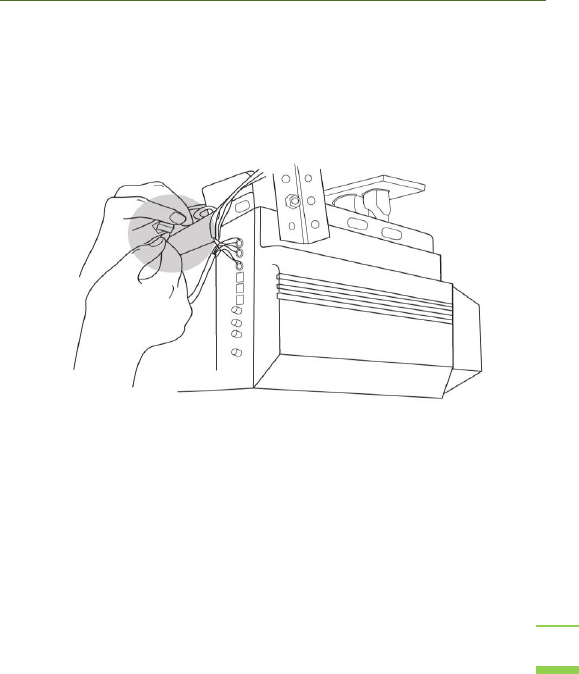

3) If a wire is currently connected to the terminal of the
GDO, take out the existing wire from the GDO terminal.
Twist the two wires together and reconnect it back to
the GDO.
17
7 POWER UP NEXX GARAGE DEVICE

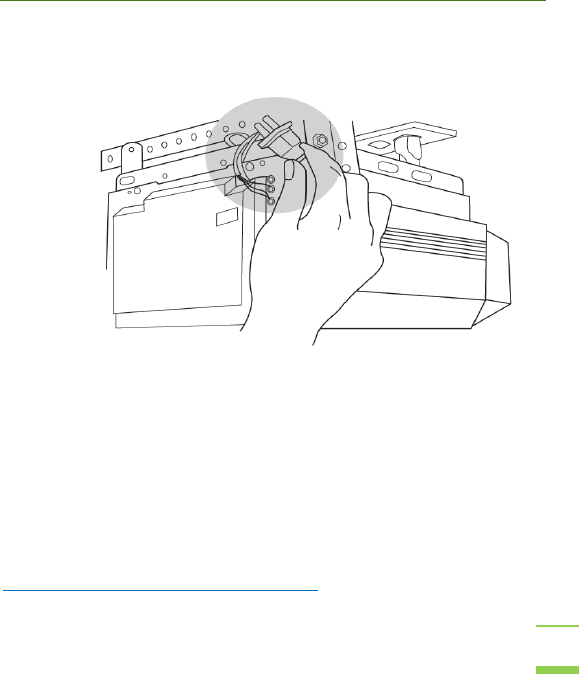

1) Plug the power cable of the device into an outlet.
2) The LED light from the device should blink several times
and turn off. Once the LED light is off, this will indicate
that the device has successfully connected to your Wi-Fi
network.
If you cannot get the LED light to be off, contact us at
support@nexxgarage.com or go to
http://www.nexxgarage.com/support/ for troubleshooting tips.
18

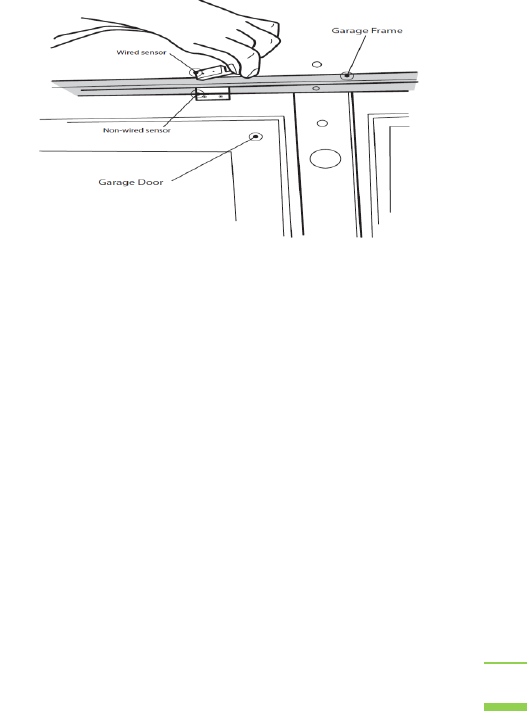

8 MOUNT THE SENSORS
1) The sensors have 2 parts. One is connected to the cable
while the other is not.

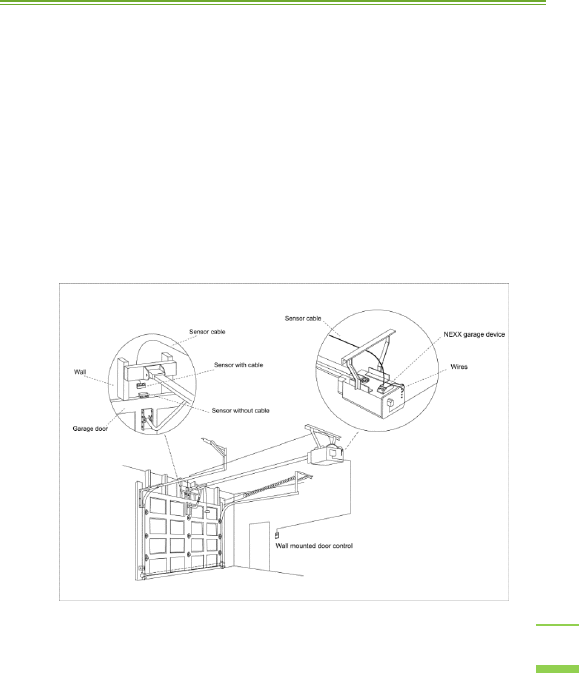

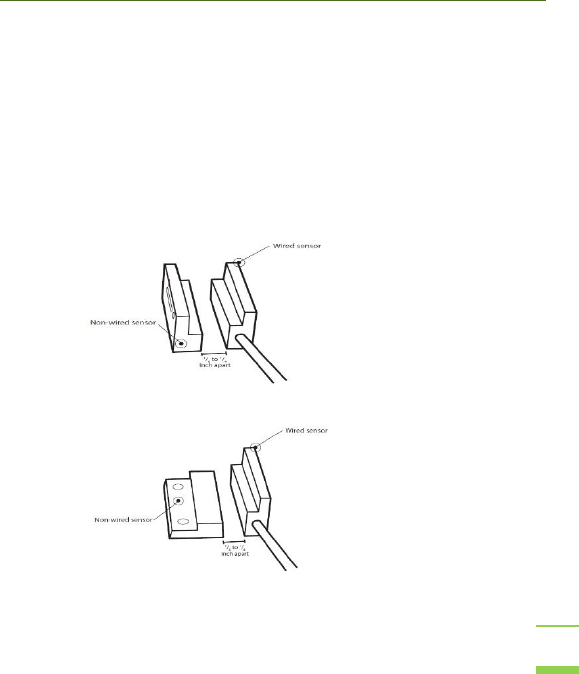

2) Both sensors must be mounted parallel to each other as
shown in the diagrams below, and they must be 1/8 to
1/4 inch apart, not touching. It is VERY IMPORTANT that
the sensors are apart within this guideline to ensure
proper notifications.
OR
19

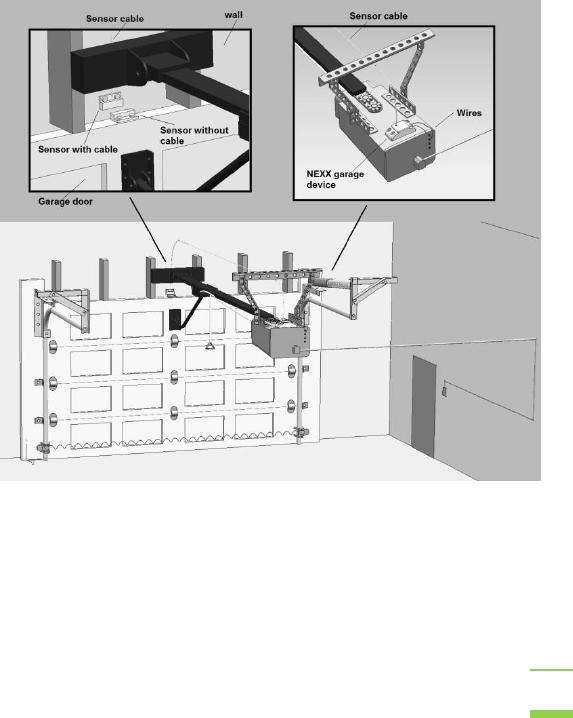

3) Mount the sensor that is connected to the cable to the
center of the wall adjacent to the garage door, just
above the garage door. Use the included double-sided
tape to secure the sensor. If you have screws, you may
use that instead.
4) Mount the other sensor (the one NOT connected to a
cable) on center top of the garage door using the
double-sided tape. If you have screws, you may use
that instead.
20
21
5) Secure the remaining wires along the walls and ceiling
using the included double-sided tape to avoid any moving
parts of the door. You can also use other alternatives to
secure the cable such as cable clips or staples.
22
9 TEST MOBILE APP FOR NOTIFICATIONS
At this point, the app should indicate that you are connected to
the device and that the door is currently closed.

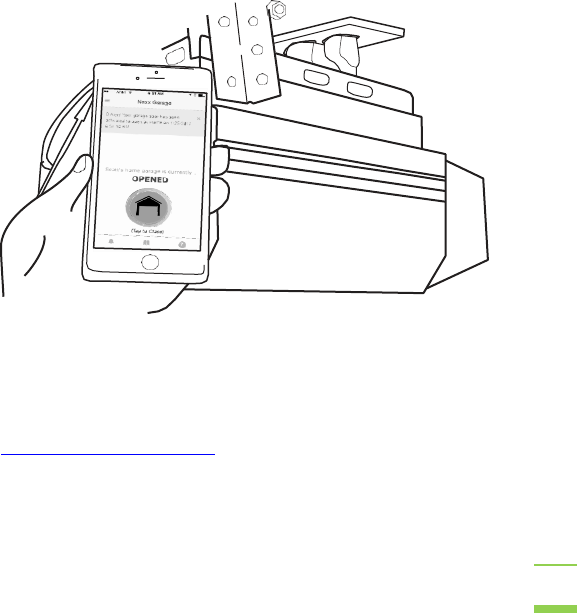

1) Press the garage door icon. Your garage door should be
opening and the app should indicate that your garage
door is opened.
23

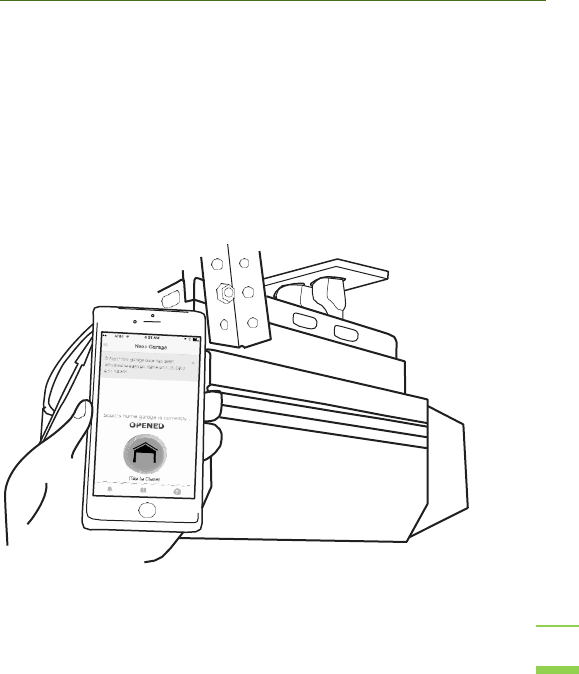

2) Press the garage door icon again. Your garage door
should be closing. When the garage door is completely
closed, the app should indicate that your garage door is
closed.
NEXX GARAGE INSTALLATION COMPLETED!
CONGRATULATION!
If you have any questions please email us at
support@nexxgarage.com.
Also visit http://nexxgarage.com/support/ for FAQ,
troubleshooting, and detailed installation instructions
with examples and videos.
24
NEXX GARAGE MOBILE APP FEATURES
Mobile app features:
a) Door Activation
b) Share Access
c) Door Activation History
d) Auto Open Door
e) Push Notification
f) Door Open Reminder
g) Register Device
A. Door Activation
Open – Close – Monitor garage door
• From menu , select “Door Control”
• Door Activation
• Door Status Refresh
• Multiple Garage Door Access
25
B. Share Access
Grant/Revoke other users access to garage door
• From menu , select “Share”.
• Tap “+” and enter other user’s email account.
• Tap on email to specify settings for that particular
door.
C. Door Activation History
See the past 7 days of door activations
• From menu , select “History”.
This will show the history of past 7 days.
D. Auto Open Door
Notification – Reminder – Auto Open Door
• From menu , select “Settings”.
• Turn on “Auto Open Door”.
When the Nexx Garage mobile app is running in the
foreground or background, it will use your GPS location to
open your garage door when you are near your home. The
distance to activate garage door is about 50 to 100 feet.
26
E. Push Notification
• From menu , select “Settings”.
• Turn on “Door Open Notification”.
When the door opens, you will receive a push
notification to your smart phone.
F. Door Open Reminder
If the garage door is left open for more than 15 minutes,
you will receive a push notification to your smart phone.
You will keep receiving this notification every 15
minutes until the door is closed or you turn off the
reminder from the “Settings” page.
G. Register Device
Add one or more Nexx Garage devices to our account.
1) From menu , select “Registered Devices”.
27
NEXX GARAGE ALEXA SKILL SETUP
Nexx Garage integrated with Alexa Skill allows you to control the
opening or closing of garage door by voice command.
Following steps describes Nexx Garage Alexa Skill
setup.

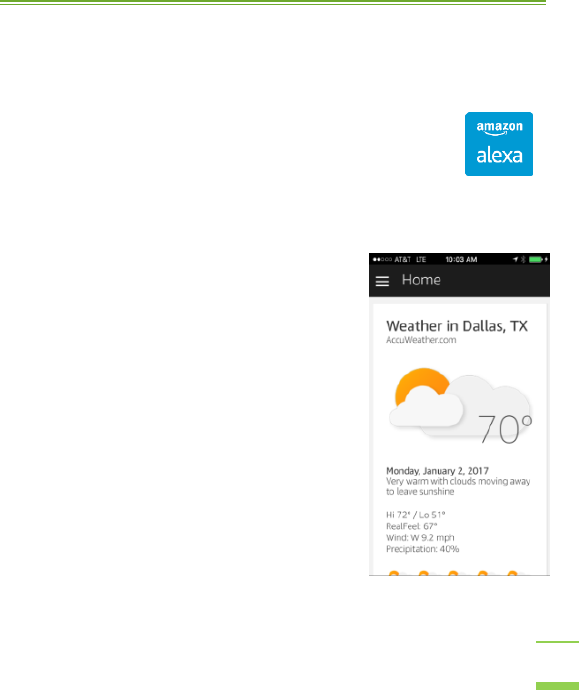

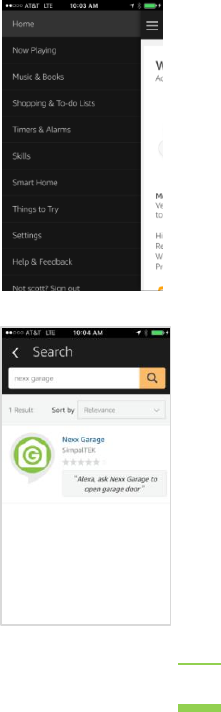

1) Open the Amazon Alexa app on your phone.
2) Press menu button in the upper
left corner of screen.
28
3) Select “Skills” from the menu.
4) Search for “Nexx Garage”.
29
5) Select “Nexx Garage” skill and
press “Enable” button.
6) Press “Link Account” button to go
to the login page. Linking account
will connect your Amazon account
to your Nexx Garage account.
30

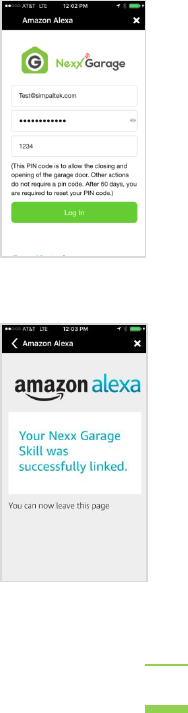

7) At login page:
- Enter Nexx Garage account email
and password
- Enter a 4 to 10 digit pin code. This
pin code is required by Amazon for
security reasons when opening or
closing the garage door. Pin code is
not required when checking door
status. You can disable the pin code
from Nexx Garage app under “Settings”.
8) Once you have successfully logged
in, the message would be received
as shown in image below:
31
NEXX GARAGE ALEXA SKILL SETUP COMPLETED
• Possible Actions
o “Alexa, tell Nexx Garage to check garage door”
o “Alexa, tell Nexx Garage to check door”
o “Alexa, tell Nexx Garage to check garage”
o “Alexa, tell Nexx Garage to open garage door”
o “Alexa, tell Nexx Garage to open door”
o “Alexa, tell Nexx Garage to open garage”
o “My pin code is 1 2 3 4” (use your pin code)
o “Alexa, tell Nexx Garage to close garage door”
o “Alexa, tell Nexx Garage to close door”
o “Alexa, tell Nexx Garage to close garage”
o “My pin code is 1 2 3 4” (use your pin code)
o
32
NEXX GARAGE GOOGLE HOME SETUP
Nexx Garage integrated with Google Assistant Action allows you
to control the opening or closing of garage door by voice
command.
Following steps describes Nexx Garage Google
Home setup.

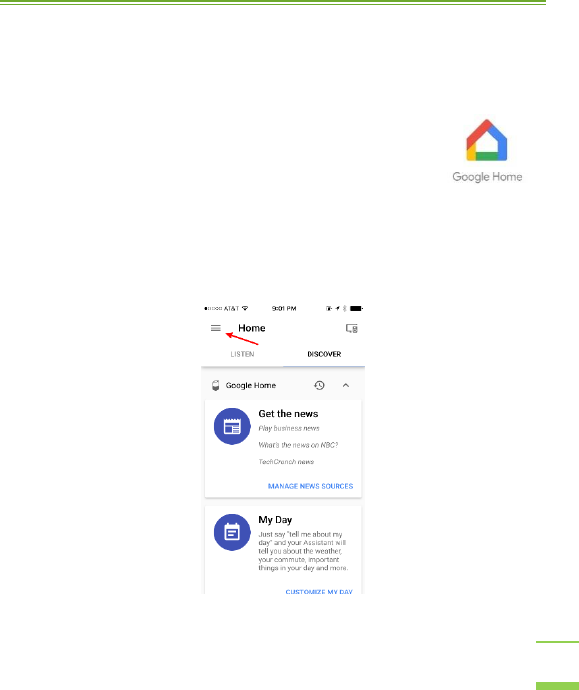

1) Open Google Home app on your phone.
2) Press menu button in the upper left corner of screen.
33

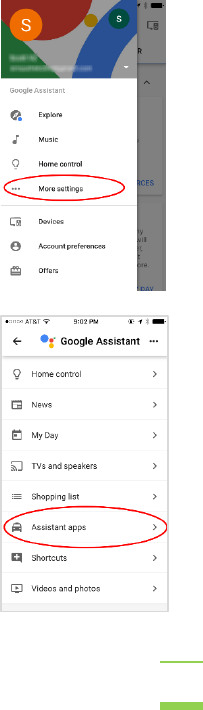

3) Select “More settings” from the
menu.
4) Search for “Assistant apps”.
34
5) Select “Nexx Garage”.
6. Nexx Garage screen
35

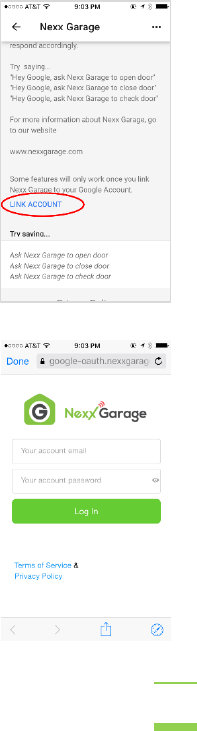

7. Scroll down and tap “LINK
ACCOUNT”. Linking account will
connect your Google Home
account to Nexx Garage account.
8. At login page:
- Enter Nexx Garage account email
and password
- Enter a 4 to 10 digit pin code. This
pin code is required when
opening/closing the garage door.
Pin code is not required when
checking door status. You can
disable the pin code from Nexx
Garage app under “Settings”.
36

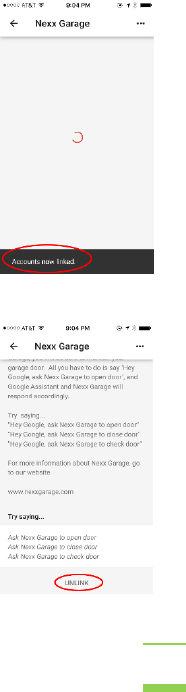

9. Once you have successfully logged
in, you should receive a status of
“Account now linked”.
10) To you through the linking process
again, tap “UNLINK” and then “LINK
ACCOUNT”.
37
NEXX GARAGE GOOGLE HOME COMPLETED
• Possible Actions
o “Hey Google, tell Nexx Garage to check garage door”
o “Hey Google, tell Nexx Garage to check door”
o “Hey Google, tell Nexx Garage to check garage”
o “Hey Google, tell Nexx Garage to open garage door”
o “Hey Google, tell Nexx Garage to open door”
o “Hey Google, tell Nexx Garage to open garage”
o “My pin code is 1 2 3 4” (use your pin code)
o “Hey Google, tell Nexx Garage to close garage door”
o “Hey Google, tell Nexx Garage to close door”
o “Hey Google, tell Nexx Garage to close garage”
o “My pin code is 1 2 3 4” (use your pin code)
o
FCCCaution
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass
Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto
radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.

Navigation menu
