Simplicity Broadmoor 1600 Series Parts Manual / 2600

Parts Manual

Rev. 10/2005

Broadmoor / 1600 / 2600

Series Lawn Tractors & Mower Decks

TP 400-4205-01-BM-SMA

Mf

g

. No. Descri

p

tion

1

8

HP Models

1694629 Broadmoor, 18HP Hydro RMO

1694630 Broadmoor, 18HP Hydro RMO

1694631 Broadmoor, 18HP Hydro RMO (CE)

1694683 Broadmoor, 18HP Hydro RMO (CE)

1694807 2618, 18HP Hydro RMO (CE)

1694844 2618H, 18HP Hydro RMO (CE)

2690273 Broadmoor, 18HP Hydro RMO and 44" Mower Deck

2690274 Broadmoor, 18HP Hydro RMO and 38" Mower Deck

2690276 Broadmoor, 18HP Hydro RMO and 44" Mower Deck (CE)

2690277 Broadmoor, 18HP Hydro RMO and 40" Mower Deck (CE)

2690399 2618, 18HP Hydro RMO and 40" Mower Deck (CE)

2690400 2618, 18HP Hydro RMO and 44" Mower Deck (CE)

2690407 Broadmoor, 18HP Hydro RMO TRACTOR ONLY

2690430 2618H, 18HP Hydro RMO and 40" Mower Deck (CE)

Mf

g

. No. Descri

p

tion

20HP Models

1694632 Broadmoor, 20HP Hydro RMO

1694633 1620H, 20HP Hydro RMO

1694634 1620H, 20HP Hydro RMO

1694635 2620H, 20HP Hydro RMO (CE)

1694636 2620H, 20HP Hydro RMO

1694682 Broadmoor, 20HP Hydro RMO

2690275 Broadmoor, 20HP Hydro RMO and 44" Mower Deck

2690278 Broadmoor, 20HP Hydro RMO and 50" Mower Deck

2690279 1620H, 20HP Hydro RMO and 44" Mower Deck

2690280 1620H, 20HP Hydro RMO and 50" Mower Deck

2690281 2620H, 20HP Hydro RMO and 44" Mower Deck

2690282 2620H, 20HP Hydro RMO and 50" Mower Deck

2690408 Broadmoor, 20HP Hydro RMO TRACTOR ONLY

2690424 2620H, 20HP Hydro RMO and 44" Mower Deck

Mf

g

. No. Descri

p

tion

Mower Decks

1694036 38" Mower Deck

1694042 38" Mower Deck

1694339 40" Mower Deck

1694340 40" Mower Deck

1694341 40" Mower Deck (CE)

1694821 40" Mower Deck (CE)

1694037 44" Mower Deck

1694043 44" Mower Deck

1694178 44" Mower Deck (CE)

1694822 44" Mower Deck (CE)

1694174 50" Mower Deck (CE)

1694473 50" Mower Deck

1694474 50" Mower Deck

1731173

Part No.:

Table Of Content

s

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group ................................................................................................................................... 4

Steering Group - Manual Steering ....................................................................................................................... 6

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard ................................................... 8

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard ................................................... 10

Engine Group - 18HP Kohler ............................................................................................................................... 12

Transmission Group - Tuff Torq K-57 .................................................................................................................. 14

Transmission SERVICE PARTS - Tuff Torq K-57A ............................................................................................. 16

Controls Group ..................................................................................................................................................... 20

Cruise Control Group ........................................................................................................................................... 22

Electrical Group .................................................................................................................................................... 24

Hood, Grille & Dash Group .................................................................................................................................. 26

Seat & Seat Deck Group ...................................................................................................................................... 28

Lift Group - Manual Lift ........................................................................................................................................ 30

Lift Group - Manual Lift ........................................................................................................................................ 32

Wheels & Tires Group .......................................................................................................................................... 34

Decals - Brand & Model ....................................................................................................................................... 36

Decals - Safety & Common .................................................................................................................................. 38

38" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 40

38" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 42

38" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 46

40" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 48

40" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 50

40" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 54

44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 58

44" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 60

44" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 64

44" Mower Deck - Housing, Arbors & Blades CE ................................................................................................ 66

50" Mower Deck - Clutch & Support .................................................................................................................... 70

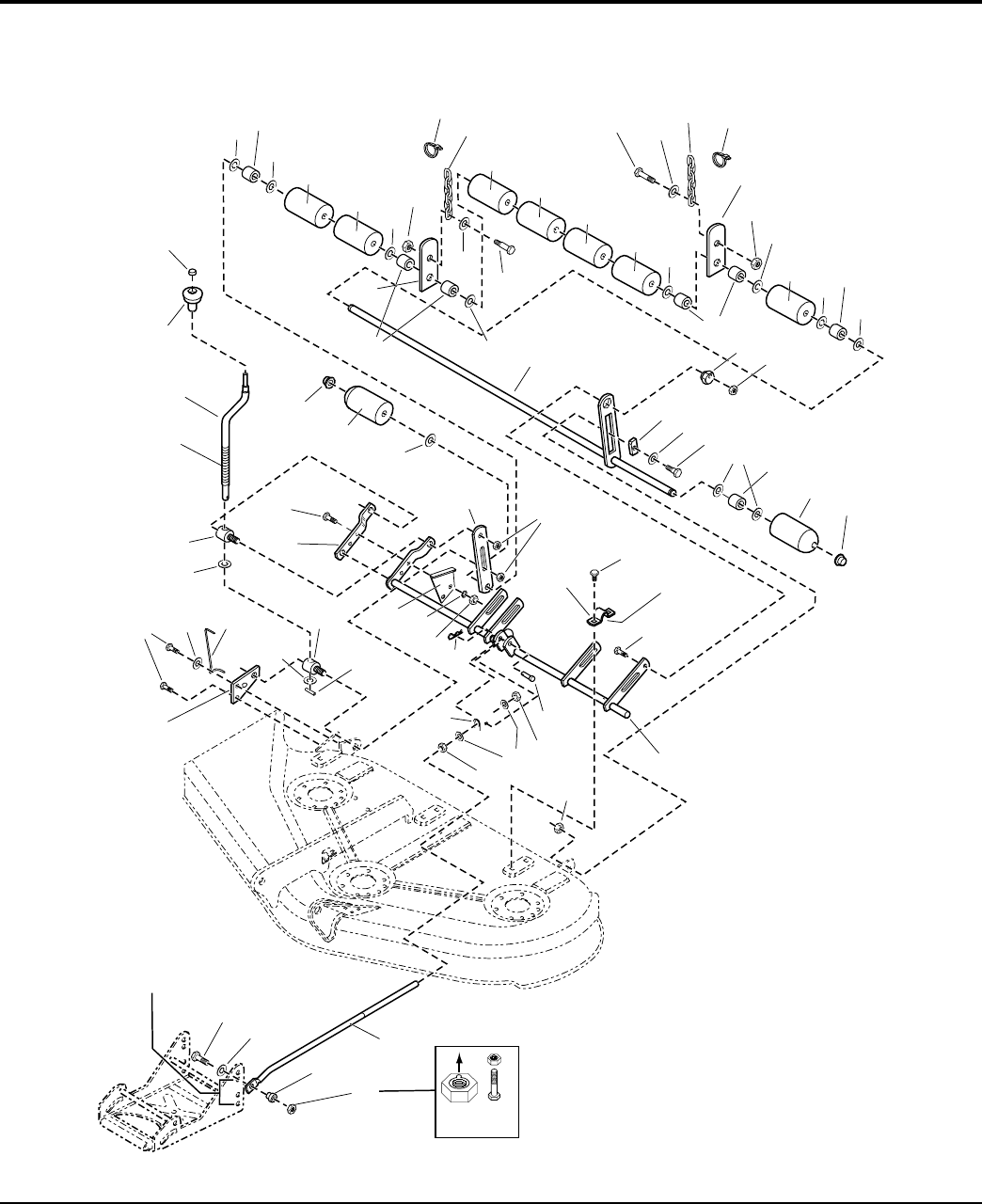

50" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 72

50" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 76

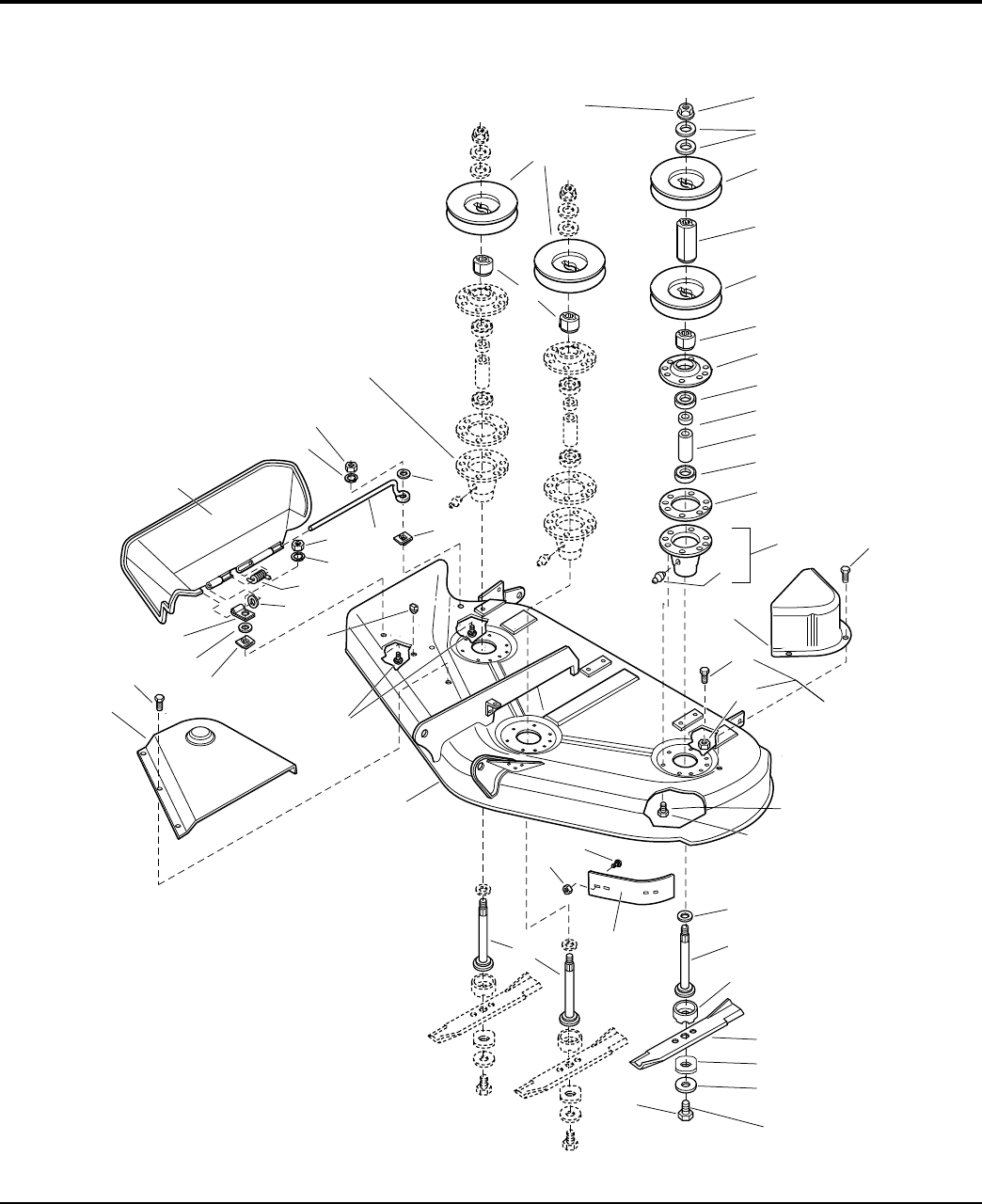

50" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 80

50" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 82

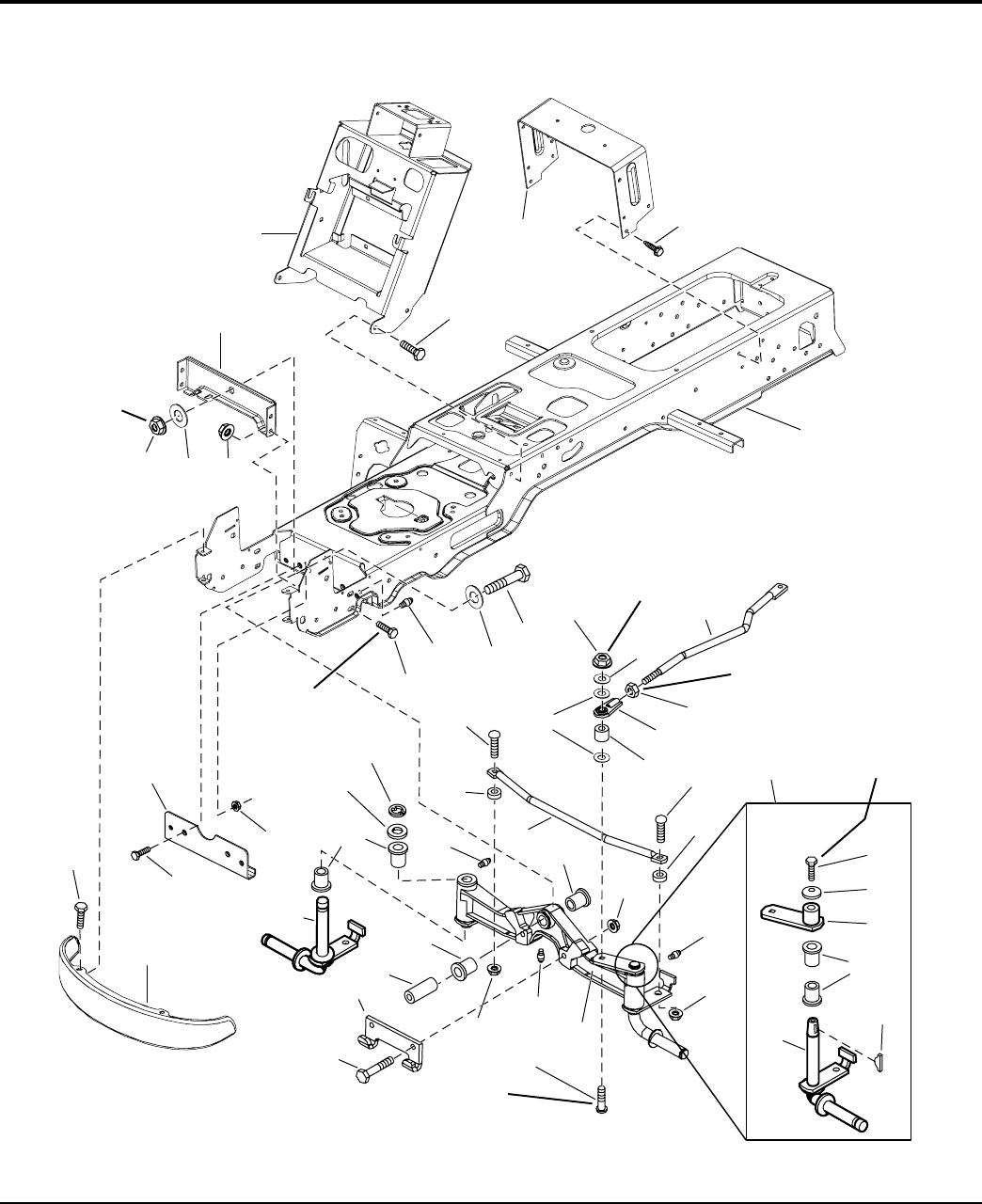

Frame & Front Axle Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque to

150 ft. lbs.

(202 Nm)

Torque to

22-40 ft. lbs.

(30-54 Nm)

Torque to

13 ft. lbs.

Service Kit

1686985

Torque to

50-57 ft. lbs.

(48-56 Nm)

Torque to

22-40 ft. lbs.

(30-54 Nm)

Torque to

55-60 ft. lbs.

(74-81 Nm)

12

18

21

13

18

14

17

16

20

31

36

33

23

22

34

37

32

1

7

5

9

2

8

46

3

10

2

1515

19

20

42

1

35

22

43

41

24

33

24

26

27

28

30

29

25

11

40

38

39

986681

The above parts group applies to the following Mfg. Nos.:

2005 4

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group

Footnotes

1 1930645 7 NUT, Hex Flange Lock, 3/8-16

2 1960035 2 WASHER

3 2860646 1 NUT, Hex Flange, 5/8-11

4 1722212A 1 PLATE, Axle

5 1724081A 1 TOWER & SUPPORT ASSEMBLY

6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4

7 1723528A 1 SUPPORT

8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

9 1726989A 1 FRAME ASSEMBLY

10 2860645 1 CAPSCREW, 5/8-11 x 3-1/2

11 1704314 2 FITTING, Grease for Wear Plate, 1/4-20, with Ball

12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4

13 1722541 1 LINK, Drag

14 1922755 1 WASHER

15 1960103 2 WASHER

16 1919262 1 NUT, Hex Jam, 1/2-20

17 1702779A 1 JOINT, Ball

18 1708236 1 SPACER

19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1

20 1611705 2 SPACER

21 1722626A 1 ROD, Tie

22 1721682 6 BUSHING

23 1930650 2 NUT, Hex Flange Lock, 7/16-14

24 1704314 3 FITTING, Lube

25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)

26 2823485 1 CAPSCREW, 3/8-16 x 7/8, GR8

27 1663151 1 WASHER, Spring, 3/8

28 1725112 1 HUB & ARM ASSEMBLY

29 2830671 1 KEY, Woodruff

30 1724264 1 SPINDLE, LH

31 1722200A 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43)

32 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

33 1927531 2 CAPSCREW, Hex Head, 7/16-14 x 2, GR8

34 1721918A 1 HOOK, "J"

35 1721752 1 SPACER

36 1960086 4 SCREW, Torx Head, 5/16-18 x 7/8

37 1721805A 1 BUMPER, Black, Steel, Standard

37 1723502 1 BUMPER, Chrome, Optional

38 1930591 2 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4

39 1724801A 1 PLATE, Axle Wear

40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18

41 1722199 1 SPINDLE, RH

42 1919394 1 WASHER

43 2832577 1 RETAINING RING

The above parts group applies to the following Mfg. Nos.:

2005 5

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

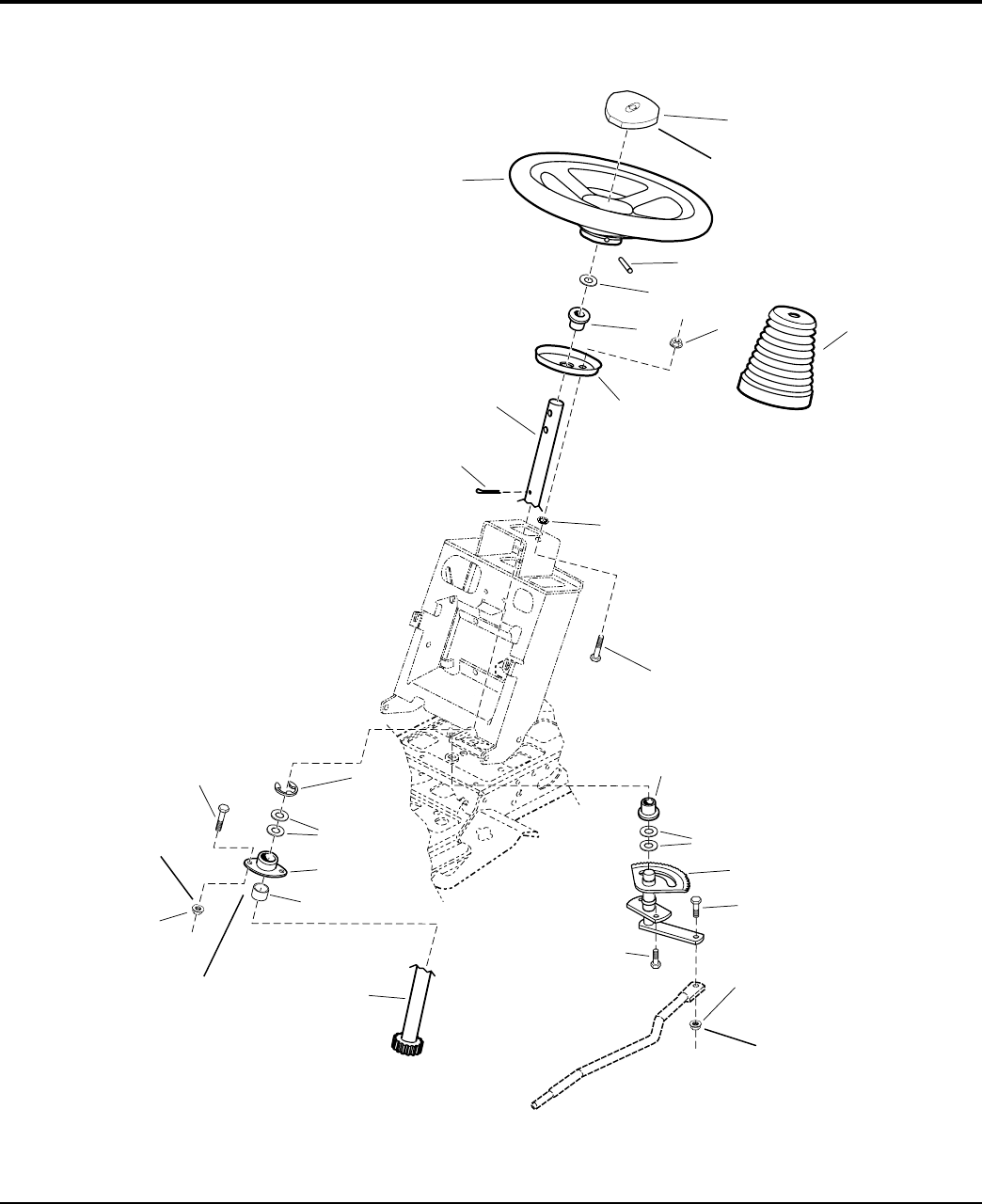

Steering Group - Manual Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque to

36-44 ft. lbs.

or 48-60 Nm

Steering cap snaps

over steering wheel.

Use washers

as required.

Torque to

36-44 ft. lbs.

or 48-60 Nm

Bearing mounts below

frame. Slide pinion into

gear before tightening nuts.

18

21

14

7

11

10

13

15

12

1

6

19

2

20

4

8

3

17

5

6

5

9

16

5

15

985890

The above parts group applies to the following Mfg. Nos.:

2005 6

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Steering Group - Manual Steering

Footnotes

1 1722318 1 STEERING WHEEL, Straight, Shaft

2 1722319 1 CAP, Steering Wheel, SMI Logo

2 1725024 1 CAP, Steering Wheel, Plain

3 1960540 1 PIN, Spring, 5/16 x 2-1/2

4 1722749 1 COVER, Rubber, Upper Steering Shaft

5 1960114 5 WASHER, 3/4

6 2176440 2 BUSHING, 15/32 x 7/8 x 7/8, Nylon

7 1960636 2 NUT, Hex KEPS 5/6-18

8 1721736A 1 PLATE, Mounting Steering

9 1933988 2 NUT, Push

10 1960655 2 CARRIAGE BOLT, 5/16-18 x 1-1/4

11 1724470A 1 GEAR & SHAFT ASSEMBLY, Steering

12 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black

13 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16

14 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

15 1721626 1 SHAFT & PINION ASSEMBLY, Steering Manual

16 1611710 1 RING, Clipring Extension

17 1722459 1 BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing

18 1722461 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal

19 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small

20 1933260 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black

21 1919314 1 PIN, Cotter, 1-1/4, Black

The above parts group applies to the following Mfg. Nos.:

2005 7

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

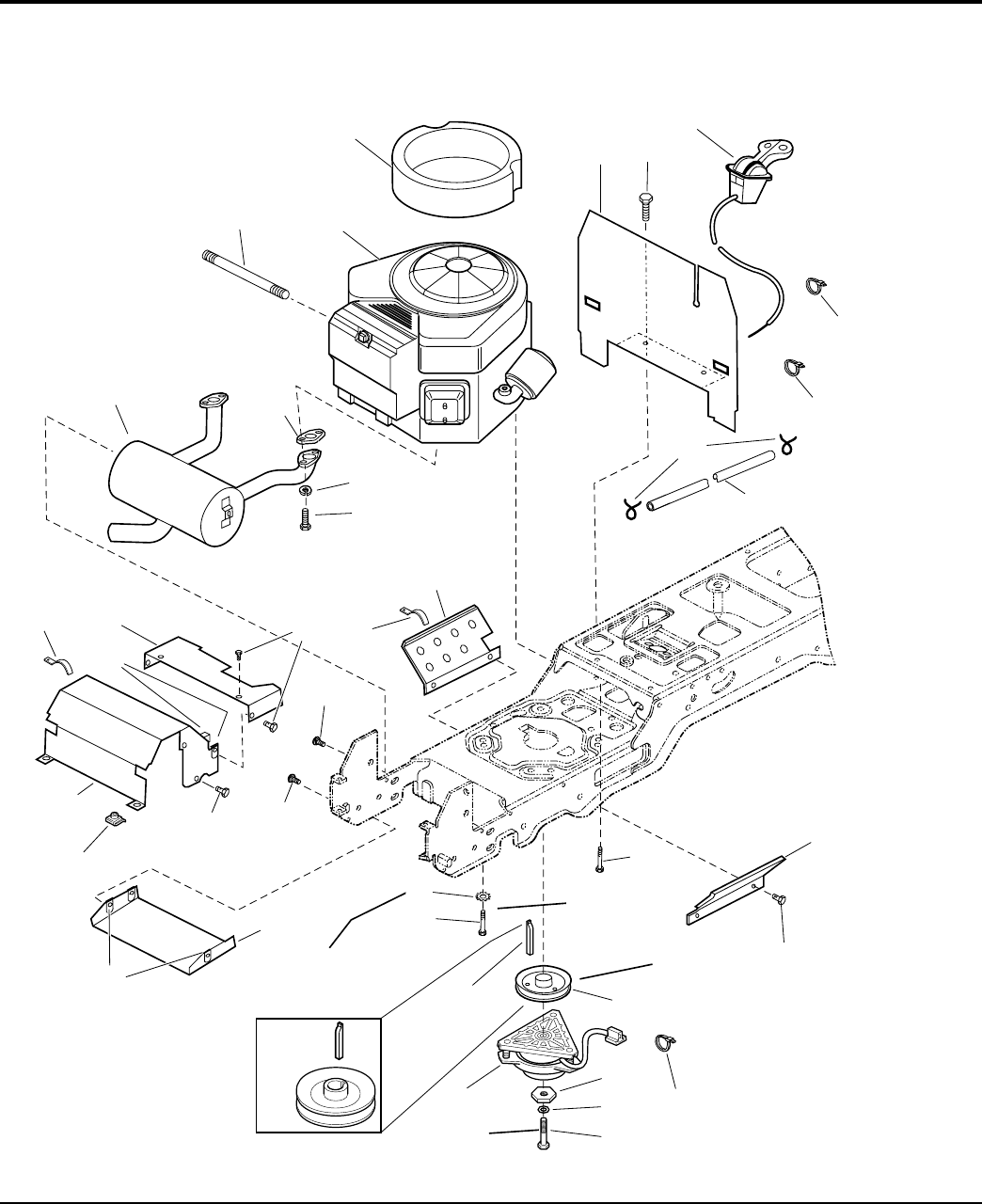

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Engine Manufacturer

Gasket & Hardware,

Torque to 18 ft. lbs.

(25 Nm)

Tie clutch wire

to keep away

from pulley.

Torque to

45-50 ft. lbs.

(61-68 Nm)

Torque to

24-36 ft. lbs.

(31-48 Nm)

Note:

Orientation

of All Keys

Tie cables to Left

Hand side of shield.

Position pulley

chamfer side up.

Install between Frame &

Ground cable on RH

rear engine capscrew.

15

12

17

10

16

14

11

13

18

24

23

19

25

21

20

1

5

9

2

4

6

3

7

8

22

11

23

27

30

29

31

10

28

22

26

32

26

7

19

986252

The above parts group applies to the following Mfg. Nos.:

2005 8

1694630 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard

Footnotes

1 1723165 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings

2 * 1 ENGINE, 16HP Briggs & Stratton Vanguard Twin, Model 303777, Type 1114-E1

2 * 1 ENGINE, 18HP Briggs & Stratton Vanguard Twin, Model 356777, Type 0113-E1

3 1722950 1 SEAL, Circle, 16HP Only

3 1722949 1 SEAL, Circle, 18HP Only

4 1722388A 1 BULKHEAD

5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black

6 1727223 1 CONTROL, Throttle Double 39" Long w/Knobs

7 1701011 2 TIE, Wire, 7-5/16" Long

8 2860112 2 CLAMP, Hose Type E

9 1718678 1 HOSE, Fuel, 59" Long

10 1722392A 2 SHIELD, Side

11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8

12 1722288 1 PULLEY & HUB ASSEMBLY

13 2832747 1 TIE, Self Locking, 3-5/8 Long

14 1708264 1 WASHER, Hex, 7/16, Black

15 1918199 1 LOCKWASHER, 7/16

16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4

17 1686880 1 CLUTCH, Electric

18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2

19 2830598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2

20 2820427 1 LOCKWASHER, External Tooth, 3/8

21 1722414A 1 SHIELD, Muffler Bottom

22 1960368 8 NUT, Speed, 1/4-20, Lug

23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

24 1935255 2 NUT, Speed, 5/16-18, Lug, Black

25 1722389A 1 DUCT, Muffler Top

26 2834683 2 CLIP, Wire 1/8

27 1722390A 1 DUCT, Muffler Extension

28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black

29 1722625 1 MUFFLER, Briggs & Stratton, Vanguard Twin

30 * 1 GASKET, Briggs & Stratton, Vanguard Twin

31 1917356 4 LOCKWASHER, 5/16

32 2860660 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8

* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2005 9

1694630 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

TP 400-4205-01-BM-SMA

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Engine Manufacturer

Gasket & Hardware,

Torque to 18 ft. lbs.

(25 Nm)

Tie clutch wire

to keep away

from pulley.

Torque to

45-50 ft. lbs.

(61-68 Nm)

Torque to

24-36 ft. lbs.

(31-48 Nm)

Note:

Orientation

of All Keys

Tie cables to Left

Hand side of shield.

Position pulley

chamfer side up.

Install between Frame &

Ground cable on RH

rear engine capscrew.

Hand Tighten with

2 additional revolutions

with a wrench.

15

12

17

10

16

14

11

13

18

24

23

19

25

21

20

1

5

9

2

4

6

3

7

8

22

11

23

27

30

29

31

10

28

22

26

32

26

7

19

986773

The above parts group applies to the following Mfg. Nos.:

2005 10

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard

Footnotes

1 1723165 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings

2 * 1 ENGINE, 18HP Briggs & Stratton Vanguard Twin, Model 356777, Type 0113-E1

2 * 1 ENGINE, 20HP Briggs & Stratton Vanguard Twin, Model 358777, Type 0110-E1

3 1722949 1 SEAL, Circle, 18HP & 20HP

4 1722388A 1 BULKHEAD

5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black

6 1727223 1 CONTROL, Throttle Double 39" Long w/Knobs

7 1701011 2 TIE, Wire, 7-5/16" Long

8 2860112 2 CLAMP, Hose Type E

9 1718678 1 HOSE, Fuel, 59" Long

10 1722392A 2 SHIELD, Side

11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8

12 1722288 1 PULLEY & HUB ASSEMBLY

13 2832747 1 TIE, Self Locking, 3-5/8 Long

14 1708264 1 WASHER, Hex, 7/16, Black

15 1918199 1 LOCKWASHER, 7/16

16 1960649 1 CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP

16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4, 20HP

17 1686883 1 CLUTCH, Electric, 18HP

17 1686880 1 CLUTCH, Electric, 20HP

18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2

19 2830598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2

20 2820427 1 LOCKWASHER, External Tooth, 3/8

21 1722414A 1 SHIELD, Muffler Bottom

22 1960368 8 NUT, Speed, 1/4-20, Lug

23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

24 1935255 2 NUT, Speed, 5/16-18, Lug, Black

25 1722389A 1 DUCT, Muffler Top

26 2834683 2 CLIP, Wire 1/8

27 1722390A 1 DUCT, Muffler Extension

28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black

29 1722625 1 MUFFLER, Briggs & Stratton, Vanguard Twin

30 * 1 GASKET, Briggs & Stratton, Vanguard Twin

31 1917356 4 LOCKWASHER, 5/16

32 2860660 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8

* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2005 11

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694844 - 2618H

TP 400-4205-01-BM-SMA

Engine Group - 18HP Kohler

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Engine Manufacturer

Gasket & Hardware,

Torque to 18 ft. lbs.

(25 Nm)

Tie clutch wire

to keep away

from pulley. Torque to

45-50 ft. lbs.

(61 - 68 Nm)

Torque to

19-23 ft. lbs.

(26 - 31 Nm)

Note:

Orientation

of All Keys

Install between Frame &

Ground cable on RH

rear engine capscrew.

Tie cables to Left

Hand side fo shield.

20

18

22

15

21

19

16

23

17

30

27

24

31

26 25

5

9

13

6

8

10

7

12

29

18

2

1

4

15

28

14

11

29

3

14

986682

The above parts group applies to the following Mfg. Nos.:

2005 12

1694629 - Broadmoor

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Engine Group - 18HP Kohler

Footnotes

1 1721704 1 MUFFLER

2 * 1 GASKET

3 * 2 LOCKWASHER, 5/16

4 * 2 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8

5 1723165 1 HOSE, Oil Drain

6 * 1 ENGINE, 18HP Kohler Single, Model CV492S, Type PS-27534

7 1722950 1 SEAL, Circle

8 1722388A 1 BULKHEAD

9 1925003 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2

10 1727223 1 CONTROL, Throttle Double 39" Long w/Knobs

11 2825094 1 TIE, Self Locking

12 2860112 2 CLAMP, Hose Type E

13 1723174 1 HOSE, 59" Long

14 2834683 2 CLIP, Wire

15 1722392A 2 SHIELD

16 1929000 4 SCREW, Hex Head Taptite, 1/4-20 x 3/8

17 1720463 1 KEY

18 1722288 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD

19 1708264 1 WASHER, Hex

20 1918199 1 LOCKWASHER, 7/16

21 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4

22 1727664 1 CLUTCH, Electric, OGURA

23 2832747 1 TIE

24 2827187 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2

25 2820426 1 LOCKWASHER, External Tooth, 3/8

26 1722414A 1 SHIELD, Muffler Bottom

27 1960295 8 CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8

28 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2

29 1960368 8 NUT, Speed, 1/4-20

30 1935255 2 NUT, Speed, 5/16-18

31 1722389A 1 DUCT, Muffler Top

32 1722487A 1 DUCT, Muffler Extension

* See your local Kohler distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2005 13

1694629 - Broadmoor

TP 400-4205-01-BM-SMA

Transmission Group - Tuff Torq K-57

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Spring to be

compressed to

2-1/2 inches with

brake locked.

Torque nut to

28 - 33 ft. lbs.

(35 - 44 Nm)

9

46

17

35

2

8

24

29

28

31

25

27

26

29

19

8

19

17

16

37

34

14

15

10

35

11 12

12

36 18

19

23

21

22

30

32

33

20

13

38

39

986603

The above parts group applies to the following Mfg. Nos.:

2005 14

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Transmission Group - Tuff Torq K-57

Footnotes

1 1960676 2 SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black

2 1722345 1 PAD, Footrest, LH, without Differential Lock

3 1722173 1 PAD, Footrest, RH

4 1960636 1 NUT, Hex KEPS, 5/16-18, Black

5 1704351 15 FASTENER, Panel

6 1960637 6 NUT, Hex KEPS, 3/8-16, Black

7 1931350 6 CARRIAGE BOLT, 3/8-16 x 1, Black

8 1960686 5 NUT, Hex Flange ESNA, 5/16-18, Black

9 1721728A 2 SUPPORT, Transmission

10 1724316 1 RING, Snap, Transmission

11 1724312 1 COLLOR, Spline, Transmission

12 1724315 2 LOCK WASHER, Transmission

13 1724314 1 FAN, 10 Blade, Transmission

14 1718076 1 RING, E Transmission

15 1960027 2 WASHER, 1/2

16 1721666 1 PULLEY & HUB ASSEMBLY

17 1726841 1 V-BELT, Drive

18 1726806 1 ROD, Transmission Release

19 1722460 3 PIN, Quick

20 1921332 1 CAPSCREW, Hex Head, 5/16-18 x 2

21 1919326 4 WASHER, 5/16, Black

22 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black

23 1918267 1 WASHER, 15/32 x 15/16, Black

24 1918447 1 PIN, Cotter, Black

25 1726871 1 ROD, Brake

26 1722684 1 SPRING, Compression, 3-1/4" Long, Black

27 1729277 1 SPRING, Compression, 3-5/8" Long, Black

28 1960687 1 NUT, Hex FlangeESNA, 3/8-16, Black

29 1924940 3 WASHER, 3/8, Black

30 1722668 1 TRANSMISSION ASSEMBLY, K57, without Pulley

31 1726803 1 CONTROL ARM ASSEMBLY

32 1724423A 1 ARM, Control

33 1960636 2 NUT, KEPS Lock, 5/16-18

34 1721592A 1 STRAP, Torque

35 1931335 1 CARRIAGE BOLT, 5/16-18 x 1, Black

36 1960141 1 WASHER, 5/16, Black

37 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2, Black

38 1727215A 1 ACTUATOR, Switch

39 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2

The above parts group applies to the following Mfg. Nos.:

2005 15

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

Transmission SERVICE PARTS - Tuff Torq K-57A

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

SEAL KIT (Includes Ref.)

#19

#20

#26

#59

#72

#81

#91

Sealant

Washer Seal

8

78

82

72

9

80

76

7

75

2

37

79

77

27 40

43

42

41

38

36

39

63

70

65

97

65

71

67

68

66

61

69

3

30 29

21

28

48

31 32

47

70

14

46

60

11

45

87

20

34

16

33

85

15

35 634

23

81

27

64

73

71

70

21

22

97

50

13

12

90

95

30 29

28

54

91

52

51

53

58

49

57 56

55

82

25

24

102

100

99

101

26

73

62

5744

59

72

7219 96

98

86

5783

8

200

1722668

The above parts group applies to the following Mfg. Nos.:

2005 16

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Transmission SERVICE PARTS - Tuff Torq K-57A

Footnotes

2 1724951 1 HOUSING ASSEMBLY, UPPER

3 1724938 1 HOUSING, LOWER

7 1718052 1 VENT VALVE 15

8 1724279 2 MAGNET, K50

9 1724280 1 HOLDER, MAGNET

11 1708684 1 SPRING

12 1724281 1 SHAFT, BYPASS

13 1720418 1 LEVER, BYPASS

14 1718061 1 RING

15 1724282 1 SEALING CAP

16 1708650 1 RING 35

19 1708691 2 PACKING

20 1724283 1 SEAL TC

21 1707789 14 SCREW, TAPPING

22 1724284 2 SCREW, TAPPING

24 1724939 1 CASE, CENTER

25 1718070 1 PIN 3 x 9.8

26 1724954 1 FILTER

27 1720805 3 BOLT 10 x 75

28 1724286 2 VALVE, IDS 1.0

29 1724287 2 SPRING, IDS

30 1724288 2 BALL, 3/16

31 1724940 1 CYLINDER BLOCK ASSEMBLY

32 1724290 1 SPRING, PUMP

33 1724941 1 SHAFT, PUMP

34 1718076 3 RING E15

35 1708673 1 BEARING

36 1718077 1 HOUSING

37 1724942 1 BEARING, THRUST

38 1724289 1 BLOCK, CYLINDER

39 1718084 1 WASHER 12 x 24 x 1

40 1724943 1 SHAFT, MOTOR

41 1708672 1 RING 15

42 1724944 1 GEAR, MOTOR

43 1718083 1 BEARING 6202UC3

44 1718089 2 THRUST METAL

45 1720426 1 SWASH PLATE ASSEMBLY

46 1718088 1 THRUST PLATE B

47 1718086 1 BEARING K81105

48 1718087 1 THRUST PLATE A

49 1724343 1 SHAFT, CONTROL

50 1724344 1 FULCRUM, ECCENTRIC

51 1724345 1 SPRING, TORSION

52 1724346 1 LEVER, CONTROL

53 1724347 1 ARM, CONTROL

The above parts group applies to the following Mfg. Nos.:

2005 17

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

Transmission SERVICE PARTS - Tuff Torq K-57A

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

SEAL KIT (Includes Ref.)

#19

#20

#26

#59

#72

#81

#91

Sealant

Washer Seal

8

78

82

72

9

80

76

7

75

2

37

79

77

27 40

43

42

41

38

36

39

63

70

65

97

65

71

67

68

66

61

69

3

30 29

21

28

48

31 32

47

70

14

46

60

11

45

87

20

34

16

33

85

15

35 634

23

81

27

64

73

71

70

21

22

97

50

13

12

90

95

30 29

28

54

91

52

51

53

58

49

57 56

55

82

25

24

102

100

99

101

26

73

62

5744

59

72

7219 96

98

86

5783

8

200

1722668

The above parts group applies to the following Mfg. Nos.:

2005 18

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Transmission SERVICE PARTS - Tuff Torq K-57A

Footnotes

54 1724348 1 PLATE, JERK

55 1708689 1 WASHER

56 1724349 1 PIN, COTTER

57 1724296 1 PIN, SPRING

59 1707879 2 PACKING

58 1718100 1 PIN 6.0A x 4.0

60 1708692 1 NUT 12

61 1724955 1 GEAR & PINION ASSEMBLY

62 1724945 1 GEAR, FINAL CONTR TRAC

63 1724946 2 COLLAR, PINION

64 1724947 1 SHAFT, REDUCTION

65 1724948 2 WASHER, 12 x 32 x 3.2

66 1724949 1 GEAR, REDUCTION

67 1724950 1 PINION, FINAL

68 1724304 1 SHAFT, AXLE RH

69 1724303 1 SHAFT, AXLE LH

70 1718112 2 WASHER, THRUST

71 1718113 2 RING 17

72 1718111 2 SEAL 19 x 32 x 8

73 1718110 2 BUSHING 19 x 21

75 1724305 1 SHOE, BRAKE

76 1724306 1 ARM, BRAKE

77 1724307 1 SHAFT, BRAKE

78 1724308 1 SPRING, RETURN B

79 1724309 1 BRAKE, ACTUATOR

80 1724310 1 PIN

81 1708690 2 PACKING

82 1724311 2 PIN, SPRING

83 1724312 2 COLLAR, SPLINE

85 1724314 1 FAN

86 1724315 1 LOCKWASHER

87 1724316 1 RING, SNAP

90 1720421 1 PIN 3.0A x 20

91 1724318 1 OIL SEAL

95 1707839 1 PIN, ROLL

97 1724956 2 WASHER, THRUST DIFF

98 1724958 2 PIN, 3.0A x 18

99 1724957 1 SPRING, CHARGE

100 1724953 1 CHARGE PUMP CASE ASSEMBLY

200 1727542 1 K57 SMP SEAL KIT

The above parts group applies to the following Mfg. Nos.:

2005 19

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

11

17

19

12

18

14

13

20

21

27

29

22

28 23

25

4

30

31

37

35 30

32

38

34 36

33

1

5

9

2

8

4

6

3

10

1

6

10

16

24

26

15

35

41

40

39

18

7

8

5

986599

The above parts group applies to the following Mfg. Nos.:

2005 20

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Controls Group

Footnotes

1 1721353 1 ROD, Brake Lock

2 1721891 1 KNOB, Push On, Red Plastic "P"

3 1930591 1 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4

4 1919326 2 WASHER, 5/16, Black

5 1721476 1 ROD, Brake

6 1931353 2 CARRIAGE BOLT, 3/8-16 x 1 3/4

7 1663114 2 BUSHING, 5/8 x 3/4 x 3/4, Nylon

8 2821133 1 FITTING, Lube, 1/4

9 1725250 1 SPRING, Extension

10 1722460 3 PIN, Quick

11 1724917 1 ARM & HUB ASSEMBLY, Idler

12 1960020 1 WASHER, 5/8

13 1704420 1 RING, Clipring Extension

14 1721134 1 PULLEY, w/Bearing

15 1924940 1 WASHER, 3/8

16 1960687 2 NUT, Hex Flange ESNA, 3/8-16

17 1721133 1 PULLEY, Idler

18 1723237 2 BUSHING, 1 x 1-1/8 x 5/8, Nylon

19 1722513 1 ARM, Brake

20 1726763 1 PEDAL ASSEMBLY, Foot

21 1931320 1 CARRIAGE BOLT, 1/4-20 x 1-1/4

22 1918447 1 PIN, Cotter, Black

23 1721354A 1 LATCH, Brake

24 1664847 3 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

25 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18

26 1919381 1 WASHER, 5/16, Black

27 1927557 2 NUT, Hex Flange Whiz Lock Large, 5/16-18

28 1722535A 1 PEDAL, Brake

29 1721577 1 PAD, Brake Pedal

30 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8

31 1921333 2 CAPSCREW, 5/16-18 x 1

32 1722083A 1 ACTUATOR, Switch 2.53" Long

33 1923683 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4

34 1722070A 1 PEDAL, Forward

35 1960636 4 NUT, Hex KEPS, 5/16-18

36 1721675 1 PAD, Foot Pedal Forward

37 1722071A 1 PEDAL, Reverse

38 1721674 1 PAD, Foot Pedal Reverse

39 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20

40 1686612 1 CAM, Roller

41 1721995 1 SPRING, Extension

The above parts group applies to the following Mfg. Nos.:

2005 21

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

Cruise Control Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Control Arm

from transmission

group.

Brake arm

at idler pivot.

Hole "A"

Hook into

hole "A"

of frame.

Install rounded edge

of washer toward lever

& bracket assembly.

Lubricate both sides

of slot with grease.

Install rounded edge

of washer toward lever

& bracket assembly.

11

17

6

19

24

18

14

13

20

21

22 23

1

7

5

9

2

8

4

6

3

10

16

12

8

15

25

986190

The above parts group applies to the following Mfg. Nos.:

2005 22

1694630 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Cruise Control Group

Footnotes

1 1723713 1 DECAL, Cruise & Lift

2 1960666 1 SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8

3 1722303 1 KNOB, Cruise

4 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20

5 1722003 1 LEVER & BRACKET ASSEMBLY, Cruise

6 1960103 2 WASHER, 3/8, Black

7 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

8 2826192 2 WASHER, 9/16 x 1-1/4 x 1/8

9 1709043 1 SPACER, w/Flange, 11/32 x 15/32 x 3/4

10 1931342 1 CARRIAGE BOLT, 5/16-18 x 2 3/4

11 1960273 1 CARRIAGE BOLT, 5/16-18 x 2-1/4

12 1722460 2 PIN, Quick

13 1722117 1 ROD, Cruise

14 1722481 1 ROD, Return

15 2159106 1 SPRING, Cruise Return to Frame

16 1960636 2 NUT, Hex KEPS, 5/16-18

17 1960001 2 CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8

18 1717050 1 SWITCH, Push, Neutral Start, Gray

19 1722080 1 SPACER, 11/32 x 5/8 x 1-13/32

20 1919326 1 WASHER, 5/16, Black

21 1919381 1 WASHER, 5/16, Black

22 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18

23 1677746 1 SPRING, Compression

24 1918447 1 PIN, Cotter

25 1705928 1 DISC, Fricion

The above parts group applies to the following Mfg. Nos.:

2005 23

1694630 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

TP 400-4205-01-BM-SMA

Electrical Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

To Engine

Starter

Headlight

Switch

DASH MOUNTED

HOOD MOUNTED

UNDER HOOD

UNDER SEAT

Pedal

Switch

Seat

Switch

(NC)

To Electric

Clutch

To Charge Circuit

To Fuel

Shut-Off

To Engine

Magneto

To Engine

Ground

To Oil

Pressure

Sensor

Tie main harness

and starter wire

up. Wires should

not hang below

side panel with

hood closed.

Tie upper

harness

to tower.

Tie solenoid

wires to

harness.

Instrument

Panel clip

Cruise

Switch

(see controls

group for mtg.

hardware)

UNDER FRAME

Reverse

Pedal

Switch

4

21 20

3818

2115

25

12

26

27

28

30

34 32

33

35

43

17

23

1

24

22

19

42

31 29

8

36

24

2

3

16

13

41

40

44

14

37

38

39

5

8910

11

6

7

986604

The above parts group applies to the following Mfg. Nos.:

2005 24

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Electrical Group

Footnotes

1 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb, (Includes Ref. Nos. 2 & 3)

2 1677371 4 BULB, Headlight, 12.8V

3 1723451 4 SOCKET ASSEMBLY, Headlight, Sealed

4 1722669 1 HARNESS, Headlight

5 1722887 1 SWITCH, PTO Push/Pull Symbols

6 1726556 1 MODULE, RMO (Includes Ref. No. 7)

7 1726557 1 KEY, RMO Module Plastic

8 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black

9 1665238 1 BREAKER, Circuit, 12 Volt 20 Amps

10 1665237 1 WIRE, 12GA 5-15/16 Long, Red

11 1722611 1 PLUG, Hole, Square

12 1725523 1 HOUR METER, (Includes Ref. Nos. 12)

13 1725524 1 PLUG, Dash

14 1725835 1 CLIP, Hour Meter (Service Only)

15 1920263 2 NUT, Hex, 5/16-24

16 2820426 3 LOCKWASHER, External Tooth, 5/16

17 1722739 1 SOLENOID

18 1686734 1 SWITCH ASSEMBLY, Ignition, 6 Pin, (Includes Ref. Nos. 17, 18, 19, 20 & 21)

19 1717163 1 KEYS, Set of 2

20 1717550 1 COVER, For Ignition Switch, Plastic

21 1717549 1 NUT, Hex Flange, 5/8-32, Ignition Switch

22 1960547 1 LOCKWASHER, Internal Tooth, 5/8, Thin

23 2101025 1 WASHER, Shim

24 1701011 3 TIE, Strap, 7-5/16 Long

25 1716951 1 SWITCH, Headlights , 2 Terminal

26 1713535 1 BOOT, Insulator Cable Terminal, 1-15/16 Long, Red

27 1721830 1 CABLE, #6 x 25" Long, Ring Terminals

28 1603618 1 CABLE, #6 x 8" Long, Ring Terminals

29 1677296 1 BOOT, Insulator Battery Terminal

30 2816622 3 NUT, Hex, 1/4-20

31 2816964 2 LOCKWASHER, 1/4

32 2821319 2 WASHER, 1/4

33 2823341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4

34 1713163 1 CABLE, #6 x 26 Long, Ring Terminal

35 1685215 1 BATTERY, 12 Volt

36 1722009 1 STRAP, Battery, 14 Long, Rubber

37 1929000 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8

38 1726810A 1 BRACKET, Switch Mount

39 1704379 1 SWITCH, Reverse Pedal

40 1723249 1 SWITCH, Push Button, Foot Pedal

41 1717050 1 SWITCH, Cruise Control, Grey, NO

42 1960536 2 CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2

43 1716368 1 SWITCH, Seat, Grey, NC

44 1726604 1 HARNESS, Wiring

The above parts group applies to the following Mfg. Nos.:

2005 25

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

Hood, Grille & Dash Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

10

12

11

13

17

9

15

7

8

4

6

3

9

4

2

15

16

14

986608

The above parts group applies to the following Mfg. Nos.:

2005 26

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Hood, Grille & Dash Group

Footnotes

1 1721804C 1 PANEL, RH Side

1 1721804D 1 PANEL, RH Side, Red

2 1721801C 1 HOOD, no Louvers

2 1721801D 1 HOOD, no Louvers, Red

3 1722110C 1 HOOD, with Louvers

3 1722110D 1 HOOD, with Louvers, Red

4 1960295 12 CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8

5 1960392 1 SCREW, Phillips Head, #10-24 x 1/2

6 1687054 1 DASHBOARD, RMO, Black

6 1687055 1 DASHBOARD, RMO with Hydra Lift Slot, Black

7 1933896 1 NUT, Hex Nylock,#10-24

8 1723123 1 ROD, Dash Support

9 1930641 12 NUT, Hex Flange Lock, 1/4-20

10 1721803C 1 PANEL, LH Side

10 1721803D 1 PANEL, LH Side, Red

11 1721808A 1 HINGE, LH

12 1722391A 1 DUCT, Air Inlet

13 1721802C 1 GRILLE

13 1721802D 1 GRILLE, Red

14 1721810 1 HEADLIGHT ASSEMBLY, (Includes Ref. Nos. 15 & 16)

15 1677371 4 BULB, Headligh

16 1723451 4 SOCKET, Headlight

17 1721809A 1 HINGE, RH

The above parts group applies to the following Mfg. Nos.:

2005 27

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

Seat & Seat Deck Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque to

14-19 in. lbs.

(19 - 25.8 Nm)

Torque to

25-30 in. lbs.

(2.8 - 3.3 Nm)

11

15

19

14

16

13

1

7

5

9

2

8

4

6

3

10

32

12

20

21

22

28

26

14

23

29

25

27

24

5

9

30

31

17

18

See Electrical

Group

985908

The above parts group applies to the following Mfg. Nos.:

2005 28

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Seat & Seat Deck Group

Footnotes

1 1722129A 1 BRACKET, 1-5/8 x 1-3/4

2 1722307 1 * SEAT, 18" Back, Optional

2 1722306 1 * SEAT, 15" Back, Standard

3 1722128A 1 SUPPORT, Seat

4 2172434 1 CLIP, Wire

5 1709256A 2 WASHER, Spring, 5/16 x 1-1/4, Black

6 1714263 2 SPRING, Compression

7 1919438 10 NUT, Hex Lock, ESNA Light 5/16-18

8 1717051 2 SPRING, Compression

9 1930591 8 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4

10 1931339 2 CARRIAGE BOLT, 5/16-18 x 2

11 1931350 2 CARRIAGE BOLT, 3/8-16 x 1

12 1722356 1 SLIDE, Seat

13 1935255 4 NUT, Speed, 5/16-18, Lug

14 1930601 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8

15 1722309 2 PLUG, Plastic

16 1722109 1 POD, with Cup Holder, LH

17 1722300 1 FUEL GAUGE

18 1722337 1 GROMMET

19 2860664 8 CAPSCREW, Hex Head Dog Point, 1/4-20 x 7/8

20 1931277 4 NUT, Hex Flange Whiz Lock, 5/16-18

21 1715917 1 CAP, Gas

22 1722340 1 TUBE & ELBOW ASSEMBLY

23 1654930 1 BUSHING, 3/8 x 9/16 x 5/8, Rubber

24 1722432 1 TANK, Fuel

25 1960636 8 NUT, Hex KEPS, 5/16-18

26 1722106C 1 DECK, Seat, Orange

26 1722106D 1 DECK, Seat, Red

27 1722108 1 POD, RH with 2 Slots

28 1722105C 1 TUNNEL, Orange

28 1722105D 1 TUNNEL, Red

29 1663752 2 SPACER, 25/64 x 5/8 x 3/16, Hardened

30 1930645 2 NUT, Hex Flange Two-Way Lock, 3/8-16

31 1924940 2 WASHER, 3/8

32 1960667 4 CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1

* Arm Rest Kit - 1686907

The above parts group applies to the following Mfg. Nos.:

2005 29

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

Lift Group - Manual Lift

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Install into left hand

side of lower dash.

45

36

1

9

2

8

10

13

14

11

18

17

16

5

12

57

15

986412

The above parts group applies to the following Mfg. Nos.:

2005 30

1694632 - Broadmoor

1694634 - 1620H

1694636 - 2620H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Lift Group - Manual Lift

Footnotes

1 1722302 1 GRIP, Black Vinyl

2 1722024A 1 ROD, Lift Lever with Flats

3 1930645 1 NUT, Hex Flange Lock, 3/8-16

4 1924940 1 WASHER

5 1722460 2 PIN, Quick

6 2162085 1 SPRING, Compression

7 1723866 1 NUT, Push, 3/8

8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4

9 1722284A 1 QUADRANT

10 1920397 2 NUT, Hex Lock ESNA, 1/4-20

11 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2

12 1960636 4 NUT, KEPS Lock, 5/16-18

13 1722607 1 SCREW, Torx Head, # 8-16 x 1/2

14 1722285 1 COVER, Dash

15 2156302 1 SPRING, Extension, 4-1/8

16 1725639 1 LIFT SHAFT ASSEMBLY,

17 1931333 4 CARIAGE BOLT, 5/16-18 x 3/4

18 1725638 1 ROD, Lift

The above parts group applies to the following Mfg. Nos.:

2005 31

1694632 - Broadmoor

1694634 - 1620H

1694636 - 2620H

TP 400-4205-01-BM-SMA

Lift Group - Manual Lift

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Install into left hand

side of lower dash.

Note: Models

with out Cruise

45

36

1

10

2

8

11

18

19

12

21

17 16

5

13

7

14

9

15

4

5

20

986780

The above parts group applies to the following Mfg. Nos.:

2005 32

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694633 - 1620H

1694635 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Lift Group - Manual Lift

Footnotes

1 1722302 1 GRIP, Black Vinyl

2 1722024A 1 ROD, Lift Lever with Flats

3 1930645 1 NUT, Hex Flange Lock, 3/8-16

4 1924940 1 WASHER

5 1722460 2 PIN, Quick

6 2162085 1 SPRING, Compression

7 1723866 1 NUT, Push, 3/8

8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4

9 1722313 1 PLUG, Lift Cover (Models without Cruise Control)

10 1722284A 1 QUADRANT

11 1920397 2 NUT, Hex Lock ESNA, 1/4-20

12 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2

13 1919438 4 NUT, ESNA Lock, 5/16-18

14 1960044 1 WASHER, Flat, 5/16 x 1-1/4

15 1722491 1 CAM ASSEMBLY, Lift

16 1704629 1 SPACER

17 1727083A 1 LINK, Lift Upper

18 1722607 1 SCREW, Torx Head, # 8-16 x 1/2

19 1722285 1 COVER, Dash

20 1921977 4 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

21 1721789 1 ROD, Lift

The above parts group applies to the following Mfg. Nos.:

2005 33

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694633 - 1620H

1694635 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

1694844 - 2618H

TP 400-4205-01-BM-SMA

Wheels & Tires Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Front Wheels

Rear Wheels

Use as required.

Use as

required.

11

4

9

2

10

3

5

8

12

10

7

1

14

15

16

17 6

13

18

819

6

12

W986614

The above parts group applies to the following Mfg. Nos.:

2005 34

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Wheels & Tires Group

Footnotes

1 1722065 2 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4, 5, & 6)

2 1722838 1 TIRE, 15 x 6, Super Turf

3 1664090 1 TUBE, Tire, Front, 4.10/3.50

4 1717056 2 BEARING, Ball

5 1722837 1 WHEEL, 4-1/2" x 6"

6 2172353 4 VALVE STEM & CAP ASSEMBLY

7 1722726A 2 WASHER, Flat 1 (Double D)

8 1919394 4 WASHER, 1, (As Required for All Front)

9 2832577 2 RING, Retaining, External #98

10 1722676 4 CAP, Hub, Gray

11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2

12 2860202 4 WASHER, 3/4

13 1960114 2 WASHER

14 1726491 2 WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 6, 15, 16 & 17)

15 1727136 1 TIRE, 22 x 10, 10 Super Turf

16 2173477 1 TUBE, Tire, 20 x 8, Rear

17 1726492 1 WHEEL, 7 x 9.97, W/ 3/4 OD Shaft

18 1722717A 2 WASHER, Special

19 2827794 2 RING, "E" External

The above parts group applies to the following Mfg. Nos.:

2005 35

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

TP 400-4205-01-BM-SMA

Decals - Brand & Model

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

6

1

2

3

4

5

7

8

10

9

B986614

The above parts group applies to the following Mfg. Nos.:

2005 36

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Decals - Brand & Model

Footnotes

1 1717692 1 DECAL, ICON Simplicity, Orange

2 1722551 3 DECAL, Simplicity, Silver & Blue w/Icon

3 1722776 1 DECAL, Broadmoor, Silver & Blue

4 1722773 1 DECAL, Hood Stripe, RH, Simplicity, Blue & Silver

4 1722774 1 DECAL, Hood Stripe, LH, Simplicity, Blue & Silver

5 1708926 1 DECAL, AGCO, Logo Black, Chrome, Orange

6 1727069 1 DECAL, 1620, White, AGCO

7 1722818 1 DECAL, Hood Stripe, RH, AGCO

7 1722817 1 DECAL, Hood Stripe, LH, AGCO

8 1714363 1 DECAL, Massey Ferguson Logo, 3 Triangles

9 1725646 1 DECAL, 2618, Black, Massey Ferguson

9 1727070 2 DECAL, 2620, Black, Massey Ferguson

10 1727783 1 DECAL, Hood Stripe, LH, Massey Ferguson

10 1727784 1 DECAL, Hood Stripe, RH, Massey Ferguson

The above parts group applies to the following Mfg. Nos.:

2005 37

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

TP 400-4205-01-BM-SMA

Decals - Safety & Common

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

DANGER

OPERATING ON SLOPES

CAN BE DANGEROUS

SEE OPERATOR'S MANUAL. IF YOU

CANNOT BACK-UP A HILL,DO NOT

DRIVE ON IT.

ROTATING BLADES CUT

OFF ARMS AND LEGS

RMO™ System:

STOP MOWER WHE N CHILDREN

ARE NEAR.

NO RIDERS — THEY FALL OFF.

This product is equipped with

the RMO system. Refer to the

operator's manual for a full

explanation of the RMO

system and for important

safety messages.

DANGER

AVOID SERIOUS INJURY OR DEATH

• READ OPERATOR'S MANUAL(S).

• KNOW LOCA TION AND FUNCTION OF ALL CONTROLS.

• KEEP SAFETY DEVICES (GUARDS, SHIELDS, SWITCHES, ETC.)

IN PLA CE AND WORKING.

• REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADE.

• DO NOT MOW WHEN CHILDREN OR OTHERS A RE AR OUND.

• NEVER CARRY CHILDREN EVEN WITH BLADES OFF.

• LOOK DOWN A ND BEHIND BEFOR E AND WHILE B ACKING.

• AVOID SUDDEN TURNS.

• IF YOU CA NNOT BACK UP A HILL, DO NOT OP ERATE ON IT.

• GO UP AND DOWN S LOPES, NOT A CROSS .

• IF MACHINE S TOPS GOING UP HILL, STOP BLADE A ND

BACK DOWN SLOWLY.

• BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE

PLACING HANDS OR FEET NEAR BLADE(S).

• WHEN LEA VING MACHINE, SHUT OF F ENGINE, REMOVE KEY,

AND SET PARKING BRAKE.

WARN ING

1726923

DO NOT TOW TRACTOR! DAMAGE MAY RESULT TO TRANSMISSION.

38", 44" and 50"

mower decks

40" mower deck

16

17

8

15

5

19

18

13

1

2

3

11

12

4

5

6

8

18

14

1

4

11

12

10

16

17

8

15

20

18

14

74

14

13

9

C986614

The above parts group applies to the following Mfg. Nos.:

2005 38

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

Decals - Safety & Common

Footnotes

1 1722806 1 DECAL, Ignition Switch Symbols, White/Black

2 1718025 1 DECAL, Automatic Control Traction

3 1722779 DECAL, 18HP

3 1722780 1 DECAL, 20HP

4 1726923 1 DECAL, Tunnel Cover, Danger Slopes/Blades

4 1723175 1 DECAL, Tunnel Cover, Danger Slopes/Blades, (Export)

5 1727014 1 DECAL, Drive Belts, Mower Blades

6 1723296 2 DECAL, Protective Sticker

7 * 1 LABEL, Decibel, Power Mass (Export)

8 * 1 DECAL, I.D. Plate

9 1720454 1 DECAL, Touch Up Paint (Orange)

9 1725072 1 DECAL, Touch Up Paint (Red)

10 * 1 DECAL, Patent

11 1708927 1 DECAL, USA Logo Stars & Stripe

12 1723160 1 DECAL, Transmission Release Valve

13 1720389 2 DECAL, Danger Rotating Blades (Export)

14 1704276 1 DECAL, Danger Do Not Put Hands/Feet in Mower

15 1722771 1 DECAL, Free Floating Mower, Silver

16 * 1 DECAL, OPEI Certified

17 1722787 1 DECAL, 38", Silver on Black with Stripe

17 1722788 1 DECAL, 40", Silver on Black with Stripe

17 1722789 1 DECAL, 44", Silver on Black with Stripe

17 1722790 1 DECAL, 50", Silver on Black with Stripe

18 1704277 1 DECAL, Danger Do Not Operate Without Deflector

19 1721197 1 DECAL, Height of Cut, 38", 44" & 50"

20 1720919 1 DECAL, Height of Cut, 40"

The above parts group applies to the following Mfg. Nos.:

2005 39

1694629 - Broadmoor

1694630 - Broadmoor

1694631 - Broadmoor

1694632 - Broadmoor

1694633 - 1620H

1694634 - 1620H

1694635 - 2620H

1694636 - 2620H

1694682 - Broadmoor

1694683 - Broadmoor

1694807 - 2618

TP 400-4205-01-BM-SMA

38" Mower Deck - Belt, Idler Arm & Hitch

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Insert Must

Face Out

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes

Hook Spring

to Belt Guide

Hook Spring {Ref 22}

here when

assembled.

1

2

3

4

5

6

7

910

11

12

13

14

15

16

17

18

19

20

21

22

23

2

17

16

4

88

13

986056

The above parts group applies to the following Mfg. Nos.:

2005 40

1694036 - 38" Mower

1694042 - 38" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

38" Mower Deck - Belt, Idler Arm & Hitch

Footnotes

1 1723025 1 V-BELT

2 1928957 2 CAPSCREW, Hex Head, 3/8-16 x 2-3/4

3 1677135A 1 GUARD, Belt

4 1922755 4 WASHER, Plain, 3/8

5 1716553 1 SPACER

6 1685150 1 PULLEY (Includes Ref. No. 5)

7 1665835 1 GRIP, Lever

8 1704520 1 CLUTCH LEVER ASSEMBLY (Includes Ref. Nos. 9 & 16)

9 2812808 1 FITTING, Grease

10 1916965 1 LOCKWASHER, 3/8

11 1916950 1 NUT, Hex, 3/8-16

12 1715435 1 SPRING

13 2860641 2 NUT, Hex Aluminum Insert, 3/8-16

14 1960339 1 NUT, Hex Flange, 3/8-16

15 1657242 1 SPACER

16 1663114 2 BUSHING

17 1924356 2 WASHER, 3/8

18 1924940 2 WASHER, Plain, 13/32

19 2157081 2 SPACER

20 1715759 1 ROD, Latch

21 1707432A 1 HITCH ASSEMBLY

22 2156302 1 SPRING

23 1921969 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/2

The above parts group applies to the following Mfg. Nos.:

2005 41

1694036 - 38" Mower

1694042 - 38" Mower

TP 400-4205-01-BM-SMA

38" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

GREASE

Insert Must

Face Out

Insert Must

Face Out

GREASE

Insert Must

Face Out

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes

1

2

3

47

3

5

4

33

3

6

7

8

9

10

11

12

14

13

3

4

15

16

17

18

19

20

21

23

25

27

26

40

28

29

30

31

32

33

34

35

36

39

37

32

38

32

37

9

8

22

24

17

41

42

23

24

43

27

44 18 45

46

9

18

47

986019

The above parts group applies to the following Mfg. Nos.:

2005 42

1694036 - 38" Mower

1694042 - 38" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

38" Mower Deck - Height Adjustment & Roller Bar

Footnotes

1 1930644 2 NUT, Hex Flange Lock, 1/2-13

2 1686686 1 SHAFT & BAR ASSEMBLY (Includes Ref. No. 13)

3 1924366 8 WASHER, Plain, 1-1/4

4 1668513 6 ROLLER

5 1602946 2 SPACER

6 1704073A 1 BAR, Roller

7 1704082 2 NUT, Adjuster

8 2816965 2 LOCKWASHER, 3/8

9 2860641 2 NUT, Hex Aluminum Insert, 3/8-16

10 1677507 1 SLIDE

11 1924361 1 WASHER, Plain, 1/2

12 2172622 1 BOLT, Shoulder, 3/8-16

13 1960520 1 NUT, Push

14 1960020 1 WASHER, 5/8

15 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

16 1665374A 2 STRAP, Mower Arm ASSEMBLY

17 1931202 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4

18 1924940 5 WASHER, Plain, 13/32

19 2176012 1 CLIP, Pin, Safety

20 1705049 1 LINK ASSEMBLY, Lift

21 1918448 1 COTTER PIN

22 1918452 1 COTTER PIN

23 1917372 4 NUT, Hex, 5/16-18

24 1917356 4 LOCKWASHER, 5/16

25 1704116A 1 BRACKET, Height of Cut

26 1704083A 1 ARM, Rear, Mower, RH

27 1921977 4 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

28 1719901 1 CRANK, Height of Cut

29 1714084 1 KNOB

30 1960093 1 PAL NUT

31 1704087 1 TRUNNION, Threaded

32 1960170 3 WASHER, 5/8

33 1704086 1 TRUNNION

34 2816001 1 PIN, Roll, 1

35 1704097 1 WASHER, Detent

36 1704077A 1 STRAP, Trunnion Retainer

37 1913744 2 NUT, Hex Jam, 1/2-13

38 1704081A 1 TRUNNION

39 2118053 1 PIN, Clevis

40 1723388A 1 SHAFT ASSEMBLY

41 1704114 1 INDICATOR, Height of Cut

42 1919381 1 WASHER, Flat, 5/16

43 1704115A 1 PLATE, Support

44 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

The above parts group applies to the following Mfg. Nos.:

2005 43

1694036 - 38" Mower

1694042 - 38" Mower

TP 400-4205-01-BM-SMA

38" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

GREASE

Insert Must

Face Out

Insert Must

Face Out

GREASE

Insert Must

Face Out

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes

1

2

3

47

3

5

4

33

3

6

7

8

9

10

11

12

14

13

3

4

15

16

17

18

19

20

21

23

25

27

26

40

28

29

30

31

32

33

34

35

36

39

37

32

38

32

37

9

8

22

24

17

41

42

23

24

43

27

44 18 45

46

9

18

47

986019

The above parts group applies to the following Mfg. Nos.:

2005 44

1694036 - 38" Mower

1694042 - 38" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

38" Mower Deck - Height Adjustment & Roller Bar

Footnotes

45 1704093 1 ROD, Adjustment

46 1706644 1 SPACER

47 1722036 2 ROLLER

The above parts group applies to the following Mfg. Nos.:

2005 45

1694036 - 38" Mower

1694042 - 38" Mower

TP 400-4205-01-BM-SMA

38" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Viewed From Bottom

Torque to 50-70 ft. lbs.

Torque to

45-55 ft. lbs.

Apply gasket

former to this

surface if

foam gasket

is not used.

13

2

14

10

19

20

21

22

23

24

16

17

18

11

25

34

33

32

31

30

29

28

25

35

27

28

37

2

3

4

7

8

5

6

1

9

13 12

2

12

10

36

6

5

3

26

27

25

27

272726

27

26

20

15

986017

The above parts group applies to the following Mfg. Nos.:

2005 46

1694036 - 38" Mower

1694042 - 38" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

38" Mower Deck - Housing, Arbors & Blades

Footnotes

1 1705449 1 DEFLECTOR, Plastic

2 1960518 1 NUT, Push

3 1960353 2 WASHER, Plain

4 1704873 1 CLAMP

5 1916964 2 LOCKWASHER, 1/4

6 1916622 2 NUT, Hex, 1/4-20

7 1919326 1 WASHER, 5/16, Black

8 1723938 1 SPRING, Torsion

9 1706709A 1 ROD, Deflector, Front

10 1713616 2 HUB ADAPTER, Pulley

11 1720388 1 PULLEY, 1-1/4" O.D.

12 1713675 4 WASHER, Belleville

13 1714419 2 NUT, Hex Flange, 9/16-8

14 1720387 1 PULLEY, 4" O.D.

15 1927557 4 NUT, Hex Whiz Lock, 5/16-18

16 1919381 4 WASHER, Flat, 5/16

17 1723210 2 GUIDE, Belt

18 1924356 4 WASHER, 3/8

19 1713199A 2 COVER, Arbor Housing

20 1705897 4 BEARING

21 1713204 2 SPACER

22 1707335 2 GASKET, Foam

23 1713338 2 ARBOR HOUSING ASSEMBLY (Includes Ref. No. 24)

24 1704314 2 FITTING, Lube

25 1686815 1 HOUSING ASEMBLY, 38"

26 2860678 4 CAPSCREW, Taptite R, 5/16-18 x 1-3/4

27 1664847 8 CAPSCREW, Taptite, 5/16-18 x 3/4

28 2823471 2 CAPSCREW, Hex, Head, 7/16-14 x 1-1/4

29 1656916 2 WASHER, Spring

30 1713089 2 WASHER, Hex

31 1704856A 1 BLADE, Mower, 16-1/8", LH

32 1713196 2 SHIELD, Grass, Lower

33 1713612 2 SHAFT, Arbor

34 1713619 2 WASHER

35 1704101A 1 BLADE, Mower, 22-1/4", RH

36 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8

37 1705115 2 PLUG, Hole

The above parts group applies to the following Mfg. Nos.:

2005 47

1694036 - 38" Mower

1694042 - 38" Mower

TP 400-4205-01-BM-SMA

40" Mower Deck - Belt, Idler Arm & Hitch

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

To Slot "A"

To Slot "B"

Slot "B"

Slot "A"

Insert Must

Face Out

2

16

10

29

28

10

35

30

32

31

30

10 29

28

27

26

25

23

22

21 20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

4

3

2

1

5

33

24

2

986250

The above parts group applies to the following Mfg. Nos.:

2005 48

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Belt, Idler Arm & Hitch

Footnotes

1 1919439 1 NUT, Hex Lock Esna Light, 3/8-16

2 1924940 6 WASHER, 3/8

3 1725408 1 PULLEY, Idler

4 1723391 1 V-BELT, Arbor Drive

5 1722175A 1 BELT GUIDE

6 1960534 2 WASHER, 3/8

7 1724835 1 ARM ASSEMBLY, Idler with Bushings & Fitting, 38 Tooth

8 1931355 1 CARRIAGE BOLT, 3/8-16 x 2

9 1928957 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G8

10 1922755 6 WASHER, 3/8

11 1715435 1 SPRING, Extension, Idler Arm

12 1657242 1 SPACER, Hardened

13 1922130 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/4

14 1723952 1 PULLEY

15 1667812 1 SPACER

16 1928352 4 NUT, Hex Flange Whiz Lock, Large, 3/8-16

17 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8

18 2172329 2 SPACER

19 1713578 1 ROD, Mower Hitch

20 2156302 1 SPRING, Extension, Hitch Release

21 1715759 1 ROD, Latch

22 1720044A 1 HITCH, Mower

23 1960519 1 NUT, Push

24 2860681 2 NUT, Hex Toplock Sprial Flange, 3/8-16

25 1721425 1 WASHER & NUT ASSEMBLY, 3/8 x 1-1/2

26 1674671 1 SPRING, Extension

27 1719923 1 ARM, Idler

28 1719221 2 HUB

29 1724802 2 PULLEY, Idler

30 1960315 2 CARRIAGE BOLT, 3/8-16 x 2

31 1930601 1 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1/2

32 1666697 1 SPACER

33 1722182A 1 BELT GUIDE

34 1724625 1 BELT, Timing, 38 Tooth

The above parts group applies to the following Mfg. Nos.:

2005 49

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

40" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Apply Locktite

380 in hole prior

to assembly.

From

"A"

To "A"

Insert Must

Face Out

Insert Must

Face Out

11

17

15

19

12

18

14

16

13

20

21

27

25

29

22

28

24

23

30

31

37

35

39

32

38

34

36

33

40

41

47

45

49

42

48

44

46

43

51

57

55

59

52

58

54

56

53

60

1

7

5

9

2

8

4

6

3

10

2

626

14

15

626

24

36

2

15

14

23

41

42 43

2

40

644

50

24

25

51

2

61

38

986049

The above parts group applies to the following Mfg. Nos.:

2005 50

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Height Adjustment & Roller Bar

Footnotes

1 1722661 1 ROD

2 1924940 8 WASHER, 3/8

3 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1 3/4

4 1917421 1 NUT, Hex Jam, 3/8-16

5 1960601 1 NUT, Hex Flange, 3/8-16 Black

6 1720704 1 ROD & WASHER ASSEMBLY, Adjust Handle

7 1651820 1 GRIP, Black Vinyl For Rod

8 1721257 1 ROD, Latch

9 1720599 1 LATCH, 5/16 WIRE

10 1920397 1 NUT, Hex Lock Esna Light, 1/4-20

11 1921159 1 CAPSCREW, Hex Head, 1/4-20 x 2 1/4

12 1723409A 1 BRACKET, Adjusting

13 1666697 1 SPACER

14 1960044 5 WASHER, 5/16

15 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1 1/4

16 1917372 3 NUT, Hex 5/16-18

17 1917356 3 LOCKWASHER, Spring 5/16

18 1720695A 1 HANDLE ASSEMBLY, Lift, 40" Munching

19 1723321 1 SPRING, Compression 3-7/8" Long

20 1960674 1 PUSH NUT, 1/4

21 1713995 1 GRIP, Black Soft for Rod

22 1723124 1 BUTTON, Red

23 1960236 4 SPACER

24 1924366 7 WASHER, 5/8

25 1722036 2 ROLLER

26 1668513 6 ROLLER

27 1717675 2 ROLLER

28 1602946 1 SPACER

29 1723305A 1 SHAFT & BAR ASSEMBLY

30 1723303A 1 SHAFT ASSEMBLY

31 2860643 2 NUT, Hex, 5/16-18

32 1920161 1 NUT, Hex Jam, 5/16-18

33 7028200 1 TRUNNION

34 1724959 1 ROD, Height Adjustment

35 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

36 1915726 2 NUT, Hex, 5/8-11

37 2118053 1 PIN

38 1960074 2 CLIP, Hair Pin

39 1706645A 1 TRUNNION, Rod

40 1720659 2 UPSTOP

41 1931202 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4

42 1919381 6 WASHER, 5/16

43 1933988 4 NUT, Push, 5/16

44 1665374A 3 STRAP, Roller Support

The above parts group applies to the following Mfg. Nos.:

2005 51

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

40" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Apply Locktite

380 in hole prior

to assembly.

From

"A"

To "A"

Insert Must

Face Out

Insert Must

Face Out

11

17

15

19

12

18

14

16

13

20

21

27

25

29

22

28

24

23

30

31

37

35

39

32

38

34

36

33

40

41

47

45

49

42

48

44

46

43

51

57

55

59

52

58

54

56

53

60

1

7

5

9

2

8

4

6

3

10

2

626

14

15

626

24

36

2

15

14

23

41

42 43

2

40

644

50

24

25

51

2

61

38

986049

The above parts group applies to the following Mfg. Nos.:

2005 52

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Height Adjustment & Roller Bar

Footnotes

45 1720919 1 DECAL, Height of Cut

46 1720931A 1 BRACKET, Height of Cut

47 1930651 1 NUT, Hex Centerlock 3/8-16

48 1935048 1 NUT, Hex Flange Lock, 5/16-18

49 1664847 8 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4

50 1704082 1 NUT, Hex Adjusting

51 2860681 3 NUT, Toplock Spiral Flange, 3/8-16

52 1704073A 1 BAR

53 1677507 1 SLIDE

54 1924361 1 WASHER, 1/2

55 2172622 1 BOLT, Shoulder, 3/8-16 x 1-11/32

56 1960520 1 NUT, Push 5/8

57 1706644 1 SPACER

58 1918447 1 PIN, Cotter

59 2108512 1 PIVOT, 3/4 Hex

60 1931335 2 CARRIAGE BOLT, 5/16-18 x 1

61 2108241 1 GUIDE ASSEMBLY, Rod

The above parts group applies to the following Mfg. Nos.:

2005 53

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

40" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque to 45-55 ft.lbs. (61-75 Nm)

Torque to

50-70 ft/lbs

(68-95.2 Nm)

Torque to 14-18 ft.lbs.

(19-25 Nm)

11

17

15

19

18

14

16

13

20

21

27

25

29

22

28

24

26

23

3030

31

37

35

39

32

38

34

36

33 40

41

45

42

44

46

43

1

5

2

4

3

647

67

68

69

610

612

18

3

20

19

17

22

24

23

45

48

6

986248

The above parts group applies to the following Mfg. Nos.:

2005 54

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Housing, Arbors & Blades

Footnotes

1 1930584 1 CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8

2 1933263 1 WASHER, 7/16

3 1656916 3 WASHER, Spring

4 1714419 1 NUT, Hex Flange, 9/16-18

5 1713091 1 PULLEY

6 1719870 1 HUB

7 1724453 2 SPROCKET & FLANGE ASSEMBLY, Riveted, 38 Tooth

8 1657969A 2 SHIELD, Arbor Bearing, Upper

9 1655729A 2 HOUSING, Arbor Top

10 1707335 2 GASKET, Foam Poly

11 1722396 1 ARBOR SHAFT & BEARINGS ASSEMBLY

12 1703273A 2 HOUSING, Arbor Bottom with Lube Fitting

13 1664847 6 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4

14 1724601 1 COVER, Arbor, LH

15 1686978 1 HOUSING ASSEMBLY, 40", Orange

15 1687175 1 HOUSING ASSEMBLY, 40", Red

16 1719624A 1 BLADE, Mower, LH

17 1722258 2 PIN, Blade

18 1677274A 2 ADAPTOR, Arbor

19 1722257 2 WASHER, Spline

20 2827120 2 CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8

21 1960373 12 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1

22 1700230 2 WASHER, Shim

23 1700229A 2 SHIELD, Arbor Bearing, Lower

24 1655777 2 ADAPTER, Blade

25 1723453 1 DEFLECTOR, Discharge

26 1719623A 1 BLADE, Mower, RH

27 1931335 1 CARRIAGE BOLT, 5/16-18 x 1

28 1931318 1 CARRIAGE BOLT, 1/4-20 x 7/8

29 1960518 1 NUT, Push

30 1960353 2 WASHER, 1/4

31 1704873 1 CLAMP

32 1916964 1 LOCKWASHER, Spring 1/4

33 1916622 1 NUT, Hex 1/4-20

34 1719597 1 DOOR, Mulching, Black Plastic

35 1723938 1 SPRING, Torsion

36 1719617 1 ROD, Pivot

37 1917372 1 NUT, Hex 5/16-18

38 1917356 1 LOCKWASHER, Spring 5/16

39 1919381 1 WASHER, 5/16

40 1933988 1 NUT, Push

41 1721155 1 COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 42 thru 46)

42 1724600 1 COVER, Arbor RH

43 1721259A 1 GUARD ASSEMBLY, RH

The above parts group applies to the following Mfg. Nos.:

2005 55

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

40" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque to 45-55 ft.lbs. (61-75 Nm)

Torque to

50-70 ft/lbs

(68-95.2 Nm)

Torque to 14-18 ft.lbs.

(19-25 Nm)

11

17

15

19

18

14

16

13

20

21

27

25

29

22

28

24

26

23

3030

31

37

35

39

32

38

34

36

33 40

41

45

42

44

46

43

1

5

2

4

3

647

67

68

69

610

612

18

3

20

19

17

22

24

23

45

48

6

986248

The above parts group applies to the following Mfg. Nos.:

2005 56

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Housing, Arbors & Blades

Footnotes

44 1721132A 1 GUARD, Extension

45 1675044 4 RIVIT, Pop

46 1960096 4 WASHER, 3/16 x 3/4 x 1/16

47 1713675 2 WASHER, Bellville

48 1726825 1 ARBOR SHAFT & BEARING ASSEMBLY

The above parts group applies to the following Mfg. Nos.:

2005 57

1694339 - 40" Mower

1694340 - 40" Mower

1694341 - 40" Mower

1694821 - 40" Mower

TP 400-4205-01-BM-SMA

44" Mower Deck - Belt, Idler Arm & Hitch

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Engine

Pulley

Movable Idler

Pulley

Arbor Drive

Pulley

Arbor Drive

Pulley

Arbor Drive

Pulley

Arbor Drive

Pulley

Movable

Idler Pulley

Grease

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes for 15" front tires

using lower set of holes for 16" front tires

34

56

8

9

77

4

5

7

8

9

10

11

12

13

15

14 16

7777

13

11

17

14

11

18

19

20

18

21

22

7

23

24

25

26

27

1

2

7777

A

986945

The above parts group applies to the following Mfg. Nos.:

2005 58

1694037 - 44" Mower

1694043 - 44" Mower

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Belt, Idler Arm & Hitch

Footnotes

1 1601672 1 V-BELT, Mower Drive

2 1721532 1 V-BELT, Arbor Drive

3 1665835 1 GRIP, Lever

4 1916950 2 NUT, Hex, 3/8-16

5 1916965 2 WASHER, Lock, 3/8

6 1677135A 1 BELT STOP, Idler

7 1924940 14 WASHER, 3/8

8 1666294 2 SPACER, 25/64 x 21/32 x 7/16, Powder Metal

9 1685150 2 PULLEY, Idler, (Includes Ref. No. 8)

10 1960339 1 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black

11 1676148 4 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal

12 1715435 1 SPRING

13 1674669A 2 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened

14 2812808 2 GREASE FITTING

15 1704658 1 LEVER ASSEMBLY, Idler, (Includes Ref. Nos. 3, 11 & 14)

16 1960315 1 CARRIAGE BOLT, 3/8-16 x 2

17 1718561 1 LEVER ASSEMBLY, Idler Arm, (Includes Ref. Nos. 11 & 14)

18 1924356 2 WASHER, 3/8, Black

19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

20 1656936 1 SPRING

21 1923938 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2

22 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8

23 2157081 2 SPACER, 3/8 x 3/4 x 1/2

24 2860681 2 NUT, Hex Toplock Spiralock Flange, 3/8-16

25 2156302 1 SPRING

26 1707432A 1 HITCH ASSEMBLY

27 1715759 1 ROD, Latch

The above parts group applies to the following Mfg. Nos.:

2005 59

1694037 - 44" Mower

1694043 - 44" Mower

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

44" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Insert Must

Face Out

Insert Must

Face Out

GREASE

Feet

towards

discharge

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes for 15" front tires

using lower set of holes for 16" front tires

10

GREASE

3

21

456

8

9

10

11

12

8

9

46

47

48

45

36

4329 30 31

28

33

32

34

44

43

42 41

40

39

12 1713

21

22

20

14

37

35

38

12

36

35

3

25 13

24

3

23

9

7

10

15

19

26

27

1715

17

16

18

985973

The above parts group applies to the following Mfg. Nos.:

2005 60

1694037 - 44" Mower

1694043 - 44" Mower

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Height Adjustment & Roller Bar

Footnotes

1 1685443 1 SHAFT & BAR ASSEMBLY, 44" (Includes Ref. No. 9)

2 1704082 1 NUT, Adjuster

3 2860681 3 NUT, Toplock Spiral Flange, 3/8-16

4 1677507 1 SLIDE

5 1924361 1 WASHER, Plain, 1/2

6 2172622 1 BOLT, Shoulder, 3/8-16

7 1602946 2 SPACER, 25/64 x 13/16 x 13/16, Steel, Black

8 1722036 2 ROLLER, Rounded, 2-1/2 Long

9 1960520 2 NUT, Push

10 1924366 10 WASHER, Plain, 1-1/4

11 1668513 7 ROLLER

12 1704074A 1 BAR, Roller

13 1930644 2 NUT, Hex, Flange, Lock, 1/2-13

14 1664847 5 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4

15 1924940 3 WASHER, 3/8

16 1918448 1 PIN, Cotter

17 2176012 1 RETAINER, Pin, Spring

18 1705049 1 BRACKET & PIN ASSEMBLY

19 1720659 1 UPSTOP

20 1665374A 3 STRAP, Mower Arm Assembly

21 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

22 1723407A 1 ARM ASSEMBLY, Mower

23 1704093 1 ROD, Adjustment

24 1706644 1 SPACER, 3/8 x 3/4 x 15/16

25 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

26 1722750 1 BRACKET, Upstop

27 1960373 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1, Black

28 1704080A 1 PLATE, Mower Support

29 1931202 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4

30 1919381 1 WASHER, 5/16, Black

31 1704114 1 INDICATOR, Height of Cut

32 1704097 1 WASHER, Detent

33 1704086 1 TRUNNION

34 2816001 1 PIN, Roll, 1

35 1913744 2 NUT, Hex, Jam, 1/2-13

36 1960170 3 WASHER, 33/64

37 2118053 1 PIN, Clevis

38 1704081A 1 TRUNNION

39 1960074 2 CLIP, Hair Pin

40 1917372 2 NUT, Hex, 5/16-18

41 1917356 2 WASHER, Lock, 5/16

42 1704116A 1 BRACKET, Height of Cut

43 1704083A 1 ARM, Rear, Mower, RH

44 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

The above parts group applies to the following Mfg. Nos.:

2005 61

1694037 - 44" Mower

1694043 - 44" Mower

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

44" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Insert Must

Face Out

Insert Must

Face Out

GREASE

Feet

towards

discharge

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes for 15" front tires

using lower set of holes for 16" front tires

10

GREASE

3

21

456

8

9

10

11

12

8

9

46

47

48

45

36

4329 30 31

28

33

32

34

44

43

42 41

40

39

12 1713

21

22

20

14

37

35

38

12

36

35

3

25 13

24

3

23

9

7

10

15

19

26

27

1715

17

16

18

985973

The above parts group applies to the following Mfg. Nos.:

2005 62

1694037 - 44" Mower

1694043 - 44" Mower

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Height Adjustment & Roller Bar

Footnotes

45 1704087 1 TRUNNION, Threaded

46 1719901 1 CRANK, Height of Cut

47 1714084 1 KNOB, Height Crank

48 1960093 1 PAL NUT

The above parts group applies to the following Mfg. Nos.:

2005 63

1694037 - 44" Mower

1694043 - 44" Mower

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque nuts

to 50-70 ft. lbs.

(67-95 Nm.)

Torque screws

to 45-55 ft. lbs.

(61-75 Nm)

Apply gasket former to this surface

if foam gasket is not used.

Fill arbors with multipurpose grease

after gasket former has cured.

Note: Plug holes

outside footrest with

Ref. Nos. 17 & 18

as required.

Torque arbor

capscrews to

14-18 ft. lbs.

(19-24 Nm)

11

16

20

12

19

14

15

21

22

28

30

23

28

25

27

24

31

32

38

36

17

33

39

35

37

34

40

1

7

5

9

2

8

4

6

3

10

5

2

25

26

36

37

31

32

40

29

16

18

13

43

42

41

985971

The above parts group applies to the following Mfg. Nos.:

2005 64

1694037 - 44" Mower

1694043 - 44" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Housing, Arbors & Blades

Footnotes

1 1714419 3 NUT, Hex Flange, 9/16-18

2 1713675 6 WASHER, Bellevilled, 9/16

3 1713161 1 PULLEY, 4-1/2 O.D.

4 1713158 1 HUB, Double Pulley

5 1713098 3 PULLEY, 4-1/4 O.D.

6 1713533 1 HUB, Double Pulley

7 1655729A 3 COVER, Arbor Housing

8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8

9 1715724 3 SPACER, 21/32 x 3/4 x 5/8

10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16

11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32

12 1707335 3 GASKET, Foam

13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14)

14 1704314 3 FITTING, Grease

15 1720560A 1 COVER, Arbor

16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

17 1924856 1 CAPSCREW, Hex Washer Head, 5/16-18 x 1/2, Black

18 1931277 1 NUT, Hex Flange, 5/16,

19 1713619 3 WASHER, Bellevilled, 9/16, Black

20 1713612 1 SHAFT, Arbor (LH)

21 1713196 3 SHIELD, Grass, Lower

22 1704100A 3 BLADE, Mower, 16-1/8 (for 44" Decks)

23 1713089 3 WASHER, Hex, 11/16 x 2

24 1656916 3 WASHER, Spring 15/32, Black

25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1

26 1713195 2 SHAFT, Arbor (Center & RH)

27 1685411 1 MOWER HOUSING ASSEMBLY, 44" Mower (Orange)

27 1687154 1 MOWER HOUSING ASSEMBLY, 44" Mower (Red)

28 1703601 1 COVER, Arbor

29 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8

30 1705115 1 PLUG, Hole

31 1960518 2 NUT, Push

32 1960353 2 WASHER, 1/4, Black

33 1704873 1 CLAMP

34 1919326 1 WASHER, 5/16, Black

35 1723938 1 SPRING

36 1916964 2 WASHER, Lock, 1/4

37 1916622 2 NUT, Hex, 1/4-20

38 1706709A 1 ROD, Deflector, Front

39 1705449 1 DEFLECTOR, Plastic

40 1713197 2 HUB, Pulley, Center & RH

41 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

42 1927557 2 NUT, Hex Flagne Whiz Lock, 5/16-18

43 1724538A 1 BAFFLE, Blowout, 44" & 50"

The above parts group applies to the following Mfg. Nos.:

2005 65

1694037 - 44" Mower

1694043 - 44" Mower

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades CE

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque nuts

to 50-70 ft. lbs.

(67-95 Nm.)

Torque screws

to 45-55 ft. lbs.

(61-75 Nm)

Apply gasket former to this surface

if foam gasket is not used.

Fill arbors with multipurpose grease

after gasket former has cured.

Note: Plug holes

outside footrest with

Ref. Nos. 17 & 18

as required.

Torque arbor capscrews

to 14-18 ft. lbs.

(19-24 Nm)

11

16

20

12

19

14

15

21

22

28

30

23

28

25

27

24

31

32

38

36

17

33

39

35

37

34

40

1

7

5

9

2

8

4

6

3

10

5

2

25

26

36

37

31

32

40

29

16

18

13

44

43

42

41

986089

The above parts group applies to the following Mfg. Nos.:

2005 66

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Housing, Arbors & Blades CE

Footnotes

1 1714419 3 NUT, Hex Flange, 9/16-18

2 1713675 6 WASHER, Bellevilled, 9/16

3 1713161 1 PULLEY

4 1713158 1 HUB, Double Pulley

5 1713098 3 PULLEY

6 1713533 1 HUB, Double Pulley

7 1655729A 3 COVER, Arbor Housing

8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8

9 1715724 3 SPACER, 21/32 x 3/4 x 5/8

10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16

11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32

12 1707335 3 GASKET, Foam

13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14)

14 1704314 3 FITTING, Grease

15 1720560A 1 COVER, Arbor

16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

17 1924856 1 CAPSCREW, Hex Washer Head, 5/16-18 x 1/2, Black

18 1931277 1 NUT, Hex Flange, 5/16,

19 1713619 3 WASHER, Bellevilled, 9/16, Black

20 1713612 1 SHAFT, Arbor (LH)

21 1713196 3 SHIELD, Grass, Lower

22 1704100A 3 BLADE, Mower, 16-1/8 (for 44" Decks)

23 1713089 3 WASHER, Hex, 11/16 x 2

24 1656916 3 WASHER, Spring 15/32, Black

25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1

26 1713195 2 SHAFT, Arbor (Center & RH)

27 1685411 1 MOWER HOUSING ASSEMBLY, 44" Mower (Orange)

27 1687154 1 MOWER HOUSING ASSEMBLY, 44" Mower (Red)

28 1703601 1 COVER, Arbor

29 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8

30 1705115 1 PLUG, Hole

31 1960518 2 NUT, Push

32 1960353 2 WASHER, 1/4, Black

33 1704873 1 CLAMP

34 1919326 1 WASHER, 5/16, Black

35 1723938 1 SPRING

36 1916964 2 WASHER, Lock, 1/4

37 1916622 2 NUT, Hex, 1/4-20

38 1706709A 1 ROD, Deflector, Front

39 1705449 1 DEFLECTOR, Plastic

40 1713197 2 HUB, Pulley, Center & RH

41 1716879A 1 BAFFLE, Anti-Blowout, LH (CE Only)

42 1931333 8 CARRIAGE BOLT, 5/16-18 x 3/4, Black (CE Only)

43 1927557 8 NUT, Hex Flange Whiz Lock, 5/16-18, Black (CE Only)

The above parts group applies to the following Mfg. Nos.:

2005 67

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades CE

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque nuts

to 50-70 ft. lbs.

(67-95 Nm.)

Torque screws

to 45-55 ft. lbs.

(61-75 Nm)

Apply gasket former to this surface

if foam gasket is not used.

Fill arbors with multipurpose grease

after gasket former has cured.

Note: Plug holes

outside footrest with

Ref. Nos. 17 & 18

as required.

Torque arbor capscrews

to 14-18 ft. lbs.

(19-24 Nm)

11

16

20

12

19

14

15

21

22

28

30

23

28

25

27

24

31

32

38

36

17

33

39

35

37

34

40

1

7

5

9

2

8

4

6

3

10

5

2

25

26

36

37

31

32

40

29

16

18

13

44

43

42

41

986089

The above parts group applies to the following Mfg. Nos.:

2005 68

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Housing, Arbors & Blades CE

Footnotes

44 1716878A 1 BAFFLE, Anti-Blowout, RH (CE Only)

The above parts group applies to the following Mfg. Nos.:

2005 69

1694178 - 44" Mower

1694822 - 44" Mower

TP 400-4205-01-BM-SMA

50" Mower Deck - Clutch & Support

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Engine

Pulley

Movable Idler

Pulley

Arbor Drive

Pulley

Arbor Drive

Pulley

Arbor Drive

Pulley

Arbor Drive

Pulley

Movable

Idler Pulley

Grease

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

Insert Must

Face Out

34

56

8

9

77

4

5

7

8

9

10

11

12

13

15

14 16

7777

13

11

17

14

11

18

19

20

18

21

22

7

23

24

25

26

27

1

2

7777

A

984271C

The above parts group applies to the following Mfg. Nos.:

2005 70

1694174 - 50" Mower

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

50" Mower Deck - Clutch & Support

Footnotes

1 1707740 1 V-BELT, Mower Drive

2 1703836 1 V-BELT, Arbor Drive

3 1665835 1 GRIP, Lever

4 1916950 2 NUT, Hex, 3/8-16

5 1916965 2 WASHER, Lock, 3/8

6 1677135A 1 BELT STOP, Idler

7 1924940 14 WASHER, 3/8

8 1716553 1 HUB, 25/64 x 3/4 x 63/64, Powder Metal

9 1685150 2 PULLEY, Idler, (Includes Ref. No. 8)

10 1960339 1 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black

11 1676148 4 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal

12 1715435 1 SPRING

13 1674669A 2 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened

14 2812808 2 GREASE FITTING

15 1704658 1 LEVER ASSEMBLY, Idler, (Includes Ref. Nos. 11 & 14)

16 1960315 1 CARRIAGE BOLT, 3/8-16 x 2

17 1718561 1 LEVER ASSEMBLY, Idler Arm, (Includes Ref. Nos. 11 & 14)

18 1924356 2 WASHER, 3/8, Black

19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

20 1656936 1 SPRING

21 1923938 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2

22 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8

23 2157081 2 SPACER, 3/8 x 3/4 x 1/2

24 2860641 2 NUT, Hex Aluminum Insert Lock, 3/8-16

25 2156302 1 SPRING

26 1707432A 1 HITCH ASSEMBLY

27 1715759 1 ROD, Latch

The above parts group applies to the following Mfg. Nos.:

2005 71

1694174 - 50" Mower

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Insert Must

Face Out

Insert Must

Face Out

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

7

GREASE

3

21

456

9

10

11

9

10

43

44

45

42

34

4327 19 28

26

30

29 31

41

40

39 38

37

36

12

1713

16

17

14

15

35

33

32

12

34

33 3

25

24

23

3

22

8

20

18

9

19

21

7

11

9

8

7

107

986020

The above parts group applies to the following Mfg. Nos.:

2005 72

1694174 - 50" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

50" Mower Deck - Height Adjustment & Roller Bar

Footnotes

1 1686687 1 SHAFT ASSEMBLY, Roller, 50", (Includes Ref. No. 10)

2 1704082 1 NUT, Adjuster

3 2860641 3 NUT, Hex Aluminum Insert Lock, 3/8-16

4 1677507 1 SLIDE

5 1924361 1 WASHER, Plain, 1/2

6 2172622 1 BOLT, Shoulder, 3/8-16

7 1924366 8 WASHER, Plain, 1 1/4

8 1709195 3 SPACER, 21/32 x 5/32 x 5/8

9 1722036 2 ROLLER, Rounded End

10 1960520 2 NUT, Push

11 1668513 8 ROLLER

12 1704074A 1 BAR, Roller

13 1930644 2 NUT, Hex Flange, 2 Way Lock, 1/2-13

14 1665374A 3 STRAP, Mower Arm Assembly

15 1664847 6 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4

16 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

17 1718828A 1 ARM ASSEMBLY, Mower

18 1930570 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G8, 1/2 Thread

19 1919381 5 WASHER, 5/16, Black

20 1708088A 2 CHAIN, 4 Link, 6 3/32 Long

21 1919438 2 NUT, Hex Lock ESNA Light, 5/16-18, Black

22 1722995 1 ROD, Adjustment

23 1706644 1 SPACER, 3/8 x 3/4 x 15/16

24 1924940 1 WASHER, 3/8

25 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

26 1704080A 1 PLATE, Mower Support

27 1931202 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4

28 1704114 1 INDICATOR, Cutting Height

29 1704097 1 WASHER, Detent

30 1704086 1 TRUNNION

31 2816001 1 PIN, Roll, 1

32 1706645A 1 TRUNNION

33 1915726 2 NUT, Hex, Jam, 1/2-13

34 1960170 1 WASHER, 11/32

35 2118053 1 PIN, Clevis

36 1960074 1 CLIP, Hair Pin

37 1917372 2 NUT, Hex, 5/16-18

38 1917356 2 WASHER, Lock, 5/16

39 1704116A 1 BRACKET, Cutting Height

40 1704083A 1 ARM, Rear, Mower, RH

41 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

42 1704087 1 TRUNNION, Threaded

43 1719901 1 CRANK, Cutting Height

44 1714084 1 KNOB, Height Crank

The above parts group applies to the following Mfg. Nos.:

2005 73

1694174 - 50" Mower

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Insert Must

Face Out

Insert Must

Face Out

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

7

GREASE

3

21

456

9

10

11

9

10

43

44

45

42

34

4327 19 28

26

30

29 31

41

40

39 38

37

36

12

1713

16

17

14

15

35

33

32

12

34

33 3

25

24

23

3

22

8

20

18

9

19

21

7

11

9

8

7

107

986020

The above parts group applies to the following Mfg. Nos.:

2005 74

1694174 - 50" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

50" Mower Deck - Height Adjustment & Roller Bar

Footnotes

45 1960093 1 PAL NUT

The above parts group applies to the following Mfg. Nos.:

2005 75

1694174 - 50" Mower

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Insert Must

Face Out

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

4

GREASE

16

15

14

17 18 19

20

21

6

20

21

1

2

3

48

34

4337 10 38

36

40

39 41

47

46

45 44

43

42

22

1723

26

27

24

25

28

29

31

12

30

29 16

35

34

33

16

32

5

4

6

11

4

104

4

410

87

9

11

10

8

7

9

213

4

712 4

5

12

986421

The above parts group applies to the following Mfg. Nos.:

2005 76

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

50" Mower Deck - Height Adjustment & Roller Bar

Footnotes

1 1719901 1 CRANK, Cutting Height

2 1714084 1 KNOB, Height Crank

3 1960093 1 PAL NUT

4 1924366 8 WASHER, Plain, 1 1/4

5 1709195 3 SPACER, 21/32 x 5/32 x 5/8

6 1668513 8 ROLLER

7 2825094 2 TIE, Self Locking

8 1708266A 2 CHAIN, 6 Link, 8 13/32 Long

9 1919438 2 NUT, Hex Lock ESNA Light, 5/16-18, Black

10 1919381 5 WASHER, 5/16, Black

11 1930570 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G8, 1/2 Thread

12 1725640A 2 LINK, Lift, Roller Shaft

13 1602946 2 SPACER

14 1686687 1 SHAFT ASSEMBLY, Roller, 50", (Includes Ref. No. 10)

15 1704082 1 NUT, Adjuster

16 2860641 3 NUT, Hex Aluminum Insert Lock, 3/8-16

17 1677507 1 SLIDE

18 1924361 1 WASHER, Plain, 1/2

19 2172622 1 BOLT, Shoulder, 3/8-16

20 1722036 2 ROLLER, Rounded End

21 1960520 2 NUT, Push

22 1704074A 1 BAR, Roller

23 1930644 2 NUT, Hex Flange, 2 Way Lock, 1/2-13

24 1665374A 3 STRAP, Mower Arm Assembly

25 1664847 6 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4

26 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2

27 1718828A 1 ARM ASSEMBLY, Mower

28 2118053 1 PIN, Clevis

29 1915726 2 NUT, Hex, Jam, 1/2-13

30 1960170 1 WASHER, 11/32

31 1706645A 1 TRUNNION

32 1722995 1 ROD, Adjustment

33 1706644 1 SPACER, 3/8 x 3/4 x 15/16

34 1924940 1 WASHER, 3/8

35 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

36 1704080A 1 PLATE, Mower Support

37 1931202 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4

38 1704114 1 INDICATOR, Cutting Height

39 1704097 1 WASHER, Detent

40 1704086 1 TRUNNION

41 2816001 1 PIN, Roll, 1

42 1960074 1 CLIP, Hair Pin

43 1917372 2 NUT, Hex, 5/16-18

44 1917356 2 WASHER, Lock, 5/16

The above parts group applies to the following Mfg. Nos.:

2005 77

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Insert Must

Face Out

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

4

GREASE

16

15

14

17 18 19

20

21

6

20

21

1

2

3

48

34

4337 10 38

36

40

39 41

47

46

45 44

43

42

22

1723

26

27

24

25

28

29

31

12

30

29 16

35

34

33

16

32

5

4

6

11

4

104

4

410

87

9

11

10

8

7

9

213

4

712 4

5

12

986421

The above parts group applies to the following Mfg. Nos.:

2005 78

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

50" Mower Deck - Height Adjustment & Roller Bar

Footnotes

45 1704116A 1 BRACKET, Cutting Height

46 1704083A 1 ARM, Rear, Mower, RH

47 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

48 1704087 1 TRUNNION, Threaded

The above parts group applies to the following Mfg. Nos.:

2005 79

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque nuts

to 50-70 ft. lbs.

(67-95 Nm.)

Torque screws

to 45-55 ft. lbs.

(61-75 Nm)

Apply gasket former to this surface

if foam gasket is not used.

Fill arbors with multipurpose grease

after gasket former has cured.

Torque arbor capscrews

to 14-18 ft. lbs.

(19-24 Nm)

11

16

18

12

17

15

19

20

26

28

21

28

23

25

22

29

30

37

35

31

38

33

36

32

40

1

7

5

9

2

8

4

6

3

10

5

2

25

24

35

36

29

30

39

27

16

14

13

34

40

41

42

985972

The above parts group applies to the following Mfg. Nos.:

2005 80

1694174 - 50" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

50" Mower Deck - Housing, Arbors & Blades

Footnotes

1 1714419 3 NUT, Hex Flange, 9/16-18

2 1713675 6 WASHER, Bellevilled, 9/16

3 1713161 1 PULLEY

4 1713158 1 HUB, Double Pulley

5 1713098 3 PULLEY

6 1713533 1 HUB, Double Pulley

7 1655729A 3 COVER, Arbor Housing

8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8

9 1715724 3 SPACER, 21/32 x 3/4 x 5/8

10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16

11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32

12 1707335 3 GASKET, Foam

13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14)

14 1704314 3 FITTING, Grease

15 1720560A 1 COVER, Arbor

16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

17 1713619 3 WASHER, Bellevilled, 9/16, Black

18 1713612 1 SHAFT, Arbor (LH)

19 1713196 3 SHIELD, Grass, Lower

20 1708229A 3 BLADE, Mower, 18-1/8

21 1713089 3 WASHER, Hex, 11/16 x 2

22 1656916 3 WASHER, Spring 15/32, Black

23 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1

24 1713195 2 SHAFT, Arbor (Center & RH)

25 1685495 1 MOWER HOUSING ASSEMBLY, 50" Mower (Orange)

25 1687156 1 MOWER HOUSING ASSEMBLY, 50" Mower (Red)

26 1703601 1 COVER, Arbor

27 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8

28 1705115 1 PLUG, Hole

29 1960518 2 NUT, Push

30 1960353 2 WASHER, 1/4, Black

31 1704873 1 CLAMP

32 1919326 1 WASHER, 5/16, Black

33 1723938 1 SPRING

34 1723323 1 CAP, Spring End

35 1916964 2 WASHER, Lock, 1/4

36 1916622 2 NUT, Hex, 1/4-20

37 1706709A 1 ROD, Deflector, Front

38 1705449 1 DEFLECTOR, Plastic

39 1713197 2 HUB, Pulley, Center & RH

40 1724538A 1 BAFFLE, Anti-Blowout

41 1927557 2 NUT, Hex, Whizlock, 5/16-18

42 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

The above parts group applies to the following Mfg. Nos.:

2005 81

1694174 - 50" Mower

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque nuts

to 50-70 ft. lbs.

(67-95 Nm.)

Torque screws

to 45-55 ft. lbs.

(61-75 Nm)

Apply gasket former to this surface

if foam gasket is not used.

Fill arbors with multipurpose grease

after gasket former has cured.

Torque arbor capscrews

to 14-18 ft. lbs.

(19-24 Nm)

Top of Upstop

angles rearward.

11

16

18

12

17

15

19

20

26

28

21

28

23

25

22

32

33

40

38

34

41

36

39

35

40

1

7

5

9

2

8

4

6

3

10

5

2

25

24

38

39

32

33

42

27

16

14

13

37

40

41

42

31

29

30

986429

The above parts group applies to the following Mfg. Nos.:

2005 82

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

50" Mower Deck - Housing, Arbors & Blades

Footnotes

1 1714419 3 NUT, Hex Flange, 9/16-18

2 1713675 6 WASHER, Bellevilled, 9/16

3 1713161 1 PULLEY

4 1713158 1 HUB, Double Pulley

5 1713098 3 PULLEY

6 1713533 1 HUB, Double Pulley

7 1655729A 3 COVER, Arbor Housing

8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8

9 1715724 3 SPACER, 21/32 x 3/4 x 5/8

10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16

11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32

12 1707335 3 GASKET, Foam

13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14)

14 1704314 3 FITTING, Grease

15 1720560A 1 COVER, Arbor

16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

17 1713619 3 WASHER, Bellevilled, 9/16, Black

18 1713612 1 SHAFT, Arbor (LH)

19 1713196 3 SHIELD, Grass, Lower

20 1708229A 3 BLADE, Mower, 18-1/8

21 1713089 3 WASHER, Hex, 11/16 x 2

22 1656916 3 WASHER, Spring 15/32, Black

23 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1

24 1713195 2 SHAFT, Arbor (Center & RH)

25 1685495 1 MOWER HOUSING ASSEMBLY, 50" Mower (Orange)

25 1687156 1 MOWER HOUSING ASSEMBLY, 50" Mower (Red)

26 1703601 1 COVER, Arbor

27 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8

28 1705115 1 PLUG, Hole

29 1704098 1 UPSTOP

30 1611705 2 SPACER, W x 5/8 x L

31 1931202 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/4

32 1960518 2 NUT, Push

33 1960353 2 WASHER, 1/4, Black

34 1704873 1 CLAMP

35 1919326 1 WASHER, 5/16, Black

36 1723738 1 SPRING

37 1723323 1 CAP, Spring End

38 1916964 2 WASHER, Lock, 1/4

39 1916622 2 NUT, Hex, 1/4-20

40 1706709A 1 ROD, Deflector, Front

41 1705449 1 DEFLECTOR, Plastic

42 1713197 2 HUB, Pulley, Center & RH

43 1724538A 1 BAFFLE, Anti-Blowout

The above parts group applies to the following Mfg. Nos.:

2005 83

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Torque nuts

to 50-70 ft. lbs.

(67-95 Nm.)

Torque screws

to 45-55 ft. lbs.

(61-75 Nm)

Apply gasket former to this surface

if foam gasket is not used.

Fill arbors with multipurpose grease

after gasket former has cured.

Torque arbor capscrews

to 14-18 ft. lbs.

(19-24 Nm)

Top of Upstop

angles rearward.

11

16

18

12

17

15

19

20

26

28

21

28

23

25

22

32

33

40

38

34

41

36

39

35

40

1

7

5

9

2

8

4

6

3

10

5

2

25

24

38

39

32

33

42

27

16

14

13

37

40

41

42

31

29

30

986429

The above parts group applies to the following Mfg. Nos.:

2005 84

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

PART NO. DESCRIPTIONREF NO QTY.

50" Mower Deck - Housing, Arbors & Blades

Footnotes

44 1927557 2 NUT, Hex, Whizlock, 5/16-18

45 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

The above parts group applies to the following Mfg. Nos.:

2005 85

1694473 - 50" Mower

1694474 - 50" Mower

TP 400-4205-01-BM-SMA

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

19

2.1

30

3.4

41

4.6

8-36

20

2.3

31

3.5

43

4.9

10-24

27

3.1

43

4.9

60

6.8

10-32

31

3.5

49

5.5

68

7.7

1/4-20

66

7.6 810.9 12 16.3

1/4-28

76

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

No

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

0

1/4 3/4

1/2

1

1/4 3/4

1/2

2

1/4 3/4

1/2

3

1/4 3/4

1/2

4

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

2005

Simplicity Broadmoor 1600 Series Parts Manual / 2600

1600 Series to the manual daaa0b6c-e9c5-42d0-a429-32134baa47aa

Navigation menu

Versions of this User Manual:

Views

Navigation
