Simplicity Broadmoor 2600 Series Parts Manual / 1600 Lawn Tractors & Mower Decks

2014-12-13

: Simplicity Simplicity-Broadmoor-2600-Series-Parts-Manual-127036 simplicity-broadmoor-2600-series-parts-manual-127036 simplicity pdf

Open the PDF directly: View PDF .
Page Count: 64

Parts Manual

Rev. 5/2008

Broadmoor / 2600

Series Lawn Tractors & Mower Decks

TP 400-4889-00-BM-SM

. No. Descri

tion

20HP Product

2690651 Broadmoor, 20HP and 44" Mower Deck (CE/Export)

2690652 2620H, 20HP and 44" Mower Deck (CE/Export)

2690653 Broadmoor, 20HP and 40" Mower Deck (CE/Export)

. No. Descri

tion

Mower Decks

1695030 40" Mower Deck (CE/Export)

1695052 40" Mower Deck (CE/Export)

1694178 44" Mower Deck (CE/Export)

1695038 44" Mower Deck (CE/Export)

1735777

Part No.:

Table Of Content

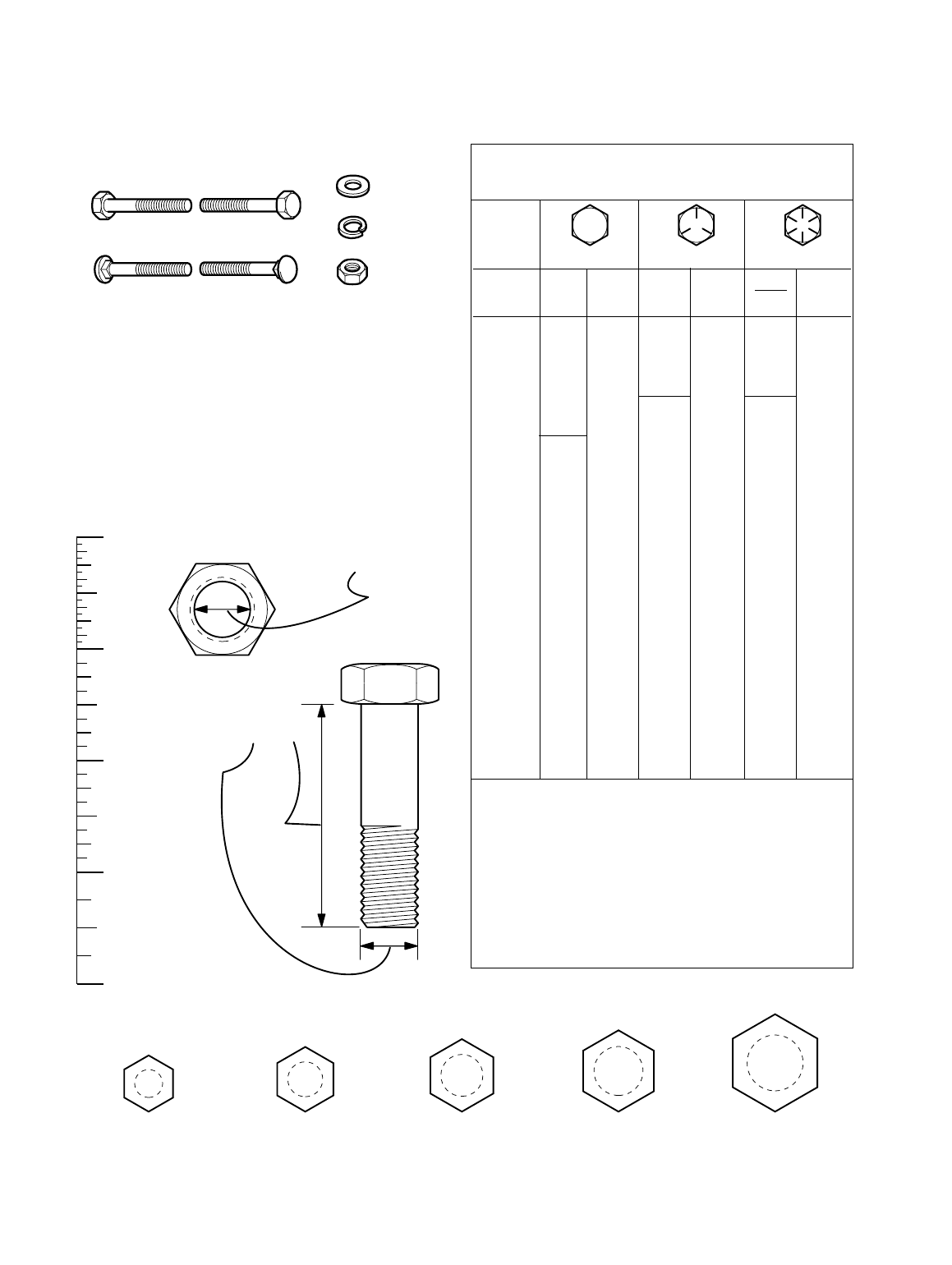

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group ................................................................................................................................... 4

Steering Group - Manual Steering ....................................................................................................................... 6

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard ................................................... 8

Transmission Group - Tuff Torq K-57 .................................................................................................................. 10

Transmission SERVICE PARTS - Tuff Torq K-57A ............................................................................................. 12

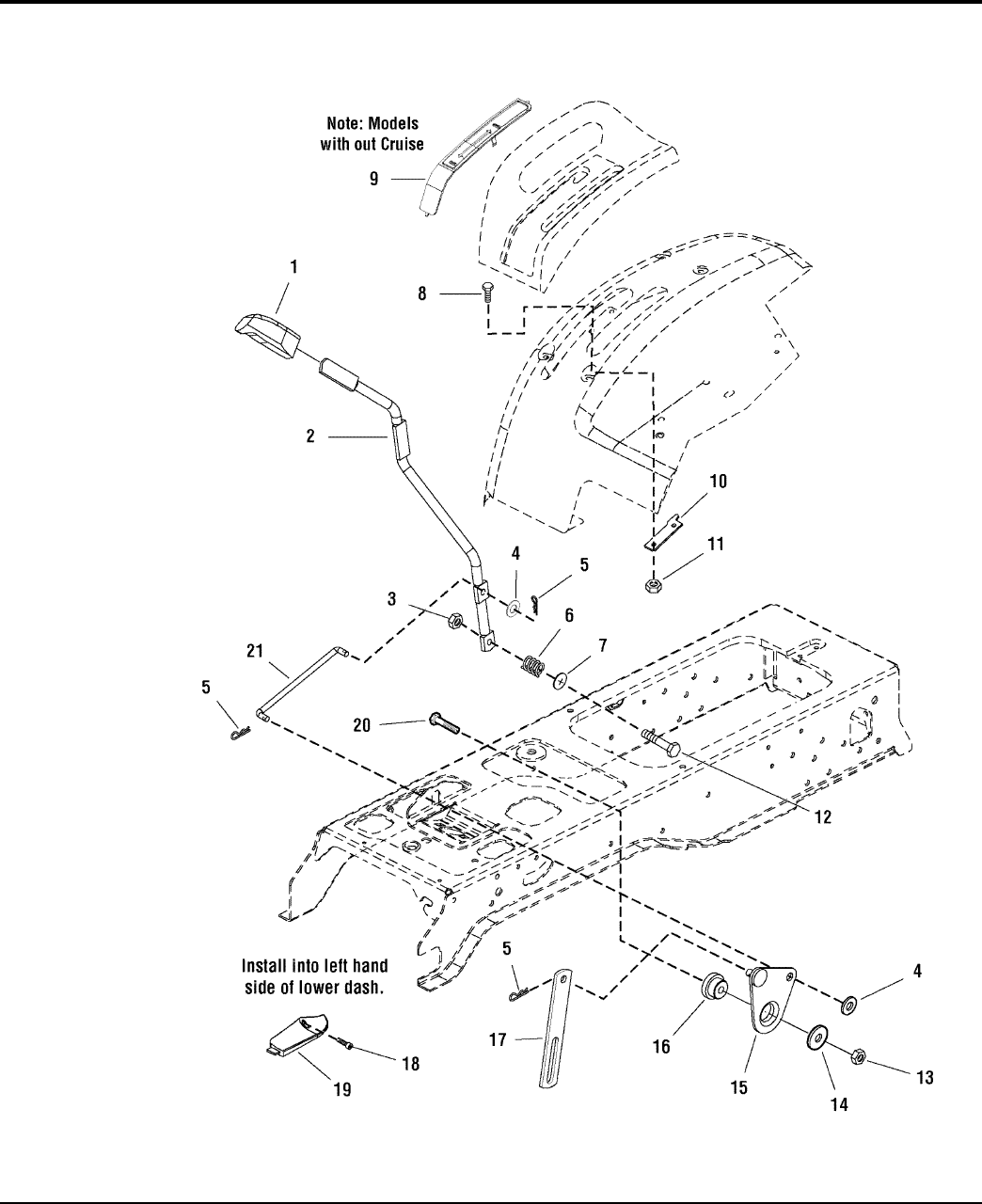

Controls Group ..................................................................................................................................................... 16

Cruise Control Group ........................................................................................................................................... 18

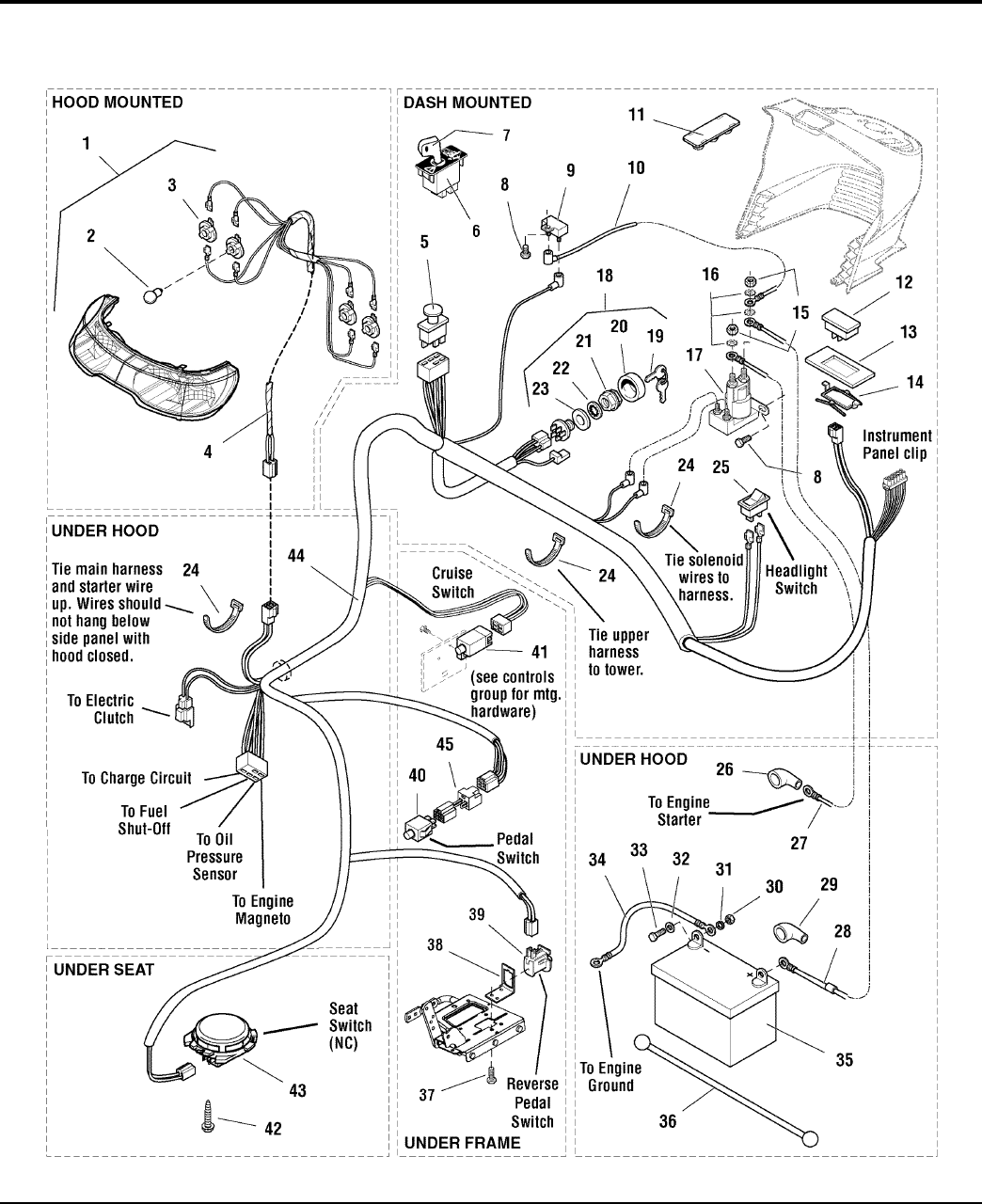

Electrical Group .................................................................................................................................................... 20

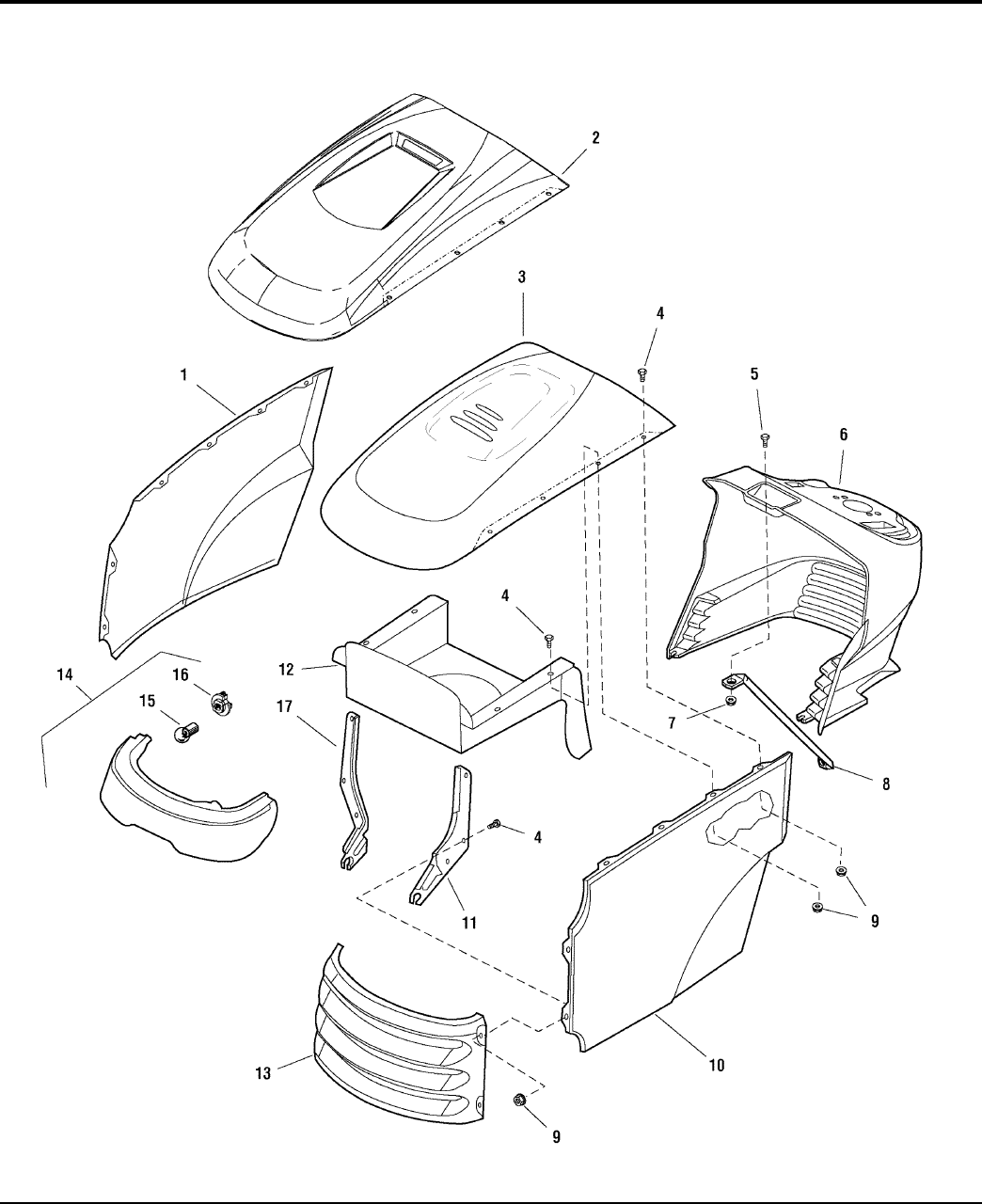

Hood, Grille & Dash Group .................................................................................................................................. 24

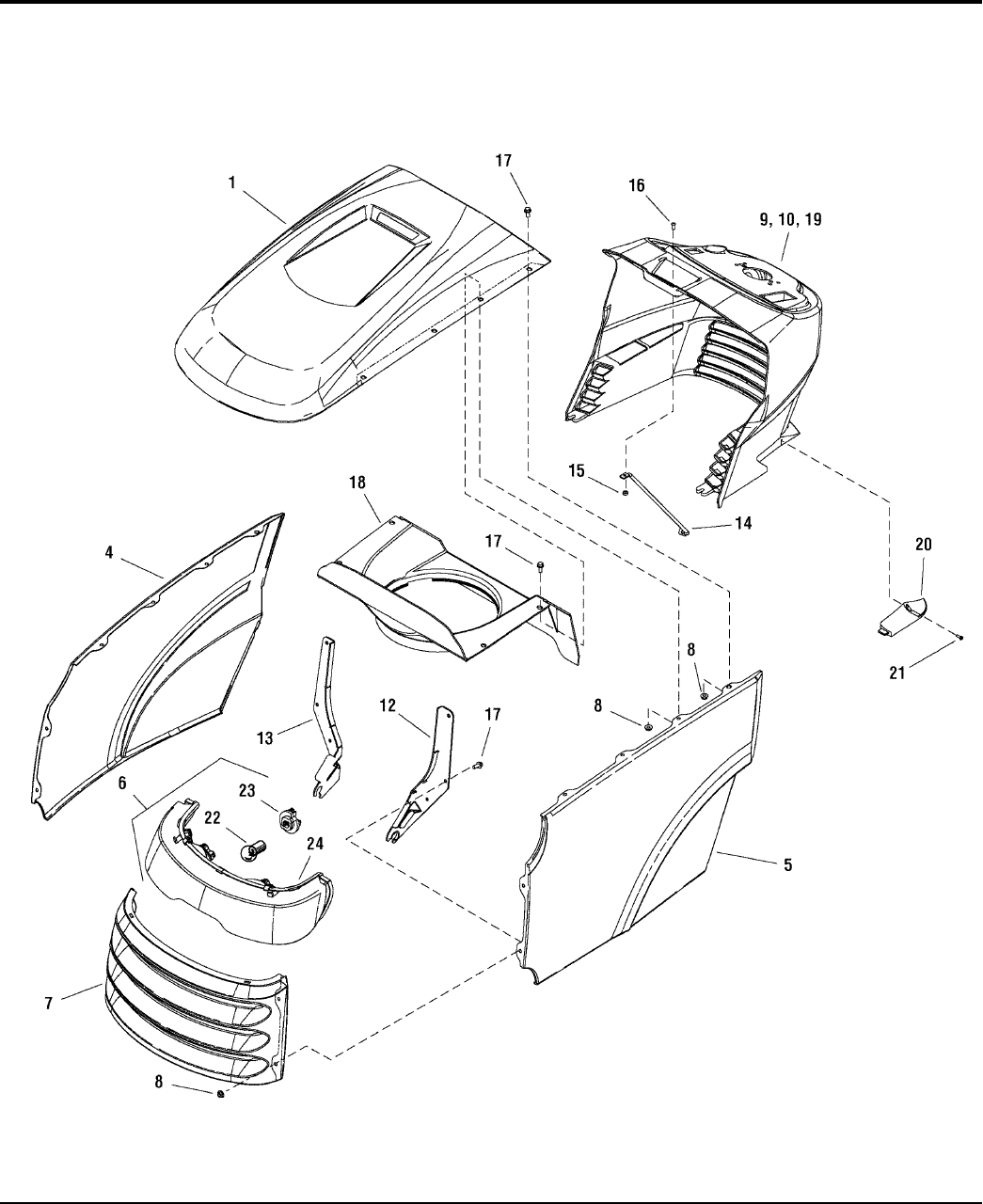

Hood, Grille & Dash Group .................................................................................................................................. 26

Seat & Seat Deck Group ...................................................................................................................................... 28

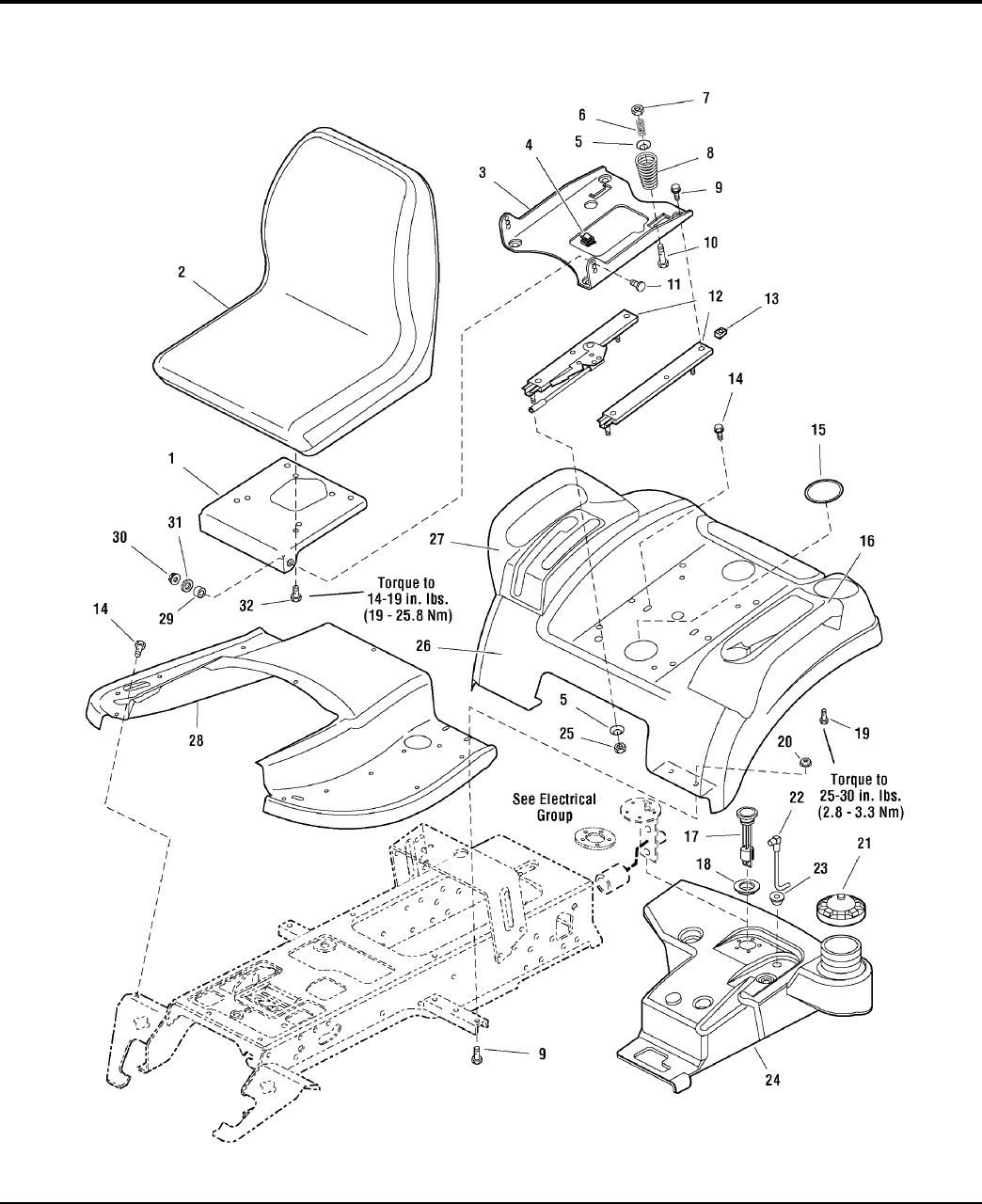

Seat Deck & Fuel Tank Group ............................................................................................................................. 30

Lift Group - Manual Lift with Cruise Control ......................................................................................................... 32

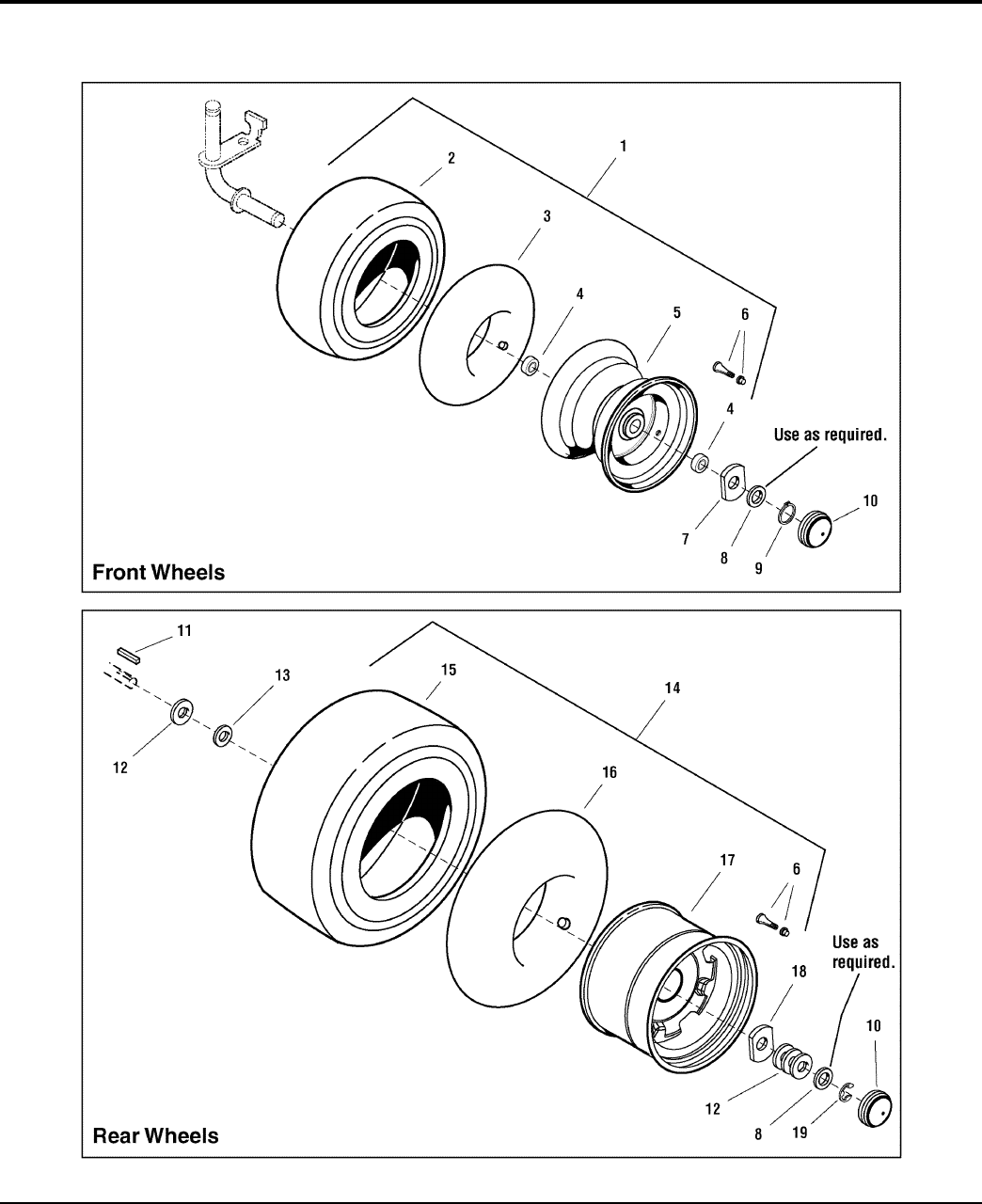

Wheels & Tires Group .......................................................................................................................................... 34

Decals - Brand & Model ....................................................................................................................................... 36

Decals - Safety & Common .................................................................................................................................. 38

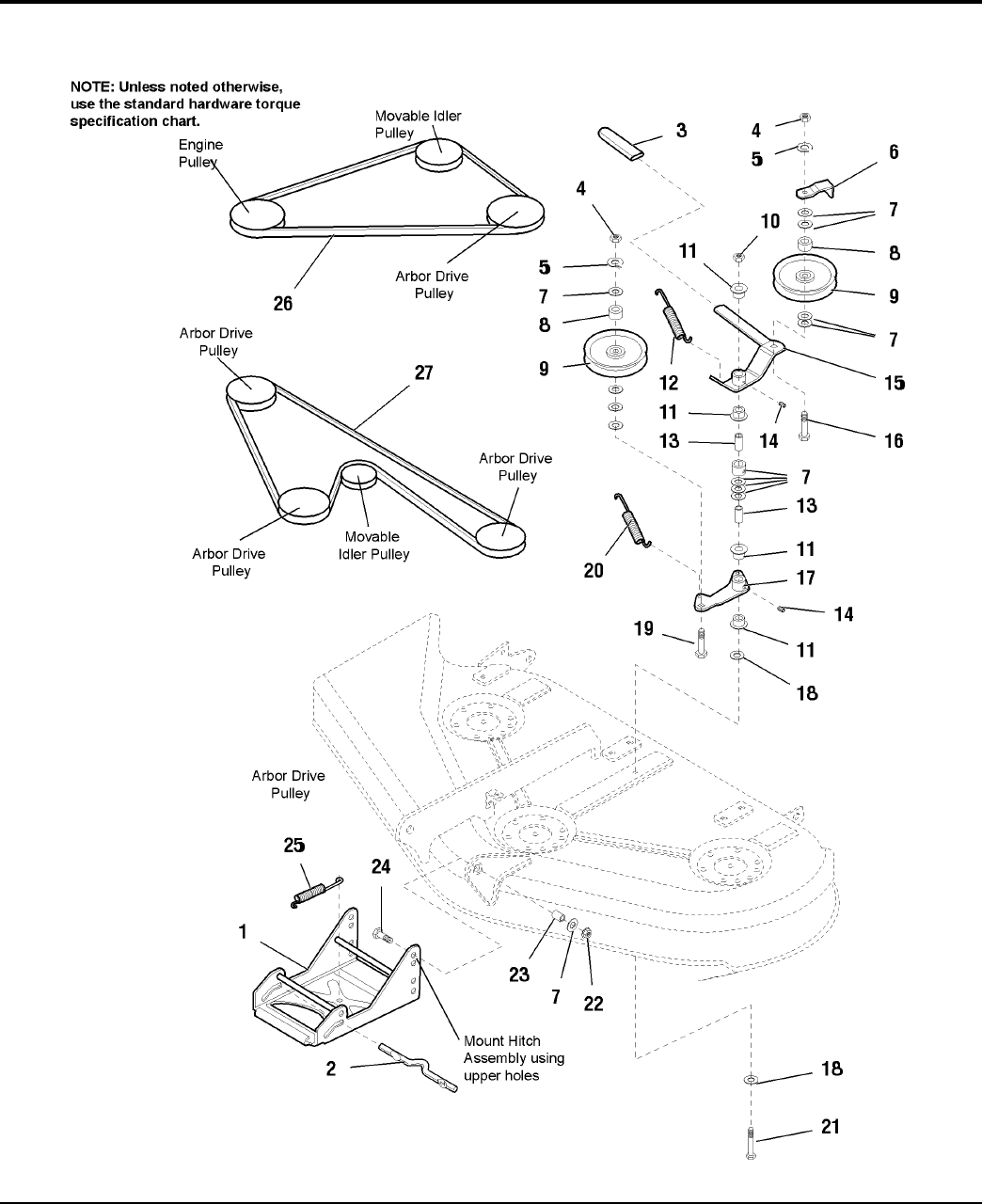

40" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 40

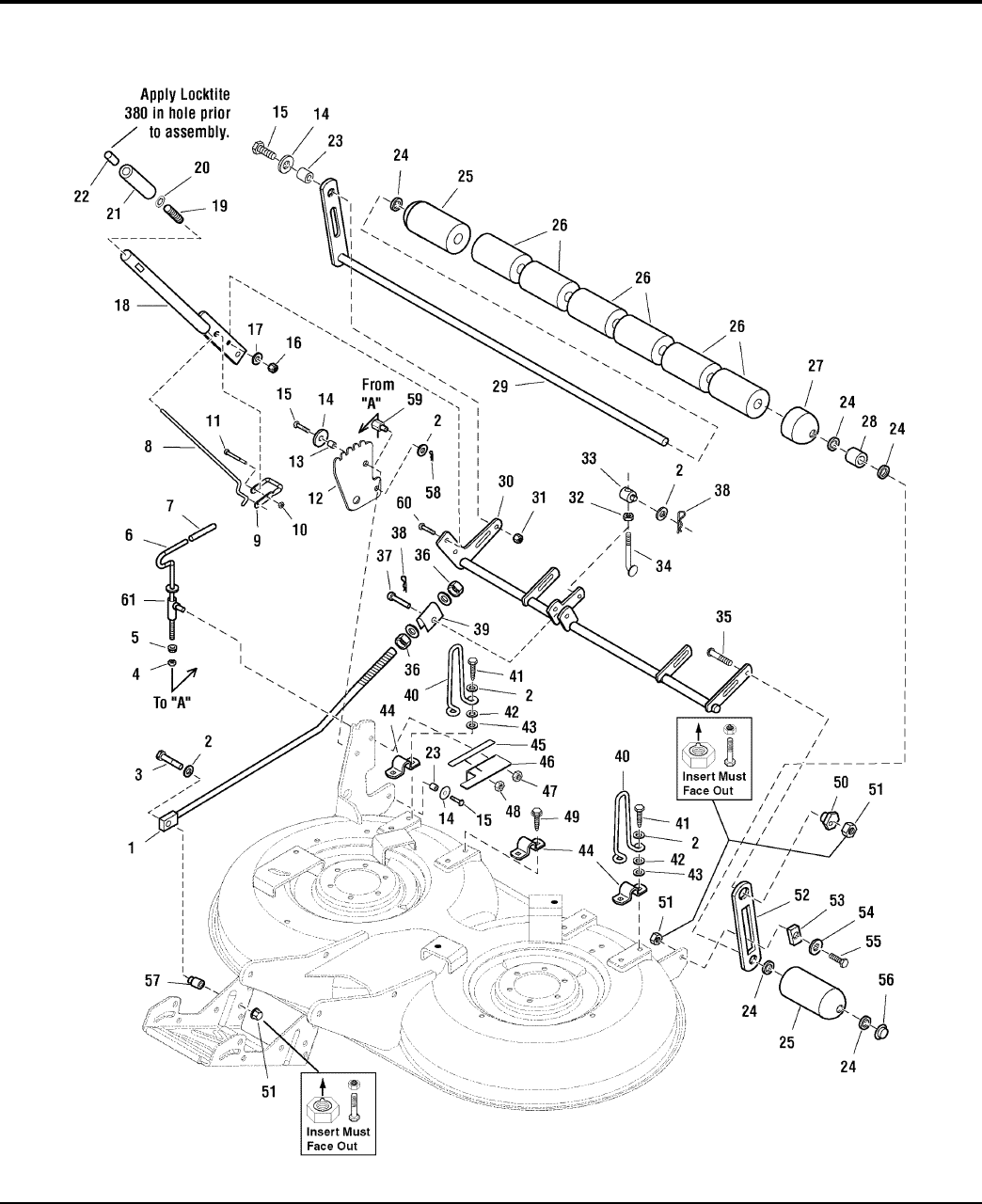

40" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 42

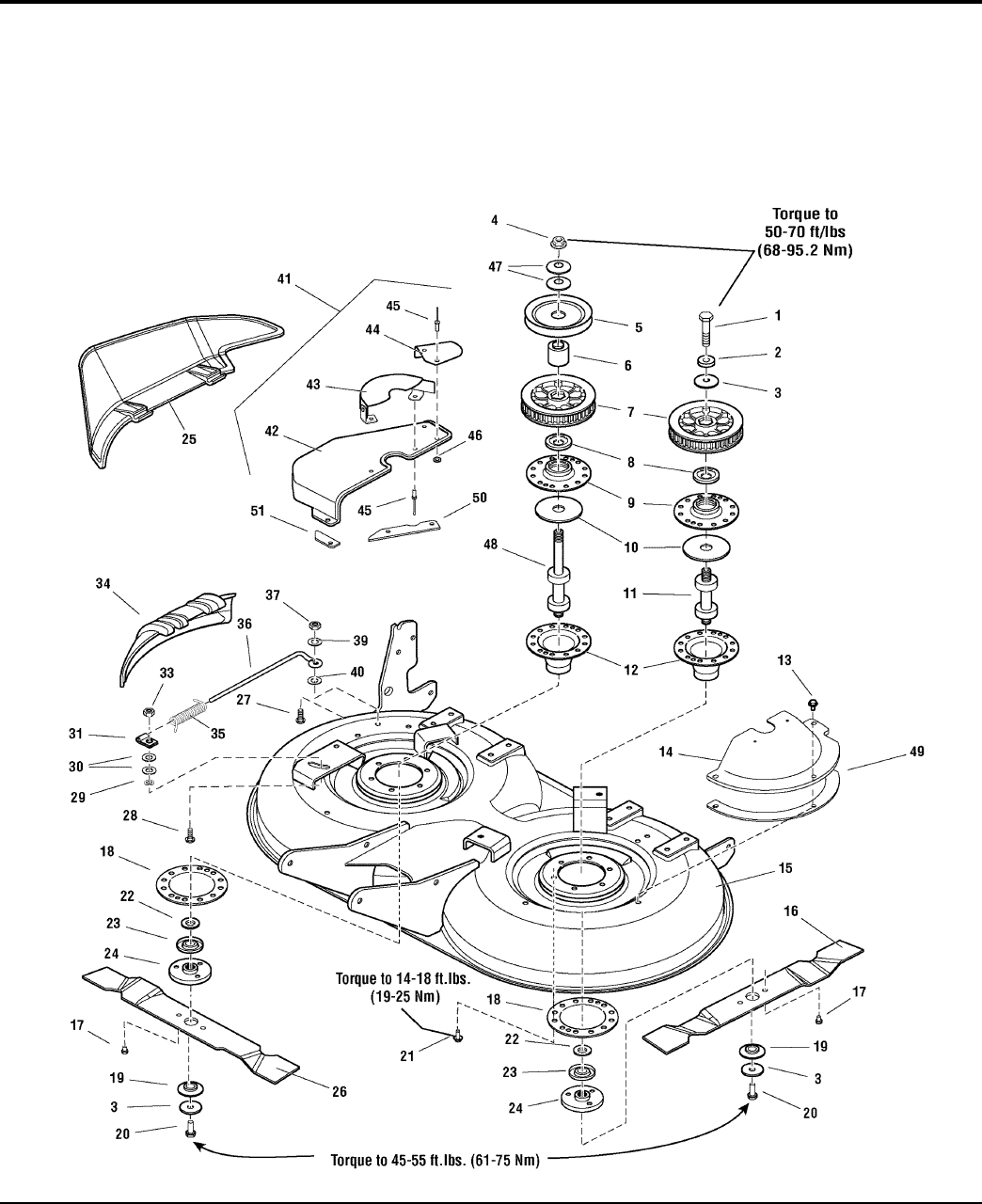

40" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 46

44" & 50" Mower Deck - Belt, Pulley & Hitch Group ............................................................................................ 50

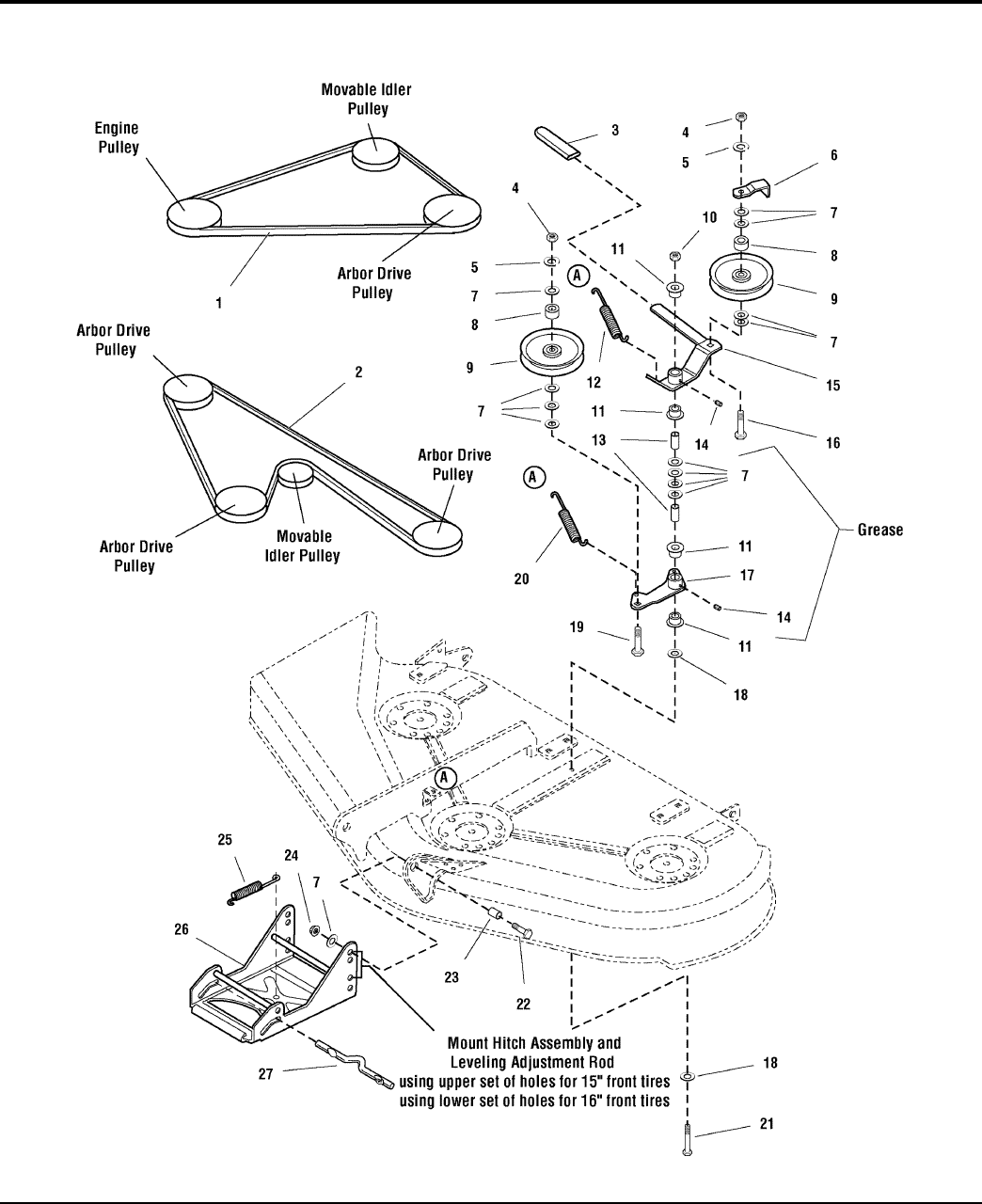

44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 52

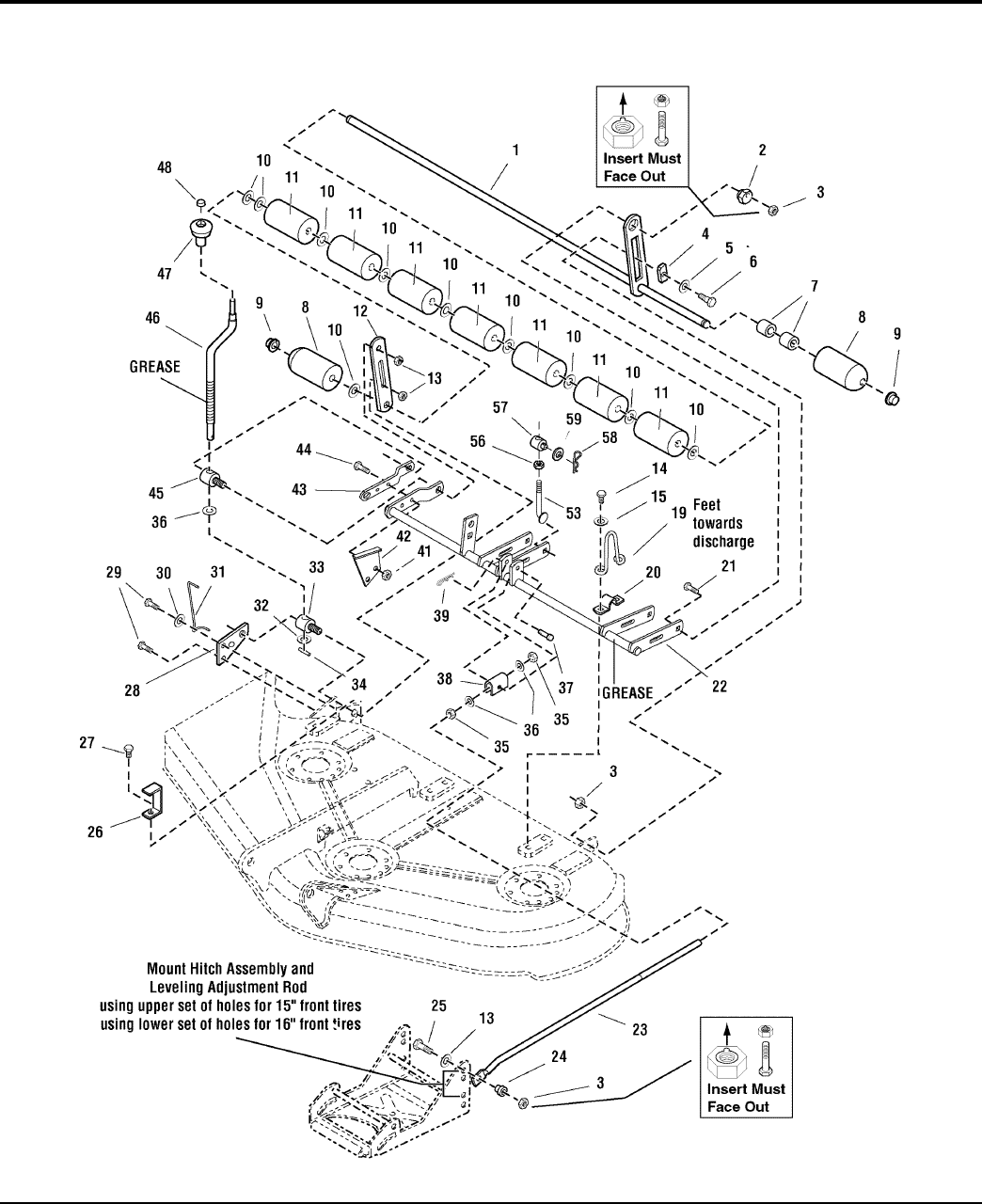

44" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 54

44" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 58

Frame & Front Axle Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986681

The above parts group applies to the following Mfg. Nos.:

2008 4

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group

Footnotes

NUT, Hex Flange Lock, 3/8-16 1 1930645SM 7

WASHER 2 1960035SM 2

NUT, Hex Flange, 5/8-11 3 2860646SM 1

PLATE, Axle 4 1722212ASM 1

TOWER & SUPPORT ASSEMBLY 5 1733765ASM 1

CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4 6 1923683SM 4

SUPPORT 7 1723528ASM 1

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 8 1664847SM 4

FRAME ASSEMBLY 9 1726989ASM 1

CAPSCREW, 5/8-11 x 3-1/2 10 2860645SM 1

FITTING, Grease for Wear Plate, 1/4-20, with Ball 11 1704314SM 2

CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4 12 1933260SM 4

LINK, Drag 13 1722541SM 1

WASHER 14 1922755SM 1

WASHER 15 1960103SM 2

NUT, Hex Jam, 1/2-20 16 1919262SM 1

JOINT, Ball 17 1702779SM 1

SPACER 18 1708236SM 1

CARRIAGE BOLT, 3/8-16 x 1 19 1931350SM 2

SPACER 20 1611705SM 2

ROD, Tie 21 1722626ASM 1

BUSHING 22 1721682SM 6

NUT, Hex Flange Lock, 7/16-14 23 1930650SM 2

FITTING, Lube 24 2821133SM 3

SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30) 25 1686985SM 1

CAPSCREW, 3/8-16 x 7/8, GR8 26 2823485SM 1

WASHER, Spring, 3/8 27 1663151SM 1

HUB & ARM ASSEMBLY 28 1725112SM 1

KEY, Woodruff 29 2830671SM 1

SPINDLE, LH 30 1724264SM 1

AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43) 31 1722200ASM 1

CARRIAGE BOLT, 3/8-16 x 1-1/2 32 1931352SM 1

CAPSCREW, Hex Head, 7/16-14 x 2, GR8 33 1927531SM 2

HOOK, "J" 34 1721918ASM 1

SPACER 35 1721752SM 1

SCREW, Torx Head, 5/16-18 x 7/8 36 1960086SM 4

BUMPER, Black, Steel, Standard 37 1721805ASM 1

BUMPER, Chrome, Optional 37 1723502SM 1

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4 38 1930591SM 2

PLATE, Axle Wear 39 1724801ASM 1

NUT, Hex Falnge Whiz Lock, 5/16-18 40 1931277SM 2

SPINDLE, RH 41 1722199SM 1

WASHER 42 1919394SM 1

RETAINING RING 43 2832577SM 1

The above parts group applies to the following Mfg. Nos.:

2008 5

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

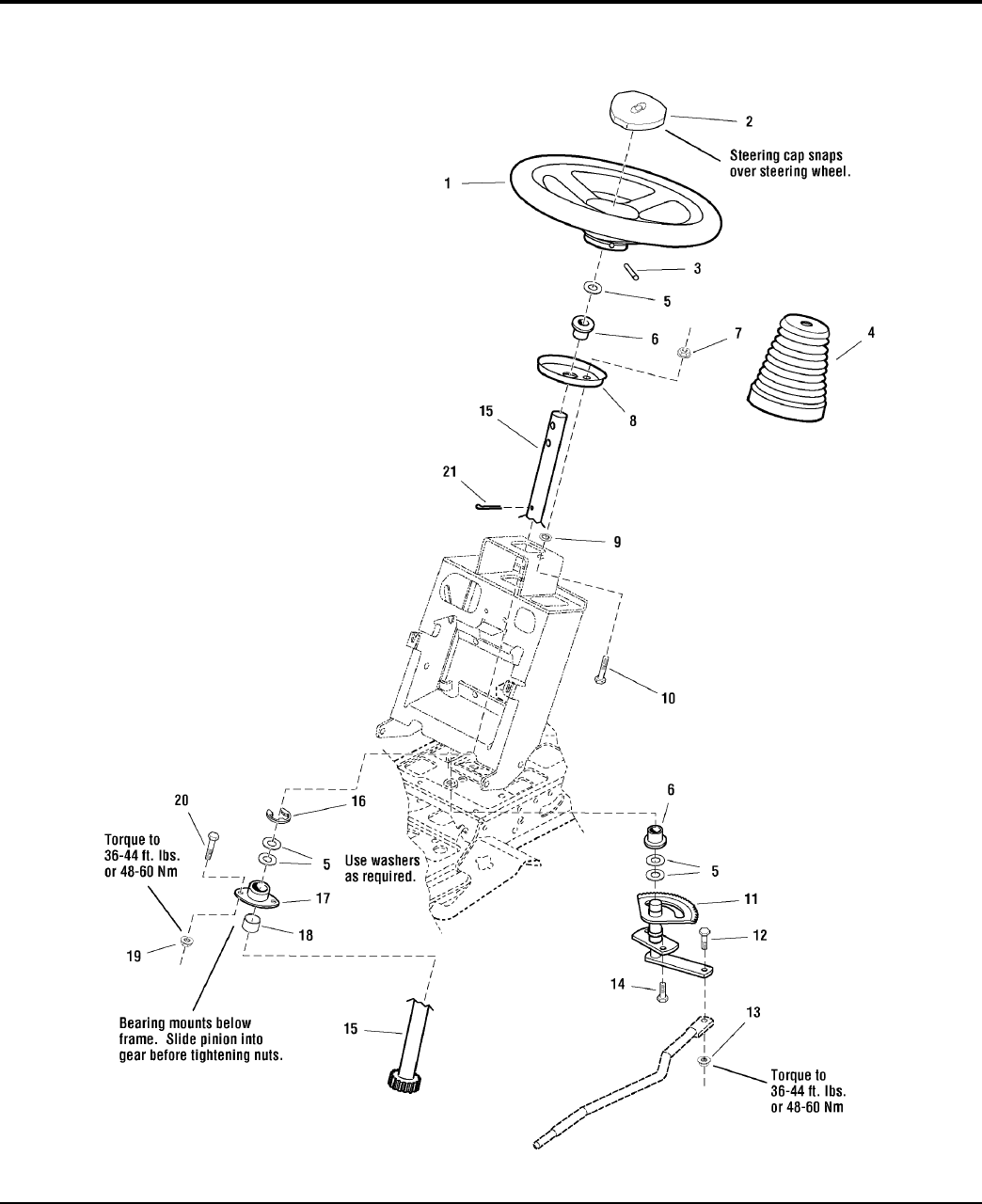

Steering Group - Manual Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985890

The above parts group applies to the following Mfg. Nos.:

2008 6

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Steering Group - Manual Steering

Footnotes

STEERING WHEEL, Straight, Shaft 1 1722318SM 1

CAP, Steering Wheel, SMI Logo 2 1722319SM 1

CAP, Steering Wheel, Plain 2 1725024SM 1

PIN, Spring, 5/16 x 2-1/2 3 1960540SM 1

COVER, Rubber, Upper Steering Shaft 4 1722749SM 1

WASHER, 3/4 5 1960114SM 5

BUSHING, 15/32 x 7/8 x 7/8, Nylon 6 2176440SM 2

NUT, Hex KEPS 5/6-18 7 1960636SM 2

PLATE, Mounting Steering 8 1721736ASM 1

NUT, Push 9 1933988SM 2

CARRIAGE BOLT, 5/16-18 x 1-1/4 10 1960655SM 2

GEAR & SHAFT ASSEMBLY, Steering 11 1724470ASM 1

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 12 1960032SM 1

NUT, Hex Flange Two-Way Lock, 3/8-16 13 1930645SM 1

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 14 1664847SM 2

SHAFT & PINION ASSEMBLY, Steering Manual 15 1721626SM 1

RING, Clipring Extension 16 1611710SM 1

BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing 17 1722459SM 1

SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal 18 1722461SM 1

NUT, Hex Flange Whiz Lock, 3/8-16, Small 19 1931211SM 2

CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black 20 1933260SM 2

PIN, Cotter, 1-1/4, Black 21 1919314SM 1

The above parts group applies to the following Mfg. Nos.:

2008 7

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986773

The above parts group applies to the following Mfg. Nos.:

2008 8

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard

Footnotes

HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings 1 1723165SM 1

ENGINE, 18HP Briggs & Stratton Vanguard Twin, Model 356777, Type 0113-E1 2* 1

ENGINE, 20HP Briggs & Stratton Vanguard Twin, Model 358777, Type 0110-E1 2* 1

SEAL, Circle, 18HP & 20HP 3 1722949SM 1

BULKHEAD 4 1722388ASM 1

CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black 5 1925003SM 2

CONTROL, Throttle Double 39" Long w/Knobs 6 1727223SM 1

TIE, Wire, 7-5/16" Long 7 1701011SM 2

CLAMP, Hose Type E 8 2860112SM 2

HOSE, Fuel, 59" Long 9 1718678SM 1

SHIELD, Side 10 1722392ASM 2

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8 11 1929000SM 8

PULLEY & HUB ASSEMBLY 12 1722288SM 1

TIE, Self Locking, 3-5/8 Long 13 2832747SM 1

WASHER, Hex, 7/16, Black 14 1708264SM 1

LOCKWASHER, 7/16 15 1918199SM 1

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP 16 1960649SM 1

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, 20HP 16 1960648SM 1

CLUTCH, Electric, 18HP 17 1686883SM 1

CLUTCH, Electric, 20HP 17 1686880SM 1

KEY, HI PRO, 1/4 x 2 1/2 18 1720463SM 1

CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2 19 2830598SM 4

LOCKWASHER, External Tooth, 3/8 20 2820427SM 1

SHIELD, Muffler Bottom 21 1722414ASM 1

NUT, Speed, 1/4-20, Lug 22 1960368SM 8

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8 23 1960295SM 4

NUT, Speed, 5/16-18, Lug, Black 24 1935255SM 2

DUCT, Muffler Top 25 1722389ASM 1

CLIP, Wire 1/8 26 2834683SM 2

DUCT, Muffler Extension 27 1722390ASM 1

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black 28 1924856SM 2

MUFFLER, Briggs & Stratton, Vanguard Twin 29 1722625SM 1

GASKET, Briggs & Stratton, Vanguard Twin 30 * 1

LOCKWASHER, 5/16 31 1917356SM 4

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8 32 2860660SM 4

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2008 9

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Transmission Group - Tuff Torq K-57

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986603

The above parts group applies to the following Mfg. Nos.:

2008 10

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Transmission Group - Tuff Torq K-57

Footnotes

SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black 1 1960676SM 2

PAD, Footrest, LH, without Differential Lock 2 1722345SM 1

PAD, Footrest, RH 3 1722173SM 1

NUT, Hex KEPS, 5/16-18, Black 4 1960636SM 1

FASTENER, Panel 5 1704351SM 15

NUT, Hex KEPS, 3/8-16, Black 6 1960637SM 6

CARRIAGE BOLT, 3/8-16 x 1, Black 7 1931350SM 6

NUT, Hex Flange ESNA, 5/16-18, Black 8 1960686SM 5

SUPPORT, Transmission 9 1721728ASM 2

RING, Snap, Transmission 10 1724316SM 1

CAPSCREW, Hex Head 5/16-18 x 2 G5 11 1921978SM 1

STRAP, Torque 12 1721592ASM 1

WASHER, 5/16, Black 13 1960141SM 1

CARRIAGE BOLT, 5/16-18 x 1, Black 14 1931335SM 1

WASHER, 1/2 15 1960027SM 2

PULLEY & HUB ASSEMBLY 16 1721666SM 1

V-BELT, Drive 17 1726841SM 1

ROD, Transmission Release 18 1726806SM 1

PIN, Quick 19 1722460SM 3

CAPSCREW, Hex Head, 5/16-18 x 2 20 1921332SM 1

WASHER, 5/16, Black 21 1919326SM 4

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black 22 1923141SM 4

WASHER, 15/32 x 15/16, Black 23 1918267SM 1

PIN, Cotter, Black 24 1918447SM 1

ROD, Brake 25 1726871SM 1

SPRING, Compression, 3-1/4" Long, Black 26 1722684SM 1

SPRING, Compression, 3-5/8" Long, Black 27 1729277SM 1

NUT, Hex FlangeESNA, 3/8-16, Black 28 1960687SM 1

WASHER, 3/8, Black 29 1924940SM 3

TRANSMISSION ASSEMBLY, K57, without Pulley 30 1722668SM 1

CONTROL ARM ASSEMBLY 31 1732190ASM 1

ARM, Control 32 1724423ASM 1

NUT, KEPS Lock, 5/16-18 33 1960636SM 2

ACTUATOR, Switch 34 1727215ASM 1

CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2 35 1924856SM 2

The above parts group applies to the following Mfg. Nos.:

2008 11

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

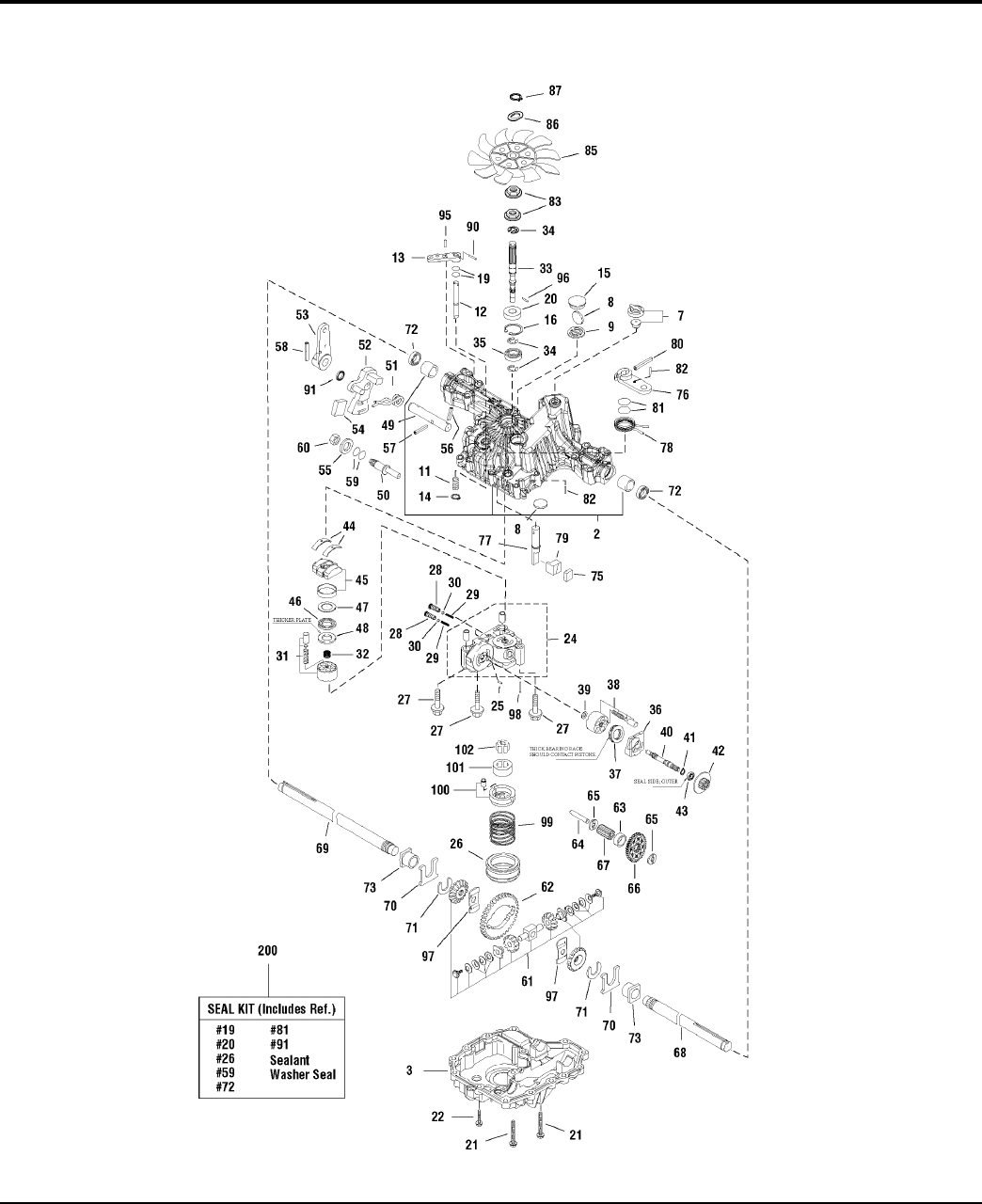

Transmission SERVICE PARTS - Tuff Torq K-57A

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1722668

The above parts group applies to the following Mfg. Nos.:

2008 12

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Transmission SERVICE PARTS - Tuff Torq K-57A

Footnotes

HOUSING ASSEMBLY, UPPER 2 1724951SM 1

HOUSING, LOWER 3 1724938SM 1

VENT VALVE 15 7 1718052SM 1

MAGNET, K50 8 1724279SM 2

HOLDER, MAGNET 9 1724280SM 1

SPRING 11 1725730SM 1

SHAFT, BYPASS 12 1724281SM 1

LEVER, BYPASS 13 1720418SM 1

RING 14 1718061SM 1

SEALING CAP 15 1724282SM 1

RING 35 16 1708650SM 1

PACKING 19 1708691SM 2

SEAL TC 20 1708651SM 1

SCREW, TAPPING 21 1707789SM 14

SCREW, TAPPING 22 1724284SM 2

CASE, CENTER 24 1724939SM 1

PIN 3 x 9.8 25 1718070SM 1

FILTER 26 1724954SM 1

BOLT 10 x 75 27 1720805SM 3

VALVE, IDS 1.0 28 1724286SM 2

SPRING, IDS 29 1724287SM 2

BALL, 3/16 30 1724288SM 2

CYLINDER BLOCK ASSEMBLY 31 1724940SM 1

SPRING, PUMP 32 1724290SM 1

SHAFT, PUMP 33 1724941SM 1

RING E15 34 1718076SM 3

BEARING 35 1708673SM 1

HOUSING 36 1718077SM 1

BEARING, THRUST 37 1724942SM 1

BLOCK, CYLINDER 38 1718079SM 1

WASHER 12 x 24 x 1 39 1718084SM 1

SHAFT, MOTOR 40 1724943SM 1

RING 15 41 1708672SM 1

GEAR, MOTOR 42 1724944SM 1

BEARING 6202UC3 43 1718083SM 1

THRUST METAL 44 1718089SM 2

SWASH PLATE ASSEMBLY 45 1720426SM 1

THRUST PLATE B 46 1718088SM 1

BEARING K81105 47 1718086SM 1

THRUST PLATE A 48 1718087SM 1

SHAFT, CONTROL 49 1724343SM 1

FULCRUM, ECCENTRIC 50 1724344SM 1

SPRING, TORSION 51 1724345SM 1

LEVER, CONTROL 52 1724346SM 1

ARM, CONTROL 53 1724347SM 1

The above parts group applies to the following Mfg. Nos.:

2008 13

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Transmission SERVICE PARTS - Tuff Torq K-57A

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1722668

The above parts group applies to the following Mfg. Nos.:

2008 14

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Transmission SERVICE PARTS - Tuff Torq K-57A

Footnotes

PLATE, JERK 54 1724348SM 1

WASHER 55 1708689SM 1

PIN, COTTER 56 1724349SM 1

PIN, SPRING 57 1724296SM 1

PACKING 59 1707879SM 2

PIN 6.0A x 4.0 58 1718100SM 1

NUT 12 60 1708692SM 1

GEAR & PINION ASSEMBLY 61 1724955SM 1

GEAR, FINAL CONTR TRAC 62 1724945SM 1

COLLAR, PINION 63 1724946SM 2

SHAFT, REDUCTION 64 1724947SM 1

WASHER, 12 x 32 x 3.2 65 1724948SM 2

GEAR, REDUCTION 66 1724949SM 1

PINION, FINAL 67 1724950SM 1

SHAFT, AXLE RH 68 1724304SM 1

SHAFT, AXLE LH 69 1724303SM 1

WASHER, THRUST 70 1718112SM 2

RING 17 71 1718113SM 2

SEAL 19 x 32 x 8 72 1718111SM 2

BUSHING 19 x 21 73 1718110SM 2

SHOE, BRAKE 75 1724305SM 1

ARM, BRAKE 76 1724306SM 1

SHAFT, BRAKE 77 1724307SM 1

SPRING, RETURN B 78 1724308SM 1

BRAKE, ACTUATOR 79 1724309SM 1

PIN 80 1724310SM 1

PACKING 81 1708690SM 2

PIN, SPRING 82 1724311SM 2

COLLAR, SPLINE 83 1724312SM 2

FAN 85 1724314SM 1

LOCKWASHER 86 1724315SM 1

RING, SNAP 87 1724316SM 1

PIN 3.0A x 20 90 1707839SM 1

OIL SEAL 91 1724318SM 1

PIN, ROLL 95 1707839SM 1

WASHER, THRUST DIFF 97 1724956SM 2

PIN, 3.0A x 18 98 1724958SM 2

SPRING, CHARGE 99 1724957SM 1

CHARGE PUMP CASE ASSEMBLY 100 1724953SM 1

K57 SMP SEAL KIT 200 1727542SM 1

The above parts group applies to the following Mfg. Nos.:

2008 15

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986599

The above parts group applies to the following Mfg. Nos.:

2008 16

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Controls Group

Footnotes

ROD, Brake Lock 1 1721353SM 1

KNOB, Push On, Red Plastic "P" 2 1721891SM 1

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 3 1930591SM 1

WASHER, 5/16, Black 4 1919326SM 2

ROD, Brake 5 1721476SM 1

CARRIAGE BOLT, 3/8-16 x 1 3/4 6 1931353SM 2

BUSHING, 5/8 x 3/4 x 3/4, Nylon 7 1663114SM 2

FITTING, Lube, 1/4 8 2821133SM 1

SPRING, Extension 9 1725250SM 1

PIN, Quick 10 1722460SM 3

ARM & HUB ASSEMBLY, Idler 11 1724917SM 1

WASHER, 5/8 12 1960020SM 1

RING, Clipring Extension 13 1704420SM 1

PULLEY, w/Bearing 14 1721134SM 1

WASHER, 3/8 15 1924940SM 1

NUT, Hex Flange ESNA, 3/8-16 16 1960687SM 2

PULLEY, Idler 17 1721133SM 1

BUSHING, 1 x 1-1/8 x 5/8, Nylon 18 1723237SM 2

ARM, Brake 19 1722513SM 1

PEDAL ASSEMBLY, Foot 20 1726763SM 1

CARRIAGE BOLT, 1/4-20 x 1-1/4 21 1931320SM 1

PIN, Cotter, Black 22 1918447SM 1

LATCH, Brake 23 1721354ASM 1

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 24 1664847SM 3

NUT, Hex Lock ESNA Light, 5/16-18 25 1919438SM 1

WASHER, 5/16, Black 26 1919381SM 1

NUT, Hex Flange Whiz Lock Large, 5/16-18 27 1927557SM 2

PEDAL, Brake 28 1722535ASM 1

PAD, Brake Pedal 29 1721577SM 1

CARRIAGE BOLT, 5/16-18 x 7/8 30 1931334SM 4

CAPSCREW, 5/16-18 x 1 31 1921333SM 2

ACTUATOR, Switch 2.53" Long 32 1722083ASM 1

CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4 33 1923683SM 1

PEDAL, Forward 34 1722070ASM 1

NUT, Hex KEPS, 5/16-18 35 1960636SM 4

PAD, Foot Pedal Forward 36 1721675SM 1

PEDAL, Reverse 37 1722071ASM 1

PAD, Foot Pedal Reverse 38 1721674SM 1

NUT, Hex Lock ESNA Light, 1/4-20 39 1920397SM 1

CAM, Roller 40 1686612SM 1

SPRING, Extension 41 1721995SM 1

The above parts group applies to the following Mfg. Nos.:

2008 17

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Cruise Control Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986190

The above parts group applies to the following Mfg. Nos.:

2008 18

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Cruise Control Group

Footnotes

DECAL, Cruise & Lift 1 1723713SM 1

SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8 2 1960666SM 1

KNOB, Cruise 3 1722303SM 1

NUT, Hex Lock ESNA Light, 1/4-20 4 1920397SM 1

LEVER & BRACKET ASSEMBLY, Cruise 5 1722003SM 1

WASHER, 3/8, Black 6 1960103SM 2

CARRIAGE BOLT, 5/16-18 x 3/4 7 1931333SM 1

WASHER, 9/16 x 1-1/4 x 1/8 8 1926192SM 2

SPACER, w/Flange, 11/32 x 15/32 x 3/4 9 1709043SM 1

CARRIAGE BOLT, 5/16-18 x 2 3/4 10 1931342SM 1

CARRIAGE BOLT, 5/16-18 x 2-1/4 11 1960273SM 1

PIN, Quick 12 1722460SM 2

ROD, Cruise 13 1722117SM 1

ROD, Return 14 1733719SM 1

SPRING, Cruise Return to Frame 15 2159106SM 1

NUT, Hex KEPS, 5/16-18 16 1960636SM 2

CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8 17 1960001SM 2

SWITCH, Push, Neutral Start, Gray 18 1717050SM 1

SPACER, 11/32 x 5/8 x 1-13/32 19 1722080SM 1

WASHER, 5/16, Black 20 1919326SM 1

WASHER, 5/16, Black 21 1919381SM 1

NUT, Hex Lock ESNA Light, 5/16-18 22 1919438SM 1

SPRING, Compression 23 1677746SM 1

PIN, Cotter 24 1918447SM 1

DISC, Fricion 25 1705928SM 1

The above parts group applies to the following Mfg. Nos.:

2008 19

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Electrical Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986604

The above parts group applies to the following Mfg. Nos.:

2008 20

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Electrical Group

Footnotes

HEADLIGHT ASSEMBLY, 4 Bulb, (Includes Ref. Nos. 2 & 3) 1 1721810SM 1

BULB, Headlight, 12.8V 2 1677371SM 4

SOCKET ASSEMBLY, Headlight, Sealed 3 1723451SM 4

HARNESS, Headlight 4 1722669SM 1

SWITCH, PTO Push/Pull Symbols 5 1722887SM 1

MODULE, RMO (Includes Ref. No. 7) 6 1726556SM 1

KEY, RMO Module Plastic 7 1726557SM 1

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black 8 1925003SM 2

BREAKER, Circuit, 12 Volt 20 Amps 9 1665238SM 1

WIRE, 12GA 5-15/16 Long, Red 10 1665237SM 1

PLUG, Hole, Square 11 1722611SM 1

HOUR METER, (Includes Ref. Nos. 12) 12 1731184SM 1

PLUG, Dash 13 1725524SM 1

CLIP, Hour Meter (Service Only) 14 1725835SM 1

NUT, Hex, 5/16-24 15 2820263SM 2

LOCKWASHER, External Tooth, 5/16 16 2820426SM 3

SOLENOID 17 1722739SM 1

SWITCH ASSEMBLY, Ignition, 6 Pin, (Includes Ref. Nos. 17, 18, 19, 20 & 21) 18 1686734SM 1

KEYS, Set of 2 19 1717163SM 1

COVER, For Ignition Switch, Plastic 20 1717550SM 1

NUT, Hex Flange, 5/8-32, Ignition Switch 21 1717549SM 1

LOCKWASHER, Internal Tooth, 5/8, Thin 22 1960547SM 1

WASHER, Shim 23 2101025SM 1

TIE, Strap, 7-5/16 Long 24 1701011SM 3

SWITCH, Headlights , 2 Terminal 25 1716951SM 1

BOOT, Insulator Cable Terminal, 1-15/16 Long, Red 26 1713535SM 1

CABLE, #6 x 25" Long, Ring Terminals 27 1721830SM 1

CABLE, #6 x 8" Long, Ring Terminals 28 1603618SM 1

BOOT, Insulator Battery Terminal 29 1677296SM 1

NUT, Hex, 1/4-20 30 2816622SM 3

LOCKWASHER, 1/4 31 2816964SM 2

WASHER, 1/4 32 2821319SM 2

CAPSCREW, Hex Head, 1/4-20 x 3/4 33 2823341SM 2

CABLE, #6 x 26 Long, Ring Terminal 34 1713163SM 1

BATTERY, 12 Volt 35 1685215SM 1

STRAP, Battery, 14 Long, Rubber 36 1722009SM 1

CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8 37 1929000SM 2

BRACKET, Switch Mount 38 1726810ASM 1

SWITCH, Reverse Pedal 39 1732004SM 1

SWITCH, Push Button, Foot Pedal 40 1732006SM 1

SWITCH, Cruise Control, Grey, NO 41 1717050SM 1

CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2 42 1960536SM 2

SWITCH, Seat, Grey, NC 43 1716368SM 1

HARNESS, Wiring 44 1730192SM 1

The above parts group applies to the following Mfg. Nos.:

2008 21

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Electrical Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986604

The above parts group applies to the following Mfg. Nos.:

2008 22

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Electrical Group

Footnotes

WIRING ASSEMBLY, All Conditions Shutdown (CE/Export) 45 1734025SM 1

The above parts group applies to the following Mfg. Nos.:

2008 23

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Hood, Grille & Dash Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987167

The above parts group applies to the following Mfg. Nos.:

2008 24

2690652 - 2620H

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Hood, Grille & Dash Group

Footnotes

HOOD, W/Scoop 1 1728031DSM 1

PANEL, R.H. Side 4 1721804DSM 1

PANEL, L.H. Side 5 1721803DSM 1

HEADLIGHT ASSEMBLY (Includes Ref. Nos. 22, 23 & 24) 6 1721810SM 1

GRILLE 7 1721802DSM 1

NUT, Hex Flange 1/4-20 Whiz Lock 8 1930641SM 12

DASHBOARD (Used only on YT & LT models) 9 1726827SM 1

DASHBOARD, W/Hydraulic Lift Slot (Used only on GT models) 10 1726894SM 1

HINGE, Hood L.H. 12 1721808ASM 1

HINGE, Hood R.H. 13 1721809ASM 1

ROD, Dash Support 14 1723123SM 1

NUT, Hex Lock 10-24 w/Nylon Insert 15 1933896SM 1

SCREW, Pan Head Phillips #10-24 x 1 16 1960392SM 1

SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8 17 1960295SM 12

DUCT, Air Inlet 18 1733457ASM 1

DASHBOARD, w/Buzzer Hole (Used only on Barons models) 19 1726895SM 1

COVER, Dash (Used only on Barons models) 20 1722285SM 1

SCREW, Pan Head Torx #8-16 x 1/2 Plastite (Used only on Barons models) 21 1722607SM 1

BULB, Headlight 22 1677371SM 4

SOCKET ASSEMBLY, Seal 23 1723451SM 4

REFLECTOR, Headlight 24 1722902SM 1

The above parts group applies to the following Mfg. Nos.:

2008 25

2690652 - 2620H

TP 400-4889-00-BM-SM

Hood, Grille & Dash Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986608

The above parts group applies to the following Mfg. Nos.:

2008 26

2690651 - Broadmoor

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Hood, Grille & Dash Group

Footnotes

PANEL, RH Side 1 1721804CSM 1

PANEL, RH Side, Red 1 1721804DSM 1

HOOD, with Scoop, Red 2 1728031DSM 1

HOOD, with Louvers 3 1722110CSM 1

CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8 4 1960295SM 12

SCREW, Phillips Head, #10-24 x 1/2 5 1960392SM 1

DASHBOARD, RMO, Black 6 1687054SM 1

DASHBOARD, RMO with Hydra Lift Slot, Black 6 1687055SM 1

NUT, Hex Nylock,#10-24 7 1933896SM 1

ROD, Dash Support 8 1723123SM 1

NUT, Hex Flange Lock, 1/4-20 9 1930641SM 12

PANEL, LH Side 10 1721803CSM 1

PANEL, LH Side, Red 10 1721803DSM 1

HINGE, LH 11 1721808ASM 1

DUCT, Air Inlet 12 1733457ASM 1

GRILLE 13 1721802CSM 1

GRILLE, Red 13 1721802DSM 1

HEADLIGHT ASSEMBLY (Includes Ref. Nos. 15 & 16) 14 1721810SM 1

BULB, Headligh 15 1677371SM 4

SOCKET, Headlight 16 1723451SM 4

HINGE, RH 17 1721809ASM 1

The above parts group applies to the following Mfg. Nos.:

2008 27

2690651 - Broadmoor

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Seat & Seat Deck Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985908

The above parts group applies to the following Mfg. Nos.:

2008 28

2690651 - Broadmoor

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Seat & Seat Deck Group

Footnotes

BRACKET, 1-5/8 x 1-3/4 1 1722129ASM 1

* SEAT, 18" Back, Optional 2 1687199SM 1

* SEAT, 15" Back, Standard 2 1687201SM 1

SUPPORT, Seat 3 1722128ASM 1

CLIP, Wire 4 2172434SM 1

WASHER, Spring, 5/16 x 1-1/4, Black 5 1709256SM 2

SPRING, Compression 6 1714263SM 2

NUT, Hex Lock, ESNA Light 5/16-18 7 1919438SM 10

SPRING, Compression 8 1717051SM 2

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 9 1930591SM 8

CARRIAGE BOLT, 5/16-18 x 2 10 1931339SM 2

CARRIAGE BOLT, 3/8-16 x 1 11 1931350SM 2

SLIDE, Seat 12 1722356SM 1

NUT, Speed, 5/16-18, Lug 13 1935255SM 4

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8 14 1930601SM 4

PLUG, Plastic 15 1722309SM 2

POD, with Cup Holder, LH 16 1729711SM 1

FUEL GAUGE 17 1722300SM 1

GROMMET 18 1722337SM 1

CAPSCREW, Hex Head Dog Point, 1/4-20 x 7/8 19 2860664SM 8

NUT, Hex Flange Whiz Lock, 5/16-18 20 1931277SM 4

CAP, Gas 21 1715917SM 1

TUBE & ELBOW ASSEMBLY 22 1722340SM 1

BUSHING, 3/8 x 9/16 x 5/8, Rubber 23 1654930SM 1

TANK, Fuel 24 1722432SM 1

NUT, Hex KEPS, 5/16-18 25 1960636SM 8

DECK, Seat, Orange 26 1722106CSM 1

DECK, Seat, Red 26 1722106DSM 1

POD, RH with 2 Slots 27 1722108SM 1

TUNNEL, Orange 28 1722105CSM 1

TUNNEL, Red 28 1722105DSM 1

SPACER, 25/64 x 5/8 x 3/16, Hardened 29 1663752SM 2

NUT, Hex Flange Two-Way Lock, 3/8-16 30 1930645SM 2

WASHER, 3/8 31 1924940SM 2

CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1 32 1960667SM 4

Note* Arm Rest Kit - 1686907

The above parts group applies to the following Mfg. Nos.:

2008 29

2690651 - Broadmoor

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Seat Deck & Fuel Tank Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987207

The above parts group applies to the following Mfg. Nos.:

2008 30

2690652 - 2620H

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Seat Deck & Fuel Tank Group

Footnotes

SEAT, 15" Back 1 1687201SM 1

TUNNEL, Orange 3 1722105CSM 1

TUNNEL, Red 3 1722105DSM 1

DECK, Seat Orange 4 1722106CSM 1

DECK, Seat Red 4 1722106DSM 1

POD, R.H. 5 1722108SM 1

SUPPORT, Seat 6 1722128ASM 1

SLIDE, Seat 7 1722356SM 1

PLUG, Hole 8 1722309SM 1

BRACKET, Seat 9 1722129ASM 1

SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4 10 1930591SM 4

NUT, Hex Lock Esna Light 5/16-18 11 1919438SM 2

SPRING, Compression 12 1714263SM 2

WASHER, Spring 13 1709256SM 6

SPRING 14 1717051SM 2

TUBE & ELBOW ASSEMBLY, Fuel Line w/Screen 15 1726902SM 1

CARRIAGE BOLT, 5/16-18 x 2 G5 16 1931339SM 2

CARRIAGE BOLT, 3/8-16 x 1 G5 17 1931350SM 2

NUT, Speed, 5/16-18 Lug Type 18 1935255SM 4

POD, w/Cup Holder 19 1729711SM 1

SCREW, Hex Flange, Whiz Lock 5/16-18 x 1 20 1960667SM 4

SCREW, Taptite 5/16-18 x 1-1/4 21 1930595SM 4

SCREW, Hex Sems Washer 1/4c x 7/8 22 2860664SM 8

BUSHING, Fuel TankFUEL TANK 23 1654930SM 1

CAP, Fuel Tank 24 1715917SM 1

TANK, Fuel 26 1722432SM 1

SPACER 27 1663752SM 2

SCREW, Hex Washer Head Taptite 5/16-18 x 5/8 28 1930601SM 2

CLIP, Wire, Panel 29 2172434SM 1

WASHER, 3/8 30 1924940SM 2

NUT, Hex Lock Esna Light 5/16-18 31 1919438SM 4

NUT, Hex Flange 3/8-16 Two-Way Lock 32 1930645SM 2

NUT, Hex Flange 5/16-18 Whiz Lock Small 37 1931277SM 4

The above parts group applies to the following Mfg. Nos.:

2008 31

2690652 - 2620H

TP 400-4889-00-BM-SM

Lift Group - Manual Lift with Cruise Control

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986780

The above parts group applies to the following Mfg. Nos.:

2008 32

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Lift Group - Manual Lift with Cruise Control

Footnotes

GRIP, Black Vinyl 1 1722302SM 1

ROD, Lift Lever with Flats 2 1722024ASM 1

NUT, Hex Flange Lock, 3/8-16 3 1930645SM 1

WASHER 4 1924940SM 1

PIN, Quick 5 1722460SM 2

SPRING, Compression 6 2162085SM 1

NUT, Push, 3/8 7 1723866SM 1

CAPSCREW, Hex Head, 1/4-20 x 3/4 8 1923341SM 2

PLUG, Lift Cover (Models without Cruise Control) 9 1722313SM 1

QUADRANT 10 1722284ASM 1

NUT, Hex Lock ESNA, 1/4-20 11 1920397SM 2

CAPSCREW, Hex Head, 3/8-16 x 2 12 1923701SM 1

NUT, ESNA Lock, 5/16-18 13 1919438SM 4

WASHER, Flat, 5/16 x 1-1/4 14 1960044SM 1

CAM ASSEMBLY, Lift 15 1722491SM 1

SPACER 16 1704629SM 1

LINK, Lift Upper 17 1727083ASM 1

SCREW, Torx Head, # 8-16 x 1/2 18 1722607SM 1

COVER, Dash 19 1722285SM 1

CAPSCREW, Hex Head, 5/16-18 x 1-1/4 20 1921977SM 4

ROD, Lift 21 1721789SM 1

The above parts group applies to the following Mfg. Nos.:

2008 33

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Wheels & Tires Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

W986614

The above parts group applies to the following Mfg. Nos.:

2008 34

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Wheels & Tires Group

Footnotes

WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4, 5, & 6) 1 1732202SM 2

TIRE, 15 x 6, Super Turf 2 1722838SM 1

TUBE, Tire, Front, 4.10/3.50 3 1664090SM 1

BEARING, Ball 4 1717056SM 2

WHEEL, 4-1/2" x 6" 5 1722837SM 1

VALVE STEM & CAP ASSEMBLY 6 2172353SM 4

WASHER, Flat 1 (Double D) 7 1722726SM 2

WASHER, 1, (As Required for All Front) 8 1919394SM 4

RING, Retaining, External #98 9 2832577SM 2

CAP, Hub, Gray 10 1722676SM 4

KEY, Parellel, 3/16 x 3/16 x 1-1/2 11 1729279SM 2

WASHER, 3/4 12 2860202SM 4

WASHER 13 1960114SM 2

WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 6, 15, 16 & 17) 14 1726491SM 2

TIRE, 22 x 10, 10 Super Turf 15 1727136SM 1

TUBE, Tire, 20 x 8, Rear 16 2173477SM 1

WHEEL, 7 x 9.97, W/ 3/4 OD Shaft 17 1726492SM 1

WASHER, Special 18 1722717SM 2

RING, "E" External 19 2827794SM 2

The above parts group applies to the following Mfg. Nos.:

2008 35

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Decals - Brand & Model

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

B986614

The above parts group applies to the following Mfg. Nos.:

2008 36

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Decals - Brand & Model

Footnotes

DECAL, ICON Simplicity, Orange 1 1731418SM 1

DECAL, Simplicity, Silver & Blue w/Icon 2 1722551SM 3

DECAL, Broadmoor, Silver & Blue 3 1722776SM 1

DECAL, Hood Stripe, RH, Simplicity, Blue & Silver 4 1722773SM 1

DECAL, Hood Stripe, LH, Simplicity, Blue & Silver 4 1722774SM 1

DECAL, AGCO, Logo Black, Chrome, Orange 5 1708926SM 1

DECAL, 1620, White, AGCO 6 1727069SM 1

DECAL, Hood Stripe, RH, AGCO 7 1722818SM 1

DECAL, Hood Stripe, LH, AGCO 7 1722817SM 1

DECAL, Massey Ferguson Logo, 3 Triangles 8 1714363SM 1

DECAL, 2618, Black, Massey Ferguson 9 1725646SM 1

DECAL, 2618, Cool Grey, Massey Ferguson 9 1728112SM 1

DECAL, 2620, Black, Massey Ferguson 9 1727070SM 2

DECAL, 2620, Cool Grey, Massey Ferguson 9 1728054SM 2

DECAL, Hood Stripe, LH, Massey Ferguson 10 1727783SM 1

DECAL, Hood Stripe, RH, Massey Ferguson 10 1727784SM 1

The above parts group applies to the following Mfg. Nos.:

2008 37

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

Decals - Safety & Common

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

C986614

The above parts group applies to the following Mfg. Nos.:

2008 38

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

Decals - Safety & Common

Footnotes

DECAL, Ignition Switch Symbols, White/Black 1 1722806SM 1

DECAL, Automatic Control Traction 2 1718025SM 1

DECAL, 18HP 3 1722779SM

DECAL, 20HP 3 1722780SM 1

DECAL, Tunnel Cover, Danger Slopes/Blades 4 1726923SM 1

DECAL, Tunnel Cover, Danger Slopes/Blades, (Export) 4 1734027SM 1

DECAL, Drive Belts, Mower Blades 5 1727014SM 1

DECAL, Protective Sticker 6 1723296SM 2

LABEL, Decibel, Power Mass (Export) 7* 1

DECAL, I.D. Plate 8* 1

DECAL, Touch Up Paint (Orange) 9 1720454SM 1

DECAL, Touch Up Paint (Red) 9 1725072SM 1

DECAL, Patent 10 * 1

DECAL, USA Logo Stars & Stripe 11 1708927 1

DECAL, Transmission Release Valve 12 1723160SM 1

DECAL, Danger Rotating Blades (Export) 13 1720389SM 2

DECAL, Danger Do Not Put Hands/Feet in Mower 14 1704276SM 1

DECAL, Free Floating Mower, Silver 15 1722771SM 1

DECAL, OPEI Certified 16 * 1

DECAL, 38", Silver on Black with Stripe 17 1722787SM 1

DECAL, 40", Silver on Black with Stripe 17 1722788SM 1

DECAL, 44", Silver on Black with Stripe 17 1722789SM 1

DECAL, 50", Silver on Black with Stripe 17 1722790SM 1

DECAL, Danger Do Not Operate Without Deflector 18 1704277SM 1

DECAL, Height of Cut, 38", 44" & 50" 19 1721197SM 1

DECAL, Height of Cut, 40" 20 1720919SM 1

DECAL, Deck Lift (Not Shown) 21 1723143SM 1

The above parts group applies to the following Mfg. Nos.:

2008 39

2690651 - Broadmoor

2690652 - 2620H

2690653 - Broadmoor

TP 400-4889-00-BM-SM

40" Mower Deck - Belt, Idler Arm & Hitch

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986250

The above parts group applies to the following Mfg. Nos.:

2008 40

1695030 - 40" Mower

1695052 - 40" Mower

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Belt, Idler Arm & Hitch

Footnotes

NUT, Hex Lock Esna Light, 3/8-16 1 1919439SM 1

WASHER, 3/8 2 1924940SM 6

PULLEY, Idler 3 1725408SM 1

V-BELT, Arbor Drive 4 1721532SM 1

BELT GUIDE 5 1722175ASM 1

WASHER, 3/8 6 1960534SM 2

ARM ASSEMBLY, Idler with Bushings & Fitting, 38 Tooth 7 1724835SM 1

CARRIAGE BOLT, 3/8-16 x 2 8 1931355SM 1

CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G8 9 1960614SM 1

WASHER, 3/8 10 1922755SM 6

SPRING, Extension, Idler Arm 11 1715435SM 1

SPACER, Hardened 12 1657242SM 1

CAPSCREW, Hex Head, 3/8-16 x 2-1/4 13 1922130SM 1

PULLEY 14 1723952SM 1

SPACER 15 1667812SM 1

NUT, Hex Flange Whiz Lock, Large, 3/8-16 16 1928352SM 4

CAPSCREW, Hex Head, 3/8-16 x 1-3/8 17 1921969SM 2

SPACER 18 1732443SM 2

ROD, Mower Hitch 19 1713578SM 1

SPRING, Extension, Hitch Release 20 2156302 1

ROD, Latch 21 1715759SM 1

HITCH, Mower 22 1720044ASM 1

NUT, Push 23 1960519SM 1

NUT, Hex Toplock Sprial Flange, 3/8-16 24 2860681SM 2

WASHER & NUT ASSEMBLY, 3/8 x 1-1/2 25 1721425SM 1

SPRING, Extension 26 1674671SM 1

ARM, Idler 27 1726387 1

HUB 28 1719221SM 2

PULLEY, Idler 29 1731892SM 2

SCREW-Hex Head Flange 3/8-16 x 2 30 1960746SM 2

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1/2 31 1930601SM 1

SPACER 32 1666697SM 1

BELT GUIDE 33 1722182ASM 1

BELT, Timing, 38 Tooth 35 1724625SM 1

WASHER, 3/8 36 1933263SM 1

The above parts group applies to the following Mfg. Nos.:

2008 41

1695030 - 40" Mower

1695052 - 40" Mower

2690653 - Broadmoor

TP 400-4889-00-BM-SM

40" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986049

The above parts group applies to the following Mfg. Nos.:

2008 42

1695030 - 40" Mower

1695052 - 40" Mower

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Height Adjustment & Roller Bar

Footnotes

ROD 1 1722661SM 1

WASHER, 3/8 2 1924940SM 8

CAPSCREW, Hex Head, 3/8-16 x 1 3/4 3 1922606SM 1

NUT, Hex Jam, 3/8-16 4 1917421SM 1

NUT, Hex Flange, 3/8-16 Black 5 1960601SM 1

ROD & WASHER ASSEMBLY, Adjust Handle 6 1720704SM 1

GRIP, Black Vinyl For Rod 7 1651820SM 1

ROD, Latch 8 1721257SM 1

LATCH, 5/16 WIRE 9 1720599SM 1

NUT, Hex Lock Esna Light, 1/4-20 10 1920397SM 1

CAPSCREW, Hex Head, 1/4-20 x 2 1/4 11 1921159SM 1

BRACKET, Adjusting 12 1723409ASM 1

SPACER 13 1666697SM 1

WASHER, 5/16 14 1960044SM 5

CAPSCREW, Hex Head, 5/16-18 x 1 1/4 15 1921977SM 2

NUT, Hex 5/16-18 16 1917372SM 3

LOCKWASHER, Spring 5/16 17 1917356SM 3

HANDLE ASSEMBLY, Lift, 40" Munching 18 1720695ASM 1

SPRING, Compression 3-7/8" Long 19 1723321SM 1

PUSH NUT, 1/4 20 1960674SM 1

GRIP, Black Soft for Rod 21 1713995SM 1

BUTTON, Red 22 1723124SM 1

SPACER 23 1960236SM 4

WASHER, 5/8 24 1924366SM 7

ROLLER 25 1722036SM 2

ROLLER 26 1668513SM 6

ROLLER 27 1717675SM 2

SPACER 28 1602946SM 1

SHAFT & BAR ASSEMBLY 29 1723305ASM 1

SHAFT ASSEMBLY 30 1723303ASM 1

NUT, Hex, 5/16-18 31 2860643SM 2

NUT, Hex Jam, 5/16-18 32 1920161SM 1

TRUNNION 33 1731382SM 1

ROD, Height Adjustment 34 1724959SM 1

CARRIAGE BOLT, 3/8-16 x 1-1/2 35 1931352SM 1

NUT, Hex, 5/8-11 36 1915726SM 2

PIN 37 2118053SM 1

CLIP, Hair Pin 38 1960074SM 2

TRUNNION, Rod 39 1706645ASM 1

UPSTOP 40 1720659SM 2

CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 41 1931202SM 4

WASHER, 5/16 42 1919381SM 6

NUT, Push, 5/16 43 1933988SM 4

STRAP, Roller Support 44 1665374SM 3

The above parts group applies to the following Mfg. Nos.:

2008 43

1695030 - 40" Mower

1695052 - 40" Mower

2690653 - Broadmoor

TP 400-4889-00-BM-SM

40" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986049

The above parts group applies to the following Mfg. Nos.:

2008 44

1695030 - 40" Mower

1695052 - 40" Mower

2690653 - Broadmoor

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Height Adjustment & Roller Bar

Footnotes

DECAL, Height of Cut 45 1720919SM 1

BRACKET, Height of Cut 46 1720931ASM 1

NUT, Hex Centerlock 3/8-16 47 1930645SM 1

NUT, Hex Flange Lock, 5/16-18 48 1935048SM 1

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4 49 1664847SM 8

NUT, Hex Adjusting 50 1704082SM 1

NUT, Toplock Spiral Flange, 3/8-16 51 2860681SM 3

BAR 52 1704073ASM 1

SLIDE 53 1677507SM 1

WASHER, 1/2 54 1924361SM 1

BOLT, Shoulder, 3/8-16 x 1-11/32 55 2172622SM 1

NUT, Push 5/8 56 1960520SM 1

SPACER 57 1706644SM 1

PIN, Cotter 58 1918447SM 1

PIVOT, 3/4 Hex 59 2108512SM 1

CARRIAGE BOLT, 5/16-18 x 1 60 1931335SM 2

GUIDE ASSEMBLY, Rod 61 2108241SM 1

The above parts group applies to the following Mfg. Nos.:

2008 45

1695030 - 40" Mower

1695052 - 40" Mower

2690653 - Broadmoor

TP 400-4889-00-BM-SM

40" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986248

The above parts group applies to the following Mfg. Nos.:

2008 46

1695030 - 40" Mower

1695052 - 40" Mower

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Housing, Arbors & Blades

Footnotes

CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8 1 1930584SM 1

WASHER, 7/16 2 1933263SM 1

WASHER, Spring 3 1656916SM 3

NUT, Hex Flange, 9/16-18 4 1714419SM 1

PULLEY 5 1713091SM 1

PULLEY, Drive 5 1732123SM 1

HUB 6 1719870SM 1

SPROCKET & FLANGE ASSEMBLY, w/Screws, 38 Tooth 7 1687229SM 2

SHIELD, Bearing Upper, Arbor 8 1657969SM 2

HOUSING, Arbor Top 9 1655729ASM 2

GASKET, Foam Poly 10 1707335SM 2

ARBOR SHAFT & BEARINGS ASSEMBLY 11 1722396SM 1

HOUSING, Arbor Bottom with Lube Fitting 12 1703273ASM 2

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4 13 1664847SM 6

COVER, Arbor, LH 14 1724601SM 1

HOUSING ASSEMBLY, 40", Orange 15 1686978SM 1

HOUSING ASSEMBLY, 40", Red 15 1687175SM 1

BLADE, Mower, LH 16 1719624ASM 1

PIN, Blade 17 1722258SM 2

ADAPTOR, Arbor 18 1677274ASM 2

WASHER, Spline 19 1722257SM 2

CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8 20 2827120SM 2

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1 21 1960373SM 12

WASHER, Shim 22 1700230SM 2

SHIELD, Arbor Bearing, Lower 23 1700229SM 2

ADAPTER, Blade 24 1655777SM 2

DEFLECTOR, Discharge 25 1723453SM 1

BLADE, Mower, RH 26 1719623ASM 1

CARRIAGE BOLT, 5/16-18 x 1 27 1931335SM 1

CARRIAGE BOLT, 1/4-20 x 7/8 28 1931318SM 1

NUT, Push 29 1960518SM 1

WASHER, 1/4 30 1960353SM 2

CLAMP 31 1704873SM 1

NUT, Hex 1/4-20, ESNA 33 1920397SM 1

DOOR, Mulching, Black Plastic 34 1719597SM 1

SPRING, Torsion 35 1723938SM 1

ROD, Pivot 36 1719617SM 1

NUT, Hex 5/16-18, ESNA 37 1919438SM 1

WASHER, 5/16 39 1919381SM 1

NUT, Push 40 1933988SM 1

COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 42 thru 46) 41 1721155SM 1

COVER, Arbor RH 42 1724600SM 1

COVER, Arbor RH 42 1732425SM 1

GUARD ASSEMBLY, RH 43 1721259ASM 1

The above parts group applies to the following Mfg. Nos.:

2008 47

1695030 - 40" Mower

1695052 - 40" Mower

TP 400-4889-00-BM-SM

40" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986248

The above parts group applies to the following Mfg. Nos.:

2008 48

1695030 - 40" Mower

1695052 - 40" Mower

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

40" Mower Deck - Housing, Arbors & Blades

Footnotes

GUARD, Extension 44 1721132ASM 1

RIVIT, Pop 45 1675044SM 4

WASHER, 3/16 x 3/4 x 1/16 46 1960096SM 4

WASHER, Bellville 47 1713675SM 2

ARBOR SHAFT & BEARING ASSEMBLY 48 1726825SM 1

SHIM-Cover LH 7GA 40" Mower 49 1732960SM 1

SHIM-Cover RH 7GA 6.5 LG 40" Mower 50 1732691SM 1

SHIM-Cover RH 7GA 2.8 LG 40" Mower 51 1732693SM 1

The above parts group applies to the following Mfg. Nos.:

2008 49

1695030 - 40" Mower

1695052 - 40" Mower

TP 400-4889-00-BM-SM

44" & 50" Mower Deck - Belt, Pulley & Hitch Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

0101

The above parts group applies to the following Mfg. Nos.:

2008 50

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

44" & 50" Mower Deck - Belt, Pulley & Hitch Group

Footnotes

HITCH ASSEMBLY 1 1707432ASM 1

ROD, Latch 2 1715759SM 1

GRIP, Lever 3 1665835 1

NUT, Hex, 3/8-16 4 1916950SM 2

LOCKWASHER, 3/8 5 1916965SM 2

BELT STOP, Idler 6 1677135ASM 1

WASHER, Plain, 13/32 7 1924940SM 14

SPACER 8 1666294SM 2

PULLEY, Idler (Includes Ref. No. 8) 9 1685150SM 2

NUT, Hex Flange, 2-Way Lock, 3/8-16 10 1930645SM 1

BUSHING 11 1676148SM 4

SPRING 12 1715435SM 1

SPACER 13 1674669SM 2

FITTING, Grease 14 2812808SM 2

LEVER ASSEMBLY, Idler (Includes Ref. Nos. 11 & 14) 15 1704658SM 1

CARRIAGE BOLT, 3/8-16 x 2 16 1960315SM 1

LEVER ASSEMBLY, Idler Arm (Includes Ref. Nos. 11 & 14) 17 1718561SM 1

WASHER, 3/8 18 1924356SM 2

CARRIAGE BOLT, 3/8-16 x 1-1/2 19 1931352SM 1

SPRING 20 1656936SM 1

CAPSCREW, Hex Head, 3/8-16 x 3-1/2 21 1923938SM 1

NUT, Hex Nylon Lock, 3/8-16 22 1919439SM 2

SPACER 23 2157081SM 2

CAPSCREW, Hex Head, 3/8-16 x 1-1/2 24 1921969SM 2

SPRING 25 2156302 1

V-BELT, Mower Drive, 44" Deck 26 1601672SM 1

V-BELT, Mower Drive, 50" Deck 26 1707740SM 1

V-BELT, Arbor Drive, 44" Deck 27 1721532SM 1

V-BELT, Arbor Drive., 50" Deck 27 1703836SM 1

The above parts group applies to the following Mfg. Nos.:

2008 51

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

44" Mower Deck - Belt, Idler Arm & Hitch

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986945

The above parts group applies to the following Mfg. Nos.:

2008 52

1694178 - 44" Mower

1695038 - 44" Mower

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Belt, Idler Arm & Hitch

Footnotes

V-BELT, Mower Drive 1 1601672SM 1

V-BELT, Arbor Drive 2 1721532SM 1

GRIP, Lever 3 1665835 1

NUT, Hex, 3/8-16 4 1916950SM 2

WASHER, Lock, 3/8 5 1916965SM 2

BELT STOP, Idler 6 1677135ASM 1

WASHER, 3/8 7 1924940SM 14

SPACER, 25/64 x 21/32 x 7/16, Powder Metal 8 1666294SM 2

PULLEY, Idler (Includes Ref. No. 8) 9 1685150SM 2

NUT, Hex Flange, 3/8-16, MAC Lock Large, Black 10 1960339SM 1

BUSHING, 5/8 x 3/4 x 13/32, Powder Metal 11 1676148SM 4

SPRING 12 1715435SM 1

SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened 13 1674669SM 2

GREASE FITTING 14 2812808SM 2

LEVER ASSEMBLY, Idler (Includes Ref. Nos. 3, 11 & 14) 15 1704658SM 1

CARRIAGE BOLT, 3/8-16 x 2 16 1960315SM 1

LEVER ASSEMBLY, Idler Arm (Includes Ref. Nos. 11 & 14) 17 1718561SM 1

WASHER, 3/8, Black 18 1924356SM 2

CARRIAGE BOLT, 3/8-16 x 1-1/2 19 1931352SM 1

SPRING 20 1656936SM 1

CAPSCREW, Hex Head, 3/8-16 x 3-1/2 21 1923938SM 1

CAPSCREW, Hex Head, 3/8-16 x 1-3/8 22 1921968SM 2

SPACER, 3/8 x 3/4 x 1/2 23 2157081SM 2

NUT, Hex Toplock Spiralock Flange, 3/8-16 24 2860681SM 2

SPRING 25 2156302SM 1

HITCH ASSEMBLY 26 1707432ASM 1

ROD, Latch 27 1715759SM 1

The above parts group applies to the following Mfg. Nos.:

2008 53

1694178 - 44" Mower

1695038 - 44" Mower

TP 400-4889-00-BM-SM

44" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985973

The above parts group applies to the following Mfg. Nos.:

2008 54

1694178 - 44" Mower

1695038 - 44" Mower

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Height Adjustment & Roller Bar

Footnotes

SHAFT & BAR ASSEMBLY, 44" (Includes Ref. No. 9) 1 1685443SM 1

NUT, Adjuster 2 1704082SM 1

NUT, Toplock Spiral Flange, 3/8-16 3 2860681SM 3

SLIDE 4 1677507SM 1

WASHER, Plain, 1/2 5 1924361SM 1

BOLT, Shoulder, 3/8-16 6 2172622SM 1

SPACER, 25/64 x 13/16 x 13/16, Steel, Black 7 1602946SM 2

ROLLER, Rounded, 2-1/2 Long 8 1722036SM 2

NUT, Push 9 1960520SM 2

WASHER, Plain, 1-1/4 10 1924366SM 10

ROLLER 11 1668513SM 7

BAR, Roller 12 1704074ASM 1

NUT, Hex, Flange, Lock, 1/2-13 13 1930644SM 2

CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4 14 1664847SM 5

WASHER, 3/8 15 1924940SM 3

UPSTOP 19 1720659SM 1

STRAP, Mower Arm Assembly 20 1665374SM 3

CARRIAGE BOLT, 3/8-16 x 1-1/2 21 1931352SM 1

ARM ASSEMBLY, Mower 22 1733521ASM 1

ROD, Adjustment 23 1704093SM 1

SPACER, 3/8 x 3/4 x 15/16 24 1706644SM 1

CAPSCREW, Hex Head, 3/8-16 x 1-3/4 25 1922606SM 1

BRACKET, Upstop 26 1722750ASM 1

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4, Black 27 1664847SM 2

PLATE, Mower Support 28 1704080ASM 1

CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 29 1931202SM 2

WASHER, 5/16, Black 30 1919381SM 5

INDICATOR, Height of Cut 31 1704114SM 1

WASHER, Detent 32 1704097SM 1

TRUNNION 33 1704086SM 1

PIN, Roll, 1 34 2816001SM 1

NUT, Hex, Jam, 1/2-13 35 1913744SM 2

WASHER, 33/64 36 1960170SM 3

PIN, Clevis 37 2118053SM 1

TRUNNION 38 1704081ASM 1

CLIP, Hair Pin 39 1960074SM 2

NUT, Whizlock 5/16-18 41 1931277SM 2

BRACKET, Height of Cut 42 1704116ASM 1

ARM, Rear, Mower, RH 43 1704083ASM 1

CAPSCREW, Hex Head, 5/16-18 x 1-1/4 44 1921977SM 2

TRUNNION, Threaded 45 1704087SM 1

The above parts group applies to the following Mfg. Nos.:

2008 55

1694178 - 44" Mower

1695038 - 44" Mower

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

44" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985973

The above parts group applies to the following Mfg. Nos.:

2008 56

1694178 - 44" Mower

1695038 - 44" Mower

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Height Adjustment & Roller Bar

Footnotes

CRANK, Height of Cut 46 1719901SM 1

KNOB, Height Crank 47 1714084SM 1

PAL NUT 48 1960093SM 1

ROD, Height Adjuster 53 1724959SM 1

NUT, Hex Jam 56 1920161SM 1

ROD,TRUNNION 57 1731382SM 1

CLIP, Hairpin 58 1960074SM 1

WASHER, 3/8 59 1924940SM 1

The above parts group applies to the following Mfg. Nos.:

2008 57

1694178 - 44" Mower

1695038 - 44" Mower

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

44" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985971

The above parts group applies to the following Mfg. Nos.:

2008 58

1694178 - 44" Mower

1695038 - 44" Mower

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Housing, Arbors & Blades

Footnotes

NUT, Hex Flange, 9/16-18 1 1714419SM 3

WASHER, Bellevilled, 9/16 2 1713675SM 6

PULLEY, 4-1/2 O.D. 3 1713161SM 1

PULLEY, 5 O.D. 3 1713091SM 1

HUB, Double Pulley 4 1713158SM 1

PULLEY 5 1713098SM 3

HUB, Double Pulley 6 1713533SM 1

COVER, Arbor Housing 7 1655729ASM 3

BEARING, Ball, 3/4 x 1-3/4 x 5/8 8 2108202SM 3

SPACER, 21/32 x 3/4 x 5/8 9 1715724SM 3

SPACER, 11/16 x 5/32 x 2-11/16 10 1732544SM 3

BEARING, Ball, 11/16 x 1-9/16 x 15/32 11 1705897SM 3

GASKET, Foam 12 1707335SM 3

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting (Includes Ref. No. 14) 13 1713338ASM 3

FITTING, Grease 14 1704314SM 3

COVER, Arbor 15 1720560ASM 1

COVER, Arbor without Ribs 15 1732200ASM 1

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 16 1664847SM 29

NUT, Hex Flange, 5/16, 18 1931277SM 1

WASHER, Bellevilled, 9/16, Black 19 1713619SM 3

SHAFT, Arbor (LH) 20 1713612SM 1

SHIELD, Grass, Lower 21 1713196SM 3

BLADE, Mower, 16-1/8 (For 44" Deck) 22 1704100ASM 3

WASHER, Hex, 11/16 x 2 23 1713089SM 3

WASHER, Spring 15/32, Black 24 1656916SM 3

CAPSCREW, Hex Head, 7/16-14 x 1 25 2823471SM 3

SHAFT, Arbor (Center & RH) 26 1713195SM 2

MOWER HOUSING ASSEMBLY, 44" Mower (Orange) 27 1685411SM 1

MOWER HOUSING ASSEMBLY, 44" Mower (Red) 27 1687154SM 1

COVER, Arbor 28 1715673SM 1

CARRIAGE BOLT, 1/4-20 x 7/8 29 1931318SM 2

PLUG, Hole 30 1705115SM 1

NUT, Push 31 1960518SM 2

WASHER, 1/4, Black 32 1960353SM 2

CLAMP 33 1704873SM 1

WASHER, 5/16, Black 34 1919326SM 1

SPRING 35 7101082SM 1

NUT, ESNA 1/4-20 37 1920397SM 2

ROD, Deflector, Front 38 1706709SM 1

DEFLECTOR, Plastic 39 1705449SM 1

HUB, Pulley, Center & RH 40 1713197SM 2

BAFFLE, Anti-Blowout, LH (CE/Export) 41 1716879ASM 1

CARRIAGE BOLT, 5/16-18 x 3/4, Black (CE/Export) 42 1931333SM 2/8/1

NUT, Hex Flange Whiz Lock, 5/16-18, Black (CE/Export) 43 1927557SM 2/8/1

The above parts group applies to the following Mfg. Nos.:

2008 59

1694178 - 44" Mower

1695038 - 44" Mower

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

44" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985971

The above parts group applies to the following Mfg. Nos.:

2008 60

1694178 - 44" Mower

1695038 - 44" Mower

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

PART NO. DESCRIPTIONREF NO QTY.

44" Mower Deck - Housing, Arbors & Blades

Footnotes

BAFFLE, Anti-Blowout, RH (CE/Export) 44 1716878ASM 1

BAFFLE, Blowout, 44" & 50" 45 1724538ASM 1

The above parts group applies to the following Mfg. Nos.:

2008 61

1694178 - 44" Mower

1695038 - 44" Mower

2690651 - Broadmoor

2690652 - 2620H

TP 400-4889-00-BM-SM

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

Briggs and Stratton Yard Power Products Group

Simplicity Broadmoor 2600 Series Parts Manual / 1600 Lawn Tractors & Mower Decks

Navigation menu

Versions of this User Manual:

Views

Navigation
