Mfg. No. Description

1690095 Tire Chains (23” Tires)

1691311 48” Bucket

1691319 33# Suitcase weights

1691620 Cart Side Extension & Cover

1692125 10 Cu. Ft. Dump Cart

1692562 Tire Chains (26” Tires)

1692891 2000 RPM Rear PTO

1692923 Ballast Box

1692924 60” Manual Angling Dozer Blade

1692925 60” Hydraulic Angling Dozer Blade

1692926 Soft Side Snow Cab

1692927 ROPS (Roll-Over Protective

Structure)

1692928 3-Point Hitch

1692929 60” Hose, Hitch & Tube

1692930 48” Hose, Hitch & Tube

1692931 Hydraulic Angling Kit

1692932 Front End Loader

Mfg. No. Description

1692933 Hard Side Snow Cab

1692934 46” Single Stage Snowthrower

1692935 50” Tiller

1692936 48” Turbo

1692937 60” Turbo

1692938 Wide Body Collector Cart

1692939 50# Suitcase Weights

1692940 Front Weight Carrier

1692941 Rear Weight Carrier

1692942 47” Two Stage Snowthrower

1693160 Rear Wheel Weight

1693175 Ladder Sub-Frame Hitch

1693204 Triple Bag Grass Catcher

1693206 Rear Light Kit

1693238 Hydraulic Lift & Angling Kit

1693239 Auxiliary Hydraulic Lift Kit

1693245 Sweepster Rotary Broom Hitch

1693246 Sweepster Rotary Broom

Rev. 10/1998

TP 400-2156-00-AT-SMA

Parts Manual

LEGACY / 2000 / 2900

SERIES GARDEN TRACTOR

ATTACHMENTS

& ACCESSORIES

TP-400-2156-00-AT-SMA

Table of Contents

SNOWTHROWERS

Mfg No Description Page

1692934 46” SINGLE STAGE SNOWTHROWER

Body & Auger Group . . . . . . . . . . . . . . . . . .2

Spout Group . . . . . . . . . . . . . . . . . . . . . . . .4

Drive Group . . . . . . . . . . . . . . . . . . . . . . . . .6

Hitch Group . . . . . . . . . . . . . . . . . . . . . . . . .8

1692942 47” TWO STAGE SNOWTHROWER

Gearbox Mounting Group . . . . . . . . . . . . .10

Skid Shoe & Hitch Lock Group . . . . . . . . .12

Auger Group . . . . . . . . . . . . . . . . . . . . . . .14

Discharge Chute &Spout Rotator . . . . . . .16

Hitch Group . . . . . . . . . . . . . . . . . . . . . . . .18

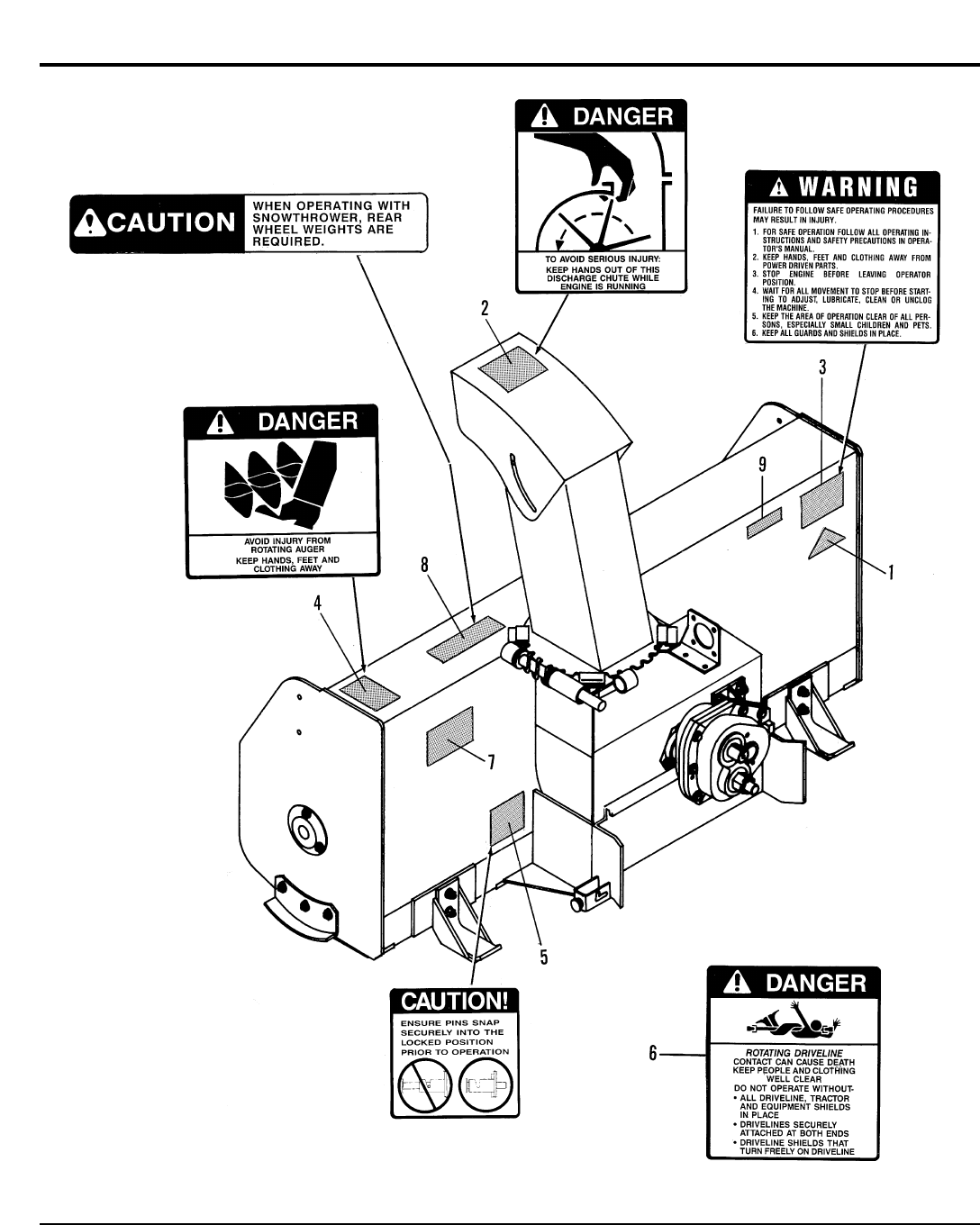

Decal Group . . . . . . . . . . . . . . . . . . . . . . .20

DOZER BLADES & LOADERS

Mfg No Description Page

1692924 60” MANUAL ANGLING DOZER BLADE

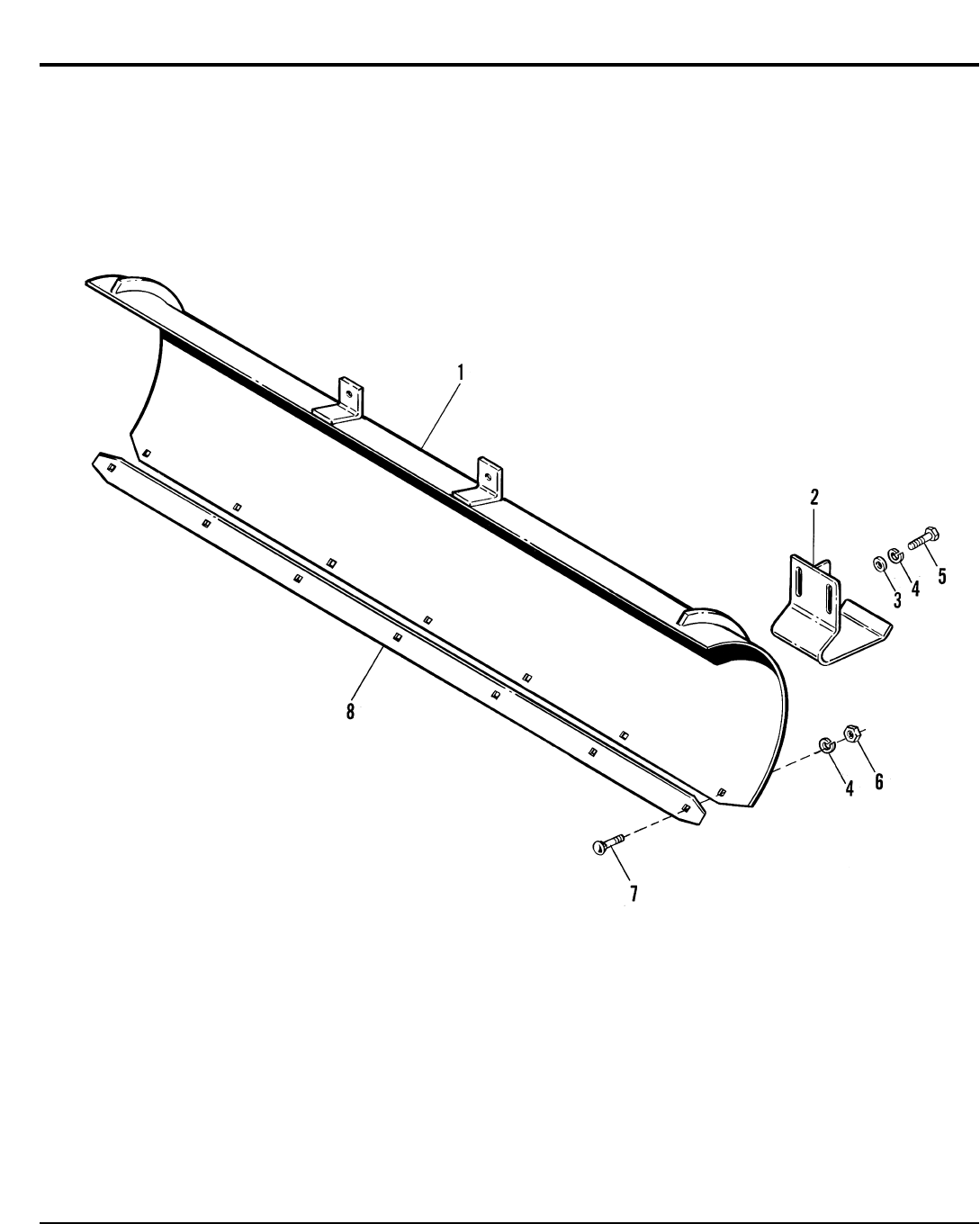

60” Dozer Blade Assembly . . . . . . . . . . . .22

Hitch Assembly - Manual Angling . . . . . . .24

1692925 60” HYDRAULIC ANGLING DOZER BLADE

60” Dozer Blade Assembly . . . . . . . . . . . .22

Hitch Assembly - Hydraulic Angling . . . . .28

Hydraulic System Diagram . . . . . . . . . . . .30

Control Tower Group . . . . . . . . . . . . . . . . .32

Cylinder Mounting Group . . . . . . . . . . . . .34

1692932 FRONT END LOADER

Mid-Hitch . . . . . . . . . . . . . . . . . . . . . . . . .36

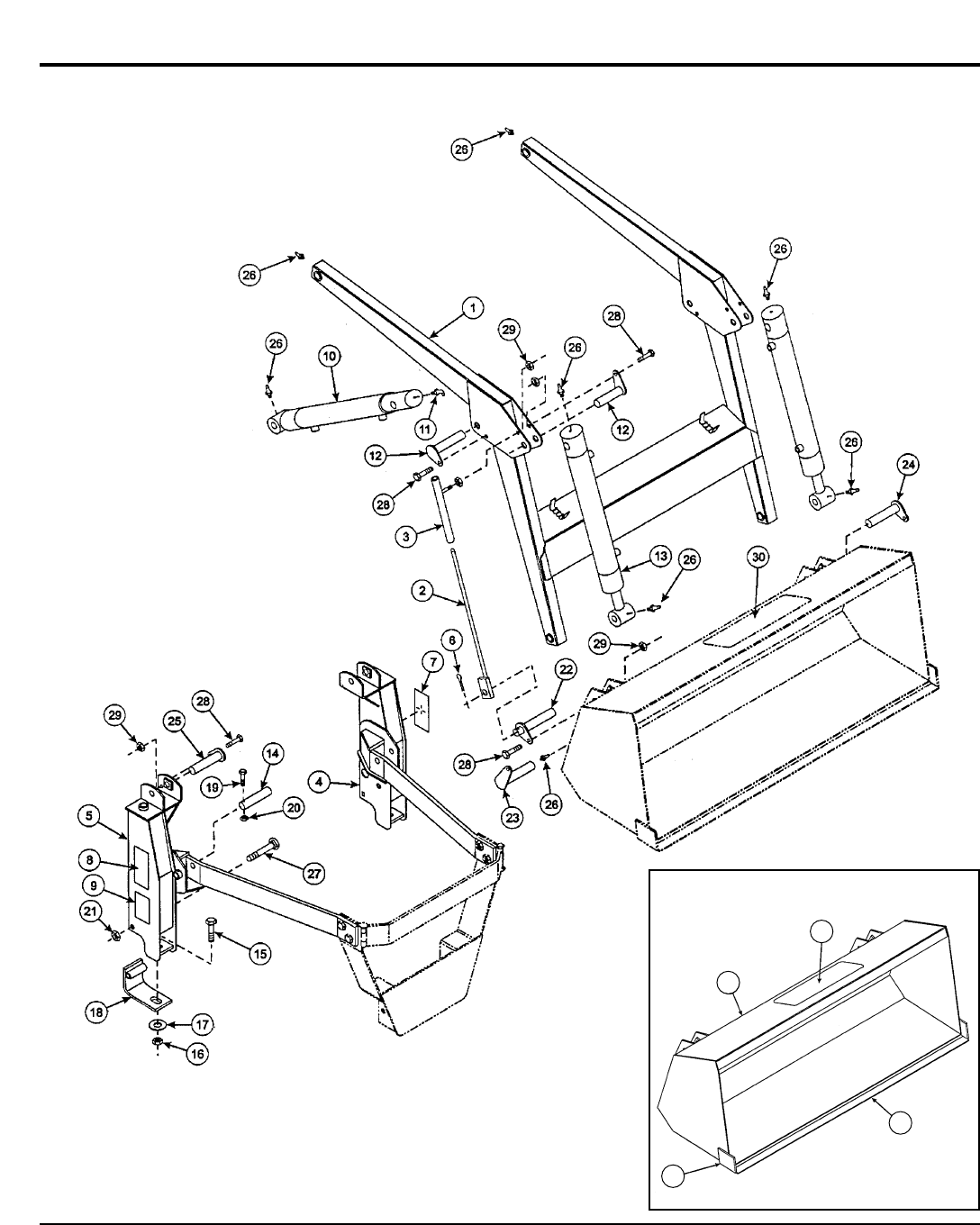

Loader Main Frame & Bucket . . . . . . . . . .38

Main Hydraulics . . . . . . . . . . . . . . . . . . . .40

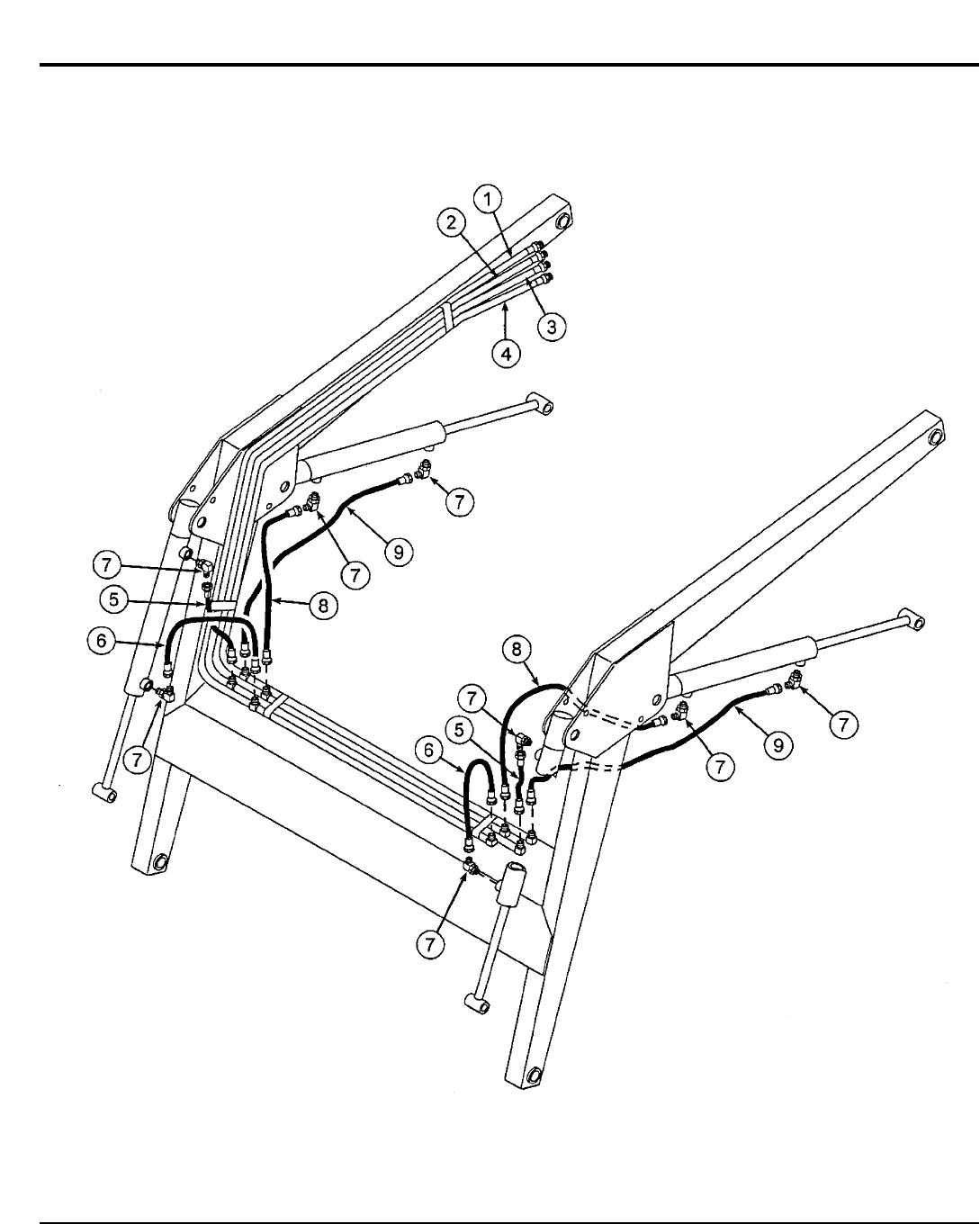

Boom Hydraulics . . . . . . . . . . . . . . . . . . . .44

1691311 48” BUCKET . . . . . . . . . . . . . . . . . . . . . . .38

GRASS COLLECTIONS SYSTEMS

Mfg No Description Page

1692936 48” TURBO

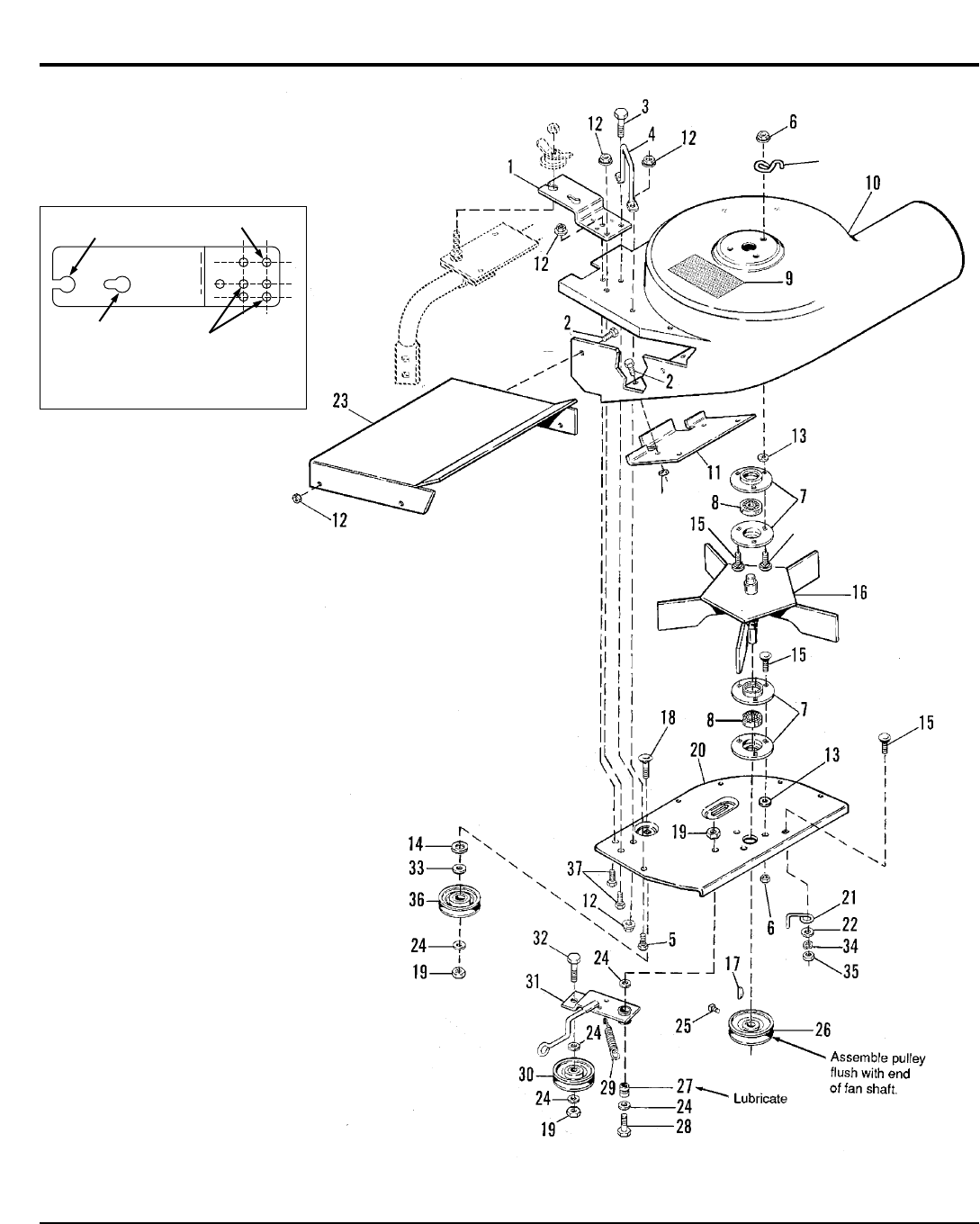

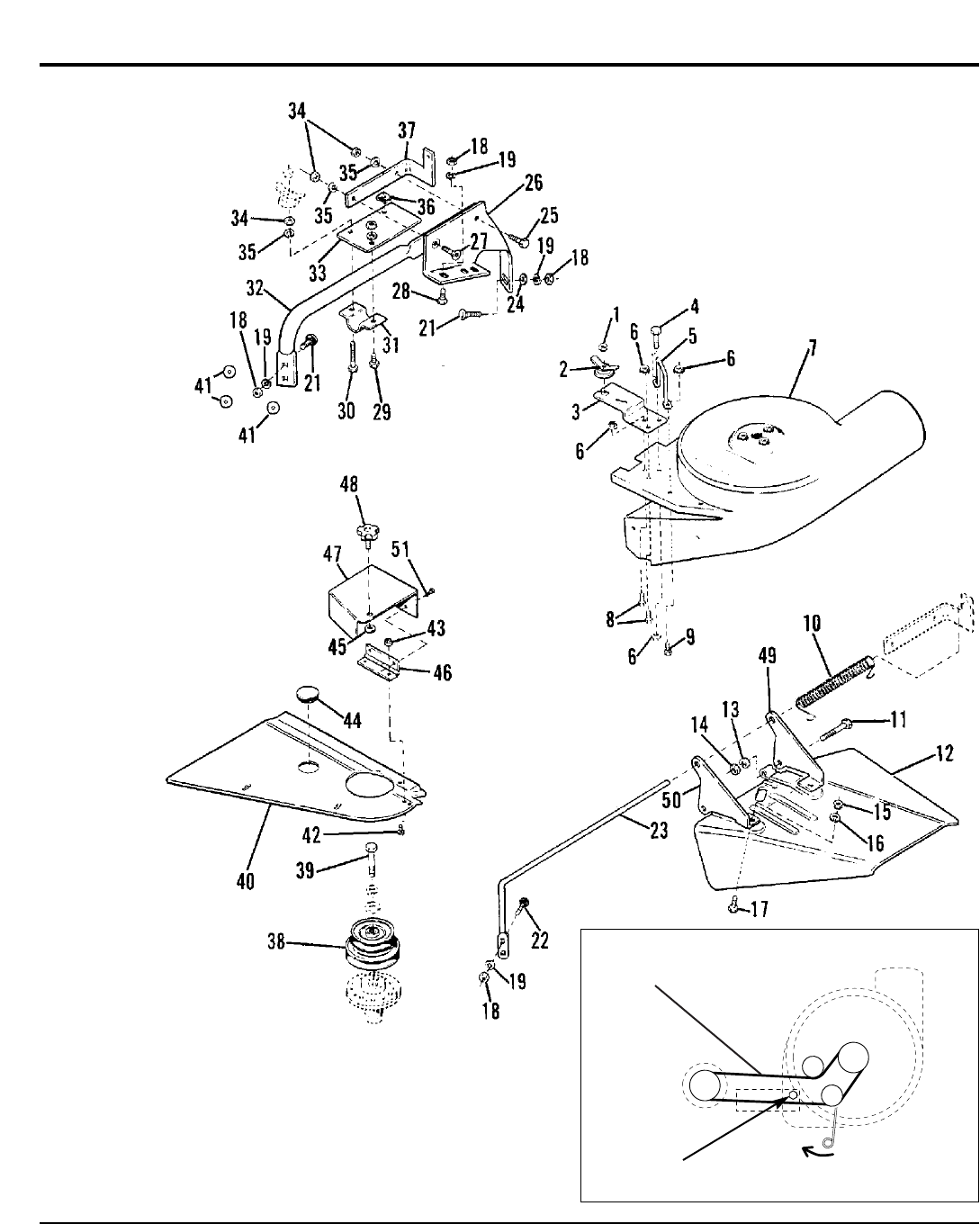

Turbo Blower Assembly . . . . . . . . . . .46

Mounting Group . . . . . . . . . . . . . . . . .48

1692937 60” TURBO

Tubro Blower Assembly . . . . . . . . . . .50

Mounting Group . . . . . . . . . . . . . . . . .52

1692938 WIDE BODY COLLECTOR CART

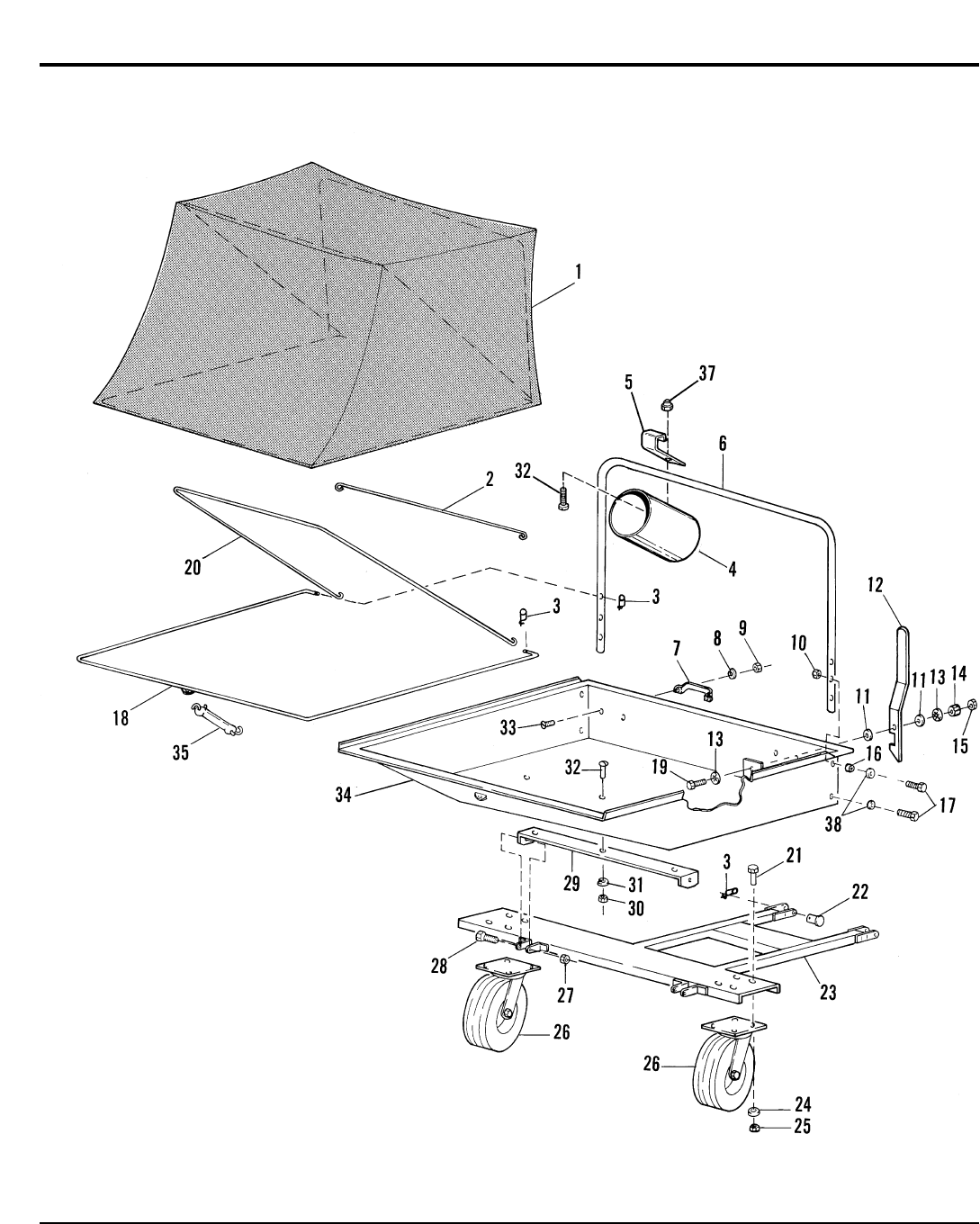

Cart Assembly . . . . . . . . . . . . . . . . . . .54

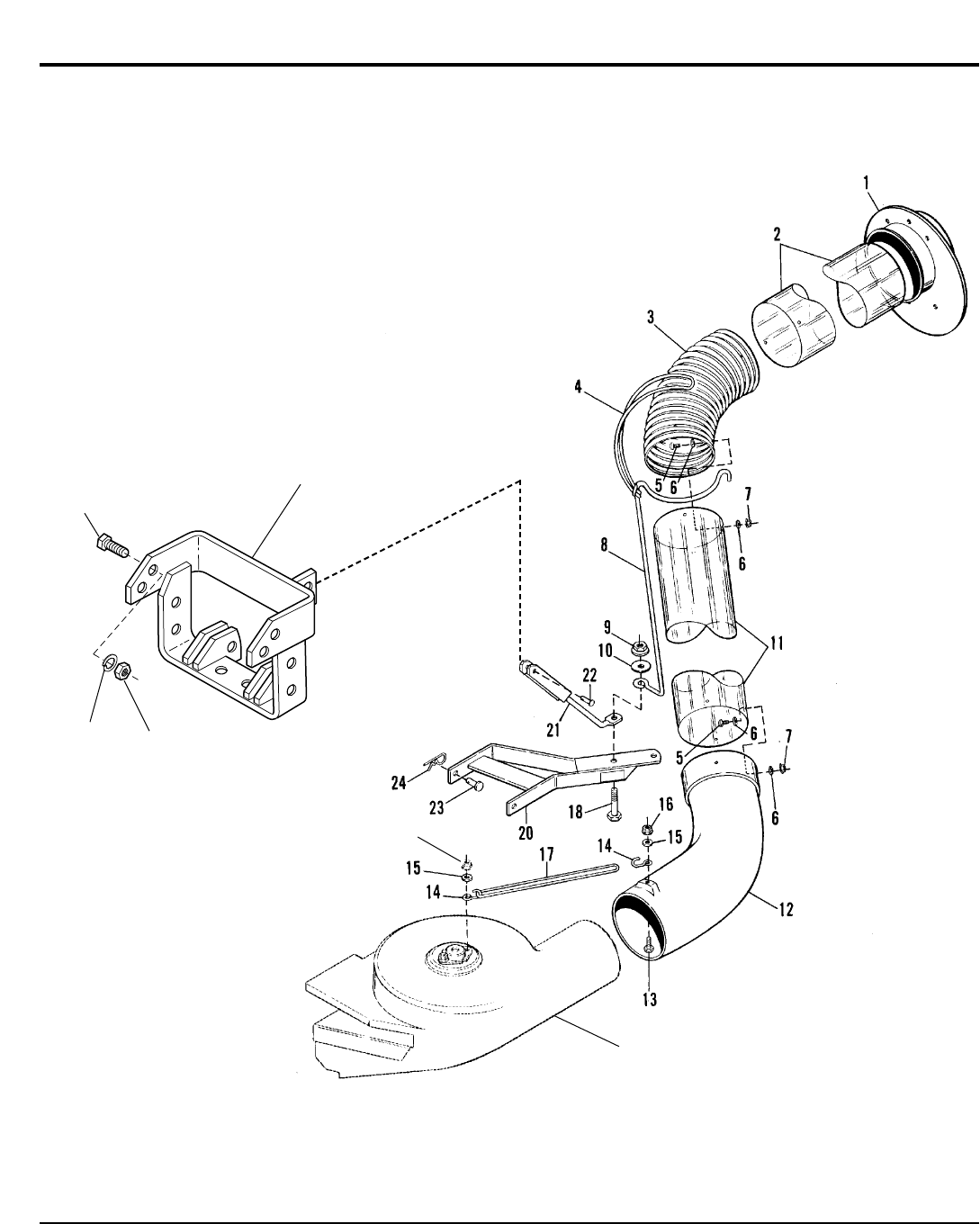

Hitch & Hose Assembly . . . . . . . . . . .56

1693204 TRIPLE BAG GRASS CATCHER . . . . . . . . .58

1692929 60” HOSE, HITCH & TUBE . . . . . . . . . . . .60

1692930 48” HOSE, HITCH & TUBE . . . . . . . . . . . . .60

ATTACHMENTHITCHES, WEIGHTS&KITS

Mfg No Description Page

1691319 33# SUITCASE WEIGHTS . . . . . . . . . . . . .70

1692939 50# SUITCASE WEIGHTS . . . . . . . . . . . . .70

1692891 2000 RPM REAR PTO . . . . . . . . . . . . . . . .62

1692923 BALLAST BOX . . . . . . . . . . . . . . . . . . . . . .66

1692928 3-POINT HITCH . . . . . . . . . . . . . . . . . . . . .68

1692931 HYDRAULIC ANGLING KIT

Hydraulic System Diagram . . . . . . . . . . . .30

Control Tower Group . . . . . . . . . . . . . . . . .32

Cylinder Group . . . . . . . . . . . . . . . . . . . . .34

1692940 FRONT WEIGHT CARRIER . . . . . . . . . . . . .70

1692941 REAR WEIGHT CARRIER . . . . . . . . . . . . . .70

1693160 REAR WHEEL WEIGHT . . . . . . . . . . . . . . .72

1693175 LADDER SUB-FRAME HITCH . . . . . . . . . . .74

1693238 HYDRAULIC LIFT & ANGLING KIT

Hydraulic System Diagram . . . . . . . . . . . .76

Control Tower . . . . . . . . . . . . . . . . . . . . . .78

Cylinder Group . . . . . . . . . . . . . . . . . . . . .80

1693239 AUXILIARY HYDRAULIC LIFT KIT . . . . . . .82

1693206 REAR LIGHT KIT . . . . . . . . . . . . . . . . . . . .84

1693245 SWEEPSTER ROTARY BROOM HITCH

Hitch Assembly - Hydraulic Angling . . . . .24

COMPONENTSERVICEPARTS

Part No Description Page

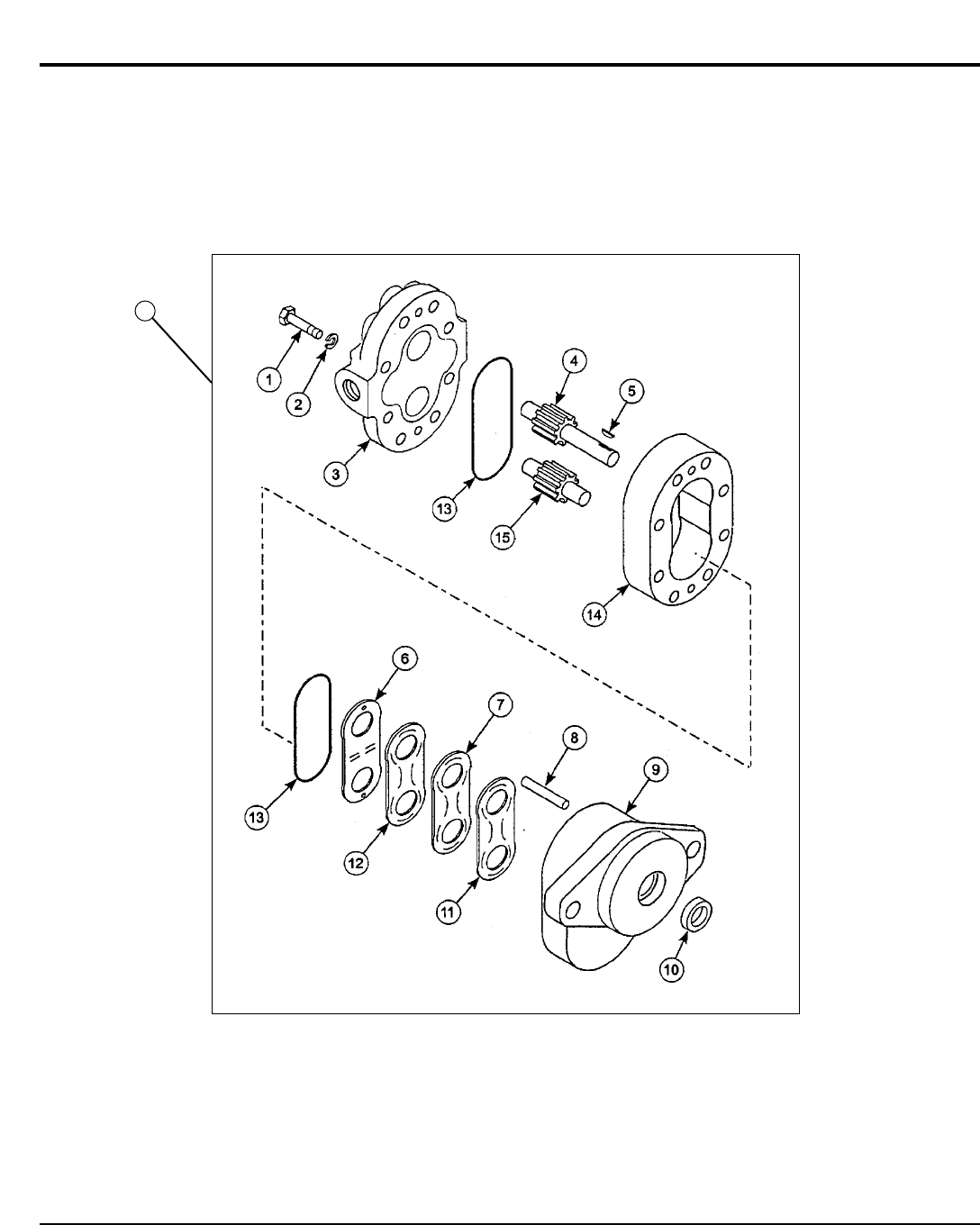

1700493 SERVICEPARTS - Hydraulic Gear Pump . . . . .86

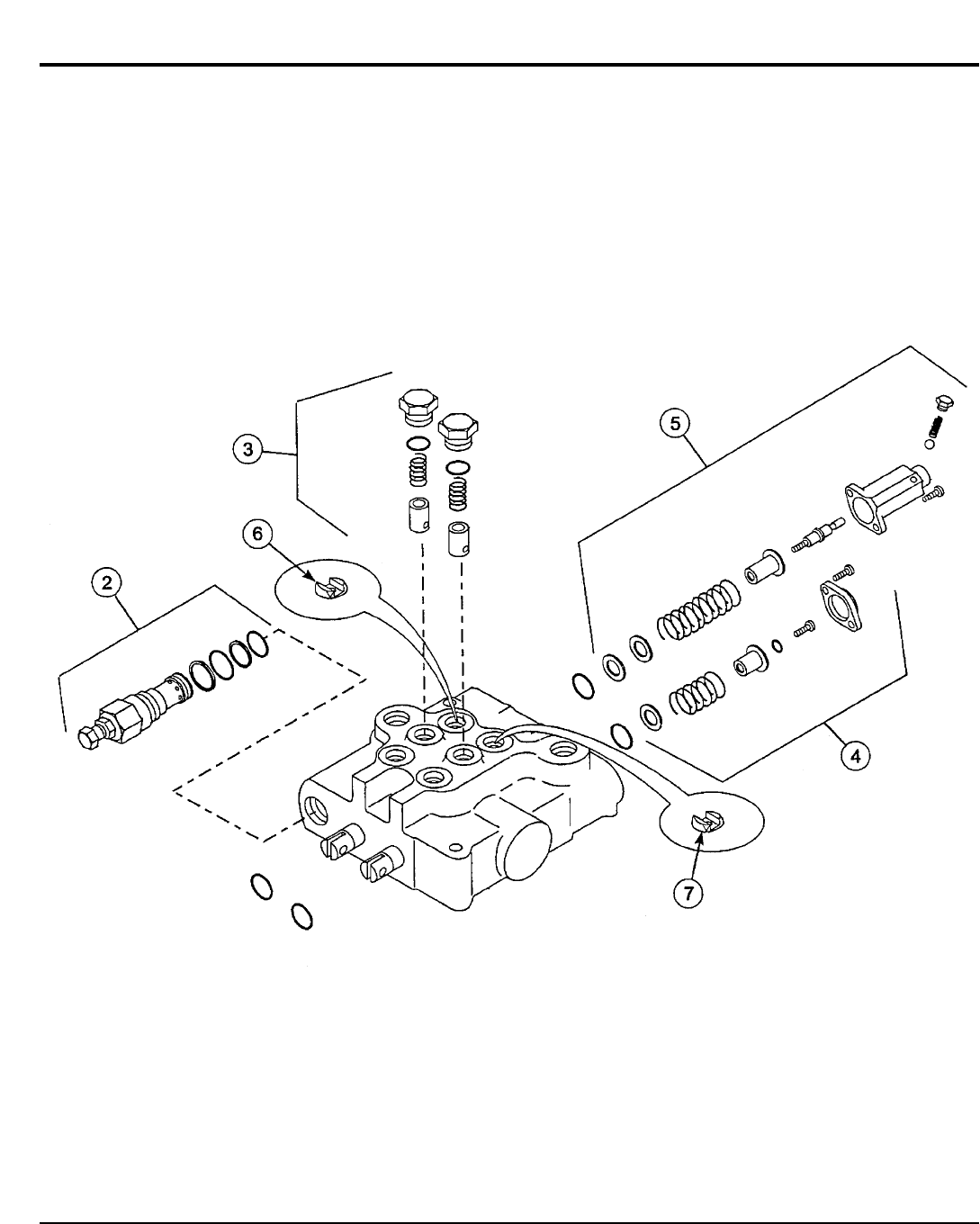

1700502 SERVICEPARTS - Hydraulic Valve Assembly . .88

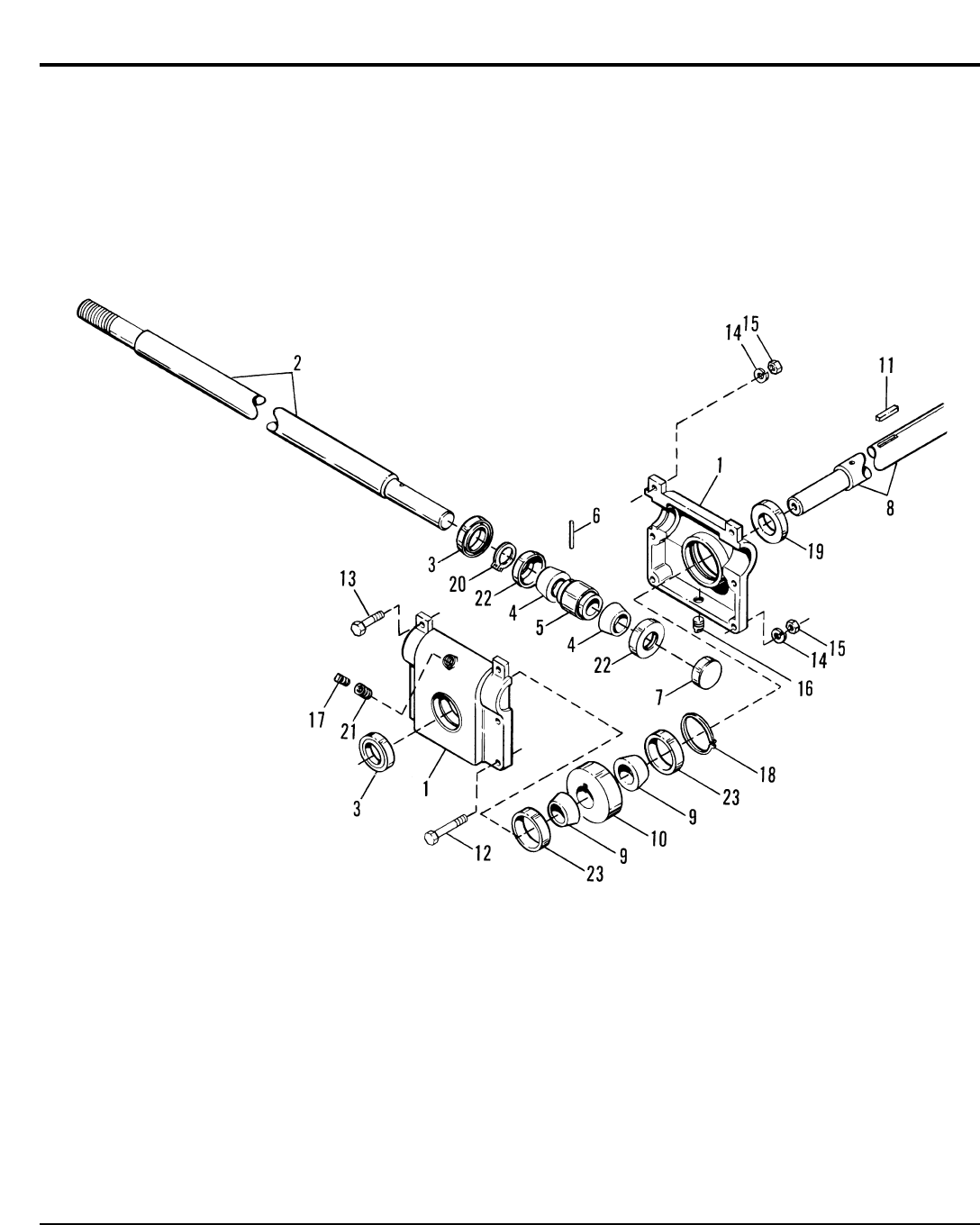

1709625 SERVICEPARTS - Snowthrower Gearbox . . . .90

1709662 SERVICEPARTS - Snowthrower Auger

Gearbox & Shaft . . . . . . . . . . . . . . . . . . . .92

1717484 SERVICEPARTS - Snowthrower

Drive Shaft . . . . . . . . . . . . . . . . . . . . . . . .94

1717547 SERVICEPARTS - Snowthrower

Right Angle Gearbox . . . . . . . . . . . . . . . . .96

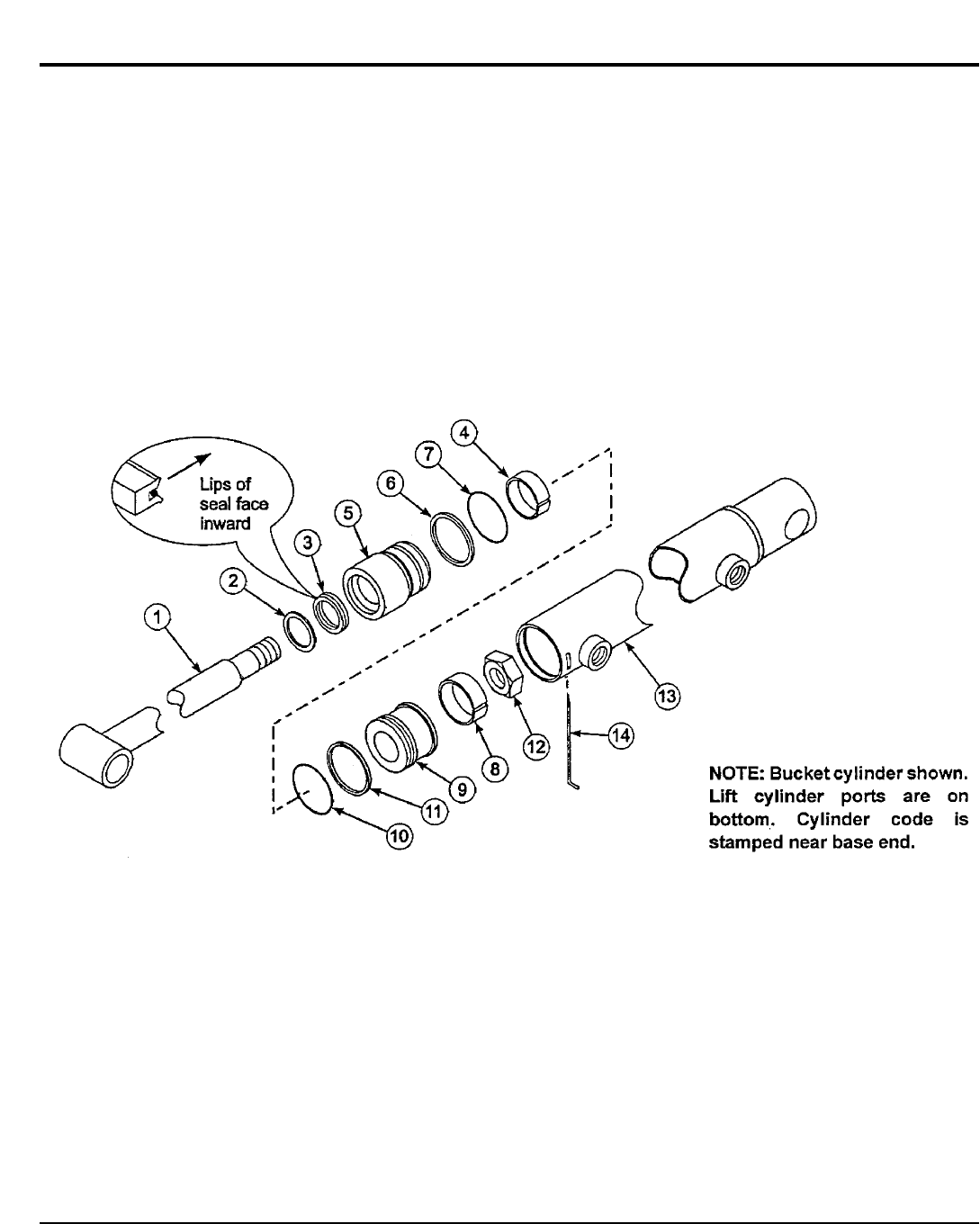

1718166 SERVICEPARTS - Lift Cylinder . . . . . . . . . . . . .98

1718169 SERVICEPARTS - Bucket Cylinder . . . . . . . . .100

REFERENCE INFORMATION

Mfg No Description . . . . . . . . . . . . . . . . . . . . . . . . .Page

1690095 TIRE CHAINS (23” Tires) . . . . . . . . . . . . .102

1691620 CART SIDE EXTENSION & COVER . . . . . .102

1692125 10 CU. FT. DUMP CART . . . . . . . . . . . . . .102

1692562 TIRE CHAINS (26” Tires) . . . . . . . . . . . . .102

1692926 SOFT SIDE SNOW CAB . . . . . . . . . . . . . .102

1692927 ROPS (Roll-Over Protective Structure) . .102

1692933 HARD SIDE SNOW CAB . . . . . . . . . . . . . .102

1692935 50” TILLER . . . . . . . . . . . . . . . . . . . . . . .102

1693246 SWEEPSTER ROTARY BROOM . . . . . . . .102

TP-400-2156-00-AT-SMA

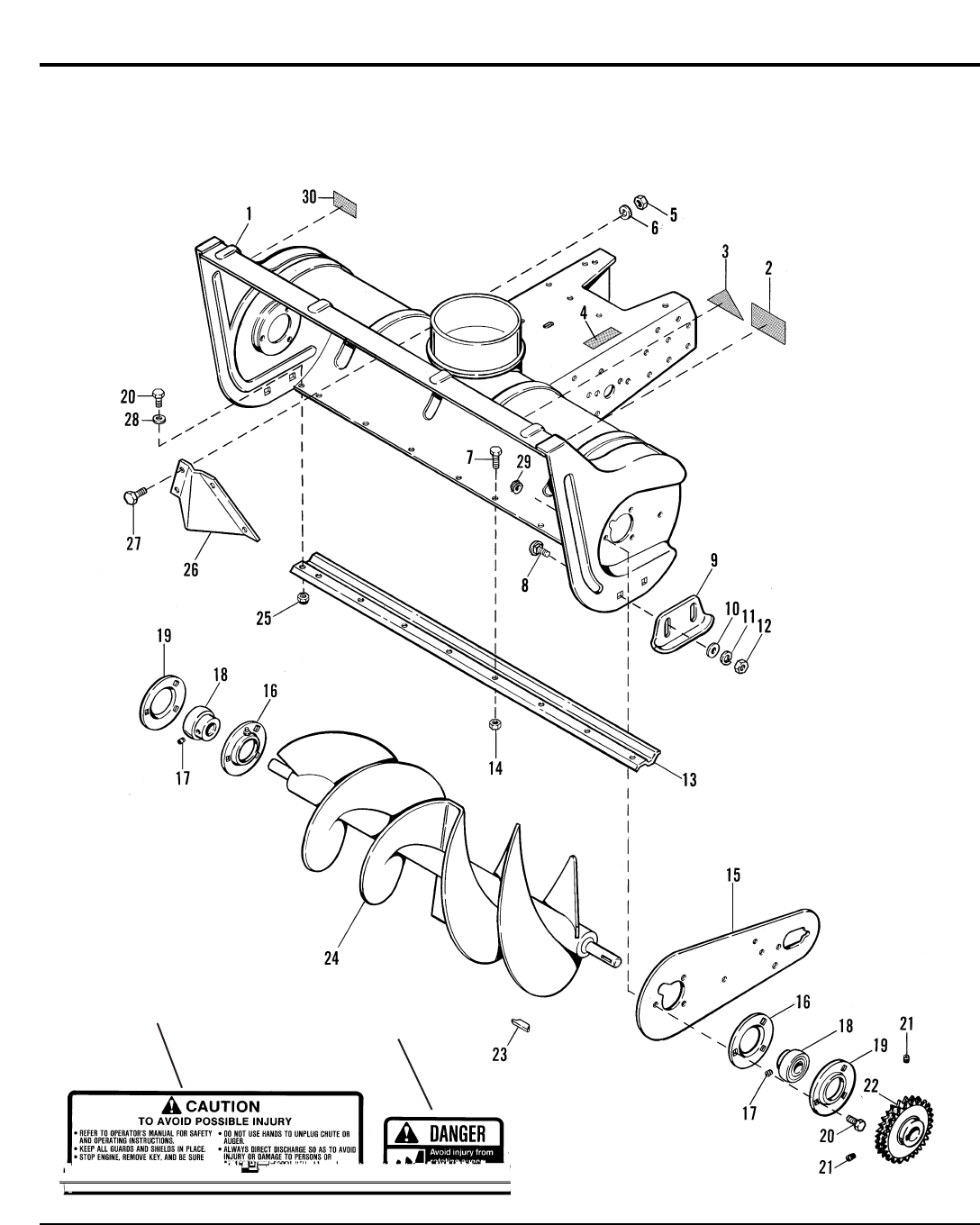

46” Single Stage Snowthrower - Body & Auger Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43101A

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

30 2

TP-400-2156-00-AT-SMA

46” Single Stage Snowthrower - Body & Auger Group

1 1717479 1 BODY & FRAME ASSEMBLY

2 1716532 1 DECAL, Danger, Auger

3 * DECAL, OPEI (Not Serviced)

4 * DECAL, I.D. Plate (Not Serviced)

5 1917372 4 NUT, Hex, 5/16-18

6 1917356 4 WASHER, Lock, 5/16

7 1921959 9 CAPSCREW, Hex Hd,1/4-20 x 5/8

8 922110 4 CARRIAGE BOLT, 3/8-16 x 3/4

9 177434 2 SKID SHOE

10 1924940 4 WASHER, 3/8

11 1916965 4 WASHER, Lock, 3/8

12 1916950 4 NUT, Hex, 3/8-16

13 1717472 1 SCRAPER BAR

14 1923358 9 NUT, Hex Lock,1/4-20

15 1676632 1 PLATE, Side

16 172279 2 BEARING, Flange

17 1960110 2 SETSCREW, Sqr Hd, Cup Point, 1/4-28 x 1/2

18 173934 2 CARTRIDGE, Auger Bearing

19 172278 2 BEARING, Flange

20 1921332 8 CAPSCREW, Hex Hd, 5/16-18 X 3/4

21 1677029 2 SET SCREW, 5/16 -18 x 3/8

22 1676721 1 DOUBLE SPROCKET ASSEMBLY, 29 Teeth

23 151040 1 KEY, 1/4

24 1717465 1 ROTOR ASSEMBLY

25 1923362 2 NUT, Hex Lock, 5/16-18

26 106774 1 DEFLECTOR

27 1925205 4 CAPSCREW, Hex Hd, 5/16-18 x 5/8

28 1919326 2 WASHER, 5/16

29 1935048 6 NUT, Hex Flange Hd, Whiz Lock, 5/16-18

30 1716531 1 DECAL, Caution

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not a Servicable Part.

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

TP-400-2156-00-AT-SMA

46” Single Stage Snowthrower - Spout Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43102A

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

25 26

345

16 17

TP-400-2156-00-AT-SMA

46” Single Stage Snowthrower - Spout Group

1 1717476 1 CHUTE ASSEMBLY

2 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

3 960210 1 WASHER, Nylon Special, 3/8

4 1919326 1 WASHER, 5/16

5 1919438 1 NUT, Hex Nylon Lock, 5/16-18

6 1718426 2 SEAL, Hinge

7 1702219 3 SPACER

8 1611945 1 ROD, Spring, 5/16

9 1611939 1 SPRING, Compression

10 1921319 2 WASHER, 1/4

11 1960126 4 NUT, Push, 1/4

12 1717482 1 CABLE ASSEMBLY

13 1612455 1 GUARD, Chute

14 1921319 4 WASHER, 1/4

15 1666613 3 HOLD DOWN, Chute

16 1960001 3 CAPSCREW, Hex Washer Hd, Plastite, #10-14 x 5/8

17 1916622 3 NUT, Hex, 1/4-20

18 1916964 4 WASHER, Lock, 1/4

19 1960151 2 WASHER, 1/4

20 1705920 1 BRACKET, Cable Mounting

21 1924009 6 CAPSCREW, Hex Hd, 1/4-20 x 7/8

22 1717591 1 GUIDE ASSEMBLY, Cable

23 1701011 1 TIE, Self-Locking

24 1921333 1 CAPSCREW, Hex Hd, 5/16-18 X 1

25 1917356 1 WASHER, Lock, 5/16

26 1917372 1 NUT, Hex, 5/16-18

27 1715885 1 MOTOR, Electric

28 1717483 1 WIRE HARNESS

29 1916950 2 NUT, Hex, 3/8-16

30 1916965 2 WASHER, Lock, 3/8

31 1931348 2 CARRIAGE BOLT, 3/8-16 x 3/4

32 1717049 1 SUPPORT, Motor

33 1717481 1 COVER, Pinion

34 1925003 3 CAPSCREW, Hex Washer Hd, Taptite, 1/4-20 x 1/2

35 1923358 1 NUT, Hex Lock,1/4-20

36 1921319 1 WASHER, 1/4

37 1717480 1 GEAR, Pinion

38 1716533 1 DECAL, Danger, Blower

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

TP-400-2156-00-AT-SMA

46” Single Stage Snowthrower - Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43103A

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

TP-400-2156-00-AT-SMA

46” Single Stage Snowthrower - Drive Group

1 106774 1 DEFLECTOR

2 1925205 4 CAPSCREW, Hex Hd, 5/16-18 x 5/8

3 1917356 4 WASHER, Lock, 5/16

4 1917372 4 NUT, Hex, 5/16-18

5 1717484 1 DRIVE SHAFT ASSEMBLY (See SERVICE PARTS - Snowthrower Drive Shaft)

6 1925688 1 CAPSCREW, Hex Hd, 1/4-20 x 3

7 1930540 2 SETSCREW, Sqr Hd, 5/16-18 x 5/8

8 922138 2 KEY, Hi-Pro #HP708, 1/4

9 1923358 2 NUT, Hex, Lock,1/4-20

10 1716790 1 PLUG, Socket Head

11 1717547 1 GEAR BOX ASSEMBLY, Right Angle (Incl. Ref. No. 10) (See SERVICE PARTS

- Snowthrower Right Angle Gearbox)

12 1928352 10 NUT, Hex Flange Whiz Lock, 3/8-16

13 1676053 1 BRACKET, Mounting (for Drive ASSEMBLY)

14 1916965 16 WASHER, Lock, 3/8

15 1921966 4 CAPSCREW, Hex Hd, 3/8-16 x 7/8

16 1920415 8 CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

17 1676561 1 COUPLER ASSEMBLY, Drive

18 1921965 4 CAPSCREW, Hex Hd, 3/8-16 x 3/4

19 1916950 6 NUT, Hex, 3/8-16

20 157424 16 WASHER, Special, 3/8

21 173026 2 COUPLING

22 1717097 1 SHAFT ASSEMBLY, Drive

23 1960475 1 SETSCREW, Hex Socket, 3/8-24 x 3/8

24 154198 1 FLANGE, Drive Shaft

25 1717100 1 COVER ASSEMBLY, Drive Shaft

26 1919326 4 WASHER, 5/16

27 1924856 4 CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 x 1/2

28 1676554 1 SUPPORT ASSEMBLY, w/Bearings (Incl. Ref. No. 32)

29 1960244 2 CAPSCREW, Hex Flange Hd, Whiz Lock, 3/8-16 x 2-3/4

30 168111 5 WASHER, Hardened, Thrust

31 921133 1 FITTING, Grease, 1/4

32 1679211 2 BEARING, Needle

33 1934654 2 CAPSCREW, Hex Flanghe Hd, Whiz Lock, 3/8-16 x 1

34 1669105 2 SPACER

35 905123 1 KEY, Woodruff #9

36 1676722 1 SHAFT ASSEMBLY, (Drive, Chain)

37 1676739 1 CHAIN, Roller

38 1676738 1 GUARD, Chain

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

TP-400-2156-00-AT-SMA

46” Single Stage Snowthrower - Hitch Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43104A

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

345

10 11 12

TP-400-2156-00-AT-SMA

46” Single Stage Snowthrower - Hitch Group

1 1675523 2 EYEBOLT, 3/8-16

2 1716492 1 SPACER

3 1916951 2 NUT, Hex, 1/2-13

4 1916966 2 WASHER, Lock, 1/2

5 1716926 1 BAR, Lift, Front

6 1716920 1 LIFT BAR ASSEMBLY

7 1921525 2 CAPSCREW, Hex Hd, 1/2-13 x 1-3/4

8 1716357 2 ANCHOR, Front

9 8031007 2 SET COLLAR

10 1928721 2 SETSCREW, Sqr Hd, Cup Point, 5/16-18 x 1/2

11 1675502 1 PIVOT ASSEMBLY, Hitch

12 176012 2 CLIP, Safety

13 1960038 2 PIN, Clevis, 5/8 x 2-1/4

14 175647 1 SPACER

15 1716460 1 SHAFT, 5/8 Dia.

16 1708999 1 SHAFT, Inner

17 1703635 1 HITCH ASSEMBLY

18 1675524 2 SPRING, Compression

19 1917421 2 NUT, Hex Jam, 3/8-16

20 1960071 2 WASHER, 3/8

21 1916950 2 NUT, Hex, 3/8-16

22 1676959 2 STUD, 3/4-10 UNC-2A

23 1913160 2 NUT, Hex, 3/4-10

24 1919332 2 WASHER, Lock, 3/4

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Gearbox Mounting Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43105A

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Gearbox Mounting Group

1 1709620 1 BRACKET, Torque

2 1709621 4 CARRIAGE BOLT, 3/8-16 x 1

3 1916965 4 WASHER, Lock, 3/8

4 1916950 4 NUT, Hex, 3/8-16

5 1709623 2 FLANGE, Bearing 3-hole

6 1709624 1 BEARING

7 1917356 3 WASHER, Lock, 5/16

8 1917372 3 NUT, Hex, 5/16-18

9 1931332 3 CARRIAGE BOLT, 5/16-18 x 5/8

10 1709625 1 GEARBOX ASSEMBLY (See SERVICE PARTS - Snowthrower Gearbox)

11 1709639 1 NUT, Slotted Hex, 3/4 -16, L.H.

12 1918456 1 PIN, Cotter, 5/32 x 1-3/4

13 154096 1 KEY, 1/4 x 1/4 x 29/32

14 1960506 1 CAPSCREW, Hex Hd, 1/4-20 x 1-7/8

15 1923358 1 NUT, Hex Lock,1/4-20

16 1677029 1 SET SCREW, 5/16 -18 x 3/8

17 1717484 1 DRIVESHAFT, PTO (See SERVICE PARTS - Snowthrower Drive Shaft)

18 1709640 1 BRACKET, Wire

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

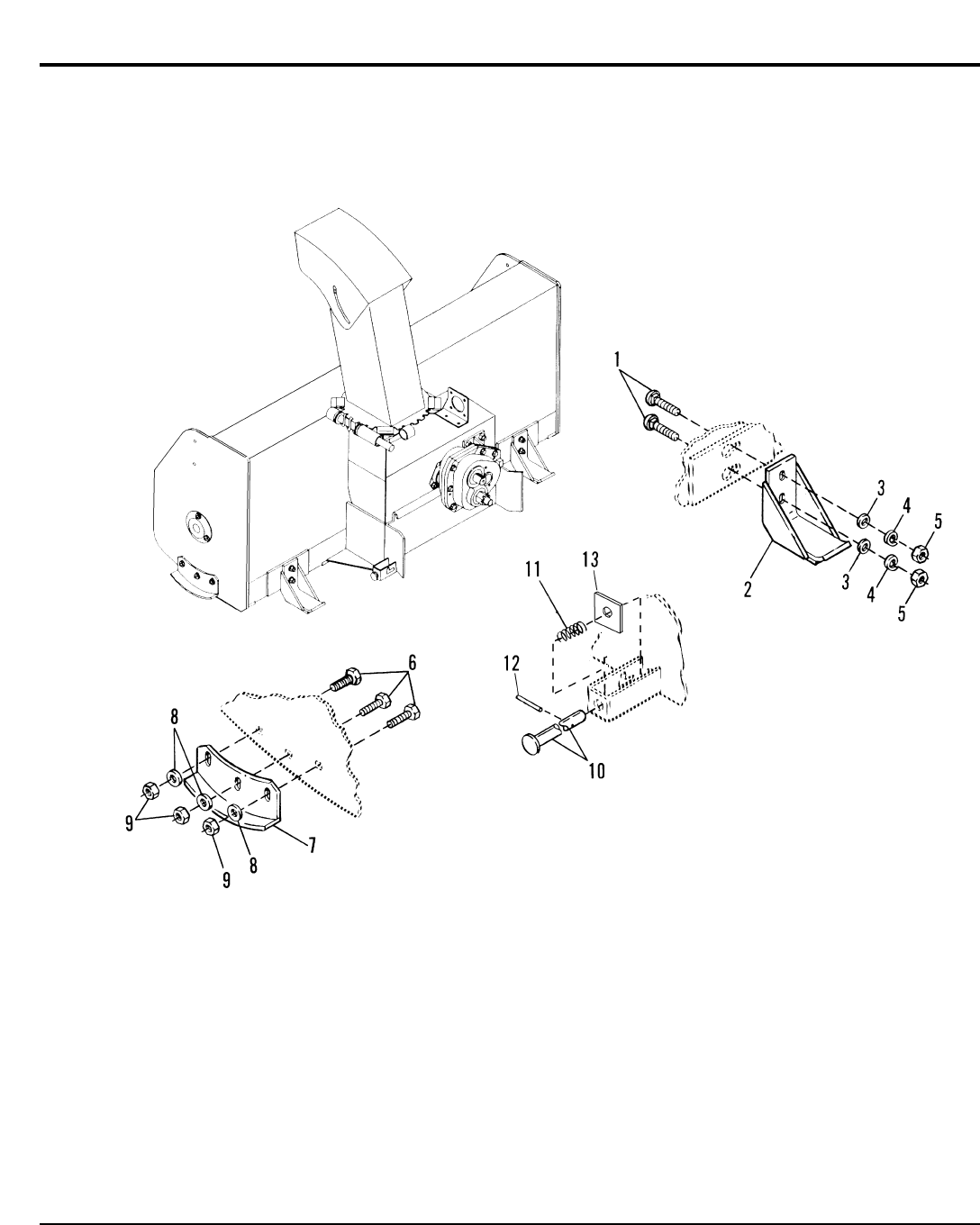

47” Two Stage Snowthrower - Skid Shoe & Hitch Lock Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43106A

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Skid Shoe & Hitch Lock Group

1 1931320 4 CARRIAGE BOLT, 5/16-18 x 1-1/4

2 1709656 2 SKID SHOE, Snowthrower

3 1924874 10 WASHER, 5/16

4 1917356 4 WASHER, Lock, 5/16

5 1917372 4 NUT, Hex, 5/16-18

6 1921332 6 CAPSCREW, Hex Hd, 5/16-18 X 3/4

7 1709658 2 SKID SHOE, Snowthrower

8 1924874 6 WASHER, Flat, 5/16 SAE

9 1923362 6 NUT, Hex Lock, 5/16-18

10 1709659 2 PIN, Shot

11 1709660 2 SPRING, Shot Pin

12 916171 2 PIN, Roll, 1/4 x 1-1/2

13 1709661 2 WASHER, Shot Pin

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

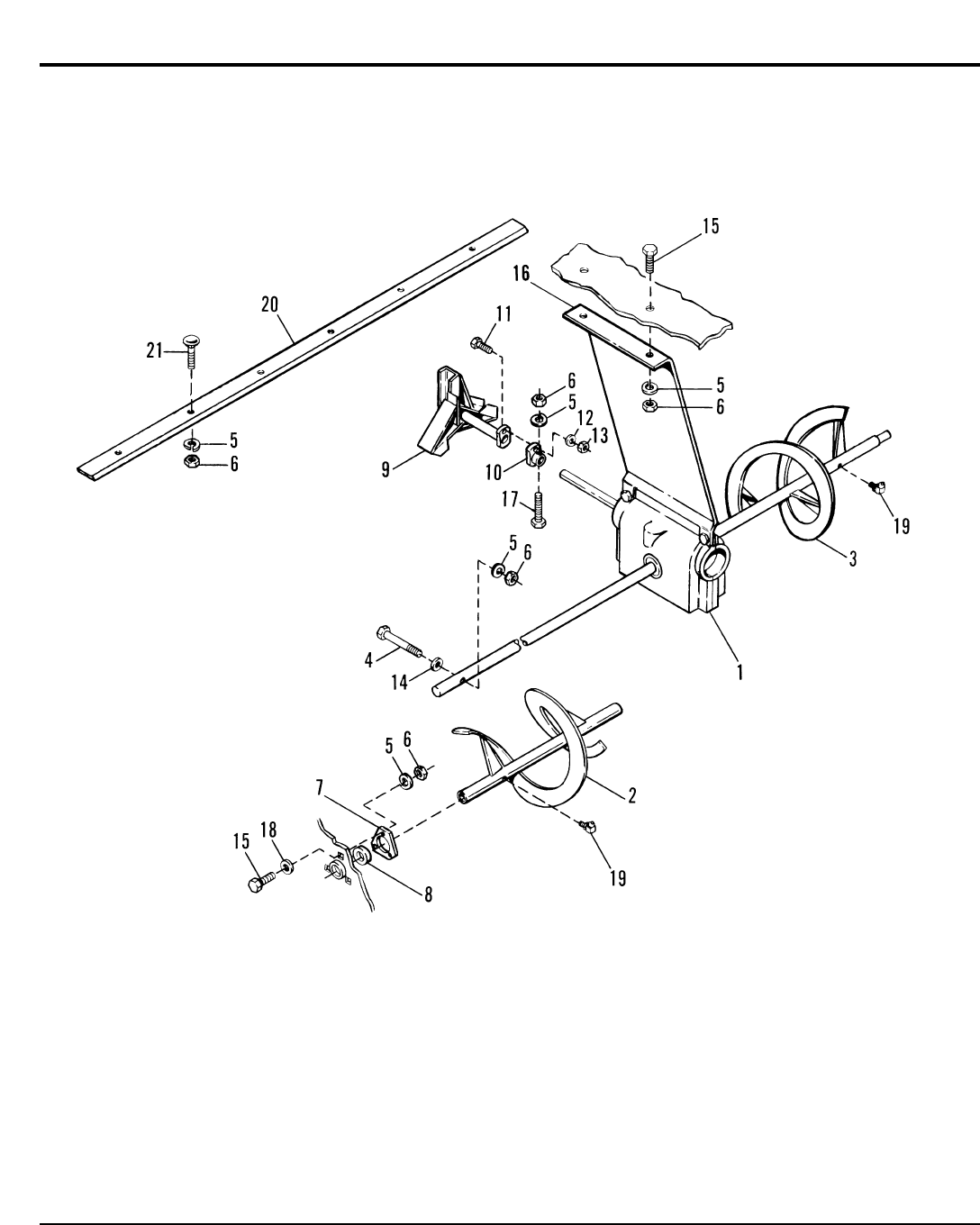

47” Two Stage Snowthrower - Auger Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43107A

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Auger Group

1 1709662 1 GEARBOX & SHAFT ASSEMBLY (See SERVICE PARTS - Snowthrower Auger

Gearbox & Shaft)

2 1709678 1 AUGER, LH

3 1709679 1 AUGER, RH

4 1921160 2 CAPSCREW, Hex Hd, 5/16-18 x 2-1/4

5 1917356 17 LOCKWASHER, 5/16 regular

6 1917372 17 NUT, Hex, 5/16-18

7 1709623 2 FLANGE, Bearing, 3-hole

8 1709680 2 BEARING, 1.00” ID

9 1709681 1 BLADE, Blower

10 1709682 1 COLLAR, Shear

11 1921960 1 CAPSCREW, Hex Hd,1/4-20 x 1

12 1916964 1 WASHER, Lock, 1/4

13 1916622 1 NUT, Hex, 1/4-20

14 1918265 2 WASHER, Flat, 5/16 SAE

15 1925205 2 CAPSCREW, Hex Hd, 5/16-18 x 5/8

16 1709683 1 BRACKET, Auger Support

17 1922127 1 CAPSCREW, Hex Hd, 5/16-18 x 1-3/4

18 1921319 6 WASHER, 1/4

19 912808 2 FITTING, Grease,1/4-28

20 1709684 1 EDGE, Cutting

21 1931335 6 CARRIAGE BOLT, 5/16-18 x 1

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

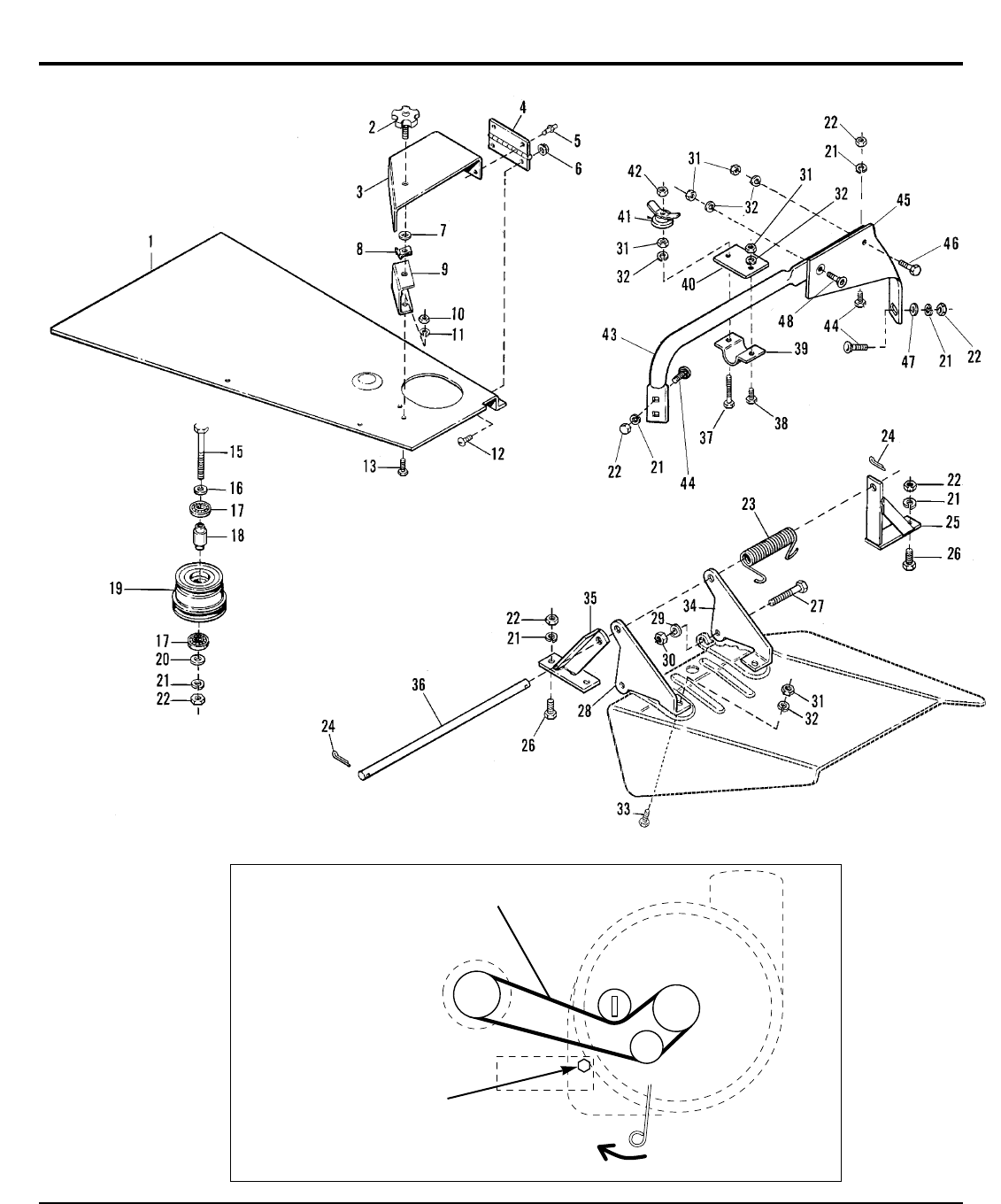

47” Two Stage Snowthrower - Discharge Chute & Spout Rotator Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43108A

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

13 14 15

Snowthrower

Body

34 35

44 45 38 44

46 47 44

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Discharge Chute & Spout Rotator Group

1 1717490 1 CHUTE ASSEMBLY (w/ Deflector)

2 1709642 4 RETAINER, Chute

3 1921958 6 CAPSCREW, Hex Hd, 1/4-20 x 1/2

4 1916964 10 WASHER, Lock, 1/4

5 1916622 10 NUT, Hex, 1/4-20

6 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

7 1924874 4 WASHER, 5/16

8 1919438 2 NUT, Hex Nylon Lock, 5/16-18

9 1923341 2 CAPSCREW, Hex Hd, 1/4-20 x 3/4

10 1921319 2 WASHER, 1/4

11 1709644 1 GUARD, Chute

12 1709645 1 GASKET, Chute

13 1960126 2 NUT, Push, 1/4

14 1921319 2 WASHER, 1/4

15 1702219 3 SPACER

16 1611945 1 ROD, Spring, 5/16

17 1611939 1 SPRING, Compression

18 1717482 1 CABLE ASSEMBLY

19 1924009 2 CAPSCREW, Hex Hd, 1/4-20 x 7/8

20 1960151 2 WASHER, 1/4

21 1916964 2 WASHER, Lock, 1/4

22 1916622 2 NUT, Hex, 1/4-20

23 1705920 1 BRACKET, Cable Mounting

31 1709648 2 BUSHING, Turn Collar

32 1960528 2 WASHER, 3/4

33 1709647 1 WORM GEAR ASSEMBLY

34 1960010 1 WASHER, 3/4

35 1709642 4 RETAINER, Chute

36 1923341 2 CAPSCREW, Hex Hd, 1/4-20 x 3/4

37 1709649 1 BRACKET, Support

38 1923358 3 NUT, Hex Lock,1/4-20

39 1921319 1 WASHER, 1/4

40 1960579 1 SCREW, Truss Head, Phillips, 1/4-20 x 1-5/8

41 1715886 1 ADAPTER, Motor

42 1933896 1 NUT, Hex Nylon Lock, #10-24

43 1708008 1 CLAMP, Cable, 1/4

44 1924009 5 CAPSCREW, Hex Hd, 1/4-20 x 7/8

45 1668500 1 BRACKET

46 1916964 5 WASHER, Lock, 1/4

47 1717086 1 SUPPORT ASSEMBLY

48 1717483 1 WIRE HARNESS

49 1916622 2 NUT, Hex, 1/4-20

50 1715885 1 MOTOR, Electric

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Hitch Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43109A

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

10 11 12

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Hitch Group

1 1675523 2 EYEBOLT, 3/8-16

2 1716492 1 SPACER

3 1916951 2 NUT, Hex, 1/2-13

4 1916966 2 WASHER, Lock, 1/2

5 1716926 1 BAR, Lift, Front

6 1716920 1 LIFT BAR ASSEMBLY

7 1921525 2 CAPSCREW, Hex Hd, 1/2-13 x 1-3/4

8 1716357 2 ANCHOR, Front

9 8031007 2 SET COLLAR

10 1928721 2 SETSCREW, Sqr Hd, Cup Point, 5/16-18 x 1/2

11 1675502 1 PIVOT ASSEMBLY, Hitch

12 176012 2 CLIP, Safety

13 1960038 2 PIN, Clevis, 5/8 x 2-1/4

14 175647 1 SPACER

15 1716460 1 SHAFT, 5/8 Dia.

16 1708999 1 SHAFT, Inner

17 1717089 1 HITCH ASSEMBLY

18 1675524 2 SPRING, Compression

19 1917421 2 NUT, Hex Jam, 3/8-16

20 1960071 2 WASHER, 3/8

21 1916950 2 NUT, Hex, 3/8-16

22 1676959 2 STUD, 3/4-10 UNC-2A

23 1913160 2 NUT, Hex, 3/4-10

24 1919332 2 WASHER, Lock, 3/4

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Decal Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43110A

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

47” Two Stage Snowthrower - Decal Group

1 * 1 DECAL, OPEI

2 1716533 1 DECAL, Danger, Blower

3 1716531 1 DECAL, Caution

4 1716532 1 DECAL, Danger, Auger

5 1709688 2 DECAL, Danger, Shot-Pins

6 1709689 1 DECAL, Danger, Rotating Driveline

7 1709690 1 DECAL, Important, Shear Bolt

8 1716540 1 DECAL, Caution, Rear Wheel Weights

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not a Servicable Part.

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

60” Dozer Blade Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43111A

The above parts group applies to the following Mfg. Nos.:

1692924 60” Manual Anglng Dozer Blade

1692925 60” Hudraulic Angling Dozer Blade

TP-400-2156-00-AT-SMA

60” Dozer Blade Assembly

1 1717537 1 BLADE ASSEMBLY, 60”

2 107106 2 SHOE ASSEMBLY

3 1924940 4 WASHER, 3/8

4 916965 13 WASHER, Lock, 3/8

5 1921965 4 CAPSCREW, Hex Hd, 3/8-16 x 3/4

6 916950 9 NUT, Hex, 3/8-16

7 1931350 9 CARRIAGE BOLT, 3/8-16 x 1

8 1717542 1 PLATE, Wear

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692924 60” Manual Anglng Dozer Blade

1692925 60” Hudraulic Angling Dozer Blade

TP-400-2156-00-AT-SMA

Hitch Assembly - Manual Angling Attachments

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43112A

The above parts group applies to the following Mfg. Nos.:

1692924 60” Manual Anglng Dozer Blade

1693245 Sweepster Rotary Broom Hitch

345

11 12

910

TP-400-2156-00-AT-SMA

Hitch Assembly - Manual Angling Attachments

1 1679055 2 EYEBOLT, 3/8-16

2 1716492 1 SPACER

3 1916951 2 NUT, Hex, 1/2-13

4 1916966 2 WASHER, Lock, 1/2

5 1716926 1 BAR, Lift, Front

6 1716920 1 LIFT BAR ASSEMBLY

7 1921525 2 CAPSCREW, Hex Hd, 1/2-13 x 1-3/4

8 1716357 2 ANCHOR, Front

9 8031007 2 SET COLLAR

10 1928721 2 SETSCREW, Sqr Hd, Cup Point, 5/16-18 x 1/2

11 1675502 1 PIVOT ASSEMBLY, Hitch

12 1960033 4 CLIP, Hairpin

13 1960038 2 PIN, Clevis, 5/8 x 2-1/4

14 175647 1 SPACER

15 1716460 1 SHAFT, 5/8 Dia.

16 1708999 1 SHAFT, Inner

17 1717557 1 HITCH ASSEMBLY

18 1675524 2 SPRING, Compression

19 1917421 2 NUT, Hex Jam, 3/8-16

20 1960071 2 WASHER, 3/8

21 916950 2 NUT, Hex, 3/8-16

22 1676959 2 STUD, 3/4-10 UNC-2A

23 1913160 2 NUT, Hex, 3/4-10

24 1919332 2 WASHER, Lock, 3/4

25 1717557 1 HITCH ASSEMBLY

26 1717562 1 LATCH

27 921469 2 PIN, Spring, 7/32 x 1

28 107135 1 SPRING, Extension

29 1717544 1 FRAME ASSEMBLY

30 1920328 2 CAPSCREW, Hex Hd, 1/2-13 x 1-1/2

31 105051 2 SPACER

32 1922134 2 NUT, Lock, 1/2-13

33 101126 4 SPRING, Extension

34 107121 4 EYEBOLT, 5/16-18

35 1917372 8 NUT, Hex, 5/16-18

36 1919314 2 PIN, Cotter, 3/16 x 1-1/4

37 174066 1 PIN, Pivot

38 1960033 1 CLIP, Hairpin

39 * 1 ROD (1693245 Only)

39 1717561 1 ROD (Used on 1692924 Only)

40 1717556 1 PLATE, Control

41 1960221 3 CLIP, Hairpin

42 1673574 1 PIN, 5/16 x 1-1/8

43 1717565 1 SUPPORT ARM ASSEMBLY

44 1717536 1 CONTROL CABLE ASSEMBLY

45 172162 1 EYEBOLT, 1/4-20

46 1925003 1 CAPSCREW, Hex Washer Hd, Taptite, 1/4-20 x 1/2

47 1706144 1 CAPSCREW, Hex Hd, 1/4-20 x 1-1/2

48 1923358 2 NUT, Hex Lock,1/4-20

49 916001 1 PIN, Roll, 3/16

50 1717560 1 LEVER, Latch Control

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

NOTE: reference Nos. 51-53 on following page.

* Part Sold by Sweepster Inc.

2800 N. Zeeb Rd

Dexter, MI 48130

(800) 456-7100 or (313) 996-9116

The above parts group applies to the following Mfg. Nos.:

1692924 60” Manual Anglng Dozer Blade

1693245 Sweepster Rotary Broom Hitch

TP-400-2156-00-AT-SMA

Hitch Assembly - Manual Angling Attachments — Continued

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43112A

The above parts group applies to the following Mfg. Nos.:

1692924 60” Manual Anglng Dozer Blade

1693245 Sweepster Rotary Broom Hitch

345

11 12

910

TP-400-2156-00-AT-SMA

Hitch Assembly - Manual Angling Attachments — Continued

51 1717569 1 GRIP, Black Plastic

52 1028100 GRIP, Black Vinyl

53 1717559 1 HANDLE, Upper

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

NOTE: reference Nos.51-50 on previous page.

* Part Sold by Sweepster Inc.

2800 N. Zeeb Rd

Dexter, MI 48130

(800) 456-7100 or (313) 996-9116

The above parts group applies to the following Mfg. Nos.:

1692924 60” Manual Anglng Dozer Blade

1693245 Sweepster Rotary Broom Hitch

TP-400-2156-00-AT-SMA

Hitch Assembly - Hydraulic Angling Attachments

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43113A

The above parts group applies to the following Mfg. Nos.:

1692925 60” Hudraulic Angling Dozer Blade

345

TP-400-2156-00-AT-SMA

Hitch Assembly - Hydraulic Angling Attachments

1 1679055 2 EYEBOLT, 3/8-16

2 1716492 1 SPACER

3 1916951 2 NUT, Hex, 1/2-13

4 1916966 2 WASHER, Lock, 1/2

5 1716926 1 BAR, Lift, Front

6 1716920 1 LIFT BAR ASSEMBLY

7 1921525 2 CAPSCREW, Hex Hd, 1/2-13 x 1-3/4

8 1716357 2 ANCHOR, Front

9 8031007 2 SET COLLAR

10 1928721 2 SETSCREW, Sqr Hd, Cup Point, 5/16-18 x 1/2

11 1675502 1 PIVOT ASSEMBLY, Hitch

12 1960033 4 CLIP, Hairpin

13 1960038 2 PIN, Clevis, 5/8 x 2-1/4

14 175647 1 SPACER

15 1716460 1 SHAFT, 5/8 Dia.

16 1708999 1 SHAFT, Inner

17 1717557 1 HITCH ASSEMBLY

18 1675524 2 SPRING, Compression

19 1917421 2 NUT, Hex Jam, 3/8-16

20 1960071 2 WASHER, 3/8

21 916950 2 NUT, Hex, 3/8-16

22 1676959 2 STUD, 3/4-10 UNC-2A

23 1913160 2 NUT, Hex, 3/4-10

24 1919332 2 WASHER, Lock, 3/4

25 1717557 1 HITCH ASSEMBLY

26 1717544 1 FRAME ASSEMBLY

27 1920328 2 CAPSCREW, Hex Hd, 1/2-13 x 1-1/2

28 105051 2 SPACER

29 1922134 2 NUT, Lock, 1/2-13

30 101126 4 SPRING, Extension

31 107121 4 EYEBOLT, 5/16-18

32 1917372 8 NUT, Hex, 5/16-18

33 1919314 2 PIN, Cotter 3/16 x 1-1/4

34 174066 1 PIN, Pivot

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692925 60” Hudraulic Angling Dozer Blade

Male

Female

Male

Female

Hose

1718416

1/2 x 75"

Female

Single Spool

Control Valve

(From Tractor)

1717558

Angling

Cylinder

1677214

Single Spool

Power Beyond Valve

1718418

OUT

BYD

Tractor

Front

Threads

Hose

Clamp

960266

Hose Clamp

960266

Hex Fitting

“T” Connector

1674768

Beaded

End

Dozer

Hose

1718415

23/32 x 40"

Hose

1718413

5/8 x 9"

Hose

1718411

23/32 x 17"

Hose

1718590

1/2 x 28"

OUT

From Power

Steering

To Power

Steering

To Hydro Pump

Metal Crossover

Tube (Return)

1718414

Metal Crossover

Tube (Pressure)

1718412

TP-400-2156-00-AT-SMA

Hydraulic System Diagram - Hydraulic Angling Attachments

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43114A

The above parts group applies to the following Mfg. Nos.:

1692925 60” Hudraulic Angling Dozer Blade

1692931 Hydraulic Anglng Kit

TP-400-2156-00-AT-SMA

Hydraulic System Diagram - Hydraulic Angling Attachments

1 960266 4 CLAMP, Hose, Worm

2 1674768 1 FITTING, Hose, Tee

3 1677214 1 CYLINDER, Angling

4 1718411 1 HOSE ASSEMBLY, 23/32” x 17”

5 1718412 1 TUBE, Metal Cross-Over (Pressure)

6 1718413 1 HOSE, Hydraulic 3/8” ID x 9”

7 1718414 1 TUBE, Metal Cross-Over (Return)

8 1718415 2 HOSE, Hydraulic, 23/32” x 40”

9 1718416 2 HOSE, Hydraulic, 1/2” x 75”

10 1718418 1 CONTROL VALVE, Single Spool, Power Beyond

11 1718590 2 HOSE, Hydraulic, 1/2” x 28”

12 1717558 1 CONTROL VALVE, Single Spool (From Tractor)

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Refer to Hydraulic System Diagram, Control Tower Group and Cylinder Mounting Group for Additional

Part Numbers and Locations.

The above parts group applies to the following Mfg. Nos.:

1692925 60” Hudraulic Angling Dozer Blade

1692931 Hydraulic Anglng Kit

TP-400-2156-00-AT-SMA

Control Tower Group - Hydraulic Anging Attachments

1 173358 5 QUICK CONNECTOR, Female Nose Piece Assembly

2 1960571 2 CAPSCREW, Hex Washer Hd, Taptite, 1/4-20 X 1-3/4

3 173359 5 QUICK CONNECTOR, Male Nose Piece Assembly

4 1718578 1 HOSE, Hydraulic, 1/2” x 11”

5 1701011 5 TIE, Self-Locking

6 1960286 1 CAPSCREW, Hex Hd, 1/2-13 X 3-1/2

7 1926159 2 CAPSCREW, Hex Hd, 1/2-13 x 5, Gr 8

8 1717642 2 PLATE, Clamp, 5/16

9 1921332 4 CAPSCREW, Hex Hd, 5/16-18 X 3/4

10 1717648 1 TOWER ASSEMBLY

11 1718415 2 HOSE, Hydraulic, 23/32” x 40”

12 1718416 2 HOSE, Hydraulic, 1/2” x 75”

13 1717558 1 CONTROL VALVE, Single Spool (From Tractor)

14 1718429 1 PLATE ASSEMBLY, Control Valve Mounting

15 1718431 1 TUBE ASSEMBLY, Control Tower Pivot

16 922522 2 FITTING, Tube, Male, Short

17 931230 1 FITTING, Tube, Male, Tall

18 1718434 1 KIT, Control Lever & Pin

19 1718435 2 FITTING, Tube, Male

20 1916951 3 NUT, Hex, 1/2-13

21 1916966 3 WASHER, Lock, 1/2

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Refer to Hydraulic System Diagram, Control Tower Group and Cylinder Mounting Group for Additional

Part Numbers and Locations.

The above parts group applies to the following Mfg. Nos.:

1692925 60” Hudraulic Angling Dozer Blade

1692931 Hydraulic Anglng Kit

Cross-Over Tube

Mounting Hardware

OUT

BYD

TP-400-2156-00-AT-SMA

Cylinder Mounting Group - Hydraulic Anging Attachments

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43116A

The above parts group applies to the following Mfg. Nos.:

1692925 60” Hudraulic Angling Dozer Blade

1692931 Hydraulic Anglng Kit

TP-400-2156-00-AT-SMA

Cylinder Mounting Group - Hydraulic Anging Attachments

1 173358 5 QUICK CONNECTOR, Female Nose Piece Assembly

2 173359 5 QUICK CONNECTOR, Male Nose Piece Assembly

3 1960373 2 CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 X 1

4 919171 2 FITTING, Cylinder, Male

5 922523 1 FITTING, Elbow

6 1677214 1 CYLINDER, Angling

7 1700394 1 PIN, Cylinder, 5/8

8 1718590 2 HOSE, Hydraulic, 1/2” x 28”

9 1717647 1 FITTING, Pressure Beyond Port

10 1918452 3 PIN, Cotter

11 1960277 1 PIN, Yoke

12 1718418 1 CONTROL VALVE, Single Spool, Power Beyond

13 1718420 2 CLAMP, Metal Cross Over Tube Retaining

14 1718436 2 FITTING, Tube, Male

15 1920283 2 WASHER, 5/16

16 1917356 2 WASHER, Lock, 5/16

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Refer to Hydraulic System Diagram, Control Tower Group and Cylinder Mounting Group for Additional

Part Numbers and Locations.

The above parts group applies to the following Mfg. Nos.:

1692925 60” Hudraulic Angling Dozer Blade

1692931 Hydraulic Anglng Kit

Exhaust Elbow

TP-400-2156-00-AT-SMA

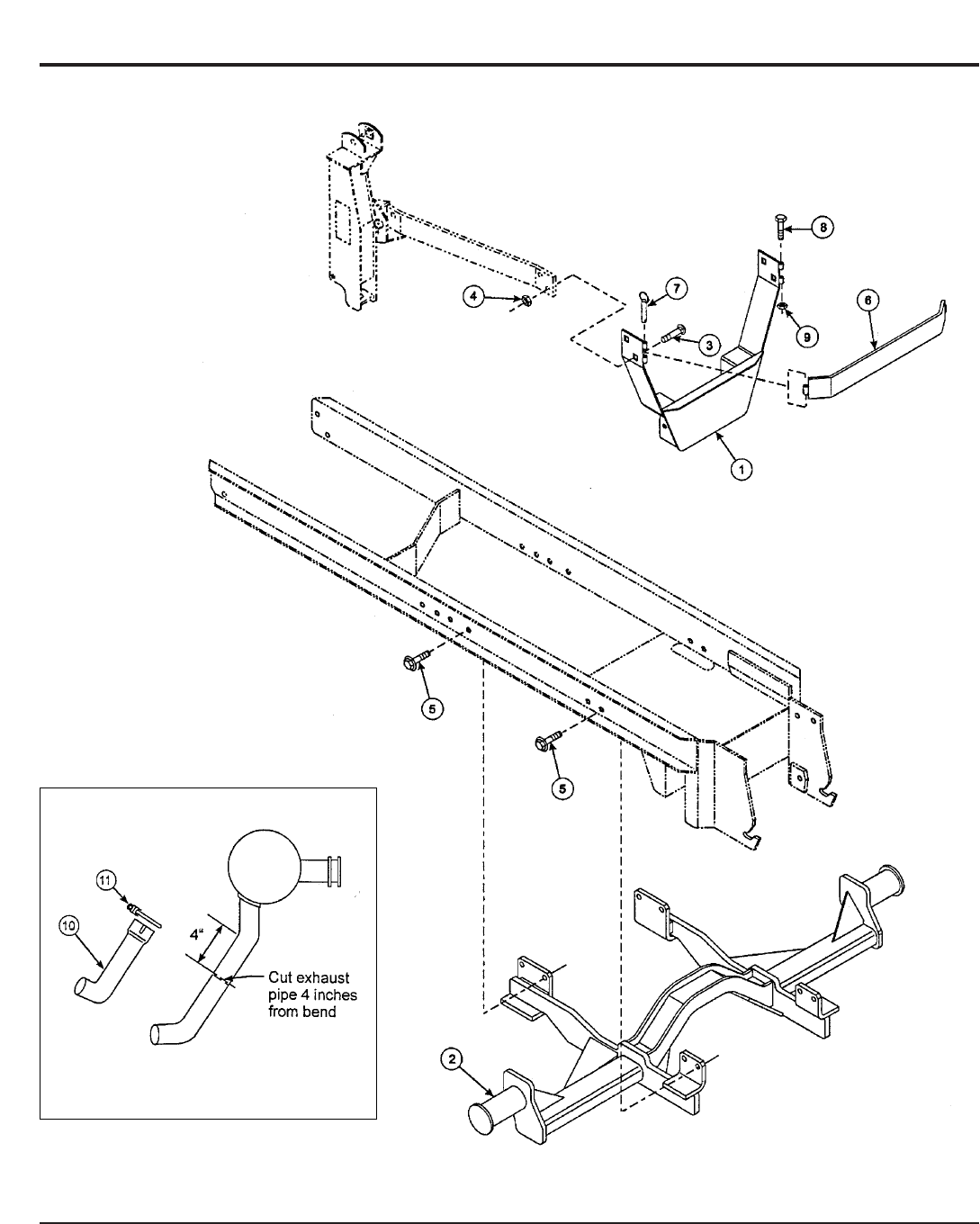

Front End Loader - Mid Hitch Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43117A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

Front End Loader - Mid Hitch Group

1 1718154 1 BRACKET, Front Mounting

2 1718155 1 BRACKET, Mid Mounting

3 1960489 4 CARRIAGE BOLT, 1/2-13 x 1-1/2

4 1922134 4 NUT, Lock, 1/2-13

5 1933260 8 CAPSCREW, Hex Flange Hd, Whiz Lock, 3/8-16 x 3/4

6 1718158 1 BUMPER

7 1718159 1 PIN, Locking, 3/8-16 x 4

8 1922648 1 CAPSCREW, Hex Hd, 3/8-16 x 4

9 1930651 1 NUT, Hex Lock, 3/8-16

10 1708761 1 ELBOW, Exhaust

11 1712286 1 CLAMP, Exhaust

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

Front End Loader - Main Frame & Buckets

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43118A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

1691311 48” Bucket

Bucket Components

TP-400-2156-00-AT-SMA

Front End Loader - Main Frame & Buckets

1 1718163 1 BOOM

2 1700531 1 ROD, Indicator

3 1700525 1 GUIDE TUBE, Indicator Rod

4 1718161 1 SIDE FRAME, Left

5 1718162 1 SIDE FRAME, Right

6 1918454 1 PIN, Cotter, 5/32 x 1-1/2

7 1700559 1 DECAL, Warning

8 1700557 1 DECAL, Warning

9 1700558 1 DECAL, Caution

10 1718166 2 CYLINDER, Lift (See SERVICE PARTS - Lift Cylinder)

11 915019 2 FITTING, Grease

12 1700524 4 PIN, Cylinder Base, 3/4 x 2-1/2

13 1718169 2 CYLINDER, Bucket (See SERVICE PARTS - Bucket Cylinder)

14 1718170 2 PIN, 3/4 x 4

15 1921024 2 CAPSCREW, Hex Hd, 1/2-13 x 2

16 1922134 2 NUT, Lock, 1/2-13

17 1960170 2 WASHER, 1/2

18 1718174 2 HINGE

19 1921961 2 CAPSCREW, Hex Hd,1/4-20 x 1-1/4

20 1923358 2 NUT, Hex Lock,1/4-20

21 1923353 2 NUT, Hex Lock, 5/8-11

22 1700532 1 PIN, 3/4 x 3-1/4

23 1700533 2 PIN, 3/4 x 3-1/4

24 1700534 1 PIN, 3/4 x 3-1/4

25 1921024 2 CAPSCREW, Hex Hd, 1/2-13 x 2

26 912808 10 FITTING, Grease, 1/4-28

27 960300 2 CARRIAGE BOLT, 5/8-11 x 3-1/2

28 960323 10 SHOULDER BOLT, 3/8-16 x 1

29 1930651 12 NUT, Hex Lock, 3/8-16

30 1700549 1 DECAL, Caution

31 * 1 BUCKET ASSEMBLY, 48”

32 1700546 2 CUTTING EDGE, Side (Weld on part)

33 1700548 1 CUTTING EDGE, Bottom, 48” (Weld on part)

34 1700549 1 DECAL, Caution

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Order Bucket (Ref 31) as whole goods item (1691311).

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

1691311 48” Bucket

TP-400-2156-00-AT-SMA

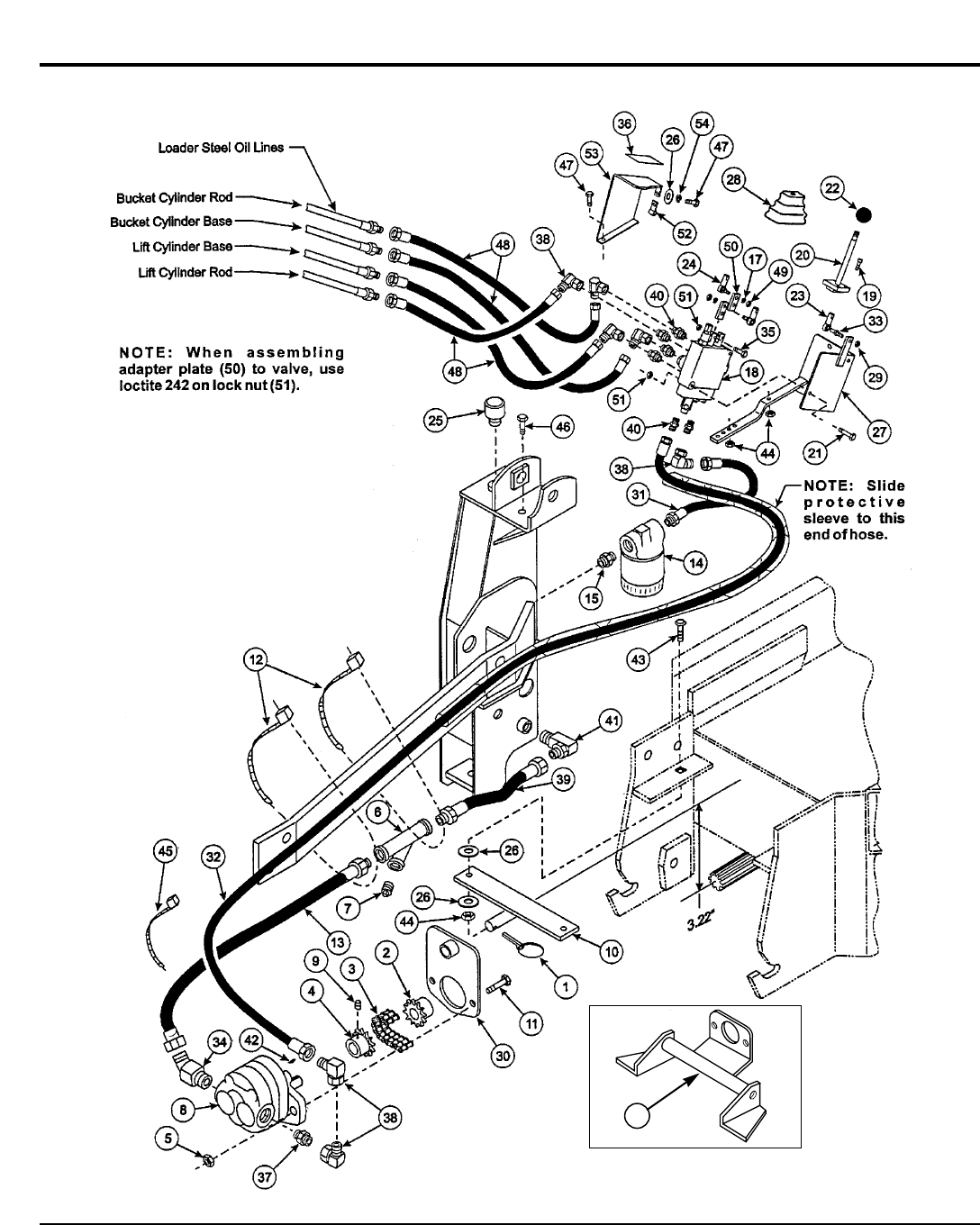

Front End Loader - Main Hydraulics

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43119A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

Pump Mounting Bracket

- Later Models

TP-400-2156-00-AT-SMA

Front End Loader - Main Hydraulics

1 1709189 1 PIN, Klik, 3/16 x 1-5/8

2 1700484 1 SPROCKET, w/ Spline Hub

3 1700485 1 CHAIN, Roller, #40-2 x 12 Pitches

4 1700486 1 SPROCKET, w/ Keyway Hub

5 1930651 2 NUT, Hex Lock, 3/8-16

6 1700490 1 Y-STRAINER

7 1673452 1 PLUG, Pipe, 3/8 NPT

8 1700493 1 PUMP, (See SERVICE PARTS - Hydraulic Gear Pump)

9 1930545 1 SETSCREW, Socket Head, 1/4-20 x 1/4

10 1718180 1 BRACKET, Pin Assembly

11 1920415 2 CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

12 1701011 2 TIE, Self-Locking

13 1718450 1 TUBE, Oil Line, (BCB), 1/2 x 28, Suction

14 1700500 1 FILTER ASSEMBLY

15 1700499 1 FITTING, Adapter, 3/8 x 3/8

16 1916622 2 NUT, Hex, 1/4-20

17 1916964 2 WASHER, Lock, 1/4

18 1700502 1 VALVE, (See SERVICE PARTS - Hydraulic Valve Assembly)

19 1960503 3 CAPSCREW, Hex Socket Hd, 1/4-28 x 3/4

20 1718461 1 HANDLE

21 1921963 2 CAPSCREW, Hex Hd,1/4-20 x 2

22 1718458 1 BALL

23 1718459 1 BALL JOINT, Female

24 1718460 2 BALL JOINT, Male

25 1700509 1 CAP, Breather

26 1919326 5 WASHER, 5/16

27 1718185 1 BRACKET, Valve Mounting

28 1718462 1 BOOT

29 1960262 1 NUT, Hex, 1/4-28

30 1718187 1 BRACKET, Pump Mounting

31 1718463 1 HOSE, Hydraulic, 3/8 x 11 (valve to filter)

32 1718464 1 HOSE, Hydraulic, 3/8 x 63 (pressure)

33 1718465 1 STUD, Ball Joint

34 1718466 1 FITTING, 7/8 O-Ring x 7/8 JIC, 45 Degree (outlet port on pump)

35 1923341 2 CAPSCREW, Hex Hd, 1/4-20 x 3/4

36 1718467 1 DECAL, Single Handle

37 1718194 1 FITTING, 3/4 O-Ring x 9/16 JIC

38 1718195 7 FITTING, 9/16 JIC x 91/6 JIC, 90 Degree (between outlet fitting pump & hose)

39 1718468 1 HOSE, Hydraulic, 1/2 x 16

40 922522 6 FITTING, 9/16 O-Ring x 9/16 JCI

41 1718470 1 FITTING 3/4 JIC x 1/2 NPTF, 90 Degree

42 * 1 WOODRUFF KEY, 1/8 x 5/8 (comes with pump)

43 1931335 2 CARRIAGE BOLT, 5/16-18 x 1

44 1923362 5 NUT, Hex Lock, 5/16-18

45 1701011 3 TIE, Self Locking

46 1921977 2 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

47 1921333 2 CAPSCREW, Hex Hd, 5/16-18 X 1

48 1718471 4 HOSE, Hydraulic, 3/8 x 24

49 1960262 2 NUT, Hex, 1/4-28

50 1718472 2 ADAPTER PLATE

51 1923358 4 NUT, Hex Lock,1/4-20

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

NOTE: Ref. Nos. 52-55 on the following page.

* Not available for order as a Service Part.

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

Front End Loader - Main Hydraulics — Continued

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43119A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

Pump Mounting Bracket

- Later Models

TP-400-2156-00-AT-SMA

Front End Loader - Main Hydraulics — Continued

52 1718873 1 SPEEDNUT

53 1718474 1 COVER

54 1917356 1 WASHER, Lock, 5/16

55 1719120 1 BRACKET, Pump Mounting (Replaces Ref. Nos. 1, 10, 26, 30, 43, & 44) in

Later Models

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

NOTE: Ref. Nos. 1-51 on the previous page.

* Not available for order as a Service Part.

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

Front End Loader - Boom Hydraulics

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43120A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

Front End Loader - Boom Hydraulics

1 1718450 1 TUBE, Oil Line, (BCB)

2 1718451 1 TUBE, Oil Line, (BCR)

3 1718452 1 TUBE, Oil Line, (LCB)

4 1718453 1 TUBE, Oil Line, (LCB)

5 1700518 2 HOSE, 1/4 x 10-1/2

6 1700519 2 HOSE, 1/4 x 15

7 922523 8 FITTING, Elbow, 9/16 x 9/16, 90 Degree

8 1700508 2 HOSE, 1/4 x 20

9 1718455 2 HOSE, 1/4 x 34

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

Upstop Capscrew

Slide Under Wing Nut

Place Over Nut Bracket Capscrews

Mounting Plate - 48” Models

TP-400-2156-00-AT-SMA

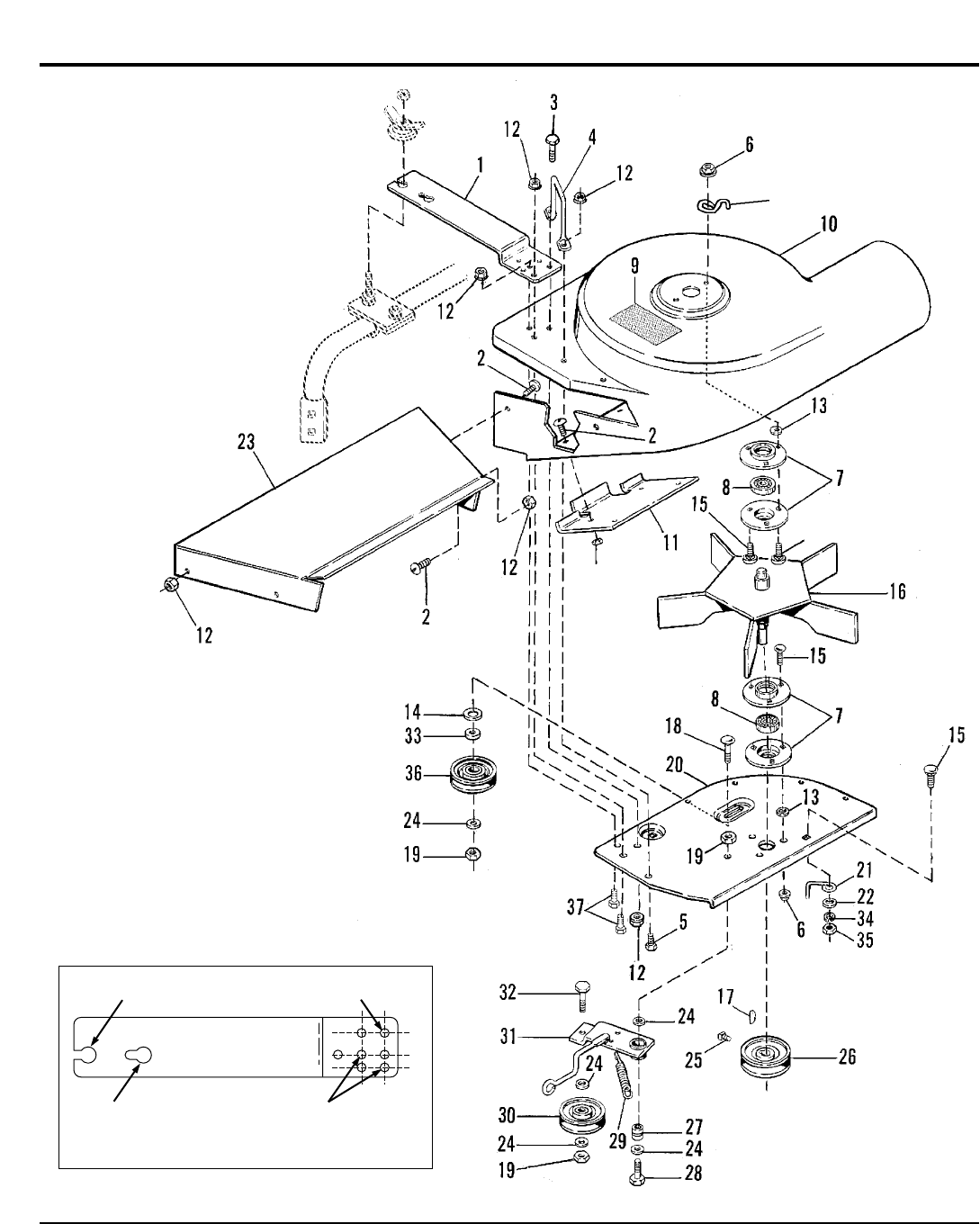

48” Turbo - Turbo Blower Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43121A

The above parts group applies to the following Mfg. Nos.:

1692936 48” Turbo

TP-400-2156-00-AT-SMA

48” Turbo - Turbo Blower Assembly

1 1679897 1 PLATE, Mounting

2 1921959 9 CAPSCREW, Hex Hd,1/4-20 x 5/8

3 1960346 1 CAPSCREW, Hex Hd,1/4-20 x 2-1/4

4 1700936 1 STOP, Deflector

5 1924009 1 CAPSCREW, Hex Hd, 1/4-20 x 7/8

6 1927557 6 NUT, Hex Flange Whiz Lock, 5/16-18

7 1665982 4 RETAINER, Bearing

8 108202 2 BEARING

9 1700259 1 DECAL, Danger

10 1706654 1 HOUSING, Blower (Incl. Ref. No. 9)

11 1679900 1 HOOK, Stone Guard

12 1930641 13 NUT, Hex Flange Whiz Lock, 1/4-20

13 1933988 6 NUT, Push, 5/16

14 1676435 1 WASHER, Plain,1/2

15 1931333 6 CARRIAGE BOLT, 5/16-18 x 3/4

16 1706631 1 FAN ASSEMBLY (5 Blade)

17 960403 1 KEY, Woodruff, 3/16

18 1960268 1 CARRIAGE BOLT, 3/8-16 x 1-1/4

19 1928731 3 NUT, Hex Jam Lock, 3/8-16

20 1706652 1 PLATE, Shroud

21 170397 1 STOP, Belt

22 1919326 1 WASHER, 5/16

23 1702553 1 COVER, Top

24 1924940 5 WASHER, 3/8

25 1928691 1 SETSCREW, Sqr Hd, 5/16-18 x 3/8

26 1706634 1 PULLEY, Driven

27 1666114 1 SPACER

28 1921969 1 CAPSCREW, Hex Hd, 3/8-16 x 1-1/2

29 1679554 1 SPRING, Extension

30 174561 1 PULLEY, Idler, Adjustable

31 1701827 1 IDLER ARM ASSEMBLY

32 1921210 1 CAPSCREW, Hex Hd, 3/8-16 x 1

33 157424 1 WASHER, Special, 3/8

34 1917356 1 WASHER, Lock, 5/16

35 1917372 1 NUT, Hex, 5/16-18

36 1708030 1 PULLEY, Idler, Fixed

37 1923341 2 CAPSCREW, Hex Hd, 1/4-20 x 3/4

38 1931334 1 CARRIAGE BOLT, 5/16-18 x 7/8

39 1672689 1 S-HOOK

40 1920397 4 NUT, Hex Nylon Lock, 1/4-20

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692936 48” Turbo

TP-400-2156-00-AT-SMA

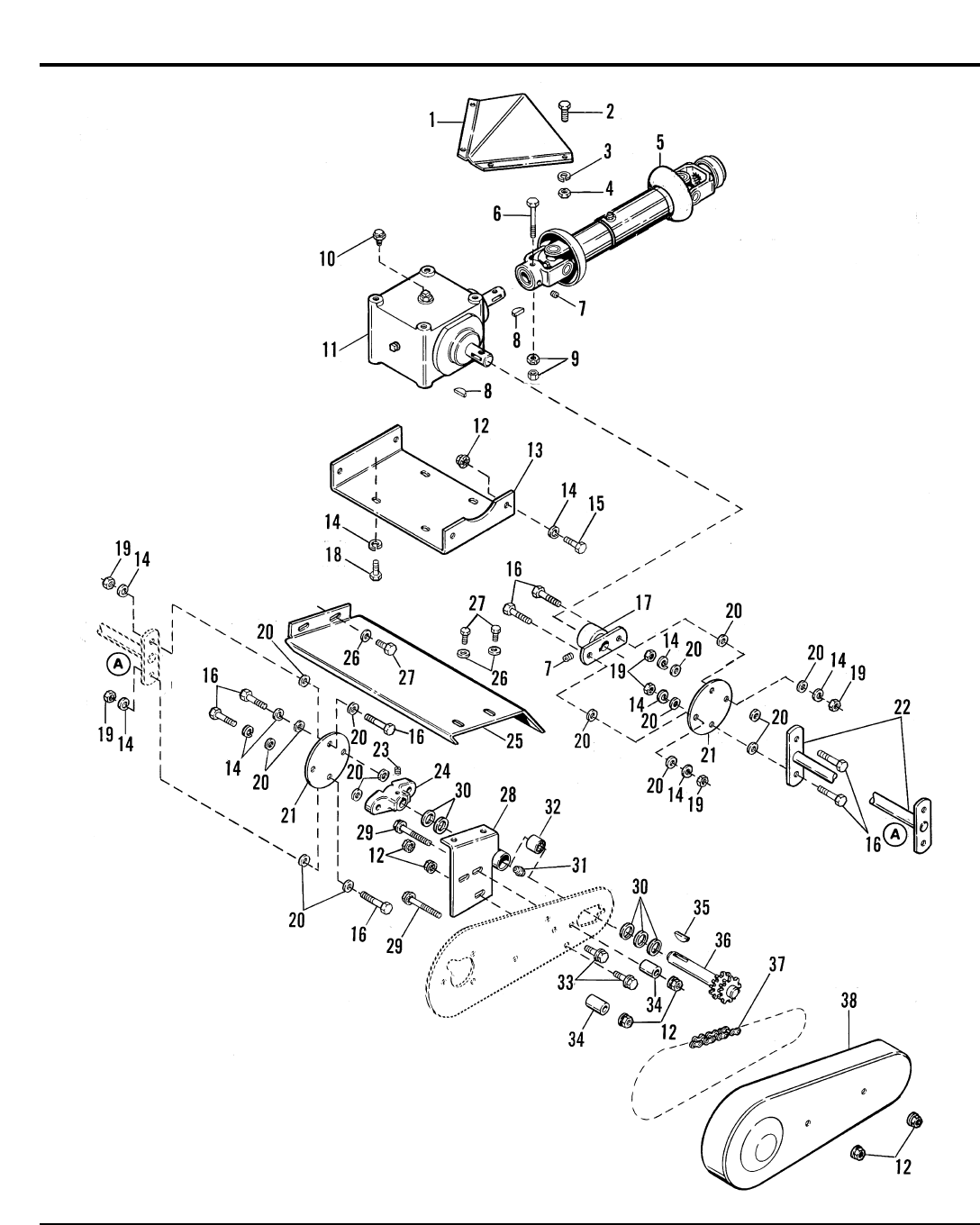

48” Turbo - Mounting Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43122A

The above parts group applies to the following Mfg. Nos.:

1692936 48” Turbo

Capscrew Ref. No. 4

Belt Routing

1 1923362 1 NUT, Hex Lock, 5/16-18

2 1679163 1 NUT & CUP ASSEMBLY

3 1679897 1 PLATE, Mounting

4 1960346 1 CAPSCREW, Hex Hd,1/4-20 x 2-1/4

5 1700936 1 STOP, Deflector

6 1930641 13 NUT, Hex Flange Whiz Lock, 1/4-20

7 * 1 TURBO ASSEMBLY

8 1923341 2 CAPSCREW, Hex Hd, 1/4-20 x 3/4

9 1924009 1 CAPSCREW, Hex Hd, 1/4-20 x 7/8

10 1700851 1 SPRING, Torsion

11 1926110 2 CAPSCREW, Hex Hd, 7/16-14 x 2-3/4

12 ** 1 DEFLECTOR ASSEMBLY (From Mower).

13 1918199 2 WASHER, Lock, 7/16

14 1918213 2 NUT, Hex, 7/16-14

15 1917372 4 NUT, Hex, 5/16-18

16 1917356 4 WASHER, Lock, 5/16

17 1923325 2 CAPSCREW, Hex Hd, 5/16-18 x 7/8

18 1916950 5 NUT, Hex, 3/8-16

19 1916965 5 WASHER, Lock, 3/8

20 1679914 1 V-BELT

21 1931350 2 CARRIAGE BOLT, 3/8-16 x 1

22 1960373 5 CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 X 1

23 1700800 1 ROD, Hinge

24 1924940 1 WASHER, 3/8

25 1921977 1 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

26 1709327 1 BRACKET, Support

27 1960486 1 SCREW, Flat Hd, Hex Socket, 5/16-18 x 1-1/4

28 1921210 2 CAPSCREW, Hex Hd, 3/8-16 x 1

29 1925205 1 CAPSCREW, Hex Hd, 5/16-18 x 5/8

30 1960318 1 CAPSCREW, Hex Hd, 5/16-18 x 2-1/2

31 1679898 1 CLAMP, Lower

32 1677651 1 BRACE, Bracket Support

33 1700638 1 CLAMP, Upper

34 1917372 3 NUT, Hex, 5/16-18

35 1917356 3 WASHER, Lock, 5/16

36 1935255 1 NUT, Speed, 5/16-18

37 1700797 1 PIVOT ASSEMBLY, Deflector

38 1679903 1 PULLEY ASSEMBLY

39 1927120 1 CAPSCREW, Hex Hd, 7/16-14 x 2-1/4

40 1700013 1 COVER, LH Mower

41 1708511 3 SPACER

42 922121 2 SCREW, Rd Hd Machine, #10-32 x 3/8

43 1928919 2 NUT, Hex Flange, #10-32

44 1674020 1 PLUG, Mower Cover

45 1933988 1 NUT, Push, 5/16

46 1700649 1 HINGE

47 1700728 1 COVER, Belt (Includes Ref. No. 46 & 51)

48 1700669 1 KNOB, Plastic

49 1700802 1 BRACKET, RH Pivot

50 1700801 1 BRACKET, LH Pivot

51 928707 2 POP-RIVET, 3/16 x 5/16

TP-400-2156-00-AT-SMA

48” Turbo - Mounting Group

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not Sold Separately

** Original Mower Deck Part

The above parts group applies to the following Mfg. Nos.:

1692936 48” Turbo

TP-400-2156-00-AT-SMA

60” Turbo - Turbo Blower Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43123A

The above parts group applies to the following Mfg. Nos.:

1692937 60” Turbo

Upstop Capscrew

Slide Under Wing Nut

Place Over Nut Bracket Capscrews

Mounting Plate - 60” Models

TP-400-2156-00-AT-SMA

60” Turbo - Turbo Blower Assembly

1 1679912 1 PLATE, Mounting

2 1921959 5 CAPSCREW, Hex Hd,1/4-20 x 5/8

3 1960346 1 CAPSCREW, Hex Hd,1/4-20 x 2-1/4

4 1700936 1 STOP, Deflector

5 1924009 1 CAPSCREW, Hex Hd, 1/4-20 x 7/8

6 1927557 6 NUT, Hex Flange Whiz Lock, 5/16-18

7 1665982 4 RETAINER, Bearing

8 108202 2 BEARING

9 1700259 1 DECAL, Danger

10 1706718 1 HOUSING, Blower (Incl. Ref. No. 9)

11 1679900 1 HOOK, Stone Guard

12 1930641 13 NUT, Hex Flange Whiz Lock, 1/4-20

13 1933988 6 NUT, Push, 5/16

14 1676435 1 WASHER, Plain,1/2

15 1931333 6 CARRIAGE BOLT, 5/16-18 x 3/4

16 1706631 1 FAN ASSEMBLY (5 Blade)

17 960403 1 KEY, Woodruff, 3/16

18 1960268 1 CARRIAGE BOLT, 3/8-16 x 1-1/4

19 1928731 3 NUT, Hex Jam Lock, 3/8-16

20 1706652 1 PLATE, Shroud

21 170397 1 STOP, Belt

22 1919326 1 WASHER, 5/16

23 1702589 1 COVER, Top

24 1924940 5 WASHER, 3/8

25 1928691 1 SETSCREW, Sqr Hd, 5/16-18 x 3/8

26 1706634 1 PULLEY, Driven

27 1666114 1 SPACER

28 1921969 1 CAPSCREW, Hex Hd, 3/8-16 x 1-1/2

29 1679554 1 SPRING, Extension

30 174561 1 PULLEY, Idler, Adjustable

31 1701827 1 IDLER ARM ASSEMBLY

32 1921210 1 CAPSCREW, Hex Hd, 3/8-16 x 1

33 157424 1 WASHER, Special, 3/8

34 1917356 1 WASHER, Lock, 5/16

35 1917372 1 NUT, Hex, 5/16-18

36 1708030 1 PULLEY, Idler, Fixed

37 1923341 2 CAPSCREW, Hex Hd, 1/4-20 x 3/4

38 1931334 1 CARRIAGE BOLT, 5/16-18 x 7/8

39 1672689 1 S-HOOK

40 1920397 4 NUT, Hex Nylon Lock, 1/4-20

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692937 60” Turbo

TP-400-2156-00-AT-SMA

60” Turbo - Mounting Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43124A

The above parts group applies to the following Mfg. Nos.:

1692937 60” Turbo

Capscrew Ref No. 3,

Page 26

Belt Routing 14

TP-400-2156-00-AT-SMA

60” Turbo - Mounting Group

1 1717618 1 COVER, LH Mower

2 1700669 1 KNOB, Plastic

3 1700668 1 COVER ASSEMBLY, (Incl. Ref. Nos. 4 & 5)

4 1700649 1 HINGE

5 928707 2 POP-RIVET, 3/16 x 5/16

6 1928919 2 NUT, Hex Flange, #10-32

7 1933988 1 NUT, Push, 5/16

8 1935255 1 NUT, Speed, 5/16-18

9 1700654 1 BRACKET, Belt Cover

10 1916622 2 NUT, Hex, 1/4-20

11 1916964 2 WASHER, Lock, 1/4

12 922121 2 SCREW, Rd Hd Machine, #10-32 x 3/8

13 1921958 2 CAPSCREW, Hex Hd, 1/4-20 x 1/2

14 1679915 1 V-BELT

15 1922918 1 CAPSCREW, Hex Hd, 3/8-16 x 3-1/4

16 157424 1 WASHER, Special, 3/8

17 1705897 2 BEARING

18 1700651 1 SPACER, Pulley

19 1700650 1 PULLEY

20 1700652 1 SPACER

21 1916965 3 WASHER, Lock, 3/8

22 1916950 3 NUT, Hex, 3/8-16

23 1700852 1 SPRING, Torsion

24 1918447 2 PIN, Cotter, 3/32 x 3/4

25 1700832 1 HINGE ASSEMBLY, Rear

26 1921210 2 CAPSCREW, Hex Hd, 3/8-16 x 1

27 1926110 2 CAPSCREW, Hex Hd, 7/16-14 x 2-3/4

28 1700801 1 BRACKET, LH Pivot

29 1918199 2 WASHER, Lock, 7/16

30 1918213 2 NUT, Hex, 7/16-14

31 1917372 7 NUT, Hex, 5/16-18

32 1917356 7 WASHER, Lock, 5/16

33 1923325 2 CAPSCREW, Hex Hd, 5/16-18 x 7/8

34 1700802 1 BRACKET, RH Pivot

35 1700828 1 HINGE ASSEMBLY, Front

36 1700853 1 ROD, Pivot

37 1960318 1 CAPSCREW, Hex Hd, 5/16-18 x 2-1/2

38 1925205 1 CAPSCREW, Hex Hd, 5/16-18 x 5/8

39 1679898 1 CLAMP, Lower

40 1679899 1 CLAMP, Upper

41 1679163 1 NUT & CUP ASSEMBLY

42 1923362 1 NUT, Hex Lock, 5/16-18

43 1677652 1 BRACE, Bracket Support

44 1931350 4 CARRIAGE BOLT, 3/8-16 x 1

45 1717580 1 BRACKET, Support

46 1921977 1 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

47 1924940 1 WASHER, 3/8

48 1960486 1 SCREW, Flat Hd, Hex Socket, 5/16-18 x 1-1/4

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692937 60” Turbo

TP-400-2156-00-AT-SMA

Wide Body Cart Collector - Cart Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43125A

The above parts group applies to the following Mfg. Nos.:

1692938 Wide Body Collector Cart

TP-400-2156-00-AT-SMA

Wide Body Cart Collector - Cart Assembly

1 1700760 1 COVER

2 1700763 1 ROD, Straight

3 176012 4 CLIP, Hairpin Safety

4 1700866 1 SLEEVE, Plastic Connecting

5 1708099 1 CLAMP, Sleeve

6 1700758 1 TUBE, Support

7 1700768 2 HANDLE, Lift

8 1916964 4 WASHER, Lock, 1/4

9 1916622 4 NUT, Hex, 1/4-20

10 1923362 4 NUT, Hex Lock, 5/16-18

11 1919326 6 WASHER, 5/16 (1691526 only)

12 1700765 1 HANDLE, Latch

13 177649 2 WASHER, Spring, 5/16

14 1917372 1 NUT, Hex, 5/16-18

15 1920161 1 NUT, Hex Jam, 5/16-18

16 1700267 2 SPACER, Plastic, 5/16

17 1921677 4 CAPSCREW, Hex Hd, 5/16-18 x 1-1/2

18 1700762 1 ROD, Frame

19 1921977 1 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

20 1700761 1 ROD, Support

21 1921210 8 CAPSCREW, Hex Hd, 3/8-16 x 1

22 102004 2 PIN, 1/2 x 1-1/4

23 1700769 1 FRAME

24 1924940 8 WASHER, 3/8

25 1930651 8 NUT, Hex Lock, 3/8-16

26 1676892 2 WHEEL, Swivel, 410/350-4

27 1922134 2 NUT, Lock, 1/2-13

28 1921176 2 CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

29 1700767 1 “U” BRACKET

30 1917372 3 NUT, Hex, 5/16-18

31 1917356 3 WASHER, Lock, 5/16

32 1918249 3 BOLT, Slotted Truss Hd, 5/16-18 x 3/4

33 1921958 4 CAPSCREW, Hex Hd, 1/4-20 x 1/2

34 1700757 1 BOX

35 1700266 1 STRAP, Rubber, 6”

36* 1708120 1 DECAL, Max. Cap.

37 1920397 1 NUT, Hex Nylon Lock, 1/4-20

38 1917642 2 WASHER, 5/16

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692938 Wide Body Collector Cart

TP-400-2156-00-AT-SMA

Wide Body Cart Collector - Hitch & Hose Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43126A

The above parts group applies to the following Mfg. Nos.:

1692938 Wide Body Collector Cart

TP-400-2156-00-AT-SMA

Wide Body Cart Collector - Hitch & Hose Assembly

1 1717606 1 HITCH ASSEMBLY

2 1923151 4 CAPSCREW, Hex Hd, 5/8-11 x 1-1/4

3 1917373 4 WASHER, Lock, 5/8

4 1915726 4 NUT, Hex, 5/8-11

5 1718028 2 BRACKET

6 1921176 6 CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

7 1916966 6 WASHER, Lock, 1/2

8 1916951 6 NUT, Hex, 1/2-13

9 1679896 1 CLAMP, Hose, 6”

10 1679895 1 HOSE, 6” Dia.

11 1930531 4 CAPSCREW, Truss Hd, #10-32 x 1/2

12 1910531 4 WASHER, Plain, 3/16

13 1930627 4 NUT, Hex Lock, #10-32

14 1700773 1 TUBE & DECAL ASSEMBLY

15 1675766 1 DECAL, Cleaning

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692938 Wide Body Collector Cart

TP-400-2156-00-AT-SMA

Triple Bag Grass Catcher

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43127A

The above parts group applies to the following Mfg. Nos.:

1693204 Triple Bag Grass Catcher

22, 23

• Do not open cover with engine running.

• Do not operate mower without the

complete catcher in place

• When operating on slopes, refer to

operator's manual for counterweights.

WARNING

1704405

TP-400-2156-00-AT-SMA

Triple Bag Grass Catcher

1 1717027 1 SUPPORT ASSEMBLY

2 1717085 1 ROD, Hitch

3 1960033 2 CLIP, Hairpin

4 1717033 1 HITCH ASSEMBLY

5 1716966 1 PLATE, Front

6 1717082 1 SEAL

7 1716973 1 CHANNEL ASSEMBLY

8 1717025 1 COVER ASSEMBLY

9 1672344 2 PIN

10 1960074 2 CLIP, Hairpin

11 1717038 1 JOINT, Inlet

12 1717037 1 COVER, Inlet

13 1717039 1 DEFLECTOR

14 1717071 1 TUBE, Upper

15 1717072 1 TUBE, Lower

16 172744 2 STRAP, Rubber

17 1703855 3 HOOP, Basket Frame

18 1703807 3 HANGER

19 1672023 3 CLAMP

20 1672689 3 S-HOOK

21 1703764 3 BAG, Grass

22 1704405 1 DECAL, Safety

23 1667248 6 CLIP, Canoe (Required to Fasten Decal, Ref. 22, to Cover)

24 1686722 * CONTAINER KIT, Hard Side

25 1717041 1 SCREEN

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Optional component.

The above parts group applies to the following Mfg. Nos.:

1693204 Triple Bag Grass Catcher

TP-400-2156-00-AT-SMA

48” & 60” Hose Hitch & Tube Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43128A

The above parts group applies to the following Mfg. Nos.:

1692939 60” Hose, Hitch & Tube

1692930 48” Hose, Hitch & Tube

26 27

TP-400-2156-00-AT-SMA

48” & 60” Hose Hitch & Tube Assembly

1 1703147 1 CONNECTOR, Cart

2 1702762 1 TUBE

3 1679895 1 HOSE, 6” Dia.

4 1665872 1 STRAP, Black Rubber

5 1930531 12 CAPSCREW, Truss Hd, #10-32 x 1/2

6 1910531 24 WASHER, Plain, 3/16

7 1928919 12 NUT, Hex Flange, #10-32

8 1702517 1 SUPPORT, Tube

9 1930644 1 NUT, Hex Flange, 1/2-13

10 1926192 1 WASHER, 1/2

11 1702791 1 TUBE & DECAL ASSEMBLY, 48” Models

11 1702792 1 TUBE & DECAL ASSEMBLY, 60” Models

12 1702516 1 ELBOW, 6” Dia.

13 1925205 1 CAPSCREW, Hex Hd, 5/16-18 x 5/8

14 1702765 2 HOOK, J

15 1919326 2 WASHER, 5/16

16 1935048 1 NUT, Hex Flange Hd, Whiz Lock, 5/16-18

17 172744 1 STRAP, Rubber

18 1921024 1 CAPSCREW, Hex Hd, 1/2-13 x 2

19 1717606 1 HITCH ASSEMBLY

20 1702575 1 DRAWBAR ASSEMBLY

21 1702578 1 SUPPORT ASSEMBLY

22 155037 1 PIN, Round Head

23 1960116 2 PIN, Clevis

24 1960033 2 CLIP, Hairpin

25 1921176 6 CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

26 1916966 6 WASHER, Lock, 1/2

27 1916951 6 NUT, Hex, 1/2-13

28 * 1 TURBO ASSEMBLY (Shown for Reference Only)

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Order Turbo Assemblt as Whole Goods Item.

The above parts group applies to the following Mfg. Nos.:

1692939 60” Hose, Hitch & Tube

1692930 48” Hose, Hitch & Tube

432

12 10

13 10

1516 13

30 29

23 24 25

29 30 33

47 21

TP-400-2156-00-AT-SMA

2000RPM Rear PTO

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43129A

The above parts group applies to the following Mfg. Nos.:

1692891 2000 RPM Rear PTO

Switch Mounting Template

& Hardware

TP-400-2156-00-AT-SMA

2000RPM Rear PTO

1 1716434 2 BEARING, Flange

2 1960373 6 CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 X 1

3 1717639 2 O-RING, 1.610 ID

4 1717638 2 O-RING, .989 ID

5 1716950 1 SPACER

6 1716392 1 SPROCKET ASSEMBLY, 19 Tooth

7 1717599 1 CHAIN, Roller, #40-2 x 46 Pitches

8 1718986 1 KEY

9 1716401 1 SHAFT & BAR ASSEMBLY

10 1676829 2 COUPLING, Flex

11 1923362 8 NUT, Hex Lock, 5/16-18

12 1919326 14 WASHER, 5/16

13 156150 8 SPACER

14 1921977 2 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

15 1921978 2 CAPSCREW, Hex Hd, 5/16-18 x 2

16 1933468 2 WASHER, 5/16

17 1676998 1 BUSHING

18 1676999 1 HUB ASSEMBLY

19 1921968 1 CAPSCREW, Hex Hd, 3/8-16 x 1-3/8

20 1960534 1 Washer, 3/8

21 1709199 1 CLUTCH ASSEMBLY, Electric (Includes Ref. Nos. 53, 54, & 55)

22 1718585 1 SPACER

23 1716383 1 SHAFT ASSEMBLY

24 1704314 1 FITTING, Grease, 1/4

25 1716387 1 FAN

26 1929477 3 CAPSCREW, Hex Washer Hd, Taptite, #10-24 x 1/2

27 1927187 6 CAPSCREW, Hex Washer Hd, Taptite, 3/8-16 x 1

28 1716431 2 BEARING, Flange

29 1717641 2 O-RING, 2.238

30 1717640 2 O-RING, 1.372 ID

31 1716403 1 SHAFT

32 905856 1 Key, 1/4 x 1/4 x 1-1/2

33 1716427 2 SPACER

34 1716393 1 SPROCKET ASSEMBLY, 34 Tooth

35 1718475 1 KIT, Spring Lock

36 1716955 1 PLATE ASSEMBLY

37 1916951 2 NUT, Hex, 1/2-13

38 1916966 3 WASHER, Lock, 1/2

39 1921176 2 CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

40 1921525 1 CAPSCREW, Hex Hd, 1/2-13 x 1-3/4

41 1960597 2 CAPSCREW, Hex Socket, 1/2-13 x 1-3/4

42 176111 2 O-Ring

43 1673452 1 PLUG, Pipe, 3/8 NPT

44 1673453 1 FITTING, Elbow, 3/8 NPT

45 901652 1 PLUG, Pipe Square Hd, 1/4 NPT

46 1716402 1 CASE ASSEMBLY

47 1718839 2 MOULDING

48 1924856 2 CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 x 1/2

49 1717078 1 COVER ASSEMBLY

50 1654930 1 BUSHING, Rubber

51 1709905 1 BREATHER ASSEMBLY

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Reference Nos. 52-59 on following page.

The above parts group applies to the following Mfg. Nos.:

1692891 2000 RPM Rear PTO

TP-400-2156-00-AT-SMA

2000RPM Rear PTO — Continued

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43129A

The above parts group applies to the following Mfg. Nos.:

1692891 2000 RPM Rear PTO

432

12 10

13 10

1516 13

30 29

23 24 25

29 30 33

47 21

Switch Mounting Template

& Hardware

TP-400-2156-00-AT-SMA

2000RPM Rear PTO — Continued

52 1718938 1 RETAINING RING

53 1709292 1 KIT, Rotor and Armature

54 1709294 1 FIELD ASSEMBLY, Electric Clutch

55 1709293 1 KIT, Spring and Nut

56 1930531 2 CAPSCREW, Truss Hd, #10-32 x 1/2

57 1718803 1 TEMPLATE, Switch Mounting

58 1960096 2 WASHER, 3/16

59 1930627 2 NUT, Hex Lock, #10-32

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Reference Nos. 1-51 on previous page.

The above parts group applies to the following Mfg. Nos.:

1692891 2000 RPM Rear PTO

TP-400-2156-00-AT-SMA

Ballast Box

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43130A

The above parts group applies to the following Mfg. Nos.:

1692923 Ballast Box

TP-400-2156-00-AT-SMA

Ballast Box

1 1700550 1 BALLAST BOX

2 1921176 10 CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

3 1922134 10 NUT, Lock, 1/2-13

4 1960033 2 CLIP, Hairpin

5 1960116 2 PIN, Clevis

6 1718202 1 BRACKET, Mounting

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692923 Ballast Box

TP-400-2156-00-AT-SMA

3-Point Hitch

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43131A

The above parts group applies to the following Mfg. Nos.:

1692928 3-Point Hitch

15 24

23 4

TP-400-2156-00-AT-SMA

3-Point Hitch

1 171695 2 PIN, Pivot

2 1679697 8 QUICK PIN

3 1700312 2 CHAIN, Sway

4 1700418 1 STUD, Eyelet, LH Thread

5 1700419 1 STUD, Eyelet, RH Thread

6 1700479 1 TUBE ASSEMBLY

7 1716411 1 HITCH ASSEMBLY

8 1716413 1 LIFT ROD ASSEMBLY

9 1716415 2 ARM, Sway

10 1716417 1 CLEVIS ASSEMBLY, LH

11 1716420 1 CLEVIS ASSEMBLY, RH

12 1716422 1 BALL JOINT ASSEMBLY, Upper RH

13 1716425 1 TURNBUCKLE

14 1922014 1 NUT, Hex Jam, 5/8-18

15 1918452 2 PIN, Cotter, 1/4 x 1

16 1918461 2 PIN, Cotter, 1/4 x 1-1/2

17 1920415 2 CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

18 1921176 6 CAPSCREW, Hex Hd, 1/2-13 x 1-1/4

19 1922134 1 NUT, Lock, 1/2-13

20 1924940 2 WASHER, 3/8

21 1930651 2 NUT, Hex Lock, 3/8-16

22 1960038 2 PIN, Clevis, 5/8 x 2-1/4

23 1960297 1 NUT, Hex Jam, 3/4-10

24 1960355 6 NUT, Hex Lock, 1/2-13

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692928 3-Point Hitch

50 Lbs.

33 Lbs.

Front Weight Carrier

Rear Weight Carrier

TP-400-2156-00-AT-SMA

Front & Rear Weight Carriers, & Suitcase Weights

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43132A

The above parts group applies to the following Mfg. Nos.:

1691319 33# Suitcase Weights

1692939 50# Suitcase Weights

1692940 Front Weight Carrier

1692941 Rear Weight Carrier

50 Lbs.

33 Lbs.

111

Suitcase Weights

Note: Suitcase weights are NOT included

with Weight Carrier, and must be purchased

separately.

Suitcase Weights

Note: Suitcase weights are NOT included

with Weight Carrier, and must be purchased

separately.

TP-400-2156-00-AT-SMA

Front & Rear Weight Carriers, & Suitcase Weights

1 1717630 1 HITCH (Front)

2 1700004 1 ROD, Locking (Front )

3 1960038 2 PIN, Clevis, 5/8 x 2-1/4

4 176012 4 CLIPS, Safety (Front)

5 1717631 1 HITCH (Rear)

6 1916966 4 WASHER, Lock, 1/2 (Rear)

7 1920328 4 CAPSCREW, Hex Hd, 1/2-13 x 1-1/2 (Rear)

8 1916951 4 NUT, Hex, 1/2-13 (Rear)

9 176012 2 CLIP, Safety (Rear)

10 1717628 1 ROD, Locking (Rear)

11* 1691319 A/R WEIGHT, Suitcase, 33 Lbs.

12* 1692939 A/R WEIGHT, Suitcase, 50 Lbs.

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Suitcase weights are NOT included with weight acriers, and have no servicable parts.

Order Suitcase Weights as a complete unit from Whole Goods (Part No. 33 Lbs - 1691319; 50 Lbs - 1692939).

The above parts group applies to the following Mfg. Nos.:

1691319 33# Suitcase Weights

1692939 50# Suitcase Weights

1692940 Front Weight Carrier

1692941 Rear Weight Carrier

TP-400-2156-00-AT-SMA

Rear Wheel Weight

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43133A

The above parts group applies to the following Mfg. Nos.:

1693160 Rear Wheel Weight

521

TP-400-2156-00-AT-SMA

Rear Wheel Weight

1 * 3 NUT, Hex

2 * 2 WASHER, Lock

3 * 2 ROD, Threaded

4 * 1 WEIGHT

5 * 1 WASHER

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not a Servicable Part.

The above parts group applies to the following Mfg. Nos.:

1693160 Rear Wheel Weight

TP-400-2156-00-AT-SMA

Ladder Sub-Frame Hitch

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43134A

The above parts group applies to the following Mfg. Nos.:

1693175 Ladder Sub-Frame Hitch

Reuse

Original

Lockwashers

Mount to Left

Attachment

Lift Arm

TP-400-2156-00-AT-SMA

Ladder Sub-Frame Hitch

1 102004 2 PIN, Round Hd Clevis, 1/2 x 1-1/2

2 176012 9 CLIP, Safety

3 1670728 2 BEARING, Lift Shaft

4 1711773 2 PIN, Flat Hd Clevis,1/2 x 2

5 1716359 1 ARM, Lift

6 1716394 1 LIFT ROD ASSEMBLY

7 1716490 1 SHAFT & LIFT ARM ASSEMBLY

8 1716491 1 HITCH ASSEMBLY

9 1716493 1 ANCHOR ASSEMBLY, LH

10 1716922 2 BRACKET, Front

11 1716925 2 BRACKET, Hanger

12 1717462 1 ANCHOR ASSEMBLY, RH

13 1916950 2 NUT, Hex, 3/8-16

14 1916965 2 WASHER, Lock, 3/8

15 1917356 4 WASHER, Lock, 5/16

16 1917372 4 NUT, Hex, 5/16-18

17 1919439 2 NUT, Hex Nylon Lock, 3/8-16

18 1921210 2 CAPSCREW, Hex Hd, 3/8-16 x 1

19 1921977 4 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

20 1922664 4 CAPSCREW, Hex Hd, 5/8-11 x 2

21 1924366 4 WASHER, 5/8

22 1931202 2 CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 x 1-1/4

23 1931350 2 CARRIAGE BOLT, 3/8-16 x 1

24 1960038 5 PIN, Clevis, 5/8 x 2-1/4

25 1960201 2 Washer, 1.0

26 1960338 2 RING, Retaining, #10

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693175 Ladder Sub-Frame Hitch

Male

Female

Male

Female

Hose

1718416

1/2 x 75"

Female

Two Spool

Power Beyond

Control Valve

1718419

Lift Cylinder

1702034

Angling

Cylinder

1677214

Single Spool

Power Beyond Valve

1718418

OUT

BYD

Tractor

Front

Threads

Hose

Clamp

960266

Hose Clamp

960266

Hex Fitting

“T” Connector

1674768

Beaded

End

Dozer

Hose

1718415

23/32 x 40"

Hose

1718413

5/8 x 9"

Hose

1718411

23/32 x 17"

Hose

1718590

1/2 x 28"

Hose

1718417

1/2 x 67"

Hose

1718442

1/2 x 69"

OUT

From Power

Steering

To Power

Steering

To Hydro Pump

Metal Crossover

Tube (Return)

1718414

Metal Crossover

Tube (Pressure)

1718412

TP-400-2156-00-AT-SMA

Hydraulic Lift & Angling Kit - Hydraulic System Diagram

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43135A

The above parts group applies to the following Mfg. Nos.:

1693238 Hydraulic Lift & Angliing Kit

Lift Cylinder

1685347

TP-400-2156-00-AT-SMA

Hydraulic Lift & Angling Kit - Hydraulic System Diagram

1 960266 4 CLAMP, Hose, Worm

2 1674768 1 FITTING, Hose, Tee

3 1677214 1 CYLINDER, Angling

4 1685347 1 CYLINDER, Lift

5 1718411 1 HOSE ASSEMBLY, 23/32” x 17”

6 1718412 1 PRESSURE TUBE ASSEMBLY

7 1718413 1 HOSE, Hydraulic 3/8” ID x 9”

8 1718414 1 RETURN TUBE ASSEMBLY

9 1718415 2 HOSE, Hydraulic, 23/32” x 40”

10 1718416 2 HOSE, Hydraulic, 1/2” x 75”

11 1718417 1 HOSE, Hydraulic, 1/2” x 67”

12 1718418 1 CONTROL VALVE, Single Spool, Power Beyond

13 1718419 1 CONTROL VALVE, Two Spool, Power Beyond

14 1718442 1 HOSE, Hydraulic, 1/2 x 69”

15 1718590 2 HOSE, Hydraulic, 1/2” x 28”

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Refer to Hydraulic System Diagram, Control Tower Group and Cylinder Mounting Group for Additional

Part Numbers and Locations.

The above parts group applies to the following Mfg. Nos.:

1693238 Hydraulic Lift & Angliing Kit

Bypass Hose &

Quick Connectors

411

2323

2424

1717

TP-400-2156-00-AT-SMA

Hydraulic Lift & Angling Kit - Control Tower Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43136A

The above parts group applies to the following Mfg. Nos.:

1693238 Hydraulic Lift & Angliing Kit

TP-400-2156-00-AT-SMA

Hydraulic Lift & Angling Kit - Control Tower Group

1 173358 5 QUICK CONNECTOR, Female Nose Piece Assembly

2 1960571 2 CAPSCREW, Hex Washer Hd, Taptite, 1/4-20 X 1-3/4

3 173359 5 QUICK CONNECTOR, Male Nose Piece Assembly

4 1701011 6 TIE, Self-Locking

5 1717642 1 PLATE, Clamp, 5/16

6 1717645 1 SUPPORT ASSEMBLY

7 1717648 1 TOWER ASSEMBLY

8 1718415 2 HOSE, Hydraulic, 23/32” x 40”

9 1718416 2 HOSE, Hydraulic, 1/2” x 75”

10 1718417 1 HOSE, Hydraulic, 1/2” x 67”

11 1718419 1 CONTROL VALVE, Two Spool, Power Beyond

12 1718429 1 PLATE ASSEMBLY, Control Valve Mounting

13 1718431 1 TUBE ASSEMBLY, Control Tower Pivot

14 922522 2 FITTING, Tube, Male, Short

15 931230 2 FITTING, Tube, Male, Tall

16 1718434 1 KIT, Control Lever & Pin

17 1718435 2 FITTING, Tube, Male

18 1718442 1 HOSE, Hydraulic, 1/2 x 69”

19 1916951 5 NUT, Hex, 1/2-13

20 1916966 5 WASHER, Lock, 1/2

21 1960286 1 CAPSCREW, Hex Hd, 1/2-13 X 3-1/2

22 1920328 2 CAPSCREW, Hex Hd, 1/2-13 x 1-1/2

23 1921332 4 CAPSCREW, Hex Hd, 5/16-18 X 3/4

24 1926159 2 CAPSCREW, Hex Hd, 1/2-13 x 5, Gr 8

25 1718578 1 HOSE, Hydraulic, 1/2” x 11”

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Refer to Hydraulic System Diagram, Control Tower Group and Cylinder Mounting Group for Additional

Part Numbers and Locations.

The above parts group applies to the following Mfg. Nos.:

1693238 Hydraulic Lift & Angliing Kit

Cross-Over Tube

Mounting Hardware

OUT

BYD

5 5

216

18 13

TP-400-2156-00-AT-SMA

Hydraulic Lift & Angling Kit - Cylinder Mounting Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43137A

The above parts group applies to the following Mfg. Nos.:

1693238 Hydraulic Lift & Angliing Kit

TP-400-2156-00-AT-SMA

Hydraulic Lift & Angling Kit - Cylinder Mounting Group

1 1718434 1 LEVER ASSEMBLY

2 1701011 3 TIE, Self-Locking

3 919171 2 FITTING, Cylinder, Male

4 1685347 1 CYLINDER, Lift

5 176012 2 CLIP, Safety

6 1711773 2 PIN, Clevis

7 1717645 1 SUPPORT ASSEMBLY

8 1718417 1 HOSE, Hydraulic, 1/2” x 67”

9 1718442 1 HOSE, Hydraulic, 1/2 x 69”

10 931230 1 FITTING, Tube, Male, Tall

11 922522 1 FITTING, Tube, Male, Short

12 1718419 1 VALVE ASSEMBLY, Two-Spool

13 1920328 2 CAPSCREW, Hex Hd, 1/2-13 x 1-1/2

14 1916966 2 WASHER, Lock, 1/2

15 1916951 2 NUT, Hex, 1/2-13

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Refer to Hydraulic System Diagram, Control Tower Group and Cylinder Mounting Group for Additional

Part Numbers and Locations.

The above parts group applies to the following Mfg. Nos.:

1693238 Hydraulic Lift & Angliing Kit

TP-400-2156-00-AT-SMA

Auxilliary Hydraulic Lift Kit

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43138A

The above parts group applies to the following Mfg. Nos.:

1693239 Auxilliary Hydraulic Lift Kit

14 15

TP-400-2156-00-AT-SMA

Auxilliary Hydraulic Lift Kit

1 173358 5 QUICK CONNECTOR, Female Nose Piece Assembly

2 173359 5 QUICK CONNECTOR, Male Nose Piece Assembly

3 1960373 2 CAPSCREW, Hex Washer Hd, Taptite, 5/16-18 X 1

4 176012 2 CLIP, Safety

5 919171 4 FITTING, Cylinder, Male

6 922523 1 FITTING, Elbow

7 1677214 1 CYLINDER, Angling

8 1700394 1 PIN, Cylinder, 5/8

9 1685347 1 CYLINDER, Lift

10 1711773 2 PIN, Clevis, 1/2 x 2

11 1718590 2 HOSE, Hydraulic, 1/2” x 28”

12 1717647 1 FITTING, Pressure Beyond Port

13 1960277 1 PIN, Yoke

14 1718418 1 CONTROL VALVE, Single Spool, Power Beyond

15 1718420 2 CLAMP, Metal Cross Over Tube Retaining

16 1718436 2 FITTING, Tube, Male

17 1917356 2 WASHER, Lock, 5/16

18 1918452 3 PIN, Cotter

19 1920283 2 WASHER, 5/16

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693239 Auxilliary Hydraulic Lift Kit

TP-400-2156-00-AT-SMA

Rear Light Kit

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43139A

The above parts group applies to the following Mfg. Nos.:

1693206 Rear Light Kit

TP-400-2156-00-AT-SMA

Rear Light Kit

1 1717636 1 LIGHT ASSEMBLY

2 1717635 1 CLAMP

3 * 2 CONNECTORS, Splice

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not a Servicable Part.

The above parts group applies to the following Mfg. Nos.:

1693206 Rear Light Kit

TP-400-2156-00-AT-SMA

SERVICE PARTS - Hydraulic Gear Pump (1700493)

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43140A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

SERVICE PARTS - Hydraulic Gear Pump (1700493)

1 * 8 CAPSCREW

2 * 8 LOCKWASHER

3 * 1 COVER, Rear

4 * 1 GEAR, Drive

5 * 1 WOODRUFF KEY

6 ** 1 WEAR PLATE

7 ** 1 PAPER GASKET

8 * 2 ROD, Alignment

9 * 1 COVER, Front

10 ** 1 SEAL, Rotary

11 ** 1 SEAL, Rubber V

12 ** 1 HEAT SHIELD, Phenolic

13 ** 2 O-RING

14 * 1 CENTER SECTION

15 * 1 GEAR, Driven

16 1700544 1 SEAL KIT (Contains items 6, 7, 10, 11, 12, & 13)

17 1700493 1 GEAR PUMP ASSEMBLY - COMPLETE (Contains items 1-16)

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not Serviced Separately.

** Contained in Seal Kit 1700544 (Ref. No. 16)

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

SERVICE PARTS - Hydraulic Valve Assembly (1700502)

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43141A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

SERVICE PARTS - Hydraulic Valve Assembly (1700502)

1 1700495 1 KIT, Seal Repair (Contains items 9, 27, 31, 33, & 36)

2 1704148 1 KIT, Pilot Relief Valve (Contains items 29, 30, 31, 32, & 33)

3 1700545 1 KIT, Load Check (Contains items 25, 26, & 28)

4 1700642 1 KIT, Spring Centering (Contains items 11, 12, 13, 14, & 15)

5 1700641 1 KIT, Detent Spring Centering (Contains items 17, 18, 19, 20, 21, 22, 23, & 24)

6 1700837 1 RESTRICTOR PLATE, One-Way, .109

7 1700838 1 RESTRICTOR PLATE, Two-Way, .062

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

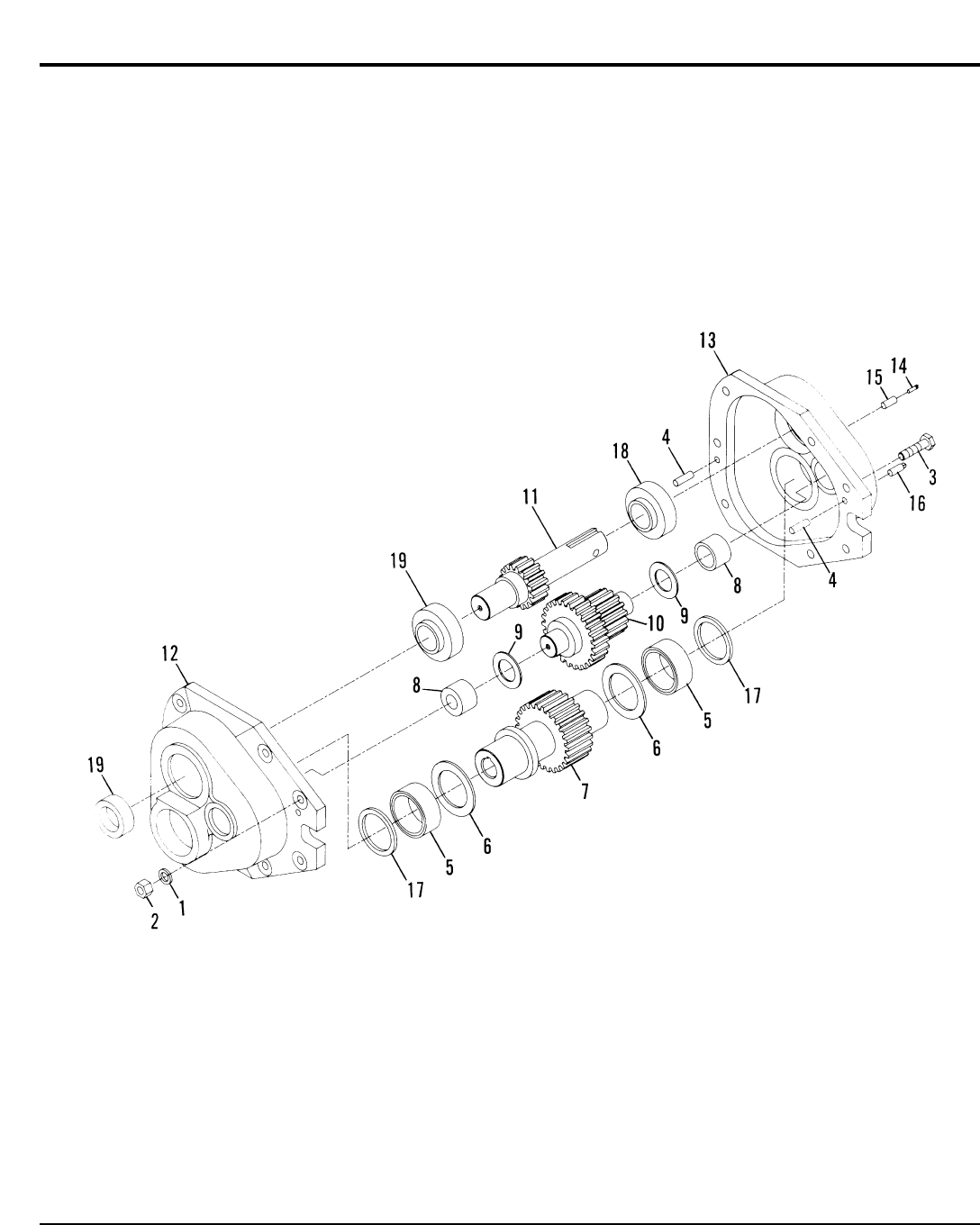

SERVICE PARTS - Snowthrower Gearbox (1709625)

TP-400-2156-00-AT-SMA

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43142A

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

Note: Use S.A.E. 30 weight motor oil.

TP-400-2156-00-AT-SMA

SERVICE PARTS - Snowthrower Gearbox (1709625)

1 1917356 7 LOCKWASHER, 5/16 regular

2 1917372 7 NUT, Hex, 5/16-18

3 1921977 7 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

4 917554 2 PIN, Dowel, 1/4 x 1/2

5 1709626 2 BEARING, 1-1/2 x 1-7/8 x 3/4

6 1709627 2 THRUST RACE, Bearing, .090 thick

7 1709628 1 GEAR, Output

8 1709629 2 BEARING, 7/8 x BG-1/8 x 3/4

9 1709630 2 THRUST RACE, Bearing .060 thick

10 1709631 1 GEAR, Idler

11 1709632 1 GEAR, Input

12 1709633 1 GEARBOX, Snowthrower-Front

13 1709634 1 GEARBOX, Snowthrower-Rear

14 1709635 1 VENT, Relief

15 901825 1 FITTING, Reducer, 1/4 Male x 1/8 Female

16 901652 1 PLUG, Pipe Square Hd, 1/4 NPT

17 1709636 2 SEAL, Oil

18 1709637 1 BEARING, Ball, 1.00 bore w/o collar

19 1709638 1 BEARING, Ball, 1.00 bore w/collar

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

Note: Use S.A.E. 30 weight motor oil.

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

SERVICE PARTS - Snowthrower Auger Gearbox & Shaft (1709662)

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43143A

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

SERVICE PARTS - Snowthrower Auger Gearbox & Shaft (1709662)

1 1709663 1 CASE, Gearbox (2-halves)

2 1709664 1 SHAFT, Input

3 1709665 2 SEAL, Oil

4 1709666 2 BEARING, Roller

5 1709667 1 WORM

6 917557 1 PIN, Dowel, 1/4 x 1-1/8

7 1709668 1 PLUG, 2” Dia. x 11/32

8 1709669 1 SHAFT, Output

9 1709670 2 BEARING, Roller

10 1709671 1 GEAR, Worm

11 928712 1 KEY, 1/4 x 1/4 x 5/8

12 1921719 4 CAPSCREW, Hex Hd, 5/16-18 x 2-1/2

13 1921977 2 CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

14 1917356 6 LOCKWASHER, 5/16 Regular

15 1917372 6 NUT, Hex, 5/16-18

16 1709635 1 VENT, Relief

17 901652 1 PLUG, Pipe Square Hd, 1/4 NPT

18 1709672 1 RING, Retaining

19 1709673 1 SEAL, Oil, 1.0 ID x 2.0 OD

20 1709674 1 RING, Retaining

21 901825 1 FITTING, Reducer, 1/4 Male x 1/8 Female

22 1709675 2 RACE, Bearing

23 1709676 2 RACE, Bearing, 1-31/32 OD x 3/8 W

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

SERVICE PARTS - Snowthrower Drive Shaft (1717484)

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43144A

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

SERVICE PARTS - Snowthrower Drive Shaft (1717484)

1 1709346 1 JOINT & SHAFT ASSEMBLY, w/guard (Incl Ref. Nos. 2-9; Qty.1 ea. of Ref. nos.

5 & 7)

2 1709356 1 DECAL, Warning

3 1685480 1 REPAIR KIT, Spring Lock

4 1709350 1 YOKE ASSEMBLY, Spring-Lock

5 1679003 1 CROSS & BEARING KIT

6 1709351 1 YOKE & SHAFT ASSEMBLY

7 1709352 1 REPAIR KIT, Nylon

8 1709353 1 DECAL, Warning

9 1709354 1 GUARD, Outer

10 1709348 1 JOINT & TUBE ASSEMBLY, w/guard (lncl.Ref.nos.5-Qty.1; 7-Qty.1; & 11-15)

11 1709358 1 YOKE

12 1717484 1 DRIVE SHAFT ASSEMBLY (Complete)

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

1692942 47” Two Stage Snowthrower

TP-400-2156-00-AT-SMA

SERVICE PARTS - Snowthrower Right Angle Gearbox (1717547)

1 1930591 12 CAPSCREW, Hex Flange Hd, Whiz Lock, 5/16-18 x 3/4

2 1700894 2 CAP, Thru

3 1700895 A/R GASKET, 0.015

3 1700896 A/R GASKET, 0.005

3 1700897 A/R GASKET, 0.003

4 118118 2 SEAL, Shaft, 1 x 1-1/2 x 5/16

5 170836 3 BEARING, Cup

6 170835 3 BEARING, Cone

7 1718550 1 SHAFT, Gearbox

8 1719203 1 GEAR

9 1700902 1 BEARING, Cone

10 1700903 1 BEARING, Cup

11 1716790 3 PLUG, Pipe, Hex Socket Hd

12 1700889 1 HOUSING, Gearbox

13 1718557 1 GEAR (Used with Rev. 1 & 2 Only) *

13 1719204 1 GEAR (Used with Rev. 3 Only) *

14 1716790 1 PLUG, Pipe, Sqr Hd (Used with Rev. 3 Only)

15 1700904 1 CAP, Blank

16 1718554 1 SPACER, Gearbox (Used with Rev. 1 & 2 Only) *

17 1718552 1 SHAFT (Used with Rev. 1 & 2 Only) *

17 1719205 1 SHAFT (Used with Rev. 3 ) *

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* “Rev. #” refers to the configuration of the gear box. The Rev. Number is located on the ID tag on the side of the

gear box. On Rev. 3 gear boxes the spacer (item 16) was eliminated and gear (item 13) was lengthened to com-

pensate.

The above parts group applies to the following Mfg. Nos.:

1692934 46” Single Stage Snowthrower

TP-400-2156-00-AT-SMA

SERVICE PARTS - Lift Cylinder (1718166)

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43146A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

TP-400-2156-00-AT-SMA

SERVICE PARTS - Lift Cylinder (1718166)

1 1718167 1 ROD, Cylinder, 1”

2 * 1 SEAL, Wiper

3 * 1 SEAL, U-Cup

4 * 1 WEAR RING

5 1718165 1 HEAD, Cylinder

6 * 1 BACKUP WASHER

7 * 1 O-RING

8 * 1 WEAR RING

9 1718203 1 PISTON

10 * 1 O-RING

11 * 1 SEAL, Piston

12 1926666 1 NUT, Hex Lock, 3/4-10

13 1718168 1 TUBE, Cylinder

14 * 1 WIRE, Retaining

15 1718205 1 REPAIR KIT (Contains all * items)

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Contained in Repair Kit (Ref No 15)

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

100

TP-400-2156-00-AT-SMA

SERVICE PARTS - Bucket Cylinder (1718169)

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT43147A

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

101

TP-400-2156-00-AT-SMA

SERVICE PARTS - Bucket Cylinder (1718169)

1 1718164 1 ROD, Cylinder, 1”

2 * 1 SEAL, Wiper

3 * 1 SEAL, U-Cup

4 * 1 WEAR RING

5 1718165 1 HEAD, Cylinder

6 * 1 BACKUP WASHER

7 * 1 O-RING

8 * 1 WEAR RING

9 1718203 1 PISTON

10 * 1 O-RING

11 * 1 SEAL, Piston

12 1926662 1 NUT, Hex Lock, 3/4-10

13 1718204 1 TUBE, Cylinder

14 * 1 WIRE, Retaining

15 1718205 1 REPAIR KIT (Contains all * items)

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Contained in Repair Kit (Ref No 15)

The above parts group applies to the following Mfg. Nos.:

1692932 Front End Loader

1690095 - Tire Chains (23" Tires)

No service parts are available for this

attachment. Order as a complete unit from

Whole Goods.

1692562 - Tire Chains (26" Tires)

No service parts are available for this

attachment. Order as a complete unit from

Whole Goods.

1692125 - 10 Cu. Ft. Dump Cart

This attachment is not serviced by Simplicity. Please

contact the following attachment manufacturer for service

parts, service information, and technical literature.

Precision Products, Inc.

4515 S. Grand East

P.O. Box 2546

Springfield, IL 62708

Phone: (217) 528-1311

Fax: (217) 523-6701

1692926 - Soft Side Snow Cab

This attachment is not serviced by Simplicity. Please

contact the following attachment manufacturer for service

parts, service information, and technical literature.

Original Tractor Cab

P.O. Box 97

Arlington, IN 46104

(765) 663-2214

1692933 - Hard Side Snow Cab

This attachment is not serviced by Simplicity. Please

contact the following attachment manufacturer for service

parts, service information, and technical literature.

FEMCO, Inc.

500 North 81 By-Pass

P.O. Box 1186

McPherson, KS 67460

(316) 241-3513

(800) 677-0898

Fax: (316) 241-3532

1693246 - Sweepster Rotary Broom

This attachment is not serviced by Simplicity. Please

contact the following attachment manufacturer for service

parts, service information, and technical literature.

Sweepster Inc.

2800 N. Zeeb Rd

Dexter, Michigan 48130

(800) 456-7100

(313) 996-9116

Fax (313) 996-9014

1692927 - ROPS

(Roll-Over Protection System)

This attachment is not serviced by Simplicity. Please

contact the following attachment manufacturer for service

parts, service information, and technical literature.

FEMCO, Inc.

500 North 81 By-Pass

P.O. Box 1186

McPherson, KS 67460

(316) 241-3513

(800) 677-0898

Fax: (316) 241-3532

1692935 - 50” Tiller (2000 RPM)

This attachment is not serviced by Simplicity. Please

contact the following attachment manufacturer for service

parts, service information, and technical literature.

BEFCO, Inc.

Hwy. 301 S

P.O. Box 6036

Rocky Mount, NC 27802

(919) 977-9921

(800) 334-6617

1691620 - Cart Side Extension & Cover

This attachment is not serviced by Simplicity. Please

contact the following attachment manufacturer for service

parts, service information, and technical literature.

Plamer Products

RR #2 Serum Plant Rd

Throntown, IN 46071

(317) 436-2496

102

TP-400-2156-00-AT-SMA

REFERENCE INFORMATION - Miscellaneous Attachments

A-AT43148A

The above parts group applies to the following Mfg. Nos.:

1690095 Tire Chains (26" TIRES)

1691620 Cart Side Extension & Cover

1692125 10 Cu. Ft. Dump Cart

1692562 Tire Chains

1692926 Soft Side Snow Cab

1692927 ROPS (Roll-Over Protective

Structure)

1692933 Hard Side Snow Cab

1692935 50” Tiller

1693246 Sweepster Rotary Broom

103

TP-400-2156-00-AT-SMA

Part Number Index

*23

*24

*201

*2439

*3831

*4042

*487

** 48 12

*6028

*721

*722

*723

*724

*725

*843

*861

*862

*863

*864

*865

** 86 6

** 86 7

*868

*869

** 86 10

** 86 11

** 86 12

** 86 13

*8614

*8615

*982

*983

*984

*986

*987

*988

*9810

*9811

*9814

* 100 2

* 100 3

* 100 4

* 100 6

* 100 7

* 100 8

* 100 10

* 100 11

* 100 14

101126 24 33

101126 28 30

102004 54 22

102004 74 1

105051 24 31

105051 28 28

106774 2 26

106774 6 1

107106 22 2

107121 24 34

107121 28 31

107135 24 28

108202 46 8

108202 50 8

118118 96 4

151040 2 23

154096 10 13

154198 6 24

155037 60 22

156150 62 13

157424 6 20

157424 46 33

157424 50 33

157424 52 16

168111 6 30

170397 46 21

170397 50 21

170835 96 6

170836 96 5

171695 68 1

172162 24 45

172278 2 19

172279 2 16

172744 58 16

172744 60 17

173026 6 21

173358 32 1

173358 34 1

173358 78 1

173358 80 1

173359 32 3

173359 34 2

173359 78 3

173359 80 2

173934 2 18

174066 24 37

174066 28 34

174561 46 30

174561 50 30

175647 8 14

175647 18 14

175647 24 14

175647 28 14

176012 8 12

176012 18 12

176012 54 3

176012 70 4

176012 70 9

176012 74 2

176012 80 4

176012 80 5

176111 62 42

177434 2 9

177649 54 13

901652 62 45

901652 90 16

901652 92 17

901825 90 15

901825 92 21

905123 6 35

905856 62 32

912808 14 19

912808 38 26

915019 38 11

916001 24 49

916171 12 12

916950 22 6

916950 24 21

916950 28 21

916965 22 4

917554 90 4

917557 92 6

919171 34 4

919171 80 3

919171 80 5

921133 6 31

921469 24 27

922110 2 8

922121 48 42

922121 52 12

922138 6 8

922522 32 16

922522 40 40

922522 78 14

922522 80 11

922523 34 5

922523 44 7

922523 80 6

928707 48 51

928707 52 5

928712 92 11

931230 32 17

931230 78 15

931230 80 10

960210 4 3

960266 30 1

960266 76 1

960300 38 27

960323 38 28

960403 46 17

960403 50 17

1028100 24 52

1611939 4 9

1611939 16 17

1611945 4 8

1611945 16 16

1612455 4 13

1654930 62 50

1665872 60 4

1665982 46 7

1665982 50 7

1666114 46 27

1666114 50 27

1666613 4 15

1667248 58 23

1668500 16 45

1669105 6 34

1670728 74 3

1672023 58 19

1672344 58 9

1672689 46 39

1672689 50 39

1672689 58 20

1673452 40 7

1673452 62 43

1673453 62 44

1673574 24 42

1674020 48 44

1674768 30 2

1674768 76 2

1675502 8 11

1675502 18 11

1675502 24 11

1675502 28 11

1675523 8 1

1675523 18 1

1675524 8 18

1675524 18 18

1675524 24 18

1675524 28 18

1675766 56 15

1676053 6 13

1676435 46 14

1676435 50 14

1676554 6 28

1676561 6 17

1676632 2 15

1676721 2 22

1676722 6 36

1676738 6 38

1676739 6 37

1676829 62 10

1676892 54 26

1676959 8 22

1676959 18 22

1676959 24 22

1676959 28 22

1676998 62 17

1676999 62 18

1677029 2 21

1677029 10 16

1677214 30 3

1677214 34 6

1677214 76 3

1677214 80 7

1677651 48 32

1677652 52 43

1679003 94 5

1679055 24 1

1679055 28 1

1679163 48 2

1679163 52 41

1679211 6 32

1679554 46 29

1679554 50 29

1679697 68 2

1679895 56 10

1679895 60 3

1679896 56 9

1679897 46 1

1679897 48 3

1679898 48 31

1679898 52 39

1679899 52 40

1679900 46 11

1679900 50 11

1679903 48 38

1679912 50 1

1679914 48 20

1679915 52 14

1685347 76 4

1685347 80 4

1685347 80 9

1685480 94 3

1686722 58 24

1691319 70 11*

1692939 70 12*

1700004 70 2

1700013 48 40

1700259 46 9

1700259 50 9

1700266 54 35

1700267 54 16

1700312 68 3

1700394 34 7

1700394 80 8

1700418 68 4

1700419 68 5

1700479 68 6

1700484 40 2

1700485 40 3

1700486 40 4

1700490 40 6

1700493 40 8

1700493 86 17

1700495 88 1

1700499 40 15

1700500 40 14

1700502 40 18

1700508 44 8

1700509 40 25

1700518 44 5

1700519 44 6

1700524 38 12

1700525 38 3

1700531 38 2

1700532 38 22

1700533 38 23

1700534 38 24

1700544 86 16

1700545 88 3

1700546 38 32

Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No.

104

TP-400-2156-00-AT-SMA

Part Number Index

1700548 38 33

1700549 38 30

1700549 38 34

1700550 66 1

1700557 38 8

1700558 38 9

1700559 38 7

1700638 48 33

1700641 88 5

1700642 88 4

1700649 48 46

1700649 52 4

1700650 52 19

1700651 52 18

1700652 52 20

1700654 52 9

1700668 52 3

1700669 48 48

1700669 52 2

1700728 48 47

1700757 54 34

1700758 54 6

1700760 54 1

1700761 54 20

1700762 54 18

1700763 54 2

1700765 54 12

1700767 54 29

1700768 54 7

1700769 54 23

1700773 56 14

1700797 48 37

1700800 48 23

1700801 48 50

1700801 52 28

1700802 48 49

1700802 52 34

1700828 52 35

1700832 52 25

1700837 88 6

1700838 88 7

1700851 48 10

1700852 52 23

1700853 52 36

1700866 54 4

1700889 96 12

1700894 96 2

1700895 96 3

1700896 96 3

1700897 96 3

1700902 96 9

1700903 96 10

1700904 96 15

1700936 46 4

1700936 48 5

1700936 50 4

1701011 4 23

1701011 32 5

1701011 40 12

1701011 40 45

1701011 78 4

1701011 80 2

1701827 46 31

1701827 50 31

1702219 4 7

1702219 16 15

1702516 60 12

1702517 60 8

1702553 46 23

1702575 60 20

1702578 60 21

1702589 50 23

1702762 60 2

1702765 60 14

1702791 60 11

1702792 60 11

1703147 60 1

1703635 8 17

1703764 58 21

1703807 58 18

1703855 58 17

1704148 88 2

1704314 62 24

1704405 58 22

1705897 52 17

1705920 4 20

1705920 16 23

1706144 24 47

1706631 46 16

1706631 50 16

1706634 46 26

1706634 50 26

1706652 46 20

1706652 50 20

1706654 46 10

1706718 50 10

1708008 16 43

1708030 46 36

1708030 50 36

1708099 54 5

1708120 54 36*

1708511 48 41

1708761 36 10

1708999 8 16

1708999 18 16

1708999 24 16

1708999 28 16

1709189 40 1

1709199 62 21

1709292 62 53

1709293 62 55

1709294 62 54

1709327 48 26

1709346 94 1

1709348 94 10

1709350 94 4

1709351 94 6

1709352 94 7

1709353 94 8

1709354 94 9

1709356 94 2

1709358 94 11

1709620 10 1

1709621 10 2

1709623 10 5

1709623 14 7

1709624 10 6

1709625 10 10

1709626 90 5

1709627 90 6

1709628 90 7

1709629 90 8

1709630 90 9

1709631 90 10

1709632 90 11

1709633 90 12

1709634 90 13

1709635 90 14

1709635 92 16

1709636 90 17

1709637 90 18

1709638 90 19

1709639 10 11

1709640 10 18

1709642 16 2

1709642 16 35

1709644 16 11

1709645 16 12

1709647 16 33

1709648 16 31

1709649 16 37

1709656 12 2

1709658 12 7

1709659 12 10

1709660 12 11

1709661 12 13

1709662 14 1

1709663 92 1

1709664 92 2

1709665 92 3

1709666 92 4

1709667 92 5

1709668 92 7

1709669 92 8

1709670 92 9

1709671 92 10

1709672 92 18

1709673 92 19

1709674 92 20

1709675 92 22

1709676 92 23

1709678 14 2

1709679 14 3

1709680 14 8

1709681 14 9

1709682 14 10

1709683 14 16

1709684 14 20

1709688 20 5

1709689 20 6

1709690 20 7

1709905 62 51

1711773 74 4

1711773 80 6

1711773 80 10

1712286 36 11

1715885 4 27

1715885 16 50

1715886 16 41

1716357 8 8

1716357 18 8

1716357 24 8

1716357 28 8

1716359 74 5

1716383 62 23

1716387 62 25

1716392 62 6

1716393 62 34

1716394 74 6

1716401 62 9

1716402 62 46

1716403 62 31

1716411 68 7

1716413 68 8

1716415 68 9

1716417 68 10

1716420 68 11

1716422 68 12

1716425 68 13

1716427 62 33

1716431 62 28

1716434 62 1

1716460 8 15

1716460 18 15

1716460 24 15

1716460 28 15

1716490 74 7

1716491 74 8

1716492 8 2

1716492 18 2

1716492 24 2

1716492 28 2

1716493 74 9

1716531 2 30

1716531 20 3

1716532 2 2

1716532 20 4

1716533 4 38

1716533 20 2

1716540 20 8

1716790 6 10

1716790 96 11

1716790 96 14

1716920 8 6

1716920 18 6

1716920 24 6

1716920 28 6

1716922 74 10

1716925 74 11

1716926 8 5

1716926 18 5

1716926 24 5

1716926 28 5

1716950 62 5

1716955 62 36

1716966 58 5

1716973 58 7

1717025 58 8

1717027 58 1

1717033 58 4

1717037 58 12

1717038 58 11

1717039 58 13

1717041 58 25

1717049 4 32

1717071 58 14

1717072 58 15

1717078 62 49

1717082 58 6

1717085 58 2

1717086 16 47

1717089 18 17

1717097 6 22

1717100 6 25

1717462 74 12

1717465 2 24

1717472 2 13

1717476 4 1

1717479 2 1

1717480 4 37

1717481 4 33

1717482 4 12

1717482 16 18

1717483 4 28

1717483 16 48

1717484 6 5

1717484 10 17

1717484 94 12

1717490 16 1

1717536 24 44

1717537 22 1

1717542 22 8

1717544 24 29

1717544 28 26

1717547 6 11

1717556 24 40

1717557 24 17

1717557 24 25

1717557 28 17

1717557 28 25

Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No.

105

TP-400-2156-00-AT-SMA

Part Number Index

1717558 30 12

1717558 32 13

1717559 24 53

1717560 24 50

1717561 24 39

1717562 24 26

1717565 24 43

1717569 24 51

1717580 52 45

1717591 4 22

1717599 62 7

1717606 56 1

1717606 60 19

1717618 52 1

1717628 70 10

1717630 70 1

1717631 70 5

1717635 84 2

1717636 84 1

1717638 62 4

1717639 62 3

1717640 62 30

1717641 62 29

1717642 32 8

1717642 78 5

1717645 78 6

1717645 80 7

1717647 34 9

1717647 80 12

1717648 32 10

1717648 78 7

1718028 56 5

1718154 36 1

1718155 36 2

1718158 36 6

1718159 36 7

1718161 38 4

1718162 38 5

1718163 38 1

1718164 100 1

1718165 98 5

1718165 100 5

1718166 38 10

1718167 98 1

1718168 98 13

1718169 38 13

1718170 38 14

1718174 38 18

1718180 40 10

1718185 40 27

1718187 40 30

1718194 40 37

1718195 40 38

1718202 66 6

1718203 98 9

1718203 100 9

1718204 100 13

1718205 98 15

1718205 100 15

1718411 30 4

1718411 76 5

1718412 30 5

1718412 76 6

1718413 30 6

1718413 76 7

1718414 30 7

1718414 76 8

1718415 30 8

1718415 32 11

1718415 76 9

1718415 78 8

1718416 30 9

1718416 32 12

1718416 76 10

1718416 78 9

1718417 76 11

1718417 78 10

1718417 80 8

1718418 30 10

1718418 34 12

1718418 76 12

1718418 80 14

1718419 76 13

1718419 78 11

1718419 80 12

1718420 34 13

1718420 80 15

1718426 4 6

1718429 32 14

1718429 78 12

1718431 32 15

1718431 78 13

1718434 32 18

1718434 78 16

1718434 80 1

1718435 32 19

1718435 78 17

1718436 34 14

1718436 80 16

1718442 76 14

1718442 78 18

1718442 80 9

1718450 40 13

1718450 44 1

1718451 44 2

1718452 44 3

1718453 44 4

1718455 44 9

1718458 40 22

1718459 40 23

1718460 40 24

1718461 40 20

1718462 40 28

1718463 40 31

1718464 40 32

1718465 40 33

1718466 40 34

1718467 40 36

1718468 40 39

1718470 40 41

1718471 40 48

1718472 40 50

1718474 40 53

1718475 62 35

1718550 96 7

1718552 96 17

1718554 96 16

1718557 96 13

1718578 32 4

1718578 78 25

1718585 62 22

1718590 30 11

1718590 34 8

1718590 76 15

1718590 80 11

1718803 62 57

1718839 62 47

1718873 40 52

1718938 62 52

1718986 62 8

1719120 40 55

1719203 96 8

1719204 96 13

1719205 96 17

1910531 56 12

1910531 60 6

1913160 8 23

1913160 18 23

1913160 24 23

1913160 28 23

1915726 56 4

1916622 4 17

1916622 14 13

1916622 16 5

1916622 16 22

1916622 16 49

1916622 40 16

1916622 52 10

1916622 54 9

1916950 2 12

1916950 4 29

1916950 6 19

1916950 8 21

1916950 10 4

1916950 18 21

1916950 48 18

1916950 52 22

1916950 74 13

1916951 8 3

1916951 18 3

1916951 24 3

1916951 28 3

1916951 32 20

1916951 56 8

1916951 60 27

1916951 62 37

1916951 70 8

1916951 78 19

1916951 80 15

1916964 4 18

1916964 14 12

1916964 16 4

1916964 16 21

1916964 16 46

1916964 40 17

1916964 52 11

1916964 54 8

1916965 2 11

1916965 4 30

1916965 6 14

1916965 10 3

1916965 48 19

1916965 52 21

1916965 74 14

1916966 8 4

1916966 18 4

1916966 24 4

1916966 28 4

1916966 32 21

1916966 56 7

1916966 60 26

1916966 62 38

1916966 70 6

1916966 78 20

1916966 80 14

1917356 2 6

1917356 4 25

1917356 6 3

1917356 10 7

1917356 12 4

1917356 14 5

1917356 34 16

1917356 40 54

1917356 46 34

1917356 48 16

1917356 48 35

1917356 50 34

1917356 52 32

1917356 54 31

1917356 74 15

1917356 80 17

1917356 90 1

1917356 92 14

1917372 2 5

1917372 4 26

1917372 6 4

1917372 10 8

1917372 12 5

1917372 14 6

1917372 24 35

1917372 28 32

1917372 46 35

1917372 48 15

1917372 48 34

1917372 50 35

1917372 52 31

1917372 54 14

1917372 54 30

1917372 74 16

1917372 90 2

1917372 92 15

1917373 56 3

1917421 8 19

1917421 18 19

1917421 24 19

1917421 28 19

1917642 54 38

1918199 48 13

1918199 52 29

1918213 48 14

1918213 52 30

1918249 54 32

1918265 14 14

1918447 52 24

1918452 34 10

1918452 68 15

1918452 80 18

1918454 38 6

1918456 10 12

1918461 68 16

1919314 24 36

1919314 28 33

1919326 2 28

1919326 4 4

1919326 6 26

1919326 40 26

1919326 46 22

1919326 50 22

1919326 54 11

1919326 60 15

1919326 62 12

1919332 8 24

1919332 18 24

1919332 24 24

1919332 28 24

1919438 4 5

1919438 16 8

1919439 74 17

1920161 54 15

1920283 34 15

1920283 80 19

1920328 24 30

1920328 28 27

1920328 70 7

1920328 78 22

1920328 80 13

1920397 46 40

1920397 50 40

1920397 54 37

1920415 6 16

Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No.

106

TP-400-2156-00-AT-SMA

Part Number Index

1920415 40 11

1920415 68 17

1921024 38 15

1921024 38 25

1921024 60 18

1921160 14 4

1921176 54 28

1921176 56 6

1921176 60 25

1921176 62 39

1921176 66 2

1921176 68 18

1921210 46 32

1921210 48 28

1921210 50 32

1921210 52 26

1921210 54 21

1921210 74 18

1921319 4 10

1921319 4 14

1921319 4 36

1921319 14 18

1921319 16 10

1921319 16 14

1921319 16 39

1921332 2 20

1921332 12 6

1921332 32 9

1921332 78 23

1921333 4 24

1921333 40 47

1921525 8 7

1921525 18 7

1921525 24 7

1921525 28 7

1921525 62 40

1921677 54 17

1921719 92 12

1921958 16 3

1921958 52 13

1921958 54 33

1921959 2 7

1921959 46 2

1921959 50 2

1921960 14 11

1921961 38 19

1921963 40 21

1921965 6 18

1921965 22 5

1921966 6 15

1921968 62 19

1921969 46 28

1921969 50 28

1921977 40 46

1921977 48 25

1921977 52 46

1921977 54 19

1921977 62 14

1921977 74 19

1921977 90 3

1921977 92 13

1921978 62 15

1922014 68 14

1922127 14 17

1922134 24 32

1922134 28 29

1922134 36 4

1922134 38 16

1922134 54 27

1922134 66 3

1922134 68 19

1922648 36 8

1922664 74 20

1922918 52 15

1923151 56 2

1923325 48 17

1923325 52 33

1923341 16 9

1923341 16 36

1923341 40 35

1923341 46 37

1923341 48 8

1923341 50 37

1923353 38 21

1923358 2 14

1923358 4 35

1923358 6 9

1923358 10 15

1923358 16 38

1923358 24 48

1923358 38 20

1923358 40 51

1923362 2 25

1923362 12 9

1923362 40 44

1923362 48 1

1923362 52 42

1923362 54 10

1923362 62 11

1924009 4 21

1924009 16 19

1924009 16 44

1924009 46 5

1924009 48 9

1924009 50 5

1924366 74 21

1924856 6 27

1924856 62 48

1924874 12 3

1924874 12 8

1924874 16 7

1924940 2 10

1924940 22 3

1924940 46 24

1924940 48 24

1924940 50 24

1924940 52 47

1924940 54 24

1924940 68 20

1925003 4 34

1925003 24 46

1925205 2 27

1925205 6 2

1925205 14 15

1925205 48 29

1925205 52 38

1925205 60 13

1925688 6 6

1926110 48 11

1926110 52 27

1926159 32 7

1926159 78 24

1926192 60 10

1926662 100 12

1926666 98 12

1927120 48 39

1927187 62 27

1927557 46 6

1927557 50 6

1928352 6 12

1928691 46 25

1928691 50 25

1928721 8 10

1928721 18 10

1928721 24 10

1928721 28 10

1928731 46 19

1928731 50 19

1928919 48 43

1928919 52 6

1928919 60 7

1929477 62 26

1930531 56 11

1930531 60 5

1930531 62 56

1930540 6 7

1930545 40 9

1930591 96 1

1930627 56 13

1930627 62 59

1930641 46 12

1930641 48 6

1930641 50 12

1930644 60 9

1930651 36 9

1930651 38 29

1930651 40 5

1930651 54 25

1930651 68 21

1931202 74 22

1931320 12 1

1931332 10 9

1931333 4 2

1931333 16 6

1931333 46 15

1931333 50 15

1931334 46 38

1931334 50 38

1931335 14 21

1931335 40 43

1931348 4 31

1931350 22 7

1931350 48 21

1931350 52 44

1931350 74 23

1933260 36 5

1933468 62 16

1933896 16 42

1933988 46 13

1933988 48 45

1933988 50 13

1933988 52 7

1934654 6 33

1935048 2 29

1935048 60 16

1935255 48 36

1935255 52 8

1960001 4 16

1960010 16 34

1960033 24 12

1960033 24 38

1960033 28 12

1960033 58 3

1960033 60 24

1960033 66 4

1960038 8 13

1960038 18 13

1960038 24 13

1960038 28 13

1960038 68 22

1960038 70 3

1960038 74 24

1960071 8 20

1960071 18 20

1960071 24 20

1960071 28 20

1960074 58 10

1960096 62 58

1960110 2 17

1960116 60 23

1960116 66 5

1960126 4 11

1960126 16 13

1960151 4 19

1960151 16 20

1960170 38 17

1960201 74 25

1960221 24 41

1960244 6 29

1960262 40 29

1960262 40 49

1960268 46 18

1960268 50 18

1960277 34 11

1960277 80 13

1960286 32 6

1960286 78 21

1960297 68 23

1960318 48 30

1960318 52 37

1960338 74 26

1960346 46 3

1960346 48 4

1960346 50 3

1960355 68 24

1960373 34 3

1960373 48 22

1960373 62 2

1960373 80 3

1960475 6 23

1960486 48 27

1960486 52 48

1960489 36 3

1960503 40 19

1960506 10 14

1960528 16 32

1960534 62 20

1960571 32 2

1960571 78 2

1960579 16 40

1960597 62 41

8031007 8 9

8031007 18 9

8031007 24 9

8031007 28 9

Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No.

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

01/4 3/4

1/2 11/4 3/4

1/2 21/4 3/4

1/2 31/4 3/4

1/2 4

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

Simplicity Legacy 2000 Users Manual TP_400_2156_00_AT_SMA

1692939 jgEDGP_drM6tG5Exj7mRgtLvBCd6

Navigation menu

Versions of this User Manual:

Views

Navigation
