Parts Manual

Rev. 4/1998

TP 400-2157-00-AT-SMA

TURBO COLLECTORS

TURBO GRASS COLLECTOR ATTACHMENTS FOR

TRACTORS & RIDERS

38” TURBO COLLECTORS

Mfg. No. Description

1692626 38” Regent / 500 / 2500

1692714 38” Broadmoor / 1600 / 2600

1693225 38” Regent / 500 / 2500 & ZT Series

1693226 38” Broadmoor / 1600 / 2600

44” TURBO COLLECTORS

Mfg. No. Description

1692715 44” Broadmoor / 1600 / 2600 &

44” Landlord / 1700 / 2700

1692858 44” Regent / 500 / 2500

1693106 44” ZT Series

1693227 44” Broadmoor / 1600 / 2600 &

44” Landlord / 1700 / 2700

48” TURBO COLLECTORS

Mfg. No. Description

1692936 48” Legacy / 2000 / 2900

50” TURBO COLLECTORS

Mfg. No. Description

1692716 50” Landlord / 1700 / 2700

60” TURBO COLLECTORS

1692937 60” Legacy / 2000 / 2900

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

TP 400-2157-00-AT-SMA

Table of Contents

This Manual Covers The Following Products:

38” TURBO COLLECTORS PAGES

1692626 38” Regent / 500 / 2500 2, 4, 6, 8, 16, 18

1692714 38” Broadmoor / 1600 / 2600

1693225 38” Regent / 500 / 2500 &

ZT Series

1693226 38” Broadmoor / 1600 / 2600

44” TURBO COLLECTORS PAGES

1692715 44” Broadmoor / 1600 / 2600 & 10, 12, 14, 16,

44” Landlord / 1700 / 2700 Series 20, 22

1692858 44” Regent / 500 / 2500

1693106 44” ZT Series

1693227 44” Broadmoor / 1600 / 2600 &

44” Landlord / 1700 / 2700 Series

48” TURBO COLLECTORS PAGES

1692936 48” Legacy / 2000 / 2900 26, 28

50” TURBO COLLECTORS PAGES

1692716 50” Landlord / 1700 / 2700 16, 24

60” TURBO COLLECTORS PAGES

1692937 60” Legacy / 2000 / 2900 30, 32

TURBO COLLECTOR SYSTEMS

38” Turbo Blower Assembly

1692626 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

38” Turbo Mounting Group

1692626 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

38” Turbo Blower Assembly

1693225 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

38” Turbo Mounting Group

1693225 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

44” Turbo Blower Assembly

1692858, 1693106 . . . . . . . . . . . . . . . . . . . . . . . . . .10

44” Turbo Mounting Group

1692858 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

44” Turbo Mounting Group

1693106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

38” / 44” / 50” Turbo Blower Assembly

1692714, 1692715, 1692716, 1693226, 1693227 . .16

38” Turbo Mounting Group

1692714, 1693226 . . . . . . . . . . . . . . . . . . . . . . . . . .18

44” Turbo Mounting Group

1692715 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

44” Turbo Mounting Group

1693227 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

50” Turbo Mounting Group

1692716 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

48” Turbo Blower Assembly

1692936 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

48” Turbo Mounting Group

1692936 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

60” Turbo Blower Assembly

1692937 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

60” Turbo Mounting Group

1692937 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

REFERENCE INFORMATION:

Part Number Index . . . . . . . . . . . . . . . . . . . . . . . . . .34

Torque Specification Chart . . . . . . . . .Inside Back Cover

TP 400-2157-00-AT-SMA

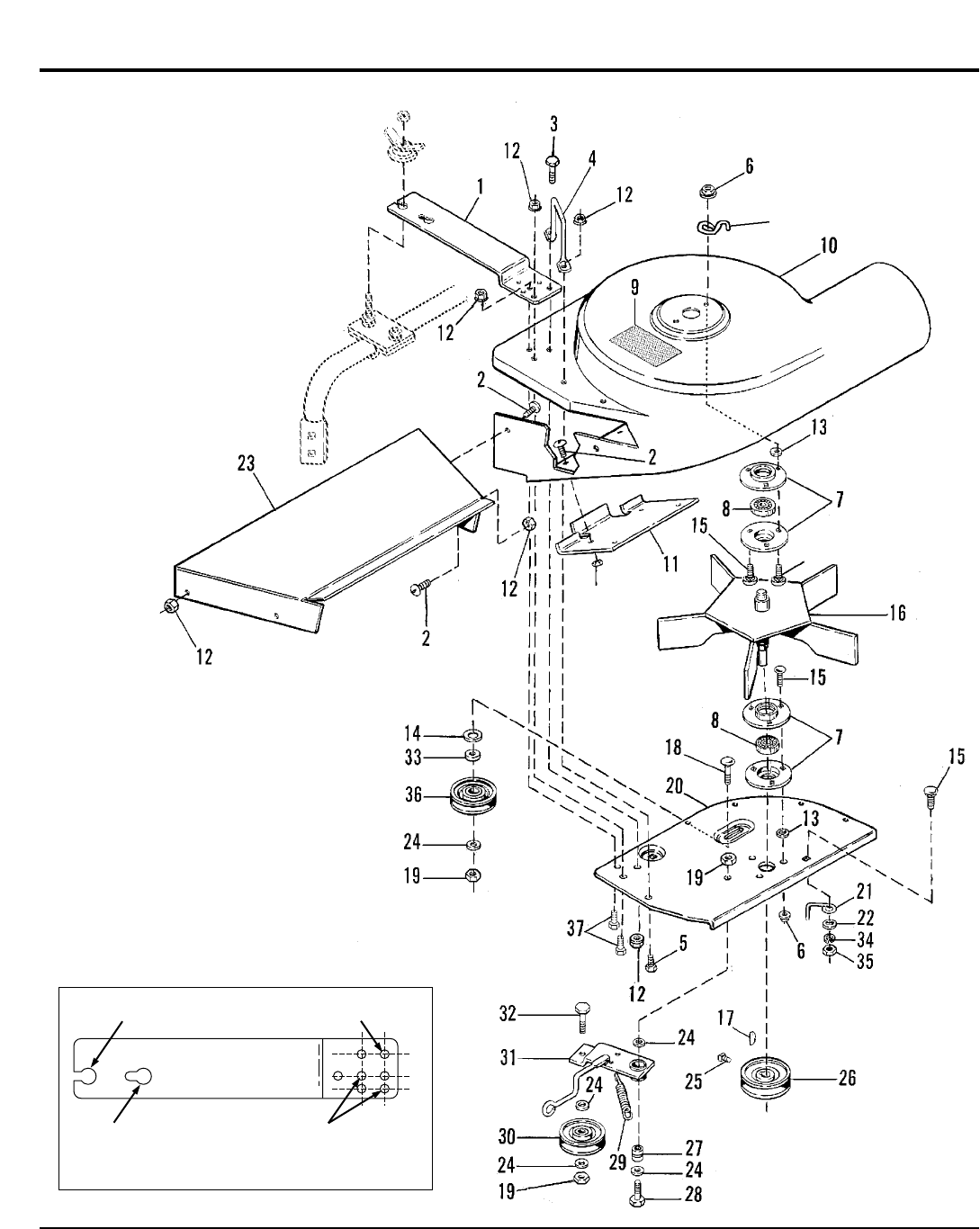

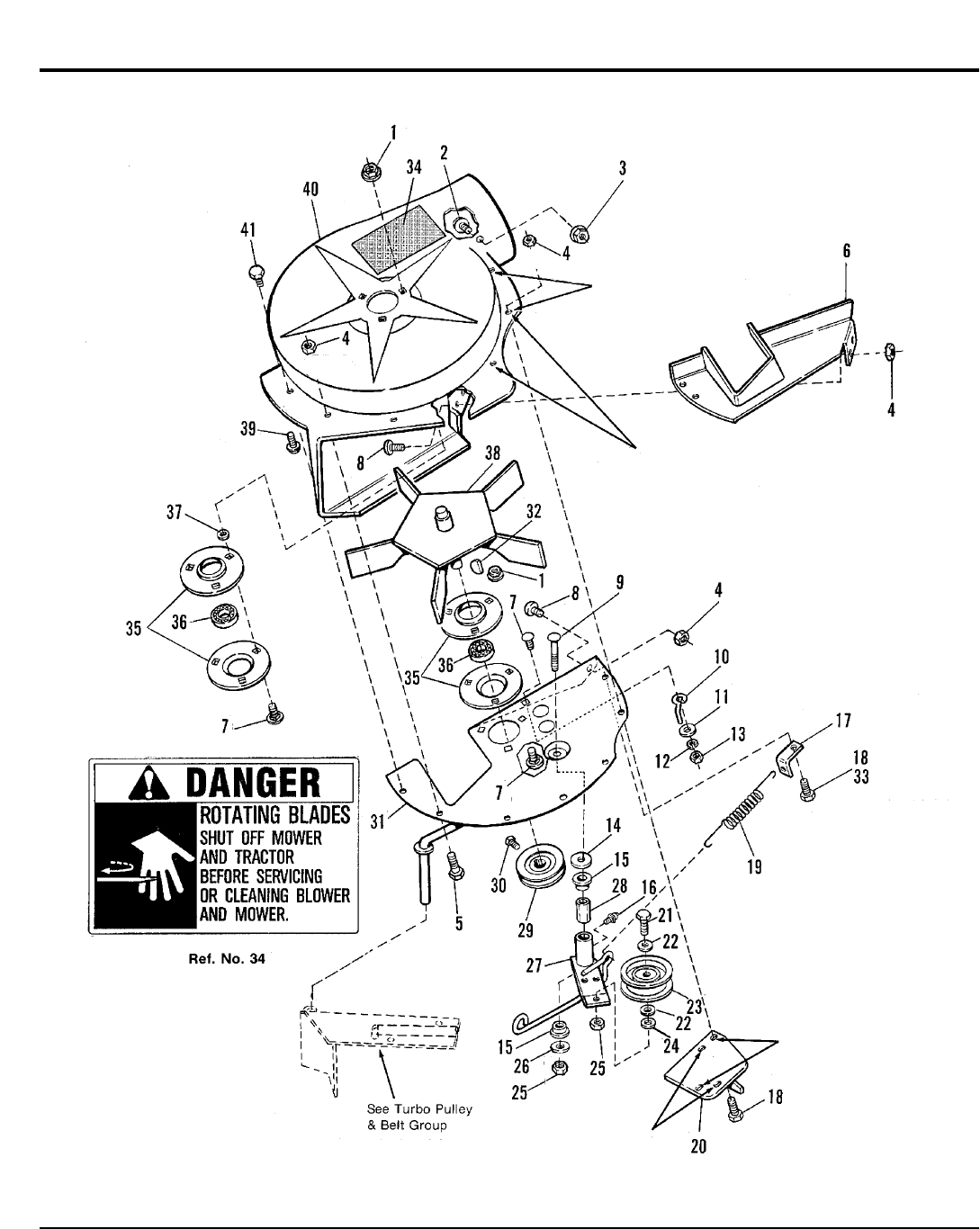

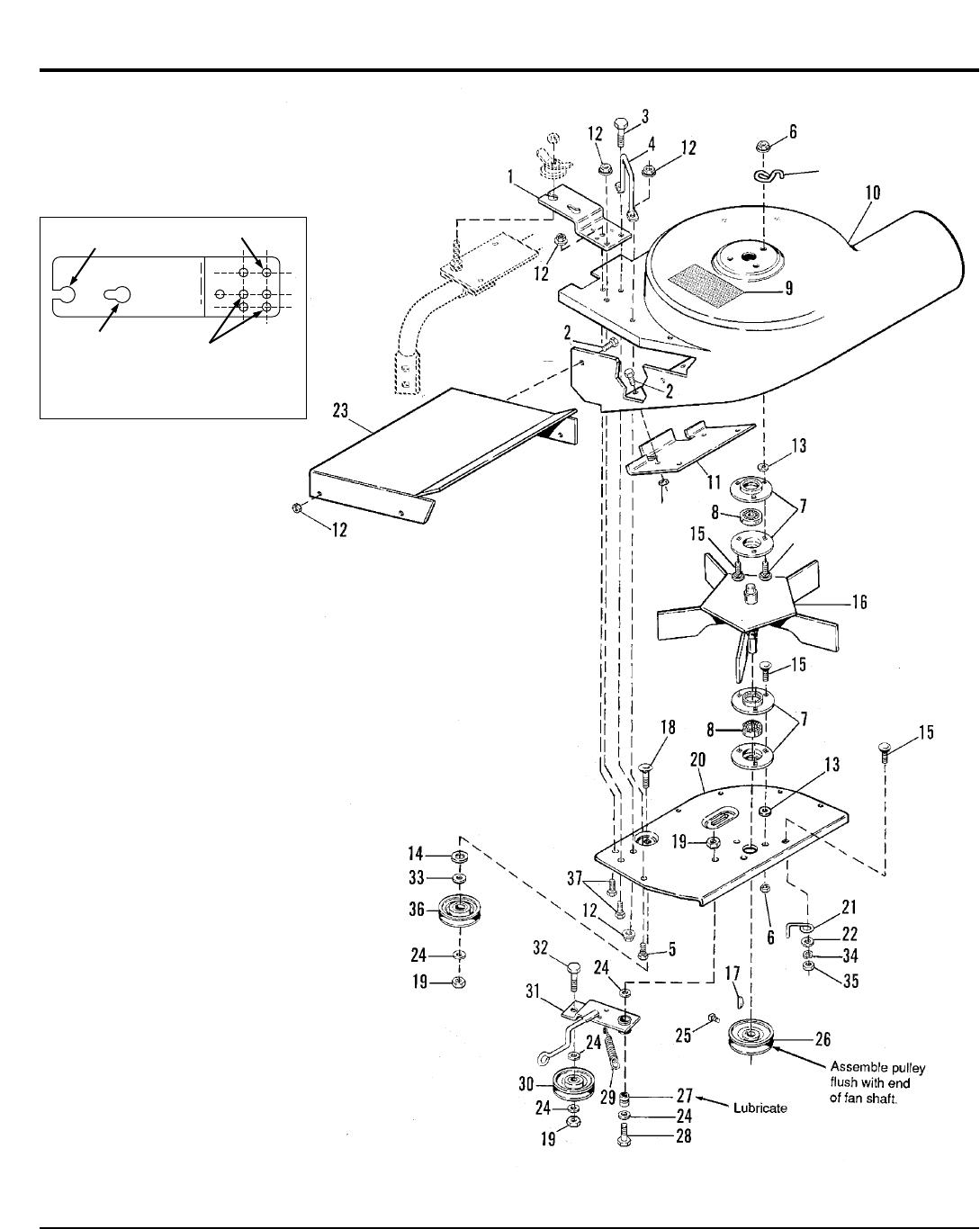

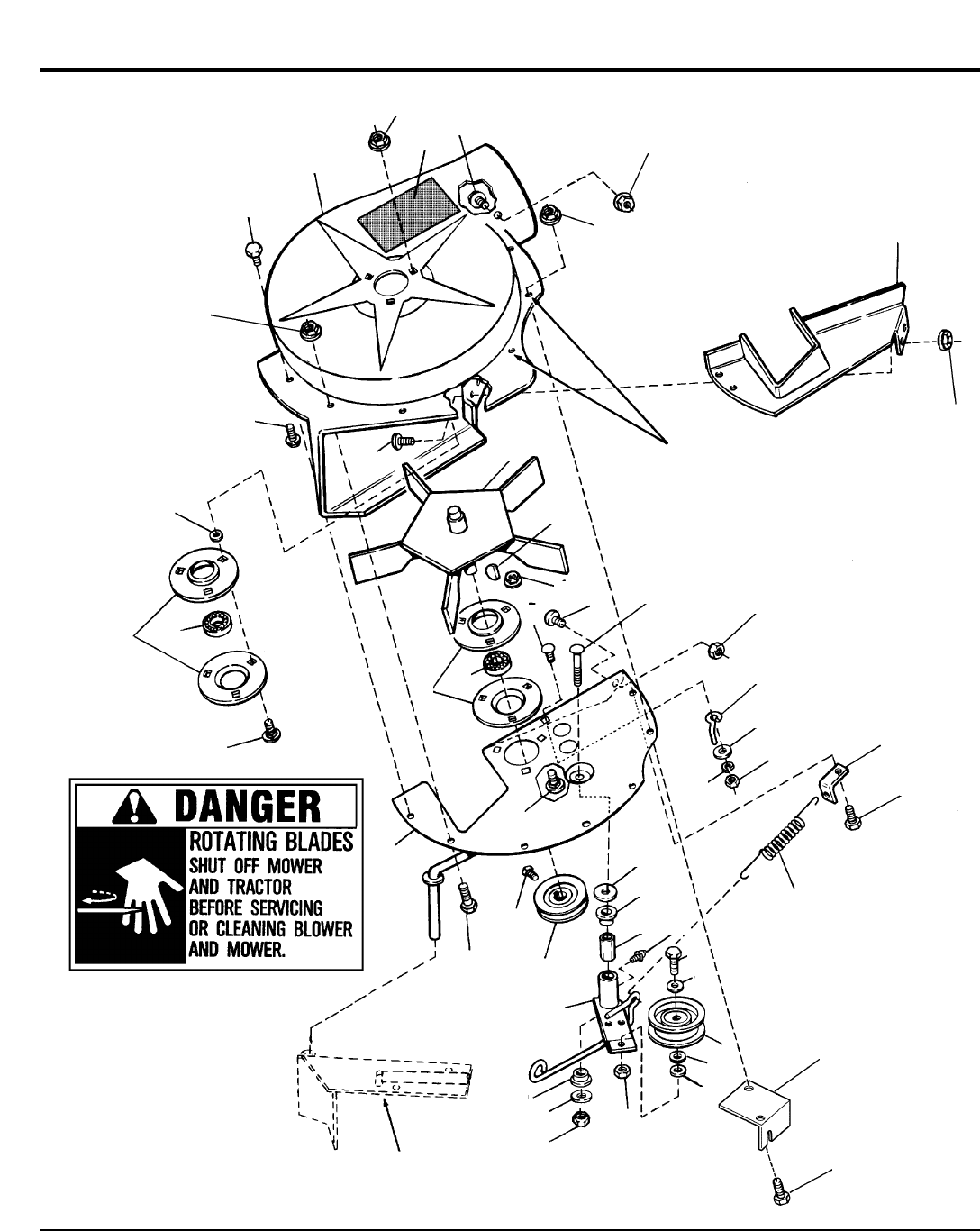

Turbo Blower Assembly - 38” Regent / 500 / 2500 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42401

The above parts group applies to the following Mfg. Nos.:

1692626 Turbo, 38”

NOTE: All original mower deck

parts are shown as phantom parts.

937 31

31 11

32 22 33 31

20 5

710

627

36 34

Ref. No. 9

See Arbor Pulley &

Deflector Group

Mounting holes for 38" Turbo

Bracket Assy., Ref. No. 18

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 38” Regent / 500 / 2500 Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692626 Turbo, 38”

1 108202 2 BEARING

2 960403 1 KEY, Woodruff, Modified

3 1657499 1 SPRING, Tension

4 1665982 4 BEARING, Retainer

5 1668500 1 BRACKET, Anchor, Spring

6 1676148 2 BUSHING

7 1676833 1 SPACER

8 1678435 1 BELT STOP

9 1700259 1 DECAL, Danger, Blower

10 1704314 1 FITTING, Grease

11 1705267 1 PLATE, Cover

12 1705492 1 FAN HOUSING (Incl. Ref. No. 9)

13 1706284 1 LEVER ASSY, Turbo (Incl. Ref. Nos. 6 &10)

14 1706465 1 PLATE ASSY.

15 1706631 1 FAN ASSY., 5 Blade

16 1706634 1 PULLEY, Driven

17 1708030 1 IDLER PULLEY ASSY.

18 1714911 1 BRACKET ASSY., Turbo

19 1917356 1 WASHER, Spring Lock, 5/16

20 1917372 1 NUT, Hex, 5/16

21 1920415 1 CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

22 1960472 2 SCREW, Truss Hd., 1/4-18 x 5/8

23 1921959 3 CAPSCREW, Hex, 1/4-20 x 5/8

24 1923341 3 CAPSCREW, Hex Hd., 1/4-20 x 3/4

25 1924361 1 WASHER, Flat

26 1924874 1 WASHER, Flat

27 1924940 2 WASHER, Plain

28 1925003 1 CAPSCREW, Hex, Taptite, 1/4-20 x 1/2

29 1927557 6 NUT, Flange, Whizlock, 5/16-18

30 1928691 1 SETSCREW, Hex, Socket Hd., 5/16-18 x 5/16

31 1930641 10 NUT, Hex, Flange Lock, 1/4-20

32 1931333 7 CARRIAGE BOLT, 5/16-18 x 3/4

33 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4

34 1933263 1 WASHER, Flat

35 1933988 6 PUSH NUT, 3/8

36 1960251 2 NUT, Hex, Jam, Center Lock, 3/8-16

37 1960252 1 CARRIAGE BOLT, 1/4-20 x 5/8

38 1960256 2 SCREW, Wsh. Hd.., 1/4-18 x 5/8

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 38” Regent / 500 / 2500 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42402

The above parts group applies to the following Mfg. Nos.:

1692626 Turbo, 38”

NOTE: All original mower deck

parts are shown as phantom parts.

1415

19 224

13 10

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 38” Regent / 500 / 2500 Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692626 Turbo, 38”

1 172845 1 BELT STOP

2 1670578 1 KNOB

3 1704768 1 BRACKET, Idler, Turbo

4 1704881 1 BRACKET ASSY., Cut-off

5 1705066 1 PIVOT ASSY., 38"

6 1705141 1 BELT

7 1705716 1 ROD, Deflector

8 1713091 1 PULLEY

9 1713621 1 HUB, Pulley, Short, Splined

10 1713624 1 HUB, Pulley, Long

11 1714817 1 PULLEY ASSY., Idler

12 1715018 1 SPRING LATCH

13 1931337 1 CARRIAGE BOLT, 5/16-18 x 1-1/2

14 1916950 1 NUT, Hex, 3/8-16

15 1916965 1 LOCKWASHER, 3/8

16 1917356 2 LOCKWASHER, 5/16

17 1917372 2 NUT, Hex, 5/16-18

18 1921971 1 CAPSCREW, 3/8-16 x 1-1/4

19 1923362 1 LOCKNUT

20 1924940 3 WASHER, Flat, 3/8

21 1930600 2 SCREW, Taptite, 5/16-18 x 1-1/2

22 1931277 2 NUT, Hex, Flange, Whizlock, 5/16-18

23 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

24 1933468 1 WASHER, Flat

25 1933896 4 NUT, Nylock, #10-24

26 1960404 4 SCREW, Truss Hd., #10-24 x 3/4

NOTE: All original mower deck

parts are shown as phantom parts.

TP 400-2157-00-AT-SMA

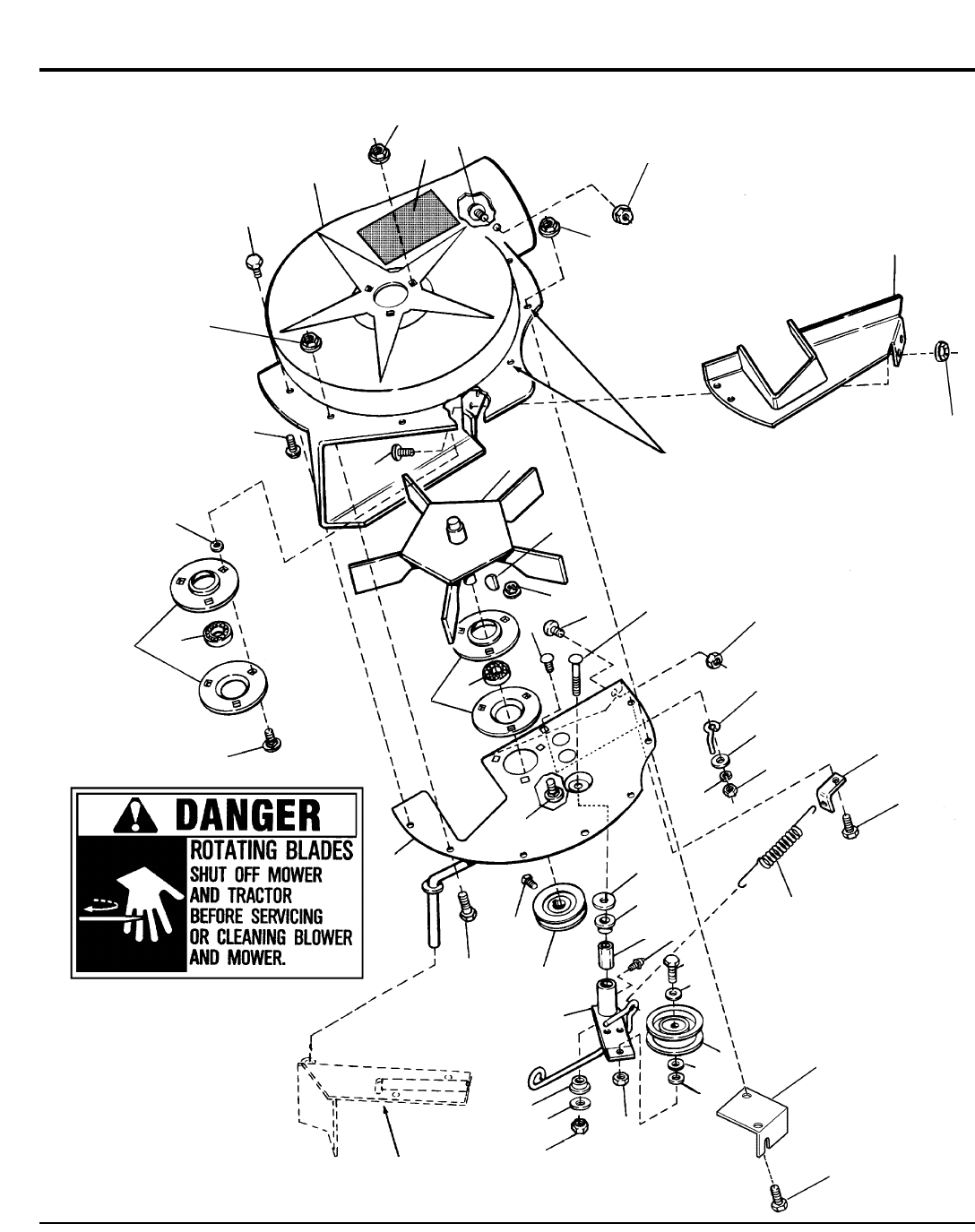

Turbo Blower Assembly - 38” Regent / 500 / 2500 & ZT Series

A-AT42403

The above parts group applies to the following Mfg. Nos.:

1693225 Turbo, 38”

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

937 31

32 22 33 31

20 5

710

627

36 34

Ref. No. 9

See Arbor Pulley &

Deflector Group

Mounting holes for 38" Turbo

Bracket Assy., Ref. No. 18

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 38” Regent / 500 / 2500 & ZT Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693225 Turbo, 38”

1 108202 2 BEARING

2 960403 1 KEY, Woodruff, Modified, .188 x .875 #61

3 1657499 1 SPRING, Tension

4 1665982 4 BEARING, Retainer

5 1668500 1 BRACKET, Anchor, Spring

6 1676148 2 BUSHING

7 1676833 1 SPACER

8 1678435 1 BELT STOP

9 1700259 1 DECAL, Danger, Blower

10 1704314 1 FITTING, Grease

11 1705267 1 PLATE, Cover

12 1705492 1 FAN HOUSING (Incl. Ref. No. 9)

13 1706284 1 LEVER ASSY, Turbo (Incl. Ref. Nos. 6 &10)

14 1706465 1 PLATE ASSY.

15 1706631 1 FAN ASSY., 5 Blade

16 1706634 1 PULLEY, Driven

17 1708030 1 IDLER PULLEY ASSY.

18 1714911 1 BRACKET ASSY., Turbo

19 1917356 1 WASHER, Spring Lock, 5/16

20 1917372 1 NUT, Hex, 5/16

21 1920415 1 CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

22 1960472 2 SCREW, Truss Hd., 1/4-18 x 5/8

23 1921959 3 CAPSCREW, Hex, 1/4-20 x 5/8

24 1923341 3 CAPSCREW, Hex Hd., 1/4-20 x 3/4

25 1924361 1 WASHER, Flat

26 1924874 1 WASHER, Flat, 5/16

27 1924940 3 WASHER, Plain, 3/8

28 1925003 1 CAPSCREW, Hex, Taptite, 1/4-20 x 1/2

29 1927557 6 NUT, Flange, Whizlock, 5/16-18

30 1928691 1 SETSCREW, Hex, Socket Hd., 5/16-18 x 5/16

31 1930641 10 NUT, Hex, Flange Lock, 1/4-20

32 1931333 7 CARRIAGE BOLT, 5/16-18 x 3/4

33 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4

34 1933263 1 WASHER, Flat, 7/16

35 1933988 6 PUSH NUT, 3/8

36 1960251 2 NUT, Hex, Jam, Center Lock, 3/8-16

37 1960252 1 CARRIAGE BOLT, 1/4-20 x 5/8

38 1960256 2 SCREW, Washer. Hd.., 1/4-18 x 5/8

TP 400-2157-00-AT-SMA

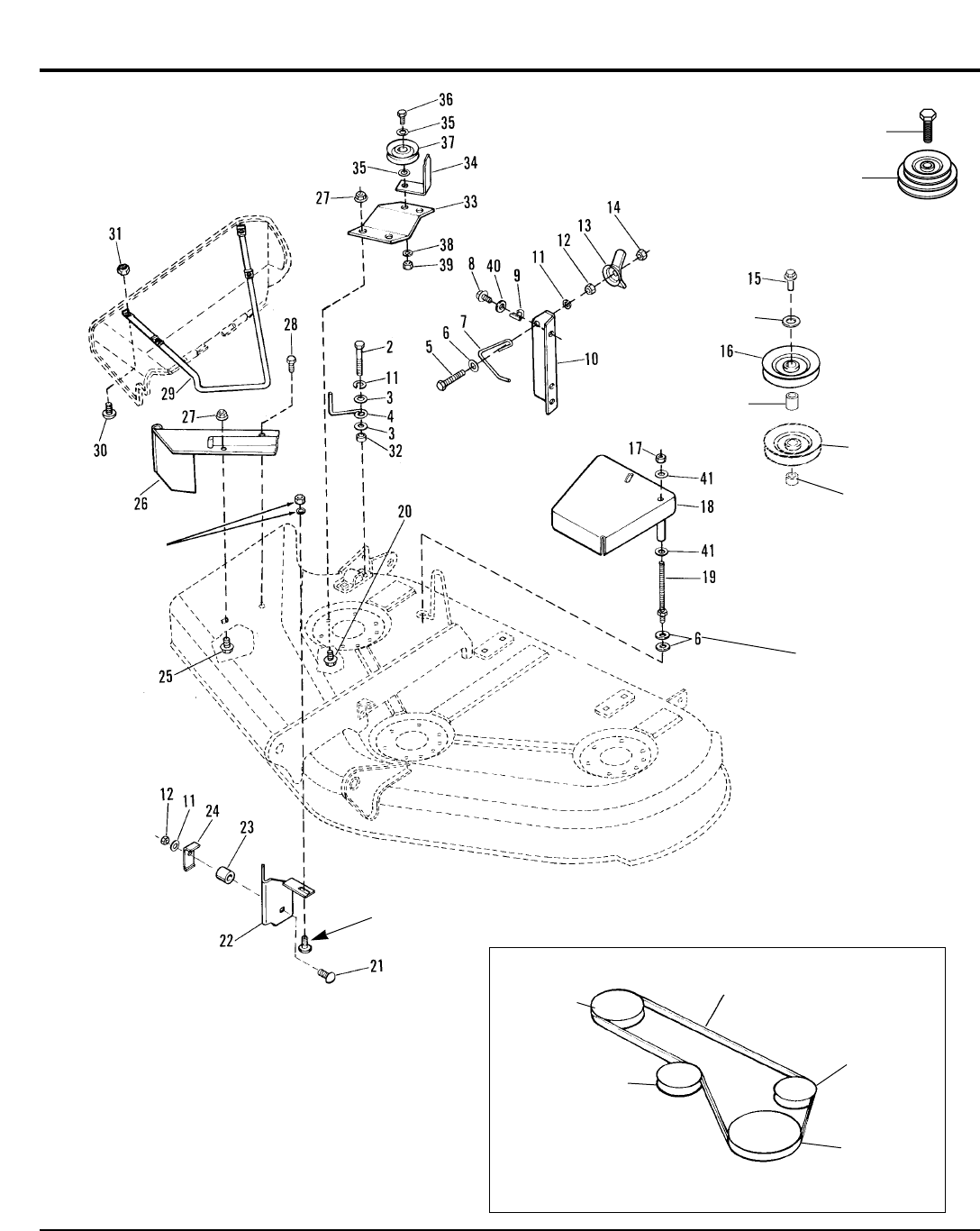

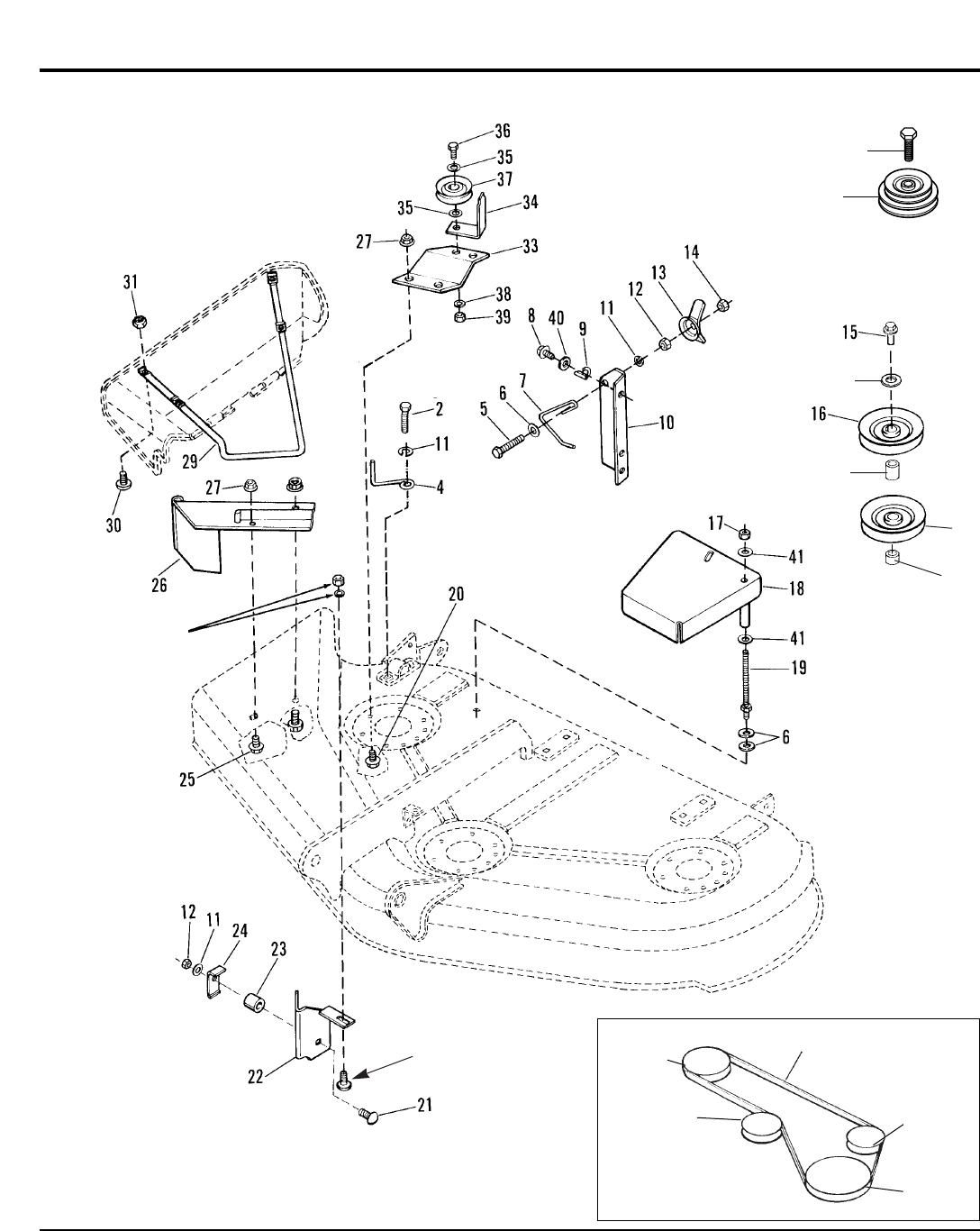

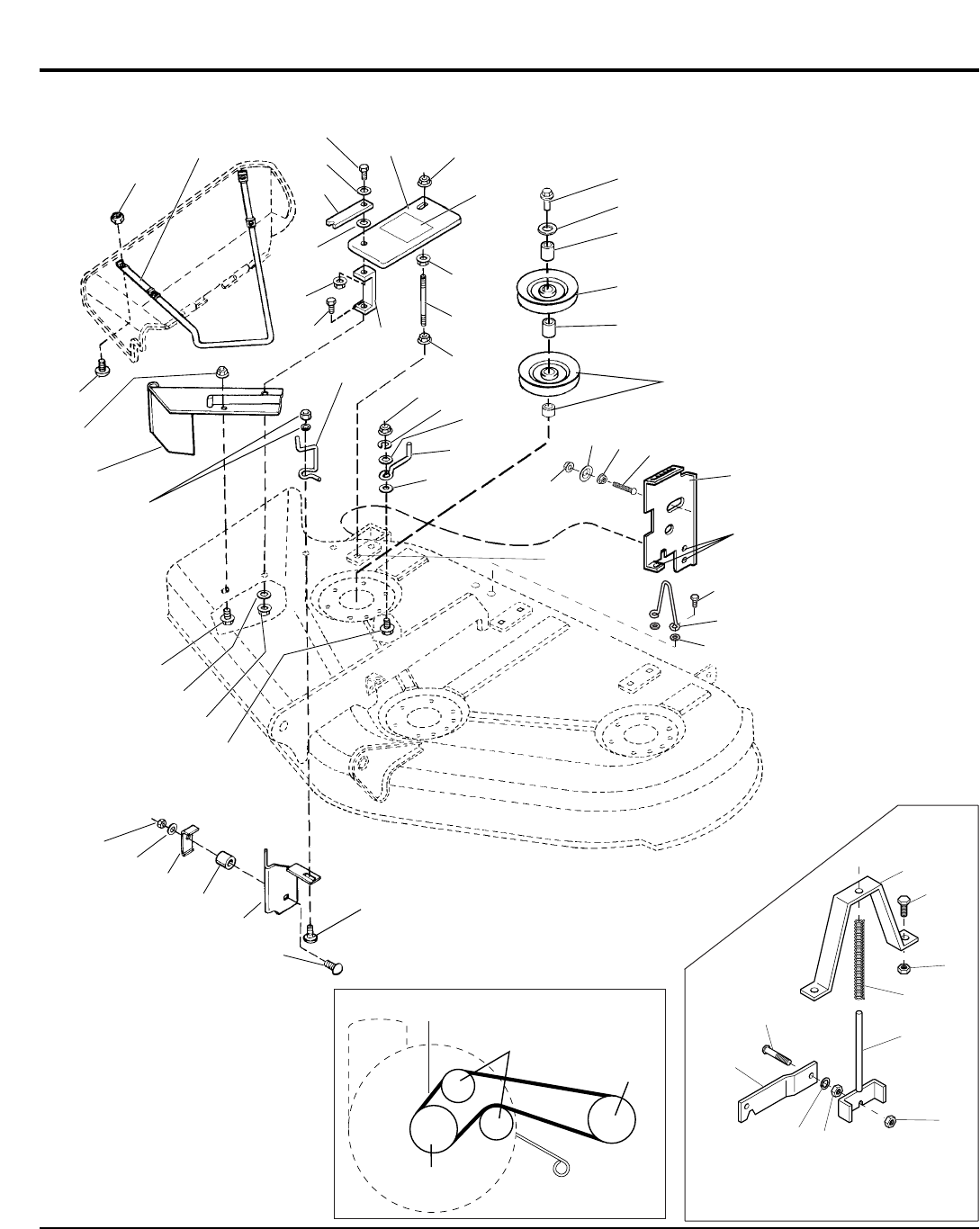

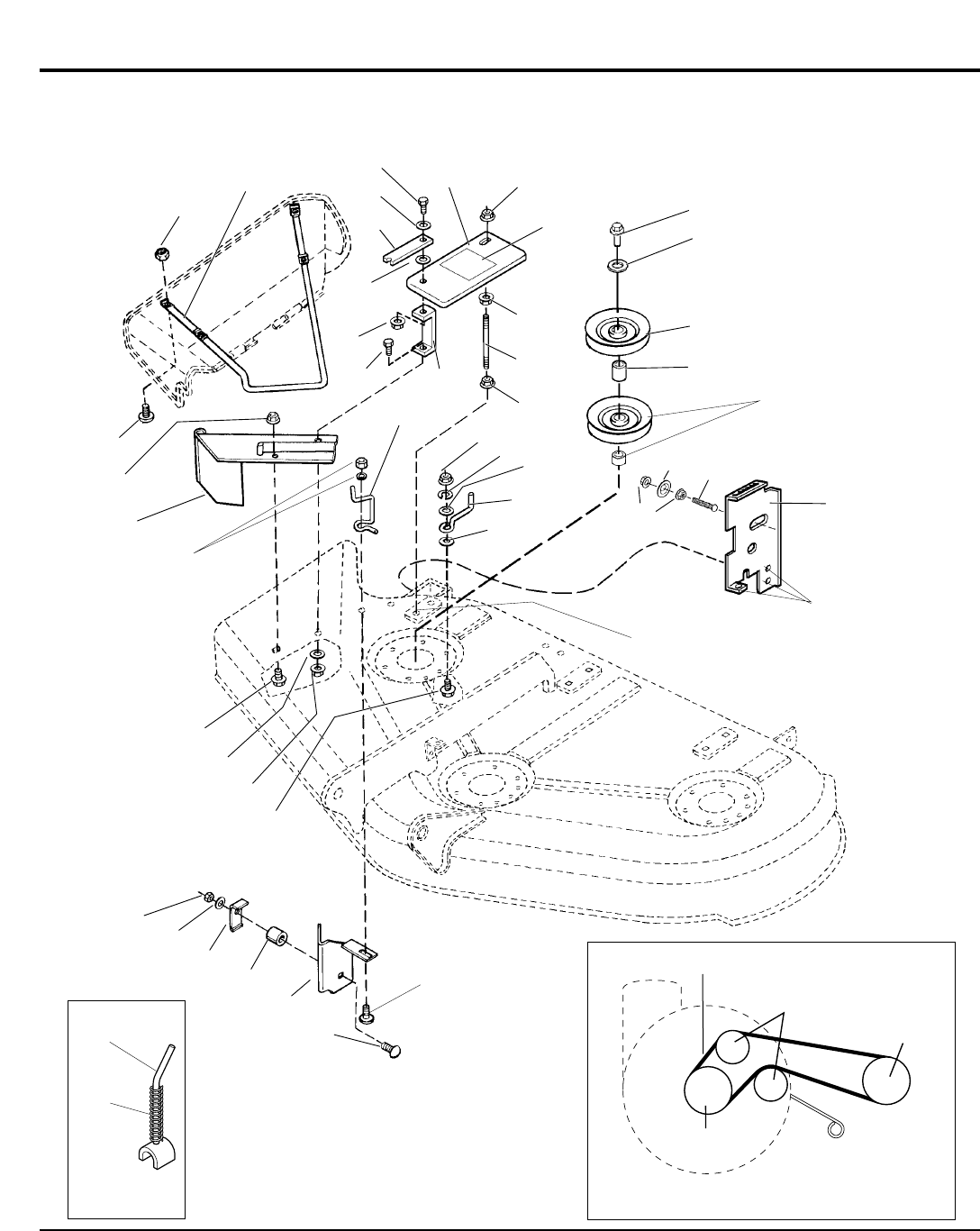

Turbo Mounting Group - 38” Regent / 500 / 2500 & ZT Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

1693225 Turbo, 38”

NOTE: All original mower deck

parts are shown as phantom parts.

A-AT42404

Existing

Pulley & Nut

Existing

Hardware

Existing

Hardware

Torque to

55-70 ft. lbs.

12 13 14

33 34

Regent/500/2500

Counterbalance Assembly

Zero Turn

Counterbalance

Assembly

Mower Deck

Turbo Drive Pulley

Turbo Drive

Pulley

Idler

Pulleys

To Slacken

Belt

Mower Deck

Arbor Pulley

Belt Routing

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 38” Regent / 500 / 2500 & ZT Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693225 Tubro, 38”

1 1916965 1 LOCKWASHER, 3/8

2 1916950 1 NUT, 3/8-16

3 1705141 1 V-BELT

4 1705066 1 PIVOT BRACKET

5 1931277 3 LOCKNUT, 5/16-18

6 1960404 4 Screw, Truss Hd., 10-24 x 3/4

7 1933896 4 NUT, Nylock, 20-24

8 1718295 1 Support Rod, Deflector

9 1917372 4 NUT, 5/16-18

10 1917356 4 LOCKWASHER,

11 1714817 1 IDLER PULLEY ASSY. (Includes Spacer)

12 1715018 1 SPRING LATCH

13 1923362 1 LOCKNUT, 5/16-18

14 1670578 1 KNOB

15 1933468 1 WASHER, 11/32 OD x 1-1/4 ID x 1/8 Thick

16 1931337 1 CARRIAGE BOLT, 5/16-18 x 1-1/2

17 1713624 1 SPACER, Splined, 1.160” Long

18 1713091 1 PULLEY

19 1713621 1 SPACER, 1.590” Long

20 1704881 1 BAFFLE

21 1930600 2 SCREW, Taptite, 5/16-18 x 1-1/2

22 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

23 1717143 1 BRACKET, Counterbalance

24 1930591 1 SCREW, Hex Whiz-Lock, 5/16-18 x 3/4

25 1716875 1 SPRING, Compression (Long)

26 1717289 1 ROD ASSEMBLY, Counterbalance

27 1935048 1 NUT, Flange, 2-Way Lock, 5/16-18

28 1917356 1 LOCKWASHER, 5/16

29 1960233 1 CARRIAGE BOLT, 5/16-18 x 1-1/4

30 1717297 1 ARM, Rear

31 1718215 1 LEVER ASSEMBLY, ZT Counterbalance

32 1718214 1 SPRING, Compression (Short)

33 1921971 1 CAPSCREW, 3/8-16 x 1-1/4

34 1924940 2 WASHER, 3/8

35 172845 1 BELT GUIDE

TP 400-2157-00-AT-SMA

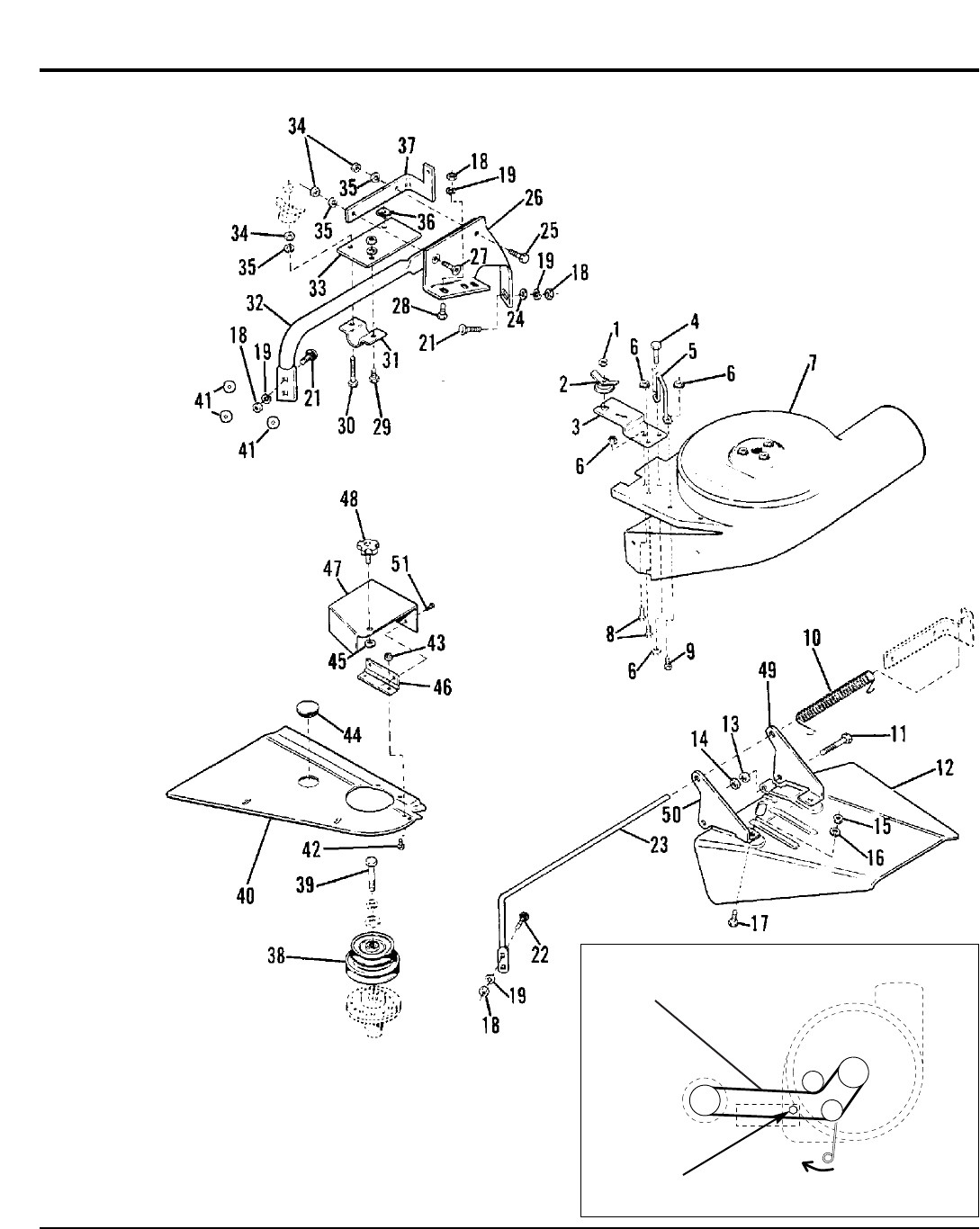

Turbo Blower Assembly - 44” Regent / 500 / 2500 & ZT Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42405

The above parts group applies to the following Mfg. Nos.:

1692858 Turbo, 44” 1693106 Turbo, 44”

NOTE: All original mower deck

parts are shown as phantom parts.

NOTE: All original mower deck

parts are shown as phantom parts.

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

937 31

31 11

14 29

32 22 33 31

20 5

25 42

Ref. No. 9

See Mounting

Group

Mounting holes

for 44" Turbo

Bracket Assy.,

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 44” Regent / 500 / 2500 & ZT Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692858 Turbo, 44”

1693106 Turbo, 44”

1 108202 2 BEARING

2 960403 1 KEY, Woodruff, Modified

3 1716853 1 SPRING, Tension

4 1665982 4 BEARING, Retainer

5 1668500 1 BRACKET, Anchor, Spring

6 1714255 1 SPACER, Idler Arm

7 1931942 1 PUSHNUT, 3/8

8 1678435 1 BELT STOP

9 1700259 1 DECAL, Danger, Blower

10 1918431 1 WASHER, Plain

11 1705267 1 PLATE, Cover

12 1705492 1 FAN HOUSING (Incl. Ref. No. 9)

13 1717101 1 LEVER ASSY, Turbo (Incl. Ref. Nos. 6 &10)

14 1706465 1 PLATE ASSY.

15 1706631 1 FAN ASSY., 5 Blade

16 1706634 1 PULLEY, Driven

17 1708030 2 IDLER PULLEY ASSY.

18 1717108 1 BRACKET ASSY., Turbo

19 1917356 1 WASHER, Spring Lock, 5/16

20 1917372 1 NUT, Hex, 5/16

21 1921969 1 CAPSCREW, 3/8-16 X 1-1/2

22 1700819 2 SCREW, Truss Hd., 1/4-18 x 5/8

23 1921959 3 CAPSCREW, Hex, 1/4-20 x 5/8

24 1924009 3 CAPSCREW, Hex Hd., 1/4-20 x 3/4

25 1960339 2 NUT, 3/8-16

26 1924874 1 WASHER, Flat

27 1924940 5 WASHER, Plain

28 1925003 1 CAPSCREW, Hex, Taptite, 1/4-20 x 1/2

29 1927557 6 NUT, Flange, Whizlock, 5/16-18

30 1928691 1 SETSCREW, Hex, Socket Hd., 5/16-18 x 5/16

31 1930641 10 NUT, Hex, Flange Lock, 1/4-20

32 1931333 7 CARRIAGE BOLT, 5/16-18 x 3/4

33 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4

34 1708352 1 BELT STOP

35 1933988 6 PUSH NUT, 3/8

36 1924356 1 WASHER

37 1960252 1 CARRIAGE BOLT, 1/4-20 x 5/8

38 1960256 2 SCREW, Washer. Hd.., 1/4-18 x 5/8

39 1922755 3 WASHER

40 1931277 2 NUT, Whizlock, 5/16-18

41 1679164 1 CUP WASHER

42 1960565 1 CARRIAGE BOLT, 5/16-18 x 2-1/2

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 44” Regent / 500 / 2500 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42406

The above parts group applies to the following Mfg. Nos.:

1692858 Turbo, 44”

NOTE: All original mower deck

parts are shown as phantom parts.

Existing

Hardware Tap front

hole

Existing

Pulley &

Spacer

Existing

Hardware

Use Existing

Hardware

15 16

418

19 20 9

29 30

20 19

Counterbalance Assembly

Mower Deck

Arbor Pulley

Turbo Drive

Pulley

Idler

Pulleys

Belt Routing

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 44” Regent / 500 / 2500 Series

REF NO. PART NO. QTY. DESCRIPTION

The above parts group applies to the following Mfg. Nos.:

1692858 Turbo, 44”

1 1960233 1 CARRIAGE BOLT, 5/16-18 x 1-1/4

2 1717146 1 V-BELT

3 1705070 1 PIVOT ASSEMBLY

4 1931277 6 NUT, Hex Flange, Whizlock, 5/16-18

5 1960404 4 CAPSCREW, Truss Head, #10-24 x 3/4” Lg.

6 1933896 6 NUT, Nylock, #10-24

7 1718295 1 ROD, Deflector

8 1921333 2 CAPSCREW, Hex Hd., 5/16-18 x 1” Lg.

9 1919326 2 WASHER, Flat, 11/32

10 1717107 1 SUPPORT STRAP, Deflector

11 960210 1 WASHER, Nylon, 0.388” Dia.

12 1717105 1 COVER, Turbo Belt

13 1919438 2 NUT, Hex, Nylock, 5/16-18

14 1717291 1 DECAL, Warning

15 1921333 1 CAPSCREW, Hex Hd., 5/16-18 x 1” Lg.

16 1717104 1 SUPPORT, Belt Cover

17 1717106 1 STUD, 5/16-18 x 5-3/4” Lg.

18 1715018 1 LATCH, Spring Wire

19 1917372 3 NUT, Hex, 5/16-18

20 1917356 3 LOCKWASHER, 5/16

21 1674315 1 STOP, Belt

22 1924940 1 WASHER, Flat, 3/8

23 1713523 1 NUT, Sleeve

24 1603592 1 WASHER, Belleville

25 1715785 1 SPACER

26 1717123 1 PULLEY

27 1713623 1 HUB, Double, .610” Long

28 1717109 1 BRACKET, Height Adjustment

29 ** 1 CUP WASHER

30 ** 1 CAPSCREW, Rnd Hd., 5/16-18 x 2.5 Lg.

31 1960223 1 CARRIAGE BOLT, 5/16-18 x 1-1/4” Lg.

32 1704880 1 BRACKET ASSEMBLY

33 1666294 1 SPACER

34 1705308 1 BRACKET, “L”

35 1927557 1 NUT, Hex Flange, Whiz-Lock, 5/16-18

36 1922755 1 WASHER, Flat, 13/32

37 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4” Lg.

38 1717143 1 BRACKET, Counterbalance

39 1930591 1 SCREW, Hex Whiz-Lock, 5/16-18 x 3/4

40 1716875 1 SPRING, Compression

41 1717289 1 ROD ASSEMBLY, Counterbalance

42 1935048 1 NUT, Flange, 2-Way Lock, 5/16-18

43 1717145 1 ARM, Rear

44 1960373 2 CAPSCREW, Taptite, 5/16 x 1

45 1704098 1 UPSTOP

46 1933263 2 WASHER, 5/16

** See Turbo Blower Group

NOTE: All original mower deck

parts are shown as phantom parts.

Turbo Mounting Group - 44” ZT Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42407

The above parts group applies to the following Mfg. Nos.:

1693106 Tubro, 44”

12 13

15 16

19 20

28 29

Existing

Hardware

Existing

Hardware

Existing

Pulley &

Spacer

Tap

front

hole

Use Existing

Hardware

Counterbalance

Assembly

Mower Deck

Arbor Pulley

Turbo Drive

Pulley

Idler

Pulleys

Belt Routing

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 44” ZT Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693106 Turbo, 44”

1 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4” Lg.

2 1717146 1 V-BELT

3 1705070 1 PIVOT ASSEMBLY

4 1931277 5 NUT, Hex Flange, Whiz0lock, 5/16-18

5 1960404 4 CAPSCREW, Truss Head, #10-24 x 3/4” Lg.

6 1933896 6 NUT, Nylock, #10-24

7 1718295 1 ROD, Deflector

8 1921333 2 CAPSCREW, Hex Hd., 5/16-18 x 1” Lg.

9 1919326 2 WASHER, Flat, 11/32

10 1717107 1 SUPPORT STRAP, Deflector

11 960210 1 WASHER, Nylon, 0.388” Dia.

12 1717105 1 COVER, Turbo Belt

13 1919438 2 NUT, Hex, Nylock, 5/16-18

14 1717291 1 DECAL, Warning

15 1921333 1 CAPSCREW, Hex Hd., 5/16-18 x 1” Lg.

16 1717104 1 SUPPORT, Belt Cover

17 1717106 1 STUD, 5/16-18 x 5-3/4” Lg.

18 1715018 1 LATCH, Spring Wire

19 1917372 3 NUT, Hex, 5/16-18

20 1917356 3 LOCKWASHER, 5/16

21 1674315 1 STOP, Belt

22 1924940 1 WASHER, Flat, 3/8

23 1713523 1 NUT, Sleeve

24 1603592 1 WASHER, Belleville

25 1717123 1 PULLEY

26 1713624 1 HUB, Double, 1.160” Long

27 1717109 1 BRACKET, Height Adjustment

28 ** 1 CUP WASHER

29 ** 1 CAPSCREW, Rnd Hd., 5/16-18 x 2.5 Lg.

30 1960223 1 CARRIAGE BOLT, 5/16-18 x 1-1/4” Lg.

31 1704880 1 BRACKET ASSEMBLY

32 1666294 1 SPACER

33 1705308 1 BRACKET, “L”

34 1927557 1 NUT, Hex Flange, Whiz-Lock, 5/16-18

35 1922755 1 WASHER, Flat, 13/32

36 1718215 1 LEVER ASSEMBLY, ZT Counterbalance

37 1718214 1 SPRING, Compression

** See Turbo Blower Group

TP 400-2157-00-AT-SMA

Turbo Blower Assy - 38” & 44” Broadmoor / 1600 / 2600, 44” & 50” Landlord / 1700 / 2700

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Mounting Holes for 44”

& 50” Turbo Bracket

Assy, Ref. No. 20

Mounting Holes for 38”

Turbo Bracket Assy,

Ref. No. 20

Mounting Holes

for 38” Turbo

Mounting Holes for

44” & 50” Turbo

A-AT42408

The above parts group applies to the following Mfg. Nos.:

1692714 Turbo, 38”

1692715 Turbo, 44”

1692716 Turbo, 50”

1693226 Turbo, 38”

1693227 Turbo, 44”

NOTE: All original mower deck

parts are shown as phantom parts.

(38”)

(44”)

TP 400-2157-00-AT-SMA

Turbo Blower Assy - 38” 44” 50” Broadmoor / 1600 / 2600, Landlord / 1700 / 2700, & ZT

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692714 Turbo, 38”

1692715 Turbo, 44”

1692716 Turbo, 50”

1693226 Turbo, 38”

1693227 Turbo, 44”

1 1935048 6 NUT, Flange, Whizlock, 5/16-18

2 1960252 1 CARRIAGE BOLT, 1/4-20 x 5/8

3 1920397 9 NUT, Hex, Nylock, 1/4-20

4 1930641 3 NUT, Hex, Flange Lock, 1/4-20

5 1921959 3 CAPSCREW, Hex, 1/4-20 x 5/8

6 1705267 1 PLATE, Cover

7 1931333 9 CARRIAGE BOLT, 5/16-18 x 3/4

8 1960472 2 SCREW, Truss Hd., 1/4-18 x 5/8

9 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4

10 1678435 1 BELT STOP

11 1924874 1 WASHER, Flat

12 1917356 1 WASHER, Spring Lock, 5/16

13 1917372 1 NUT, Hex, 5/16

14 1924361 1 WASHER, Flat

15 1676148 2 BUSHING

16 1704314 1 FITTING, Grease

17 1668500 1 BRACKET, Anchor, Spring

18 1923341 3 CAPSCREW, Hex Hd., 1/4-20 x 3/4 (38” Models)

19 1716853 1 SPRING, Tension

20 1704983 1 BRACKET ASSY., Turbo

21 1920415 1 CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

22 1924940 2 WASHER, Plain

23 1708030 1 IDLER PULLEY ASSY.

24 1933263 1 WASHER, Flat

25 1960251 2 NUT, Hex, Jam, Center Lock, 3/8-16

26 1924940 1 WASHER, Flat

27 1706284 1 LEVER ASSY, Turbo (Incl. Ref. Nos. 15 &16)

28 1676833 1 SPACER

29 1706634 1 PULLEY, Driven

30 1928691 1 SETSCREW, Hex, Socket Hd., 5/16-18 x 5/16

31 1706465 1 PLATE ASSY.

32 960403 1 KEY, Woodruff, Modified

33 1924009 1 CAPSCREW, Hex Hd., 1/4-20 x 7/8 (44” Models)

34 1700259 1 DECAL, Danger, Blower

35 1665982 4 BEARING, Retainer

36 108202 2 BEARING

37 1933988 3 PUSH NUT, 3/8

38 1706631 1 FAN ASSY., 5 Blade

39 1960256 1 SCREW, Truss Hd.., 1/4-18 x 1/4

40 1705492 1 FAN HOUSING (Incl. Ref. No. 34)

41 1925003 1 CAPSCREW, Hex, Taptite, 1/4-20 x 1/2

Existing

Hardware

Existing

Pulley & Nut

Torque to

55-70 ft. lbs.

Existing

Washer

8910

11 12

1414 15

16 17

22 24

TP 400-2157-00-AT-SMA

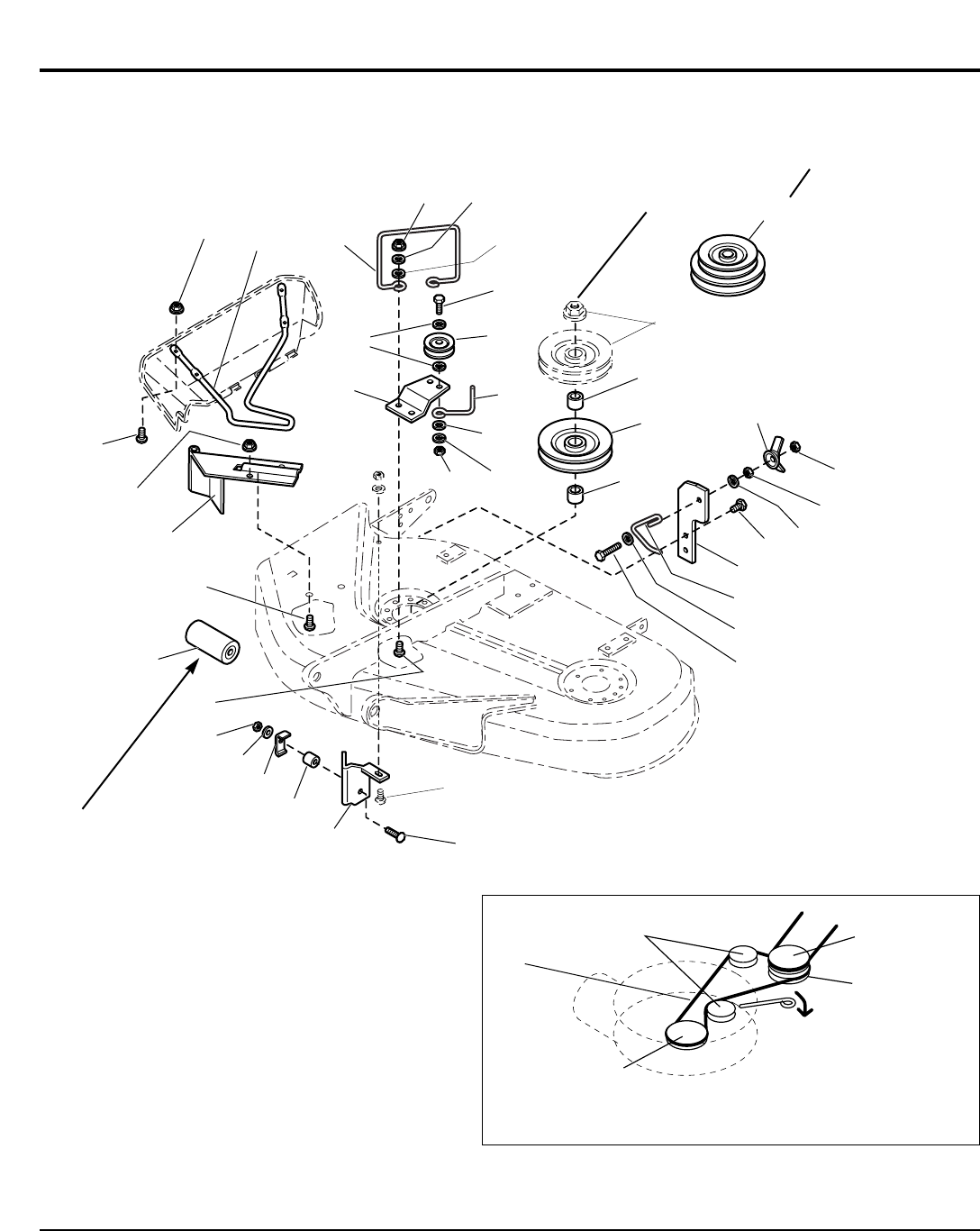

Turbo Mounting Group - 38” Broadmoor / 1600 / 2600 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42409

The above parts group applies to the following Mfg. Nos.:

1692714 Turbo, 38”

1693226 Turbo, 38”

NOTE: All original mower deck

parts are shown as phantom parts.

NOTE: Heavy duty roller (1)

replaces roller on right end

(closest to turbo).

Replacement is required

because of the turbo’s addi-

tional weight.

Stacked Pulley Ref. No. 2 is for use

on early style mower decks with

splined arbor shafts.

Mower Deck

Turbo Drive Pulley

Turbo Drive

Pulley

Idler

Pulleys

To Slacken

Belt

Mower Deck

Arbor Pulley

Belt Routing

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 38” Broadmoor / 1600 / 2600 Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692714 Turbo, 38”

1693226 Turbo, 38”

1 1713540 1 ROLLER

2 1704769 1 STACKED PULLEY ASSY (Early Production 1692714 Only)

3 1705141 1 V-BELT

4 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

5 1705066 1 PIVOT ASSY.

6 1931277 2 NUT, Hex, Flange, Whizlock, 5/16-18

7 1960404 4 SCREW, Truss Hd., #10-24 x 3/4

8 1933896 4 NUT, Nylock, #10-24

9 1718295 1 ROD, Deflector

10 1704789 1 BELT GUIDE, Turbo

11 1917372 4 NUT, Hex, 5/16-18

12 1917356 4 LOCKWASHER, 5/16

13 1921971 1 CAPSCREW, 3/8-16 x 1-1/4

14 1924940 3 WASHER, Flat, 3/8

15 1714817 1 IDLER PULLEY

16 1704768 1 BRACKET, Idler

17 172845 1 BELT STOP

18 1916965 1 LOCKWASHER, 3/8

19 1916950 1 NUT, Hex, 3/8-16

20 1713621 1 SPACER, Splined, 1.590” Long

21 1713091 1 PULLEY ASSY.

22 1713624 1 SPACER, Short

23 1679163 1 NUT, Wing Assy, 5/16

24 1923362 1 NUT, Hex, Center Lock, 5/16-18

25 1924856 2 SCREW, Taptite, 5/16-18 x 1/2

26 1704799 1 BRACE,

27 1705064 1 SPRING LATCH

28 1919381 1 WASHER, Flat

29 1960318 1 CAPSCREW, Hex Hd, 5/16-18 x 2-1/2

30 1960223 1 CARRIAGE BOLT, 5/16-18 x 1-1/4

31 1704881 1 BRACKET ASSY.,

32 1666294 1 SPACER

33 1705308 1 BRACKET,"L"

34 1930600 2 SCREW, Taptite, 5/16-18 x 1-1/2

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 44” Broadmoor / 1600 / 2600 & Landlord / 1700 / 2700 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42410

The above parts group applies to the following Mfg. Nos.:

1692715 Turbo, 44”

NOTE: All original mower deck

parts are shown as phantom parts.

Blower

Pulley

Fixed

Idler

Pulley

Tensioning

Idler Pulley

Arbor

Pulley

Landlord/1700/2700

Series Only (When

no up-stop is used)

Existing

Hardware

Belt Routing

Stacked Pulley Ref.

No. 46 and capscrew

Ref. No. 47 are for use

on early style mower

decks with splined

arbor shafts.

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 44” Broadmoor / 1600 / 2600 & Landlord / 1700 / 2700 Series

REF NO. PART NO. QTY. DESCRIPTION

The above parts group applies to the following Mfg. Nos.:

1692715 Turbo, 44”

1 1705142 1 BELT

2 1921221 1 CAPSCREW 5/16-18 x 1-1/2

3 1919326 2 WASHER, Flat

4 172845 1 BELTSTOP

5 1960318 1 CAPSCREW 5/16-18 x 2-1/2

6 1919381 3 WASHER, Flat

7 1705064 1 SPRING LATCH

8 1925003 1 SCREW, Taptite 1/4-20 x 1/2

9 1678435 1 BELT STOP

10 1704982 1 ANCHOR, Turbo, 44"

11 1917356 2 LOCKWASHER 5/16

12 1917372 2 NUT, Hex, 5/16-18

13 1679163 1 NUT, Wing Assy, 5/16

14 1923362 1 NUT, Hex, Centerlock 5/16-18

15 1713523 1 NUT, Sleeve

16 1709941 1 PULLEY ASSY Turbo

17 1919438 2 HEX NUT, Nylock

18 1705279 1 SHIELD ASSY., Belt

19 1705123 1 STUD, 5/16-18 x 5-13/64

20 1923325 2 CAPSCREW, Hex Hd. 5/16-18 x 7/8

21 1960223 1 CARRIAGE BOLT 5/16-18 x 1-1/4

22 1704880 2 BRACKET ASSY., Cutoff

23 1666294 1 SPACER

24 1705308 1 BRACKET, "L"

25 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4"

26 1705070 1 PIVOT ASSY., 44"

27 1931277 3 NUT, Hex, Flange

28 1931648 1 SCREW. Hex Whiz- lock 5/16-18 x 2"

29 1718295 1 ROD, Deflector

30 1960404 4 SCREW, Truss Hd

31 1933896 4 NUT, Nylock, #10-24

32 1710703 1 SPACER

33 1704768 1 BRACKET, Idler, Turbo

34 1705277 1 LATCH, Belt Cover

35 1924940 2 WASHER, Flat

36 1921969 1 CAPSCREW, 3/8-16 x 1-1/2

37 1714817 1 PULLEY ASSY, Idler

38 1916965 1 LOCKWASHER, 3/8

39 1916950 1 NUT, Hex, 3/8-16

40 1921319 1 WASHER, Flat, 1/4

41 1924874 2 WASHER, Flat

42 REF 1 HUB (Existing)

43 1603592 1 WASHER, Belleville

44 1713634 1 HUB, Pulley, Double, 1.160” Long

45 REF 1 V-PULLEY(Existing)

46 1704796 1 PULLEY, Double (Used with Early Production 1692715 Only)

47 1927531 1 CAPSCREW, 7/16-14 x 2 (Used with Early Production 1692715 Only)

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 44” Broadmoor / 1600 / 2600 & Landlord / 1700 / 2700 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42411

The above parts group applies to the following Mfg. Nos.:

1693227 Turbo, 44

NOTE: All original mower deck

parts are shown as phantom parts.

Existing

Hardware on

Broadmoor / 1600

/ 2600 Series

Existing Pulley

& Spacer

Torque to

55-70 ft. lbs.

Existing

Hardware

Existing

Hardware

10 11

25 2

22 23

32 33

Note: All original

(existing) mower deck

parts are shown as

phantom line parts.

Mower Deck

Turbo Drive Pulley

Turbo Drive

Pulley

Idler

Pulleys

To Slacken

Belt

Mower Deck

Arbor Pulley

Belt Routing

Stacked Pulley Ref. No. 49 and capscrew

Ref. No. 48 are for use on early style

mower decks with splined arbor shafts.

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 44” Broadmoor / 1600 / 2600 & Landlord / 1700 / 2700 Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693227 Turbo, 44”

1 1705142 1 BELT

2 1923325 2 CAPSCREW, Hex Hd, 5/16-18 x 7/8

3 1927531 1 CAPSCREW, 7/16-14 x 2 (Used with Early Production 1693227 Only)

4 1927557 1 NUT, Hex, Whizlock, 5/16-18

5 1922755 1 WASHER, 5/16

6 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

7 1705070 1 PIVOT ASSEMBLY

8 1931277 3 NUT, Hex Whizlock, 5/16-18

9 1960404 4 SCREW, Truss Hd, #10-24 x 3/4

10 1933896 4 NUT, Hex, Nylon Lock, #10-24

11 1718295 1 ROD, Deflector

12 1921333 2 CAPSCREW, Hex Hd, 5/16-18 x 1

13 1919326 3 WASHER, 5/16

14 1718303 1 COVER, Belt

15 1718304 1 SUPPORT, Belt Cover

16 1919438 1 NUT, Hex 5/16-18

17 1921969 1 CAPSCREW, Hex Hd 3/8-16 x 1-1/2

18 1924940 3 WASHER, Flat, 3/8

19 1714817 1 PULLEY ASSEMBLY, Idler

20 1705277 1 LATCH, Belt Cover

21 1704768 1 BRACKET, Idler

22 1916965 1 LOCKWASHER, 3/8

23 1916950 1 NUT, Hex, 3/8-16

24 1921221 1 CAPSCREW, HEX HD, 5/16-18 X 1-1/2

25 1917356 2 LOCKWASHER, 5/16

26 172845 1 BELT STOP

27 1710703 1 SPACER

28 1713523 1 NUT, Sleeve

29 1603592 1 WASHER, Belleville

30 1709941 1 PULLEY

31 1713634 1 HUB, Double Pulley

32 1925003 1 CAPSCREW, Hex Hd, 1/4-20 x 1/2

33 1921319 1 WASHER, 1/4

34 1678435 1 BELT STOP, (Height Indicator)

35 1705064 1 LATCH, Spring

36 1919381 1 WASHER, 5/16

37 1960318 1 CAPSCREW, Hex Hd, 5/16-18

38 1923362 1 NUT, Hex Lock, 5/16-18

39 1679163 1 NUT,Wing, Special, 5/16

40 1917372 3 NUT, Hex, 5/16-18

41 1704982 1 BRACKET, Anchor

42 1704098 1 UPSTOP, Wire

43 1960373 2 CAPSCREW, Hex Washer Hd, Taptite, 5/16

44 1960223 1 CARRIAGE BOLT, 5/16-18

45 1704880 1 BRACKET ASSEMBLY, Cutoff

46 1666294 1 SPACER

47 1705308 1 BRACKET

48 1717291 1 DECAL, Warning

49 1704796 1 PULLEY, Double (Used with Early Production 1693227 Only)

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 50” Landlord / 1700 / 2700 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42412

The above parts group applies to the following Mfg. Nos.:

1692716 Turbo, 50”

NOTE: All original mower deck

parts are shown as phantom parts.

Blower

Pulley

Fixed

Idler

Pulley

Tensioning

Idler Pulley

Arbor

Pulley

Existing

Hardware

Existing

Hardware

Belt Routing

Stacked Pulley Ref.

No. 44 and capscrew

Ref. No. 43 are for use

on early style mower

decks with splined

arbor shafts.

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 50” Landlord / 1700 / 2700 Series

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692716 Turbo, 50”

1 1707956 1 Belt - 50"

2 1921221 1 CAPSCREW 5/16-18 x 1-1/2

3 ** 1 HUB

4 172845 1 BELTSTOP

5 1960318 1 CAPSCREW 5/16-18 x 2-1/2

6 1919381 3 WASHER, Flat

7 1705064 1 SPRING LATCH

8 1925003 1 SCREW, Taptite 1/4-20 x 1/2

9 1678435 1 BELT STOP

10 1704982 1 ANCHOR, Turbo

11 1917356 2 LOCKWASHER 5/16

12 1917372 2 NUT, Hex, 5/16-18

13 1679163 1 NUT, Wing Assy, 5/16

14 1923362 1 NUT, Hex, Centerlock 5/16-18

15 1713523 1 NUT, Sleeve

16 1709941 1 PULLEY ASSY Turbo

17 1919438 2 HEX NUT, Nylock

18 1705279 1 SHIELD ASSY., Belt

19 1705123 1 STUD, 5/16-18 x 5-13/64

20 1923325 2 CAPSCREW, Hex Hd. 5/16-18 x 7/8

21 1960223 1 CARRIAGE BOLT 5/16-18 x 1-1/4

22 1704880 2 BRACKET, Cutoff

23 1666294 1 SPACER

24 1705308 1 BRACKET, "L"

25 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4"

26 1705066 1 PIVOT ASSY., 50"

27 1931277 3 NUT, Hex, Flange

28 ** 1 V-PULLEY

29 1718295 1 ROD, Deflector

30 1960404 4 SCREW, Truss Hd

31 1933896 4 NUT, Nylock, #10-24

32 1713634 1 HUB, Pulley, Double

33 1704768 1 BRACKET, Idler, Turbo

34 1705277 1 LATCH, Belt Cover

35 1924940 2 WASHER, Flat

36 1921969 1 CAPSCREW, 3/8-16 x 1-1/2

37 1714817 1 PULLEY ASSY, Idler

38 1916965 1 LOCKWASHER, 3/8

39 1916950 1 NUT, Hex, 3/8-16

40 1921319 1 WASHER, Flat, 1/4

41 1924874 1 WASHER, Flat

42 1603592 1 WASHER, Belleville

43 1927531 1 CAPSCREW, 7/16-14 x 2 (Used with Early Production 1692716 Only)

44 1704796 1 PULLEY, Double (Used with Early Production 1692716 Only)

**Existing Components From Tractor

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 48” Legacy / 2000 / 2900 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42413

The above parts group applies to the following Mfg. Nos.:

1692936 Turbo, 48”

NOTE: All original mower deck

parts are shown as phantom parts.

Upstop Capscrew

Slide Under Wing Nut

Place Over Nut Bracket Capscrews

Mounting Plate - 48” Models

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 48” Legacy / 2000 / 2900 Series

1 1679897 1 MOUNTING PLATE

2 1921959 9 SCREW,Hex Hd.,1/4-20x5/8

3 1960346 1 CAPSCREW, Hex,1/4-20 x 2-1/4

4 1700936 1 STOP, Deflector

5 1924009 1 CAPSCREW, Hex,1/4-20 x 7/8

6 1927557 6 NUT, Flange, Lock, 5/16-18

7 1665982 4 BEARING, Retainer

8 108202 2 BEARING

9 1700259 1 DECAL, Warning

10 1706654 1 HOUSING, Blower (Incl. Ref. No. 9)

11 1679900 1 HOOK, Stoneguard

12 1930641 13 NUT, Hex Flange Whiz,1/4-20

13 1933988 6 PUSH NUT, Nylon,1/4-20

14 1676435 1 WASHER, Plain,1/2

15 1931333 6 CARRIAGE BOLT, 5/16-18 x 3/4

16 1706631 1 FAN ASSY. (5 Blade)

17 960403 1 KEY, Woodruff

18 1960268 1 CARRIAGE BOLT, 3/8-16 x 1-1/4

19 1928731 3 NUT, Hex Jam Lock, 3/8-16

20 1706652 1 PLATE, Shroud

21 170397 1 STOP, Belt

22 1919326 1 WASHER, Plain,11/32

23 1702553 1 COVER, Top

24 1924940 5 WASHER,13/32

25 1928691 1 SETSCREW, Sq. Hd., 5/16-18 x 3/8

26 1706634 1 PULLEY, Driven

27 1666114 1 SPACER

28 1921969 1 CAPSCREW, Hex Hd., 3/8-16 x 1/2

29 1679554 1 SPRING, Tension

30 174561 1 PULLEY, Idler, Adjustable

31 1701827 1 IDLER ARM ASSY.

32 1921210 1 CAPSCREW,3/8-16 x 1

33 157424 1 WASHER, Special

34 1917356 1 LOCKWASHER, 5/16

35 1917372 1 NUT, Hex, 5/16

36 1708030 1 PULLEY, Idler, Fixed

37 1923341 2 CAPSCREW, Hex Hd., 1/4-20 x 3/4

38 1931334 1 CARRIAGE BOLT, 5/16-18 x 7/8

39 1672689 1 S-HOOK

40 1920397 4 LOCKNUT, Nylon, 1/4-20

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692936 Turbo, 48”

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 48” Legacy / 2000 / 2900 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42414

The above parts group applies to the following Mfg. Nos.:

1692936 Turbo, 48”

NOTE: All original mower deck

parts are shown as phantom parts.

Capscrew Ref. No. 4

Belt Routing

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 48” Legacy / 2000 / 2900 Series

1 1923362 1 NUT, Hex, 5/16-18

2 1679163 1 NUT ASSY.

3 1679897 1 PLATE, Mounting

4 1960346 1 CAPSCREW, Hex Hd., 1/4-20 x 2-1/4

5 1700936 1 STOP, Deflector

6 1930641 13 NUT, Hex, Flange Whiz, 1/4-20

7 * 1 TURBO ASSY.

8 1923341 2 CAPSCREW, Hex Hd., 1/4-20 x 3/4

9 1924009 1 CAPSCREW, Hex Hd., 1/4-20 x 7/8

10 1700851 1 SPRING

11 1926110 2 CAPSCREW, Hex Hd., 7/16-14 x 2-3/4

12 ** 1 DEFLECTOR ASSY (From Mower).

13 1918199 2 LOCKWASHER, 7/16

14 1918213 2 NUT, Hex, 7/16-14

15 1917372 4 NUT, Hex, 5/16-18

16 1917356 4 LOCKWASHER, 5/16

17 1923325 2 CAPSCREW, Hex Hd., 5/16-18 x 7/8

18 1916950 5 NUT, Hex, 3/8-16

19 1916965 5 LOCKWASHER, 3/8

20 1679914 1 V-BELT

21 1931350 2 CARRIAGE BOLT, 3/8-16 x 1

22 1960373 5 SCREW, Taptite, 3/8-16 x 1

23 1700800 1 ROD, Hinge

24 1924940 1 WASHER, Plain, 3/8

25 1921977 1 CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

26 1709327 1 BRACKET, Support

27 1960486 1 SCREW, Flat Hd., Hex Soc., 5/16-18 x 1-1/4

28 1921210 2 CAPSCREW, Hex Hd., 3/8-16 x 1

29 1925205 1 CAPSCREW, Hex Hd., 5/16-18 x 5/8

30 1960318 1 CAPSCREW, Hex Hd., 5/16-18 x 2-1/2

31 1679898 1 CLAMP, Lower

32 1677651 1 BRACE, Bracket Support

33 1700638 1 CLAMP, Upper

34 1917372 3 NUT, Hex, 5/16-18

35 1917356 3 LOCKWASHER, 5/16

36 1935255 1 PAL NUT, 5/16-18

37 1700797 1 PIVOT ASSY., Deflector

38 1679903 1 PULLEY ASSY.

39 1927120 1 CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

40 1700013 1 COVER, L.H. Mower

41 1708511 3 WASHER, Spacer

42 922121 2 SCREW, Rd. Hd., Mach., 10-32 x 3/8

43 1928919 2 NUT, Hex Washer, 10-32

44 1674020 1 PLUG, Mower Cover

45 1933988 1 PUSH NUT, 5/16

46 1700649 1 HINGE

47 1700728 1 COVER, Belt (Includes Ref. No. 46 & 51)

48 1700669 1 PLASTIC KNOB

49 1700802 1 PIVOT BRACKET, R.H.

50 1700801 1 PIVOT BRACKET, L.H.

51 928707 2 RIVET

* Not Sold Separately

** Original Mower Deck Part

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692936 Turbo, 48”

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 60” Legacy / 2000 / 2900 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42415

The above parts group applies to the following Mfg. Nos.:

1692937, Turbo, 60”

NOTE: All original mower deck

parts are shown as phantom parts.

Upstop Capscrew

Slide Under Wing Nut

Place Over Nut Bracket Capscrews

Mounting Plate - 60” Models

TP 400-2157-00-AT-SMA

Turbo Blower Assembly - 60” Legacy / 2000 / 2900 Series

1 1679912 1 MOUNTING PLATE

2 1921959 5 SCREW,Hex Hd.,1/4-20x5/8

3 1960346 1 CAPSCREW, Hex,1/4-20 x 2-1/4

4 1700936 1 STOP, Deflector

5 1924009 1 CAPSCREW, Hex,1/4-20 x 7/8

6 1927557 6 NUT, Flange, Lock, 5/16-18

7 1665982 4 BEARING, Retainer

8 108202 2 BEARING

9 1700259 1 DECAL, Warning

10 1706718 1 HOUSING, Blower (Incl. Ref. No. 9)

11 1679900 1 HOOK, Stoneguard

12 1930641 13 NUT, Hex Flange Whiz,1/4-20

13 1933988 6 PUSH NUT, Nylon,1/4-20

14 1676435 1 WASHER, Plain,1/2

15 1931333 6 CARRIAGE BOLT, 5/16-18 x 3/4

16 1706631 1 FAN ASSY. (5 Blade)

17 960403 1 KEY, Woodruff

18 1960268 1 CARRIAGE BOLT, 3/8-16 x 1-1/4

19 1928731 3 NUT, Hex Jam Lock, 3/8-16

20 1706652 1 PLATE, Shroud

21 170397 1 STOP, Belt

22 1919326 1 WASHER, Plain,11/32

23 1702589 1 COVER, Top

24 1924940 5 WASHER,13/32

25 1928691 1 SETSCREW, Sq. Hd., 5/16-18 x 3/8

26 1706634 1 PULLEY, Driven

27 1666114 1 SPACER

28 1921969 1 CAPSCREW, Hex Hd., 3/8-16 x 1/2

29 1679554 1 SPRING, Tension

30 174561 1 PULLEY, Idler, Adjustable

31 1701827 1 IDLER ARM ASSY.

32 1921210 1 CAPSCREW,3/8-16 x 1

33 157424 1 WASHER, Special

34 1917356 1 LOCKWASHER, 5/16

35 1917372 1 NUT, Hex, 5/16

36 1708030 1 PULLEY, Idler, Fixed

37 1923341 2 CAPSCREW, Hex Hd., 1/4-20 x 3/4

38 1931334 1 CARRIAGE BOLT, 5/16-18 x 7/8

39 1672689 1 S-HOOK

40 1920397 4 LOCKNUT, Nylon, 1/4-20

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692937, Turbo, 60”

TP 400-2157-00-AT-SMA

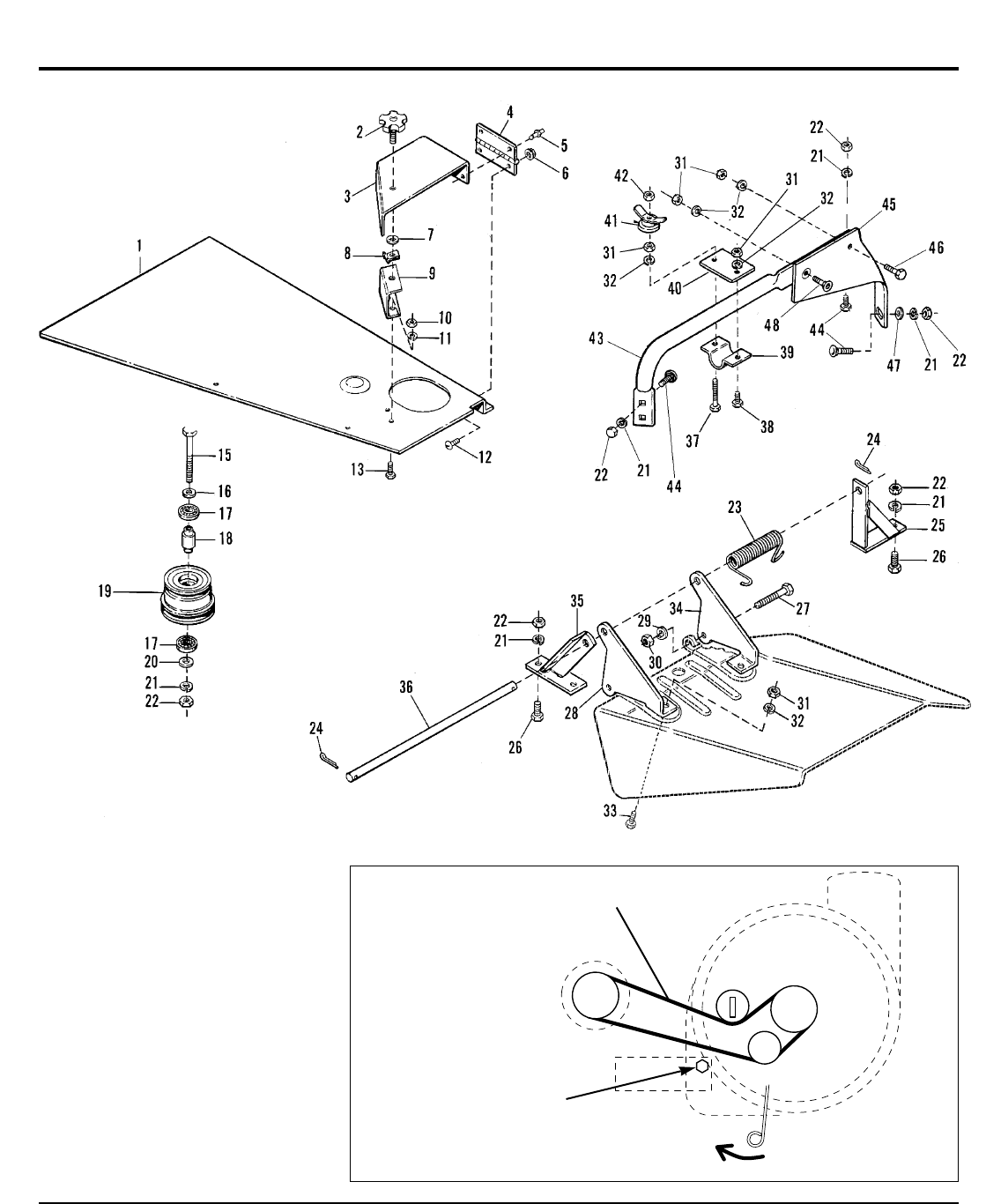

Turbo Mounting Group - 60” Legacy / 2000 / 2900 Series

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

A-AT42416

The above parts group applies to the following Mfg. Nos.:

1692937, Turbo, 60”

NOTE: All original mower deck

parts are shown as phantom parts.

Capscrew Ref No. 3,

Page 26

Belt Routing 14

TP 400-2157-00-AT-SMA

Turbo Mounting Group - 60” Legacy / 2000 / 2900 Series

1 1717618 1 COVER, L.H. Mower

2 1700669 1 PLASTIC KNOB

3 1700668 1 COVER ASSY., (Incl. Ref. Nos. 4 & 5)

4 1700649 1 HINGE

5 928707 2 RIVET, 3/16 x 5/16

6 1928919 2 NUT, Hex,Washer#10-32

7 1933988 1 PUSH NUT, 5/16 Stud

8 1935255 1 PALNUT, 5/16-18

9 1700654 1 BRACKET, Belt Cover

10 1916622 2 NUT, Hex, Full,1/4-20

11 1916964 2 LOCKWASHER,1/4

12 922121 2 SCREW, Rd. Hd., Mach., #10-32 x 3/8

13 1921958 2 CAPSCREW, Hex,1/4-20x 1/2

14 1679915 1 V-BELT

15 1922918 1 SCREW, Cap, Hex, 3/8-16 x 3-1/4

16 157424 1 WASHER, Special

17 1705897 2 BEARING

18 1700651 1 SPACER, Pulley

19 1700650 1 PULLEY

20 1700652 1 SPACER

21 1916965 3 LOCKWASHER, 3/8

22 1916950 3 NUT, Hex, Full, 3/8-16

23 1700852 1 SPRING, Torsion

24 1918447 2 PIN, Cotter, 3/32 x 3/4

25 1700832 1 HINGE ASSY., Rear

26 1921210 2 CAPSCREW, Hex, 3/8-16 x 1

27 1926110 2 CAPSCREW,Hex,7/16-14x2-1/4

28 1700801 1 PIVOT, Bracket, L.H.

29 1918199 2 LOCKWASHER, 7/16

30 1918213 2 NUT, Hex, Full, 7/16-14

31 1917372 7 NUT, Hex, Full, 5/16-18

32 1917356 7 LOCKWASHER, 5/16

33 1923325 2 CAPSCREW, Hex, 5/16-18 x 7/8

34 1700802 1 PIVOT, Bracket, R.H.

35 1700828 1 HINGE ASSY., Front

36 1700853 1 ROD, Pivot

37 1960318 1 CAPSCREW, Hex, 5/16-18 x 2-1/2

38 1925205 1 CAPSCREW, Hex, 5/16-18 x 5/8

39 1679898 1 CLAMP, Lower

40 1679899 1 CLAMP, Upper

41 1679163 1 NUT ASSY.

42 1923362 1 NUT, Hex, Full, Lock, 5/16-18

43 1677652 1 BRACE, Bracket Support

44 1931350 4 CARRIAGE BOLT, 3/8-16 x 1

45 1717580 1 BRACKET, Support

46 1921977 1 CAPSCREW, 5/16-18 x 1-1/4

47 1924940 1 WASHER, 3/8

48 1960486 1 SCREW, Socket Head, 5/16-18 x 1-1/4

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1692937, Turbo, 60”

TP 400-2157-00-AT-SMA

Part Number Index by Page Number

** 12 29

** 12 30

** 14 28

** 14 29

REF 20 42

REF 20 45

** 24 3

** 24 28

*287

** 28 12

108202 2 1

108202 6 1

108202 10 1

108202 16 36

108202 26 8

108202 30 8

157424 26 33

157424 30 33

157424 32 16

170397 26 21

170397 30 21

172845 4 1

172845 8 35

172845 18 17

172845 20 4

172845 22 26

172845 24 4

174561 26 30

174561 30 30

922121 28 42

922121 32 12

928707 28 51

928707 32 5

960210 12 11

960210 14 11

960403 2 2

960403 6 2

960403 10 2

960403 16 32

960403 26 17

960403 30 17

1603592 12 24

1603592 14 24

1603592 20 43

1603592 22 29

1603592 24 42

1657499 2 3

1657499 6 3

1665982 2 4

1665982 6 4

1665982 10 4

1665982 16 35

1665982 26 7

1665982 30 7

1666114 26 27

1666114 30 27

1666294 12 33

1666294 14 32

1666294 18 32

1666294 20 23

1666294 22 46

1666294 24 23

1668500 2 5

1668500 6 5

1668500 10 5

1668500 16 17

1670578 4 2

1670578 8 14

1672689 26 39

1672689 30 39

1674020 28 44

1674315 12 21

1674315 14 21

1676148 2 6

1676148 6 6

1676148 16 15

1676435 26 14

1676435 30 14

1676833 2 7

1676833 6 7

1676833 16 28

1677651 28 32

1677652 32 43

1678435 2 8

1678435 6 8

1678435 10 8

1678435 16 10

1678435 20 9

1678435 22 34

1678435 24 9

1679163 18 23

1679163 20 13

1679163 22 39

1679163 24 13

1679163 28 2

1679163 32 41

1679164 10 41

1679554 26 29

1679554 30 29

1679897 26 1

1679897 28 3

1679898 28 31

1679898 32 39

1679899 32 40

1679900 26 11

1679900 30 11

1679903 28 38

1679912 30 1

1679914 28 20

1679915 32 14

1700013 28 40

1700259 2 9

1700259 6 9

1700259 10 9

1700259 16 34

1700259 26 9

1700259 30 9

1700638 28 33

1700649 28 46

1700649 32 4

1700650 32 19

1700651 32 18

1700652 32 20

1700654 32 9

1700668 32 3

1700669 28 48

1700669 32 2

1700728 28 47

1700797 28 37

1700800 28 23

1700801 28 50

1700801 32 28

1700802 28 49

1700802 32 34

1700819 10 22

1700828 32 35

1700832 32 25

1700851 28 10

1700852 32 23

1700853 32 36

1700936 26 4

1700936 28 5

1700936 30 4

1701827 26 31

1701827 30 31

1702553 26 23

1702589 30 23

1704098 12 45

1704098 22 42

1704314 2 10

1704314 6 10

1704314 16 16

1704768 4 3

1704768 18 16

1704768 20 33

1704768 22 21

1704768 24 33

1704769 18 2

1704789 18 10

1704796 20 46

1704796 22 49

1704796 24 44

1704799 18 26

1704880 12 32

1704880 14 31

1704880 20 22

1704880 22 45

1704880 24 22

1704881 4 4

1704881 8 20

1704881 18 31

1704982 20 10

1704982 22 41

1704982 24 10

1704983 16 20

1705064 18 27

1705064 20 7

1705064 22 35

1705064 24 7

1705066 4 5

1705066 8 4

1705066 18 5

1705066 24 26

1705070 12 3

1705070 14 3

1705070 20 26

1705070 22 7

1705123 20 19

1705123 24 19

1705141 4 6

1705141 8 3

1705141 18 3

1705142 20 1

1705142 22 1

1705267 2 11

1705267 6 11

1705267 10 11

1705267 16 6

1705277 20 34

1705277 22 20

1705277 24 34

1705279 20 18

1705279 24 18

1705308 12 34

1705308 14 33

1705308 18 33

1705308 20 24

1705308 22 47

1705308 24 24

1705492 2 12

1705492 6 12

1705492 10 12

1705492 16 40

1705716 4 7

1705897 32 17

1706284 2 13

1706284 6 13

1706284 16 27

1706465 2 14

1706465 6 14

1706465 10 14

1706465 16 31

1706631 2 15

1706631 6 15

1706631 10 15

1706631 16 38

1706631 26 16

1706631 30 16

1706634 2 16

1706634 6 16

1706634 10 16

1706634 16 29

1706634 26 26

1706634 30 26

1706652 26 20

1706652 30 20

1706654 26 10

1706718 30 10

1707956 24 1

1708030 2 17

1708030 6 17

1708030 10 17

1708030 16 23

1708030 26 36

1708030 30 36

1708352 10 34

1708511 28 41

1709327 28 26

1709941 20 16

1709941 22 30

1709941 24 16

1710703 20 32

1710703 22 27

1713091 4 8

1713091 8 18

1713091 18 21

1713523 12 23

1713523 14 23

1713523 20 15

1713523 22 28

1713523 24 15

1713540 18 1

1713621 4 9

1713621 8 19

1713621 18 20

1713623 12 27

1713624 4 10

1713624 8 17

1713624 14 26

1713624 18 22

1713634 20 44

1713634 22 31

1713634 24 32

1714255 10 6

1714817 4 11

1714817 8 11

1714817 18 15

1714817 20 37

1714817 22 19

1714817 24 37

1714911 2 18

1714911 6 18

1715018 4 12

1715018 8 12

1715018 12 18

1715018 14 18

1715785 12 25

1716853 10 3

1716853 16 19

1716875 8 25

Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No.

TP 400-2157-00-AT-SMA

Part Number Index by Page Number

1716875 12 40

1717101 10 13

1717104 12 16

1717104 14 16

1717105 12 12

1717105 14 12

1717106 12 17

1717106 14 17

1717107 12 10

1717107 14 10

1717108 10 18

1717109 12 28

1717109 14 27

1717123 12 26

1717123 14 25

1717143 8 23

1717143 12 38

1717145 12 43

1717146 12 2

1717146 14 2

1717289 8 26

1717289 12 41

1717291 12 14

1717291 14 14

1717291 22 48

1717297 8 30

1717580 32 45

1717618 32 1

1718214 8 32

1718214 14 37

1718215 8 31

1718215 14 36

1718295 8 8

1718295 12 7

1718295 14 7

1718295 18 9

1718295 20 29

1718295 22 11

1718295 24 29

1718303 22 14

1718304 22 15

1916622 32 10

1916950 4 14

1916950 8 2

1916950 18 19

1916950 20 39

1916950 22 23

1916950 24 39

1916950 28 18

1916950 32 22

1916964 32 11

1916965 4 15

1916965 8 1

1916965 18 18

1916965 20 38

1916965 22 22

1916965 24 38

1916965 28 19

1916965 32 21

1917356 2 19

1917356 4 16

1917356 6 19

1917356 8 10

1917356 8 28

1917356 10 19

1917356 12 20

1917356 14 20

1917356 16 12

1917356 18 12

1917356 20 11

1917356 22 25

1917356 24 11

1917356 26 34

1917356 28 16

1917356 28 35

1917356 30 34

1917356 32 32

1917372 2 20

1917372 4 17

1917372 6 20

1917372 8 9

1917372 10 20

1917372 12 19

1917372 14 19

1917372 16 13

1917372 18 11

1917372 20 12

1917372 22 40

1917372 24 12

1917372 26 35

1917372 28 15

1917372 28 34

1917372 30 35

1917372 32 31

1918199 28 13

1918199 32 29

1918213 28 14

1918213 32 30

1918431 10 10

1918447 32 24

1919326 12 9

1919326 14 9

1919326 20 3

1919326 22 13

1919326 26 22

1919326 30 22

1919381 18 28

1919381 20 6

1919381 22 36

1919381 24 6

1919438 12 13

1919438 14 13

1919438 20 17

1919438 22 16

1919438 24 17

1920397 16 3

1920397 26 40

1920397 30 40

1920415 2 21

1920415 6 21

1920415 16 21

1921210 26 32

1921210 28 28

1921210 30 32

1921210 32 26

1921221 20 2

1921221 22 24

1921221 24 2

1921319 20 40

1921319 22 33

1921319 24 40

1921333 12 8

1921333 12 15

1921333 14 8

1921333 14 15

1921333 22 12

1921958 32 13

1921959 2 23

1921959 6 23

1921959 10 23

1921959 16 5

1921959 26 2

1921959 30 2

1921969 10 21

1921969 20 36

1921969 22 17

1921969 24 36

1921969 26 28

1921969 30 28

1921971 4 18

1921971 8 33

1921971 18 13

1921977 28 25

1921977 32 46

1922755 10 39

1922755 12 36

1922755 14 35

1922755 22 5

1922918 32 15

1923325 20 20

1923325 22 2

1923325 24 20

1923325 28 17

1923325 32 33

1923341 2 24

1923341 6 24

1923341 16 18

1923341 26 37

1923341 28 8

1923341 30 37

1923362 4 19

1923362 8 13

1923362 18 24

1923362 20 14

1923362 22 38

1923362 24 14

1923362 28 1

1923362 32 42

1924009 10 24

1924009 16 33

1924009 26 5

1924009 28 9

1924009 30 5

1924356 10 36

1924361 2 25

1924361 6 25

1924361 16 14

1924856 18 25

1924874 2 26

1924874 6 26

1924874 10 26

1924874 16 11

1924874 20 41

1924874 24 41

1924940 2 27

1924940 4 20

1924940 6 27

1924940 8 34

1924940 10 27

1924940 12 22

1924940 14 22

1924940 16 22

1924940 16 26

1924940 18 14

1924940 20 35

1924940 22 18

1924940 24 35

1924940 26 24

1924940 28 24

1924940 30 24

1924940 32 47

1925003 2 28

1925003 6 28

1925003 10 28

1925003 16 41

1925003 20 8

1925003 22 32

1925003 24 8

1925205 28 29

1925205 32 38

1926110 28 11

1926110 32 27

1927120 28 39

1927531 20 47

1927531 22 3

1927531 24 43

1927557 2 29

1927557 6 29

1927557 10 29

1927557 12 35

1927557 14 34

1927557 22 4

1927557 26 6

1927557 30 6

1928691 2 30

1928691 6 30

1928691 10 30

1928691 16 30

1928691 26 25

1928691 30 25

1928731 26 19

1928731 30 19

1928919 28 43

1928919 32 6

1930591 8 24

1930591 12 39

1930600 4 21

1930600 8 21

1930600 18 34

1930641 2 31

1930641 6 31

1930641 10 31

1930641 16 4

1930641 26 12

1930641 28 6

1930641 30 12

1931277 4 22

1931277 8 5

1931277 10 40

1931277 12 4

1931277 14 4

1931277 18 6

1931277 20 27

1931277 22 8

1931277 24 27

1931333 2 32

1931333 4 23

1931333 6 32

1931333 8 22

1931333 10 32

1931333 12 37

1931333 14 1

1931333 16 7

1931333 18 4

1931333 20 25

1931333 22 6

1931333 24 25

1931333 26 15

1931333 30 15

1931334 26 38

1931334 30 38

1931337 4 13

1931337 8 16

1931350 28 21

1931350 32 44

1931355 2 33

1931355 6 33

1931355 10 33

1931355 16 9

1931648 20 28

Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No.

TP 400-2157-00-AT-SMA

Part Number Index by Page Number

1931942 10 7

1933263 2 34

1933263 6 34

1933263 12 46

1933263 16 24

1933468 4 24

1933468 8 15

1933896 4 25

1933896 8 7

1933896 12 6

1933896 14 6

1933896 18 8

1933896 20 31

1933896 22 10

1933896 24 31

1933988 2 35

1933988 6 35

1933988 10 35

1933988 16 37

1933988 26 13

1933988 28 45

1933988 30 13

1933988 32 7

1935048 8 27

1935048 12 42

1935048 16 1

1935255 28 36

1935255 32 8

1960223 12 31

1960223 14 30

1960223 18 30

1960223 20 21

1960223 22 44

1960223 24 21

1960233 8 29

1960233 12 1

1960251 2 36

1960251 6 36

1960251 16 25

1960252 2 37

1960252 6 37

1960252 10 37

1960252 16 2

1960256 2 38

1960256 6 38

1960256 10 38

1960256 16 39

1960268 26 18

1960268 30 18

1960318 18 29

1960318 20 5

1960318 22 37

1960318 24 5

1960318 28 30

1960318 32 37

1960339 10 25

1960346 26 3

1960346 28 4

1960346 30 3

1960373 12 44

1960373 22 43

1960373 28 22

1960404 4 26

1960404 8 6

1960404 12 5

1960404 14 5

1960404 18 7

1960404 20 30

1960404 22 9

1960404 24 30

1960472 2 22

1960472 6 22

1960472 16 8

1960486 28 27

1960486 32 48

1960565 10 42

Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No. Part No. Page No Ref No.

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

01/4 3/4

1/2 11/4 3/4

1/2 21/4 3/4

1/2 31/4 3/4

1/2 4

Simplicity Turbo Collectors 1692626 Users Manual TP 400 2157 00 AT SMA

1692714 88cd8540-8770-4dcd-a8e5-b20213713062

1692714 to the manual 88cd8540-8770-4dcd-a8e5-b20213713062

Navigation menu

Versions of this User Manual:

Views

Navigation
