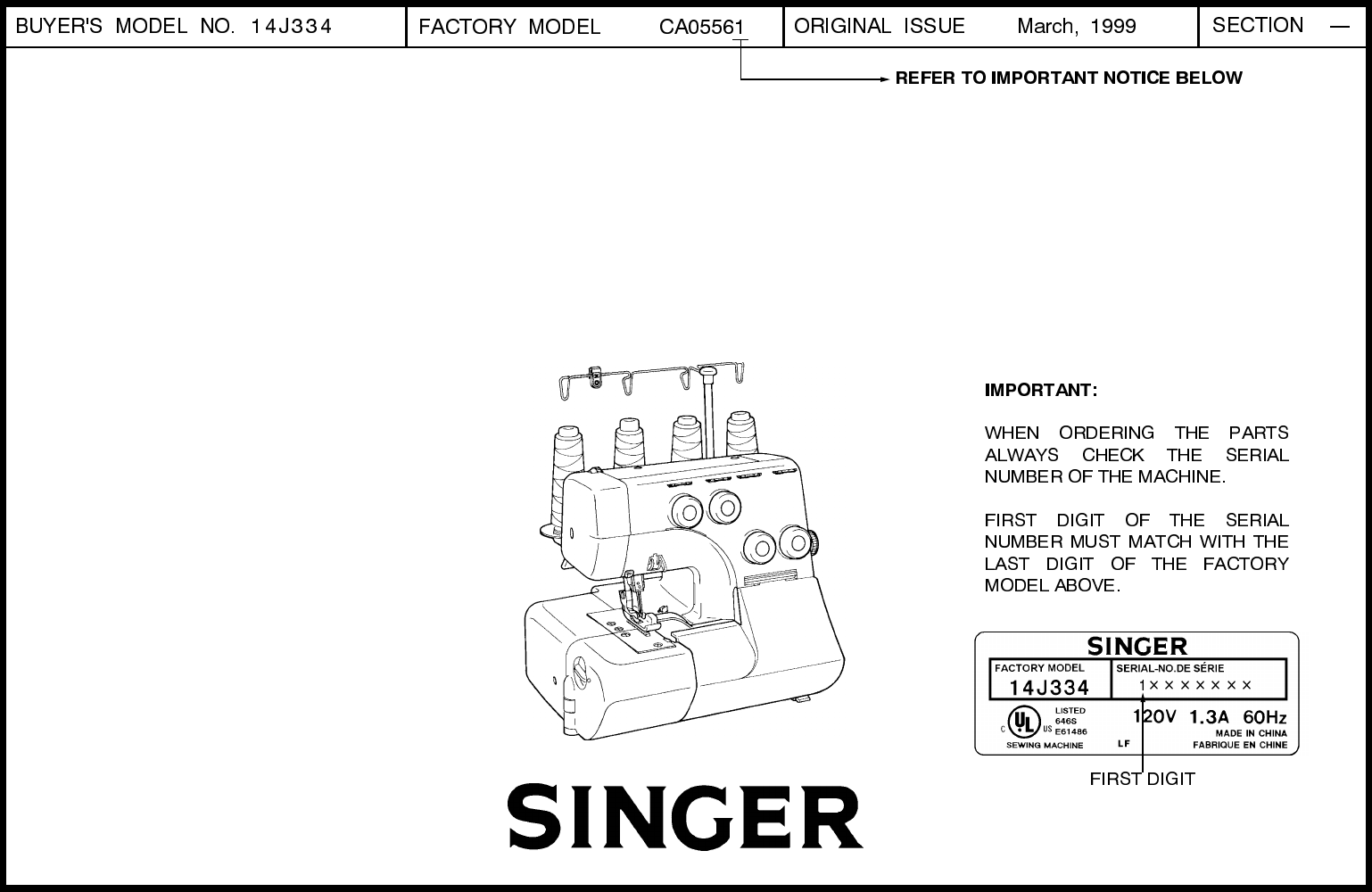

PARTS LIST
FOR
SERGER MODEL 14J334
PART NO.69956
1
2
3
4
5
6
7
8
9
10
11
August,2000
SERIAL NO.
14J334
CA 05561
March,1999
SERGER MODEL 14J334
72395
72840
72757
72842
58024
64618
77042
72871
72879
65736
61225
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
12-1
72891
72875
58024 TAPPING SCREW
61225 M4 PHILIPS SCREW
64618 TAPPING SCREW
65736 M4 PHILLIPS SCREW
72395 THREAD GUIDE
72757 THREAD GUIDE (A)
72840 SPONGE
72842 THREADING SHEET
72871 MOUNTING BRACKET
72875 THREAD GUIDE PLATE
72879 THREAD GUIDE
72891 THREAD GUIDE
77042 M4 PHILIPS SCREW
August,2000
SERIAL NO.
14J334
CA 05561
March,1999
SERGER MODEL 14J334
72344
79002
72726
72892
72761
72350
72351
72348
72349
8400
39160
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
12-2
72369
72344
72726
55599
72761
72749
72350
72351
72348
8400
72347
72344
79002
72726
55599
72761
72749
72351
72350
8400
72347
72344
72726
55599
72892
72761
72749
72351
72830
8400
72347
72831
72350
50977
50978
50979
50980
39160
72369
55599
72749
72347
79002
72892
72892
79002
8400 E5 CLIP-ON-WASHER
39160 TAPPING SCREW
50977 D.T. DIAL ASSEMBLY
50978 D.T. DIAL ASSEMBLY
50979 D.T. DIAL ASSEMBLY
50980 D.T. DIAL ASSEMBLY
55599 SPRING PIN
72344 SHAFT
72347 PRESSER DISC RECEIVER
72348 COMPRESSION SPRING
72349 COMPRESSION SPRING
72350 TOOTHED WASHER
72351 TORSION SPRING
72369 D.T. GUIDE PLATE
72726 DIAL TENSION DISC (B)
72749 DIAL TENSION DISC (A)
72761 PRESSER DISC
72830 COMPRESSION SPRING
72831 COMPRESSION SPRING
72892 BUSHING
79002 D.T. DIAL
13
14
