S556 Operators Manual
SCS
INSTASCAN SCANNER
MODEL S556
OPERATIONS MANUAL
Single Chip Systems
10905 Technology Place San Diego, CA 92127
Phone: 858-485-9196 Fax: 858-485-0561
www.scs-corp.com
info@scs-corp.com
ii
The products and programs described in this Operations Manual
are licensed products of SCS. This Operations Manual contains
proprietary information protected by copyright and this
Operations Manual and all accompanying hardware, software,
and documentation are copyrighted.
SCS does not warrant that the hardware will work properly in
all environments and applications, and makes no warranty and
representation, either implied or expressed, with respect to the
quality, performance, or fitness for a particular purpose.
Information in this Operations Manual is subject to change
without notice and does not represent a commitment on the part
of SCS. SCS assumes no responsibility for incidental damage that
may result do to any inaccuracies that may be contained in this
Operations Manual.
SCS makes no commitment to update or keep current the
information in this Operations Manual, and reserves the right to
make changes to this Operations Manual and/or product
without notice.
No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including
photocopying, recording, or information storage and retrieval
systems, for any purpose other than the purchaser's personal
use, without the express written permission of SCS.
This document represents a version 100144-2 of the Operations
Manual. As a result, some items described herein may not
currently be available.
IBM is a registered trademark of International Business Machines Corporation.
MS-DOS and Windows are registered trademarks of Microsoft Corporation.
All other trademarks or registered trademarks listed belong to their respective
owners. InstaScan and Dura-label are trademarks of SCS Corporation.
Version 100144-2 September, 1999
Copyright 1999 SCS 10905 Technology Place San Diego, California 92127
iii
Contents
Chapter 1-- Introduction.......................................................................1
Advantages ................................................................................2
S556 InstaScan Scanner............................................................4
Conventions in This Manual.....................................................5
What Else You Need..................................................................5
Summary of Chapters................................................................6
Chapter 2 -- Installation........................................................................7
Panel Information......................................................................8
InstaScan Scanner Installation Steps........................................9
Connecting External Antennas...............................................10
Placing the Antennas ..............................................................11
Connecting to a PC Serial Port...............................................12
Connecting to an AC Outlet ...................................................13
Configuring the Scanner .........................................................14
Aligning the Scanner...............................................................16
Installing Dura-labels..............................................................17
Reading Information from your Dura-labels...........................17
Loading Your Application.......................................................18
Chapter 3 -- RF Communications......................................................19
Signal Interference...................................................................20
Signal Attenuation/Reflections ...............................................21
Optimizing Performance.........................................................22
iv
Chapter 4 -- Troubleshooting.............................................................23
Solving Problems.....................................................................23
Contacting Customer Service..................................................25
Returning Your System...........................................................27
Chapter 5 -- Specifications.................................................................29
SCS Patents .............................................................................29
InstaScan Scanner Specifications............................................30
Page 1
Chapter 1
Introduction
he scanners and Dura-labels developed by SCS are state-of-
the-art data gathering and inspection systems that combine
sophisticated Interactive Identification technology in a
compact form factor. This unique synergy allows our system to
integrate seamlessly into and significantly increase productivity
for a wide range of applications and environments.
These systems consist of Dura-labels that are designed to store
information under extremely harsh environments without requiring
a battery and scanners capable of reading the Dura-labels.
Communications between the scanner and Dura-label are conducted
using a revolutionary two-way technology that provides superior
advantages over conventional communication methods. The specific
data being communicated, and the amount of interaction you have
with the scanner and Dura-label, may be determined by your
application.
T
Page 2
Advantages
Data-gathering systems such as bar code readers and conventional
Radio Frequency Identification products use one-way
communication: a sensor reads information from a device, without
any interaction between the two devices.
Moreover, bar code systems are subject to line-of-sight limitations.
As a result, airborne contaminants such as dust, dirt, oil, and mist, as
well as label damage and objects residing outside the line of sight,
result in inefficient and erroneous results.
The SCS Interactive Identification System overcomes
these restrictions by using state-of-the-art technology.
This technology allows the InstaScan and Dura-label to
conduct ongoing two-way communications that are not
restricted by line-of-sight constraints.

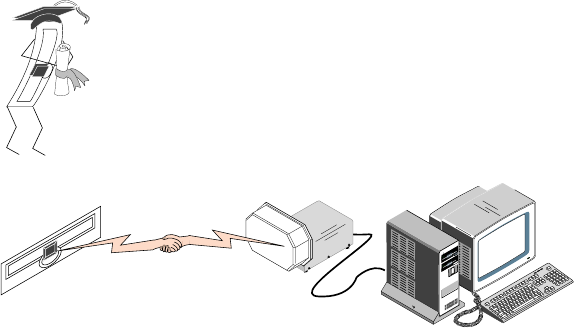

Figure 1. Interactive Identification Technology
Page 3
This unique capability allows:
Collective or selective data to be read from a single
Dura-label.
Collective or selective data to be read from multiple
Dura-label without requiring sorting or unpacking.
Classes of Dura-label to be filtered according to user-
defined criteria.
This technology employs a superior interrogation feature that
enables applications to uniquely identify all Dura-label in the
scan field, without misidentification or identifying the same
Dura-label multiple times.
It also uses a robust protocol that maintains a uniform per-Dura-
label scan time, regardless of the number of Dura-labels in the
scan field. The protocol provides a flexible software application
interface that can be customized to the specific needs of
particular industries and markets.
These unparalleled capabilities make our system an ideal
solution for asset and document management, inventory control,
ticketing, and other high-volume applications and
environments.
Page 4
S556 InstaScan Scanner
The S556 InstaScan Scanner is designed for applications or
configurations that require the scanner to be a considerable
distance from Dura-labels, or where a high volume of Dura-
labels are required to be read simultaneously. Conveyor Belt
applications are ideally suited to the scanner.
The scanner provides six pairs of coaxial connectors for
supporting up to six external antennas. Each antenna plugs into
its own set of connectors on the back panel of the scanner.

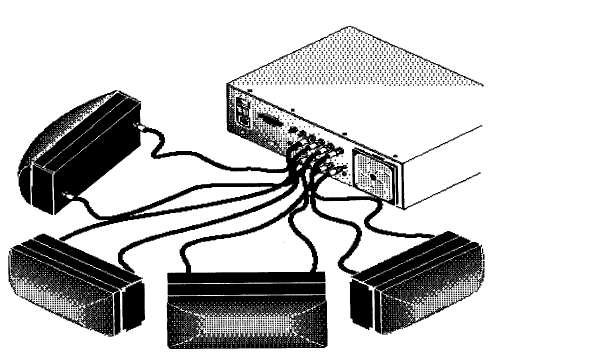

Figure 2 shows the S556 InstaScan Scanner.
Figure 2. S556 InstaScan Scanner
Page 5
Conventions in This Manual
This Operations Manual uses the following conventions:
Steps you are to perform are numbered. Any result that
occurs after performing a step appears below the step.
Text you are to type appears in a Courier typeface.
The carriage return key (designated as ↵ on some
keyboards) is referred to as the Enter key.
What Else You Need
To complete your system, you need an IBM or compatible
personal computer with the following system requirements:
486 processor or better
Compatible screen and keyboard
9-pin RS-232 port
MS-DOS version 3.3 or higher
OR
Windows 95
Windows users: 8 MB of RAM (12 MB recommended)
DOS users: 8 MB of RAM
FCC Part 90 Site License (U.S. Customers)
The applications you use to interface with this system may have
additional hardware and software requirements. For more
information, consult the manual that came with your
applications.
Page 6
Summary of Chapters
Besides Chapter 1, this Operations Manual contains the
following additional chapters:
Chapter 2, Installation – describes how to install the
InstaScan and Dura-label.
Chapter 3, RF Tips – provides information on radio
frequency (RF) communications.
Chapter 4, Troubleshooting – describes how to identify,
resolve, and avoid problems when using the InstaScan
and Dura-label. This chapter also contains Customer
Service information and merchandise return
instructions.
Chapter 5, Specifications – lists InstaScan specifications.
Page 7
Chapter 2
Installation

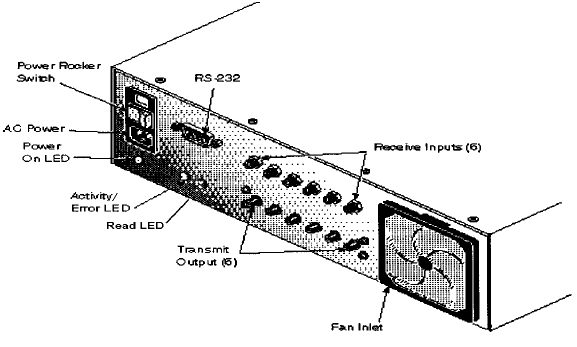

The InstaScan provides the connectors and LEDs described in
the following sections and shown in Figure 3.
Figure 3. InstaScan Scanner
Page 8
Panel Information
The InstaScan’s front panel has three LEDs that indicate power,
activity, and transmitter on (see Figure 3). Table 1 describes the
meanings of the InstaScan LEDs.
The InstaScan’s front panel has an On/Off switch located below
the Power ON LED (see Figure 3).
In the ON position, the red Power ON LED should go
ON, indicating that the InstaScan is receiving power.
If the OFF position, the InstaScan is not receiving power,
even if the connected to the power outlet.
Table 1. InstaScan Scanner Led Meanings
LED Color Status
Power ON Red ON = InstaScan is turned on and
receiving power from an AC outlet.
Activity/Error Yellow Flicker = InstaScan detects Dura-
label information.
Constant Flickering with no Dura-
label in the scanning field = Noisy
environment or possible interface,
resulting in diminished Dura-label
reading.
Transmit Green ON = InstaScan transmitter is on.
Page 9
InstaScan Scanner Installation Steps
1. Connect external antenna(s) – see page 10.
2. Place the antenna for optimum read operation – see page 11.
3. Connect the InstaScan to a computer serial port – see page
12.
4. Power-up the InstaScan – see page 13.
5. Configure the InstaScan – see page 14.
6. Align the InstaScan – see page 16.
Page 10
Connecting External Antennas

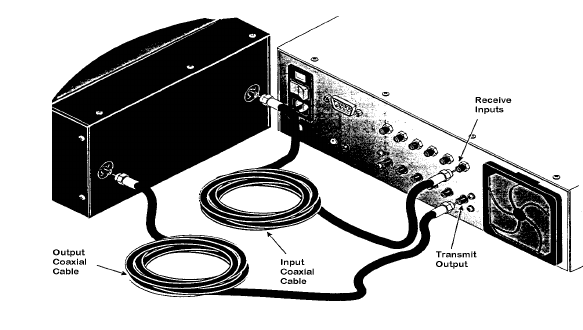

The front panel provides six pairs of coaxial antenna
Receive/Transmit connectors. Each pair of connectors
accommodates a single external antenna. Figure 4 shows the
external antenna connections to the scanner.
! The S556 can be used with fewer than six antennas. Install
antennas sequentially, starting with the right-most connector
pairs.
Figure 4. Antenna Connections
Page 11
Placing the Antenna
Antenna placement is critical to ensuring that information is
transmitted to and from Dura-labels accurately. Observe the
following guidelines when placing the antenna:
Locate the antenna away from metal objects, microwave
ovens, and other devices that may induce radio
frequency interference. In addition, make sure there are
no metallic surfaces between, or in relative proximity to,
the InstaScan and Dura-label. For additional placement
considerations, refer to “RF Communications” on page
19.
When reading, the InstaScan should be placed no more than 50
inches from the objects bearing the Dura-labels.
! Dura-labels must reside within the scan field for at least 10
milliseconds for information to be retrieved from them.
Page 12
Connecting to a PC Serial Port

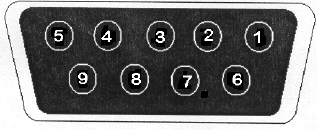

The scanner has a 9-pin female RS-232 connector that connects to
a serial port or RS-232 connector on an IBM or compatible
personal computer. The serial port can operate at 2,400 bps or
19,200 bps.
To make this connection, you need:
An appropriately configured serial cable.
One of the following adapters, if your computer’s serial
port does not have a 9-pin connector:
- A 15-pin to 9-pin adapter, if your computer has
a 15-pin serial port connector.
- A 25-pin to 9-pin adapter, if your computer has
a 25-pin serial port connector.
These adapters are available from most computer and
electronics stores.
Use the following procedure to connect the InstaScan to your
computer’s serial port.
1. Attach the male connector on the serial cable to the 9-pin
serial connector on the InstaScan front panel (see Figure 3).
2. Connect the other end of the cable to your computer’s serial
port. Use an adapter, if appropriate, to make this
connection.
Page 13
Connecting to an AC Outlet
The following procedure describes how to connect the InstaScan
to an AC Outlet.
1. Verify that the On/Off switch on the InstaScan front panel is
in the OFF position (see Figure 3).
2. Connect the power cord the front panel (see Figure 3).
3. Connect the other end of the power cord to an AC outlet.
4. Set the On/Off switch to the ON position. The Power ON
LED lights.
Page 14
Configuring the InstaScan Scanner
Use the following procedure to configure the InstaScan for
communications and verify that the RS-232 connection is
operating properly.
1. Insert the supplied Software Development diskette into an
available floppy disk drive.
2. If you are in Microsoft Windows, display an MS-DOS
prompt either by exiting to a DOS shell or exiting Windows.
3. At an MS-DOS prompt, switch to the floppy disk drive
containing the diskette, If the diskette is in drive A, for
example, type the following command at the MS-DOS
prompt and press the Enter key:
A:
4. Type the following command and press Enter:
cd \tools
5. Type the next command and press Enter:
CHKLINK if using COM1 or CHKLINK /C 2 if using
COM2
The following message appears on your computer screen:
SCANNER/PC LINK OK: VSxx:xx VHxx:xx
Where VSxx:xx is the InstaScan software version number
and VHxx:xx is the hardware version number.
! If you receive the error message “Problem with scanner/PC
link,” refer to page 23 for troubleshooting procedures.
Page 15
6. Type the following command and press Enter:
CHKREAD if using COM1 or CHKREAD /C 2 if using
COM2
A running series of zeros appear on your computer screen:
00 type <esc> to stop
.
.
00 Type <esc> to stop
7. Place the supplied Diagnostic Label in front of the antenna.
Do not place your finger over the Label. It should glow red
when powered. Removed Diagnostic Label from scanner
field.
8. Place an SCS Dura-label into the field. The Activity LED on
the InstaScan flickers and the display changes to a running
series of zeros and ones:
01 Type <esc> to stop
.
.
01 Type <esc> to stop
This indicates that the InstaScan is identifying Dura-labels
correctly and is ready for operation.
9. To exit CHKREAD, press the Esc key.
Page 16
Aligning the InstaScan
After verifying that the InstaScan is operating properly, use the
following procedure to align the InstaScan. Aligning the
InstaScan ensures optimal performance.
1. At the DOS prompt, type the following command and press
Enter:
CHKREAD or CHKREAD /C 2 if using COM2 Port.
A running series of zeros appear on your computer screen.
2. Hold an SCS Dura-label within the scanning area, at the
point where you intend to scan.
3. Adjust the position and orientation of the antenna mounting
until the display on your computer screen changes to:
01 Type <esc> to stop
.
.
01 Type <esc> to stop
.
.
01 Type <esc> to stop
4. To exit CHKREAD, press the Esc key.
5. Remove the Software Development diskette from the floppy
disk drive.
This completes the InstaScan Scanner installation procedure.
Page 17
Installing Dura-labels
Dura-labels have a diminutive form factor that allows them to be
installed in areas that cannot accommodate conventional RF
tags. In addition, Dura-labels can communicate with the
InstaScan without having to be in the line-of-sight. This unique
combination provides tremendous flexibility when determining
a location for placing Dura-labels.
When considering locations for installing Dura-labels, make sure
they are within 50 inches of the InstaScan antenna for at least 10
milliseconds, so data can be read from the Dura-label. Avoid
locations where metal or water is present because radio-
frequency communication does not penetrate metal and is
absorbed by water.
Reading Information from your Dura-labels
Once you have installed your Dura-labels, and have set-up your
InstaScan system, you are ready to begin.
Insert the Software Development Disk into you A: drive. Turn
your InstaScan power on. Type:
cd \tools
Then type the following command:
A: READ_ID /w 2
This will begin the “READ_ID” program which will display the
information programmed into Memory Word 2 from the Dura-
labels that pass through the scanner field. This memory location
contains your Dura-labels’ unique serial number or “ID”.
This program will continually read the unique serial numbers
from any labels that pass within 50 inches of the InstaScan.
Page 18
Loading Your Application
After you install your system according to the instructions in this
chapter, you can load your application and begin reading
information from the Dura-labels. Your application will
determine the amount of interaction you have with the InstaScan
Scanner and Dura-labels.
! If you will be developing applications designed to interface to your
system, refer to the Software Development Disk for programming
information.
Page 19
Chapter 3
RF
Communications
n general, devices that communicate using radio
frequency, such as your system , can be sensitive to signal
interference and signal attenuation. This chapter provides
tips for optimizing radio-frequency (RF) communications with
your InstaScan and Dura-label.
Topics in this chapter include:
Signal interference see page 20.
Signal attenuation see page 21.
Optimizing performance see page 22.
I
Page 20
Signal Interference
Signal interference is RF signals that interfere with the
information being exchanged between the Dura-label and the
InstaScan. Signal interference can severely diminish the
Scanner’s ability to read information from the Dura-labels. The
Activity LED on the InstaScan flickers constantly if the InstaScan
detects signal interference.
The source of the interfering signals may be:
An RF system, such as an RF local-area network (LAN) or
another Interactive Identification system, located close to
your system.
Security gates, garage doors, or similar devices that emit RF
signals.
Appliances such as microwave ovens.
The effects of these noise sources are localized and can be
eliminated by relocating the InstaScan or its antenna.
Your system’s communication capabilities are significantly
reduced when the noise level perceived by the system exceeds
the strength of signals received.
Page 21
Signal Attenuation/Reflections
Signal attenuation is the loss of signal strength that occurs
naturally over distances, but which can also be caused by RF
barriers in the signal path.
Examples of such barriers include:
Enclosed locations that have concrete walls, floors, and
ceilings.
Metal surfaces surrounding the antenna or Dura-label.
Water or other fluids surrounding the antenna or Dura-
label.
Almost every object (furniture, partitions, and people) in the
path of a signal causes some degree of attenuation. The effects
can be minimized by careful antenna placement.
The reflection from metal or metallic surfaces behind the Dura-
label can also affect signal attenuation. In some cases, this may
increase the read distance slightly, while inducing intermittent
“dead” spots within the read field that permit little or no
communication between the InstaScan Scanner and Dura-label.
! Dura-labels with similar orientations, placed within two inches of
each other, will have their read distance diminished by about 40%.
Page 22
Optimizing Performance
While it is not possible to predict how the system will perform in
any given environment, observing the following guidelines will
help optimize performance in your environments and
applications:
Carefully plan the placement of the InstaScan Scanner
antenna.
Consider the environment’s RF characteristics, including
construction materials, office plan (closed or open), and the
presence of windows and ducting. The RF field pattern, and
the reading distance, may be influenced by nearby metal
objects, such as appliances, equipment, metal wall framing,
and wire coat hangers.
Ensure that the InstaScan antenna is not pointed directly at
fluorescent lighting.
Ensure that objects containing Dura-labels are no more than
50 inches from the antenna and remain in the scan field for
at least 10 milliseconds.
To avoid mutual interference when installing more than one
Dura-label in the same object, allow a sufficient distance
between the Dura-label. The maximum interference occurs
when Dura-labels within the same object are within 2 inches
of each other and nearly equidistant from the InstaScan
Scanner antenna.
Never apply chemicals to the Dura-label. Certain chemicals,
such as alcohol, may have little or no effect at room
temperature, but may become corrosive at higher
temperatures.
Page 23
Chapter 4
Troubleshooti
ng
his chapter provides troubleshooting information you can
use in the unlikely event you have a problem with your
system. Customer Service information and merchandise
return instructions are included in this chapter.
Solving Problems
The following table identifies InstaScan Scanner and Dura-label
problems and provides suggestions for resolving the problem.
Table 2. Problem Solving
Problem Probable Cause Solution
The Power ON LED
does not light when you
turn on the scanner
The AC outlet may not
be working. Plug another electrical
appliance, such as a
lamp, into the outlet and
turn it on. If the
appliance does not
work, plug the scanner
into a different outlet.
The AC outlet may be
controlled by a wall
switch.
Set the wall switch to
provide AC power to the
outlet, or use an outlet to
be controlled by a
switch.
T
Page 24
Problem Probable Cause Solution
The Activity/Error LED
does not light when you
configure the scanner
You may have a faulty
Dura-label. Use your diagnostic
label to ensure the LED
is working.
Problem Probable Cause Solution
The Activity/Error LED
does not light when you
configure the scanner
The scanner may be
faulty. Use the CHKLINK and
CHKREAD utilities to
verify scanner operation
(see “Configuring the
InstaScan” on page 14).
The Antenna cable may
be faulty. Contact SCS Customer
Service (see page 25).
You receive an error
message when
configuring the scanner
The scanner may not be
turned on. Verify that the Power
ON LED is lit.
The scanner’s serial port
connection to your
computer may not be
secure.
Verify the scanner-to-
serial port connection. If
you are using a serial
port adapter, make sure
the adapter connections
are secure.
The Check programs are
accessing a different
Com Port than the one
connected.
Switch the serial cable to
Com Port 1 or use the
/C option after
CHKREAD or
CHKLINK to set the
Com Port being used.
Information could not be
read from the Dura-label The Dura-label may be
outside of the scanning
area.
Make sure the Dura-
label is no more than 50
inches from the scanner.
The Dura-label may
have passed too quickly
past the scanner.
Make sure the Dura-
label is in the scanning
area for at least 10
milliseconds.
Page 25
Problem Probable Cause Solution
Same as above, but the
Activity/Error LED
flickers constantly
RF Interference is
disrupting scanner-to-
Dura-label
communications.
See “RF
Communications” on
page 19 for suggestions
on improving
communications.
Contacting Customer Service
If you encounter a problem using your system that you cannot
resolve, contact Customer Service:
Before contacting CUSTOMER SERVICE, please have the
following information available:
1. InstaScan Scanner Information:
• InstaScan Model Number
• Serial Number, located on the bottom of InstaScan
• Any modifications made to the InstaScan or Dura-labels
system
• Location where system is installed
2. Computer Information:
• Computer Brand and Model number
• Processor speed and available RAM
• COM Port used
Page 26
" SCS Support (858) 485-9196
8:00 a.m. – 5:00 p.m. PST
Email – techsupport@SCS-Corp.com
Page 27
Returning Your System
If SCS Customer Service determines you need to return your
system for service, the Service Representative will give you a
Return Merchandise Authorization (RMA). Write this number
on the outside of the box containing the returned system, and on
a slip of paper inside the box, so your return can be processed
quickly.
Return only your InstaScan, antenna, cable, and adapter. Do not
return accessories, such as the Diagnostic Label or the diskette
containing the Scanner configuration program.
Follow these steps to return your InstaScan Scanner and
accessories for service:
1. Carefully pack your InstaScan Scanner and accessories in
the original static-protected bubble wrap and container. If
you no longer have the original container, use a protected
box.
2. Use filler material to cover the items in the box.
3. Add a note with the RMA number inside the package.
4. Write the RMA number and the word FRAGILE on the
outside of the package in large, legible writing.
5. Address the package to:
SCS Corporation
10905 Technology Place
San Diego, CA 92127
ATTN: RMA # ________ (indicate your RMA number here)
Page 29
Chapter 5
Specification
s
SCS Patents
SCS Corporation is currently holding the following patents.
There are multiple patents outstanding.
• #4,424,579
• #4,442,507
• #4,933,735
• #5,148,256
• #5,296,722
• #5,407,851
• #5,496,763
• #4,796,074
• #5,095,362
• #5,583,819
• #5,686,341
Page 30
• #5,856,788
• #5,963,144
InstaScan Scanner Specifications
LEDs: One Power ON LED, one
Transmit On LED, and one
Activity LED
Communication Method: RS-232
Serial transmission rate: 2,400 or 19,200 bps
Connector: One DB-9F for RS-232
communications
Pin assignments: Pin 1 – Not used
Pin 2 - Transmit Data (Input)
Pin 3 - Receive Data (Output)
Pin 4 - Internally connected to Pin 6
Pin 5 - Protective Ground
Pin 6 - Internally connected to Pin 4
Pin 7 - Internally connected to Pin 8
Pin 8 - Internally connected to Pin 7
Pin 9 - Protective Ground
Power jack: Internal Power Module, External
Power cable
RF Output Power: 5 Watts
Page 31
Power Consumption: 120 watts
Ambient operating 32° to 110° F (0° to 43° C)
temperature:
Approved standards: FCC Part 90
Maximum serial cable 30 feet (10 meters)
length:
Dimensions: 5.5” high x 16” wide x 14.5” length
(14 cm high x 40.6 cm wide x 36.8 cm
length)
Weight: 12 lbs. (5.5 kg.)
Page 32
Limited Warranty
SCS warrants its Dura-label to be free from defects in workmanship and
materials, under normal use and service, for a period of ninety (90) days from
receipt of products.
SCS warrants its InstaScan Scanner to be free from defects in workmanship and
materials, under normal use and service, for a period of ninety (90) days from
date of receipt.
If a product does not operate as warranted during its applicable warranty period,
SCS shall, at its option, repair the defective product or deliver to Customer an
equivalent product to replace the defective item. All products that are replaced
shall become the property of SCS. Replacement products may be new or
reconditioned. The warranty for replacement or reconditioned product is the
same as the equivalent newly purchased product.
SCS reserves the right to refuse to warranty repair any product that has been
subjected to any abnormal electrical, mechanical, or environmental abuse.
FCC Part 90 Compliance
The FCC has established rules that permit the Scanner and Label system to be
used within acceptable bounds of radio frequency emissions. Your Scanner and
Label system complies with Part 90 of the FCC Rules.
Operation of the Scanner and Label system is subject to the following conditions:
This device may not cause harmful interference; This device may accept any
interference received, including interference that may cause undesired operation.
This device complies with the limits for a Class B digital device, pursuant to Part
90. The Class B limits help ensure that this device provides reasonable protection
against harmful interference in residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions in this manual, may cause harmful interference
to radio communications.
Page 33
Radio Frequency (RF) exposure requirements for
operators of this device
Operators of this device must have knowledge of their RF exposure conditions in
order for the device to comply with FCC-adopted RF exposure limits for persons
in the “controlled exposure environment”. The average RF exposure for
operators is 5.0 mW/cm2, which requires them to maintain an estimated
separation distance of 22 cm or 8.5” from the transmitter, while in operation.
They should not remain closer than the suggested distance for any continuous 6
minute interval. Holding “Tags” in front of the transmitter for brief moments, at
closer than 8.5” is allowed provided the average exposure in any 6 minute
interval is less than 5.0 mW/cm2. For example, if an operator spends 50% of the
time with his/her hands or body closer than 8.5” to the transmitter while
spending the other 50% of the time at more than 15” away, the allowed RF
exposure limits will be satisfied. Operators should use their own judgment to
limit their exposure to the allowed RF exposure limits with control of exposure
conditions, separation distance from the transmitter, and duration of exposure.
While this device is in operation, nearby persons who have no knowledge of
being in the RF fields of this device should be at least 20” away from the
transmitter in order for this devise to be compliant with the FCC-adopted RF
exposure limits.
Disclaimer
Operation of any radio transmitting equipment, including the Scanner, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device if you have any
questions. Other electronic equipment may also be subject to interference.
