Sinocastel 215B OBD Smart User Manual
Sinocastel Co.,Ltd. OBD Smart
User Manual
IDD215B User Manual
1
IDD-215B User M
anu
al
(Rev.1
.0)
China Aerospace
Telecommunications (Shenzhen)
Ltd
September,
2016
IDD215B User Manual
2
Contents
Contents............................................................................................................................................................... 2
1. Introduction..............................................................................................................................................3
2. Specifications............................................................................................................................................4
2.1 External Interface........................................................................................................................... 4
2.2 Status Indicator.............................................................................................................................. 4
2.3 Technical Parameters..................................................................................................................... 5
3. Installation Instruction............................................................................................................................. 7
3.1 OBD Port.........................................................................................................................................7
3.2 Device Installation.......................................................................................................................... 8
4. Functions.................................................................................................................................................. 8
4.1 OBD Protocols................................................................................................................................ 8
4.2 Regular Diagnostic Data Reporting................................................................................................ 9
4.3 DTCs Reporting............................................................................................................................... 9
4.4 Diagnostic Functions...................................................................................................................... 9
4.5 Data storage/Supplementary Report in Dead zones..................................................................... 9
4.6 Trip Mileage....................................................................................................................................9
4.7 Trip Fuel Consumption................................................................................................................. 10
4.8 Driving behavior monitoring........................................................................................................ 10
4.9 Alarms and Events Reporting..................................................................................................... 10
4.10 Remote Configuration................................................................................................................10
5. Disclaimer............................................................................................................................................... 11
6. Warranty................................................................................................................................................ 12
7. Statement............................................................................................................................................... 13
IDD215B User Manual
3
1. Introduction
IDD-215B is an intelligent on-board diagnostic device with OBD II and J1939 compliant, it could read
various kinds of data including diagnostic info, mileage, fuel consumption and driving behavior, and
real-time display on Android and IOS devices via Bluetooth.
Packing
List
Parts
na
me Quantity
Not
e
IDD-215BOBD
Dongle
1
●
User Manual
1
●
OBD extension cable
1 ○
Note: ● Standard configuration ○ Optional configuration
(Optional accessories will not be included if there is no indication in the o
r
d
er
)
IDD215B User Manual
4
2. Specifications
2.1 External Interface

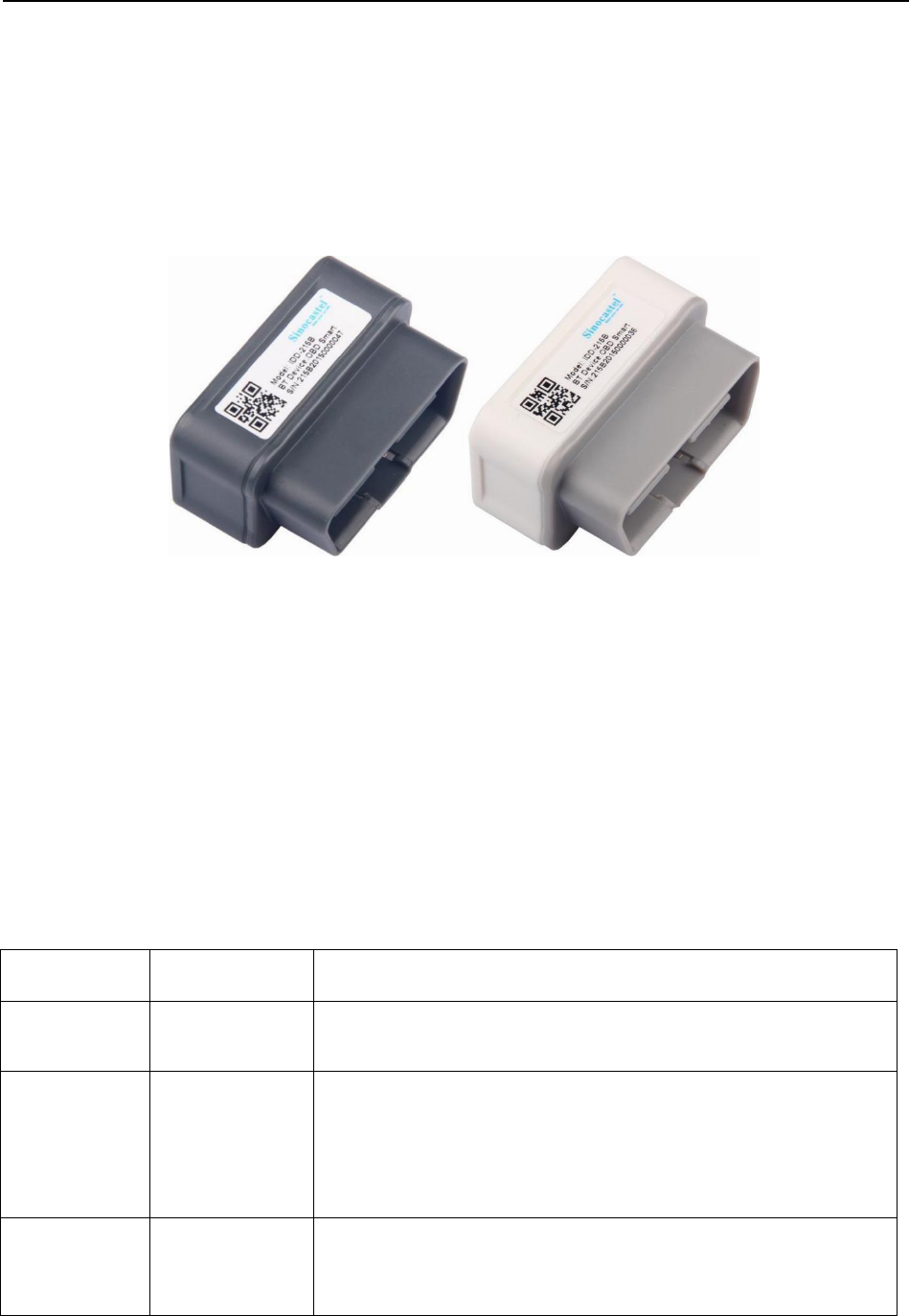

Product appearance as follows：
Standard
OBD Connector
It is used to connect to the 16 pin on-board Diagnostic Link Connector (DLC).
The
ve
hi
cle
OBD system is able to
communicate
with an external device
w
hi
c
h has the
same protocol via this connector.
2.2 Status Indicator
Indicator Color
Status
Power LED Red Solid on -normal work
Solid off: sleep status
Bluetooth Blue
Blinking every 1 time– wait for Bluetooth try to connect
Blinking every 2 times– Bluetooth connected successfully
Blinking every 3 times– connecting to the Bluetooth
Solid off – Bluetooth off
OBDLED Green
Blinking– Trying to
communicate
with on-board system
Solid on – Successful OBD communication
IDD215B User Manual
5
Solid off– No OBD
c
o
mm
uni
c
ation
2.3
Technical
Parameters
Mechanical
Size 28mm (L) x 44mm (W) x 26mm (H)
Weight 30g
Color White, Grey
Interface OBDII interface
Data transmission Bluetooth
Storage 8MB FLASH,store up to 200 hours trip data
OBD protocol
ISO 9141-2
ISO 14230-4
ISO 15765-4
SAE J1939
Power
Working Voltage 9-36VDC
Working Current
Average: <50mA@13.8VDC
Sleep mode: <10mA@12VDC
Bluetooth
Specification: Bluetooth low energy
Frequency: 2.4-2.48GHz
Modulation: GFSK
Range: 10m (Max. no shield)
Sensitivity: -93dBm@BLE
Antenna: built in
6 axis Acceleration/Gyroscope Driving behavior detection
LED Indication Bluetooth/OBD/Power indication
IDD215B User Manual
6
Accessories OBD II extension cable
Environment Working Temperature -30℃~ +70℃
Storage Temperature -40℃~ +85℃
Humidity 5%～95%（no frog）
7
IDD-215B
User Manual
3.
Installation
Instruction

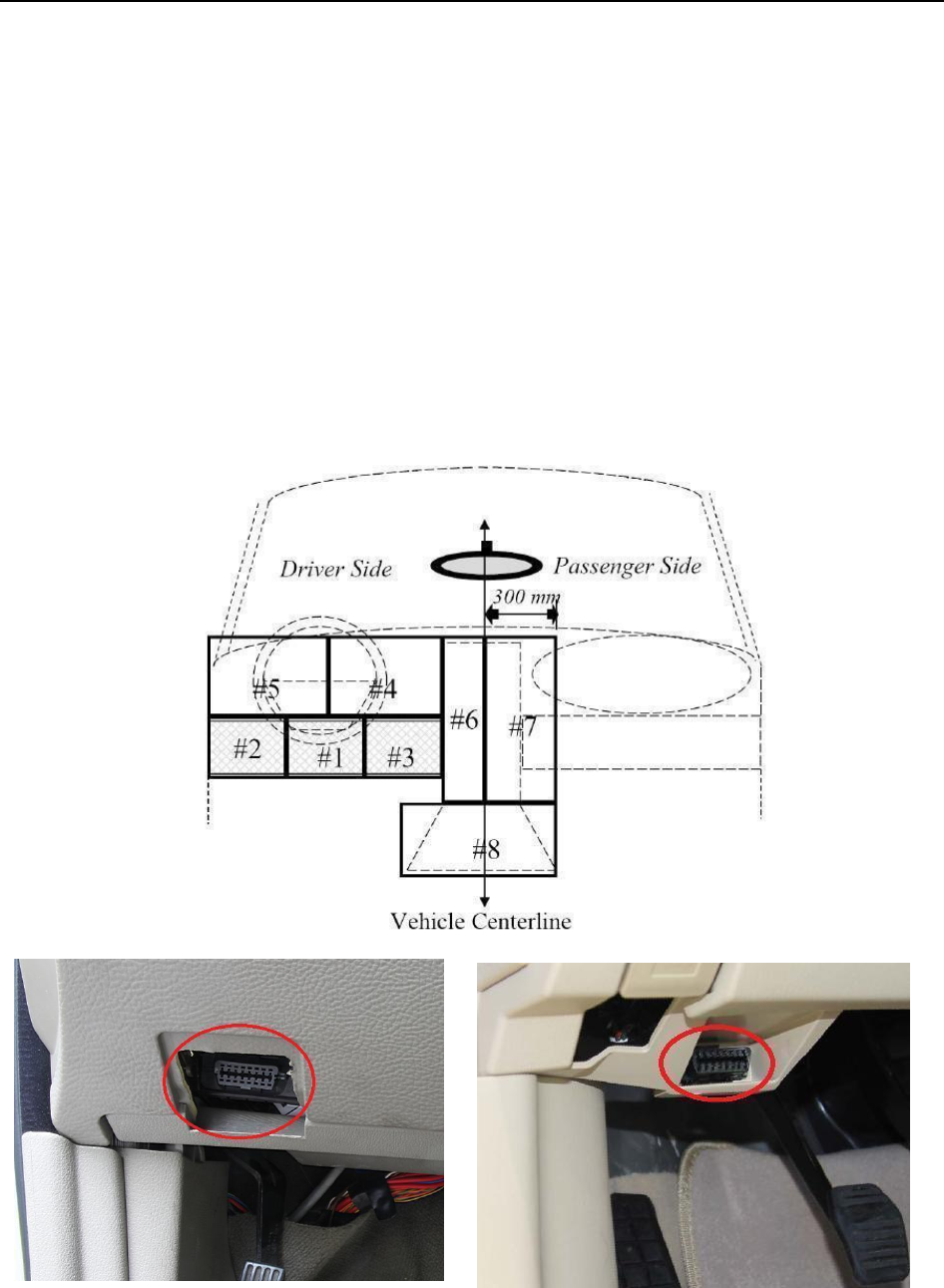

3.1 OBD Port
In general, the OBD port is located in the driver or passenger cabin, from the edge
of dashboard on driver s i d e to the border of 300mm.It i s easy to touch by sitting in
the driver's seat; the preferred location is within the area from steering post to the vehicle
center line.
8
IDD-215B
User Manual

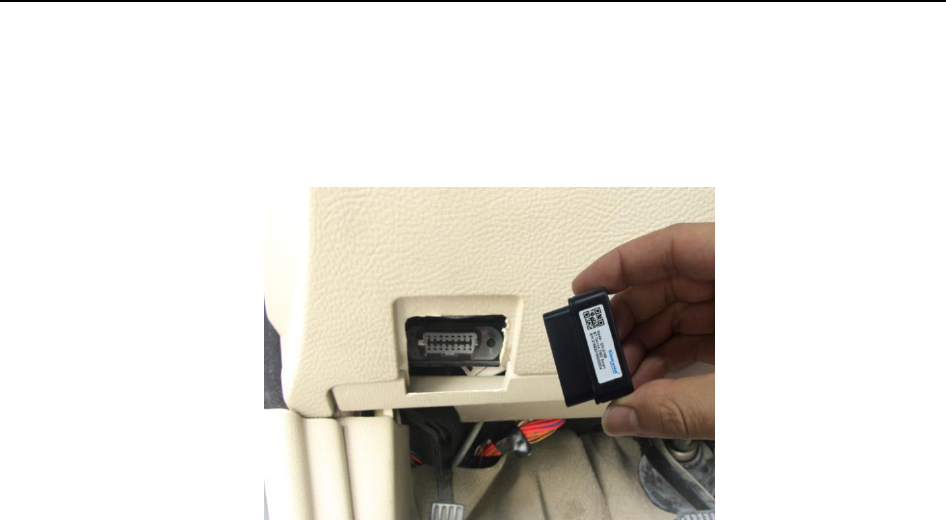

3.2 Device Installation
Plug the device into OBD po
rt
Start engine, with successful OBD communication the OBD light changes its status to solid
on. Then device begins to connect app, with successful network registration the Bluetooth light
change its status to b linking every 2 times.
4. Functions
4.1 OBD Protocols
The device supports all the OBDII standards below:
SAE J1939
ISO
9141
-
2
ISO 14230-4(KWP2000)
ISO15765-4(CAN)
9
IDD-215B
User Manual
4.2 Regular
Diagnostic
Data Reporting
Device is able to read variety of vehicle diagnostic data, including vehicle speed, engine RPM,
engine coolant temperature, mass flow air, etc, and reports up to 10 types of diagnostic data
according to configured
time
interval.
4.3 DTCs Reporting
Device is able to read vehicle pending and stored DTCs, and freeze frame data. The back end
server analyzes and displays the DTCs for users on time to avoid high repairing cost.
4.4
Diagnostic
Functions
The device is able to read vehicle pending DTCs and stored DTCs, freeze frame data and a
variety of diagnostic data. The back end server analyzes and displays the DTCs for users on
time to avoid high repairing cost.
It is also able to clear vehicle DTCs and MIL a
cc
o
r
ding to
customer’s
requirements.
4.5 Data
storage/Supplementary
Report in Dead zones
When there is no Bluetooth signal or Bluetooth signal is poor, GPS and OBD information
are stored, and reported after signal recovery.
4.6 Trip Mileage
At the end of the trip, device will report the driving mileage to the server.
IDD-215B
User Manual
10
4.7 Trip Fuel Consumption
At the end of the trip, device will report the fuel consumption to server.
4.8 Driving
behavior
monitoring
Real-time monitor bad driving behavior, including Speeding, High RPM, Hard Acceleration,
Hard Brake, Excessive Engine Idle Time
4.9 Alarms and Events Reporting
◇High ECT
◇Speeding
◇High RPM
◇Hard acceleration
◇Hard brake
◇Sharp turn
◇Quick lane changing
◇Crash
◇Vibration
◇Idle engine
◇Towing
◇Plug indication
4.10 Remote Configuration
Users can configure device via app.
IDD-215B
User Manual
11
5. Disclaimer
This user manual only applies to IDD-215B device.
This product only applies to the vehicles with OBDII/EOBD equipped.
This product strictly follows the standard of ISO
15031,
it shall not cause any harm or affect
Vehicles, if there is an
exception,
please remove the device immediately.
The device has a built-in wireless communication module .It should be used as far as possible
away from fuel depots ,chemical plants and other areas could cause an explosion. Most s
e
nsi
t
i
ve
t
o external RF sites (such as gas stations, hospitals and school, etc.) may be equipped with radio
frequency jamming equipment; some functions maybe affected in the interference area.
To make sure the products works well, please use the original accessories. This manual is
based on the “as-is” situation. Sinocastel will not guarantee the accuracy, reliability, content
of the hand book. Also Sinocastel reserves the right to a mend or drawn this manual without
any prior notification.

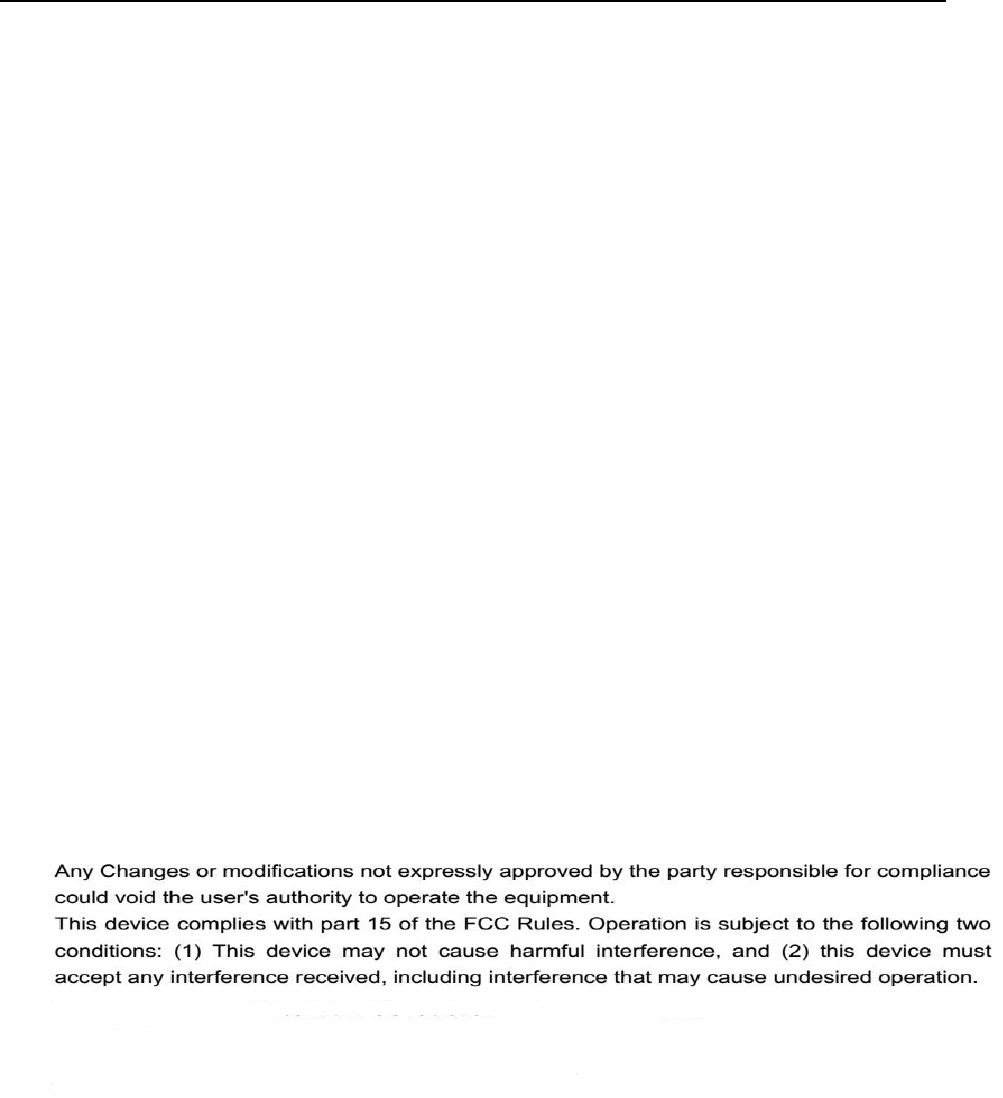

FCC warnings
This equipment should be installed and oprated with minimun distance 20cm between the radiator&your body.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment
IDD-215B
User Manual
12
6. Warranty
If product got quality problem with in the warranty period, please bring the product
together with avoid warranty card and purchase invoice to the dealer for checking. Please do not
disassemble this product, this may result in damage, Sinocastel will not be responsible for those
problem.
1 year of warranty since purchase time and life-long maintenance. For Failure or damage due
to incorrect operation or not following the instruction, Sinocastel will provide paid
maintenance within warranty period.
User name:
Contact number:
Address:
Post code:
Purchasing date:
Serial number:
Remark:
Please keep this card carefully in order to
better
serve you.
Distributor (Company Chop)
Product Model
Maintenance
Records
IDD-215B
User Manual
13
Date
Faults
and
maintenance
of records Maintenance
(Signature)
Us
er
(Si
g
natu
re
)
Fault
Description Maintenance
Note: This form must be carefully completed.
7. Statement
Without written permission from Sinocastel, it is prohibited reproduce,
transmit, distribute or save part oral of the contents of this document in any form.
Sinocastel re
s
erve
sthe rights to modify or improve these products without any prior
notification.
Sinocastel reserves the rights to change or cancel the content of this document without
any prior notification.
All rights reserved by Sinocastel Co.,Ltd
Address: 5/F, 5th Building, Software
Park,
Postcode: 518057
Tel: (86)755-86156349
Fax: (86)755-86169366
http://www.sinocastel.com
No.2 Gaoxin C.3rd Road Hi-Tech.Industrial Part,Shenzhen,China.
