Sinocastel PT718 Personal Tracker User Manual PT 718 Personal Tracker Guide
Sinocastel Co.,Ltd. Personal Tracker PT 718 Personal Tracker Guide
User manual
Sinocastel Co.,Ltd.
PT-718 Personal
Tracker Guide
Sinocastel Co.,Ltd
1
Content
1. Summarize ................................................................................................................................................. 2
2. Overview ..................................................................................................................................................... 2
3. Accessories ................................................................................................................................................ 2
4. LED Status ................................................................................................................................................. 3
5. Buttons ........................................................................................................................................................ 4
6. Interfaces .................................................................................................................................................... 4
7. Features ...................................................................................................................................................... 5
8. APP Download& Installation ................................................................................................................... 5
9. APP Operation of Personal User ............................................................................................................ 6
9.1 Registration ..................................................................................................................................... 6
9.2 Log in ............................................................................................................................................... 6
9.3 Account Safety ............................................................................................................................... 7
9.4 Bound Equipment .......................................................................................................................... 7
9.5 Tracker Parameters Setting ......................................................................................................... 8
9.6 Synchronization between Tracker and APP .............................................................................. 8
9.7 Others .............................................................................................................................................. 9
Claim ................................................................................................................................................................. 11
Sinocastel Co.,Ltd
2
1. Summarize
PT-718 is an individual GPS tracker developed by CASTEL. It adopts 2 communication
modes: GPRS and SMS. PT-718 can be precisely located, easily operated. It is easy to
take with good appearance. It adopts terminal+ APP+ cloud system to manage GPS data
scientifically, which suits for the old& children in family, community and school.

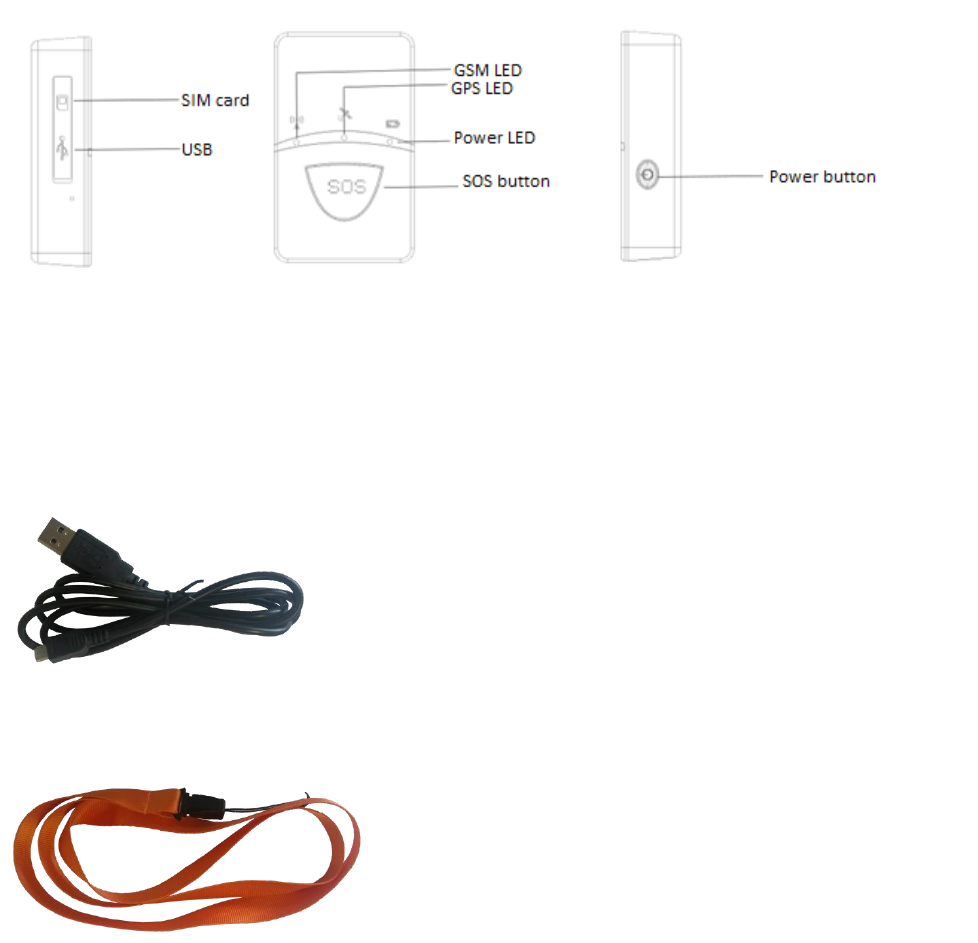

2. Overview
3. Accessories
Micro USB data cable: Use it to connect device with PC, by which you can upgrade its
firmware or charge the battery.
Strap: To adorn tracker.
Quick start guide
Sinocastel Co.,Ltd
3
4. LED Status

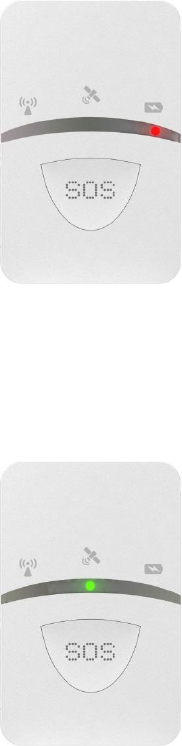

Power LED: Red
Solid on: Battery charging/GPS& GSM signal searching
Off: Battery charged/Device working(GPS&GSM LED are on)
Quick flashing: SOS alarm, 1s flashing, 20s duration
Slow flashing: low battery, 8s flashing
GPS LED: Green
Off: Power off/Positioning
Flashing: GPS located, 2s flashing
GSM LED: Yellow
Off: SIM card in tracker is registering to network.
Flashing: SIM card has registered to network, 2s flashing. It means tracker can upload
relative GPS data to APP and cloud.
Sinocastel Co.,Ltd
4

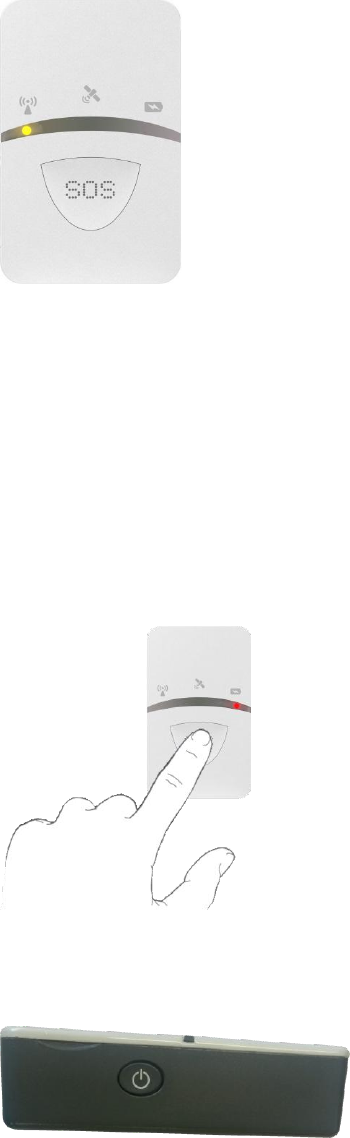

5. Buttons
SOS button: If meets emergency situation and needs assistance, user can press SOS
button for 3s, then red LED will flash per 1 second and last for 20 seconds. At the same
time, tracker will send emergency alarm to relative emergency contactor, which is preset by
user when registers the APP account. In alarm, position is included so that emergency
contactor can locate users quickly.
Power button: To power on/off the tracker. Long press it until red LED turns on, tracker is
powered on; Long press it until all LED turns off, tracker is powered off.
6. Interfaces
Micro USB: Battery charge/firmware upgrade. Connect with PC to upgrade firmware,
connect with mobile phones power adaptor to charge battery.
Sinocastel Co.,Ltd
5
SIM card slot: It supports Micro SIM card only, or it will be damaged; It does not support
CDMA card.
7. Features
Timing positioning: In normal working mode, tracker can upload GPS information to
APP& cloud by preset time interval. The emergency contactor bound with tracker can
monitor in real time.
Geo-fencing: To monitor the activity range of carrier, PT-718 provide geo-fencing service.
User can specify a point and an effective radius to set a circle fence. When carrier moves
out the circle area, tracker will send SMS remind to emergency contactor and send alarm
to APP& cloud at the same time; The SMS contains current position of tracker and time so
that user can locate carrier in real time.
History tracking: When GSM signal is good, tracker’s position information will be
uploaded to APP& cloud; Otherwise, tracker will record position information and re-upload
by sequence after GSM network recovers. Therefore, all location information of the past
one month will be stored in device, user can inquiry history tracking by input time condition
if necessary.
Parameter setting: Main parameters of PT-718 are: emergency contactor, positioning time
interval, details please see APP introduction.
8. APP Download& Installation
Family users can download CASTEL APP to manage the tracker.

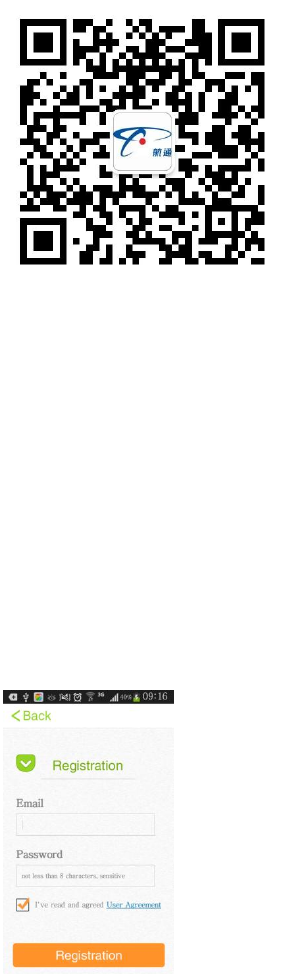

Scan below QR code to follow CASTEL Wechat public account, you can download APP
and get all required tracker services.
Sinocastel Co.,Ltd
6
9. APP Operation of Personal User
9.1 Registration
User should register& verify APP account by email. After verification, user can log in APP
and customize your own setting including: portrait, tracker’s name and tracking time interval
etc..
Notice: Before submits registration information, please read User Protocol carefully and
agree.
9.2 Log in

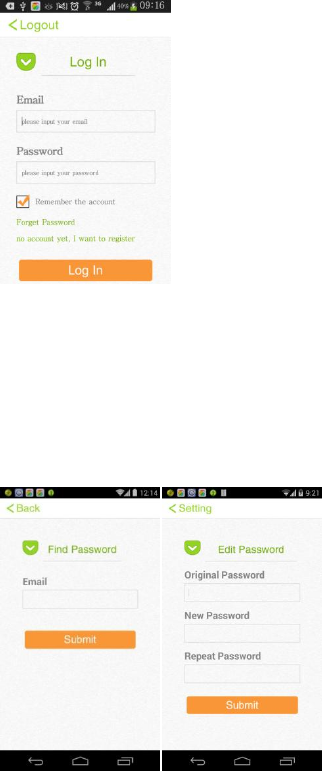

After account is registered successfully, user can log in with it immediately, and choose
whether let APP record account name and password.
Notice: For your account safety, we advise users don’t record account.
Sinocastel Co.,Ltd
7
9.3 Account Safety
If forgets password, user can find it back by registering email;
User can edit password by Setting-Password modify
9.4 Bound Equipment

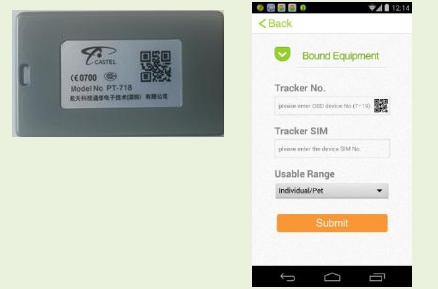

When user log in account first time, APP will remind user to bound device. User can bound
device by scanning the QR code on the label of device.
Meanwhile, CASTEL APP support users manage multi trackers in one account. If customer
has several trackers of CASTEL, such as personal tracker, pet tracker and motorcycle, they
can manage them in one account. Customer just need to click Add Device in APP and scan
the QR code in main unit .
Sinocastel Co.,Ltd
8
9.5 Tracker Parameters Setting
Positioning time interval：In Setting—>Time Interval of APP, user can set different
positioning time interval(range from 1minute to 60 minutes) as required. Time interval
determines trackers positioning frequency.
Notice: The bigger of the time interval you set, the higher frequency will tracker collects
location information, and the higher is the power consumption, also the shorter is the stand-
by time.
Tracker management: In Setting—>Tracker Management of APP, user can authorize
maximum 3 accounts to monitor a tracker, and modify data of tracker’s carrier such as age,
SIM card number in device and maximum 3 emergency contactors, which allows carrier
asking for help in case.
Reset to default: When user wants to reset tracker’s parameters, you can delete and reset
them one by one, or reset them to default value altogether.
9.6 Synchronization between Tracker and APP

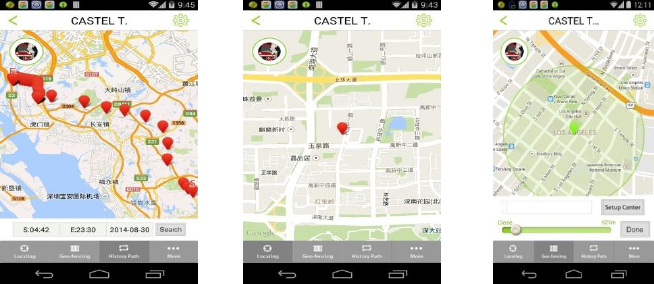

Timing positioning: User can check tracker’s real-time position in timing positioning
interface;
Geo-fencing: User can add a circle geo-fence in APP. Center of the circle can be set by
screen touch or value input; Radius is set by a slider which will show the value;
History tracking: User can inquiry the history track in APP by time duration(not more than
1 month) ; In history track route, letter ”S” is the start point while letter “E” is the end point.
Sinocastel Co.,Ltd
9
9.7 Others
Help: User can inquiry help document in Setting-->Help of APP;
Incident: User can look up alarm, SOS, low voltage, geo-fencing in Setting--> Incident of
APP.
Pay: User can pay the fees of SIM card and cloud in Setting-->Pay indoor without going
out.
